1. Addressing utility challenges with
MV/LV Monitoring and Control Solution
Jesper Klingsten Nielsen
Webinar 2014
© Landis+Gyr | 21 October 2014

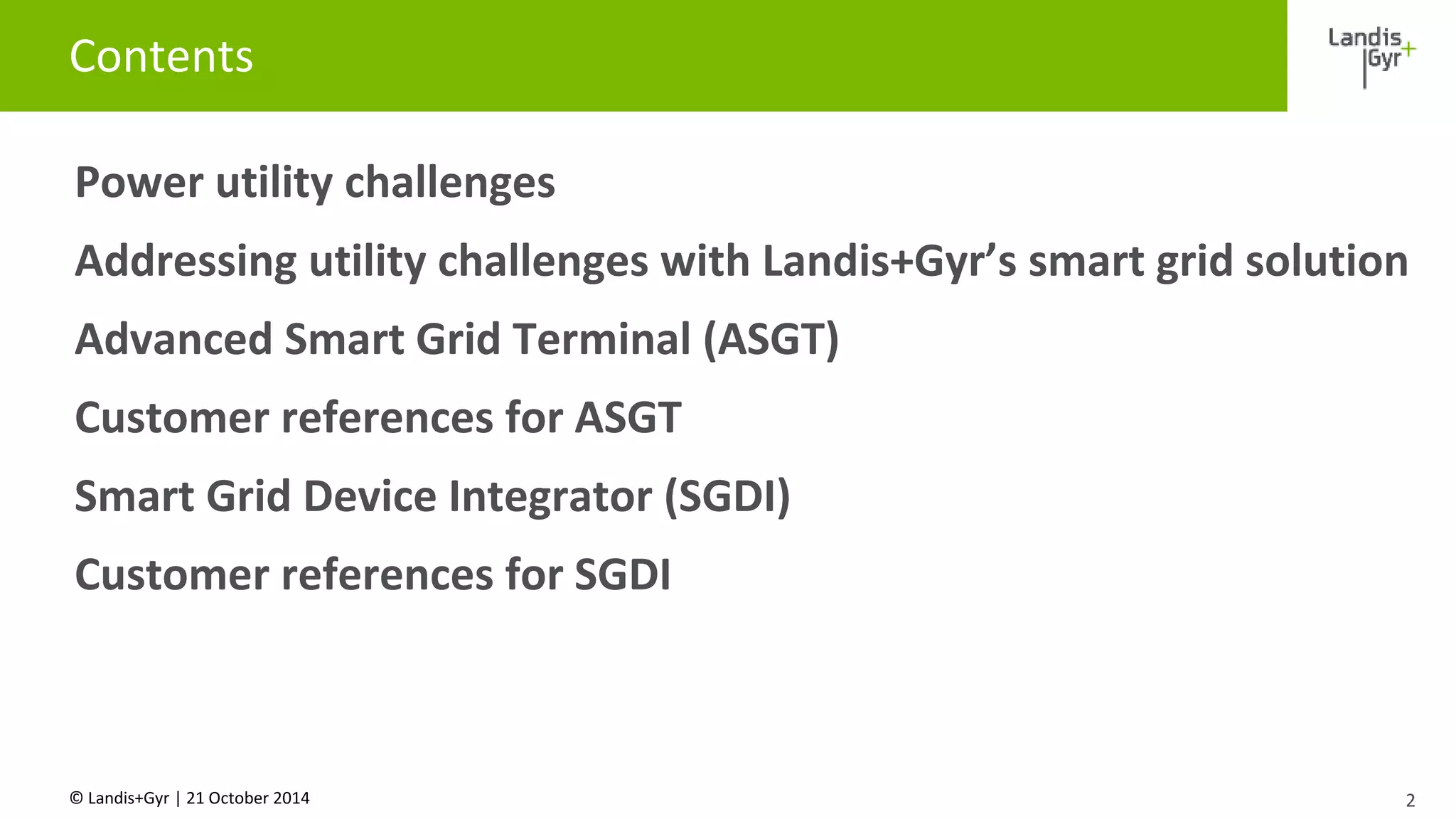

2. Contents
Power utility challenges
Addressing utility challenges with Landis+Gyr’s smart grid solution
Advanced Smart Grid Terminal (ASGT)
Customer references for ASGT
Smart Grid Device Integrator (SGDI)
Customer references for SGDI
© Landis+Gyr | 21 October 2014
2

3. 1. Power utility challenges
© Landis+Gyr | 21 October 2014

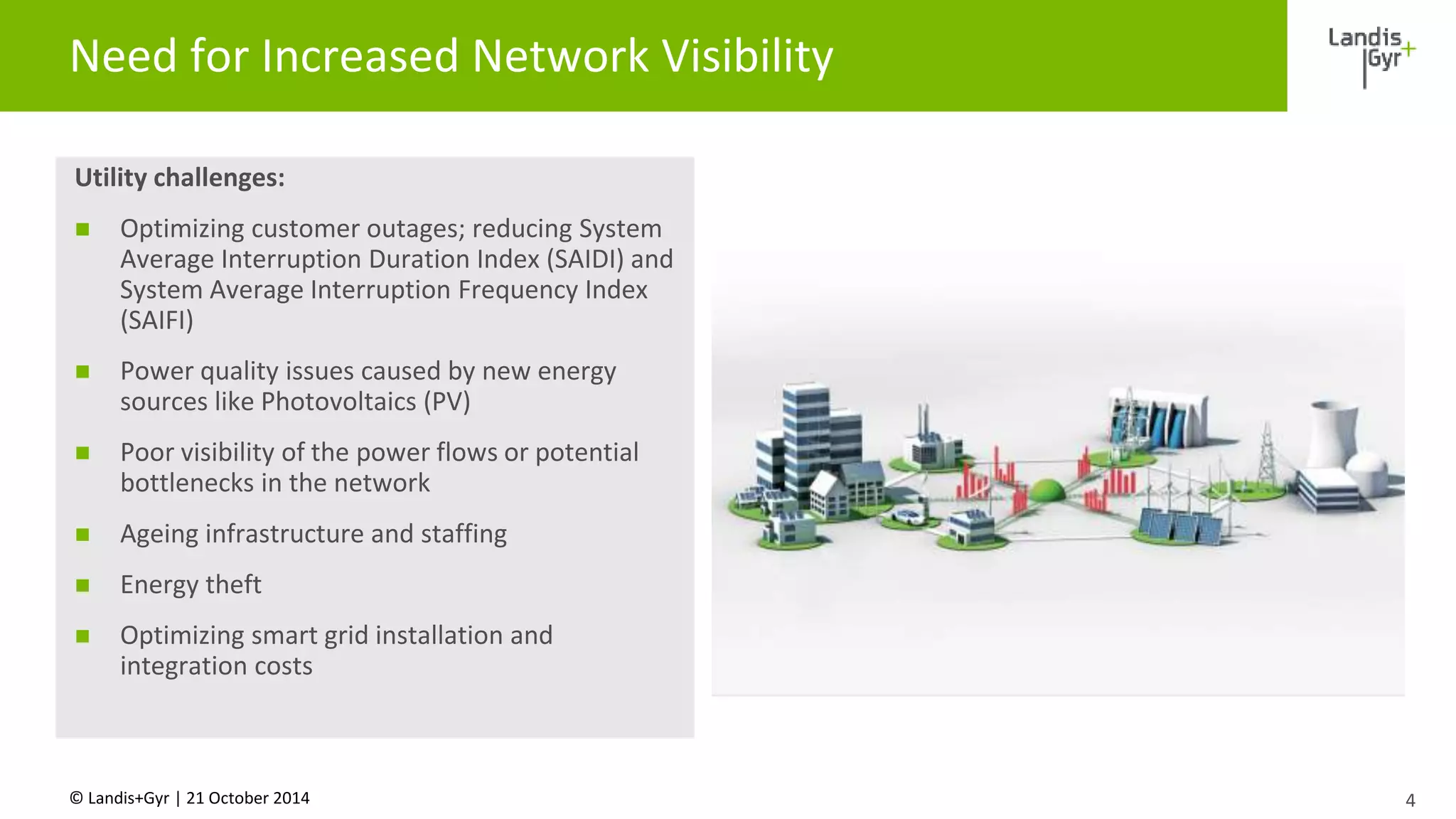

4. Need for Increased Network Visibility
Utility challenges:
 Optimizing customer outages; reducing System
Average Interruption Duration Index (SAIDI) and
System Average Interruption Frequency Index
(SAIFI)
 Power quality issues caused by new energy
sources like Photovoltaics (PV)
 Poor visibility of the power flows or potential
bottlenecks in the network
 Ageing infrastructure and staffing
 Energy theft
 Optimizing smart grid installation and
integration costs
© Landis+Gyr | 21 October 2014
4

5. 2. Addressing utility challenges with Landis+Gyr’s
smart grid solution
© Landis+Gyr | 21 October 2014

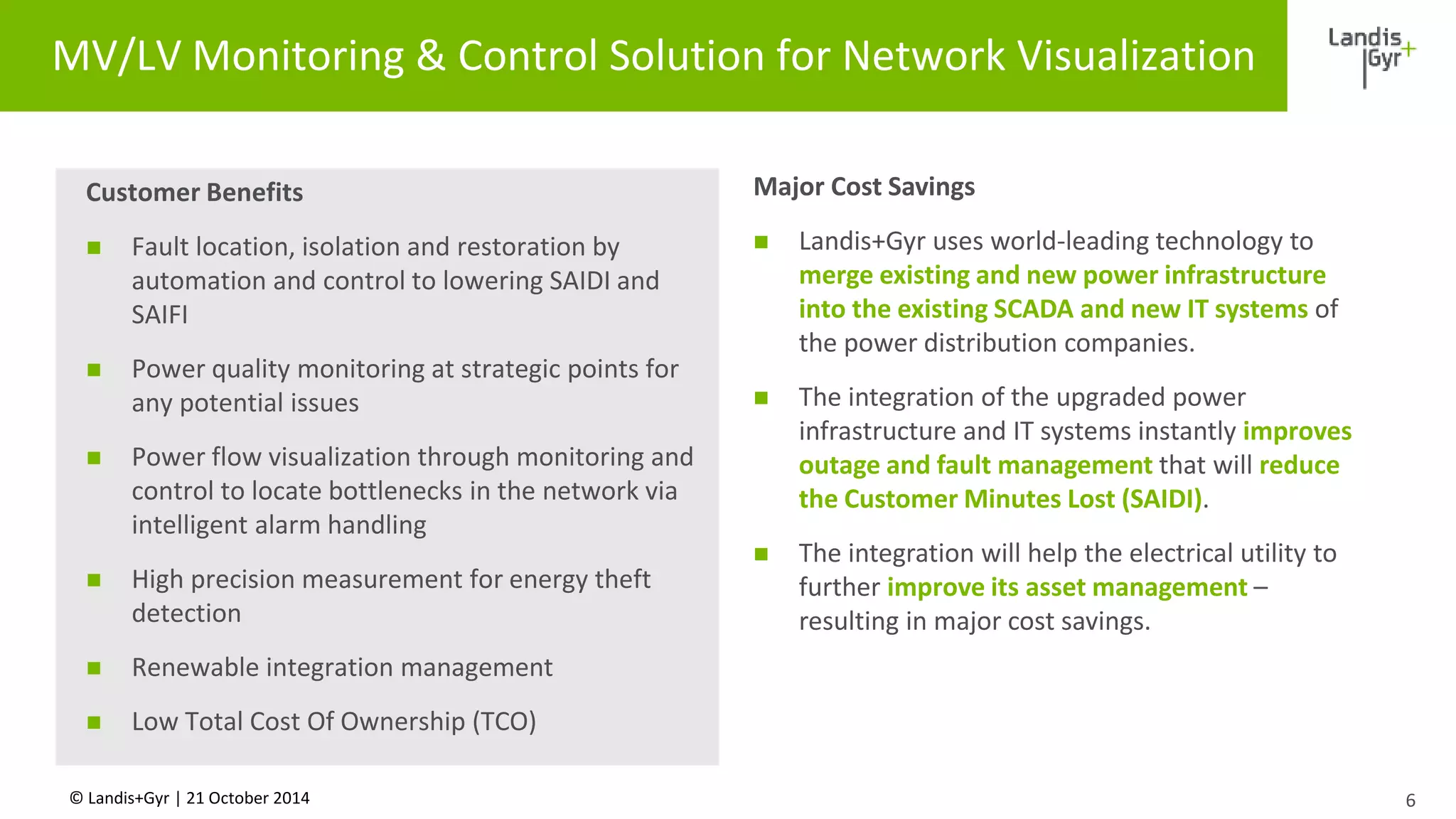

6. MV/LV Monitoring & Control Solution for Network Visualization
Customer Benefits
 Fault location, isolation and restoration by
automation and control to lowering SAIDI and
SAIFI
 Power quality monitoring at strategic points for
any potential issues
 Power flow visualization through monitoring and
control to locate bottlenecks in the network via
intelligent alarm handling
 High precision measurement for energy theft
detection
 Renewable integration management
 Low Total Cost Of Ownership (TCO)
© Landis+Gyr | 21 October 2014
6
Major Cost Savings
 Landis+Gyr uses world-leading technology to
merge existing and new power infrastructure
into the existing SCADA and new IT systems of
the power distribution companies.
 The integration of the upgraded power
infrastructure and IT systems instantly improves
outage and fault management that will reduce
the Customer Minutes Lost (SAIDI).
 The integration will help the electrical utility to
further improve its asset management –
resulting in major cost savings.

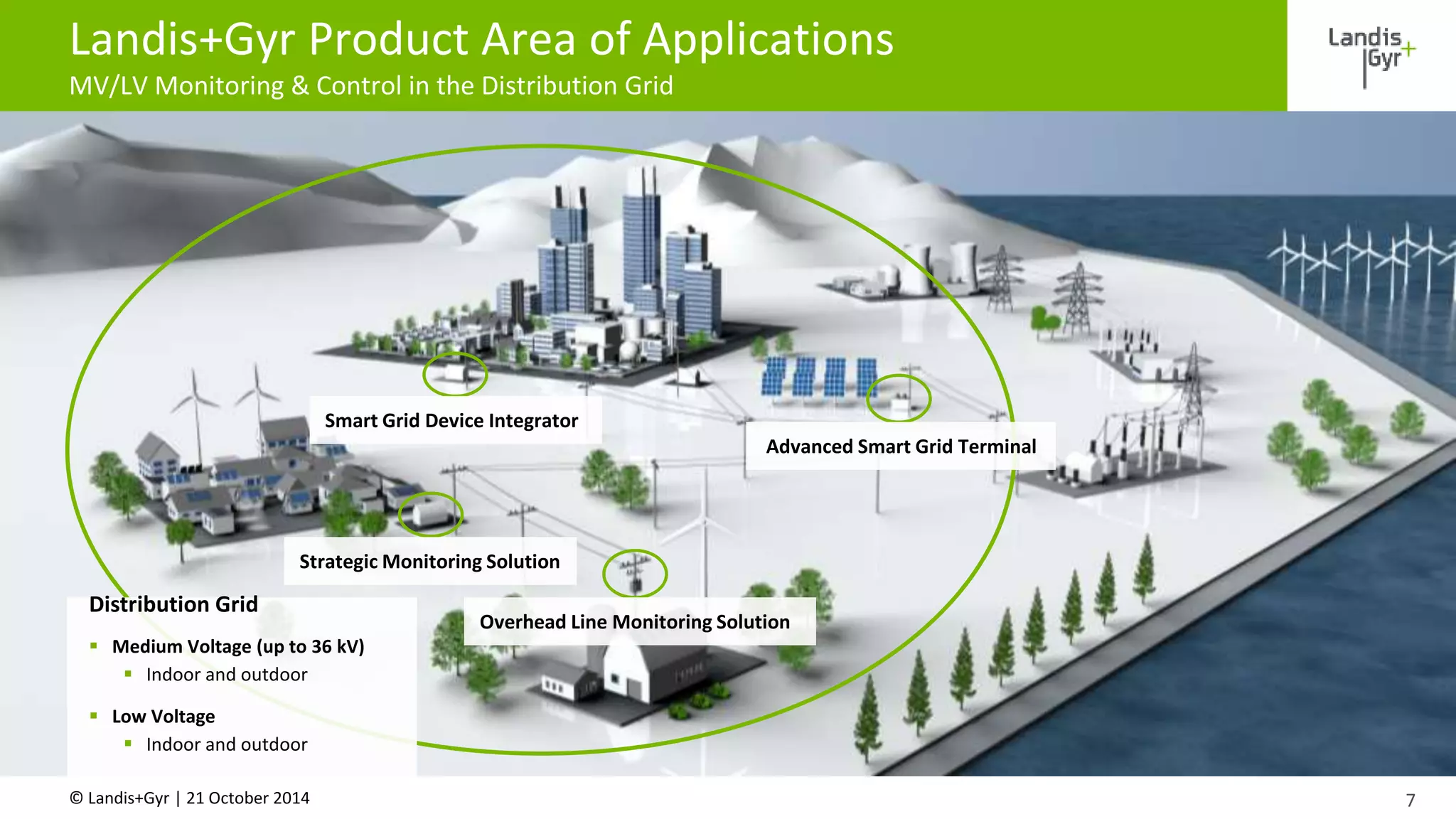

7. Landis+Gyr Product Area of Applications
MV/LV Monitoring & Control in the Distribution Grid
Strategic Monitoring Solution
© Landis+Gyr | 21 October 2014
7
Distribution Grid
 Medium Voltage (up to 36 kV)
 Indoor and outdoor
 Low Voltage
 Indoor and outdoor
Smart Grid Device Integrator
Advanced Smart Grid Terminal
Overhead Line Monitoring Solution

8. 3. Landis+Gyr’s portfolio overview
© Landis+Gyr | 21 October 2014

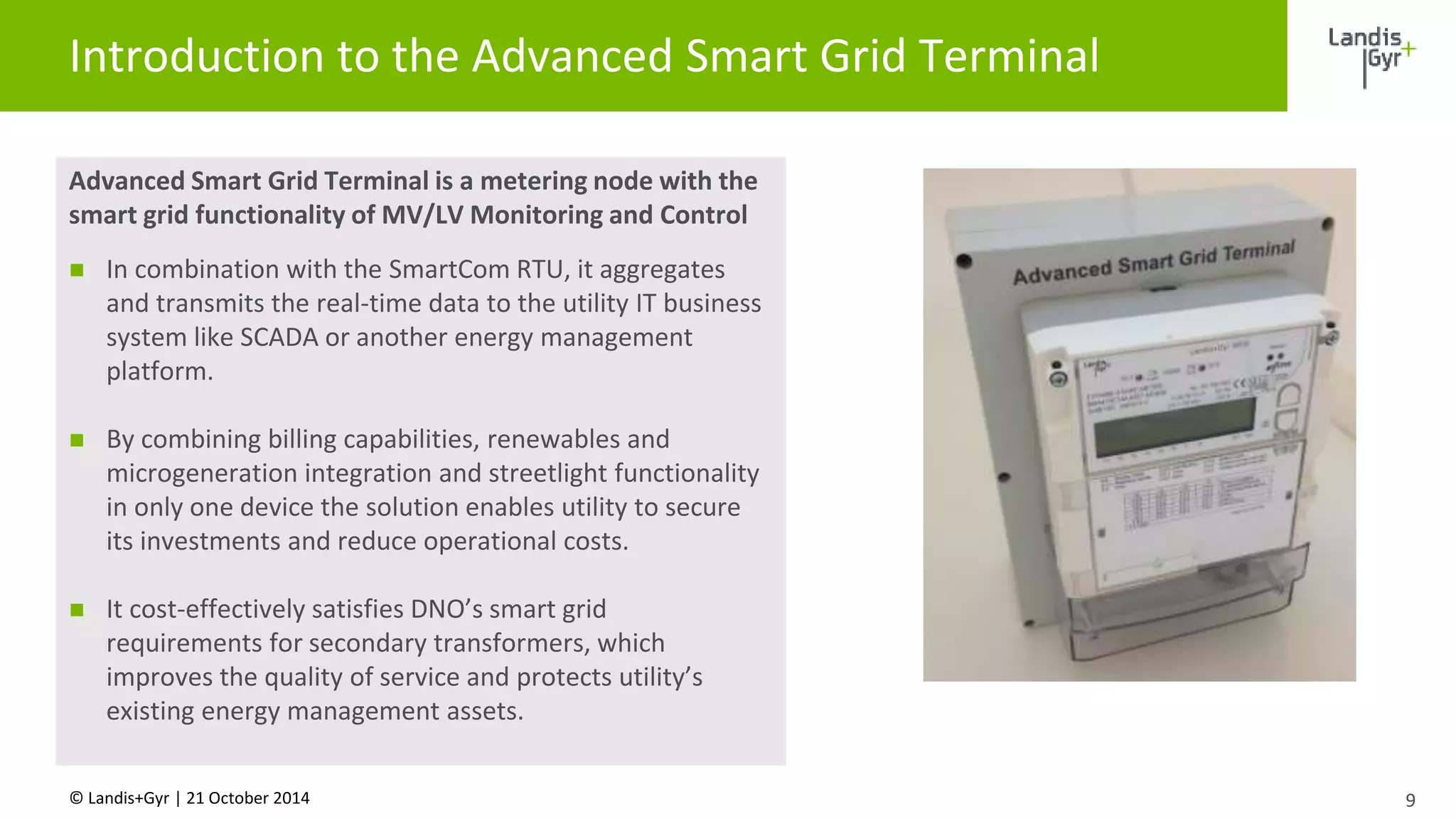

9. Introduction to the Advanced Smart Grid Terminal
Advanced Smart Grid Terminal is a metering node with the
smart grid functionality of MV/LV Monitoring and Control
 In combination with the SmartCom RTU, it aggregates
and transmits the real-time data to the utility IT business
system like SCADA or another energy management
platform.
 By combining billing capabilities, renewables and
microgeneration integration and streetlight functionality
in only one device the solution enables utility to secure
its investments and reduce operational costs.
 It cost-effectively satisfies DNO’s smart grid
requirements for secondary transformers, which
improves the quality of service and protects utility’s
existing energy management assets.
© Landis+Gyr | 21 October 2014
9

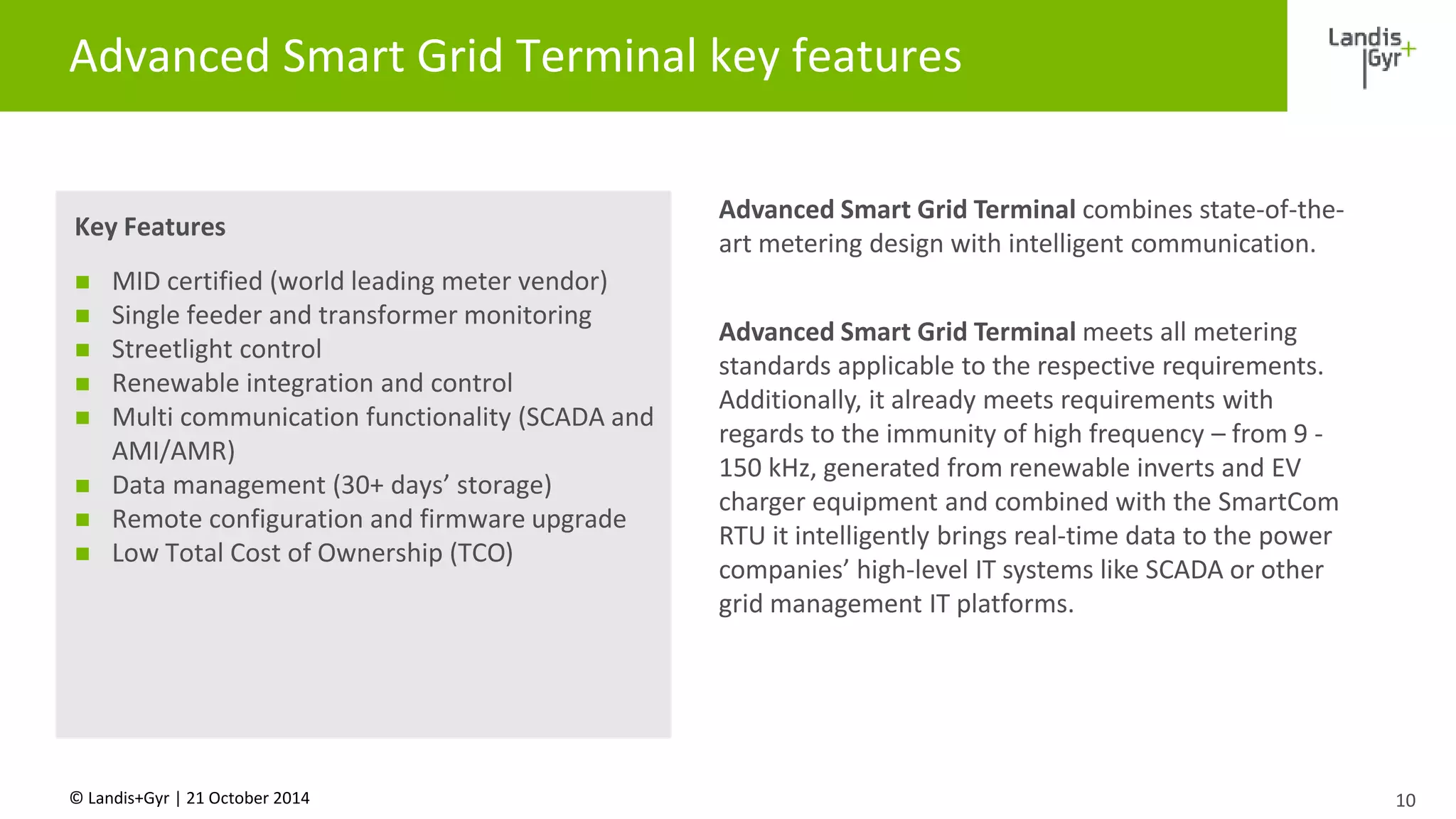

10. Advanced Smart Grid Terminal key features
Key Features
 MID certified (world leading meter vendor)
 Single feeder and transformer monitoring
 Streetlight control
 Renewable integration and control
 Multi communication functionality (SCADA and
AMI/AMR)
 Data management (30+ days’ storage)
 Remote configuration and firmware upgrade
 Low Total Cost of Ownership (TCO)
© Landis+Gyr | 21 October 2014
10
Advanced Smart Grid Terminal combines state-of-the-art
metering design with intelligent communication.
Advanced Smart Grid Terminal meets all metering
standards applicable to the respective requirements.
Additionally, it already meets requirements with
regards to the immunity of high frequency – from 9 -
150 kHz, generated from renewable inverts and EV
charger equipment and combined with the SmartCom
RTU it intelligently brings real-time data to the power
companies’ high-level IT systems like SCADA or other
grid management IT platforms.

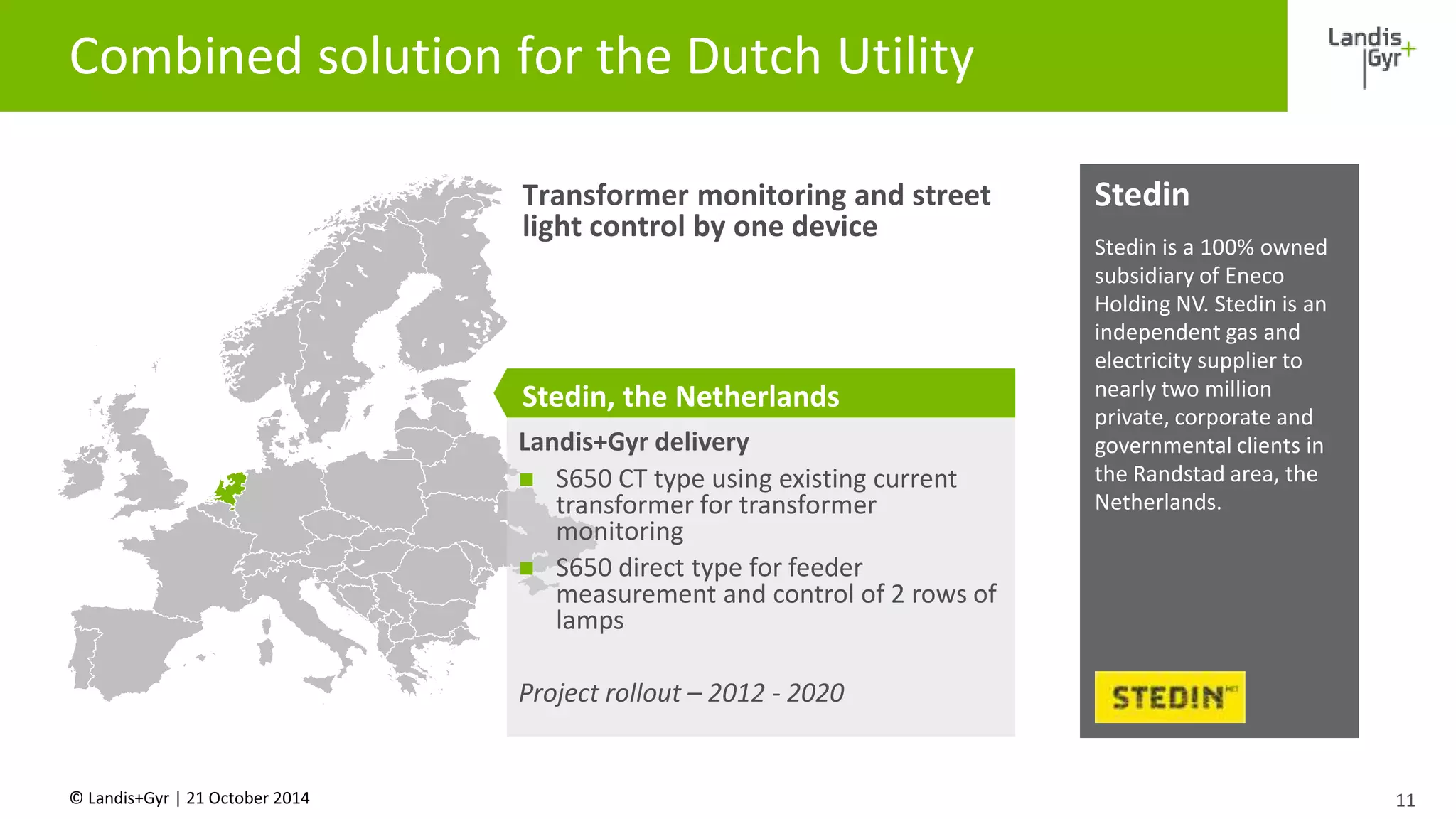

11. Combined solution for the Dutch Utility
© Landis+Gyr | 21 October 2014
11
Stedin
Stedin is a 100% owned
subsidiary of Eneco
Holding NV. Stedin is an
independent gas and
electricity supplier to
nearly two million
private, corporate and
governmental clients in
the Randstad area, the
Netherlands.
Transformer monitoring and street
light control by one device
Stedin, the Netherlands
Landis+Gyr delivery
 S650 CT type using existing current
transformer for transformer
monitoring
 S650 direct type for feeder
measurement and control of 2 rows of
lamps
Project rollout – 2012 - 2020

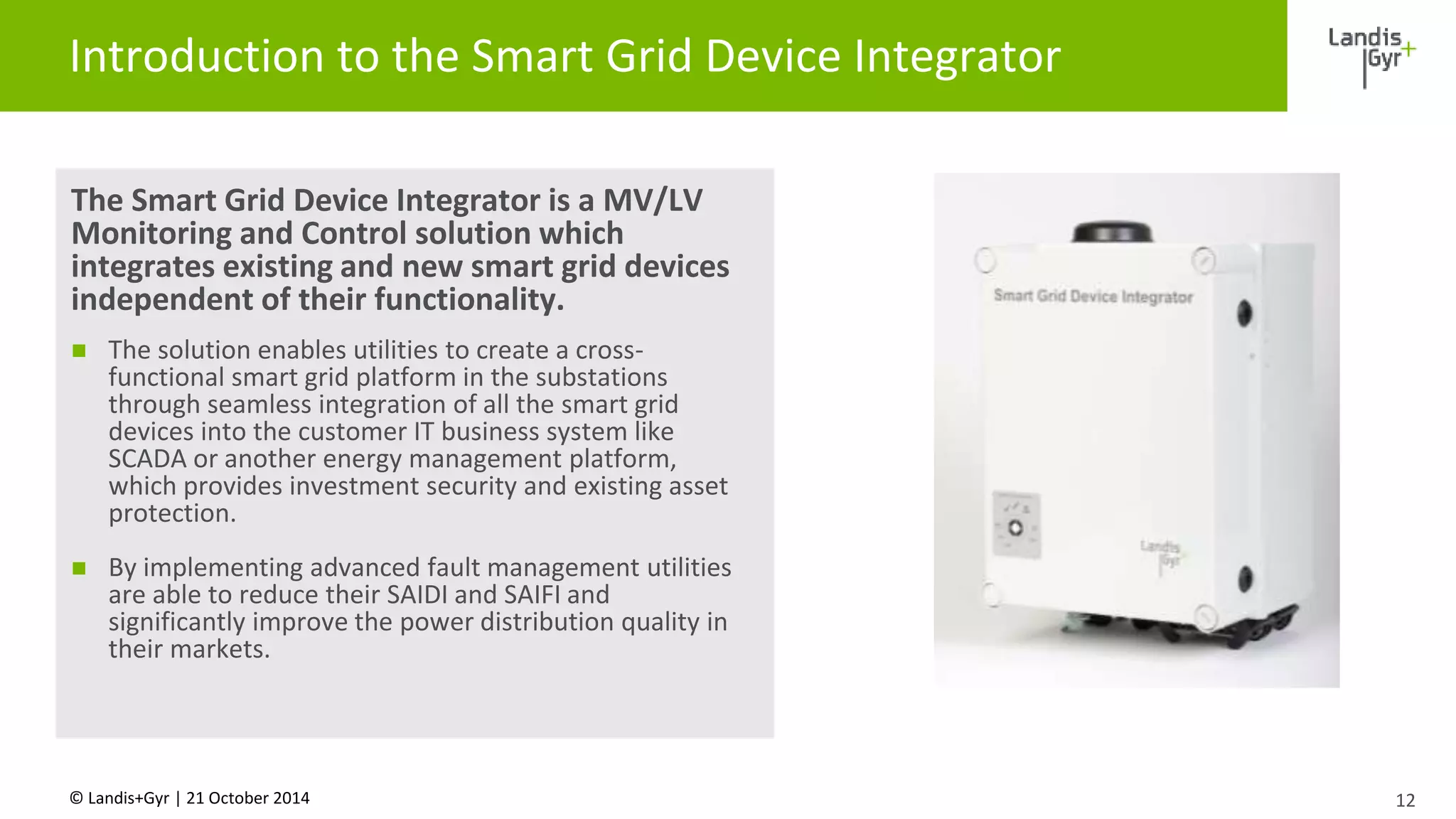

12. Introduction to the Smart Grid Device Integrator
The Smart Grid Device Integrator is a MV/LV
Monitoring and Control solution which
integrates existing and new smart grid devices
independent of their functionality.
 The solution enables utilities to create a cross-functional
smart grid platform in the substations
through seamless integration of all the smart grid
devices into the customer IT business system like
SCADA or another energy management platform,
which provides investment security and existing asset
protection.
 By implementing advanced fault management utilities
are able to reduce their SAIDI and SAIFI and
significantly improve the power distribution quality in
their markets.
© Landis+Gyr | 21 October 2014
12

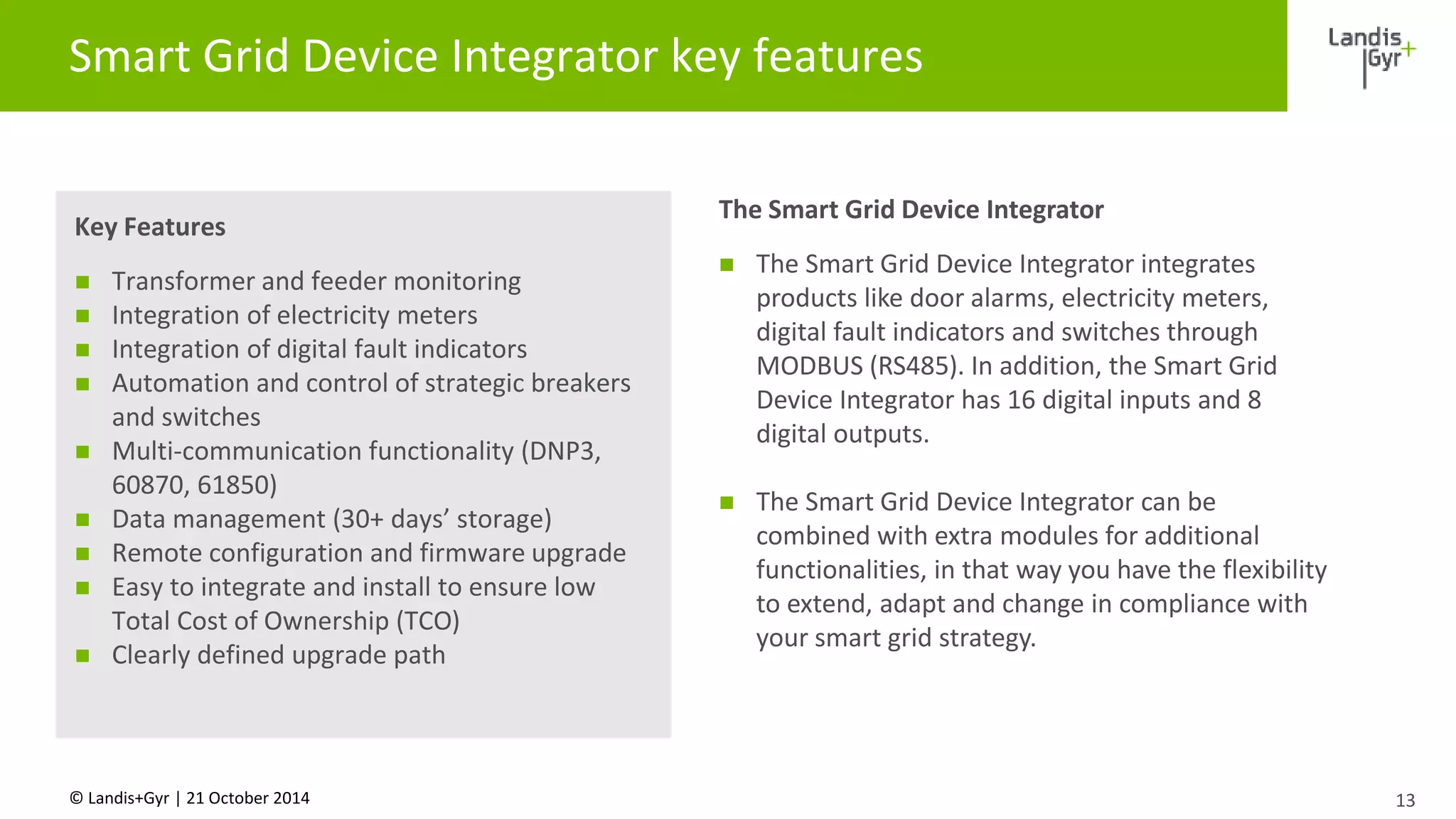

13. Smart Grid Device Integrator key features
Key Features
 Transformer and feeder monitoring
 Integration of electricity meters
 Integration of digital fault indicators
 Automation and control of strategic breakers
and switches
 Multi-communication functionality (DNP3,
60870, 61850)
 Data management (30+ days’ storage)
 Remote configuration and firmware upgrade
 Easy to integrate and install to ensure low
Total Cost of Ownership (TCO)
 Clearly defined upgrade path
© Landis+Gyr | 21 October 2014
13
The Smart Grid Device Integrator
 The Smart Grid Device Integrator integrates
products like door alarms, electricity meters,
digital fault indicators and switches through
MODBUS (RS485). In addition, the Smart Grid
Device Integrator has 16 digital inputs and 8
digital outputs.
 The Smart Grid Device Integrator can be
combined with extra modules for additional
functionalities, in that way you have the flexibility
to extend, adapt and change in compliance with
your smart grid strategy.

14. © Landis+Gyr | 21 October 2014
Enexis B.V.
Enexis is one of the major
Distribution System
Operators (DSO) in the
Netherlands with a total
customer base of more
than 2.6 million covering 6
provinces and 130
municipalities. Their
customers are yearly
supplied with 32.350 GWh
of electricity through
44.000 km of MV cables,
90.000 km of LV cables and
more than 52.000
substations.

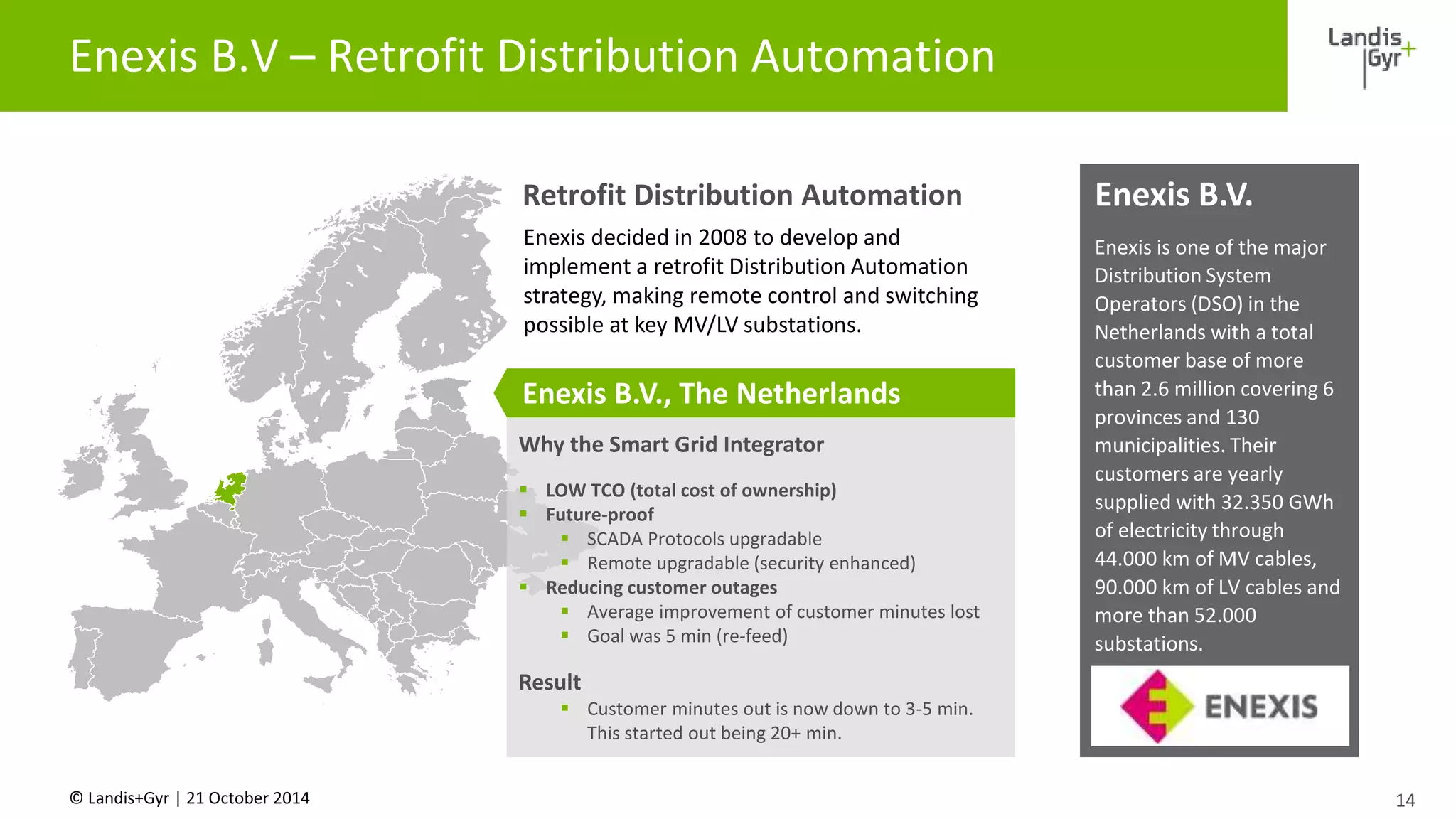

Enexis B.V – Retrofit Distribution Automation
14
Retrofit Distribution Automation
Enexis decided in 2008 to develop and
implement a retrofit Distribution Automation
strategy, making remote control and switching
possible at key MV/LV substations.
Enexis B.V., The Netherlands
Why the Smart Grid Integrator
 LOW TCO (total cost of ownership)
 Future-proof
 SCADA Protocols upgradable
 Remote upgradable (security enhanced)
 Reducing customer outages
 Average improvement of customer minutes lost
 Goal was 5 min (re-feed)
Result
 Customer minutes out is now down to 3-5 min.
This started out being 20+ min.
