1. Developing an IPv6 Addressing Plan
Guidelines, Rules, Best Practice
Ron Broersma
DREN Chief Engineer
SPAWAR Network Security Manager
ron@spawar.navy.mil

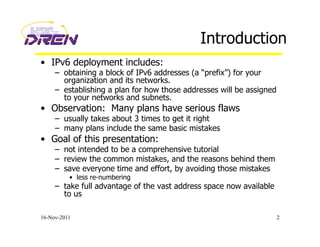

2. Introduction
• IPv6 deployment includes:
– obtaining a block of IPv6 addresses (a “prefix”) for your
organization and its networks.
– establishing a plan for how those addresses will be assigned
to your networks and subnets.
• Observation: Many plans have serious flaws
– usually takes about 3 times to get it right
– many plans include the same basic mistakes
• Goal of this presentation:
– not intended to be a comprehensive tutorial
– review the common mistakes, and the reasons behind them
– save everyone time and effort, by avoiding those mistakes
• less re-numbering
– take full advantage of the vast address space now available
to us
16-Nov-2011 2

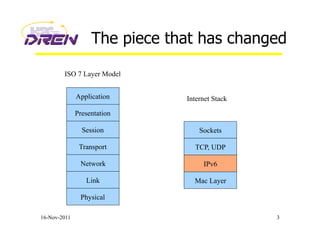

3. The piece that has changed
16-Nov-2011 3
ISO 7 Layer Model
Application
Presentation
Session
Transport
Network
Link
Physical
Sockets
TCP, UDP
IP
Mac Layer
Internet Stack
IPv6

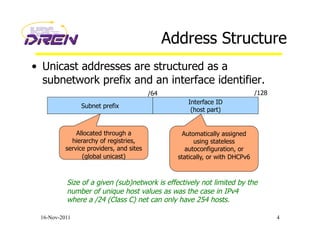

4. Address Structure
• Unicast addresses are structured as a
subnetwork prefix and an interface identifier.
16-Nov-2011 4
Subnet prefix
Interface ID
(host part)
Allocated through a
hierarchy of registries,
service providers, and sites
(global unicast)
Automatically assigned
using stateless
autoconfiguration, or
statically, or with DHCPv6
Size of a given (sub)network is effectively not limited by the
number of unique host values as was the case in IPv4
where a /24 (Class C) net can only have 254 hosts.
/64 /128

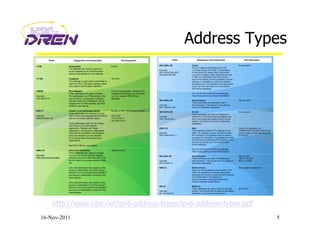

5. Address Types
16-Nov-2011 5
http://www.ripe.net/ipv6-address-types/ipv6-address-types.pdf

6. Example Allocation
• Your enterprise is allocated a Global Unicast
Prefix*
• How do you assign xxxx and yyyy throughout
your enterprise?
16-Nov-2011 6
2001 0DB8 xxxx yyyy Interface ID
/32 /48 /64
2001:DB8::/32
* ”The default provider allocation via the RIRs is currently a /32.” (RFC 5375)

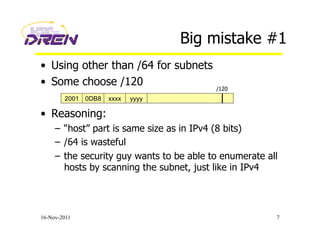

7. Big mistake #1
• Using other than /64 for subnets
• Some choose /120
• Reasoning:
– “host” part is same size as in IPv4 (8 bits)
– /64 is wasteful
– the security guy wants to be able to enumerate all
hosts by scanning the subnet, just like in IPv4
16-Nov-2011 7
2001 0DB8 xxxx yyyy
/120

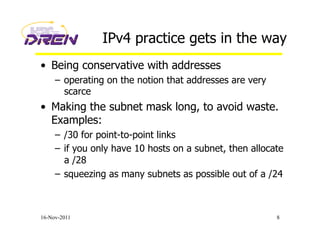

8. IPv4 practice gets in the way
• Being conservative with addresses
– operating on the notion that addresses are very
scarce
• Making the subnet mask long, to avoid waste.
Examples:
– /30 for point-to-point links
– if you only have 10 hosts on a subnet, then allocate
a /28
– squeezing as many subnets as possible out of a /24
16-Nov-2011 8

9. Making the paradigm shift
• You may be un-qualified to develop a final
IPv6 addressing plan if you think:
– /64 for subnets is wasteful
– /64 for point-to-point links is wasteful
– /48 for small sites is wasteful
16-Nov-2011 9

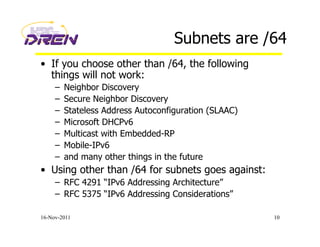

10. Subnets are /64
• If you choose other than /64, the following
things will not work:
– Neighbor Discovery
– Secure Neighbor Discovery
– Stateless Address Autoconfiguration (SLAAC)
– Microsoft DHCPv6
– Multicast with Embedded-RP
– Mobile-IPv6
– and many other things in the future
• Using other than /64 for subnets goes against:
– RFC 4291 “IPv6 Addressing Architecture”
– RFC 5375 “IPv6 Addressing Considerations”
16-Nov-2011 10

11. Subnets are /64
16-Nov-2011 11
“For all unicast addresses, except those that start with the binary value 000,
Interface IDs are required to be 64 bits long.” (RFC 4291)
“Using /64 subnets is strongly recommended, also for links connecting
only routers. A deployment compliant with the current IPv6 specifications
cannot use other prefix lengths.” (RFC 5375)

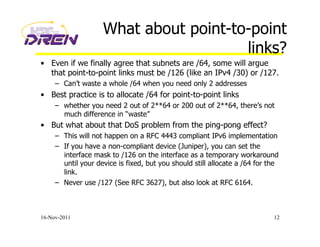

12. What about point-to-point
links?
• Even if we finally agree that subnets are /64, some will argue
that point-to-point links must be /126 (like an IPv4 /30) or /127.
– Can’t waste a whole /64 when you need only 2 addresses
• Best practice is to allocate /64 for point-to-point links
– whether you need 2 out of 2**64 or 200 out of 2**64, there’s not
much difference in “waste”
• But what about that DoS problem from the ping-pong effect?
– This will not happen on a RFC 4443 compliant IPv6 implementation
– If you have a non-compliant device (Juniper), you can set the
interface mask to /126 on the interface as a temporary workaround
until your device is fixed, but you should still allocate a /64 for the
link.
– Never use /127 (See RFC 3627), but also look at RFC 6164.
16-Nov-2011 12

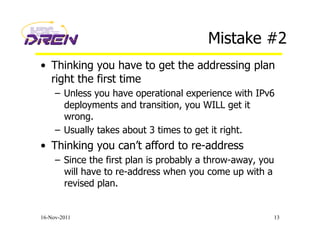

13. Mistake #2
• Thinking you have to get the addressing plan
right the first time
– Unless you have operational experience with IPv6
deployments and transition, you WILL get it
wrong.
– Usually takes about 3 times to get it right.
• Thinking you can’t afford to re-address
– Since the first plan is probably a throw-away, you
will have to re-address when you come up with a
revised plan.
16-Nov-2011 13

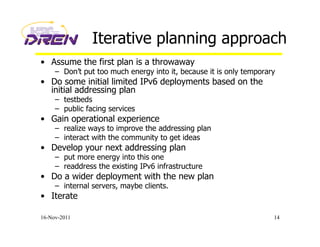

14. Iterative planning approach
• Assume the first plan is a throwaway
– Don’t put too much energy into it, because it is only temporary
• Do some initial limited IPv6 deployments based on the
initial addressing plan
– testbeds
– public facing services
• Gain operational experience
– realize ways to improve the addressing plan
– interact with the community to get ideas
• Develop your next addressing plan
– put more energy into this one
– readdress the existing IPv6 infrastructure
• Do a wider deployment with the new plan
– internal servers, maybe clients.
• Iterate
16-Nov-2011 14

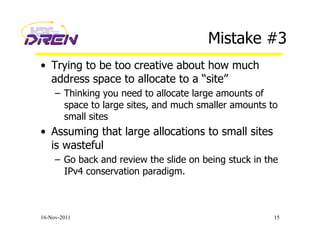

15. Mistake #3
• Trying to be too creative about how much
address space to allocate to a “site”
– Thinking you need to allocate large amounts of
space to large sites, and much smaller amounts to
small sites
• Assuming that large allocations to small sites
is wasteful
– Go back and review the slide on being stuck in the
IPv4 conservation paradigm.
16-Nov-2011 15

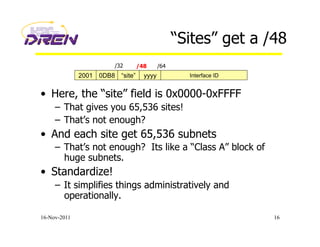

16. “Sites” get a /48
• Here, the “site” field is 0x0000-0xFFFF
– That gives you 65,536 sites!
– That’s not enough?
• And each site get 65,536 subnets
– That’s not enough? Its like a “Class A” block of
huge subnets.
• Standardize!
– It simplifies things administratively and
operationally.
16-Nov-2011 16
2001 0DB8 “site” yyyy Interface ID
/32 /48 /64

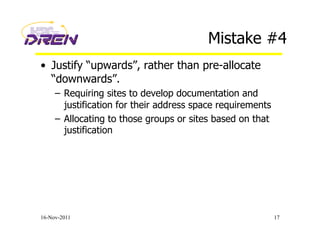

17. Mistake #4
• Justify “upwards”, rather than pre-allocate
“downwards”.
– Requiring sites to develop documentation and
justification for their address space requirements
– Allocating to those groups or sites based on that
justification
16-Nov-2011 17

18. Pre-allocation
• You can easily pre-allocate to the site level
– see slide on “sites get a /48”
• Within sites, addressing can align with
existing subnet structure
– later, you may want to re-address your IPv4
networks (but don’t worry about that just yet).
16-Nov-2011 18

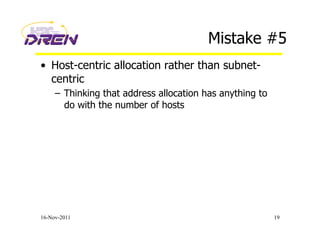

19. Mistake #5
• Host-centric allocation rather than subnet-
centric
– Thinking that address allocation has anything to
do with the number of hosts
16-Nov-2011 19

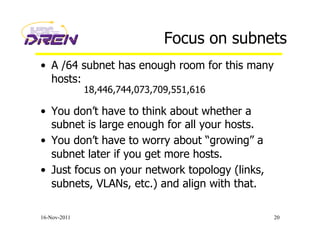

20. Focus on subnets
• A /64 subnet has enough room for this many
hosts:
• You don’t have to think about whether a
subnet is large enough for all your hosts.
• You don’t have to worry about “growing” a
subnet later if you get more hosts.
• Just focus on your network topology (links,
subnets, VLANs, etc.) and align with that.
16-Nov-2011 20
18,446,744,073,709,551,616

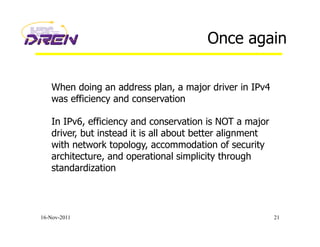

21. Once again
16-Nov-2011 21
When doing an address plan, a major driver in IPv4
was efficiency and conservation
In IPv6, efficiency and conservation is NOT a major
driver, but instead it is all about better alignment
with network topology, accommodation of security
architecture, and operational simplicity through
standardization

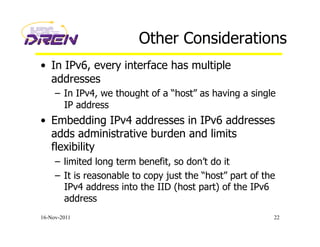

22. Other Considerations
• In IPv6, every interface has multiple
addresses
– In IPv4, we thought of a “host” as having a single
IP address
• Embedding IPv4 addresses in IPv6 addresses
adds administrative burden and limits
flexibility
– limited long term benefit, so don’t do it
– It is reasonable to copy just the “host” part of the
IPv4 address into the IID (host part) of the IPv6
address
16-Nov-2011 22

23. Other Considerations
• There is an opportunity to align the
addressing plan with security topology, to
simplify ACLs
– This is the type of thing you may start to
incorporate into your 3rd version of your plan.
• Internal aggregation is not nearly as critical
as aggregating route announcements to your
ISP
– you can afford to carry a few thousand routes
internally, but the Internet can’t afford to carry all
your /48’s or longer.
16-Nov-2011 23

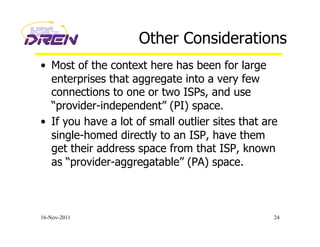

24. Other Considerations
• Most of the context here has been for large
enterprises that aggregate into a very few
connections to one or two ISPs, and use
“provider-independent” (PI) space.
• If you have a lot of small outlier sites that are
single-homed directly to an ISP, have them
get their address space from that ISP, known
as “provider-aggregatable” (PA) space.
16-Nov-2011 24

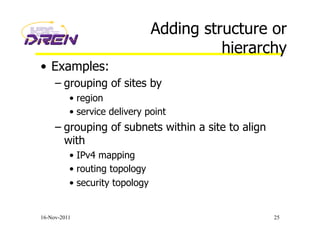

25. Adding structure or
hierarchy
• Examples:
– grouping of sites by
• region
• service delivery point
– grouping of subnets within a site to align
with
• IPv4 mapping
• routing topology
• security topology
16-Nov-2011 25

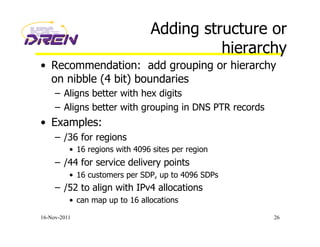

26. Adding structure or
hierarchy
• Recommendation: add grouping or hierarchy
on nibble (4 bit) boundaries
– Aligns better with hex digits
– Aligns better with grouping in DNS PTR records
• Examples:
– /36 for regions
• 16 regions with 4096 sites per region
– /44 for service delivery points
• 16 customers per SDP, up to 4096 SDPs
– /52 to align with IPv4 allocations
• can map up to 16 allocations
16-Nov-2011 26

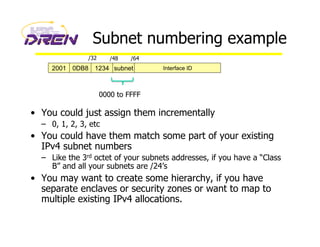

27. Subnet numbering example
• You could just assign them incrementally
– 0, 1, 2, 3, etc
• You could have them match some part of your existing
IPv4 subnet numbers
– Like the 3rd octet of your subnets addresses, if you have a “Class
B” and all your subnets are /24’s
• You may want to create some hierarchy, if you have
separate enclaves or security zones or want to map to
multiple existing IPv4 allocations.
2001 0DB8 1234 subnet Interface ID
/32 /48 /64
0000 to FFFF

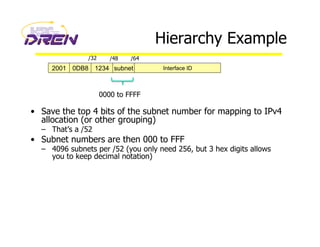

28. Hierarchy Example
• Save the top 4 bits of the subnet number for mapping to IPv4
allocation (or other grouping)
– That’s a /52
• Subnet numbers are then 000 to FFF
– 4096 subnets per /52 (you only need 256, but 3 hex digits allows
you to keep decimal notation)
2001 0DB8 1234 subnet Interface ID
/32 /48 /64
0000 to FFFF

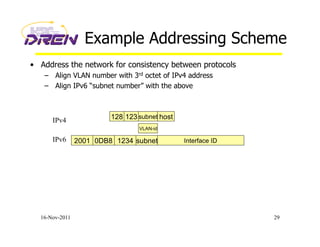

29. Example Addressing Scheme
• Address the network for consistency between protocols
– Align VLAN number with 3rd octet of IPv4 address
– Align IPv6 “subnet number” with the above
16-Nov-2011 29
2001 0DB8 1234 subnet Interface ID
128 123 subnet host
IPv6
IPv4
VLAN-id

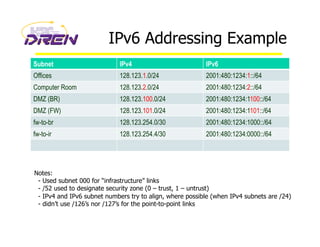

30. IPv6 Addressing Example
Subnet IPv4 IPv6
Offices 128.123.1.0/24 2001:480:1234:1::/64
Computer Room 128.123.2.0/24 2001:480:1234:2::/64
DMZ (BR) 128.123.100.0/24 2001:480:1234:1100::/64
DMZ (FW) 128.123.101.0/24 2001:480:1234:1101::/64
fw-to-br 128.123.254.0/30 2001:480:1234:1000::/64
fw-to-ir 128.123.254.4/30 2001:480:1234:0000::/64
Notes:
- Used subnet 000 for “infrastructure” links
- /52 used to designate security zone (0 – trust, 1 – untrust)
- IPv4 and IPv6 subnet numbers try to align, where possible (when IPv4 subnets are /24)
- didn’t use /126’s nor /127’s for the point-to-point links

31. Privacy Addresses (RFC 4941)
• Incompatible with many Enterprise environments
– Need address stability for many reasons
• Logging, Forensics, DNS stability, ACLs, etc.
• Enabled by default in Windows
– Breaks plug-n-play because we have to visit every Windows
machine to disable this feature.
• Just added in Mac OS X “Lion”.
• Ubuntu thinking about making it default.
[Privacy addresses] are horrible and I hope nobody really uses them, but they're better than NAT.
… Owen DeLong, Hurricane Electric
16-Nov-2011 31

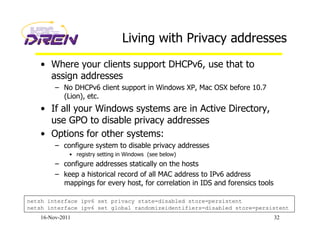

32. Living with Privacy addresses
• Where your clients support DHCPv6, use that to
assign addresses
– No DHCPv6 client support in Windows XP, Mac OSX before 10.7
(Lion), etc.
• If all your Windows systems are in Active Directory,
use GPO to disable privacy addresses
• Options for other systems:
– configure system to disable privacy addresses
• registry setting in Windows (see below)
– configure addresses statically on the hosts
– keep a historical record of all MAC address to IPv6 address
mappings for every host, for correlation in IDS and forensics tools
16-Nov-2011 32
netsh interface ipv6 set privacy state=disabled store=persistent
netsh interface ipv6 set global randomizeidentifiers=disabled store=persistent

33. Additional Guides
• Preparing an IPv6 Addressing Plan
• IPv6 Address Design, a few practical
principles
16-Nov-2011 33
http://www.ripe.net/lir-services/training/material/IPv6-for-LIRs-Training-Course/IPv6_addr_plan4.pdf
http://www.txv6tf.org/wp-content/uploads/2011/09/Doyle-TXv6TF_09142011.pdf

34. End of Addressing discussion

35. Other topics

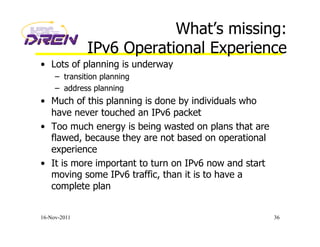

36. What’s missing:
IPv6 Operational Experience
• Lots of planning is underway
– transition planning
– address planning
• Much of this planning is done by individuals who
have never touched an IPv6 packet
• Too much energy is being wasted on plans that are
flawed, because they are not based on operational
experience
• It is more important to turn on IPv6 now and start
moving some IPv6 traffic, than it is to have a
complete plan
16-Nov-2011 36

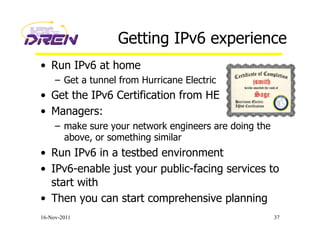

37. Getting IPv6 experience
• Run IPv6 at home
– Get a tunnel from Hurricane Electric
• Get the IPv6 Certification from HE
• Managers:
– make sure your network engineers are doing the
above, or something similar
• Run IPv6 in a testbed environment
• IPv6-enable just your public-facing services to
start with
• Then you can start comprehensive planning
16-Nov-2011 37

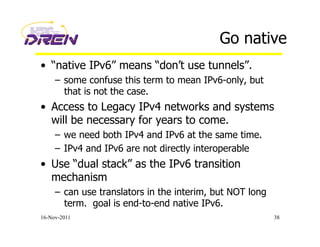

38. Go native
• “native IPv6” means “don’t use tunnels”.
– some confuse this term to mean IPv6-only, but
that is not the case.
• Access to Legacy IPv4 networks and systems
will be necessary for years to come.
– we need both IPv4 and IPv6 at the same time.
– IPv4 and IPv6 are not directly interoperable
• Use “dual stack” as the IPv6 transition
mechanism
– can use translators in the interim, but NOT long
term. goal is end-to-end native IPv6.
16-Nov-2011 38

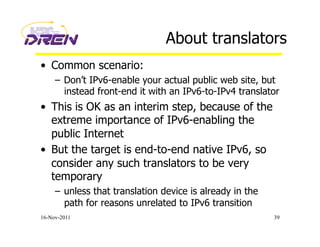

39. About translators
• Common scenario:
– Don’t IPv6-enable your actual public web site, but
instead front-end it with an IPv6-to-IPv4 translator
• This is OK as an interim step, because of the
extreme importance of IPv6-enabling the
public Internet
• But the target is end-to-end native IPv6, so
consider any such translators to be very
temporary
– unless that translation device is already in the
path for reasons unrelated to IPv6 transition
16-Nov-2011 39

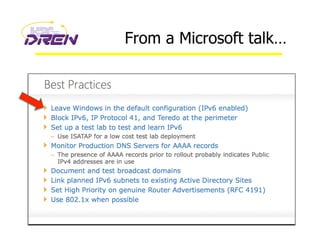

40. From a Microsoft talk…
16-Nov-2011 40

41. IPv6 traffic percentage
• From a server perspective, what percentage of the
Internet will try to reach you over IPv6 today?
– 0.4%
• From a client perspective, what percentage of
Internet traffic is IPv6, where everything at your site
is IPv6-enabled:
16-Nov-2011 41

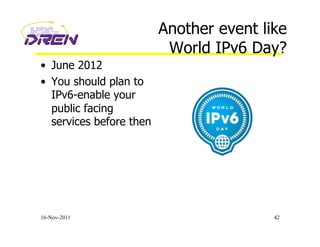

42. Another event like
World IPv6 Day?
• June 2012
• You should plan to
IPv6-enable your
public facing
services before then
16-Nov-2011 42

43. Final Comments
16-Nov-2011 43

44. END
Any Questions?
Contact me at:
ron@spawar.navy.mil
16-Nov-2011 44
