This document discusses software verification tools from AdaCore. It begins with an introduction to the concept of verification and different levels of responsibility between language, compiler, and developer. It then provides overviews of various AdaCore static and dynamic verification tools, including how they can be used at different stages of development. The tools can help developers find and fix defects early while leveraging the formal aspects of Ada.

1. Eric Perlade
Verification Solutions
Technical Account Manager

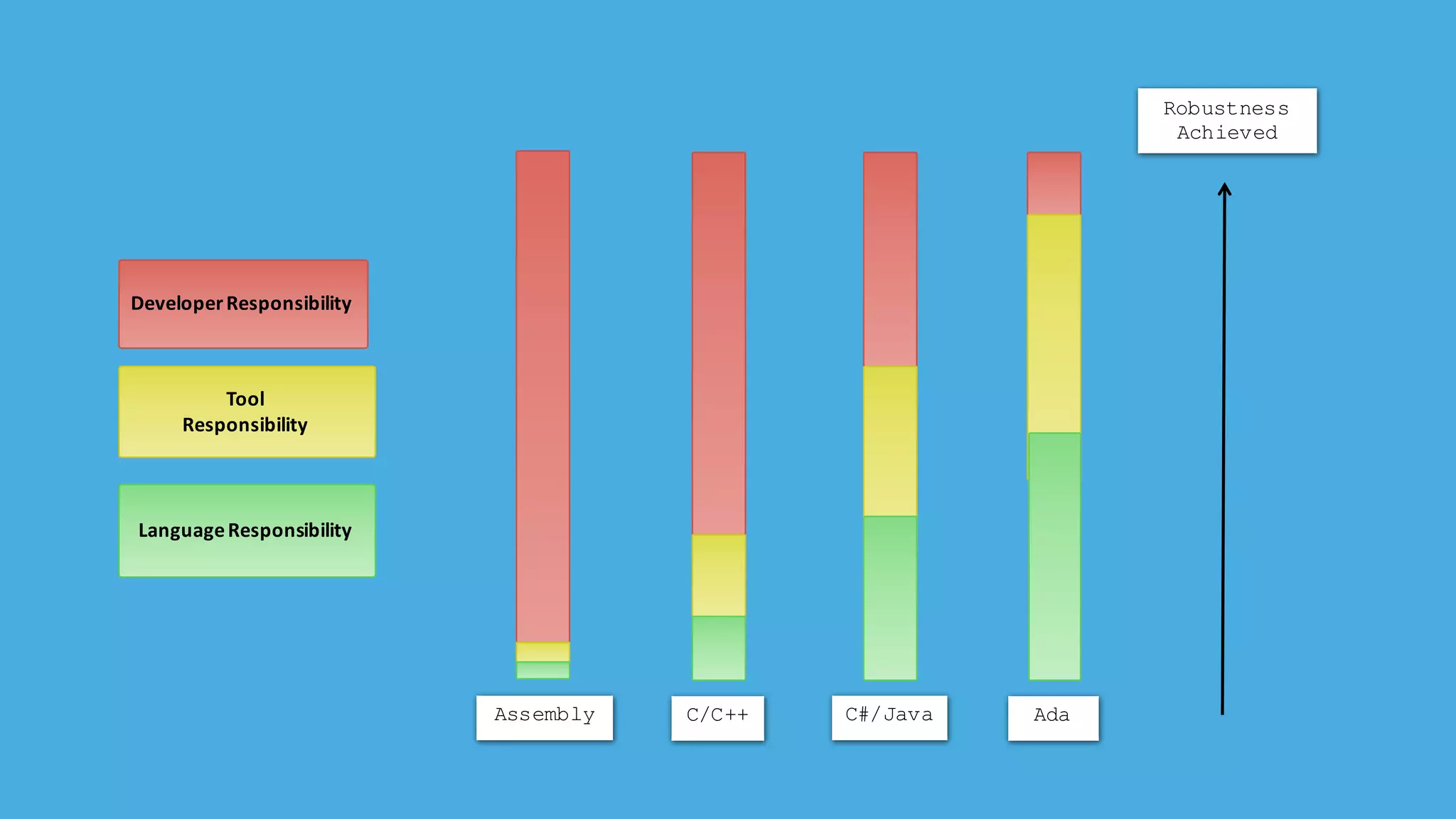

2. C/C++ C#/Java Ada
Robustness
Achieved
Developer Responsibility
Tool
Responsibility
Language Responsibility
Assembly

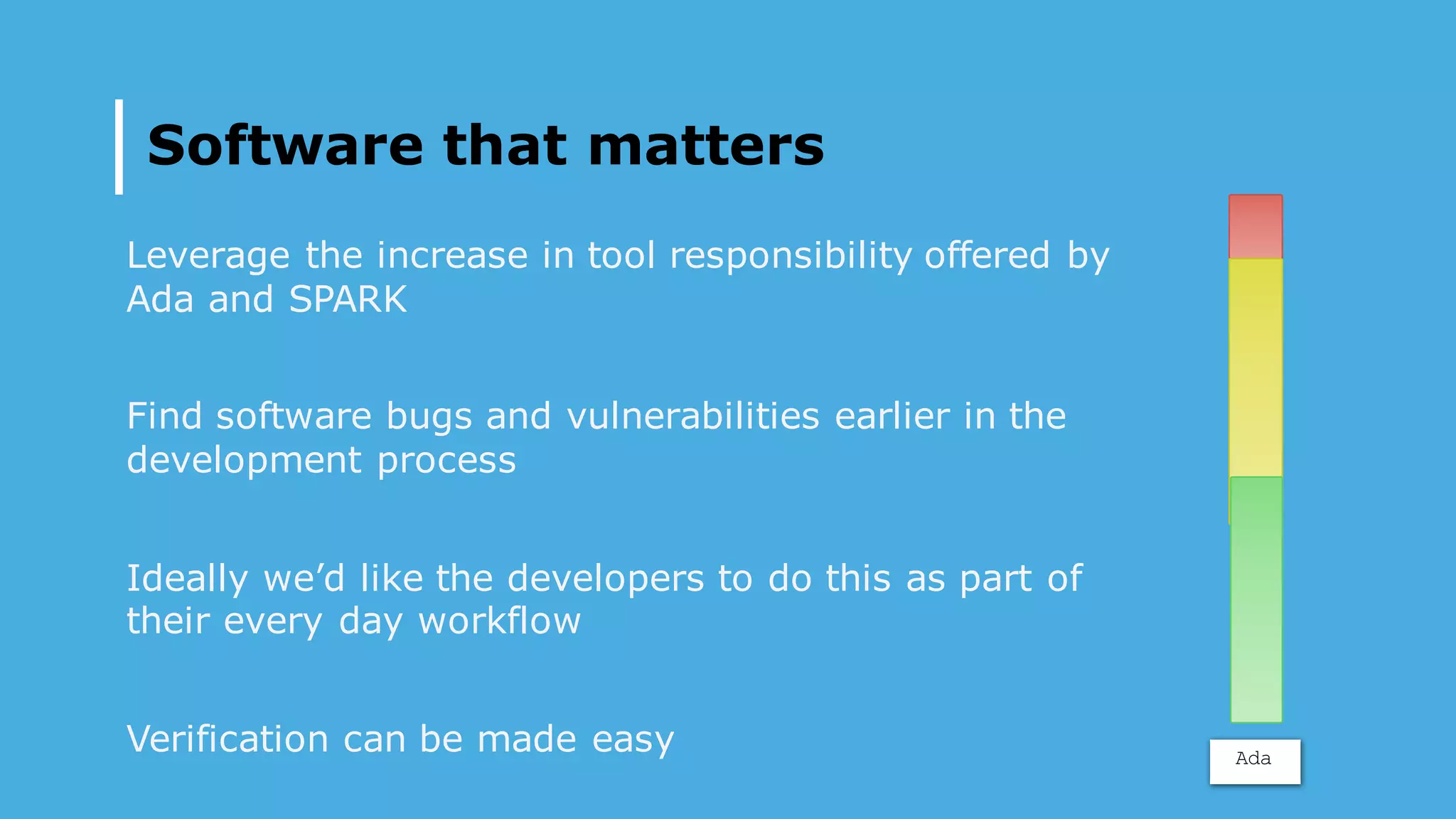

3. Software that matters
Leverage the increase in tool responsibility offered by
Ada and SPARK
Find software bugs and vulnerabilities earlier in the
development process
Ideally we’d like the developers to do this as part of
their every day workflow
Verification can be made easy Ada

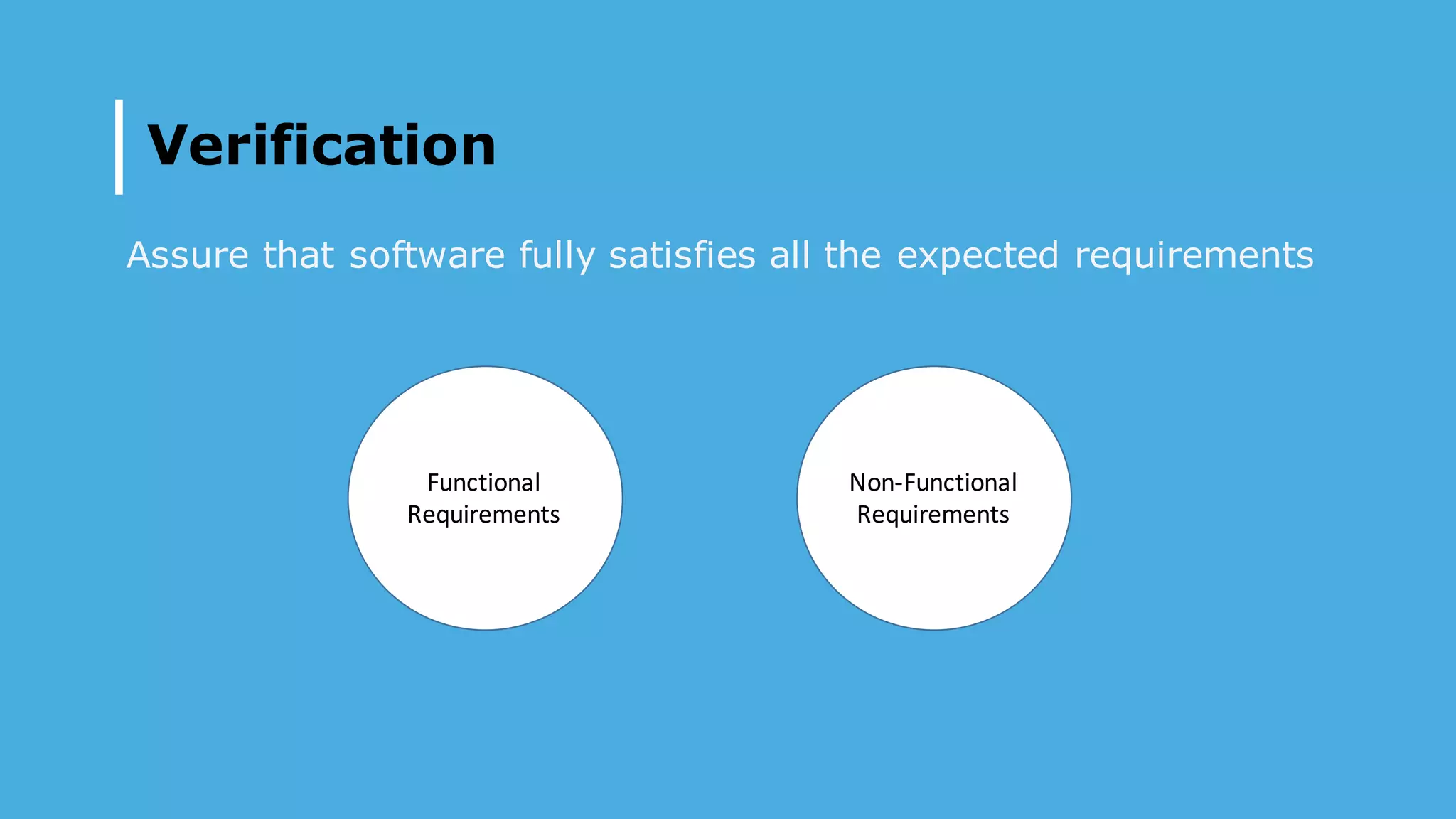

4. Verification
Assure that software fully satisfies all the expected requirements
Non-Functional
Requirements
Functional
Requirements

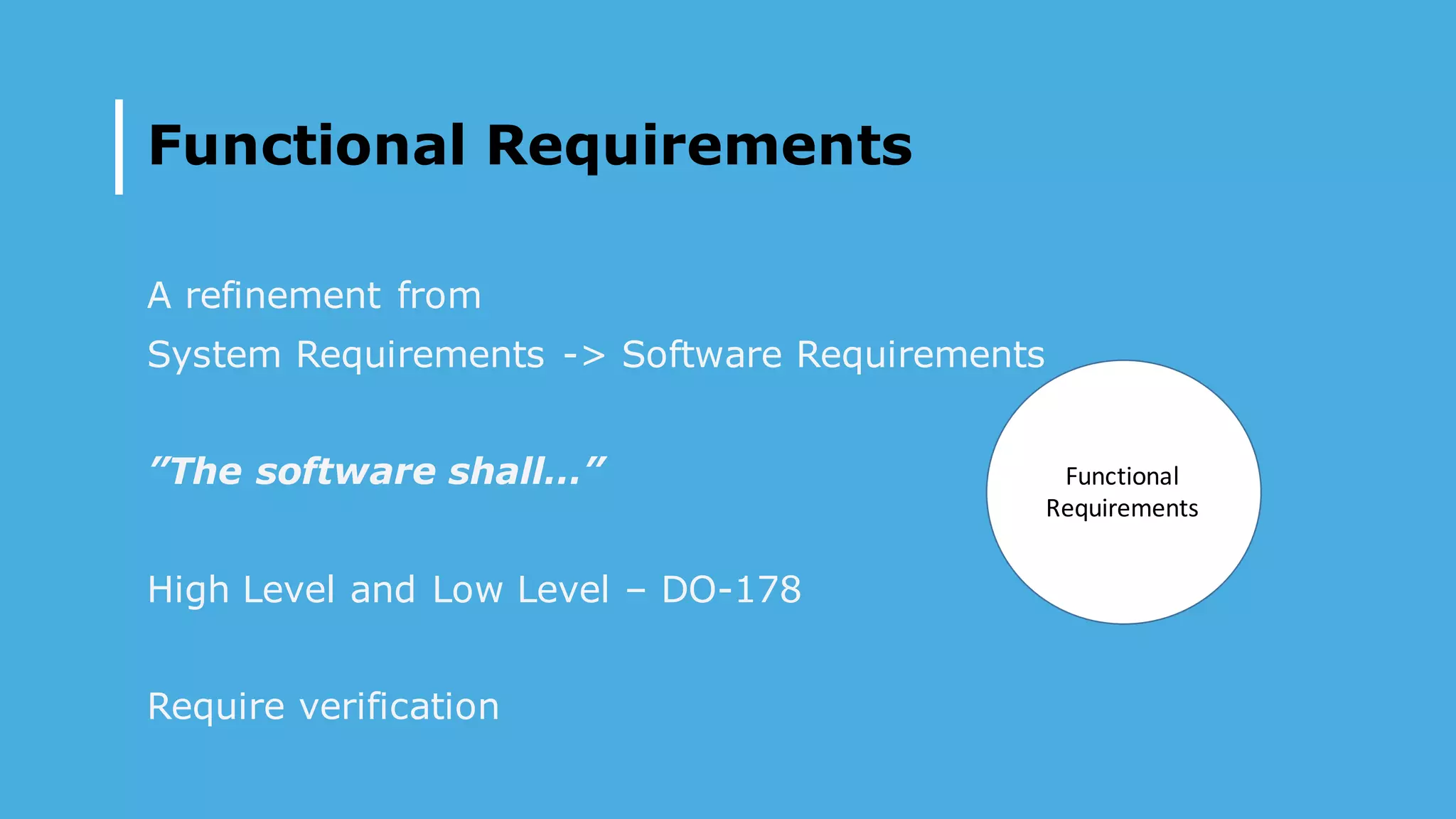

5. Functional Requirements
A refinement from
System Requirements -> Software Requirements
”The software shall…”
High Level and Low Level – DO-178
Require verification
Functional
Requirements

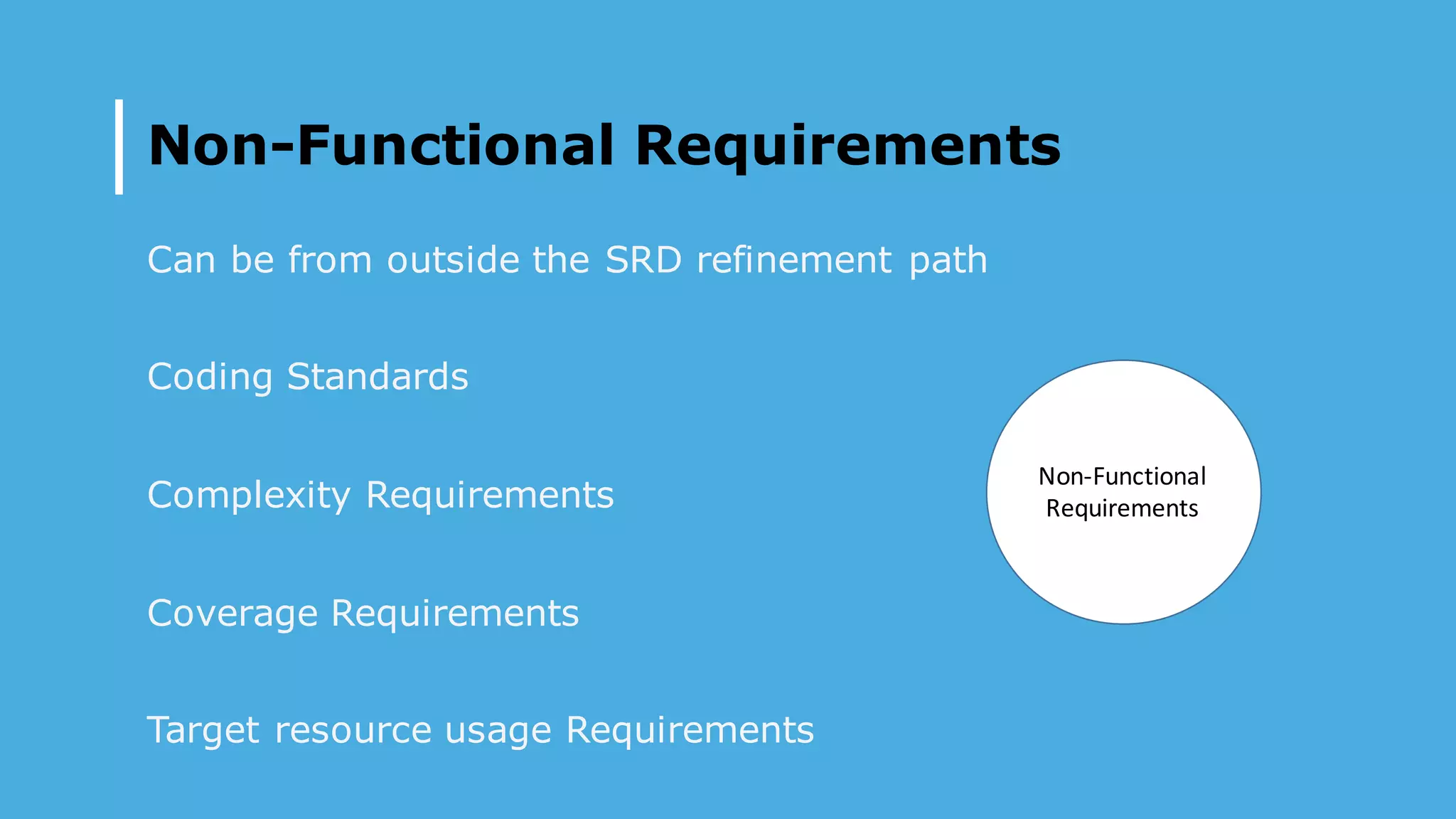

6. Non-Functional Requirements
Can be from outside the SRD refinement path
Coding Standards
Complexity Requirements
Coverage Requirements
Target resource usage Requirements
Non-Functional
Requirements

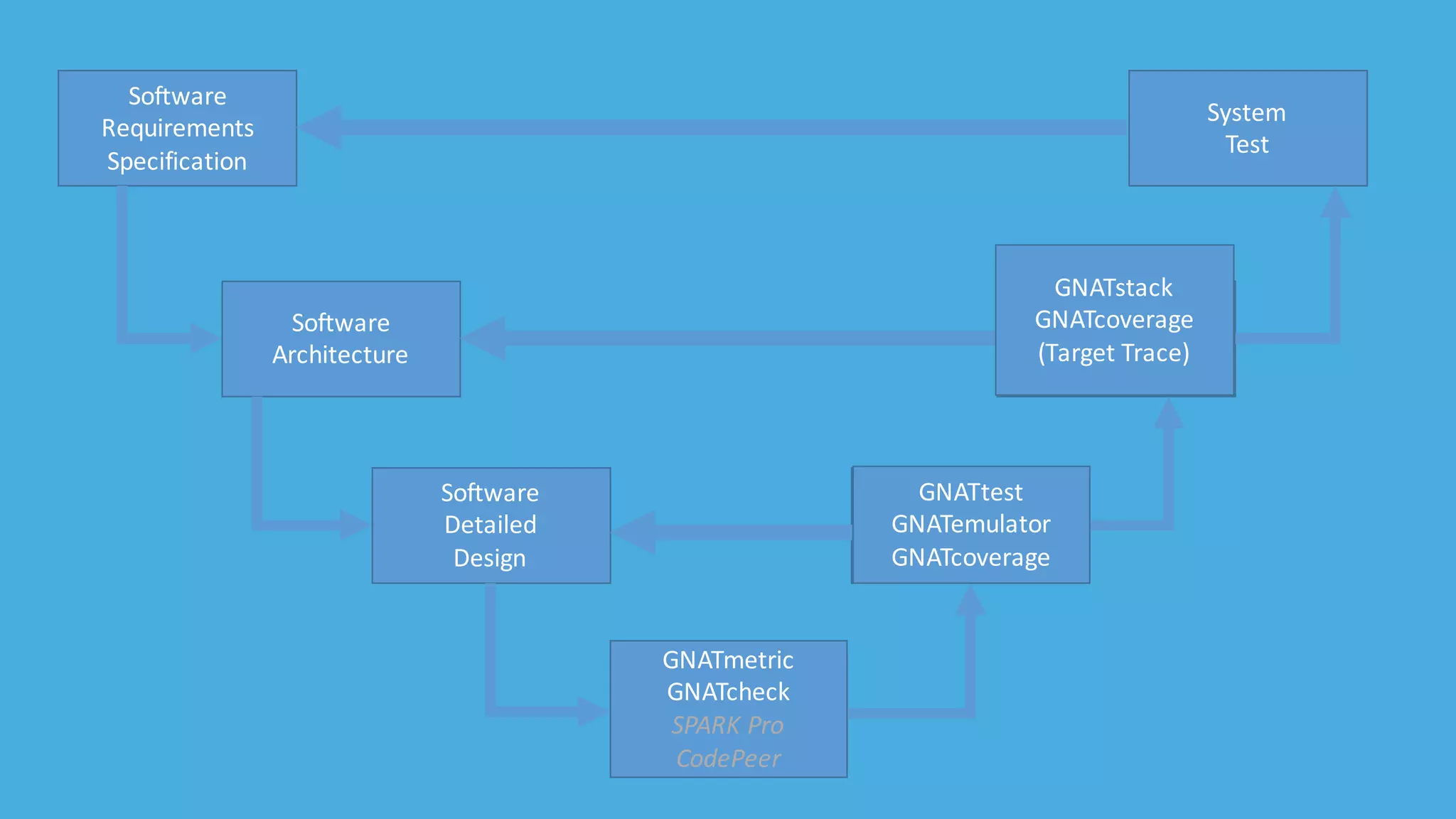

7. Software
Requirements
Specification
Software
Architecture
Software
Detailed
Design
Code
Unit
Test
Integration
Test
System
Test
GNATmetric
GNATcheck
SPARK Pro
CodePeer
GNATtest
GNATemulator
GNATcoverage
GNATstack
GNATcoverage
(Target Trace)

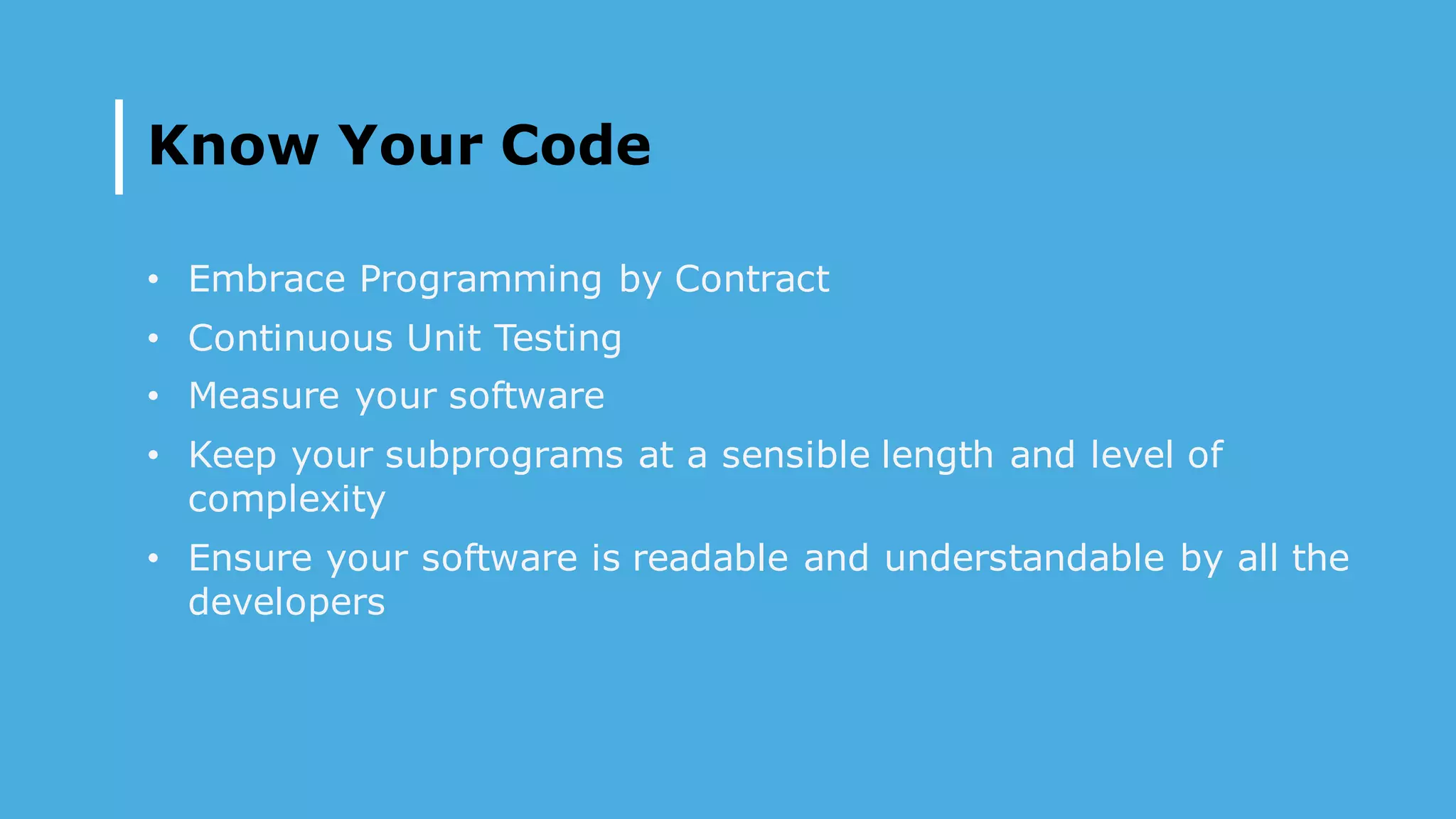

8. Know Your Code
• Embrace Programming by Contract
• Continuous Unit Testing
• Measure your software
• Keep your subprograms at a sensible length and level of
complexity
• Ensure your software is readable and understandable by all the
developers

9. Static Verification

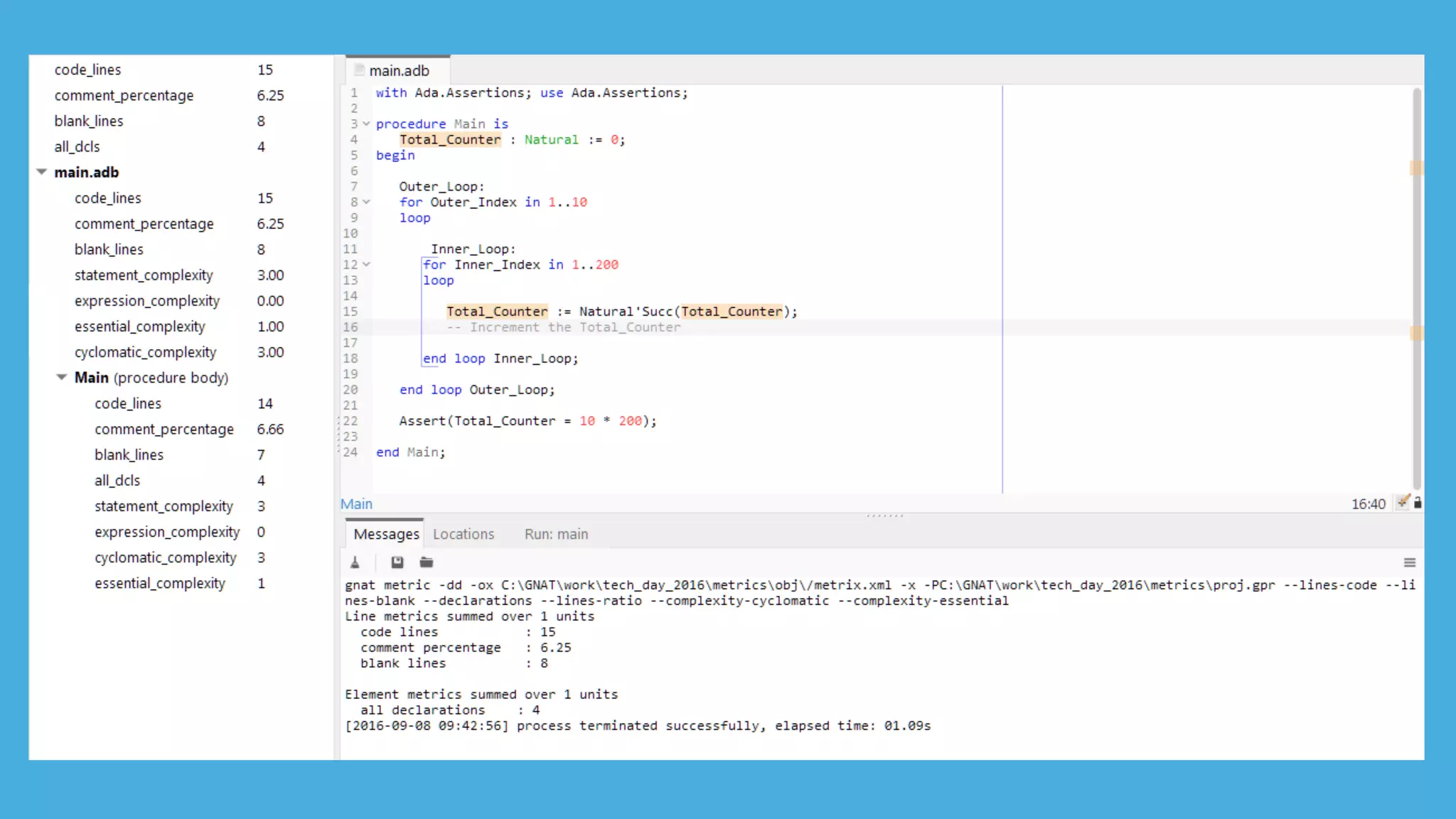

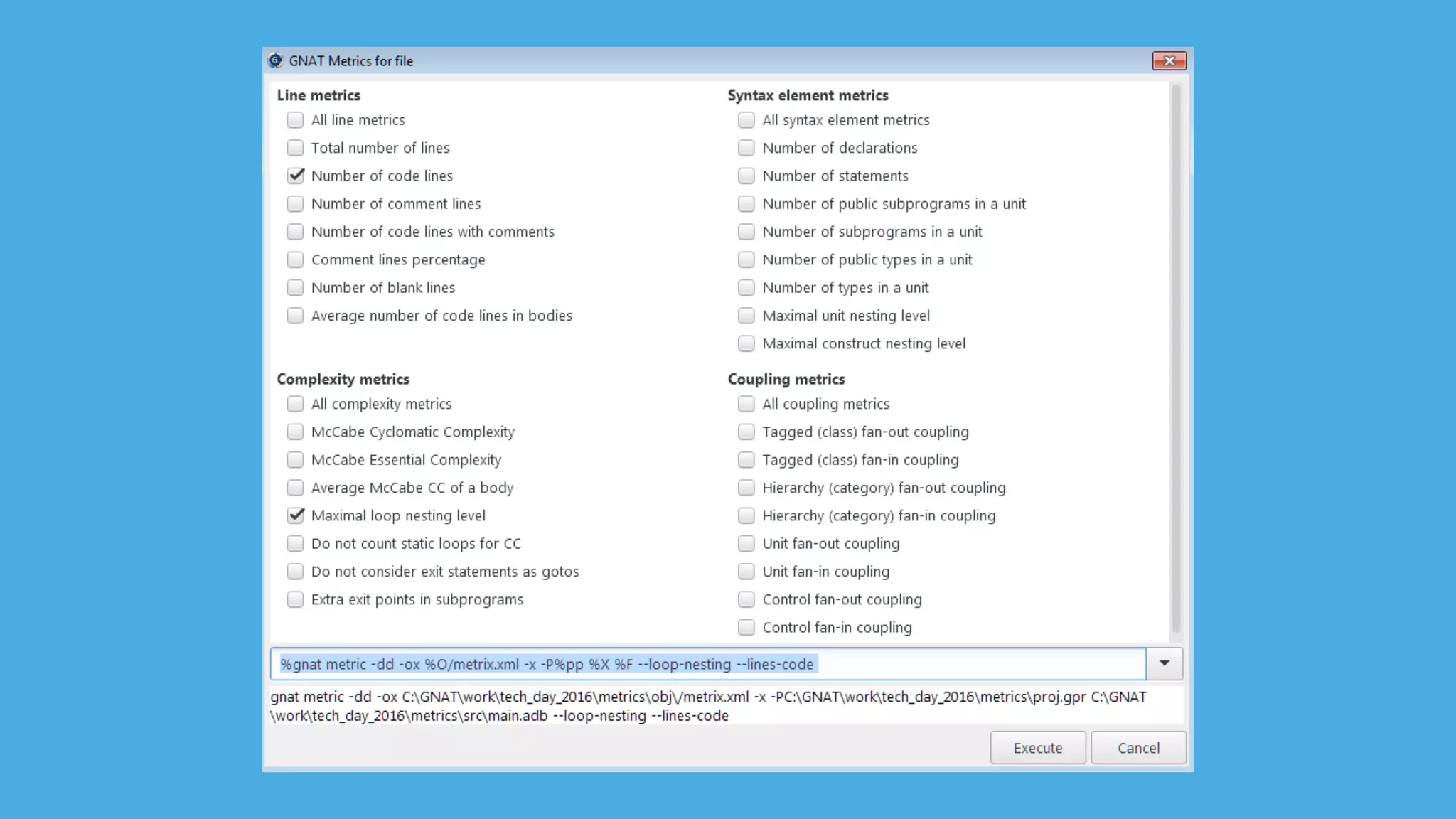

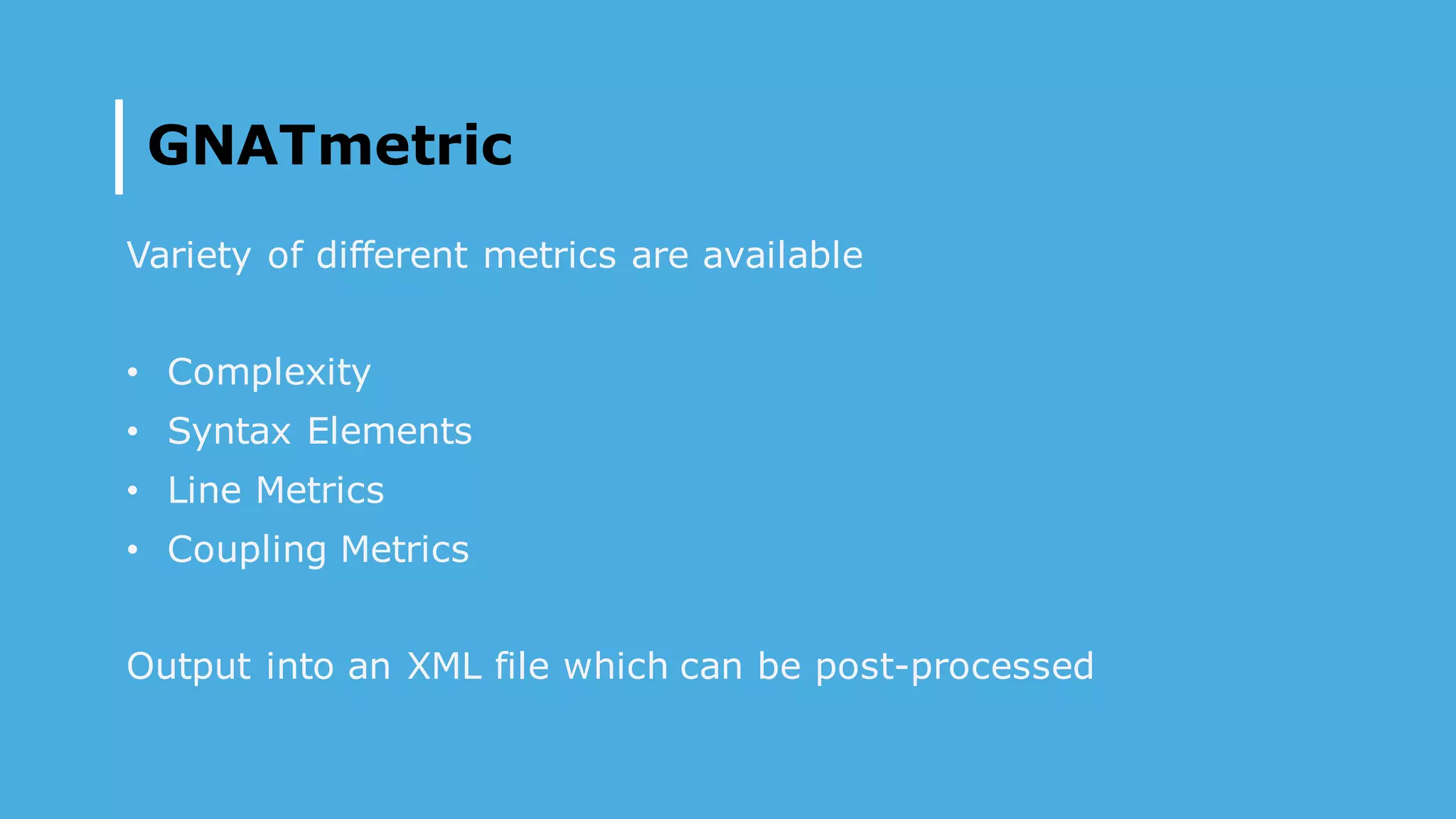

10. GNATmetric
Variety of different metrics are available
• Complexity
• Syntax Elements
• Line Metrics
• Coupling Metrics
Output into an XML file which can be post-processed

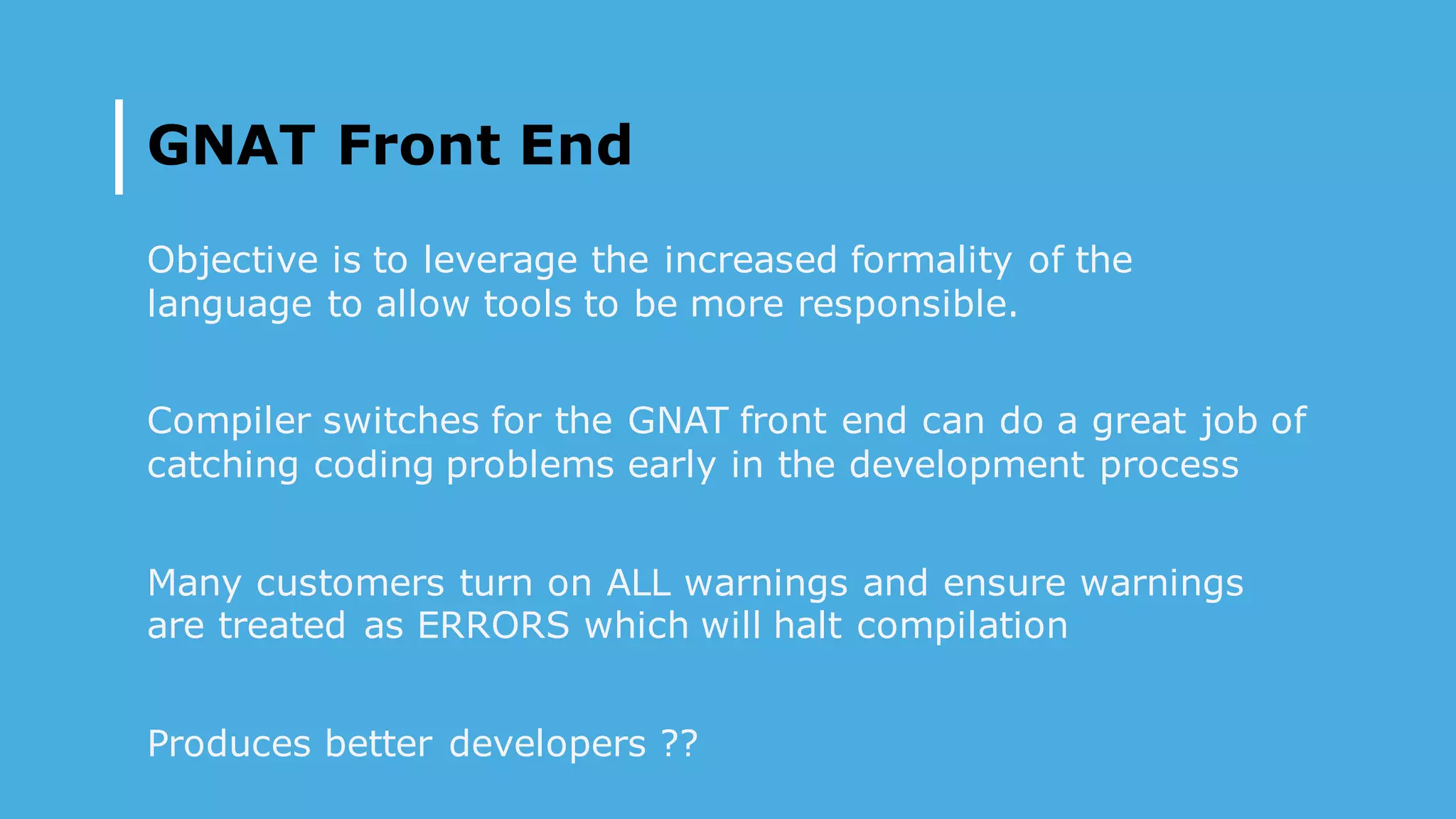

13. GNAT Front End
Objective is to leverage the increased formality of the
language to allow tools to be more responsible.

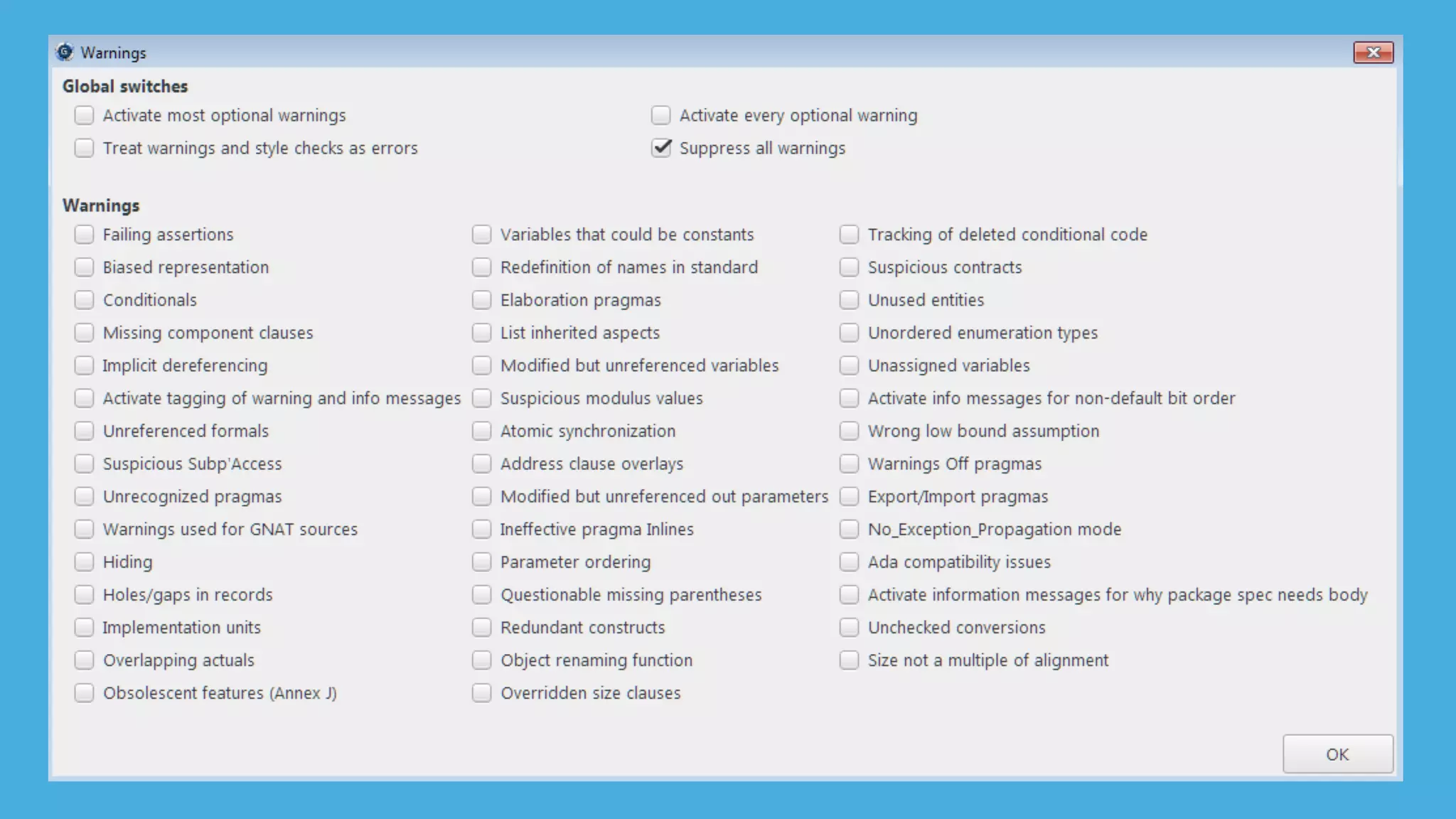

Compiler switches for the GNAT front end can do a great job of
catching coding problems early in the development process
Many customers turn on ALL warnings and ensure warnings
are treated as ERRORS which will halt compilation
Produces better developers ??

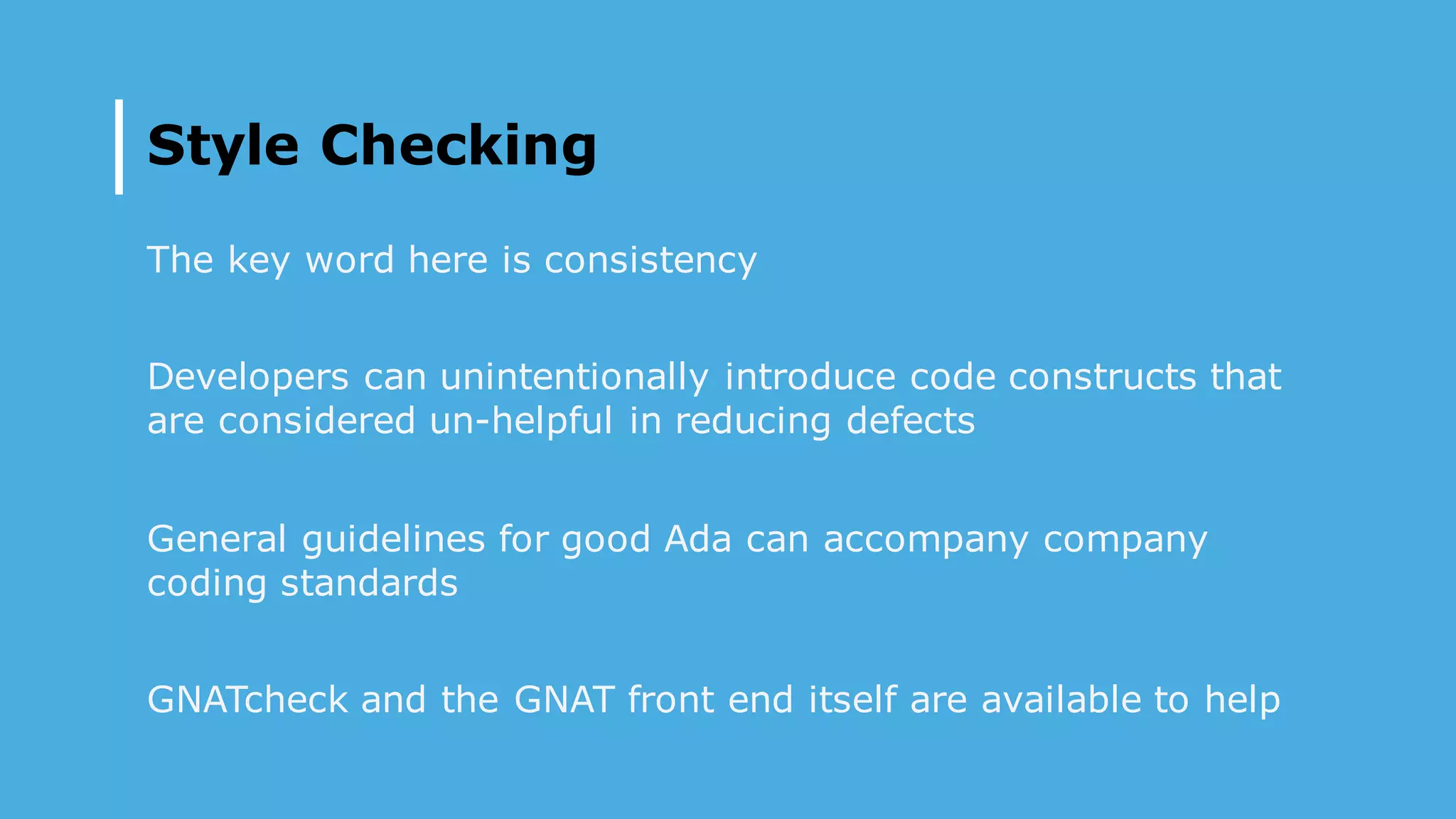

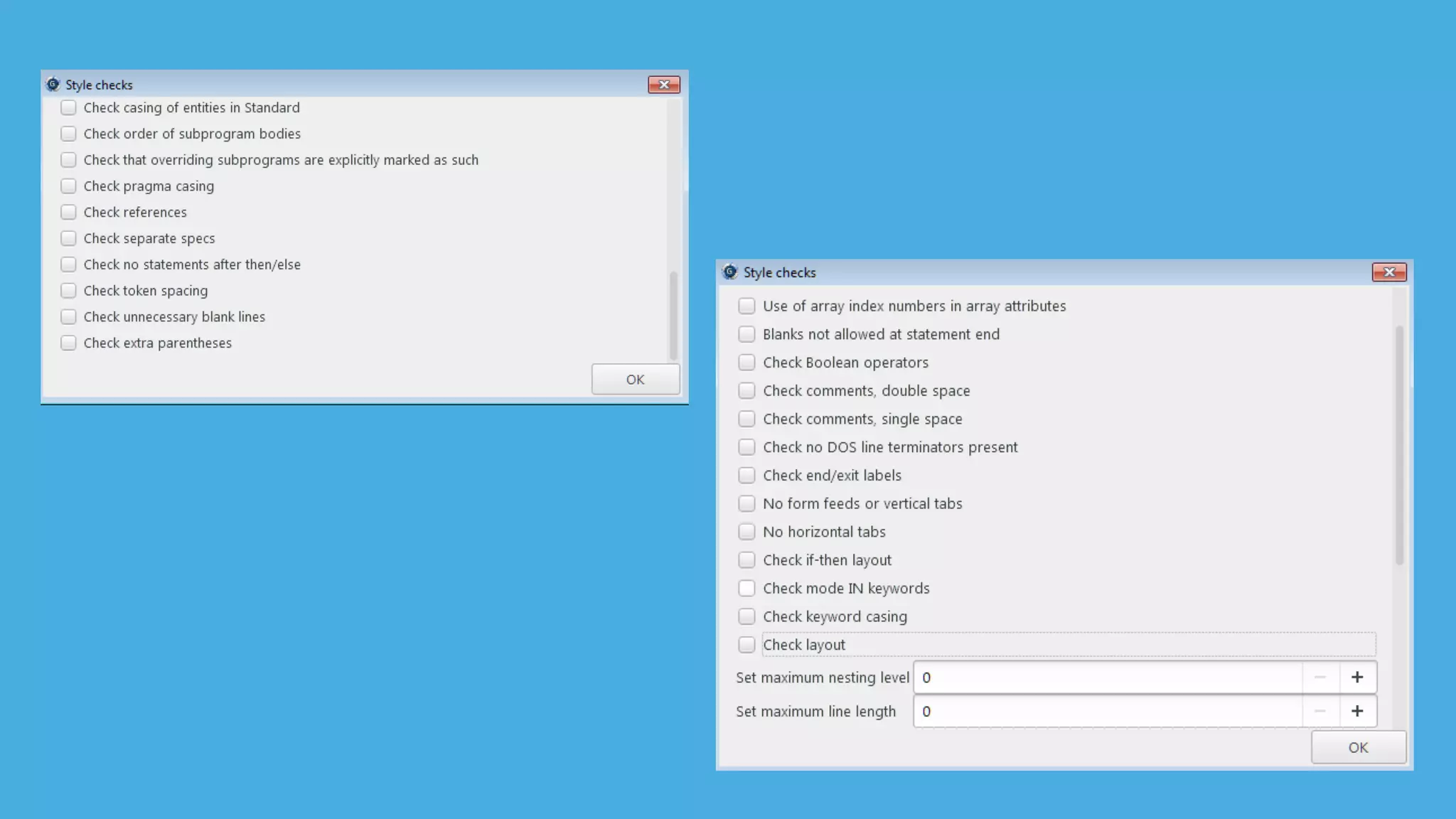

15. Style Checking
The key word here is consistency
Developers can unintentionally introduce code constructs that
are considered un-helpful in reducing defects
General guidelines for good Ada can accompany company
coding standards
GNATcheck and the GNAT front end itself are available to help

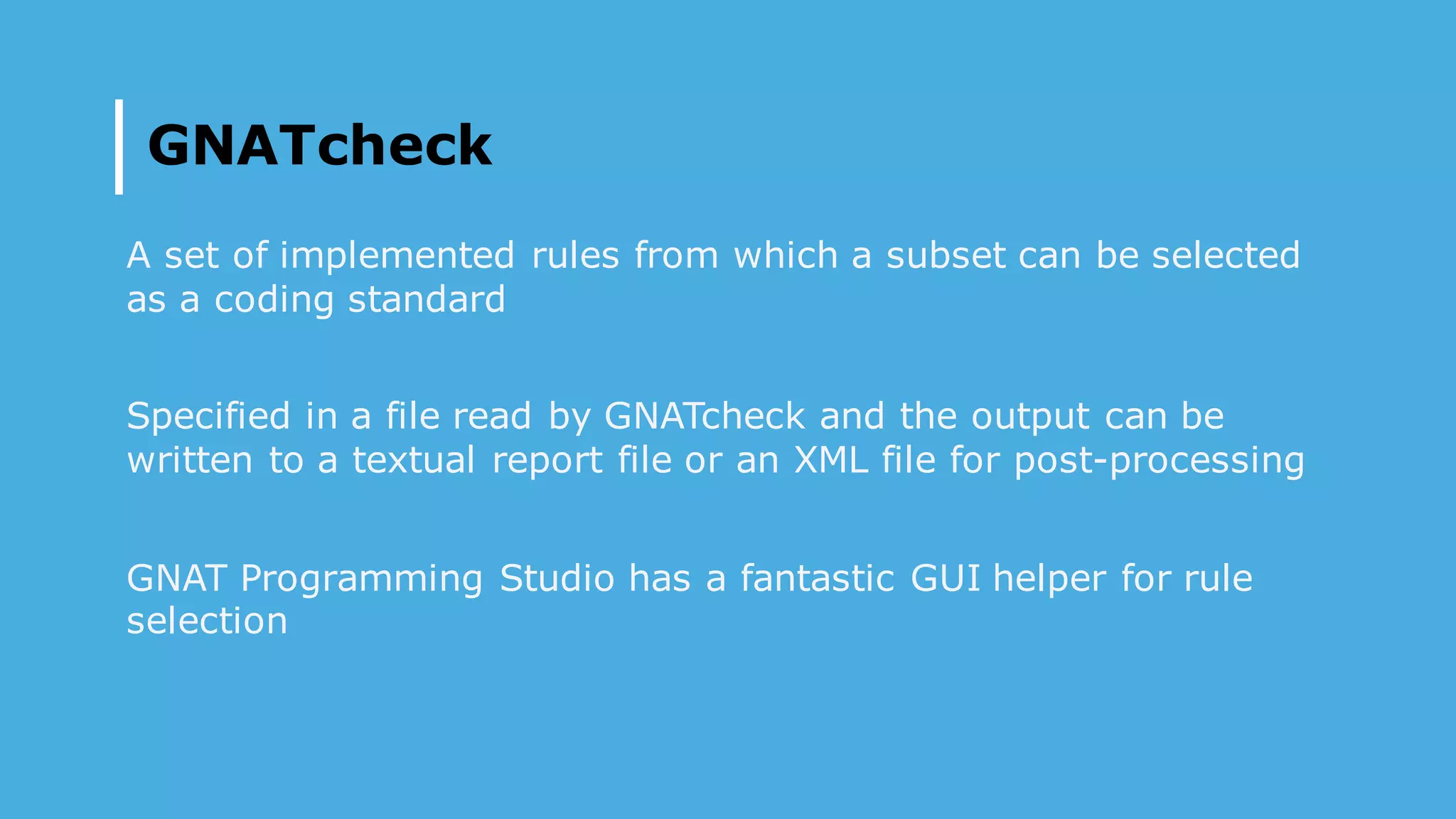

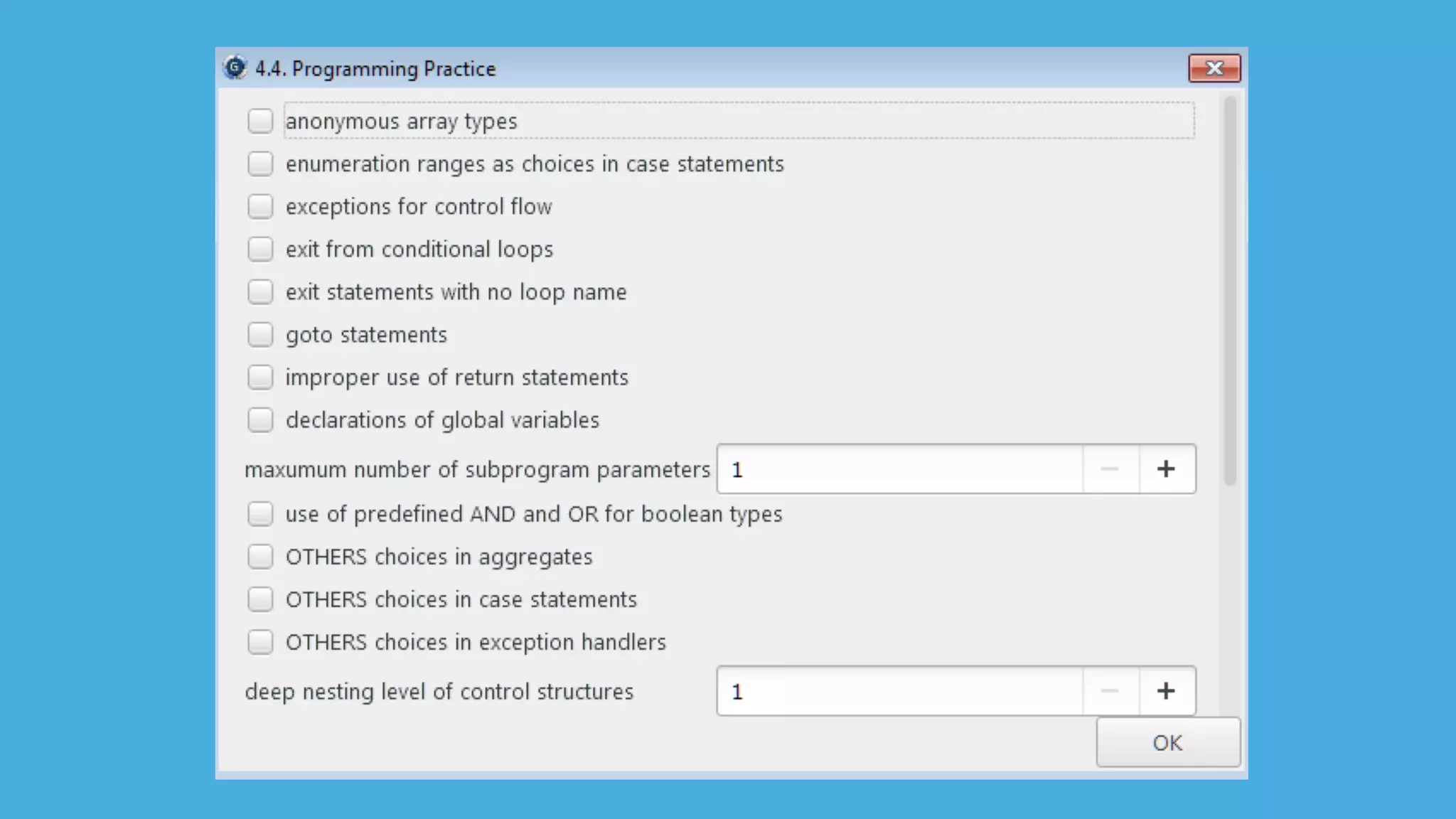

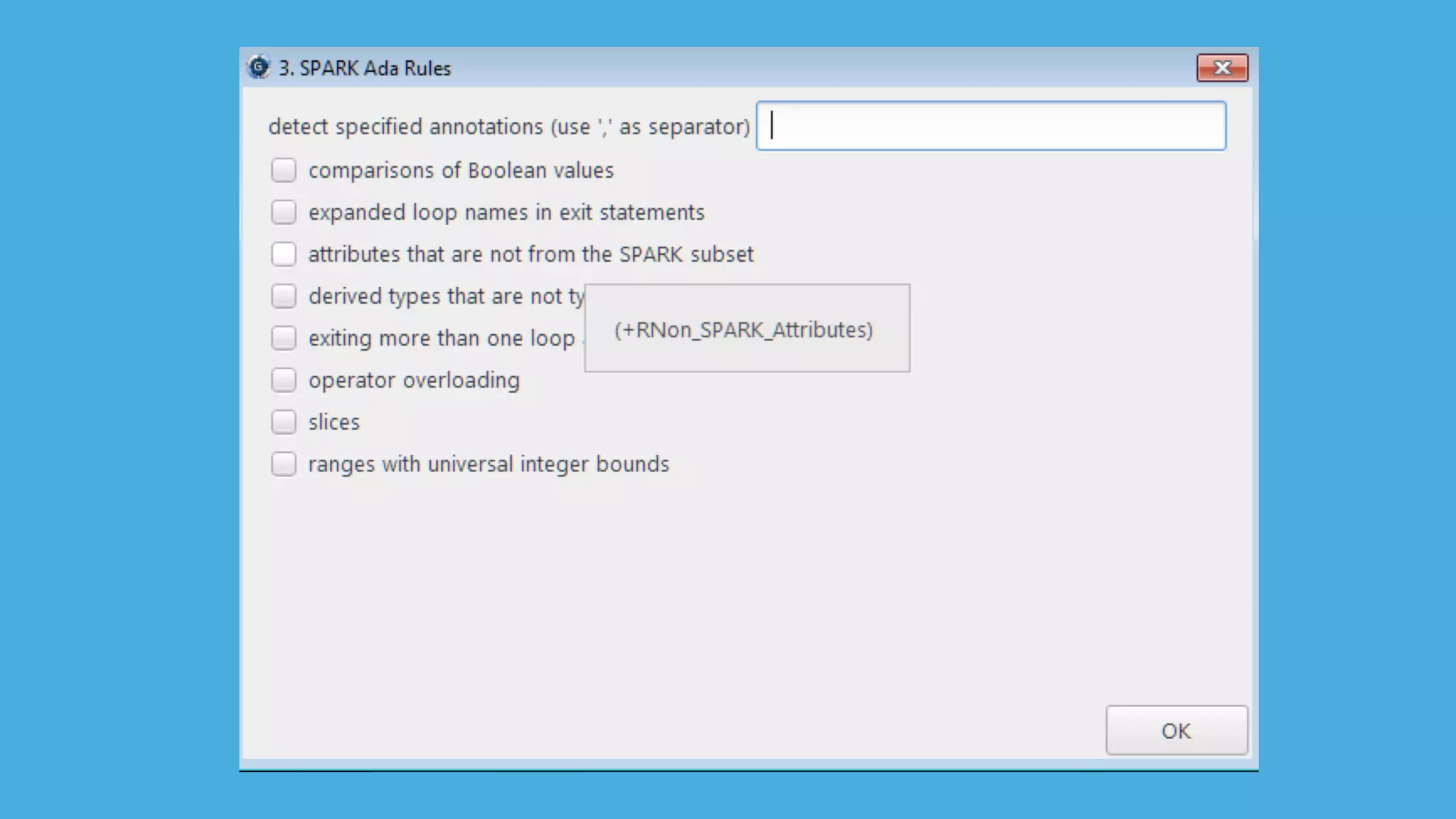

17. GNATcheck
A set of implemented rules from which a subset can be selected
as a coding standard
Specified in a file read by GNATcheck and the output can be
written to a textual report file or an XML file for post-processing

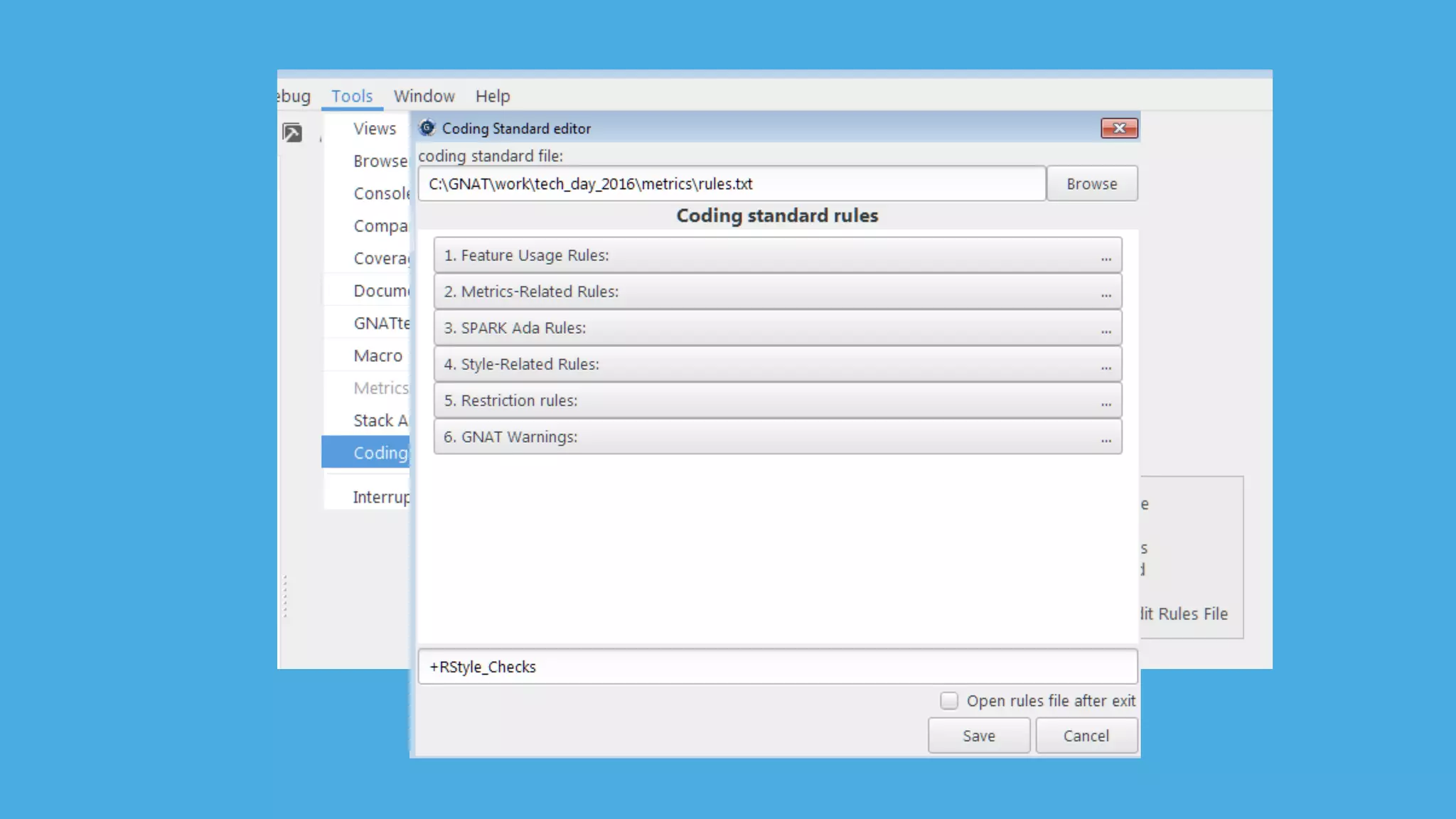

GNAT Programming Studio has a fantastic GUI helper for rule
selection

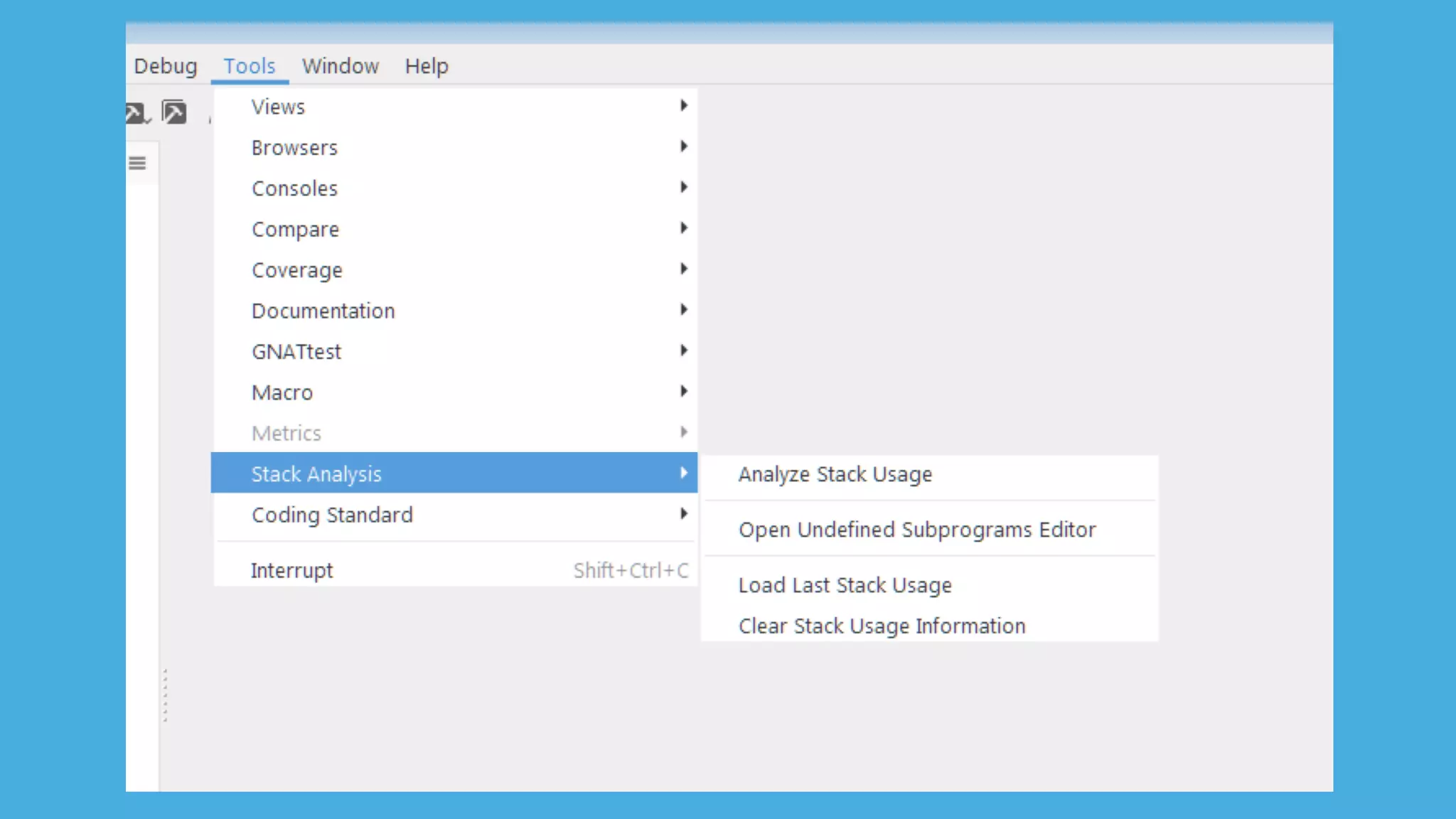

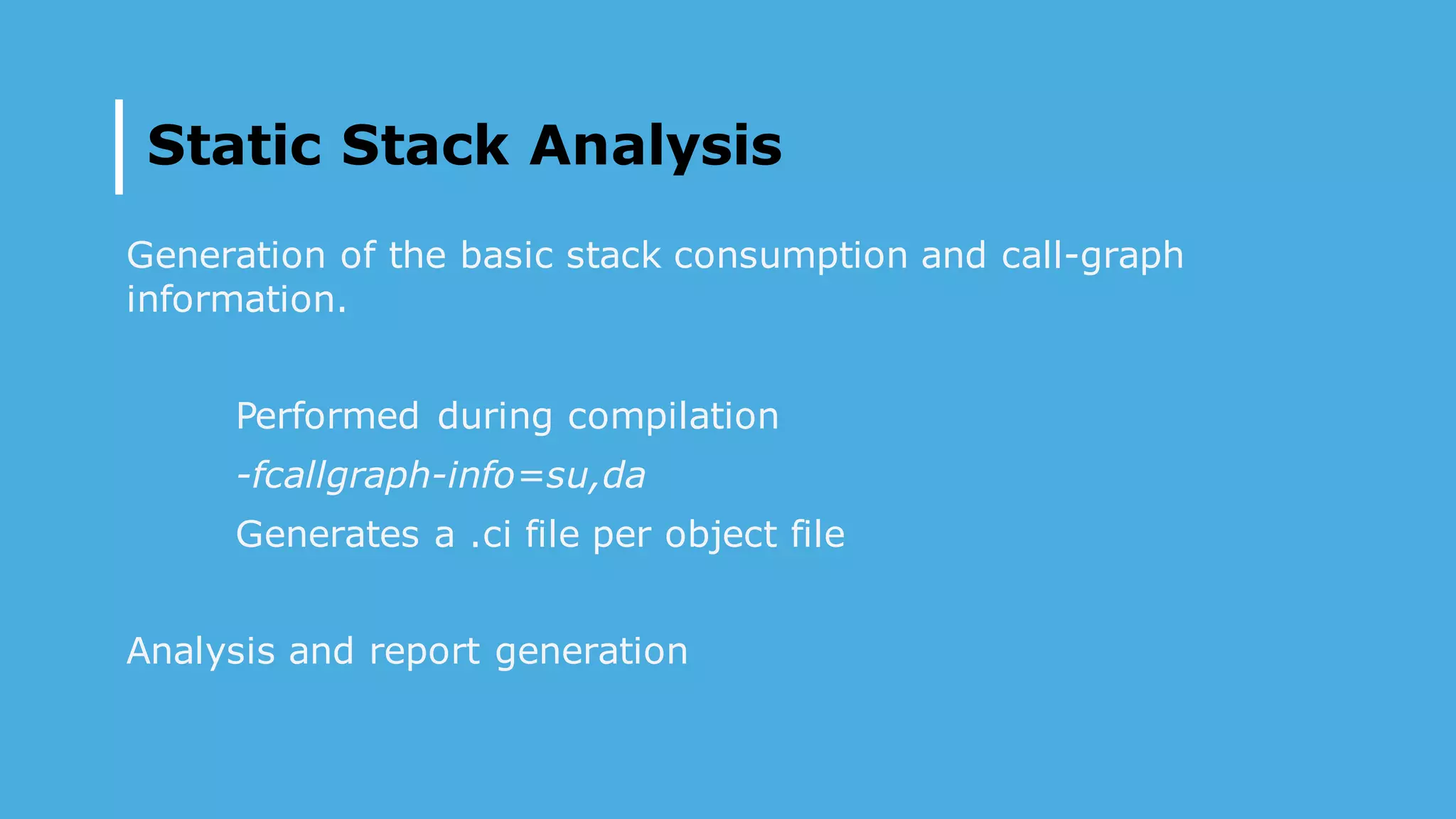

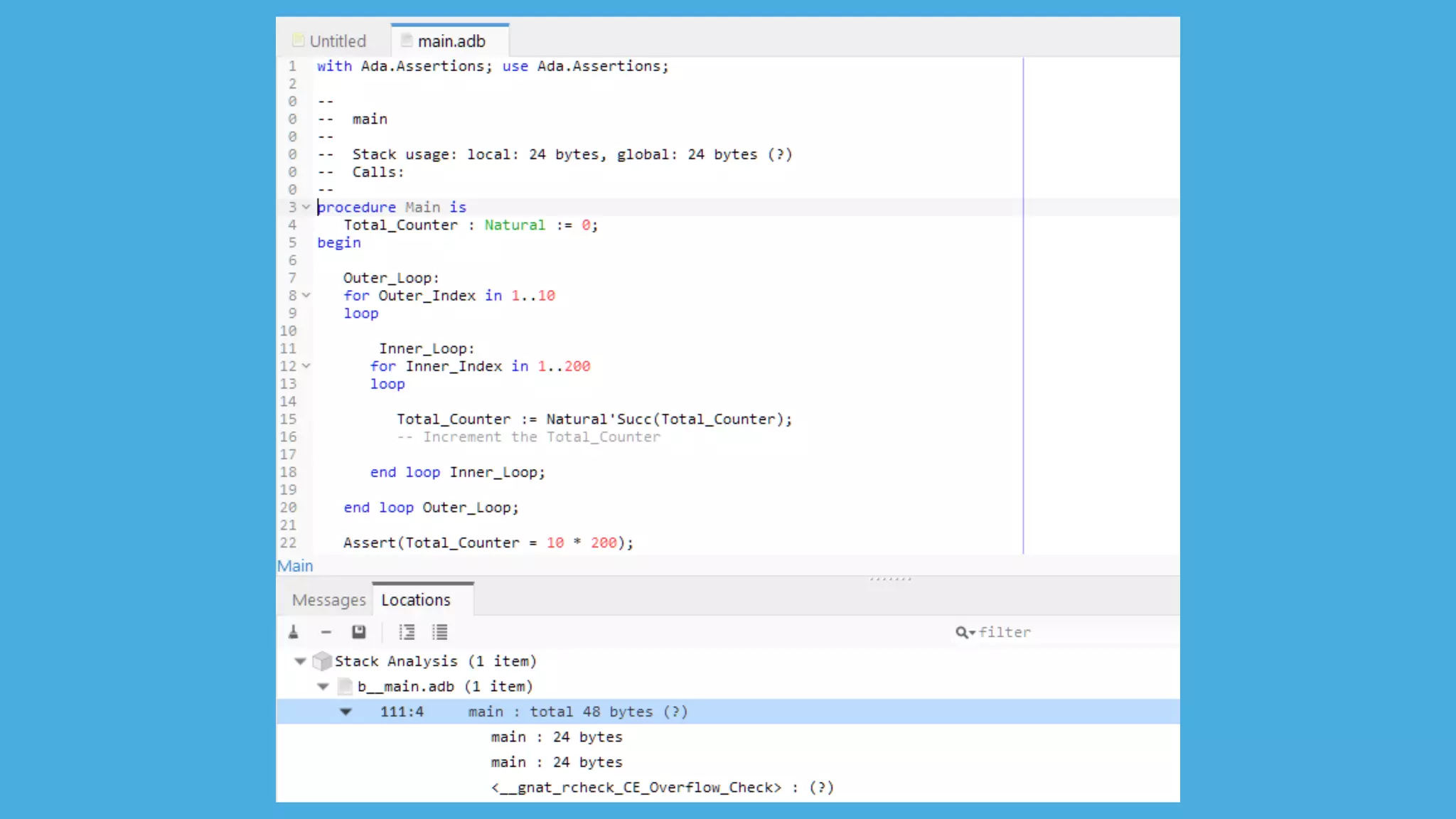

21. Static Stack Analysis
Generation of the basic stack consumption and call-graph
information.
Performed during compilation
-fcallgraph-info=su,da
Generates a .ci file per object file
Analysis and report generation

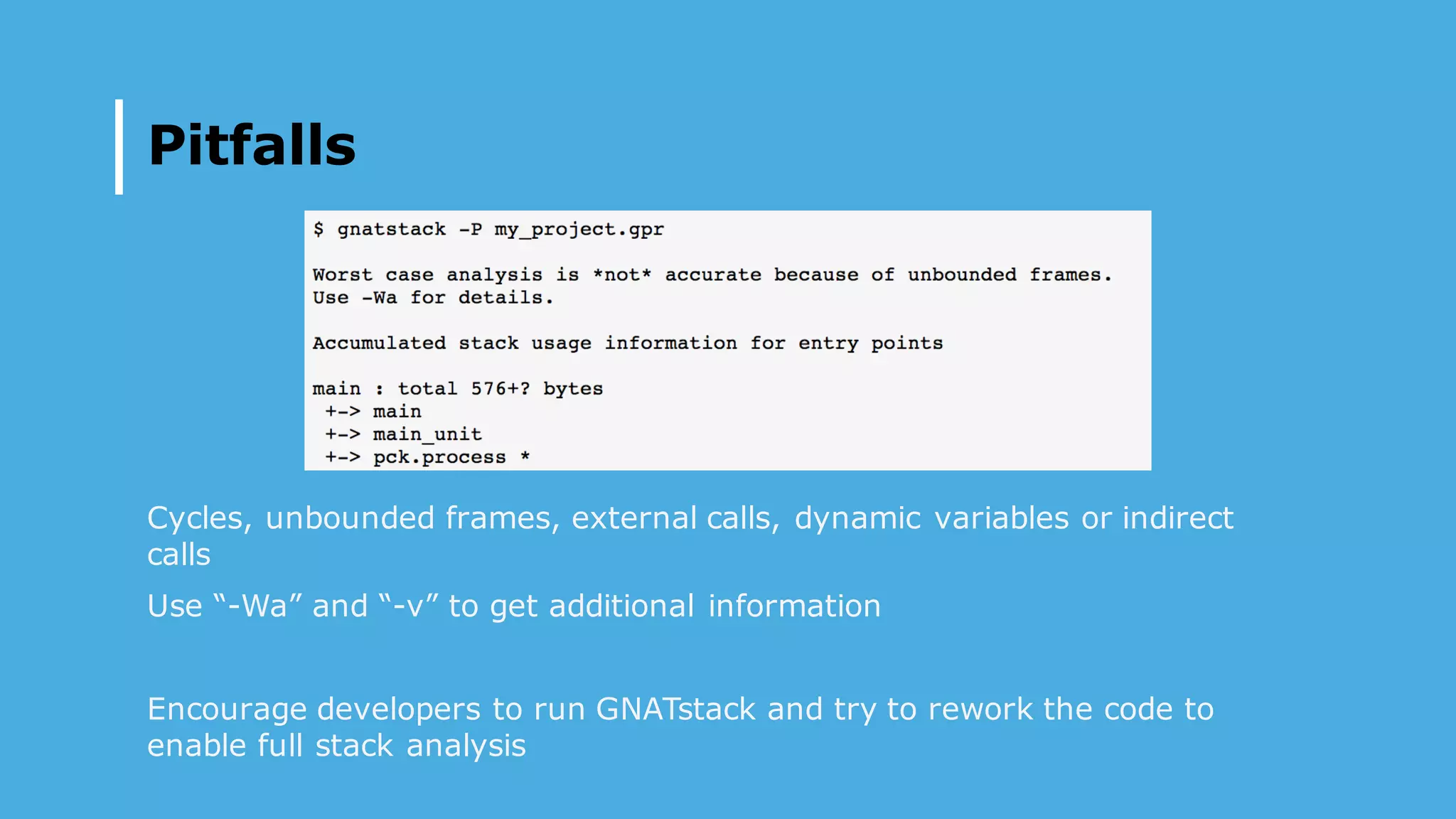

24. Pitfalls
Cycles, unbounded frames, external calls, dynamic variables or indirect
calls
Use “-Wa” and “-v” to get additional information
Encourage developers to run GNATstack and try to rework the code to
enable full stack analysis

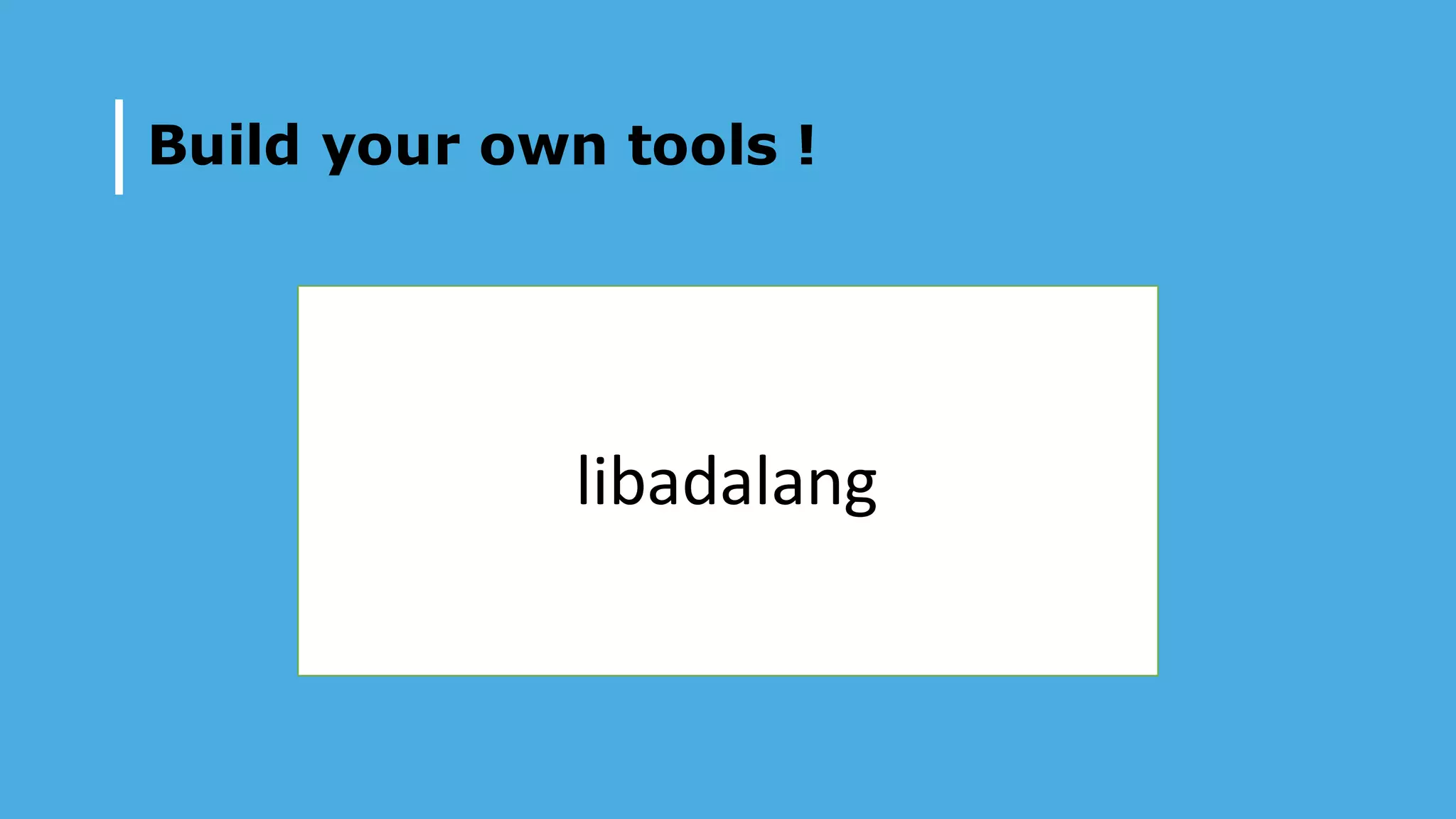

25. Build your own tools !
libadalang

26. Dynamic Verification

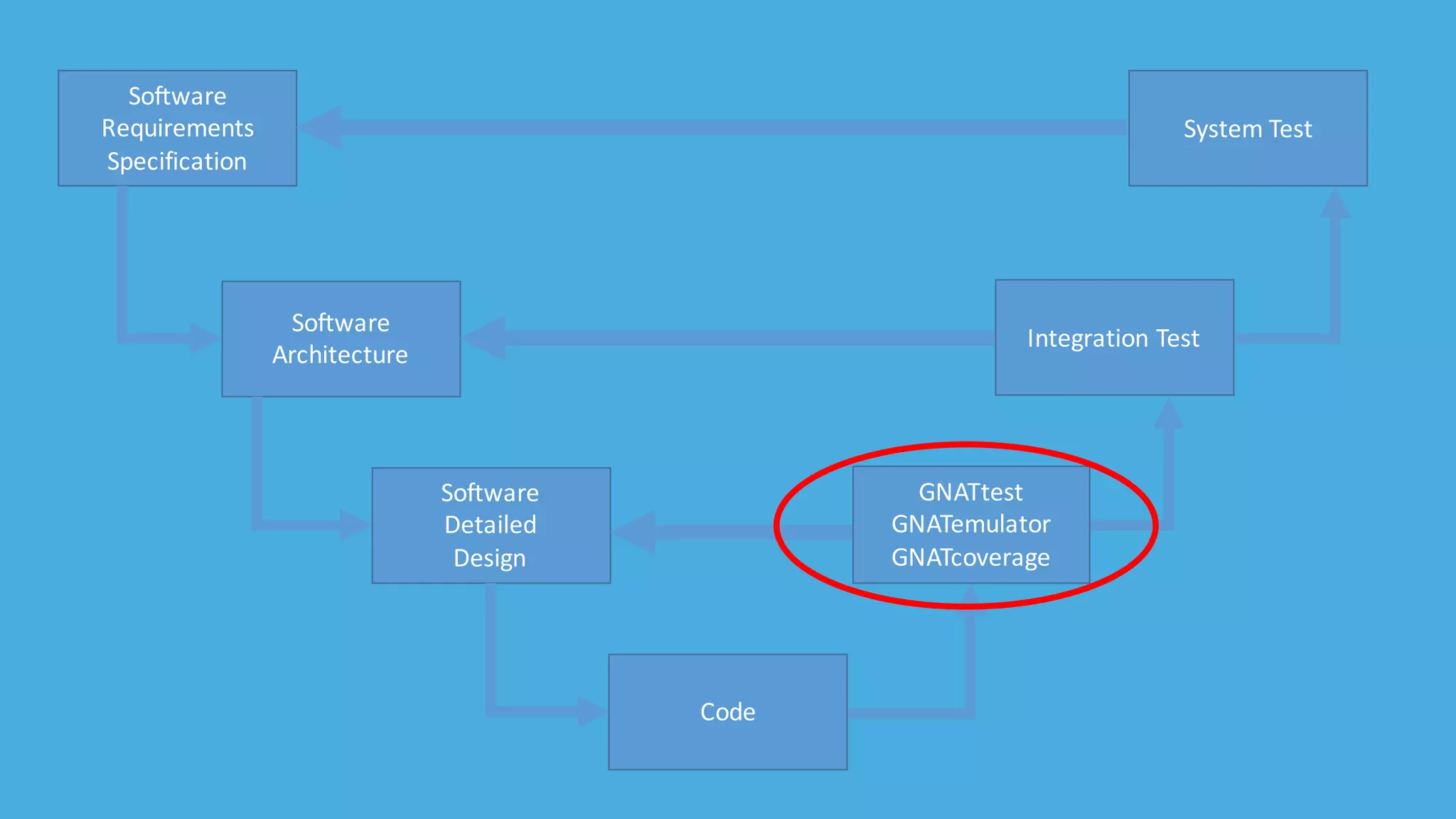

27. Software
Requirements
Specification
Software
Architecture
Software
Detailed
Design
Code
GNATtest
GNATemulator
GNATcoverage
System Test
Integration Test

28. Desktop Dynamic Verification
TARGET EMULATIONGNATemulator COVERAGE ANALYSISGNATcoverage
UNIT TEST GENERATIONGNATtest

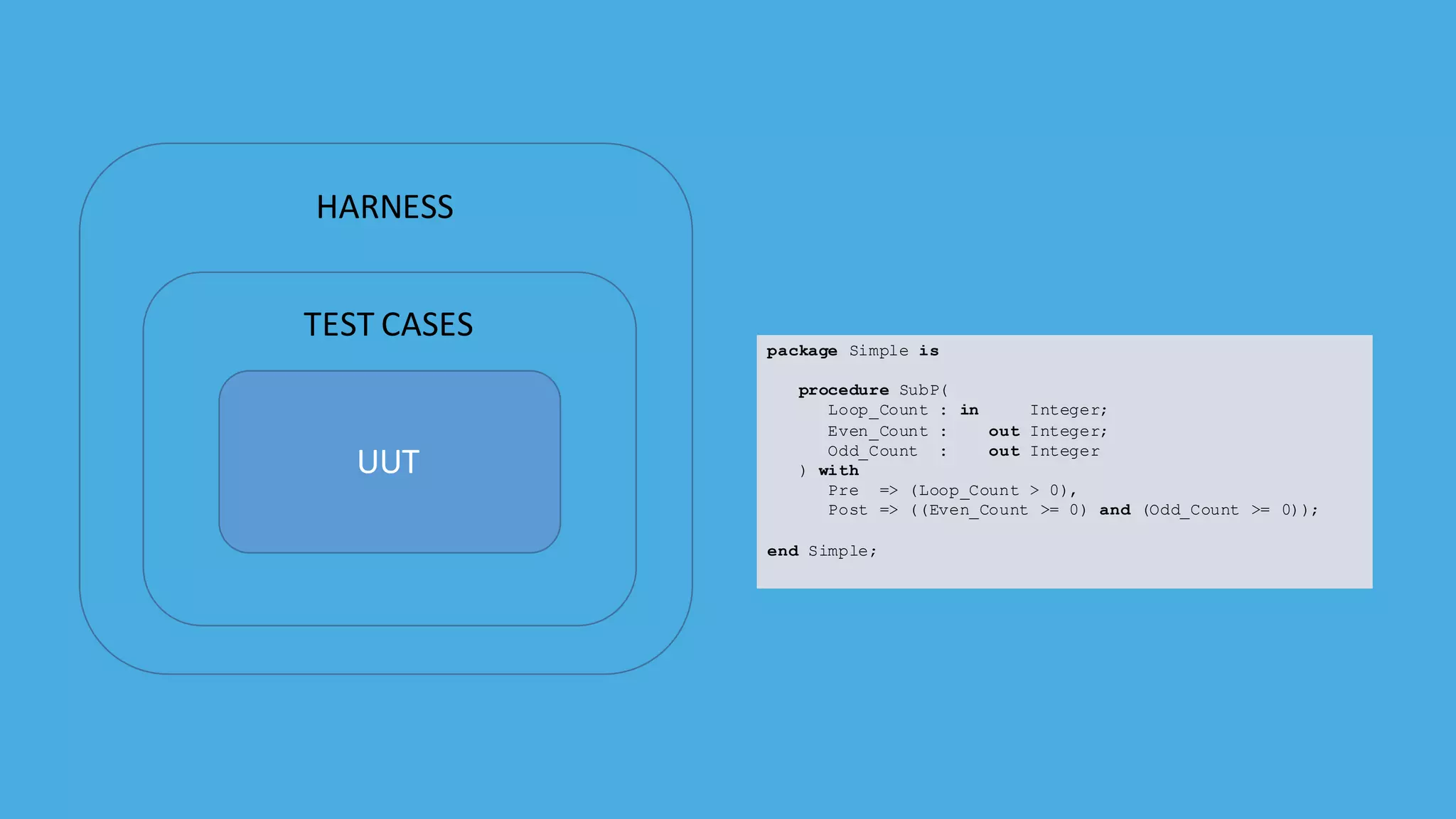

29. HARNESS
TEST CASES
UUT
package Simple is
procedure SubP(
Loop_Count : in Integer;
Even_Count : out Integer;
Odd_Count : out Integer
) with
Pre => (Loop_Count > 0),
Post => ((Even_Count >= 0) and (Odd_Count >= 0));
end Simple;

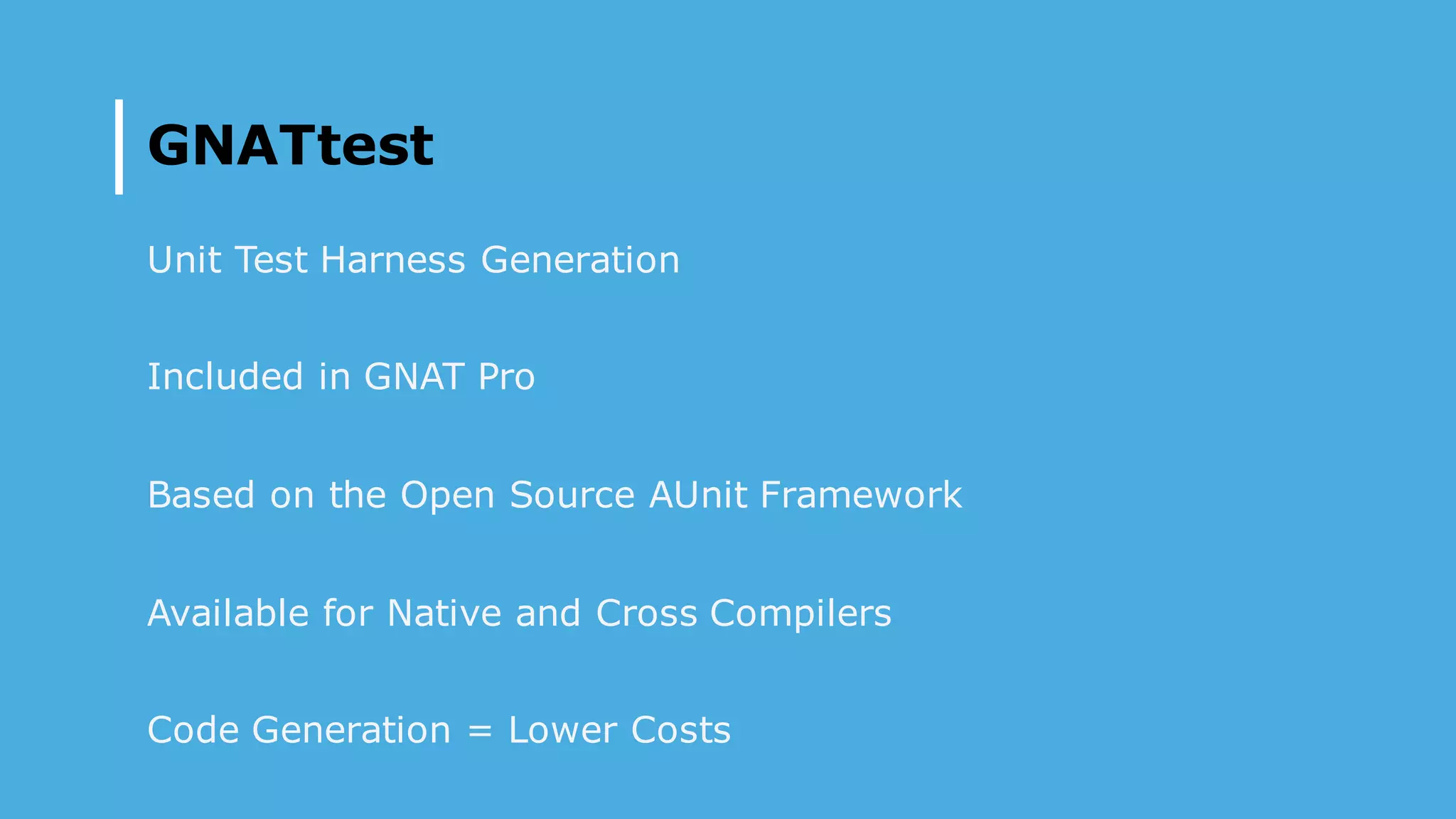

30. GNATtest
Unit Test Harness Generation
Included in GNAT Pro
Based on the Open Source AUnit Framework
Available for Native and Cross Compilers
Code Generation = Lower Costs

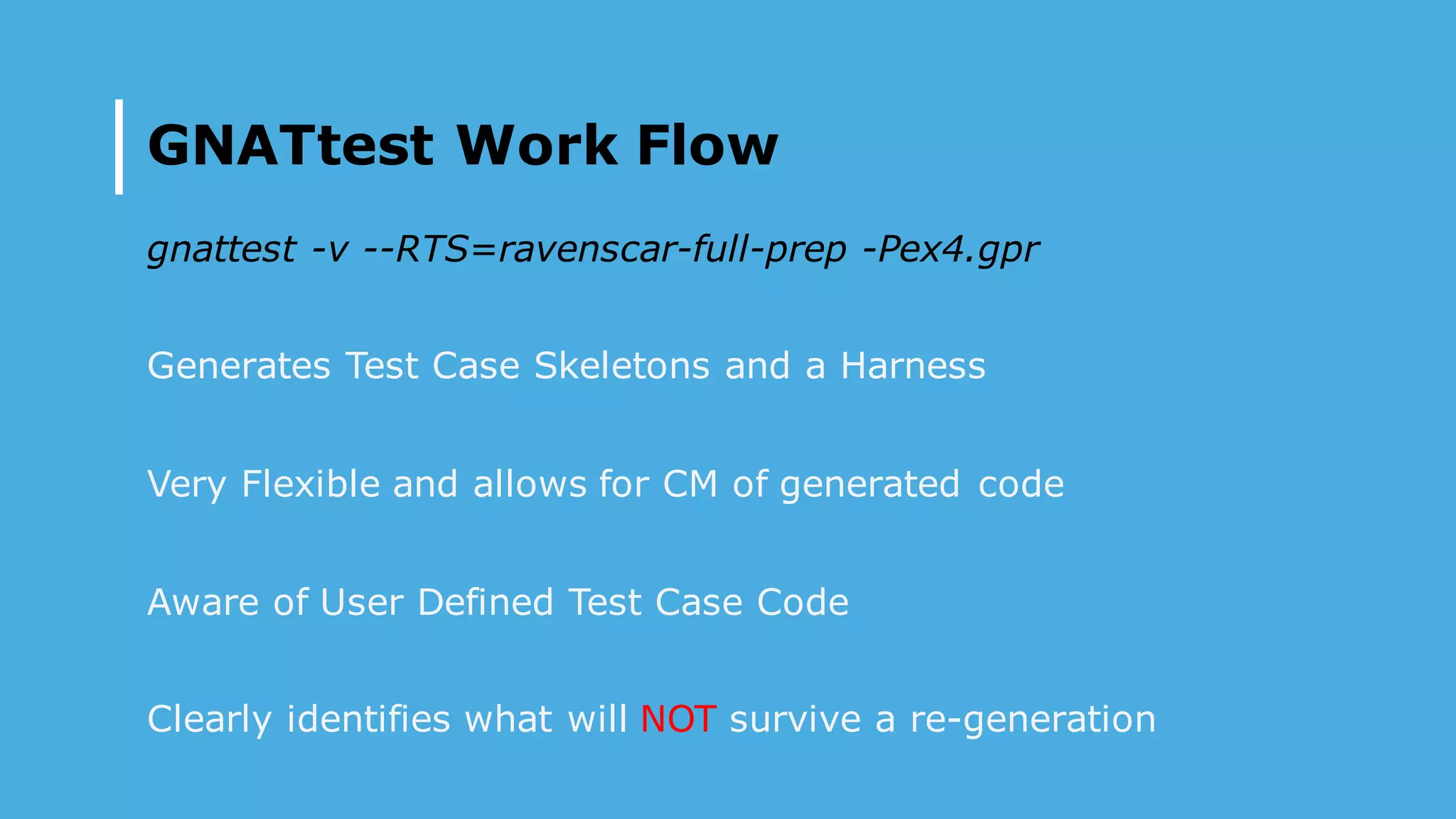

31. GNATtest Work Flow
gnattest -v --RTS=ravenscar-full-prep -Pex4.gpr
Generates Test Case Skeletons and a Harness
Very Flexible and allows for CM of generated code
Aware of User Defined Test Case Code
Clearly identifies what will NOT survive a re-generation

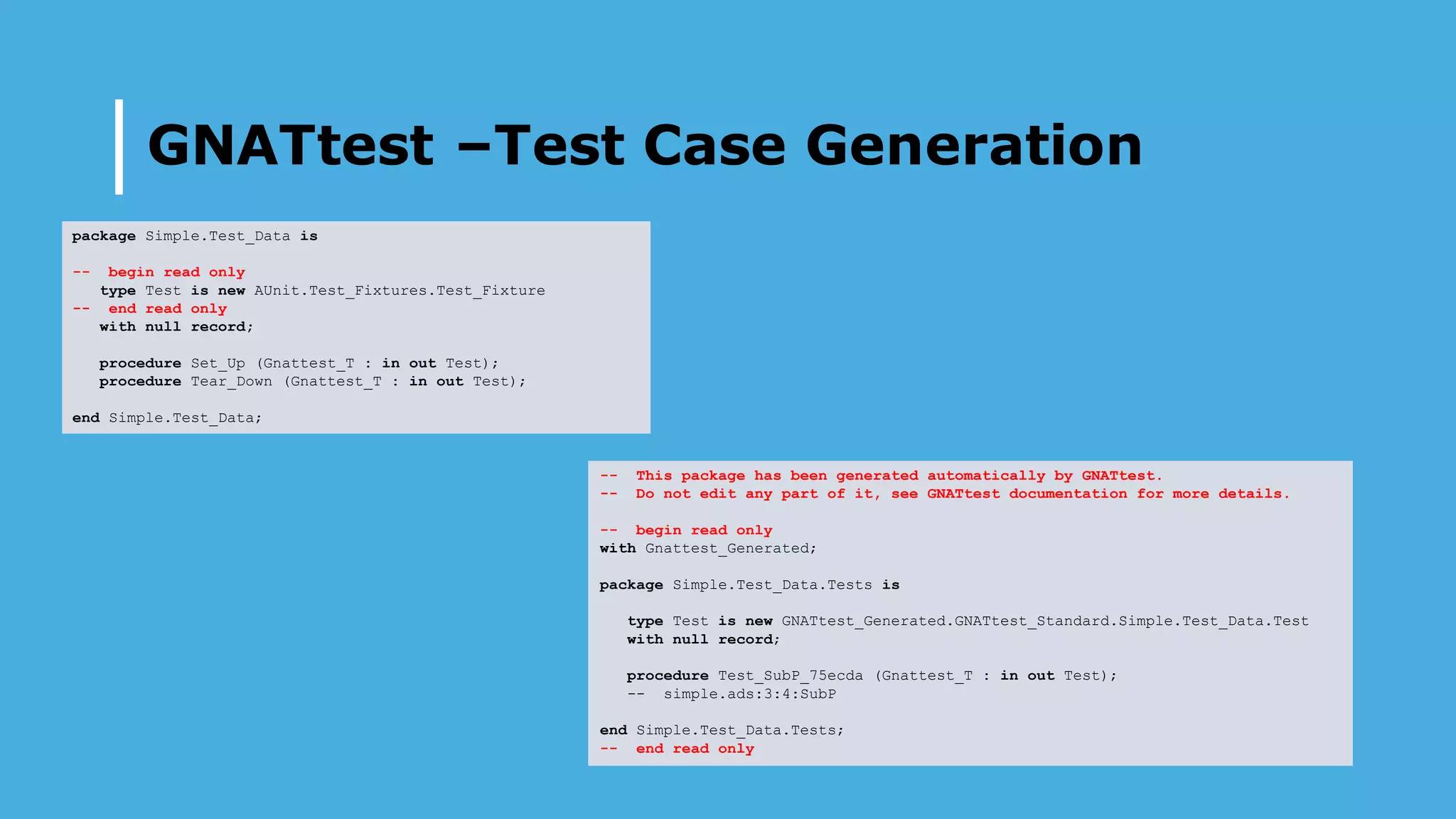

32. GNATtest –Test Case Generation
package Simple.Test_Data is
-- begin read only
type Test is new AUnit.Test_Fixtures.Test_Fixture
-- end read only
with null record;
procedure Set_Up (Gnattest_T : in out Test);
procedure Tear_Down (Gnattest_T : in out Test);
end Simple.Test_Data;
-- This package has been generated automatically by GNATtest.
-- Do not edit any part of it, see GNATtest documentation for more details.
-- begin read only
with Gnattest_Generated;
package Simple.Test_Data.Tests is
type Test is new GNATtest_Generated.GNATtest_Standard.Simple.Test_Data.Test
with null record;
procedure Test_SubP_75ecda (Gnattest_T : in out Test);
-- simple.ads:3:4:SubP
end Simple.Test_Data.Tests;
-- end read only

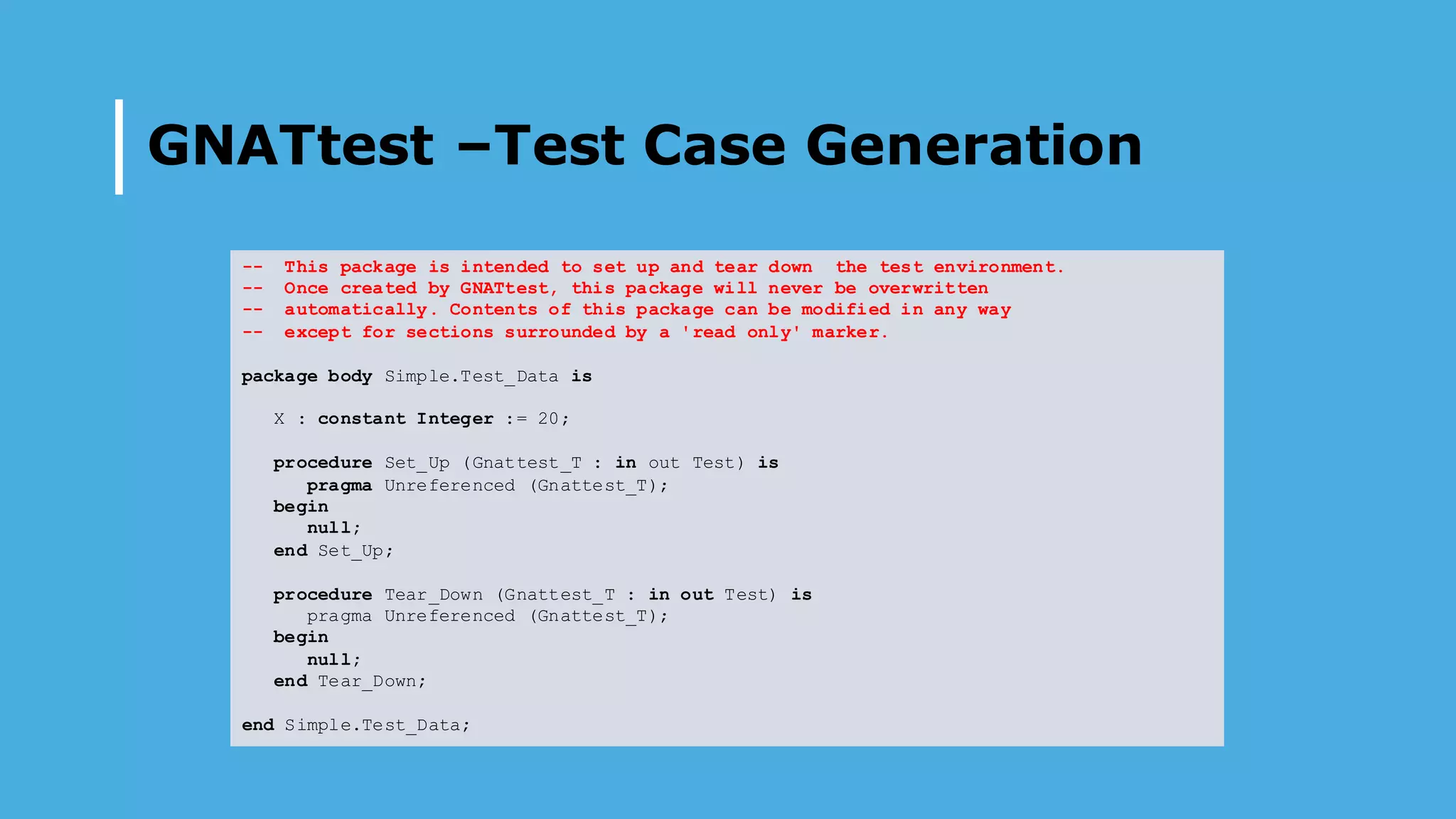

33. GNATtest –Test Case Generation
-- This package is intended to set up and tear down the test environment.
-- Once created by GNATtest, this package will never be overwritten
-- automatically. Contents of this package can be modified in any way
-- except for sections surrounded by a 'read only' marker.
package body Simple.Test_Data is
X : constant Integer := 20;
procedure Set_Up (Gnattest_T : in out Test) is
pragma Unreferenced (Gnattest_T);
begin
null;
end Set_Up;
procedure Tear_Down (Gnattest_T : in out Test) is
pragma Unreferenced (Gnattest_T);
begin
null;
end Tear_Down;
end Simple.Test_Data;

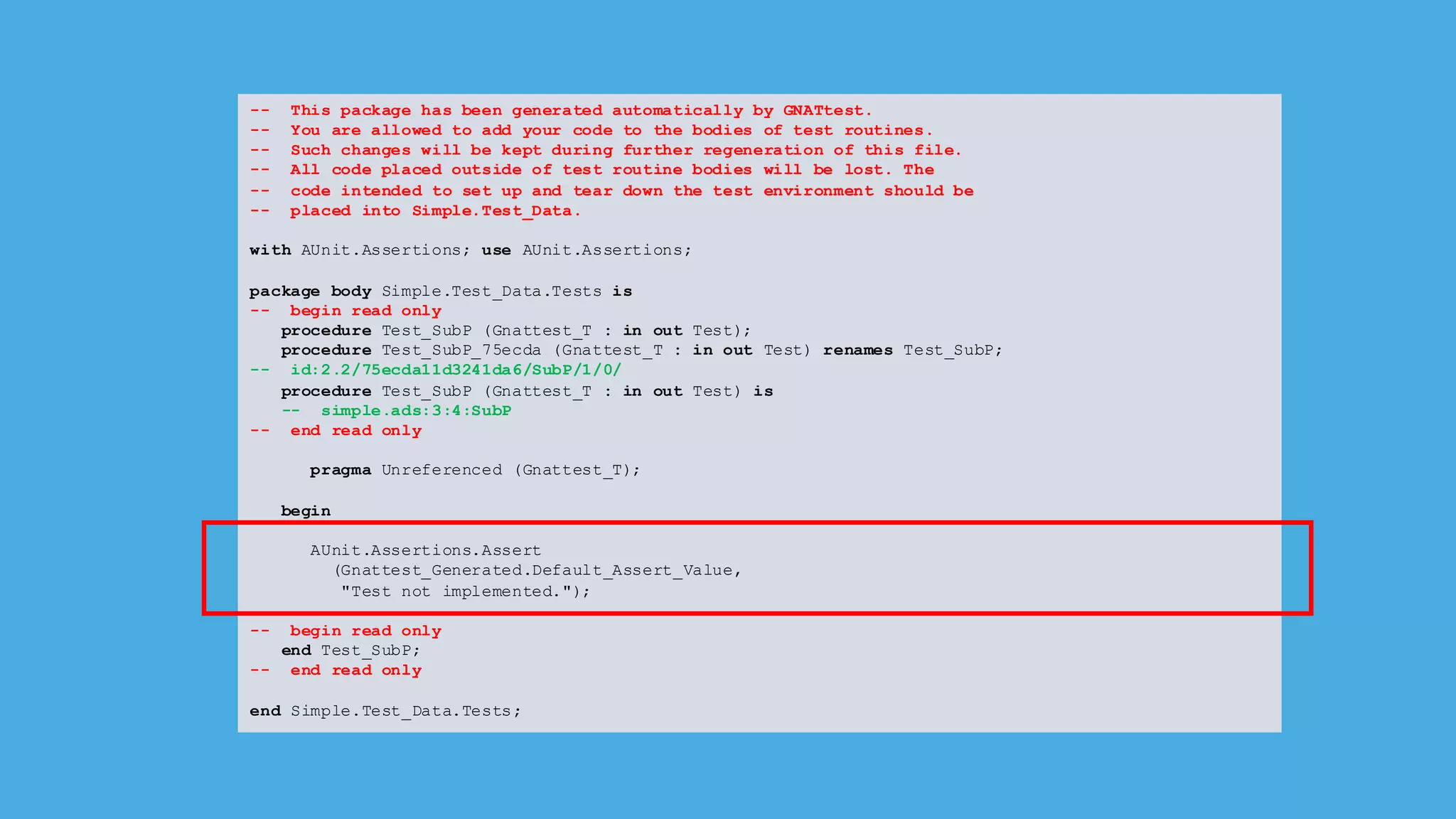

34. -- This package has been generated automatically by GNATtest.
-- You are allowed to add your code to the bodies of test routines.
-- Such changes will be kept during further regeneration of this file.
-- All code placed outside of test routine bodies will be lost. The
-- code intended to set up and tear down the test environment should be
-- placed into Simple.Test_Data.
with AUnit.Assertions; use AUnit.Assertions;
package body Simple.Test_Data.Tests is
-- begin read only
procedure Test_SubP (Gnattest_T : in out Test);
procedure Test_SubP_75ecda (Gnattest_T : in out Test) renames Test_SubP;
-- id:2.2/75ecda11d3241da6/SubP/1/0/
procedure Test_SubP (Gnattest_T : in out Test) is
-- simple.ads:3:4:SubP
-- end read only
pragma Unreferenced (Gnattest_T);
begin
AUnit.Assertions.Assert
(Gnattest_Generated.Default_Assert_Value,
"Test not implemented.");
-- begin read only
end Test_SubP;
-- end read only
end Simple.Test_Data.Tests;

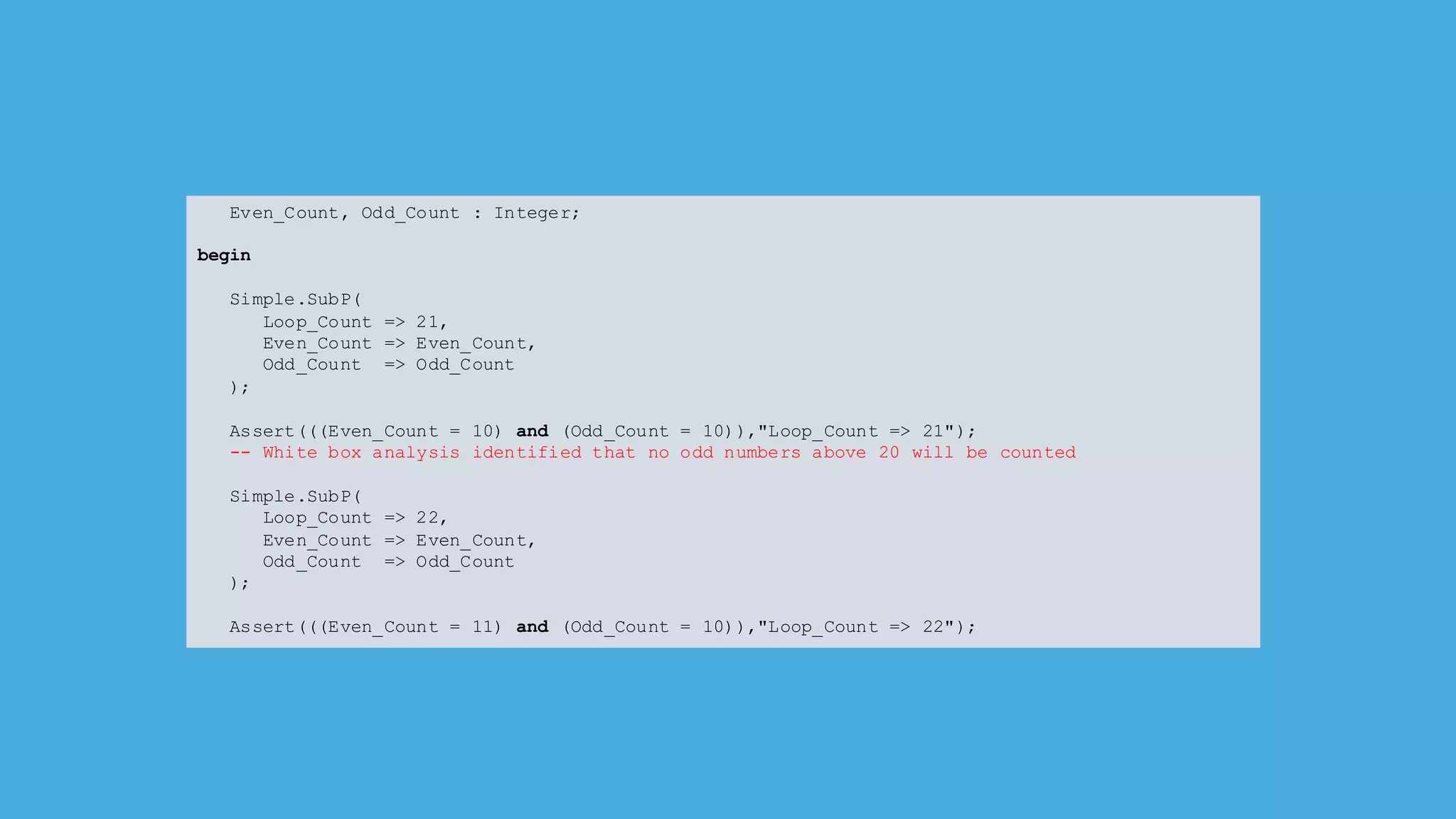

35. Even_Count, Odd_Count : Integer;
begin
Simple.SubP(
Loop_Count => 21,
Even_Count => Even_Count,
Odd_Count => Odd_Count
);
Assert(((Even_Count = 10) and (Odd_Count = 10)),"Loop_Count => 21");
-- White box analysis identified that no odd numbers above 20 will be counted
Simple.SubP(
Loop_Count => 22,
Even_Count => Even_Count,
Odd_Count => Odd_Count
);
Assert(((Even_Count = 11) and (Odd_Count = 10)),"Loop_Count => 22");

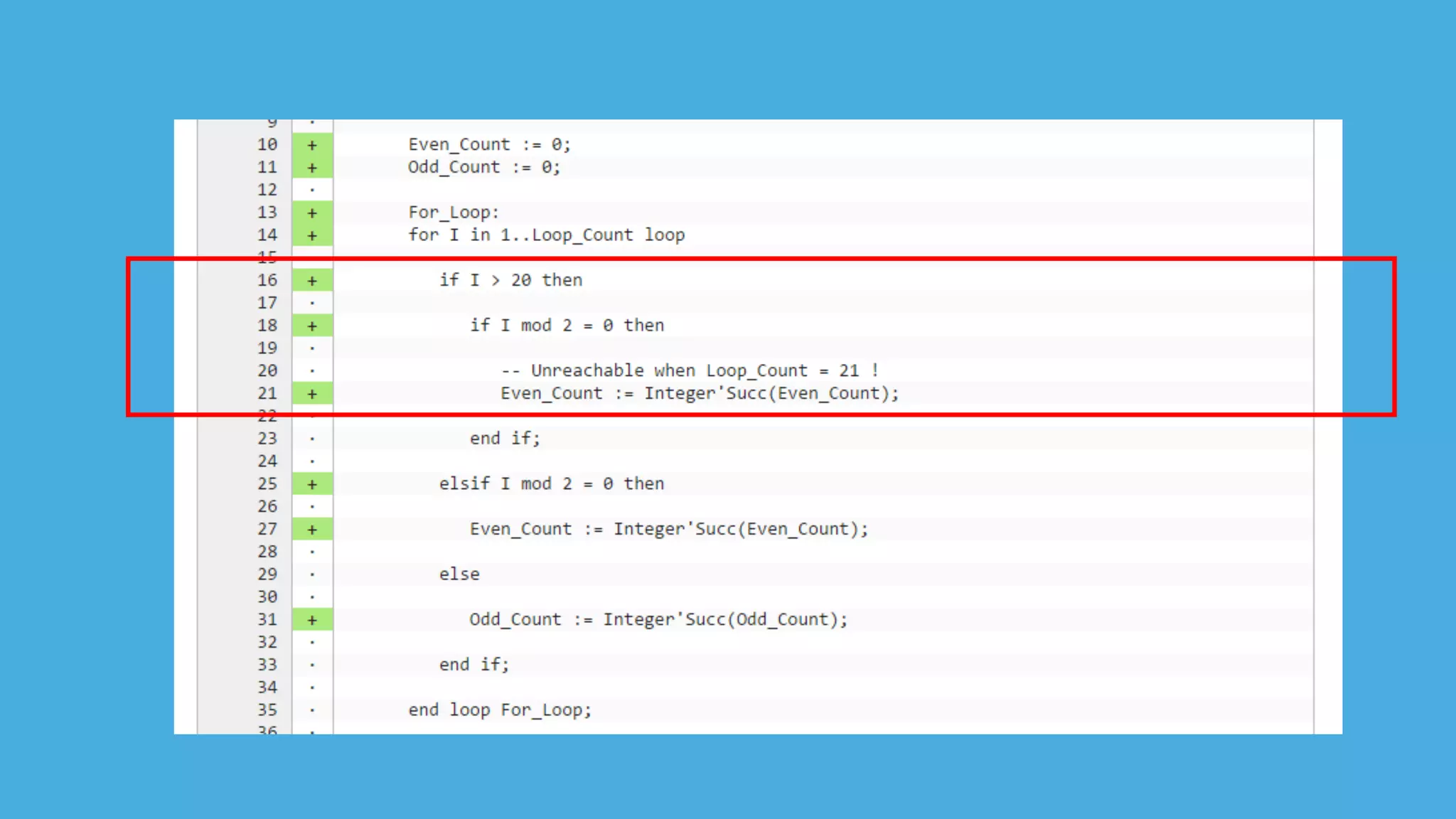

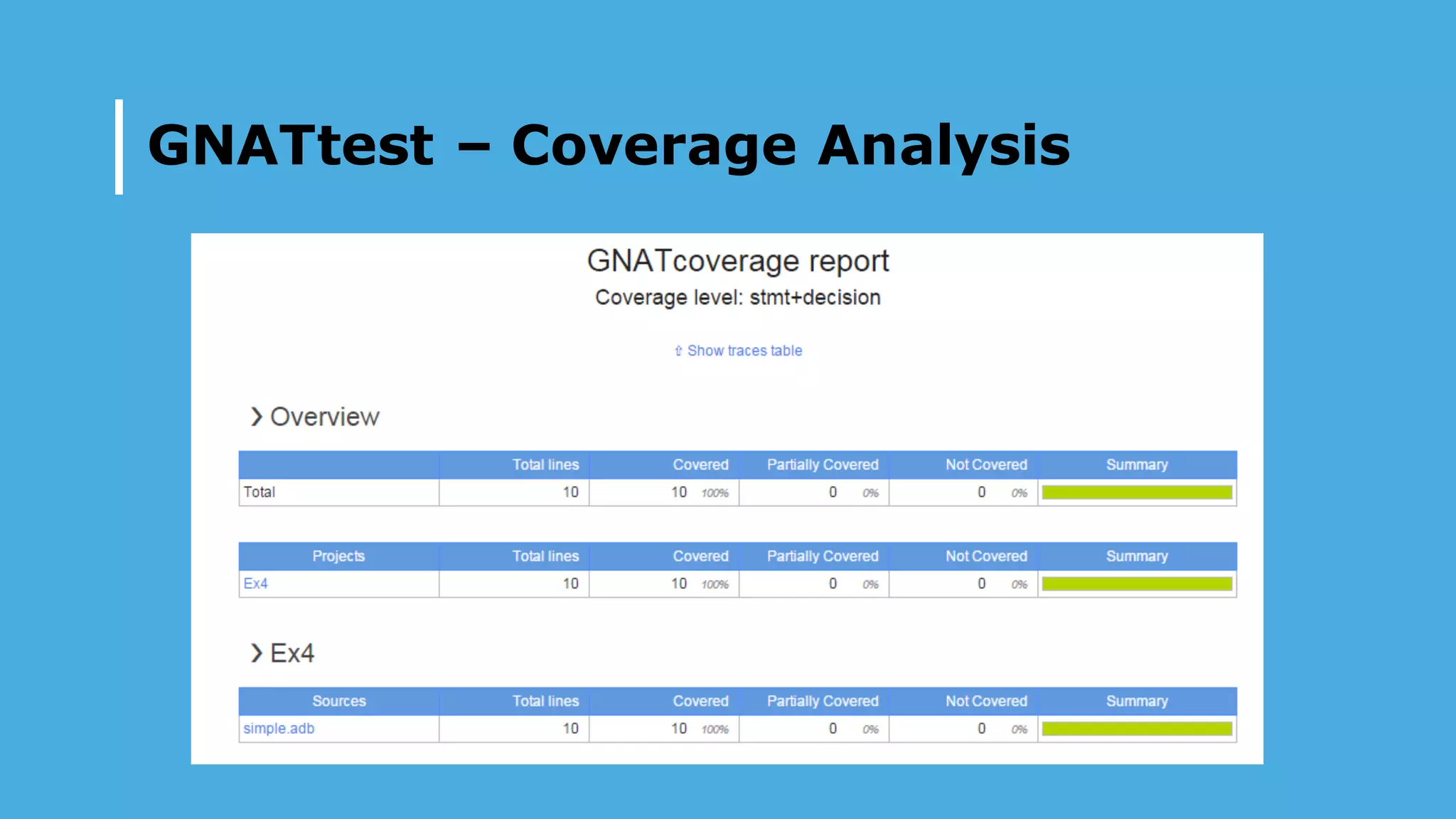

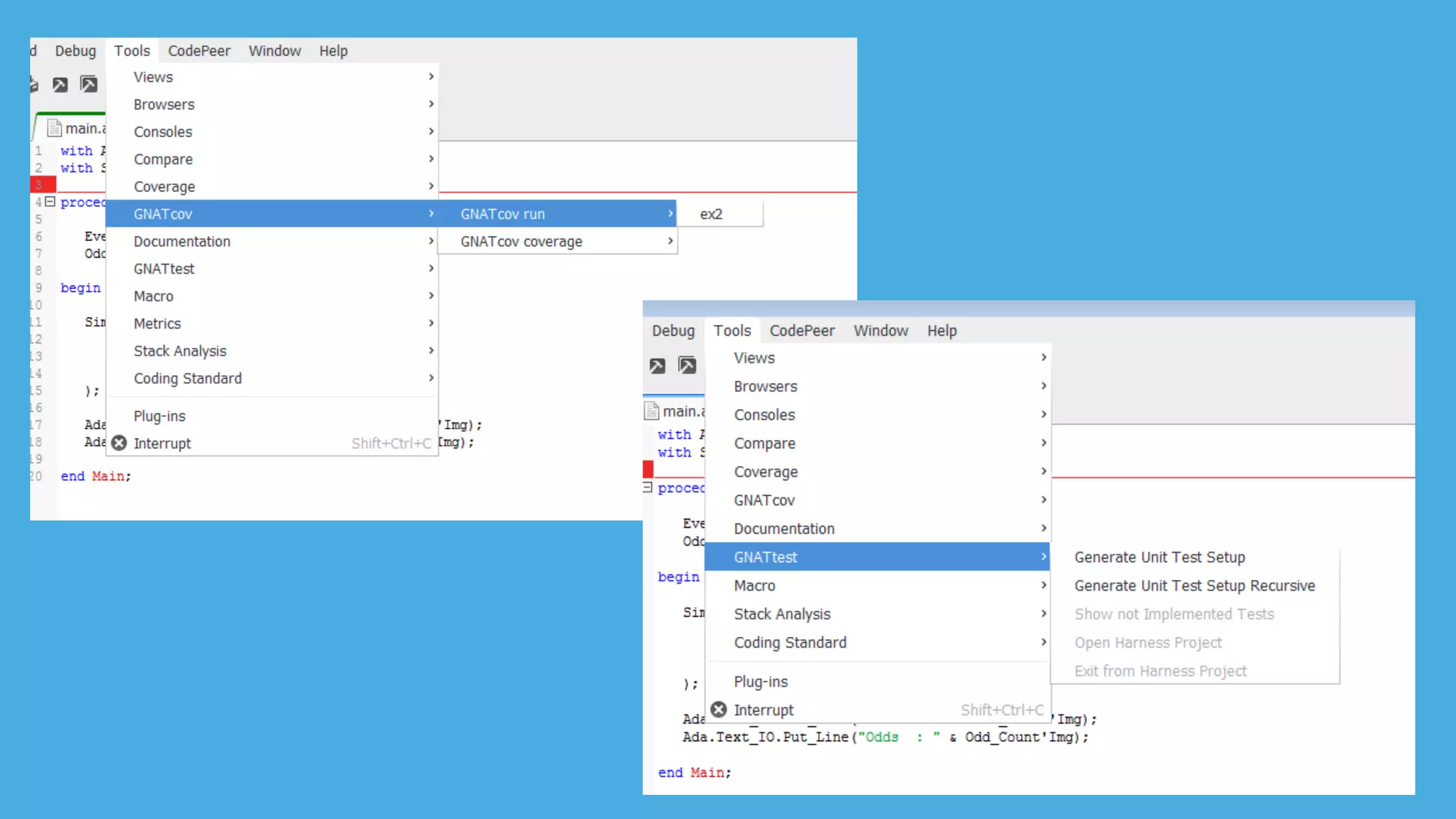

36. GNATtest – Coverage Analysis

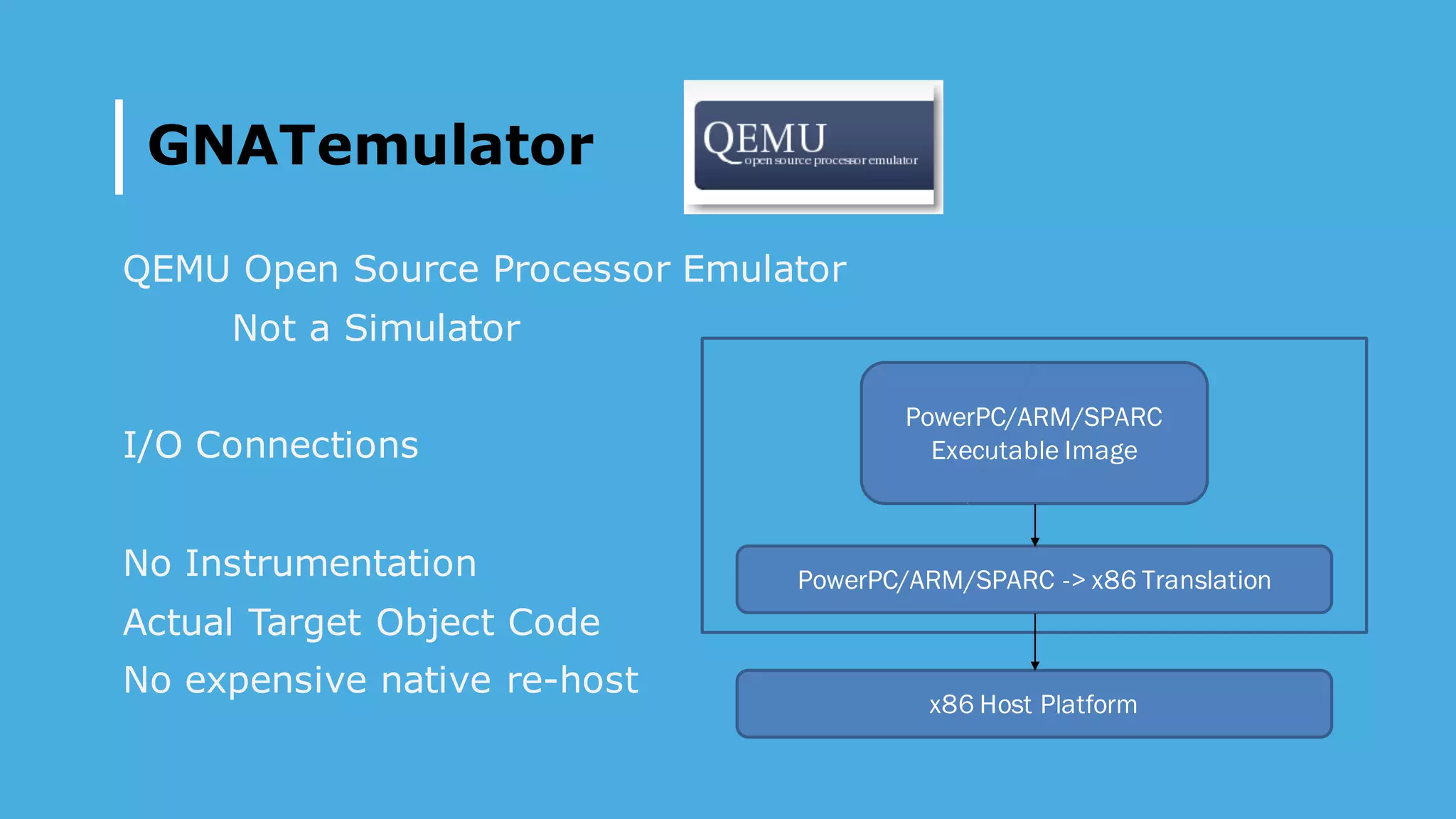

39. GNATemulator
QEMU Open Source Processor Emulator
Not a Simulator
I/O Connections
No Instrumentation
Actual Target Object Code
No expensive native re-host
PowerPC/ARM/SPARC
Executable Image
PowerPC/ARM/SPARC -> x86 Translation
x86 Host Platform

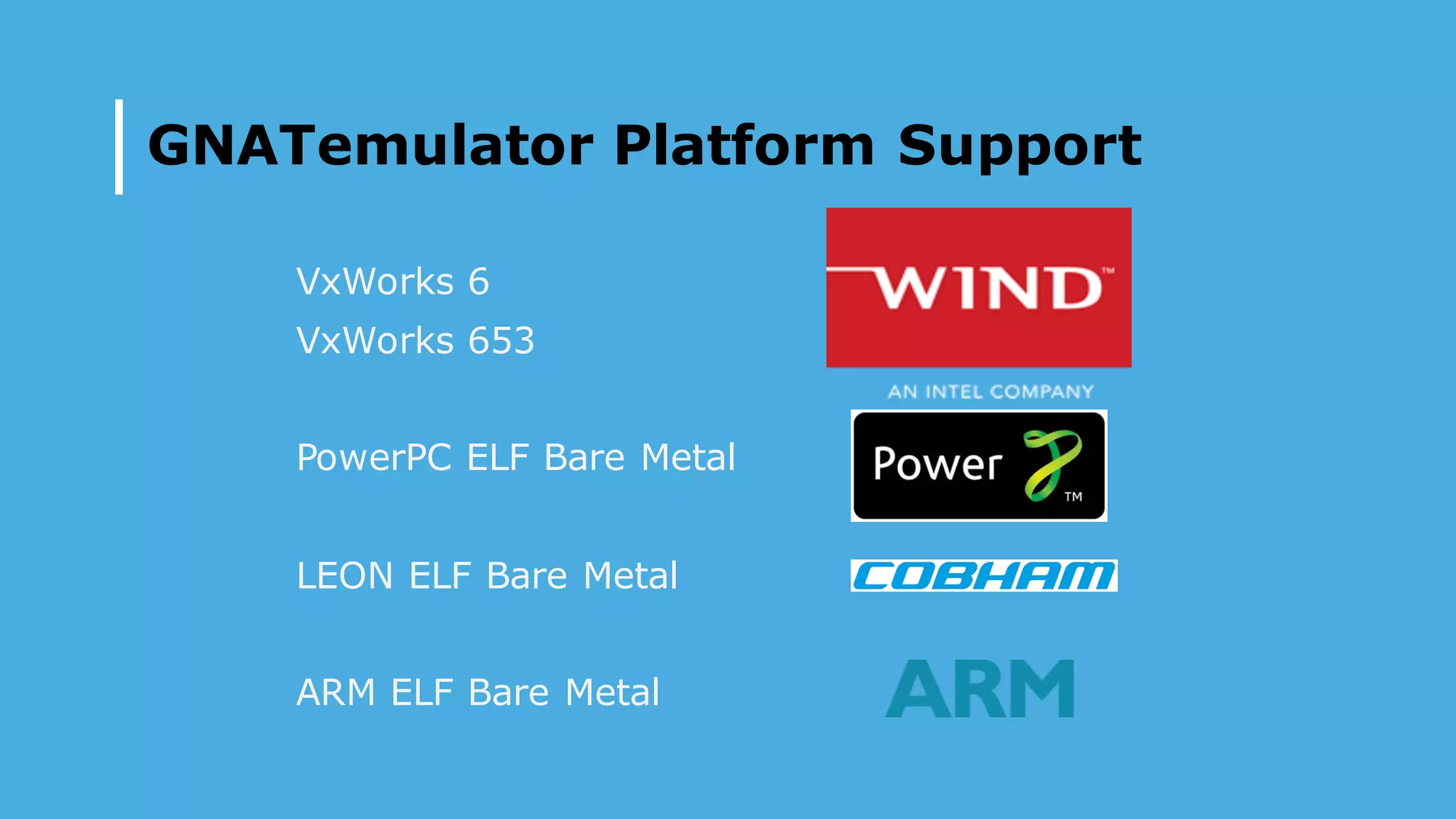

40. GNATemulator Platform Support
VxWorks 6
VxWorks 653
PowerPC ELF Bare Metal
LEON ELF Bare Metal
ARM ELF Bare Metal

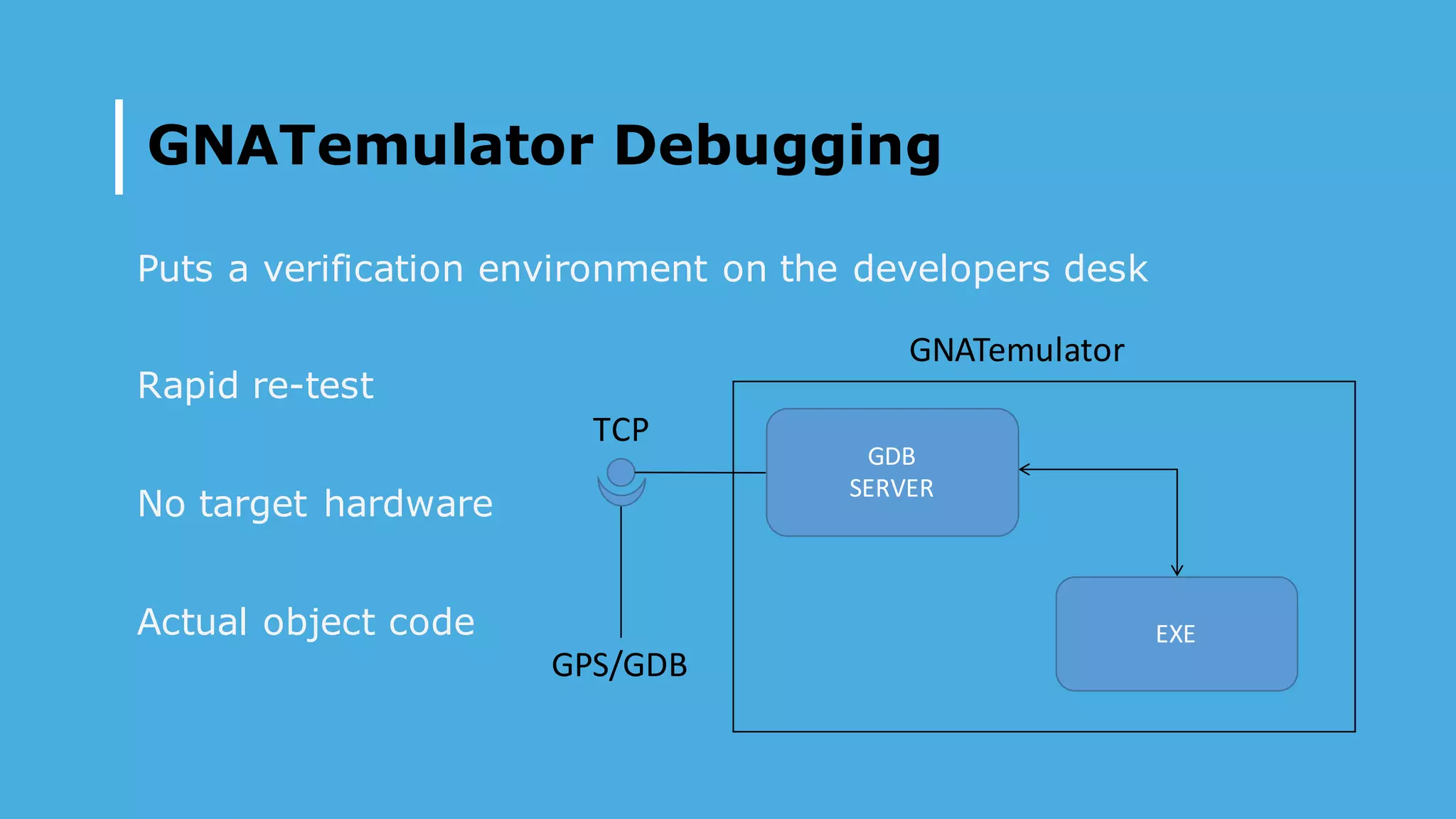

41. GNATemulator Debugging
Puts a verification environment on the developers desk
Rapid re-test
No target hardware
Actual object code EXE
GNATemulator
GDB
SERVER
TCP
GPS/GDB

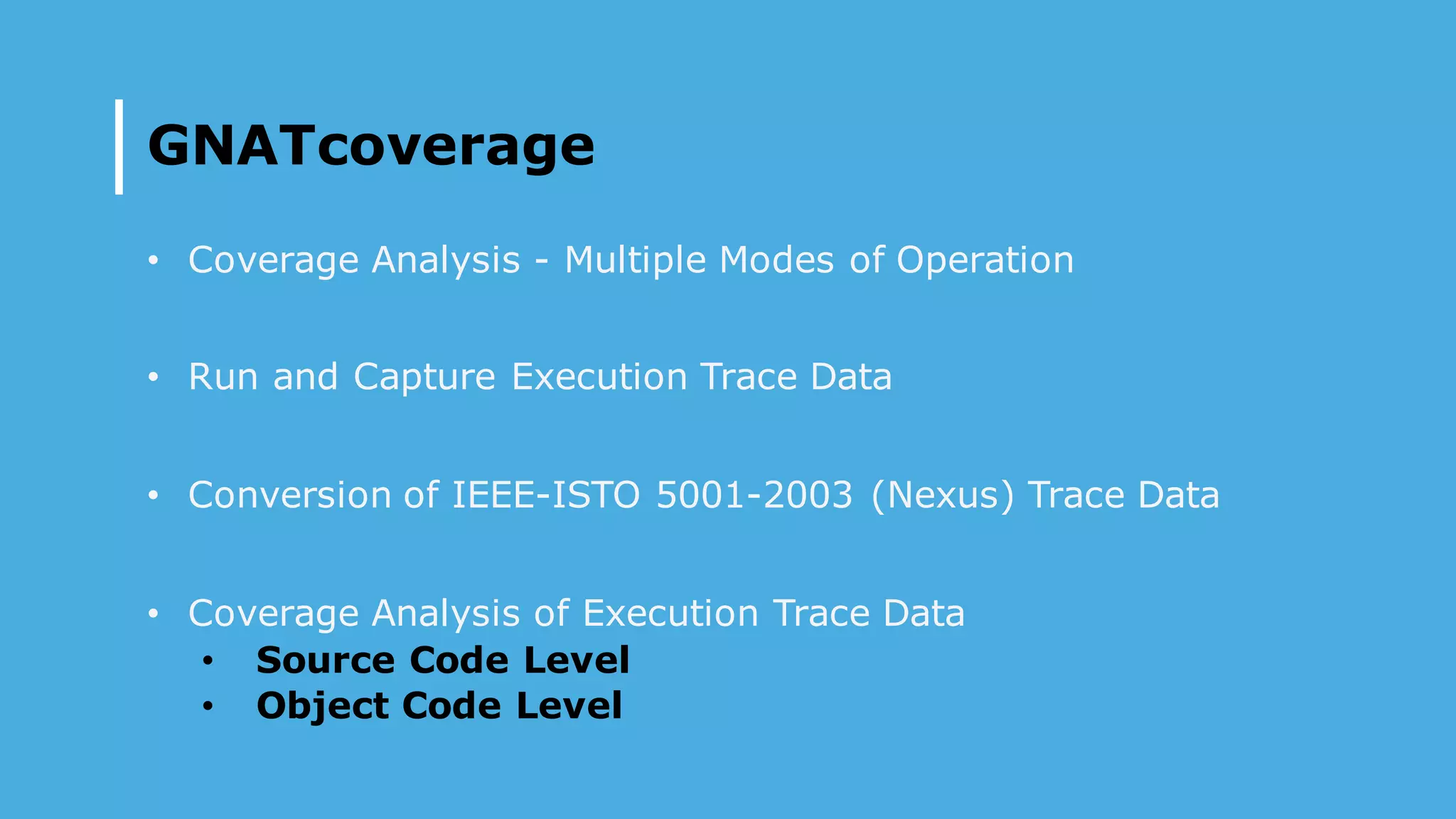

42. GNATcoverage
• Coverage Analysis - Multiple Modes of Operation
• Run and Capture Execution Trace Data
• Conversion of IEEE-ISTO 5001-2003 (Nexus) Trace Data
• Coverage Analysis of Execution Trace Data
• Source Code Level
• Object Code Level

43. Native Intel
PowerPC
LEON 2 and LEON 3
ARM
(Target Trace Port)

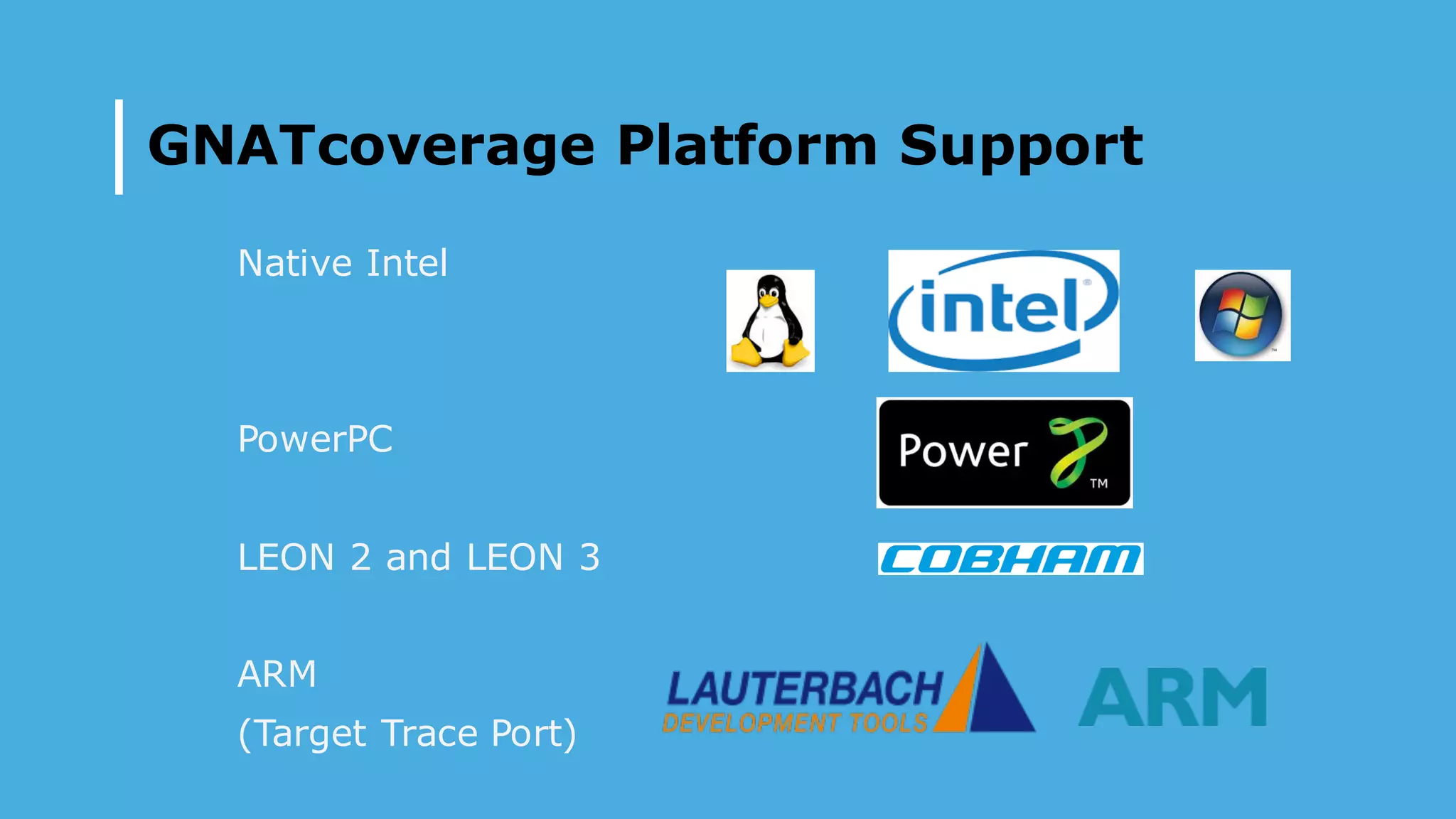

GNATcoverage Platform Support

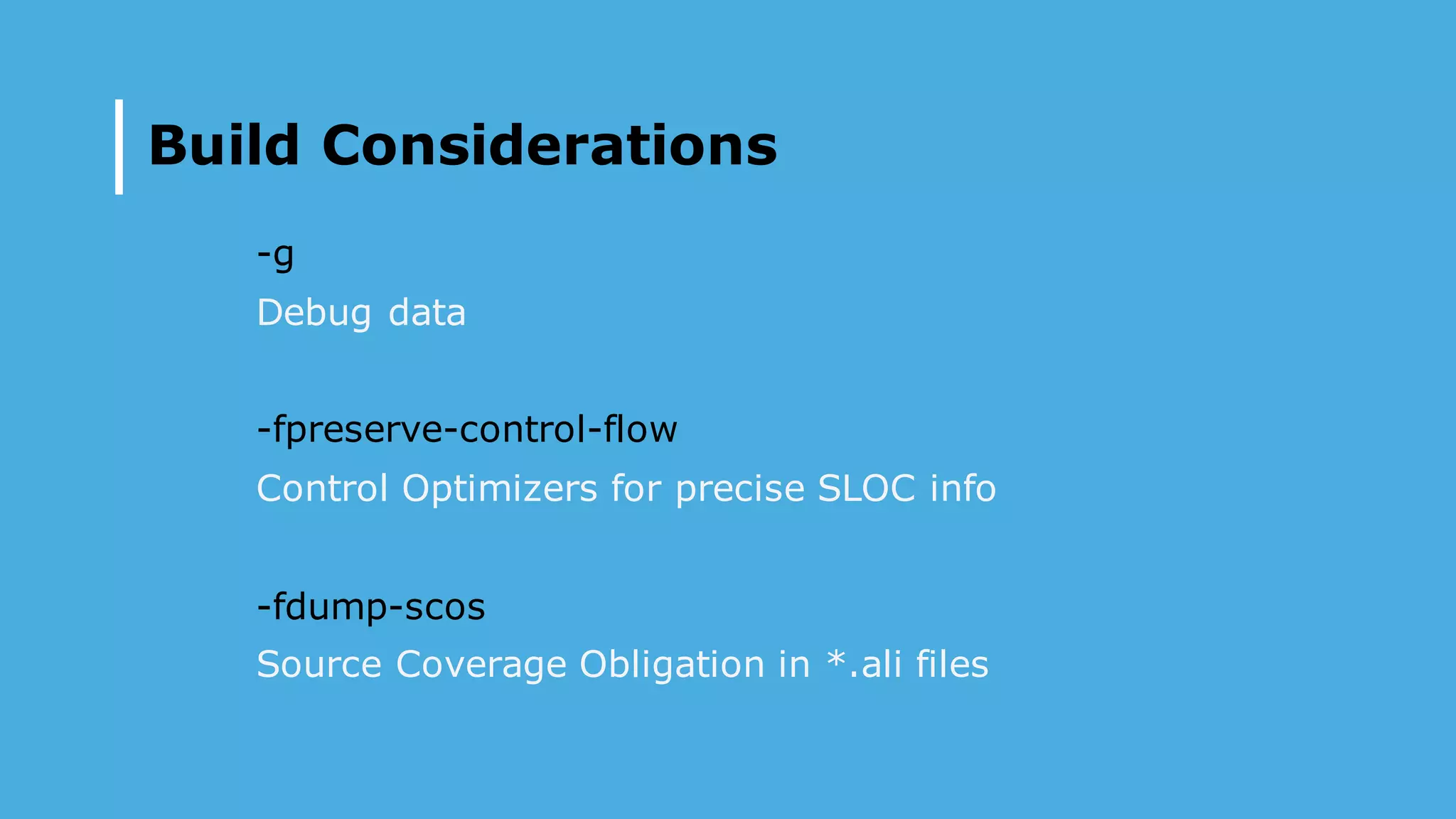

44. Build Considerations
-g
Debug data
-fpreserve-control-flow
Control Optimizers for precise SLOC info
-fdump-scos
Source Coverage Obligation in *.ali files

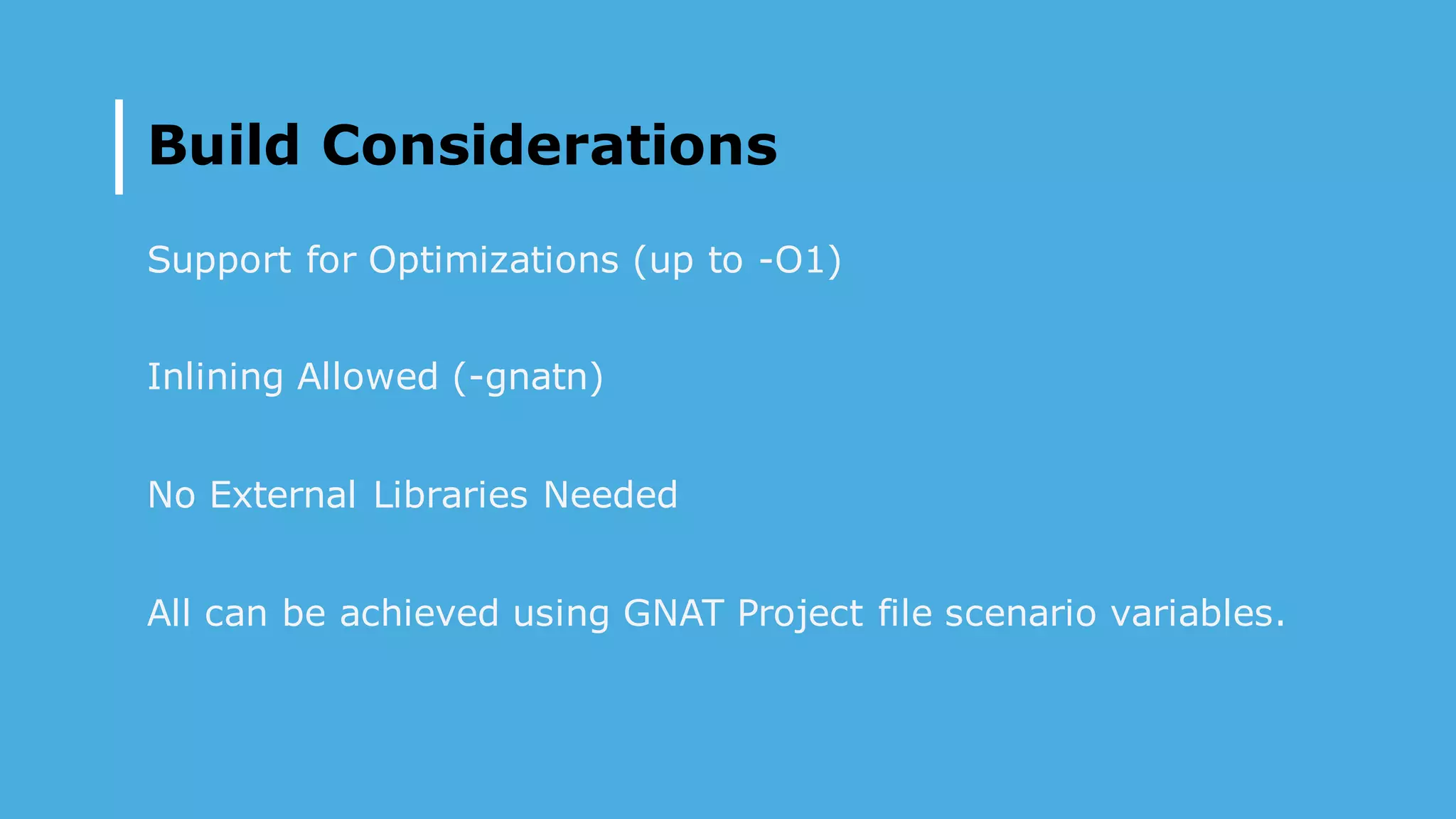

45. Build Considerations
Support for Optimizations (up to -O1)
Inlining Allowed (-gnatn)
No External Libraries Needed
All can be achieved using GNAT Project file scenario variables.

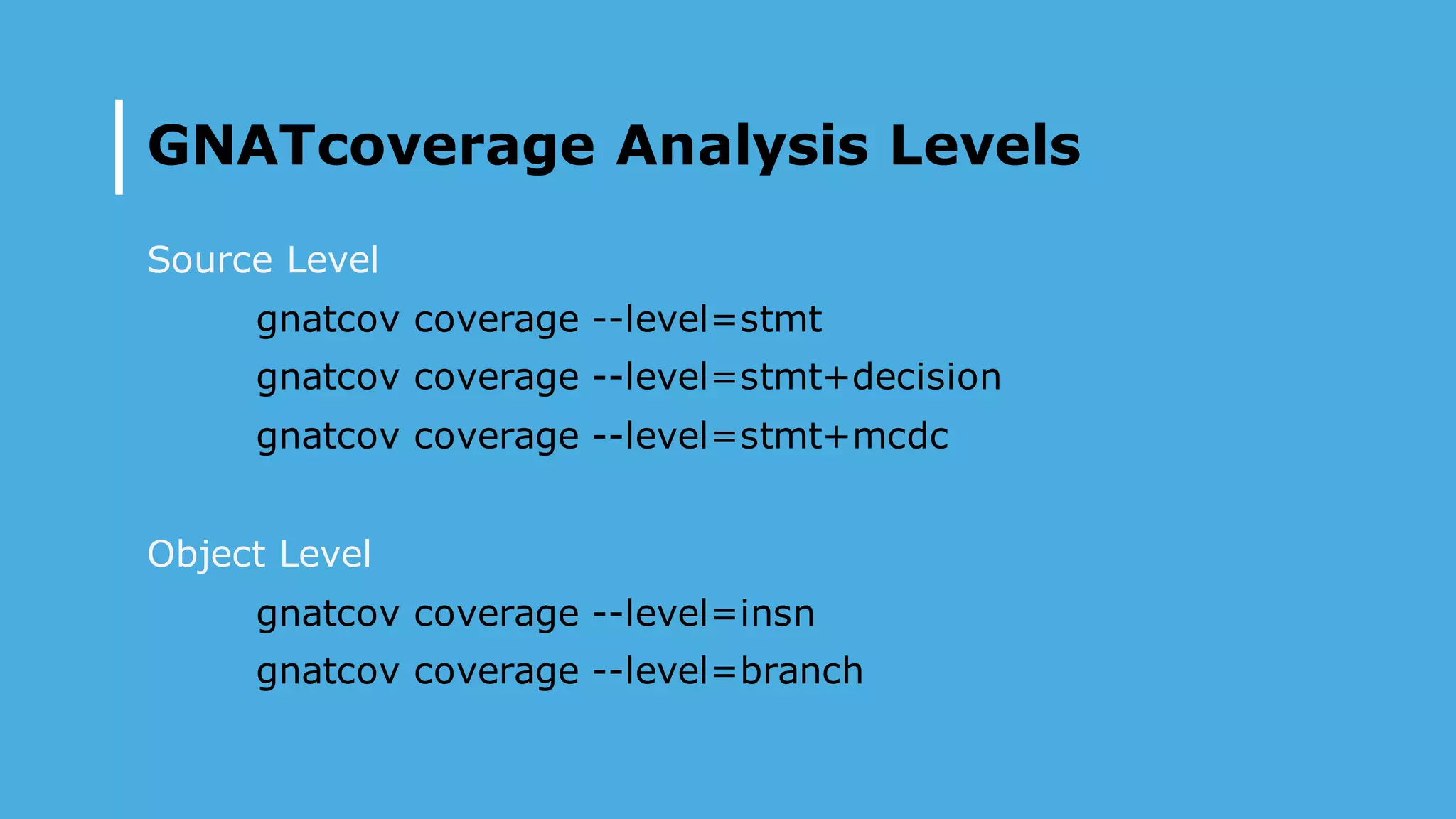

46. GNATcoverage Analysis Levels
Source Level
gnatcov coverage --level=stmt
gnatcov coverage --level=stmt+decision
gnatcov coverage --level=stmt+mcdc
Object Level
gnatcov coverage --level=insn
gnatcov coverage --level=branch

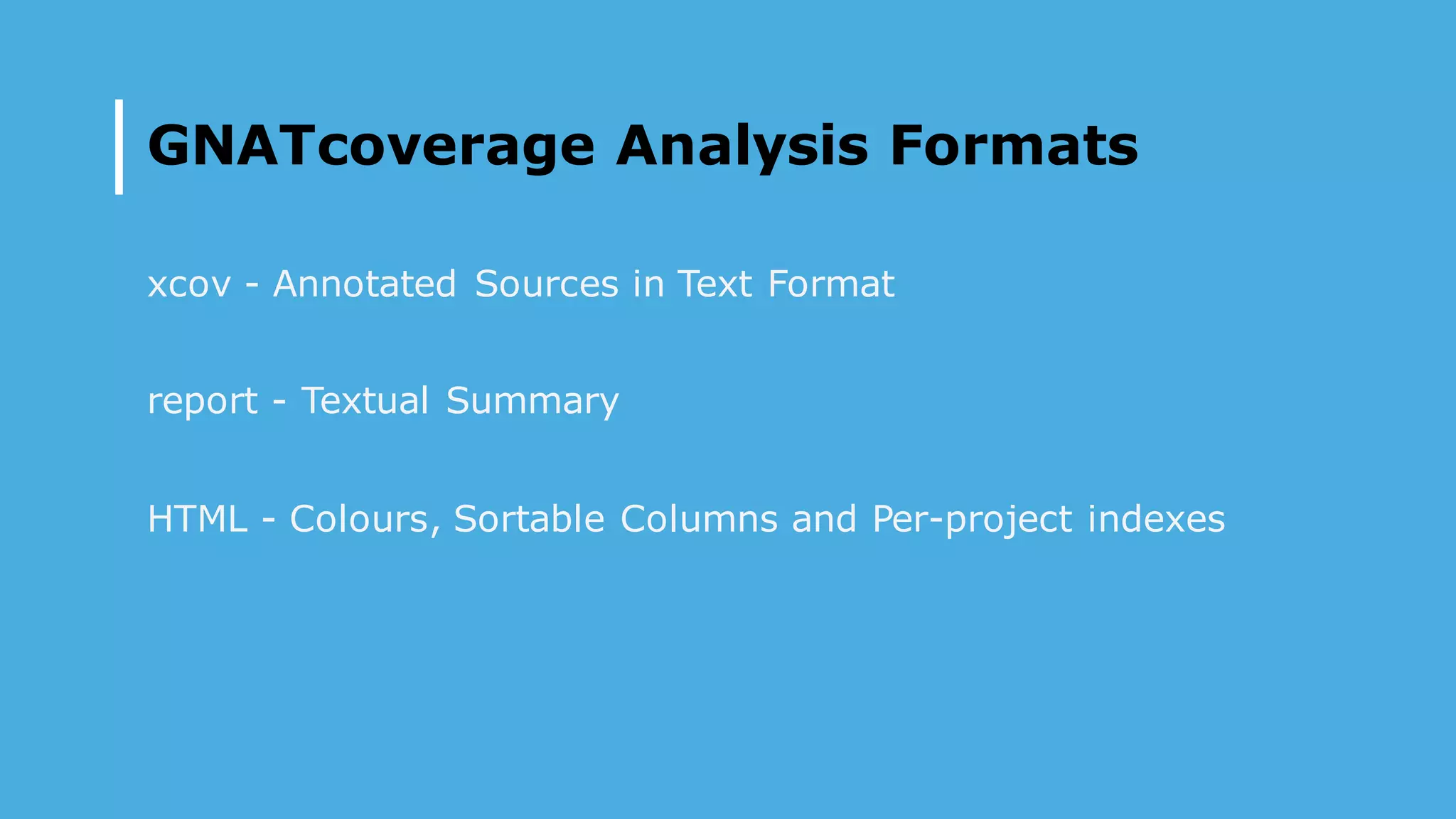

47. GNATcoverage Analysis Formats
xcov - Annotated Sources in Text Format
report - Textual Summary
HTML - Colours, Sortable Columns and Per-project indexes

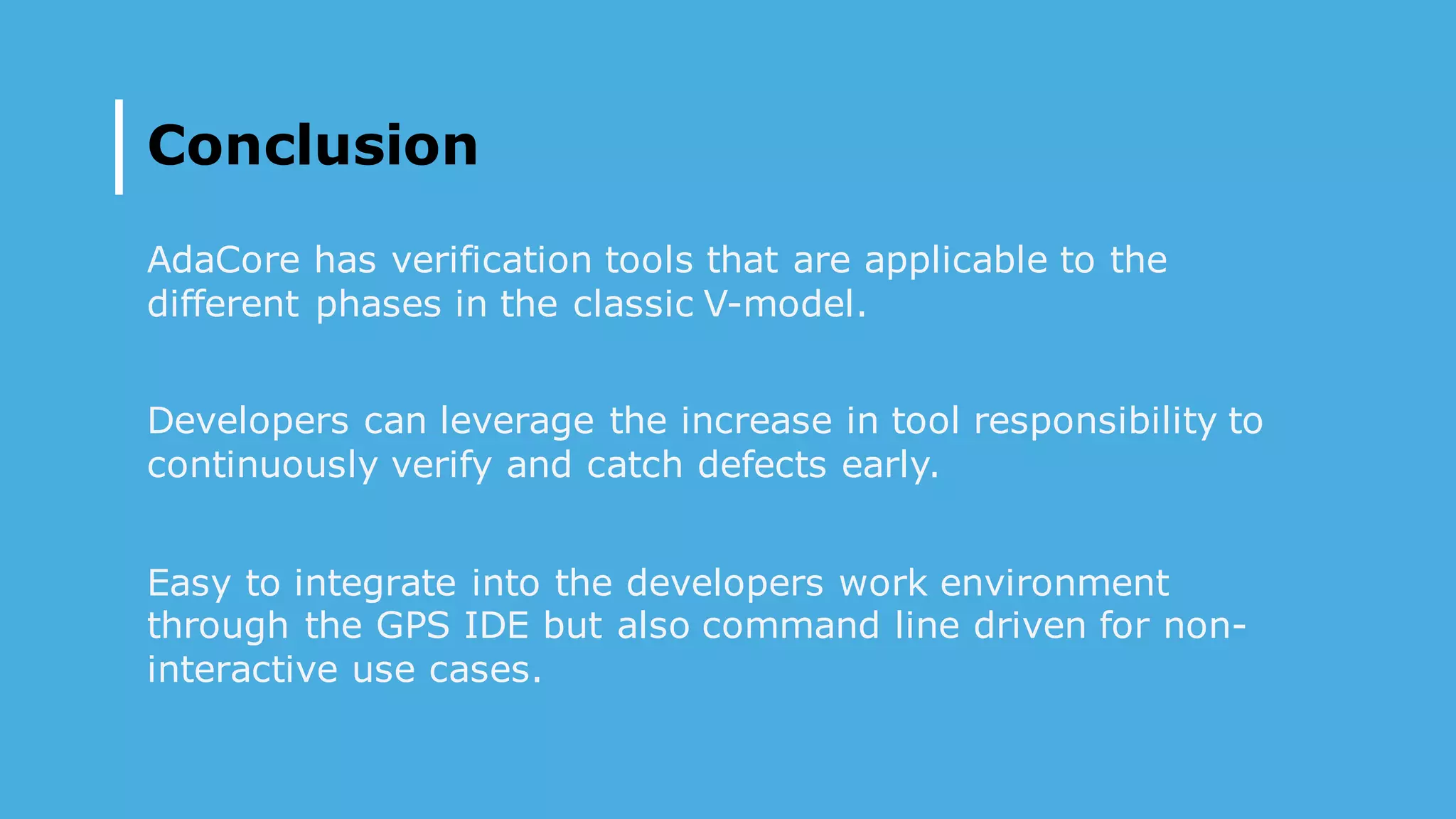

48. Conclusion
AdaCore has verification tools that are applicable to the
different phases in the classic V-model.
Developers can leverage the increase in tool responsibility to
continuously verify and catch defects early.
Easy to integrate into the developers work environment
through the GPS IDE but also command line driven for non-
interactive use cases.
