Model-based Testing Introduction and Hands-on session Stefan Ekman Dublin, 2011-01-27

Model Based Testing What is Model-based Testing?

What is MBT? Wikipedia: “ Model-based testing is software testing in which test cases are derived in whole or in part from a model that describes some (usually functional) aspects of the system under test (SUT).”

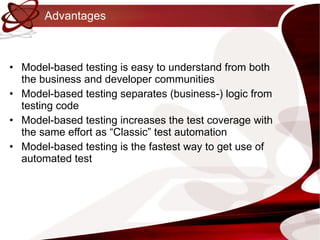

Advantages Model-based testing is easy to understand from both the business and developer communities Model-based testing separates (business-) logic from testing code Model-based testing increases the test coverage with the same effort as “Classic” test automation Model-based testing is the fastest way to get use of automated test

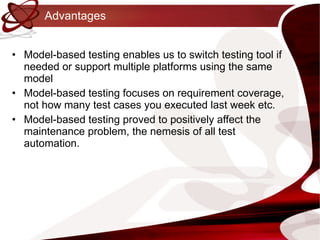

Advantages Model-based testing enables us to switch testing tool if needed or support multiple platforms using the same model Model-based testing focuses on requirement coverage, not how many test cases you executed last week etc. Model-based testing proved to positively affect the maintenance problem, the nemesis of all test automation.

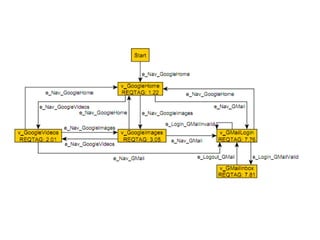

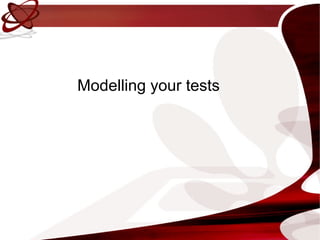

The Model Modelling your tests

Tools / Environment . GraphML Model with yEd GraphWalker MBT engine Selenium Java or SOAP QTP Via SOAP Hudson Build system

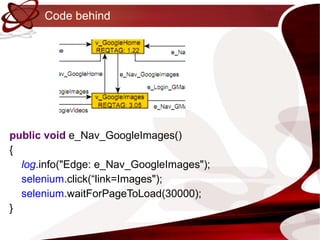

Code behind public void e_Nav_GoogleImages() { log .info("Edge: e_Nav_GoogleImages"); selenium .click( “link=Images" ); selenium .waitForPageToLoad(30000); }

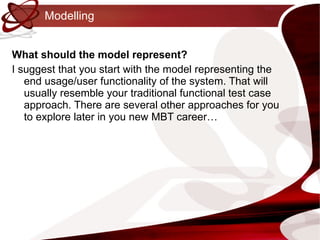

Modelling What should the model represent? I suggest that you start with the model representing the end usage/user functionality of the system. That will usually resemble your traditional functional test case approach. There are several other approaches for you to explore later in you new MBT career…

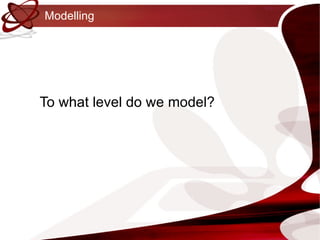

Modelling To what level do we model?

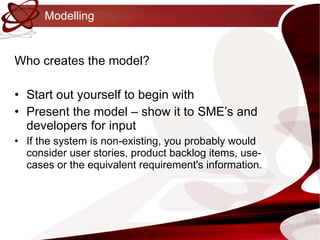

Modelling Who creates the model? Start out yourself to begin with Present the model – show it to SME’s and developers for input If the system is non-existing, you probably would consider user stories, product backlog items, use-cases or the equivalent requirement's information.

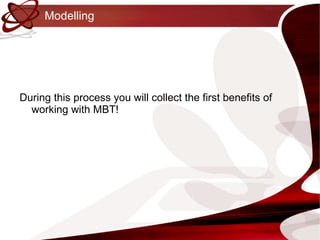

Modelling During this process you will collect the first benefits of working with MBT!

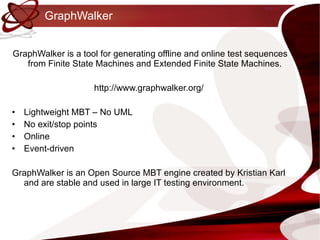

GraphWalker GraphWalker is a tool for generating offline and online test sequences from Finite State Machines and Extended Finite State Machines. http://www.graphwalker.org/ Lightweight MBT – No UML No exit/stop points Online Event-driven GraphWalker is an Open Source MBT engine created by Kristian Karl and are stable and used in large IT testing environment.

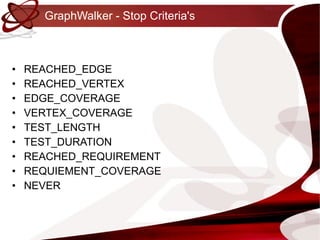

GraphWalker - Stop Criteria's REACHED_EDGE REACHED_VERTEX EDGE_COVERAGE VERTEX_COVERAGE TEST_LENGTH TEST_DURATION REACHED_REQUIREMENT REQUIEMENT_COVERAGE NEVER

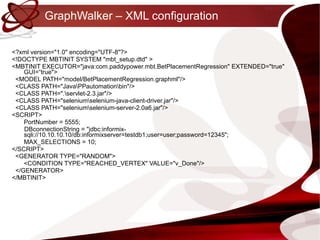

GraphWalker – XML configuration <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE MBTINIT SYSTEM "mbt_setup.dtd" > <MBTINIT EXECUTOR="java:com.paddypower.mbt.BetPlacementRegression" EXTENDED="true" GUI=“true"> <MODEL PATH="model/BetPlacementRegression.graphml"/> <CLASS PATH="Java\PPautomation\bin"/> <CLASS PATH=".\servlet-2.3.jar"/> <CLASS PATH="selenium\selenium-java-client-driver.jar"/> <CLASS PATH="selenium\selenium-server-2.0a6.jar"/> <SCRIPT> PortNumber = 5555; DBconnectionString = "jdbc:informix-sqli://10.10.10.10/db:informixserver=testdb1;user=user;password=12345"; MAX_SELECTIONS = 10; </SCRIPT> <GENERATOR TYPE="RANDOM"> <CONDITION TYPE="REACHED_VERTEX" VALUE="v_Done"/> </GENERATOR> </MBTINIT>

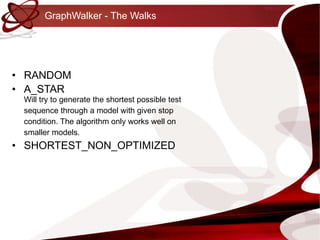

GraphWalker - The Walks RANDOM A_STAR Will try to generate the shortest possible test sequence through a model with given stop condition. The algorithm only works well on smaller models. SHORTEST_NON_OPTIMIZED

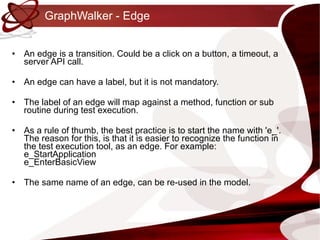

GraphWalker - Edge An edge is a transition. Could be a click on a button, a timeout, a server API call. An edge can have a label, but it is not mandatory. • The label of an edge will map against a method, function or sub routine during test execution. As a rule of thumb, the best practice is to start the name with 'e_'. The reason for this, is that it is easier to recognize the function in the test execution tool, as an edge. For example: e_StartApplication e_EnterBasicView The same name of an edge, can be re-used in the model.

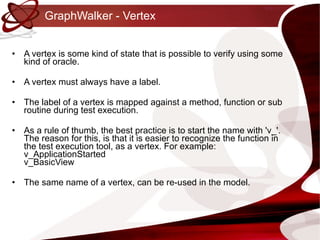

GraphWalker - Vertex A vertex is some kind of state that is possible to verify using some kind of oracle. A vertex must always have a label. The label of a vertex is mapped against a method, function or sub routine during test execution. As a rule of thumb, the best practice is to start the name with 'v_'. The reason for this, is that it is easier to recognize the function in the test execution tool, as a vertex. For example: v_ApplicationStarted v_BasicView The same name of a vertex, can be re-used in the model.

GraphWalker - Labels Label [cond. expr.] / Statement1;Statement2; White spaces not allowed. Follow the naming convention for the implementing programming language. Example: e_StartApplication Example: e_EnterBasicView

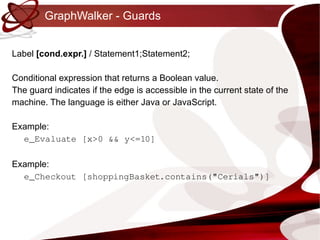

GraphWalker - Guards Label [cond.expr.] / Statement1;Statement2; Conditional expression that returns a Boolean value. The guard indicates if the edge is accessible in the current state of the machine. The language is either Java or JavaScript. Example: e_Evaluate [x>0 && y<=10] Example: e_Checkout [shoppingBasket.contains("Cerials")]

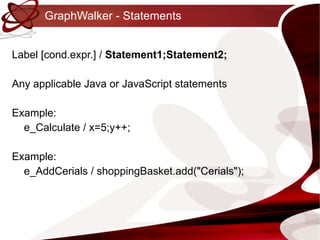

GraphWalker - Statements Label [cond.expr.] / Statement1;Statement2; Any applicable Java or JavaScript statements Example: e_Calculate / x=5;y++; Example: e_AddCerials / shoppingBasket.add("Cerials");

GraphWalker – Keyword Start Used by Vertices only. Each graph must have a start vertex, and that vertex holds this keyword. There is only one vertex in a graph, holding this keyword. The Start vertex can only have one out-edge. If the graph is the main-graph, that edge must have a label. If the graph is a sub-graph, that edge cannot have a label.

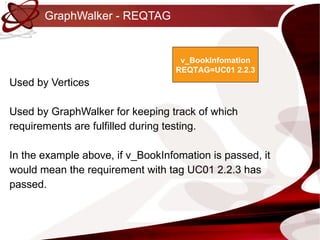

GraphWalker - REQTAG Used by Vertices Used by GraphWalker for keeping track of which requirements are fulfilled during testing. In the example above, if v_BookInfomation is passed, it would mean the requirement with tag UC01 2.2.3 has passed. v_BookInfomation REQTAG=UC01 2.2.3

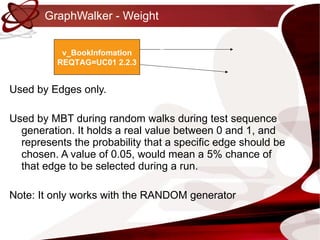

GraphWalker - Weight Used by Edges only. Used by MBT during random walks during test sequence generation. It holds a real value between 0 and 1, and represents the probability that a specific edge should be chosen. A value of 0.05, would mean a 5% chance of that edge to be selected during a run. Note: It only works with the RANDOM generator v_BookInfomation REQTAG=UC01 2.2.3 e_NavA weight=0.25 e_NavB

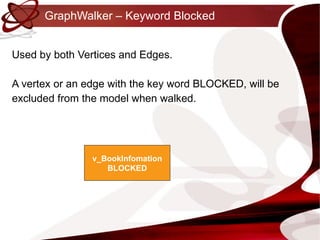

GraphWalker – Keyword Blocked Used by both Vertices and Edges. A vertex or an edge with the key word BLOCKED, will be excluded from the model when walked. v_BookInfomation BLOCKED

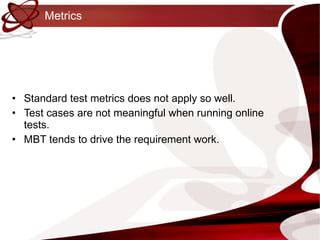

Metrics Standard test metrics does not apply so well. Test cases are not meaningful when running online tests. MBT tends to drive the requirement work.

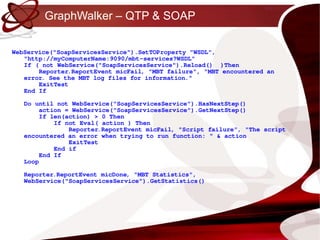

GraphWalker – QTP & SOAP WebService("SoapServicesService").SetTOProperty "WSDL", "http://myComputerName:9090/mbt-services?WSDL" If ( not WebService("SoapServicesService").Reload() )Then Reporter.ReportEvent micFail, "MBT failure", "MBT encountered an error. See the MBT log files for information." ExitTest End If Do until not WebService("SoapServicesService").HasNextStep() action = WebService("SoapServicesService").GetNextStep() If len(action) > 0 Then If not Eval( action ) Then Reporter.ReportEvent micFail, "Script failure", "The script encountered an error when trying to run function: " & action ExitTest End if End If Loop Reporter.ReportEvent micDone, "MBT Statistics", WebService("SoapServicesService").GetStatistics()

5 min break.. I am not in the office at the moment. Please send any work to be translated.

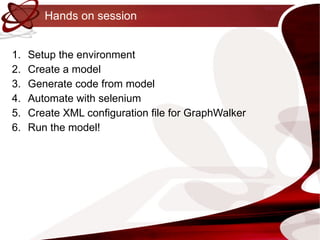

Hands on session Setup the environment Create a model Generate code from model Automate with selenium Create XML configuration file for GraphWalker Run the model!

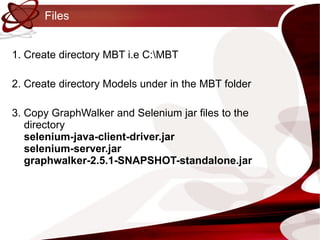

Files 1. Create directory MBT i.e C:\MBT 2. Create directory Models under in the MBT folder 3. Copy GraphWalker and Selenium jar files to the directory selenium-java-client-driver.jar selenium-server.jar graphwalker-2.5.1-SNAPSHOT-standalone.jar

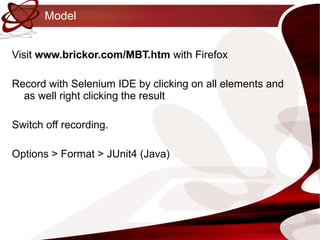

Model Visit www.brickor.com/MBT.htm with Firefox Record with Selenium IDE by clicking on all elements and as well right clicking the result Switch off recording. Options > Format > JUnit4 (Java)

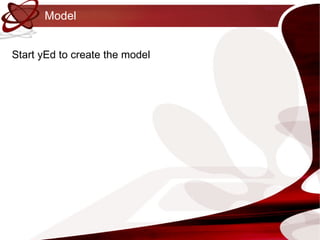

Model Start yEd to create the model

Generate the Java Code /** * This method implements the {EDGE_VERTEX} '{LABEL}' */ public void {LABEL}() { log.info( "{EDGE_VERTEX}: {LABEL}" ); throw new RuntimeException( "The {EDGE_VERTEX}: {LABEL} is not implemented yet!" ); } java -jar graphwalker-2.5.1-SNAPSHOT-standalone.jar source -f Models/mbttest.graphml -t java.template.txt > javacode.txt

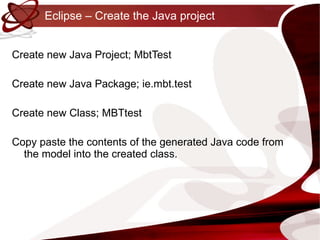

Eclipse – Create the Java project Create new Java Project; MbtTest Create new Java Package; ie.mbt.test Create new Class; MBTtest Copy paste the contents of the generated Java code from the model into the created class.

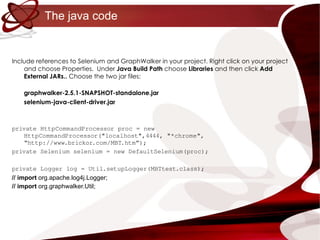

The java code Include references to Selenium and GraphWalker in your project. Right click on your project and choose Properties. Under Java Build Path choose Libraries and then click Add External JARs.. Choose the two jar files: graphwalker-2.5.1-SNAPSHOT-standalone.jar selenium-java-client-driver.jar private HttpCommandProcessor proc = new HttpCommandProcessor("localhost",4444, "*chrome", “http://www.brickor.com/MBT.htm”); private Selenium selenium = new DefaultSelenium(proc); private Logger log = Util.setupLogger(MBTtest.class); // import org.apache.log4j.Logger; // import org.graphwalker.Util;

Writing the Java Code In e_init we start the selenium object. selenium.start(); selenium.open("http://www.brickor.com/MBT.htm"); Delete the Throw exception! Update all e_r11, e_r12 etc selenium.click("Radio1_1"); row1 = Integer. parseInt (selenium.getText(“r11"));

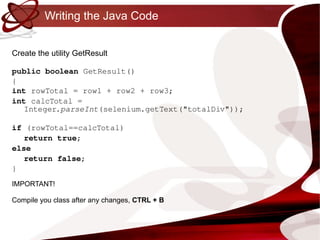

Writing the Java Code Create the utility GetResult public boolean GetResult() { int rowTotal = row1 + row2 + row3; int calcTotal = Integer. parseInt (selenium.getText("totalDiv")); if (rowTotal==calcTotal) return true ; else return false ; } IMPORTANT! Compile you class after any changes, CTRL + B

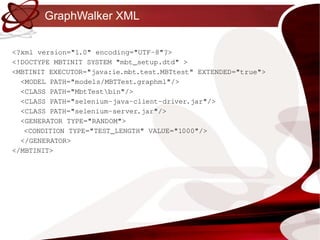

GraphWalker XML <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE MBTINIT SYSTEM "mbt_setup.dtd" > <MBTINIT EXECUTOR="java:ie.mbt.test.MBTtest" EXTENDED="true"> <MODEL PATH="models/MBTTest.graphml"/> <CLASS PATH="MbtTest\bin"/> <CLASS PATH="selenium-java-client-driver.jar"/> <CLASS PATH="selenium-server.jar"/> <GENERATOR TYPE="RANDOM"> <CONDITION TYPE="TEST_LENGTH" VALUE="1000"/> </GENERATOR> </MBTINIT>

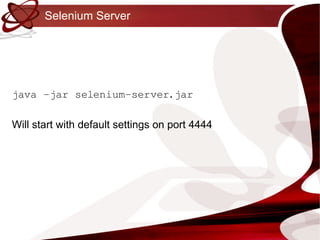

Selenium Server java -jar selenium-server.jar Will start with default settings on port 4444

Start the scripts.. Command line to start GraphWalker with the correct settings: java -jar graphwalker-2.5.1-SNAPSHOT-standalone.jar gui xml -f MBTTest.xml

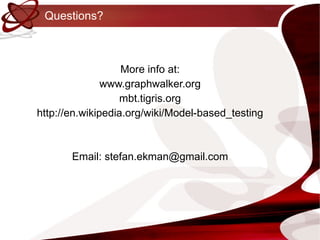

Questions? More info at: www.graphwalker.org mbt.tigris.org http://en.wikipedia.org/wiki/Model-based_testing Email: stefan.ekman@gmail.com
