1. Unit Testing
08/11/2011

2. Softjourn Inc.
Unit Testing
Anatoliy Okhotnikov
Softjourn Inc.

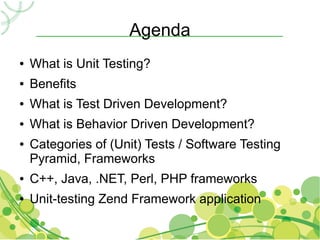

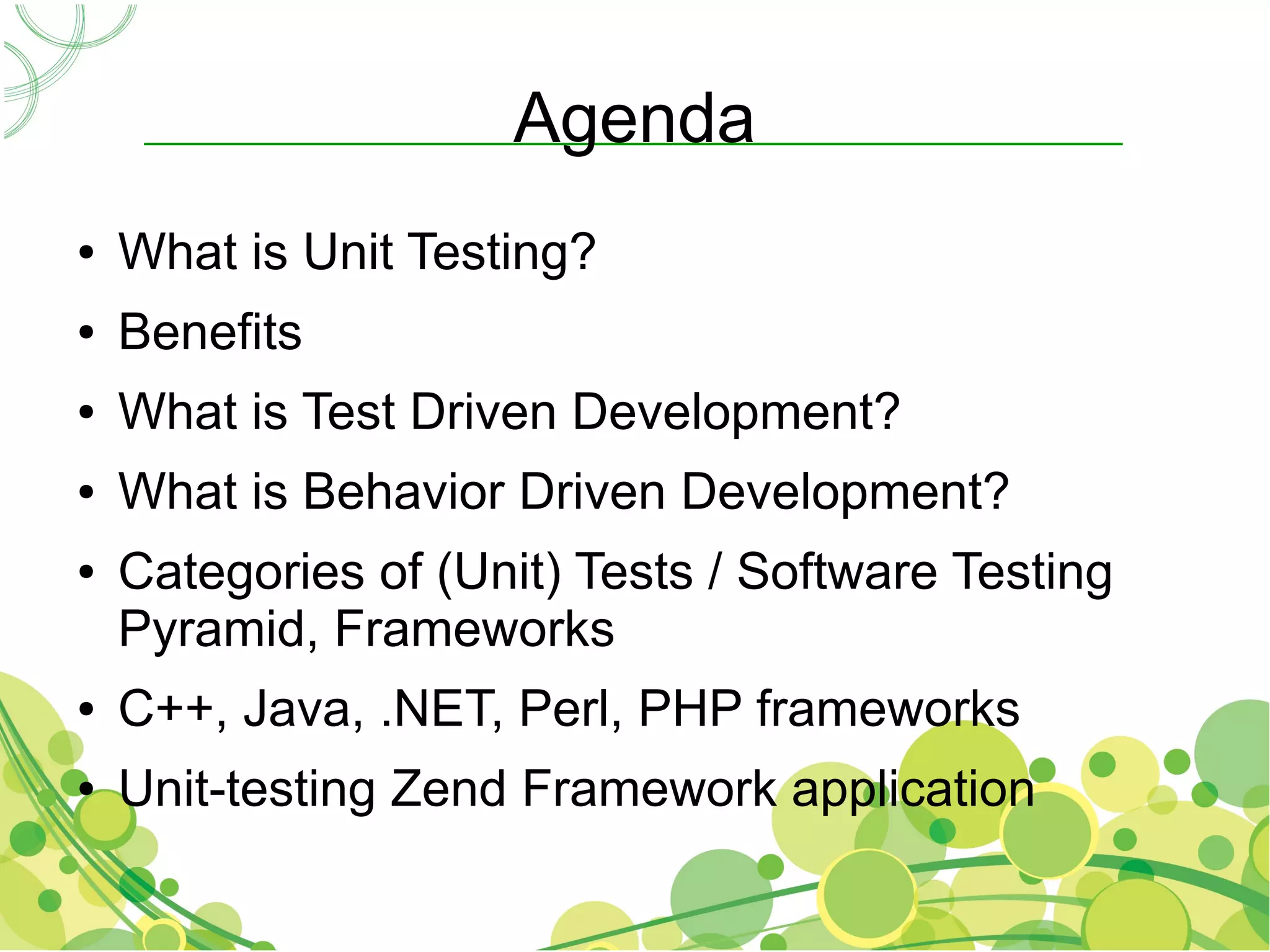

3. Agenda
● What is Unit Testing?
● Benefits
● What is Test Driven Development?
● What is Behavior Driven Development?
● Categories of (Unit) Tests / Software Testing
Pyramid, Frameworks
● C++, Java, .NET, Perl, PHP frameworks
● Unit-testing Zend Framework application

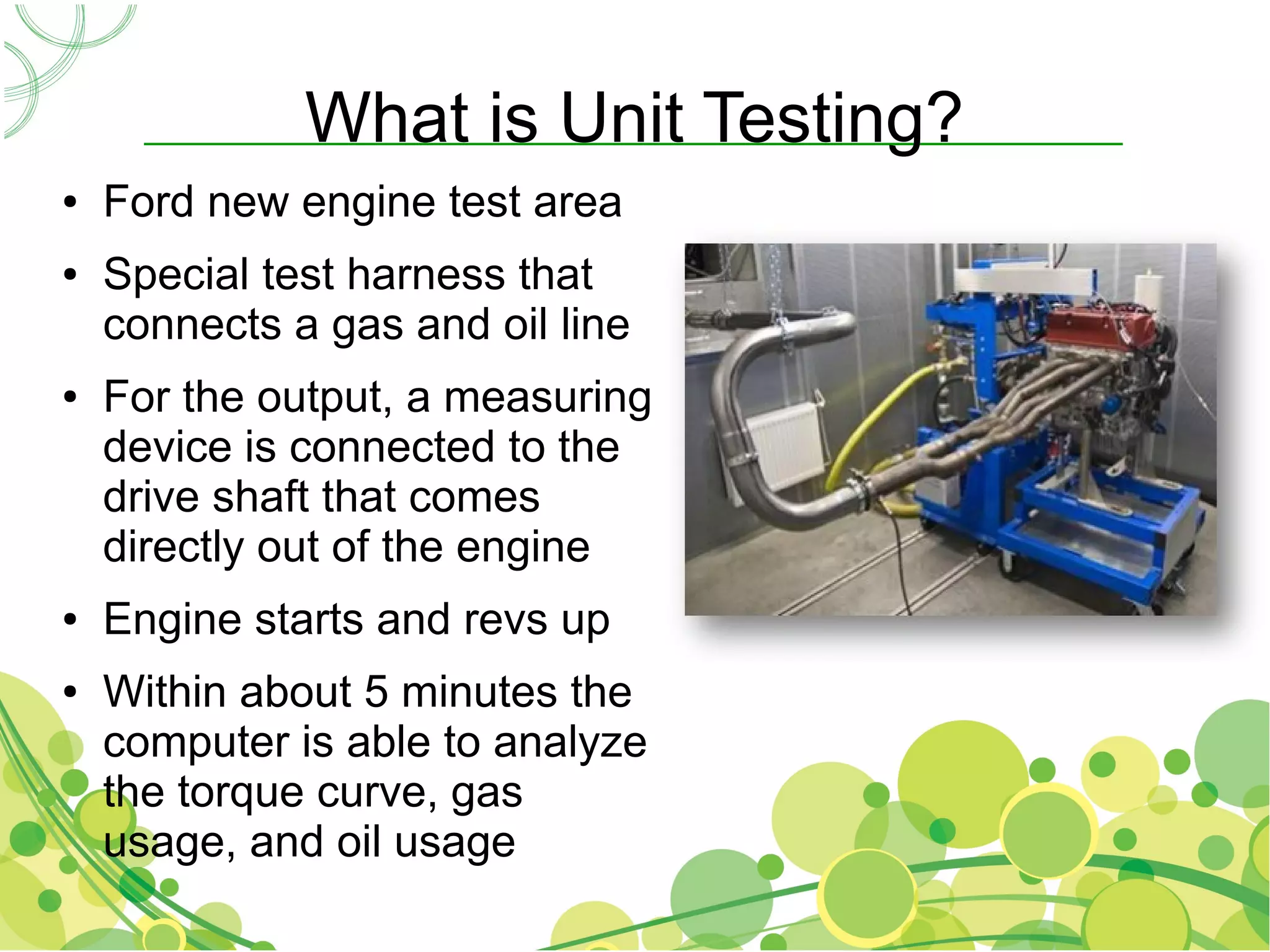

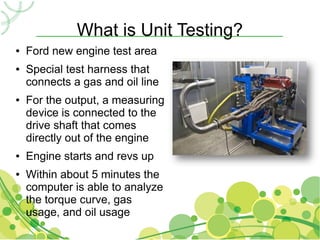

4. What is Unit Testing?
● Ford new engine test area
● Special test harness that
connects a gas and oil line
● For the output, a measuring
device is connected to the
drive shaft that comes
directly out of the engine
● Engine starts and revs up
● Within about 5 minutes the
computer is able to analyze
the torque curve, gas
usage, and oil usage

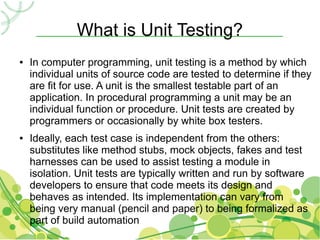

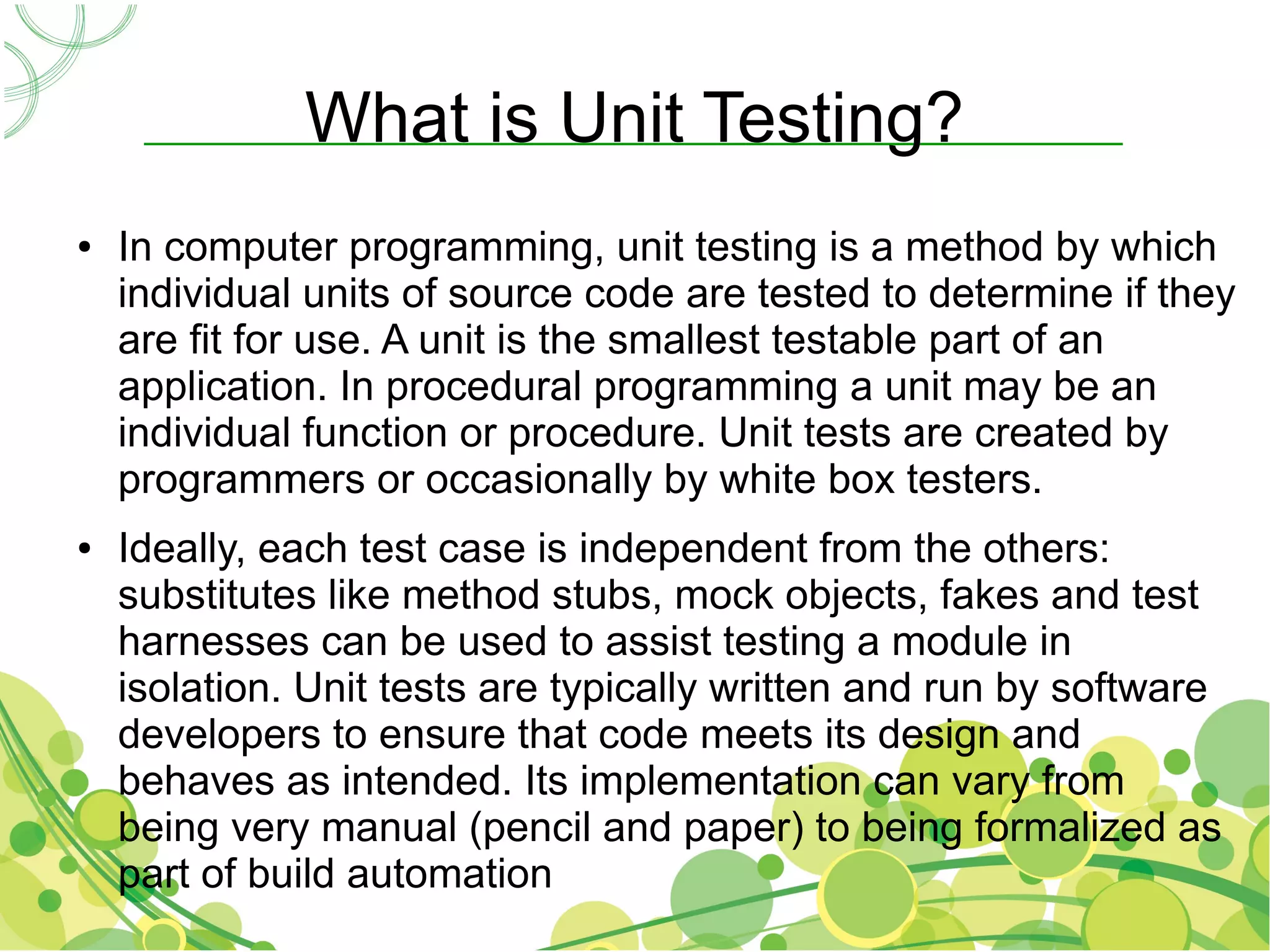

5. What is Unit Testing?
● In computer programming, unit testing is a method by which
individual units of source code are tested to determine if they
are fit for use. A unit is the smallest testable part of an
application. In procedural programming a unit may be an
individual function or procedure. Unit tests are created by
programmers or occasionally by white box testers.
● Ideally, each test case is independent from the others:
substitutes like method stubs, mock objects, fakes and test
harnesses can be used to assist testing a module in
isolation. Unit tests are typically written and run by software
developers to ensure that code meets its design and
behaves as intended. Its implementation can vary from
being very manual (pencil and paper) to being formalized as
part of build automation

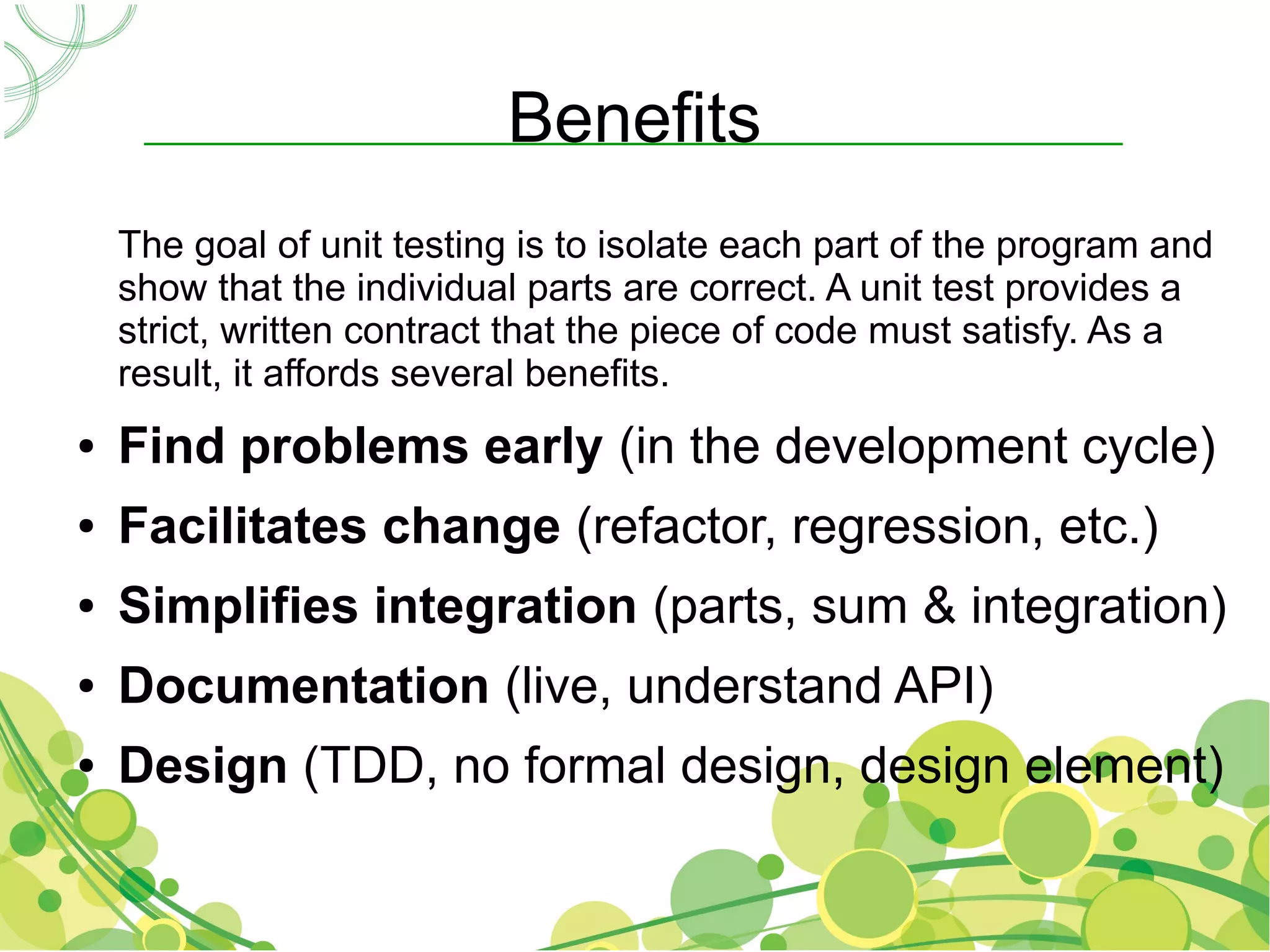

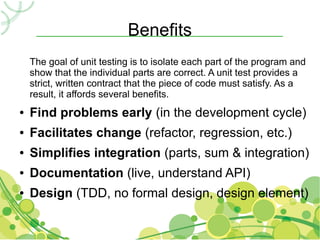

6. Benefits
The goal of unit testing is to isolate each part of the program and
show that the individual parts are correct. A unit test provides a
strict, written contract that the piece of code must satisfy. As a
result, it affords several benefits.
● Find problems early (in the development cycle)
● Facilitates change (refactor, regression, etc.)
● Simplifies integration (parts, sum & integration)
● Documentation (live, understand API)
● Design (TDD, no formal design, design element)

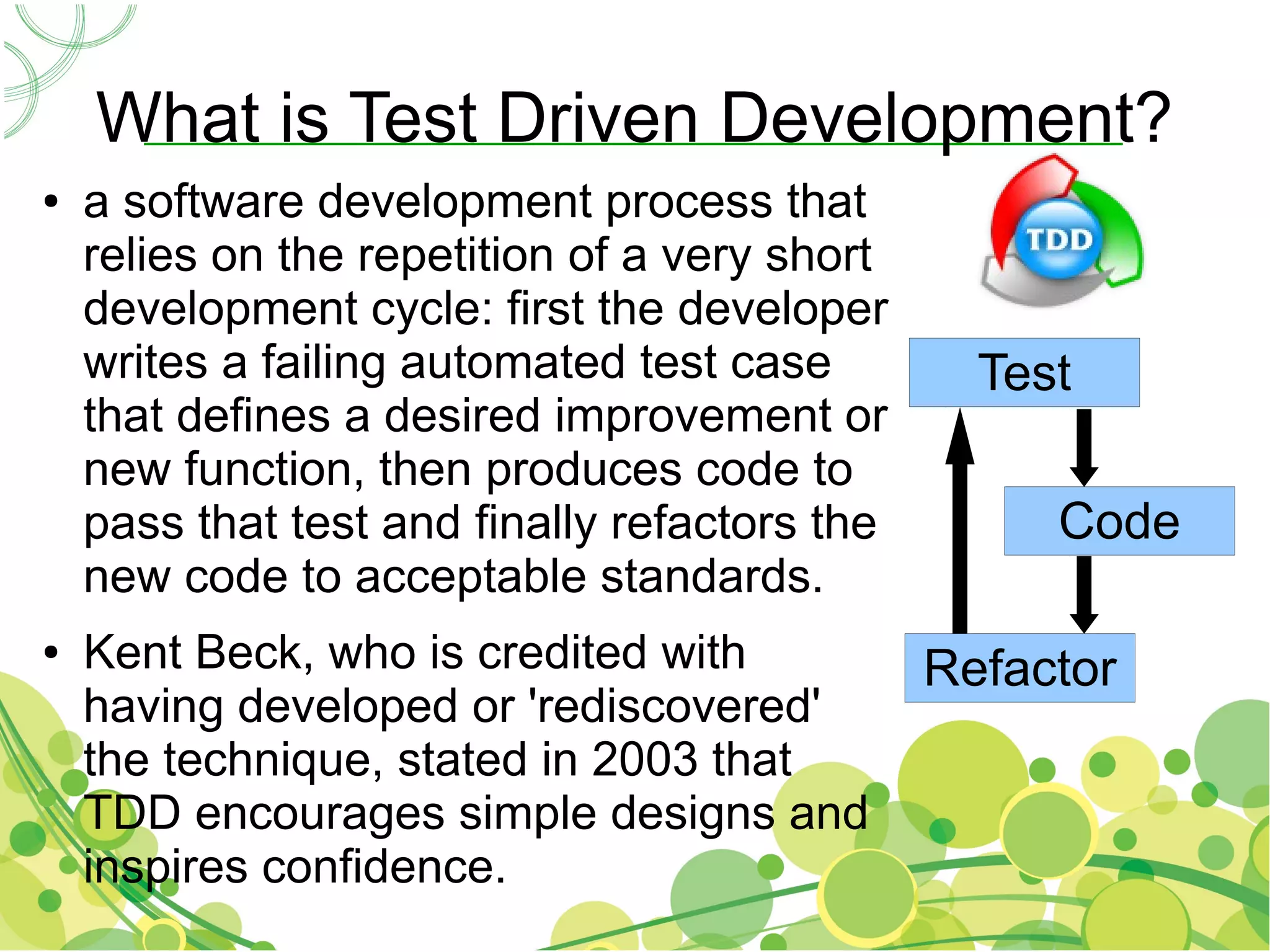

7. What is Test Driven Development?
● a software development process that
relies on the repetition of a very short
development cycle: first the developer
writes a failing automated test case Test
that defines a desired improvement or
new function, then produces code to
pass that test and finally refactors the Code
new code to acceptable standards.
● Kent Beck, who is credited with Refactor
having developed or 'rediscovered'
the technique, stated in 2003 that
TDD encourages simple designs and
inspires confidence.

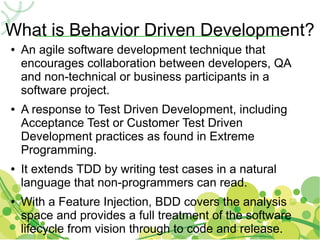

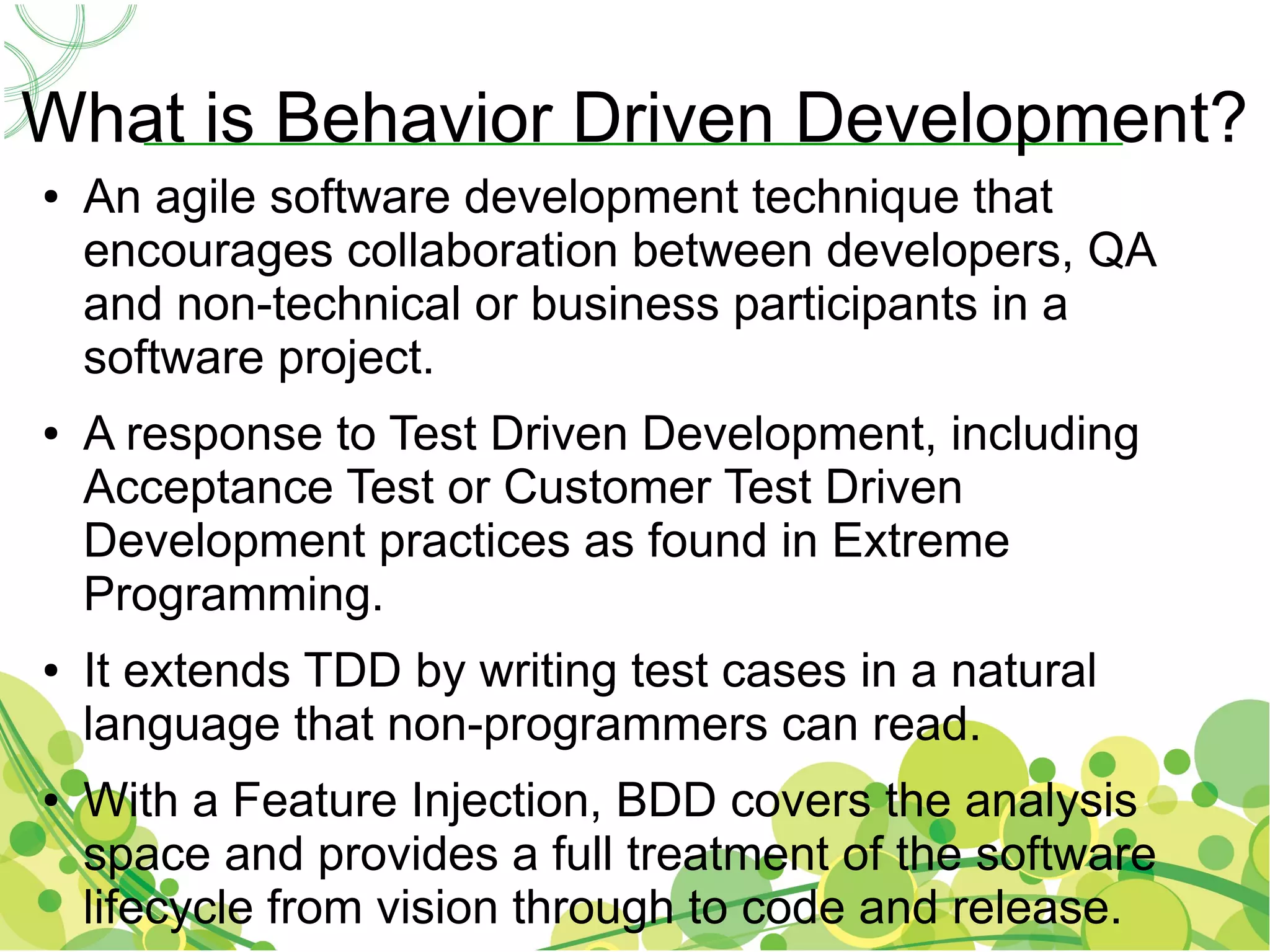

8. What is Behavior Driven Development?
● An agile software development technique that
encourages collaboration between developers, QA
and non-technical or business participants in a
software project.
● A response to Test Driven Development, including
Acceptance Test or Customer Test Driven
Development practices as found in Extreme
Programming.
● It extends TDD by writing test cases in a natural
language that non-programmers can read.
● With a Feature Injection, BDD covers the analysis
space and provides a full treatment of the software
lifecycle from vision through to code and release.

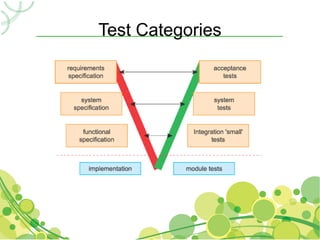

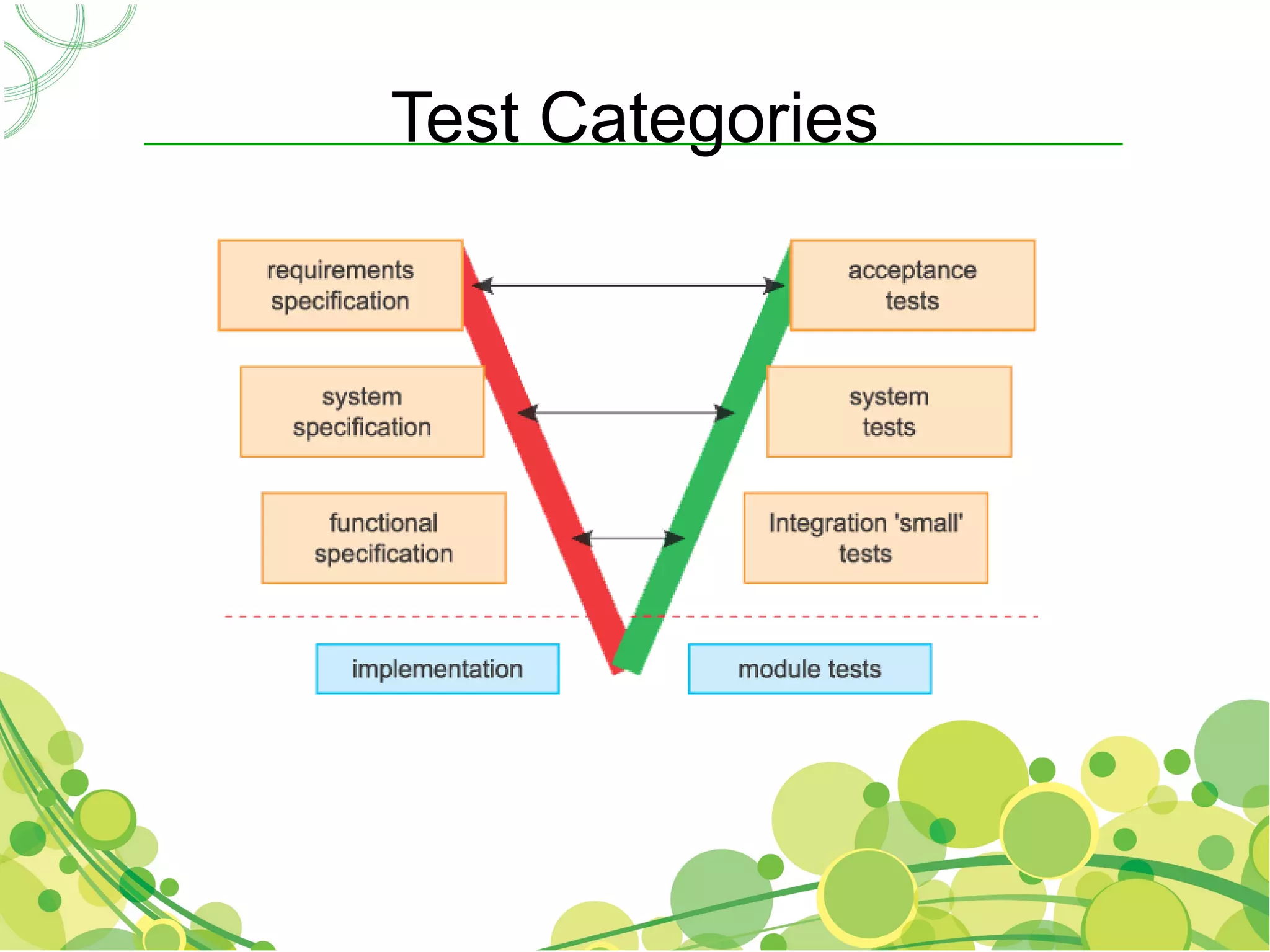

9. Test Categories

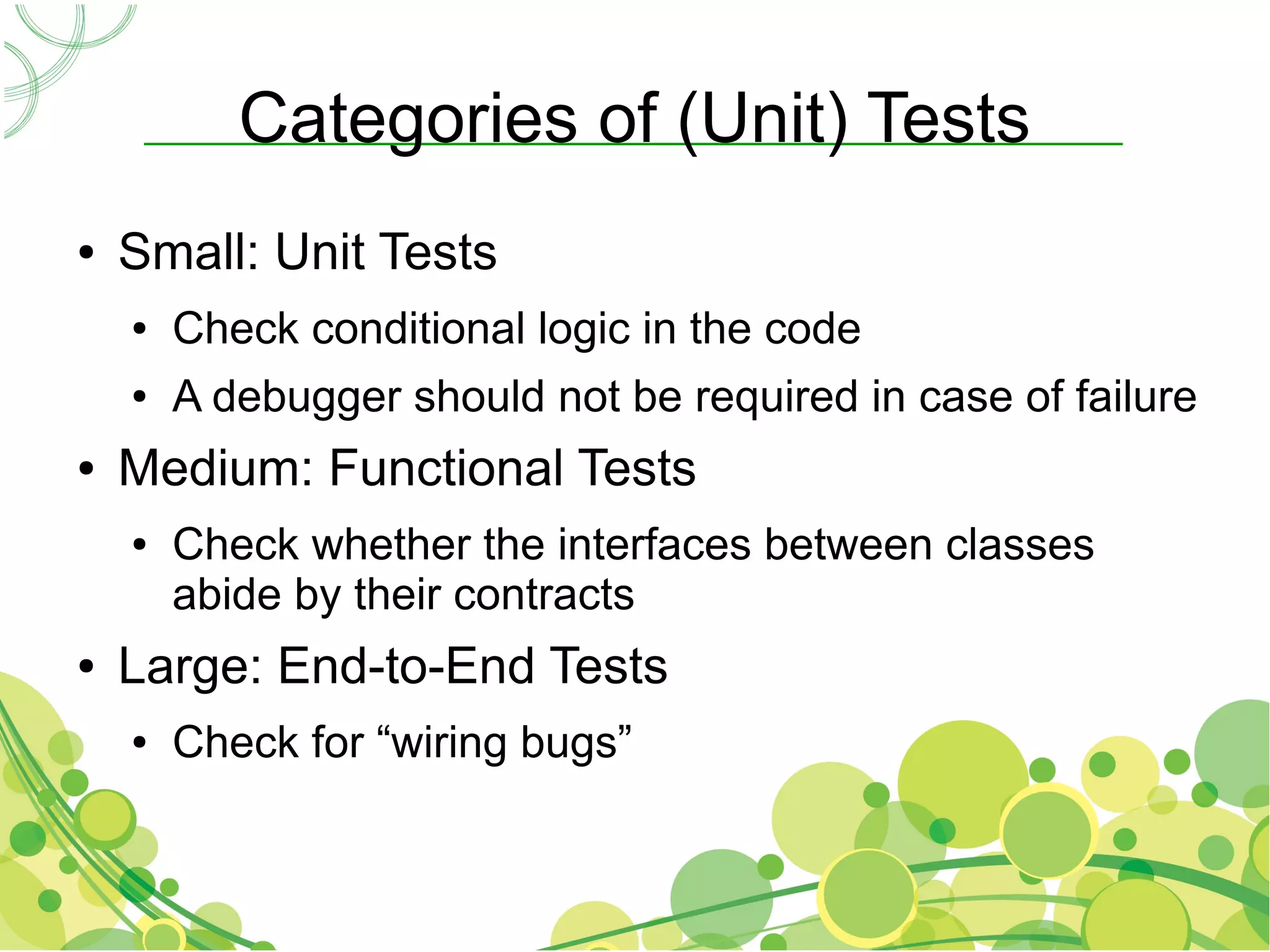

10. Categories of (Unit) Tests
● Small: Unit Tests
● Check conditional logic in the code
● A debugger should not be required in case of failure
● Medium: Functional Tests
● Check whether the interfaces between classes
abide by their contracts
● Large: End-to-End Tests
● Check for “wiring bugs”

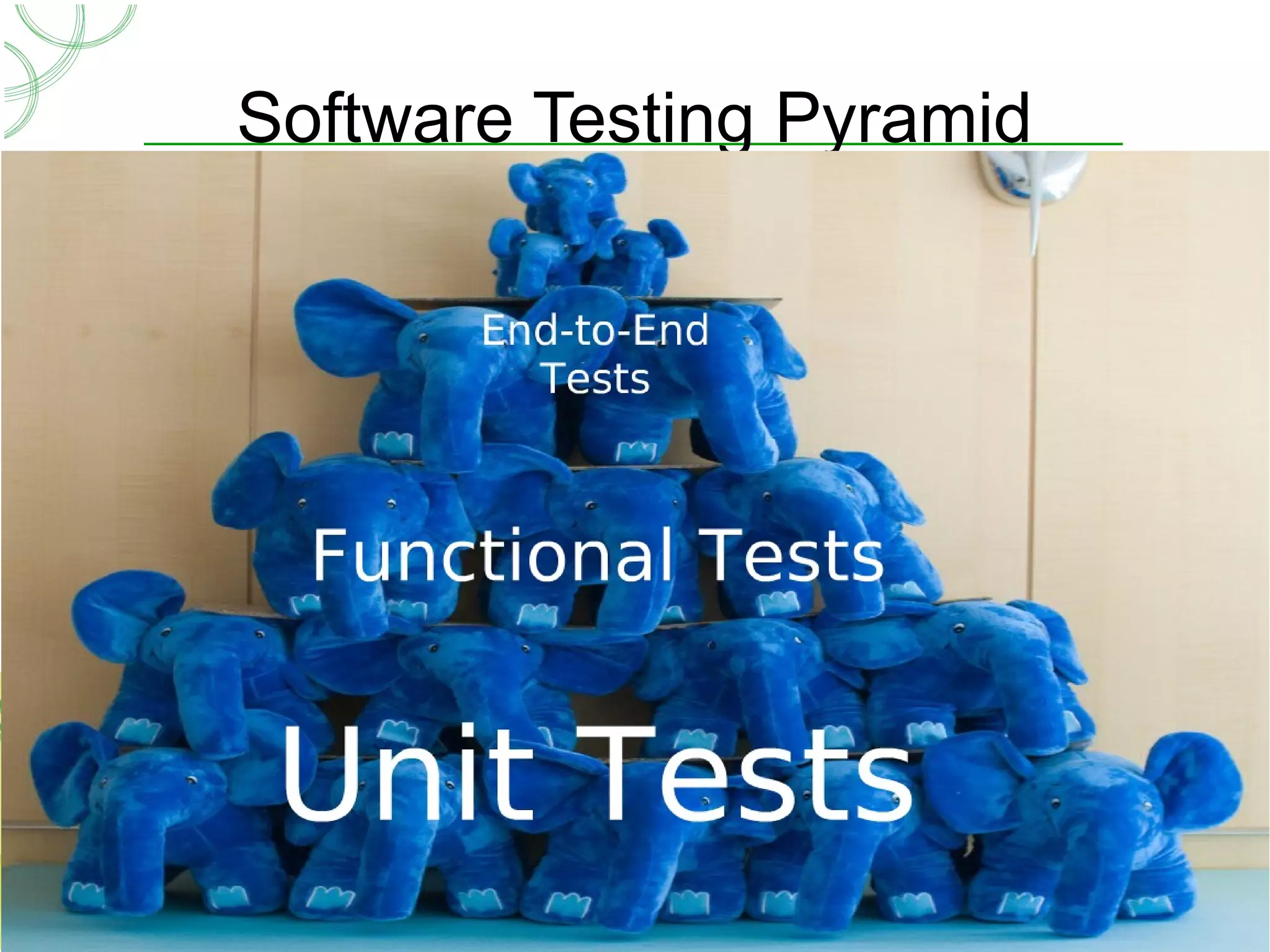

11. Software Testing Pyramid

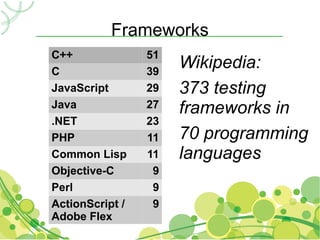

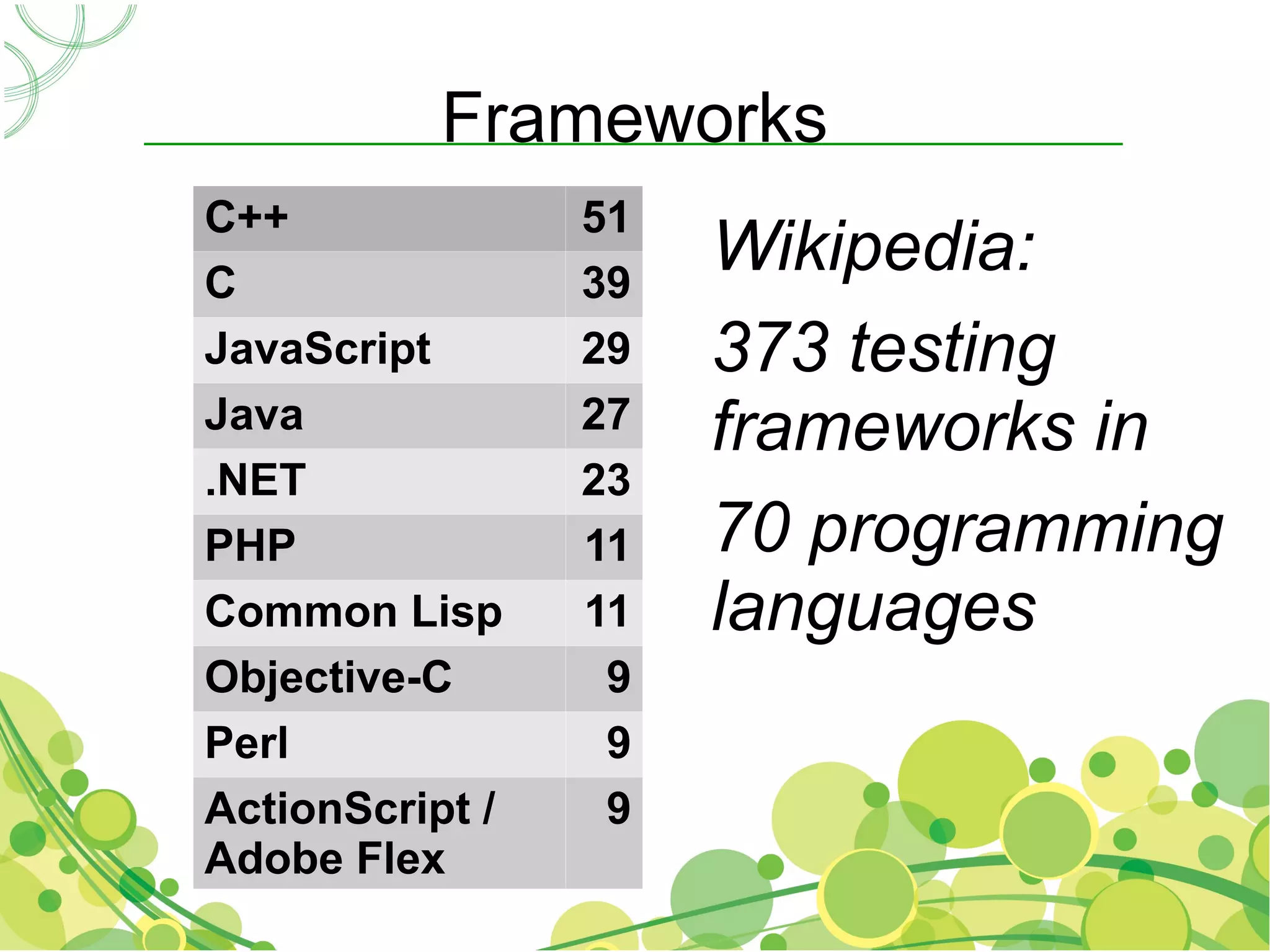

12. Frameworks
C++ 51
C 39
Wikipedia:
JavaScript 29 373 testing
Java 27 frameworks in
.NET 23
PHP 11 70 programming
Common Lisp 11 languages
Objective-C 9
Perl 9
ActionScript / 9
Adobe Flex

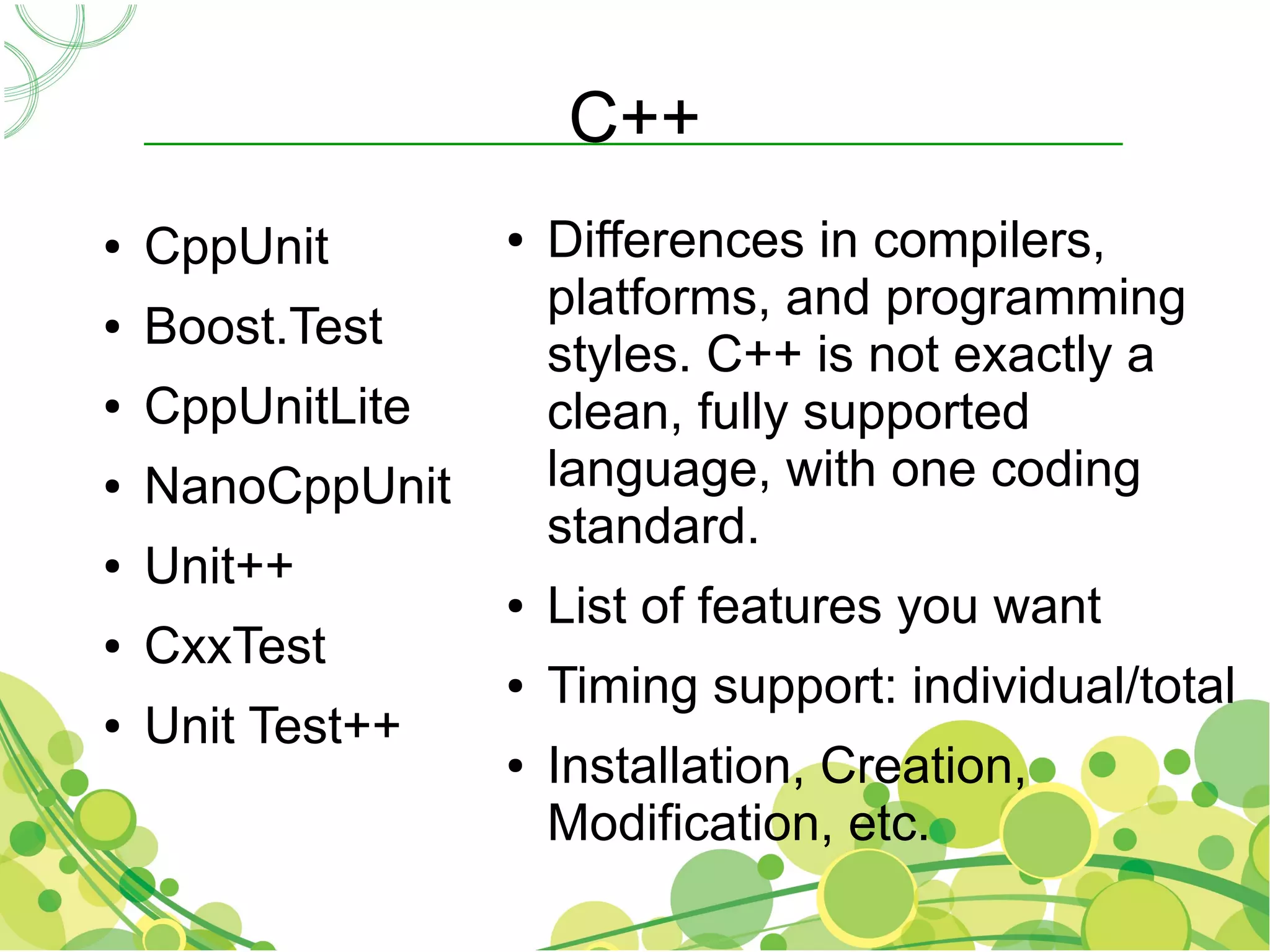

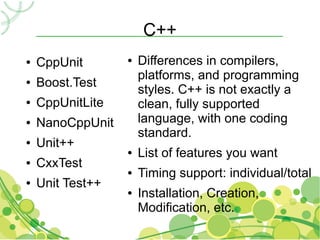

13. C++
● CppUnit ● Differences in compilers,
platforms, and programming
● Boost.Test
styles. C++ is not exactly a
● CppUnitLite clean, fully supported
● NanoCppUnit language, with one coding
standard.
● Unit++
● List of features you want
● CxxTest
● Timing support: individual/total
● Unit Test++
● Installation, Creation,
Modification, etc.

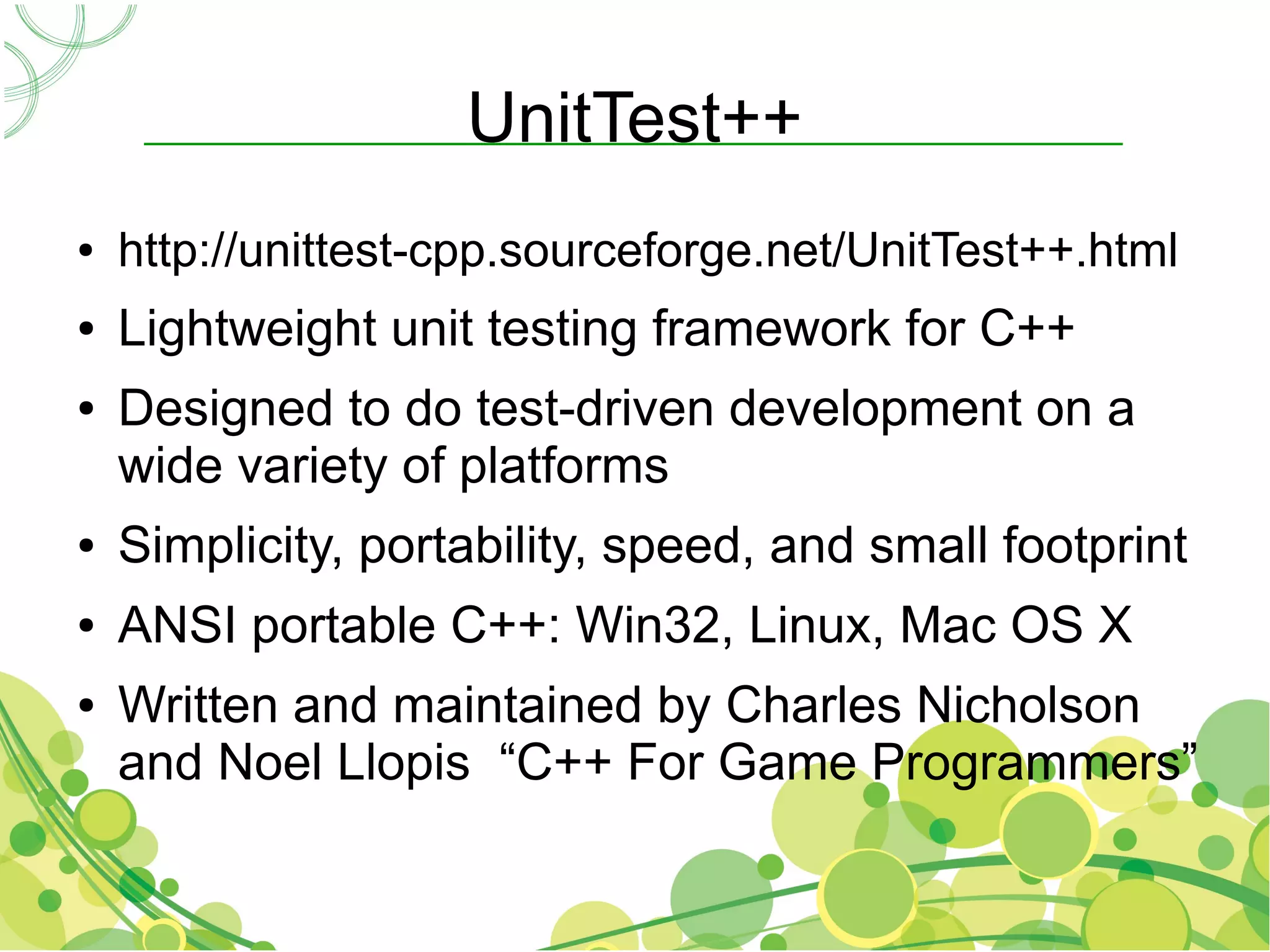

14. UnitTest++
● http://unittest-cpp.sourceforge.net/UnitTest++.html
● Lightweight unit testing framework for C++
● Designed to do test-driven development on a
wide variety of platforms
● Simplicity, portability, speed, and small footprint
● ANSI portable C++: Win32, Linux, Mac OS X
● Written and maintained by Charles Nicholson
and Noel Llopis “C++ For Game Programmers”

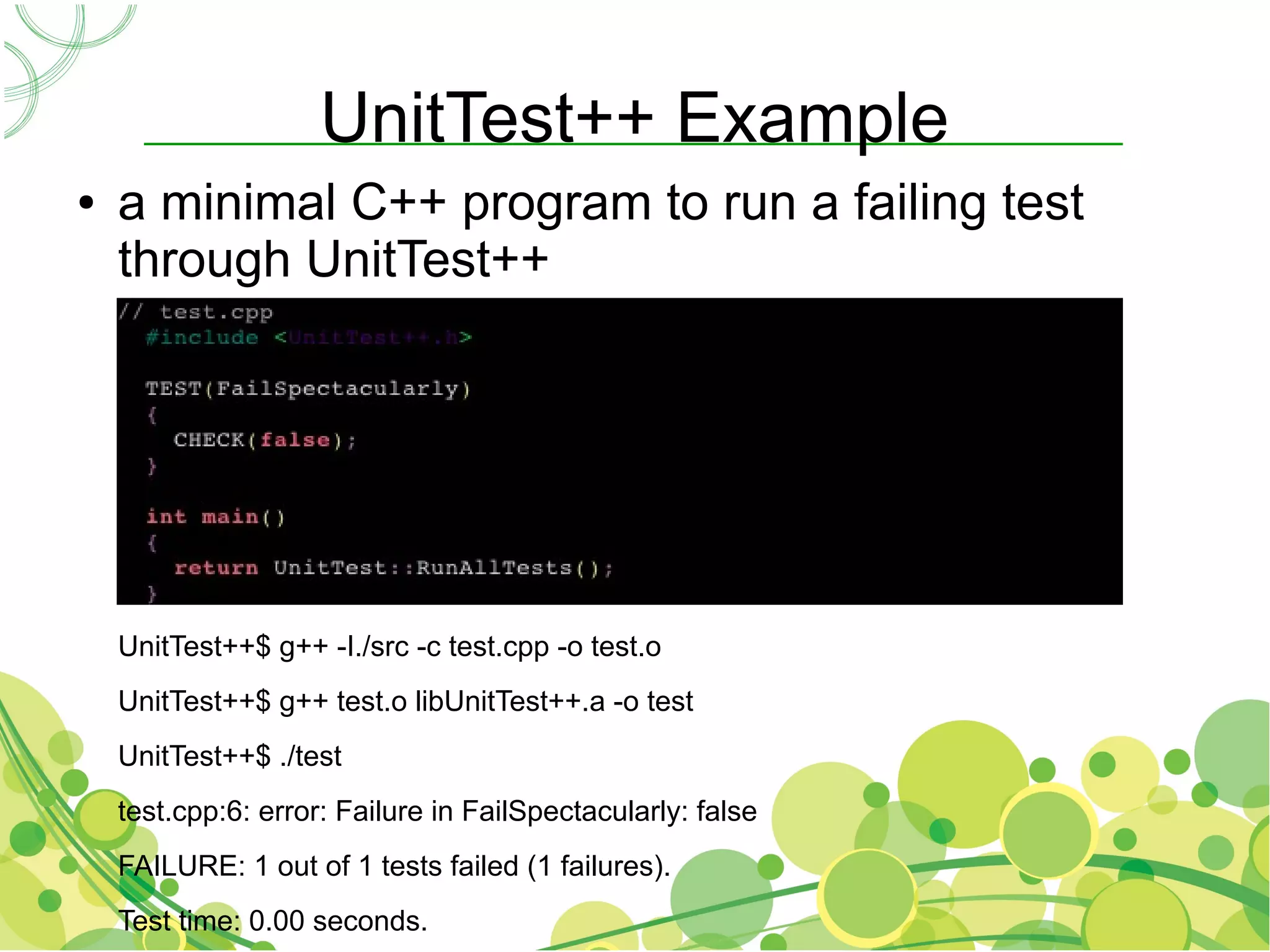

15. UnitTest++ Example
● a minimal C++ program to run a failing test
through UnitTest++
UnitTest++$ g++ -I./src -c test.cpp -o test.o
UnitTest++$ g++ test.o libUnitTest++.a -o test
UnitTest++$ ./test
test.cpp:6: error: Failure in FailSpectacularly: false
FAILURE: 1 out of 1 tests failed (1 failures).
Test time: 0.00 seconds.

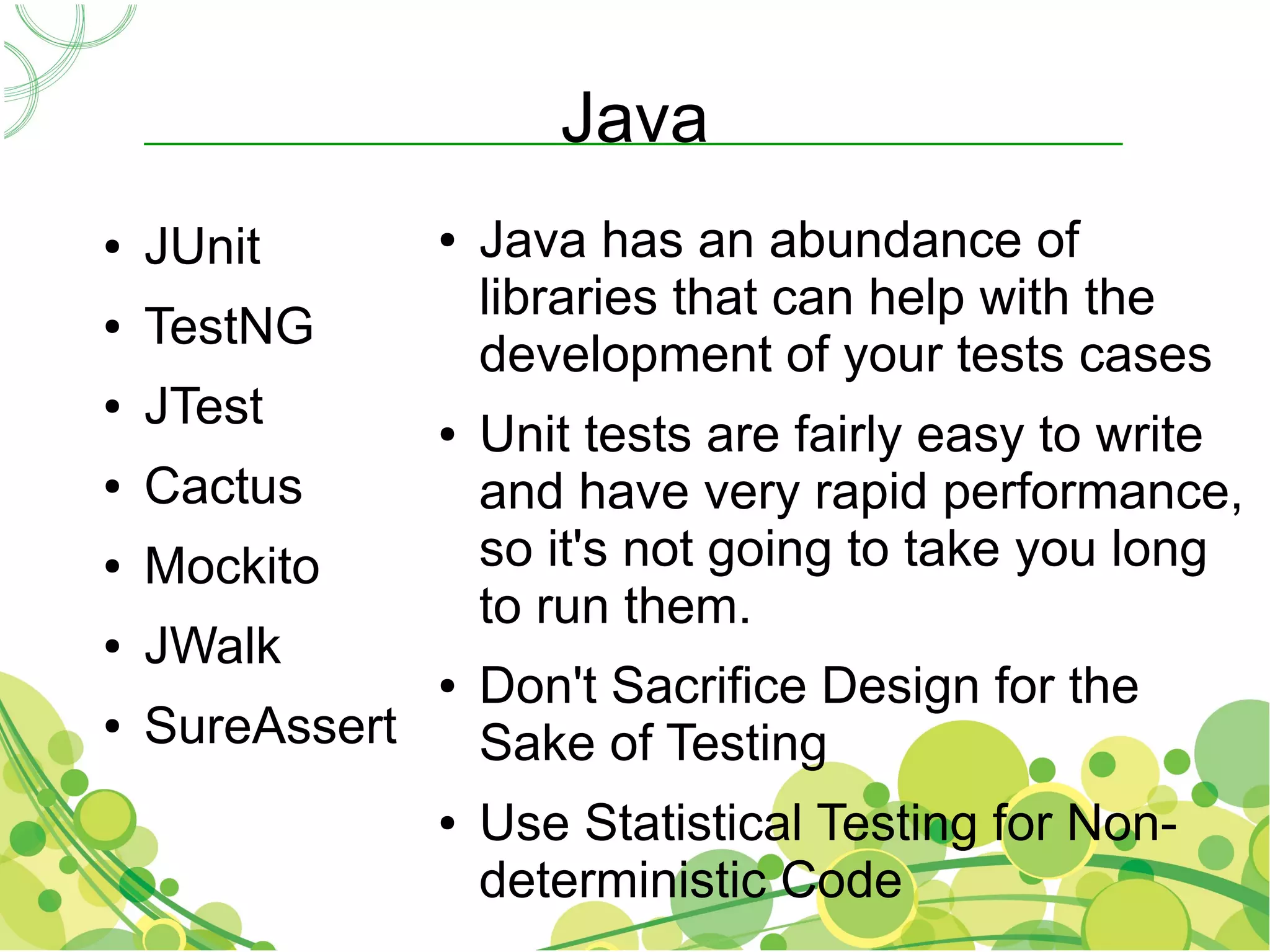

16. Java
● JUnit ● Java has an abundance of
libraries that can help with the
● TestNG
development of your tests cases
● JTest ● Unit tests are fairly easy to write
● Cactus and have very rapid performance,
● Mockito so it's not going to take you long
to run them.
● JWalk
● Don't Sacrifice Design for the
● SureAssert Sake of Testing
● Use Statistical Testing for Non-
deterministic Code

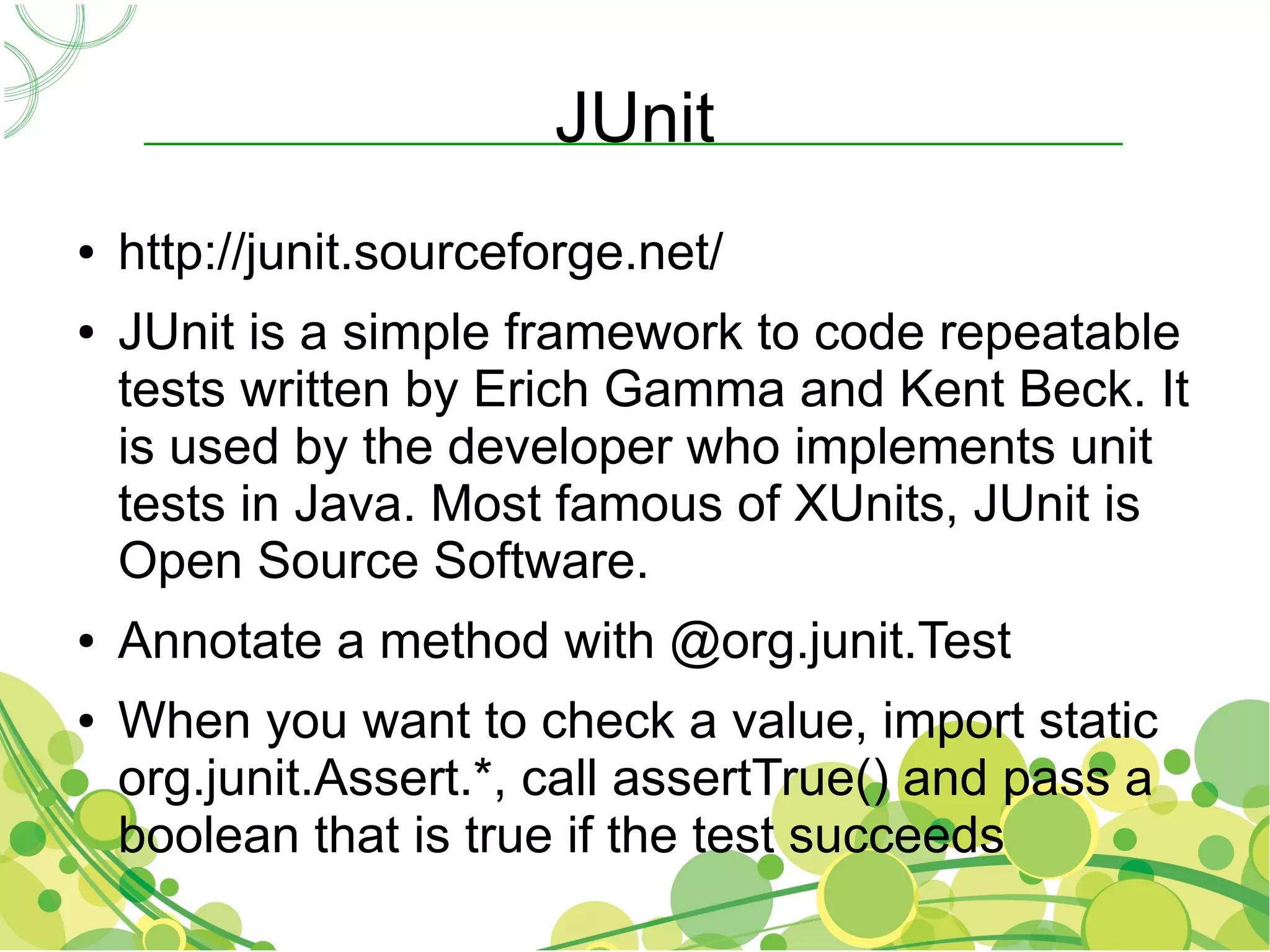

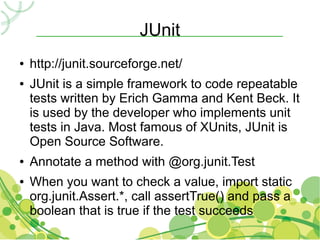

17. JUnit
● http://junit.sourceforge.net/
● JUnit is a simple framework to code repeatable
tests written by Erich Gamma and Kent Beck. It
is used by the developer who implements unit
tests in Java. Most famous of XUnits, JUnit is
Open Source Software.
● Annotate a method with @org.junit.Test
● When you want to check a value, import static
org.junit.Assert.*, call assertTrue() and pass a
boolean that is true if the test succeeds

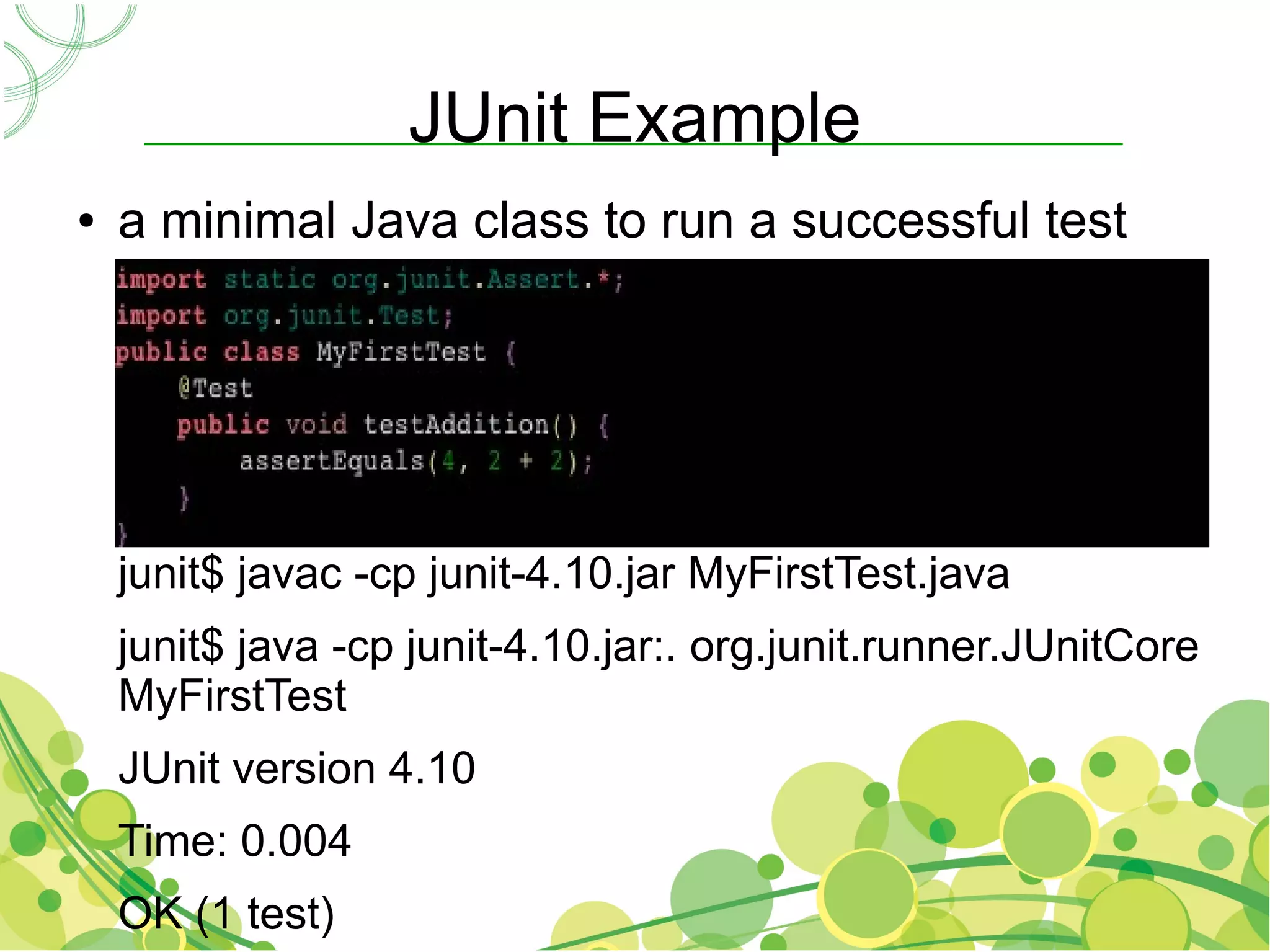

18. JUnit Example
● a minimal Java class to run a successful test
junit$ javac -cp junit-4.10.jar MyFirstTest.java
junit$ java -cp junit-4.10.jar:. org.junit.runner.JUnitCore
MyFirstTest
JUnit version 4.10
Time: 0.004
OK (1 test)

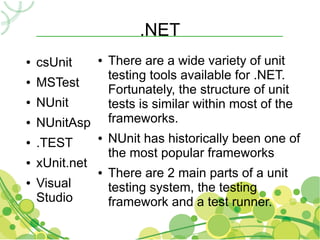

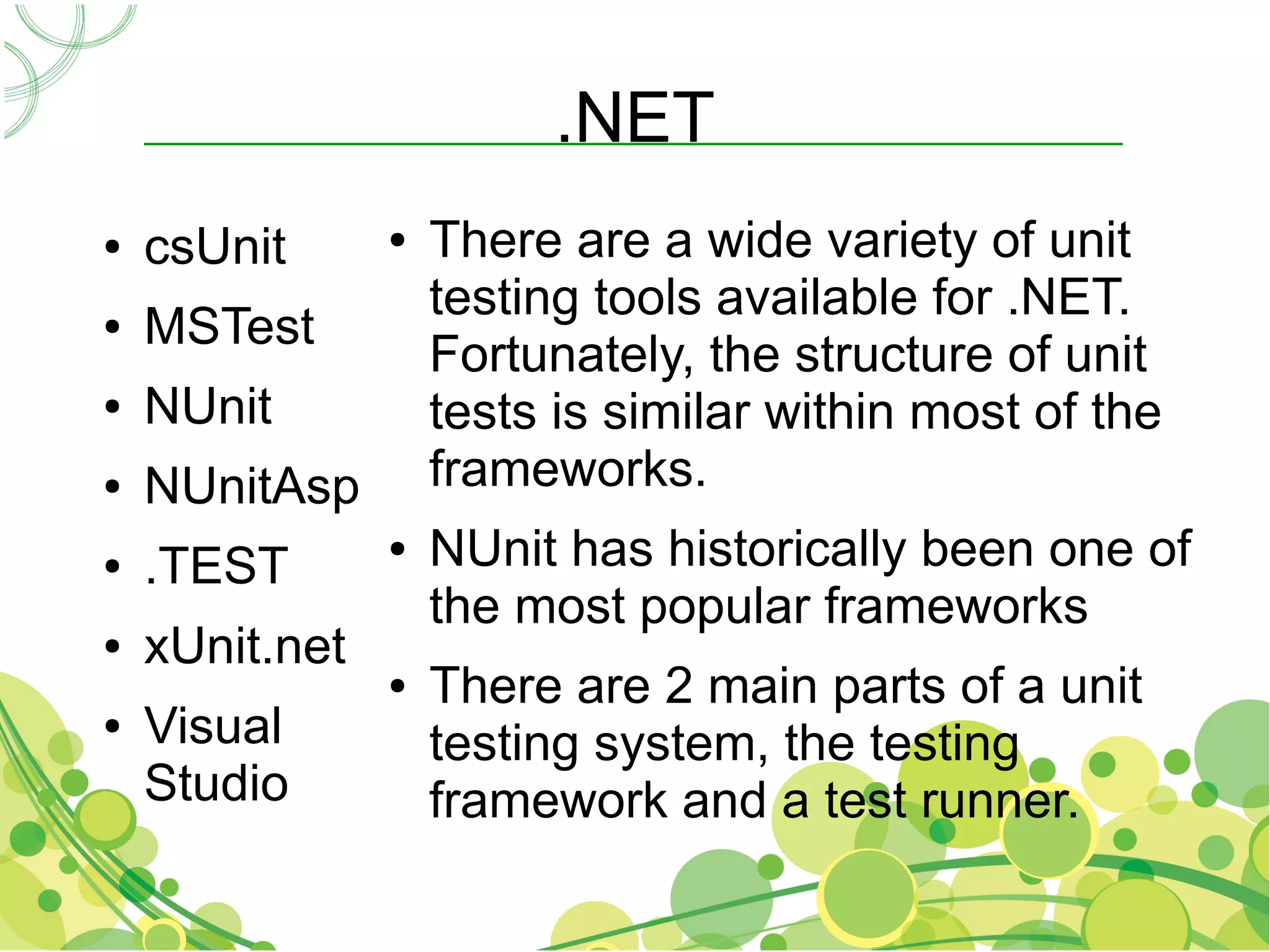

19. .NET
● csUnit ● There are a wide variety of unit
testing tools available for .NET.
● MSTest
Fortunately, the structure of unit
● NUnit tests is similar within most of the
● NUnitAsp frameworks.
● .TEST
● NUnit has historically been one of
the most popular frameworks
● xUnit.net
● There are 2 main parts of a unit
● Visual testing system, the testing
Studio framework and a test runner.

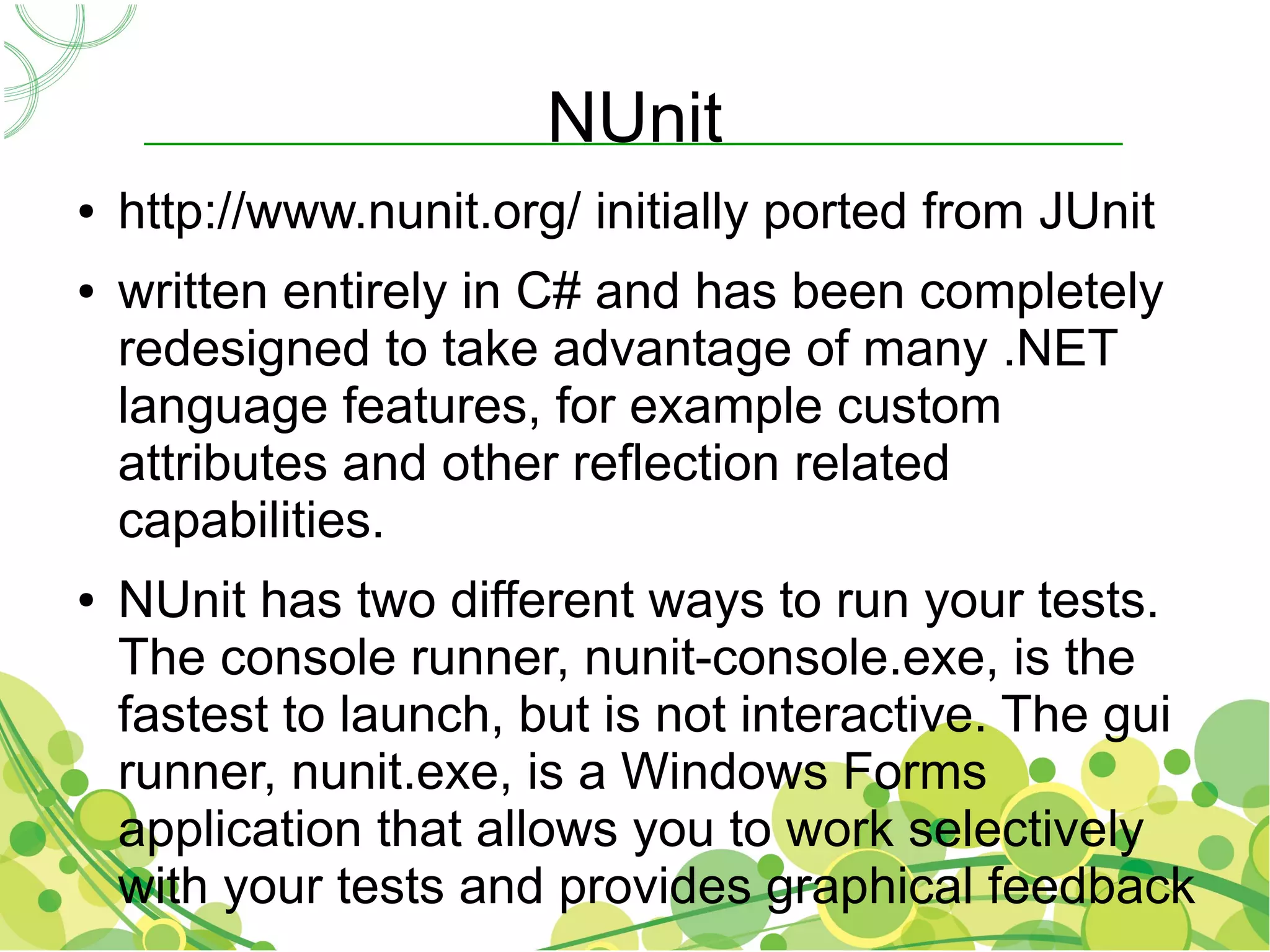

20. NUnit
● http://www.nunit.org/ initially ported from JUnit
● written entirely in C# and has been completely
redesigned to take advantage of many .NET
language features, for example custom
attributes and other reflection related
capabilities.
● NUnit has two different ways to run your tests.
The console runner, nunit-console.exe, is the
fastest to launch, but is not interactive. The gui
runner, nunit.exe, is a Windows Forms
application that allows you to work selectively
with your tests and provides graphical feedback

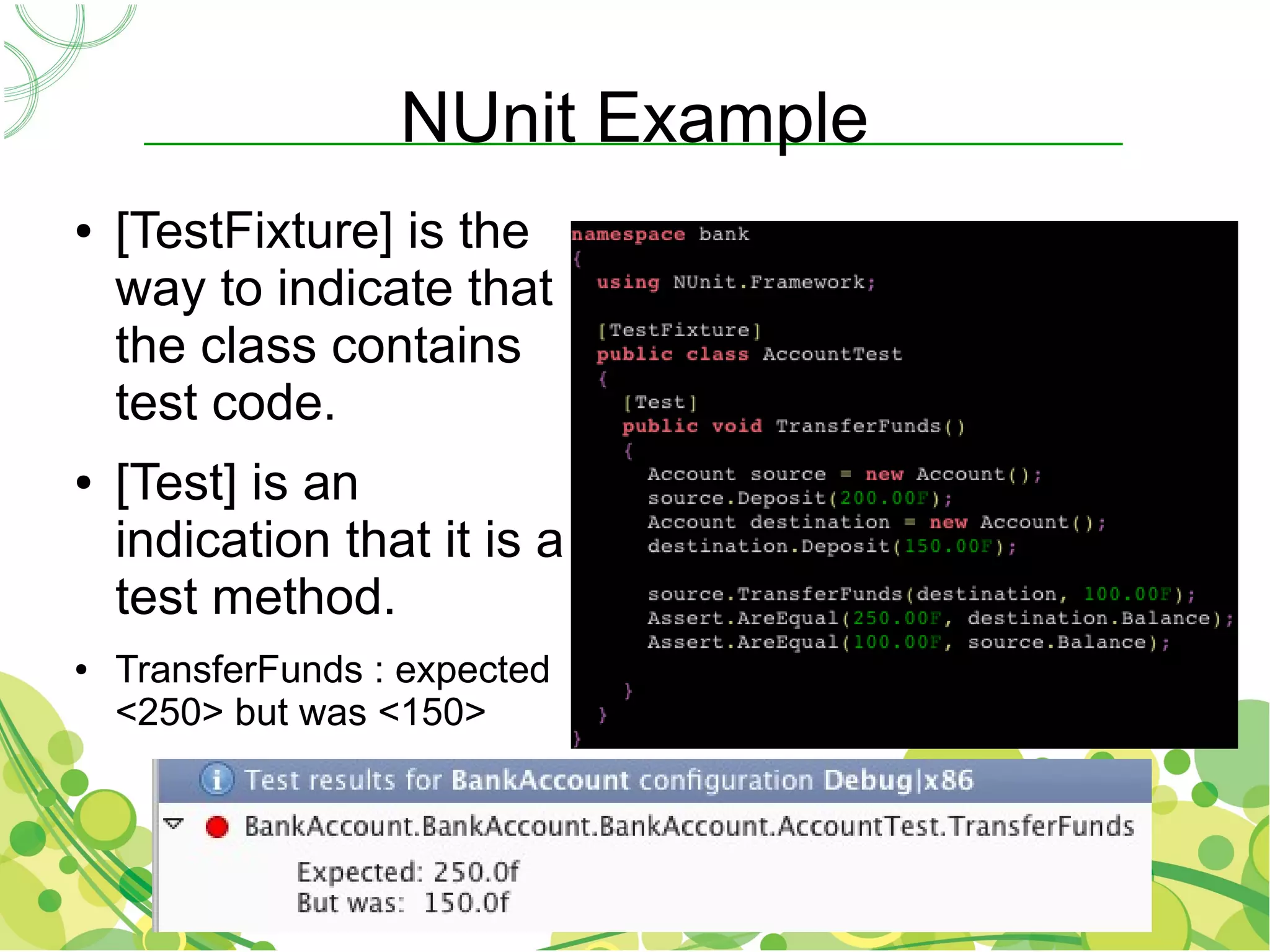

21. NUnit Example
● [TestFixture] is the
way to indicate that
the class contains
test code.
● [Test] is an
indication that it is a
test method.
● TransferFunds : expected
<250> but was <150>

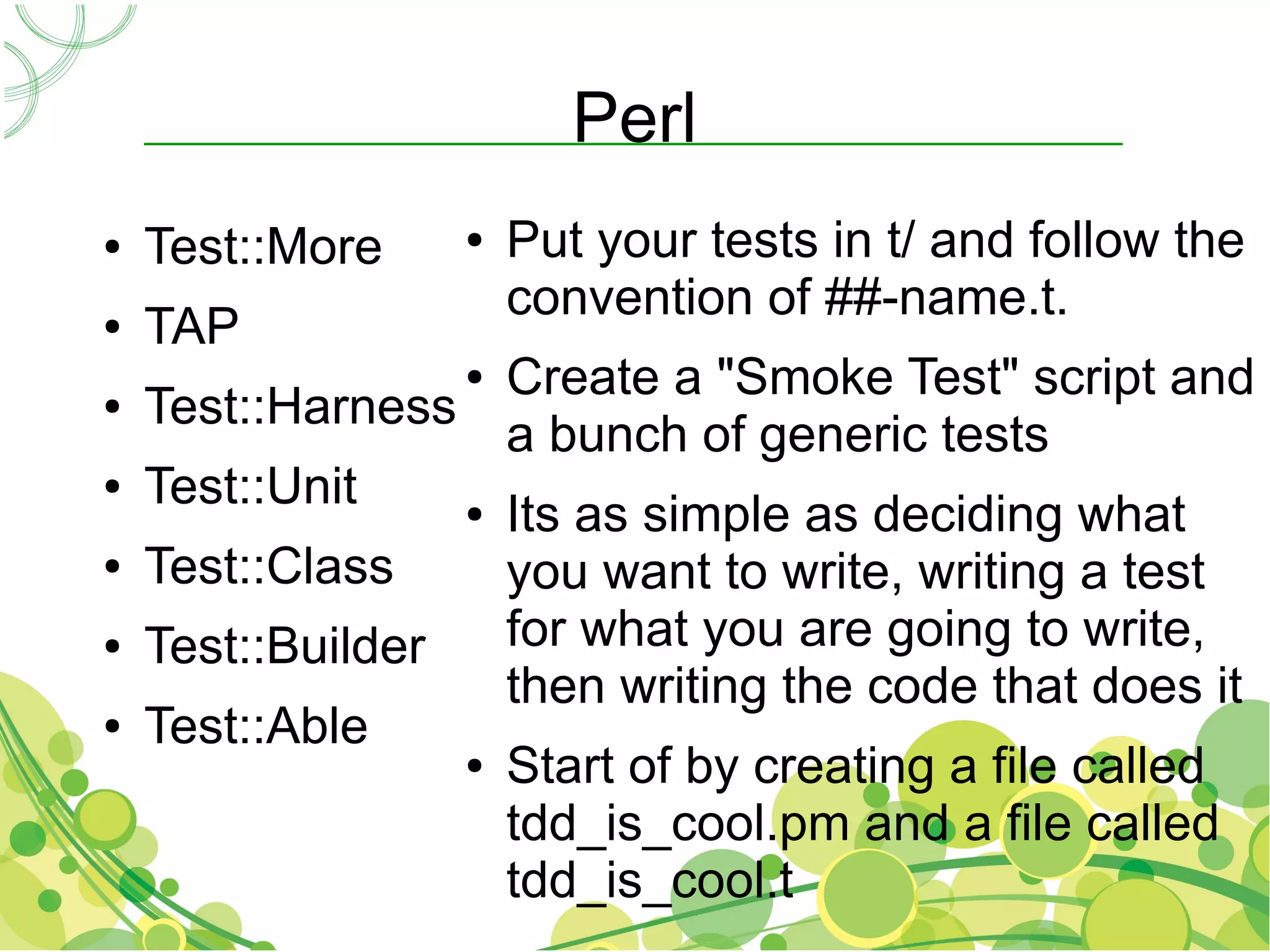

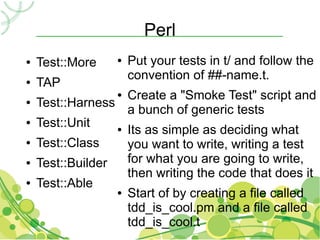

22. Perl
● Test::More ● Put your tests in t/ and follow the
convention of ##-name.t.
● TAP
● Create a "Smoke Test" script and
● Test::Harness
a bunch of generic tests
● Test::Unit ● Its as simple as deciding what
● Test::Class you want to write, writing a test
● Test::Builder for what you are going to write,
then writing the code that does it
● Test::Able
● Start of by creating a file called
tdd_is_cool.pm and a file called
tdd_is_cool.t

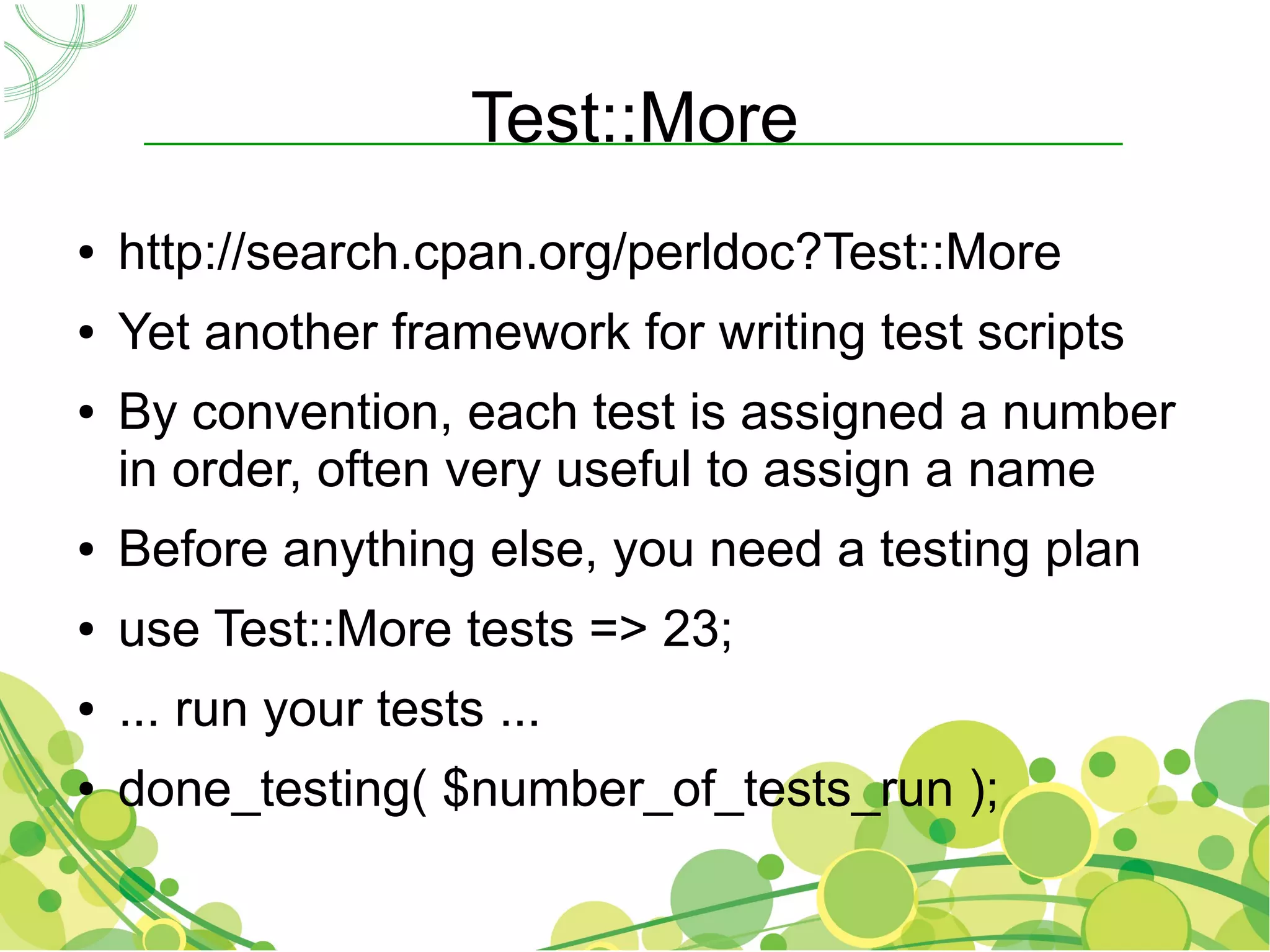

23. Test::More
● http://search.cpan.org/perldoc?Test::More
● Yet another framework for writing test scripts
● By convention, each test is assigned a number
in order, often very useful to assign a name
● Before anything else, you need a testing plan
● use Test::More tests => 23;
● ... run your tests ...
● done_testing( $number_of_tests_run );

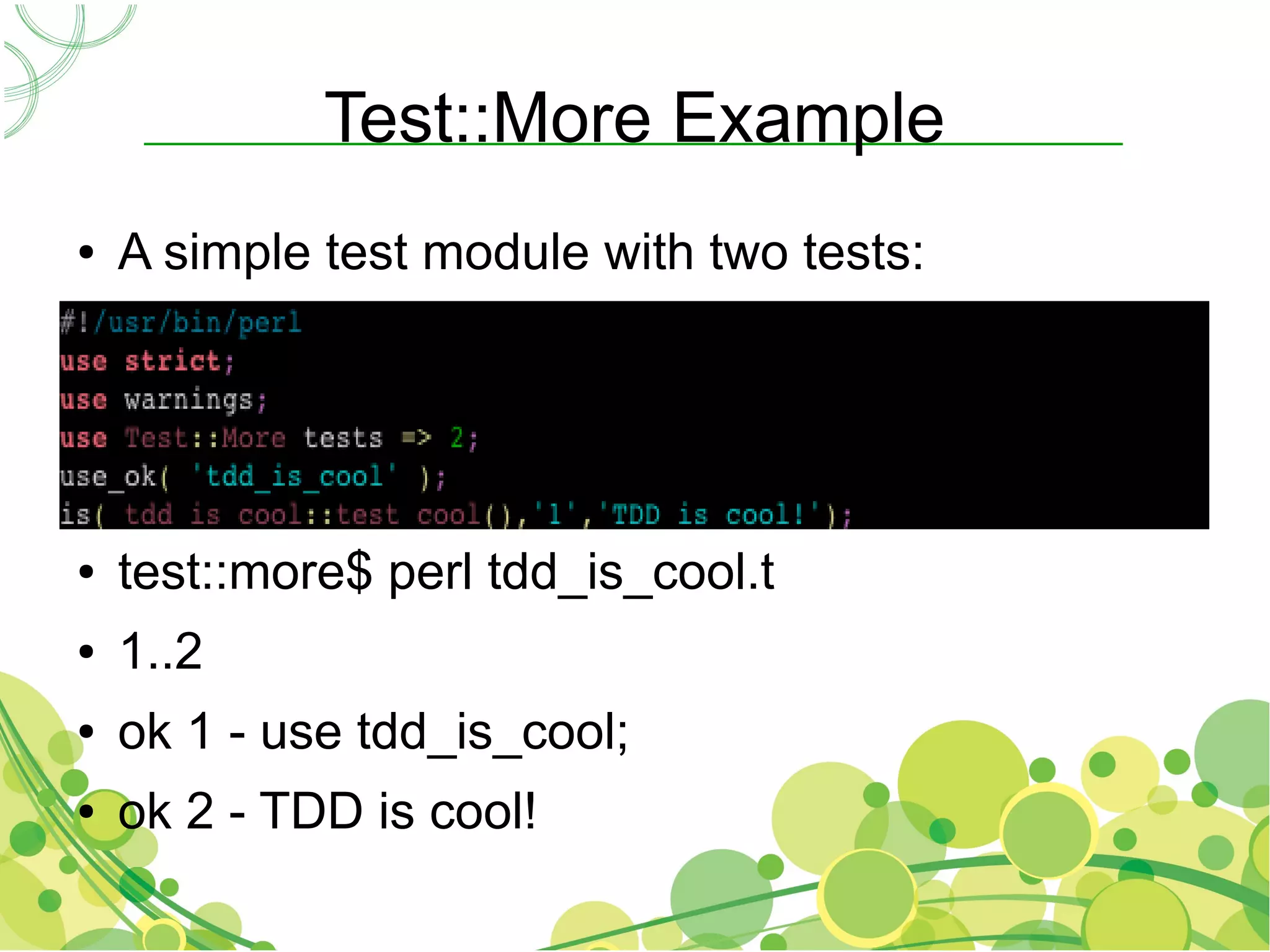

24. Test::More Example
● A simple test module with two tests:
●
●
●
● test::more$ perl tdd_is_cool.t
● 1..2
● ok 1 - use tdd_is_cool;
● ok 2 - TDD is cool!

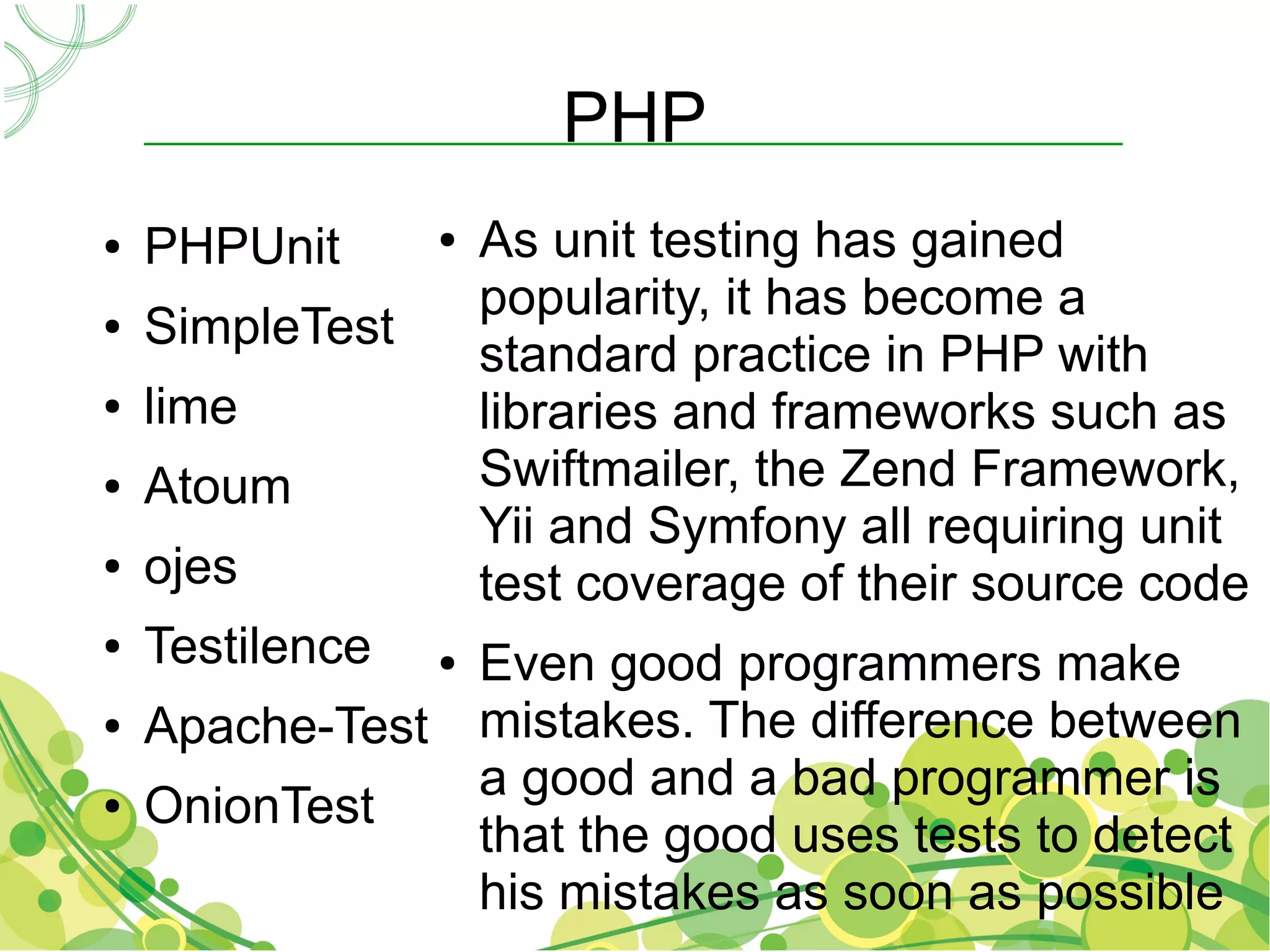

25. PHP
● PHPUnit ● As unit testing has gained
popularity, it has become a
● SimpleTest
standard practice in PHP with
● lime libraries and frameworks such as
● Atoum Swiftmailer, the Zend Framework,
Yii and Symfony all requiring unit
● ojes test coverage of their source code
● Testilence Even good programmers make
●
● Apache-Test mistakes. The difference between
a good and a bad programmer is
● OnionTest
that the good uses tests to detect
his mistakes as soon as possible

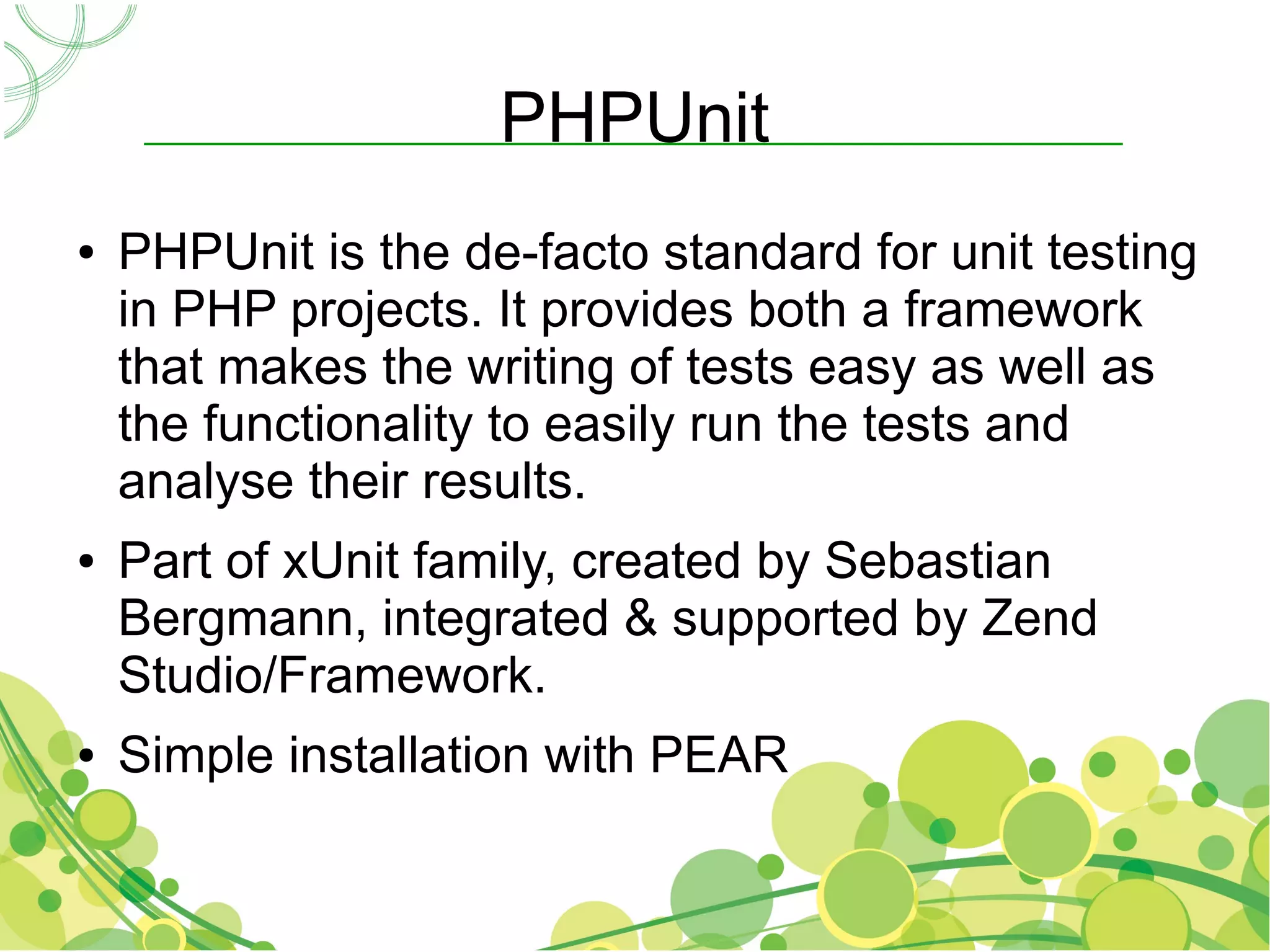

26. PHPUnit
● PHPUnit is the de-facto standard for unit testing
in PHP projects. It provides both a framework
that makes the writing of tests easy as well as
the functionality to easily run the tests and
analyse their results.
● Part of xUnit family, created by Sebastian
Bergmann, integrated & supported by Zend
Studio/Framework.
● Simple installation with PEAR

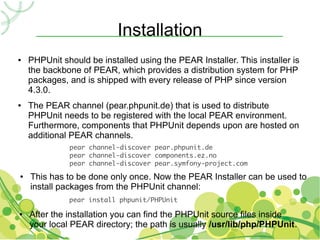

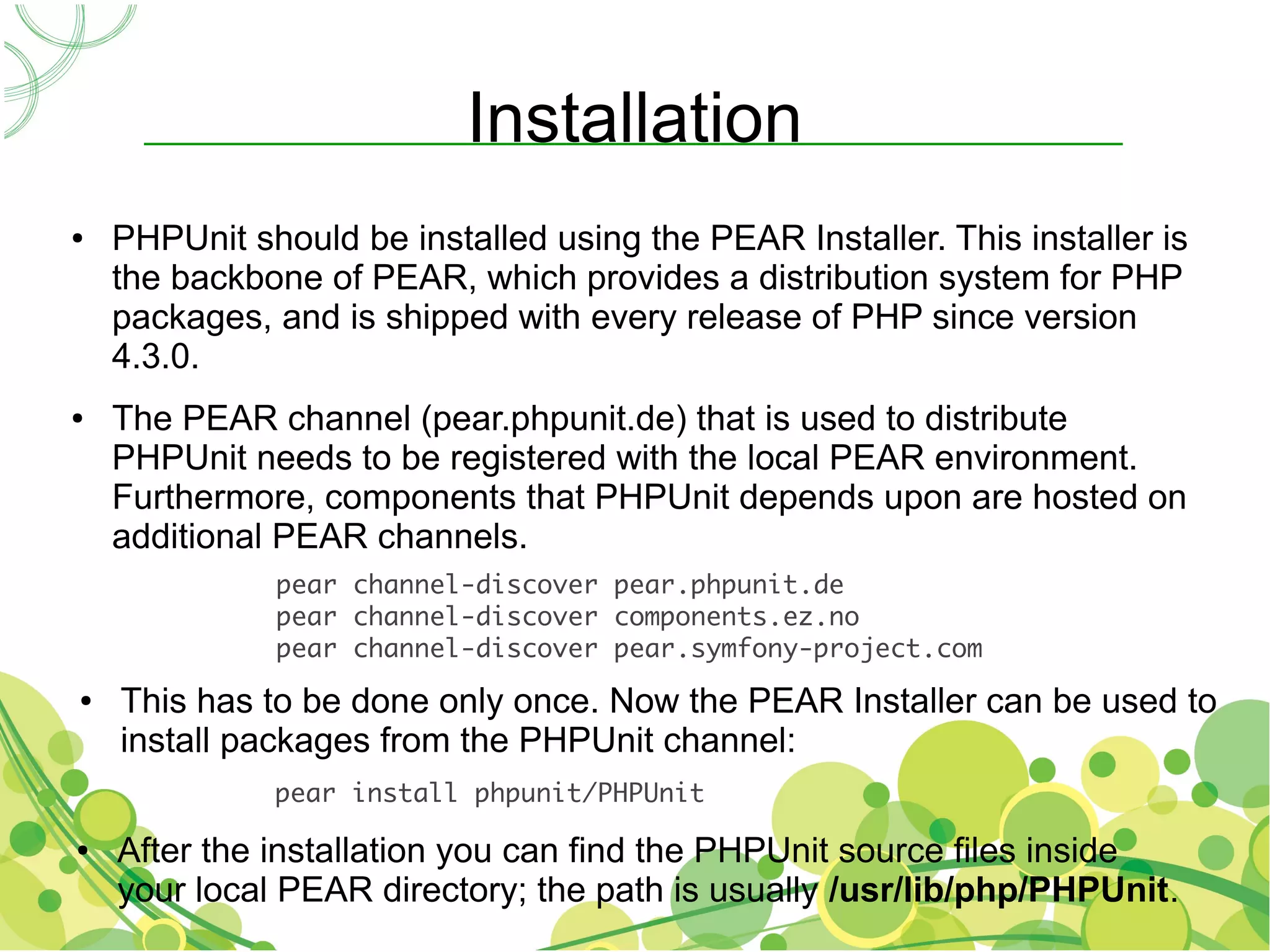

27. Installation
● PHPUnit should be installed using the PEAR Installer. This installer is
the backbone of PEAR, which provides a distribution system for PHP
packages, and is shipped with every release of PHP since version
4.3.0.
● The PEAR channel (pear.phpunit.de) that is used to distribute
PHPUnit needs to be registered with the local PEAR environment.
Furthermore, components that PHPUnit depends upon are hosted on
additional PEAR channels.
pear channel-discover pear.phpunit.de
pear channel-discover components.ez.no
pear channel-discover pear.symfony-project.com
● This has to be done only once. Now the PEAR Installer can be used to
install packages from the PHPUnit channel:
pear install phpunit/PHPUnit
● After the installation you can find the PHPUnit source files inside
your local PEAR directory; the path is usually /usr/lib/php/PHPUnit.

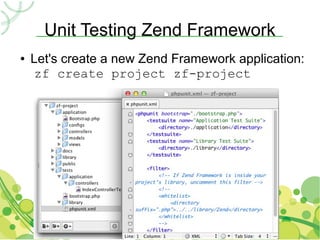

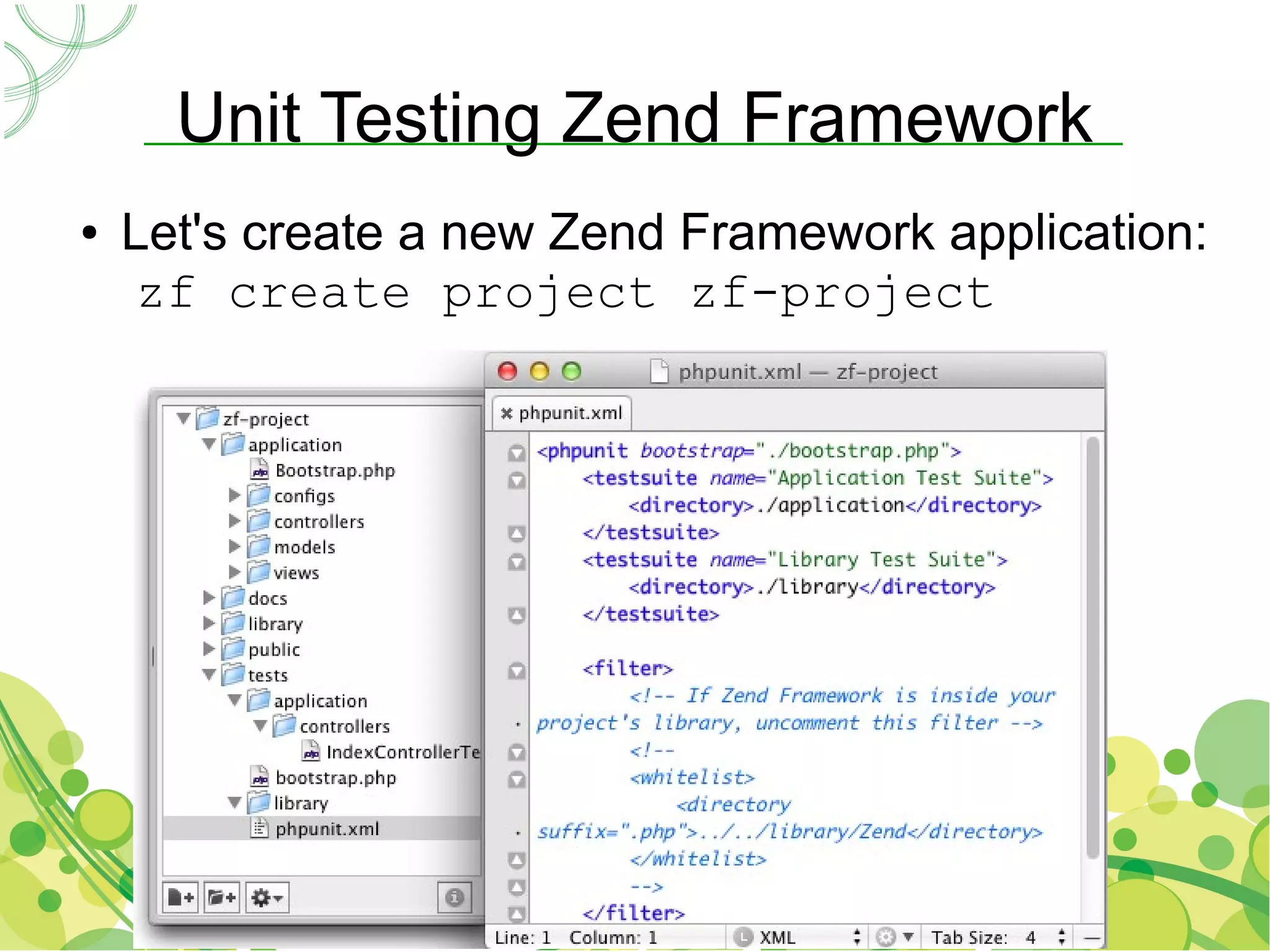

28. Unit Testing Zend Framework
● Let's create a new Zend Framework application:
zf create project zf-project

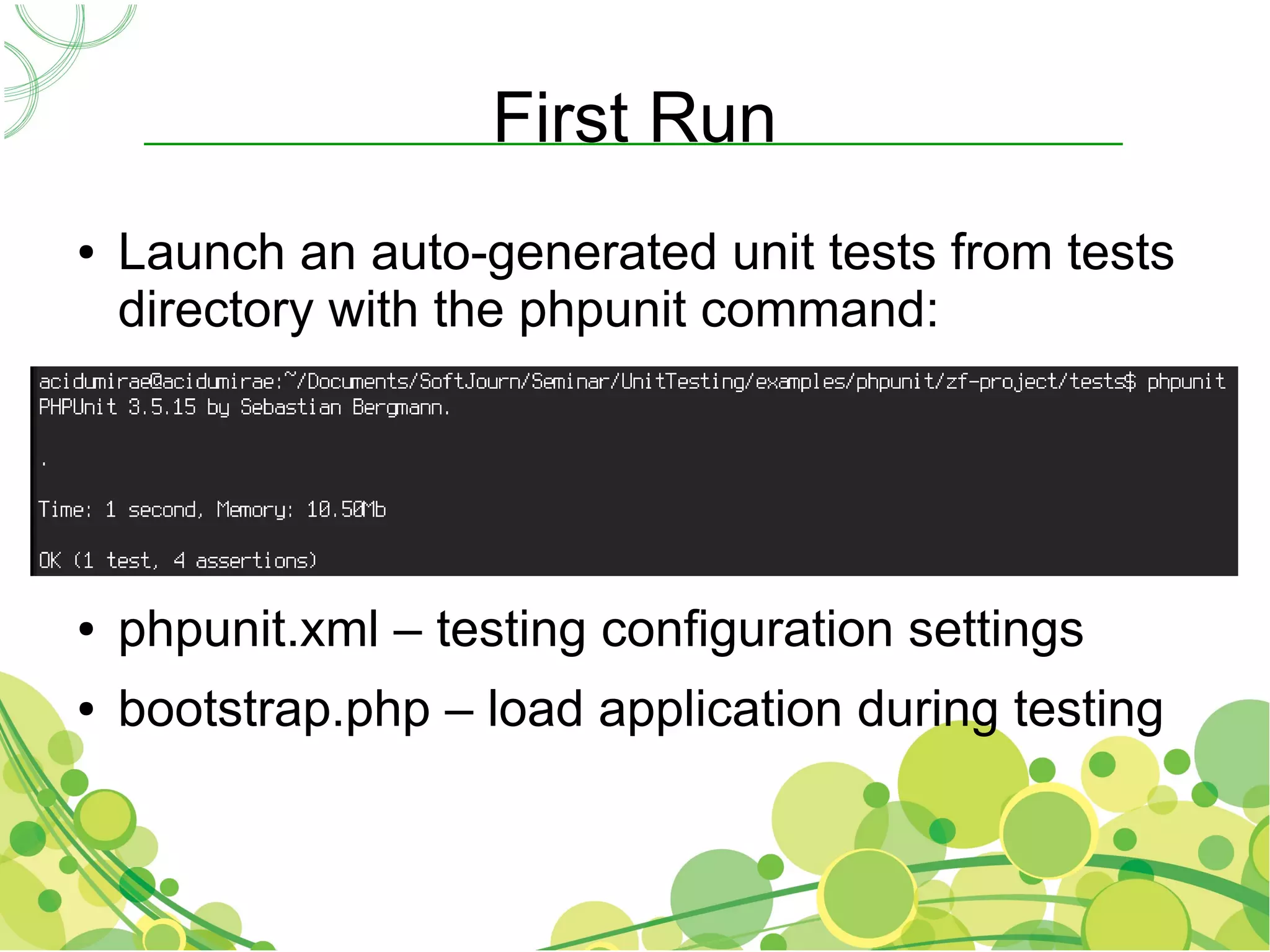

29. First Run
● Launch an auto-generated unit tests from tests
directory with the phpunit command:
● phpunit.xml – testing configuration settings
● bootstrap.php – load application during testing

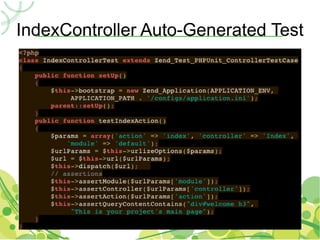

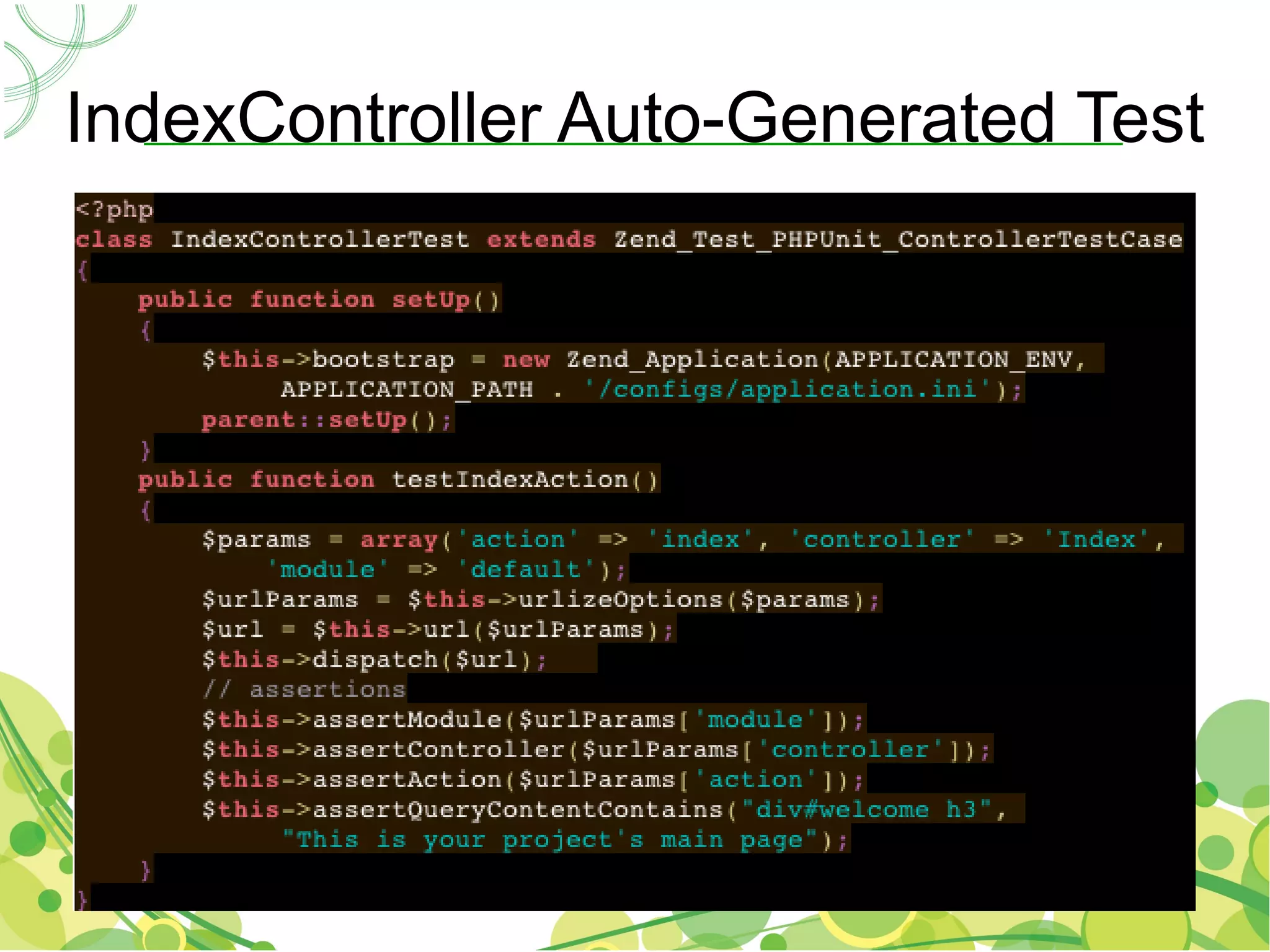

30. IndexController Auto-Generated Test

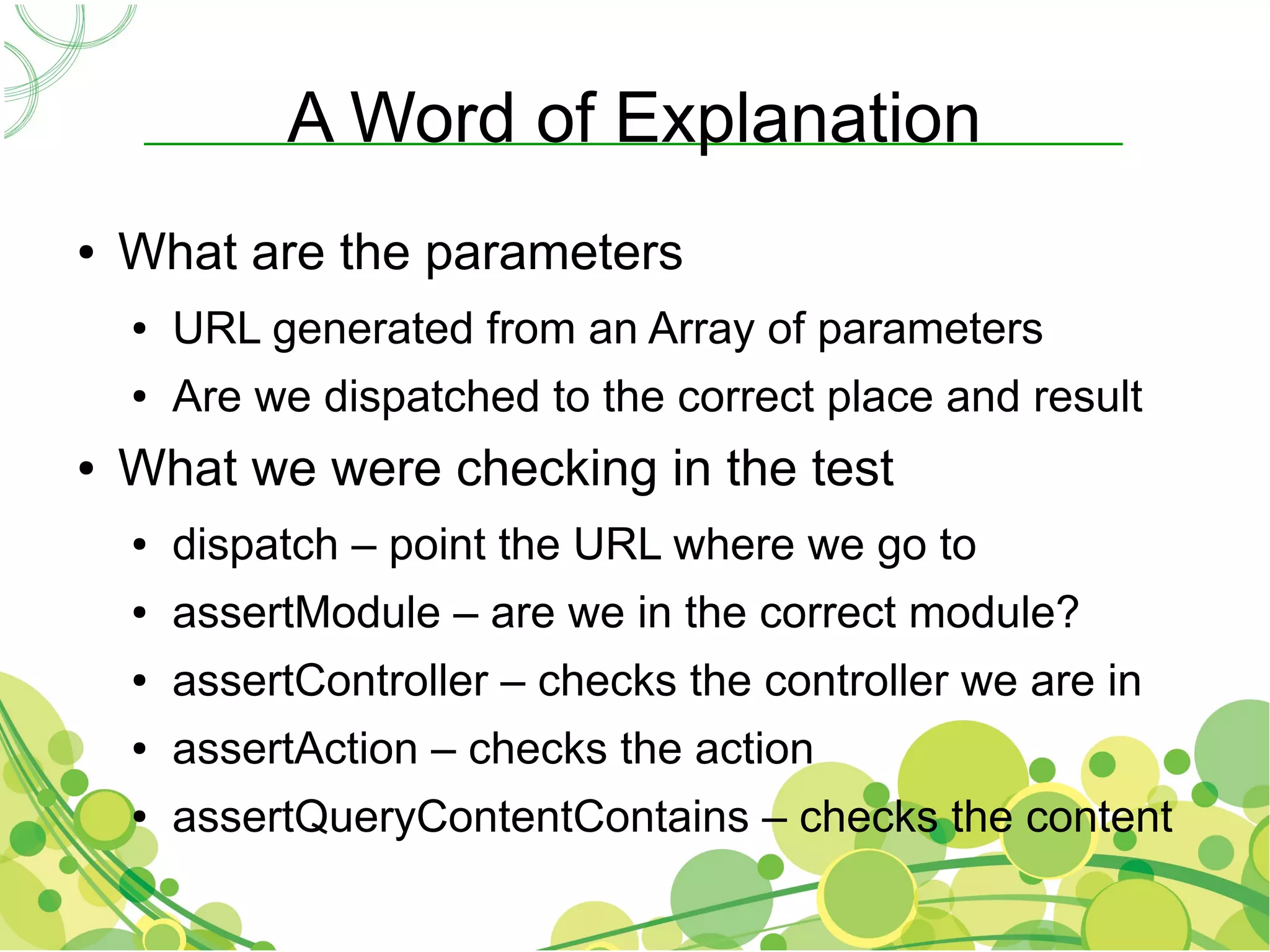

31. A Word of Explanation
● What are the parameters
● URL generated from an Array of parameters
● Are we dispatched to the correct place and result
● What we were checking in the test
● dispatch – point the URL where we go to
● assertModule – are we in the correct module?
● assertController – checks the controller we are in
● assertAction – checks the action
● assertQueryContentContains – checks the content

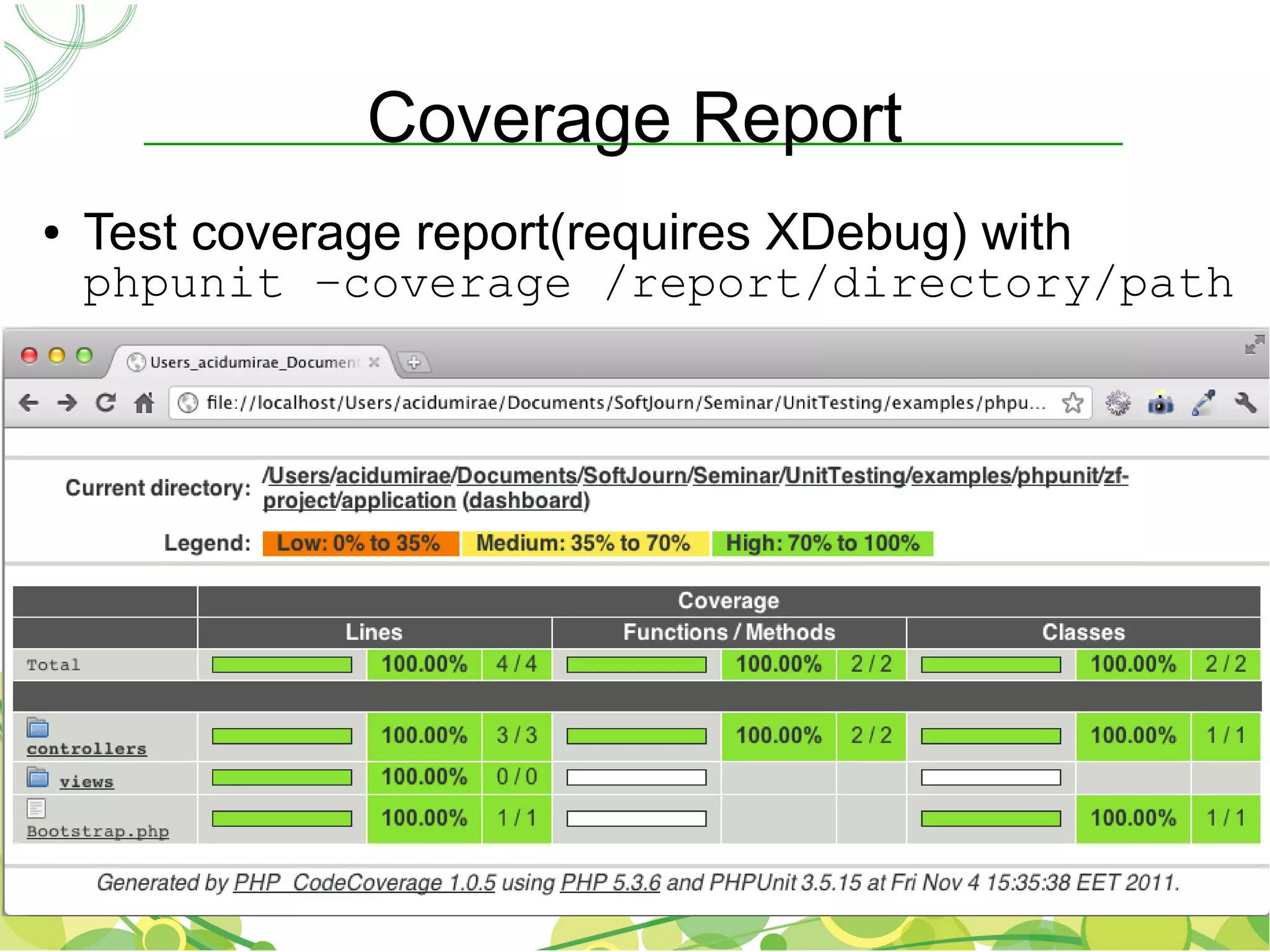

32. Coverage Report
● Test coverage report(requires XDebug) with
phpunit –coverage /report/directory/path

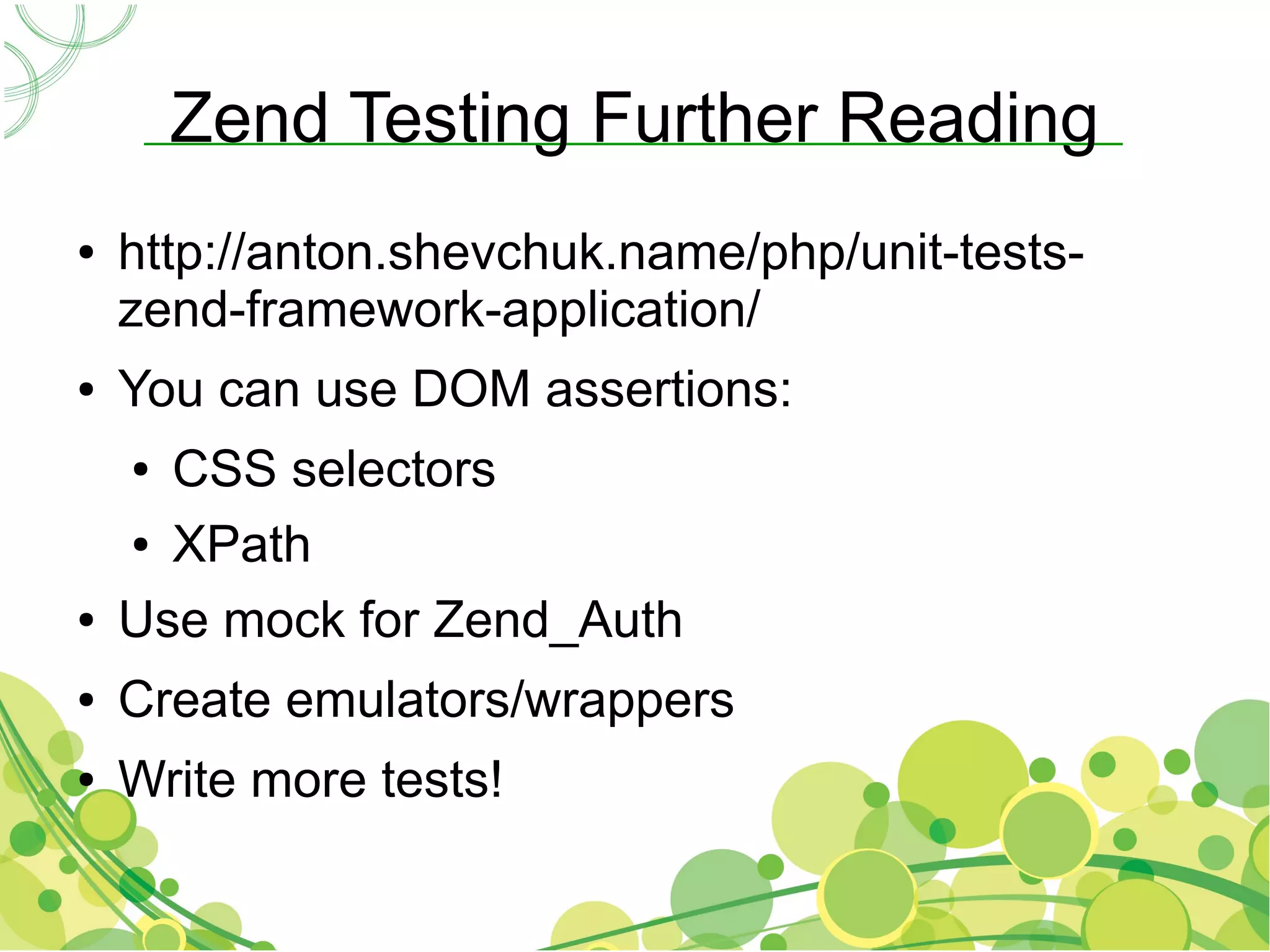

33. Zend Testing Further Reading
● http://anton.shevchuk.name/php/unit-tests-
zend-framework-application/
● You can use DOM assertions:
● CSS selectors
● XPath
● Use mock for Zend_Auth
● Create emulators/wrappers
● Write more tests!

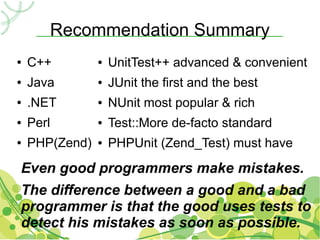

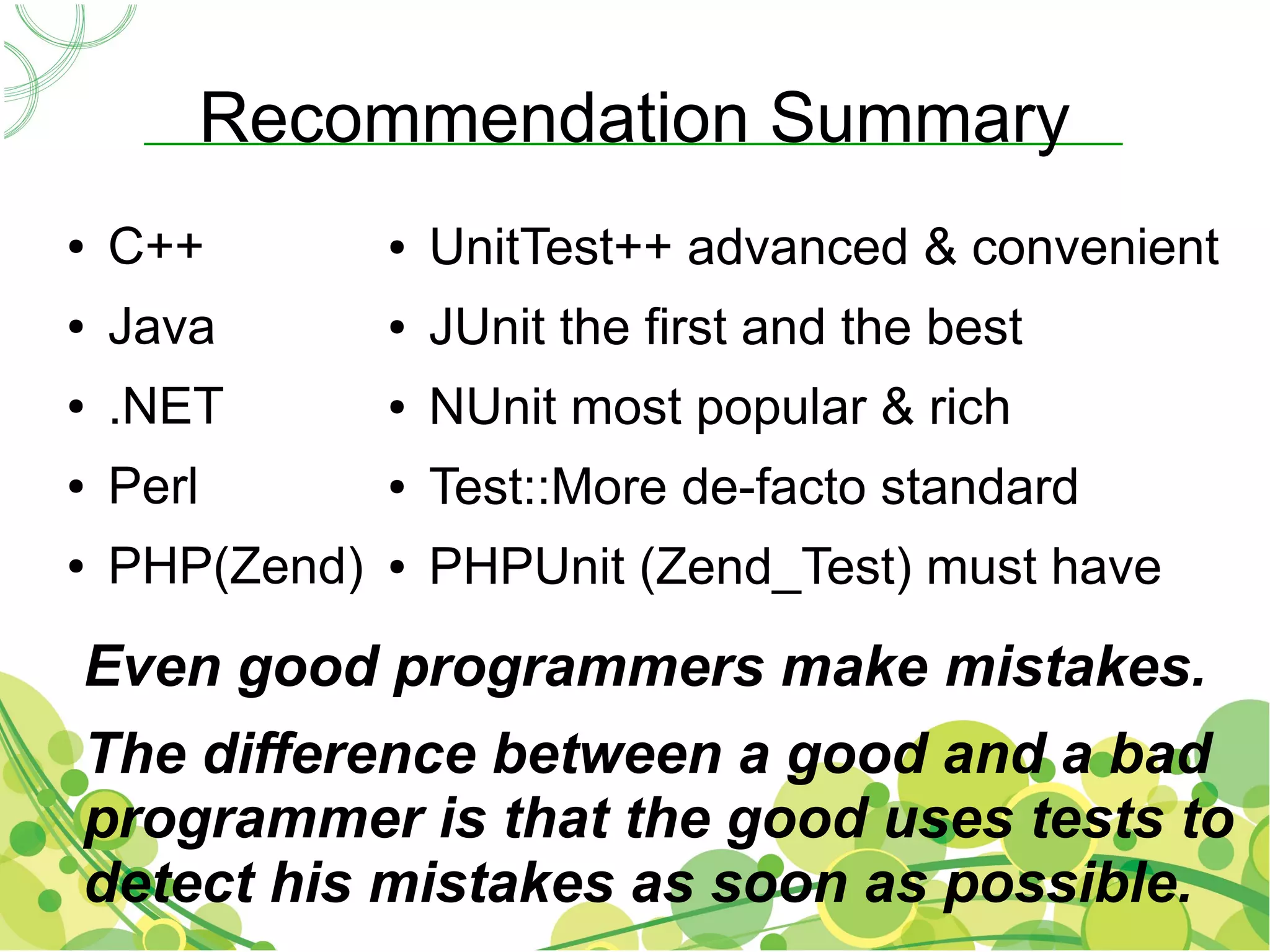

34. Recommendation Summary
● C++ ● UnitTest++ advanced & convenient
● Java ● JUnit the first and the best
● .NET ● NUnit most popular & rich
● Perl ● Test::More de-facto standard
● PHP(Zend) ● PHPUnit (Zend_Test) must have
Even good programmers make mistakes.
The difference between a good and a bad
programmer is that the good uses tests to
detect his mistakes as soon as possible.

35. Links
● http://en.wikipedia.org/wiki/List_of_unit_testing_frameworks
● http://gamesfromwithin.com/exploring-the-c-unit-testing-
framework-jungle
● http://www.testdriven.com/
● http://www.phpunit.de/manual/3.6/en/index.html
● https://github.com/sebastianbergmann/phpunit/
● http://en.wikipedia.org/wiki/Unit_testing
● http://www.slideshare.net/sebastian_bergmann/getting-started-
with-phpunit
● http://anton.shevchuk.name/php/unit-tests-zend-framework-
application/
● http://www.slideshare.net/DragonBe/introduction-to-unit-testing-
with-phpunit-presentation-705447
