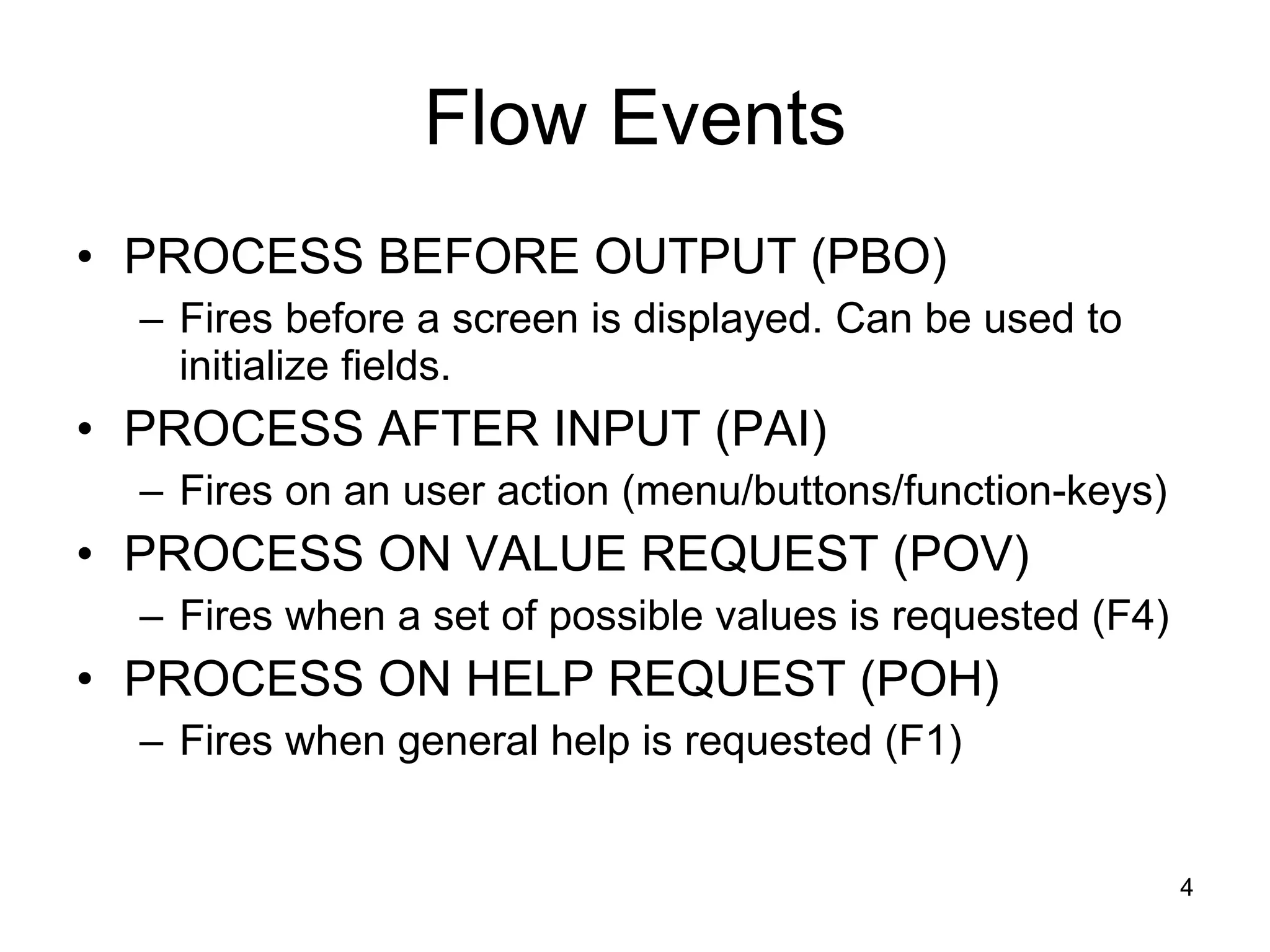

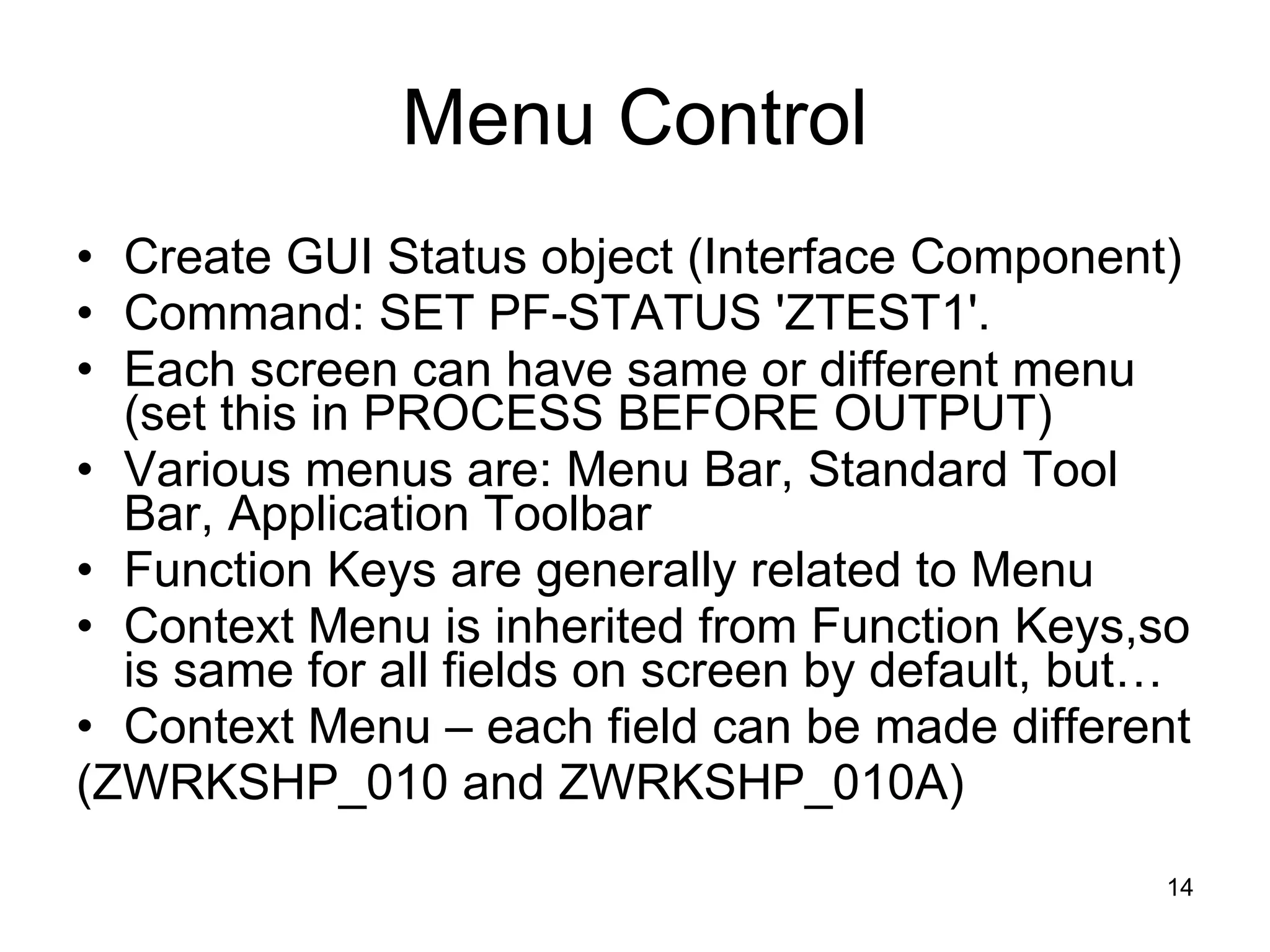

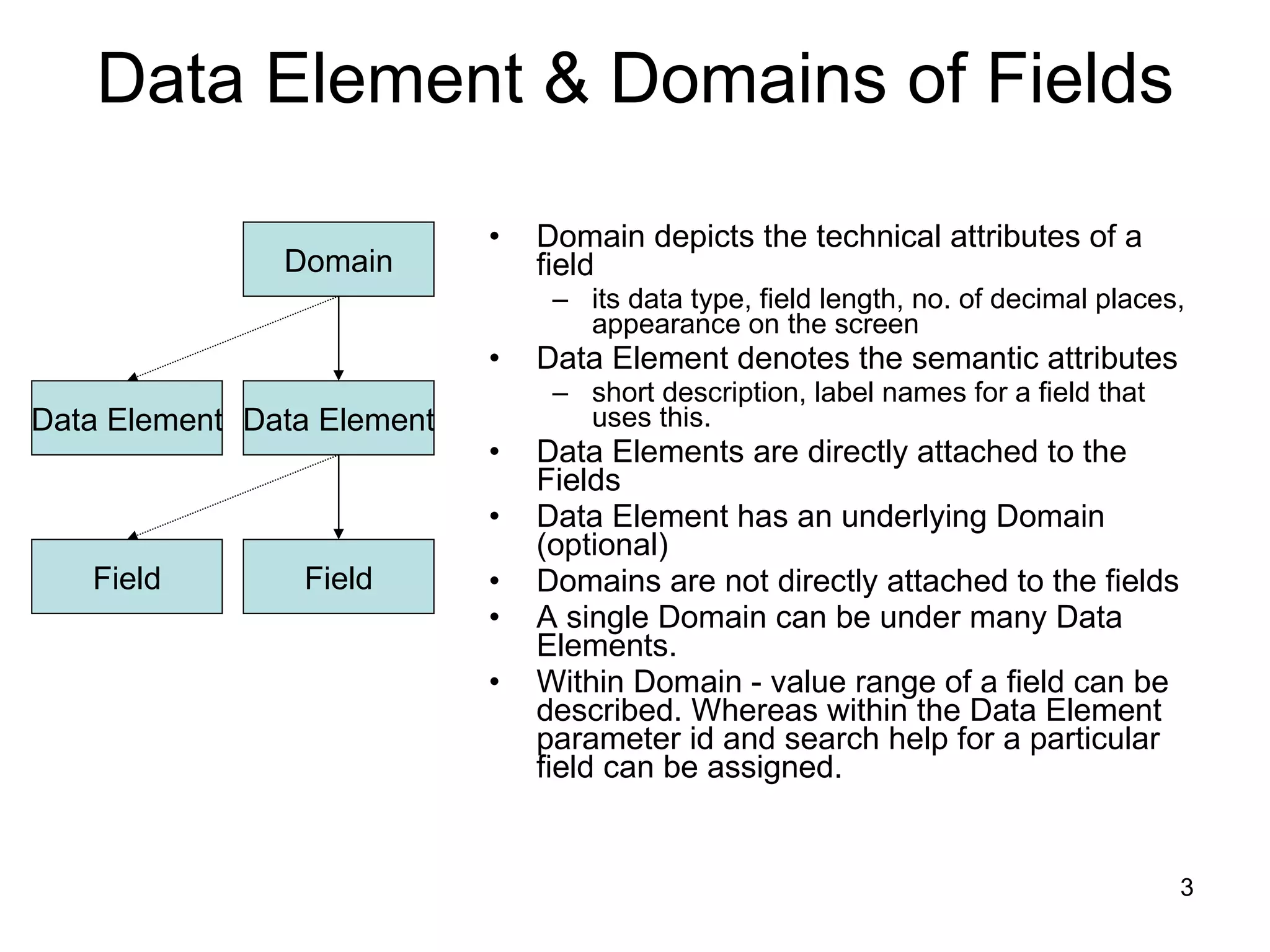

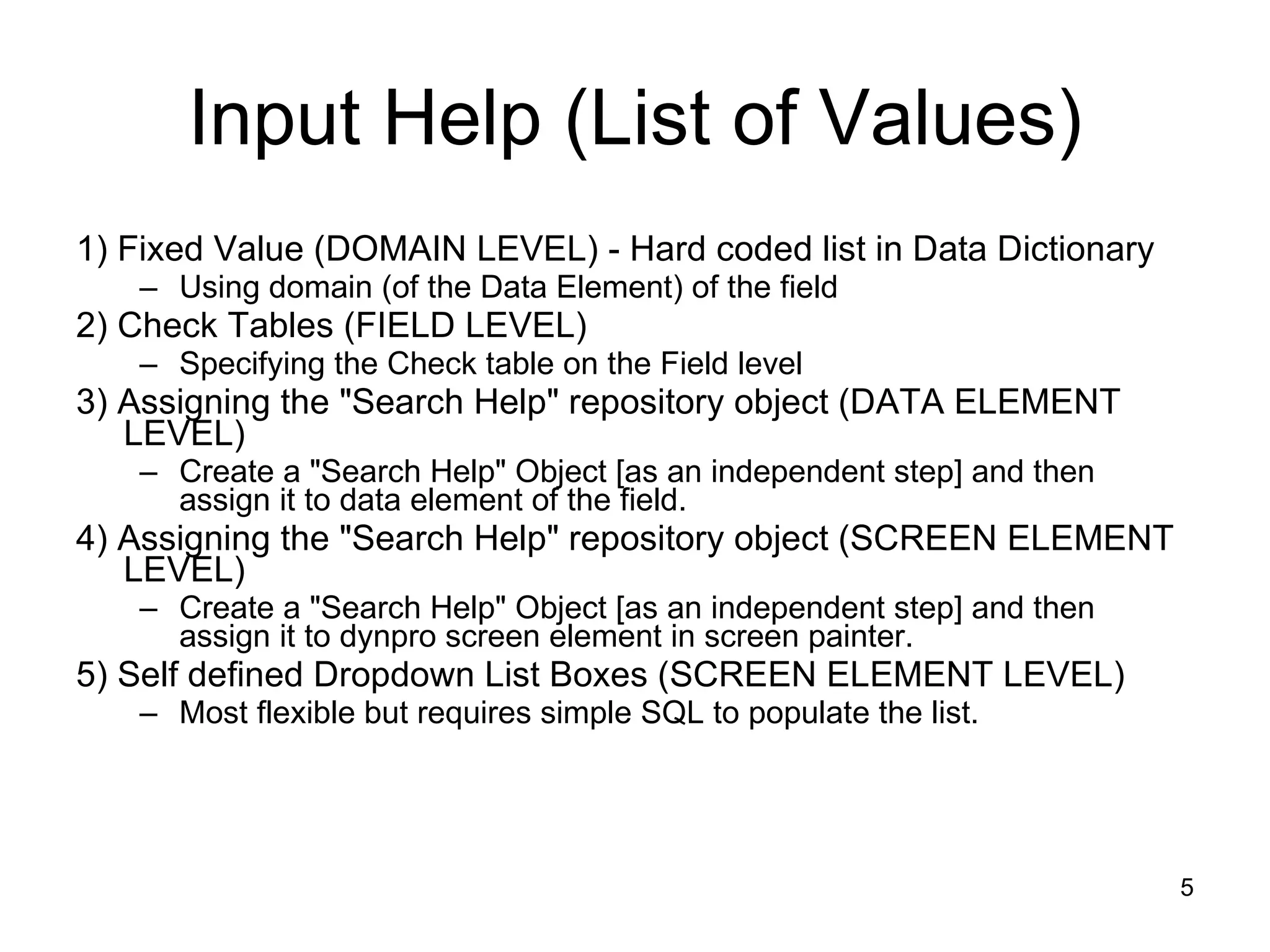

The document discusses various ABAP programming concepts including: 1. Fields, data elements, and domains and how they relate to each other in defining technical and semantic attributes of data. 2. Common ABAP events like PBO, PAI, POV, and POH and how they are used. 3. Different ways to define input help for fields including using domains, check tables, search helps, and dropdown lists. 4. How to define field help using documentation and additional documentation attached to data elements. 5. How to control the menu, toolbars, function keys and context menus using GUI status and other methods.

1. ABAP workshop Date: 10/28/2009 **DRAFT**

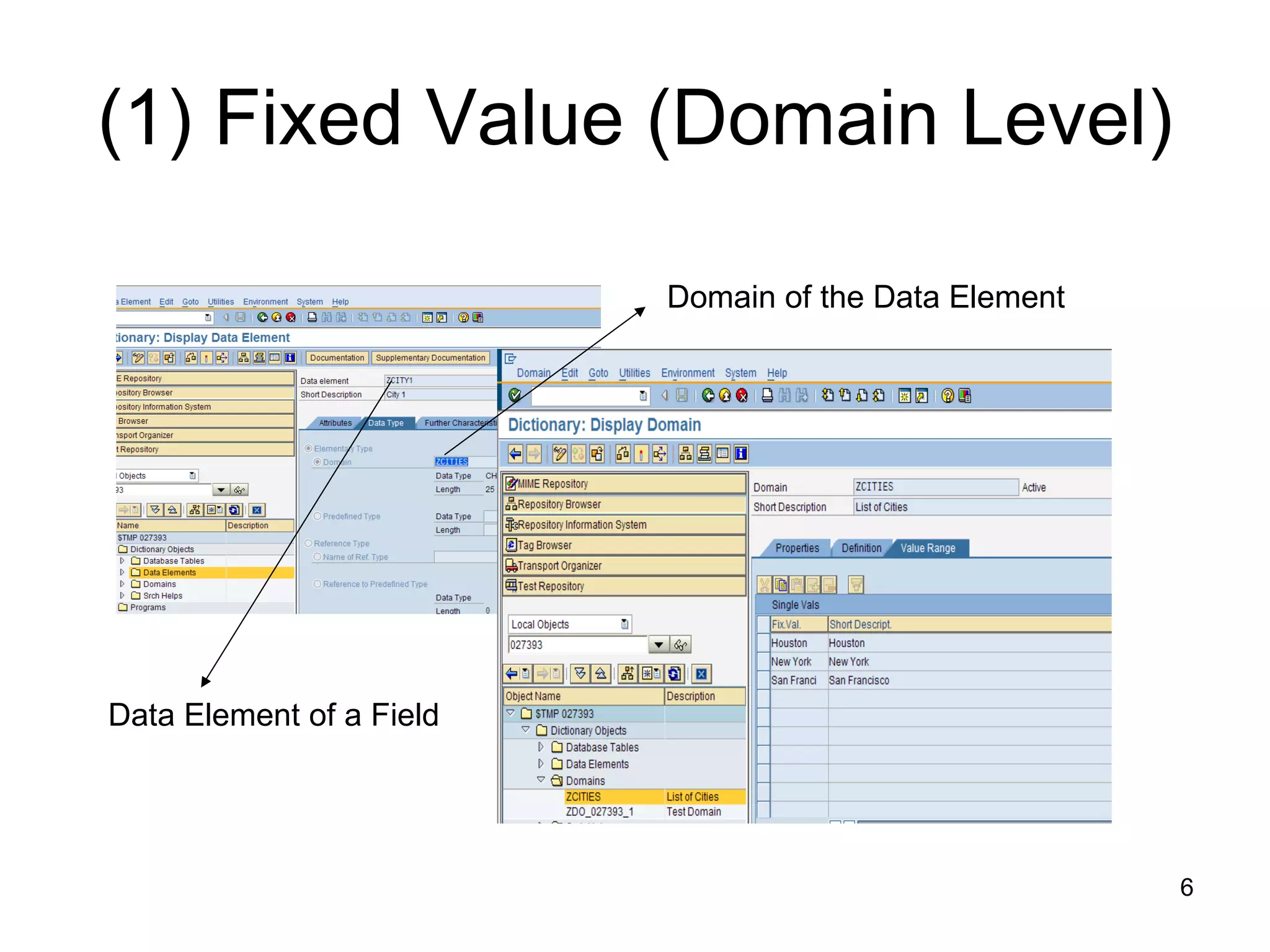

6. (1) Fixed Value (Domain Level) Domain of the Data Element Data Element of a Field

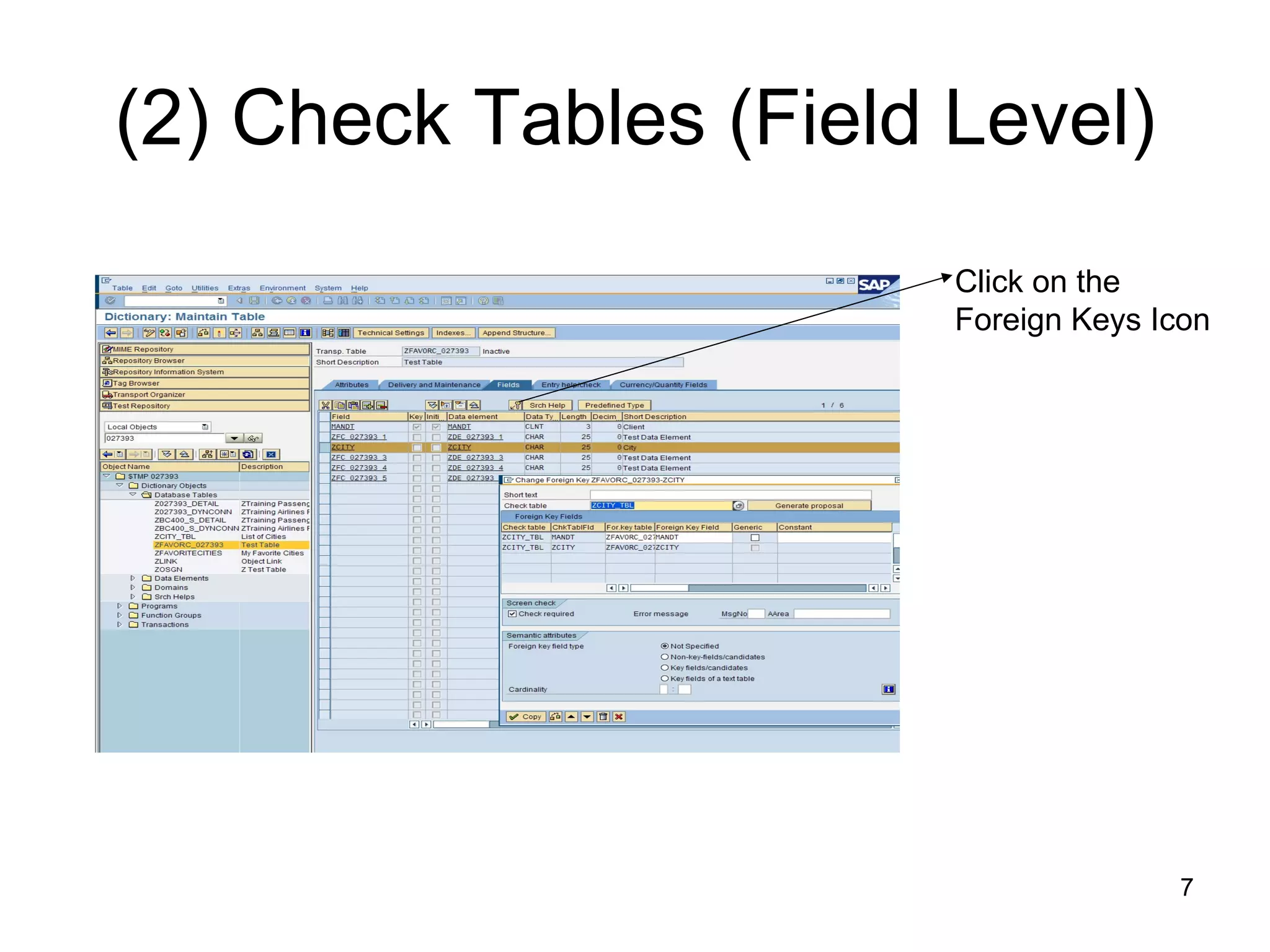

7. (2) Check Tables (Field Level) Click on the Foreign Keys Icon

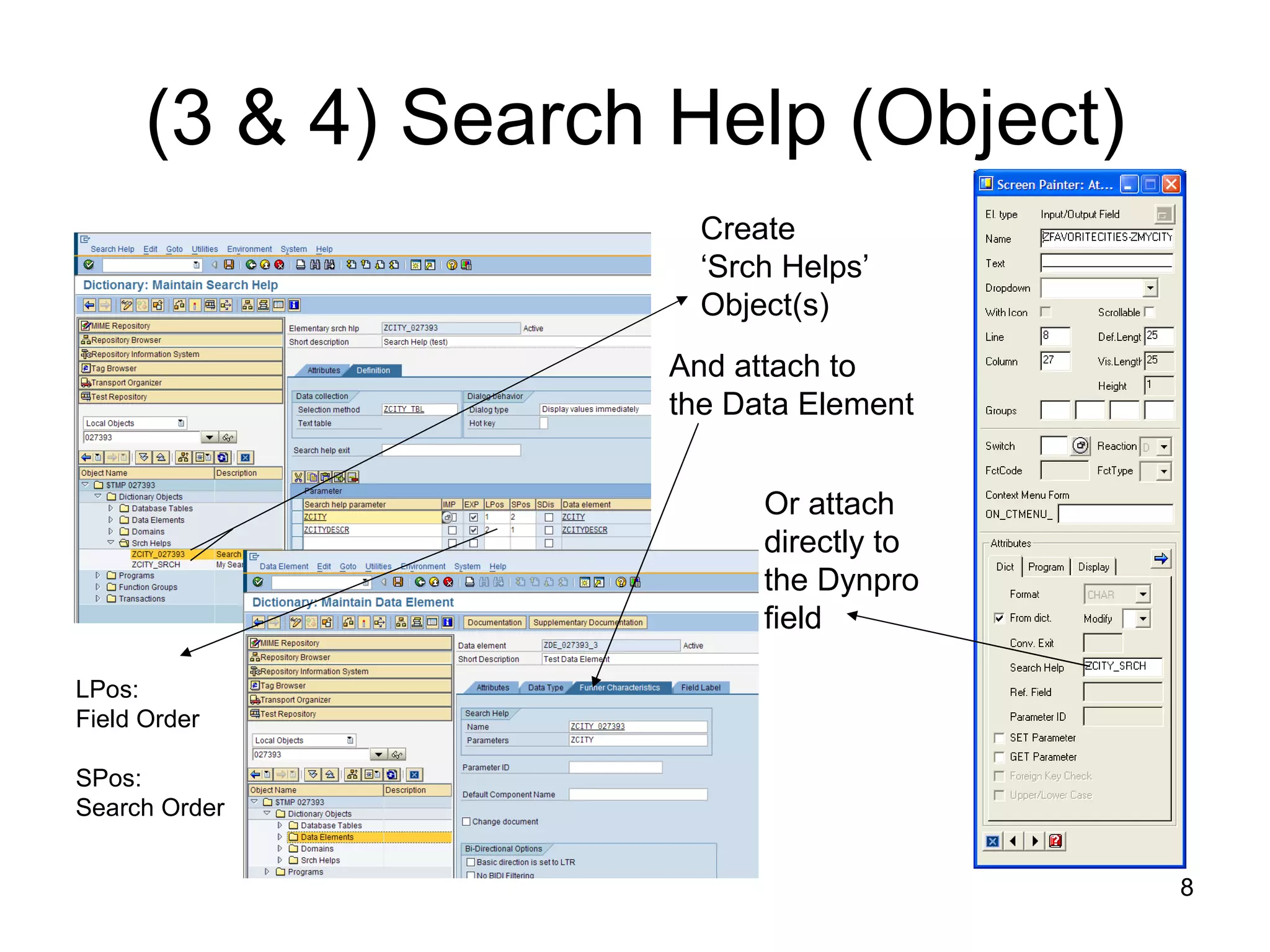

8. (3 & 4) Search Help (Object) Create ‘ Srch Helps’ Object(s) And attach to the Data Element Or attach directly to the Dynpro field LPos: Field Order SPos: Search Order

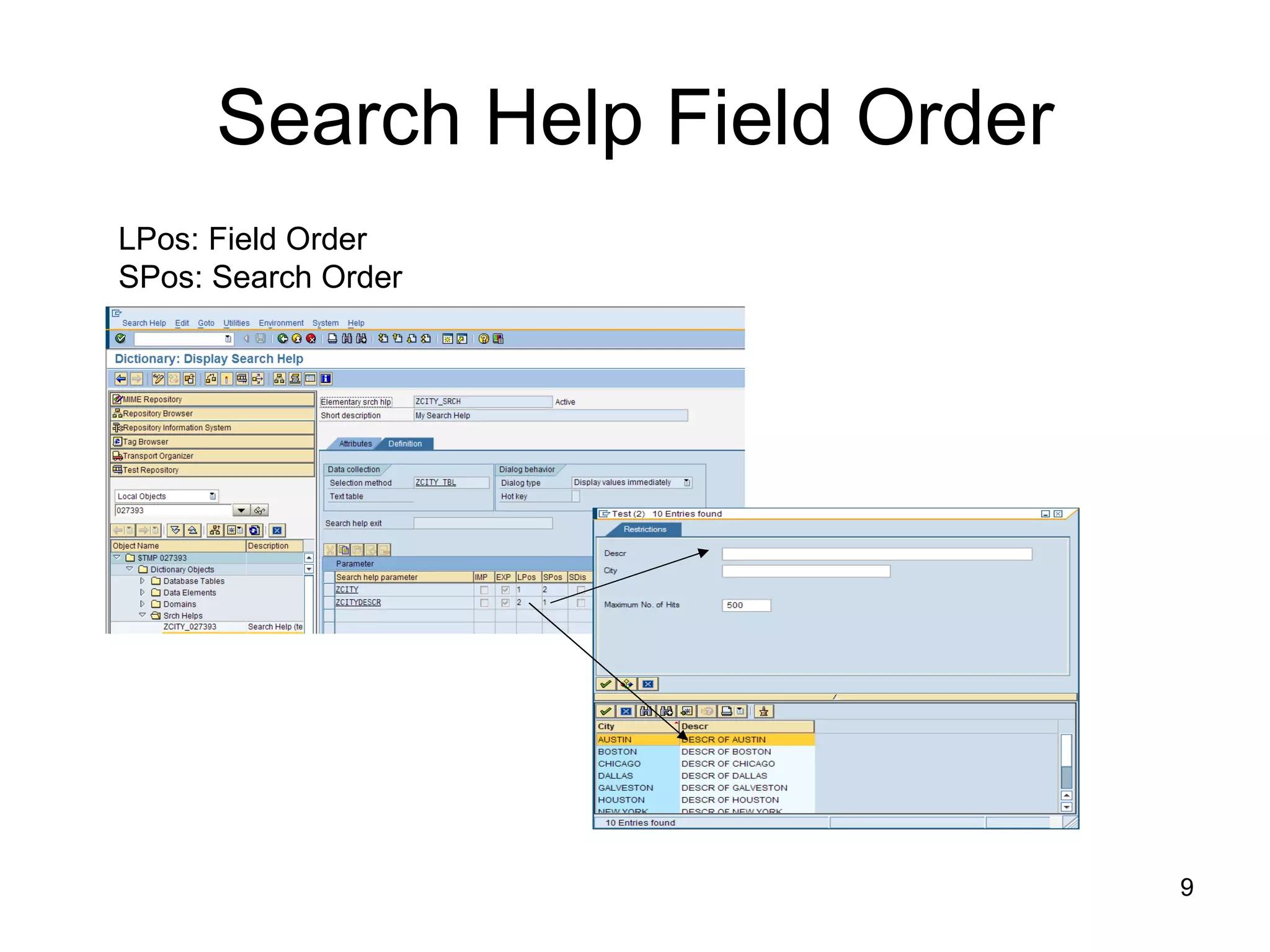

9. Search Help Field Order LPos: Field Order SPos: Search Order

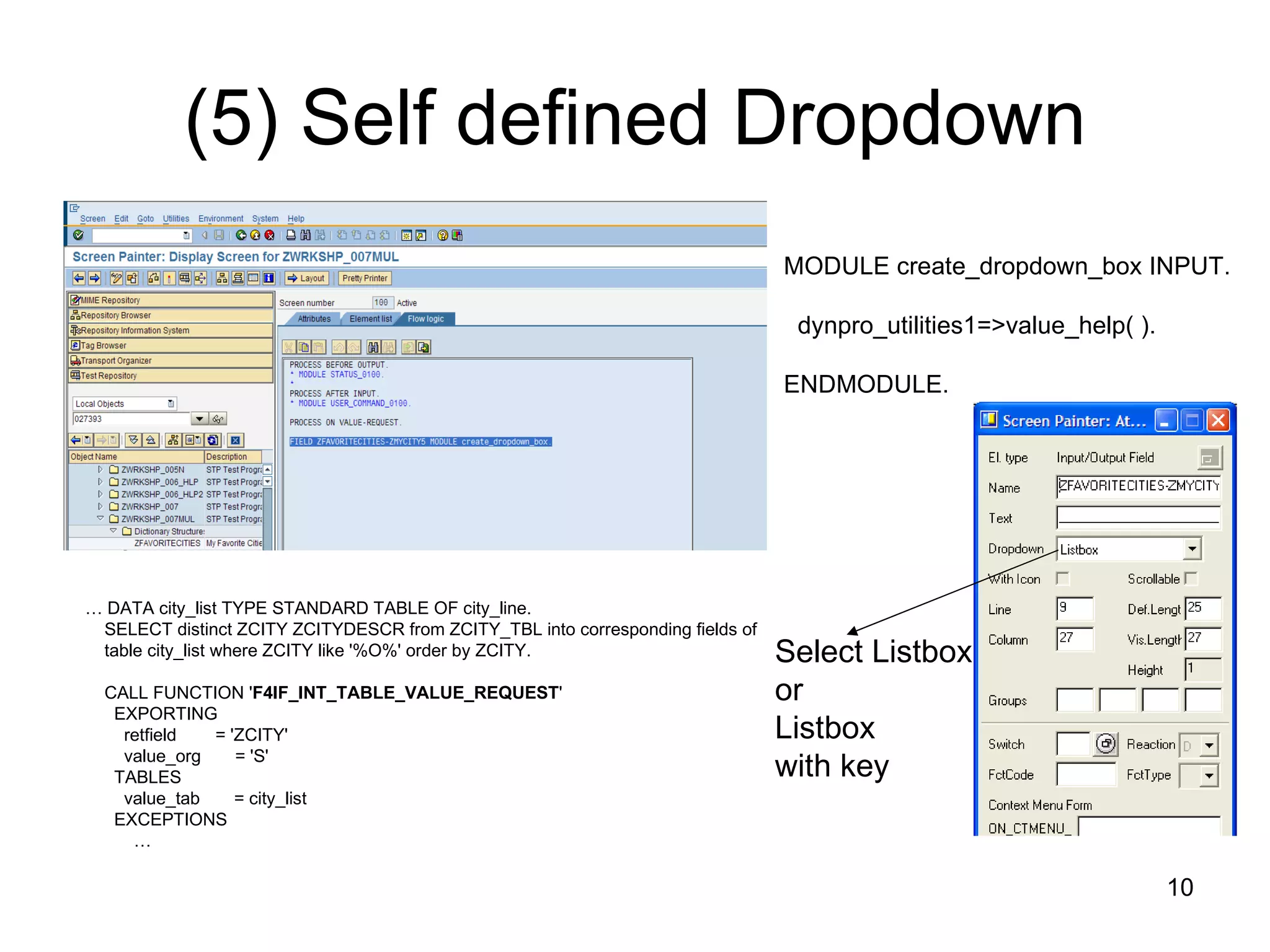

10. (5) Self defined Dropdown MODULE create_dropdown_box INPUT. dynpro_utilities1=>value_help( ). ENDMODULE. … DATA city_list TYPE STANDARD TABLE OF city_line. SELECT distinct ZCITY ZCITYDESCR from ZCITY_TBL into corresponding fields of table city_list where ZCITY like '%O%' order by ZCITY. CALL FUNCTION ' F4IF_INT_TABLE_VALUE_REQUEST ' EXPORTING retfield = 'ZCITY' value_org = 'S' TABLES value_tab = city_list EXCEPTIONS … Select Listbox or Listbox with key

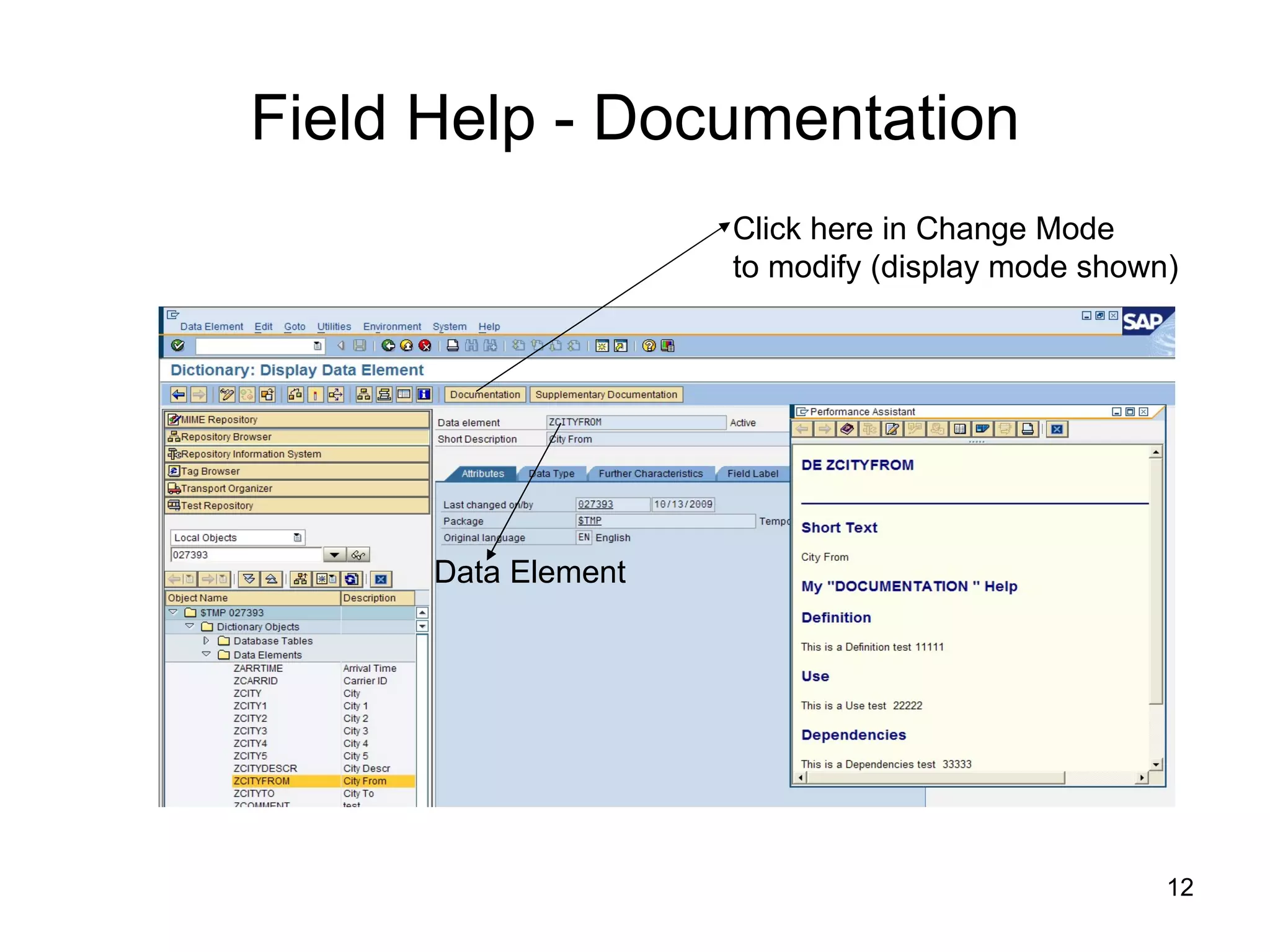

12. Field Help - Documentation Click here in Change Mode to modify (display mode shown) Data Element

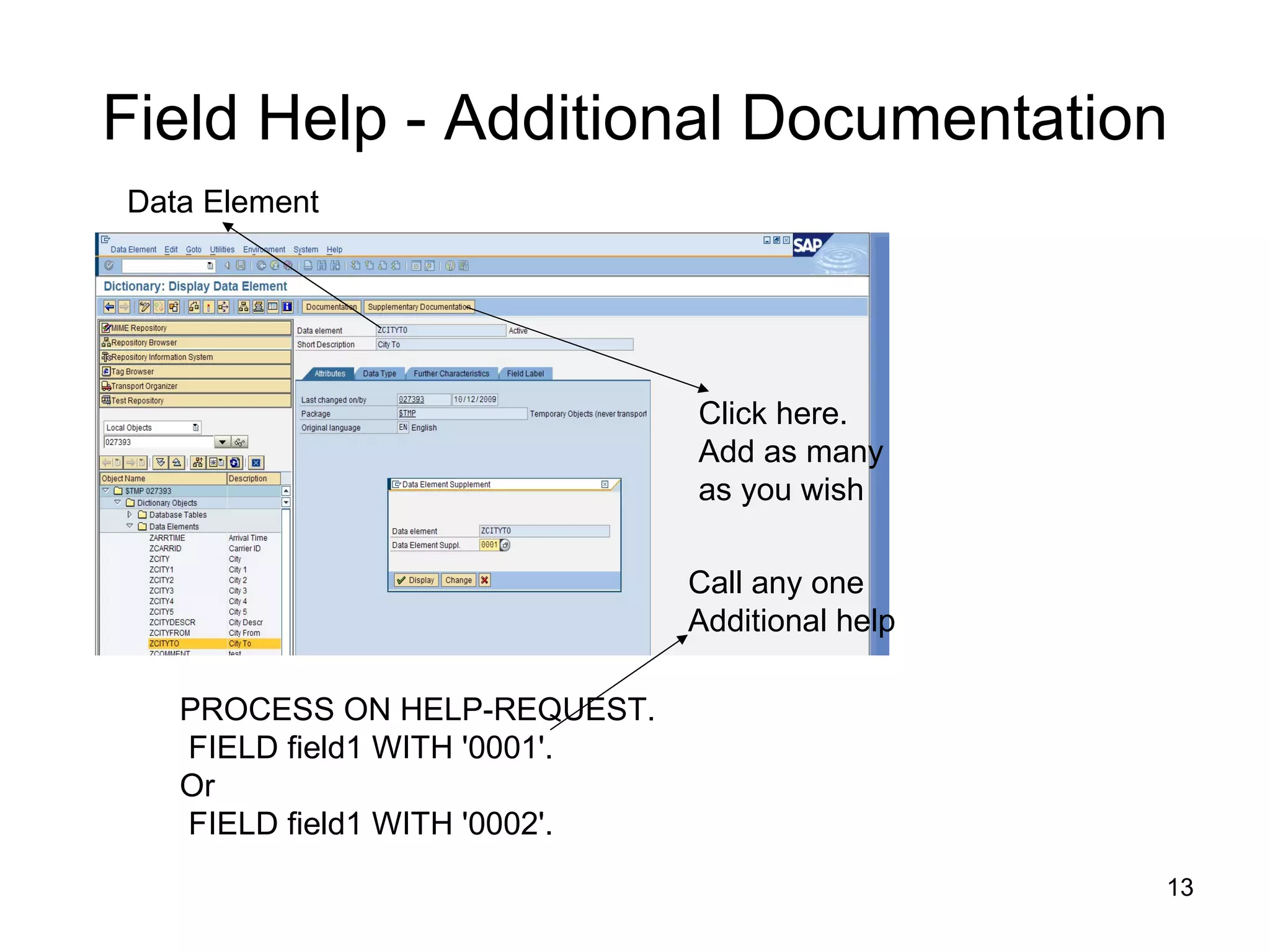

13. Field Help - Additional Documentation PROCESS ON HELP-REQUEST. FIELD field1 WITH '0001'. Or FIELD field1 WITH '0002'. Click here. Add as many as you wish Data Element Call any one Additional help

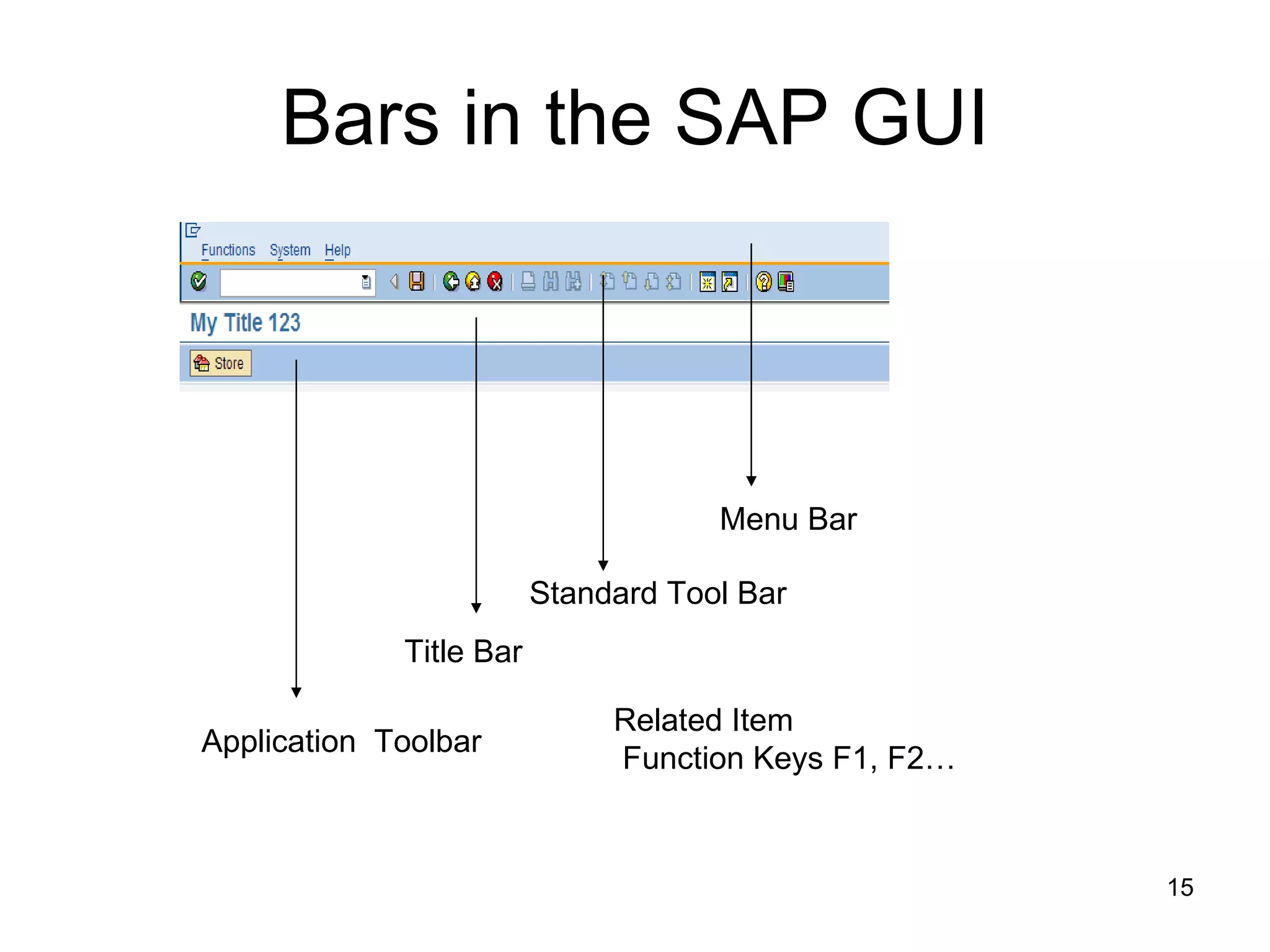

15. Bars in the SAP GUI Menu Bar Standard Tool Bar Title Bar Application Toolbar Related Item Function Keys F1, F2…

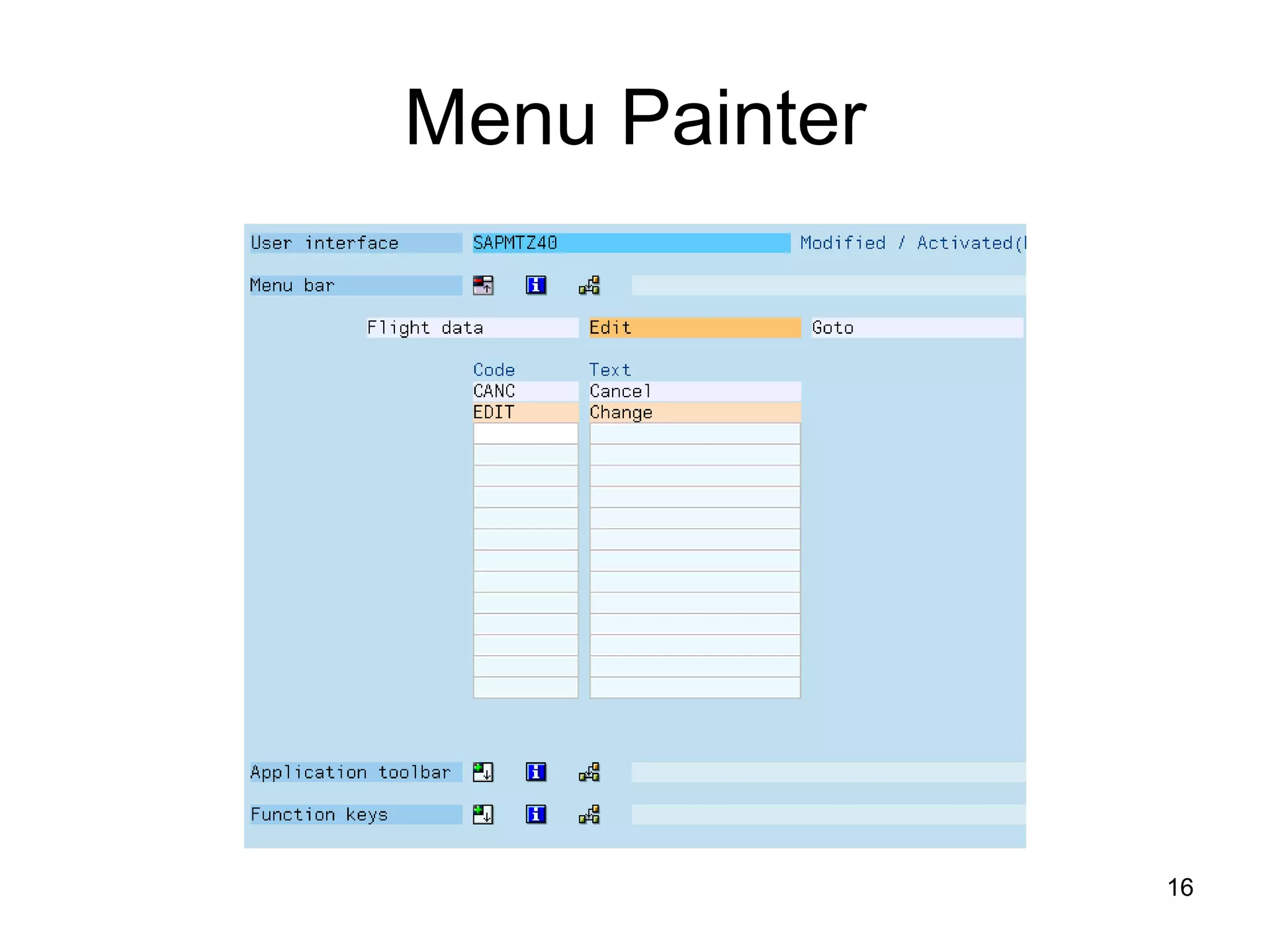

16. Menu Painter

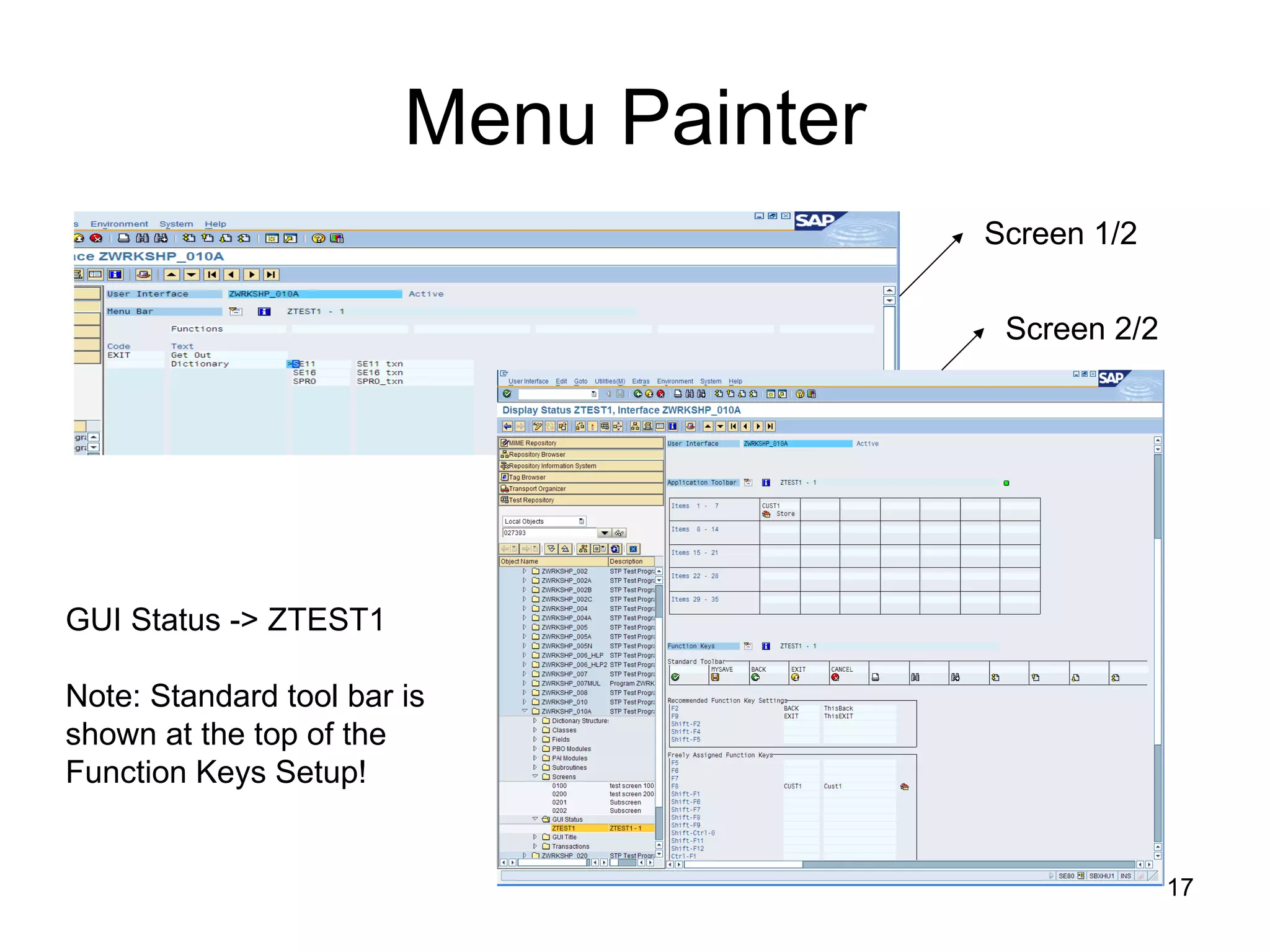

17. Menu Painter GUI Status -> ZTEST1 Note: Standard tool bar is shown at the top of the Function Keys Setup! Screen 1/2 Screen 2/2
