1. SAP Scripts

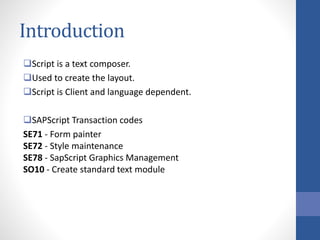

2. Introduction
Script is a text composer.
Used to create the layout.
Script is Client and language dependent.
SAPScript Transaction codes
SE71 - Form painter
SE72 - Style maintenance
SE78 - SapScript Graphics Management
SO10 - Create standard text module

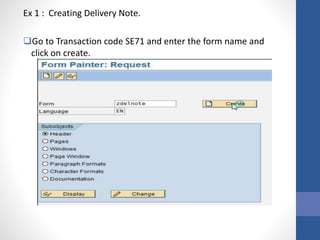

3. Ex 1 : Creating Delivery Note.
Go to Transaction code SE71 and enter the form name and
click on create.

4.  Click on Continue.

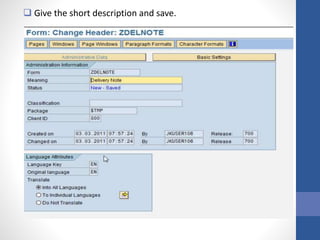

5.  Give the short description and save.

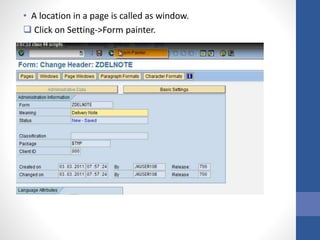

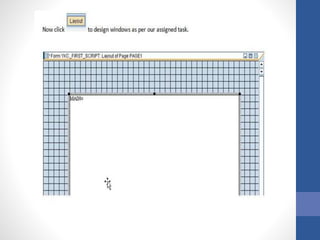

6. • A location in a page is called as window.

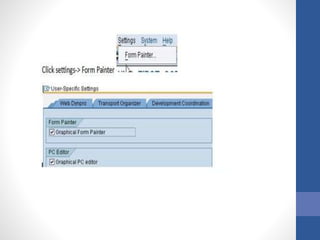

 Click on Setting->Form painter.

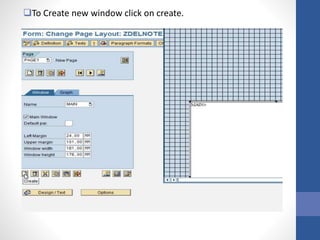

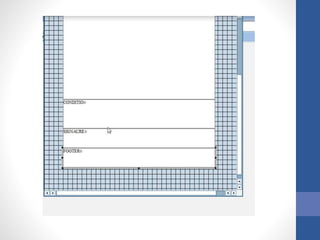

9. To Create new window click on create.

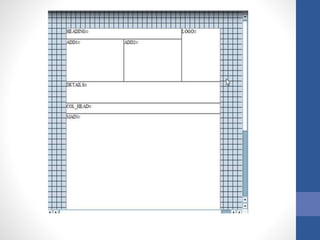

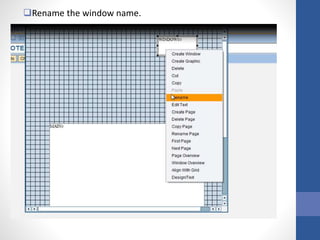

10. Rename the window name.

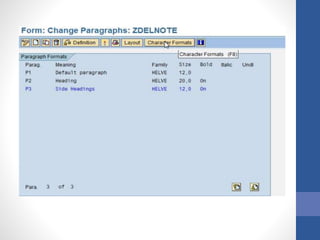

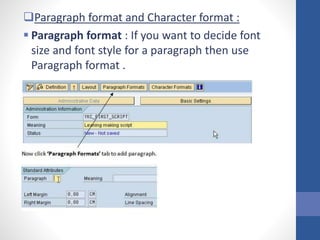

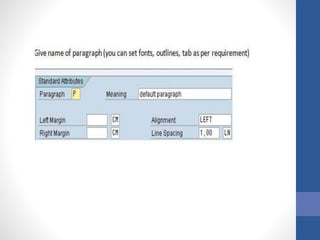

14. Paragraph format and Character format :
 Paragraph format : If you want to decide font
size and font style for a paragraph then use
Paragraph format .

18. • Character format : If you want to highlight the words
then use character format.

20. • Click on Heading Window and click on text.

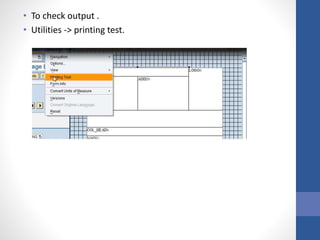

21. • To check output .
• Utilities -> printing test.

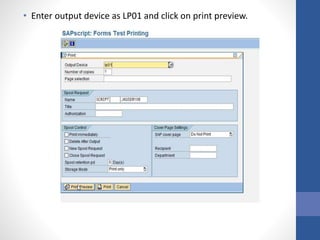

22. • Enter output device as LP01 and click on print preview.

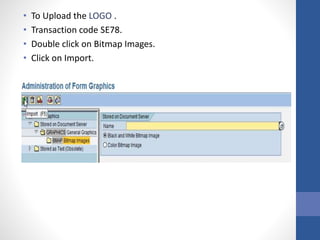

23. • To Upload the LOGO .
• Transaction code SE78.
• Double click on Bitmap Images.
• Click on Import.

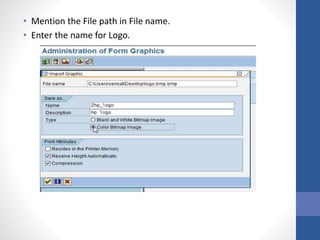

24. • Mention the File path in File name.
• Enter the name for Logo.

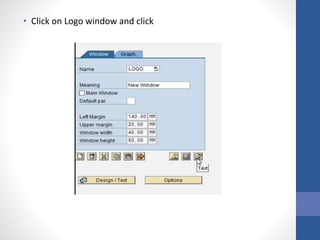

25. • Click on Logo window and click

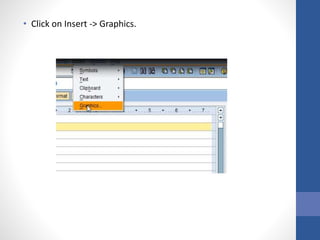

26. • Click on Insert -> Graphics.

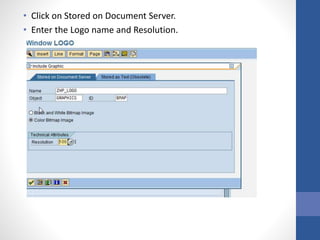

27. • Click on Stored on Document Server.
• Enter the Logo name and Resolution.

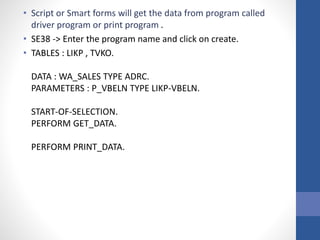

28. • Script or Smart forms will get the data from program called
driver program or print program .
• SE38 -> Enter the program name and click on create.
• TABLES : LIKP , TVKO.
DATA : WA_SALES TYPE ADRC.
PARAMETERS : P_VBELN TYPE LIKP-VBELN.
START-OF-SELECTION.
PERFORM GET_DATA.
PERFORM PRINT_DATA.

29. • FORM GET_DATA .
* GET THE DATA FROM DELIVERY DOC HEADER
SELECT SINGLE * FROM LIKP
WHERE VBELN = P_VBELN.
* GET THE SALES ORG ADDRESS
SELECT SINGLE * FROM TVKO
WHERE VKORG = LIKP-VKORG.
* GET THE DATA FROM ADRESS TABLE ADRC
SELECT SINGLE * FROM ADRC
INTO WA_SALES WHERE ADDRNUMBER = TVKO-ADRNR.
ENDFORM. " GET_DATA

30. • FORM PRINT_DATA .
call function 'OPEN_FORM'
EXPORTING
* APPLICATION = 'TX'
* ARCHIVE_INDEX =
* ARCHIVE_PARAMS =
DEVICE = 'PRINTER'
* DIALOG = 'X'
FORM = 'ZBILLINGNOTE'
LANGUAGE = SY-LANGU
* OPTIONS =
* MAIL_SENDER =
* MAIL_RECIPIENT =
* MAIL_APPL_OBJECT =
* RAW_DATA_INTERFACE = '*'
* SPONUMIV =
* IMPORTING
* LANGUAGE =
* NEW_ARCHIVE_PARAMS =
* RESULT =
EXCEPTIONS
CANCELED = 1
DEVICE = 2
FORM = 3
OPTIONS = 4
UNCLOSED = 5
MAIL_OPTIONS = 6
ARCHIVE_ERROR = 7
INVALID_FAX_NUMBER = 8
MORE_PARAMS_NEEDED_IN_BATCH = 9
SPOOL_ERROR = 10
CODEPAGE = 11
OTHERS = 12
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

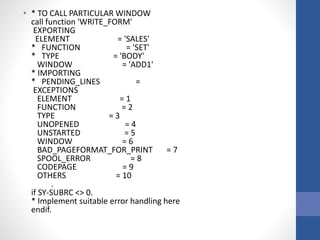

31. • * TO CALL PARTICULAR WINDOW
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'SALES'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'ADD1'
* IMPORTING
* PENDING_LINES =
EXCEPTIONS
ELEMENT = 1
FUNCTION = 2
TYPE = 3
UNOPENED = 4
UNSTARTED = 5
WINDOW = 6
BAD_PAGEFORMAT_FOR_PRINT = 7
SPOOL_ERROR = 8
CODEPAGE = 9
OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

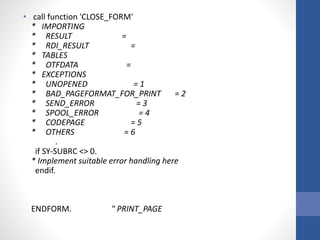

32. • call function 'CLOSE_FORM'
* IMPORTING
* RESULT =
* RDI_RESULT =
* TABLES
* OTFDATA =
EXCEPTIONS
UNOPENED = 1
BAD_PAGEFORMAT_FOR_PRINT = 2
SEND_ERROR = 3
SPOOL_ERROR = 4
CODEPAGE = 5
OTHERS = 6
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
ENDFORM. " PRINT_DATA

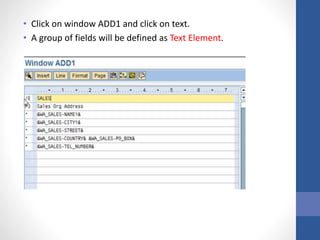

33. • Click on window ADD1 and click on text.
• A group of fields will be defined as Text Element.

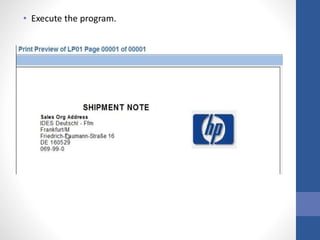

34. • Execute the program.

35. • To get Sold to party address.
• TABLES : LIKP , TVKO , KNA1.
DATA : WA_SOLD TYPE ADRC.
• * * * GET THE SOLD TO PARTY ADRESS
SELECT SINGLE * FROM KNA1
WHERE KUNNR = LIKP-KUNNR.
SELECT SINGLE * FROM ADRC
INTO WA_SOLD WHERE ADDRNUMBER = KNA1-ADRNR.

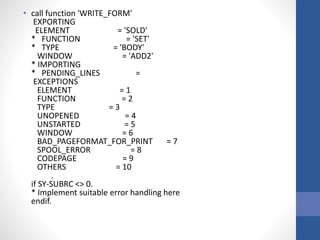

36. • call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'SOLD'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'ADD2'
* IMPORTING
* PENDING_LINES =
EXCEPTIONS
ELEMENT = 1
FUNCTION = 2
TYPE = 3
UNOPENED = 4
UNSTARTED = 5
WINDOW = 6
BAD_PAGEFORMAT_FOR_PRINT = 7
SPOOL_ERROR = 8
CODEPAGE = 9
OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

37. • Click on window add2.

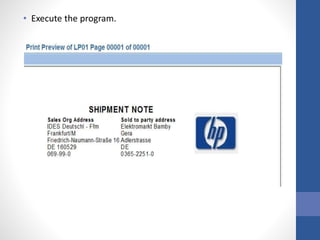

38. • Execute the program.

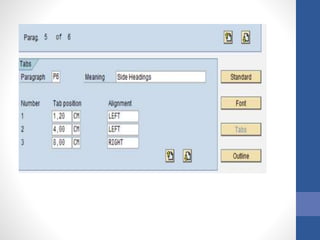

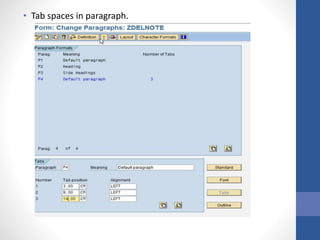

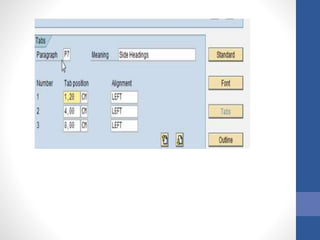

39. • Tab spaces in paragraph.

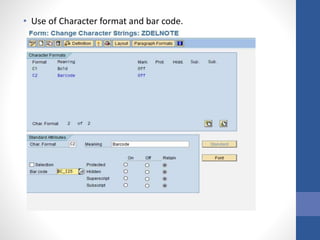

40. • Use of Character format and bar code.

42. • Click on Details Window and click on text.

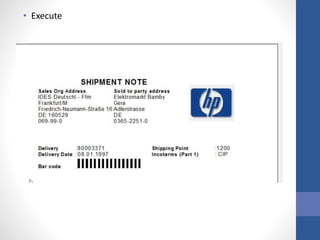

43. • Execute

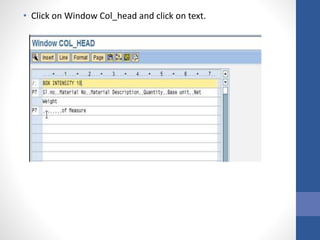

45. • Click on Window Col_head and click on text.

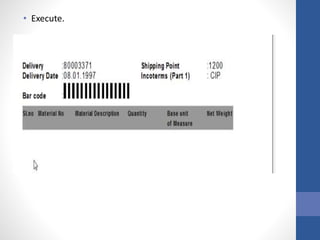

46. • Execute.

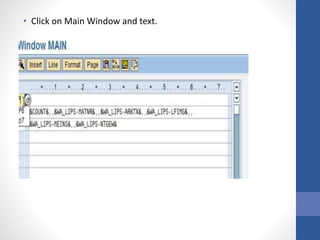

47. • Click on Main Window and text.

48. • Data : itab type table of lips,
wa type lips ,
• count(93) type c.

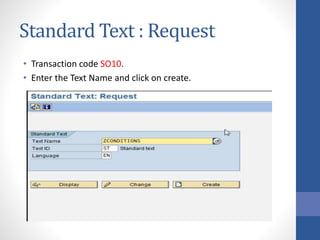

51. Standard Text : Request
• Transaction code SO10.
• Enter the Text Name and click on create.

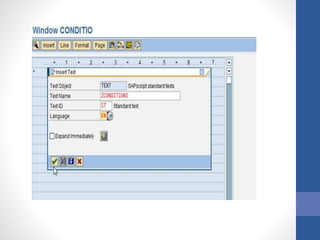

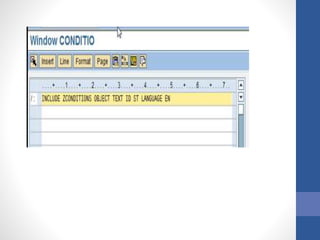

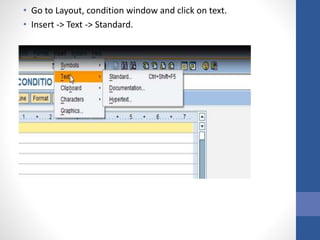

53. • Go to Layout, condition window and click on text.
• Insert -> Text -> Standard.

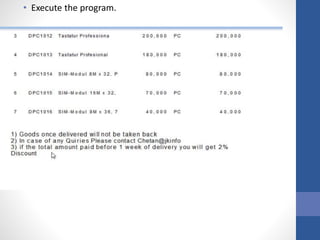

56. • Execute the program.

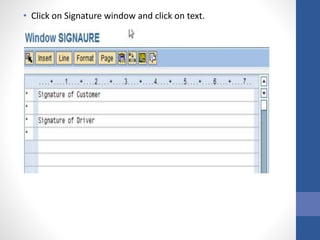

57. • Click on Signature window and click on text.

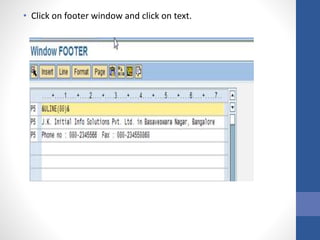

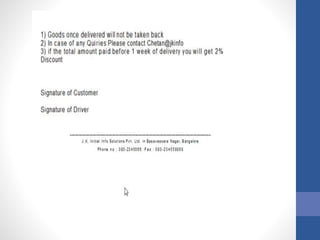

58. • Click on footer window and click on text.

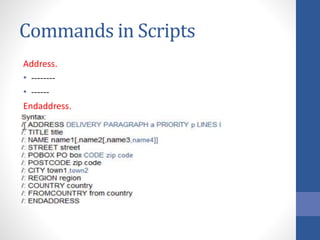

60. Commands in Scripts
Address.
• --------
• ------
Endaddress.

61. • Used to specify the postal address format depend on country.
• Also we can use.
• Address_into_printform

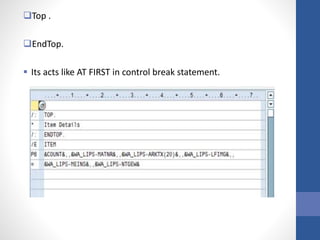

62. Top .
EndTop.
 Its acts like AT FIRST in control break statement.

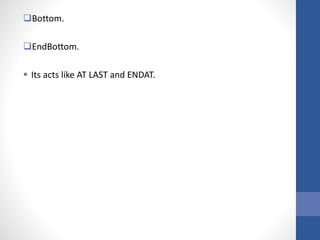

63. Bottom.
EndBottom.
 Its acts like AT LAST and ENDAT.

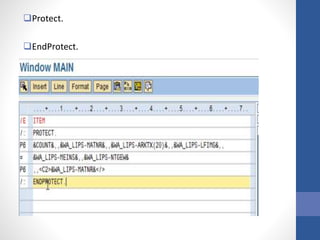

64. Protect.
EndProtect.

65. New-Page.

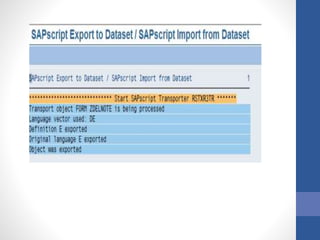

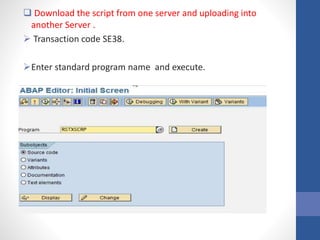

66.  Download the script from one server and uploading into
another Server .
 Transaction code SE38.
Enter standard program name and execute.

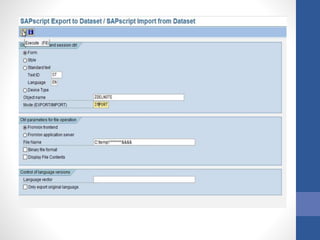

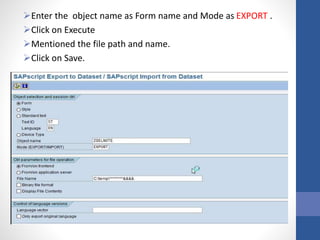

67. Enter the object name as Form name and Mode as EXPORT .
Click on Execute
Mentioned the file path and name.
Click on Save.

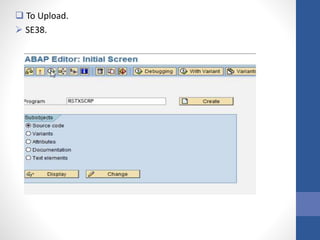

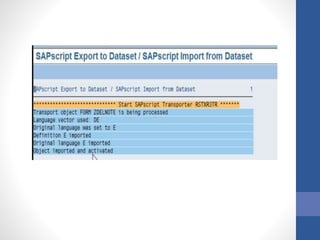

69.  To Upload.
 SE38.

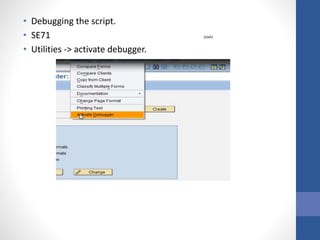

72. • Debugging the script.
• SE71 (stxh)
• Utilities -> activate debugger.

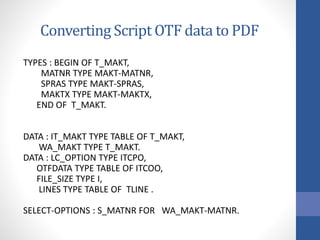

74. Converting Script OTF data to PDF
TYPES : BEGIN OF T_MAKT,
MATNR TYPE MAKT-MATNR,
SPRAS TYPE MAKT-SPRAS,
MAKTX TYPE MAKT-MAKTX,
END OF T_MAKT.
DATA : IT_MAKT TYPE TABLE OF T_MAKT,
WA_MAKT TYPE T_MAKT.
DATA : LC_OPTION TYPE ITCPO,
OTFDATA TYPE TABLE OF ITCOO,
FILE_SIZE TYPE I,
LINES TYPE TABLE OF TLINE .
SELECT-OPTIONS : S_MATNR FOR WA_MAKT-MATNR.

75. START-OF-SELECTION.
PERFORM FETCH_DATA.
PERFORM PRINT_DATA.
FORM FETCH_DATA .
SELECT MATNR SPRAS MAKTX FROM MAKT INTO TABLE IT_MA
KT
WHERE MATNR IN S_MATNR.
ENDFORM. " FETCH_DATA

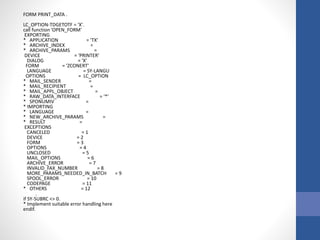

76. FORM PRINT_DATA .
LC_OPTION-TDGETOTF = 'X'.
call function 'OPEN_FORM'
EXPORTING
* APPLICATION = 'TX'
* ARCHIVE_INDEX =
* ARCHIVE_PARAMS =
DEVICE = 'PRINTER'
DIALOG = 'X'
FORM = 'ZCONERT'
LANGUAGE = SY-LANGU
OPTIONS = LC_OPTION
* MAIL_SENDER =
* MAIL_RECIPIENT =
* MAIL_APPL_OBJECT =
* RAW_DATA_INTERFACE = '*'
* SPONUMIV =
* IMPORTING
* LANGUAGE =
* NEW_ARCHIVE_PARAMS =
* RESULT =
EXCEPTIONS
CANCELED = 1
DEVICE = 2
FORM = 3
OPTIONS = 4
UNCLOSED = 5
MAIL_OPTIONS = 6
ARCHIVE_ERROR = 7
INVALID_FAX_NUMBER = 8
MORE_PARAMS_NEEDED_IN_BATCH = 9
SPOOL_ERROR = 10
CODEPAGE = 11
* OTHERS = 12
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

77. call function 'START_FORM'
EXPORTING
* ARCHIVE_INDEX =
FORM = 'ZCONERT'
* LANGUAGE = ' '
* STARTPAGE = ' '
* PROGRAM = ' '
* MAIL_APPL_OBJECT =
* IMPORTING
* LANGUAGE =
EXCEPTIONS
FORM = 1
FORMAT = 2
UNENDED = 3
UNOPENED = 4
UNUSED = 5
SPOOL_ERROR = 6
CODEPAGE = 7
OTHERS = 8
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

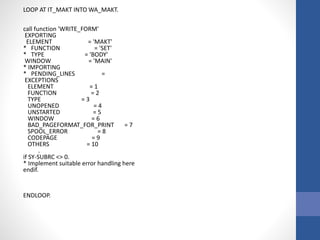

78. LOOP AT IT_MAKT INTO WA_MAKT.
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'MAKT'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'MAIN'
* IMPORTING
* PENDING_LINES =
EXCEPTIONS
ELEMENT = 1
FUNCTION = 2
TYPE = 3
UNOPENED = 4
UNSTARTED = 5
WINDOW = 6
BAD_PAGEFORMAT_FOR_PRINT = 7
SPOOL_ERROR = 8
CODEPAGE = 9
OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
ENDLOOP.

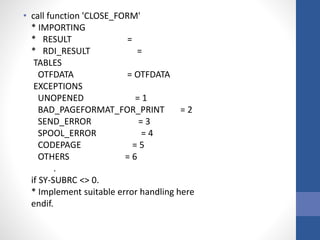

79. • call function 'CLOSE_FORM'
* IMPORTING
* RESULT =
* RDI_RESULT =
TABLES
OTFDATA = OTFDATA
EXCEPTIONS
UNOPENED = 1
BAD_PAGEFORMAT_FOR_PRINT = 2
SEND_ERROR = 3
SPOOL_ERROR = 4
CODEPAGE = 5
OTHERS = 6
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

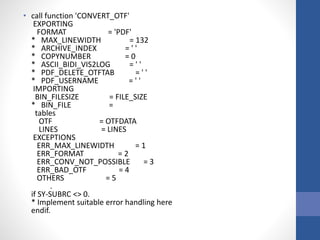

80. • call function 'CONVERT_OTF'
EXPORTING
FORMAT = 'PDF'
* MAX_LINEWIDTH = 132
* ARCHIVE_INDEX = ' '
* COPYNUMBER = 0
* ASCII_BIDI_VIS2LOG = ' '
* PDF_DELETE_OTFTAB = ' '
* PDF_USERNAME = ' '
IMPORTING
BIN_FILESIZE = FILE_SIZE
* BIN_FILE =
tables
OTF = OTFDATA
LINES = LINES
EXCEPTIONS
ERR_MAX_LINEWIDTH = 1
ERR_FORMAT = 2
ERR_CONV_NOT_POSSIBLE = 3
ERR_BAD_OTF = 4
OTHERS = 5
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

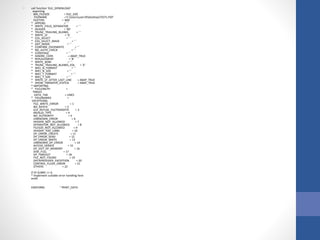

81. • call function 'GUI_DOWNLOAD'
exporting
BIN_FILESIZE = FILE_SIZE
FILENAME ='C:Usersuser19DesktopTEST1.PDF'
FILETYPE = 'BIN'
* APPEND = ' '
* WRITE_FIELD_SEPARATOR = ' '
* HEADER = '00'
* TRUNC_TRAILING_BLANKS = ' '
* WRITE_LF = 'X'
* COL_SELECT = ' '
* COL_SELECT_MASK = ' '
* DAT_MODE = ' '
* CONFIRM_OVERWRITE = ' '
* NO_AUTH_CHECK = ' '
* CODEPAGE = ' '
* IGNORE_CERR = ABAP_TRUE
* REPLACEMENT = '#'
* WRITE_BOM = ' '
* TRUNC_TRAILING_BLANKS_EOL = 'X'
* WK1_N_FORMAT = ' '
* WK1_N_SIZE = ' '
* WK1_T_FORMAT = ' '
* WK1_T_SIZE = ' '
* WRITE_LF_AFTER_LAST_LINE = ABAP_TRUE
* SHOW_TRANSFER_STATUS = ABAP_TRUE
* IMPORTING
* FILELENGTH =
TABLES
DATA_TAB = LINES
* FIELDNAMES =
EXCEPTIONS
FILE_WRITE_ERROR = 1
NO_BATCH = 2
GUI_REFUSE_FILETRANSFER = 3
INVALID_TYPE = 4
NO_AUTHORITY = 5
UNKNOWN_ERROR = 6
HEADER_NOT_ALLOWED = 7
SEPARATOR_NOT_ALLOWED = 8
FILESIZE_NOT_ALLOWED = 9
HEADER_TOO_LONG = 10
DP_ERROR_CREATE = 11
DP_ERROR_SEND = 12
DP_ERROR_WRITE = 13
UNKNOWN_DP_ERROR = 14
ACCESS_DENIED = 15
DP_OUT_OF_MEMORY = 16
DISK_FULL = 17
DP_TIMEOUT = 18
FILE_NOT_FOUND = 19
DATAPROVIDER_EXCEPTION = 20
CONTROL_FLUSH_ERROR = 21
OTHERS = 22
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
ENDFORM. " PRINT_DATA

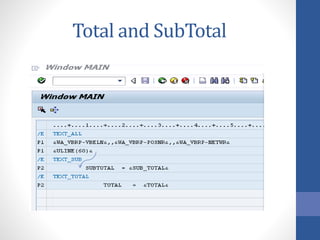

82. Total and SubTotal

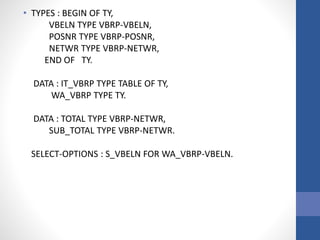

83. • TYPES : BEGIN OF TY,
VBELN TYPE VBRP-VBELN,
POSNR TYPE VBRP-POSNR,
NETWR TYPE VBRP-NETWR,
END OF TY.
DATA : IT_VBRP TYPE TABLE OF TY,
WA_VBRP TYPE TY.
DATA : TOTAL TYPE VBRP-NETWR,
SUB_TOTAL TYPE VBRP-NETWR.
SELECT-OPTIONS : S_VBELN FOR WA_VBRP-VBELN.

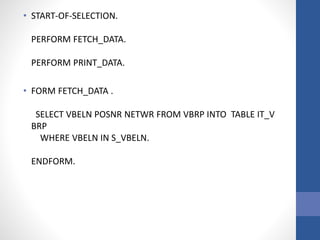

84. • START-OF-SELECTION.
PERFORM FETCH_DATA.
PERFORM PRINT_DATA.
• FORM FETCH_DATA .
SELECT VBELN POSNR NETWR FROM VBRP INTO TABLE IT_V
BRP
WHERE VBELN IN S_VBELN.
ENDFORM.

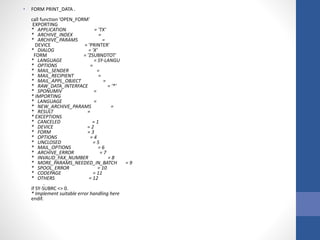

85. • FORM PRINT_DATA .
call function 'OPEN_FORM'
EXPORTING
* APPLICATION = 'TX'
* ARCHIVE_INDEX =
* ARCHIVE_PARAMS =
DEVICE = 'PRINTER'
* DIALOG = 'X'
FORM = 'ZSUBNDTOT'
* LANGUAGE = SY-LANGU
* OPTIONS =
* MAIL_SENDER =
* MAIL_RECIPIENT =
* MAIL_APPL_OBJECT =
* RAW_DATA_INTERFACE = '*'
* SPONUMIV =
* IMPORTING
* LANGUAGE =
* NEW_ARCHIVE_PARAMS =
* RESULT =
* EXCEPTIONS
* CANCELED = 1
* DEVICE = 2
* FORM = 3
* OPTIONS = 4
* UNCLOSED = 5
* MAIL_OPTIONS = 6
* ARCHIVE_ERROR = 7
* INVALID_FAX_NUMBER = 8
* MORE_PARAMS_NEEDED_IN_BATCH = 9
* SPOOL_ERROR = 10
* CODEPAGE = 11
* OTHERS = 12
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

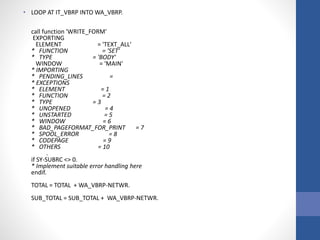

86. • LOOP AT IT_VBRP INTO WA_VBRP.
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'TEXT_ALL'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'MAIN'
* IMPORTING
* PENDING_LINES =
* EXCEPTIONS
* ELEMENT = 1
* FUNCTION = 2
* TYPE = 3
* UNOPENED = 4
* UNSTARTED = 5
* WINDOW = 6
* BAD_PAGEFORMAT_FOR_PRINT = 7
* SPOOL_ERROR = 8
* CODEPAGE = 9
* OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
TOTAL = TOTAL + WA_VBRP-NETWR.
SUB_TOTAL = SUB_TOTAL + WA_VBRP-NETWR.

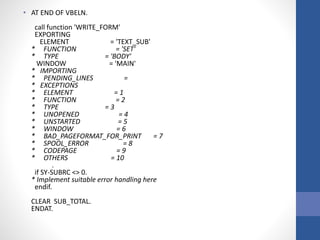

87. • AT END OF VBELN.
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'TEXT_SUB'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'MAIN'
* IMPORTING
* PENDING_LINES =
* EXCEPTIONS
* ELEMENT = 1
* FUNCTION = 2
* TYPE = 3
* UNOPENED = 4
* UNSTARTED = 5
* WINDOW = 6
* BAD_PAGEFORMAT_FOR_PRINT = 7
* SPOOL_ERROR = 8
* CODEPAGE = 9
* OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
CLEAR SUB_TOTAL.
ENDAT.

88. • CLEAR WA_VBRP.
ENDLOOP.
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'TEXT_TOTAL'
* FUNCTION = 'SET'
* TYPE = 'BODY'
WINDOW = 'MAIN'
* IMPORTING
* PENDING_LINES =
* EXCEPTIONS
* ELEMENT = 1
* FUNCTION = 2
* TYPE = 3
* UNOPENED = 4
* UNSTARTED = 5
* WINDOW = 6
* BAD_PAGEFORMAT_FOR_PRINT = 7
* SPOOL_ERROR = 8
* CODEPAGE = 9
* OTHERS = 10
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
call function 'CLOSE_FORM'
* IMPORTING
* RESULT =
* RDI_RESULT =
* TABLES
* OTFDATA =
* EXCEPTIONS
* UNOPENED = 1
* BAD_PAGEFORMAT_FOR_PRINT = 2
* SEND_ERROR = 3
* SPOOL_ERROR = 4
* CODEPAGE = 5
* OTHERS = 6
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
ENDFORM. " P

89. Uses of FM: CONTROL_FORMin SAP Script
• TYPES : BEGIN OF T_MAT,
MATNR TYPE MAKT-MATNR,
SPRAS TYPE MAKT-SPRAS,
MAKTX TYPE MAKT-MAKTX,
END OF T_MAT.
DATA : IT_MAKT TYPE TABLE OF T_MAT,
WA_MAKT TYPE T_MAT.
DATA : IN TYPE I.
SELECT-OPTIONS : S_MATNR FOR WA_MAKT-MATNR.

90. • START-OF-SELECTION .
PERFORM FETCH_DATA.
PERFORM PRINT_PAGE.
• FORM FETCH_DATA .
SELECT MATNR SPRAS MAKTX FROM MAKT INTO TABLE IT_M
AKT
WHERE MATNR IN S_MATNR.
ENDFORM. " FETCH_DATA

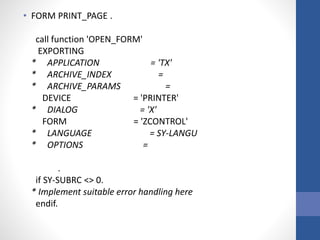

91. • FORM PRINT_PAGE .
call function 'OPEN_FORM'
EXPORTING
* APPLICATION = 'TX'
* ARCHIVE_INDEX =
* ARCHIVE_PARAMS =
DEVICE = 'PRINTER'
* DIALOG = 'X'
FORM = 'ZCONTROL'
* LANGUAGE = SY-LANGU
* OPTIONS =
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

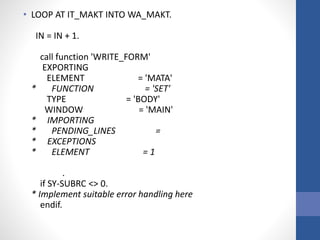

92. • LOOP AT IT_MAKT INTO WA_MAKT.
IN = IN + 1.
call function 'WRITE_FORM'
EXPORTING
ELEMENT = 'MATA'
* FUNCTION = 'SET'
TYPE = 'BODY'
WINDOW = 'MAIN'
* IMPORTING
* PENDING_LINES =
* EXCEPTIONS
* ELEMENT = 1
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.

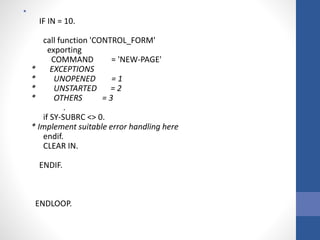

93. •
IF IN = 10.
call function 'CONTROL_FORM'
exporting
COMMAND = 'NEW-PAGE'
* EXCEPTIONS
* UNOPENED = 1
* UNSTARTED = 2
* OTHERS = 3
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
CLEAR IN.
ENDIF.
ENDLOOP.

94. • call function 'CLOSE_FORM'
* IMPORTING
* RESULT =
* RDI_RESULT =
* TABLES
* OTFDATA =
* EXCEPTIONS
* UNOPENED = 1
* BAD_PAGEFORMAT_FOR_PRINT = 2
* SEND_ERROR = 3
* SPOOL_ERROR = 4
* CODEPAGE = 5
* OTHERS = 6
.
if SY-SUBRC <> 0.
* Implement suitable error handling here
endif.
ENDFORM. " PRINT_PAGE
