The document discusses accessibility challenges in federal government web applications, particularly with third-party tools like Telerik controls. It emphasizes the need for adherence to web content accessibility guidelines and identifies specific accessibility failures in controls such as dropdown lists and datetime pickers. The document also suggests using accessible design patterns and the importance of comprehensive testing for compliance.

1. www.ssc.gov.au
Email : enquiries@ssc.gov.au
LinkedIn : https://au.linkedin.com/in/rossmullen
Accessibility with Web Applications
Challenges with third party tools in Federal Government web apps
Ross Mullen
Web Collaboration Solutions
Shared Services Centre

2. In today’s session:
• accessibility with an off the shelf product
• vendors statement of accessibility
• approaches and ways to use these tools
that are more accessible

3. Background Information
• Website
• generally has static content
• Has a few client side widgets for interactivity
• Web Application
• Is dynamic
• Complex workflows
• Client-side interactions sent to server

4. Controls and frameworks we use

5. • Largest collection of custom controls
• Accessibility statement provided
• Easy to use
• Award winner
Why Telerik controls are used

6. The Telerik control suite

7. References to
the KendoUI
CSS and JS
Regular HTML
KendoUI JQuery
When
viewed on
webpage
Using KendoUI

8. “The Telerik ASP.NET AJAX controls follow the W3C
Web Content Accessibility Guidelines
1.0/2.0 which set the standards for applications
providing accessible content”
- http://www.telerik.com/aspnet-ajax/tech-sheets/accessibility-support
“…because we know that Kendo UI is often used in
these types of applications, we thought it best to
provide full ARIA support to all Kendo UI Widgets
out of the box.”
Telerik Accessibility Statements

9. <h4 style="margin-top: 2em;">Cap Size</h4>
<select id="size" style="width: 100%;" >
<option>S - 6 3/4"</option>
<option>M - 7 1/4"</option>
<option>L - 7 1/8"</option>
<option>XL - 7 5/8"</option>
</select>
<script>
$(document).ready(function() {
$("#size").kendoDropDownList();
});
</script>
KendoUI dropdown listbox

10. <h4 style="margin-top: 2em;">Cap Size</h4>
<select id="size" style="width: 100%;" >
<option>S - 6 3/4"</option>
<option>M - 7 1/4"</option>
<option>L - 7 1/8"</option>
<option>XL - 7 5/8"</option>
</select>
<script>
$(document).ready(function() {
$("#size").kendoDropDownList();
});
</script>
Dropdown listbox markup

11. HTML select element is now hidden
span element with ARIA attributes
Dropdown listbox page output

12. Assessing the control
1. Looks like a HTML select element
2. Function likes a HTML select element
3. Semantically it’s an input box with CSS styling
Dropdown listbox assessment

13. Failures identified in the WCAG 2.0 guidelines
4.2.1 Name, Role, Value – all user interface
components the name and role can be
programmatically determined
2.1.1 keyboard - all functionality of the content is
operable through a keyboard interface
Dropdown listbox failures

14. Keyboard controls
Problem keyboard combination when
using JAWS
Problem keyboard combinations

15. KendoUI DateTimePicker

16. Adding more accessibility
support is not necessarily
the answer
Retrofit more accessibility?

17. use
Do not use
on its own
with no
other means
to enter a
date
Label associated with input control with FOR attribute
Date and time format hint in label
P
Do’s and Don’t

18. KendoUI DateTime picker
with ‘material’ theme
JQueryUI datepicker
with default theme
• Default
• Blue Opal
• Bootstrap
• Silver
• Uniform
• Metro
• Black
• Metro Black
• High Contrast
• Moonlight
• Flat
• Material Black
• Fiori
• Office 365
will have to add extra CSS to
make it look like the KendoUI
controls
other themes KendoUI provides
Replace with more accessible controls?

19. Column header sort Filter icons
Pager links
Popup filter menu
KendoUI grid

20. filter links have no link text
and the href attribute is #
no link text when
page viewed with
JAWS Links List
Filtering with the grid

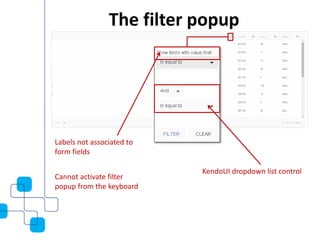

21. Labels not associated to
form fields
KendoUI dropdown list control
Cannot activate filter
popup from the keyboard
The filter popup

22. Accessible filter
and sort controls
uses filterable list pattern from gov.uk
- https://designpatterns.hackpad.com/Filterable-lists-faceted-search-UPtUJeniXZI
Our filter pattern

23. triggers Javascript
to filter or sort the
grid
different filter options
for each data-type
Int, String, Date, Bool
Filter pattern in detail

24. Sort links still visible
when page viewed with
JAWS Links List
Sort link problem

25. A library of reusable patterns which are accessible, usable and
interoperable for HTML and popular third-party tools such as Telerik
and JQuery
A possible solution?

26. Email : enquiries@ssc.gov.au
LinkedIn : https://au.linkedin.com/in/rossmullen
Any questions?
