ISPS Code
Mohammud Hanif Dewan,
Maritime Lecturer & Trainer

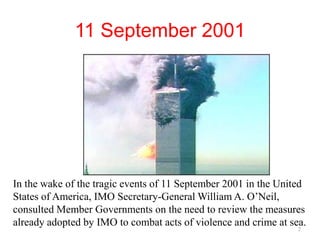

11 September 2001
2
In the wake of the tragic events of 11 September 2001 in the United
States of America, IMO Secretary-General William A. O’Neil,
consulted Member Governments on the need to review the measures
already adopted by IMO to combat acts of violence and crime at sea.

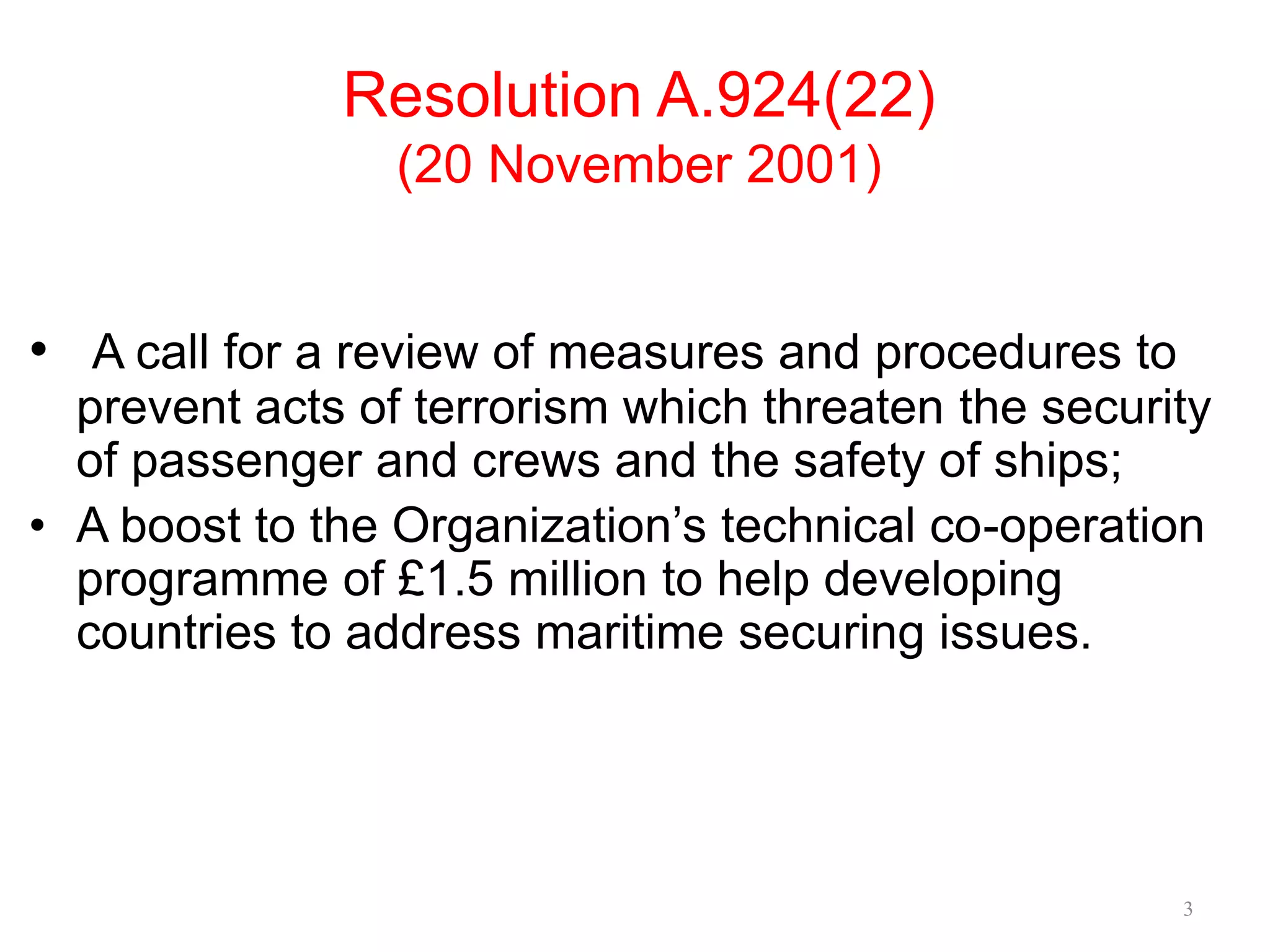

Resolution A.924(22)
(20 November 2001)
• A call for a review of measures and procedures to
prevent acts of terrorism which threaten the security
of passenger and crews and the safety of ships;
• A boost to the Organization’s technical co-operation
programme of ÂŁ1.5 million to help developing
countries to address maritime securing issues.
3

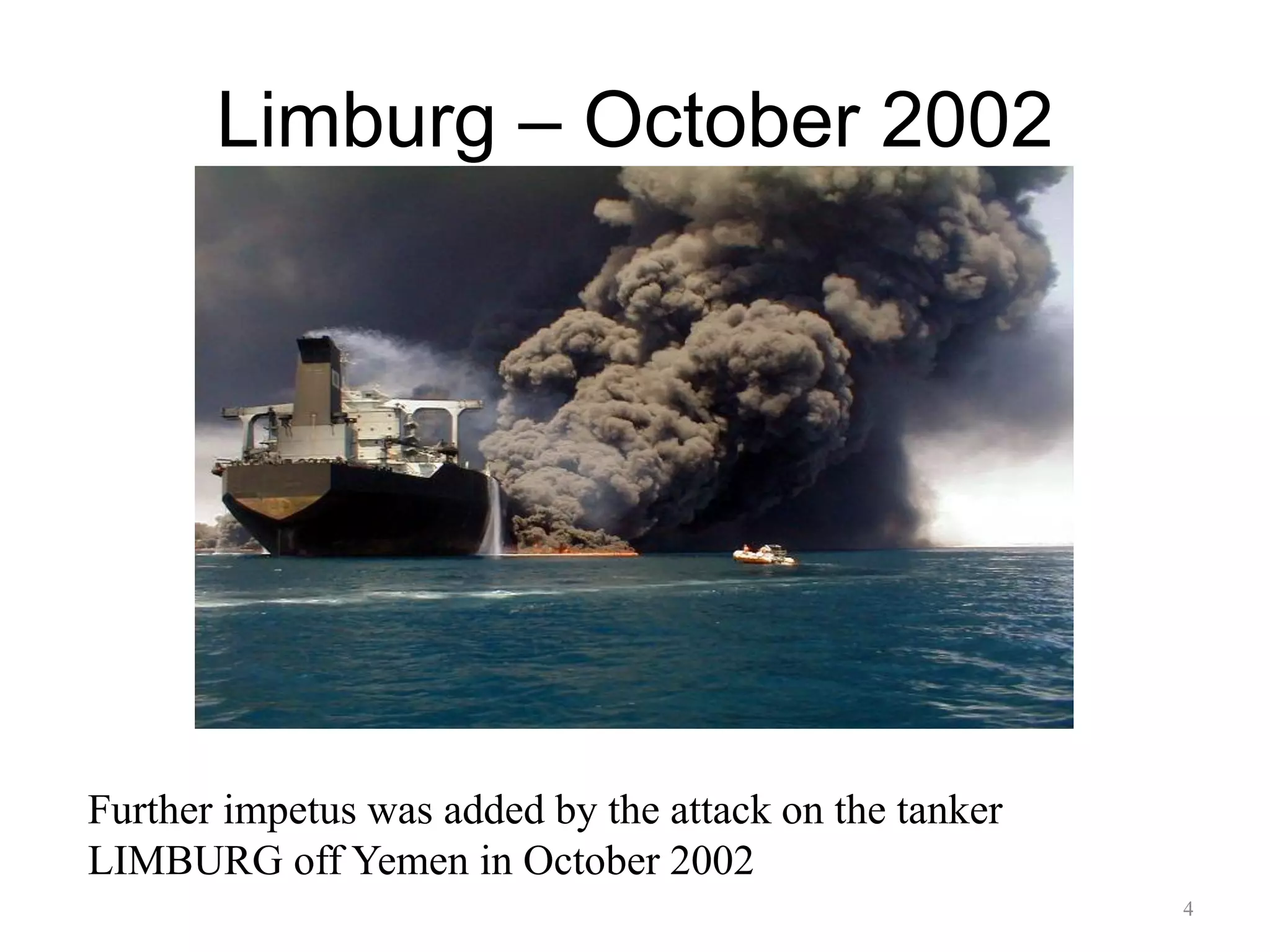

Limburg – October 2002
4
Further impetus was added by the attack on the tanker
LIMBURG off Yemen in October 2002

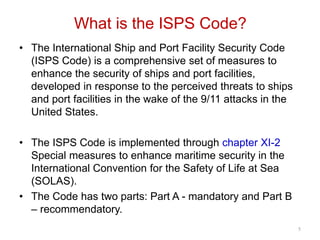

What is the ISPS Code?
• The International Ship and Port Facility Security Code
(ISPS Code) is a comprehensive set of measures to
enhance the security of ships and port facilities,
developed in response to the perceived threats to ships
and port facilities in the wake of the 9/11 attacks in the
United States.
• The ISPS Code is implemented through chapter XI-2
Special measures to enhance maritime security in the
International Convention for the Safety of Life at Sea
(SOLAS).
• The Code has two parts: Part A - mandatory and Part B
– recommendatory.
5

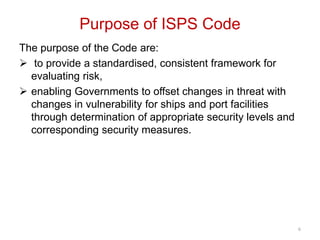

Purpose of ISPS Code
The purpose of the Code are:
 to provide a standardised, consistent framework for
evaluating risk,
 enabling Governments to offset changes in threat with
changes in vulnerability for ships and port facilities
through determination of appropriate security levels and
corresponding security measures.
6

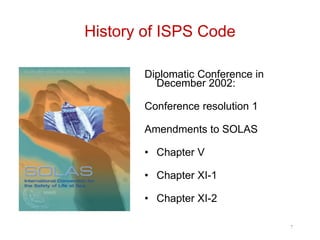

History of ISPS Code
Diplomatic Conference in
December 2002:
Conference resolution 1
Amendments to SOLAS
• Chapter V
• Chapter XI-1
• Chapter XI-2
7

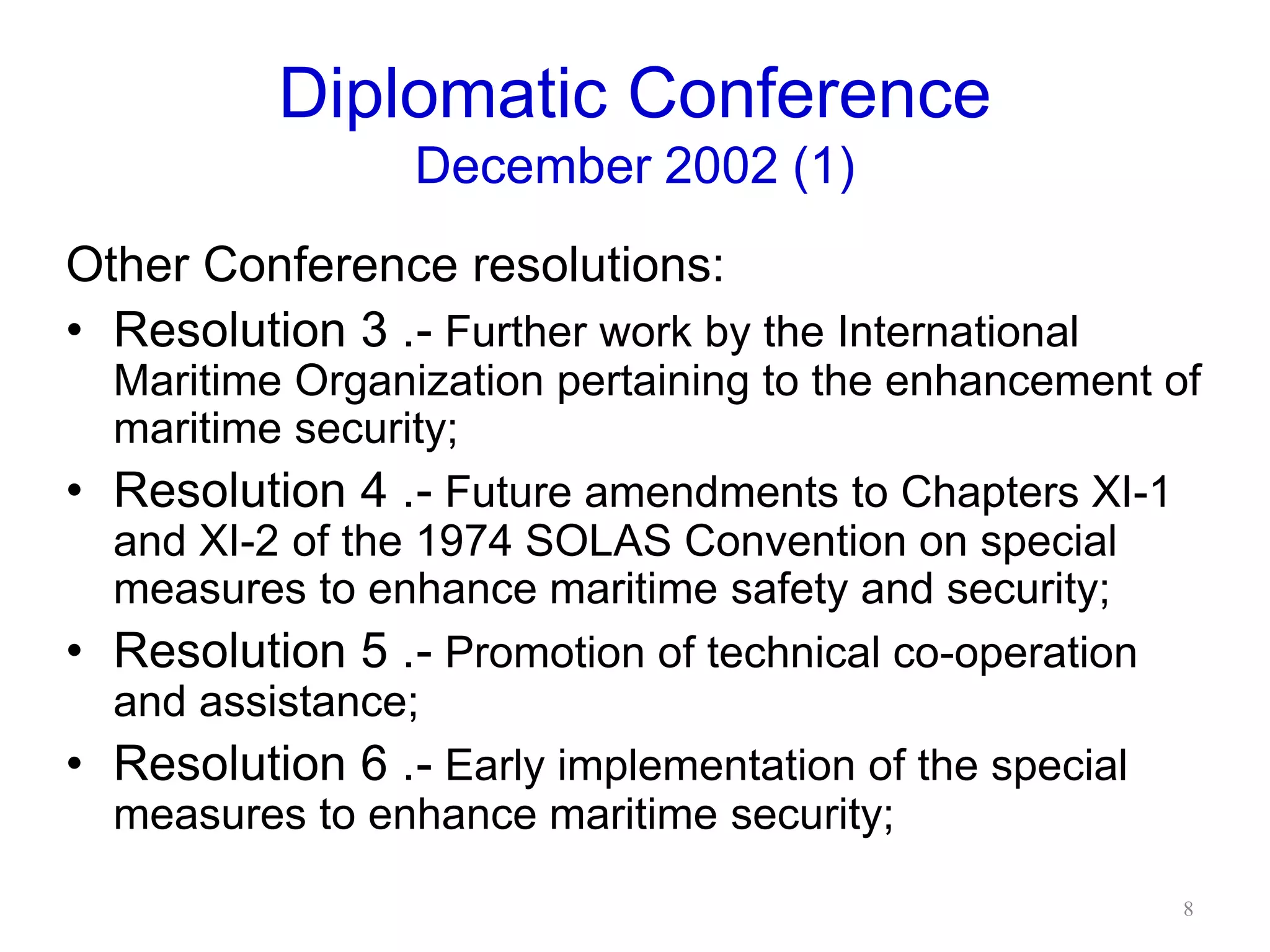

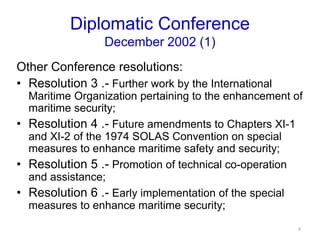

Diplomatic Conference
December 2002 (1)
Other Conference resolutions:
• Resolution 3 .- Further work by the International
Maritime Organization pertaining to the enhancement of
maritime security;
• Resolution 4 .- Future amendments to Chapters XI-1
and XI-2 of the 1974 SOLAS Convention on special
measures to enhance maritime safety and security;
• Resolution 5 .- Promotion of technical co-operation
and assistance;
• Resolution 6 .- Early implementation of the special
measures to enhance maritime security;
8

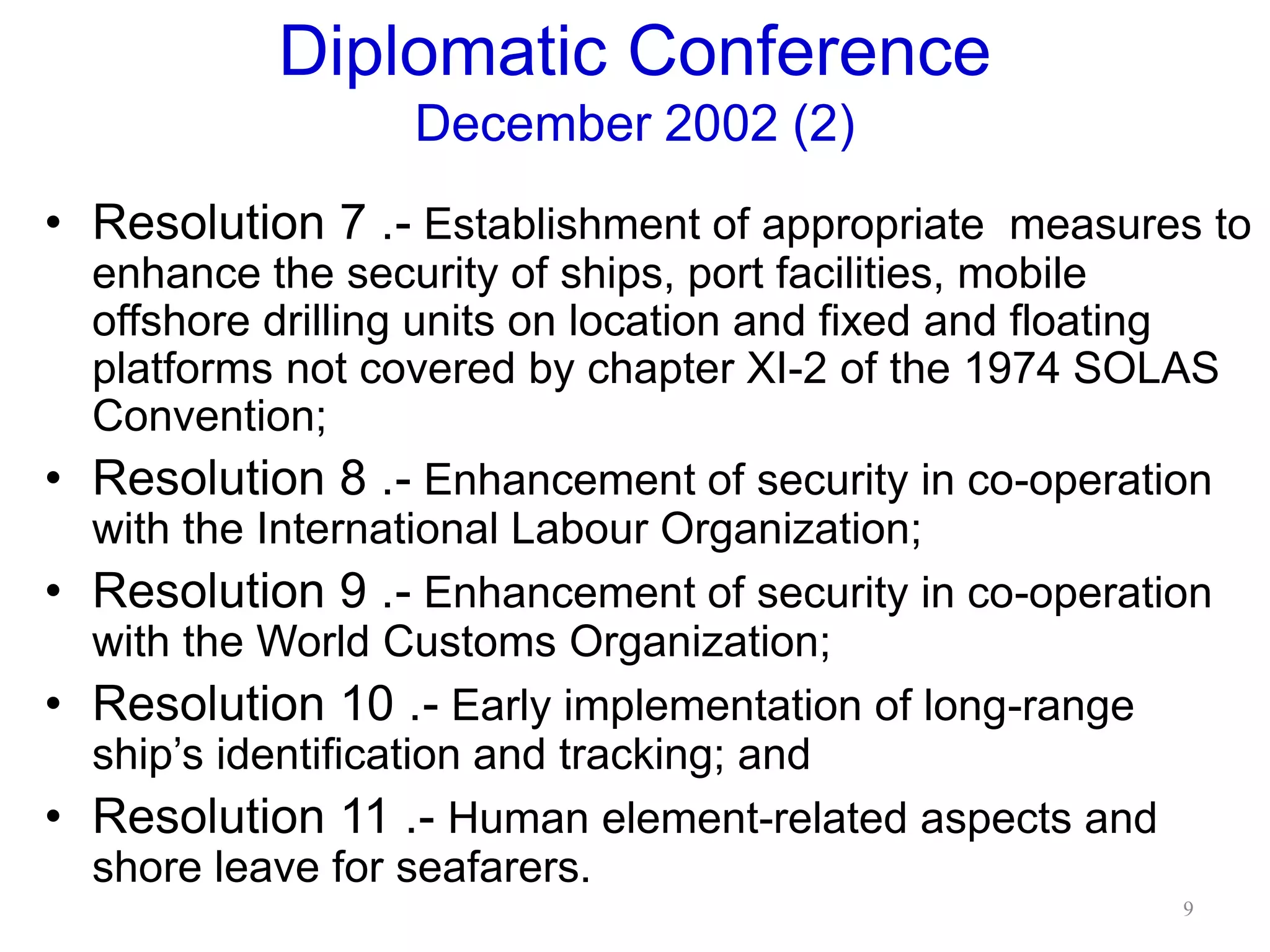

Diplomatic Conference
December 2002 (2)
• Resolution 7 .- Establishment of appropriate measures to
enhance the security of ships, port facilities, mobile
offshore drilling units on location and fixed and floating
platforms not covered by chapter XI-2 of the 1974 SOLAS
Convention;
• Resolution 8 .- Enhancement of security in co-operation
with the International Labour Organization;
• Resolution 9 .- Enhancement of security in co-operation
with the World Customs Organization;
• Resolution 10 .- Early implementation of long-range
ship’s identification and tracking; and
• Resolution 11 .- Human element-related aspects and
shore leave for seafarers.
9

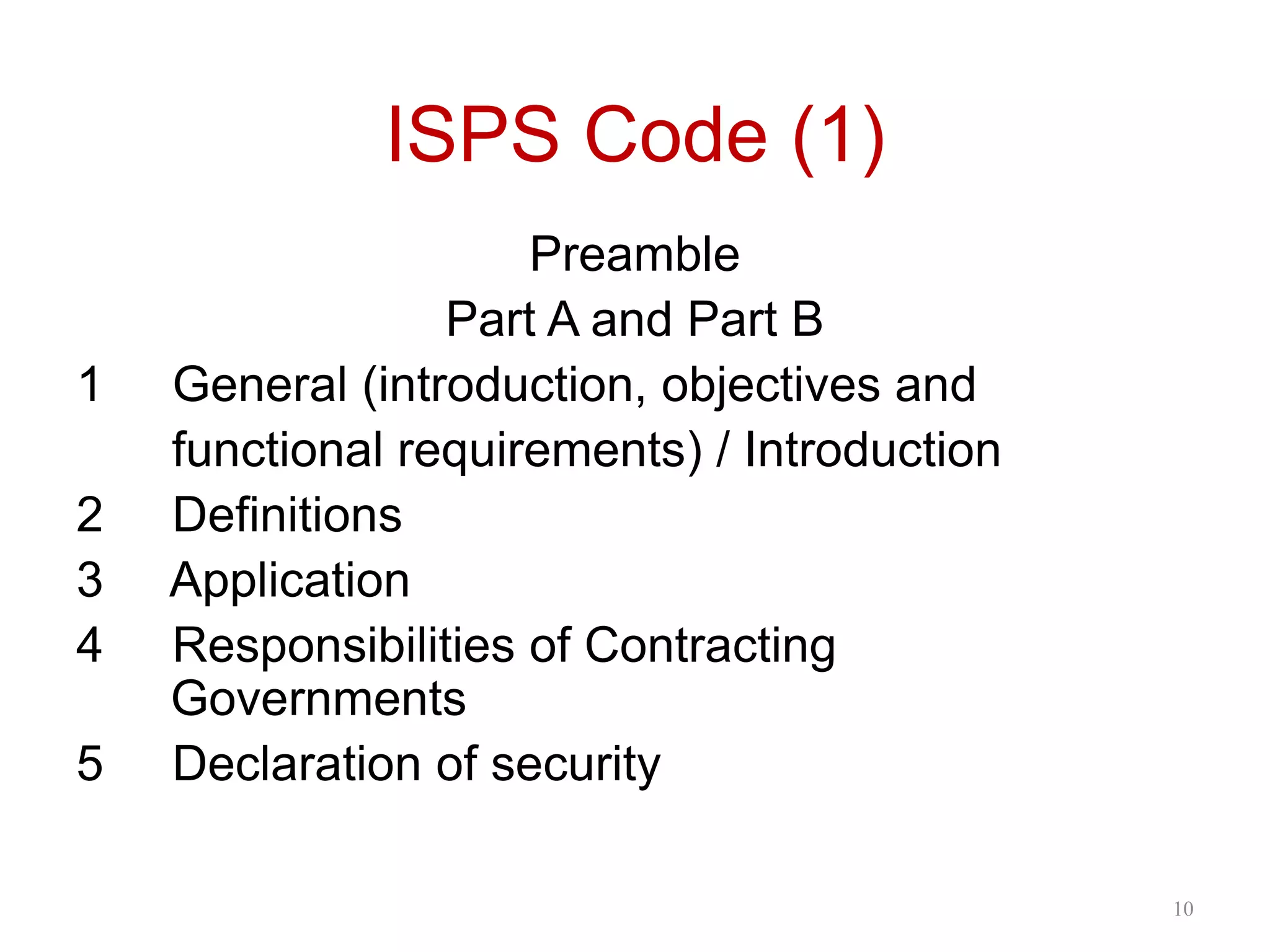

ISPS Code (1)
Preamble
Part A and Part B
1 General (introduction, objectives and
functional requirements) / Introduction
2 Definitions
3 Application
4 Responsibilities of Contracting
Governments
5 Declaration of security
10

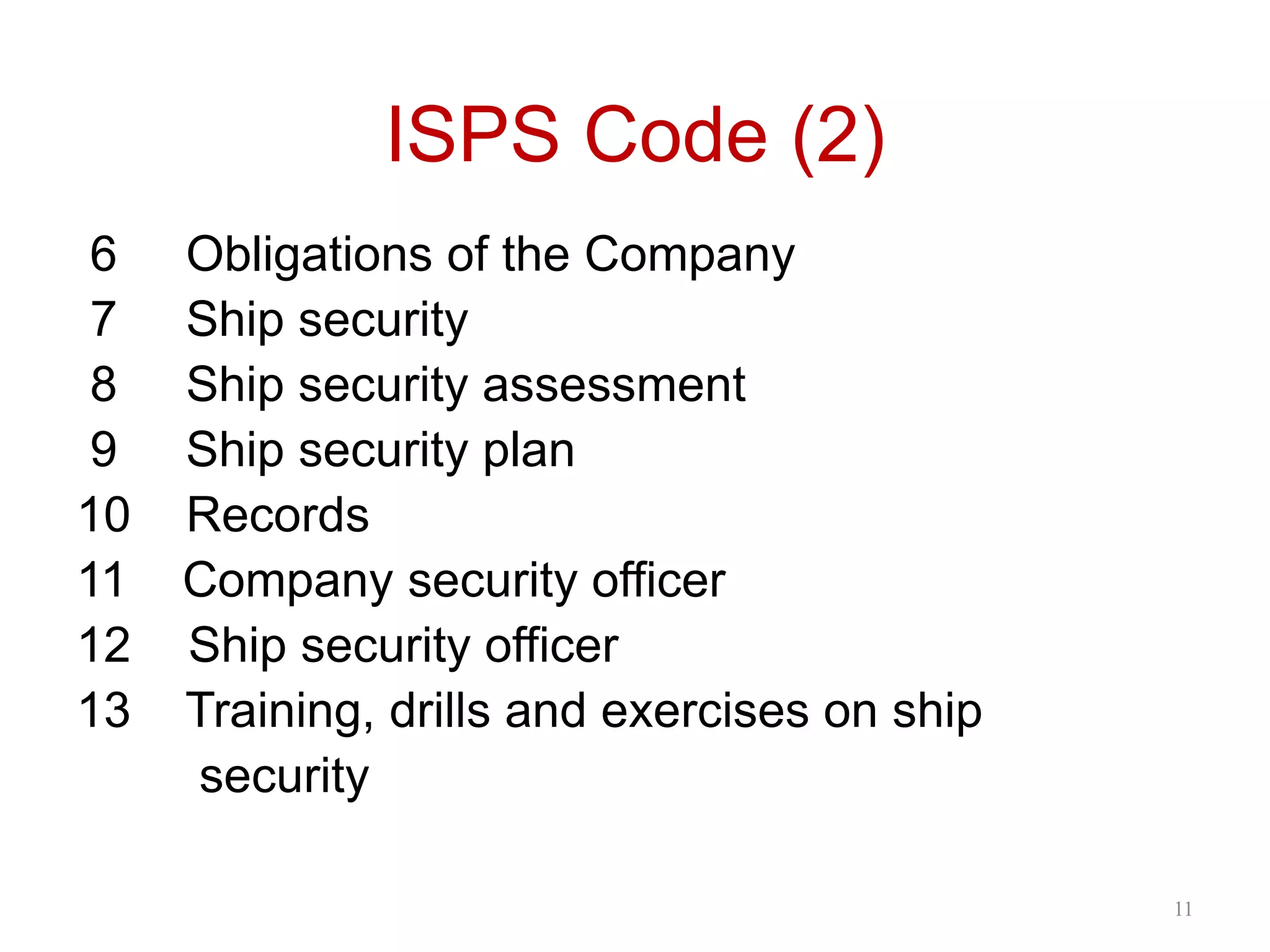

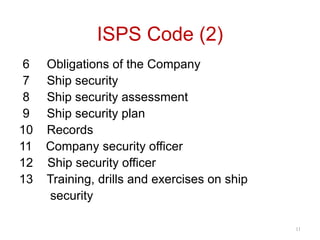

ISPS Code (2)
6 Obligations of the Company
7 Ship security
8 Ship security assessment
9 Ship security plan
10 Records
11 Company security officer
12 Ship security officer
13 Training, drills and exercises on ship
security
11

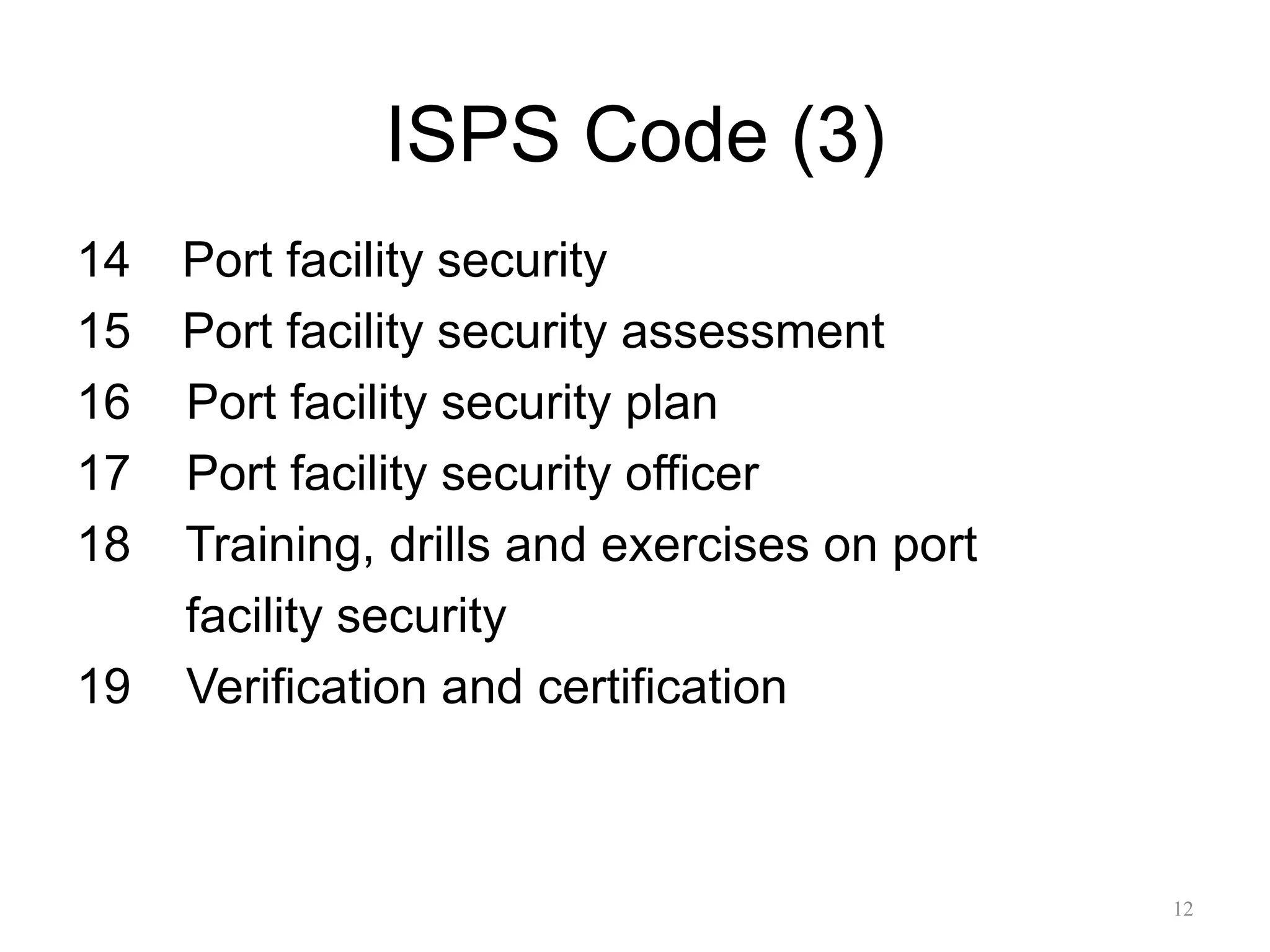

ISPS Code (3)
14 Port facility security
15 Port facility security assessment
16 Port facility security plan
17 Port facility security officer
18 Training, drills and exercises on port
facility security
19 Verification and certification for ships
12

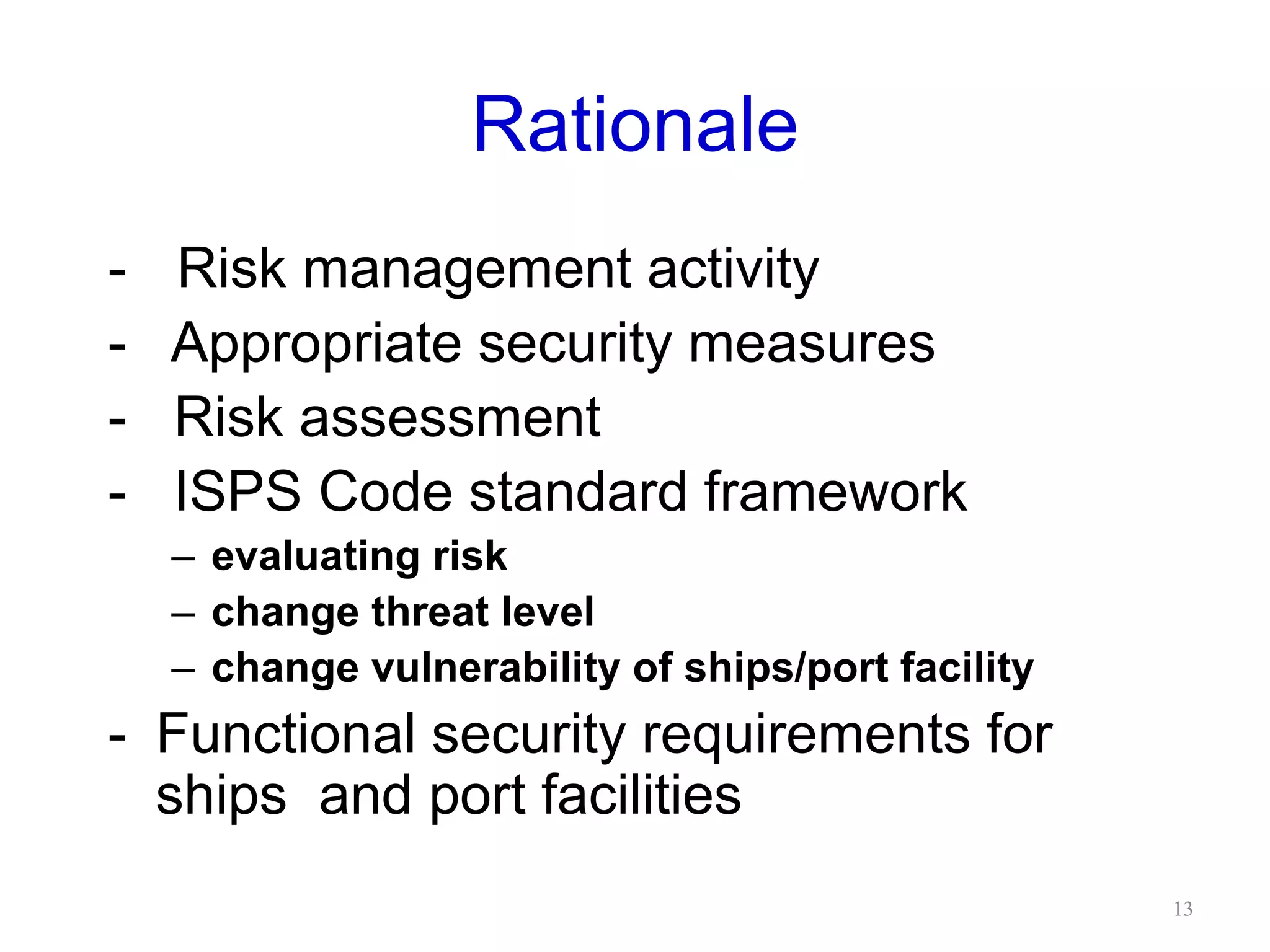

Rationale
-- Risk management activity
- Appropriate security measures
- Risk assessment
- ISPS Code standard framework
– evaluating risk
– change threat level
– change vulnerability of ships/port facility
- Functional security requirements for
ships and port facilities
13

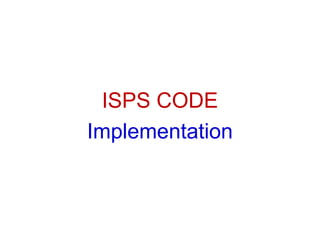

ISPS CODE
Implementation

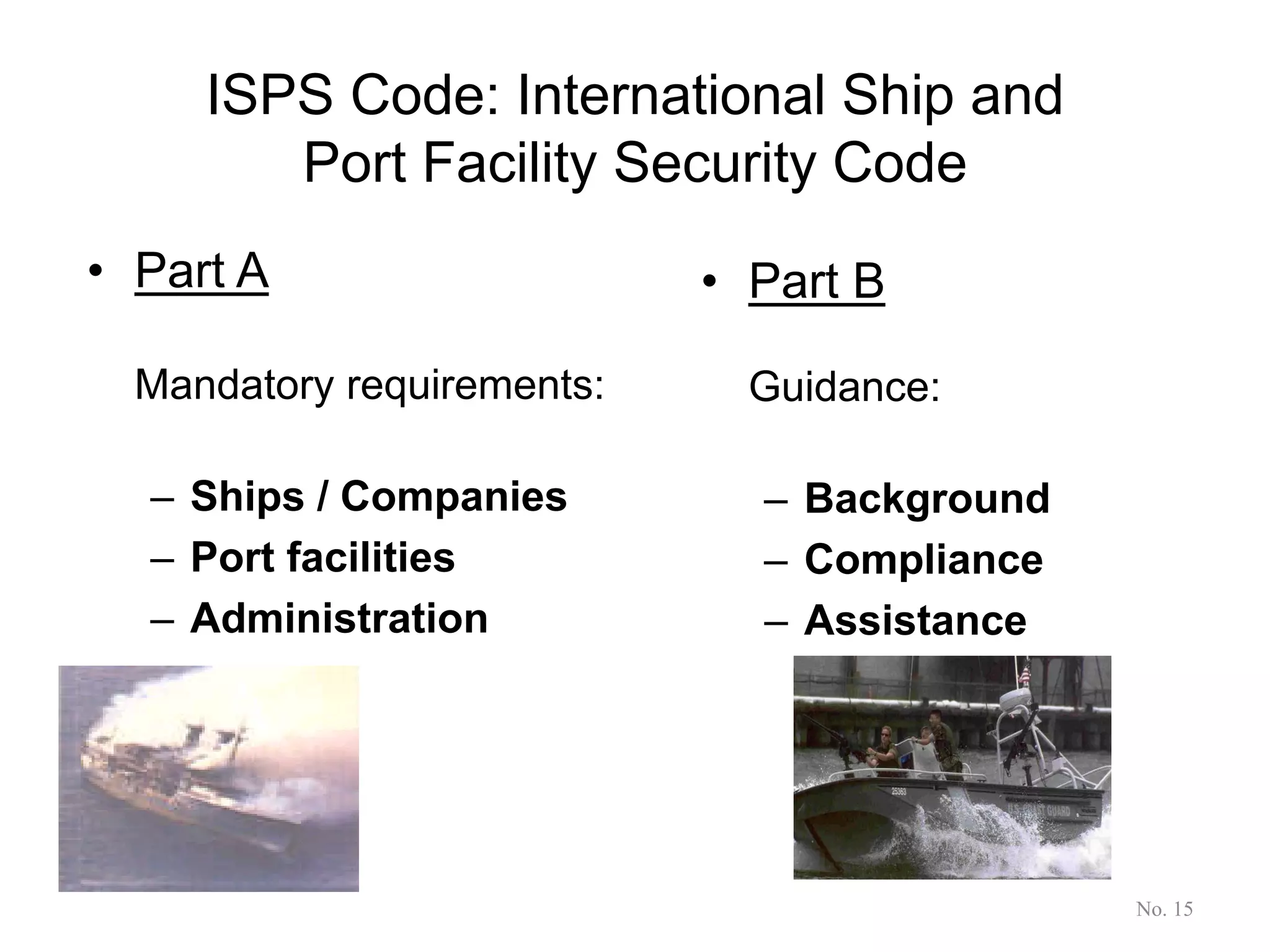

ISPS Code: International Ship and
Port Facility Security Code
• Part A
Mandatory requirements:
– Ships / Companies
– Port facilities
– Administration
• Part B
Guidance:
– Background
– Compliance
– Assistance
No. 15

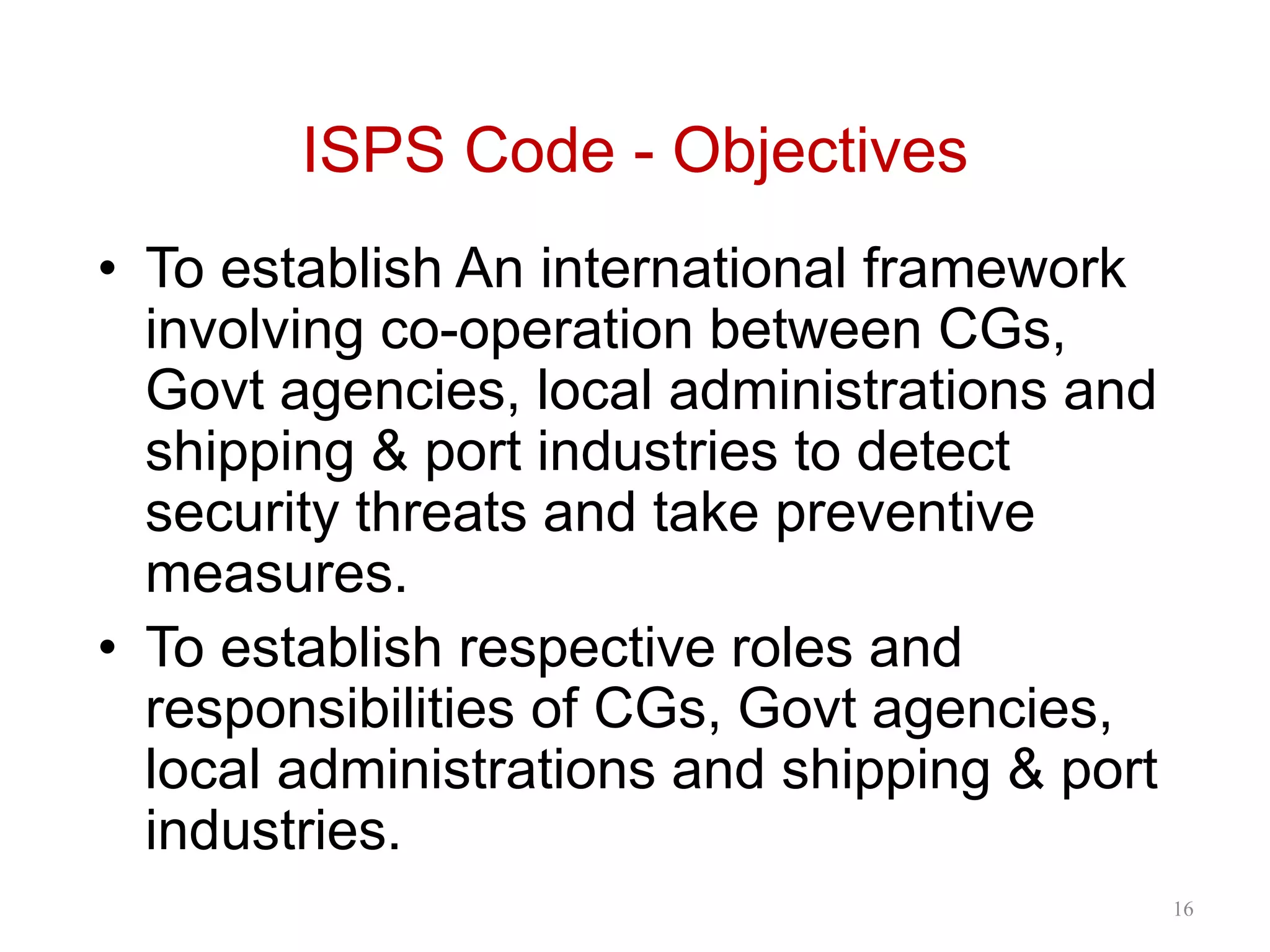

ISPS Code - Objectives
• To establish An international framework
involving co-operation between CGs,
Govt agencies, local administrations and
shipping & port industries to detect
security threats and take preventive
measures.
• To establish respective roles and
responsibilities of CGs, Govt agencies,
local administrations and shipping & port
industries.
16
ISPS Code – Functional requirements
• Gathering & assessing information on security
threats & exchanging it with appropriate CGs.
• Requiring maintenance of communication
protocols for ships & PFs
• Preventing unauthorized access to ships, PFs
& their restricted areas.
• Preventing introduction of unauthorized
weapons, incindiary devices or explosives to
ships or PFs.
17

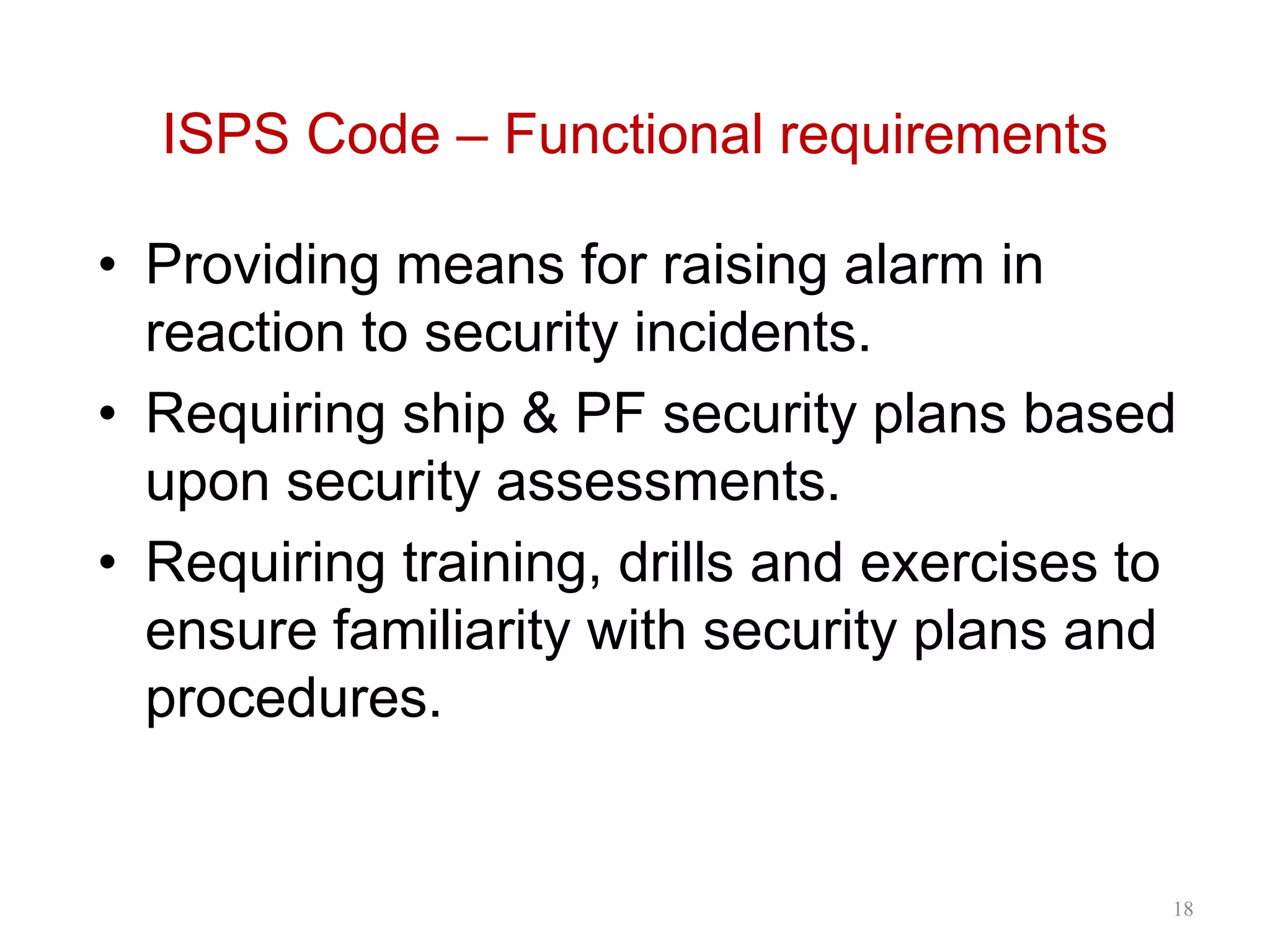

ISPS Code – Functional requirements
• Providing means for raising alarm in
reaction to security incidents.
• Requiring ship & PF security plans based
upon security assessments.
• Requiring training, drills and exercises to
ensure familiarity with security plans and
procedures.
18

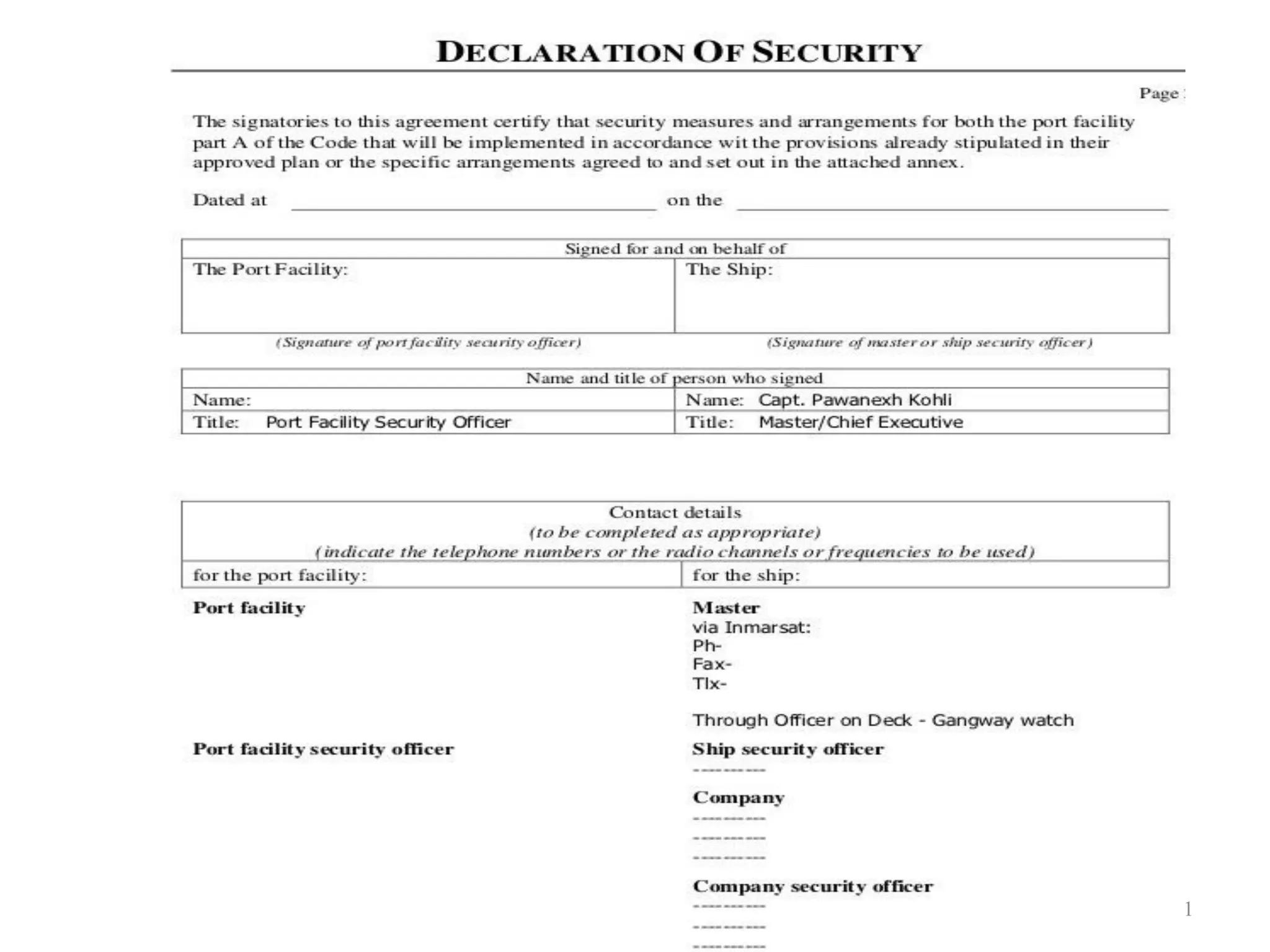

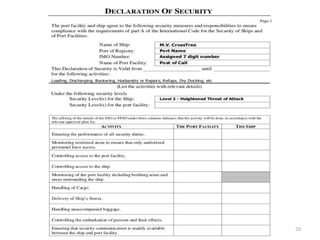

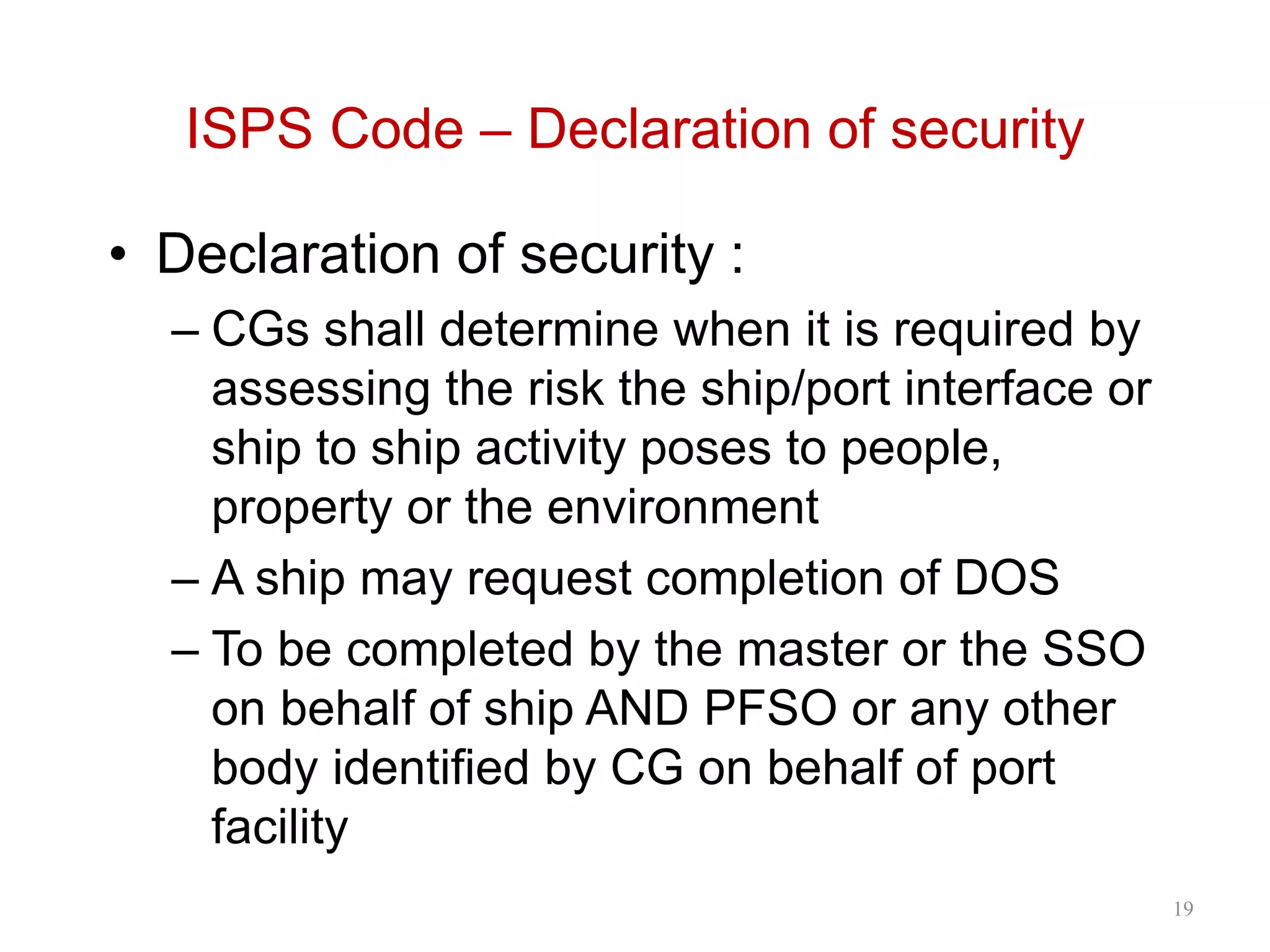

ISPS Code – Declaration of security
• Declaration of security :
– CGs shall determine when it is required by
assessing the risk the ship/port interface or
ship to ship activity poses to people,
property or the environment
– A ship may request completion of DOS
– To be completed by the master or the SSO
on behalf of ship AND PFSO or any other
body identified by CG on behalf of port
facility
19
20
21

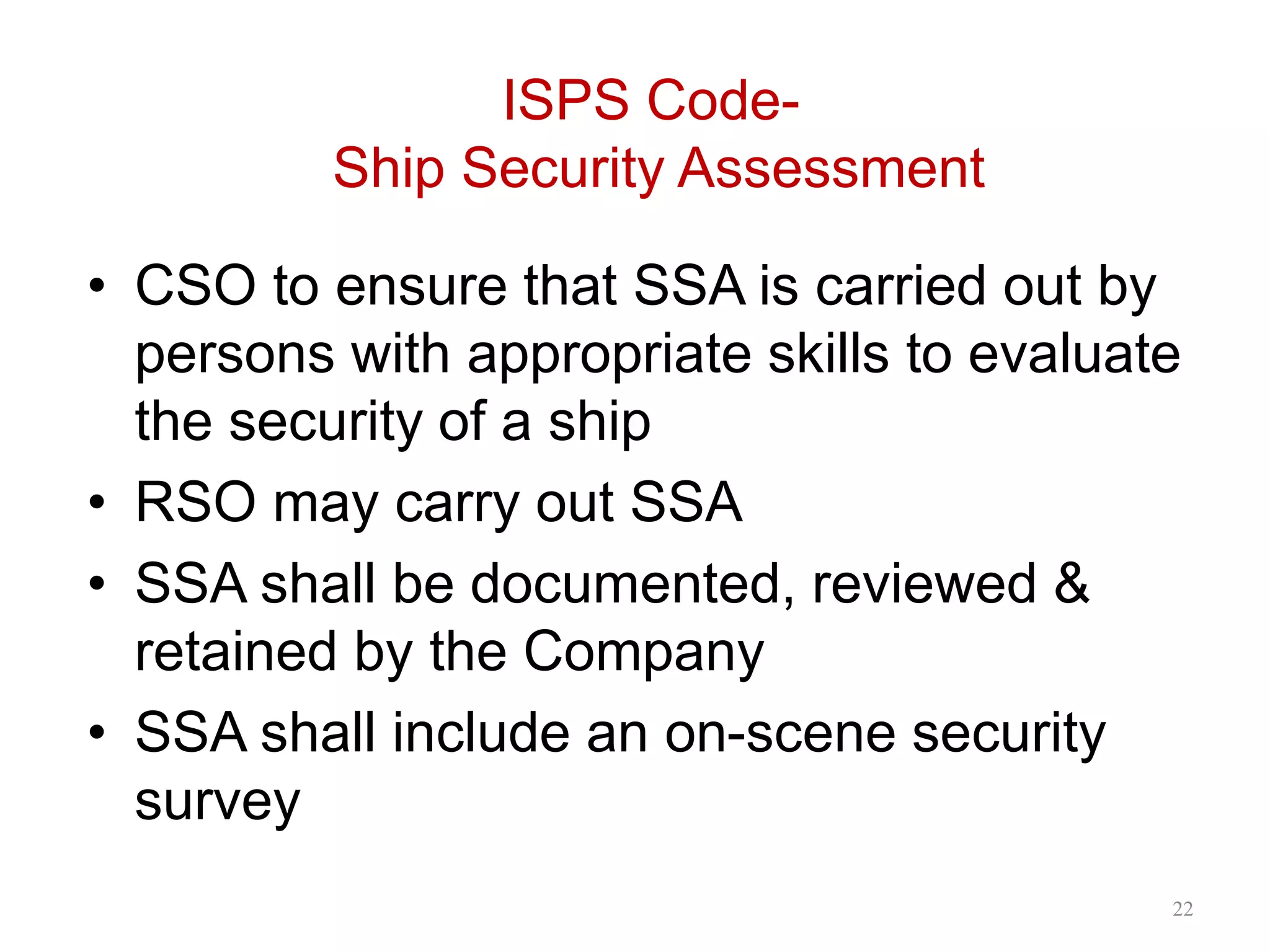

ISPS Code-
Ship Security Assessment
• CSO to ensure that SSA is carried out by
persons with appropriate skills to evaluate
the security of a ship
• RSO may carry out SSA
• SSA shall be documented, reviewed &
retained by the Company
• SSA shall include an on-scene security
survey
22

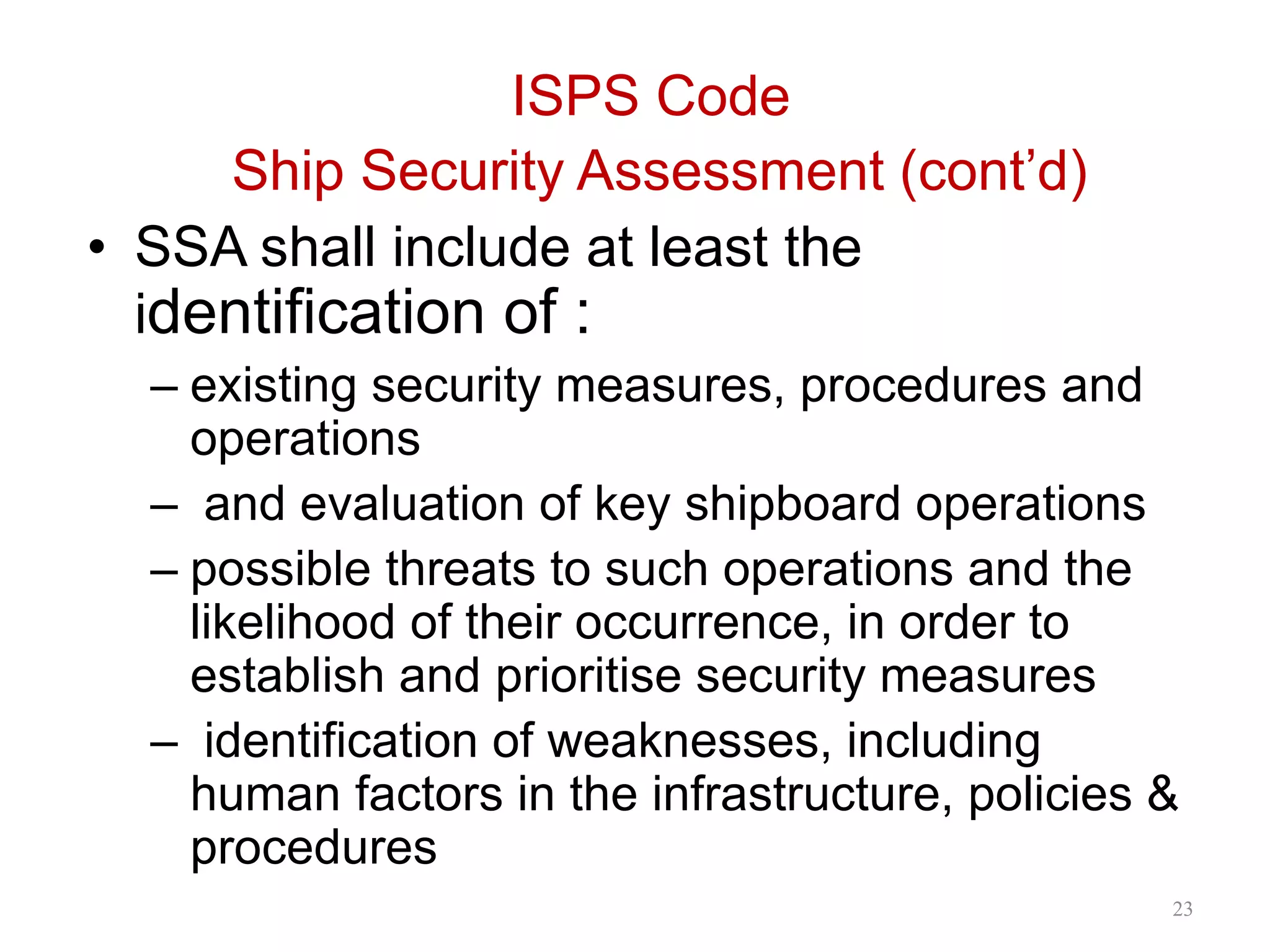

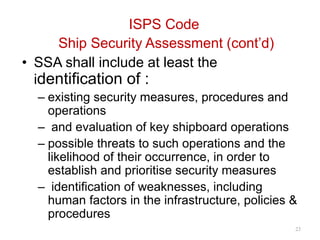

ISPS Code
Ship Security Assessment (cont’d)
• SSA shall include at least the
identification of :
– existing security measures, procedures and
operations
– and evaluation of key shipboard operations
– possible threats to such operations and the
likelihood of their occurrence, in order to
establish and prioritise security measures
– identification of weaknesses, including
human factors in the infrastructure, policies &
procedures
23

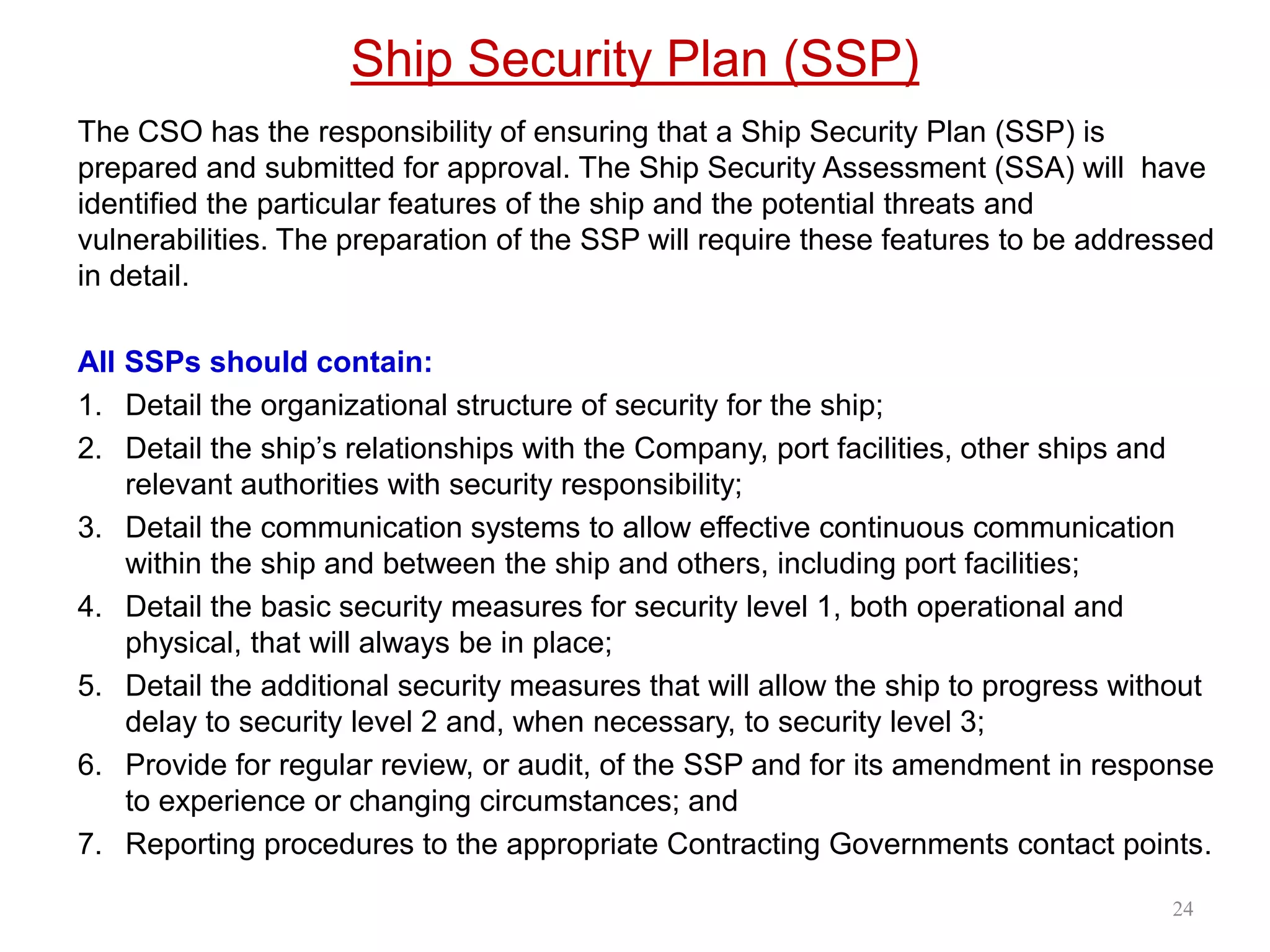

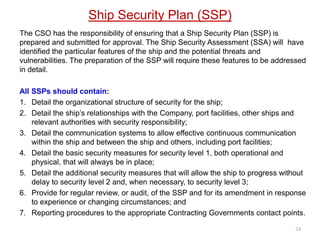

Ship Security Plan (SSP)
The CSO has the responsibility of ensuring that a Ship Security Plan (SSP) is
prepared and submitted for approval. The Ship Security Assessment (SSA) will have
identified the particular features of the ship and the potential threats and
vulnerabilities. The preparation of the SSP will require these features to be addressed
in detail.
All SSPs should contain:
1. Detail the organizational structure of security for the ship;
2. Detail the ship’s relationships with the Company, port facilities, other ships and
relevant authorities with security responsibility;
3. Detail the communication systems to allow effective continuous communication
within the ship and between the ship and others, including port facilities;
4. Detail the basic security measures for security level 1, both operational and
physical, that will always be in place;
5. Detail the additional security measures that will allow the ship to progress without
delay to security level 2 and, when necessary, to security level 3;
6. Provide for regular review, or audit, of the SSP and for its amendment in response
to experience or changing circumstances; and
7. Reporting procedures to the appropriate Contracting Governments contact points.
24

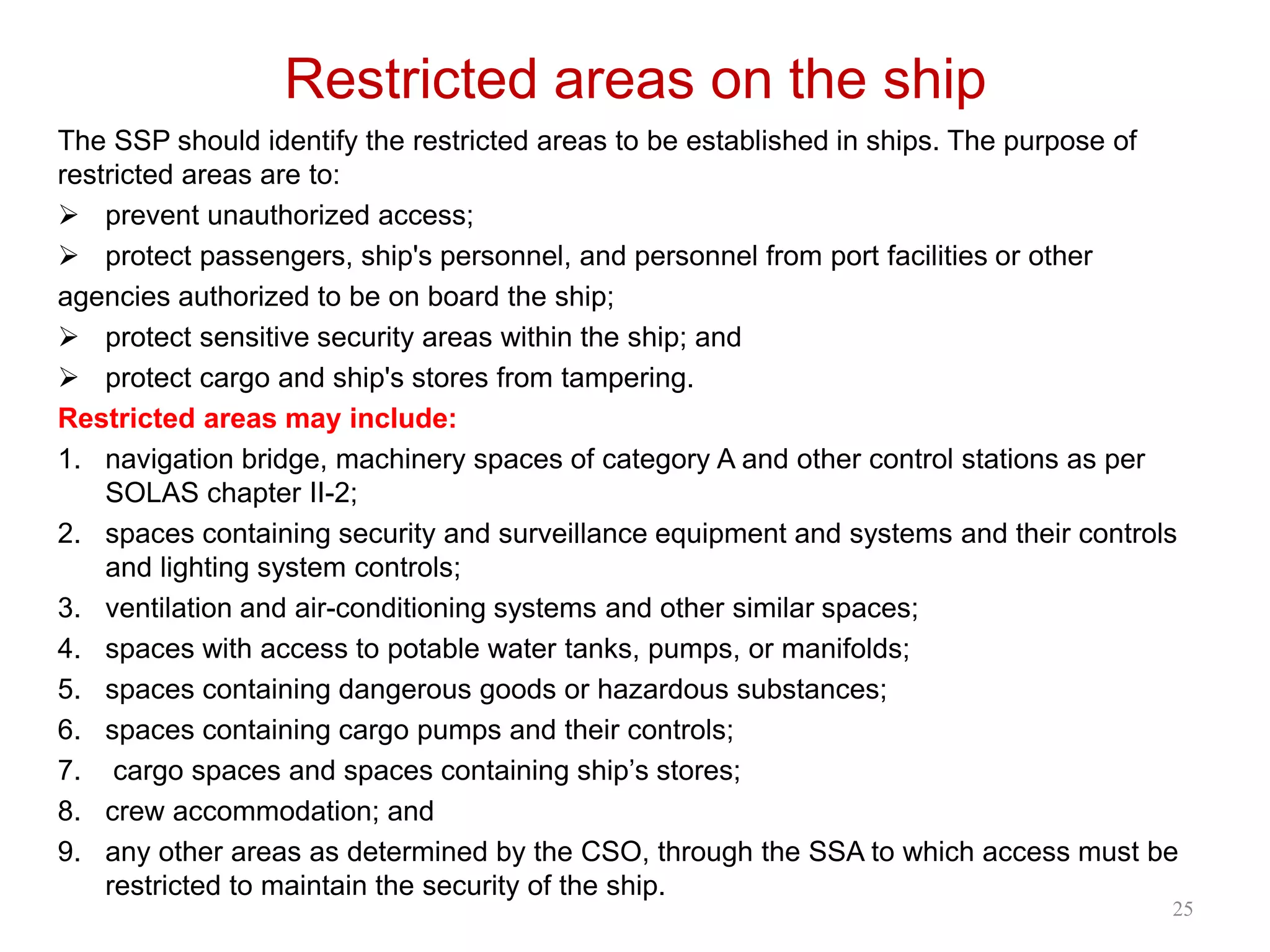

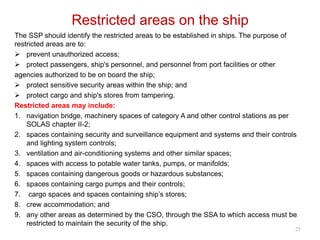

Restricted areas on the ship
The SSP should identify the restricted areas to be established in ships. The purpose of
restricted areas are to:
 prevent unauthorized access;
 protect passengers, ship's personnel, and personnel from port facilities or other
agencies authorized to be on board the ship;
 protect sensitive security areas within the ship; and
 protect cargo and ship's stores from tampering.
Restricted areas may include:
1. navigation bridge, machinery spaces of category A and other control stations as per
SOLAS chapter II-2;
2. spaces containing security and surveillance equipment and systems and their controls
and lighting system controls;
3. ventilation and air-conditioning systems and other similar spaces;
4. spaces with access to potable water tanks, pumps, or manifolds;
5. spaces containing dangerous goods or hazardous substances;
6. spaces containing cargo pumps and their controls;
7. cargo spaces and spaces containing ship’s stores;
8. crew accommodation; and
9. any other areas as determined by the CSO, through the SSA to which access must be
restricted to maintain the security of the ship.
25

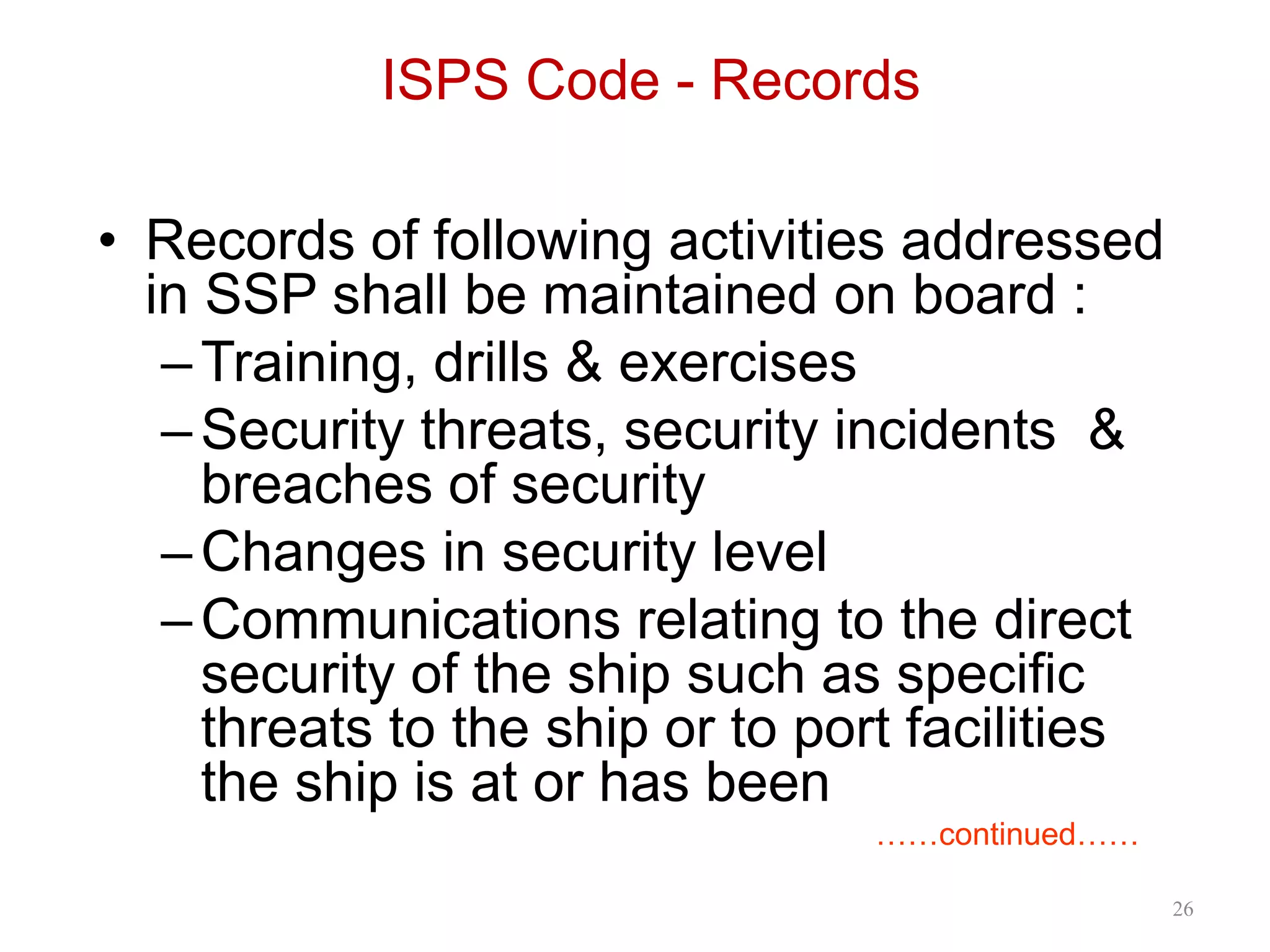

ISPS Code - Records
• Records of following activities addressed
in SSP shall be maintained on board :
–Training, drills & exercises
–Security threats, security incidents &
breaches of security
–Changes in security level
–Communications relating to the direct
security of the ship such as specific
threats to the ship or to port facilities
the ship is at or has been
……continued……
26
ISPS Code - Records
(cont’d)
• Internal audits & reviews of security
activities
• Periodic review of the SSA
• Periodic review of the SSP
• Implementation of any amendments to
the plan
• Maintenance, calibration and testing of
security equipment, if any including
testing of the ship security alert system
27

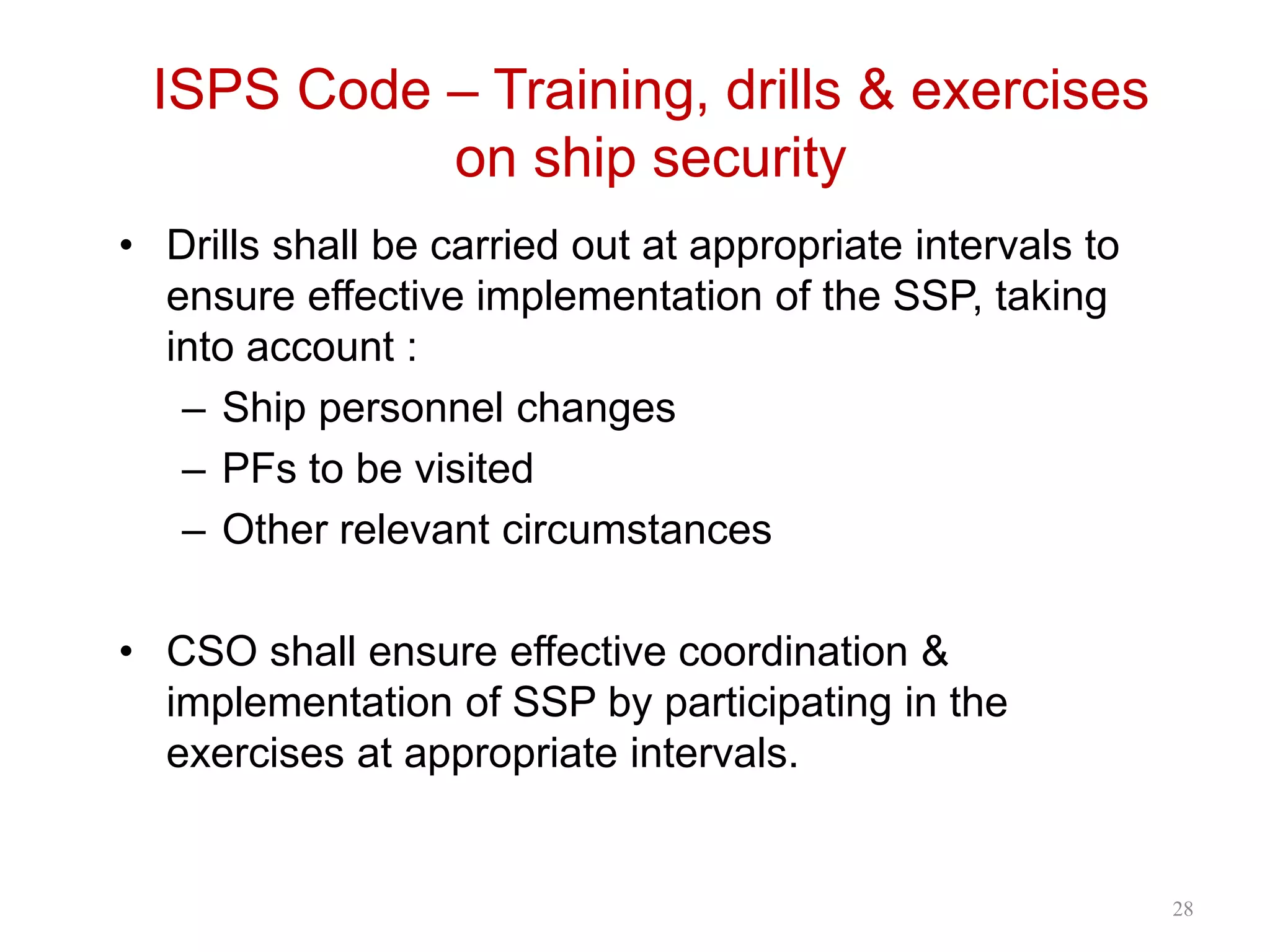

ISPS Code – Training, drills & exercises
on ship security
• Drills shall be carried out at appropriate intervals to
ensure effective implementation of the SSP, taking
into account :
– Ship personnel changes
– PFs to be visited
– Other relevant circumstances
• CSO shall ensure effective coordination &
implementation of SSP by participating in the
exercises at appropriate intervals.
28

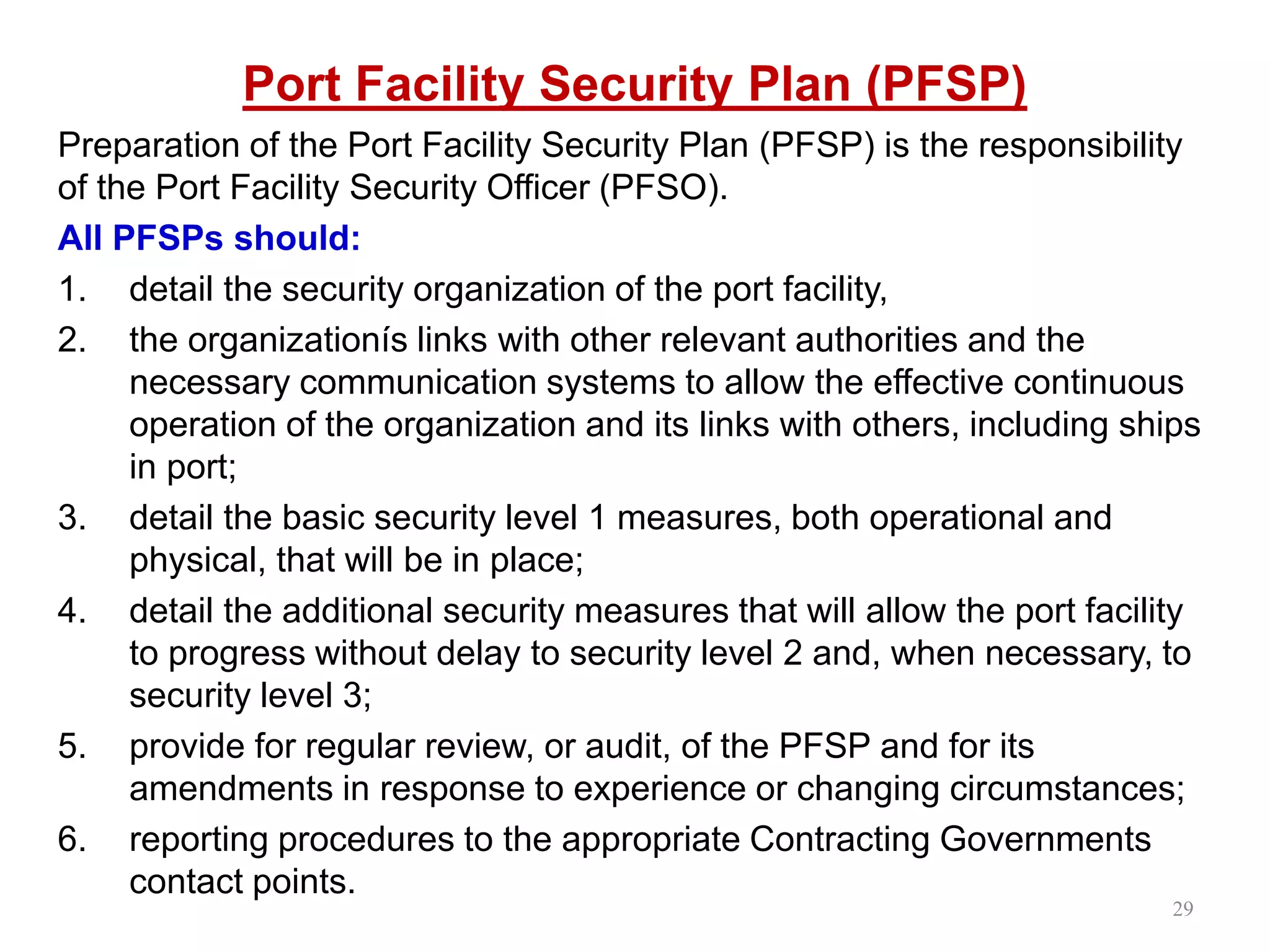

Port Facility Security Plan (PFSP)
Preparation of the Port Facility Security Plan (PFSP) is the responsibility
of the Port Facility Security Officer (PFSO).
All PFSPs should:
1. detail the security organization of the port facility,
2. the organizationĂ­s links with other relevant authorities and the
necessary communication systems to allow the effective continuous
operation of the organization and its links with others, including ships
in port;
3. detail the basic security level 1 measures, both operational and
physical, that will be in place;
4. detail the additional security measures that will allow the port facility
to progress without delay to security level 2 and, when necessary, to
security level 3;
5. provide for regular review, or audit, of the PFSP and for its
amendments in response to experience or changing circumstances;
6. reporting procedures to the appropriate Contracting Governments
contact points.
29

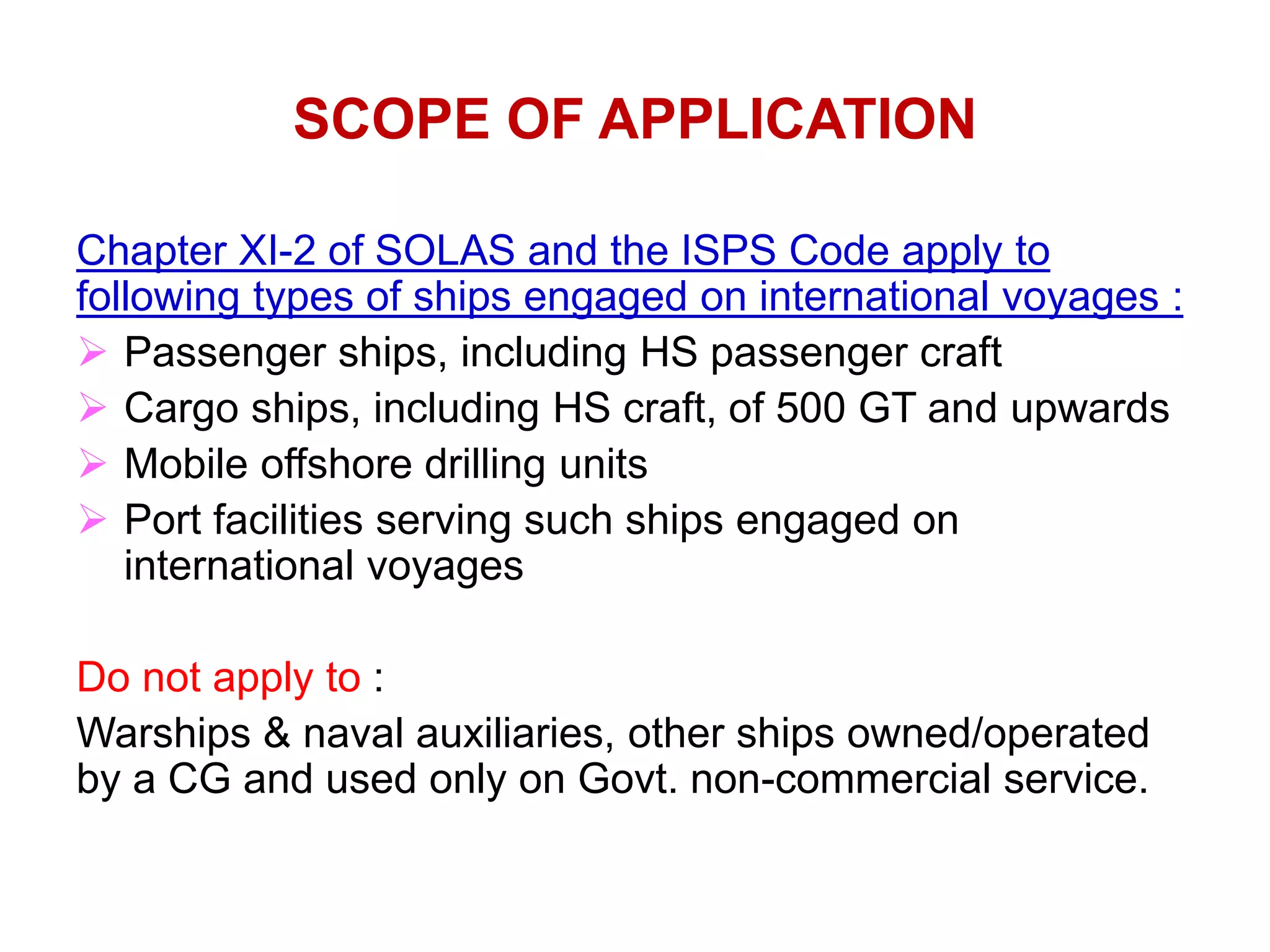

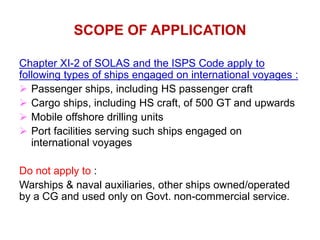

SCOPE OF APPLICATION
Chapter XI-2 of SOLAS and the ISPS Code apply to
following types of ships engaged on international voyages :
 Passenger ships, including HS passenger craft
 Cargo ships, including HS craft, of 500 GT and upwards
 Mobile offshore drilling units
 Port facilities serving such ships engaged on
international voyages
Do not apply to :
Warships & naval auxiliaries, other ships owned/operated
by a CG and used only on Govt. non-commercial service.

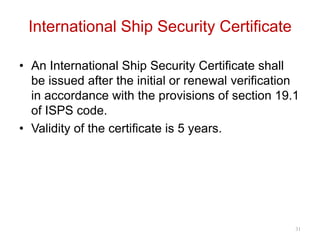

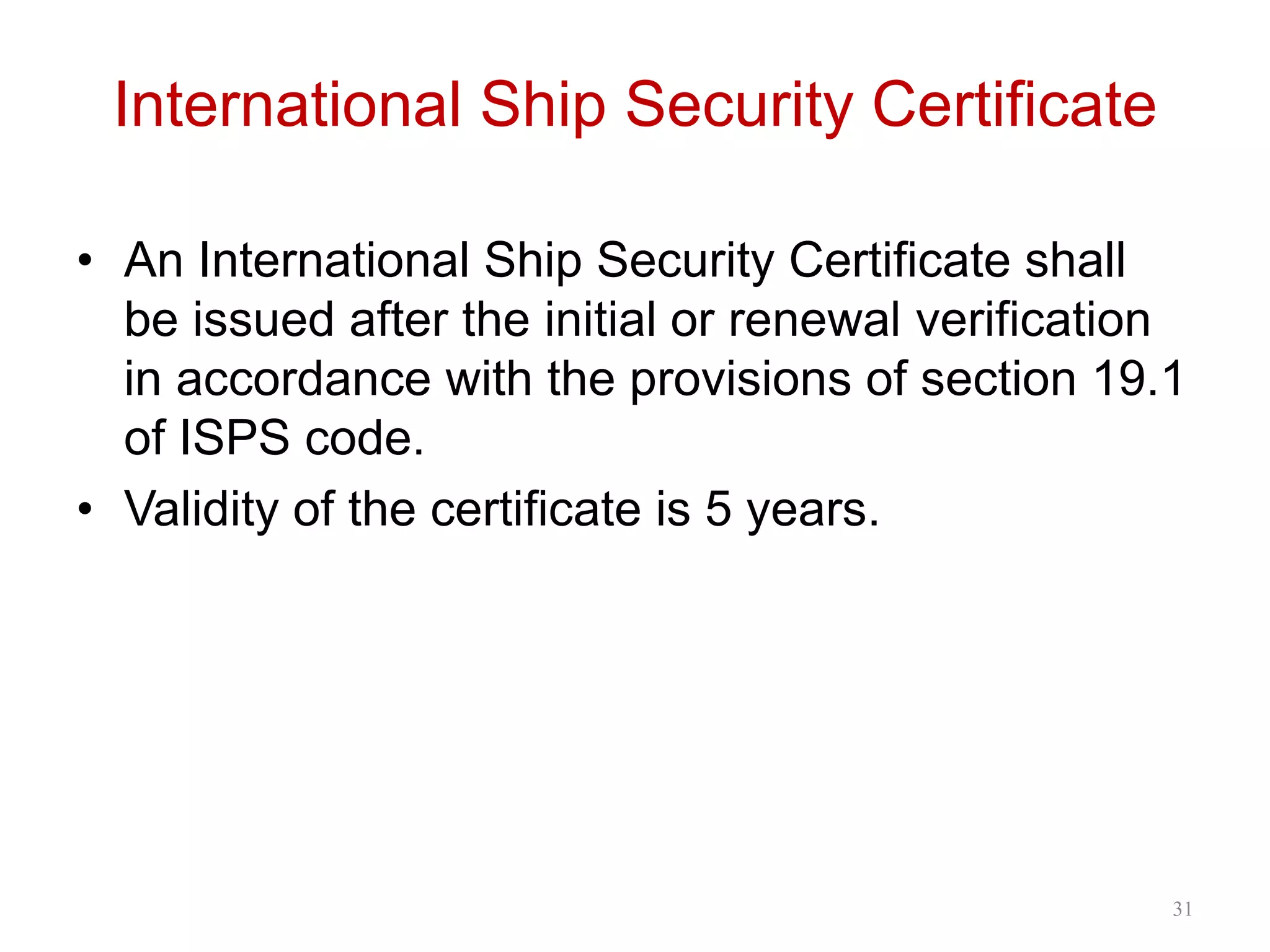

International Ship Security Certificate
• An International Ship Security Certificate shall
be issued after the initial or renewal verification
in accordance with the provisions of section 19.1
of ISPS code.
• Validity of the certificate is 5 years.
31

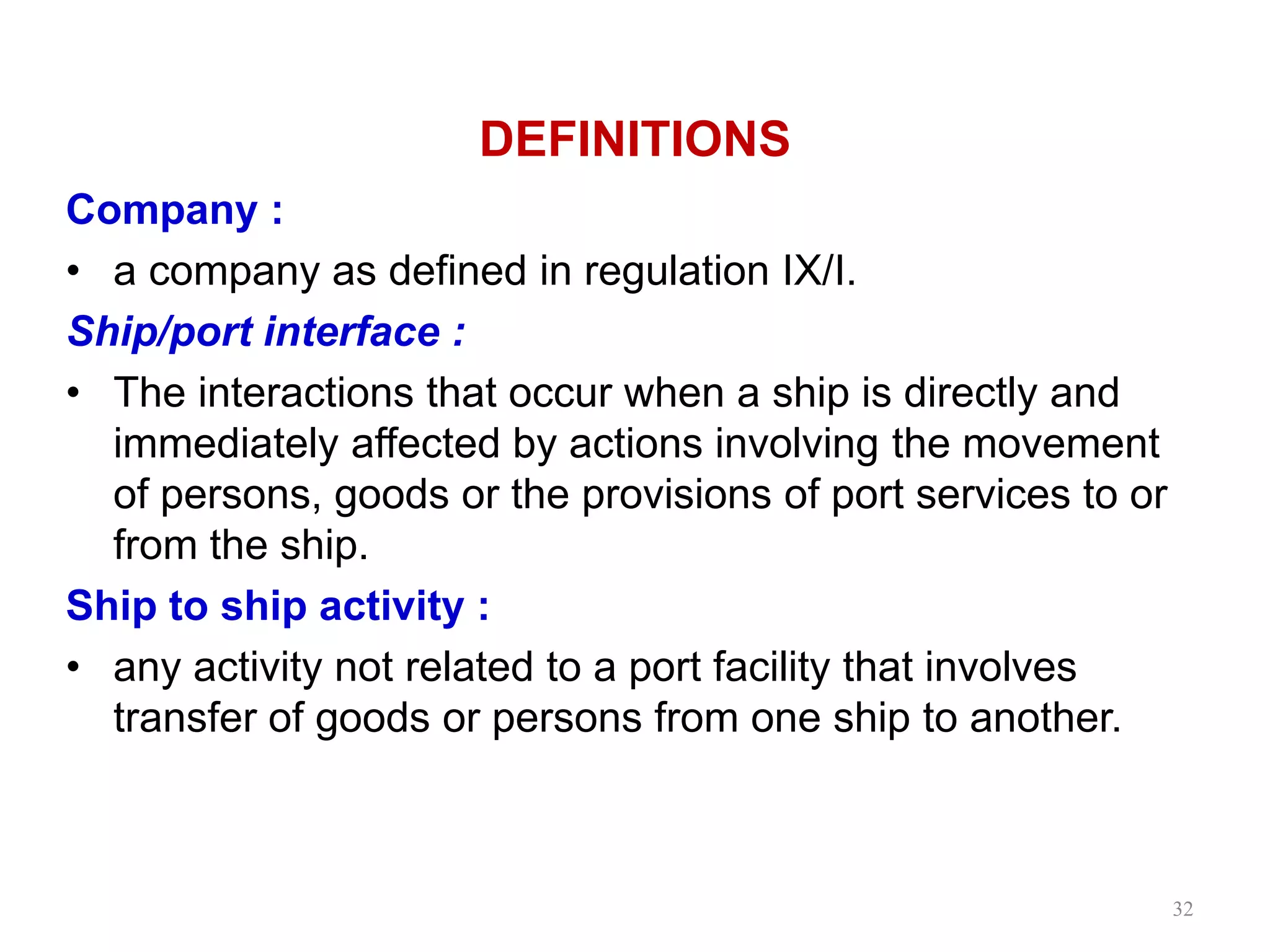

DEFINITIONS
Company :
• a company as defined in regulation IX/I.
Ship/port interface :
• The interactions that occur when a ship is directly and
immediately affected by actions involving the movement
of persons, goods or the provisions of port services to or
from the ship.
Ship to ship activity :
• any activity not related to a port facility that involves
transfer of goods or persons from one ship to another.
32
DEFINITIONS
Port facility :
• A location, as determined by the Contracting
Government or by the Designated authority, where the
ship/port interface takes place. This includes areas such
as anchorages, waiting berths and approaches from
seaward, as appropriate.
Designated authority:
• The organization (s) or the administration (s) identified,
within the Contracting Government, as responsible for
ensuring the implementation of the provisions of Chapter
XI-2 pertaining to port facility security and ship/port
interface, from point of view of the port facility.
33

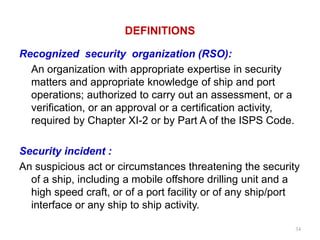

DEFINITIONS
Recognized security organization (RSO):
An organization with appropriate expertise in security
matters and appropriate knowledge of ship and port
operations; authorized to carry out an assessment, or a
verification, or an approval or a certification activity,
required by Chapter XI-2 or by Part A of the ISPS Code.
Security incident :
An suspicious act or circumstances threatening the security
of a ship, including a mobile offshore drilling unit and a
high speed craft, or of a port facility or of any ship/port
interface or any ship to ship activity.
34

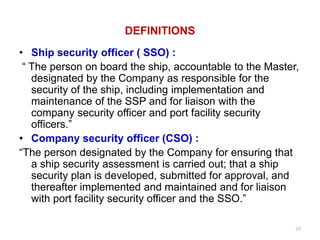

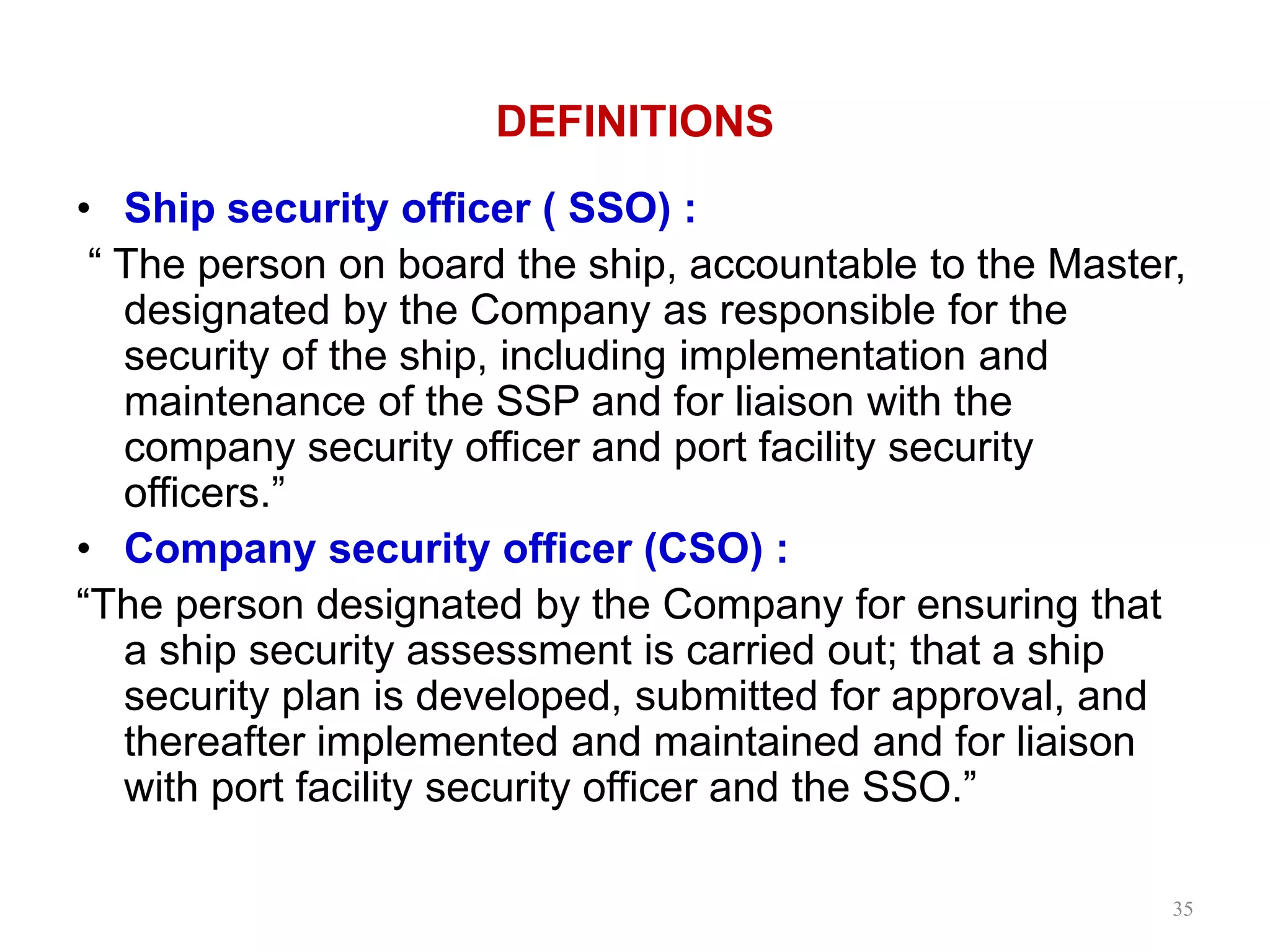

DEFINITIONS
• Ship security officer ( SSO) :
“ The person on board the ship, accountable to the Master,
designated by the Company as responsible for the
security of the ship, including implementation and
maintenance of the SSP and for liaison with the
company security officer and port facility security
officers.”
• Company security officer (CSO) :
“The person designated by the Company for ensuring that
a ship security assessment is carried out; that a ship
security plan is developed, submitted for approval, and
thereafter implemented and maintained and for liaison
with port facility security officer and the SSO.”
35

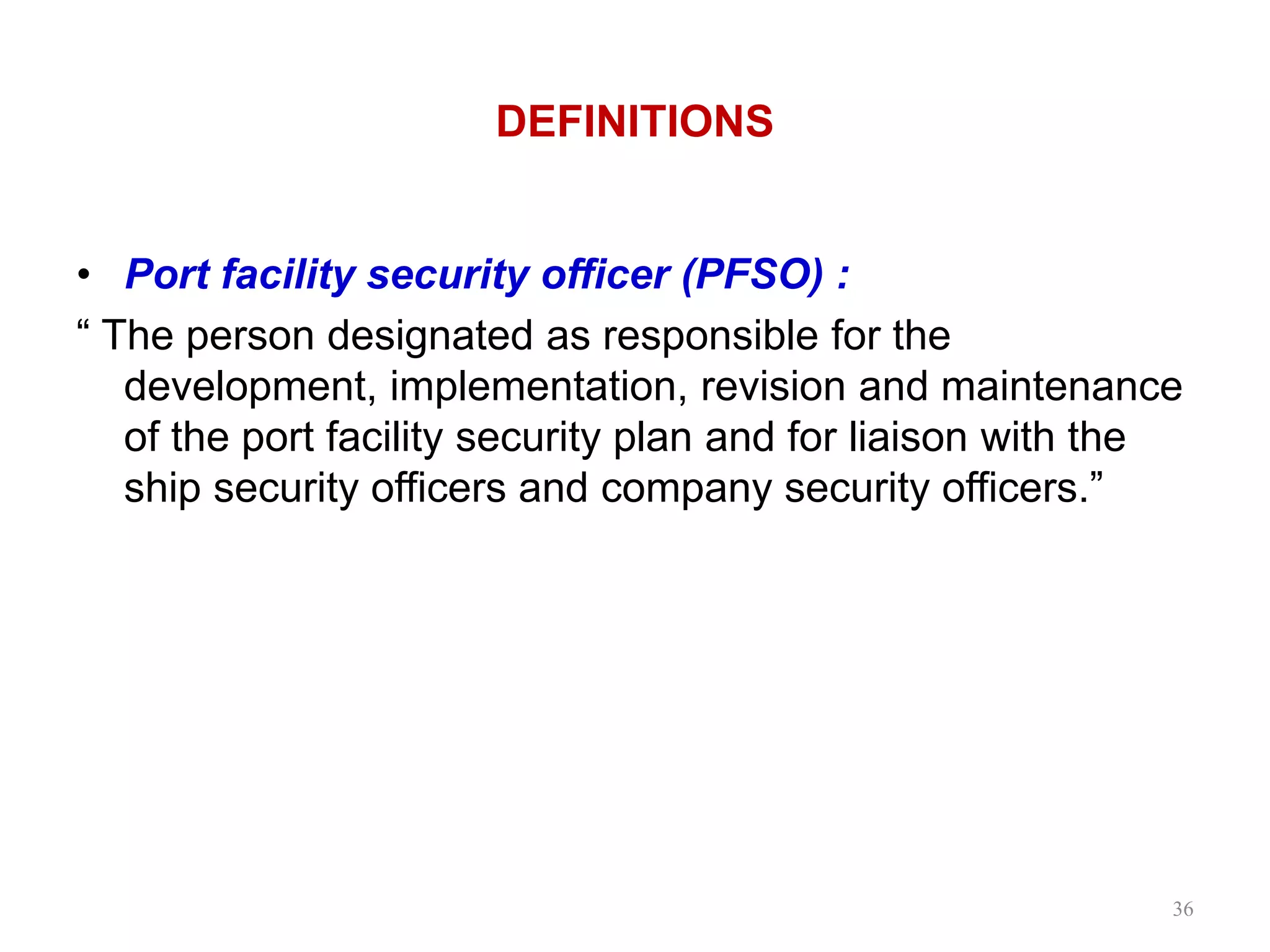

DEFINITIONS
• Port facility security officer (PFSO) :
“ The person designated as responsible for the
development, implementation, revision and maintenance
of the port facility security plan and for liaison with the
ship security officers and company security officers.”
36

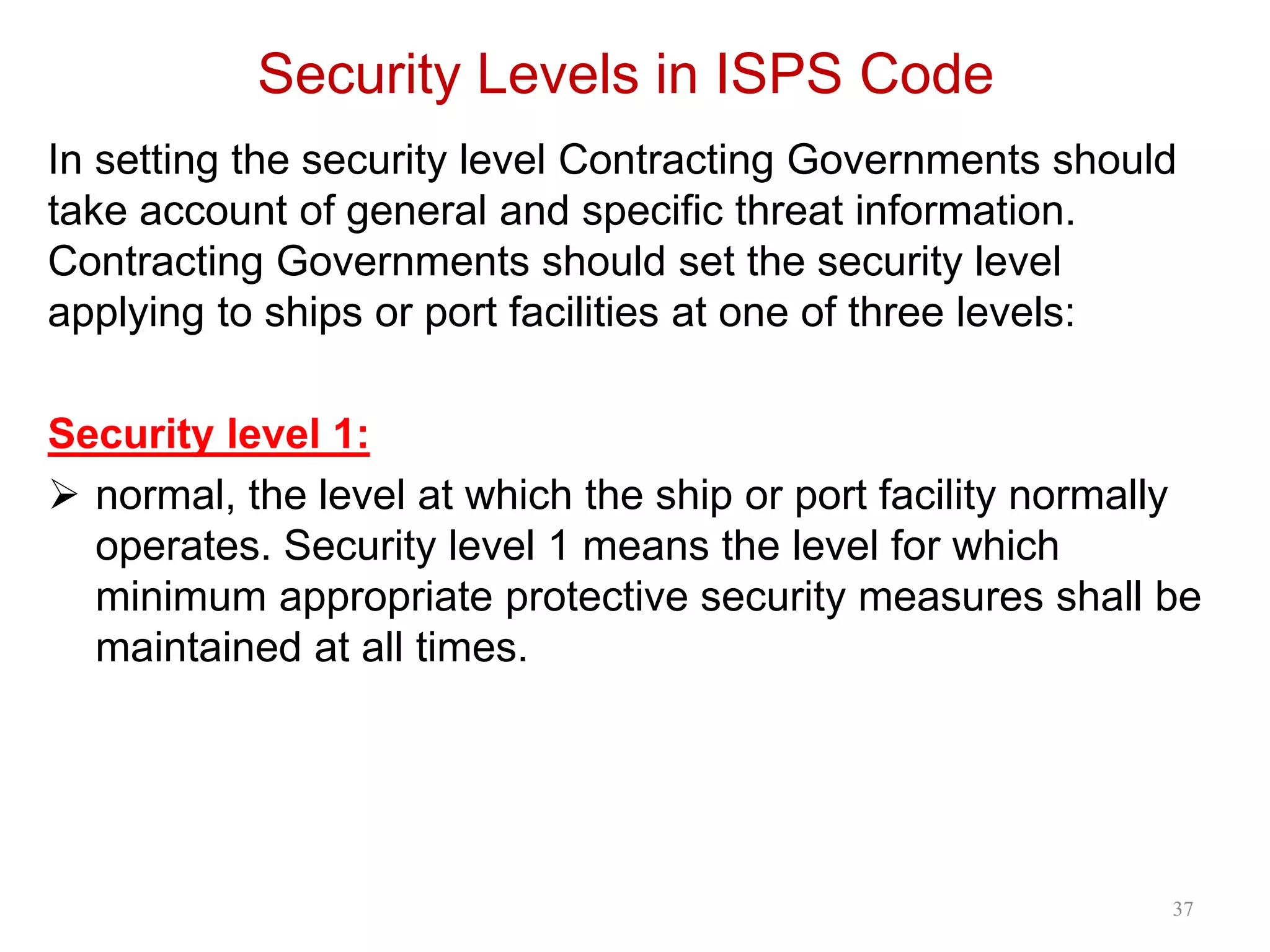

Security Levels in ISPS Code
In setting the security level Contracting Governments should
take account of general and specific threat information.
Contracting Governments should set the security level
applying to ships or port facilities at one of three levels:
Security level 1:
 normal, the level at which the ship or port facility normally
operates. Security level 1 means the level for which
minimum appropriate protective security measures shall be
maintained at all times.
37

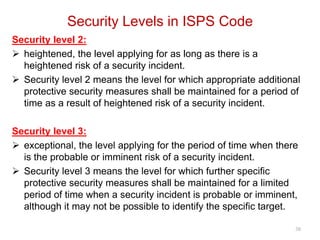

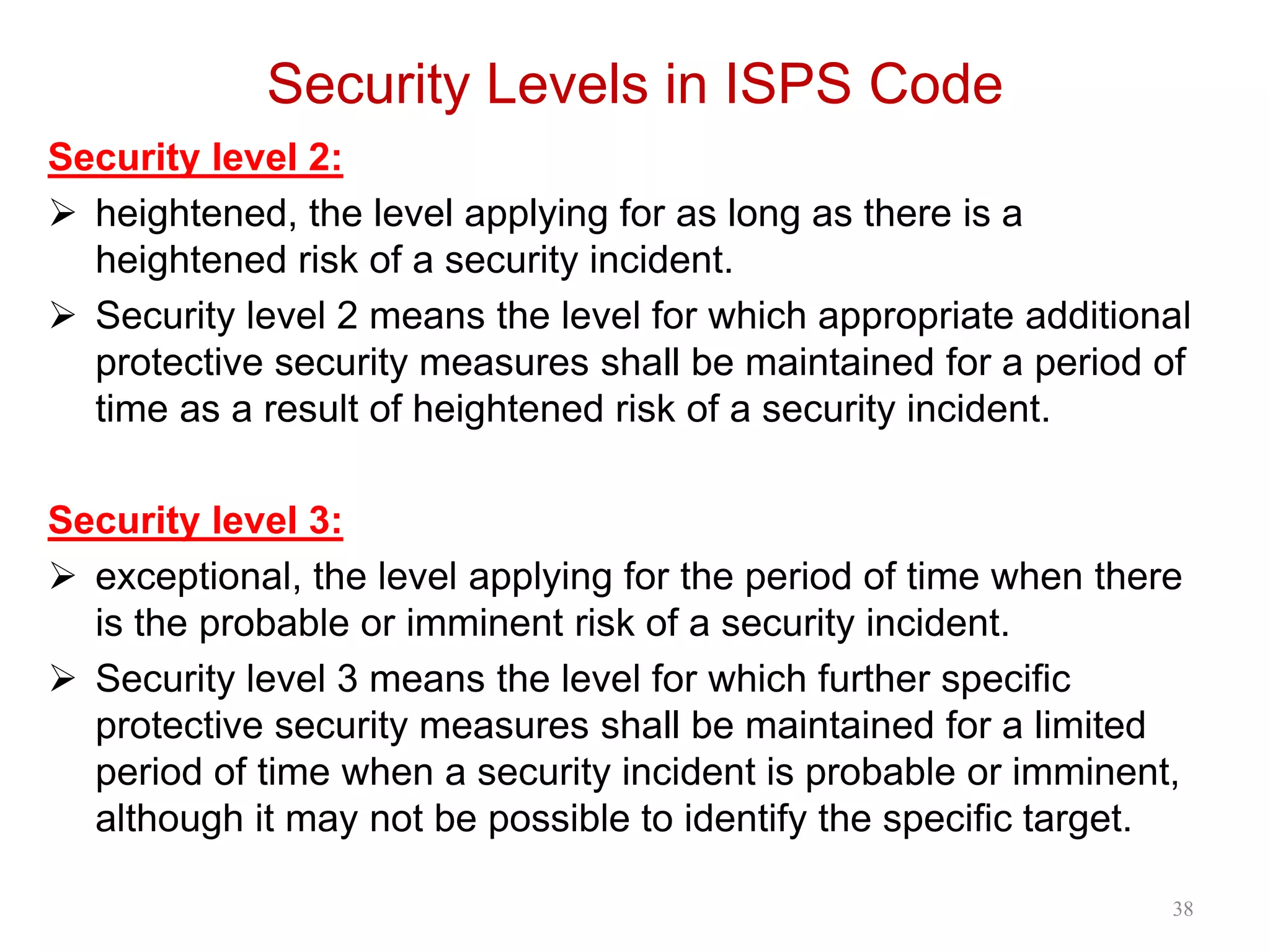

Security Levels in ISPS Code
Security level 2:
 heightened, the level applying for as long as there is a
heightened risk of a security incident.
 Security level 2 means the level for which appropriate additional
protective security measures shall be maintained for a period of
time as a result of heightened risk of a security incident.
Security level 3:
 exceptional, the level applying for the period of time when there
is the probable or imminent risk of a security incident.
 Security level 3 means the level for which further specific
protective security measures shall be maintained for a limited
period of time when a security incident is probable or imminent,
although it may not be possible to identify the specific target.
38

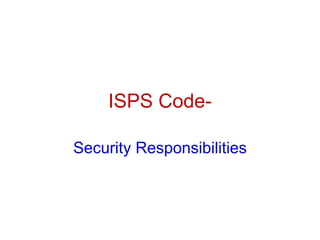

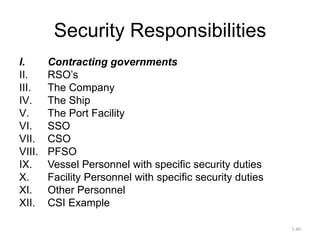

ISPS Code-
Security Responsibilities
Security Responsibilities
I. Contracting governments
II. RSO’s
III. The Company
IV. The Ship
V. The Port Facility
VI. SSO
VII. CSO
VIII. PFSO
IX. Vessel Personnel with specific security duties
X. Facility Personnel with specific security duties

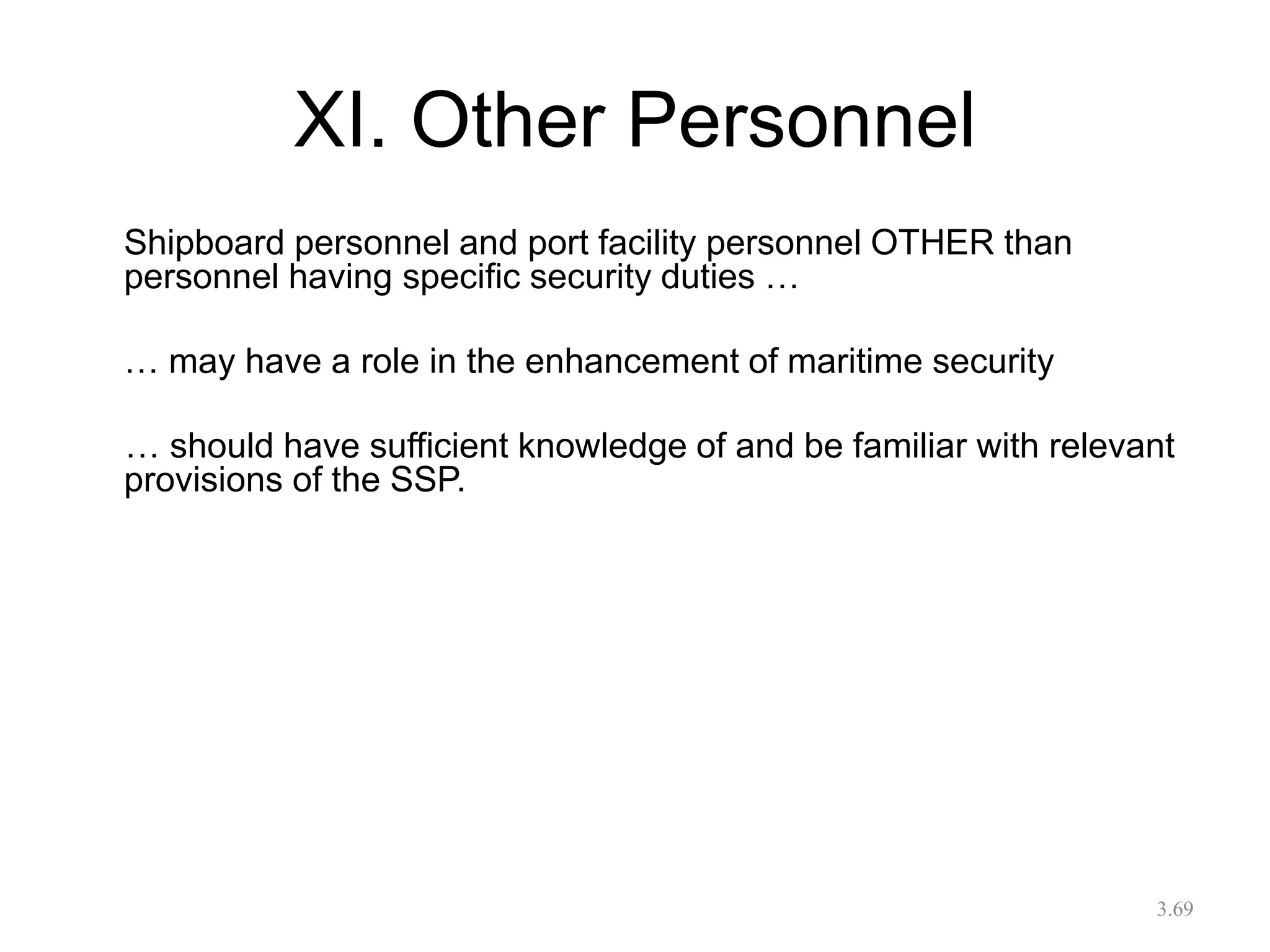

XI. Other Personnel
XII. CSI Example
3.40

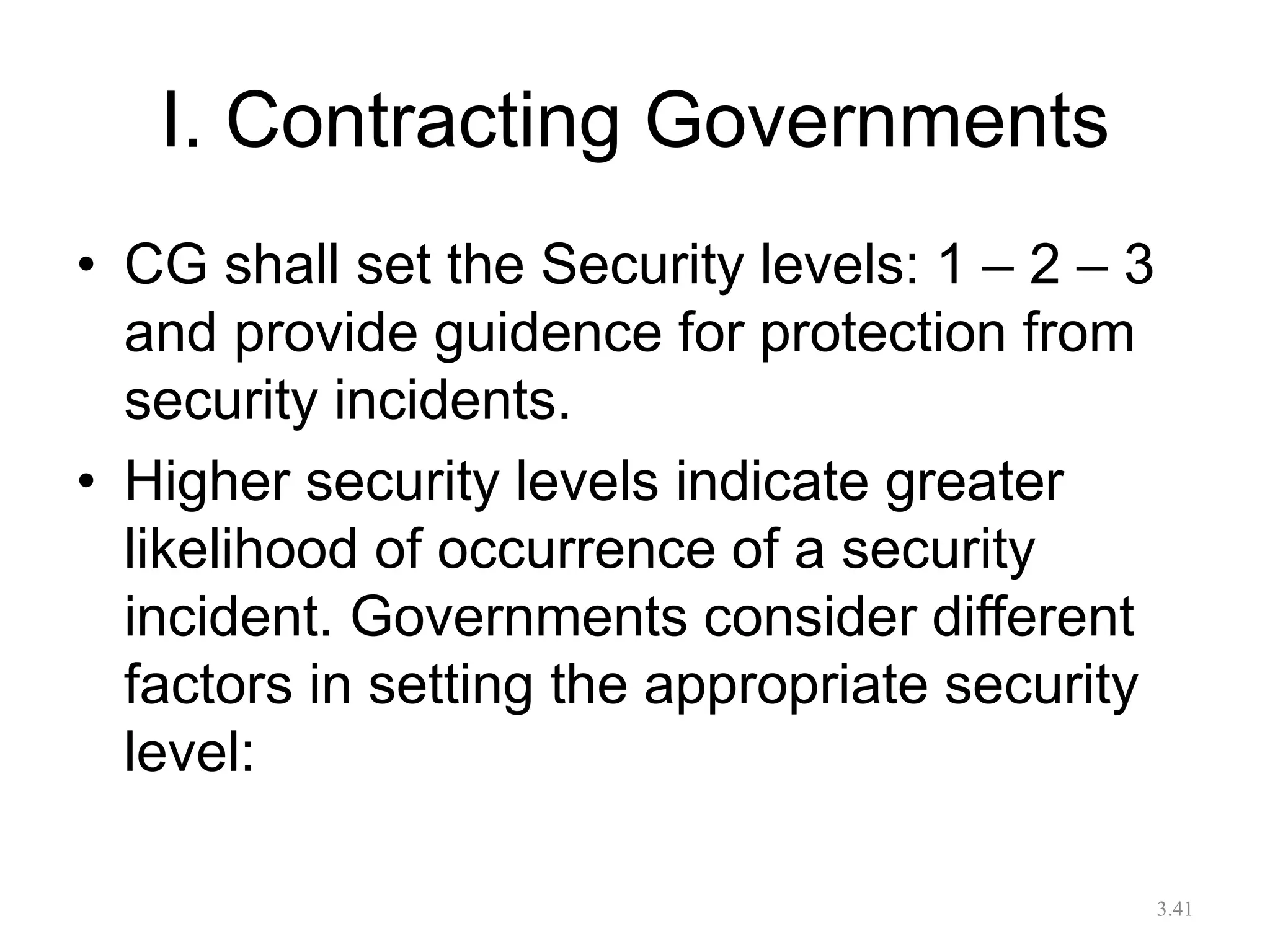

I. Contracting Governments
• CG shall set the Security levels: 1 – 2 – 3
and provide guidence for protection from
security incidents.
• Higher security levels indicate greater
likelihood of occurrence of a security
incident. Governments consider different
factors in setting the appropriate security
level:
3.41

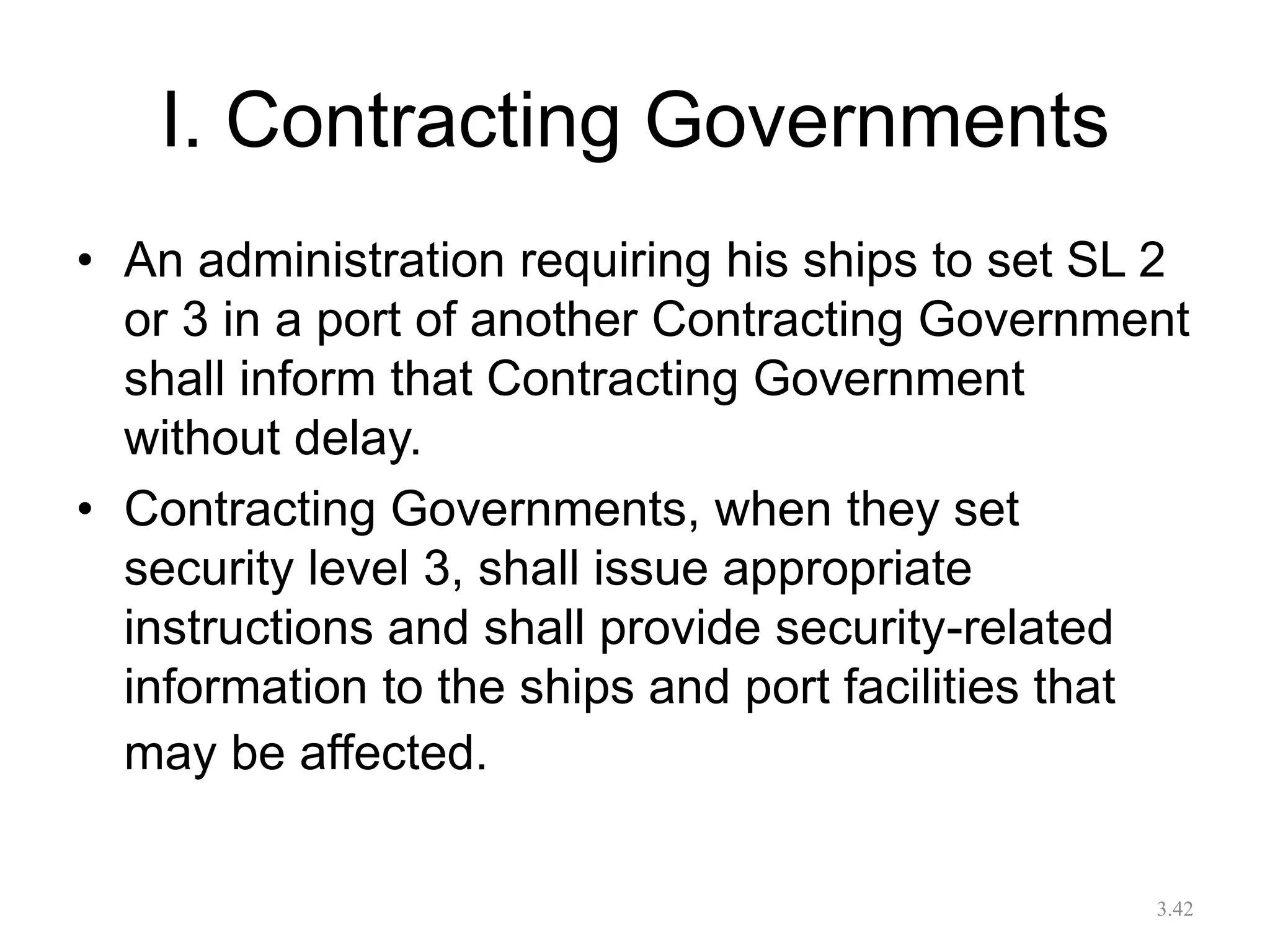

I. Contracting Governments
• An administration requiring his ships to set SL 2
or 3 in a port of another Contracting Government
shall inform that Contracting Government
without delay.
• Contracting Governments, when they set
security level 3, shall issue appropriate
instructions and shall provide security-related
information to the ships and port facilities that
may be affected.
3.42

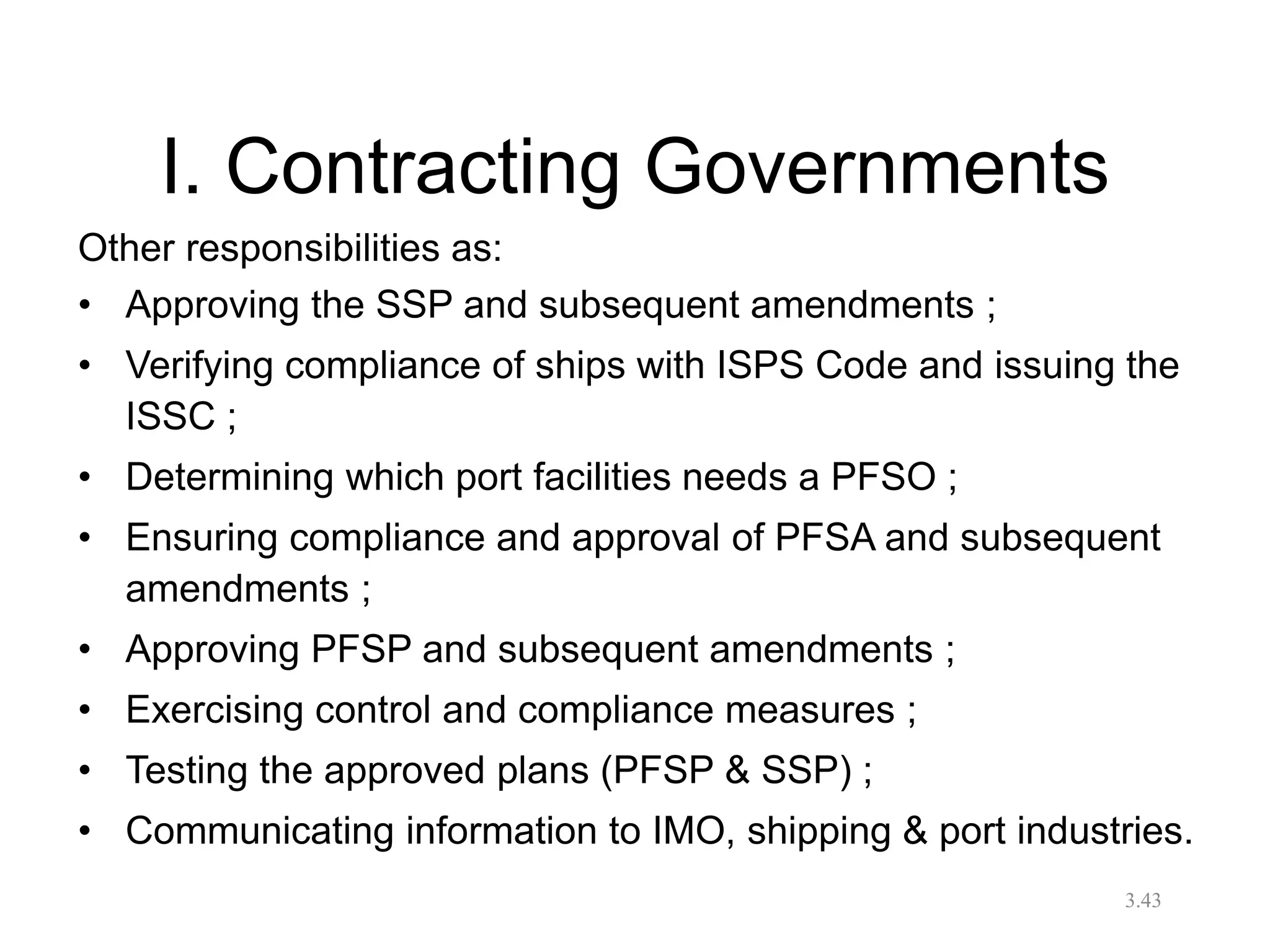

I. Contracting Governments
Other responsibilities as:
• Approving the SSP and subsequent amendments ;
• Verifying compliance of ships with ISPS Code and issuing the
ISSC ;
• Determining which port facilities needs a PFSO ;
• Ensuring compliance and approval of PFSA and subsequent
amendments ;
• Approving PFSP and subsequent amendments ;
• Exercising control and compliance measures ;
• Testing the approved plans (PFSP & SSP) ;
• Communicating information to IMO, shipping & port industries.
3.43

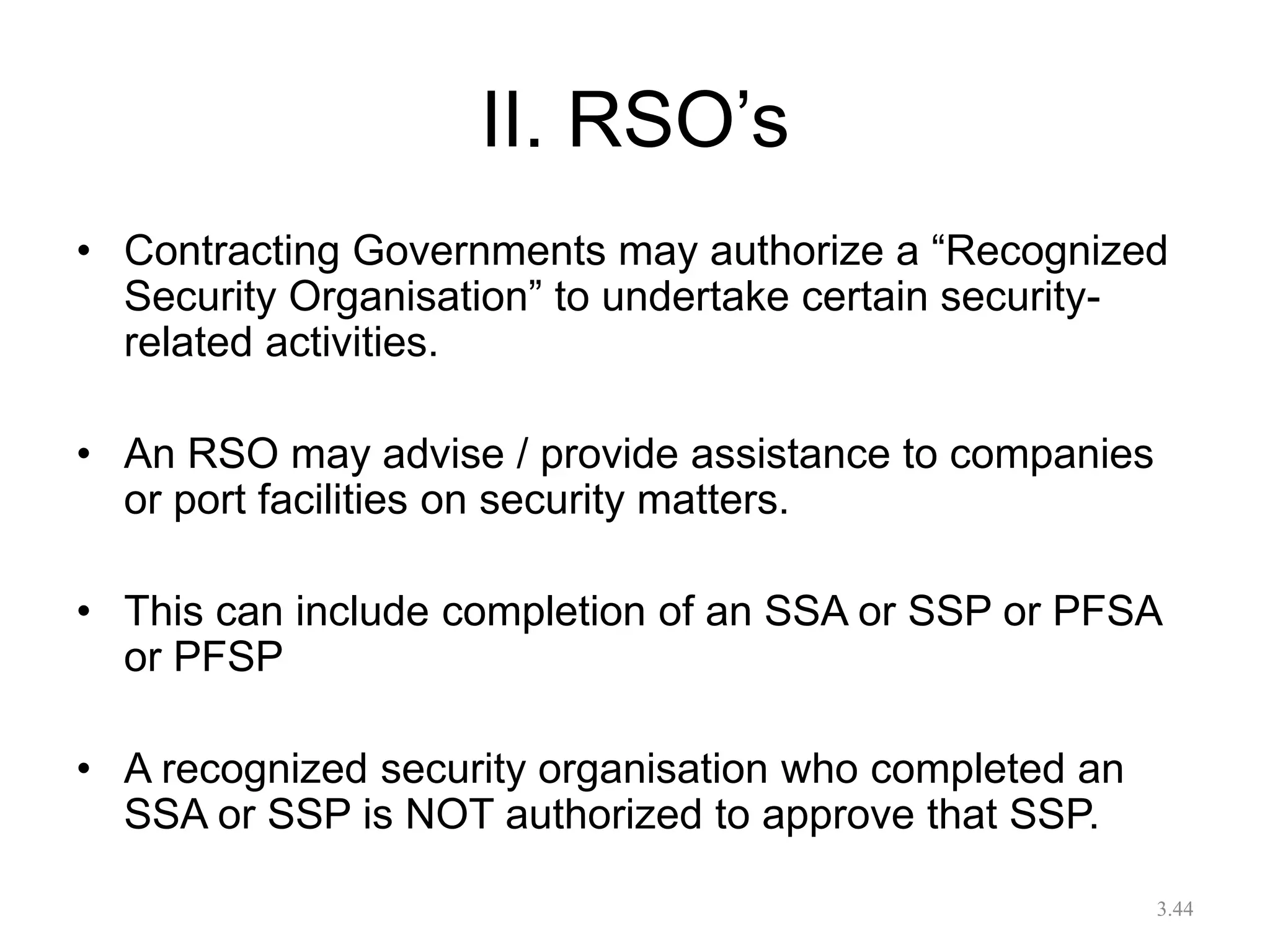

II. RSO’s
• Contracting Governments may authorize a “Recognized
Security Organisation” to undertake certain security-
related activities.
• An RSO may advise / provide assistance to companies
or port facilities on security matters.
• This can include completion of an SSA or SSP or PFSA
or PFSP
• A recognized security organisation who completed an
SSA or SSP is NOT authorized to approve that SSP.
3.44

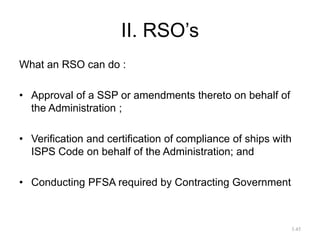

II. RSO’s
What an RSO can do :
• Approval of a SSP or amendments thereto on behalf of
the Administration ;
• Verification and certification of compliance of ships with
ISPS Code on behalf of the Administration; and
• Conducting PFSA required by Contracting Government
3.45

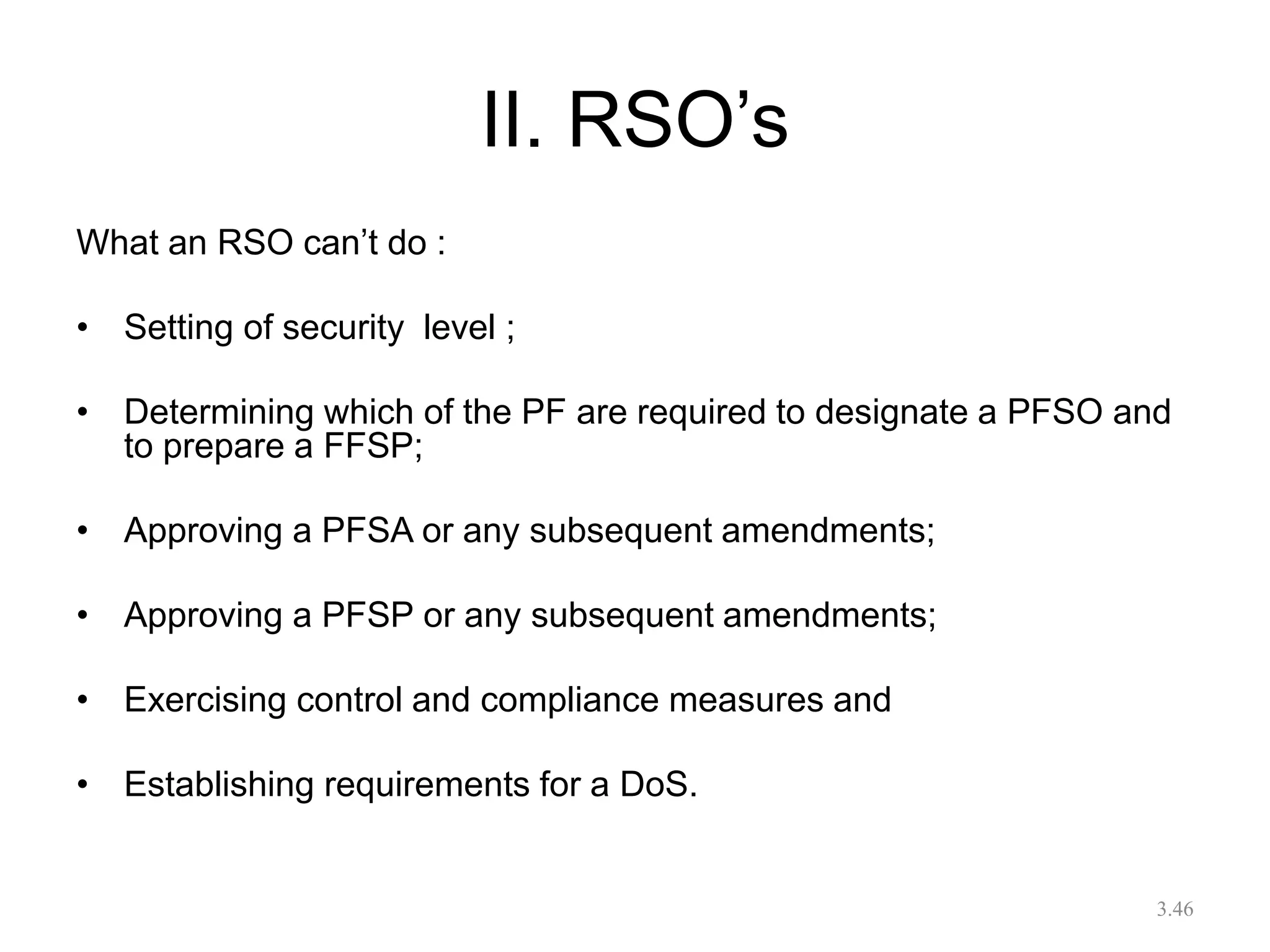

II. RSO’s
What an RSO can’t do :
• Setting of security level ;
• Determining which of the PF are required to designate a PFSO and
to prepare a FFSP;
• Approving a PFSA or any subsequent amendments;
• Approving a PFSP or any subsequent amendments;
• Exercising control and compliance measures and
• Establishing requirements for a DoS.
3.46

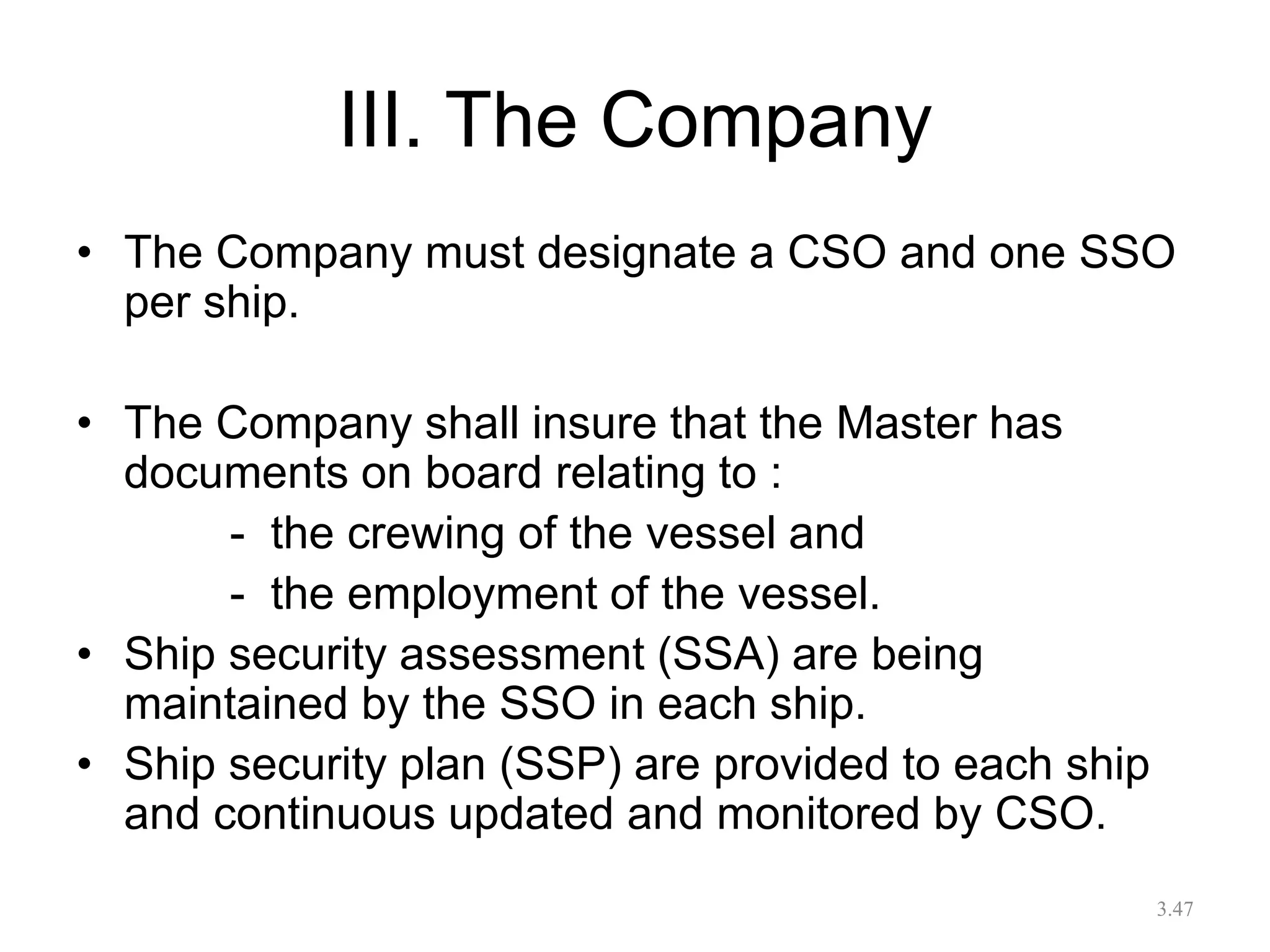

III. The Company
• The Company must designate a CSO and one SSO
per ship.
• The Company shall insure that the Master has
documents on board relating to :
- the crewing of the vessel and
- the employment of the vessel.
• Ship security assessment (SSA) are being
maintained by the SSO in each ship.
• Ship security plan (SSP) are provided to each ship
and continuous updated and monitored by CSO.
3.47

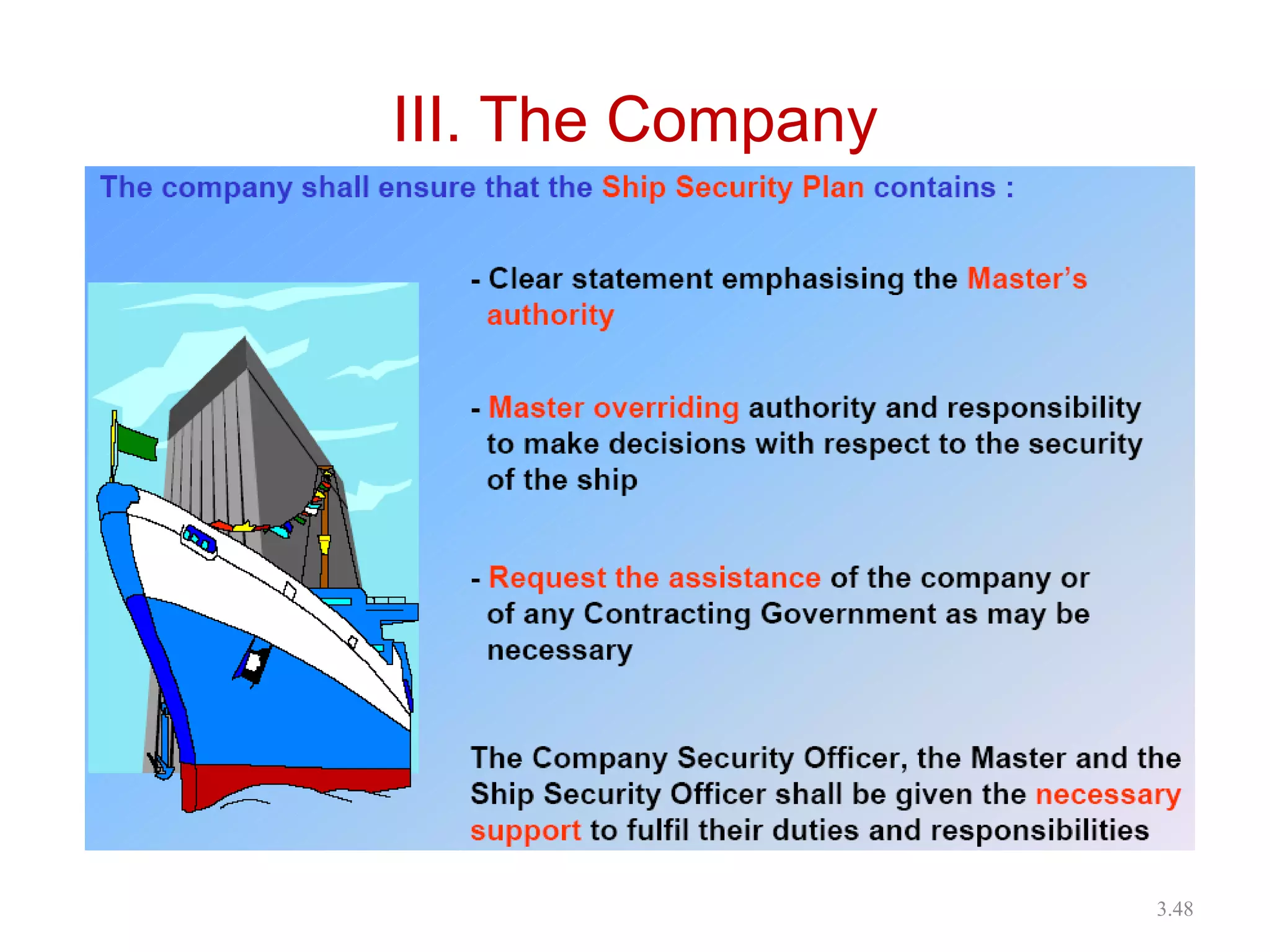

III. The Company
3.48

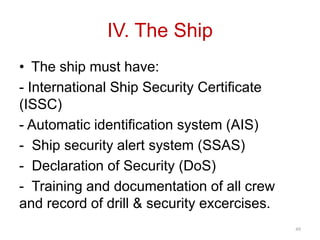

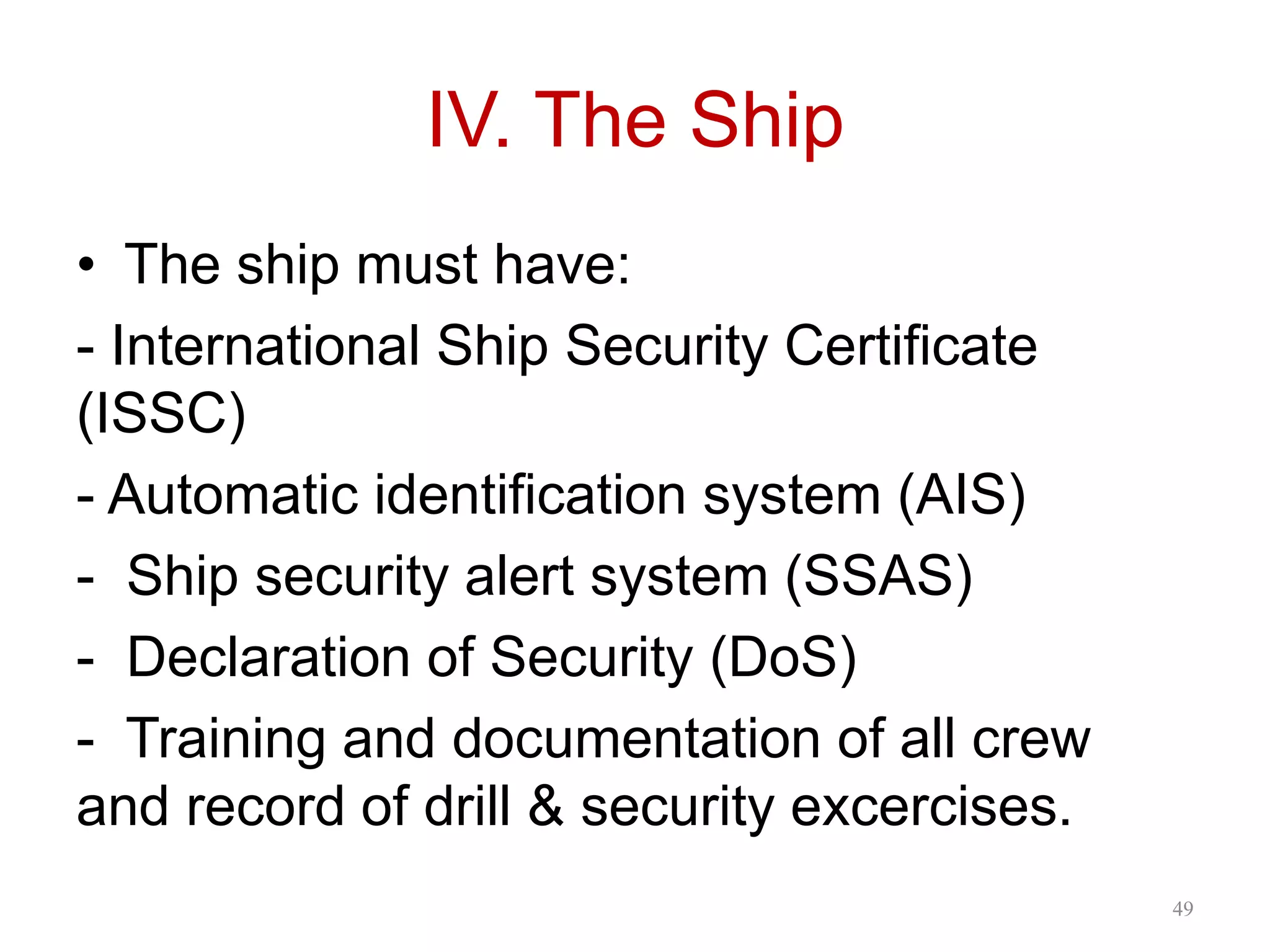

IV. The Ship
• The ship must have:
- International Ship Security Certificate
(ISSC)
- Automatic identification system (AIS)
- Ship security alert system (SSAS)
- Declaration of Security (DoS)
- Training and documentation of all crew
and record of drill & security excercises.
49

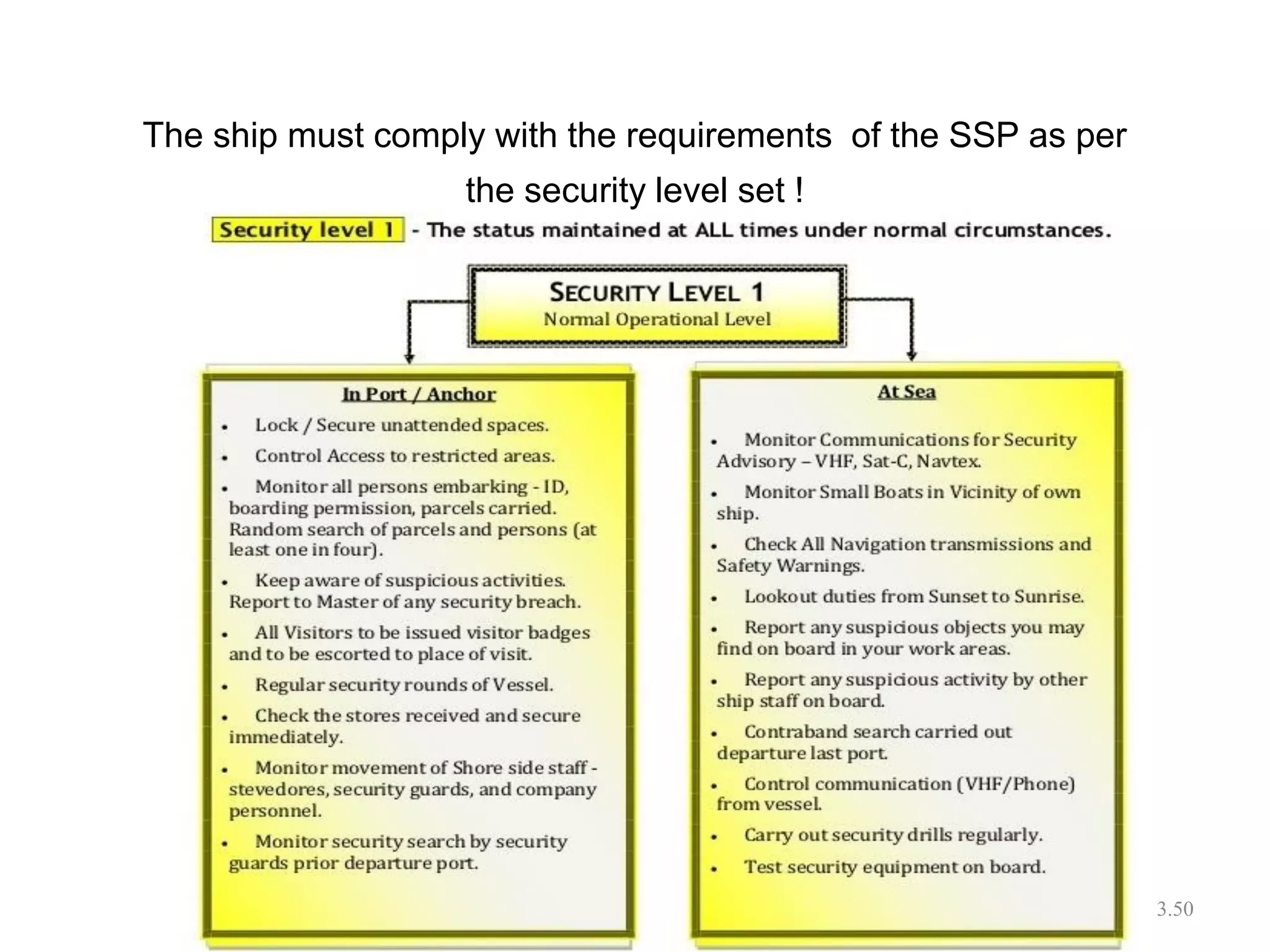

The ship must comply with the requirements of the SSP as per
the security level set !
3.50

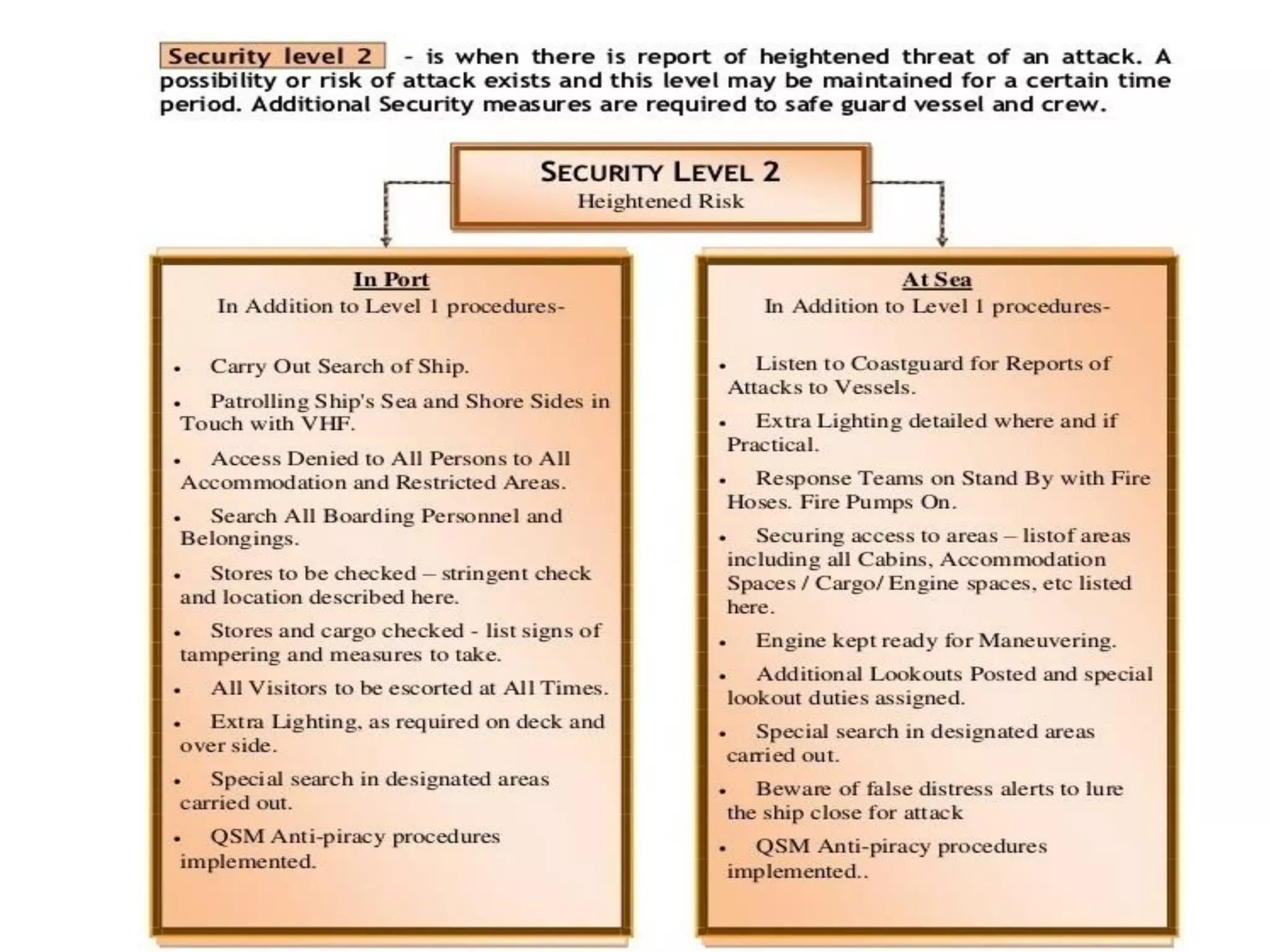

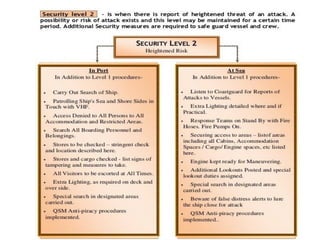

51

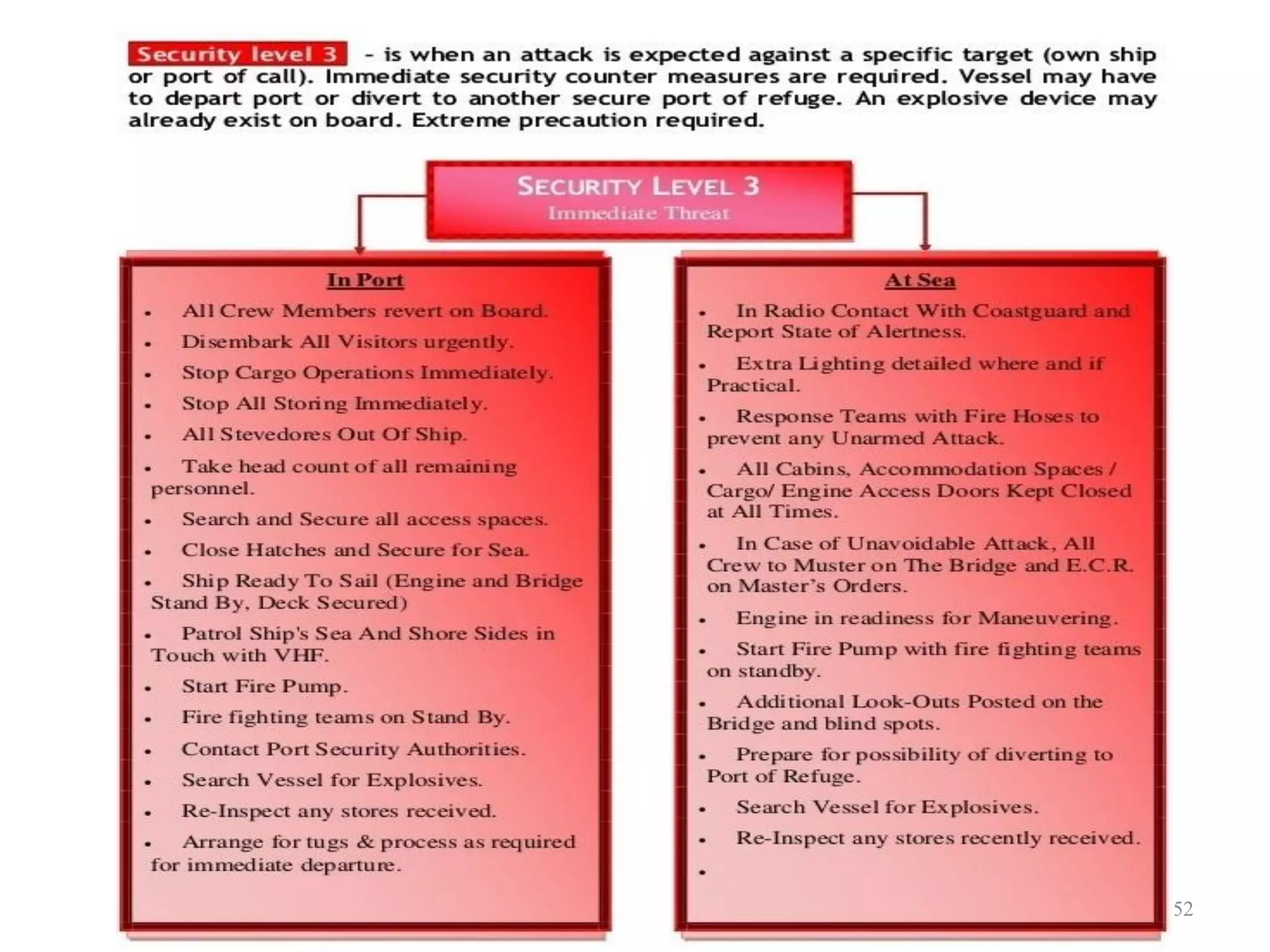

52

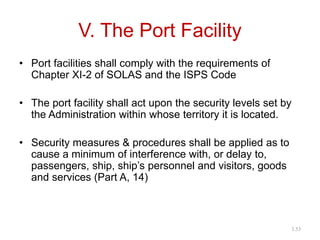

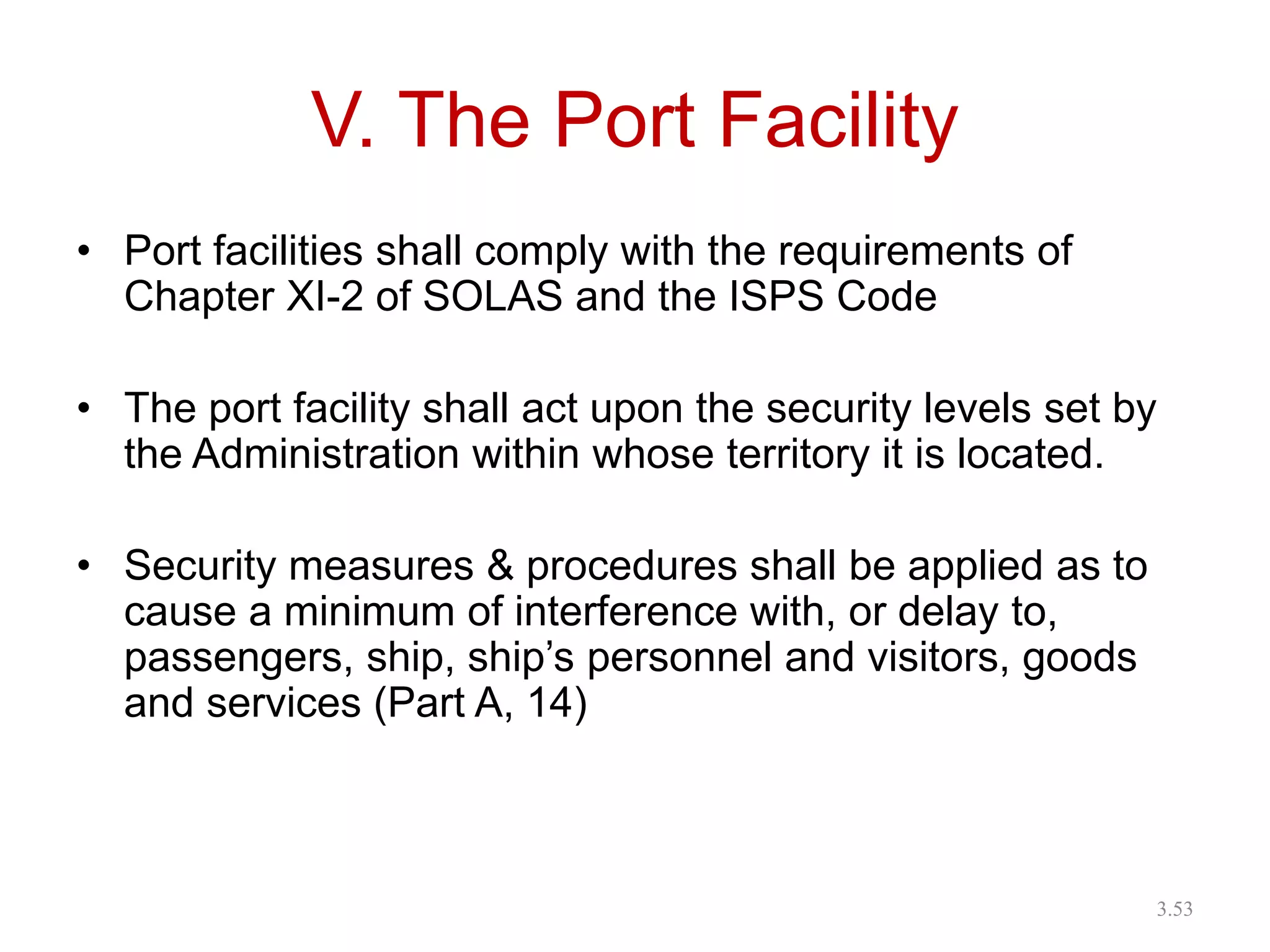

V. The Port Facility
• Port facilities shall comply with the requirements of
Chapter XI-2 of SOLAS and the ISPS Code
• The port facility shall act upon the security levels set by
the Administration within whose territory it is located.
• Security measures & procedures shall be applied as to
cause a minimum of interference with, or delay to,
passengers, ship, ship’s personnel and visitors, goods
and services (Part A, 14)
3.53

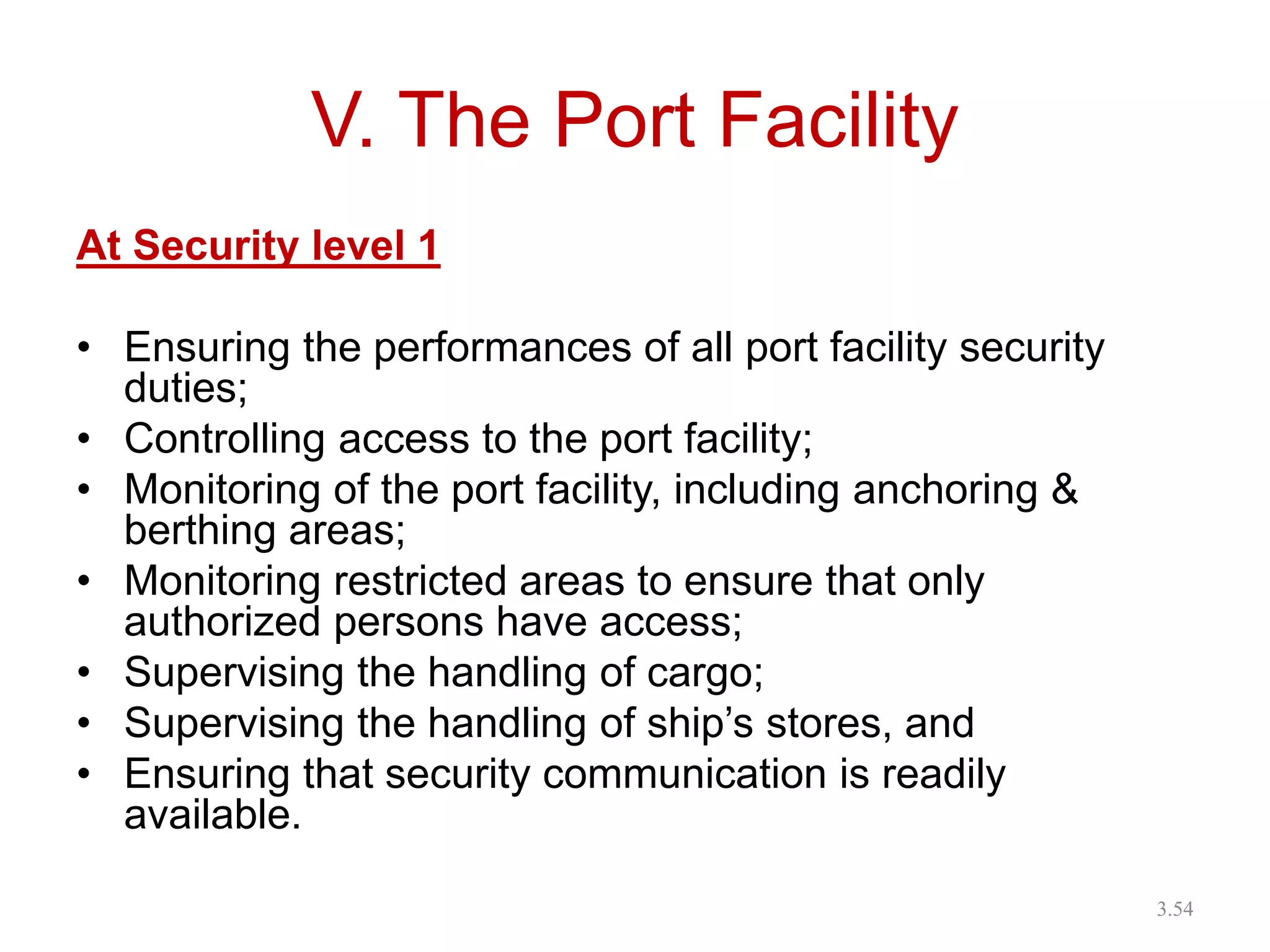

V. The Port Facility
At Security level 1
• Ensuring the performances of all port facility security
duties;
• Controlling access to the port facility;
• Monitoring of the port facility, including anchoring &
berthing areas;
• Monitoring restricted areas to ensure that only
authorized persons have access;
• Supervising the handling of cargo;
• Supervising the handling of ship’s stores, and
• Ensuring that security communication is readily
available.
3.54

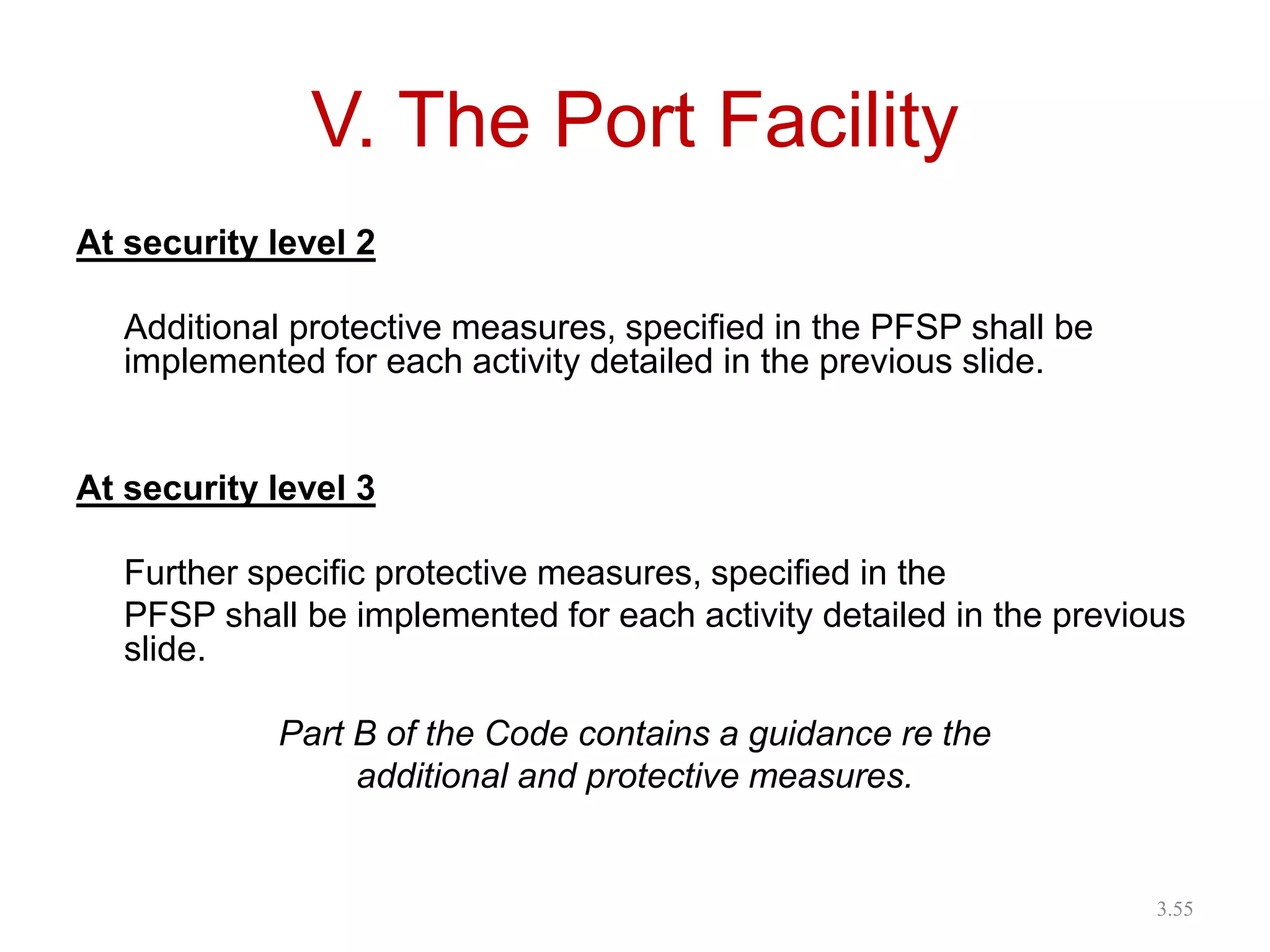

V. The Port Facility
At security level 2
Additional protective measures, specified in the PFSP shall be
implemented for each activity detailed in the previous slide.
At security level 3
Further specific protective measures, specified in the
PFSP shall be implemented for each activity detailed in the previous
slide.
Part B of the Code contains a guidance re the
additional and protective measures.
3.55

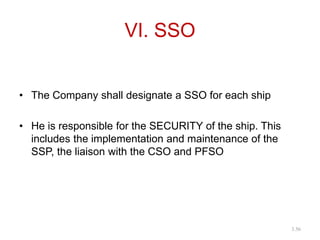

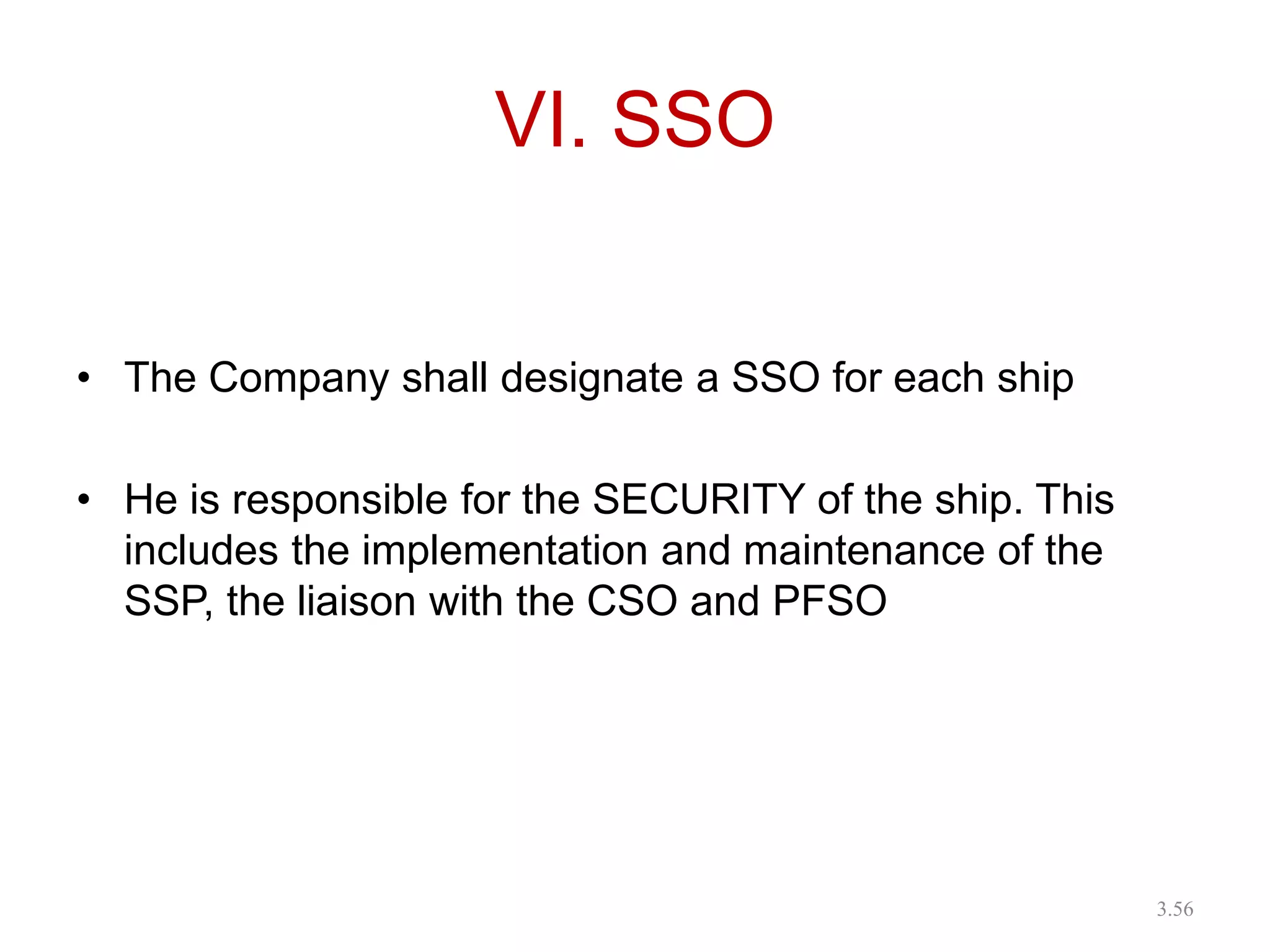

VI. SSO
• The Company shall designate a SSO for each ship
• He is responsible for the SECURITY of the ship. This
includes the implementation and maintenance of the
SSP, the liaison with the CSO and PFSO
3.56

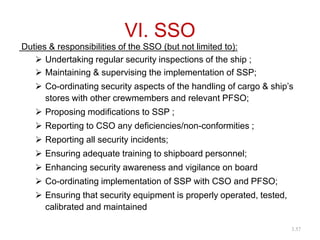

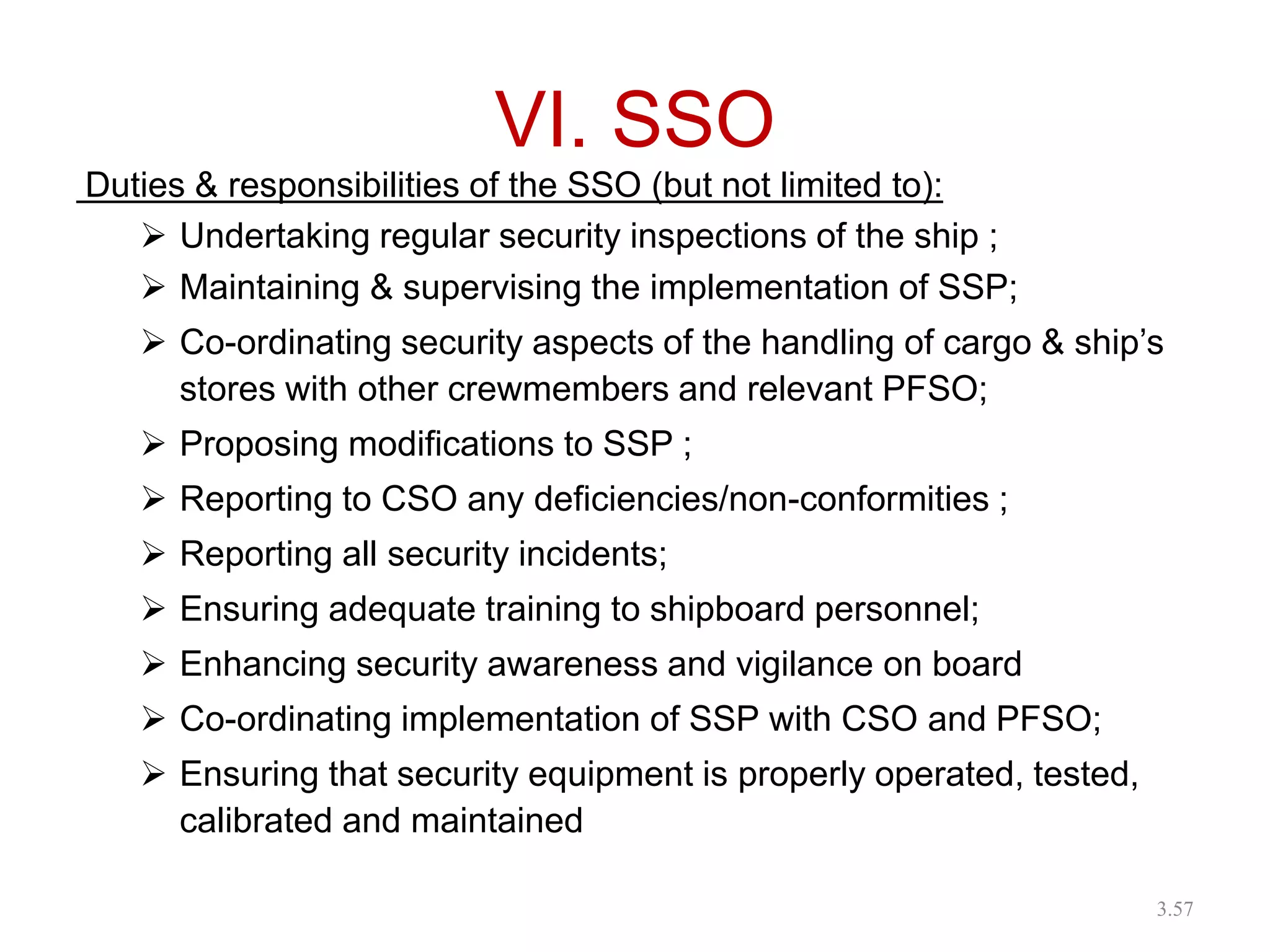

VI. SSO
Duties & responsibilities of the SSO (but not limited to):
 Undertaking regular security inspections of the ship ;
 Maintaining & supervising the implementation of SSP;
 Co-ordinating security aspects of the handling of cargo & ship’s
stores with other crewmembers and relevant PFSO;
 Proposing modifications to SSP ;
 Reporting to CSO any deficiencies/non-conformities ;
 Reporting all security incidents;
 Ensuring adequate training to shipboard personnel;
 Enhancing security awareness and vigilance on board
 Co-ordinating implementation of SSP with CSO and PFSO;
 Ensuring that security equipment is properly operated, tested,
calibrated and maintained
3.57

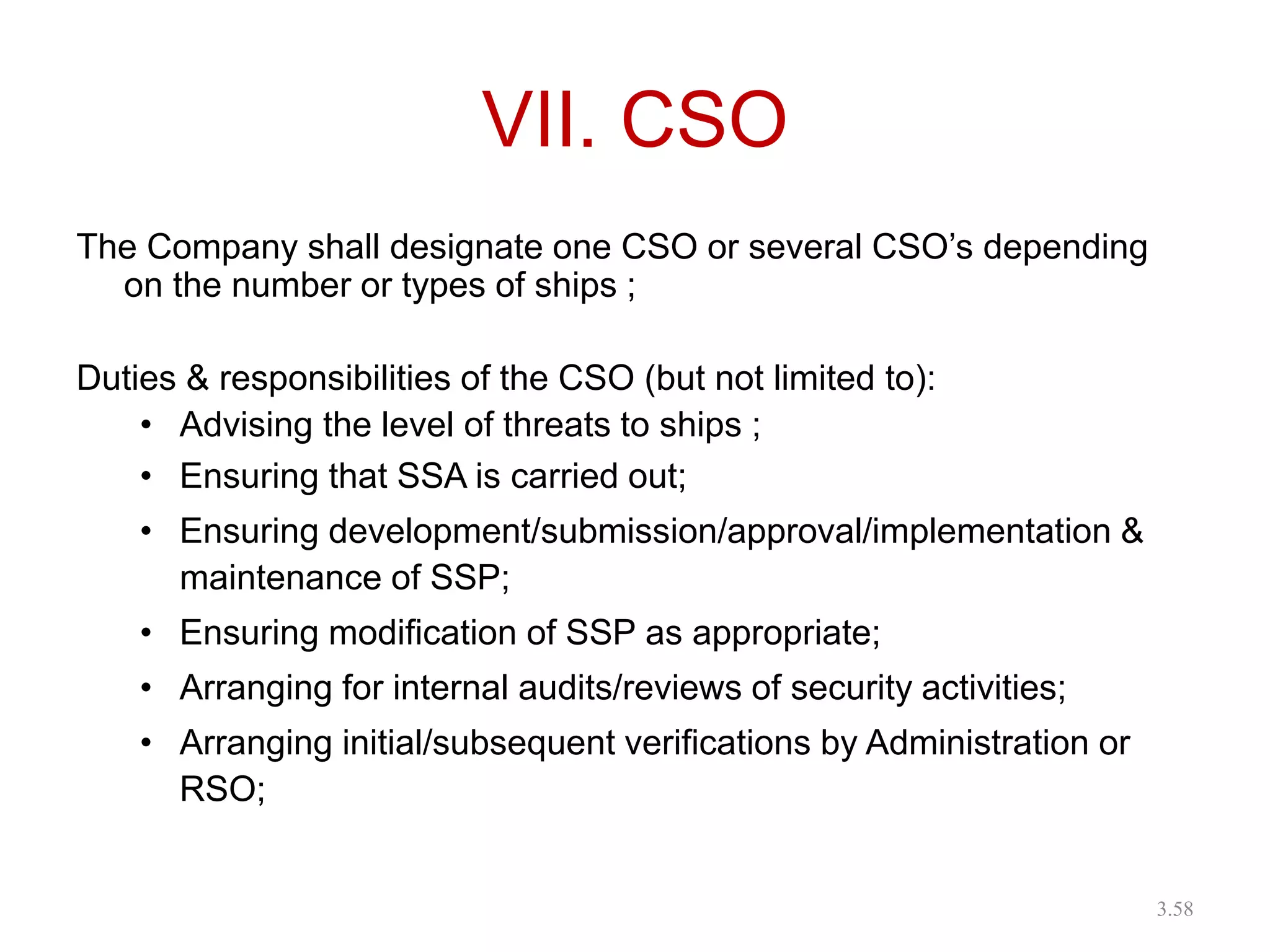

VII. CSO
The Company shall designate one CSO or several CSO’s depending
on the number or types of ships ;
Duties & responsibilities of the CSO (but not limited to):
• Advising the level of threats to ships ;
• Ensuring that SSA is carried out;
• Ensuring development/submission/approval/implementation &
maintenance of SSP;
• Ensuring modification of SSP as appropriate;
• Arranging for internal audits/reviews of security activities;
• Arranging initial/subsequent verifications by Administration or
RSO;
3.58

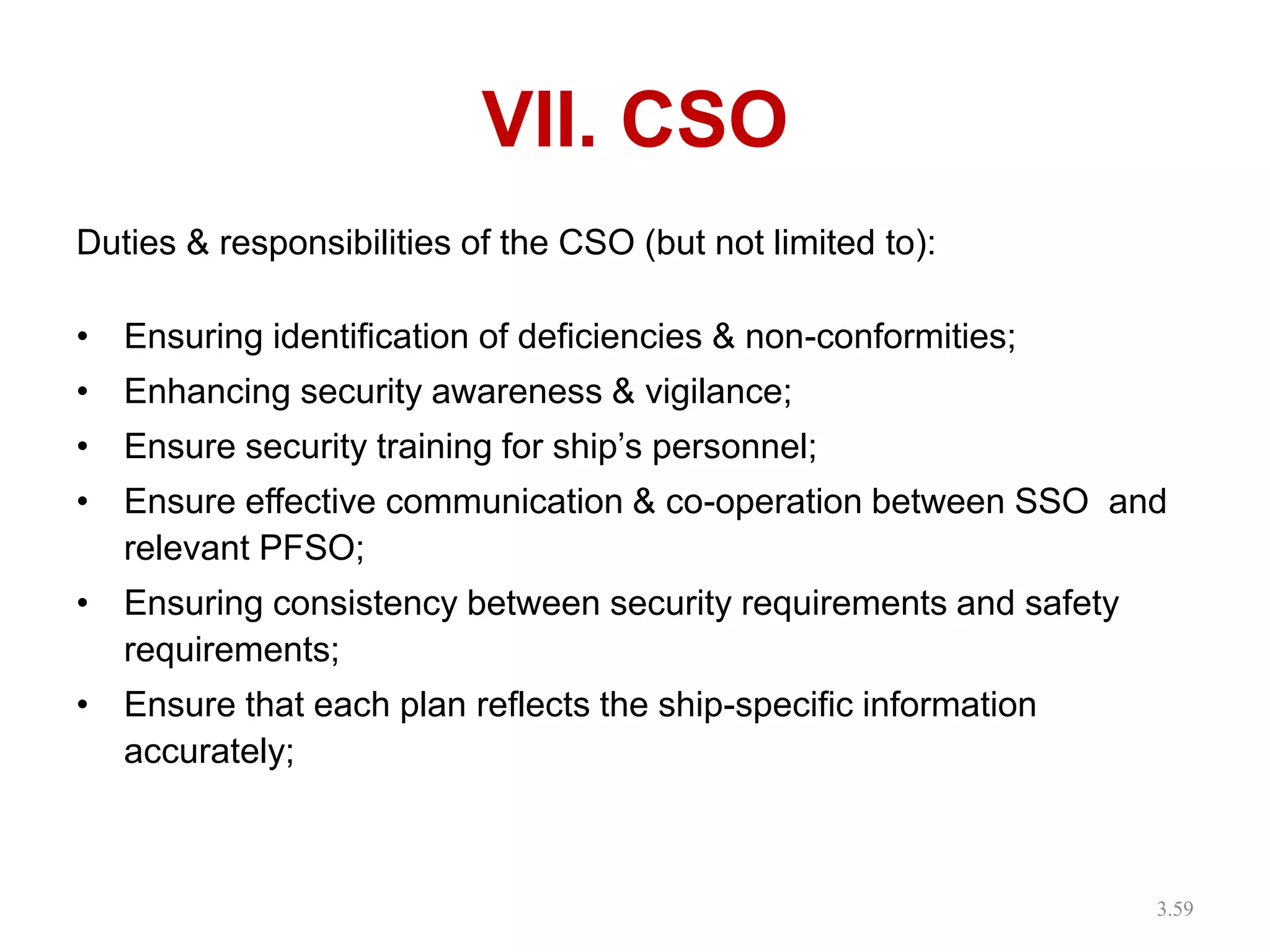

VII. CSO
Duties & responsibilities of the CSO (but not limited to):
• Ensuring identification of deficiencies & non-conformities;
• Enhancing security awareness & vigilance;
• Ensure security training for ship’s personnel;
• Ensure effective communication & co-operation between SSO and
relevant PFSO;
• Ensuring consistency between security requirements and safety
requirements;
• Ensure that each plan reflects the ship-specific information
accurately;
3.59

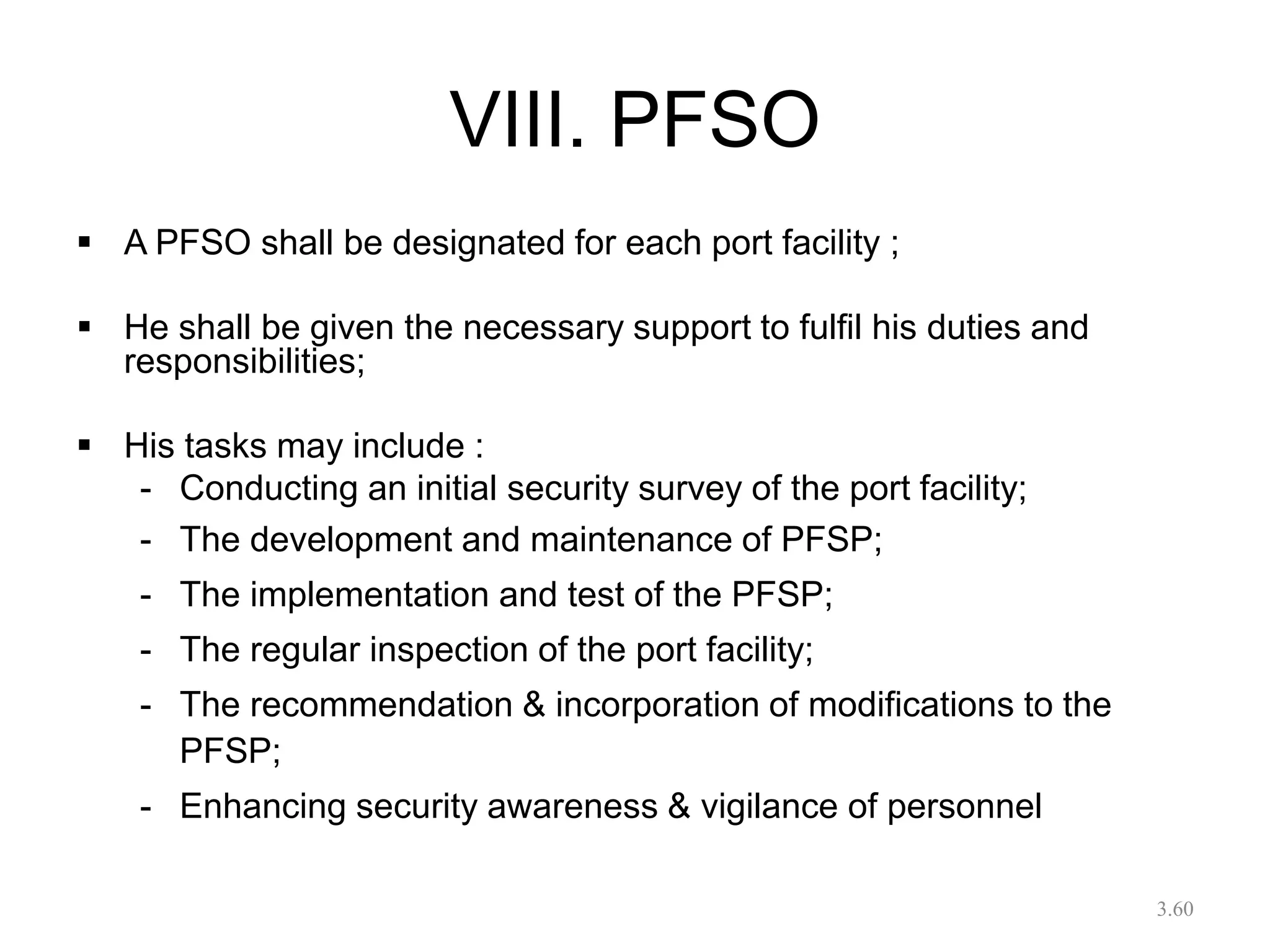

VIII. PFSO
 A PFSO shall be designated for each port facility ;
 He shall be given the necessary support to fulfil his duties and
responsibilities;
 His tasks may include :
- Conducting an initial security survey of the port facility;
- The development and maintenance of PFSP;
- The implementation and test of the PFSP;
- The regular inspection of the port facility;
- The recommendation & incorporation of modifications to the
PFSP;
- Enhancing security awareness & vigilance of personnel
3.60

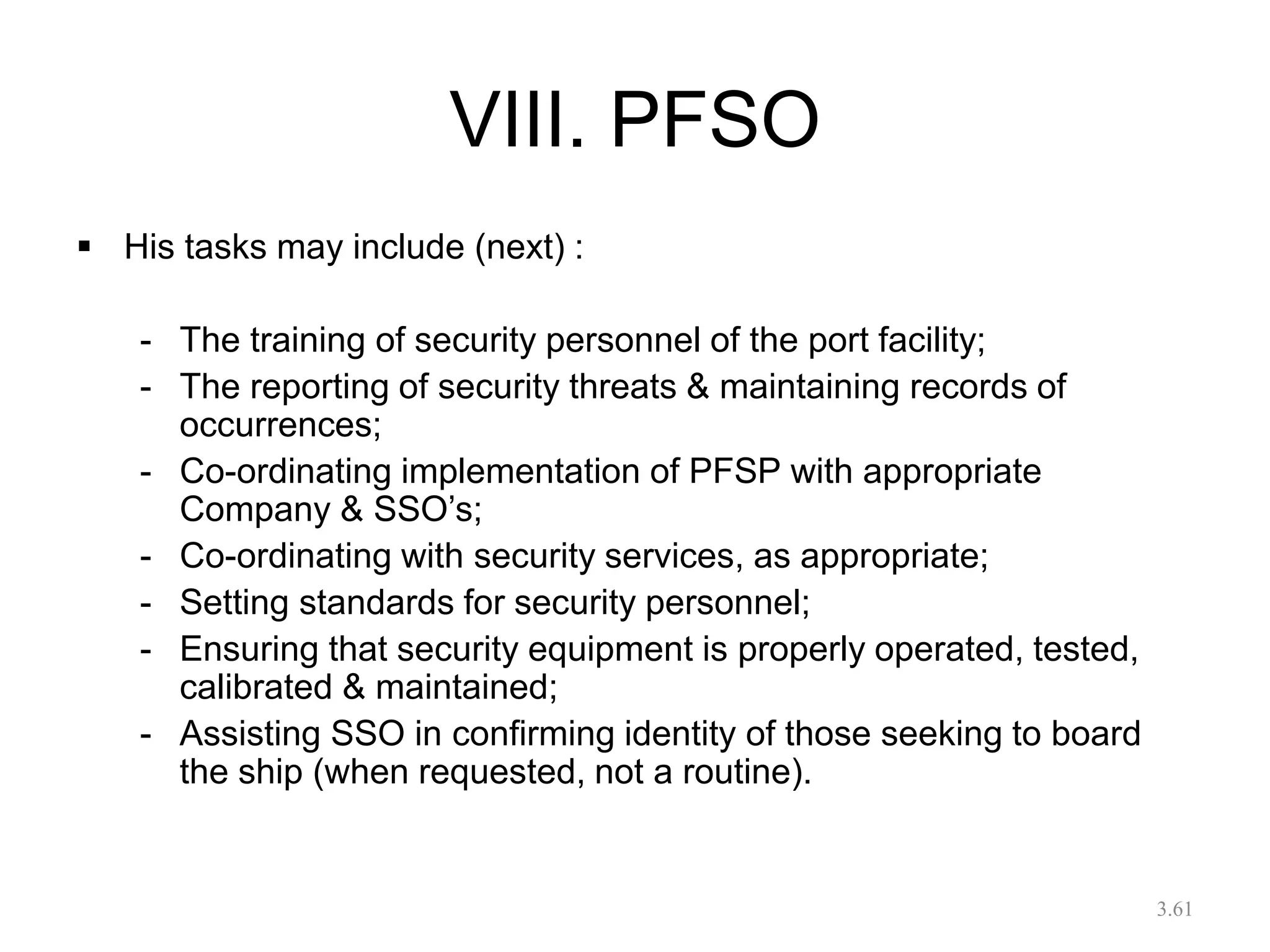

VIII. PFSO
 His tasks may include (next) :
- The training of security personnel of the port facility;
- The reporting of security threats & maintaining records of
occurrences;
- Co-ordinating implementation of PFSP with appropriate
Company & SSO’s;
- Co-ordinating with security services, as appropriate;
- Setting standards for security personnel;
- Ensuring that security equipment is properly operated, tested,
calibrated & maintained;
- Assisting SSO in confirming identity of those seeking to board
the ship (when requested, not a routine).
3.61
VIII. PFSO
If the PFSO is advised that
 A ship is at a higher security level than the port :
the PFSO shall report the matter to the competent
authority and shall contact the SSO to co-ordinate
appropriate action if necessary.
 A ship encounters difficulties in complying/implementing
the procedures detailed in the SSP (especially in case of
security level 3), PFSO & SSO shall liaise and co-
ordinate appropriate actions.
3.62

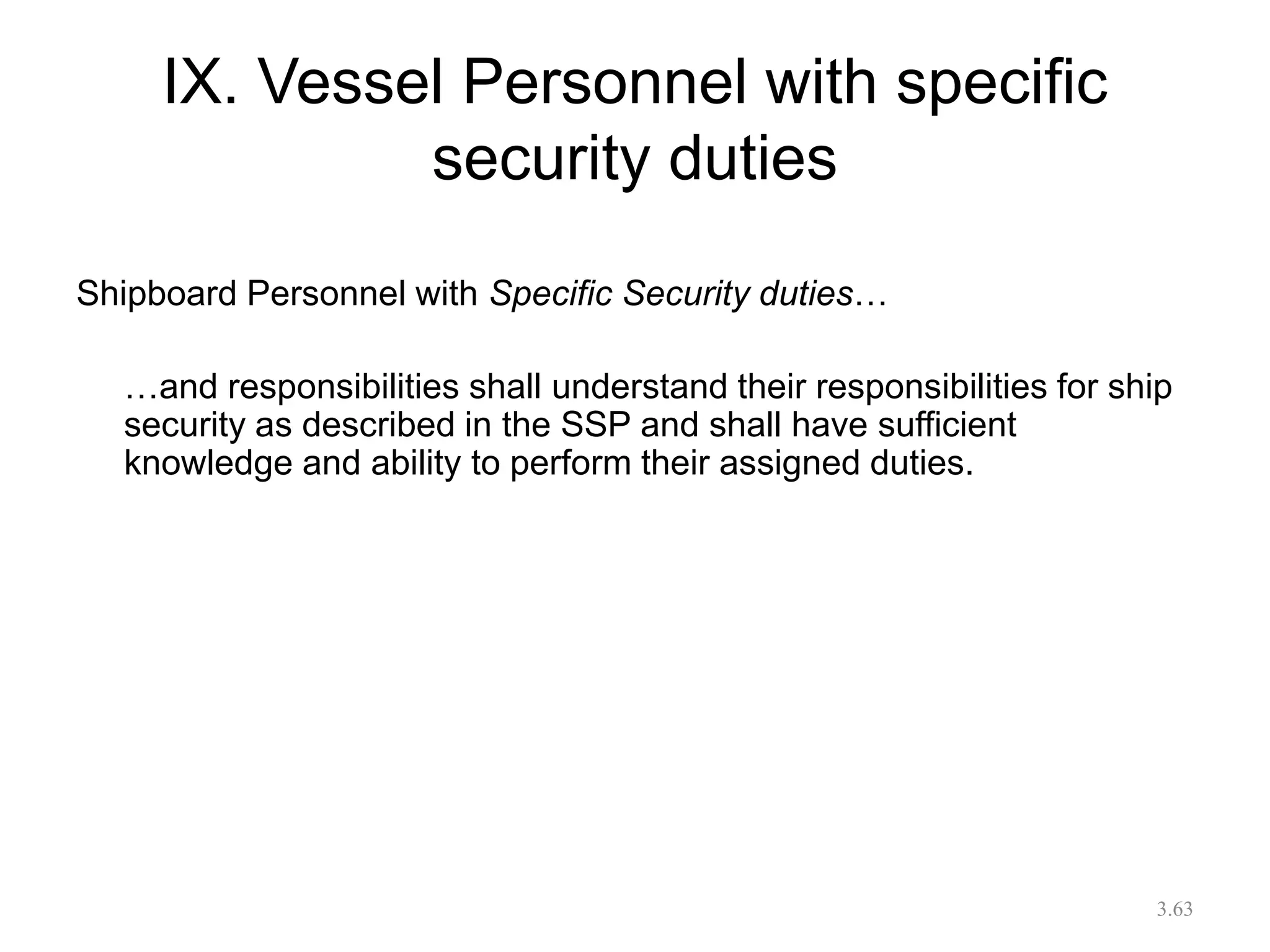

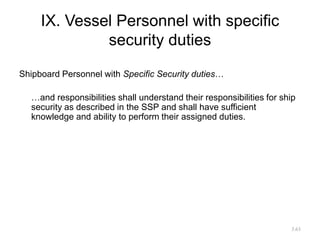

IX. Vessel Personnel with specific
security duties
Shipboard Personnel with Specific Security duties…
…and responsibilities shall understand their responsibilities for ship
security as described in the SSP and shall have sufficient
knowledge and ability to perform their assigned duties.
3.63
IX. Vessel Personnel with specific
security duties
Their knowledge & ability should include, as appropriate :
• Knowledge of security threats & patterns;
• Recognition & detection of weapons, dangerous substances and
devices
• Recognition of characteristics & behavioural patterns of persons who
are likely to threaten security;
• Techniques used to circumvent security measures;-
• Crowd management & control techniques;
• Security-related communications;
• Knowledge of the emergency procedures & contingency plans;
• Operations of security equipment & systems;
• Testing, calibration & at-sea maintenance of security equipment &
systems
• Inspection, control and monitoring techniques;
• Methods of physical searches of persons, personal effects, baggage,
cargo and ship’s stores
3.64

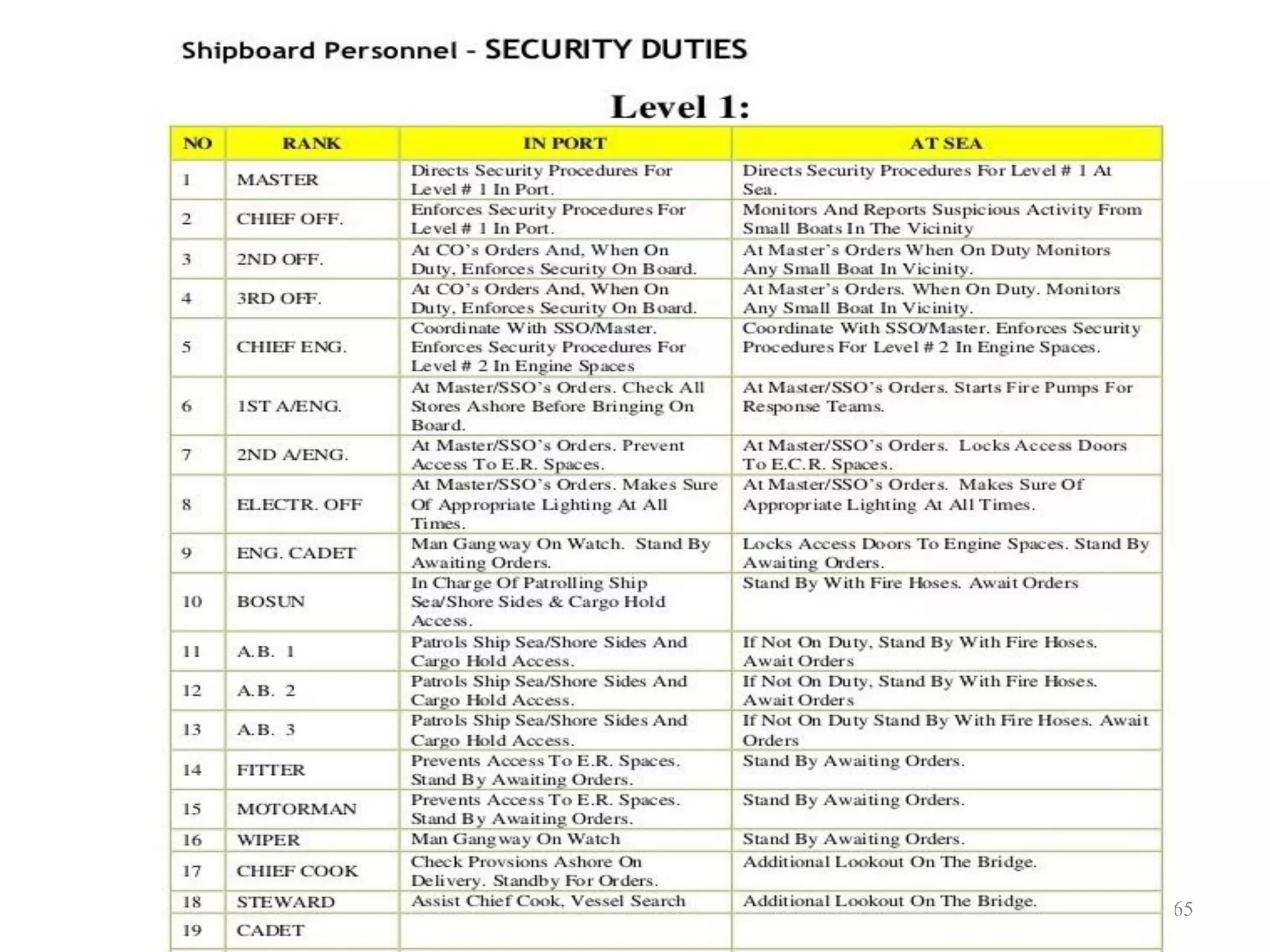

65
66
67

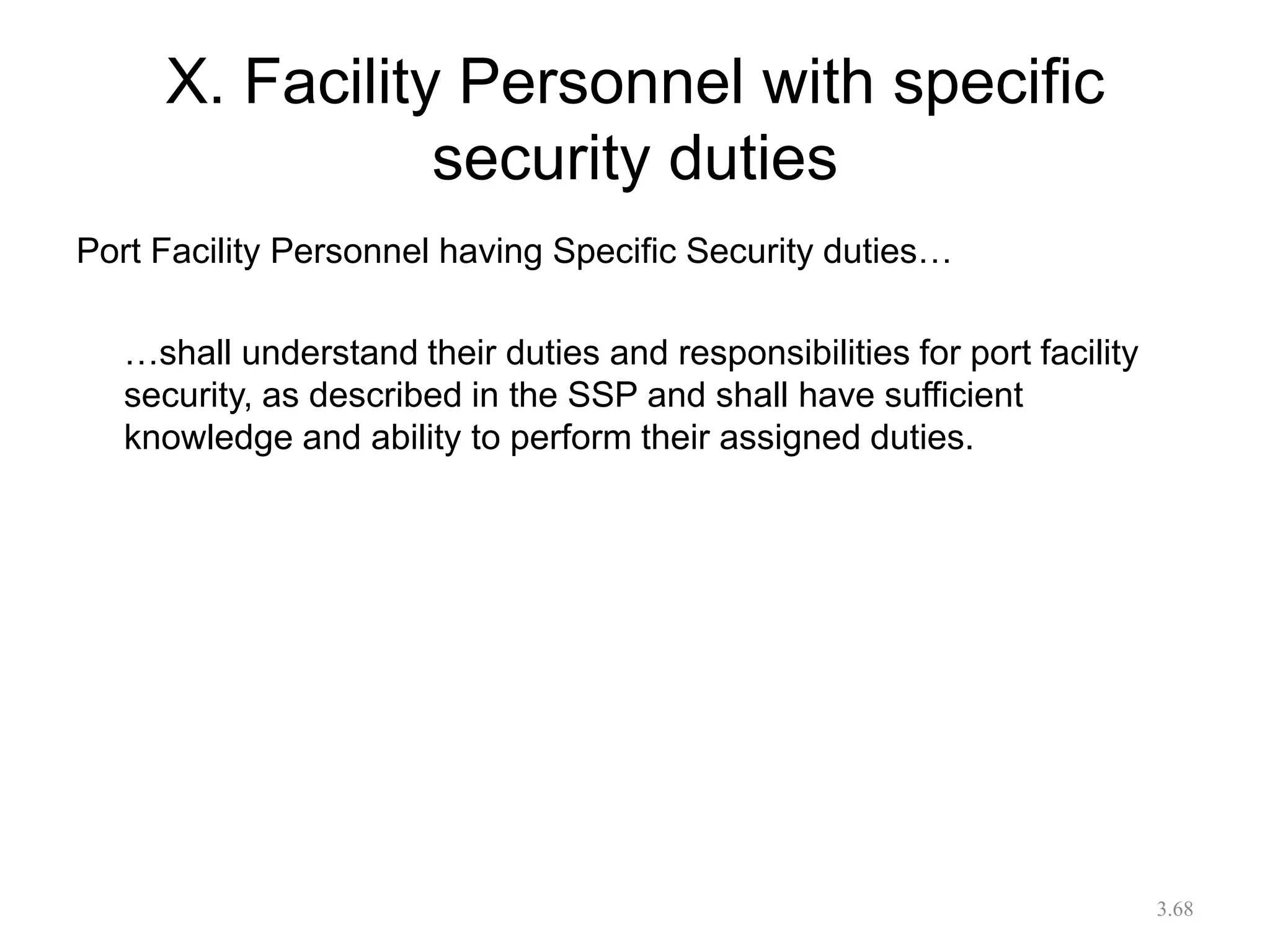

X. Facility Personnel with specific
security duties
Port Facility Personnel having Specific Security duties…
…shall understand their duties and responsibilities for port facility
security, as described in the SSP and shall have sufficient
knowledge and ability to perform their assigned duties.
3.68
XI. Other Personnel
Shipboard personnel and port facility personnel OTHER than
personnel having specific security duties …
… may have a role in the enhancement of maritime security
… should have sufficient knowledge of and be familiar with relevant
provisions of the SSP.
3.69

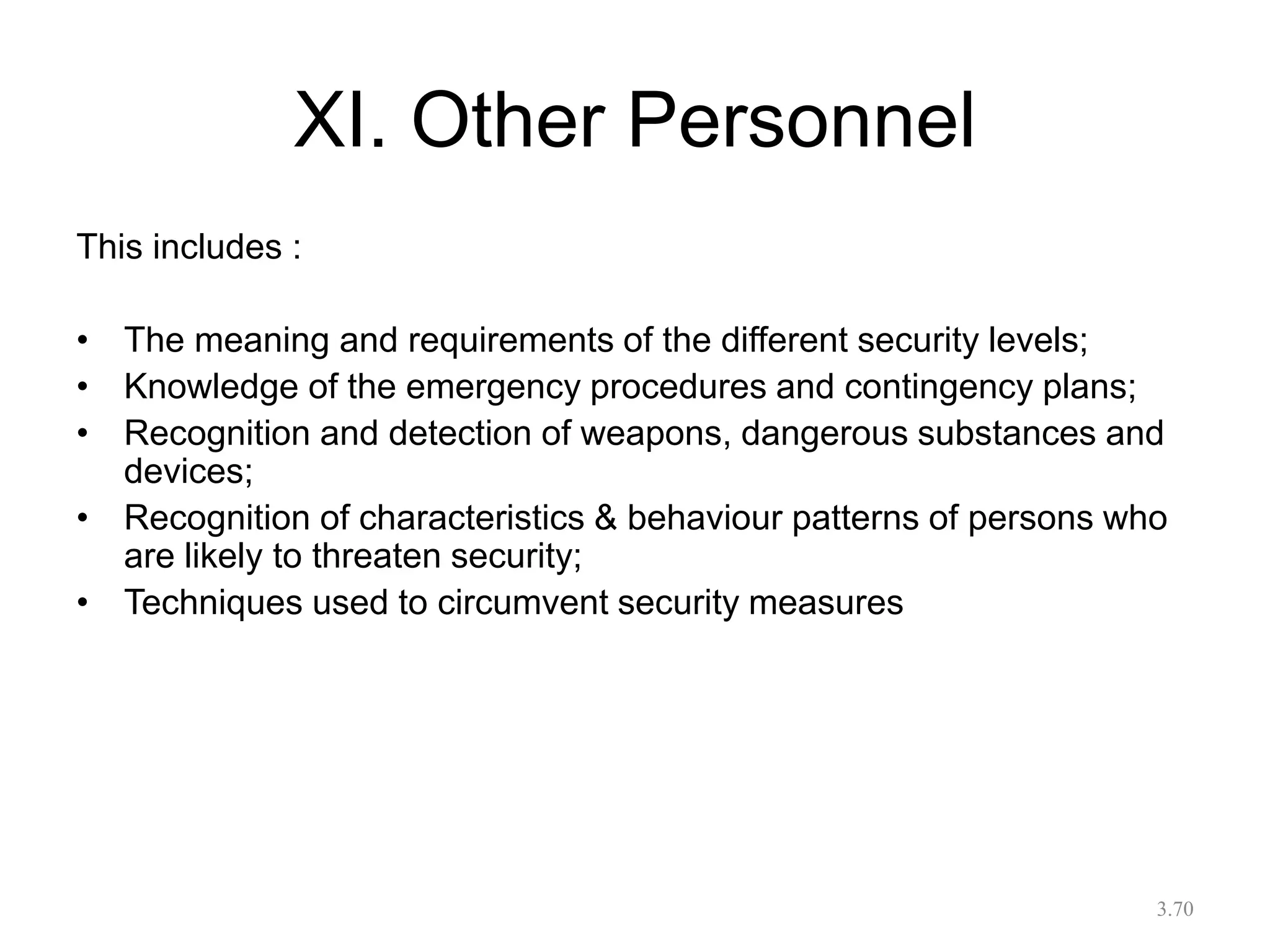

XI. Other Personnel
This includes :
• The meaning and requirements of the different security levels;
• Knowledge of the emergency procedures and contingency plans;
• Recognition and detection of weapons, dangerous substances and
devices;
• Recognition of characteristics & behaviour patterns of persons who
are likely to threaten security;
• Techniques used to circumvent security measures
3.70

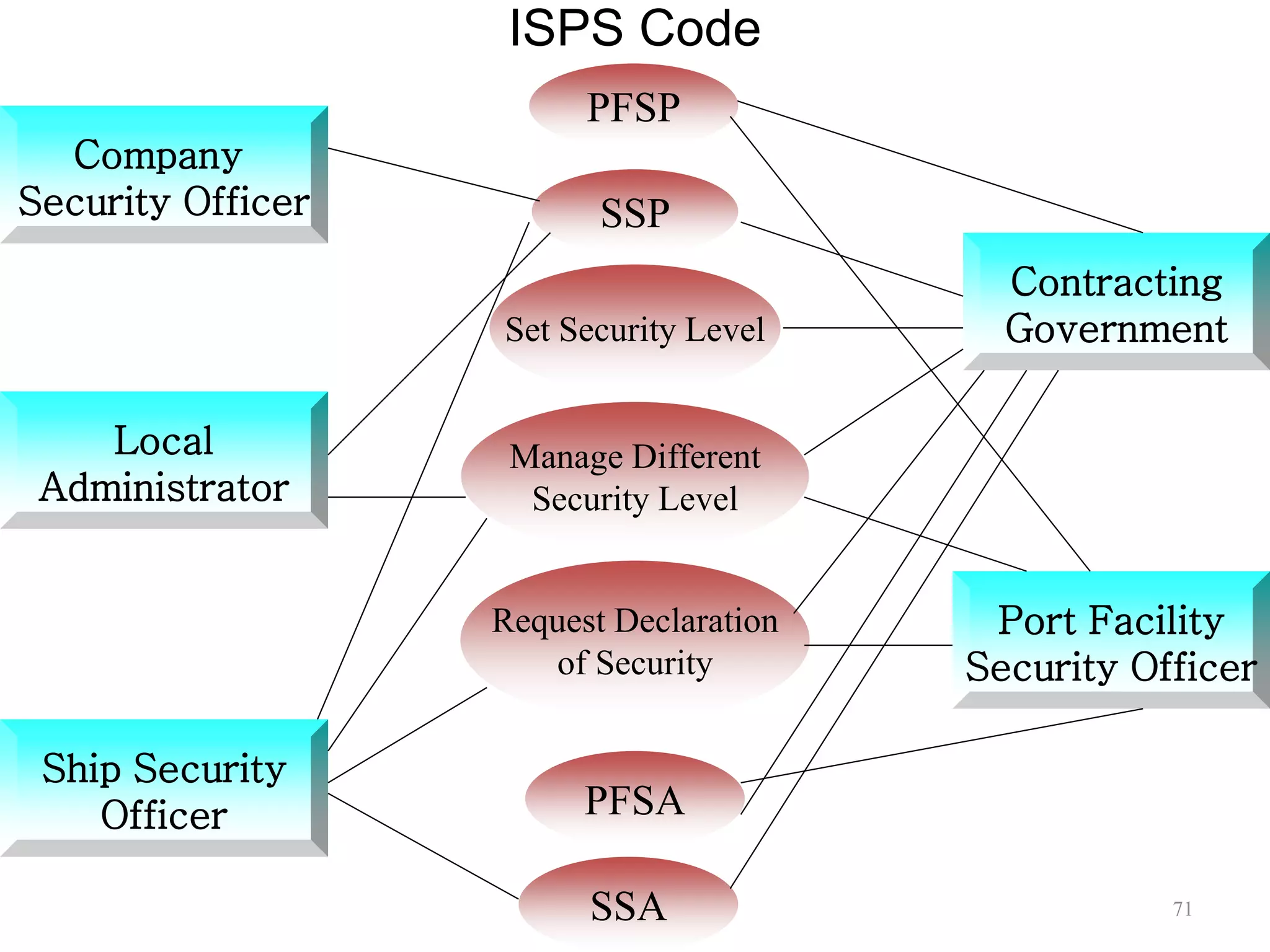

ISPS Code
71
Set Security Level
Manage Different
Security Level
Request Declaration
of Security
PFSA
Contracting
Government
Port Facility
Security Officer
Company
Security Officer
Ship Security
Officer
Local
Administrator
SSA
PFSP
SSP

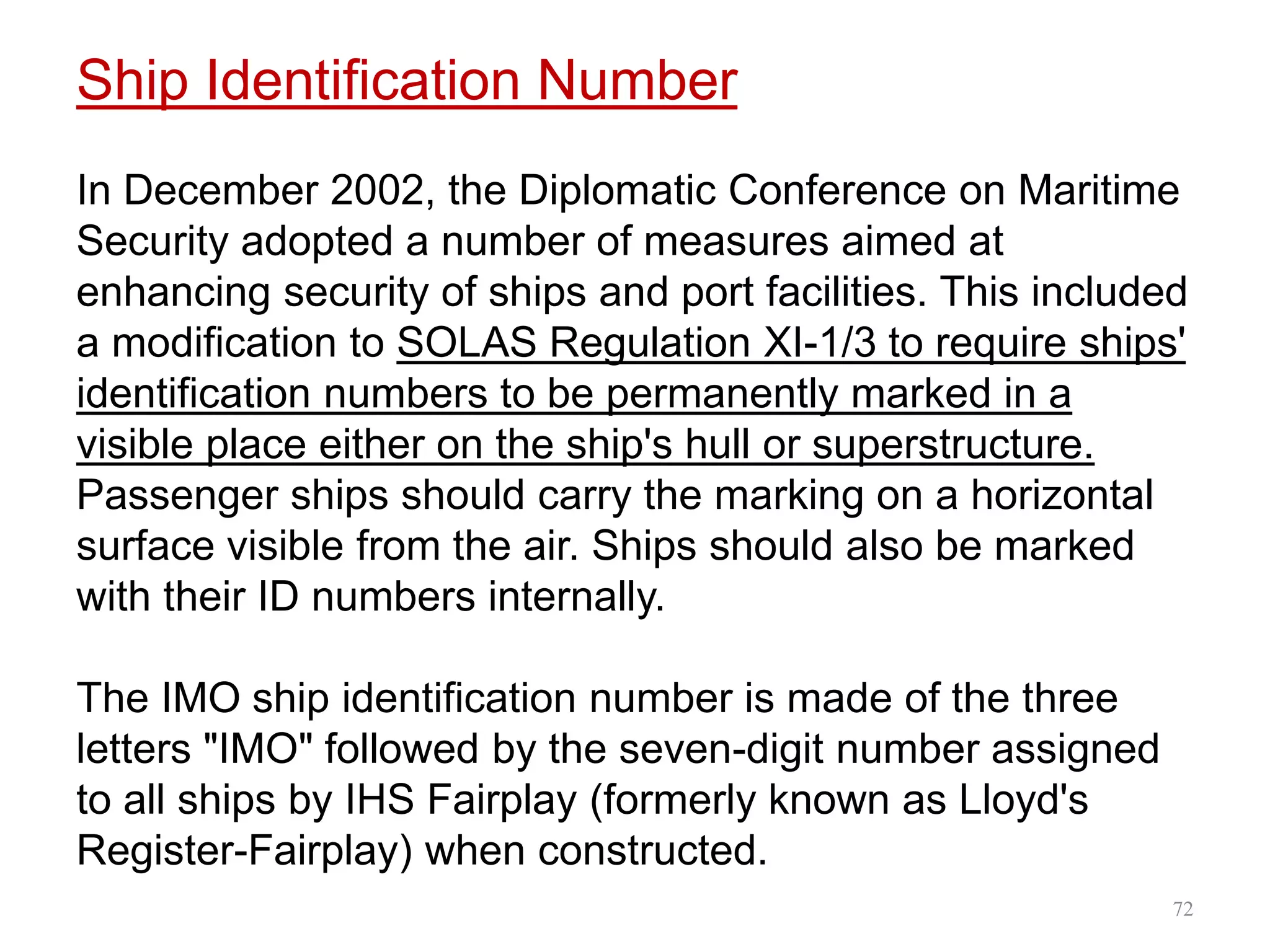

Ship Identification Number
In December 2002, the Diplomatic Conference on Maritime
Security adopted a number of measures aimed at
enhancing security of ships and port facilities. This included
a modification to SOLAS Regulation XI-1/3 to require ships'
identification numbers to be permanently marked in a
visible place either on the ship's hull or superstructure.
Passenger ships should carry the marking on a horizontal
surface visible from the air. Ships should also be marked
with their ID numbers internally.
The IMO ship identification number is made of the three
letters "IMO" followed by the seven-digit number assigned
to all ships by IHS Fairplay (formerly known as Lloyd's
Register-Fairplay) when constructed.
72

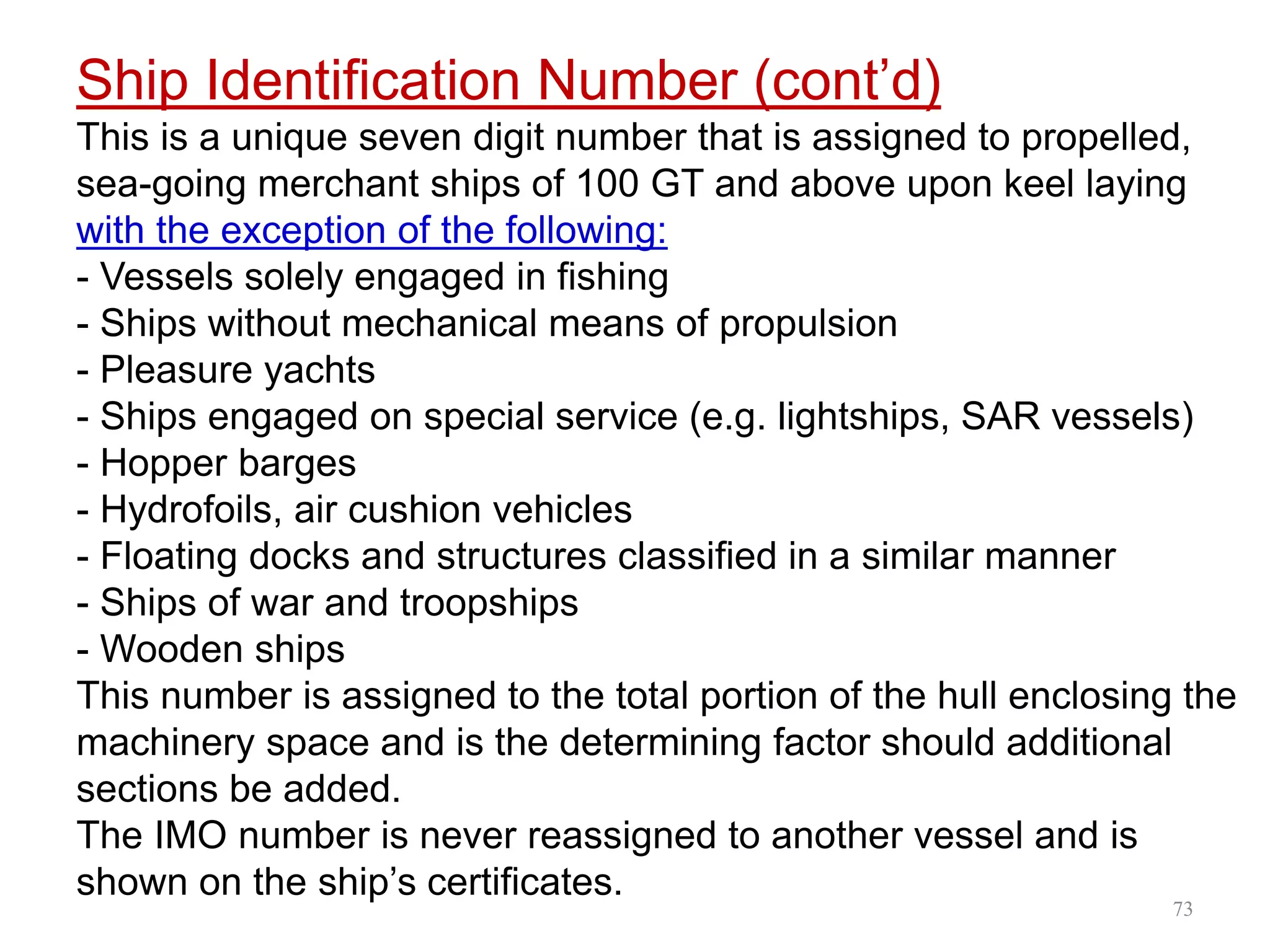

Ship Identification Number (cont’d)
This is a unique seven digit number that is assigned to propelled,
sea-going merchant ships of 100 GT and above upon keel laying
with the exception of the following:
- Vessels solely engaged in fishing
- Ships without mechanical means of propulsion
- Pleasure yachts
- Ships engaged on special service (e.g. lightships, SAR vessels)
- Hopper barges
- Hydrofoils, air cushion vehicles
- Floating docks and structures classified in a similar manner
- Ships of war and troopships
- Wooden ships
This number is assigned to the total portion of the hull enclosing the
machinery space and is the determining factor should additional
sections be added.
The IMO number is never reassigned to another vessel and is
shown on the ship’s certificates.
73

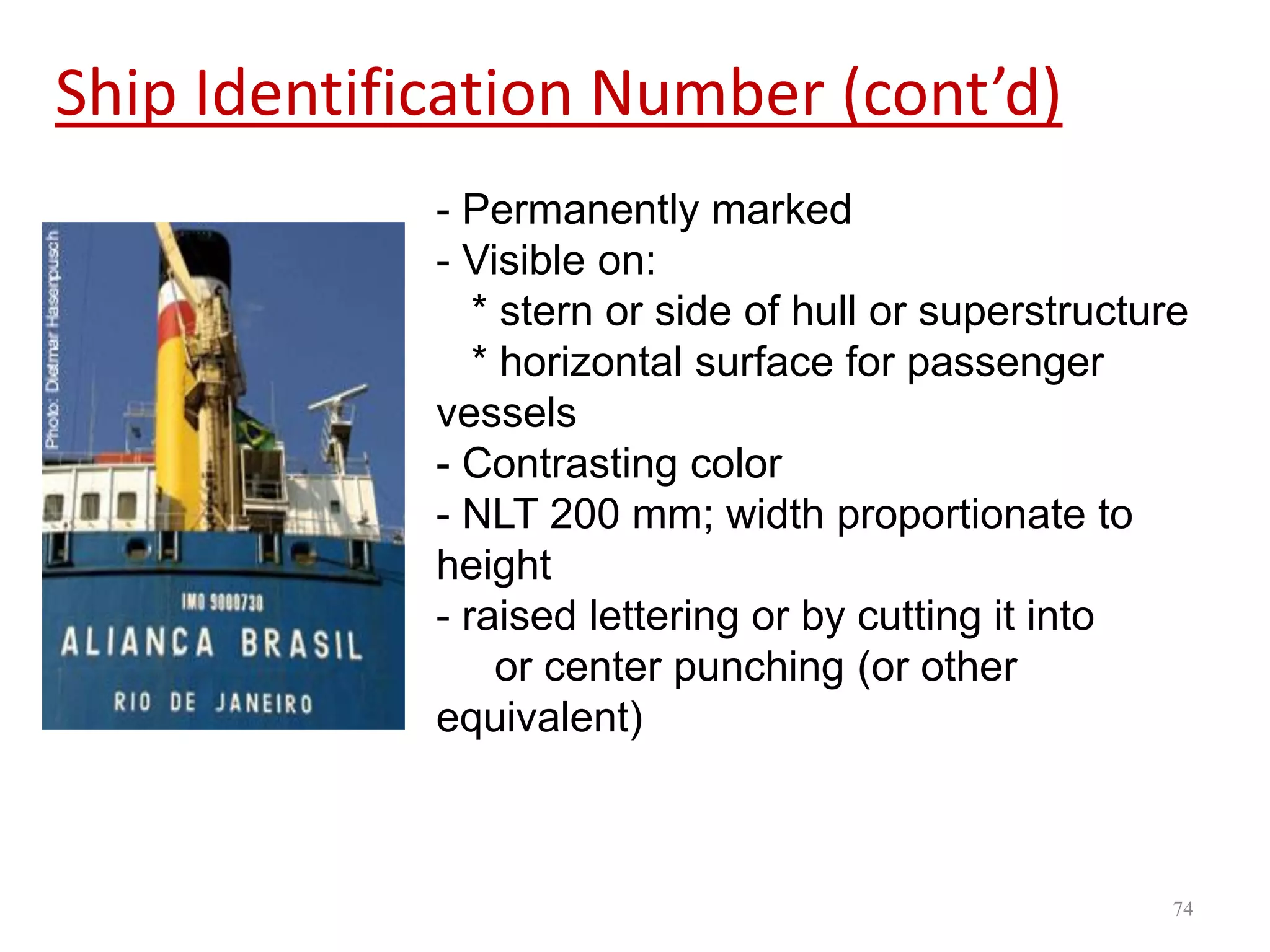

Ship Identification Number (cont’d)
- Permanently marked
- Visible on:
* stern or side of hull or superstructure
* horizontal surface for passenger
vessels
- Contrasting color
- NLT 200 mm; width proportionate to
height
- raised lettering or by cutting it into
or center punching (or other
equivalent)
74

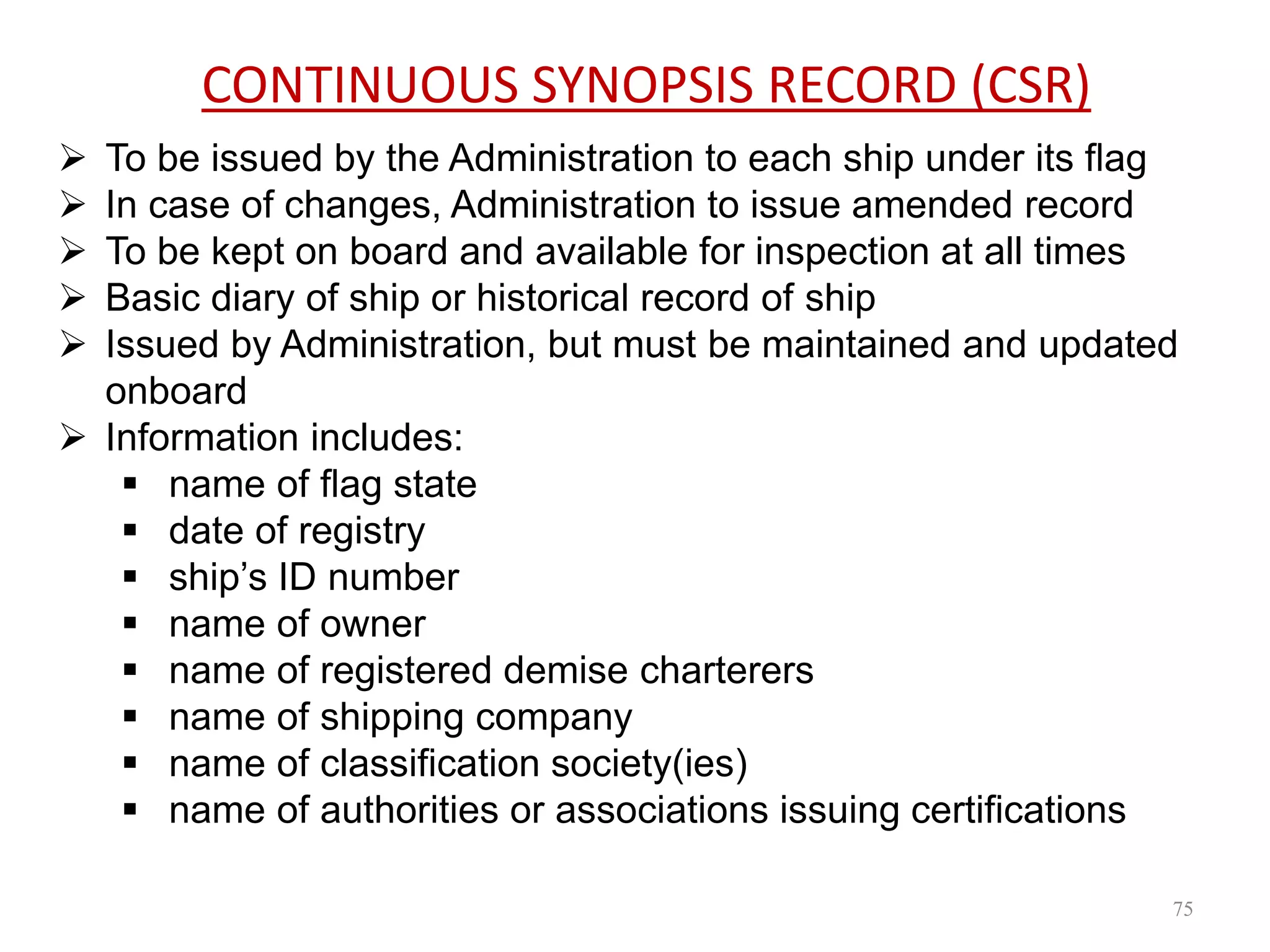

CONTINUOUS SYNOPSIS RECORD (CSR)
 To be issued by the Administration to each ship under its flag
 In case of changes, Administration to issue amended record
 To be kept on board and available for inspection at all times
 Basic diary of ship or historical record of ship
 Issued by Administration, but must be maintained and updated
onboard
 Information includes:
 name of flag state
 date of registry
 ship’s ID number
 name of owner
 name of registered demise charterers
 name of shipping company
 name of classification society(ies)
 name of authorities or associations issuing certifications
75

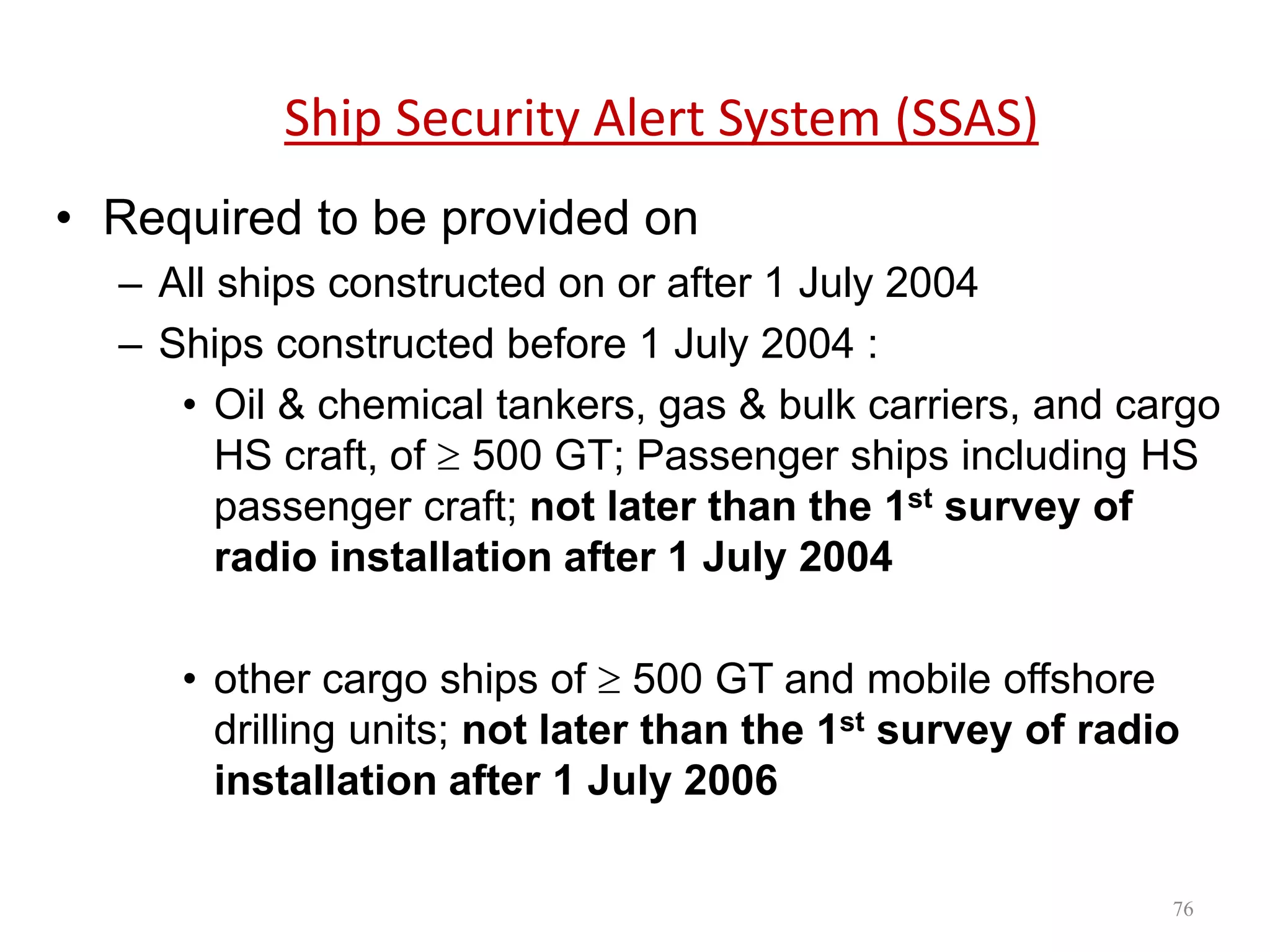

Ship Security Alert System (SSAS)
• Required to be provided on
– All ships constructed on or after 1 July 2004
– Ships constructed before 1 July 2004 :
• Oil & chemical tankers, gas & bulk carriers, and cargo
HS craft, of  500 GT; Passenger ships including HS
passenger craft; not later than the 1st survey of
radio installation after 1 July 2004
• other cargo ships of  500 GT and mobile offshore
drilling units; not later than the 1st survey of radio
installation after 1 July 2006
76
Ship Security Alert System (SSAS)
- The ship security alert system, when activated, shall:
1. initiate and transmit a ship-to-shore security alert to a competent
authority designated by the Administration, the Company,
identifying the ship, its location and indicating that the security of
the ship is under threat or it has been compromised;
2. not send the ship security alert to any other ships;
3. not raise any alarm on-board the ship; and
4. continue the ship security alert until deactivated and/or reset.
- The ship security alert system shall:
1. be capable of being activated from the navigation bridge and in at
least one other location; and
2. conform to performance standards not inferior to those adopted by
the Organization.
- Protected from inadvertent initiation
- Administration or coastal state notification requirements
77
ANY QUESTION?
78
For more information on ISPS Code, Please
visit www.imo.org
Thank you!

More Related Content

What's hot

MlC 2006 General Introduction and Preparation
MlC 2006 General Introduction and PreparationMlC 2006 General Introduction and Preparation
MlC 2006 General Introduction and PreparationPrabhash Sinha

Ä°MDG CODES
Ä°MDG CODESÄ°MDG CODES
Ä°MDG CODESImran Agayev

Maritime Labour Convention (MLC 2006)
Maritime Labour Convention (MLC 2006)Maritime Labour Convention (MLC 2006)
Maritime Labour Convention (MLC 2006)Yasser B. A. Farag

What is ism code
What is ism codeWhat is ism code
What is ism codejuneshwe

Liferafts versus lifeboats
Liferafts versus lifeboatsLiferafts versus lifeboats
Liferafts versus lifeboatsPat Cabangis

Classification society
Classification societyClassification society
Classification societymscmaritime

On board safety
   On board safety    On board safety
On board safety Rabah HELAL

LIFE SAVING APPLIANCES by Capt Aung Myin Moe
LIFE SAVING APPLIANCES by Capt Aung Myin MoeLIFE SAVING APPLIANCES by Capt Aung Myin Moe
LIFE SAVING APPLIANCES by Capt Aung Myin MoeCaptAMM

The four pillars of international maritime law
The four pillars of international maritime lawThe four pillars of international maritime law
The four pillars of international maritime lawVistingFaculty

ISPS: Security Awareness Training / Designated Security Duty
ISPS: Security Awareness Training / Designated Security DutyISPS: Security Awareness Training / Designated Security Duty
ISPS: Security Awareness Training / Designated Security DutyCapt Moin Uddin

Imo – the international maritime organization
Imo – the international maritime organizationImo – the international maritime organization
Imo – the international maritime organizationSazzad Zaman Anik

Solas Presentation
Solas PresentationSolas Presentation
Solas PresentationHazri Sharudin

Lecture maritime organizations - salwani
Lecture   maritime organizations - salwaniLecture   maritime organizations - salwani
Lecture maritime organizations - salwaniUniversiti Utara Malaysia


What's hot (20)

MlC 2006 General Introduction and Preparation
MlC 2006 General Introduction and PreparationMlC 2006 General Introduction and Preparation
MlC 2006 General Introduction and Preparation

Ä°MDG CODES
Ä°MDG CODESÄ°MDG CODES
Ä°MDG CODES

IMO & Conventions
IMO & ConventionsIMO & Conventions
IMO & Conventions

Maritime Labour Convention (MLC 2006)
Maritime Labour Convention (MLC 2006)Maritime Labour Convention (MLC 2006)
Maritime Labour Convention (MLC 2006)

Loadline
LoadlineLoadline
Loadline

Stcw a guide for seafarers
Stcw a guide for seafarersStcw a guide for seafarers
Stcw a guide for seafarers

What is ism code
What is ism codeWhat is ism code
What is ism code

Stcw
StcwStcw
Stcw

Liferafts versus lifeboats
Liferafts versus lifeboatsLiferafts versus lifeboats
Liferafts versus lifeboats

Classification society
Classification societyClassification society
Classification society

On board safety
   On board safety    On board safety
On board safety

A short note on SOLAS 74
A short note on SOLAS 74A short note on SOLAS 74
A short note on SOLAS 74

LIFE SAVING APPLIANCES by Capt Aung Myin Moe
LIFE SAVING APPLIANCES by Capt Aung Myin MoeLIFE SAVING APPLIANCES by Capt Aung Myin Moe
LIFE SAVING APPLIANCES by Capt Aung Myin Moe

The four pillars of international maritime law
The four pillars of international maritime lawThe four pillars of international maritime law
The four pillars of international maritime law

MARPOL ANNEXURES AND IMPACT
MARPOL ANNEXURES AND IMPACT MARPOL ANNEXURES AND IMPACT
MARPOL ANNEXURES AND IMPACT

ISPS: Security Awareness Training / Designated Security Duty
ISPS: Security Awareness Training / Designated Security DutyISPS: Security Awareness Training / Designated Security Duty
ISPS: Security Awareness Training / Designated Security Duty

Imo – the international maritime organization
Imo – the international maritime organizationImo – the international maritime organization
Imo – the international maritime organization

Marpol annexes
Marpol annexesMarpol annexes
Marpol annexes

Solas Presentation
Solas PresentationSolas Presentation
Solas Presentation

Lecture maritime organizations - salwani
Lecture   maritime organizations - salwaniLecture   maritime organizations - salwani
Lecture maritime organizations - salwani


Viewers also liked

My activities on MARPOL Annex VI and Ship Energy Efficiency Management
My activities on MARPOL Annex VI and Ship Energy Efficiency ManagementMy activities on MARPOL Annex VI and Ship Energy Efficiency Management
My activities on MARPOL Annex VI and Ship Energy Efficiency ManagementMohammud Hanif Dewan M.Phil.

MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...
MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...
MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...Mohammud Hanif Dewan M.Phil.

The Cylinder Liner of Diesel Engines
The Cylinder Liner of Diesel EnginesThe Cylinder Liner of Diesel Engines
The Cylinder Liner of Diesel EnginesMarine Study

MARPOL Annex VI: Prevention of Air Pollution from Ships
MARPOL Annex VI: Prevention of Air Pollution from ShipsMARPOL Annex VI: Prevention of Air Pollution from Ships
MARPOL Annex VI: Prevention of Air Pollution from ShipsMohammud Hanif Dewan M.Phil.

Ship Construction (Structure Part)
Ship Construction (Structure Part)Ship Construction (Structure Part)
Ship Construction (Structure Part)Marine Study


Viewers also liked (16)

Emision from ship
Emision from shipEmision from ship
Emision from ship

My activities on MARPOL Annex VI and Ship Energy Efficiency Management
My activities on MARPOL Annex VI and Ship Energy Efficiency ManagementMy activities on MARPOL Annex VI and Ship Energy Efficiency Management
My activities on MARPOL Annex VI and Ship Energy Efficiency Management

Positive Displacement Pumps
Positive Displacement PumpsPositive Displacement Pumps
Positive Displacement Pumps

Ships, I Sailed
Ships, I SailedShips, I Sailed
Ships, I Sailed

Ship Energy Efficiency Management-2016
Ship Energy Efficiency Management-2016Ship Energy Efficiency Management-2016
Ship Energy Efficiency Management-2016

MARPOL Annex VI Chapter 4
MARPOL Annex VI Chapter 4MARPOL Annex VI Chapter 4
MARPOL Annex VI Chapter 4

MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...
MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...
MARPOL Annex VI Chapter 1-3: “Air Pollution and GHG Emissions from Internati...

Metallurgical Testing
Metallurgical TestingMetallurgical Testing
Metallurgical Testing

The Cylinder Liner of Diesel Engines
The Cylinder Liner of Diesel EnginesThe Cylinder Liner of Diesel Engines
The Cylinder Liner of Diesel Engines

MARPOL Annex VI: Prevention of Air Pollution from Ships
MARPOL Annex VI: Prevention of Air Pollution from ShipsMARPOL Annex VI: Prevention of Air Pollution from Ships
MARPOL Annex VI: Prevention of Air Pollution from Ships

Materials Used for Shipbuilding
Materials Used for ShipbuildingMaterials Used for Shipbuilding
Materials Used for Shipbuilding

Gear Pumps
Gear PumpsGear Pumps
Gear Pumps

2 classification societies
2 classification societies2 classification societies
2 classification societies

Ship Construction (Structure Part)
Ship Construction (Structure Part)Ship Construction (Structure Part)
Ship Construction (Structure Part)

Properties of Lubricats and Lubrication
Properties of Lubricats and LubricationProperties of Lubricats and Lubrication
Properties of Lubricats and Lubrication

Heat Treatment Process
Heat Treatment ProcessHeat Treatment Process
Heat Treatment Process


Similar to A Short Note on ISPS Code

Management of shipping (1)
Management of shipping (1)Management of shipping (1)
Management of shipping (1)Fredrick Olali

IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .ppt
IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .pptIMO ACTIVITIES TO ENHANCE MARITIME SECURITY .ppt
IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .pptibrahim243390

Maritime (isps code) regulations 2014
Maritime (isps code) regulations 2014Maritime (isps code) regulations 2014
Maritime (isps code) regulations 2014captlouis

ISPS CODE.pptx
ISPS CODE.pptxISPS CODE.pptx
ISPS CODE.pptxBaburHalulu1

Isps code guidelines
Isps code guidelinesIsps code guidelines
Isps code guidelinesnwvirus

Effectiveness of isps code in addressing maritime insecurity by caleb danladi...
Effectiveness of isps code in addressing maritime insecurity by caleb danladi...Effectiveness of isps code in addressing maritime insecurity by caleb danladi...
Effectiveness of isps code in addressing maritime insecurity by caleb danladi...Danladi Caleb

04_ISM_for_NTU.pdf
04_ISM_for_NTU.pdf04_ISM_for_NTU.pdf
04_ISM_for_NTU.pdfMaanMrabet1

18 maritim secur (1)
18 maritim secur (1)18 maritim secur (1)
18 maritim secur (1)Parth Dave

18 maritim secur
18 maritim secur18 maritim secur
18 maritim securParth Dave

Security Training for Seafarers with designated Security duties
Security Training for Seafarers with designated Security dutiesSecurity Training for Seafarers with designated Security duties
Security Training for Seafarers with designated Security dutiesAnirbanMarine

SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...
SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...
SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...AnirbanMarine

International safety management code ppt
International safety management code  pptInternational safety management code  ppt
International safety management code pptMohanraj T P

Exceeding Expectations: Port Readiness Sheldon anthony
Exceeding Expectations: Port Readiness Sheldon anthonyExceeding Expectations: Port Readiness Sheldon anthony
Exceeding Expectations: Port Readiness Sheldon anthonyCruiseNL2011

Port-Security-Program-Presentation-2003 (2).ppt
Port-Security-Program-Presentation-2003 (2).pptPort-Security-Program-Presentation-2003 (2).ppt
Port-Security-Program-Presentation-2003 (2).pptTalyibIbrahim

MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...
MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...
MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...Marcelo Borba


Similar to A Short Note on ISPS Code (20)

Management of shipping (1)
Management of shipping (1)Management of shipping (1)
Management of shipping (1)

IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .ppt
IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .pptIMO ACTIVITIES TO ENHANCE MARITIME SECURITY .ppt
IMO ACTIVITIES TO ENHANCE MARITIME SECURITY .ppt

Maritime (isps code) regulations 2014
Maritime (isps code) regulations 2014Maritime (isps code) regulations 2014
Maritime (isps code) regulations 2014

ISPS CODE.pptx
ISPS CODE.pptxISPS CODE.pptx
ISPS CODE.pptx

ISPS Code.pptx
ISPS Code.pptxISPS Code.pptx
ISPS Code.pptx

Isps code guidelines
Isps code guidelinesIsps code guidelines
Isps code guidelines

Effectiveness of isps code in addressing maritime insecurity by caleb danladi...
Effectiveness of isps code in addressing maritime insecurity by caleb danladi...Effectiveness of isps code in addressing maritime insecurity by caleb danladi...
Effectiveness of isps code in addressing maritime insecurity by caleb danladi...

04_ISM_for_NTU.pdf
04_ISM_for_NTU.pdf04_ISM_for_NTU.pdf
04_ISM_for_NTU.pdf

18 maritim secur (1)
18 maritim secur (1)18 maritim secur (1)
18 maritim secur (1)

18 maritim secur
18 maritim secur18 maritim secur
18 maritim secur

Security Training for Seafarers with designated Security duties
Security Training for Seafarers with designated Security dutiesSecurity Training for Seafarers with designated Security duties
Security Training for Seafarers with designated Security duties

SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...
SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...
SECURITY TRAINING FOR SEAFARERS WITH DESIGNATED SECURITY DUTIES IMO MODEL COU...

Emsa advanced ship security training 18 20 may 2016 web (1)
Emsa advanced ship security training 18 20 may 2016 web (1)Emsa advanced ship security training 18 20 may 2016 web (1)
Emsa advanced ship security training 18 20 may 2016 web (1)

The Ism Code
The Ism CodeThe Ism Code
The Ism Code

International safety management code ppt
International safety management code  pptInternational safety management code  ppt
International safety management code ppt

Exceeding Expectations: Port Readiness Sheldon anthony
Exceeding Expectations: Port Readiness Sheldon anthonyExceeding Expectations: Port Readiness Sheldon anthony
Exceeding Expectations: Port Readiness Sheldon anthony

Port-Security-Program-Presentation-2003 (2).ppt
Port-Security-Program-Presentation-2003 (2).pptPort-Security-Program-Presentation-2003 (2).ppt
Port-Security-Program-Presentation-2003 (2).ppt

MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...
MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...
MSC.1/Circ.1405 Rev.1 Revised Interim Guidance to shipowners, ship operators,...

Solas assigment
Solas  assigmentSolas  assigment
Solas assigment

Logistic solas
Logistic solasLogistic solas
Logistic solas


More from Mohammud Hanif Dewan M.Phil.

Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...
Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...
Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...Mohammud Hanif Dewan M.Phil.

Technology Innovations for Cost- effective Energy Efficiency Measures
Technology Innovations for Cost- effective Energy Efficiency MeasuresTechnology Innovations for Cost- effective Energy Efficiency Measures
Technology Innovations for Cost- effective Energy Efficiency MeasuresMohammud Hanif Dewan M.Phil.

Energy Efficiency Definitions: EEDI, SEEMP and EEOI
Energy Efficiency Definitions: EEDI, SEEMP and EEOIEnergy Efficiency Definitions: EEDI, SEEMP and EEOI
Energy Efficiency Definitions: EEDI, SEEMP and EEOIMohammud Hanif Dewan M.Phil.

Energy Efficiency Measures for Ships and Potential Barriers for Adoption
Energy Efficiency Measures for Ships and Potential Barriers for AdoptionEnergy Efficiency Measures for Ships and Potential Barriers for Adoption
Energy Efficiency Measures for Ships and Potential Barriers for AdoptionMohammud Hanif Dewan M.Phil.


More from Mohammud Hanif Dewan M.Phil. (20)

Machinery Maintenance
Machinery MaintenanceMachinery Maintenance
Machinery Maintenance

Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...
Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...
Stakeholders' Influence and Barriers to Energy Efficiency Operational Measure...

Ship Rudder
Ship RudderShip Rudder
Ship Rudder

Ship Motion and Stresses
Ship Motion and StressesShip Motion and Stresses
Ship Motion and Stresses

Ship Structural Components
Ship Structural ComponentsShip Structural Components
Ship Structural Components

Ship's Transverse Stability
Ship's Transverse StabilityShip's Transverse Stability
Ship's Transverse Stability

LMTI, Liberia
LMTI, LiberiaLMTI, Liberia
LMTI, Liberia

LMTI Transformation 2016 -2018
LMTI Transformation 2016 -2018LMTI Transformation 2016 -2018
LMTI Transformation 2016 -2018

My Maritime Career - Hanif 2017
My Maritime Career - Hanif 2017My Maritime Career - Hanif 2017
My Maritime Career - Hanif 2017

Malaysian cultures
Malaysian culturesMalaysian cultures
Malaysian cultures

Congkak
CongkakCongkak
Congkak

Satay
SataySatay
Satay

Ship's Energy Efficiency Management
Ship's Energy Efficiency ManagementShip's Energy Efficiency Management
Ship's Energy Efficiency Management

Fossil Fuels and Renewable Energy for Ships
Fossil Fuels and Renewable Energy for ShipsFossil Fuels and Renewable Energy for Ships
Fossil Fuels and Renewable Energy for Ships

Corrosion in Metals
Corrosion in Metals Corrosion in Metals
Corrosion in Metals

Ship Construction by Jayan Pillai
Ship Construction by Jayan PillaiShip Construction by Jayan Pillai
Ship Construction by Jayan Pillai

Technology Innovations for Cost- effective Energy Efficiency Measures
Technology Innovations for Cost- effective Energy Efficiency MeasuresTechnology Innovations for Cost- effective Energy Efficiency Measures
Technology Innovations for Cost- effective Energy Efficiency Measures

Energy Efficiency Definitions: EEDI, SEEMP and EEOI
Energy Efficiency Definitions: EEDI, SEEMP and EEOIEnergy Efficiency Definitions: EEDI, SEEMP and EEOI
Energy Efficiency Definitions: EEDI, SEEMP and EEOI

Energy Efficiency Measures for Ships and Potential Barriers for Adoption
Energy Efficiency Measures for Ships and Potential Barriers for AdoptionEnergy Efficiency Measures for Ships and Potential Barriers for Adoption
Energy Efficiency Measures for Ships and Potential Barriers for Adoption

Ship Form Coefficients
Ship Form CoefficientsShip Form Coefficients
Ship Form Coefficients


Recently uploaded

POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptx
POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptxPOINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptx
POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptxSayali Powar

Presiding Officer Training module 2024 lok sabha elections
Presiding Officer Training module 2024 lok sabha electionsPresiding Officer Training module 2024 lok sabha elections
Presiding Officer Training module 2024 lok sabha electionsanshu789521

Sanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdfSanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdfsanyamsingh5019

mini mental status format.docx
mini    mental       status     format.docxmini    mental       status     format.docx
mini mental status format.docxPoojaSen20

How to Configure Email Server in Odoo 17
How to Configure Email Server in Odoo 17How to Configure Email Server in Odoo 17
How to Configure Email Server in Odoo 17Celine George

Paris 2024 Olympic Geographies - an activity
Paris 2024 Olympic Geographies - an activityParis 2024 Olympic Geographies - an activity
Paris 2024 Olympic Geographies - an activityGeoBlogs

call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️
call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️
call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️9953056974 Low Rate Call Girls In Saket, Delhi NCR

Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxEmployee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxNirmalaLoungPoorunde1

Science 7 - LAND and SEA BREEZE and its Characteristics
Science 7 - LAND and SEA BREEZE and its CharacteristicsScience 7 - LAND and SEA BREEZE and its Characteristics
Science 7 - LAND and SEA BREEZE and its CharacteristicsKarinaGenton

Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptx
Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptxContemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptx
Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptxRoyAbrique

A Critique of the Proposed National Education Policy Reform
A Critique of the Proposed National Education Policy ReformA Critique of the Proposed National Education Policy Reform
A Critique of the Proposed National Education Policy ReformChameera Dedduwage

Solving Puzzles Benefits Everyone (English).pptx
Solving Puzzles Benefits Everyone (English).pptxSolving Puzzles Benefits Everyone (English).pptx
Solving Puzzles Benefits Everyone (English).pptxOH TEIK BIN

Introduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxIntroduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxpboyjonauth

Mastering the Unannounced Regulatory Inspection
Mastering the Unannounced Regulatory InspectionMastering the Unannounced Regulatory Inspection
Mastering the Unannounced Regulatory InspectionSafetyChain Software

Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...
Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...
Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...EduSkills OECD

Incoming and Outgoing Shipments in 1 STEP Using Odoo 17
Incoming and Outgoing Shipments in 1 STEP Using Odoo 17Incoming and Outgoing Shipments in 1 STEP Using Odoo 17
Incoming and Outgoing Shipments in 1 STEP Using Odoo 17Celine George

Software Engineering Methodologies (overview)
Software Engineering Methodologies (overview)Software Engineering Methodologies (overview)
Software Engineering Methodologies (overview)eniolaolutunde

microwave assisted reaction. General introduction
microwave assisted reaction. General introductionmicrowave assisted reaction. General introduction
microwave assisted reaction. General introductionMaksud Ahmed


Recently uploaded (20)

POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptx
POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptxPOINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptx
POINT- BIOCHEMISTRY SEM 2 ENZYMES UNIT 5.pptx

Presiding Officer Training module 2024 lok sabha elections
Presiding Officer Training module 2024 lok sabha electionsPresiding Officer Training module 2024 lok sabha elections
Presiding Officer Training module 2024 lok sabha elections

Sanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdfSanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdf

mini mental status format.docx
mini    mental       status     format.docxmini    mental       status     format.docx
mini mental status format.docx

How to Configure Email Server in Odoo 17
How to Configure Email Server in Odoo 17How to Configure Email Server in Odoo 17
How to Configure Email Server in Odoo 17

Paris 2024 Olympic Geographies - an activity
Paris 2024 Olympic Geographies - an activityParis 2024 Olympic Geographies - an activity
Paris 2024 Olympic Geographies - an activity

Staff of Color (SOC) Retention Efforts DDSD
Staff of Color (SOC) Retention Efforts DDSDStaff of Color (SOC) Retention Efforts DDSD
Staff of Color (SOC) Retention Efforts DDSD

call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️
call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️
call girls in Kamla Market (DELHI) 🔝 >༒9953330565🔝 genuine Escort Service 🔝✔️✔️

Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxEmployee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptx

Science 7 - LAND and SEA BREEZE and its Characteristics
Science 7 - LAND and SEA BREEZE and its CharacteristicsScience 7 - LAND and SEA BREEZE and its Characteristics
Science 7 - LAND and SEA BREEZE and its Characteristics

Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptx
Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptxContemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptx
Contemporary philippine arts from the regions_PPT_Module_12 [Autosaved] (1).pptx

A Critique of the Proposed National Education Policy Reform
A Critique of the Proposed National Education Policy ReformA Critique of the Proposed National Education Policy Reform
A Critique of the Proposed National Education Policy Reform

Solving Puzzles Benefits Everyone (English).pptx
Solving Puzzles Benefits Everyone (English).pptxSolving Puzzles Benefits Everyone (English).pptx
Solving Puzzles Benefits Everyone (English).pptx

Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝
Model Call Girl in Bikash Puri  Delhi reach out to us at 🔝9953056974🔝Model Call Girl in Bikash Puri  Delhi reach out to us at 🔝9953056974🔝
Model Call Girl in Bikash Puri Delhi reach out to us at 🔝9953056974🔝

Introduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxIntroduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptx

Mastering the Unannounced Regulatory Inspection
Mastering the Unannounced Regulatory InspectionMastering the Unannounced Regulatory Inspection
Mastering the Unannounced Regulatory Inspection

Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...
Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...
Presentation by Andreas Schleicher Tackling the School Absenteeism Crisis 30 ...

Incoming and Outgoing Shipments in 1 STEP Using Odoo 17
Incoming and Outgoing Shipments in 1 STEP Using Odoo 17Incoming and Outgoing Shipments in 1 STEP Using Odoo 17
Incoming and Outgoing Shipments in 1 STEP Using Odoo 17

Software Engineering Methodologies (overview)
Software Engineering Methodologies (overview)Software Engineering Methodologies (overview)
Software Engineering Methodologies (overview)

microwave assisted reaction. General introduction
microwave assisted reaction. General introductionmicrowave assisted reaction. General introduction
microwave assisted reaction. General introduction


A Short Note on ISPS Code

  • 1. ISPS Code Mohammud Hanif Dewan, Maritime Lecturer & Trainer
  • 2. 11 September 2001 2 In the wake of the tragic events of 11 September 2001 in the United States of America, IMO Secretary-General William A. O’Neil, consulted Member Governments on the need to review the measures already adopted by IMO to combat acts of violence and crime at sea.
  • 3. Resolution A.924(22) (20 November 2001) • A call for a review of measures and procedures to prevent acts of terrorism which threaten the security of passenger and crews and the safety of ships; • A boost to the Organization’s technical co-operation programme of ÂŁ1.5 million to help developing countries to address maritime securing issues. 3
  • 4. Limburg – October 2002 4 Further impetus was added by the attack on the tanker LIMBURG off Yemen in October 2002
  • 5. What is the ISPS Code? • The International Ship and Port Facility Security Code (ISPS Code) is a comprehensive set of measures to enhance the security of ships and port facilities, developed in response to the perceived threats to ships and port facilities in the wake of the 9/11 attacks in the United States. • The ISPS Code is implemented through chapter XI-2 Special measures to enhance maritime security in the International Convention for the Safety of Life at Sea (SOLAS). • The Code has two parts: Part A - mandatory and Part B – recommendatory. 5
  • 6. Purpose of ISPS Code The purpose of the Code are:  to provide a standardised, consistent framework for evaluating risk,  enabling Governments to offset changes in threat with changes in vulnerability for ships and port facilities through determination of appropriate security levels and corresponding security measures. 6
  • 7. History of ISPS Code Diplomatic Conference in December 2002: Conference resolution 1 Amendments to SOLAS • Chapter V • Chapter XI-1 • Chapter XI-2 7
  • 8. Diplomatic Conference December 2002 (1) Other Conference resolutions: • Resolution 3 .- Further work by the International Maritime Organization pertaining to the enhancement of maritime security; • Resolution 4 .- Future amendments to Chapters XI-1 and XI-2 of the 1974 SOLAS Convention on special measures to enhance maritime safety and security; • Resolution 5 .- Promotion of technical co-operation and assistance; • Resolution 6 .- Early implementation of the special measures to enhance maritime security; 8
  • 9. Diplomatic Conference December 2002 (2) • Resolution 7 .- Establishment of appropriate measures to enhance the security of ships, port facilities, mobile offshore drilling units on location and fixed and floating platforms not covered by chapter XI-2 of the 1974 SOLAS Convention; • Resolution 8 .- Enhancement of security in co-operation with the International Labour Organization; • Resolution 9 .- Enhancement of security in co-operation with the World Customs Organization; • Resolution 10 .- Early implementation of long-range ship’s identification and tracking; and • Resolution 11 .- Human element-related aspects and shore leave for seafarers. 9
  • 10. ISPS Code (1) Preamble Part A and Part B 1 General (introduction, objectives and functional requirements) / Introduction 2 Definitions 3 Application 4 Responsibilities of Contracting Governments 5 Declaration of security 10
  • 11. ISPS Code (2) 6 Obligations of the Company 7 Ship security 8 Ship security assessment 9 Ship security plan 10 Records 11 Company security officer 12 Ship security officer 13 Training, drills and exercises on ship security 11
  • 12. ISPS Code (3) 14 Port facility security 15 Port facility security assessment 16 Port facility security plan 17 Port facility security officer 18 Training, drills and exercises on port facility security 19 Verification and certification for ships 12
  • 13. Rationale -- Risk management activity - Appropriate security measures - Risk assessment - ISPS Code standard framework – evaluating risk – change threat level – change vulnerability of ships/port facility - Functional security requirements for ships and port facilities 13
  • 15. ISPS Code: International Ship and Port Facility Security Code • Part A Mandatory requirements: – Ships / Companies – Port facilities – Administration • Part B Guidance: – Background – Compliance – Assistance No. 15
  • 16. ISPS Code - Objectives • To establish An international framework involving co-operation between CGs, Govt agencies, local administrations and shipping & port industries to detect security threats and take preventive measures. • To establish respective roles and responsibilities of CGs, Govt agencies, local administrations and shipping & port industries. 16
  • 17. ISPS Code – Functional requirements • Gathering & assessing information on security threats & exchanging it with appropriate CGs. • Requiring maintenance of communication protocols for ships & PFs • Preventing unauthorized access to ships, PFs & their restricted areas. • Preventing introduction of unauthorized weapons, incindiary devices or explosives to ships or PFs. 17
  • 18. ISPS Code – Functional requirements • Providing means for raising alarm in reaction to security incidents. • Requiring ship & PF security plans based upon security assessments. • Requiring training, drills and exercises to ensure familiarity with security plans and procedures. 18
  • 19. ISPS Code – Declaration of security • Declaration of security : – CGs shall determine when it is required by assessing the risk the ship/port interface or ship to ship activity poses to people, property or the environment – A ship may request completion of DOS – To be completed by the master or the SSO on behalf of ship AND PFSO or any other body identified by CG on behalf of port facility 19
  • 20. 20
  • 21. 21
  • 22. ISPS Code- Ship Security Assessment • CSO to ensure that SSA is carried out by persons with appropriate skills to evaluate the security of a ship • RSO may carry out SSA • SSA shall be documented, reviewed & retained by the Company • SSA shall include an on-scene security survey 22
  • 23. ISPS Code Ship Security Assessment (cont’d) • SSA shall include at least the identification of : – existing security measures, procedures and operations – and evaluation of key shipboard operations – possible threats to such operations and the likelihood of their occurrence, in order to establish and prioritise security measures – identification of weaknesses, including human factors in the infrastructure, policies & procedures 23
  • 24. Ship Security Plan (SSP) The CSO has the responsibility of ensuring that a Ship Security Plan (SSP) is prepared and submitted for approval. The Ship Security Assessment (SSA) will have identified the particular features of the ship and the potential threats and vulnerabilities. The preparation of the SSP will require these features to be addressed in detail. All SSPs should contain: 1. Detail the organizational structure of security for the ship; 2. Detail the ship’s relationships with the Company, port facilities, other ships and relevant authorities with security responsibility; 3. Detail the communication systems to allow effective continuous communication within the ship and between the ship and others, including port facilities; 4. Detail the basic security measures for security level 1, both operational and physical, that will always be in place; 5. Detail the additional security measures that will allow the ship to progress without delay to security level 2 and, when necessary, to security level 3; 6. Provide for regular review, or audit, of the SSP and for its amendment in response to experience or changing circumstances; and 7. Reporting procedures to the appropriate Contracting Governments contact points. 24
  • 25. Restricted areas on the ship The SSP should identify the restricted areas to be established in ships. The purpose of restricted areas are to:  prevent unauthorized access;  protect passengers, ship's personnel, and personnel from port facilities or other agencies authorized to be on board the ship;  protect sensitive security areas within the ship; and  protect cargo and ship's stores from tampering. Restricted areas may include: 1. navigation bridge, machinery spaces of category A and other control stations as per SOLAS chapter II-2; 2. spaces containing security and surveillance equipment and systems and their controls and lighting system controls; 3. ventilation and air-conditioning systems and other similar spaces; 4. spaces with access to potable water tanks, pumps, or manifolds; 5. spaces containing dangerous goods or hazardous substances; 6. spaces containing cargo pumps and their controls; 7. cargo spaces and spaces containing ship’s stores; 8. crew accommodation; and 9. any other areas as determined by the CSO, through the SSA to which access must be restricted to maintain the security of the ship. 25
  • 26. ISPS Code - Records • Records of following activities addressed in SSP shall be maintained on board : –Training, drills & exercises –Security threats, security incidents & breaches of security –Changes in security level –Communications relating to the direct security of the ship such as specific threats to the ship or to port facilities the ship is at or has been ……continued…… 26
  • 27. ISPS Code - Records (cont’d) • Internal audits & reviews of security activities • Periodic review of the SSA • Periodic review of the SSP • Implementation of any amendments to the plan • Maintenance, calibration and testing of security equipment, if any including testing of the ship security alert system 27
  • 28. ISPS Code – Training, drills & exercises on ship security • Drills shall be carried out at appropriate intervals to ensure effective implementation of the SSP, taking into account : – Ship personnel changes – PFs to be visited – Other relevant circumstances • CSO shall ensure effective coordination & implementation of SSP by participating in the exercises at appropriate intervals. 28
  • 29. Port Facility Security Plan (PFSP) Preparation of the Port Facility Security Plan (PFSP) is the responsibility of the Port Facility Security Officer (PFSO). All PFSPs should: 1. detail the security organization of the port facility, 2. the organizationĂ­s links with other relevant authorities and the necessary communication systems to allow the effective continuous operation of the organization and its links with others, including ships in port; 3. detail the basic security level 1 measures, both operational and physical, that will be in place; 4. detail the additional security measures that will allow the port facility to progress without delay to security level 2 and, when necessary, to security level 3; 5. provide for regular review, or audit, of the PFSP and for its amendments in response to experience or changing circumstances; 6. reporting procedures to the appropriate Contracting Governments contact points. 29
  • 30. SCOPE OF APPLICATION Chapter XI-2 of SOLAS and the ISPS Code apply to following types of ships engaged on international voyages :  Passenger ships, including HS passenger craft  Cargo ships, including HS craft, of 500 GT and upwards  Mobile offshore drilling units  Port facilities serving such ships engaged on international voyages Do not apply to : Warships & naval auxiliaries, other ships owned/operated by a CG and used only on Govt. non-commercial service.
  • 31. International Ship Security Certificate • An International Ship Security Certificate shall be issued after the initial or renewal verification in accordance with the provisions of section 19.1 of ISPS code. • Validity of the certificate is 5 years. 31
  • 32. DEFINITIONS Company : • a company as defined in regulation IX/I. Ship/port interface : • The interactions that occur when a ship is directly and immediately affected by actions involving the movement of persons, goods or the provisions of port services to or from the ship. Ship to ship activity : • any activity not related to a port facility that involves transfer of goods or persons from one ship to another. 32
  • 33. DEFINITIONS Port facility : • A location, as determined by the Contracting Government or by the Designated authority, where the ship/port interface takes place. This includes areas such as anchorages, waiting berths and approaches from seaward, as appropriate. Designated authority: • The organization (s) or the administration (s) identified, within the Contracting Government, as responsible for ensuring the implementation of the provisions of Chapter XI-2 pertaining to port facility security and ship/port interface, from point of view of the port facility. 33
  • 34. DEFINITIONS Recognized security organization (RSO): An organization with appropriate expertise in security matters and appropriate knowledge of ship and port operations; authorized to carry out an assessment, or a verification, or an approval or a certification activity, required by Chapter XI-2 or by Part A of the ISPS Code. Security incident : An suspicious act or circumstances threatening the security of a ship, including a mobile offshore drilling unit and a high speed craft, or of a port facility or of any ship/port interface or any ship to ship activity. 34
  • 35. DEFINITIONS • Ship security officer ( SSO) : “ The person on board the ship, accountable to the Master, designated by the Company as responsible for the security of the ship, including implementation and maintenance of the SSP and for liaison with the company security officer and port facility security officers.” • Company security officer (CSO) : “The person designated by the Company for ensuring that a ship security assessment is carried out; that a ship security plan is developed, submitted for approval, and thereafter implemented and maintained and for liaison with port facility security officer and the SSO.” 35
  • 36. DEFINITIONS • Port facility security officer (PFSO) : “ The person designated as responsible for the development, implementation, revision and maintenance of the port facility security plan and for liaison with the ship security officers and company security officers.” 36
  • 37. Security Levels in ISPS Code In setting the security level Contracting Governments should take account of general and specific threat information. Contracting Governments should set the security level applying to ships or port facilities at one of three levels: Security level 1:  normal, the level at which the ship or port facility normally operates. Security level 1 means the level for which minimum appropriate protective security measures shall be maintained at all times. 37
  • 38. Security Levels in ISPS Code Security level 2:  heightened, the level applying for as long as there is a heightened risk of a security incident.  Security level 2 means the level for which appropriate additional protective security measures shall be maintained for a period of time as a result of heightened risk of a security incident. Security level 3:  exceptional, the level applying for the period of time when there is the probable or imminent risk of a security incident.  Security level 3 means the level for which further specific protective security measures shall be maintained for a limited period of time when a security incident is probable or imminent, although it may not be possible to identify the specific target. 38
  • 40. Security Responsibilities I. Contracting governments II. RSO’s III. The Company IV. The Ship V. The Port Facility VI. SSO VII. CSO VIII. PFSO IX. Vessel Personnel with specific security duties X. Facility Personnel with specific security duties XI. Other Personnel XII. CSI Example 3.40
  • 41. I. Contracting Governments • CG shall set the Security levels: 1 – 2 – 3 and provide guidence for protection from security incidents. • Higher security levels indicate greater likelihood of occurrence of a security incident. Governments consider different factors in setting the appropriate security level: 3.41
  • 42. I. Contracting Governments • An administration requiring his ships to set SL 2 or 3 in a port of another Contracting Government shall inform that Contracting Government without delay. • Contracting Governments, when they set security level 3, shall issue appropriate instructions and shall provide security-related information to the ships and port facilities that may be affected. 3.42
  • 43. I. Contracting Governments Other responsibilities as: • Approving the SSP and subsequent amendments ; • Verifying compliance of ships with ISPS Code and issuing the ISSC ; • Determining which port facilities needs a PFSO ; • Ensuring compliance and approval of PFSA and subsequent amendments ; • Approving PFSP and subsequent amendments ; • Exercising control and compliance measures ; • Testing the approved plans (PFSP & SSP) ; • Communicating information to IMO, shipping & port industries. 3.43
  • 44. II. RSO’s • Contracting Governments may authorize a “Recognized Security Organisation” to undertake certain security- related activities. • An RSO may advise / provide assistance to companies or port facilities on security matters. • This can include completion of an SSA or SSP or PFSA or PFSP • A recognized security organisation who completed an SSA or SSP is NOT authorized to approve that SSP. 3.44
  • 45. II. RSO’s What an RSO can do : • Approval of a SSP or amendments thereto on behalf of the Administration ; • Verification and certification of compliance of ships with ISPS Code on behalf of the Administration; and • Conducting PFSA required by Contracting Government 3.45
  • 46. II. RSO’s What an RSO can’t do : • Setting of security level ; • Determining which of the PF are required to designate a PFSO and to prepare a FFSP; • Approving a PFSA or any subsequent amendments; • Approving a PFSP or any subsequent amendments; • Exercising control and compliance measures and • Establishing requirements for a DoS. 3.46
  • 47. III. The Company • The Company must designate a CSO and one SSO per ship. • The Company shall insure that the Master has documents on board relating to : - the crewing of the vessel and - the employment of the vessel. • Ship security assessment (SSA) are being maintained by the SSO in each ship. • Ship security plan (SSP) are provided to each ship and continuous updated and monitored by CSO. 3.47
  • 49. IV. The Ship • The ship must have: - International Ship Security Certificate (ISSC) - Automatic identification system (AIS) - Ship security alert system (SSAS) - Declaration of Security (DoS) - Training and documentation of all crew and record of drill & security excercises. 49
  • 50. The ship must comply with the requirements of the SSP as per the security level set ! 3.50
  • 51. 51
  • 52. 52
  • 53. V. The Port Facility • Port facilities shall comply with the requirements of Chapter XI-2 of SOLAS and the ISPS Code • The port facility shall act upon the security levels set by the Administration within whose territory it is located. • Security measures & procedures shall be applied as to cause a minimum of interference with, or delay to, passengers, ship, ship’s personnel and visitors, goods and services (Part A, 14) 3.53
  • 54. V. The Port Facility At Security level 1 • Ensuring the performances of all port facility security duties; • Controlling access to the port facility; • Monitoring of the port facility, including anchoring & berthing areas; • Monitoring restricted areas to ensure that only authorized persons have access; • Supervising the handling of cargo; • Supervising the handling of ship’s stores, and • Ensuring that security communication is readily available. 3.54
  • 55. V. The Port Facility At security level 2 Additional protective measures, specified in the PFSP shall be implemented for each activity detailed in the previous slide. At security level 3 Further specific protective measures, specified in the PFSP shall be implemented for each activity detailed in the previous slide. Part B of the Code contains a guidance re the additional and protective measures. 3.55
  • 56. VI. SSO • The Company shall designate a SSO for each ship • He is responsible for the SECURITY of the ship. This includes the implementation and maintenance of the SSP, the liaison with the CSO and PFSO 3.56
  • 57. VI. SSO Duties & responsibilities of the SSO (but not limited to):  Undertaking regular security inspections of the ship ;  Maintaining & supervising the implementation of SSP;  Co-ordinating security aspects of the handling of cargo & ship’s stores with other crewmembers and relevant PFSO;  Proposing modifications to SSP ;  Reporting to CSO any deficiencies/non-conformities ;  Reporting all security incidents;  Ensuring adequate training to shipboard personnel;  Enhancing security awareness and vigilance on board  Co-ordinating implementation of SSP with CSO and PFSO;  Ensuring that security equipment is properly operated, tested, calibrated and maintained 3.57
  • 58. VII. CSO The Company shall designate one CSO or several CSO’s depending on the number or types of ships ; Duties & responsibilities of the CSO (but not limited to): • Advising the level of threats to ships ; • Ensuring that SSA is carried out; • Ensuring development/submission/approval/implementation & maintenance of SSP; • Ensuring modification of SSP as appropriate; • Arranging for internal audits/reviews of security activities; • Arranging initial/subsequent verifications by Administration or RSO; 3.58
  • 59. VII. CSO Duties & responsibilities of the CSO (but not limited to): • Ensuring identification of deficiencies & non-conformities; • Enhancing security awareness & vigilance; • Ensure security training for ship’s personnel; • Ensure effective communication & co-operation between SSO and relevant PFSO; • Ensuring consistency between security requirements and safety requirements; • Ensure that each plan reflects the ship-specific information accurately; 3.59
  • 60. VIII. PFSO  A PFSO shall be designated for each port facility ;  He shall be given the necessary support to fulfil his duties and responsibilities;  His tasks may include : - Conducting an initial security survey of the port facility; - The development and maintenance of PFSP; - The implementation and test of the PFSP; - The regular inspection of the port facility; - The recommendation & incorporation of modifications to the PFSP; - Enhancing security awareness & vigilance of personnel 3.60
  • 61. VIII. PFSO  His tasks may include (next) : - The training of security personnel of the port facility; - The reporting of security threats & maintaining records of occurrences; - Co-ordinating implementation of PFSP with appropriate Company & SSO’s; - Co-ordinating with security services, as appropriate; - Setting standards for security personnel; - Ensuring that security equipment is properly operated, tested, calibrated & maintained; - Assisting SSO in confirming identity of those seeking to board the ship (when requested, not a routine). 3.61
  • 62. VIII. PFSO If the PFSO is advised that  A ship is at a higher security level than the port : the PFSO shall report the matter to the competent authority and shall contact the SSO to co-ordinate appropriate action if necessary.  A ship encounters difficulties in complying/implementing the procedures detailed in the SSP (especially in case of security level 3), PFSO & SSO shall liaise and co- ordinate appropriate actions. 3.62
  • 63. IX. Vessel Personnel with specific security duties Shipboard Personnel with Specific Security duties… …and responsibilities shall understand their responsibilities for ship security as described in the SSP and shall have sufficient knowledge and ability to perform their assigned duties. 3.63
  • 64. IX. Vessel Personnel with specific security duties Their knowledge & ability should include, as appropriate : • Knowledge of security threats & patterns; • Recognition & detection of weapons, dangerous substances and devices • Recognition of characteristics & behavioural patterns of persons who are likely to threaten security; • Techniques used to circumvent security measures;- • Crowd management & control techniques; • Security-related communications; • Knowledge of the emergency procedures & contingency plans; • Operations of security equipment & systems; • Testing, calibration & at-sea maintenance of security equipment & systems • Inspection, control and monitoring techniques; • Methods of physical searches of persons, personal effects, baggage, cargo and ship’s stores 3.64
  • 65. 65
  • 66. 66
  • 67. 67
  • 68. X. Facility Personnel with specific security duties Port Facility Personnel having Specific Security duties… …shall understand their duties and responsibilities for port facility security, as described in the SSP and shall have sufficient knowledge and ability to perform their assigned duties. 3.68
  • 69. XI. Other Personnel Shipboard personnel and port facility personnel OTHER than personnel having specific security duties … … may have a role in the enhancement of maritime security … should have sufficient knowledge of and be familiar with relevant provisions of the SSP. 3.69
  • 70. XI. Other Personnel This includes : • The meaning and requirements of the different security levels; • Knowledge of the emergency procedures and contingency plans; • Recognition and detection of weapons, dangerous substances and devices; • Recognition of characteristics & behaviour patterns of persons who are likely to threaten security; • Techniques used to circumvent security measures 3.70
  • 71. ISPS Code 71 Set Security Level Manage Different Security Level Request Declaration of Security PFSA Contracting Government Port Facility Security Officer Company Security Officer Ship Security Officer Local Administrator SSA PFSP SSP
  • 72. Ship Identification Number In December 2002, the Diplomatic Conference on Maritime Security adopted a number of measures aimed at enhancing security of ships and port facilities. This included a modification to SOLAS Regulation XI-1/3 to require ships' identification numbers to be permanently marked in a visible place either on the ship's hull or superstructure. Passenger ships should carry the marking on a horizontal surface visible from the air. Ships should also be marked with their ID numbers internally. The IMO ship identification number is made of the three letters "IMO" followed by the seven-digit number assigned to all ships by IHS Fairplay (formerly known as Lloyd's Register-Fairplay) when constructed. 72
  • 73. Ship Identification Number (cont’d) This is a unique seven digit number that is assigned to propelled, sea-going merchant ships of 100 GT and above upon keel laying with the exception of the following: - Vessels solely engaged in fishing - Ships without mechanical means of propulsion - Pleasure yachts - Ships engaged on special service (e.g. lightships, SAR vessels) - Hopper barges - Hydrofoils, air cushion vehicles - Floating docks and structures classified in a similar manner - Ships of war and troopships - Wooden ships This number is assigned to the total portion of the hull enclosing the machinery space and is the determining factor should additional sections be added. The IMO number is never reassigned to another vessel and is shown on the ship’s certificates. 73
  • 74. Ship Identification Number (cont’d) - Permanently marked - Visible on: * stern or side of hull or superstructure * horizontal surface for passenger vessels - Contrasting color - NLT 200 mm; width proportionate to height - raised lettering or by cutting it into or center punching (or other equivalent) 74
  • 75. CONTINUOUS SYNOPSIS RECORD (CSR)  To be issued by the Administration to each ship under its flag  In case of changes, Administration to issue amended record  To be kept on board and available for inspection at all times  Basic diary of ship or historical record of ship  Issued by Administration, but must be maintained and updated onboard  Information includes:  name of flag state  date of registry  ship’s ID number  name of owner  name of registered demise charterers  name of shipping company  name of classification society(ies)  name of authorities or associations issuing certifications 75
  • 76. Ship Security Alert System (SSAS) • Required to be provided on – All ships constructed on or after 1 July 2004 – Ships constructed before 1 July 2004 : • Oil & chemical tankers, gas & bulk carriers, and cargo HS craft, of  500 GT; Passenger ships including HS passenger craft; not later than the 1st survey of radio installation after 1 July 2004 • other cargo ships of  500 GT and mobile offshore drilling units; not later than the 1st survey of radio installation after 1 July 2006 76
  • 77. Ship Security Alert System (SSAS) - The ship security alert system, when activated, shall: 1. initiate and transmit a ship-to-shore security alert to a competent authority designated by the Administration, the Company, identifying the ship, its location and indicating that the security of the ship is under threat or it has been compromised; 2. not send the ship security alert to any other ships; 3. not raise any alarm on-board the ship; and 4. continue the ship security alert until deactivated and/or reset. - The ship security alert system shall: 1. be capable of being activated from the navigation bridge and in at least one other location; and 2. conform to performance standards not inferior to those adopted by the Organization. - Protected from inadvertent initiation - Administration or coastal state notification requirements 77
  • 78. ANY QUESTION? 78 For more information on ISPS Code, Please visit www.imo.org Thank you!
