1. How Openstack is
Built
Ant(on) Weiss - Otomato
http://otomato.link
1

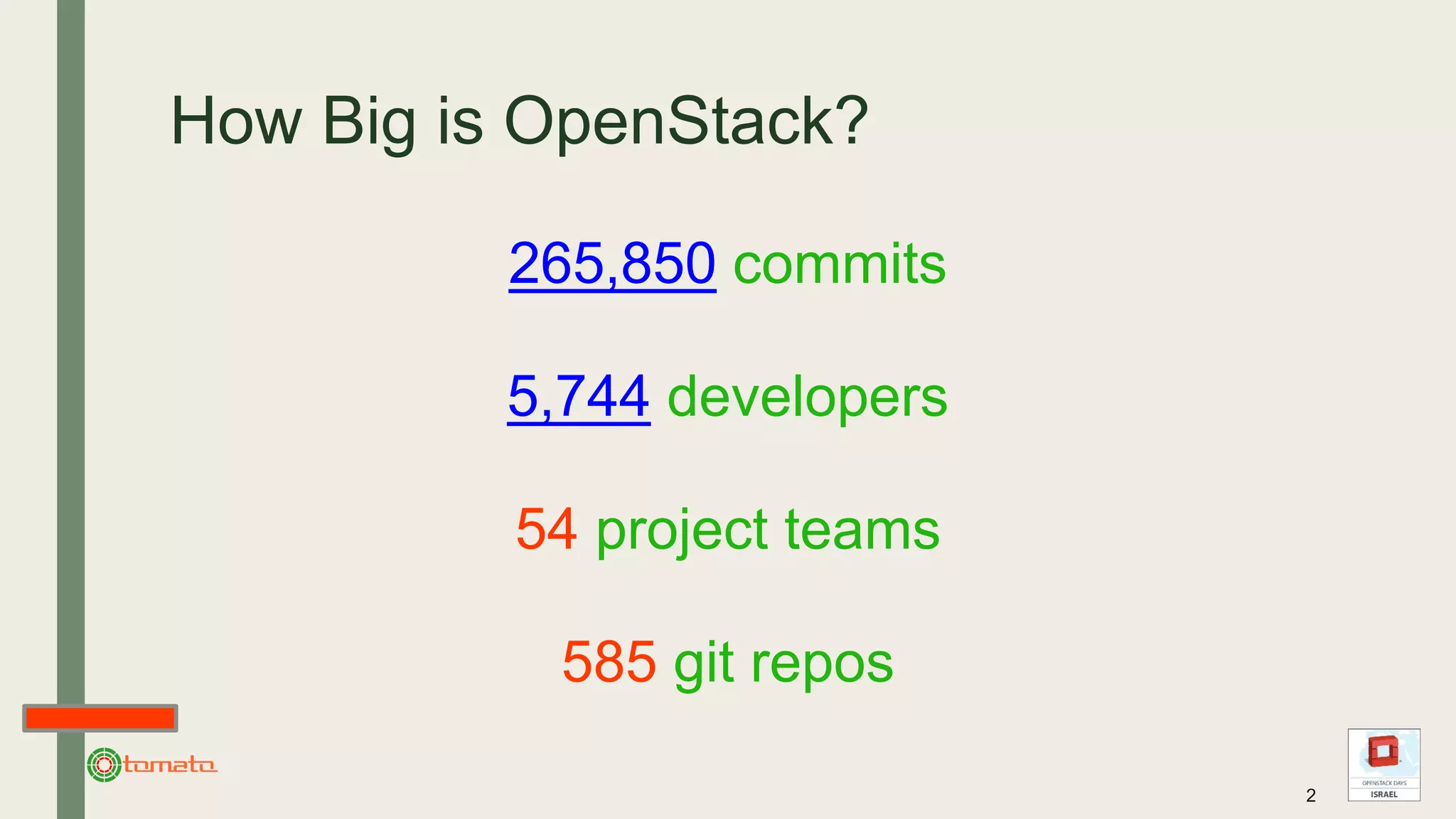

2. How Big is OpenStack?
265,850 commits
5,744 developers
54 project teams
585 git repos
2

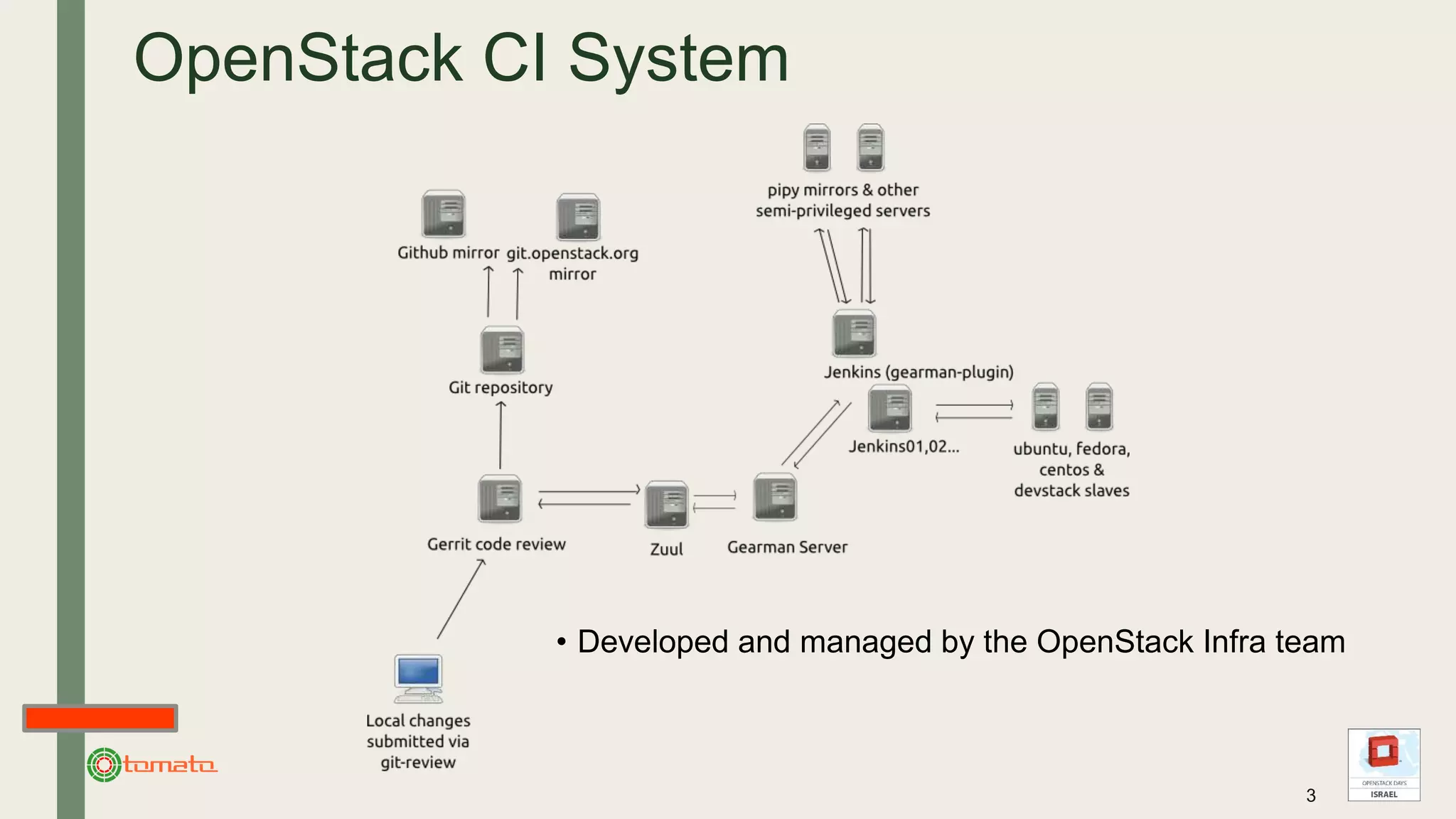

3. OpenStack CI System
3
• Developed and managed by the OpenStack Infra team

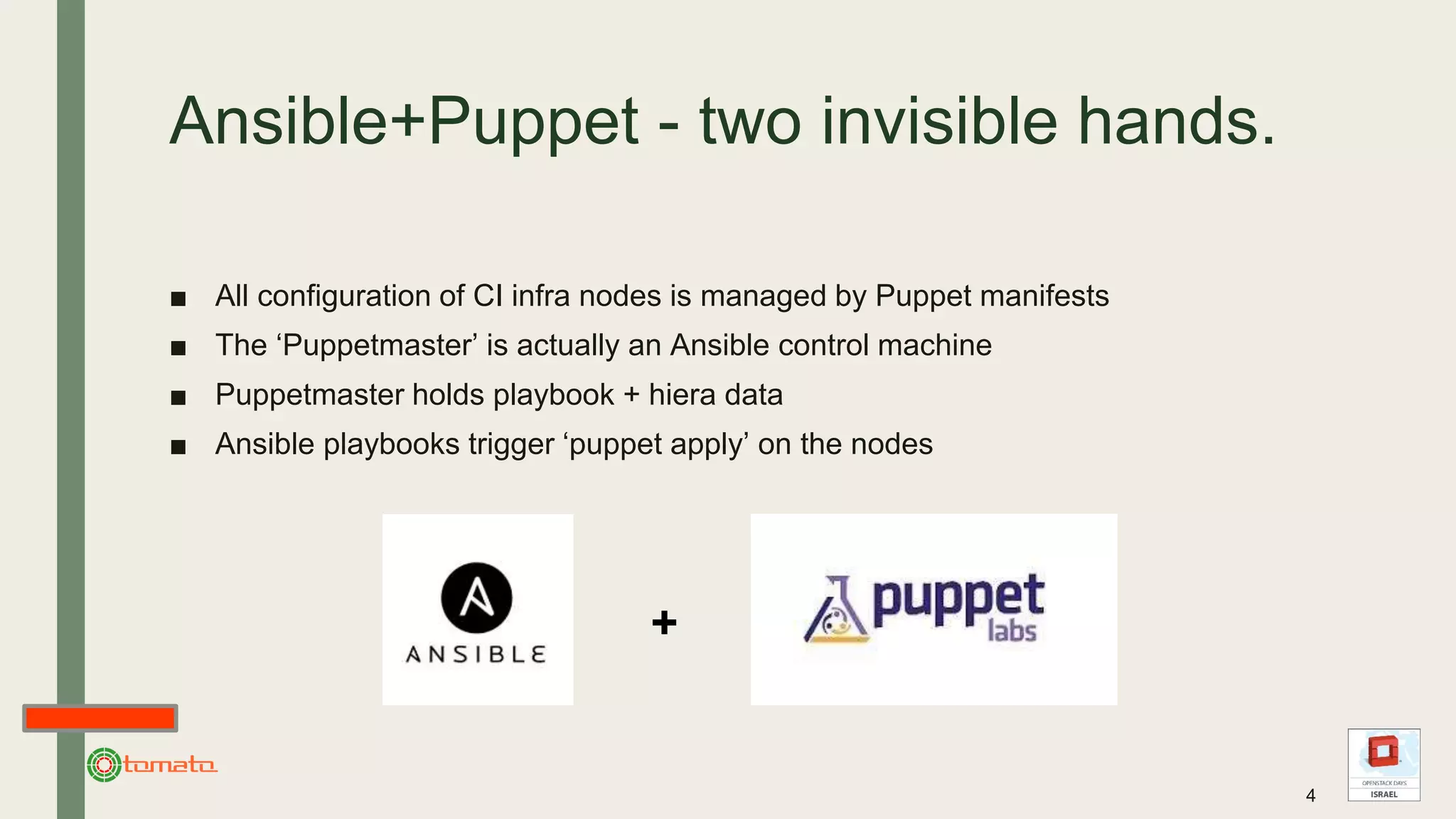

4. Ansible+Puppet - two invisible hands.
■ All configuration of CI infra nodes is managed by Puppet manifests
■ The ‘Puppetmaster’ is actually an Ansible control machine
■ Puppetmaster holds playbook + hiera data
■ Ansible playbooks trigger ‘puppet apply’ on the nodes
4
+

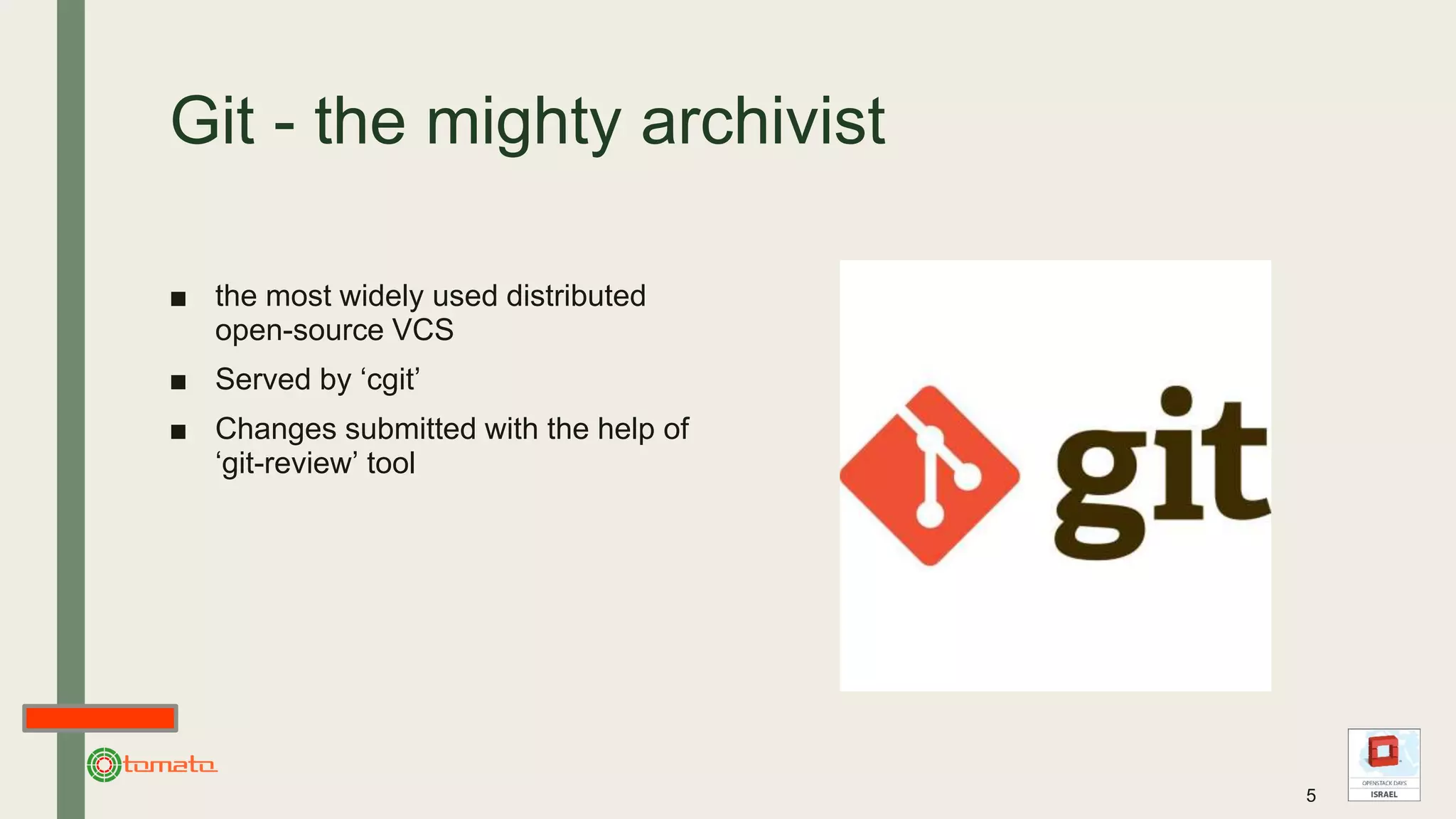

5. Git - the mighty archivist
■ the most widely used distributed
open-source VCS
■ Served by ‘cgit’
■ Changes submitted with the help of
‘git-review’ tool
5

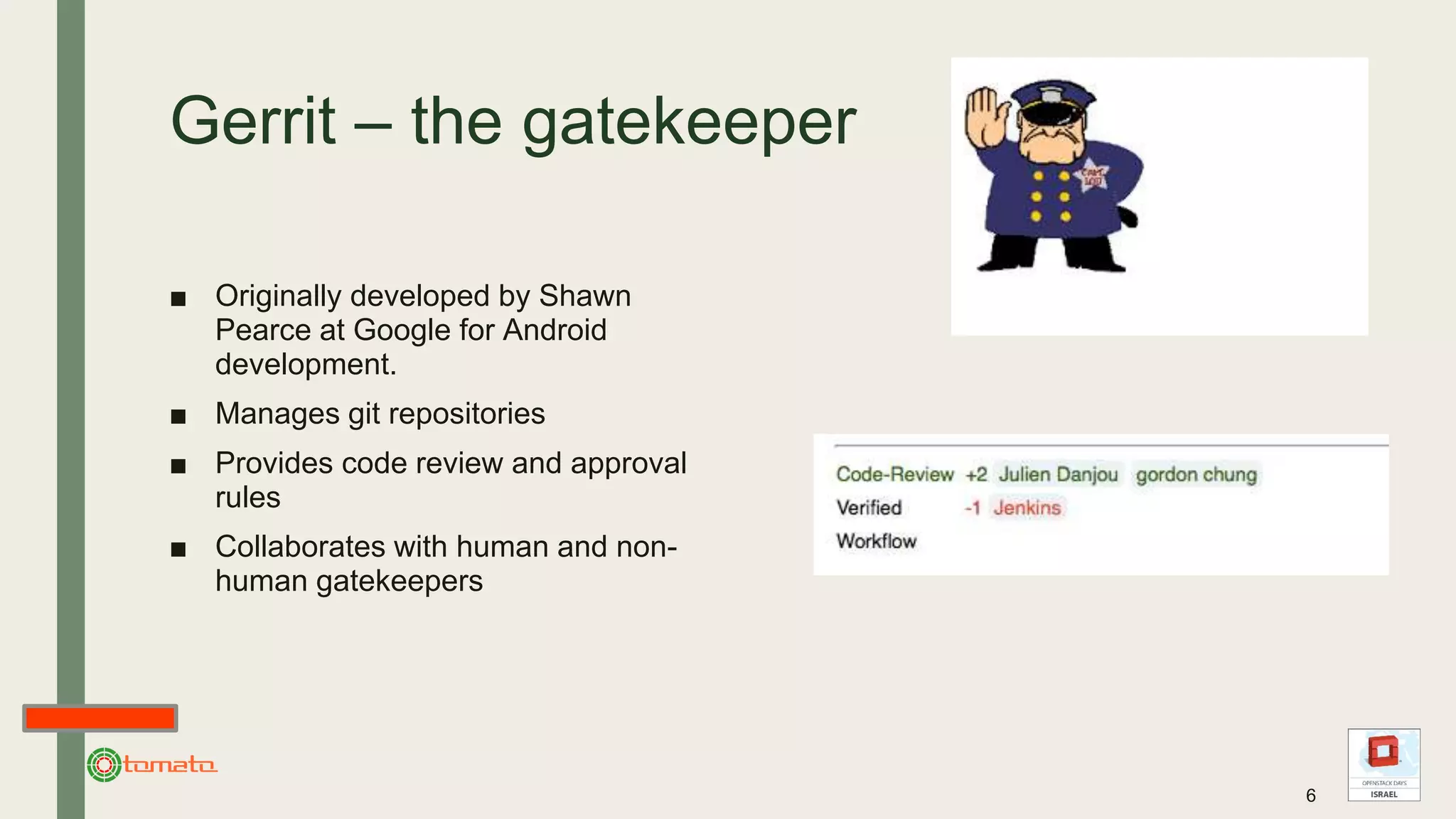

6. Gerrit – the gatekeeper
■ Originally developed by Shawn
Pearce at Google for Android
development.
■ Manages git repositories
■ Provides code review and approval
rules
■ Collaborates with human and non-
human gatekeepers
6

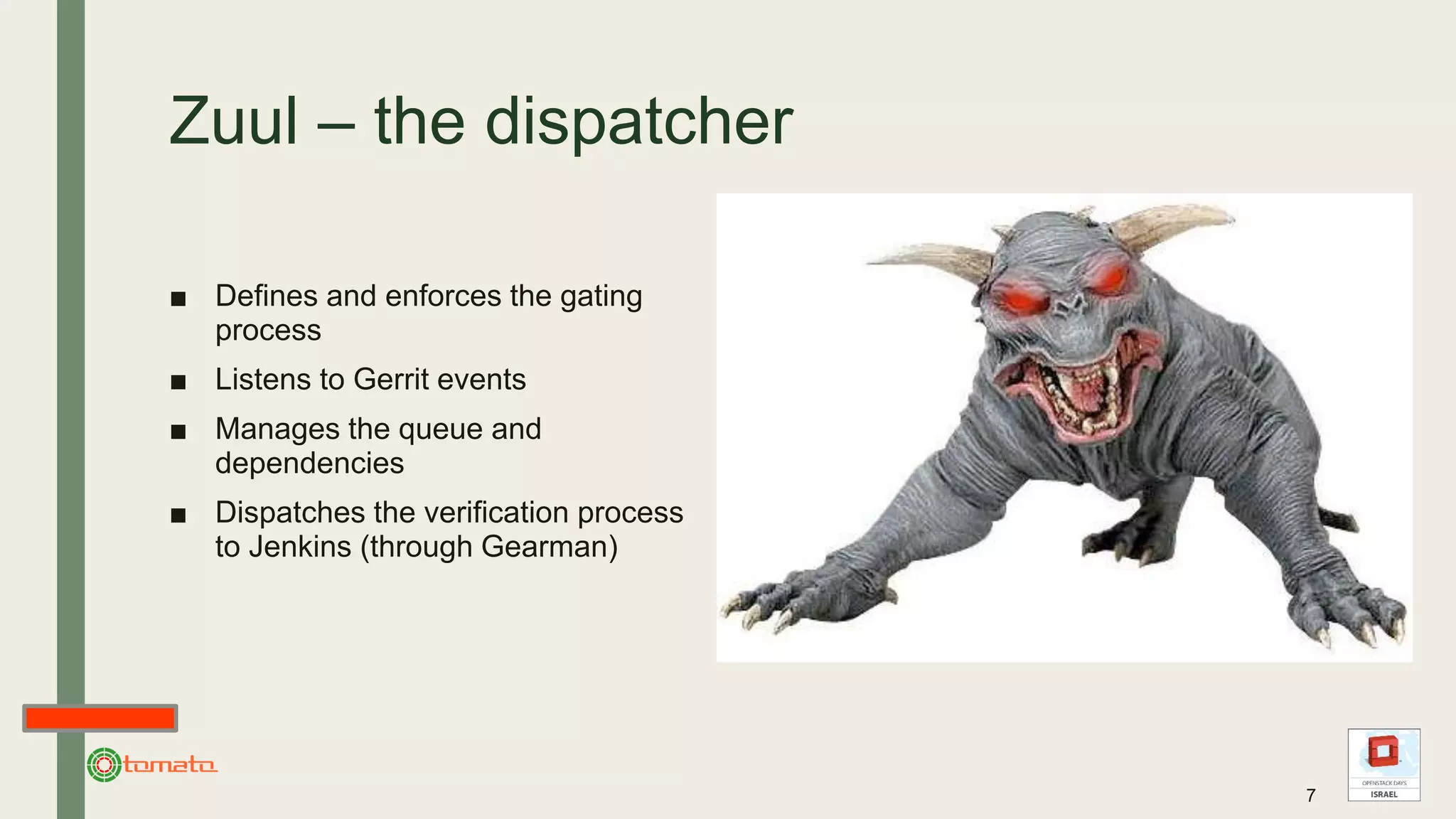

7. Zuul – the dispatcher
■ Defines and enforces the gating
process
■ Listens to Gerrit events
■ Manages the queue and
dependencies
■ Dispatches the verification process
to Jenkins (through Gearman)
7

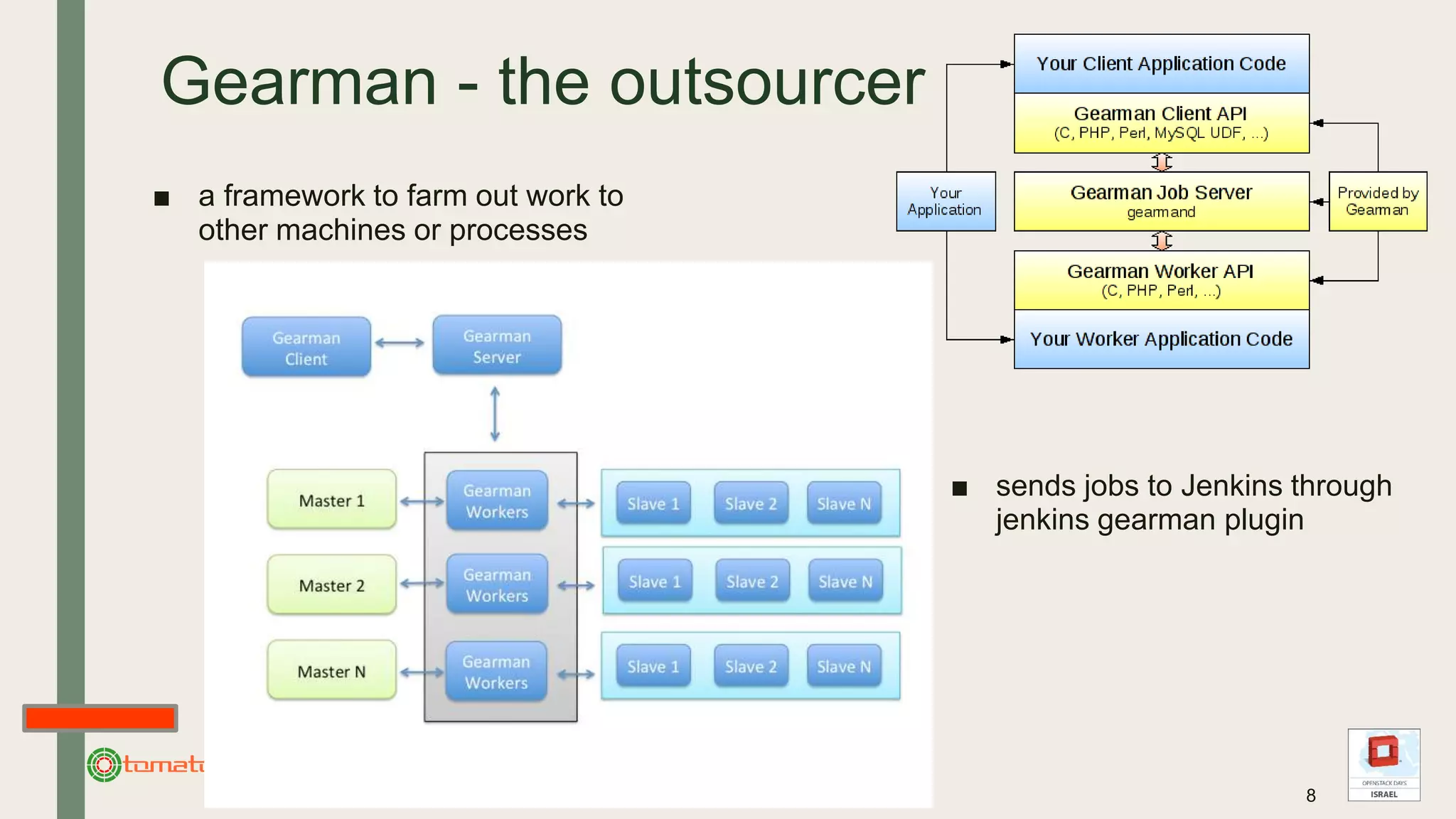

8. Gearman - the outsourcer
■ a framework to farm out work to
other machines or processes
8
■ sends jobs to Jenkins through
jenkins gearman plugin

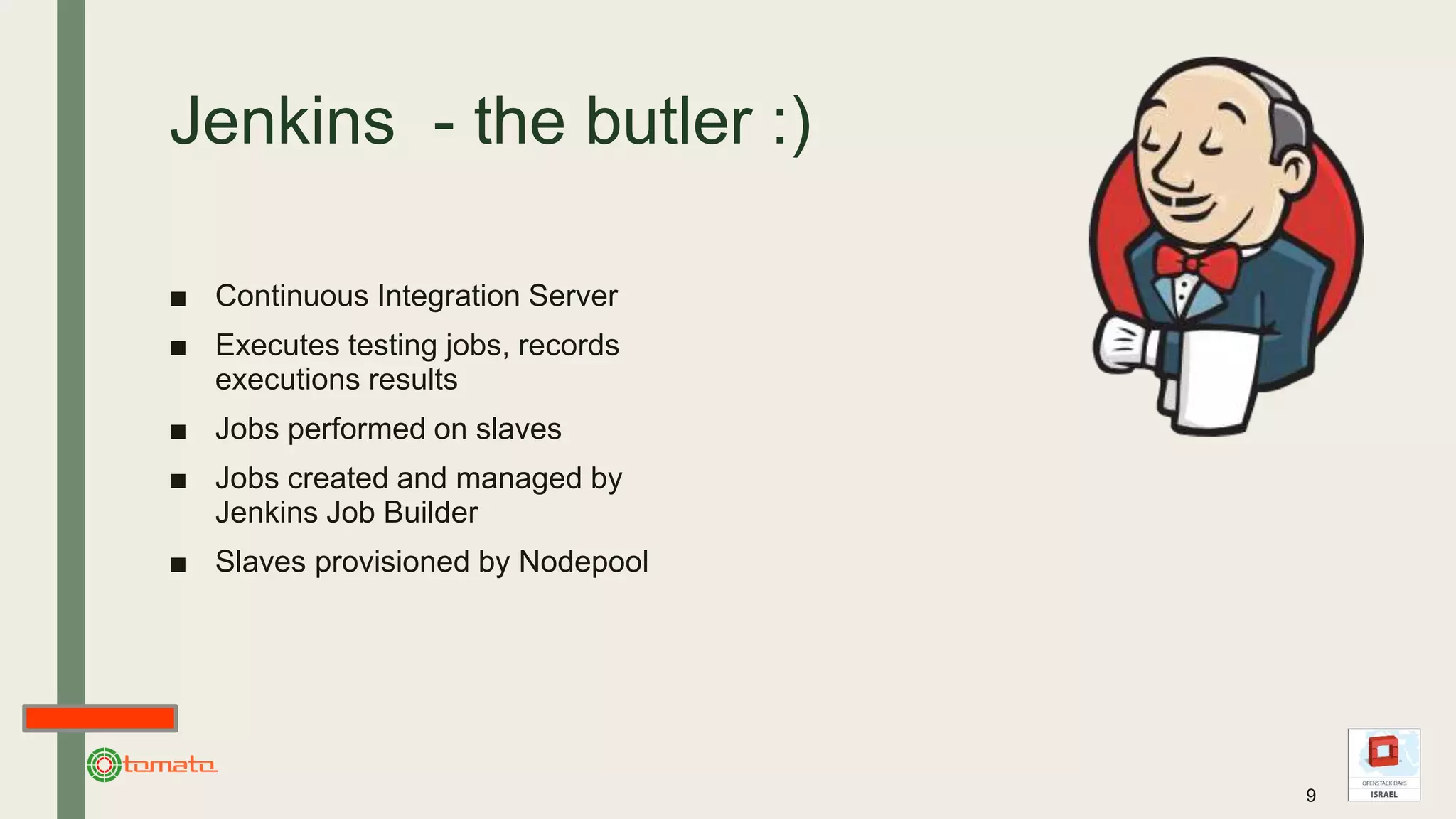

9. Jenkins - the butler :)
■ Continuous Integration Server
■ Executes testing jobs, records
executions results
■ Jobs performed on slaves
■ Jobs created and managed by
Jenkins Job Builder
■ Slaves provisioned by Nodepool
9

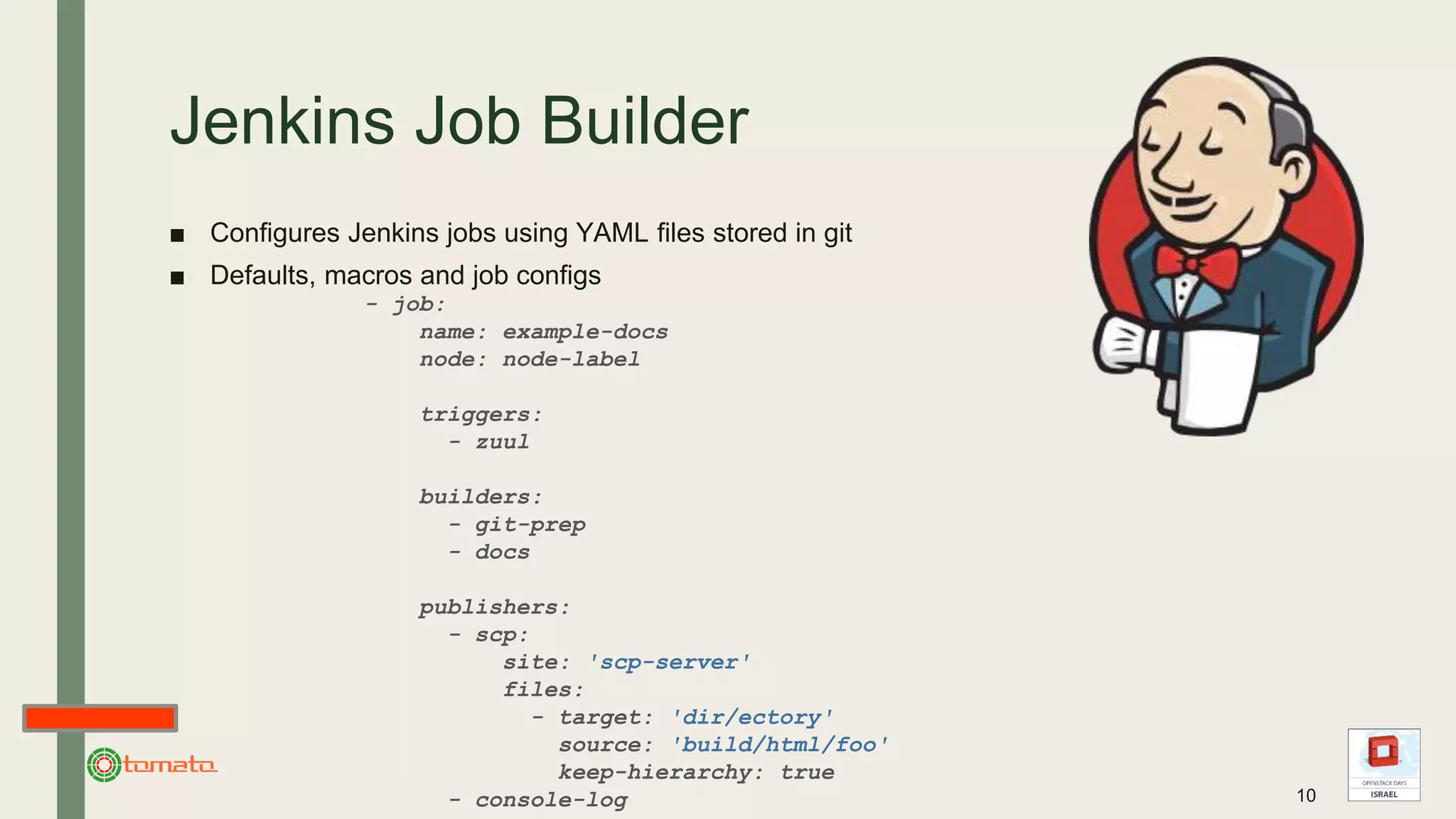

10. Jenkins Job Builder
■ Configures Jenkins jobs using YAML files stored in git
■ Defaults, macros and job configs
- job:
name: example-docs
node: node-label
triggers:
- zuul
builders:
- git-prep
- docs
publishers:
- scp:
site: 'scp-server'
files:
- target: 'dir/ectory'
source: 'build/html/foo'
keep-hierarchy: true
- console-log 10

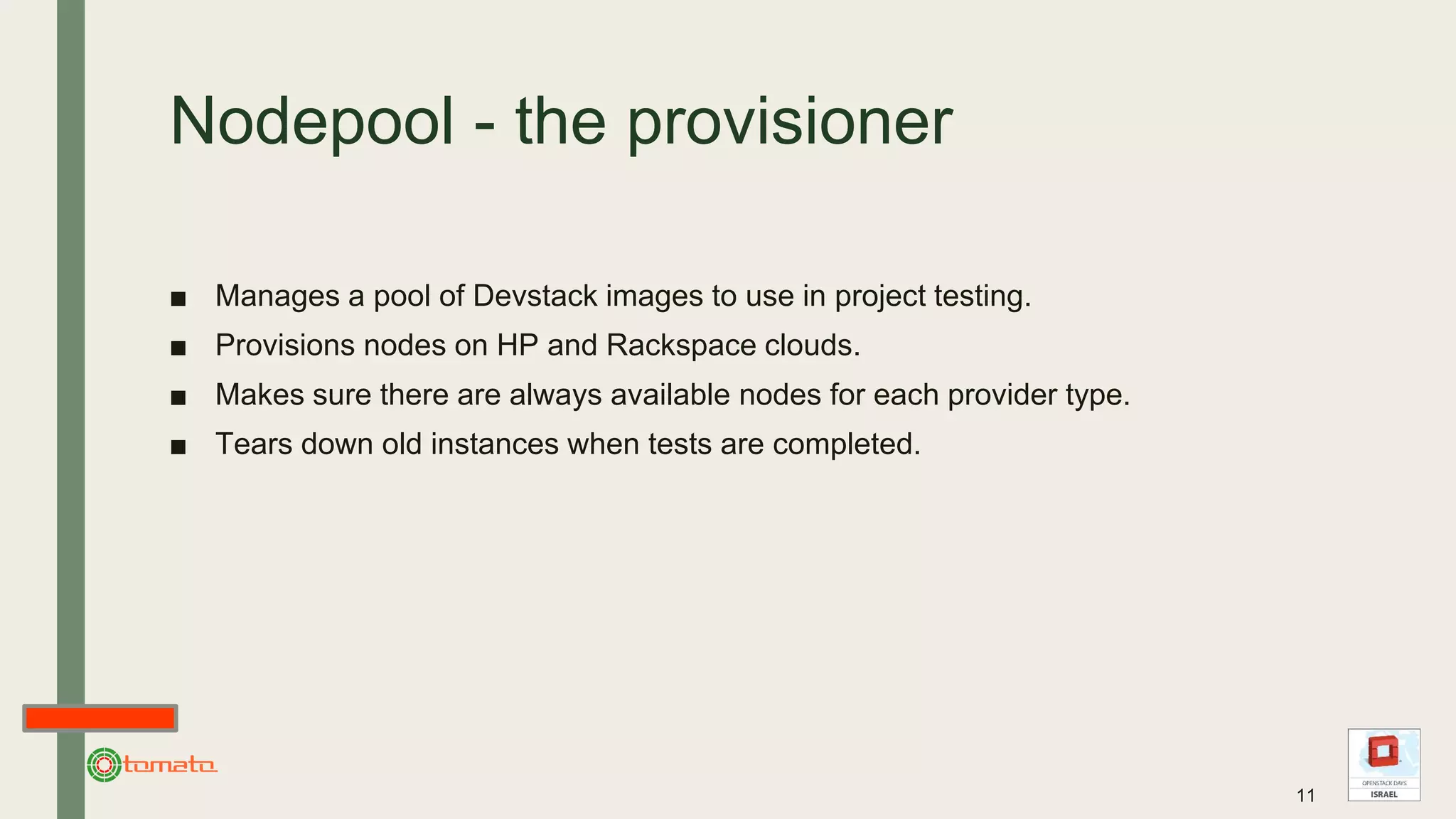

11. Nodepool - the provisioner
■ Manages a pool of Devstack images to use in project testing.
■ Provisions nodes on HP and Rackspace clouds.
■ Makes sure there are always available nodes for each provider type.
■ Tears down old instances when tests are completed.
11

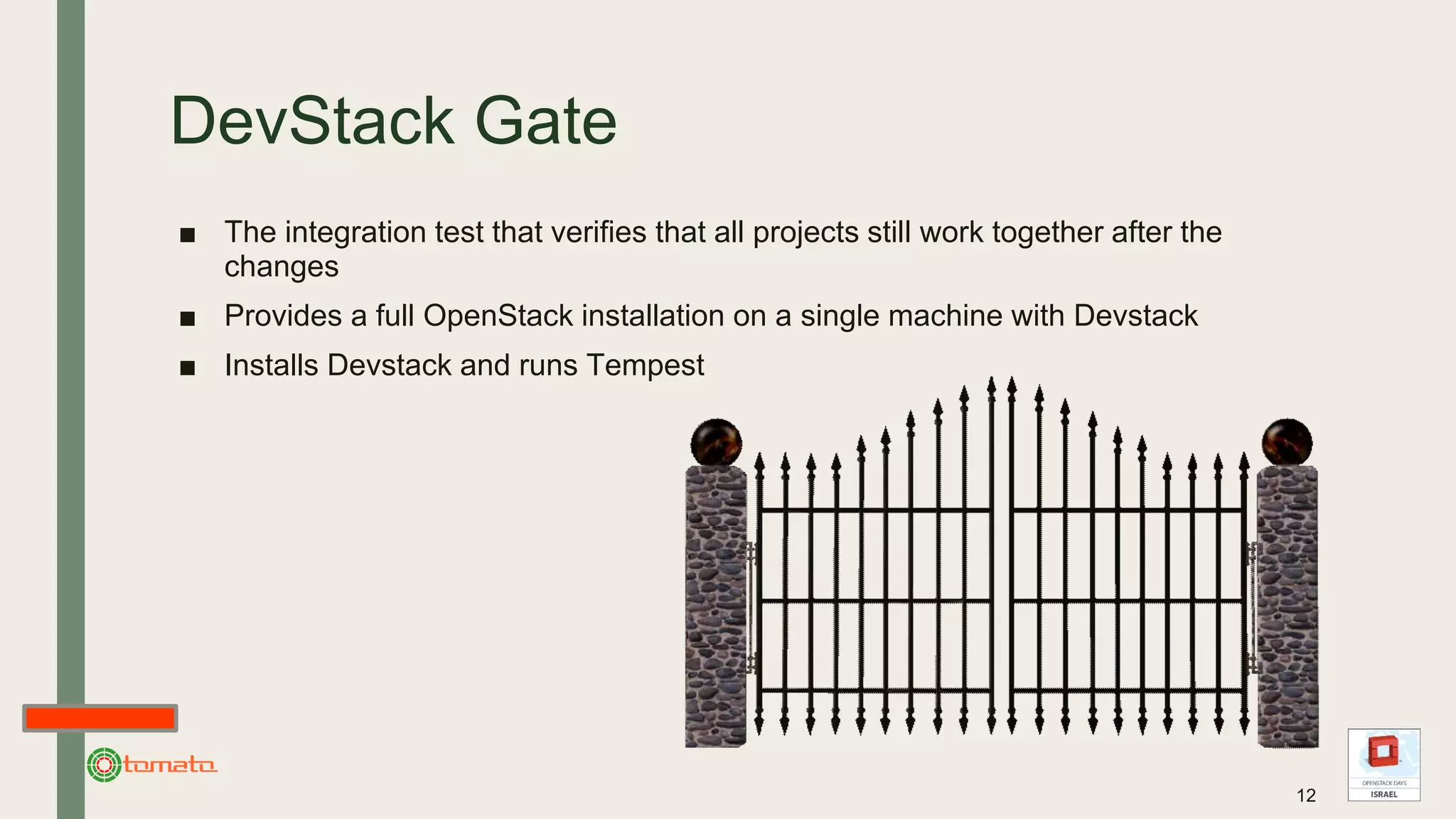

12. DevStack Gate
■ The integration test that verifies that all projects still work together after the
changes
■ Provides a full OpenStack installation on a single machine with Devstack
■ Installs Devstack and runs Tempest
12

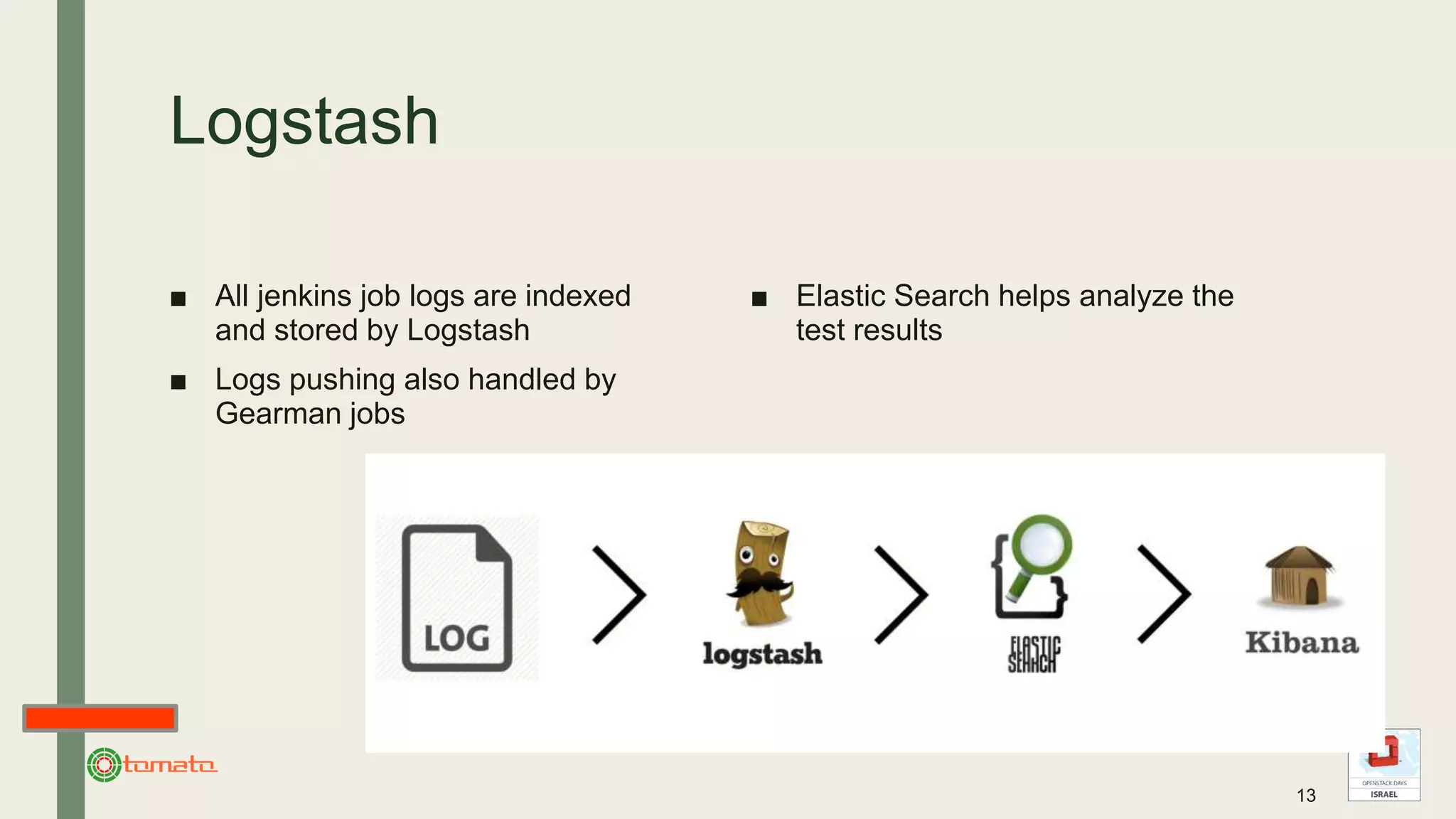

13. Logstash
■ All jenkins job logs are indexed
and stored by Logstash
■ Logs pushing also handled by
Gearman jobs
13
■ Elastic Search helps analyze the
test results

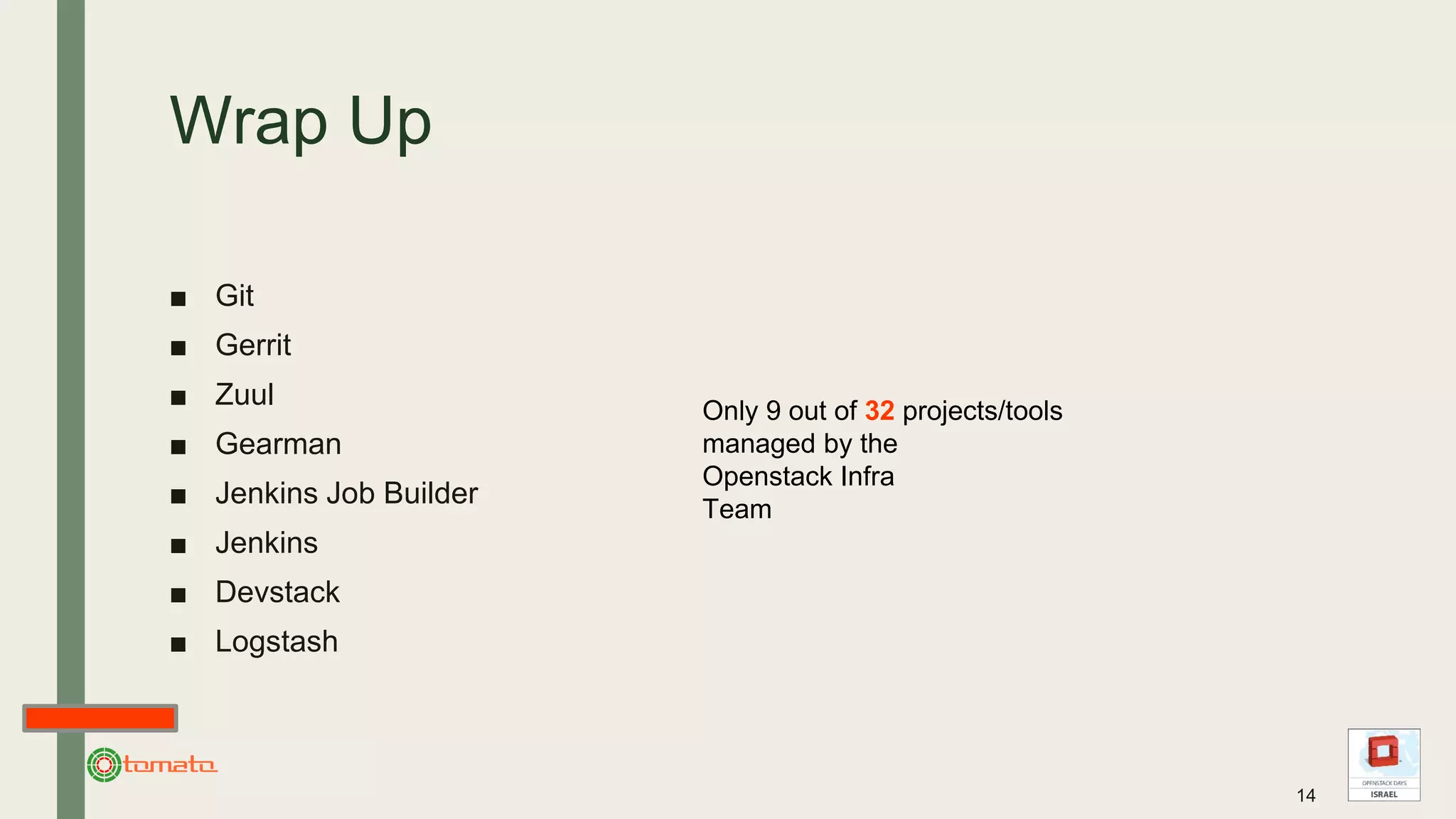

14. Wrap Up
■ Git
■ Gerrit
■ Zuul
■ Gearman
■ Jenkins Job Builder
■ Jenkins
■ Devstack
■ Logstash
14
Only 9 out of 32 projects/tools
managed by the
Openstack Infra
Team
