The document compares the Intel Core i3 processor and the 8086 microprocessor. It provides details on the features, architecture, specifications of each. Key differences highlighted in the comparison section include: the Core i3 is a 64-bit dual-core processor that supports up to 16GB of memory and Hyper-Threading, while the 8086 is a single-core 16-bit processor that can only access 1MB of memory. Overall, the Core i3 offers improved performance over the 8086 due to its multiple cores, larger address space, and integrated graphics.

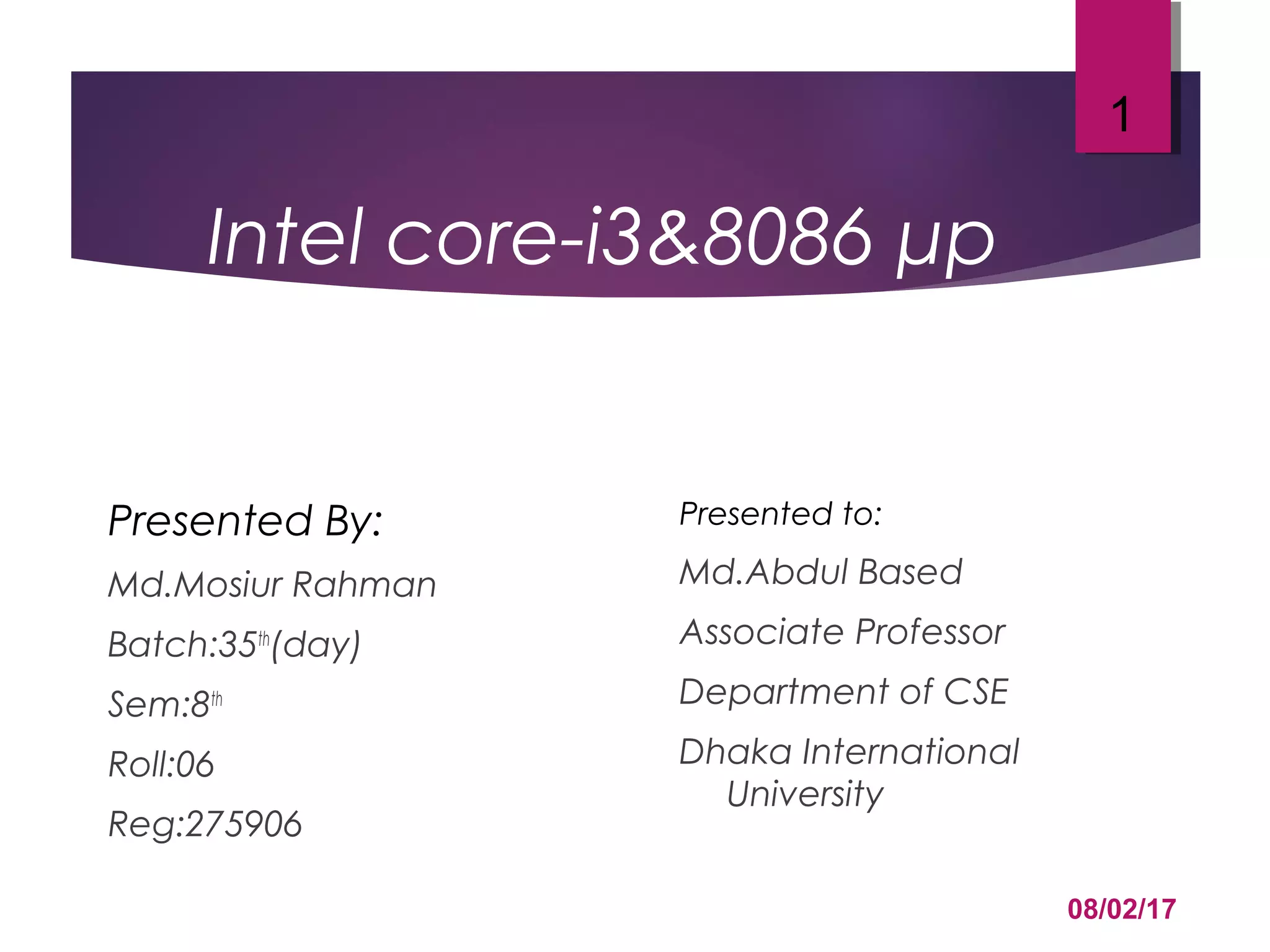

1. Intel core-i3&8086 μp
Presented By:
Md.Mosiur Rahman
Batch:35th
(day)
Sem:8th
Roll:06
Reg:275906
Presented to:
Md.Abdul Based
Associate Professor
Department of CSE
Dhaka International
University
08/02/17
1

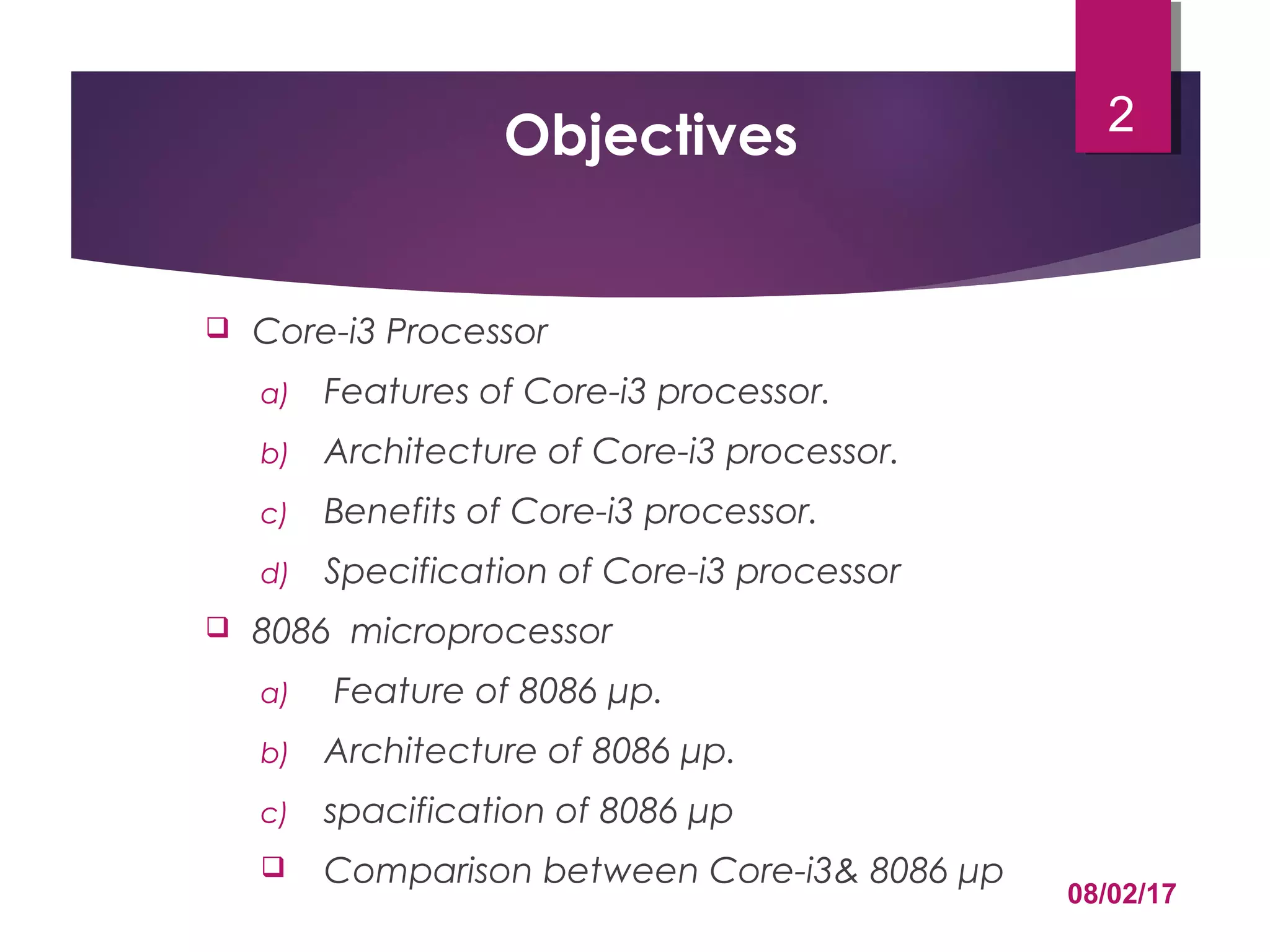

2. Objectives
 Core-i3 Processor
a) Features of Core-i3 processor.
b) Architecture of Core-i3 processor.
c) Benefits of Core-i3 processor.
d) Specification of Core-i3 processor
 8086 microprocessor
a) Feature of 8086 μp.
b) Architecture of 8086 μp.
c) spacification of 8086 μp
 Comparison between Core-i3& 8086 μp
08/02/17
2

3. Core-i3 processor
The lowest number of cores can be
found in Core i3 CPUs, i.e., which
have only two cores. Currently,
all Core i3s are dual-
core processors.
08/02/17
3

4. Core-i3 processor
Feature:
Dual-Core Processing
Intel® Smart Cache
Intel® Hyper-Threading Technology
(Intel® HT Technology)1
Integrated Memory Controller
08/02/17
4

5. Core-i3 processor
Feature:
Intel® HD Graphics
Intel® Virtualization Technology
(Intel® VT-x)1
Intel®-Designed Thermal Solution
for Boxed Processors
08/02/17
5

6. Core-i3 processor
 Architecture:
08/02/17
6

7. Intel Core-i3 processor
Specifications:
•# of Cores2
# of Threads 4
Clock Speed 3.06 GHz
Intel® Smart Cache 4 MB
Instruction Set 64-bit
Max Memory Size
(dependent on memory type) 16 GB
# of Memory Channels 2
Max Memory Bandwidth 21 GB/s
Processing Die Size 81 mm2
08/02/17
7

8. 8086 microprocessor
Feature:
It is a 16-bit μp.
8086 has a 20 bit address bus can
access up to 220
memory locations (1
MB).
 It can support up to 64K I/O ports.
 It provides 14, 16 -bit registers.
08/02/17
8

9. 8086 microprocessor
 8086 is designed to operate in two
modes, Minimum and Maximum.
 It can prefetches up to 6 instruction
bytes from memory and queues them
in order to speed up instruction
execution.
08/02/17
9

10. Features
 It requires +5V power supply.
 A 40 pin dual in line package.
 Address ranges from 00000H to FFFFFH
08/02/17
10

11. Intel 8086 Internal Architecture
08/02/17
11

12. 8086 microprocessor
Specification:
•Code name N/A
Date released 1979
Architecture 16 bits
Data bus 16 bits
Address bus 20 bits
Maximum memory 1 MB
L1 cache no
L2 cache no
Clock frequency 4.77-10 MHz
FSB same as clock frequency 08/02/17
12

13. 8086 microprocessor
 Fabrication process 3,000 nm
 Number of transistors 29,000
 Voltage 5 V
 Die surface area 16 mm²
 Connector 40-pin
08/02/17
13

14. Compare between i3 & 8086:
1.Size:
Intel core-i3 is 64 bits & 8086 μp is16 bits
2.Memory:
Core-i3 can access up to16GB
8086 μp can access up to 1MB
3.Core
Core-i3=2 core
8086 μp =single core
4.HT technology:
Core-i3 has HT technology
8086 μp does not have HT technology
08/02/17
14

15. 6.HD Graphics:
Core-i3 has HD graphics but 8086 μp
does not have HD graphics
7.Cost:
8086 μp is costly than Intel core i3
08/02/1715

16. 08/02/17
16
