7th SDN Expert Group Seminar - Session1

2014-04-14
1
2014 OpenFlow Korea All Rights Reserved

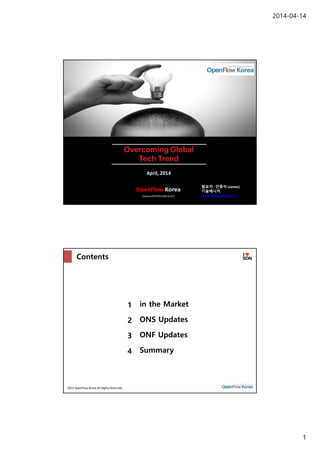

Overcoming Global
Tech Trend
April, 2014
OpenFlow Korea
(www.OPENFLOW.or.kr)
발표자 : 안종석 (James)
기술매니저
james@openflow.or.kr
Contents
in the Market
ONS Updates
ONF Updates
Summary
1
2
3
4

2014-04-14
2

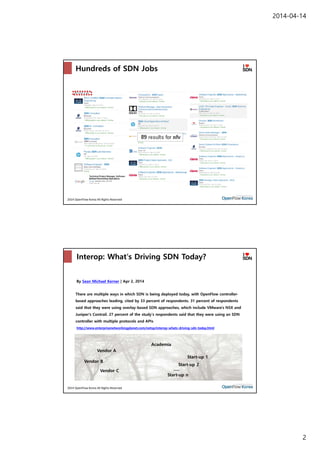

Hundreds of SDN Jobs
Interop: What's Driving SDN Today?
There are multiple ways in which SDN is being deployed today, with OpenFlow controller-
based approaches leading, cited by 33 percent of respondents. 31 percent of respondents
said that they were using overlay-based SDN approaches, which include VMware's NSX and
Juniper's Contrail. 27 percent of the study's respondents said that they were using an SDN
controller with multiple protocols and APIs
By Sean Michael Kerner | Apr 2, 2014
http://www.enterprisenetworkingplanet.com/netsp/interop-whats-driving-sdn-today.html
Vendor A
Vendor C
Vendor B
Academia
Start-up 1
Start-up 2
Start-up n
…..

2014-04-14
3
News News News
ONF on OpFlex
Posted on April 3, 2014 by Dan Pitt
ONF Executive Director Dan Pitt offers his thoughts on OpFlex, openness, and the
southbound interface.
Many people have approached ONF for feedback on Cisco’s announcement of OpFlex. While some are making this
a battle between standards, others are simply asking what the role could be for both OpFlex and OpenFlow in
SDN. While we’ll have some additional commentary on OpFlex in the days to come, I’d like to share a few
thoughts with you now on the importance of being truly “open” and what we see as the essence of SDN.
“Open Network Linux” could boost viability of vendor-neutral switches
by Jon Brodkin - Apr 4 2014, 10:50am +0900
LAS VEGAS—The Facebook-led Open Compute Project has spent the past year building an “open” switch that can
boot nearly any type of networking software, giving customers more alternatives to proprietary switch vendors like
Cisco.
Intel, Broadcom, Mellanox, and Cumulus Networks jumped on board last November, contributing specifications
and software that will bring the project closer to a finished design. They weren’t alone, though: Software-defined
networking vendor Big Switch Networks, in January, donated what it calls Open Network Linux (ONL) to the
project.
http://arstechnica.com/information-technology/2014/04/open-network-linux-could-boost-viability-of-bare-metal-
switches/?utm_content=buffer54af9&utm_medium=social&utm_source=linkedin.com&utm_campaign=buffer
https://www.opennetworking.org/blog/
ETSI + ONF = SDN4NFV
• ONF and ETSI announce strategic collaboration for SDN
support of NFV
https://www.opennetworking.org/blog/

2014-04-14
4

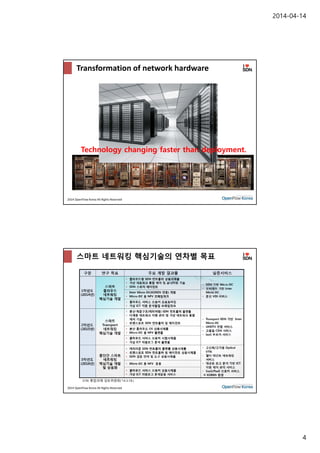

Transformation of network hardware
NFV
Technology changing faster than deployment.
스마트 네트워킹 핵심기술의 연차별 목표
ETRI 통합과제 검토위원회(‘14.3.18.)

2014-04-14
5

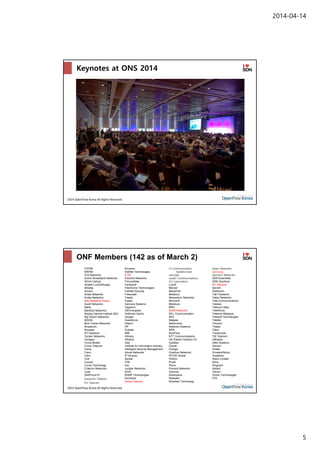

Keynotes at ONS 2014
9
ONF Members (142 as of March 2)
3TEN8
6WIND
A10 Networks
Active Broadband Networks
ADVA Optical
Alcatel-Lucent/Nuage
Alibaba
Aricent
Arista Networks
Aruba Networks
Atto Research Korea
Auvik Networks
Baidu
Barefoot Networks
Beijing Internet Institute (BII)
Big Switch Networks
BISDN
Blue Ocean Networks
Broadcom
Brocade
BTI Systems
Centec Networks
Ceragon
China Mobile
China Telecom
Ciena
Cisco
Citrix
Colt
Coriant
Corsa Technology
Criterion Networks
Cyan
Dell/Force10
Deutsche Telekom
ECI Telecom
Ericsson
EstiNet Technologies
ETRI
Extreme Networks
F5/LineRate
Facebook
Fiberhome Technologies
FishNet Security
Freescale
Friesty
Fujitsu
Gencore Systems
Gigamon
Glimmerglass
Goldman Sachs
Google
Guardicore
Hitachi
HP
Huawei
IBM
Infinera
Infoblox
Intel
Institute for Information Industry
Intelligent Security Management
Intune Networks
IP Infusion
Itential
ITRI
Ixia
Juniper Networks
KDDI
KEMP Technologies
Konodrac
Korea Telecom
L3 Communication
Systems-East
Lancope
Level3 Communications
LSI Corporation
Luxoft
Marvell
MediaTek
Mellanox
Metaswitch Networks
Microsoft
Midokura
MRV
NAIM Networks
NCL Communication
NEC
Netgear
Netronome
Netscout Systems
NSN
NoviFlow
NTT Communications
Oki Electric Industry Co
Optelian
Oracle
Orange
Overture Networks
PCCW Global
Pertino
Pica8
Plexxi
Procera Networks
Qosmos
Rackspace
Radware
Riverbed Technology
Saisei Networks
Samsung
Sanctum Networks
SDN Essentials
SDN Solutions
SK Telecom
Spirent
Swisscom
Tail-f Systems
Tallac Networks
Tata Communications
Tekelec
Telecom Italia
Telefónica
Telekom Malaysia
Telesoft Technologies
Tellabs
Tencent
Thales
Tilera
Transmode
TW Telecom
UBIqube
Vello Systems
Verizon
Virtela
Vmware/Nicira
Vodafone
Wipro Limited
Xilinx
Xinguard
Xpliant
Yahoo!
Zhone Technologies
ZTE

2014-04-14
6

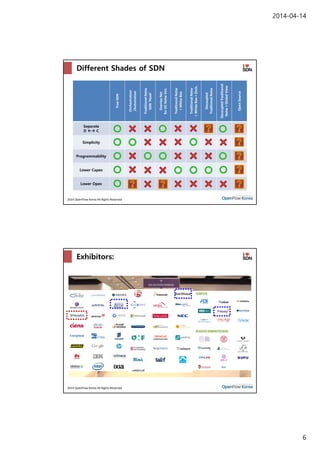

Different Shades of SDN
True SDN
Orchestration
/Automation
Traditional Netw
SDN ’Hook’
Overlay Net
for DC NetwVirt.
Traditional Netw
+ White Box
Traditional Netw
+ White Box + Orch.
Decoupled
Traditional Netw
Decoupled Traditional
Netw+ GlobalView
Open Source
Separate
D  C
Simplicity
Programmability
Lower Capex
Lower Opex
Exhibitors:
12

2014-04-14
7
NTT Docomo
13
• Reference for Korea
• Auto-Scale for Nation Wide Disaster
Voice
Mail
Video
Normal Nation Wide Disaster
Andromeda ‐ SDN Based Substrate
• Andromeda Network Datapath with integrated programmable
NFV (Scale out, Critical optimization applied e2e)
• Goal: near native performance, CPU efficiency
VM TX
Firewall /
Security
Rate
Limiting
Billing Routing Phys TX

2014-04-14
8
Use Case for SDN/NFV
15
• OpenFlow as the Service
Chaining Protocol
• Enterprise Network
Functions such as Firewall,
WAN Optimization, Load
Balancer and QoS
• Traffic Classification using
OpenFlow
• Service Chain is a list of
input and output ports
(Virtual & Physical)
connecting VNFs
Load Balancer Use Case
16
• freescale
wants to lead
its OpenFlow
standard

2014-04-14
9
Protocol-Independent Packet Processors
17
ONF Organization & Governance
18
ONF Board
Executive Director
(Dan Pitt)
Technical Advisory
Group
Testing Leadership
Council
Chipmakers
Advisory Board
Council of Chairs
Arch & Framework
Extensibility
Config &
Management
Testing & Interop
Forwarding
Abstractions
Migration
Optical Transport
Wireless & Mobile
NBI
Working Groups
Discussion Groups
• Security
• L4-7
• Carrier-Grade SDN
Committees
• Market Education
Research Associates

2014-04-14
10

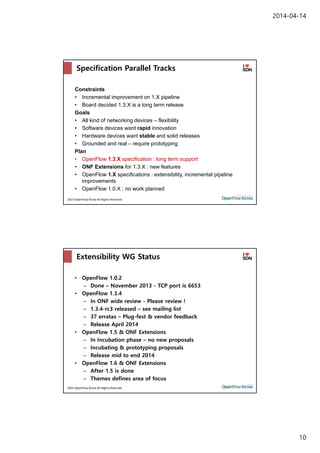

Specification Parallel Tracks
Constraints
• Incremental improvement on 1.X pipeline
• Board decided 1.3.X is a long term release
Goals
• All kind of networking devices – flexibility
• Software devices want rapid innovation
• Hardware devices want stable and solid releases
• Grounded and real – require prototyping
Plan
• OpenFlow 1.3.X specification : long term support
• ONF Extensions for 1.3.X : new features
• OpenFlow 1.X specifications : extensibility, incremental pipeline
improvements
• OpenFlow 1.0.X : no work planned
19
Extensibility WG Status
20
• OpenFlow 1.0.2
– Done – November 2013 - TCP port is 6653
• OpenFlow 1.3.4
– In ONF wide review - Please review !
– 1.3.4-rc3 released – see mailing list
– 37 erratas – Plug-fest & vendor feedback
– Release April 2014
• OpenFlow 1.5 & ONF Extensions
– In Incubation phase – no new proposals
– Incubating & prototyping proposals
– Release mid to end 2014
• OpenFlow 1.6 & ONF Extensions
– After 1.5 is done
– Themes defines area of focus

2014-04-14
11

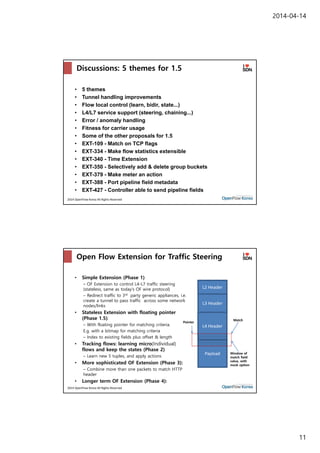

Discussions: 5 themes for 1.5
• 5 themes
• Tunnel handling improvements
• Flow local control (learn, bidir, state...)
• L4/L7 service support (steering, chaining...)
• Error / anomaly handling
• Fitness for carrier usage
• Some of the other proposals for 1.5
• EXT-109 - Match on TCP flags
• EXT-334 - Make flow statistics extensible
• EXT-340 - Time Extension
• EXT-350 - Selectively add & delete group buckets
• EXT-379 - Make meter an action
• EXT-388 - Port pipeline field metadata
• EXT-427 - Controller able to send pipeline fields
21
Open Flow Extension for Traffic Steering
• Simple Extension (Phase 1)
– OF Extension to control L4-L7 traffic steering
(stateless, same as today’s OF wire protocol)
– Redirect traffic to 3rd party generic appliances, i.e.
create a tunnel to pass traffic across some network
nodes/links
• Stateless Extension with floating pointer
(Phase 1.5):
– With floating pointer for matching criteria.
E.g. with a bitmap for matching criteria
– Index to existing fields plus offset & length
• Tracking flows: learning micro(Individual)
flows and keep the states (Phase 2)
– Learn new 5 tuples, and apply actions
• More sophisticated OF Extension (Phase 3):
– Combine more than one packets to match HTTP
header
• Longer term OF Extension (Phase 4):
L2 Header
L3 Header
L4 Header
Payload
Pointer
Match
Window of
match field
value, with
mask option

2014-04-14
12

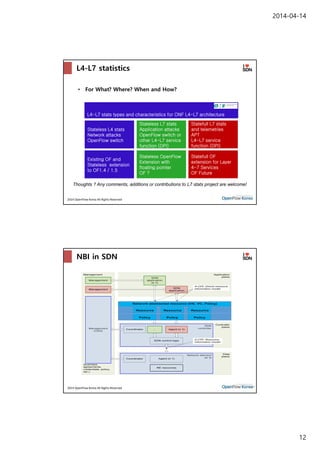

L4-L7 statistics
• For What? Where? When and How?
23
L4-L7 stats types and characteristics for ONF L4-L7 architecture
Stateless L4 stats
Network attacks
OpenFlow switch
Stateless L7 stats
Application attacks
OpenFlow switch or
other L4-L7 service
function (DPI)
Statefull L7 stats
and telemetries
APT
L4-L7 service
function (DPI)
Existing OF and
Stateless extension
to OF1.4 / 1.5
Stateless OpenFlow
Extension with
floating pointer
OF ?
Statefull OF
extension for Layer
4-7 Services
OF Future
Thoughts ? Any comments, additions or contributions to L7 stats project are welcome!
NBI in SDN
24
Network abstracted resource (VN, VC, Policy)
Resource Resource Resource
Policy Policy Policy

2014-04-14
13
Protocol-Independent Packet Processor
25
• The abstract switch forwarding model
Myths & Misconceptions
• SDN is Network Virtualization
• SDN == NFV
• SDN is about centralized control
• OpenFlow is not mature
• OpenFlow does not scale
• Do we really need another protocol?
• We can’t just throw away our existing networks

2014-04-14
14

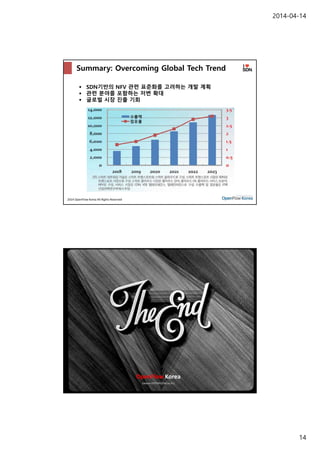

Summary: Overcoming Global Tech Trend
 SDN기반의 NFV 관련 표준화를 고려하는 개발 계획
 관련 분야를 포함하는 저변 확대
 글로벌 시장 진출 기회
OpenFlow Korea
(www.OPENFLOW.or.kr)
