1. Tools and Platforms for
OpenFlow/SDN
Umesh Krishnaswamy
umesh@onlab.us

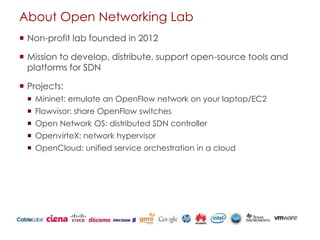

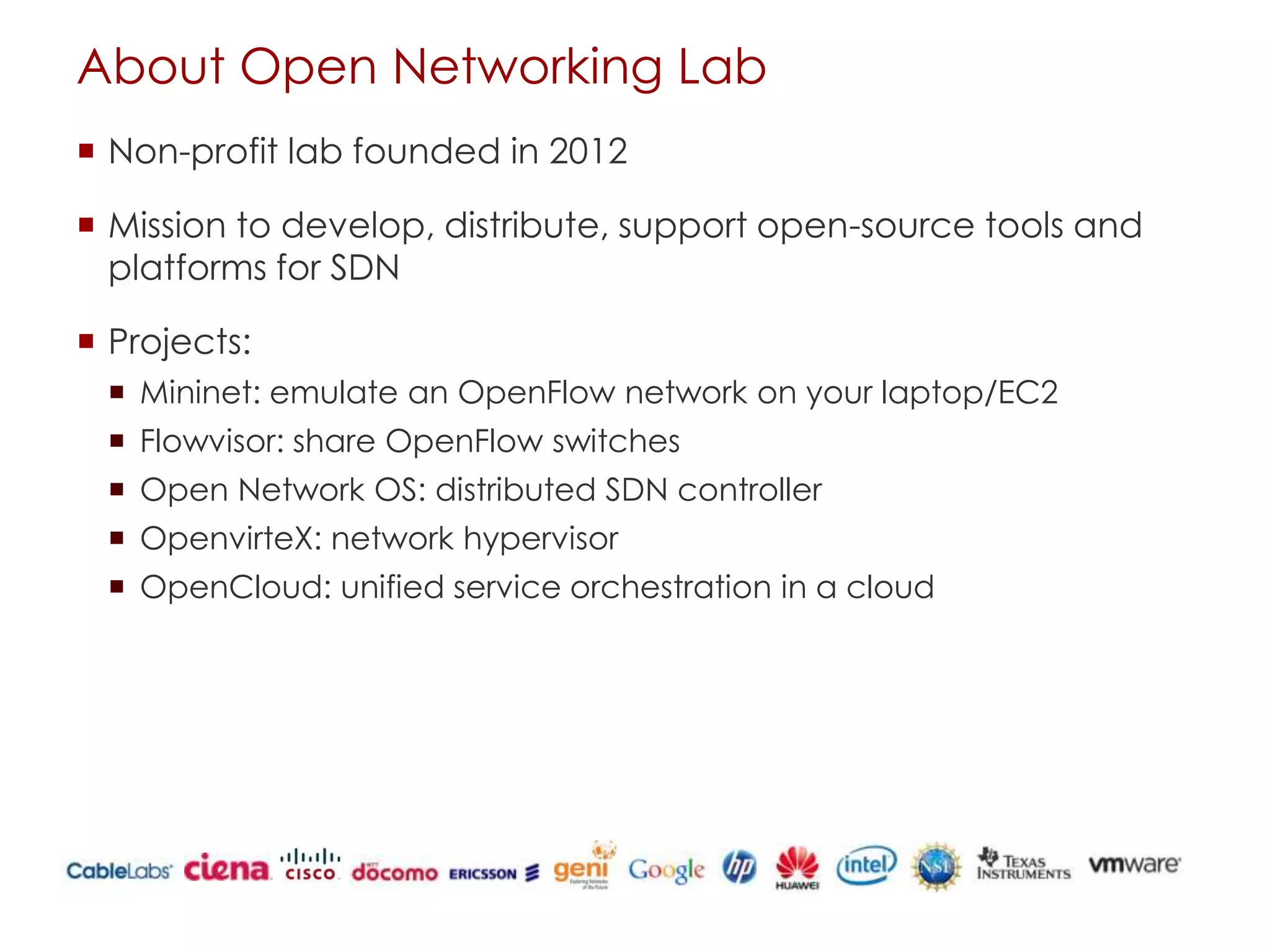

2. About Open Networking Lab
 Non-profit lab founded in 2012
 Mission to develop, distribute, support open-source tools and
platforms for SDN
 Projects:
 Mininet: emulate an OpenFlow network on your laptop/EC2
 Flowvisor: share OpenFlow switches
 Open Network OS: distributed SDN controller
 OpenvirteX: network hypervisor
 OpenCloud: unified service orchestration in a cloud

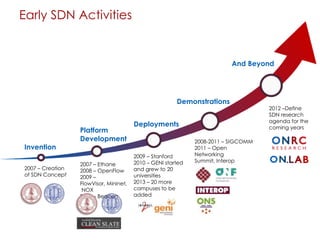

3. Early SDN Activities
Platform
Development
2007 – Ethane
2008 – OpenFlow
2009 –
FlowVisor, Mininet,
NOX
2010 – Beacon
2009 – Stanford
2010 – GENI started
and grew to 20
universities
2013 – 20 more
campuses to be
added
Deployments
Demonstrations
2008-2011 – SIGCOMM
2011 – Open
Networking
Summit, Interop
2012 –Define
SDN research
agenda for the
coming years
And Beyond
Invention
2007 – Creation
of SDN Concept

4. Exponential Interest in the Industry
Networking is cool once more!

5. Lots of Problems and Ideas…
Let us drill into one problem

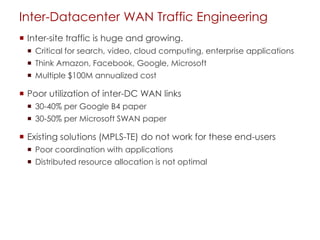

6. Inter-Datacenter WAN Traffic Engineering
 Inter-site traffic is huge and growing.
 Critical for search, video, cloud computing, enterprise applications
 Think Amazon, Facebook, Google, Microsoft
 Multiple $100M annualized cost
 Poor utilization of inter-DC WAN links
 30-40% per Google B4 paper
 30-50% per Microsoft SWAN paper
 Existing solutions (MPLS-TE) do not work for these end-users
 Poor coordination with applications
 Distributed resource allocation is not optimal

7. Inter-DC WAN Solution
Datacenter
WAN links
A
B
C
D
10G
10G
5G
App 1 (A to C)
Demand 20G
Allocated 20G
App 2 (A to C)
Demand 10G
Allocated 5G

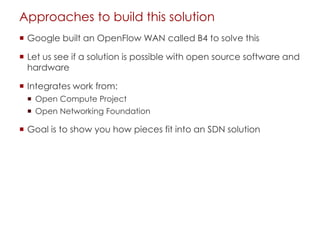

8. Approaches to build this solution
 Google built an OpenFlow WAN called B4 to solve this
 Let us see if a solution is possible with open source software and
hardware
 Integrates work from:
 Open Compute Project
 Open Networking Foundation
 Goal is to show you how pieces fit into an SDN solution

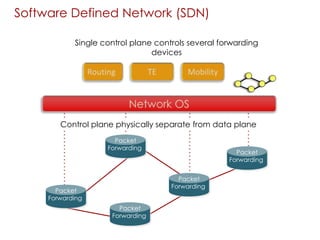

9. Packet
Forwarding
Packet
Forwarding
Packet
Forwarding
Packet
Forwarding
Packet
Forwarding
Software Defined Network (SDN)
Control plane physically separate from data plane
Single control plane controls several forwarding
devices

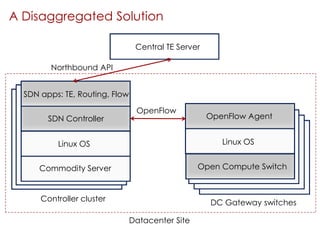

10. Central TE Server
Open Compute Switch
OpenFlow AgentSDN Controller
SDN apps: TE, Routing, Flow
OpenFlow
Linux OS
Commodity Server
Linux OS
Datacenter Site
Controller cluster DC Gateway switches
A Disaggregated Solution
Northbound API

11. ONOS: Open Network Operating
System

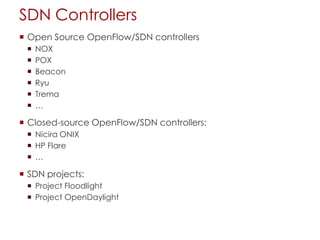

12. SDN Controllers
 Open Source OpenFlow/SDN controllers
 NOX
 POX
 Beacon
 Ryu
 Trema
 …
 Closed-source OpenFlow/SDN controllers:
 Nicira ONIX
 HP Flare
 …
 SDN projects:
 Project Floodlight
 Project OpenDaylight

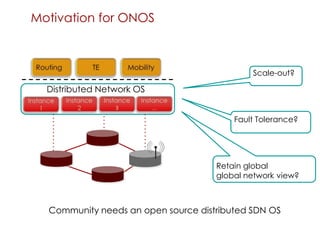

13. Scale-out?
Fault Tolerance?
Retain global
global network view?
Motivation for ONOS
Distributed Network OS
Community needs an open source distributed SDN OS

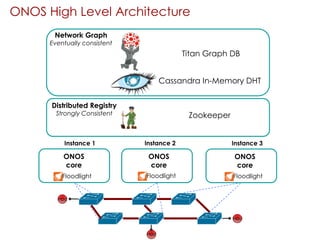

14. ONOS High Level Architecture
Host
Host
Host
Titan Graph DB
Cassandra In-Memory DHT
Instance 1 Instance 2 Instance 3
Network Graph
Eventually consistent
Distributed Registry
Strongly Consistent Zookeeper
ONOS
core
Floodlight
ONOS
core
Floodlight
ONOS
core
Floodlight

15. Video clip of demo from ONS 2013

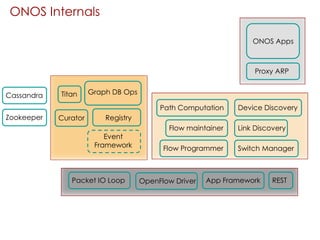

16. Cassandra
Zookeeper
Link Discovery
Flow Programmer
Flow maintainer
Path Computation
Switch Manager
Device Discovery
Proxy ARP
ONOS Apps
Curator
Titan Graph DB Ops
Event
Framework
Registry
ONOS Internals
OpenFlow DriverPacket IO Loop App Framework REST

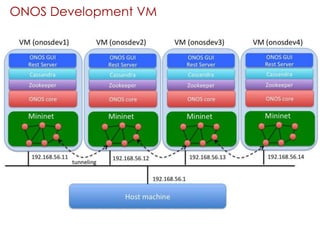

17. ONOS Development VM

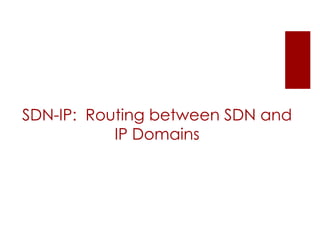

18. SDN-IP: Routing between SDN and
IP Domains

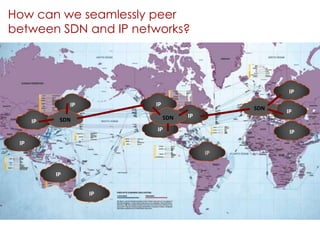

19. IP
IP
IP
IP
IP
IP
IP
IP
IP
IP
IP
IP
SDNSDN
SDN
How can we seamlessly peer
between SDN and IP networks?

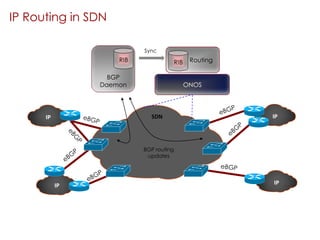

20. SDNIP
IP
IP
IP
ONOS
BGP
Daemon
RIB RoutingRIB
Sync
BGP routing
updates
IP Routing in SDN

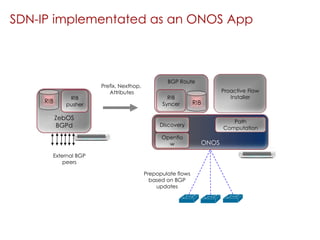

21. SDN-IP implementated as an ONOS App
Proactive Flow
Installer
Prepopulate flows
based on BGP
updates
ZebOS
BGPd
RIB
RIB
pusher
External BGP
peers
Prefix, Nexthop,
Attributes
BGP Route
RIB
RIB
Syncer
ONOS
Path
Computation
Discovery
Openflo
w

22. REANNZ Deployment
eth0
(management
interface)
SDN-IP + ONOS (VM)
Pronto 3780
DPID 0x01
eth1
192.168.1.10/2
4
eth0
192.168.1.2/24
Pronto 3290
DPID 0x02
eth0
192.168.1.3/24
eth2
1
WIX
Route
servers
202.7.0.2
202.7.0.3
2
202.7.0.119/2348
45
REANNZ
PROD
192.188.37.1
0
REANNZ
CORP
163.7.136.2
46
163.7.136.1/30
47
192.188.37.9/30
Control plane
Data plane
To REANNZ CORP
Demonstrate that Openflow/SDN can peer with production IP networks
Scale: 20K routes (100K routes future)
OpenFlow 1.0 (OpenFlow 1.3 future)

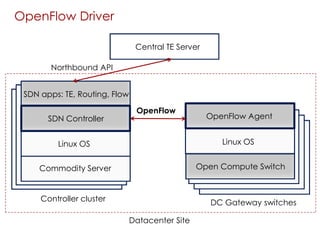

23. Central TE Server
Open Compute Switch
OpenFlow Agent
SDN apps: TE, Routing, Flow
OpenFlow
Linux OS
Commodity Server
Linux OS
Datacenter Site
Controller cluster DC Gateway switches
OpenFlow Driver
Northbound API
SDN Controller

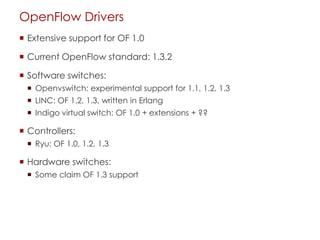

24. OpenFlow Drivers
 Extensive support for OF 1.0
 Current OpenFlow standard: 1.3.2
 Software switches:
 Openvswitch: experimental support for 1.1, 1.2, 1.3
 LINC: OF 1.2, 1.3, written in Erlang
 Indigo virtual switch: OF 1.0 + extensions + ??
 Controllers:
 Ryu: OF 1.0, 1.2, 1.3
 Hardware switches:
 Some claim OF 1.3 support

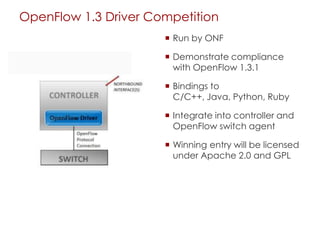

25. OpenFlow 1.3 Driver Competition
 Run by ONF
 Demonstrate compliance
with OpenFlow 1.3.1
 Bindings to
C/C++, Java, Python, Ruby
 Integrate into controller and
OpenFlow switch agent
 Winning entry will be licensed
under Apache 2.0 and GPL

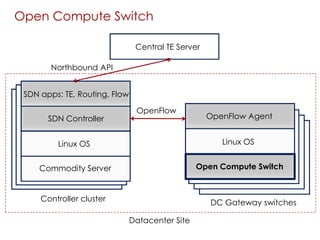

26. Central TE Server
Open Compute Switch
OpenFlow AgentSDN Controller
SDN apps: TE, Routing, Flow
OpenFlow
Linux OS
Commodity Server
Linux OS
Datacenter Site
Controller cluster DC Gateway switches
Open Compute Switch
Northbound API

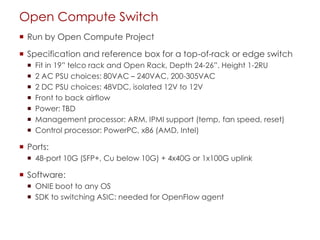

27. Open Compute Switch
 Run by Open Compute Project
 Specification and reference box for a top-of-rack or edge switch
 Fit in 19” telco rack and Open Rack, Depth 24-26”. Height 1-2RU
 2 AC PSU choices: 80VAC – 240VAC, 200-305VAC
 2 DC PSU choices: 48VDC, isolated 12V to 12V
 Front to back airflow
 Power: TBD
 Management processor: ARM, IPMI support (temp, fan speed, reset)
 Control processor: PowerPC, x86 (AMD, Intel)
 Ports:
 48-port 10G (SFP+, Cu below 10G) + 4x40G or 1x100G uplink
 Software:
 ONIE boot to any OS
 SDK to switching ASIC: needed for OpenFlow agent

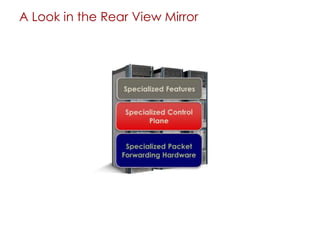

28. A Look in the Rear View Mirror

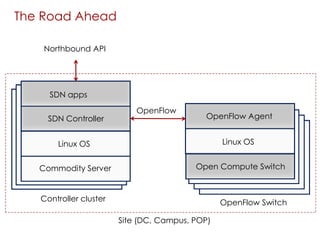

29. Open Compute Switch
OpenFlow AgentSDN Controller
SDN apps
OpenFlow
Linux OS
Commodity Server
Linux OS
Site (DC, Campus, POP)
Controller cluster
The Road Ahead
Northbound API
OpenFlow Switch
