A switchyard contains only transmission equipment and operates at a single voltage level to deliver power from a generation plant directly to the transmission grid. A substation uses transformers to step-up or step-down voltage for efficient transmission over long distances and distribution to meet varying consumer needs, including homes, businesses, and industrial facilities like factories. Substations are placed at regular intervals along transmission lines based on the power requirements of downstream consumers. They provide voltage transformations and bypass capabilities to transmit electricity to multiple locations.
COVERS THE LAYOUT AVAILABLE FOR ADOPTION WITH AN EYE ON EASY MAINTENANCE .The layouts were evolved by the author and his associate for use by power boards
COVERS THE LAYOUT AVAILABLE FOR ADOPTION WITH AN EYE ON EASY MAINTENANCE .The layouts were evolved by the author and his associate for use by power boards
Design of a generating substation with the description of designing a transformer. Here we show some basic components of a substation. and we also show the parameters and calculation to design a transformer of a specific ratings.
Electrical substation (one and half breaker scheme)Sourabh sharma
Double Bus One and Half Breaker Scheme is mostly adopted in high voltage electrical substations (220 KV or 400KV, 700 KV). Due to many advantages of this arrangement like high selectivity, reliability and less cost as compare to other bus arrangements for power stations or switch yards
Practical handbook-for-relay-protection-engineersSARAVANAN A
The ‘Hand Book’ covers the Code of Practice in Protection Circuitry including standard lead and device numbers, mode of connections at terminal strips, colour codes in multicore cables, Dos and Donts in execution. Also, principles of various protective relays and schemes including special protection schemes like differential,
restricted, directional and distance relays are explained with sketches. The norms of protection of generators, transformers, lines & Capacitor Banks are also given.
The following topics will be covered: the definition of a substation, an overview of the different type of substations and the functions of substations
Design of a generating substation with the description of designing a transformer. Here we show some basic components of a substation. and we also show the parameters and calculation to design a transformer of a specific ratings.
Electrical substation (one and half breaker scheme)Sourabh sharma
Double Bus One and Half Breaker Scheme is mostly adopted in high voltage electrical substations (220 KV or 400KV, 700 KV). Due to many advantages of this arrangement like high selectivity, reliability and less cost as compare to other bus arrangements for power stations or switch yards
Practical handbook-for-relay-protection-engineersSARAVANAN A
The ‘Hand Book’ covers the Code of Practice in Protection Circuitry including standard lead and device numbers, mode of connections at terminal strips, colour codes in multicore cables, Dos and Donts in execution. Also, principles of various protective relays and schemes including special protection schemes like differential,
restricted, directional and distance relays are explained with sketches. The norms of protection of generators, transformers, lines & Capacitor Banks are also given.
The following topics will be covered: the definition of a substation, an overview of the different type of substations and the functions of substations
High voltage electricity refers to electrical potential large enough to cause injury or damage. In certain industries, high voltage refers to voltage above a certain threshold. Equipment and conductors that carry high voltage warrant special safety requirements and procedures.
Detail of the insulators (the vertical string of discs) and conductor vibration dampers (the weights attached directly to the cables) on a 275,000 volt suspension pylon near Thornbury, South Gloucestershire, England. In some countries, pylons for high and extra-high voltage are usually designed to carry two or more electric circuits. For double circuit lines in Germany, the “Danube” towers or more rarely, the “fir tree” towers, are usually used. If a line is constructed using pylons designed to carry several circuits, it is not necessary to install all the circuits at the time of construction. Medium voltage circuits are often erected on the same pylons as 110 kV lines. Paralleling circuits of 380 kV, 220 kV and 110 kV-lines on the same pylons is common. Sometimes, especially with 110 kV-circuits, a parallel circuit carries traction lines for railway electrification
A substation is a part of an electrical generation, transmission, and distribution system. Substations transform voltage from high to low, or the reverse, or perform any of several other important functions.
Indoor & outdoor substations, an overviewH. Kheir
An introduction to: Types of substations, Elements of substations,
Classifying criterion of substations,
Medium voltage switchgear assemblies & CBs,
Outdoor circuit breakers,
Outdoor disconnect switches,
Indoor & outdoor instrument transformers,
Protection, PLCs & SCADA, Lightning arresters,
Cables, cable/bus ducts & control wires, Communication protocols and Standards
Design of substation (with Transformer Design) SayanSarkar55
This ppt is made for the subject Machine Design. Here the basic types, equipment, designs of substation is described with the preocess and calculation of designing a transformer also.
1. CHARLES ISIADINSO
SUBSTATION & SUBSTATION

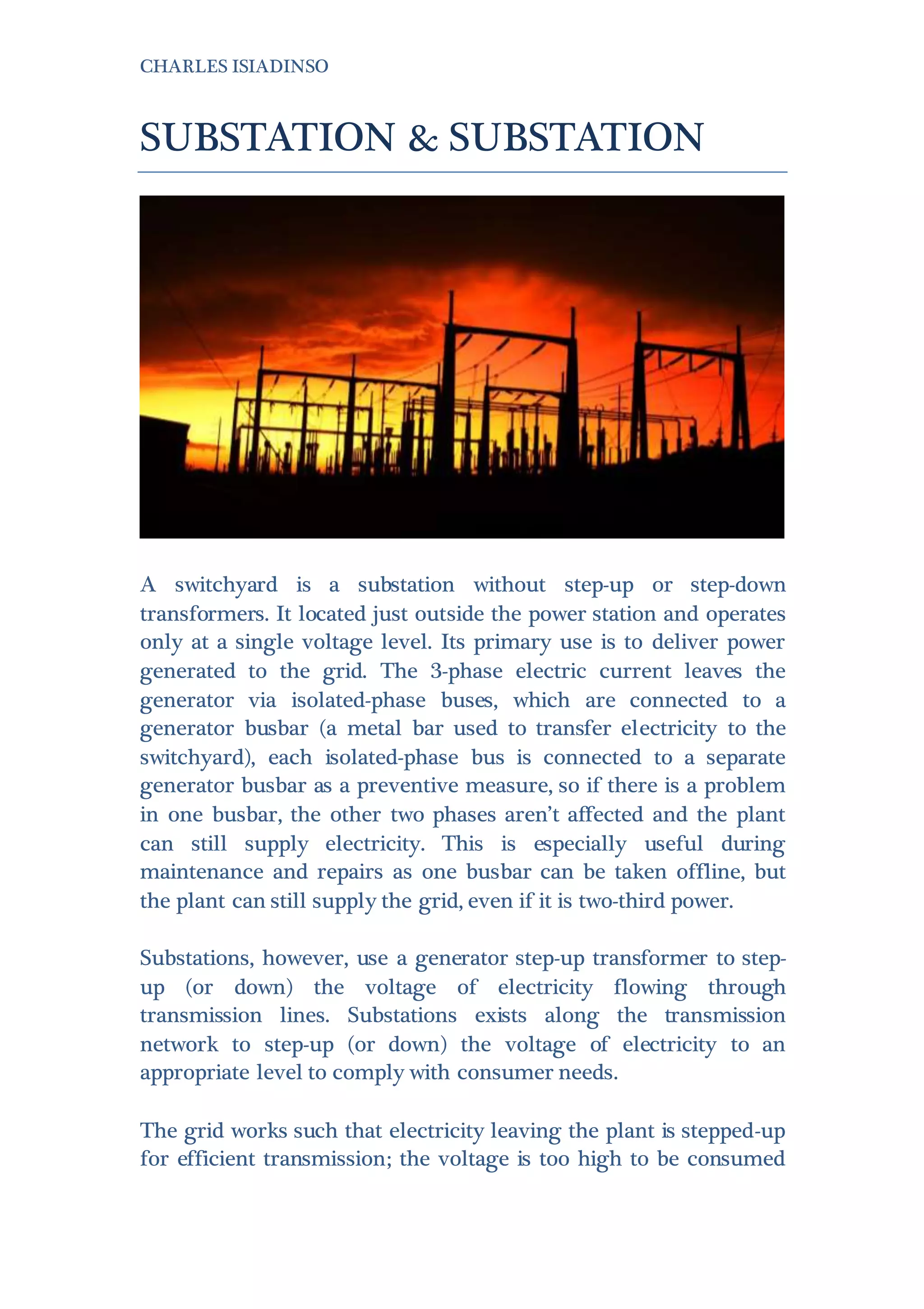

A switchyard is a substation without step-up or step-down
