The document describes porting the build system of a commercial application from the Eclipse Europa platform to Ganymede. It discusses the main issues with the Europa-based solution and the 5 steps taken to transition to a Ganymede-based build using P2 and features. Key steps included setting up the Ganymede build environment, organizing into features, handling non-plugin data and installation, and setting up a custom update repository. While challenging, porting to Ganymede and P2 solved previous update problems and was deemed worthwhile for learning.

1. Porting the build system of a commercial RCP Application from Europa to Ganymede: A Case Study Christian Kurzke Gladyston Franca Gustavo de Paula

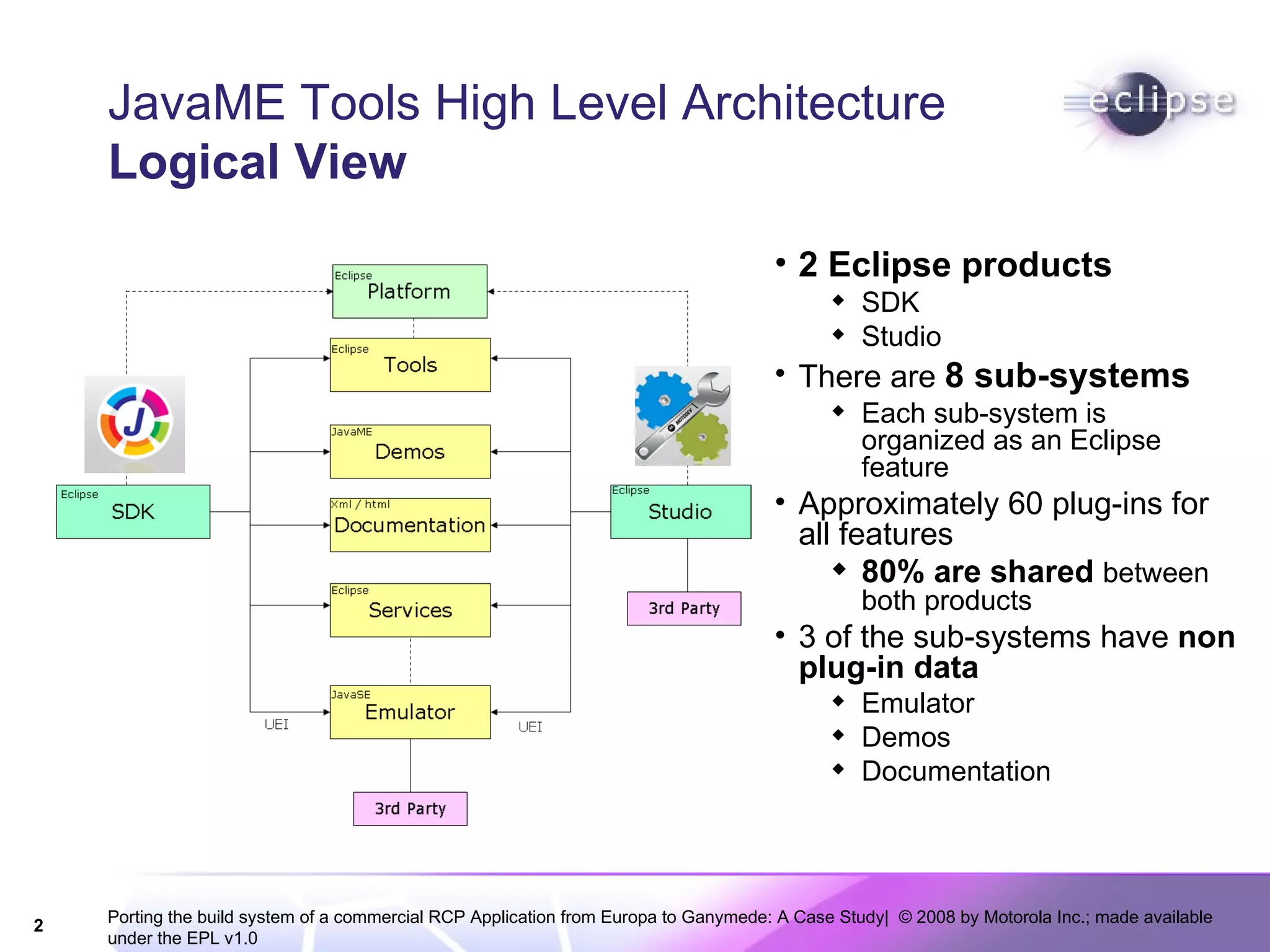

2. JavaME Tools High Level Architecture Logical View 2 Eclipse products SDK Studio There are 8 sub-systems Each sub-system is organized as an Eclipse feature Approximately 60 plug-ins for all features 80% are shared between both products 3 of the sub-systems have non plug-in data Emulator Demos Documentation

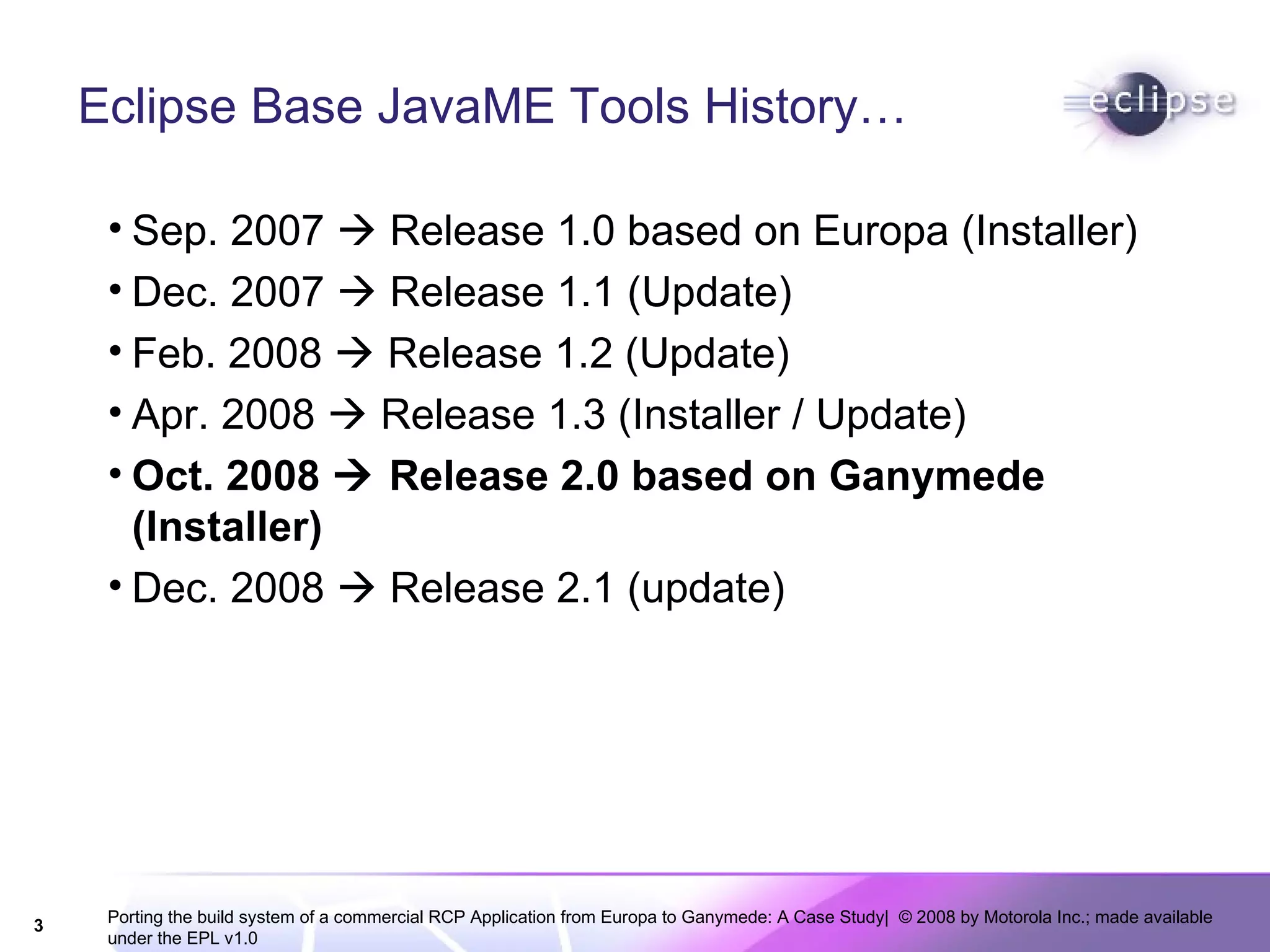

3. Eclipse Base JavaME Tools History… Sep. 2007  Release 1.0 based on Europa (Installer) Dec. 2007  Release 1.1 (Update) Feb. 2008  Release 1.2 (Update) Apr. 2008  Release 1.3 (Installer / Update) Oct. 2008  Release 2.0 based on Ganymede (Installer) Dec. 2008  Release 2.1 (update)

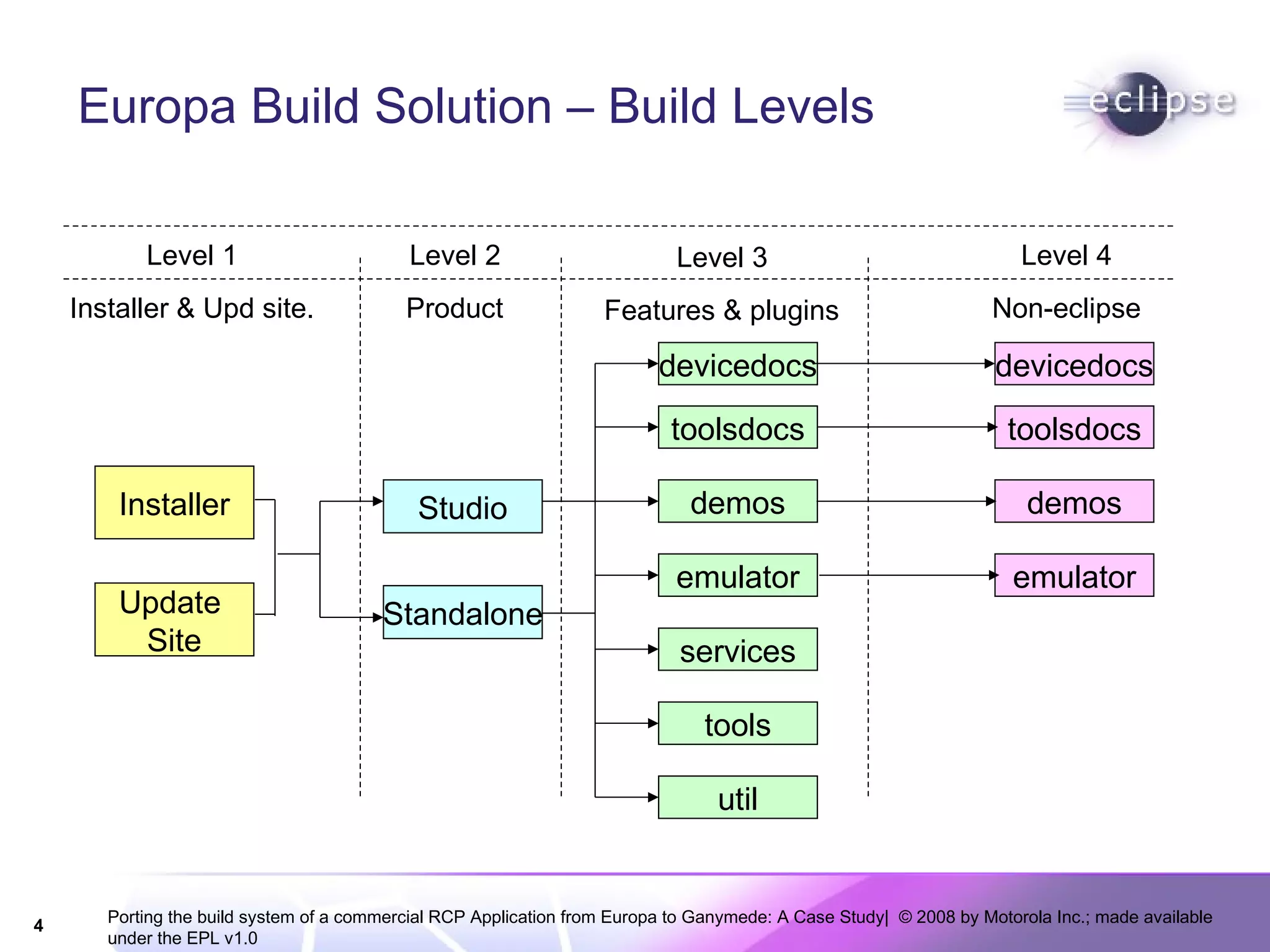

4. Europa Build Solution – Build Levels Installer Studio Standalone devicedocs toolsdocs demos emulator services tools util Features & plugins Product Installer & Upd site. Non-eclipse emulator devicedocs toolsdocs demos Level 3 Level 2 Level 1 Level 4 Update Site

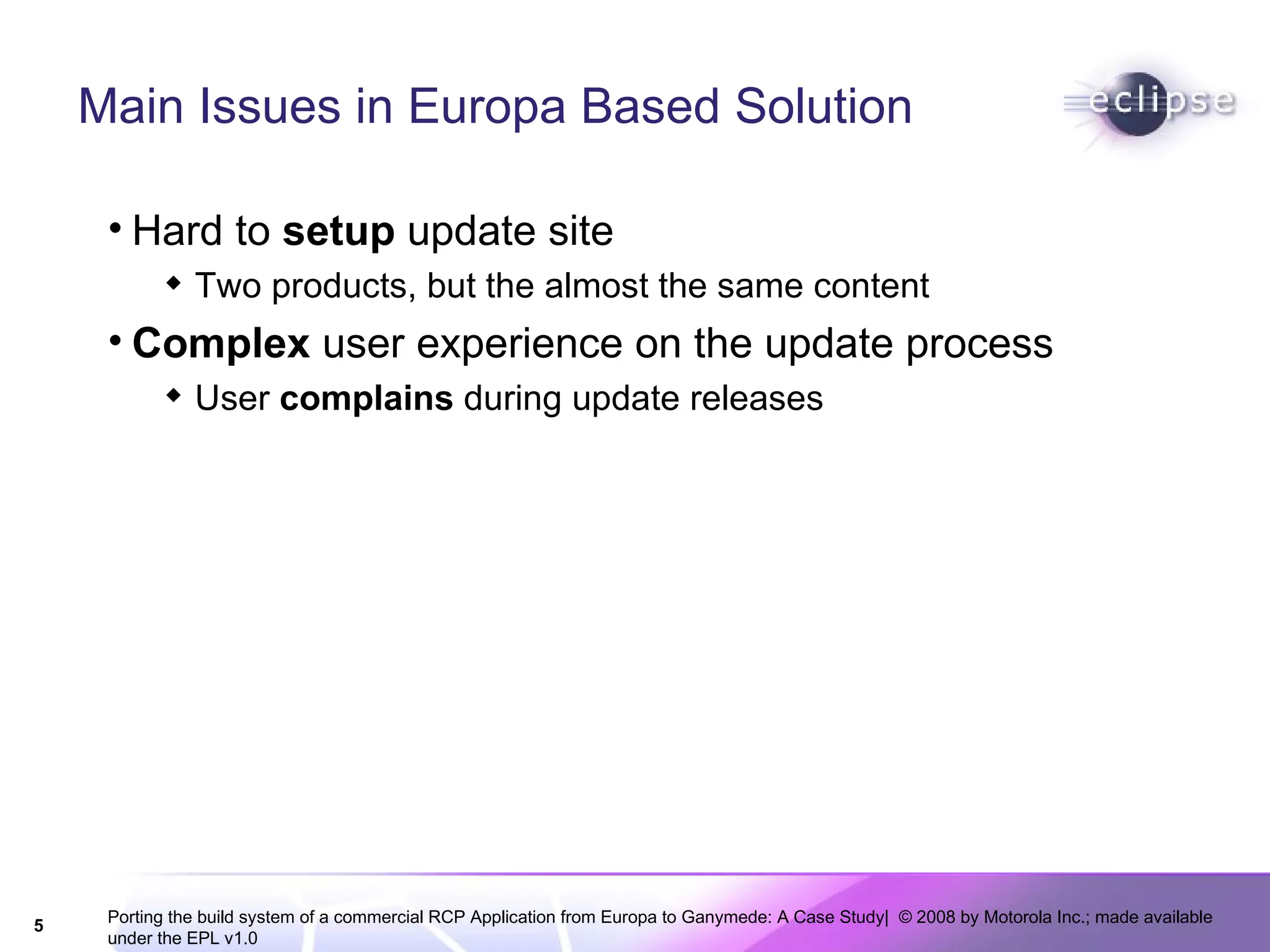

5. Main Issues in Europa Based Solution Hard to setup update site Two products, but the almost the same content Complex user experience on the update process User complains during update releases

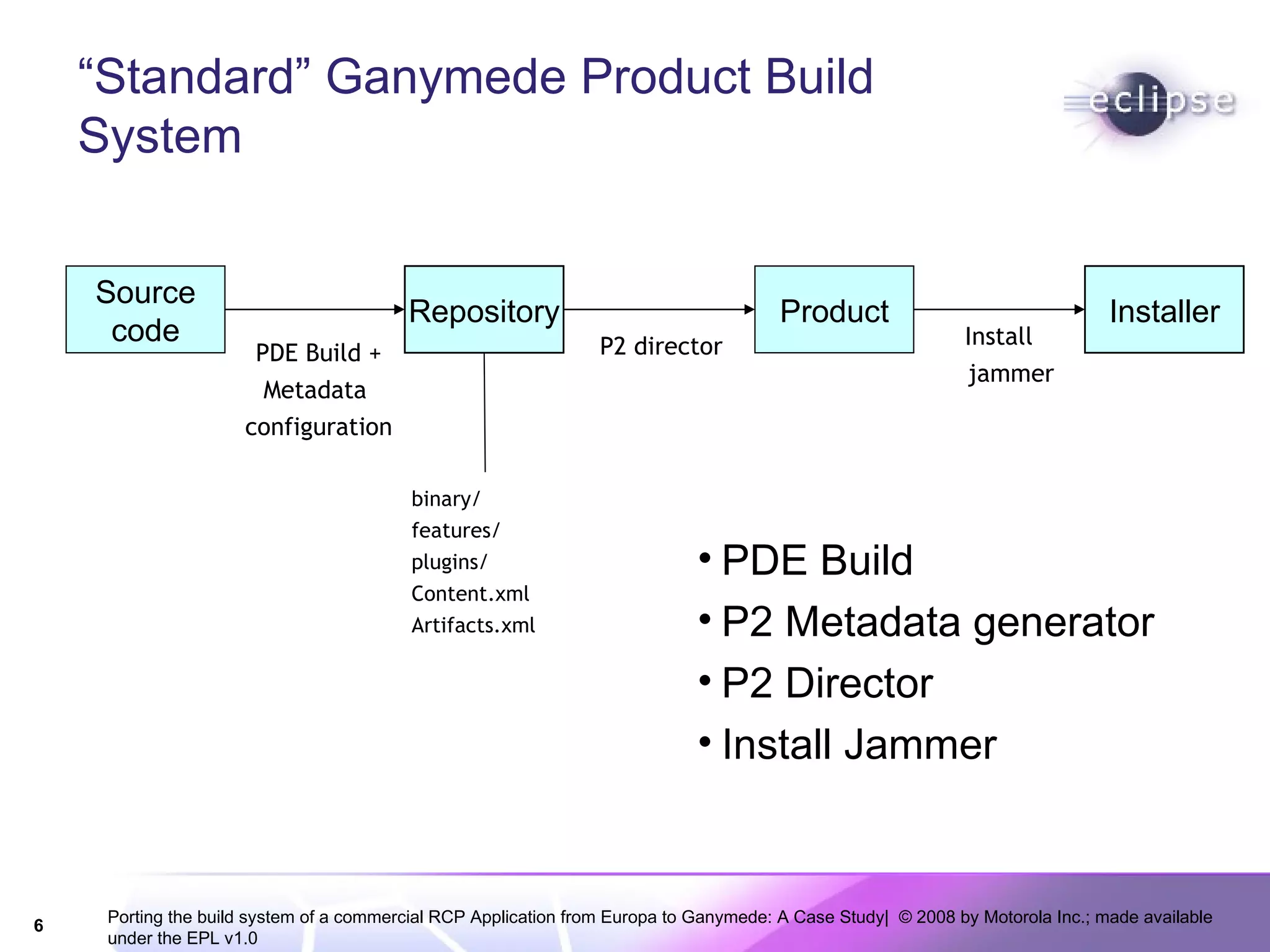

6. “ Standard” Ganymede Product Build System PDE Build P2 Metadata generator P2 Director Install Jammer Source code Repository Product Installer PDE Build + Metadata configuration P2 director Install jammer binary/ features/ plugins/ Content.xml Artifacts.xml

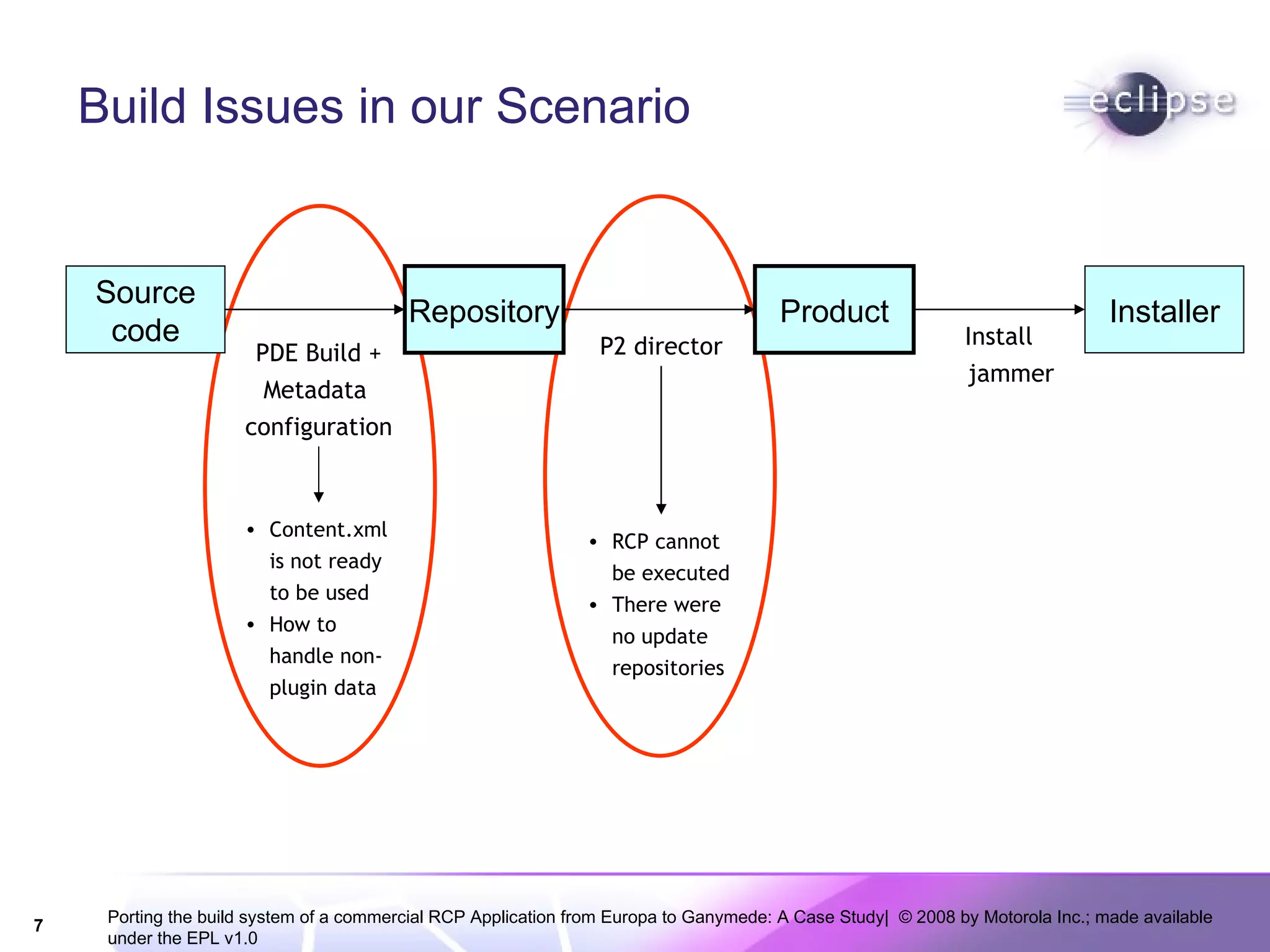

7. Build Issues in our Scenario Source code Repository Product Installer PDE Build + Metadata configuration P2 director Install jammer Content.xml is not ready to be used How to handle non-plugin data RCP cannot be executed There were no update repositories

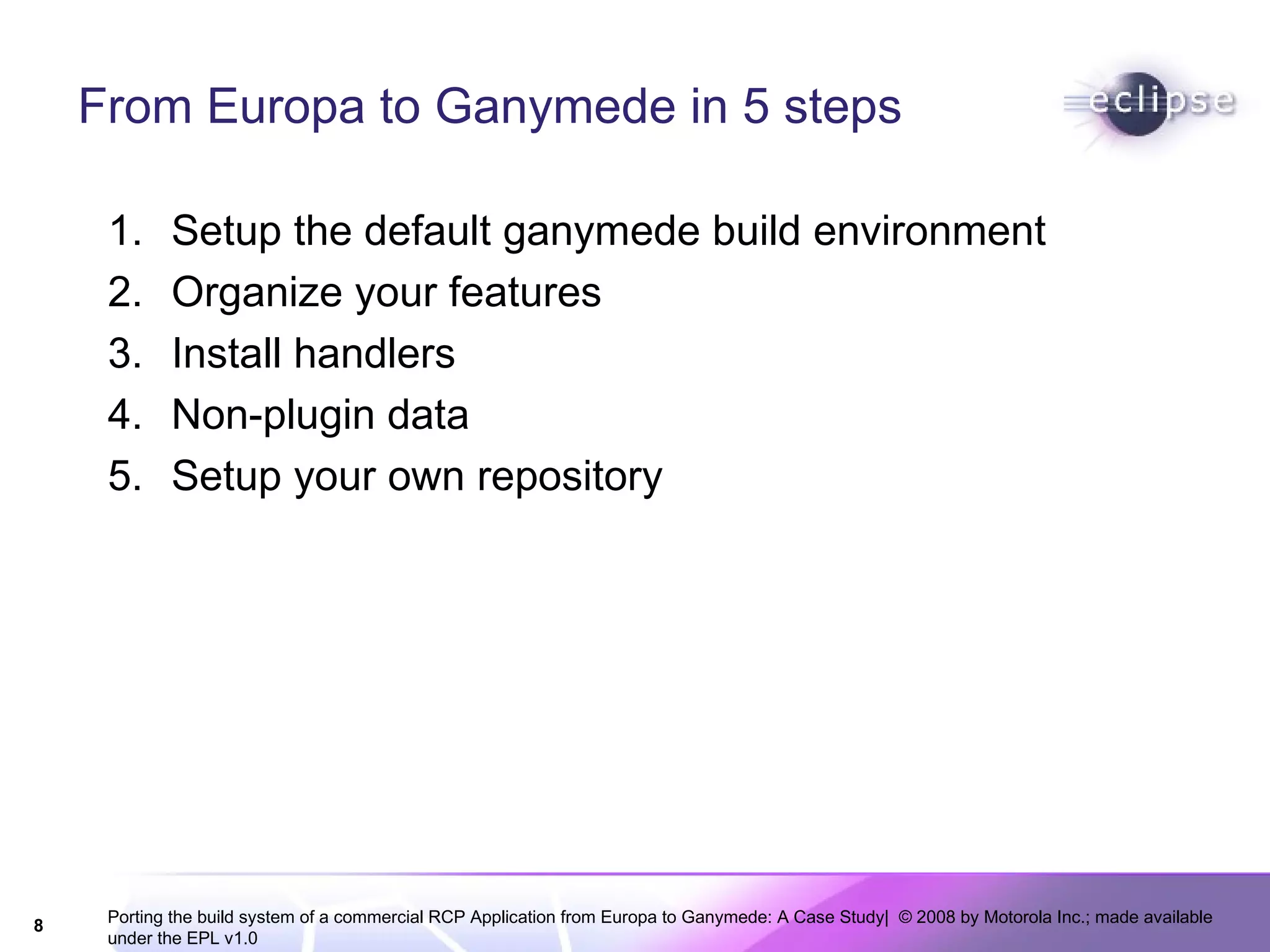

8. From Europa to Ganymede in 5 steps Setup the default ganymede build environment Organize your features Install handlers Non-plugin data Setup your own repository

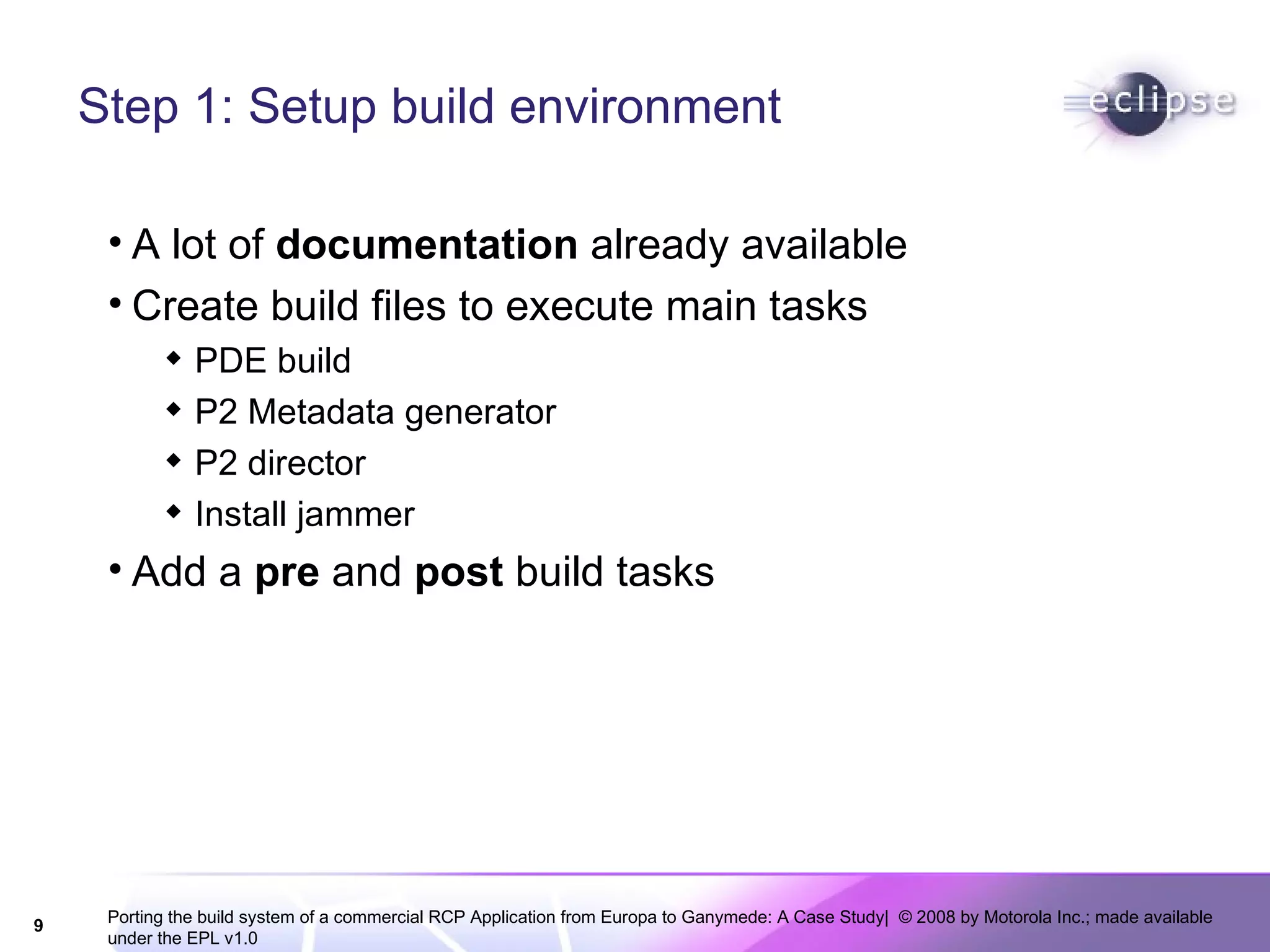

9. Step 1: Setup build environment A lot of documentation already available Create build files to execute main tasks PDE build P2 Metadata generator P2 director Install jammer Add a pre and post build tasks

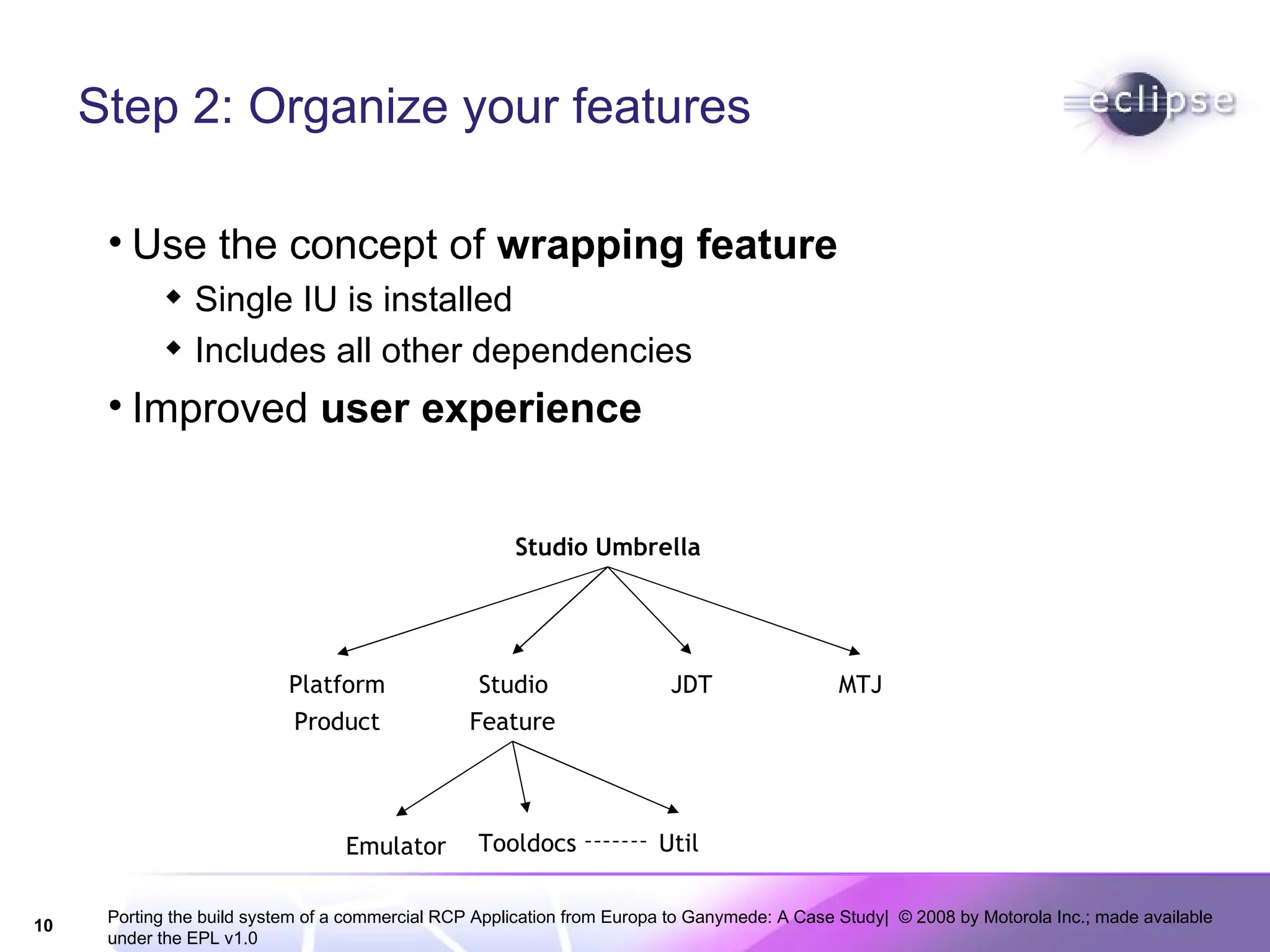

10. Step 2: Organize your features Use the concept of wrapping feature Single IU is installed Includes all other dependencies Improved user experience Studio Umbrella Platform Product Studio Feature JDT MTJ Emulator Tooldocs Util

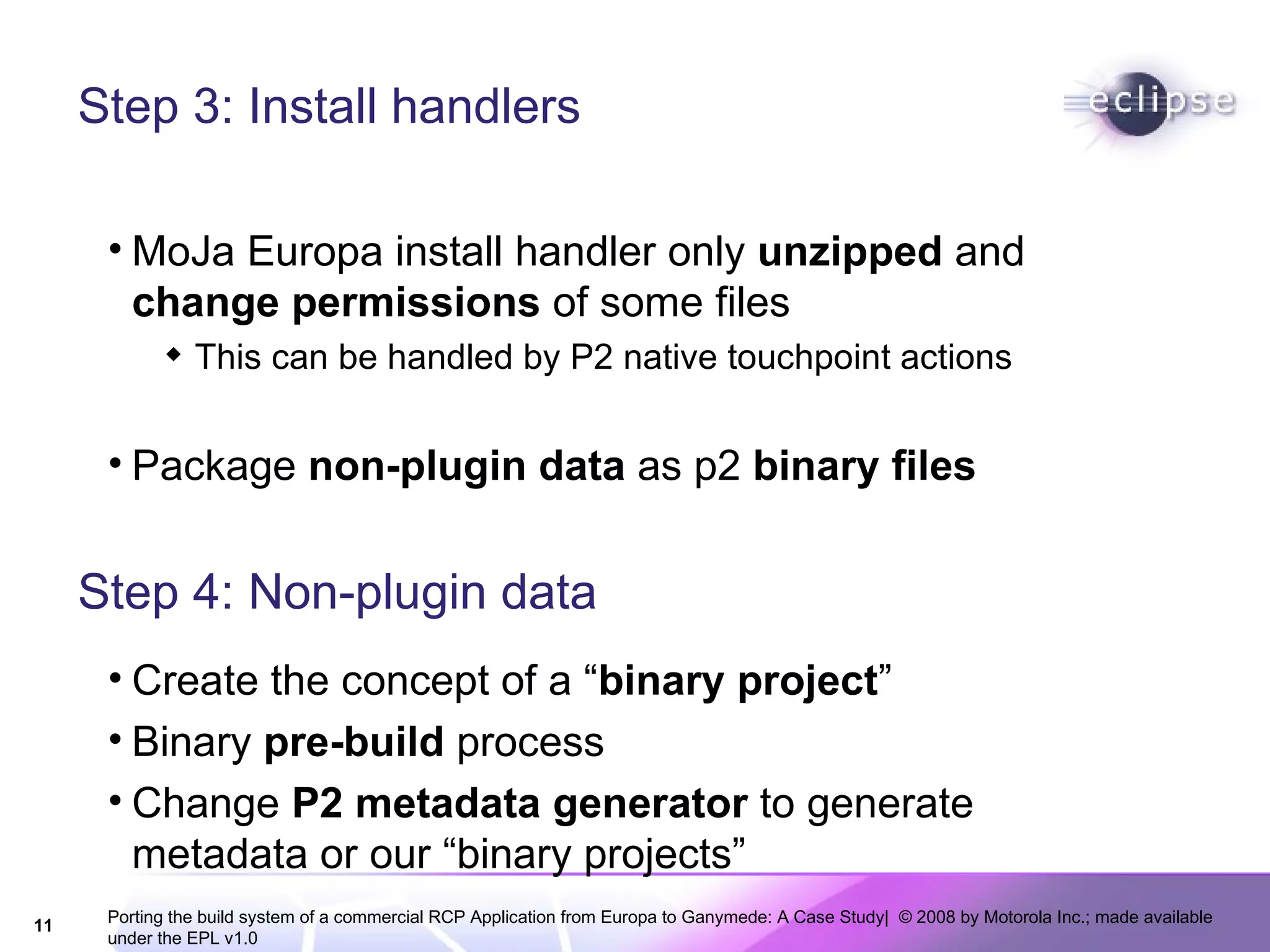

11. Step 3: Install handlers MoJa Europa install handler only unzipped and change permissions of some files This can be handled by P2 native touchpoint actions Package non-plugin data as p2 binary files Step 4: Non-plugin data Create the concept of a “ binary project ” Binary pre-build process Change P2 metadata generator to generate metadata or our “binary projects”

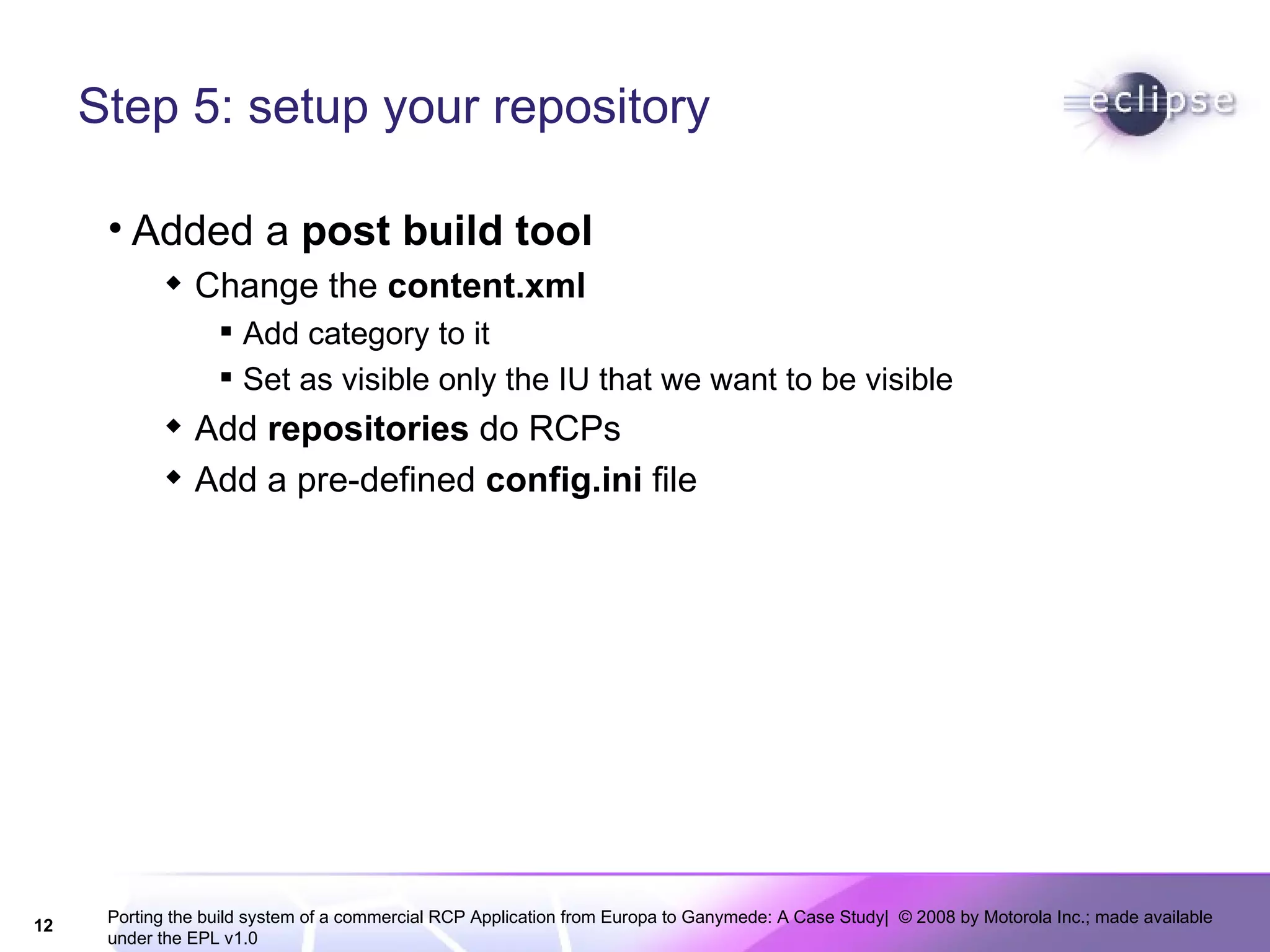

12. Step 5: setup your repository Added a post build tool Change the content.xml Add category to it Set as visible only the IU that we want to be visible Add repositories do RCPs Add a pre-defined config.ini file

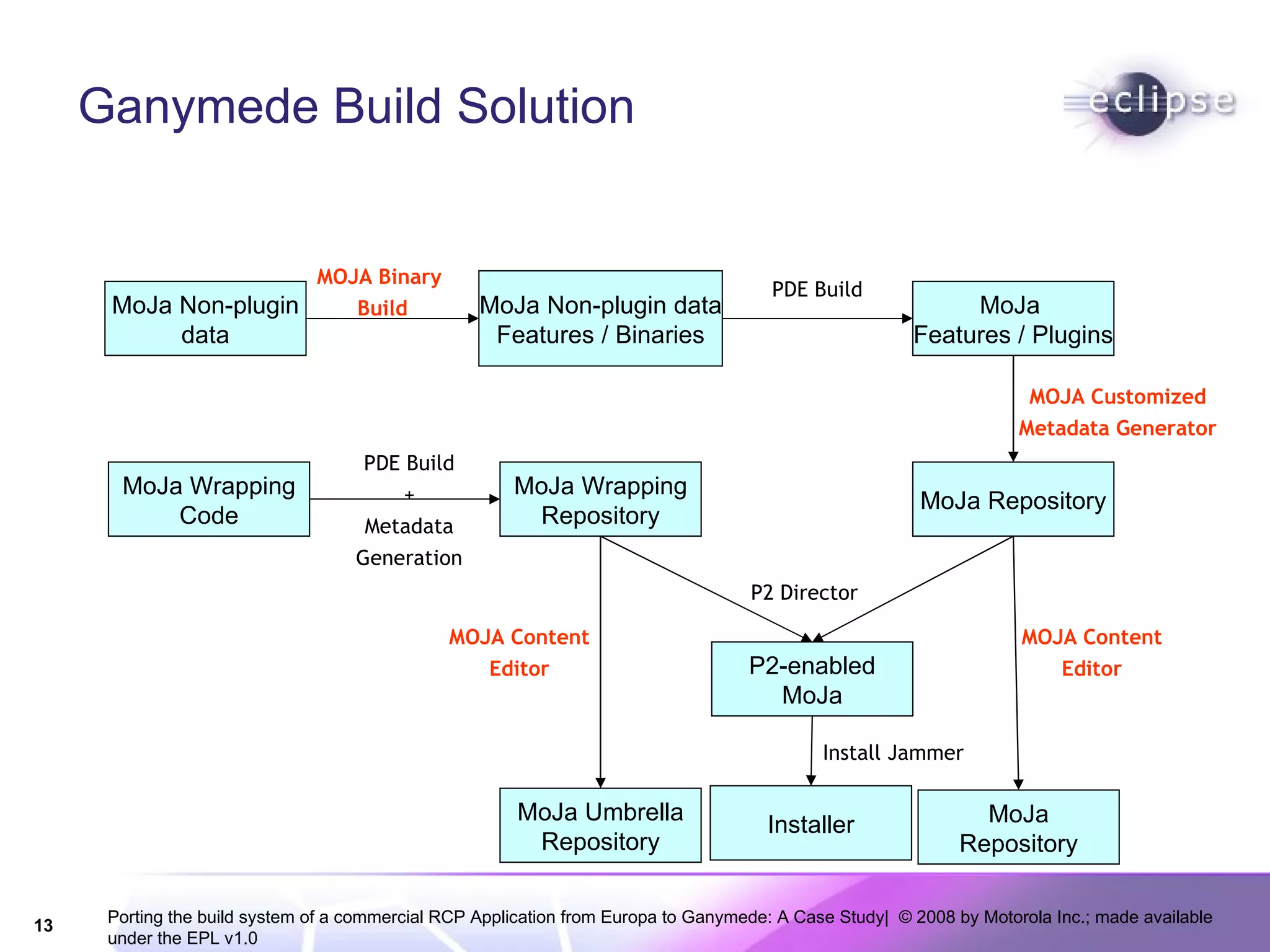

13. Ganymede Build Solution MoJa Non-plugin data MoJa Non-plugin data Features / Binaries MoJa Features / Plugins MoJa Repository MoJa Wrapping Code MoJa Wrapping Repository P2-enabled MoJa Installer MOJA Binary Build PDE Build MOJA Customized Metadata Generator PDE Build + Metadata Generation P2 Director Install Jammer MoJa Umbrella Repository MoJa Repository MOJA Content Editor MOJA Content Editor

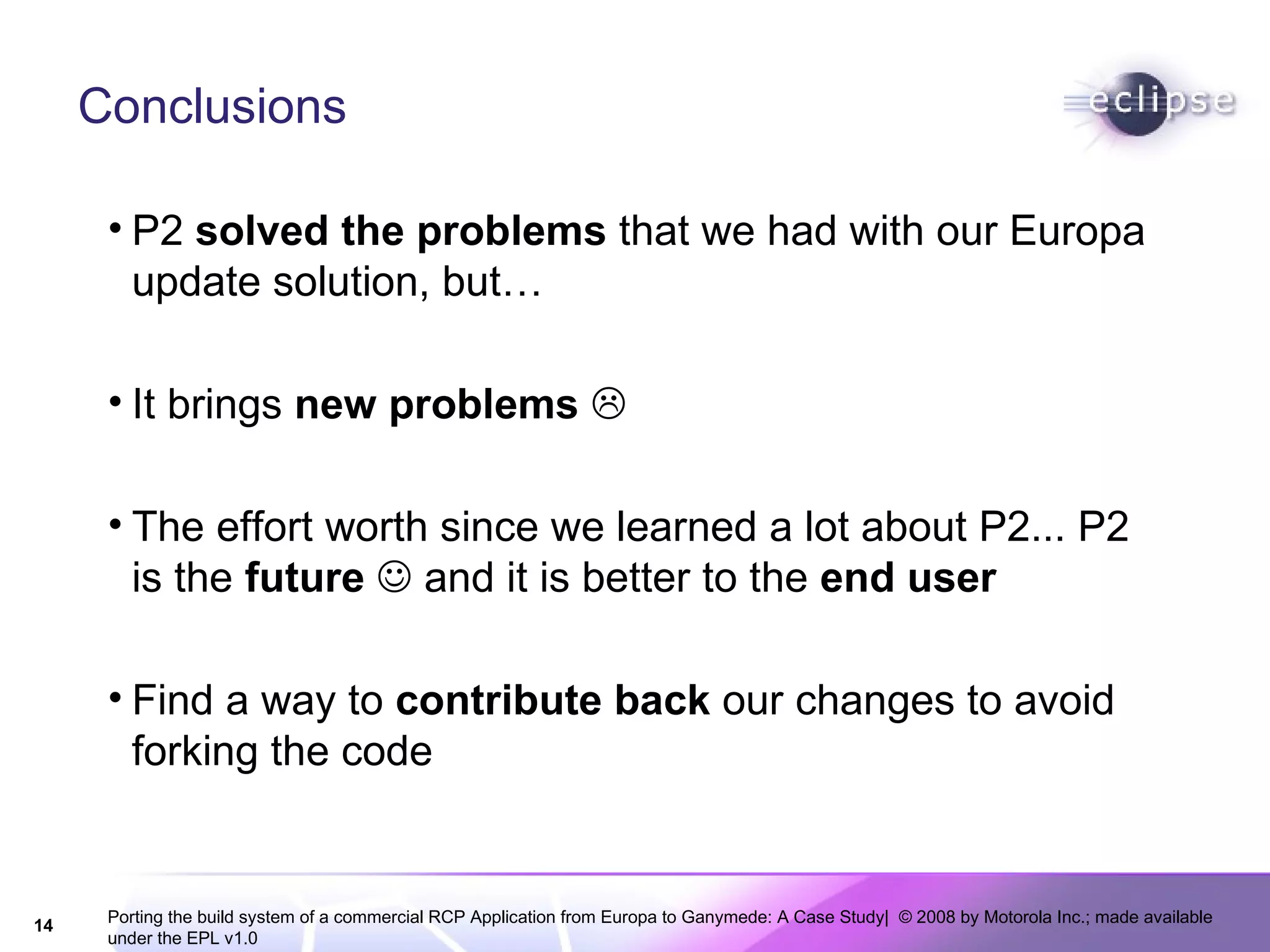

14. Conclusions P2 solved the problems that we had with our Europa update solution, but… It brings new problems  The effort worth since we learned a lot about P2... P2 is the future  and it is better to the end user Find a way to contribute back our changes to avoid forking the code

15. Thanks!
