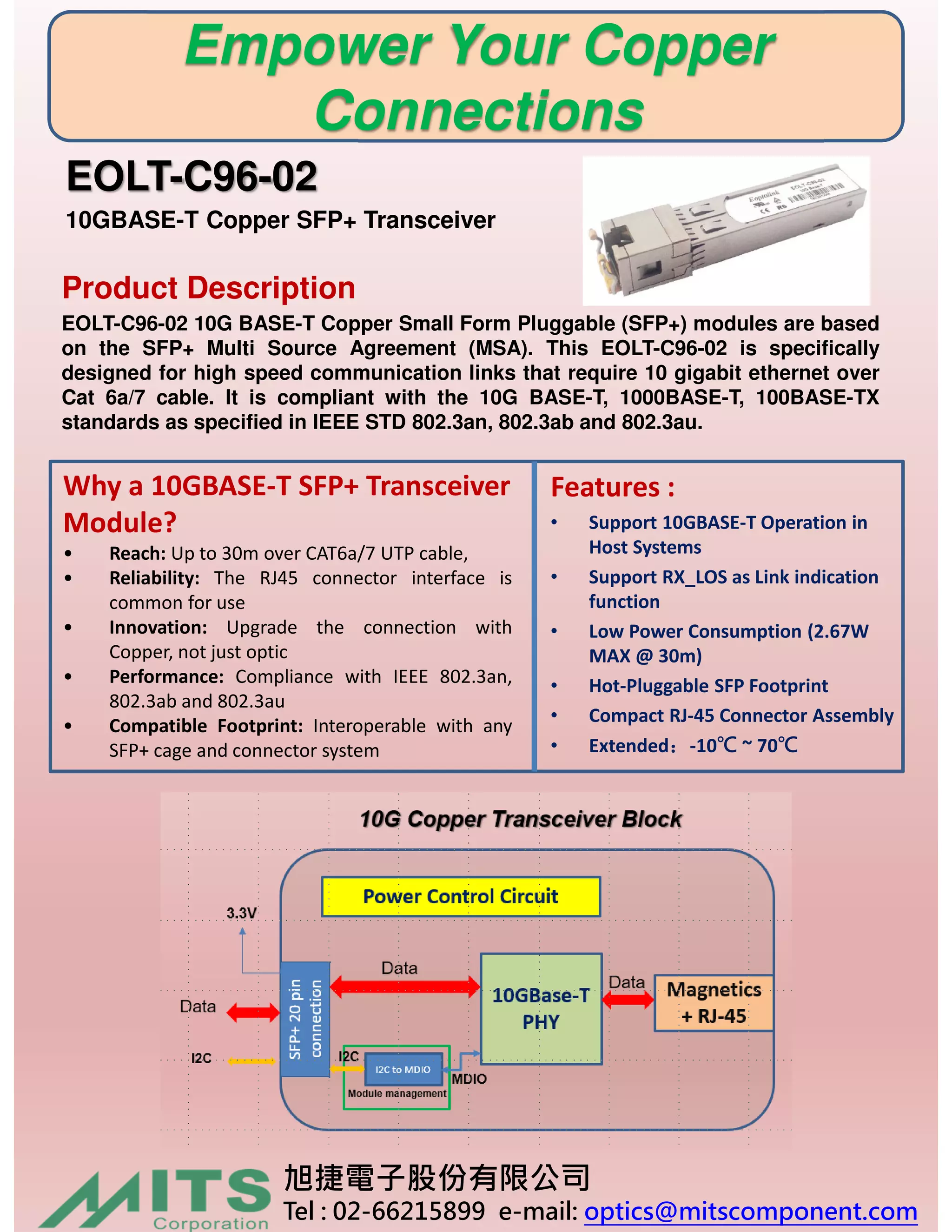

1. Empower Your Copper
Connections
旭捷電子股份有限公司
Tel : 02-66215899 e-mail: optics@mitscomponent.com
EOLT-C96-02
10GBASE-T Copper SFP+ Transceiver
Product Description
EOLT-C96-02 10G BASE-T Copper Small Form Pluggable (SFP+) modules are based
on the SFP+ Multi Source Agreement (MSA). This EOLT-C96-02 is specifically
designed for high speed communication links that require 10 gigabit ethernet over
Cat 6a/7 cable. It is compliant with the 10G BASE-T, 1000BASE-T, 100BASE-TX
standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au.
Features :
• Support 10GBASE-T Operation in
Host Systems
• Support RX_LOS as Link indication
function
• Low Power Consumption (2.67W
MAX @ 30m)
• Hot-Pluggable SFP Footprint
• Compact RJ-45 Connector Assembly
• Extended：：：：-10℃ ~ 70℃
Why a 10GBASE-T SFP+ Transceiver
Module?
• Reach: Up to 30m over CAT6a/7 UTP cable,
• Reliability: The RJ45 connector interface is
common for use
• Innovation: Upgrade the connection with
Copper, not just optic
• Performance: Compliance with IEEE 802.3an,
802.3ab and 802.3au
• Compatible Footprint: Interoperable with any
SFP+ cage and connector system
