The document discusses two series of ONU transceivers for next generation PON networks: the EOLS-PX-GU-20 series compliant with ITU-T G.987.2 XGPON N2a and the EOLS-PR-GU-20 series compliant with ITU-T G.9801.1 XGS-PON. Both series are single fiber bi-directional transceivers in an SFP+ package with SC receptacle and single +3.3V power supply. The key differences are that the XGPON N2 series provides 2.488Gbps upstream and 9.95Gbps downstream transmission, while the XGS-PON series provides symmetrical

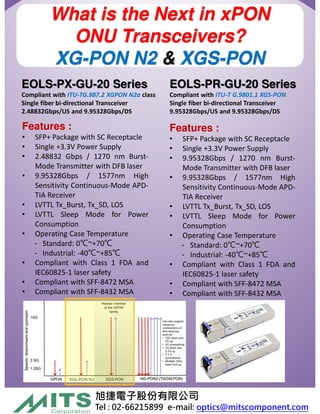

1. What is the Next in xPON
ONU Transceivers?
XG-PON N2 & XGS-PON
旭捷電子股份有限公司
Tel : 02-66215899 e-mail: optics@mitscomponent.com
EOLS-PX-GU-20 Series
Compliant with ITU-TG.987.2 XGPON N2a class
Single fiber bi-directional Transceiver
2.48832Gbps/US and 9.95328Gbps/DS
Features :
• SFP+ Package with SC Receptacle
• Single +3.3V Power Supply
• 2.48832 Gbps / 1270 nm Burst-
Mode Transmitter with DFB laser
• 9.95328Gbps / 1577nm High
Sensitivity Continuous-Mode APD-
TIA Receiver
• LVTTL Tx_Burst, Tx_SD, LOS
• LVTTL Sleep Mode for Power
Consumption
• Operating Case Temperature
- Standard: 0℃~+70℃
- Industrial: -40℃~+85℃
• Compliant with Class 1 FDA and
IEC60825-1 laser safety
• Compliant with SFF-8472 MSA
• Compliant with SFF-8432 MSA
EOLS-PR-GU-20 Series
Compliant with ITU-T G.9801.1 XGS-PON
Single fiber bi-directional Transceiver
9.95328Gbps/US and 9.95328Gbps/DS
Features :
• SFP+ Package with SC Receptacle
• Single +3.3V Power Supply
• 9.95328Gbps / 1270 nm Burst-
Mode Transmitter with DFB laser
• 9.95328Gbps / 1577nm High
Sensitivity Continuous-Mode APD-
TIA Receiver
• LVTTL Tx_Burst, Tx_SD, LOS
• LVTTL Sleep Mode for Power
Consumption
• Operating Case Temperature
- Standard: 0℃~+70℃
- Industrial: -40℃~+85℃
• Compliant with Class 1 FDA and
IEC60825-1 laser safety
• Compliant with SFF-8472 MSA
• Compliant with SFF-8432 MSA
