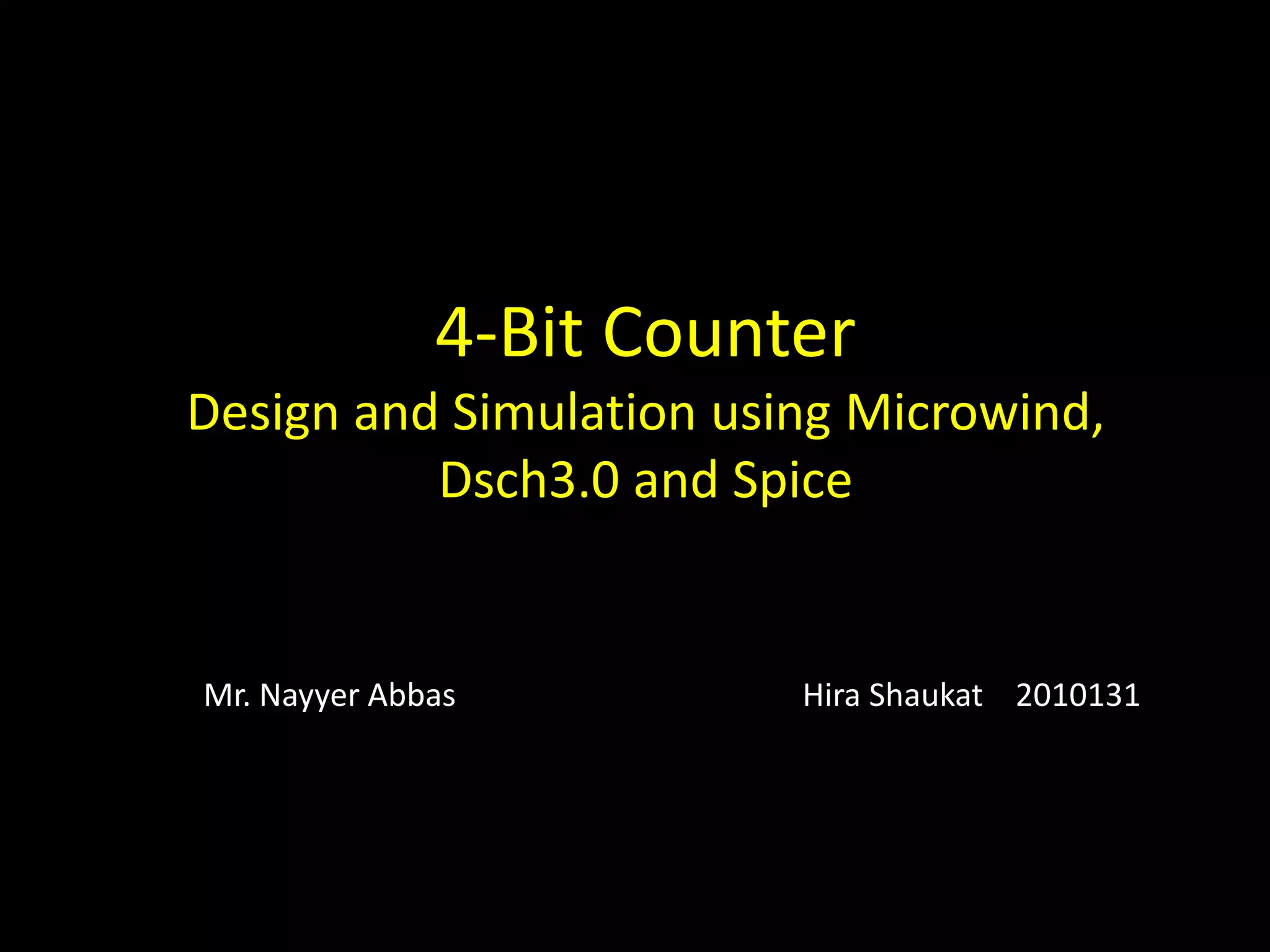

1. 4-Bit Counter
Design and Simulation using Microwind,
Dsch3.0 and Spice
Mr. Nayyer Abbas Hira Shaukat 2010131

2. OBJECTIVE
“The purpose of this project is to design with
Microwind a 4-bit asynchronous counter with a
reset function.”

3. BLOCK DIAGRAM
•Transistor
level
•Microwind
NOT Gate
•DSCH
•Microwind
Complex Gate
•DSCH
•Microwind
D Latch
•By compiling
earlier
layouts
D-Register
•Cascading D-
Registers
Counter

4. Design Details

5. NOT Gate
• One NMOS and one PMOS is required
• Gates are interconnected to do the input
• Sources are interconnected to do the output

6. NOT Gate (Schematic Diagram)

7. NOT Gate (Microwind design)
Layout of the NOT Gate (Microwind)

8. Complex Gate
• Compressed and optimized design
• Error in the design of paper
• Design characteristics do not need to be
followed

9. Complex Gate

10. Complex Gate (Schematic Diagram)
Schematic diagram of a complex gate

11. Complex Gate (Microwind design)
Layout of a complex gate (Microwind)

12. D Latch
• D Latch is designed using two Complex Gates
and one Inverter

13. D Latch (Schematic Diagram)

14. D Latch (Microwind Design)
Layout of a D Latch (Microwind)

15. D Register
• Master-Slave structure is chosen
• 2 D Latches and a NOT Gate is used to get a
single design

16. D Register (Schematic Diagram)

17. D Register (Microwind Design)

18. COUNTER
• 4 D Registers are cascaded
• Output of previous register is given to the
clock of next register

19. Counter (Schematic Diagram)

20. Counter (Microwind Design)
