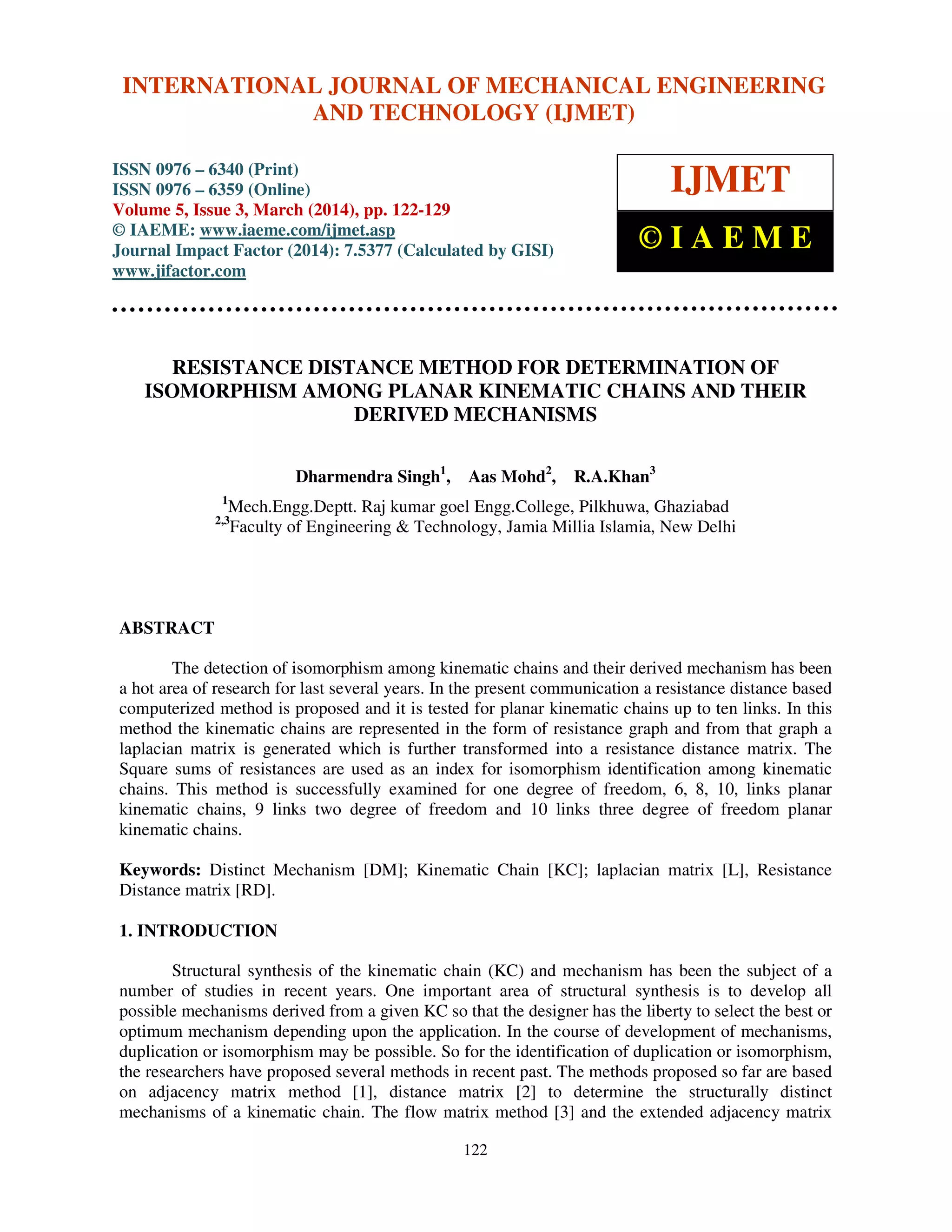

30120140503012

International Journal of Mechanical Engineering and Technology (IJMET), ISSN 0976 – 6340(Print),
ISSN 0976 – 6359(Online), Volume 5, Issue 3, March (2014), pp. 122-129, © IAEME
122
RESISTANCE DISTANCE METHOD FOR DETERMINATION OF
ISOMORPHISM AMONG PLANAR KINEMATIC CHAINS AND THEIR
DERIVED MECHANISMS
Dharmendra Singh1
, Aas Mohd2
, R.A.Khan3
1
Mech.Engg.Deptt. Raj kumar goel Engg.College, Pilkhuwa, Ghaziabad
2,3
Faculty of Engineering & Technology, Jamia Millia Islamia, New Delhi
ABSTRACT
The detection of isomorphism among kinematic chains and their derived mechanism has been
a hot area of research for last several years. In the present communication a resistance distance based
computerized method is proposed and it is tested for planar kinematic chains up to ten links. In this
method the kinematic chains are represented in the form of resistance graph and from that graph a
laplacian matrix is generated which is further transformed into a resistance distance matrix. The
Square sums of resistances are used as an index for isomorphism identification among kinematic
chains. This method is successfully examined for one degree of freedom, 6, 8, 10, links planar
kinematic chains, 9 links two degree of freedom and 10 links three degree of freedom planar
kinematic chains.
Keywords: Distinct Mechanism [DM]; Kinematic Chain [KC]; laplacian matrix [L], Resistance
Distance matrix [RD].
1. INTRODUCTION
Structural synthesis of the kinematic chain (KC) and mechanism has been the subject of a
number of studies in recent years. One important area of structural synthesis is to develop all
possible mechanisms derived from a given KC so that the designer has the liberty to select the best or
optimum mechanism depending upon the application. In the course of development of mechanisms,
duplication or isomorphism may be possible. So for the identification of duplication or isomorphism,
the researchers have proposed several methods in recent past. The methods proposed so far are based
on adjacency matrix method [1], distance matrix [2] to determine the structurally distinct
mechanisms of a kinematic chain. The flow matrix method [3] and the extended adjacency matrix
INTERNATIONAL JOURNAL OF MECHANICAL ENGINEERING
AND TECHNOLOGY (IJMET)
ISSN 0976 – 6340 (Print)
ISSN 0976 – 6359 (Online)
Volume 5, Issue 3, March (2014), pp. 122-129
© IAEME: www.iaeme.com/ijmet.asp
Journal Impact Factor (2014): 7.5377 (Calculated by GISI)
www.jifactor.com
IJMET
© I A E M E

123
methods [4, 5] are also proposed. Minimum code [6], characteristic polynomial of matrix [7], link
path code [8], the representation set of links by Vijayananda [9], interactive weighted distance
approach [10] is used to characterize the kinematic chains. Recently Lu et al [15, 16] derived valid
contracted graphs with the help of characteristic strings and identified the isomorphism. Most of
these methods either have lack of uniqueness or are very time consuming. The flow matrix method
[3] is a lengthy process to identify the distinct mechanism (DM), as ‘n’ flow matrices are required to
be developed. The row-sum of extended adjacency matrix method [4] distinguishes only 69
distinct mechanisms derived from the family of 8-link, 1-DOF kinematic chains instead of the 71
reported by other researchers. The characteristic polynomial of matrix [7] approach is a very lengthy
process in which the invariants of each matrix are tabulated and compared for the identification of
distinct mechanism. Hence, there is always a need to develop a computationally optimized method to
detect isomorphism in kinematic chains and their derived mechanisms.
In the present work, a new method is proposed in which interaction effect of connecting links
has been taken into consideration along with a squared laplacian matrix [L]. A new matrix named as
resistance distance matrix [RD] is formed using [L]. This matrix is further transformed in the form of
a string where each string represents a link of KC. The string directly gives the number of DM
derived from a KC. It is also used as an index for determination of isomorphism among KCs. The
resistance distance method is widely used to solve the electrical network and to analyze the
mathematical molecular chemistry problems. The proposed method is efficient and accurate and only
one matrix for a given kinematic chain is developed for the determination of DM i.e. [RD].
2. DEFINITIONS OF TERMINOLOGY
2.1 Resistance equivalent graph
In the proposed method a link of KC is represented in the form of a graph and then a
resistance value is assigned between the two nodes of a graph and the whole KC is represented in
the form of a resistance network. To illustrate this a four bar KC as shown in Fig-1 is represented in
the form of a resistance equivalent graph as shown in Fig-2. The resistance value assigned between
the nodes is taken as one unit.
Fig.1: Four bar chain Fig.2: Equivalent resistance graph
of a four bar chain
2.2 Laplacian matrix
The laplacian matrix is widely used for electrical networks problems. A laplacian matrix can
be derived from a simple graph for no loops and no parallel edges. Let G be a simple graph for n
vertices 1,2,----n. Then an Adjacency matrix A of G is

124
aij = 1 if i is adjacent to j
0 otherwise
Lapalcian Matrix L of G: L= D-A
Where D is the diagonal degree matrix
For Fig.1 the adjacency and Laplacian matrix are
0 1 0 1
1 0 1 0
0 1 0 1
1 0 1 0
A
 
 
 =
 
 
 
2 1 0 1
1 2 1 0
0 1 2 1
1 0 1 2
L
− − 
 − − =
 − −
 
− − 
2.3 Resistance distance matrix [RD]
The equivalent resistances between all the nodes are calculated. For example, the equivalent
resistance R1432 between nodes 1and 2 is calculated taking the resistance R14, R43, R32 in series as
R1432 =R14+R43+R23=1+1+1=3
Then the final equivalent resistance Req is calculated taking R1432 and R12 in parallel.
12 1432
1 3
1 1 4
eqR
R R
= =
+
As the graph becomes complex, the no of links increases in the KC and the computation of
equivalent resistance becomes tedious. I. Gutman, R. B. Bapat et al [11] D. J. Klein, M. Randić [12]
proposed a method RD matrix to calculate the values of equivalent resistance between two nodes.
For a four bar kinematic chain RD is represented as
0 3 4 1 3 4
3 4 0 3 4 1
1 3 4 0 3 4
3 4 1 3 4 0
RD
 
 
 =
 
 
 
3. STRUCTURAL INVARIANT [RD2
∑]
The structural invariant is a column matrix whose elements are obtained from the [RD]
matrix. The sum of squares of all the row elements for every link is tabulated as square resistance
distance [RD2
∑] matrix, Therefore the [RD2
∑] are used as the identification number of a KC as well
as distinct mechanism derived from a KC. The square of [RD] element is used for better comparison
for each row, as a very little change in any matrix value can cause a much larger difference in its

125
square to observe so the matrix values square is done. If the values of [RD2
∑] for any two links are
same then the two inversions are identical otherwise different. The [RD2
∑] values are sorted in
ascending order for ease of computation.
4. ALGORITHM TO FIND THE DM FROM A GIVEN KC
Step 1: Define the number of links & their names arbitrarily.
Step 2: Convert the KC into a graph and then a resistance circuit graph is drawn.
Step 3: Define the connectivity of each node, e.g. node ‘1’ is connected to node ‘2’, and ‘4’as
shown in Fig-1.
Step 4: Find out the degree of nodes on the basis of their connectivity to other nodes.
Step 5: Find out the [A], [L], [RD] and [RD2
∑] as explained earlier.
Step 6: Sort the values of string [RD2
∑]
5. PROCEDURE TO TEST THE ISOMORPHISM AMONG KCs
Step1: Steps 1 to 4 are same as above.
Step2: Determine the sum of string [RD2
∑]
Step3: If the sums of [RD2∑] value for both the KCs are equal then the KCs are isomorphic,
otherwise non-isomorphic.
Illustrative Example 1
Fig.3. consists of a revolute joint, 1-DOF KC having 10 links and 13 joints. The task is to
determine the DM derived from the given KC.
Fig.3: 10-link, 1-DOF, Planar kinematic chain

126
The adjacency matrix A and the laplacian matrix L can be written as
0 1 0 0 1 0 1 0 0 0
1 0 1 0 0 0 0 0 0 1
0 1 0 1 0 0 0 1 0 0
0 0 1 0 1 0 0 0 0 1
1 0 0 1 0 0 0 0 1 0
0 0 0 0 0 0 1 1 1 0
1 0 0 0 0 1 0 1 0 0
0 0 1 0 0 1 0 0 0 0
0 0 0 0 1 1 0 0 0 0
0 1 0 1 0 0 0 0 0 0
A
 
 
 
 
 
 
 
=  
 
 
 
 
 
 
  
3 1 0 0 1 0 1 0 0 0
1 3 1 0 0 0 0 0 0 1
0 1 3 1 0 0 0 1 0 0
0 0 1 3 1 0 0 0 0 1
1 0 0 1 3 0 0 0 1 0
0 0 0 0 0 3 1 1 1 0
1 0 0 0 0 1 3 1 0 0
0 0 1 0 0 1 0 2 0 0
0 0 0 0 1 1 0 0 2 0
0 1 0 1 0 0 0 0 0 2
L
− − − 
 − − − 
 − − −
 
− − − 
 − − −
=  
− − − 
 − − −
 
− − 
 − −
 
 − − 
The equivalent resistance distance matrix is then calculated as explained earlier. A MATLAB
program is made to calculate the resistance distance matrix from laplacian matrix. The [RD] matrix
for Fig.3 is
0.00 0.67 0.91 0.88 0.63 0.91 0.73 1.16 1.04 1.10
0.67 0.00 0.62 0.74 0.88 1.12 1.17 1.12 1.28 0.68
0.91 0.62 0.00 0.62 0.91 1.00 1.23 0.75 1.23 0.94
0.88 0.74 0.62 0.00 0.67 1.12 1.28 1.12 1.17 0.68
0.63 0.88 0.91 0.67 0.00 0.91 1.04 1.16 0.73 1
RD=
.10
0.91 1.12 1.00 1.12 0.91 0.00 0.73 0.75 0.73 1.14
0.73 1.17 1.23 1.28 1.04 0.73 0.00 1.23 1.16 1.54
1.16 1.12 0.75 1.12 1.16 0.75 1.23 0.00 1.23 1.44
1.04 1.28 1.23 1.17 0.73 0.73 1.16 1.23 0.00 1.54
1.10 0.68 0.94 0.68 1.10 1.44 1.54 1.44 1.54 0.00
 
 
 
 
 
 
 
 
 
 
 
 
 
 
  
The [RD2∑] is
[7.4416 8.1521 7.8739 8.1521 7.4416 8.8509 11.8663 11.4002 11.8663 13.08774]
Arranging in ascending order gives
[7.4416 7.4416 7.8739 8.1521 8.1521 8.8509 11.4002 11.8663 11.8663 13.08774]
After inspecting the values obtained by [RD2∑] it is clear that link ‘1’ & ‘5’ , link ‘2’ & ‘4’,
link ‘7’ & ‘9’ are equivalent link as their RD2∑ values are same. So the distinct mechanisms that
can be derived from the KC as shown in Fig.3 are 10-3=7.
Illustrative Example 2
Fig.4 consists of three 12 link KCs. They have the same characteristic polynomial and eigen
values [14]. The characteristic polynomial and eigen values of adjacency matrix failed to detect
isomorphism for these chains. These KCs are tested for isomorphism by the proposed method.

127
Fig.4: Three 12 link KC
The adjacency and laplacian matrix for these three KCs is written by observation and the
resistance distance matrix [RD] is obtained by MATLAB program. Then the [RD2
∑] matrix is
evaluated for all the three cases and the values are sorted as follows.
[RD2
∑]a = [8.094 8.118 8.716 9.2668 9.727 9.808 9.848 10.393 11.941 13.862 14.228 14.582,
(128.58)]
[RD2
∑]b = [RD2
∑]c = [9.933 9.933 9.957 9.957 10.314 10.389 11.156 11.997 15.485 15.485 15.674,
(146.76)]
From the above string it is concluded that 12 DM can be derived from KC (a) and 7 DM from
KC (b) & (c). Also Fig. 3 (b) & (c) are isomorphic as their sum of string values of [RD2
∑] (146.76)
are same. Further (a) & (b) as well as (a) & (c) are non-isomorphic. These results are in accordance
with the results of Chang et al [14].
6. RESULTS AND CONCLUSIONS
The proposed method is tested to obtain all DM derived from a family of KC upto 10 links 3-
DOF. The results of DM derived from the family of some known cases of planar chains with simple
revolute joints are given in table-1. The results are in agreement with those available in the literature
given by Vijayananda [9] and Yadav et al [8] and no counter example is found.

128
Table -1: distinct mechanism of some known cases of planar chains with simple revolute joints
Type of chain Total no of chain Total no of distinct mechanisms derived
Previous Methods Resistance Distance
l-F,6-1ink 2 5 5
l-F,8-1ink 16 71 71
l-F,10-1ink 230 1834 1834
2-F,7-1ink 4 14 14
2-F,9-1ink 40 254 254
3-F,6-1ink 1 1 1
3-F,8-1ink 7 26 26
3-F,10-1ink 98 684 684
CONCLUSION
In the present communication a resistance distance approach in relation with the laplacian
matrix determines DM from a given KC as well as detects isomorphism among KCs. In this method
the usual adjacency matrix is written by observation and it is easily converted into a laplacian matrix.
The computer algorithm is also written for this method which can easily be converted into a
computer program by using any computer language. All the information is available in just one [RD]
matrix and this method is fast and easy for computation as there is no complexity involved to find the
structural invariant. Determination of [DM] from n-link kinematic chain using a flow matrix [4]
requires the formation of n-flow matrices; however; in the proposed method only a single [RD]
matrix is sufficient to identify the DM from a given KC. The [RD2
∑] which compares the total
resistance distance information in [RD] is used as an invariant for the identification of DM in KCs. It
has been shown with the help of examples that the sum of [RD2
∑] is a unique property of [RD] and
that can be used to identify the isomorphism among KCs.
The proposed methods are heuristic and intuitive in nature. This worked well on all the
known cases of planar chains with simple joints. Such a new identification system would be
extremely selective and would minimize, if not completely eliminate the possibility of duplicate
identification for structurally different mechanism. The result of this work contributes to the
automation for the process of creative mechanism design. The future scope of this work is to extend
by taking the weighted value of joints as we are converting the graph from a given KC and then the
resistance value is taken as unity between the nodes.
7. REFERENCES
[1] J. J. Uicker and A. Raicu, A Method for the Identification and Recognition of Equivalence of
Kinematic Chains, Mech. Mach. Theory, 10 (1975) 375-383.
[2] A. C. Rao, Kinematic Chains, Isomorphism, Inversions, and Type of Freedom, using the
concept of Hamming distances, Indian J. of Tech, 26 (1988) 105–109.
[3] C. Nageswara Rao and A. C. Rao, Selection of best frame, input and output links for
Function Generators Modeled as Probabilistic Syste, Mech. Mach. Theory, 31(1996)
973–983.
[4] A. Mohammad and V. P. Agrawal, Identification and Isomorphism of Kinematic Chains and
Mechanisms, 11th
ISME Conference, (1999) 197-202.
[5] A. Mohammad, R. A. Khan and V. P. Agrawal, Identification of Kinematic Chians and
Distinct Mechanisms Using Extended Adjacency Matrix, IMeche, 221 (2006) 81-88.

129
[6] A. G. Ambekar and V. P. Agrawal, Identification of Kinematic Generator using Min. Codes,
Mech. Mach. Theory, 225 (1987) 463–471.
[7] T. S. Mruthyunjaya and M. R. Raghavan, Structural Analysis of Kinematic Chains and
Mechanisms based on Matrix Representation, Journal of Mechanical Design, 101 (1979)
488–518.
[8] V. P. Agrawal, J. N. Yadav and C. R. Pratap, Mechanism of Kinematic Chain and the Degree
of Structural Similarity based on the concept of Link – path Code, Mech. Mach. Theory,
31(7) (1996) 865–871.
[9] K. Vijayananda, Computer aided structural synthesis of linkages and epicyclic gear
transmissions, Ph.D. thesis, IISc, Bangalore (1994).
[10] A. Mohammad, I. A. Khan and M. K. Lohumi, Interactive Weighted Distance Approach for
Identification of Distinct Mechanisms Derived from the Kinematic Chains, International
Journal of Applied Engineering Research, 3(9) (2008)1217–1226.
[11] I. Gutman, R. B. Bapat et al, A Simple Method for Computing Resistance Distanc, Z.
Naturforsch. 58a, 494 – 498 (2003).
[12] D. J. Klein, M.Randic, Resistance distance journal of Mathematical Chemistry 1993, Volume
12, Issue 1, pp 81-95.
[13] I. Lukovits, S. Nikoli´c, and N. Trinajsti, Resistance-distance matrix: A computational
algorithm and its application, Int. J. Quantum Chem. 71, 217 (1999).
[14] Zongyu Chang, Ce Zhang, Yuhu Yang and Yuxin Wang, A new method of kinematic chain
isomorphism identification, Mech. Mach. Theory, 37 (2002) 411–417.
[15] Yi Lu, Yang Lu, Nijia Ye, Bingyi Mao, Chunping Sui and Jianda Han, Using characteristic
strings to derive valid contracted graphs with hexagonal links plus other links for type
synthesis of closed mechanisms, Journal of Mechanical Science and Technology, 26 (5)
(2012) 1539-1546.
[16] Yi Lu, Bingyi Mao and Jianping Yu, Derivation and isomorphism identification of valid
topological graphs for 1-, 2-DOF planar closed mechanisms by characteristic strings. Journal
of Mechanical Science and Technology, 25 (1) (2011) 255-263.
[17] Shriniwas Metan, Pranav Birajdar, Shruti Bammani, Pravin Shinde and Rahul Bhandari,
“Biomechanical Study, 3d Modeling and Kinematic Analysis of Shoulder Joint”,
International Journal of Mechanical Engineering & Technology (IJMET), Volume 4, Issue 4,
2013, pp. 97 - 104, ISSN Print: 0976 – 6340, ISSN Online: 0976 – 6359.
[18] Dr. Aas Mohammad and Yogesh Kumar, “Dimensional Synthesis of 6-Bar Linkage for Eight
Precision Points Path Generation”, International Journal of Mechanical Engineering &
Technology (IJMET), Volume 4, Issue 5, 2013, pp. 279 - 285, ISSN Print: 0976 – 6340,
ISSN Online: 0976 – 6359.

30120140503012

More Related Content

What's hot

Viewers also liked

Similar to 30120140503012

More from IAEME Publication

Recently uploaded

30120140503012
