Web Performance Part 3 "Server-side tips"
The document provides an overview of web performance optimization techniques, comparing Nginx and Apache web servers in terms of performance tuning and architecture. It discusses configurations for efficient content delivery, caching, compression, and the integration of web server accelerators like Varnish and PageSpeed. Moreover, it outlines various features and configurations that can enhance web server performance and reduce latency.
More Related Content
Similar to Web Performance Part 3 "Server-side tips"
More from Binary Studio
Web Performance Part 3 "Server-side tips"
- 1.
- 2. Table of contents ➔Nginx vs Apache ➔ Apache performance tuning ➔ Nginx performance tuning ➔ Web server accelerators ➔ Varnish ➔ PageSpeed module

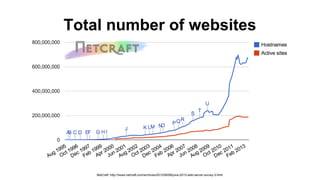

- 3. Total number ofwebsites NetCraft: http://news.netcraft.com/archives/2013/06/06/june-2013-web-server-survey-3.html
- 4. Web server developers: Marketshare of active sites NetCraft: http://news.netcraft.com/archives/2013/06/06/june-2013-web-server-survey-3.html
- 5. Nginx vs Apache(requests/seconds) Amazon EC2 Micro Instance Intel(R) Xeon(R) CPU E5-2650 0 @ 2.00GHz 613 MB RAM Ubuntu 13.10 index.html 612 B earth.png 3.7 MB

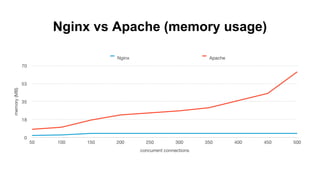

- 6. Nginx vs Apache(memory usage)
- 7.
- 8.
- 9. Frontend (Nginx) -backend (Apache) Front end Client Back end ➔ php ... Static content ➔ js ➔ css ➔ images ➔ video ...
- 10. Nginx config Light content(html, css, js, xml, rss, txt) Heavy content (photo, video, audio) ➔ g-zip compression ➔ expires headers for content proxy ➔ file descriptor caching ➔ virtual folder for frequently asked content ➔ SSD ➔ cache proxied requests worker_processes, worker_priority, worker_connections, sendfile on, access_log off, tcp_nopush on, gzip on

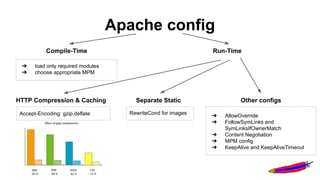

- 11. Apache config Run-TimeCompile-Time ➔ loadonly required modules ➔ choose appropriate MPM HTTP Compression & Caching ➔ AllowOverride ➔ FollowSymLinks and SymLinksIfOwnerMatch ➔ Content Negotiation ➔ MPM config ➔ KeepAlive and KeepAliveTimeout Accept-Encoding: gzip,deflate Separate Static RewriteCond for images Other configs
- 12. Web server accelerators Webserver accelerator Compression Operating system Browser Caching Edge Side Includes Prefetching Optimize code Preemptive hostname resolution Ad removal Client aiCache Gzip Linux All Yes No Yes Yes Yes All Apache Traffic Server Linux CACHEbox None Linux All Yes No Yes No No Yes End user/ISP Ishlangu Gzip Linux All Yes No No Yes Yes No All LotServer None Linux, Windows All No No No No No No Content Provider nginx Gzip Unix All Yes No No No Yes No user/ISP Polipo None Unix, Windows All Yes No No No No No user/ISP SiteCelerate Text & Images All Yes No Yes No No No user/ISP Squid None Unix, Windows All Yes Yes No No No No user/ISP Varnish Gzip on-the-fly compression and decompression Unix All Yes Yes No No No If You want All Ziproxy Images, text & any gzippable data Unix All No No No HTML, JS, CSS Yes Yes ISP
- 13.

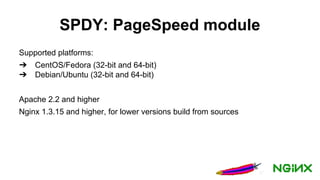

- 14. SPDY: PageSpeed module Supportedplatforms: ➔ CentOS/Fedora (32-bit and 64-bit) ➔ Debian/Ubuntu (32-bit and 64-bit) Apache 2.2 and higher Nginx 1.3.15 and higher, for lower versions build from sources

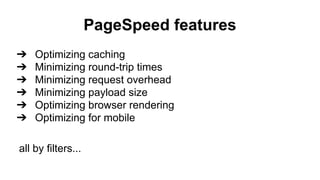

- 15. PageSpeed features ➔ Optimizingcaching ➔ Minimizing round-trip times ➔ Minimizing request overhead ➔ Minimizing payload size ➔ Optimizing browser rendering ➔ Optimizing for mobile all by filters...
- 16. add_instrumentation Adds client-side latencyinstrumentation Head: window.mod_pagespeed_start = Number(new Date()); End body: pagespeed.addInstrumentationInit('/mod_pagespeed_beacon', 'load', '', 'http://www.modpagespeed.com/add_instrumentation.html');
- 17.
- 18.
- 19.

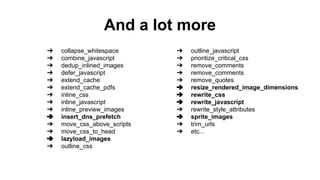

- 20. And a lotmore ➔ collapse_whitespace ➔ combine_javascript ➔ dedup_inlined_images ➔ defer_javascript ➔ extend_cache ➔ extend_cache_pdfs ➔ inline_css ➔ inline_javascript ➔ inline_preview_images ➔ insert_dns_prefetch ➔ move_css_above_scripts ➔ move_css_to_head ➔ lazyload_images ➔ outline_css ➔ outline_javascript ➔ prioritize_critical_css ➔ remove_comments ➔ remove_comments ➔ remove_quotes ➔ resize_rendered_image_dimensions ➔ rewrite_css ➔ rewrite_javascript ➔ rewrite_style_attributes ➔ sprite_images ➔ trim_urls ➔ etc...
