How to Build High Performance : WordPress
- 5. • 1% loss in revenue per every 100ms of delay • Abandonment begins at 3 seconds • Latency noticed in as little as 500ms
- 7. Portfolio Support “I Create Beautiful Websites” Mobile Friendly Googable problem solving No wheel re-inventing
- 14. • Generally non-technical. (Easy to edit and create) • Wide variety of fluid business needs • Wants support and documentation for the life of their business.
- 16. Pointless • Traffic capacity given in days or months • The word “Unlimited” • Spending your way to performance without optimization
- 17. Credit: KM-Artwork, Deviant Art

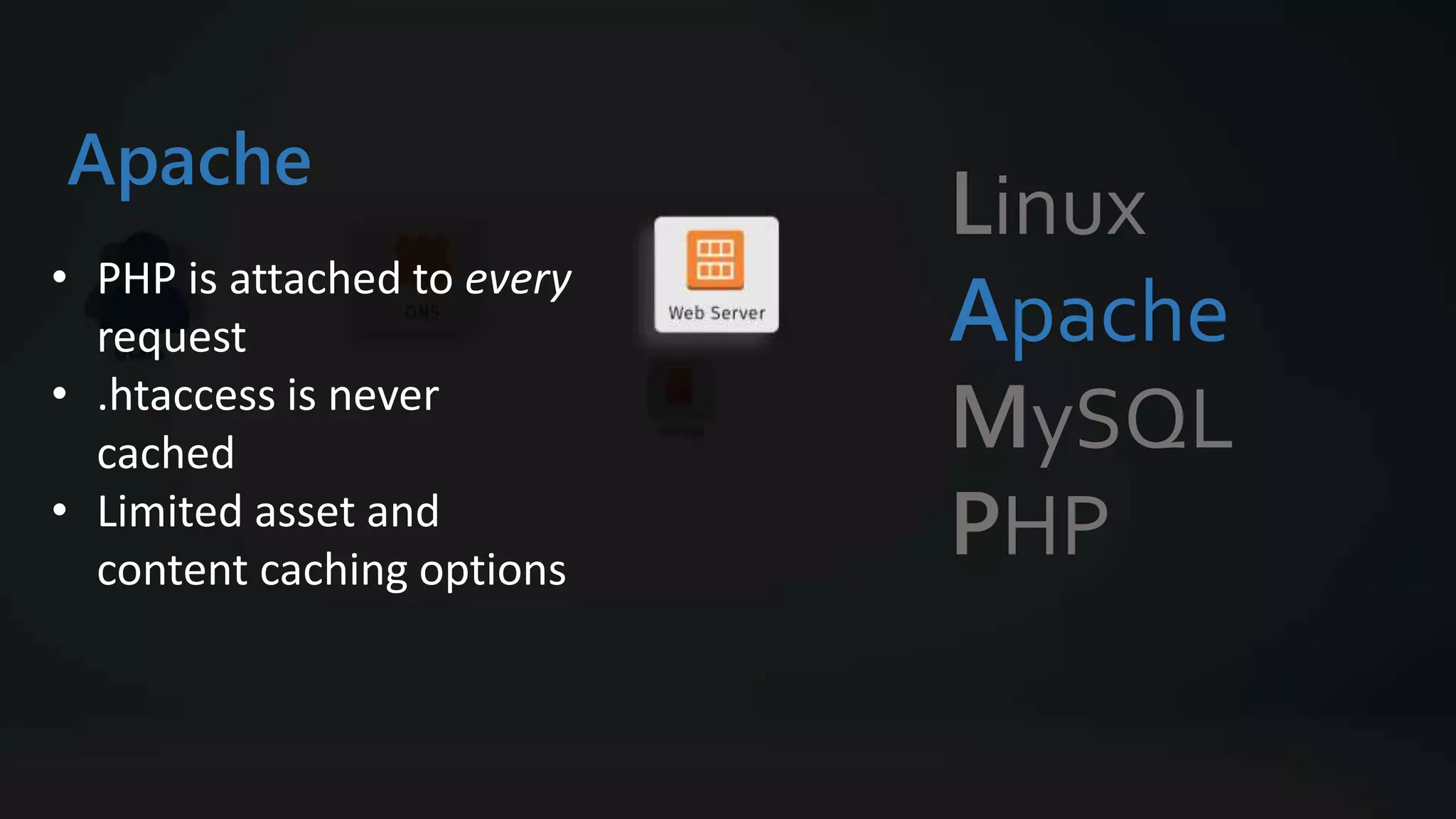

- 22. Linux Apache MySQL PHP Apache • PHP is attached to every request • .htaccess is never cached • Limited asset and content caching options

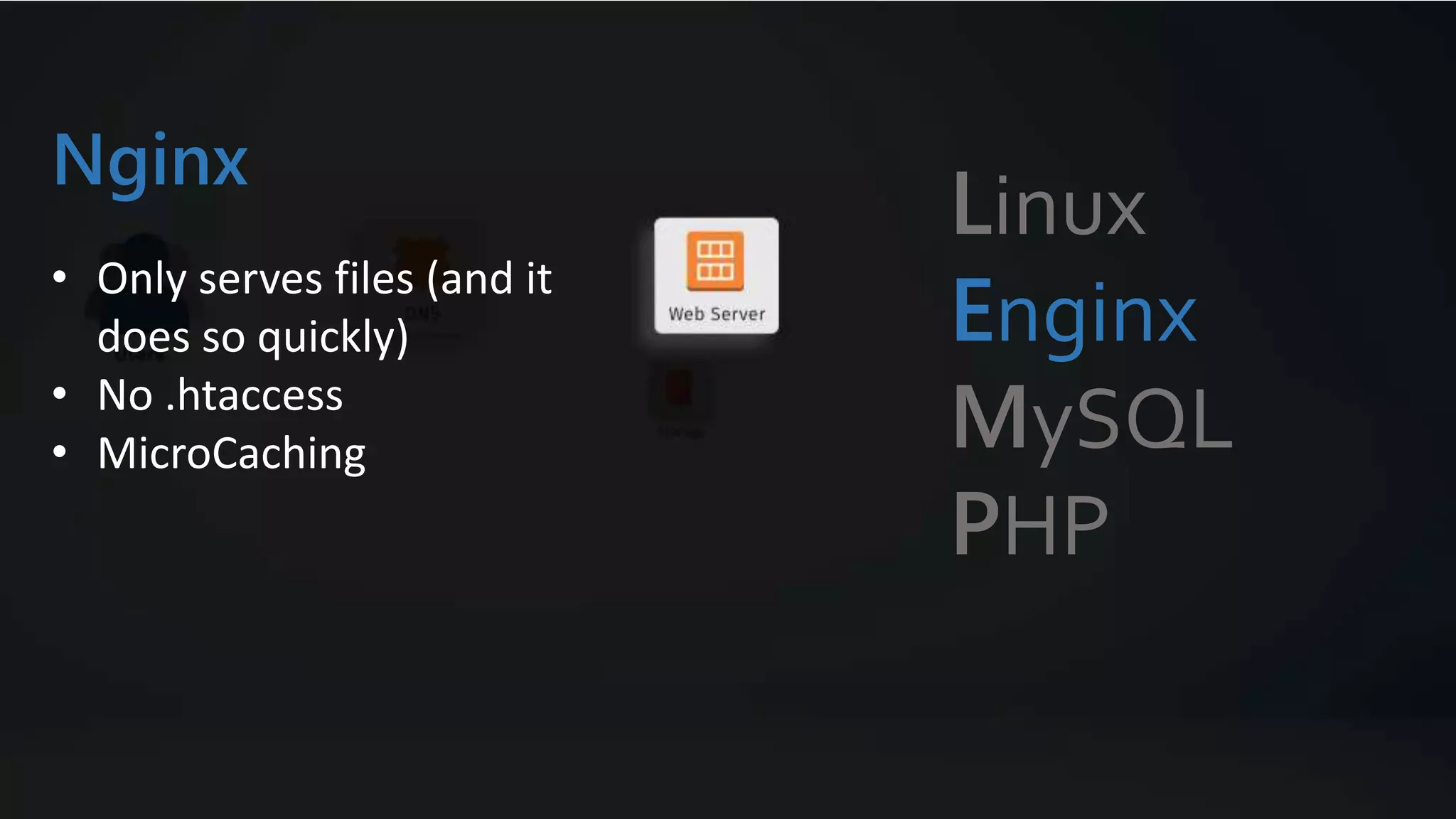

- 23. Linux Enginx MySQL PHP Nginx • Only serves files (and it does so quickly) • No .htaccess • MicroCaching

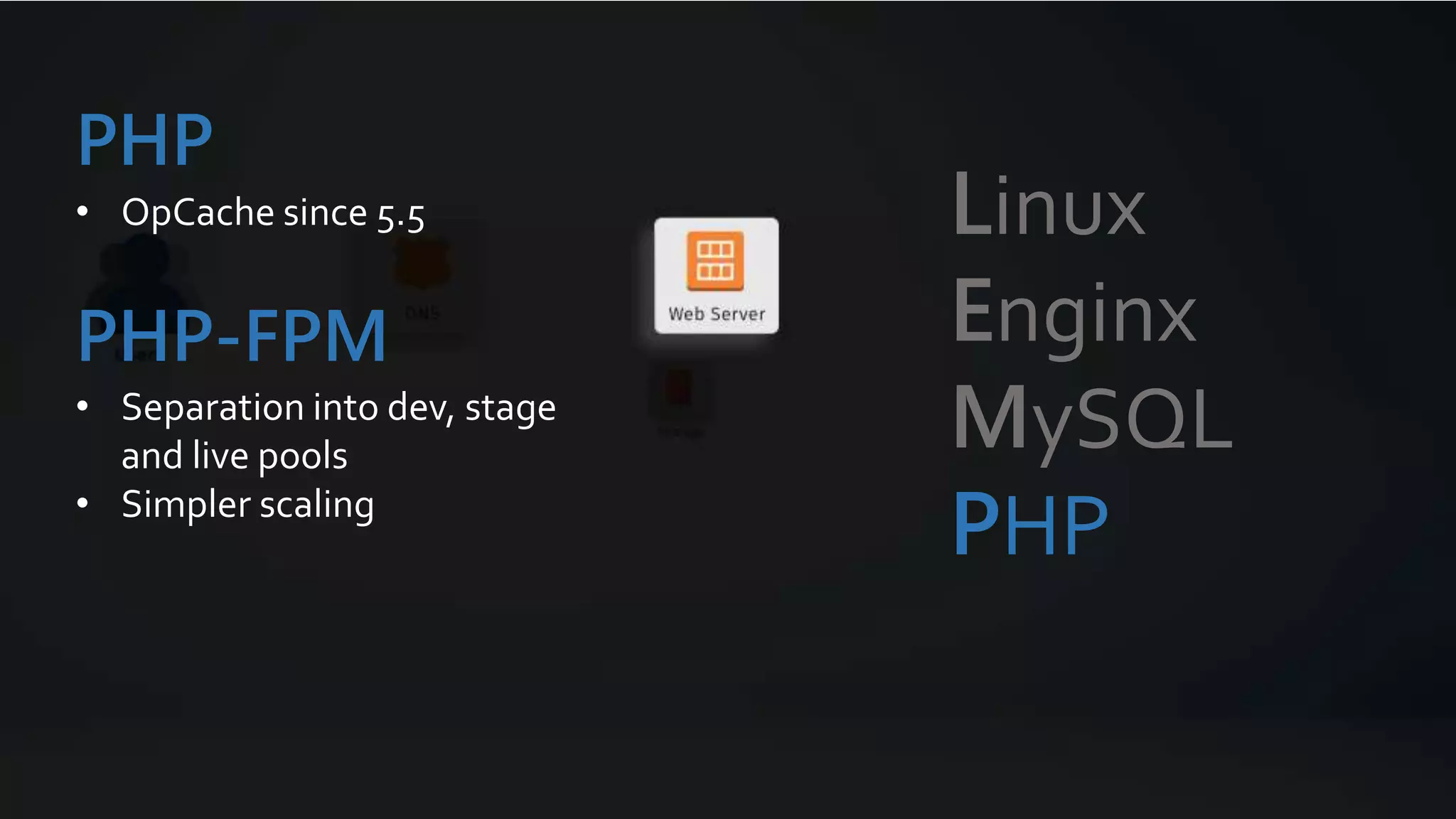

- 24. Linux Enginx MySQL PHP • OpCache since 5.5 • Separation into dev, stage and live pools • Simpler scaling PHP-FPM PHP

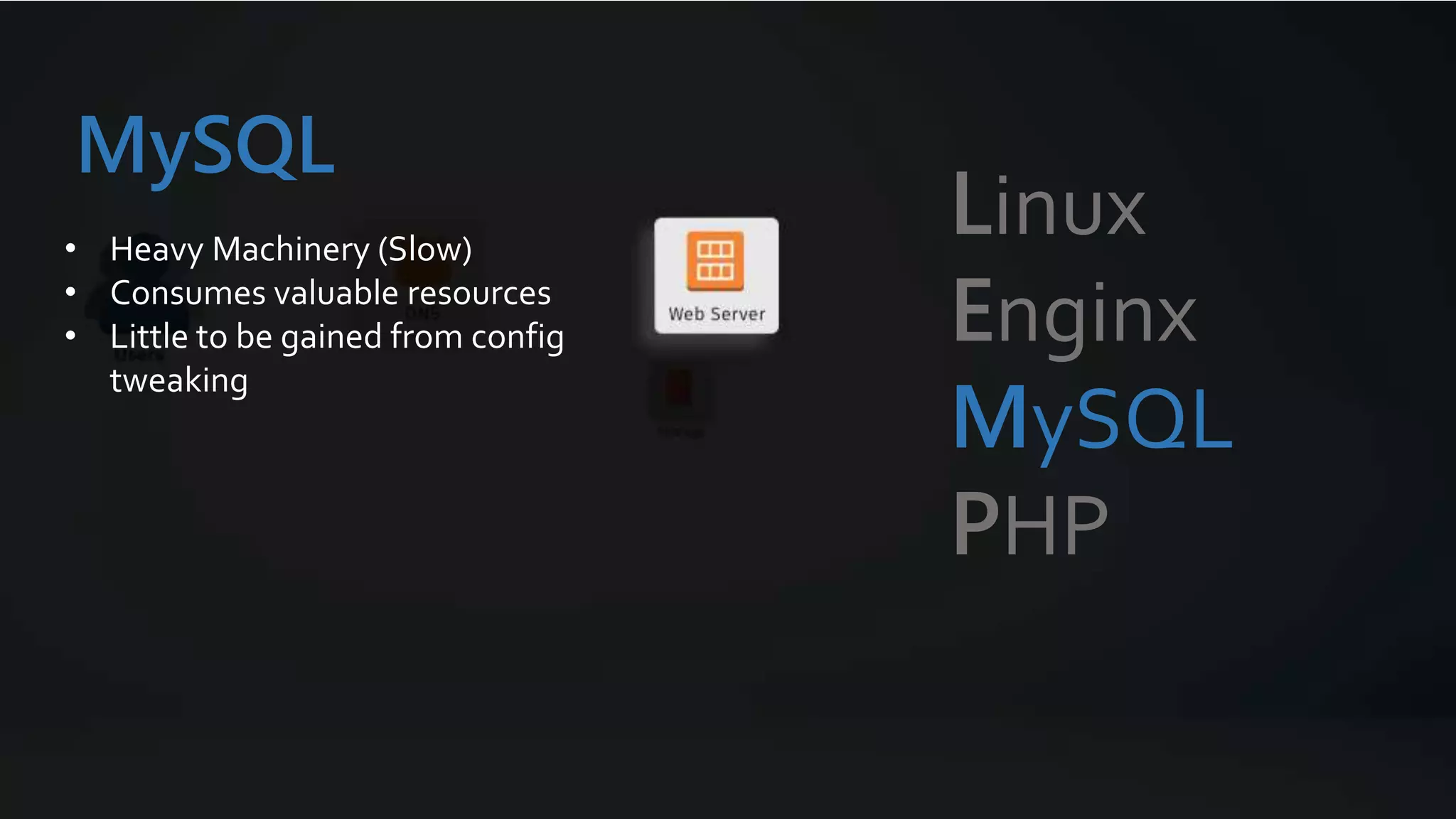

- 25. Linux Enginx MySQL PHP MySQL • Heavy Machinery (Slow) • Consumes valuable resources • Little to be gained from config tweaking

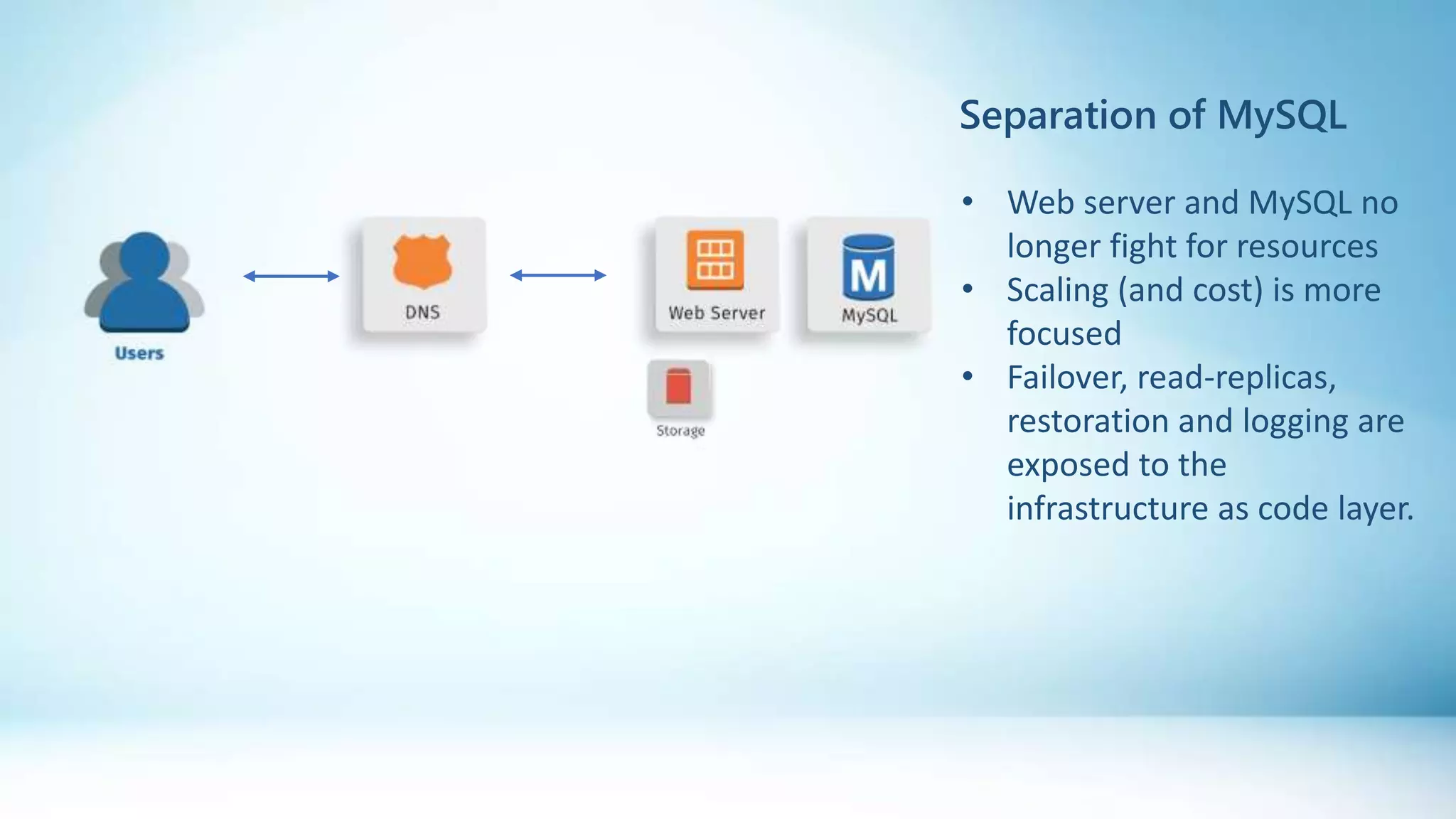

- 26. Separation of MySQL • Web server and MySQL no longer fight for resources • Scaling (and cost) is more focused • Failover, read-replicas, restoration and logging are exposed to the infrastructure as code layer.

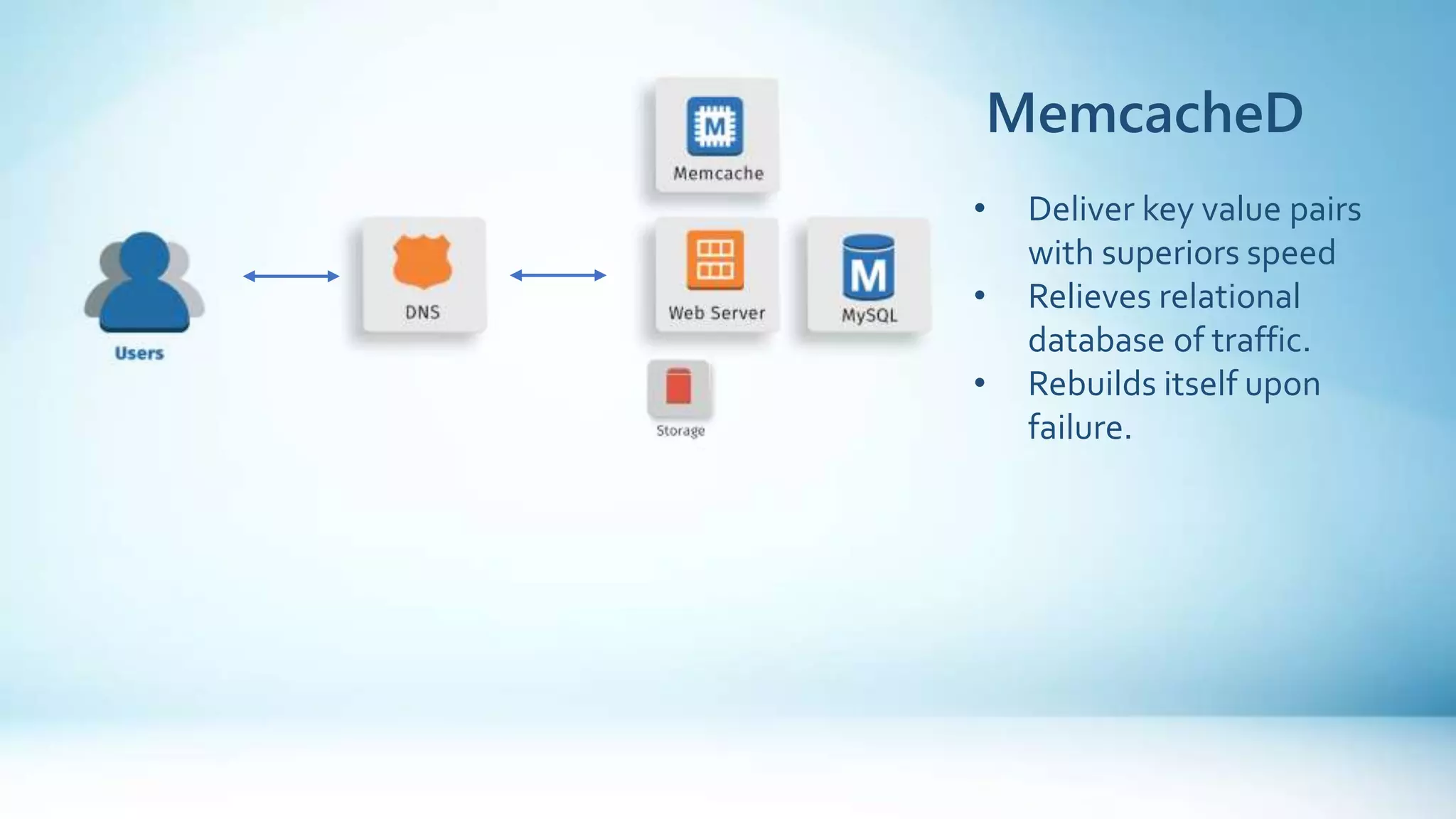

- 27. MemcacheD • Deliver key value pairs with superiors speed • Relieves relational database of traffic. • Rebuilds itself upon failure.

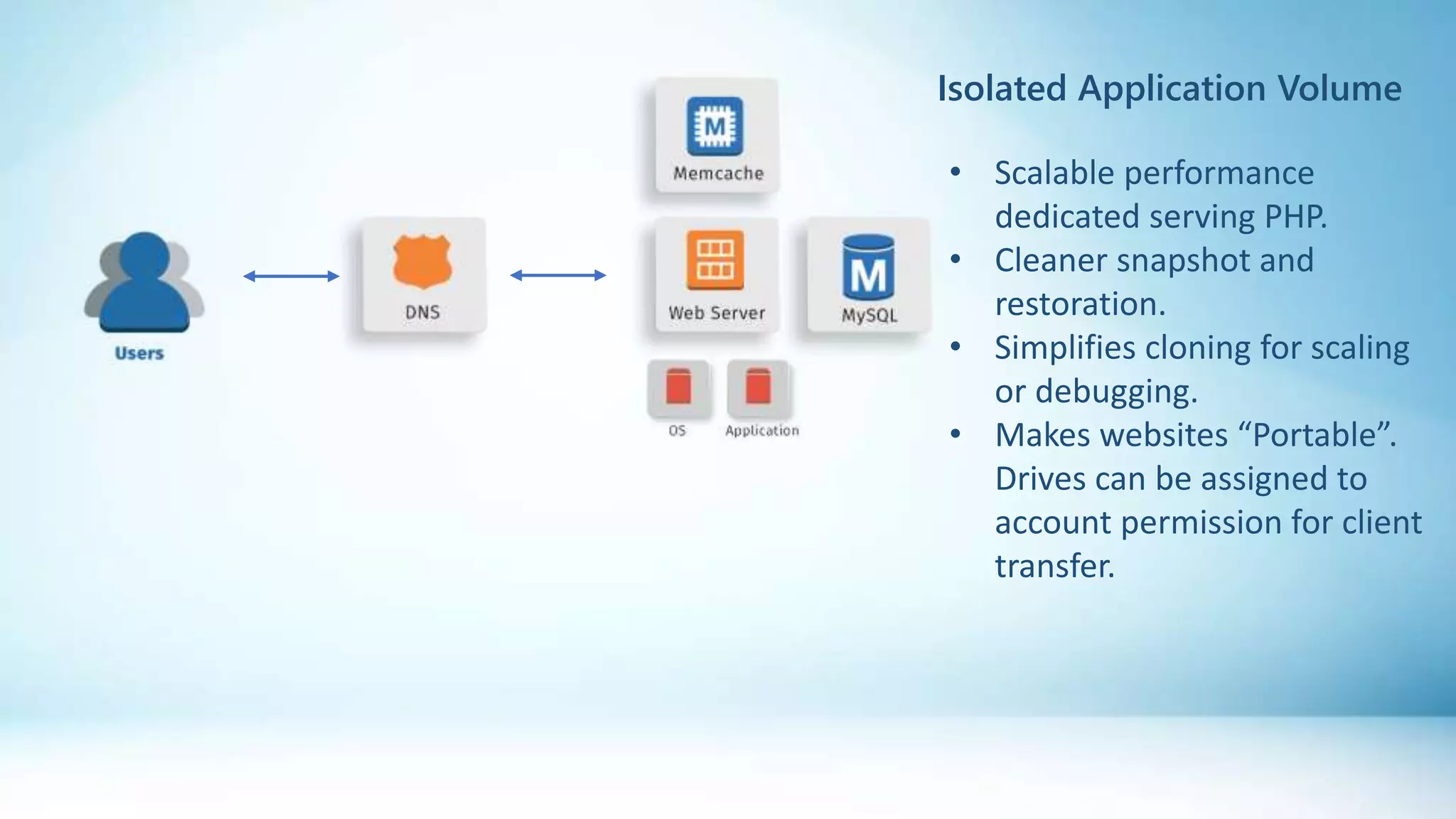

- 28. Isolated Application Volume • Scalable performance dedicated serving PHP. • Cleaner snapshot and restoration. • Simplifies cloning for scaling or debugging. • Makes websites “Portable”. Drives can be assigned to account permission for client transfer.

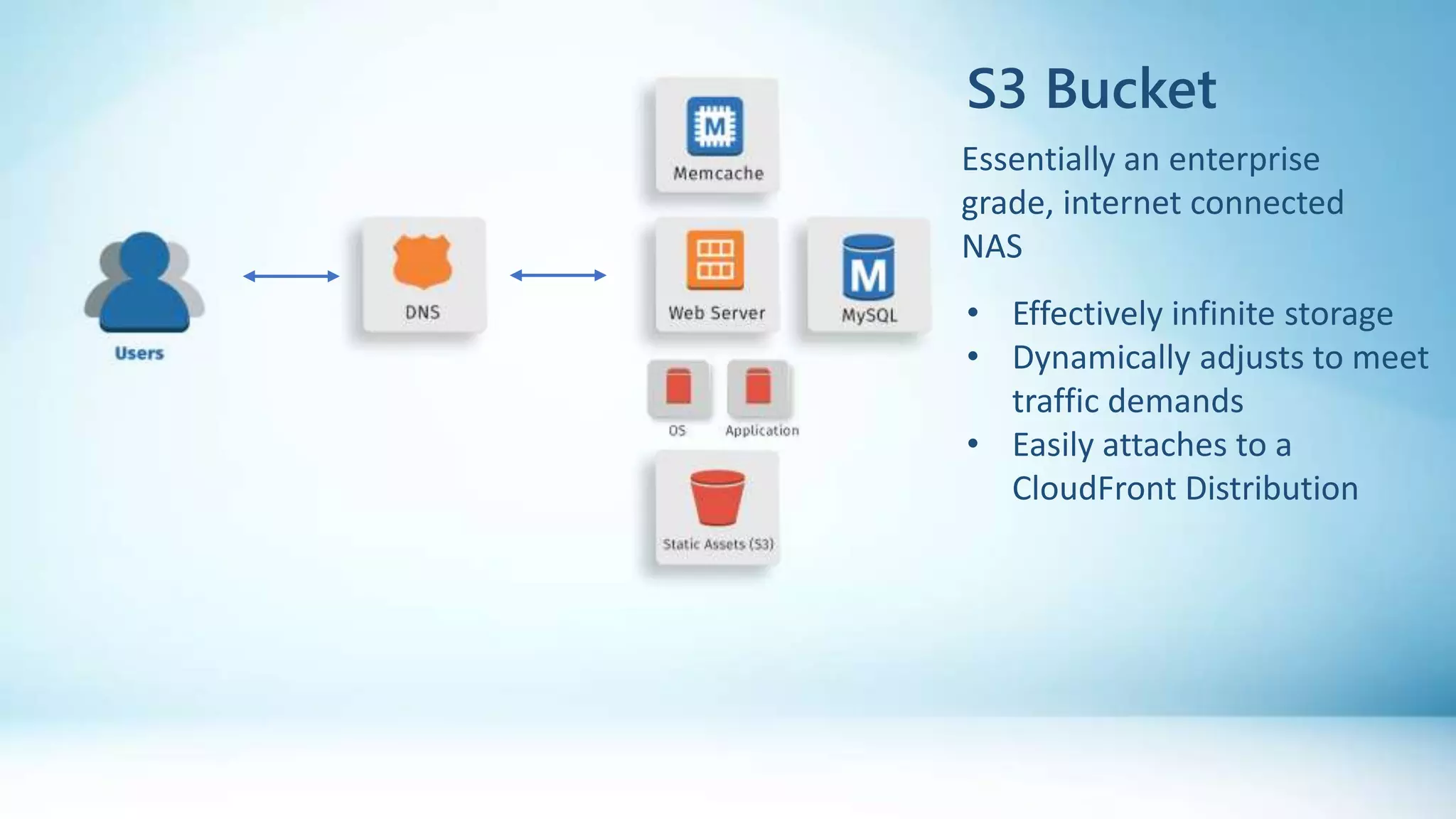

- 29. S3 Bucket Essentially an enterprise grade, internet connected NAS • Effectively infinite storage • Dynamically adjusts to meet traffic demands • Easily attaches to a CloudFront Distribution

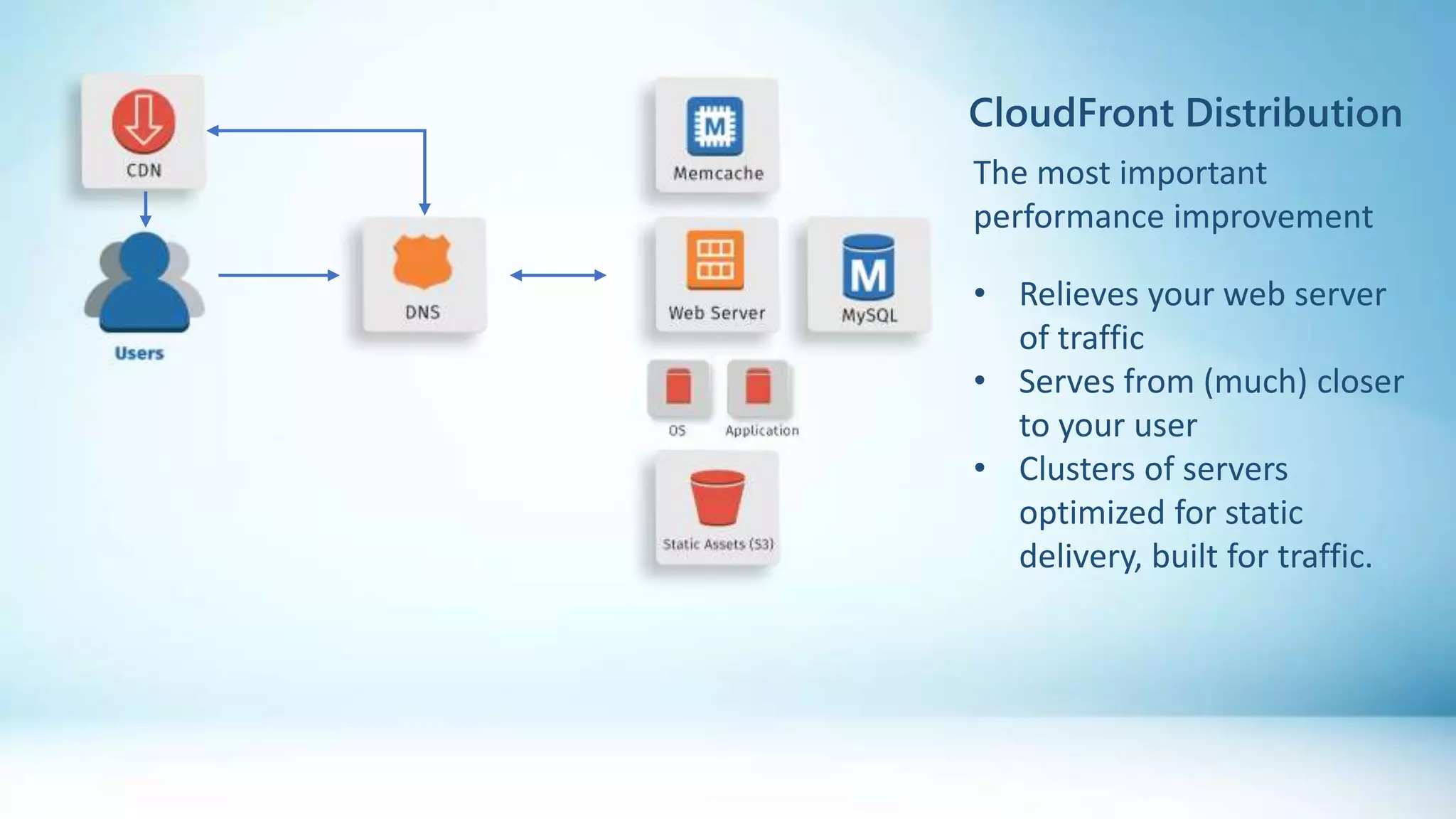

- 30. CloudFront Distribution The most important performance improvement • Relieves your web server of traffic • Serves from (much) closer to your user • Clusters of servers optimized for static delivery, built for traffic.

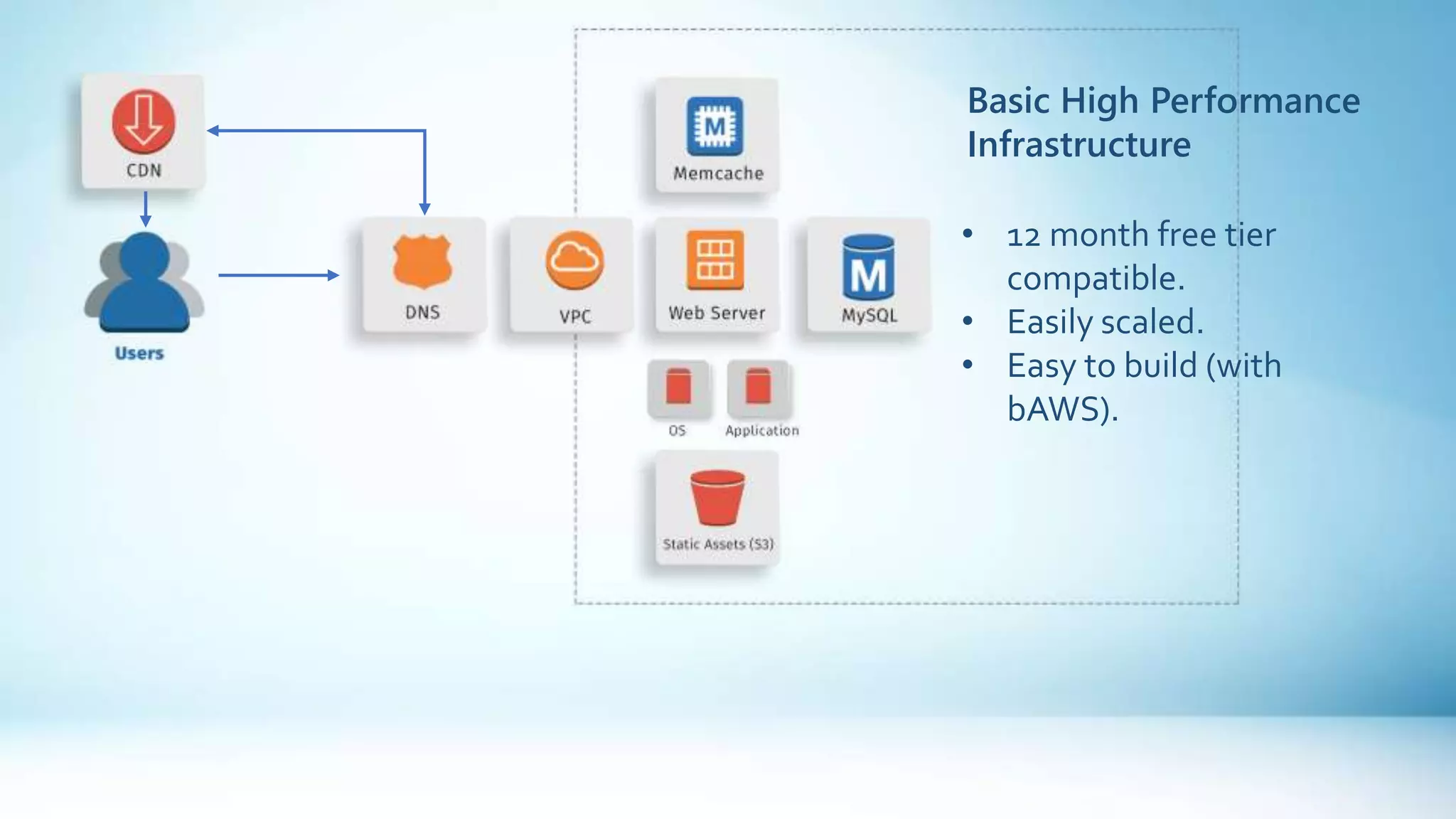

- 31. Basic High Performance Infrastructure • 12 month free tier compatible. • Easily scaled. • Easy to build (with bAWS).

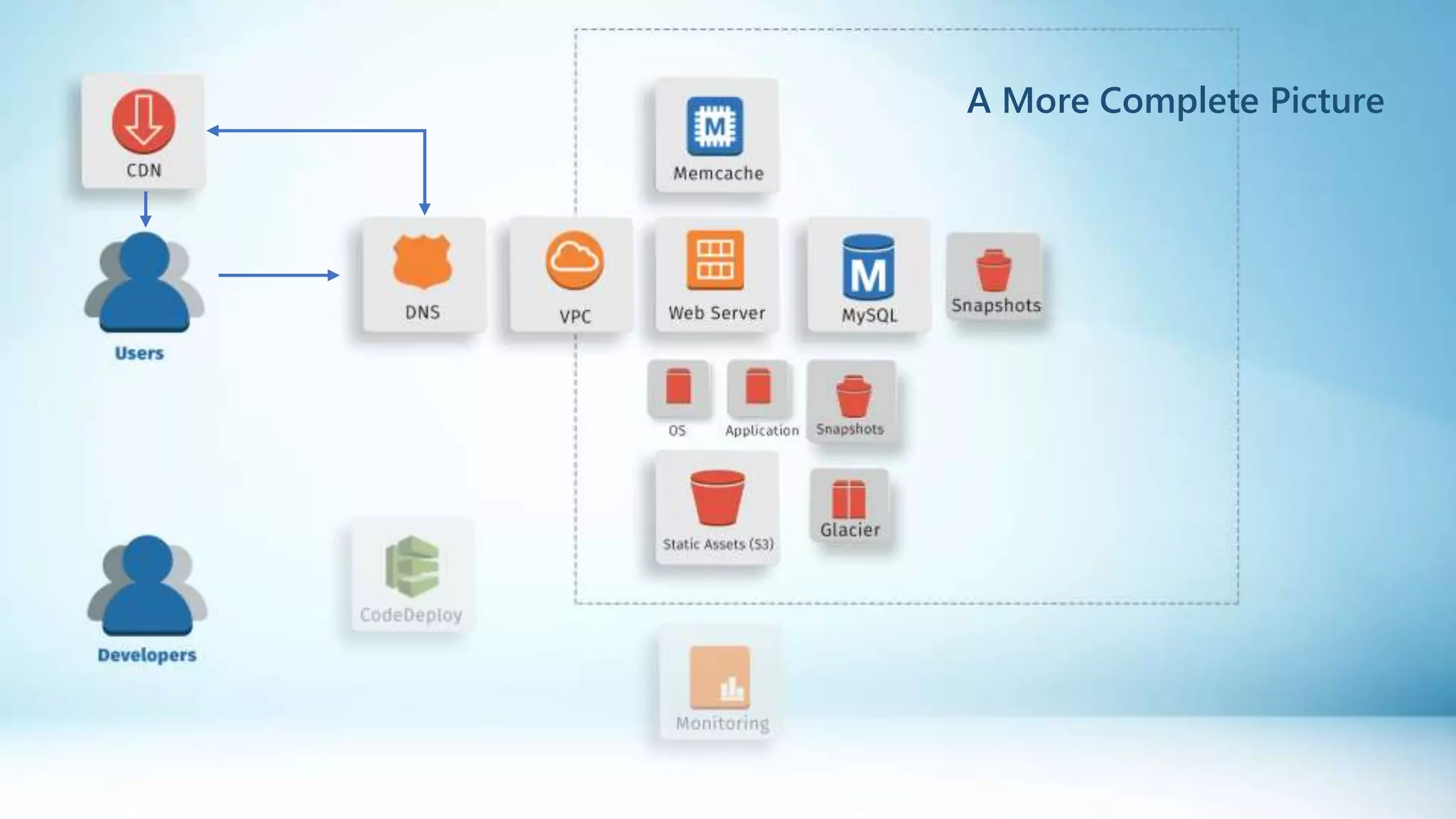

- 32. A More Complete Picture

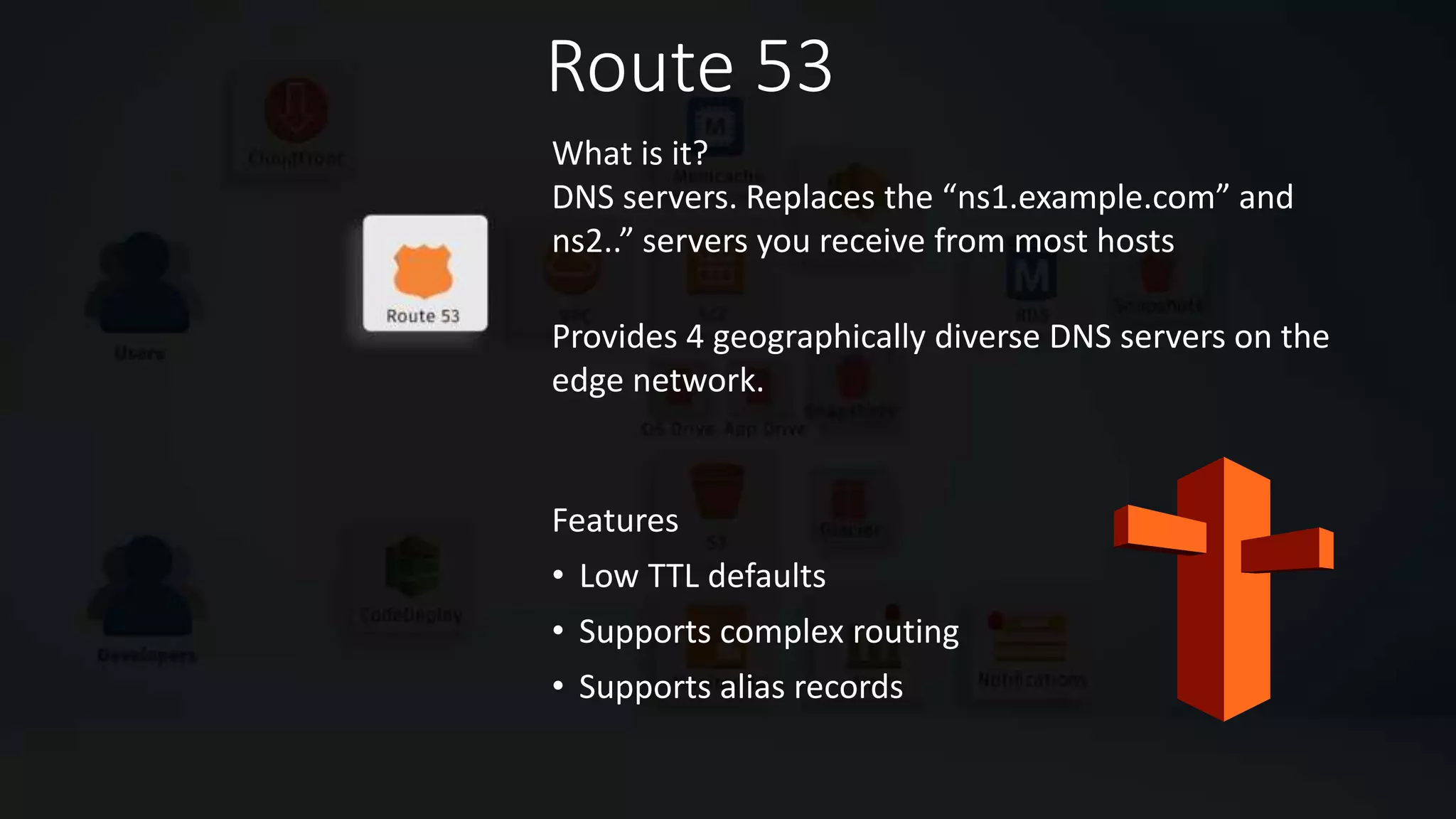

- 33. Route 53 Features • Low TTL defaults • Supports complex routing • Supports alias records What is it? DNS servers. Replaces the “ns1.example.com” and ns2..” servers you receive from most hosts Provides 4 geographically diverse DNS servers on the edge network.

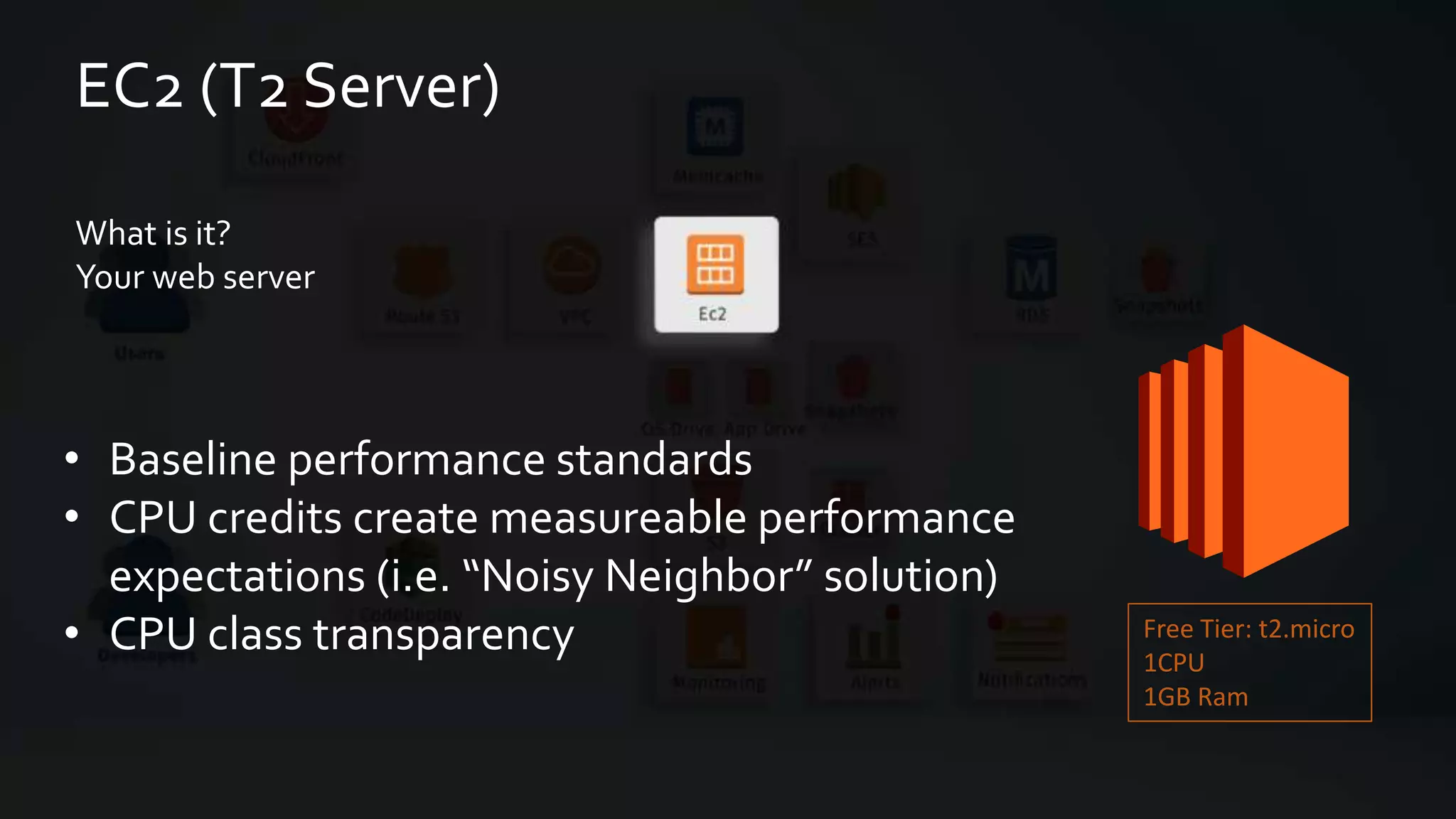

- 34. EC2 (T2 Server) What is it? Your web server • Baseline performance standards • CPU credits create measureable performance expectations (i.e. “Noisy Neighbor” solution) • CPU class transparency Free Tier: t2.micro 1CPU 1GB Ram

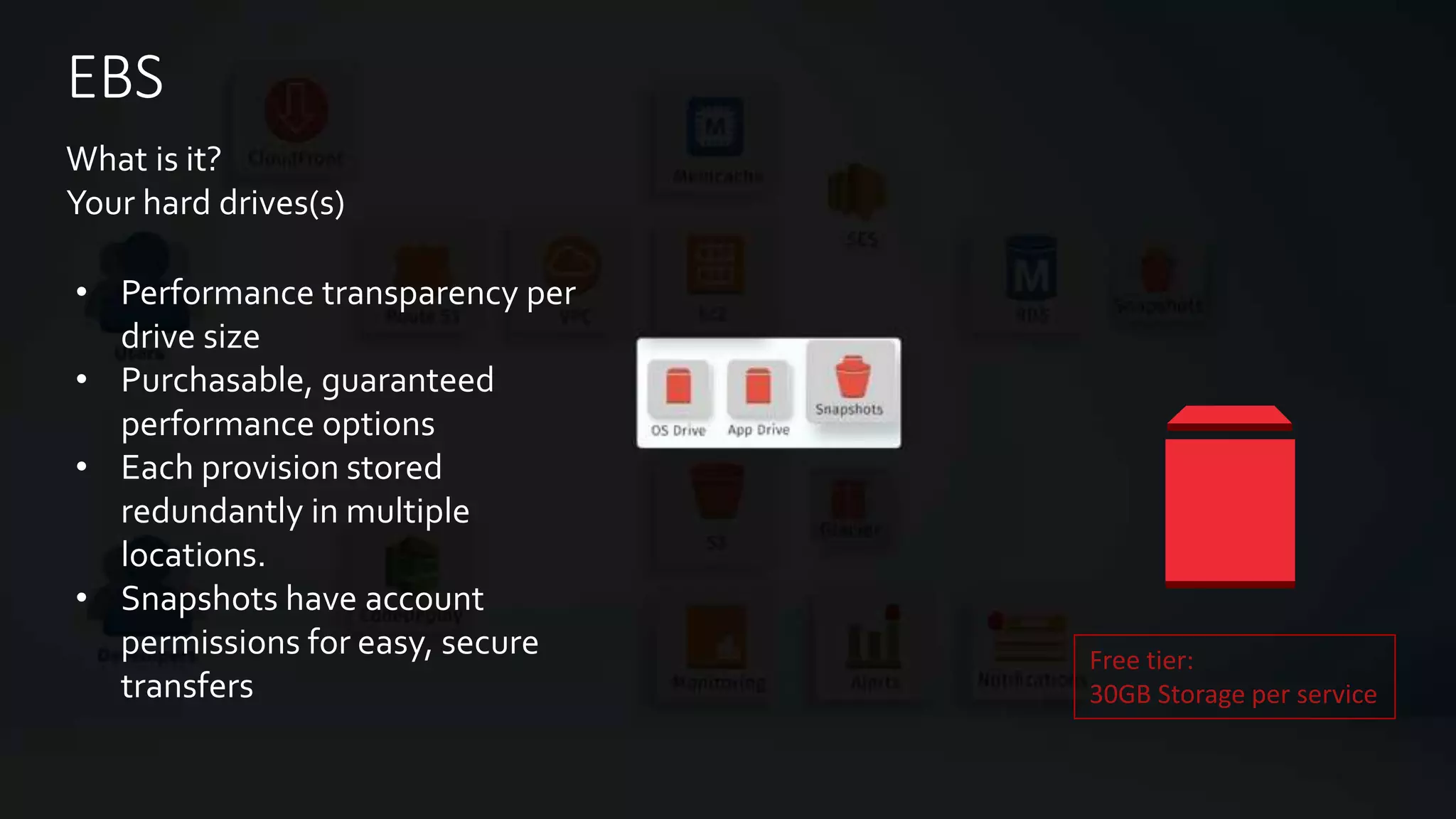

- 35. EBS What is it? Your hard drives(s) • Performance transparency per drive size • Purchasable, guaranteed performance options • Each provision stored redundantly in multiple locations. • Snapshots have account permissions for easy, secure transfers Free tier: 30GB Storage per service

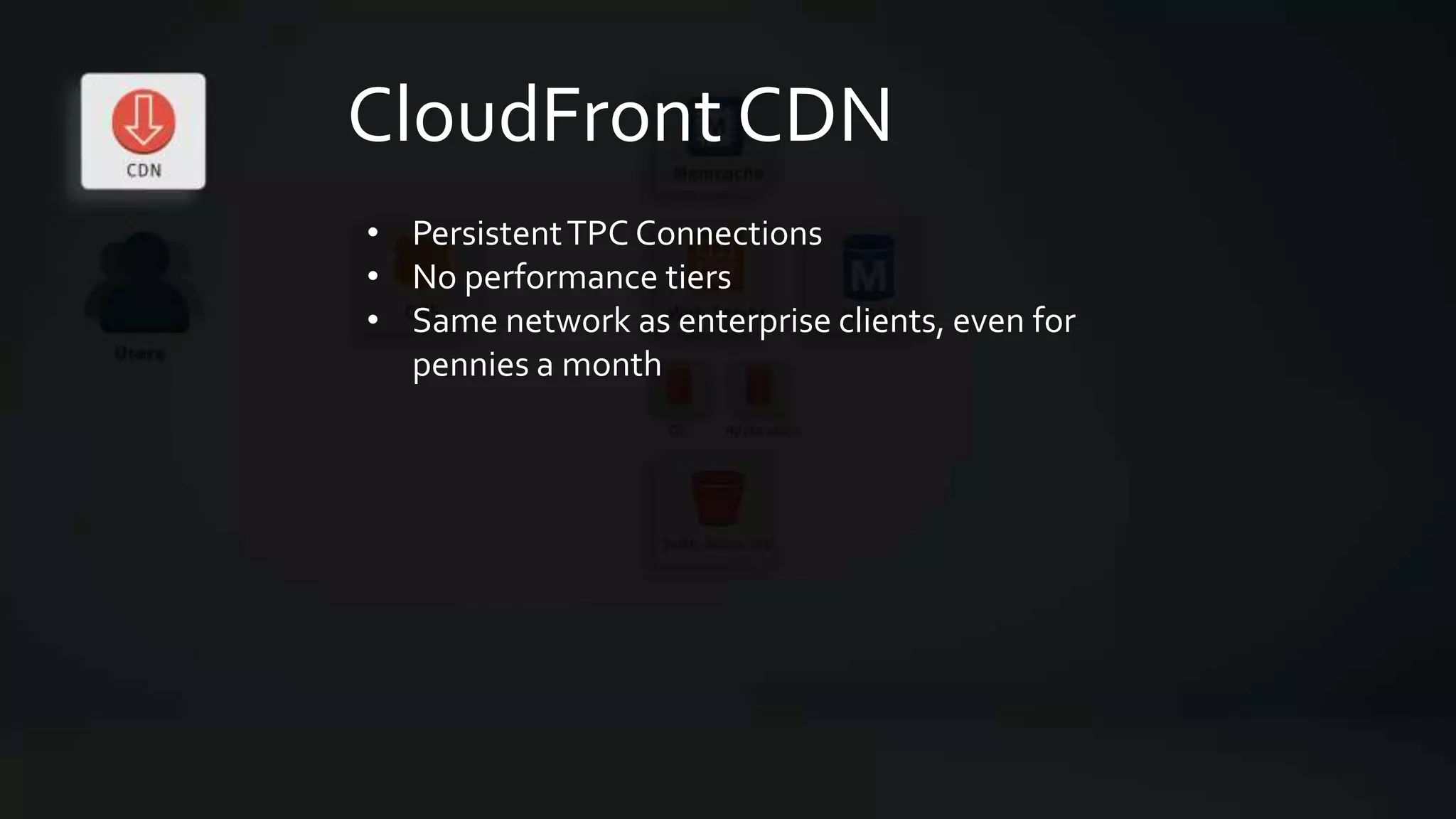

- 36. CloudFront CDN • PersistentTPC Connections • No performance tiers • Same network as enterprise clients, even for pennies a month

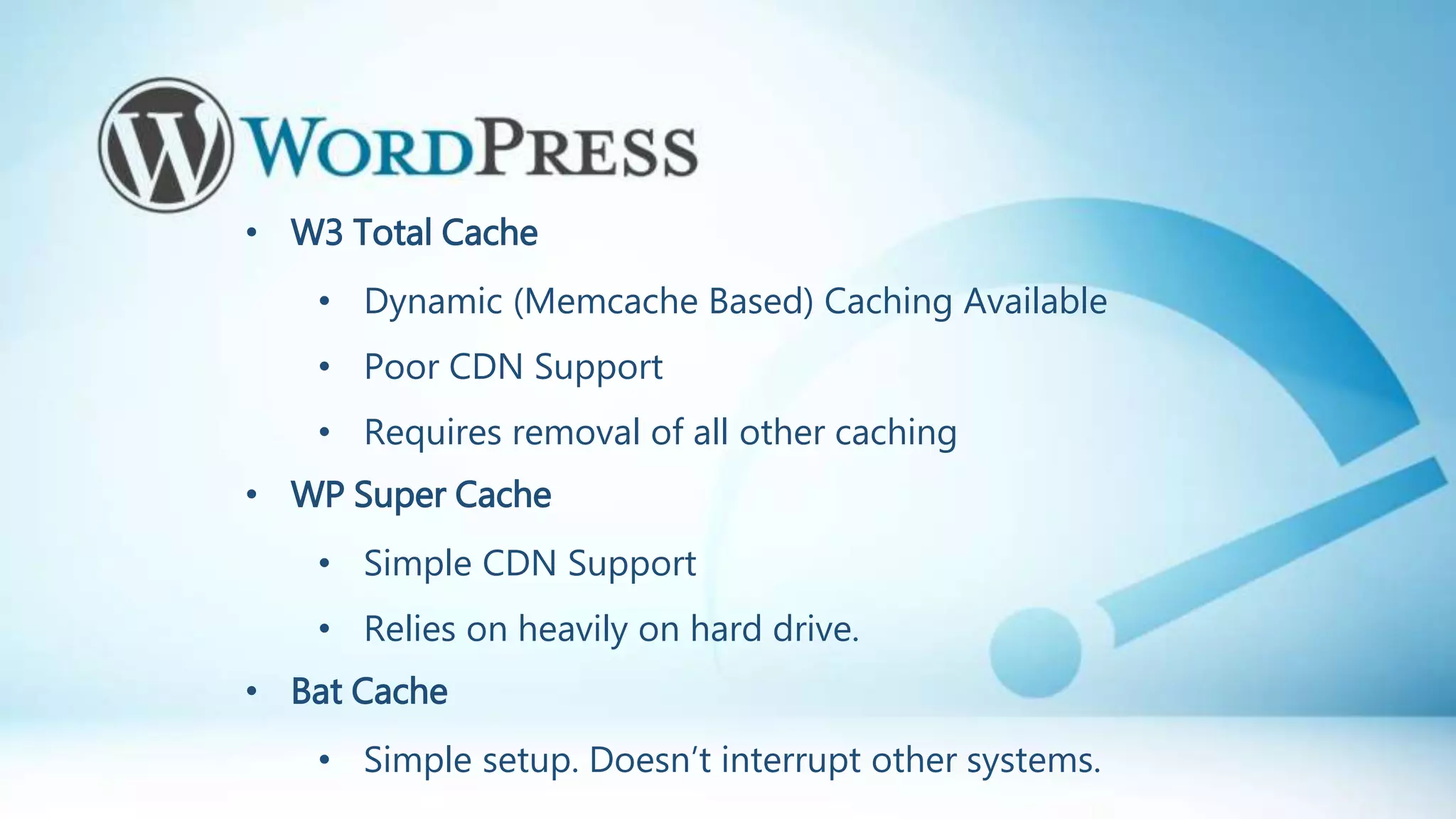

- 39. • W3 Total Cache • Dynamic (Memcache Based) Caching Available • Poor CDN Support • Requires removal of all other caching • WP Super Cache • Simple CDN Support • Relies on heavily on hard drive. • Bat Cache • Simple setup. Doesn’t interrupt other systems.
- 40. Benchmarking • WebPageTest.org • Apache Bench • Bees with Machine Guns
- 41. Apache Bench ab -n 100 -c 10 http://rr.digitaldev.io/

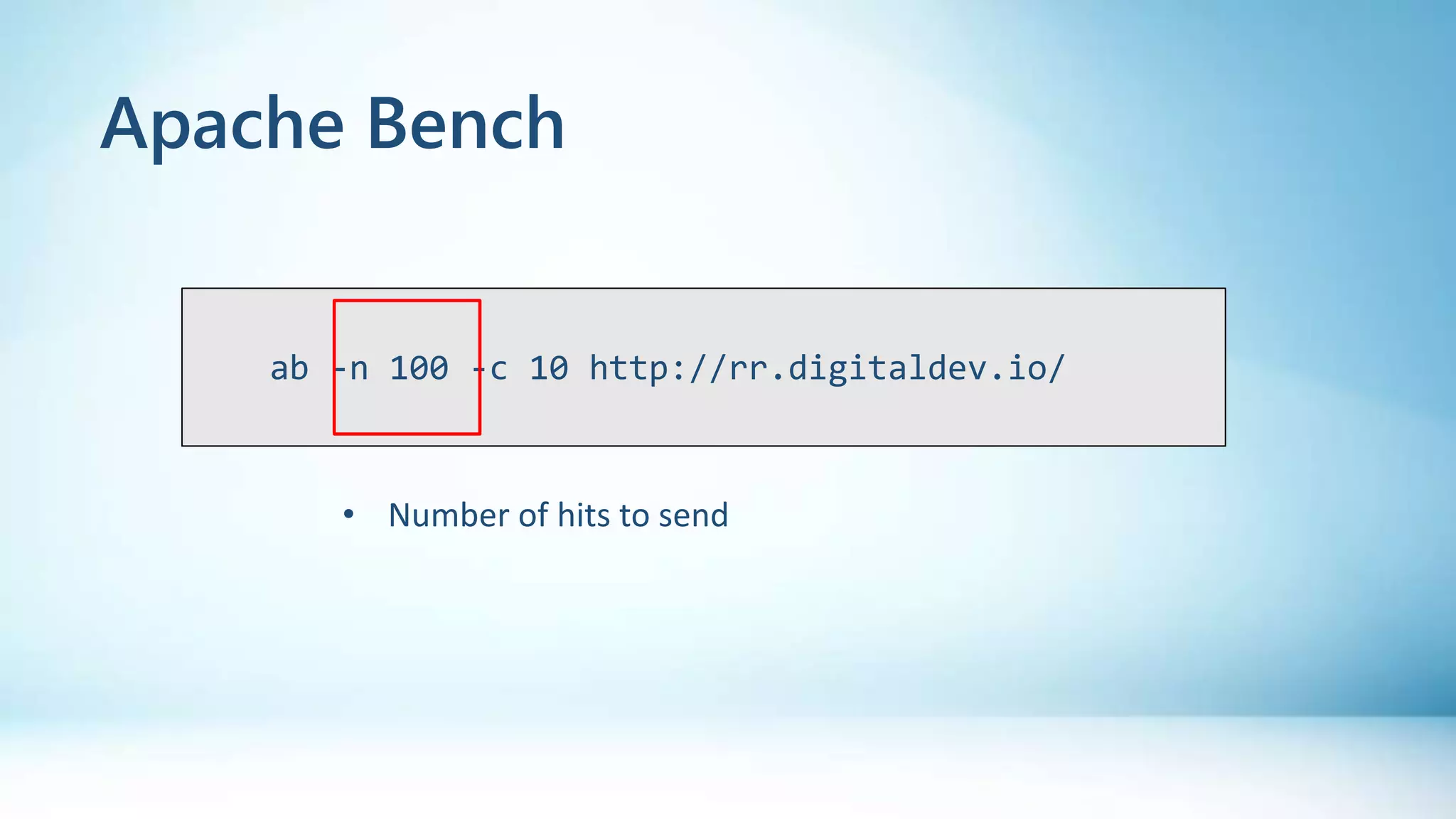

- 42. Apache Bench ab -n 100 -c 10 http://rr.digitaldev.io/ • Number of hits to send

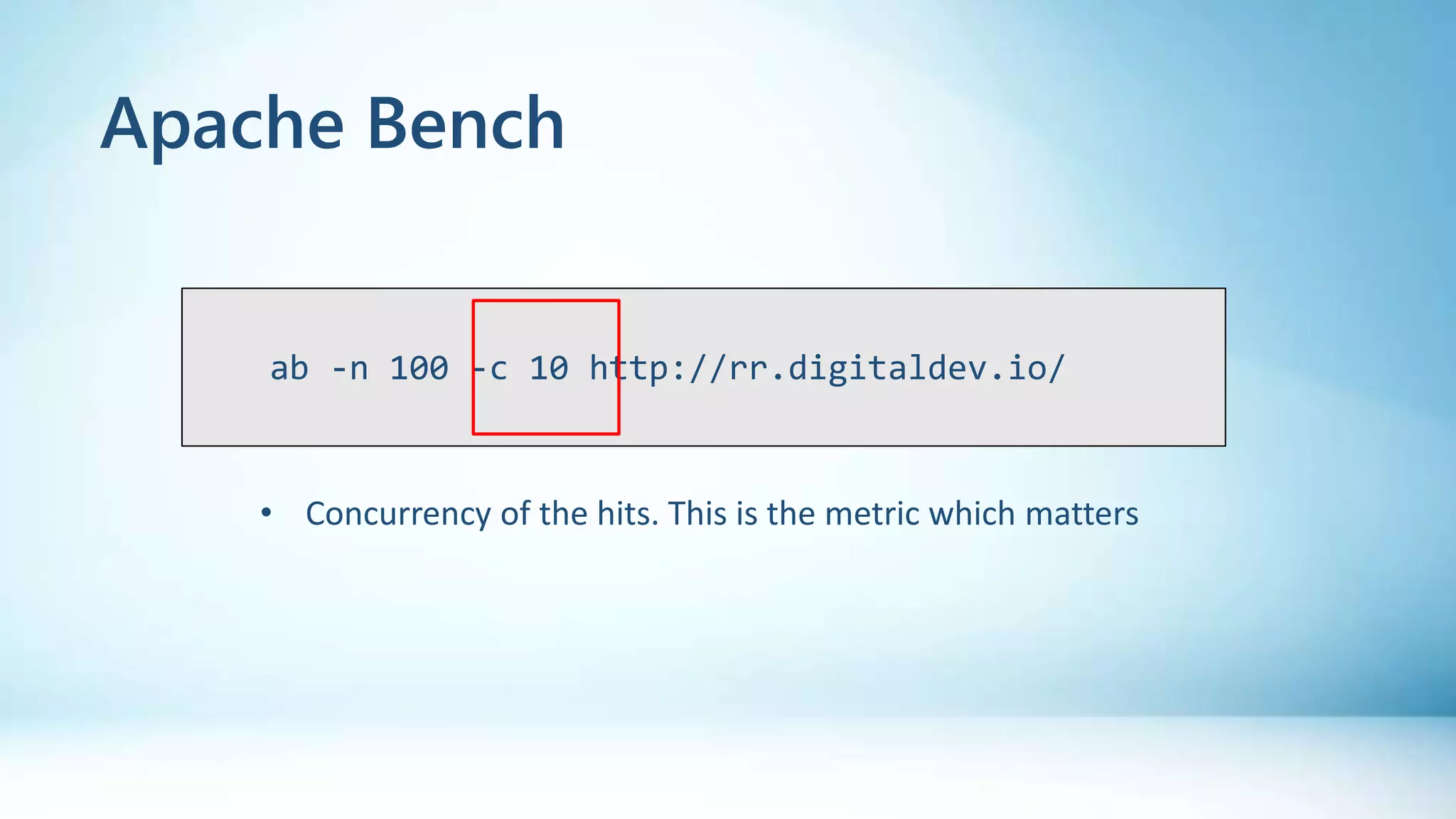

- 43. Apache Bench ab -n 100 -c 10 http://rr.digitaldev.io/ • Concurrency of the hits. This is the metric which matters

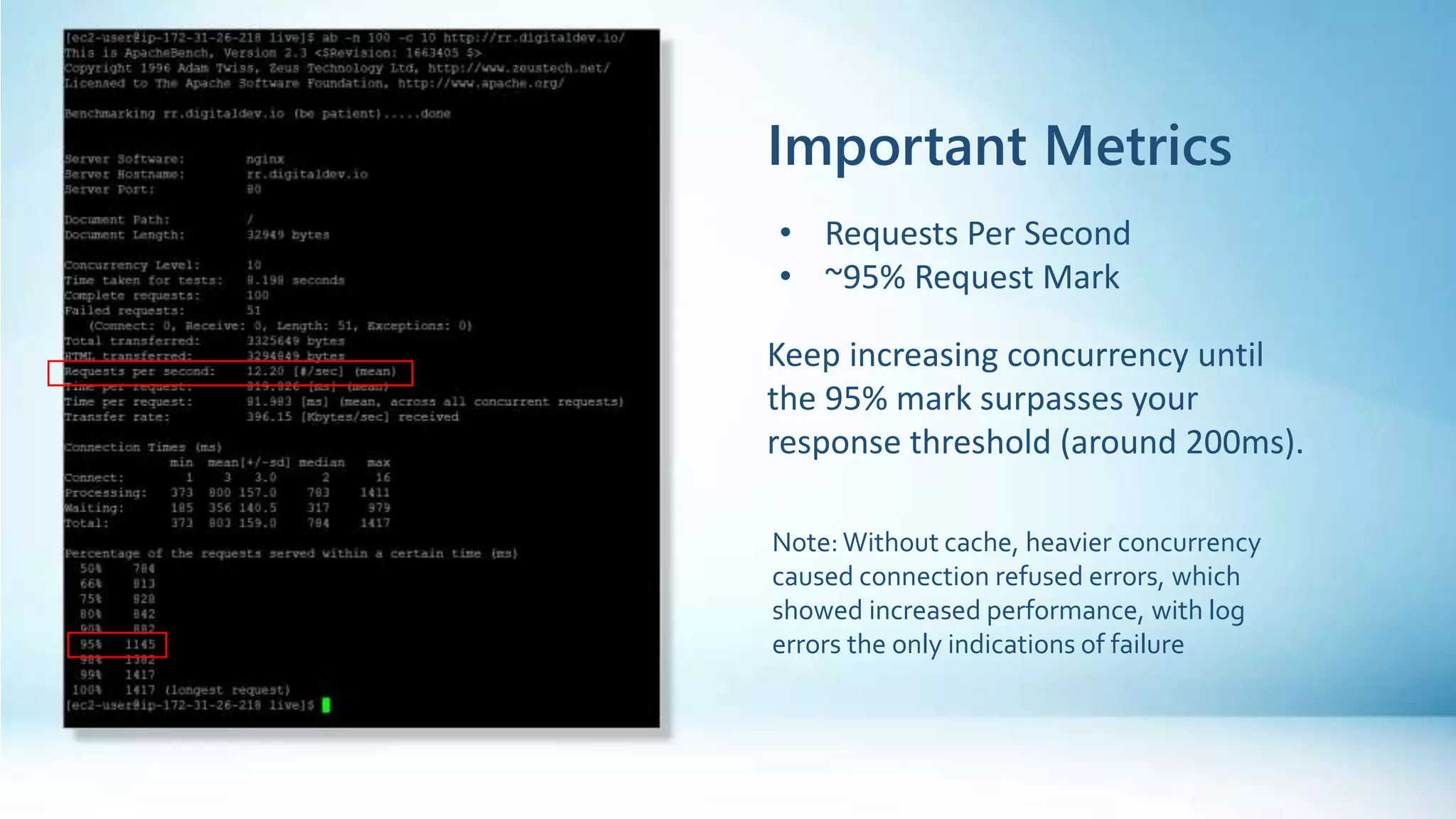

- 44. • Requests Per Second • ~95% Request Mark Important Metrics Keep increasing concurrency until the 95% mark surpasses your response threshold (around 200ms). Note: Without cache, heavier concurrency caused connection refused errors, which showed increased performance, with log errors the only indications of failure

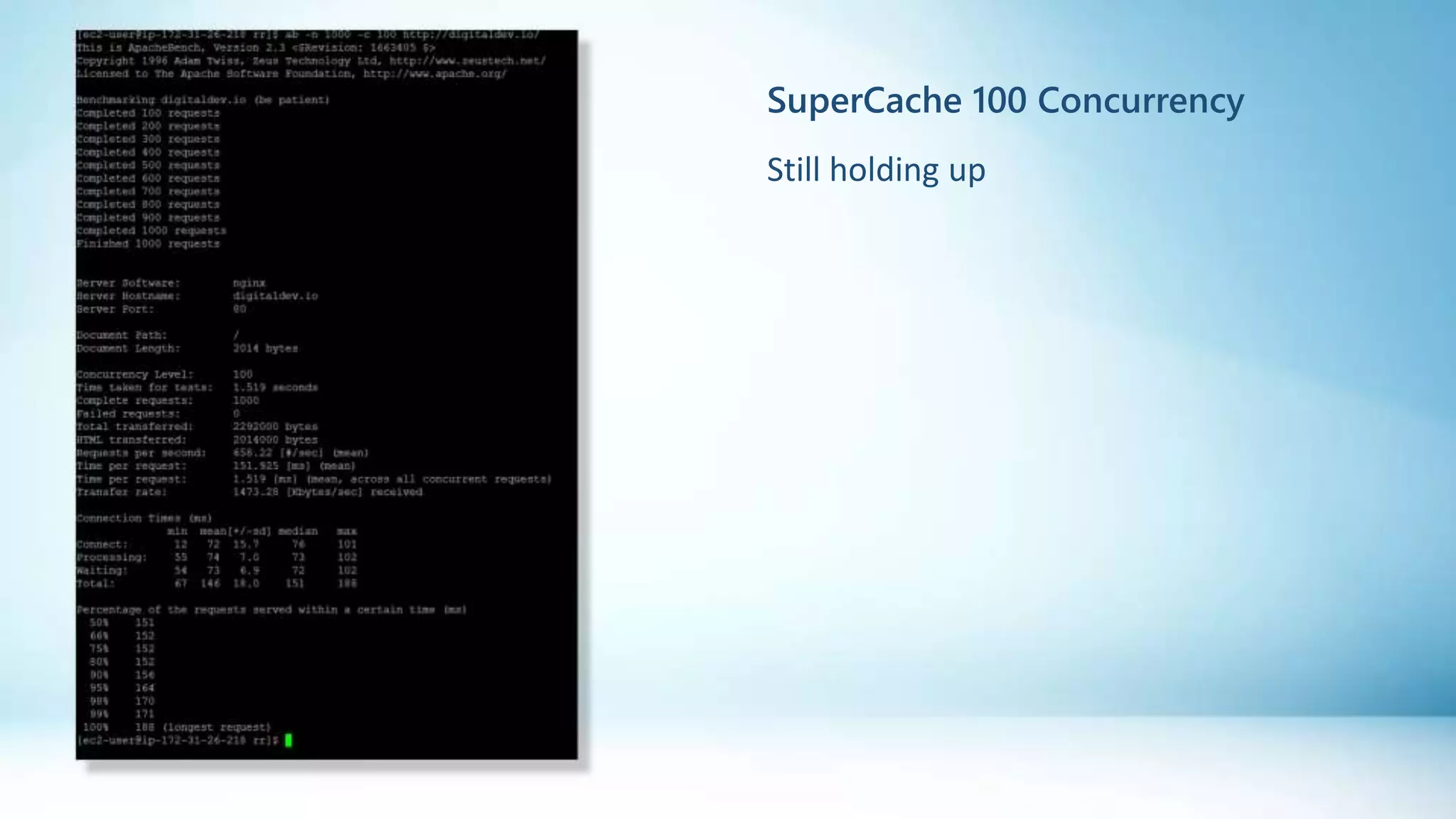

- 46. SuperCache 100 Concurrency Still holding up

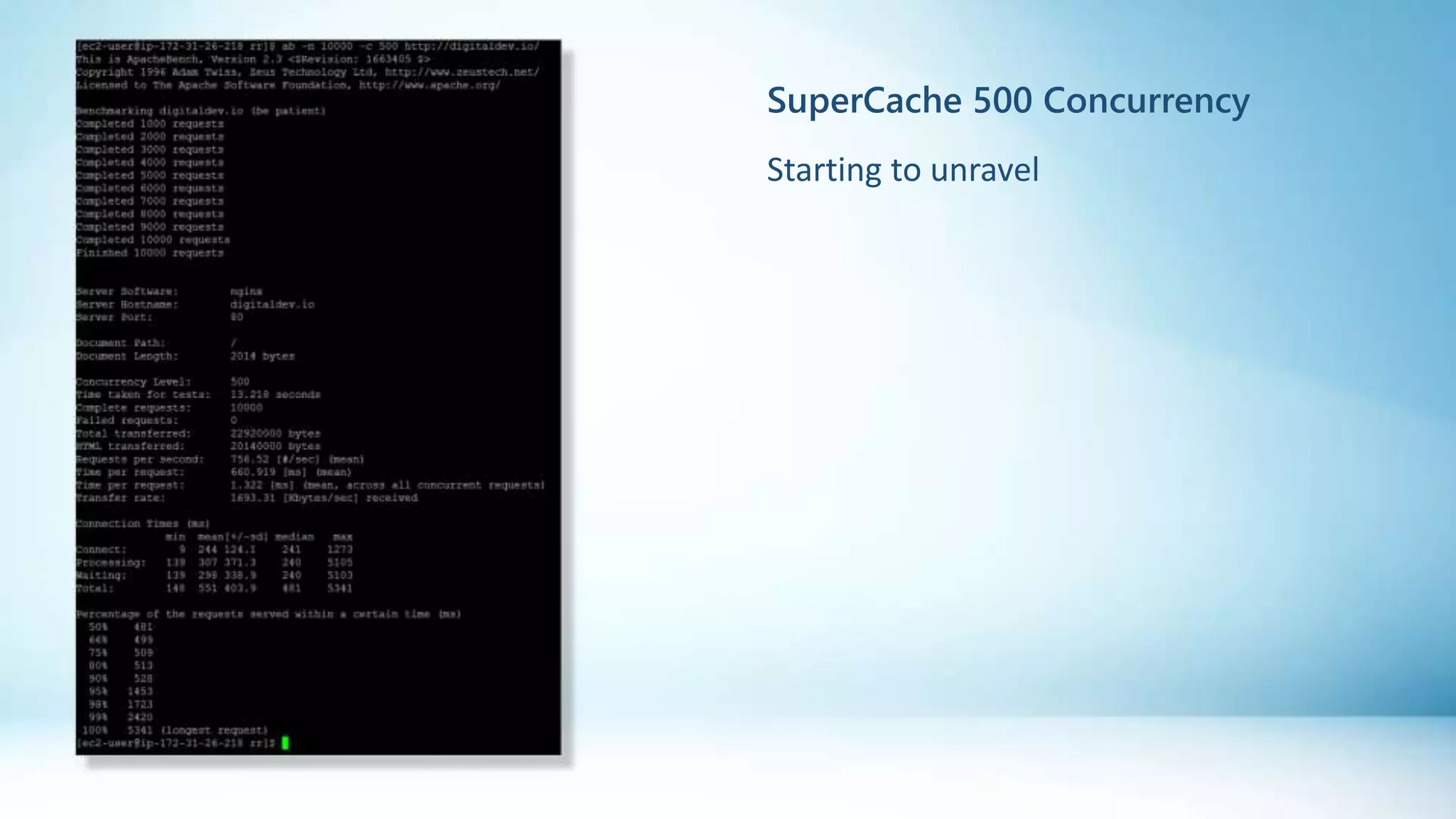

- 47. SuperCache 500 Concurrency Starting to unravel

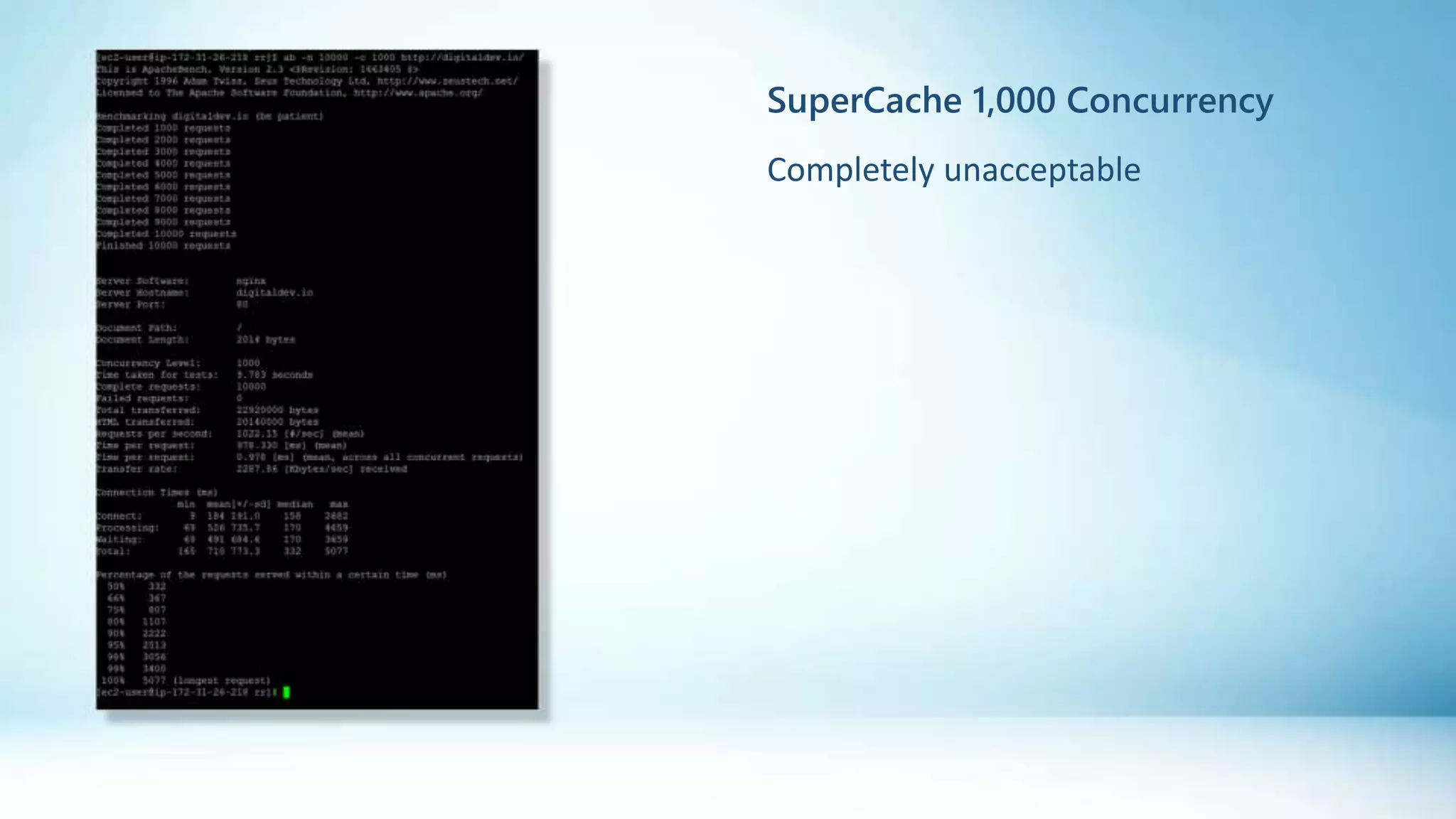

- 48. SuperCache 1,000 Concurrency Completely unacceptable

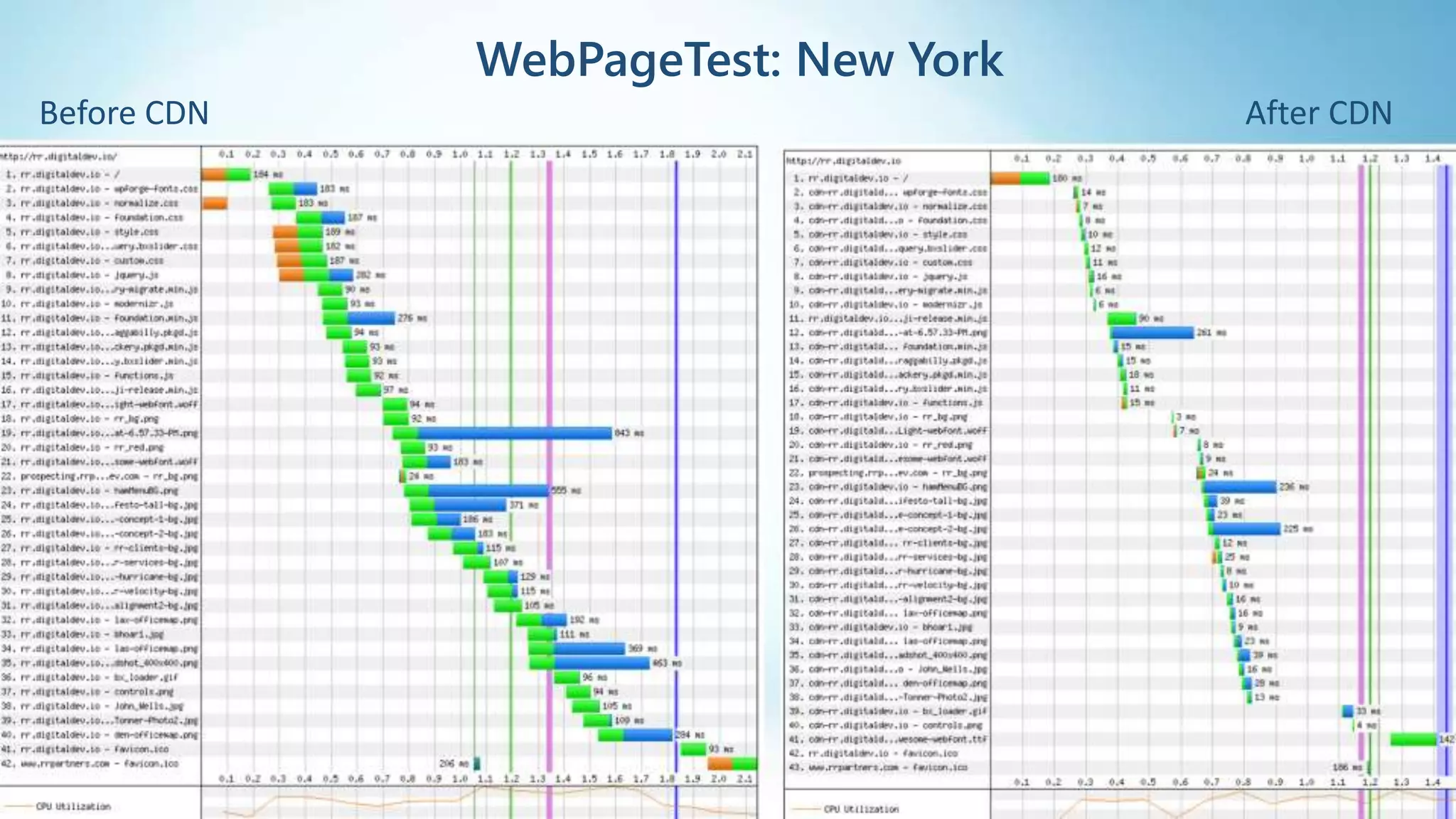

- 49. WebPageTest: New York Before CDN After CDN

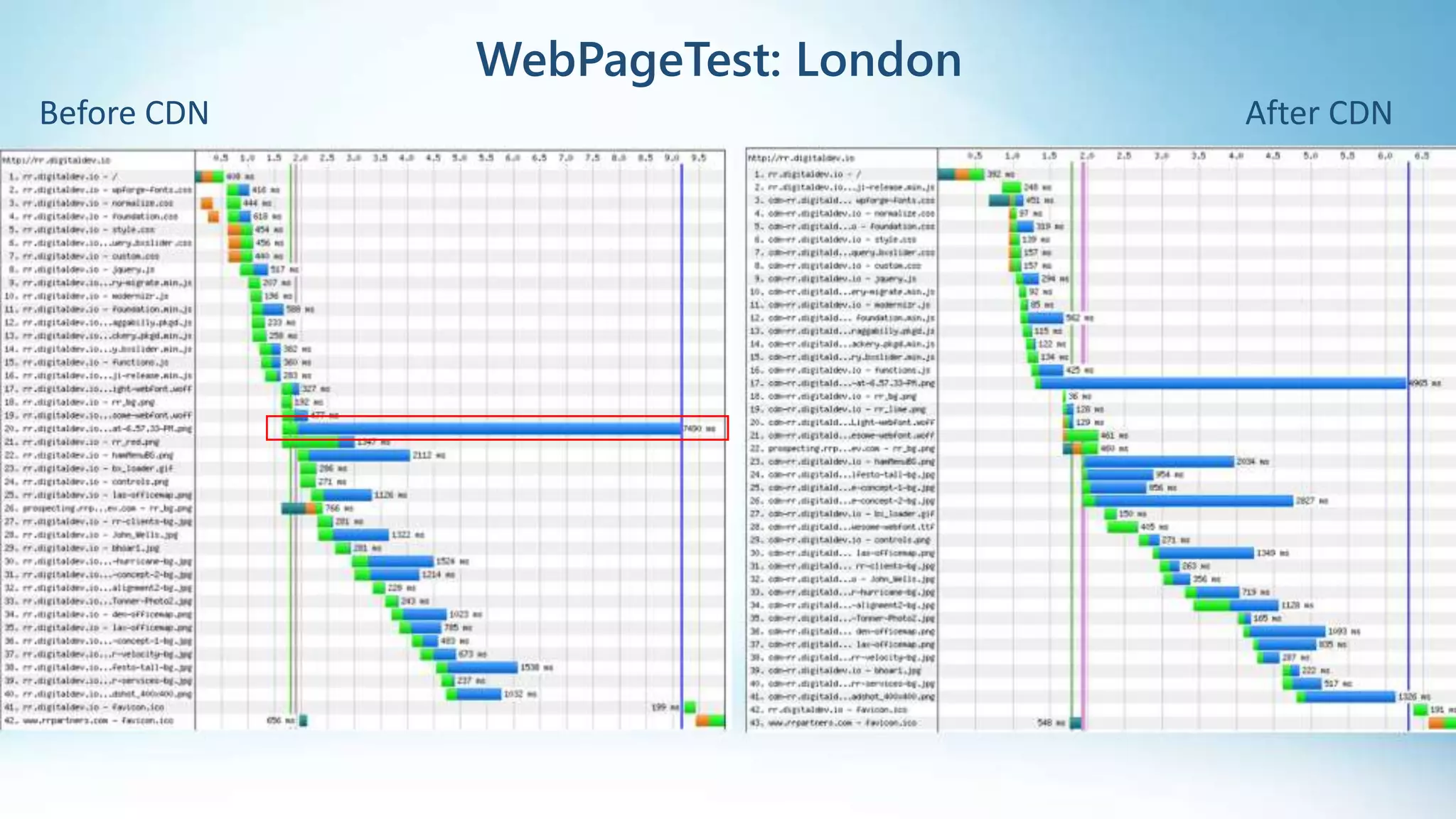

- 51. WebPageTest: London Before CDN After CDN

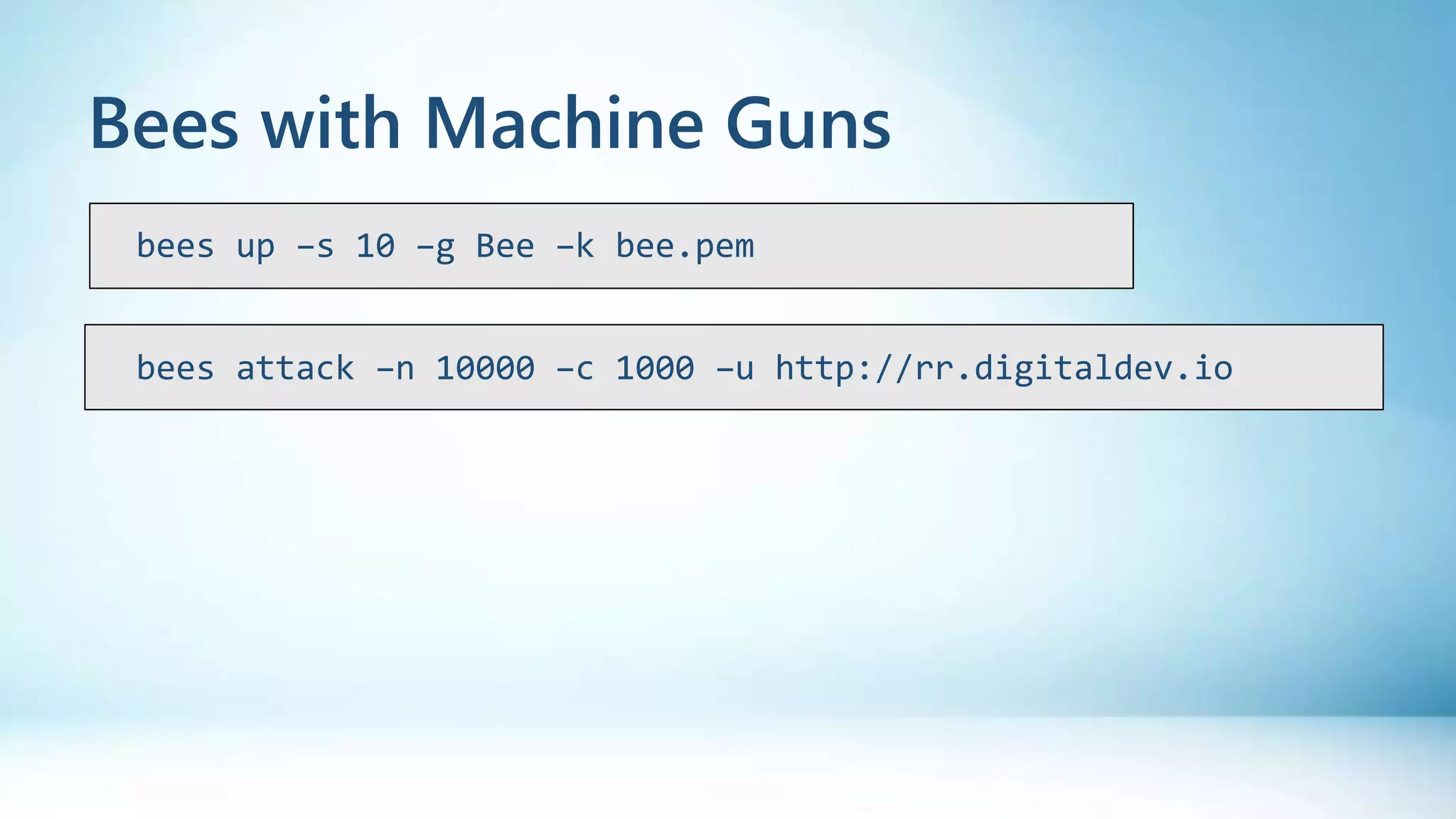

- 52. Bees with Machine Guns bees up –s 10 –g Bee –k bee.pem bees attack –n 10000 –c 1000 –u http://rr.digitaldev.io

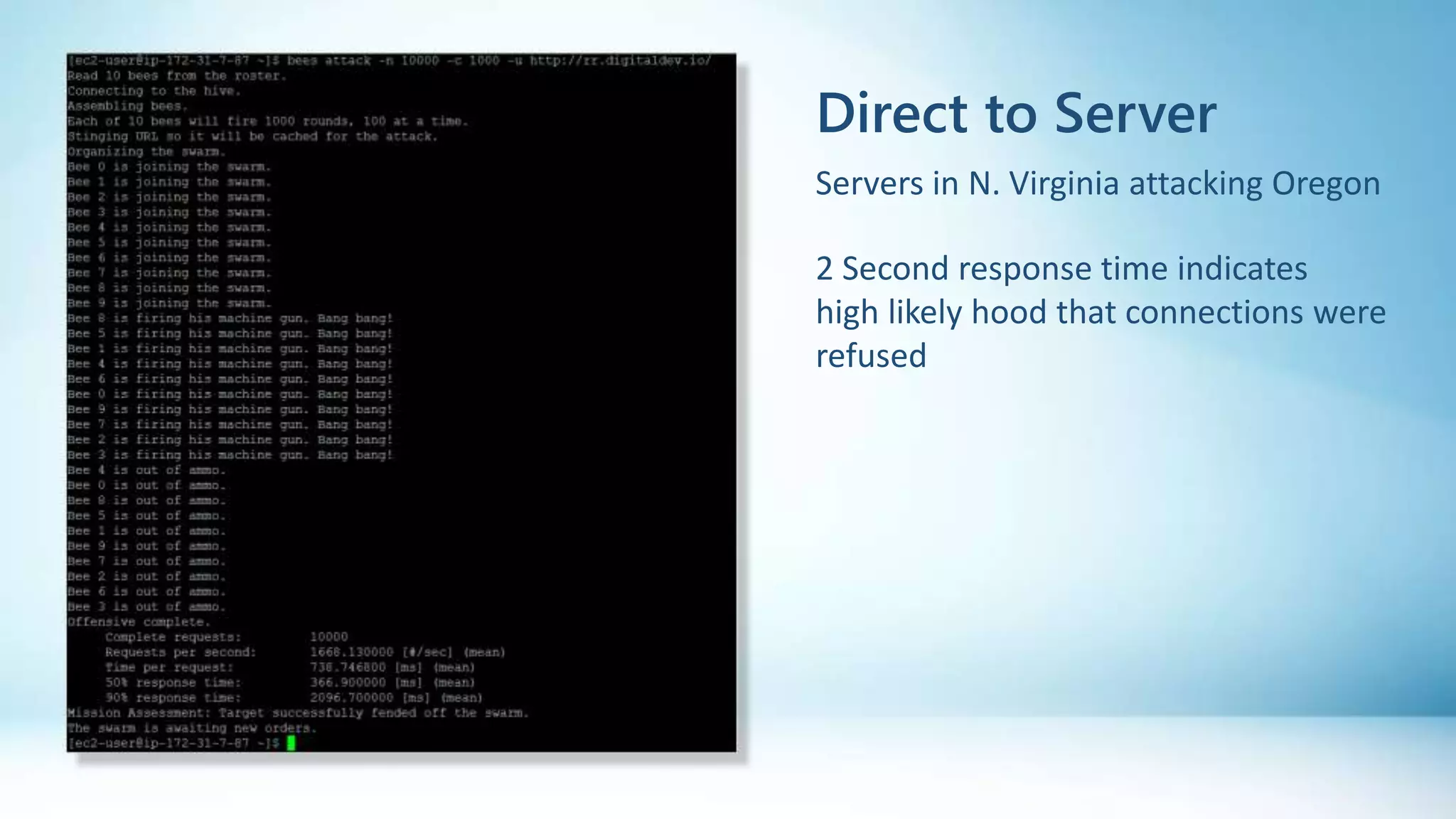

- 53. Direct to Server Servers in N. Virginia attacking Oregon 2 Second response time indicates high likely hood that connections were refused

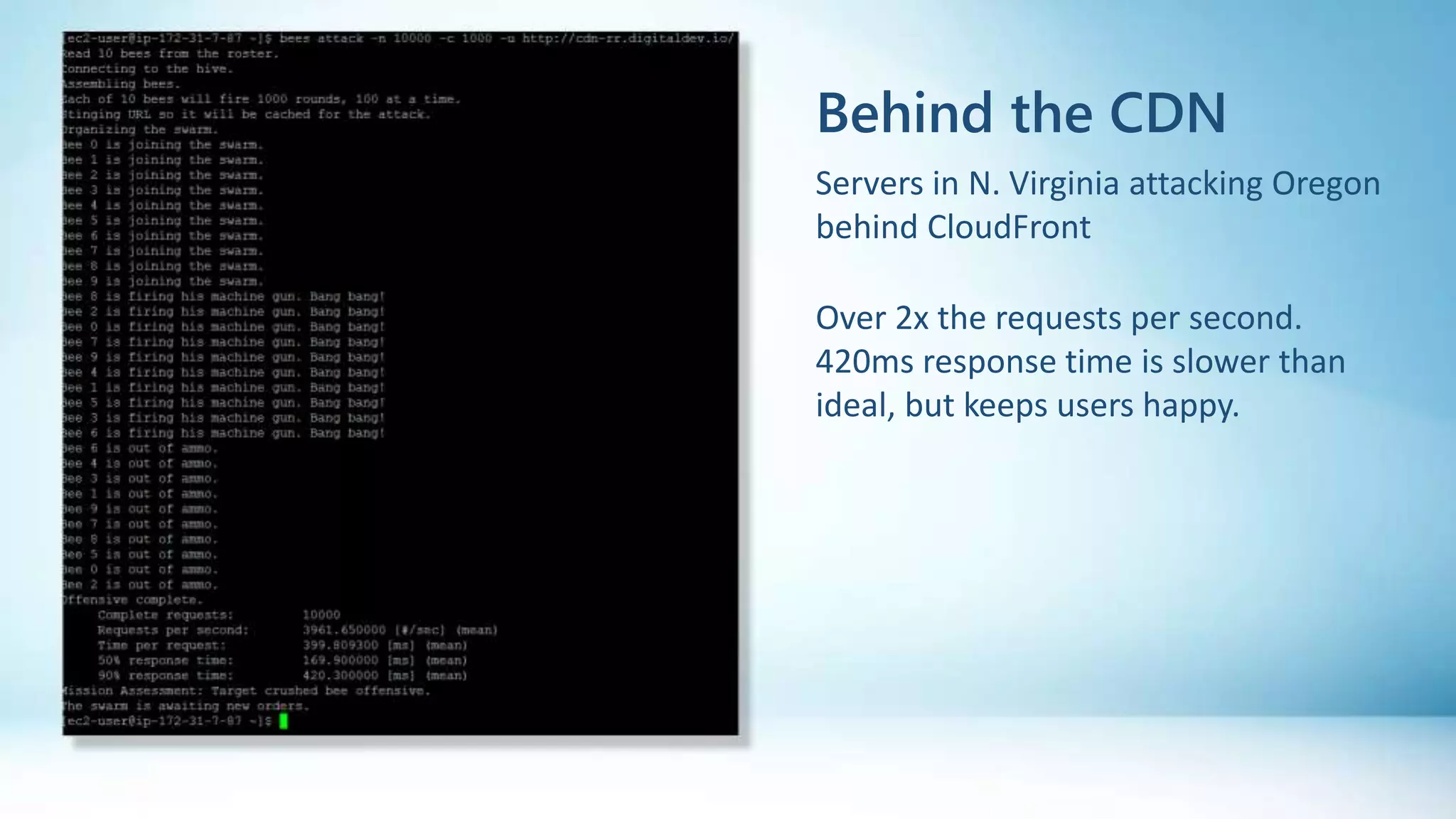

- 54. Behind the CDN Servers in N. Virginia attacking Oregon behind CloudFront Over 2x the requests per second. 420ms response time is slower than ideal, but keeps users happy.
- 55. • Nginx micro caching • Varnish • CDN HTML delivery • Load Balancing
