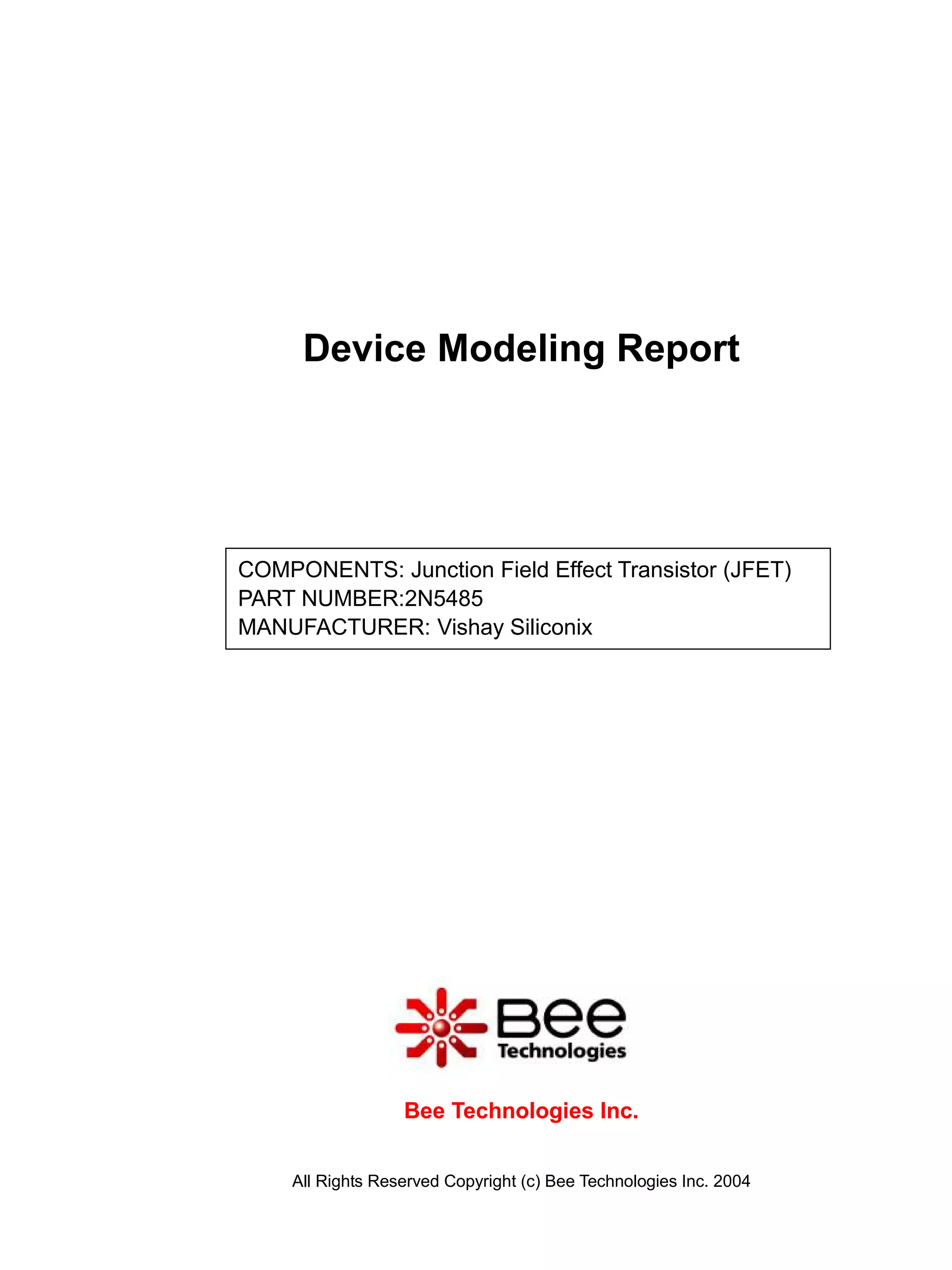

1. Device Modeling Report
COMPONENTS: Junction Field Effect Transistor (JFET)
PART NUMBER:2N5485
MANUFACTURER: Vishay Siliconix
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

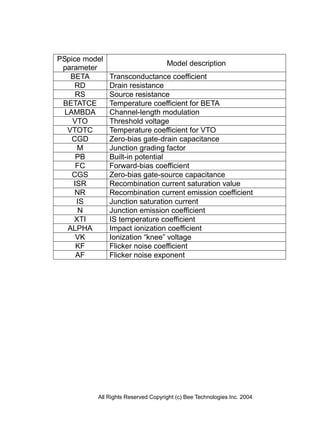

2. PSpice model
Model description
parameter
BETA Transconductance coefficient
RD Drain resistance
RS Source resistance
BETATCE Temperature coefficient for BETA
LAMBDA Channel-length modulation
VTO Threshold voltage
VTOTC Temperature coefficient for VTO
CGD Zero-bias gate-drain capacitance
M Junction grading factor
PB Built-in potential
FC Forward-bias coefficient
CGS Zero-bias gate-source capacitance
ISR Recombination current saturation value
NR Recombination current emission coefficient
IS Junction saturation current
N Junction emission coefficient
XTI IS temperature coefficient
ALPHA Impact ionization coefficient
VK Ionization “knee” voltage
KF Flicker noise coefficient
AF Flicker noise exponent
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

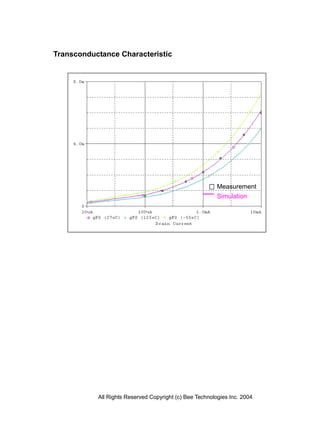

3. Transconductance Characteristic
Measurement
Simulation
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

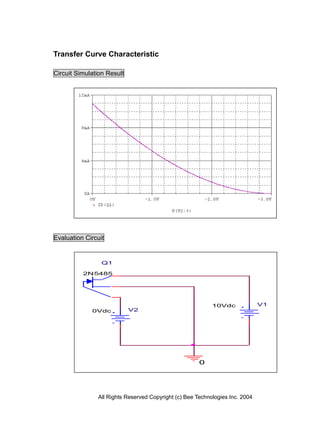

4. Transfer Curve Characteristic
Circuit Simulation Result
Evaluation Circuit
Q1
2N5485
10Vdc V1
0Vdc V2
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

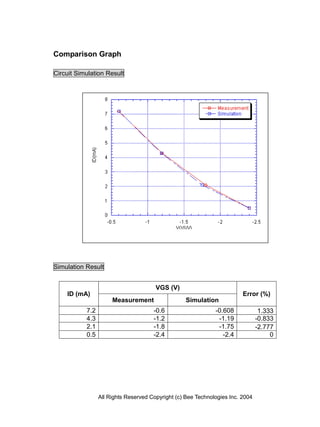

5. Comparison Graph
Circuit Simulation Result
Simulation Result
VGS (V)
ID (mA) Error (%)
Measurement Simulation
7.2 -0.6 -0.608 1.333
4.3 -1.2 -1.19 -0.833
2.1 -1.8 -1.75 -2.777
0.5 -2.4 -2.4 0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

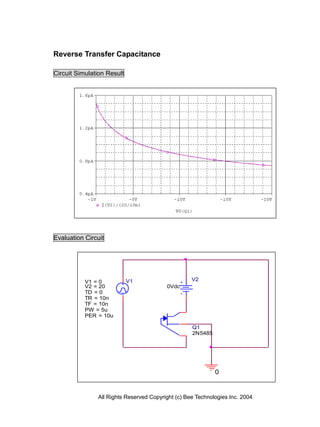

6. Reverse Transfer Capacitance
Circuit Simulation Result
Evaluation Circuit
V1 = 0 V1 V2
V2 = 20 0Vdc
TD = 0
TR = 10n
TF = 10n
PW = 5u
PER = 10u
Q1
2N5485
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

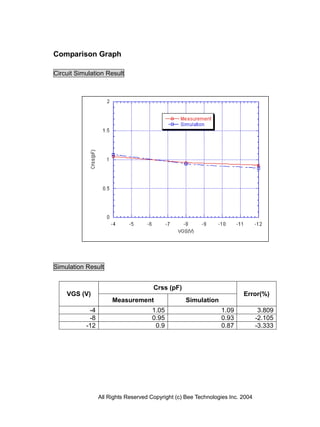

7. Comparison Graph
Circuit Simulation Result
Simulation Result
Crss (pF)
VGS (V) Error(%)
Measurement Simulation
-4 1.05 1.09 3.809
-8 0.95 0.93 -2.105
-12 0.9 0.87 -3.333
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

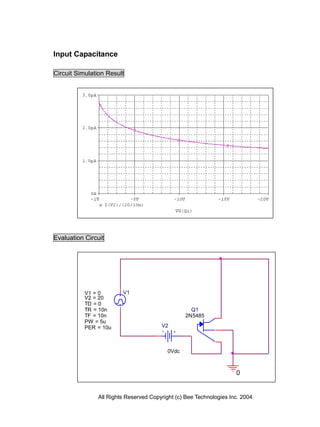

8. Input Capacitance
Circuit Simulation Result
Evaluation Circuit
V1 = 0 V1
V2 = 20
TD = 0
TR = 10n Q1
TF = 10n 2N5485
PW = 5u
PER = 10u V2
0Vdc
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

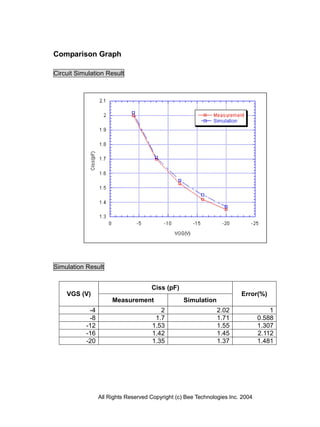

9. Comparison Graph
Circuit Simulation Result
Simulation Result
Ciss (pF)
VGS (V) Error(%)
Measurement Simulation
-4 2 2.02 1
-8 1.7 1.71 0.588
-12 1.53 1.55 1.307
-16 1.42 1.45 2.112
-20 1.35 1.37 1.481
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

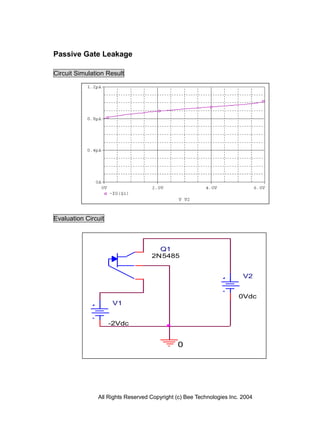

10. Passive Gate Leakage
Circuit Simulation Result
Evaluation Circuit
Q1
2N5485
V2
0Vdc
V1
-2Vdc
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

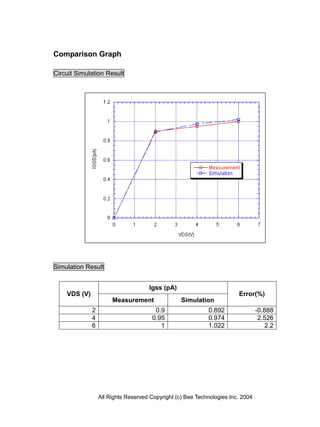

11. Comparison Graph
Circuit Simulation Result
Simulation Result
Igss (pA)
VDS (V) Error(%)
Measurement Simulation
2 0.9 0.892 -0.888
4 0.95 0.974 2.526
6 1 1.022 2.2
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

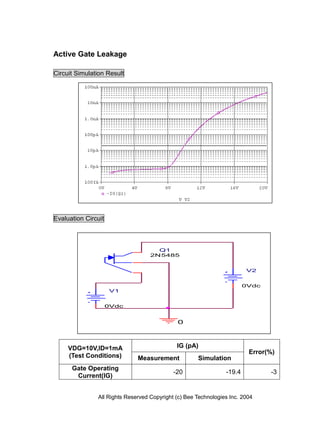

12. Active Gate Leakage
Circuit Simulation Result
Evaluation Circuit
Q1
2N5485
V2
0Vdc
V1
0Vdc
0
VDG=10V,ID=1mA IG (pA)
Error(%)
(Test Conditions) Measurement Simulation
Gate Operating
-20 -19.4 -3
Current(IG)
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004
