2D_BLIT_software_Blackness
- 1. Single BLT analysis (using 3D engine) M1: Clear: Blackness BLT Shereef Shehata
- 2. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 100 pixels Total Time Linear fit: Intercept= 267.5754 us, Slope = 1.3689 us/(100 pixels) = 13.7 ns/pixel = 1.507 3D GPU Clocks/pixel

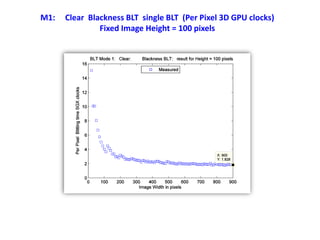

- 3. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 100 pixels

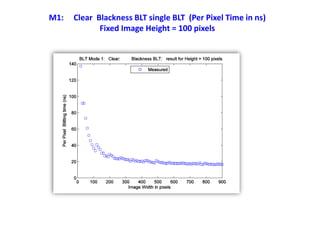

- 4. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 100 pixels
- 5. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 200 pixels Total Time Linear fit: Intercept= 288.0929 us, Slope = 2.5136 us/(200 pixels) = 12.6 ns/pixel = 1.386 3D GPU Clocks/pixel

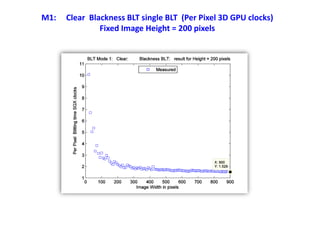

- 6. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 200 pixels
- 7. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 200 pixels
- 8. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 300 pixels Total Time Linear fit: Intercept= 302.9406 us, Slope = 3.6670 us/(300 pixels) = 12.2 ns/pixel = 1.342 3D GPU Clocks/pixel
- 9. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 300 pixels
- 10. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 300 pixels
- 11. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 400 pixels Total Time Linear fit: Intercept= 319.5706 us, Slope = 4.8350 us/(400 pixels) = 12.0876 ns/pixel = 1.329 3D GPU Clocks/pixel
- 12. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 400 pixels
- 13. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 400 pixels
- 14. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 500 pixels Total Time Linear fit: Intercept= 357.2030 us, Slope = 6.1406 us/(500 pixels) = 12.2811 ns/pixel = 1.35 3D GPU Clocks/pixel
- 15. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 500 pixels
- 16. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 500 pixels
- 17. M1: Clear Blackness BLT single BLT (Total Blitting Time us) Fixed Image Height = 600 pixels Total Time Linear fit: Intercept= 345.9043 us, Slope = 7.3574 us/(600 pixels) = 12.2623 ns/pixel = 1.348 3D GPU Clocks / pixel
- 18. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Fixed Image Height = 600 pixels
- 19. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Fixed Image Height = 600 pixels
- 20. M1: Clear Blackness BLT single BLT (Per Pixel 3D GPU clocks) Top View Mean = 1.9685 3D GPU clock, Median = 1.6241, Std_Dev = 1.1241
- 21. M1: Clear Blackness BLT single BLT (Per Pixel Time in ns) Top View Mean = 17.8955 ns , Median = 14.7648ns, Std_Dev = 10.2189
