This document discusses 2D graphics programming in OpenGL. It covers primitive types like points, lines, triangles, and polygons. It describes how to specify vertices to draw these primitive types and how to set properties like color, line width, and stippling. The RGB color space and methods for specifying color and shading models are also summarized.

1. CSC 307 1.0
Graphics Programming
Budditha Hettige
Department of Statistics and Computer Science

2. Graphics Programming
2D Drawing
2Budditha Hettige

3. Primitive Types
• GL_POINTS
• GL_LINES
• GL_TRIANGLES
• GL_TRIANGLE_STRIP
• GL_QUAD_STRIP
• GL_LINE_STRIP
• GL_LINE_LOOP
• GL_QUADS
• GL_POLYGON
• GL_TRIANGLE_FAN
3Budditha Hettige

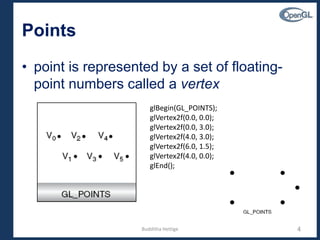

4. Points
• point is represented by a set of floating-
point numbers called a vertex
4
glBegin(GL_POINTS);
glVertex2f(0.0, 0.0);
glVertex2f(0.0, 3.0);
glVertex2f(4.0, 3.0);
glVertex2f(6.0, 1.5);
glVertex2f(4.0, 0.0);
glEnd();
Budditha Hettige

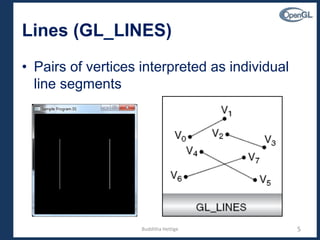

5. Lines (GL_LINES)
• Pairs of vertices interpreted as individual
line segments
5Budditha Hettige

6. Lines (GL_LINE_STRIP)
• Series of connected line segments
6Budditha Hettige

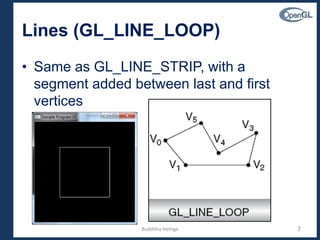

7. Lines (GL_LINE_LOOP)
• Same as GL_LINE_STRIP, with a
segment added between last and first
vertices
7Budditha Hettige

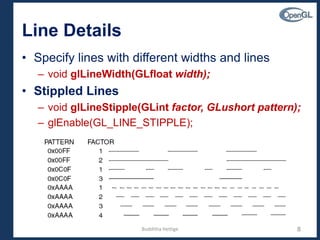

8. Line Details
• Specify lines with different widths and lines
– void glLineWidth(GLfloat width);
• Stippled Lines
– void glLineStipple(GLint factor, GLushort pattern);
– glEnable(GL_LINE_STIPPLE);
8Budditha Hettige

9. Example
glEnable(GL_LINE_STIPPLE);
glLineStipple(1, 0x0101); /* dotted */
glLineStipple(1, 0x00FF); /* dashed */
glLineStipple(1, 0x1C47); /* dash/dot/dash */
glEnable(GL_LINE_STIPPLE);
glLineStipple(1, 0x0101);
glBegin(GL_LINE_LOOP);
glVertex2f(-0.5, -0.5);
glVertex2f(-0.5, 0.5);
glVertex2f(0.5, 0.5);
glVertex2f(0.5, -0.5);
glEnd();
9Budditha Hettige

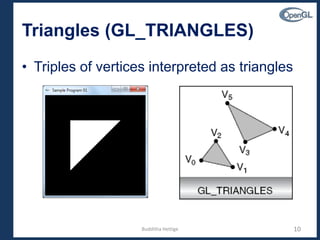

10. Triangles (GL_TRIANGLES)
• Triples of vertices interpreted as triangles
10Budditha Hettige

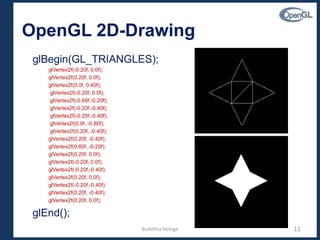

11. OpenGL 2D-Drawing
glBegin(GL_TRIANGLES);
glVertex2f(-0.20f, 0.0f);
glVertex2f(0.20f, 0.0f);
glVertex2f(0.0f, 0.40f);
glVertex2f(-0.20f, 0.0f);
glVertex2f(-0.60f,-0.20f);
glVertex2f(-0.20f,-0.40f);
glVertex2f(-0.20f,-0.40f);
glVertex2f(0.0f, -0.80f);
glVertex2f(0.20f, -0.40f);
glVertex2f(0.20f, -0.40f);
glVertex2f(0.60f, -0.20f);
glVertex2f(0.20f, 0.0f);
glVertex2f(-0.20f, 0.0f);
glVertex2f(-0.20f,-0.40f);
glVertex2f(0.20f, 0.0f);
glVertex2f(-0.20f,-0.40f);
glVertex2f(0.20f, -0.40f);
glVertex2f(0.20f, 0.0f);
glEnd();
11Budditha Hettige

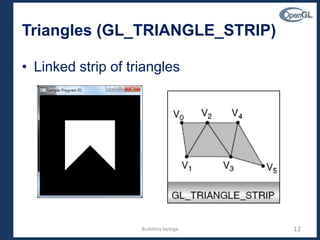

12. Triangles (GL_TRIANGLE_STRIP)
• Linked strip of triangles
12Budditha Hettige

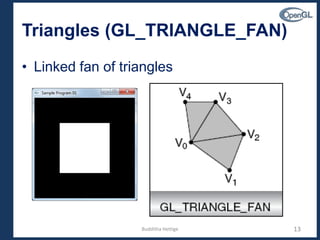

13. Triangles (GL_TRIANGLE_FAN)
• Linked fan of triangles
13Budditha Hettige

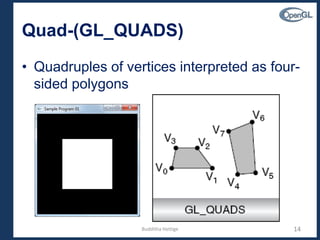

14. Quad-(GL_QUADS)
• Quadruples of vertices interpreted as four-
sided polygons
14Budditha Hettige

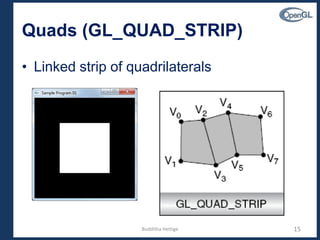

15. Quads (GL_QUAD_STRIP)
• Linked strip of quadrilaterals
15Budditha Hettige

16. Polygon (GL_POLYGON)
• Boundary of a simple, convex polygon
16Budditha Hettige

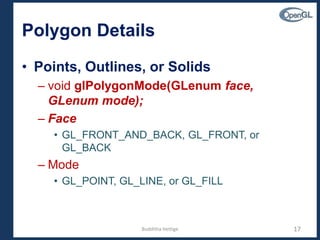

17. Polygon Details
• Points, Outlines, or Solids
– void glPolygonMode(GLenum face,
GLenum mode);
– Face
• GL_FRONT_AND_BACK, GL_FRONT, or
GL_BACK
– Mode
• GL_POINT, GL_LINE, or GL_FILL
17Budditha Hettige

18. Stippling Polygons
• filled polygons are drawn with a solid pattern
• void glPolygonStipple(const GLubyte *mask);
• Example
– Polygons.cpp
glEnable(GL_POLYGON_STIPPLE);
glPolygonStipple(fly);
glRectf(125.0, 25.0, 225.0, 125.0);
GLubyte fly[] = {
0x00, 0x00, 0x00, 0x00, 0x00,... };
18Budditha Hettige

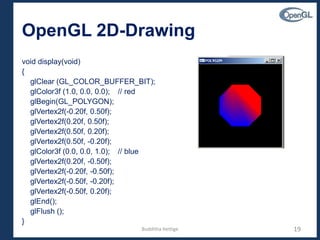

19. OpenGL 2D-Drawing
void display(void)
{
glClear (GL_COLOR_BUFFER_BIT);
glColor3f (1.0, 0.0, 0.0); // red
glBegin(GL_POLYGON);
glVertex2f(-0.20f, 0.50f);
glVertex2f(0.20f, 0.50f);
glVertex2f(0.50f, 0.20f);
glVertex2f(0.50f, -0.20f);
glColor3f (0.0, 0.0, 1.0); // blue
glVertex2f(0.20f, -0.50f);
glVertex2f(-0.20f, -0.50f);
glVertex2f(-0.50f, -0.20f);
glVertex2f(-0.50f, 0.20f);
glEnd();
glFlush ();
}
19Budditha Hettige

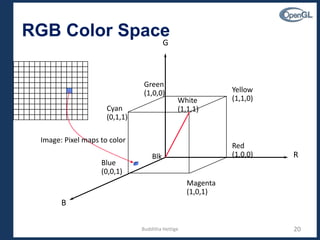

20. RGB Color Space
Green
(1,0,0)
Blue
(0,0,1)
Red
(1,0,0)
Yellow
(1,1,0)
Magenta
(1,0,1)
Blk
Cyan
(0,1,1)
White
(1,1,1)
G
B
R
Image: Pixel maps to color
Budditha Hettige 20

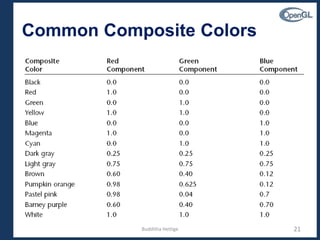

21. Common Composite Colors
21Budditha Hettige

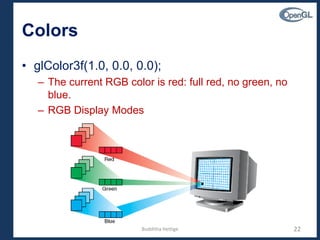

22. Colors
• glColor3f(1.0, 0.0, 0.0);
– The current RGB color is red: full red, no green, no
blue.
– RGB Display Modes
22Budditha Hettige

23. Specifying a Color and a Shading
Model
• RGBA mode, use the glColor*() command to
select a current color.
– void glColor3{b s i f d ub us ui}(TYPE r, TYPE g, TYPE b);
– void glColor4{b s i f d ub us ui}(TYPE r, TYPE g, TYPE b, TYPE a);
– void glColor3{b s i f d ub us ui}v(const TYPE *v);
– void glColor4{b s i f d ub us ui}v(const TYPE *v);
23Budditha Hettige

24. Specifying a Shading Model
• single color (flat shading)
• many different colors (smooth shading, also called
Gouraud shading)
• void glShadeModel(GLenum mode);
– GL_SMOOTH (the default) or GL_FLAT.
– glShadeModel(GL_SMOOTH);
• Example:
– Shading.cpp
24Budditha Hettige
