21 cfr part 11 basic
- 1. Electronic Record &Electronic Signature
- 2. Content 21 CFRPart 11 History 21 CFR Part 11 Basics Electronic Record & Electronic Signature Approach to Part 11 Requirements Open & Closed system Controls for Open & Closed system Security & Controls Steps to achieve IT compliance Problem Areas
- 3. Historic overview FDA: Final Draft i 1994 Final Rule 20.March.1997, effective from 20.Aug.1997 August 2003 FDA: Guidance for Industry Part 11, Electronic Records; Electronic Signatures — Scope and Application
- 4. 21 CFR Part11 Subpart Subpart A – Scope, Implementation, Definitions Subpart B – Electronic Records Subpart C – Electronic Signatures
- 5. What is 21CFR Part 11 21 CFR Part 11 (Part 11) applies to electronic records and electronic signatures that persons create, modify, maintain, archive, retrieve, or transmit under any records or signature requirement set forth in the Federal Food, Drug, and Cosmetic Act, the Public Health Service Act, or any FDA regulation.

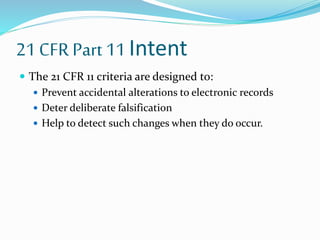

- 6. 21 CFR Part11 Intent The 21 CFR 11 criteria are designed to: Prevent accidental alterations to electronic records Deter deliberate falsification Help to detect such changes when they do occur.
- 7. 21 CFR Part11 Basics • Electronic records equivalent with paper records • Storage, retrieval and copying in full retention period • Submitting to FDA • Protection of electronic records • Security (physical and logical) • Validation • Audit trail (who did what, when including reason where req.) • Permission to use of electronic signature • Equivalent with handwritten signatures • Name, date and meaning • Linking of signature to record • Unique for an individual

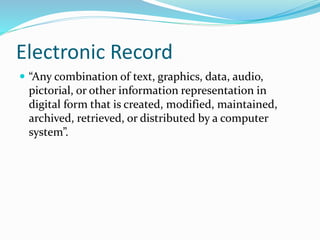

- 8. Electronic Record “Anycombination of text, graphics, data, audio, pictorial, or other information representation in digital form that is created, modified, maintained, archived, retrieved, or distributed by a computer system”.

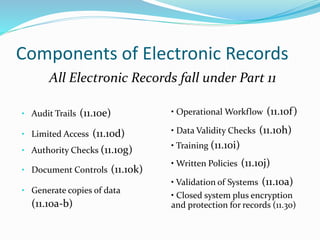

- 9. Components of ElectronicRecords • Audit Trails (11.10e) • Limited Access (11.10d) • Authority Checks (11.10g) • Document Controls (11.10k) • Generate copies of data (11.10a-b) All Electronic Records fall under Part 11 • Operational Workflow (11.10f) • Data Validity Checks (11.10h) • Training (11.10i) • Written Policies (11.10j) • Validation of Systems (11.10a) • Closed system plus encryption and protection for records (11.30)

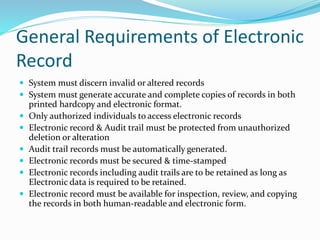

- 10. General Requirements ofElectronic Record System must discern invalid or altered records System must generate accurate and complete copies of records in both printed hardcopy and electronic format. Only authorized individuals to access electronic records Electronic record & Audit trail must be protected from unauthorized deletion or alteration Audit trail records must be automatically generated. Electronic records must be secured & time-stamped Electronic records including audit trails are to be retained as long as Electronic data is required to be retained. Electronic record must be available for inspection, review, and copying the records in both human-readable and electronic form.

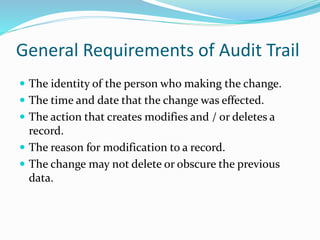

- 11. General Requirements ofAudit Trail The identity of the person who making the change. The time and date that the change was effected. The action that creates modifies and / or deletes a record. The reason for modification to a record. The change may not delete or obscure the previous data.
- 12. Electronic Signature Acomputer data compilation of any symbol or series of symbols executed, adopted, or authorized by an individual to be the legally binding equivalent of the individual’s handwritten signature.”

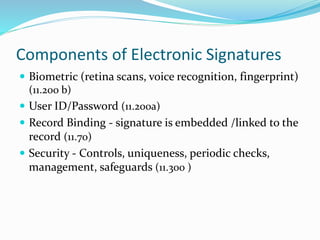

- 13. Components of ElectronicSignatures Biometric (retina scans, voice recognition, fingerprint) (11.200 b) User ID/Password (11.200a) Record Binding - signature is embedded /linked to the record (11.70) Security - Controls, uniqueness, periodic checks, management, safeguards (11.300 )
- 14. General Requirements ofElectronic Signature Must be unique to an individual and not reassigned Identity of individual must be verified by organization Must certify electronic signature system to the agency prior to or at the time of use of the system Certification must be submitted in paper form and, upon agency request, provide certification that signature is legally binding.

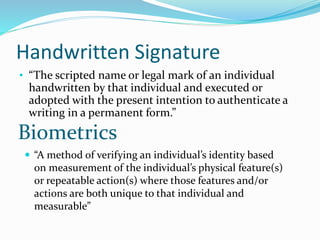

- 15. Handwritten Signature • “Thescripted name or legal mark of an individual handwritten by that individual and executed or adopted with the present intention to authenticate a writing in a permanent form.” Biometrics “A method of verifying an individual’s identity based on measurement of the individual’s physical feature(s) or repeatable action(s) where those features and/or actions are both unique to that individual and measurable”

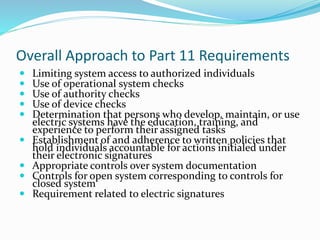

- 16. Overall Approach toPart 11 Requirements Limiting system access to authorized individuals Use of operational system checks Use of authority checks Use of device checks Determination that persons who develop, maintain, or use electric systems have the education, training, and experience to perform their assigned tasks Establishment of and adherence to written policies that hold individuals accountable for actions initialed under their electronic signatures Appropriate controls over system documentation Controls for open system corresponding to controls for closed system Requirement related to electric signatures

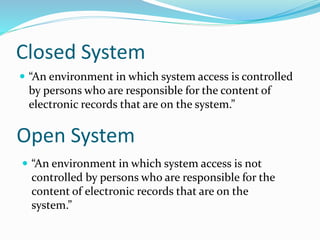

- 17. Closed System “Anenvironment in which system access is controlled by persons who are responsible for the content of electronic records that are on the system.” Open System “An environment in which system access is not controlled by persons who are responsible for the content of electronic records that are on the system.”
- 18. Controls for ClosedSystems Must develop procedures and controls to ensure authenticity, integrity and confidentiality, and that signer cannot repudiate the signed record. The controls must: Be validated Maintain accurate and complete records Limit the system to authorized persons Protect records through retention period Contain audit trails that are secure, operator independent, computer-generated, time-stamped, cover the creation , modification and deletion of records and do not obscure previous information

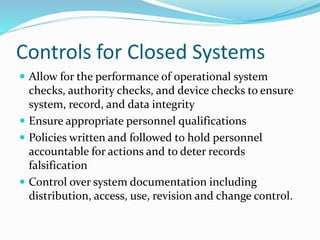

- 19. Controls for ClosedSystems Allow for the performance of operational system checks, authority checks, and device checks to ensure system, record, and data integrity Ensure appropriate personnel qualifications Policies written and followed to hold personnel accountable for actions and to deter records falsification Control over system documentation including distribution, access, use, revision and change control.

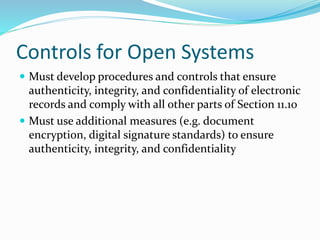

- 20. Controls for OpenSystems Must develop procedures and controls that ensure authenticity, integrity, and confidentiality of electronic records and comply with all other parts of Section 11.10 Must use additional measures (e.g. document encryption, digital signature standards) to ensure authenticity, integrity, and confidentiality

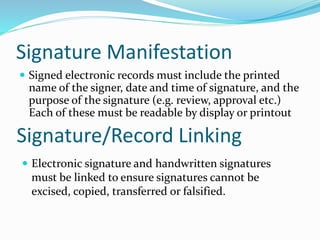

- 21. Signature Manifestation Signedelectronic records must include the printed name of the signer, date and time of signature, and the purpose of the signature (e.g. review, approval etc.) Each of these must be readable by display or printout Signature/Record Linking Electronic signature and handwritten signatures must be linked to ensure signatures cannot be excised, copied, transferred or falsified.

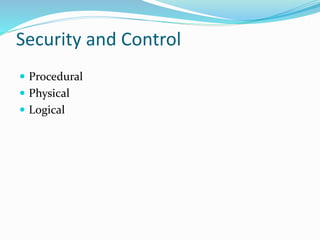

- 22. Security and Control Procedural Physical Logical

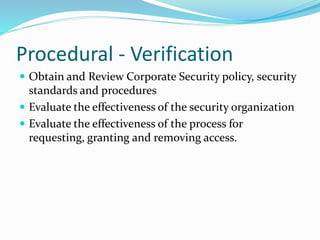

- 23. Procedural - Verification Obtain and Review Corporate Security policy, security standards and procedures Evaluate the effectiveness of the security organization Evaluate the effectiveness of the process for requesting, granting and removing access.

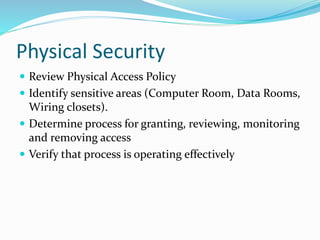

- 24. Physical Security ReviewPhysical Access Policy Identify sensitive areas (Computer Room, Data Rooms, Wiring closets). Determine process for granting, reviewing, monitoring and removing access Verify that process is operating effectively

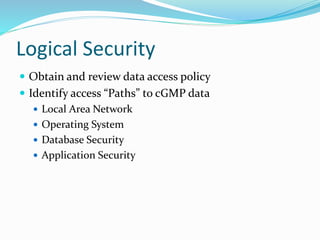

- 25. Logical Security Obtainand review data access policy Identify access “Paths” to cGMP data Local Area Network Operating System Database Security Application Security
- 26. Steps to achieveIT compliance Identify and register systems Prioritise systems Evaluate ”high-risk” systems Evaluate ”medium- and low-risk” systems Evaluate corrections/solutions Prepare implementation plan ”Quick fixes” ”Full compliance, technical and procedural Implement solutions
- 27. Problem Areas Lackof knowledge in the organisation on Computer Validation 21 CFR Part 11 Maintenance of computer systems Purchase of non-compliant systems are ongoing ”Part 11 compliant systems” do not exist Administrative controls (= Company policies) Procedural controls (= Company SOP’s) Technical controls (= Supplier SW controls)
