1. SER332
Introduction to Graphics and
Game Development
Lecture 10:
Transformation: Projection
Javier Gonzalez-Sanchez
javiergs@asu.edu
PERALTA 230U
Office Hours: By appointment

2. Part 7:
Transformation: Projection

3. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 3
Let us move to a 3D World
• X, Y and Z axis
• A plane (gray)
• Several Pyramids
• (red, green, blue, and white faces)
• Use arrows to navigate

4. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 4
Step 1
• Z-buffering. The Z-buffer stores how far a pixel is away from the
camera in camera space (normalized device coordinate,
more precisely. Typically, it ranges [0, 1]). Limited precision: 16-
bit, 24-bit, and 32-bit depth value
• The Z-buffer is necessary to resolve visibility:
o Clear the z-buffer
o Enable the z-buffer
• Commands:
o glClear( GL_DEPTH_BUFFER_BIT | … colors … );
o glEnable( GL_DEPTH_TEST );
o glutInitDisplayMode( GLUT_DEPTH | … colors … | … double … );

5. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 5
Example
//https://github.com/javiergs/SER332/blob/master/L10
// main
int main(int argc, char **argv) {
glutInit(&argc, argv);
glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA);
glutInitWindowPosition(0, 0);
glutInitWindowSize(800, 800);
glutCreateWindow("3D");
myInit();
glutSpecialFunc(mySpecial);
glutDisplayFunc(myDisplay);
glutReshapeFunc(myReshape);
glutMainLoop();
return(0);
}

6. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 6
Example
// myInit
void myInit() {
glShadeModel (GL_SMOOTH);
glEnable(GL_DEPTH_TEST);
createDrawingList();
}

7. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 7

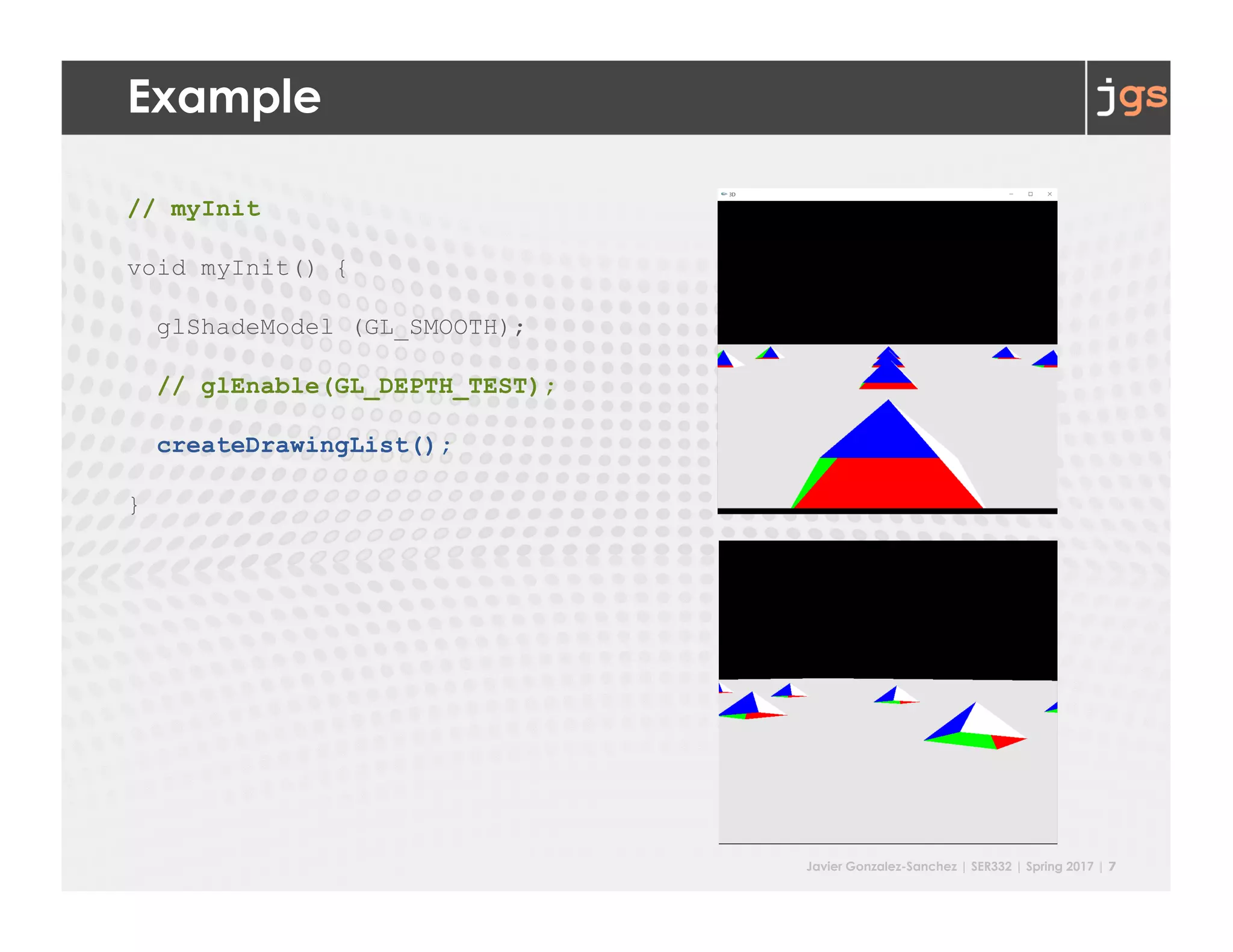

Example
// myInit
void myInit() {
glShadeModel (GL_SMOOTH);
// glEnable(GL_DEPTH_TEST);
createDrawingList();
}

8. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 8
Example
// myDisplay
void myDisplay(void) {
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glViewport(0, 0, width, height);
// projection
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
// to be continue ...
}

9. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 9
Step 2
§ Set the projection. This is done in
§ glMatrixMode(GL_PROJECTION);
§ Two Options
§ Orthographic Projection
§ Perspective

10. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 10

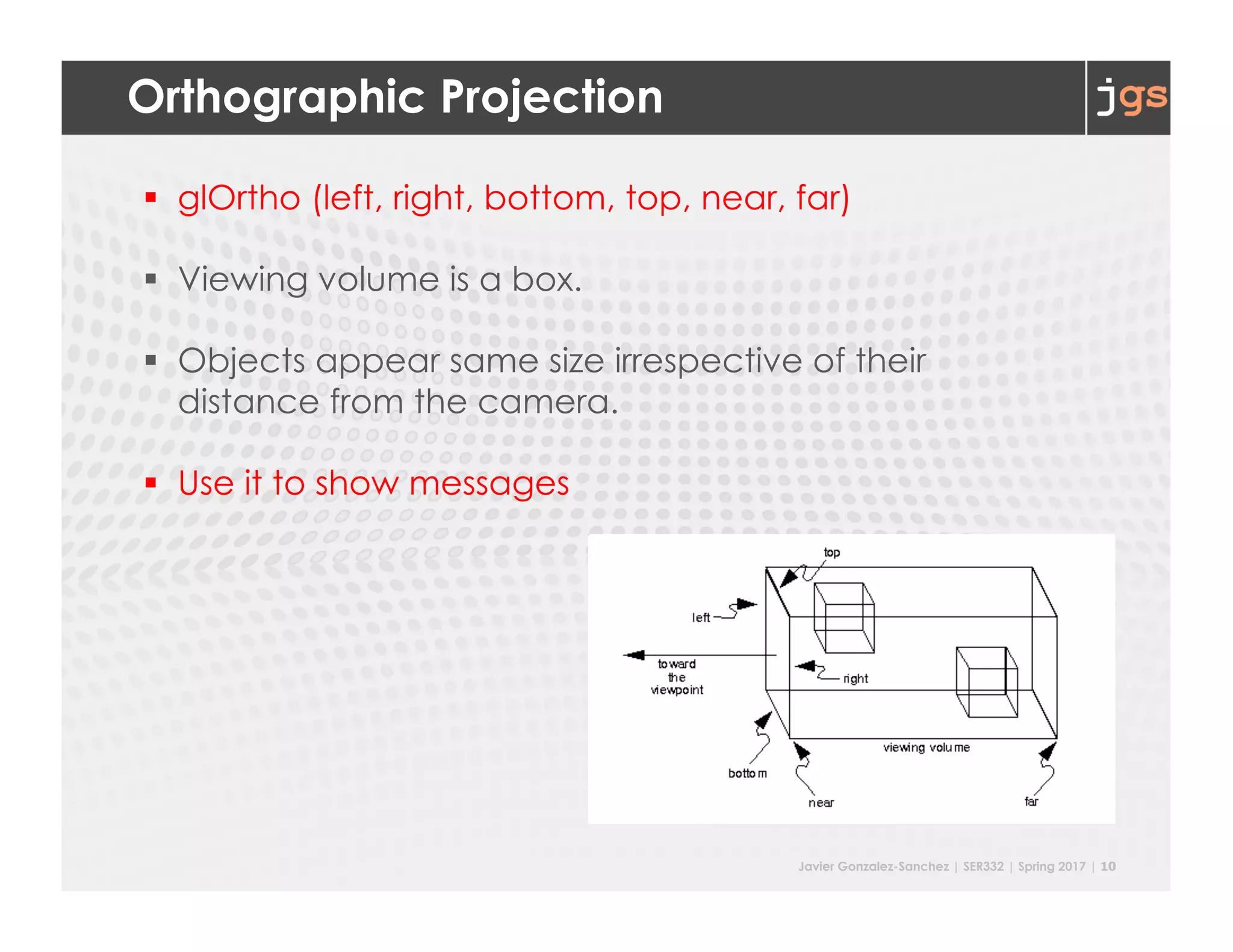

Orthographic Projection
§ glOrtho (left, right, bottom, top, near, far)
§ Viewing volume is a box.
§ Objects appear same size irrespective of their
distance from the camera.
§ Use it to show messages

11. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 11

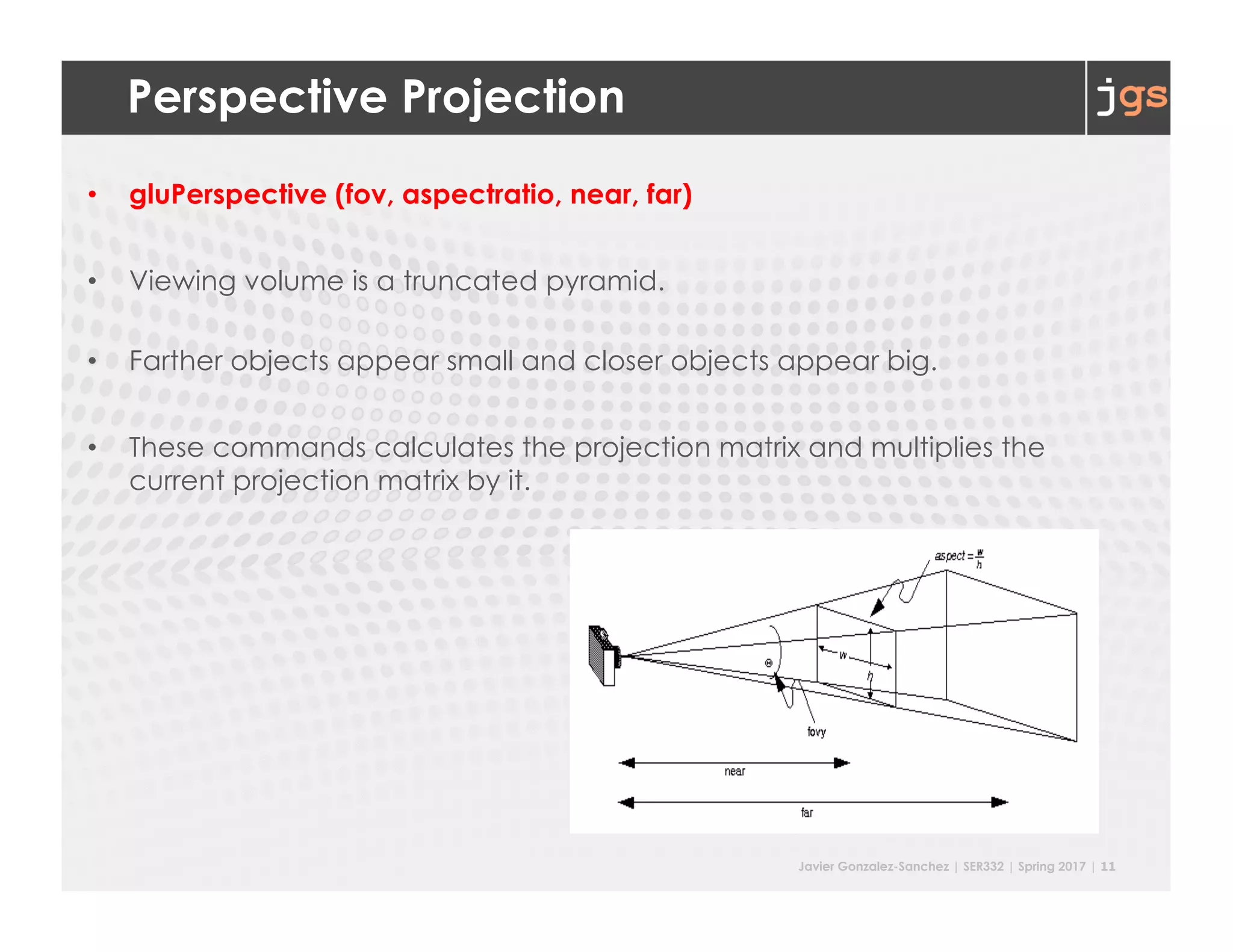

Perspective Projection
• gluPerspective (fov, aspectratio, near, far)
• Viewing volume is a truncated pyramid.
• Farther objects appear small and closer objects appear big.
• These commands calculates the projection matrix and multiplies the
current projection matrix by it.

12. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 12
Example
// myDisplay
void myDisplay(void) {
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glViewport(0, 0, width, height);
// projection
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
// glOrtho(-10, 10, -10, 10, -10, 10); -- uncomment it to try
gluPerspective(45, ratio, 1, 1000);
// to be continue ...
}

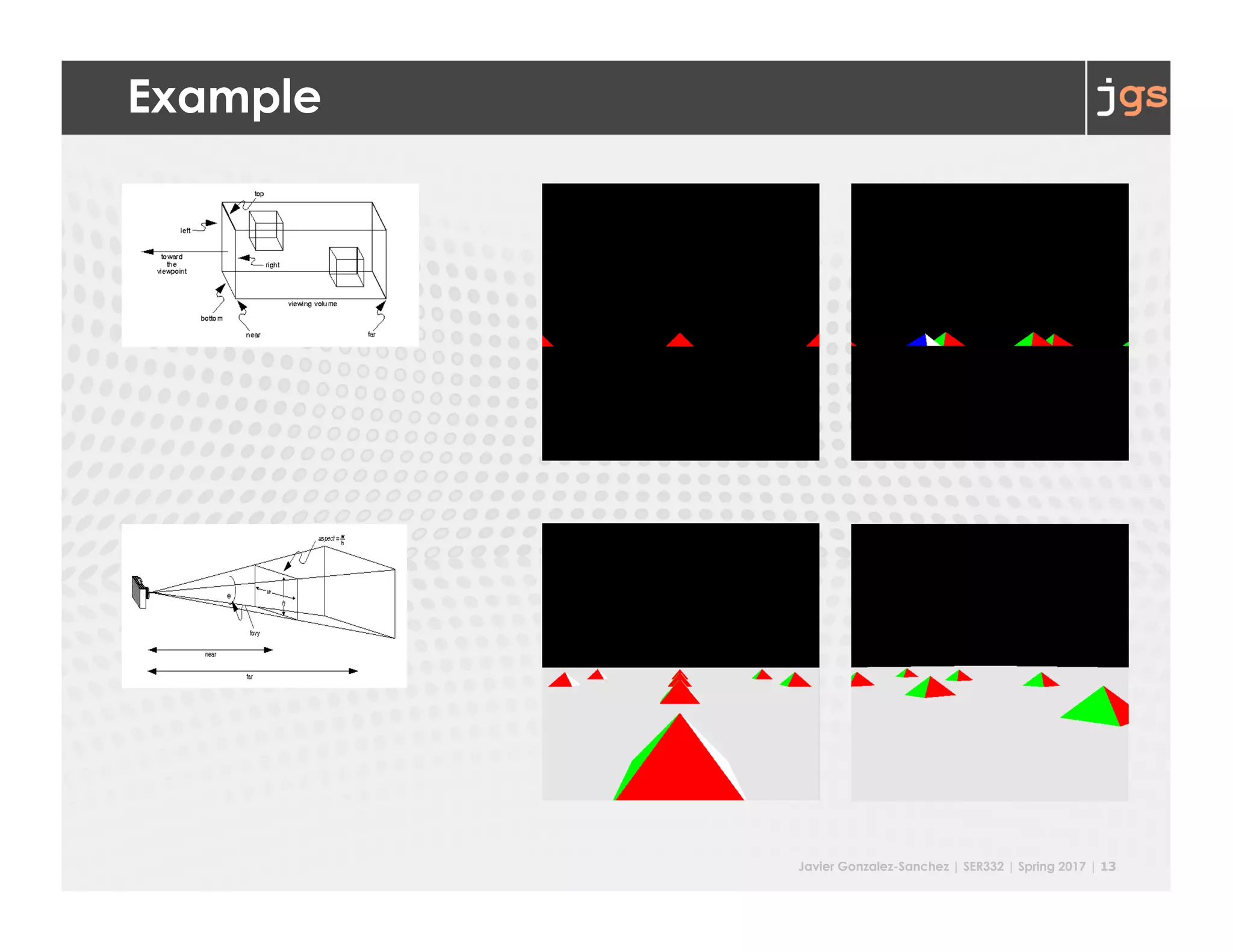

13. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 13
Example

14. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 14

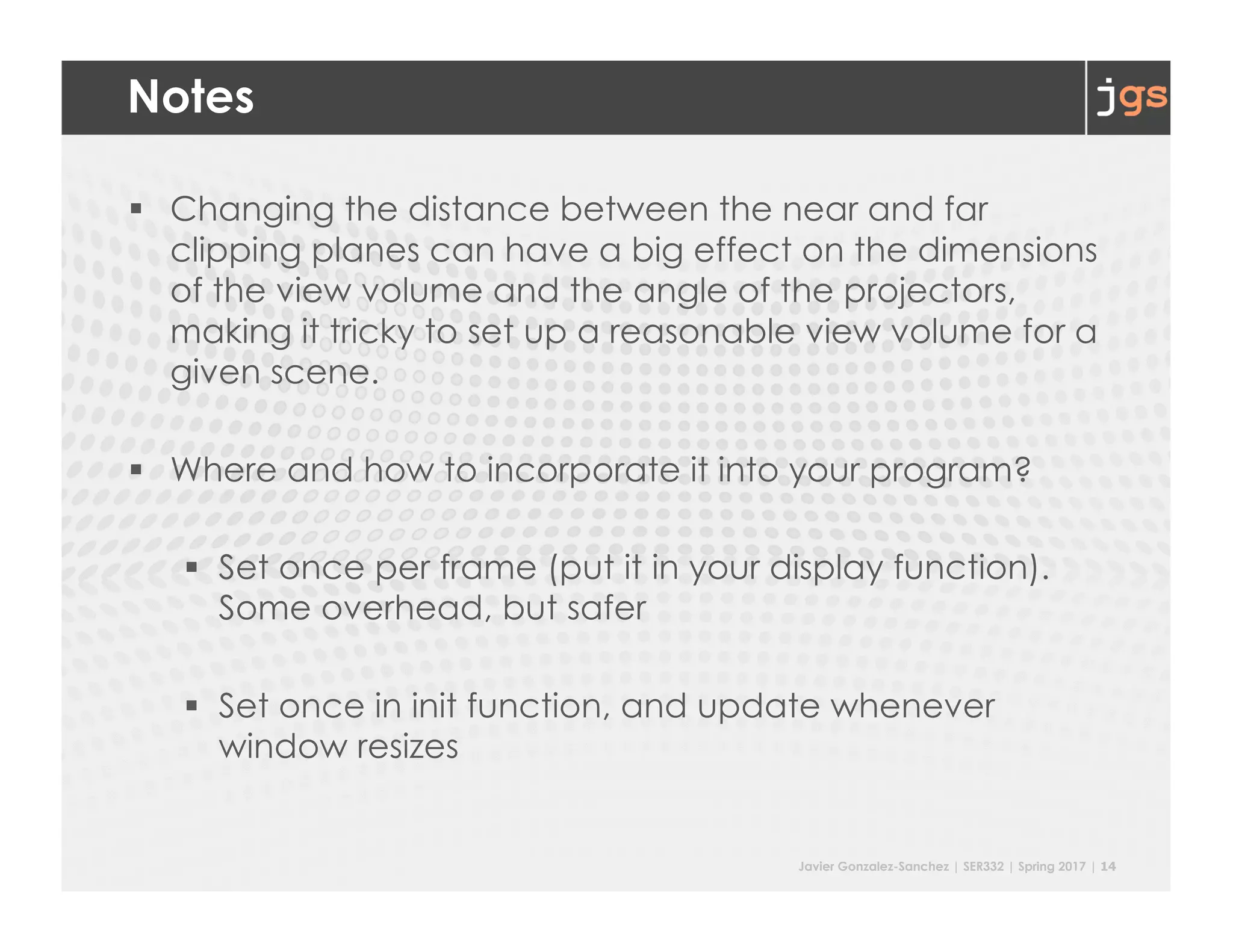

Notes
§ Changing the distance between the near and far
clipping planes can have a big effect on the dimensions
of the view volume and the angle of the projectors,
making it tricky to set up a reasonable view volume for a
given scene.
§ Where and how to incorporate it into your program?
§ Set once per frame (put it in your display function).
Some overhead, but safer
§ Set once in init function, and update whenever
window resizes

15. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 15

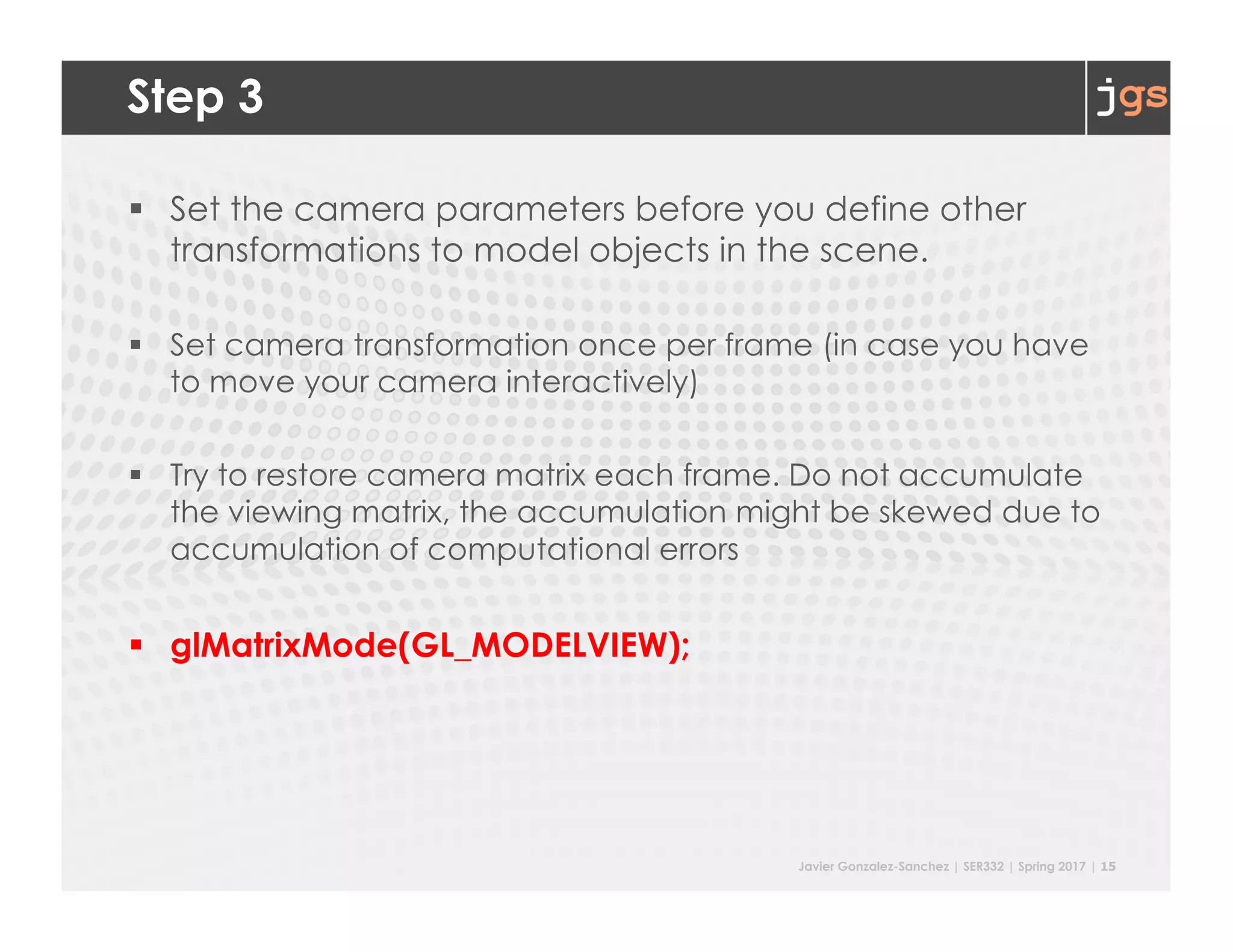

Step 3
§ Set the camera parameters before you define other
transformations to model objects in the scene.
§ Set camera transformation once per frame (in case you have
to move your camera interactively)
§ Try to restore camera matrix each frame. Do not accumulate
the viewing matrix, the accumulation might be skewed due to
accumulation of computational errors
§ glMatrixMode(GL_MODELVIEW);

16. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 16
lookAt
§ Viewing transformation can be specified using the command
gluLookAt (
eye_x, eye_y, eye_z,
center_x, center_y, center_z,
up_x, up_y, up_z
)
§ It encapsulates a series of rotation and translation commands.
Viewing transformation can be specified using following
commands too. This, however, makes your life harder!
§ glTranslate {f,d} (x, y, z)
§ glRotate {f,d} (angle, x, y, z)
§ glScale {f,d} (x, y, z)

17. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 17
lookAt
glMatrixMode(GL_MODELVIEW);
glLoadIdentity();
gluLookAt(
0.0, 1.0, 1.0, /* eye is at (0,1,1) */
0.0, 1.0, 2.0, /* look at point (0,1,2), viewing direction vector is (0,0,1) */
0.0, 1.0, 0.0 /* up is in positive Y direction */
);

18. Javier Gonzalez-Sanchez | SER431 | Fall 2016 | 18
// display
void myDisplay(void) {
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
// projection
glViewport(0, 0, width, height);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
//glOrtho(-10, 10, -10, 10, -10, 10);
gluPerspective(45, ratio, 1, 1000);
// view
glMatrixMode(GL_MODELVIEW);
glLoadIdentity();
gluLookAt(x, y, z, x + lx, y + ly, z + lz, 0.0f, 1.0f, 0.0f);
// draw
glColor3f(0.9f, 0.9f, 0.9f);
glBegin(GL_QUADS);
// vertex
glEnd();
// ...
glutSwapBuffers();
}

19. Bonus
Display Lists

20. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 20
Creating A Complex Display List
// …
//create several pyramids
GLuint worldDL = glGenLists(1);
glNewList(worldDL, GL_COMPILE);
for (int i = -3; i < 3; i++)
for (int j = -3; j < 3; j++) {
glPushMatrix();
glTranslatef(i*10.0, 0, j * 10.0);
glCallList(pyramidDL);
glPopMatrix();
}
glEndList();
// …

21. Javier Gonzalez-Sanchez | SER332 | Spring 2017 | 21
Reading
• 3D geometric transformation & viewing:
o (Required) Read Hearn Baker ch5 p261-p277, p283 – p291
o (Required) Read Hearn Baker ch7 p344-p398, focus on
perspective projection (p368-p383), and 3D viewing in
OpenGL (p383-p389)
• Z-buffer
o Red Book (pdf): ch10, focus on depth buffer related
content
o Hearn Baker ch9 p531-p534
• Front / Back face culling
o Red Book (pdf): ch2 p43-p44

22. SER332 Introduction to Graphics
Javier Gonzalez-Sanchez
javiergs@asu.edu
Spring 2017
Disclaimer. These slides can only be used as study material for the class SER332 at ASU. They cannot be distributed or used for another purpose.
