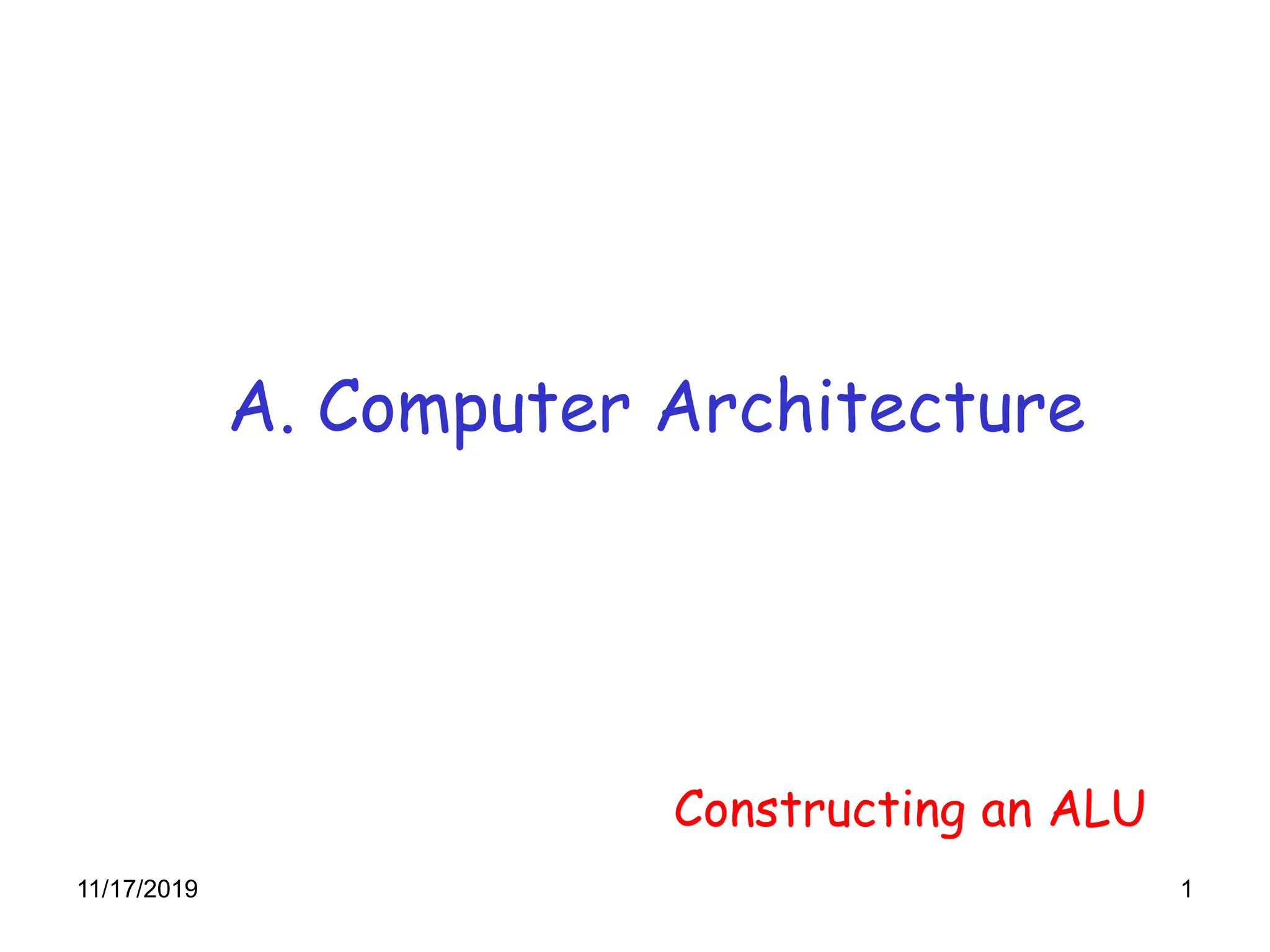

11/17/2019 1 A. Computer Architecture Constructing an ALU
11/17/2019 2 Arithmetic and Logic Unit • The ALU is at the heart of the CPU – Does math and logic • The ALU is primarily involved in R-type instructions – Perform an operation on two registers and produce a result • Where is the operation specified? – The instruction type specifies the operation – The ALU will have to be controlled by the instruction opcode
11/17/2019 3 Arithmetic Logic Unit (ALU)
ALU - Logic Operations 0 1 A B Operation Result 2-to-1 Mux If Operation = 0, Result = A • B If Operation = 1, Result = A  B Start out by supporting AND and OR operations AB A+B Two operands, two results. We need only one result... The Operation input comes from logic that looks at the opcode 11/17/2019 4
11/17/2019 5 Arithmetic Unit a b cin s cout 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 ab cin 0 1 00 01 11 10
11/17/2019 6 Arithmetic Unit Input Output A B Cin S Cout 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1
Adding to our ALU CarryIn CarryOut ALU A B Cout Cin Result Cin Cout Op (2 bits) Operation Function 00 A • B 01 A  B 10 A + B + (Op is now 2 bits) Add an Adder Connect CarryIn (from previous bit) and CarryOut (to next bit) Expand Mux to 3-to-1 (Op is now 2 bits) 0 1 Operation Result A B 2 0 1 11/17/2019 7
11/17/2019 8 1-bit & 32-bit ALU • Connect to common Operation controls – Now we can do 32-bit AND and OR operations • Stack 32 of our 1-bit ALU’s together – Each one gets one bit from A and one from B • Connect Cout’s to Cin’s – Now, 32-bit adds will work – Note: Carry will ripple through the stages, one at a time • Ripple-Carry Adder

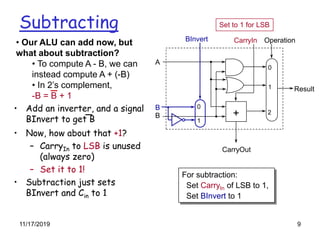

Subtracting 0 1 B 0 1 A Operation Result + 2 CarryIn CarryOut BInvert For subtraction: Set CarryIn of LSB to 1, Set BInvert to 1 • Add an inverter, and a signal BInvert to get B • Now, how about that +1? – CarryIn to LSB is unused (always zero) – Set it to 1! • Subtraction just sets BInvert and Cin to 1 B • Our ALU can add now, but what about subtraction? • To compute A - B, we can instead compute A + (-B) • In 2’s complement, -B = B + 1 Set to 1 for LSB 11/17/2019 9
11/17/2019 10 Subtraction a input b input Cin input output A 0 0 A 0 B 0 B A 0 1 A+1 A 1 0 A – 1 A B 1 A+B+1 A B* 1 A – B A B 0 A + B A B* 0 A – B -1
Support for SLT • A<B is equivalent to (A - B) < 0 • Subtract B from A – If the result is negative, then set LSB of Result to ‘1’, all others to ‘0’ – The result is negative if the MSB after the subtraction is ‘1’ (Two’s complement) Result 0 1 A Operation + 2 B CarryIn CarryOut 0 1 BInvert Less We’re going to have to do something different for the MSB and the LSB • We need to support the SLT operation – Set Result to 0000 0000 0000 0000 0000 0000 0000 0001 if A <B 0 1 2 3 Less will be ‘0’ for bits 1-31, special for bit 0 11/17/2019 11
That tricky MSB • To properly execute the SLT, we need to Set the LSB if the MSB is ‘1’ – (After a subtraction) OverFlow Set 0 1 A Operation Result + 2 B CarryIn CarryOut 0 1 BInvert 3 Less MSB Only • Can’t use the ‘Result’ of the MSB – Op will set the Mux to the ‘Less’ Field – Bring out the adder output directly: ‘Set’ • Also, we need to check for overflow – Overflow if Cin to MSB is different from Cout of MSB 11/17/2019 12
11/17/2019 13 Supporting the SLT instruction
11/17/2019 14 32-bit ALU with Zero detector
11/17/2019 15 ALU ALU control Function 000 And 001 Or 010 Add 110 Subtract 111 Set on less than
11/17/2019 16 Computer Architecture MIPS - Instruction Set Architecture
11/17/2019 17 Instructions & Instruction Set • Instructions: Words • Instruction Set: Vocabulary • Primitive & Restrictive • Relationship between HL Programming and hardware through Instruction set • MIPS processor
11/17/2019 18 Arithmetic Instructions • All MIPS Arithmetic instructions have three operands • Operand order is fixed – Destination, source, source
11/17/2019 19 Instruction Format • MIP Instructions are 32-bit • Field: Segment of instruction • Opcode (operation code) field: 6 bits • rs (register source) field: 5 bits • rt (register source) field: 5 bits • rd (register destination) field: 5 bits • shamt (shift amount) field: 5 bits • funct (function) field: 6 bits
11/17/2019 20 Instruction Format • add $t0, $s1, $s2 • 000000 10001 10010 01000 00000 100000 • Opcode rs rt rd shamt funct • Registers $s0 - $s7 (16-23) • Registers $t0 - $t7 (08-15) • Remaining registers discussed later
11/17/2019 21 Instruction Format • Should all MIP instructions be of the same format? • lw $t0, 32($s3) • Could specify constant using the 5-bit rt field? • Design Principle 3: – Good Design demands good compromises
11/17/2019 22 MIP Instruction Formats • R-format • I-format – used by data transfer instructions – Opcode 6-bit – rs 5-bit – rt 5-bit – address 16-bit
11/17/2019 23 Instruction Format • Multiple formats complicate hardware • Complexity reduced by keeping formats similar – R-format & I-format first three fields same – Address field spans over three fields – Opcode differentiates between formats
11/17/2019 24 Instruction Format Instruction Format op rs rt rd shamt funct add R 0 reg reg reg 0 32 sub R 0 reg reg reg 0 34 lw I 35 reg reg address sw I 43 reg reg address

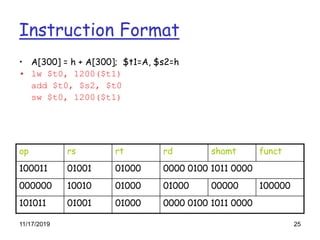

11/17/2019 25 Instruction Format • A[300] = h + A[300]; $t1=A, $s2=h • lw $t0, 1200($t1) add $t0, $s2, $t0 sw $t0, 1200($t1) op rs rt rd shamt funct 100011 01001 01000 0000 0100 1011 0000 000000 10010 01000 01000 00000 100000 101011 01001 01000 0000 0100 1011 0000
11/17/2019 26 Computer Architecture ISA (Logical Operators)
Logical Operations • Operation on fields of bits within a word or even on individual bits. – Shift left - sll – Shift right – srl – AND – and – OR – or – NOR – nor – AND immediate – andi – OR immediate - ori 11/17/2019 27
Shifts • sll : move all the bits in a word to the left , filling the emptied bits with 0s – Eg. $s0 contains 0000 0000 0000 0000 0000 0000 0000 1001two = 9ten and the instruction shift left by four will result in 0000 0000 0000 0000 0000 0000 1001 0000two = 144ten sll $t2,$s0,4 # reg $t2 = reg $ s0 << 4 bits op rs rt rd shamt funct 0 0 16 10 4 0 11/17/2019 28

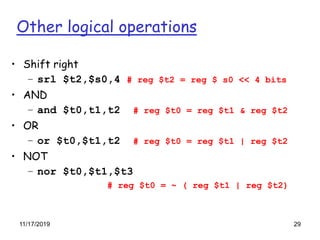

Other logical operations • Shift right – srl $t2,$s0,4 # reg $t2 = reg $ s0 << 4 bits • AND – and $t0,t1,t2 # reg $t0 = reg $t1 & reg $t2 • OR – or $t0,$t1,t2 # reg $t0 = reg $t1 | reg $t2 • NOT – nor $t0,$t1,$t3 # reg $t0 = ~ ( reg $t1 | reg $t2) 11/17/2019 29
11/17/2019 30 CS320 Computer Architecture ISA (Decision Making Instructions)
11/17/2019 31 Conditional Instructions • beq register1, register2, L1 • bne register1, register2, L1
11/17/2019 32 Branches: PC-relative Addressing • Use I-Format opcode rs rt immediate  opcode specifies beq v. bne  Rs and Rt specify registers to compare  What can immediate specify? o Immediate is only 16 bits o PC is 32-bit pointer to memory o So immediate cannot specify entire address to branch to.

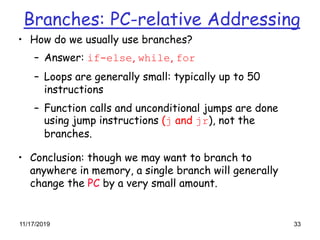

11/17/2019 33 Branches: PC-relative Addressing • How do we usually use branches? – Answer: if-else, while, for – Loops are generally small: typically up to 50 instructions – Function calls and unconditional jumps are done using jump instructions (j and jr), not the branches. • Conclusion: though we may want to branch to anywhere in memory, a single branch will generally change the PC by a very small amount.

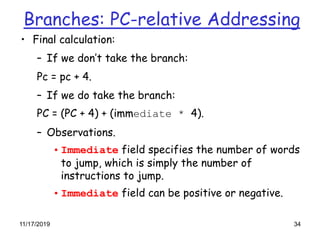

11/17/2019 34 Branches: PC-relative Addressing • Final calculation: – If we don’t take the branch: Pc = pc + 4. – If we do take the branch: PC = (PC + 4) + (immediate * 4). – Observations. • Immediate field specifies the number of words to jump, which is simply the number of instructions to jump. • Immediate field can be positive or negative.

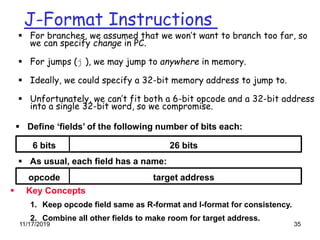

11/17/2019 35 J-Format Instructions  For branches, we assumed that we won’t want to branch too far, so we can specify change in PC.  For jumps (j ), we may jump to anywhere in memory.  Ideally, we could specify a 32-bit memory address to jump to.  Unfortunately, we can’t fit both a 6-bit opcode and a 32-bit address into a single 32-bit word, so we compromise.  Define ‘fields’ of the following number of bits each: 6 bits 26 bits opcode target address  As usual, each field has a name:  Key Concepts 1. Keep opcode field same as R-format and I-format for consistency. 2. Combine all other fields to make room for target address.

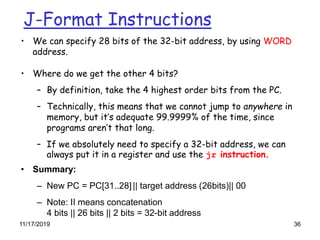

11/17/2019 36 J-Format Instructions • We can specify 28 bits of the 32-bit address, by using WORD address. • Where do we get the other 4 bits? – By definition, take the 4 highest order bits from the PC. – Technically, this means that we cannot jump to anywhere in memory, but it’s adequate 99.9999% of the time, since programs aren’t that long. – If we absolutely need to specify a 32-bit address, we can always put it in a register and use the jr instruction. • Summary: – New PC = PC[31..28]|| target address (26bits)|| 00 – Note: II means concatenation 4 bits || 26 bits || 2 bits = 32-bit address

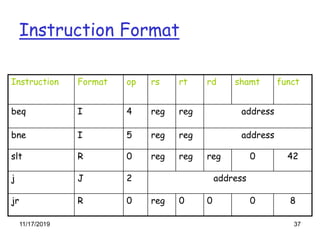

11/17/2019 37 Instruction Format Instruction Format op rs rt rd shamt funct beq I 4 reg reg address bne I 5 reg reg address slt R 0 reg reg reg 0 42 j J 2 address jr R 0 reg 0 0 0 8
