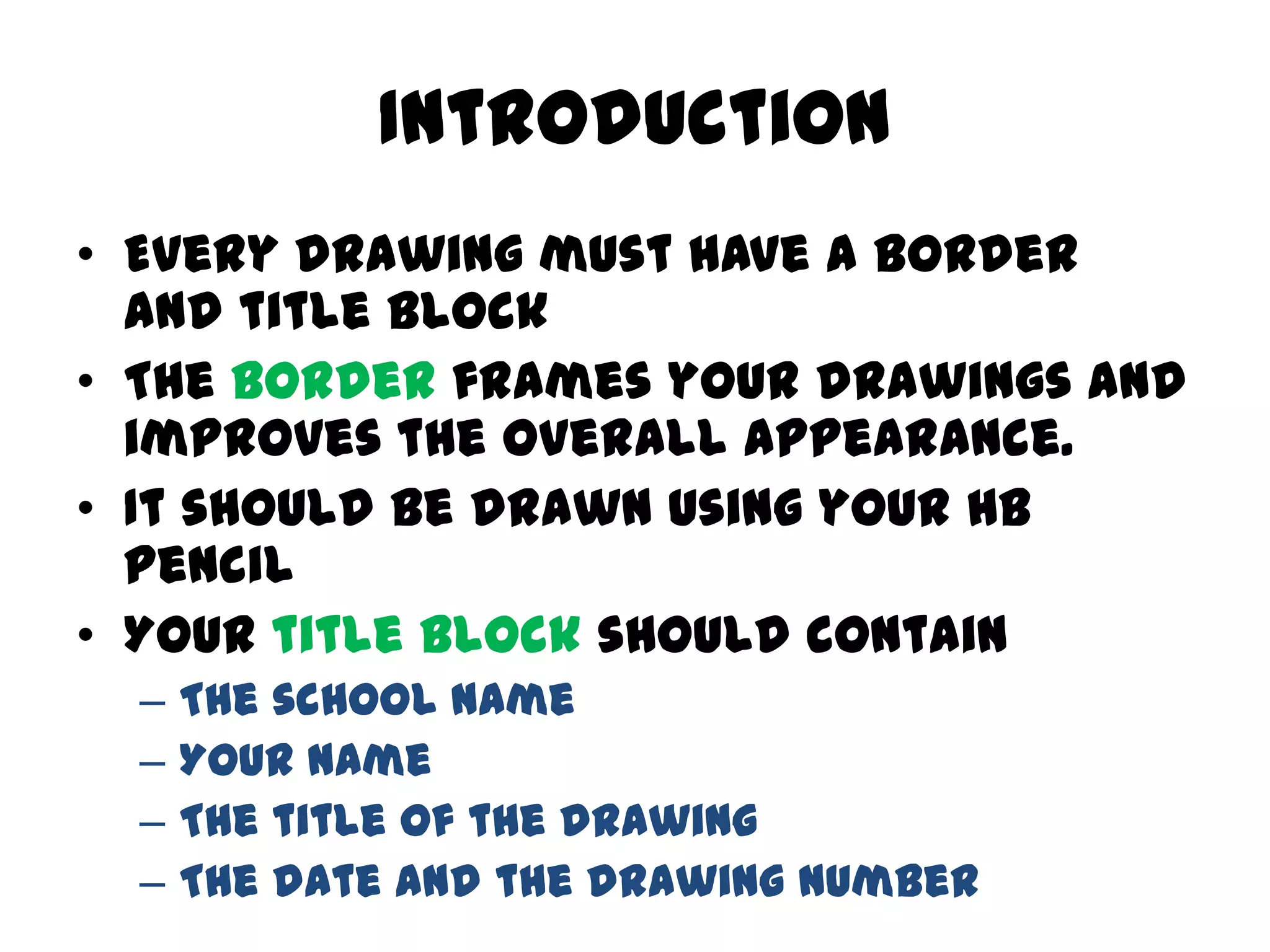

2. Introduction

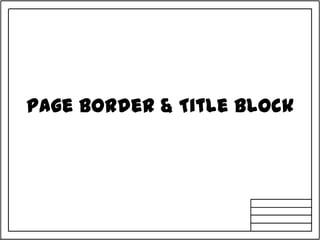

• Every drawing must have a border
and title block
• The border frames your drawings and
improves the overall appearance.
• It should be drawn using your HB
pencil
• Your title block should contain
– The school name
– Your name
– The title of the drawing
– The date and the drawing number
4. Construction lines
• We use lines called construction
lines to build up any drawing
• Your finished drawing should be
the darkest thing on the page
• Your construction lines will be
light lines which are draw first to
give you a base for a drawing

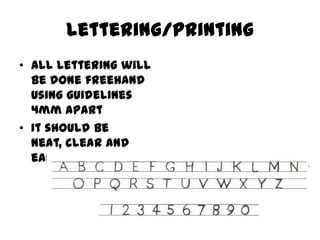

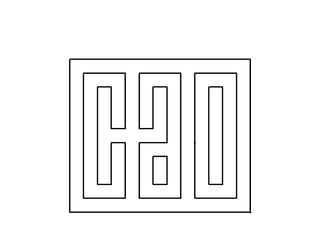

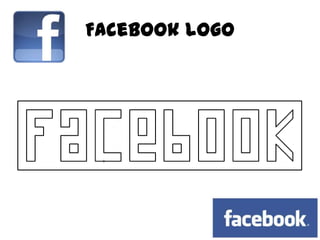

• Guide lines which we use for
lettering are also light

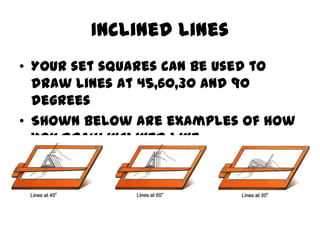

17. Inclined lines
• Your set squares can be used to
draw lines at 45,60,30 and 90
degrees
• Shown below are examples of how
you draw inclined line

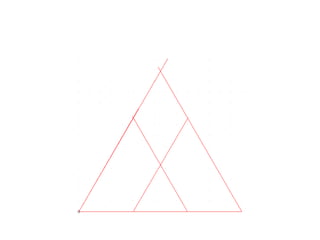

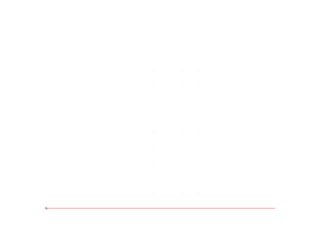

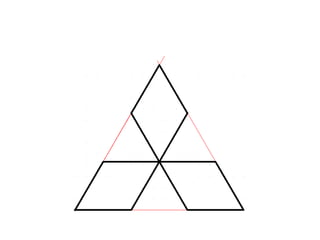

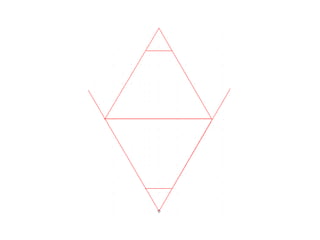

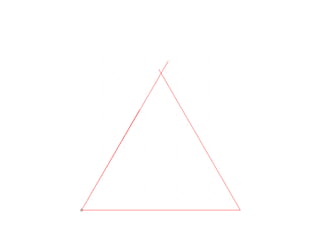

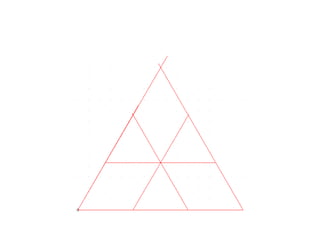

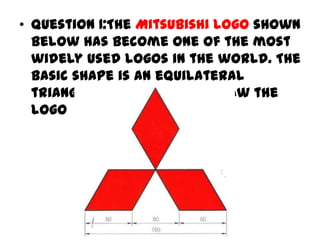

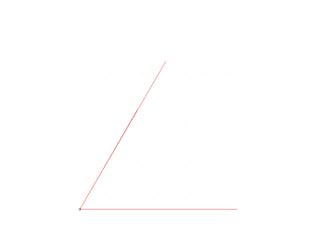

18. • Question 1:The Mitsubishi logo shown
below has become one of the most
widely used logos in the world. The
basic shape is an equilateral
triangle of side 150mm. Draw the
logo
19.
20.
21.
22.
23.
24.
25.

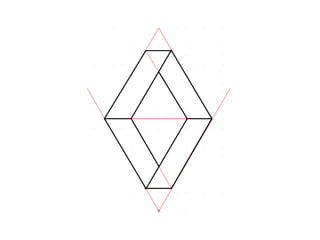

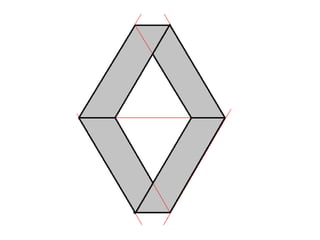

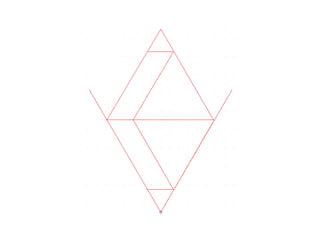

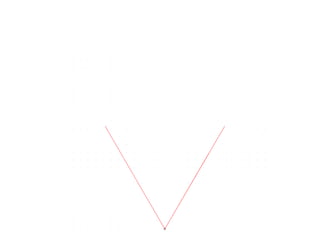

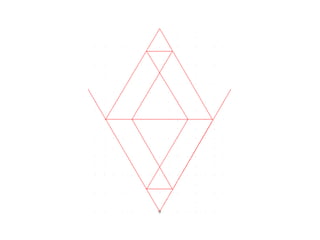

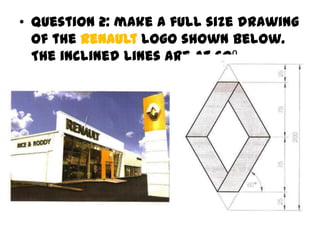

26. • Question 2: make a full size drawing
of the Renault logo shown below.
The inclined lines are at 60⁰
27.
28.
29.
30.
31.
32.
33.
34.
35.

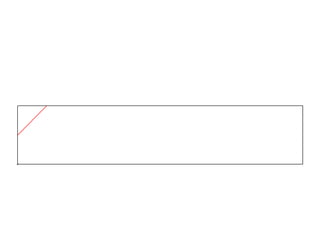

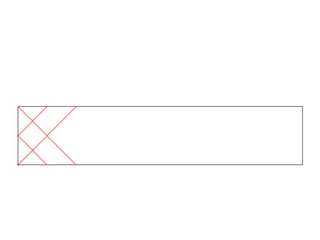

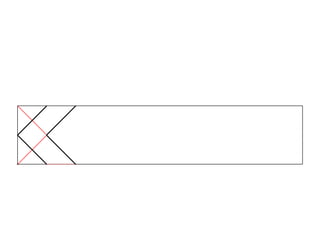

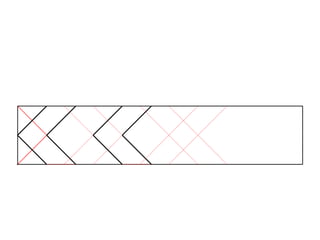

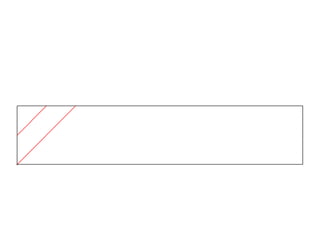

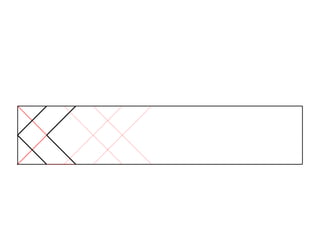

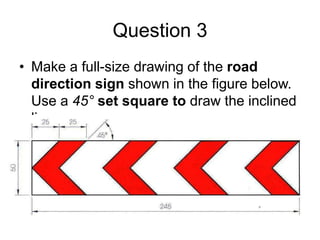

36. Question 3
• Make a full-size drawing of the road
direction sign shown in the figure below.
Use a 45° set square to draw the inclined
lines.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.

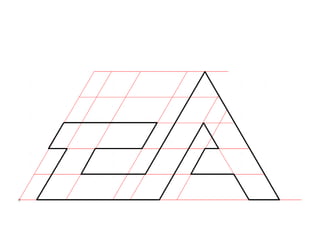

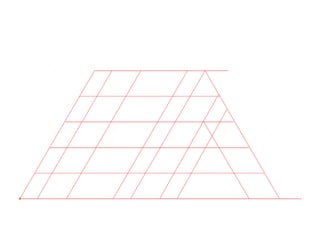

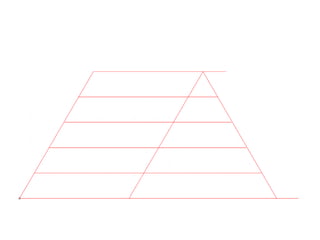

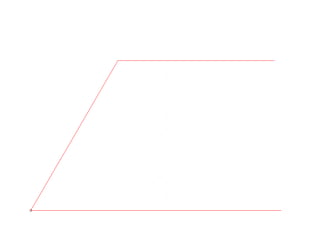

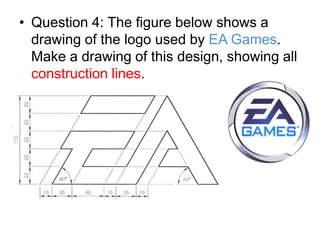

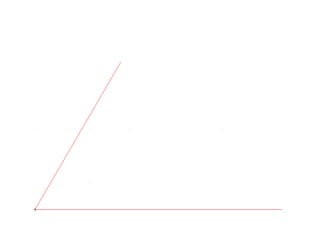

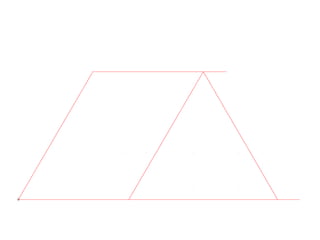

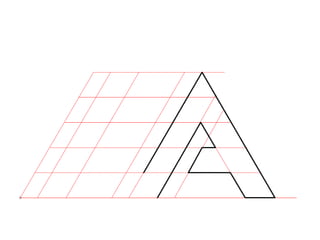

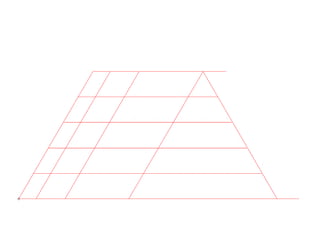

49. • Question 4: The figure below shows a
drawing of the logo used by EA Games.
Make a drawing of this design, showing all
construction lines.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.

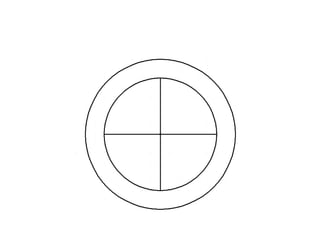

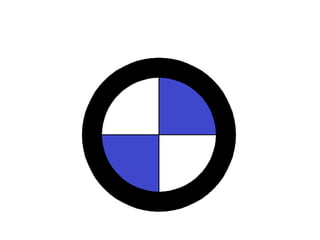

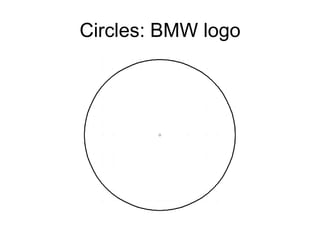

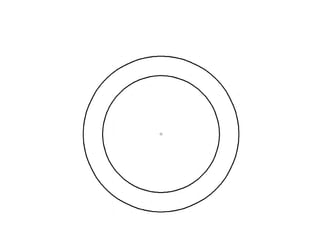

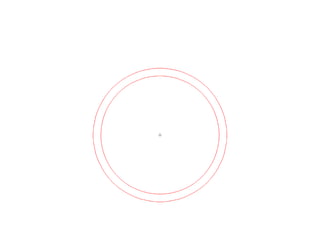

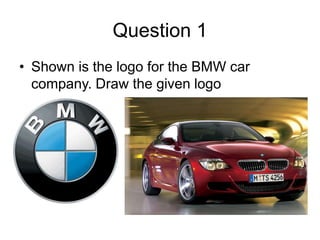

63. Question 1
• Shown is the logo for the BMW car
company. Draw the given logo
