1. Anti-Fouling/Non-Fouling Surfaces
BT5011-July-Dec-2014 1

2. BT5011-July-Dec-2014 2

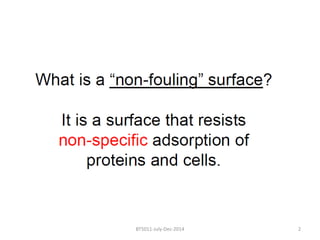

3. When is the non-specific adsoption
undesirable?
BT5011-July-Dec-2014 3

4. BT5011-July-Dec-2014 4

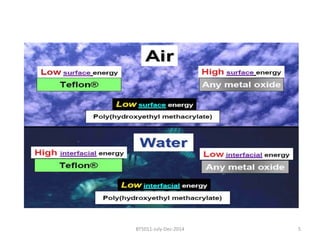

5. BT5011-July-Dec-2014 5

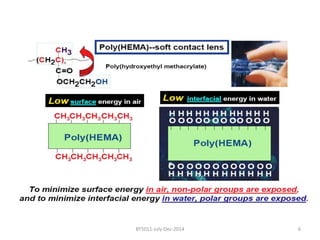

6. BT5011-July-Dec-2014 6

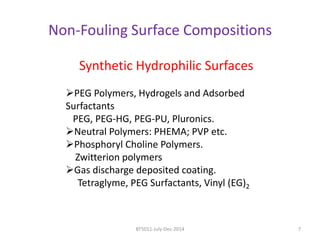

7. Non-Fouling Surface Compositions
Synthetic Hydrophilic Surfaces
PEG Polymers, Hydrogels and Adsorbed
Surfactants
PEG, PEG-HG, PEG-PU, Pluronics.
Neutral Polymers: PHEMA; PVP etc.
Phosphoryl Choline Polymers.
Zwitterion polymers
Gas discharge deposited coating.
Tetraglyme, PEG Surfactants, Vinyl (EG)2
BT5011-July-Dec-2014 7

8. Non-Fouling Surface Compositions
Natural Hydrophilic Surfaces
Passivating Protein Monolayers:
Eg: Albumin, Casein.
Polysaccharides:
Eg: Dextran, Hyaluronic Acid.
Glycoproteins:
Eg: Mucins.
Phosphoryl Choline Polymers.
Zwitterion polymers
Liposaccharides:
Eg: Gangliosides. Used as Stealth Liposomes
BT5011-July-Dec-2014 8

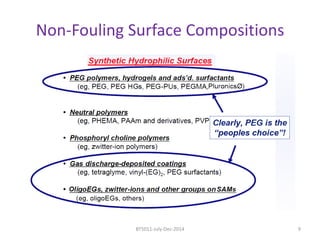

9. Non-Fouling Surface Compositions
BT5011-July-Dec-2014 9

10. Where did the idea of PEGlyating
surfaces come from?
BT5011-July-Dec-2014 10

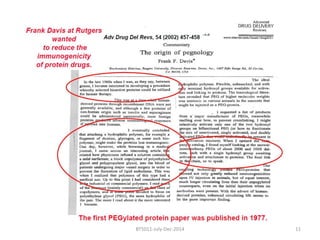

11. BT5011-July-Dec-2014 11

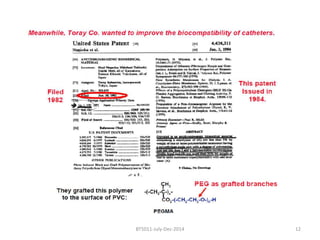

12. BT5011-July-Dec-2014 12

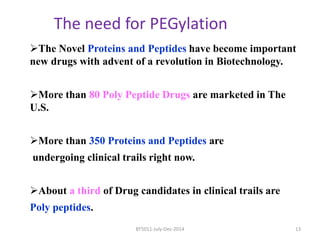

13. The need for PEGylation
The Novel Proteins and Peptides have become important
new drugs with advent of a revolution in Biotechnology.
More than 80 Poly Peptide Drugs are marketed in The
U.S.
More than 350 Proteins and Peptides are
undergoing clinical trails right now.
About a third of Drug candidates in clinical trails are
Poly peptides.
BT5011-July-Dec-2014 13

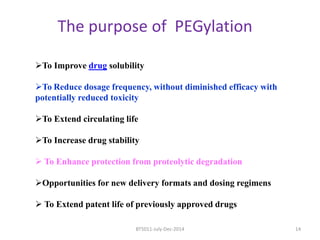

14. The purpose of PEGylation
To Improve drug solubility
To Reduce dosage frequency, without diminished efficacy with
potentially reduced toxicity
To Extend circulating life
To Increase drug stability
 To Enhance protection from proteolytic degradation
Opportunities for new delivery formats and dosing regimens
 To Extend patent life of previously approved drugs
BT5011-July-Dec-2014 14

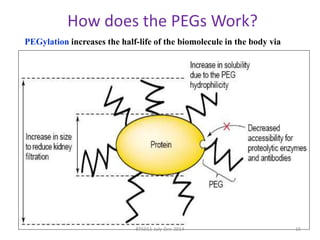

15. How does the PEGs Work?
PEGylation increases the half-life of the biomolecule in the body via
BT5011-July-Dec-2014 15

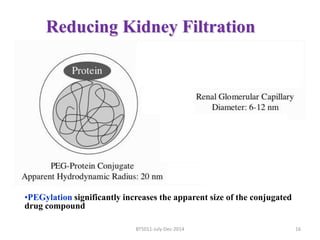

16. Reducing Kidney Filtration
•PEGylation significantly increases the apparent size of the conjugated
drug compound
BT5011-July-Dec-2014 16

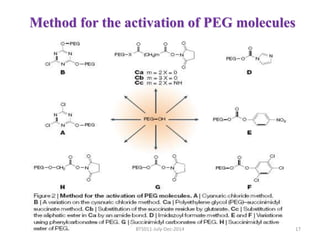

17. Method for the activation of PEG molecules
BT5011-July-Dec-2014 17

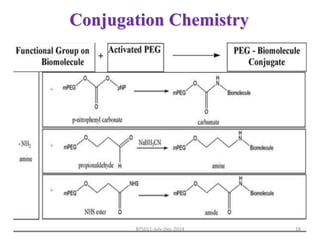

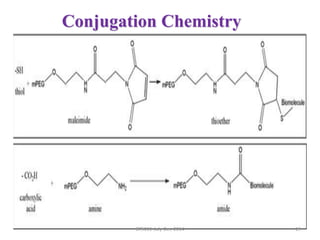

18. Conjugation Chemistry
BT5011-July-Dec-2014 18

19. Conjugation Chemistry
BT5011-July-Dec-2014 19

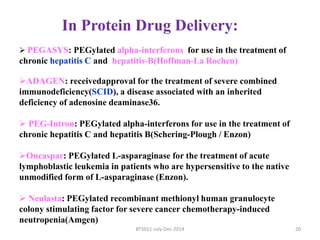

20. In Protein Drug Delivery:
 PEGASYS: PEGylated alpha-interferons for use in the treatment of
chronic hepatitis C and hepatitis-B(Hoffman-La Rochen)
ADAGEN: receivedapproval for the treatment of severe combined
immunodeficiency(SCID), a disease associated with an inherited
deficiency of adenosine deaminase36.
 PEG-Intron: PEGylated alpha-interferons for use in the treatment of
chronic hepatitis C and hepatitis B(Schering-Plough / Enzon)
Oncaspar: PEGylated L-asparaginase for the treatment of acute
lymphoblastic leukemia in patients who are hypersensitive to the native
unmodified form of L-asparaginase (Enzon).
 Neulasta: PEGylated recombinant methionyl human granulocyte
colony stimulating factor for severe cancer chemotherapy-induced
neutropenia(Amgen)
BT5011-July-Dec-2014 20

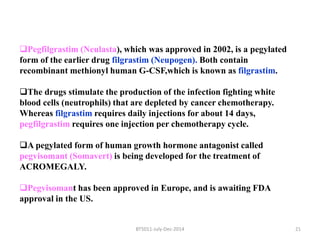

21. Pegfilgrastim (Neulasta), which was approved in 2002, is a pegylated
form of the earlier drug filgrastim (Neupogen). Both contain
recombinant methionyl human G-CSF,which is known as filgrastim.
The drugs stimulate the production of the infection fighting white
blood cells (neutrophils) that are depleted by cancer chemotherapy.
Whereas filgrastim requires daily injections for about 14 days,
pegfilgrastim requires one injection per chemotherapy cycle.
A pegylated form of human growth hormone antagonist called
pegvisomant (Somavert) is being developed for the treatment of
ACROMEGALY.
Pegvisomant has been approved in Europe, and is awaiting FDA
approval in the US.
BT5011-July-Dec-2014 21

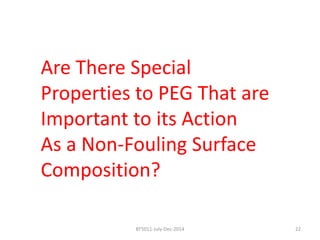

22. Are There Special
Properties to PEG That are
Important to its Action
As a Non-Fouling Surface
Composition?
BT5011-July-Dec-2014 22

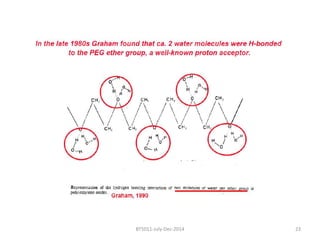

23. BT5011-July-Dec-2014 23

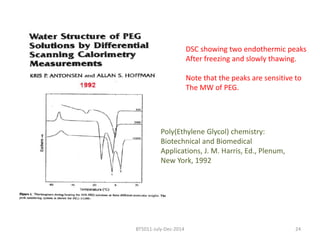

24. DSC showing two endothermic peaks
After freezing and slowly thawing.
Note that the peaks are sensitive to
The MW of PEG.
Poly(Ethylene Glycol) chemistry:
Biotechnical and Biomedical
Applications, J. M. Harris, Ed., Plenum,
New York, 1992
BT5011-July-Dec-2014 24

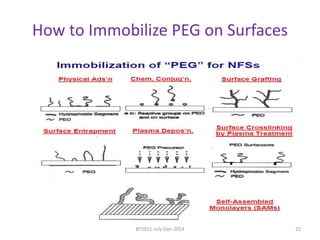

25. How to Immobilize PEG on Surfaces
BT5011-July-Dec-2014 25

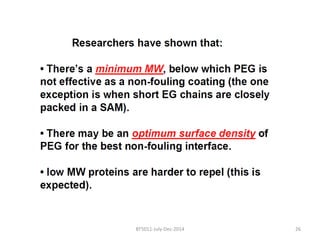

26. BT5011-July-Dec-2014 26

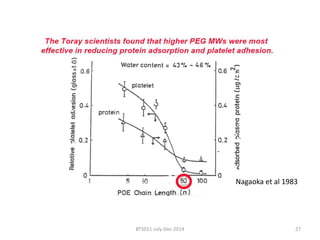

27. Nagaoka et al 1983
BT5011-July-Dec-2014 27

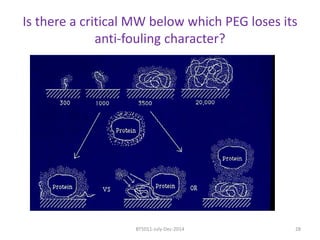

28. Is there a critical MW below which PEG loses its
anti-fouling character?
BT5011-July-Dec-2014 28

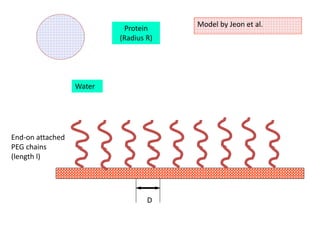

29. Protein
(Radius R)
Water
End-on attached
PEG chains
(length l)
D
Model by Jeon et al.

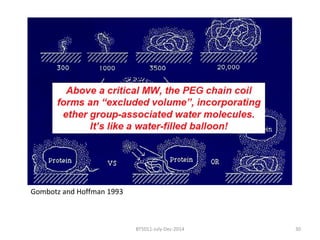

30. Gombotz and Hoffman 1993
BT5011-July-Dec-2014 30

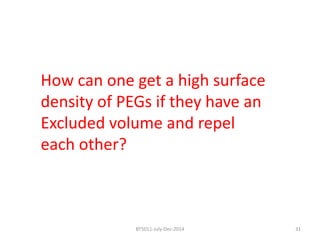

31. How can one get a high surface
density of PEGs if they have an
Excluded volume and repel
each other?
BT5011-July-Dec-2014 31

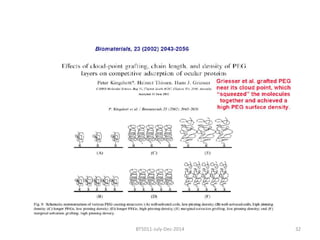

32. BT5011-July-Dec-2014 32

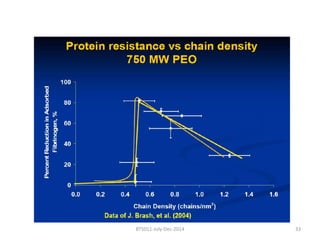

33. BT5011-July-Dec-2014 33

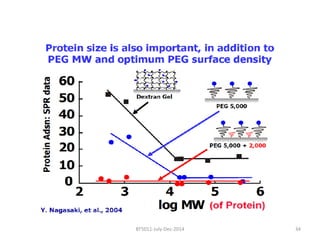

34. BT5011-July-Dec-2014 34

35. “Glyme” Coatings
BT5011-July-Dec-2014 35

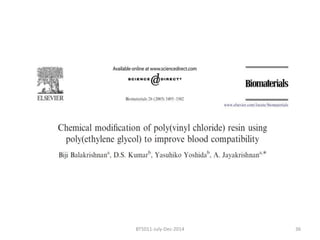

36. BT5011-July-Dec-2014 36

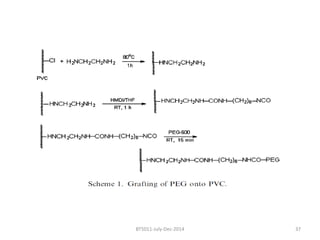

37. BT5011-July-Dec-2014 37

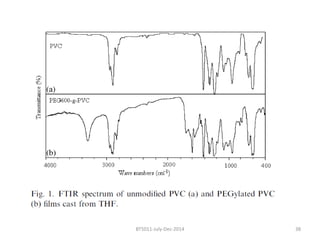

38. BT5011-July-Dec-2014 38

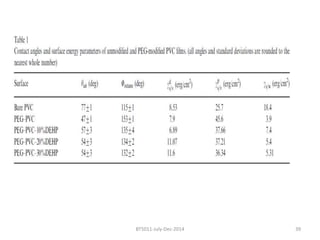

39. BT5011-July-Dec-2014 39

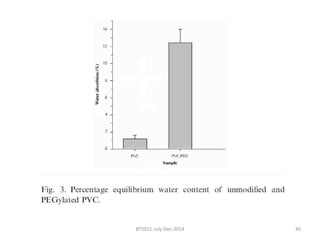

40. BT5011-July-Dec-2014 40

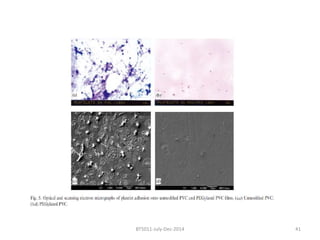

41. BT5011-July-Dec-2014 41

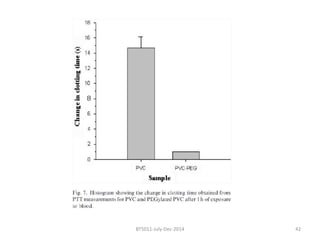

42. BT5011-July-Dec-2014 42

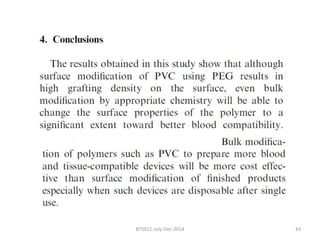

43. BT5011-July-Dec-2014 43
