This document appears to be from a presentation discussing options for a wastewater treatment facility project. It outlines two scenarios for Navy participation that impact costs, presents timelines and milestones, and analyzes the estimated rate impacts on users under different funding scenarios where the total project costs range from $70-93.5 million. Phasing and timing of the project would depend on city growth and Navy participation.

1. Oh910i1-8594.pptx/1

2. Tonight’s Agenda
•
•
•
–
–
–
•
•
Oh910i1-8594.pptx/2

3. Facilities Plan Status
Oh910i1-8594.pptx/3

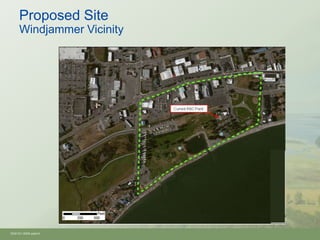

4. Proposed Site
Windjammer Vicinity
Oh910i1-8594.pptx/4

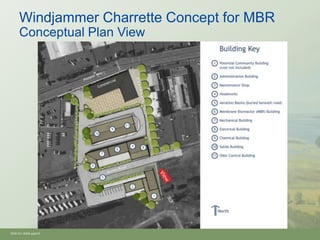

5. Windjammer Charrette Concept for MBR
Conceptual Plan View
Oh910i1-8594.pptx/5

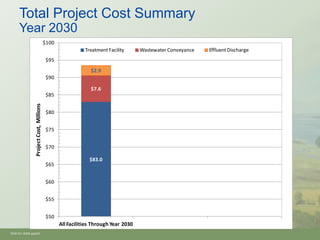

6. Total Project Cost Summary
Year 2030
$100
Treatment Facility Wastewater Conveyance Effluent Discharge
$95
$2.9
$90
$7.6
$85
Project Cost, Millions
$80
$75
$70
$83.0
$65
$60
$55
$50
All Facilities Through Year 2030
Oh910i1-8594.pptx/6

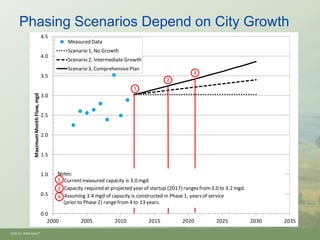

7. Phasing Scenarios Depend on City Growth
4.5
Measured Data
Scenario 1, No Growth
4.0
Scenario 2, Intermediate Growth
Scenario 3, Comprehensive Plan
3
3.5
2
1
Maximum Month Flow, mgd
3.0
2.5
2.0
1.5
1.0 Notes:
1
1: Current measured capacity is 3.0 mgd.
2: Capacity required at projected year of startup (2017) ranges from 3.0 to 3.2 mgd.
2
0.5 3: Assuming 3.4 mgd of capacity is constructed in Phase 1, years of service
3
(prior to Phase 2) range from 4 to 13 years.
0.0
2000 2005 2010 2015 2020 2025 2030 2035
Oh910i1-8594.pptx/7

8. Phasing Also Depends on Navy Participation
•
•
–
•
–
Oh910i1-8594.pptx/8

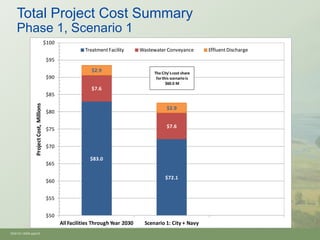

9. Total Project Cost Summary
Phase 1, Scenario 1
$100
Treatment Facility Wastewater Conveyance Effluent Discharge
$95
$2.9 The City's cost share
$90 for this scenario is
$60.0 M
$7.6
$85
Project Cost, Millions
$2.9
$80
$7.6
$75
$70
$83.0
$65
$72.1
$60
$55
$50
All Facilities Through Year 2030 Scenario 1: City + Navy
Oh910i1-8594.pptx/9

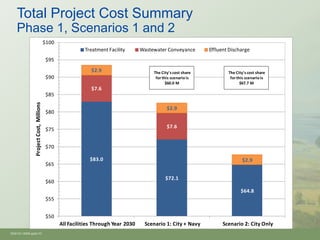

10. Total Project Cost Summary
Phase 1, Scenarios 1 and 2
$100
Treatment Facility Wastewater Conveyance Effluent Discharge
$95
$2.9 The City's cost share The City's cost share
$90 for this scenario is for this scenario is
$60.0 M $67.7 M
$7.6
$85
Project Cost, Millions
$2.9
$80
$7.6
$75
$70
$83.0 $2.9
$65
$72.1
$60
$64.8
$55
$50
All Facilities Through Year 2030 Scenario 1: City + Navy Scenario 2: City Only
Oh910i1-8594.pptx/10

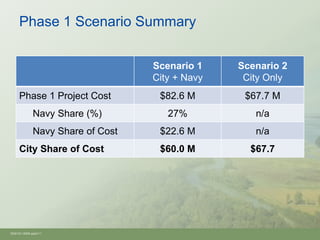

11. Phase 1 Scenario Summary
Scenario 1 Scenario 2
City + Navy City Only
Phase 1 Project Cost $82.6 M $67.7 M
Navy Share (%) 27% n/a
Navy Share of Cost $22.6 M n/a
City Share of Cost $60.0 M $67.7
Oh910i1-8594.pptx/11

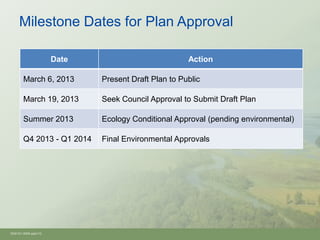

12. Milestone Dates for Plan Approval
Date Action
March 6, 2013 Present Draft Plan to Public
March 19, 2013 Seek Council Approval to Submit Draft Plan
Summer 2013 Ecology Conditional Approval (pending environmental)
Q4 2013 - Q1 2014 Final Environmental Approvals
Oh910i1-8594.pptx/12

13. Rate Analysis Update
Oh910i1-8594.pptx/13

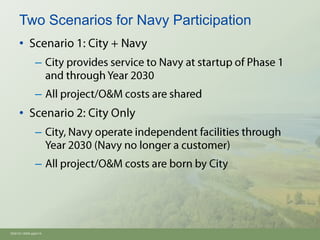

14. Two Scenarios for Navy Participation
•
–
–
•
–
–
Oh910i1-8594.pptx/14

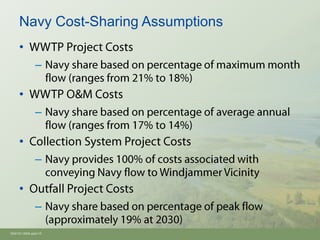

15. Navy Cost-Sharing Assumptions
•
–
•
–
•
–
•
–
Oh910i1-8594.pptx/15

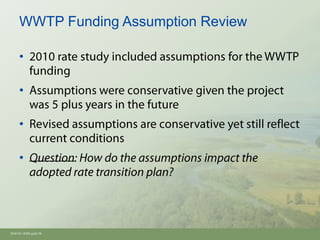

16. WWTP Funding Assumption Review
•
•
•
•
Oh910i1-8594.pptx/16

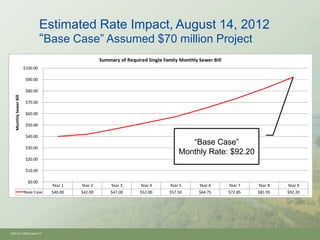

17. Estimated Rate Impact, August 14, 2012
“Base Case” Assumed $70 million Project
Summary of Required Single Family Monthly Sewer Bill
$100.00
$90.00
$80.00
Monthly Sewer Bill
$70.00
$60.00
$50.00
$40.00
“Base Case”
$30.00
Monthly Rate: $92.20
$20.00
$10.00
$0.00
Year 1 Year 2 Year 3 Year 4 Year 5 Year 6 Year 7 Year 8 Year 9
Base Case $40.00 $42.00 $47.00 $52.00 $57.50 $64.75 $72.85 $81.95 $92.20
Oh910i1-8594.pptx/17

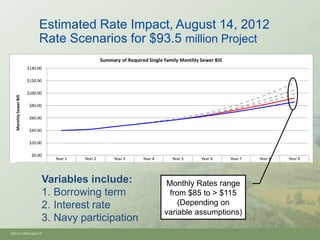

18. Estimated Rate Impact, August 14, 2012
Rate Scenarios for $93.5 million Project
Summary of Required Single Family Monthly Sewer Bill
$140.00
$120.00
$100.00
Monthly Sewer Bill
$80.00
$60.00
$40.00
$20.00
$0.00
Year 1 Year 2 Year 3 Year 4 Year 5 Year 6 Year 7 Year 8 Year 9
Base Case $40.00 $42.00 $47.00 $52.00 $57.50 $64.75 $72.85 $81.95 $92.20
Option 1 $40.00 $42.00 $47.00 $52.88 $59.48 $68.41 $80.38 $96.45 $115.74
Variables include:
Option 2A
Option 2B
$40.00
$40.00
$42.00
$42.00
$47.00
$47.00
$52.00
$52.00
$57.50 $66.13
Monthly Rates range
$57.50 $64.69
$76.04
$74.39
$89.35
$85.55
$104.99
$98.38
1. Borrowing term
Option 3 $40.00 $42.00 $47.00 $52.00 from
$57.50 $85$63.54> $115
to $70.21 $77.58 $85.73
2. Interest rate (Depending on
variable assumptions)
3. Navy participation
Oh910i1-8594.pptx/18

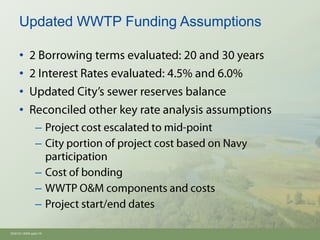

19. Updated WWTP Funding Assumptions
•
•
•
•
–
–
–
–
–
Oh910i1-8594.pptx/19

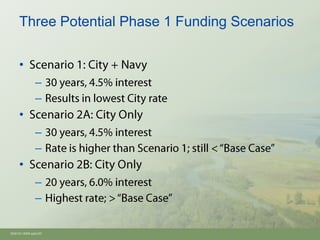

20. Three Potential Phase 1 Funding Scenarios
•
–
–
•
–
–
•
–
–
Oh910i1-8594.pptx/20

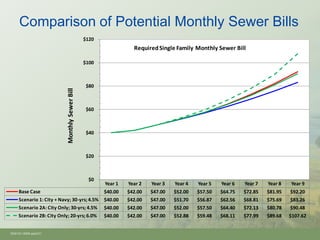

21. Comparison of Potential Monthly Sewer Bills
$120
Required Single Family Monthly Sewer Bill
$100
$80
Monthly Sewer Bill
$60
$40
$20
$0
Year 1 Year 2 Year 3 Year 4 Year 5 Year 6 Year 7 Year 8 Year 9
Base Case $40.00 $42.00 $47.00 $52.00 $57.50 $64.75 $72.85 $81.95 $92.20
Scenario 1: City + Navy; 30-yrs; 4.5% $40.00 $42.00 $47.00 $51.70 $56.87 $62.56 $68.81 $75.69 $83.26
Scenario 2A: City Only; 30-yrs; 4.5% $40.00 $42.00 $47.00 $52.00 $57.50 $64.40 $72.13 $80.78 $90.48
Scenario 2B: City Only; 20-yrs; 6.0% $40.00 $42.00 $47.00 $52.88 $59.48 $68.11 $77.99 $89.68 $107.62
Oh910i1-8594.pptx/21

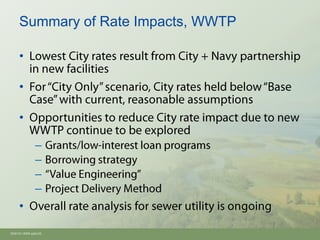

22. Summary of Rate Impacts, WWTP
•
•
•
–
–
–
–
•
Oh910i1-8594.pptx/22

23. Schedule/Next Steps
Oh910i1-8594.pptx/23

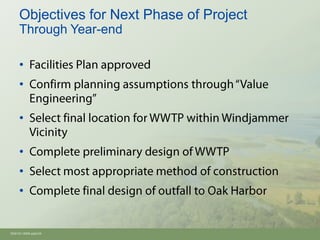

24. Objectives for Next Phase of Project
Through Year-end
•
•
•
•
•
•
Oh910i1-8594.pptx/24

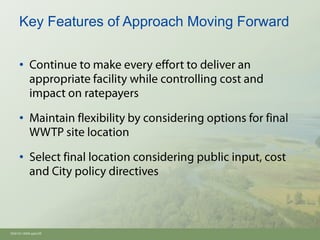

25. Key Features of Approach Moving Forward
•
•
•
Oh910i1-8594.pptx/25

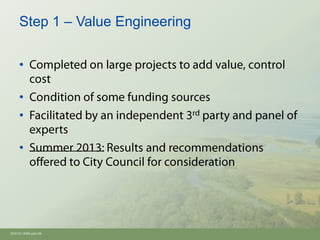

26. Step 1 – Value Engineering
•
•
•
•
Oh910i1-8594.pptx/26

27. Step 2 – Select Final WWTP Location Within
Windjammer Vicinity
Oh910i1-8594.pptx/27

28. Step 2 – Select Final WWTP Location Within
Windjammer Vicinity
–
–
–
–
Oh910i1-8594.pptx/28

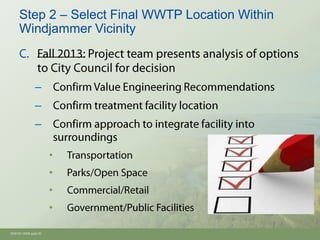

29. Step 2 – Select Final WWTP Location Within
Windjammer Vicinity
Oh910i1-8594.pptx/29

30. Step 2 – Select Final WWTP Location Within
Windjammer Vicinity
–
–
–
•
•
•
•
Oh910i1-8594.pptx/30

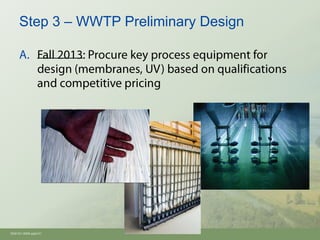

31. Step 3 – WWTP Preliminary Design
Oh910i1-8594.pptx/31

32. Step 3 – WWTP Preliminary Design

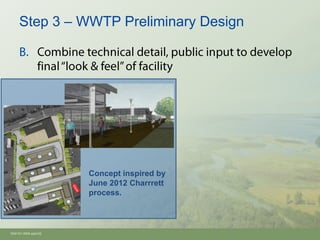

Concept inspired by
June 2012 Charrrett
process.
Oh910i1-8594.pptx/32

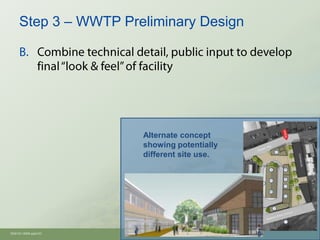

33. Step 3 – WWTP Preliminary Design
Alternate concept
showing potentially
different site use.
Oh910i1-8594.pptx/33

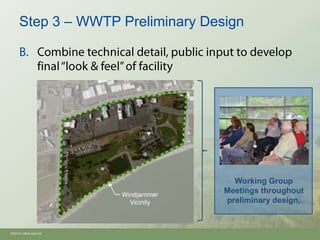

34. Step 3 – WWTP Preliminary Design
Working Group
Meetings throughout
preliminary design.
Oh910i1-8594.pptx/34

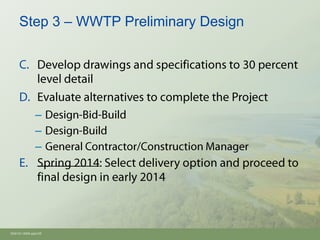

35. Step 3 – WWTP Preliminary Design
–
–
–
Oh910i1-8594.pptx/35

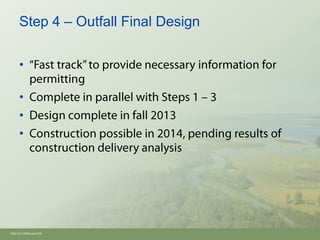

36. Step 4 – Outfall Final Design
•
•
•
•
Oh910i1-8594.pptx/36

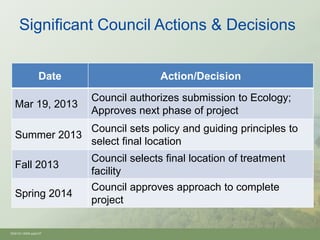

37. Significant Council Actions & Decisions
Date Action/Decision
Council authorizes submission to Ecology;
Mar 19, 2013
Approves next phase of project
Council sets policy and guiding principles to
Summer 2013
select final location
Council selects final location of treatment
Fall 2013
facility
Council approves approach to complete
Spring 2014
project
Oh910i1-8594.pptx/37

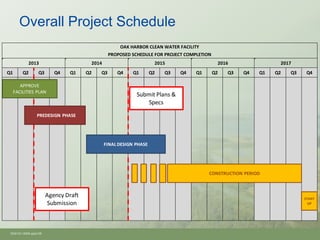

38. Overall Project Schedule
OAK HARBOR CLEAN WATER FACILITY
PROPOSED SCHEDULE FOR PROJECT COMPLETION
2013 2014 2015 2016 2017
Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4
APPROVE
FACILITIES PLAN
Submit Plans &
Specs
PREDESIGN PHASE
FINAL DESIGN PHASE
CONSTRUCTION PERIOD
Agency Draft START
Submission UP
Oh910i1-8594.pptx/38

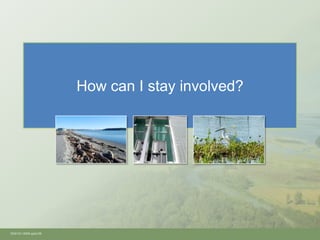

39. How can I stay involved?
Oh910i1-8594.pptx/39

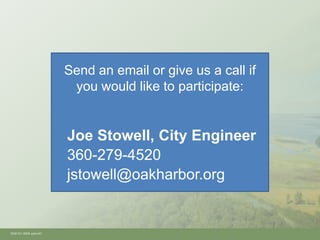

40. Send an email or give us a call if
you would like to participate:
Joe Stowell, City Engineer
360-279-4520
jstowell@oakharbor.org
Oh910i1-8594.pptx/40

41. Questions?
Oh910i1-8594.pptx/41
