10.01.03.012
•Download as PPT, PDF•
0 likes•466 views

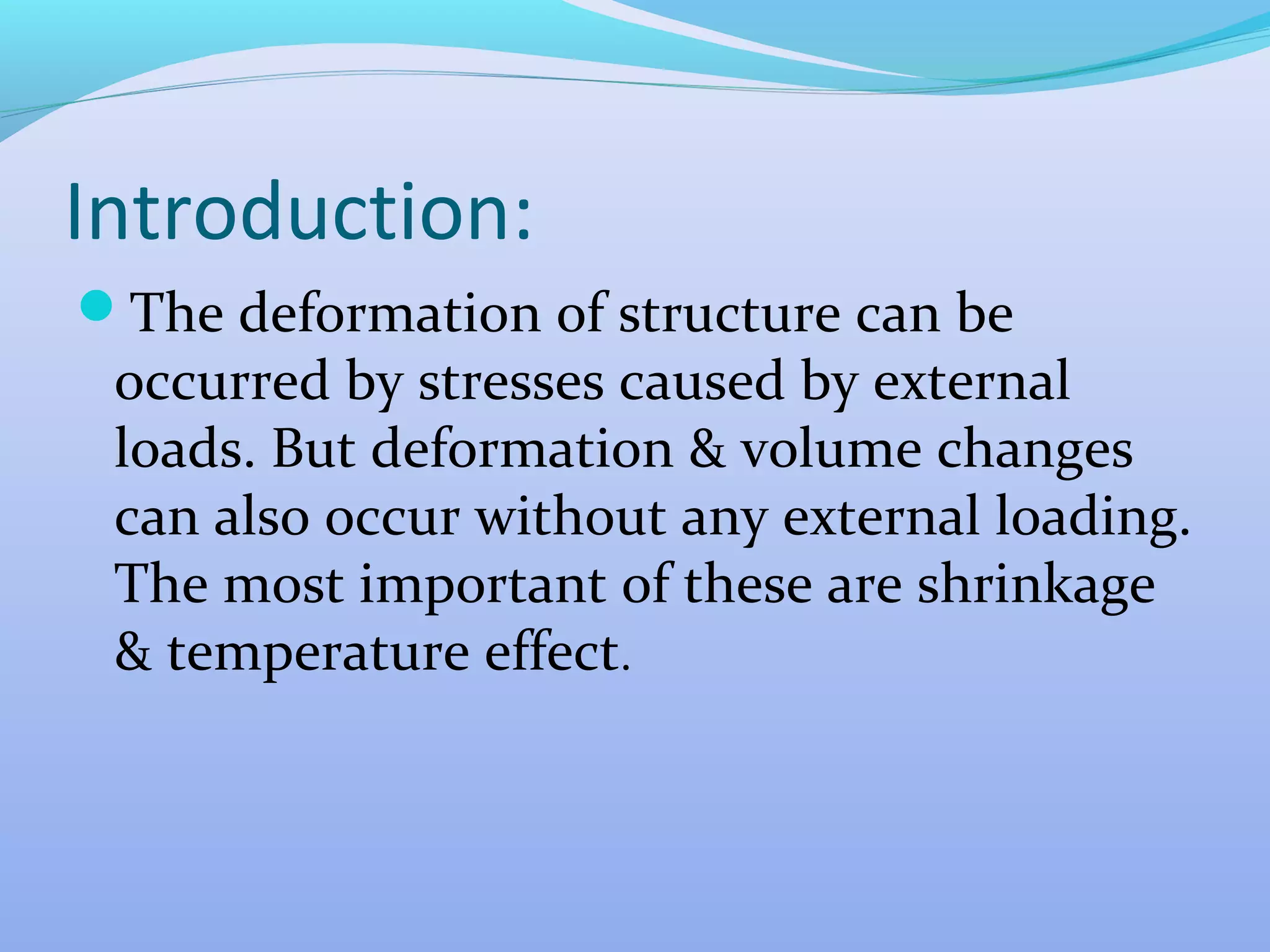

Temperature & shrinkage effect on structural analysis: 1.Introduction:The deformation of structure can be occurred by stresses caused by external loads. But deformation & volume changes can also occur without any external loading. The most important of these are shrinkage & temperature effect. 2.Reasons for shrinkage: a.By evaporation of water. b.Drying of concrete. c.Increasing of temperature. 3.Temperature & Shrinkage effect: a.It may cause deleterious crack as in slabs,walls etc. b.In structure that are statically indeterminate & most concrete structure, it may cause large & harmful stresses. c.It may cause deformation of total structure. d.It may affect to the fixed joint. 4.Cracks due to temperature & shrinkage effect. 5.shrinkage crack. 6.Crack in wall. 7.Due to accident massive change in temperature of the structure causes the fall of twin tower. 8.Matter of concern during design: a. Careful during selection of material b.By analyzing previous weather report. c.By analyzing previous max temperature record. d. By predicting the future condition. e.The coefficient of thermal expansion & contraction should be within the allowable range. f.By increasing aggregate content. g.By adjusting water content. h.Careful curing is needed.
Report
Share
Report
Share
