12. 学習アルゴリズム
Random Forestsの学習アルゴリズム
・前処理
− データ集合 S から T 個のサブセット作成
・For t = 1, 2, …, T サブセットの数だけ木を作成

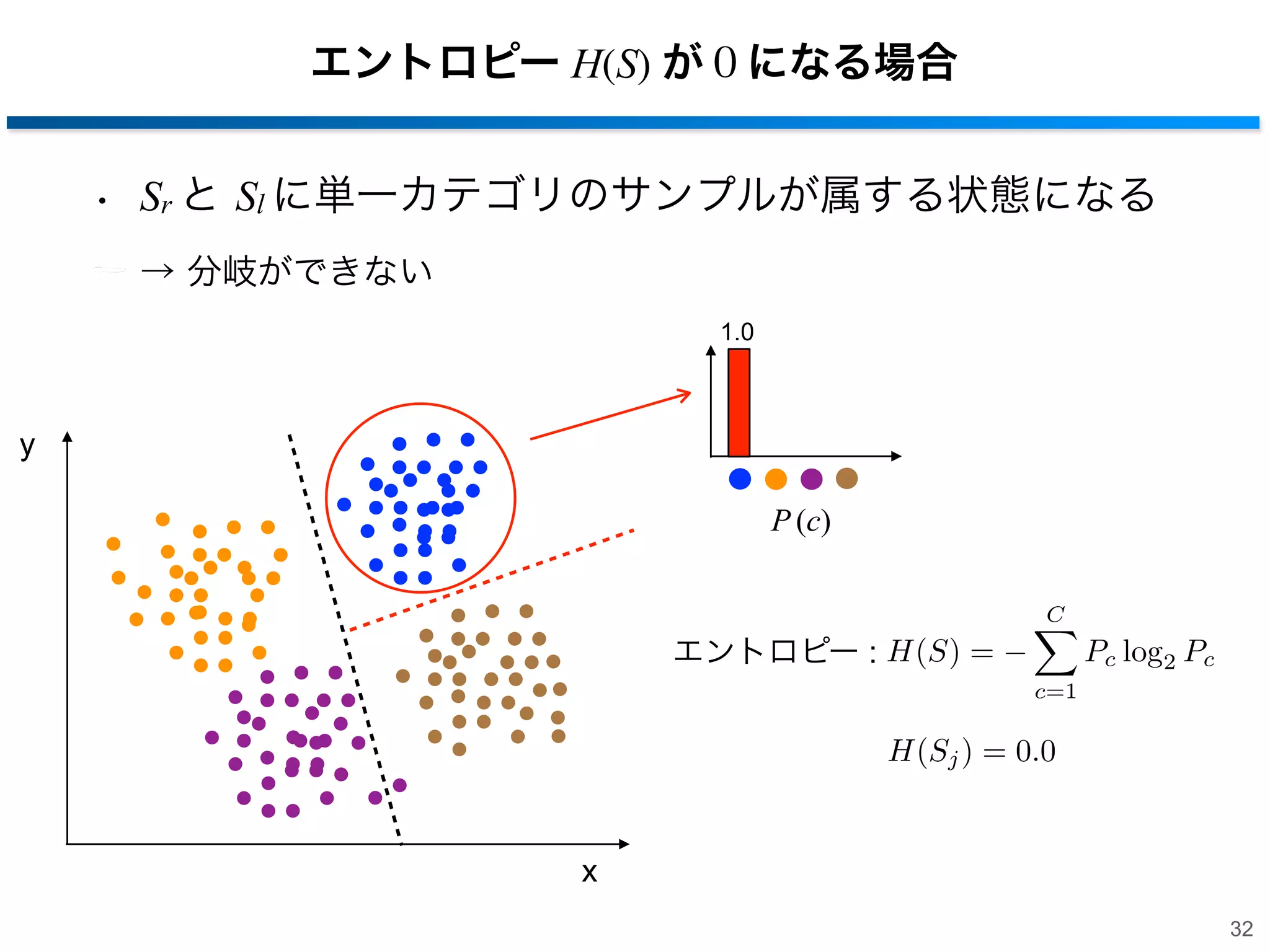

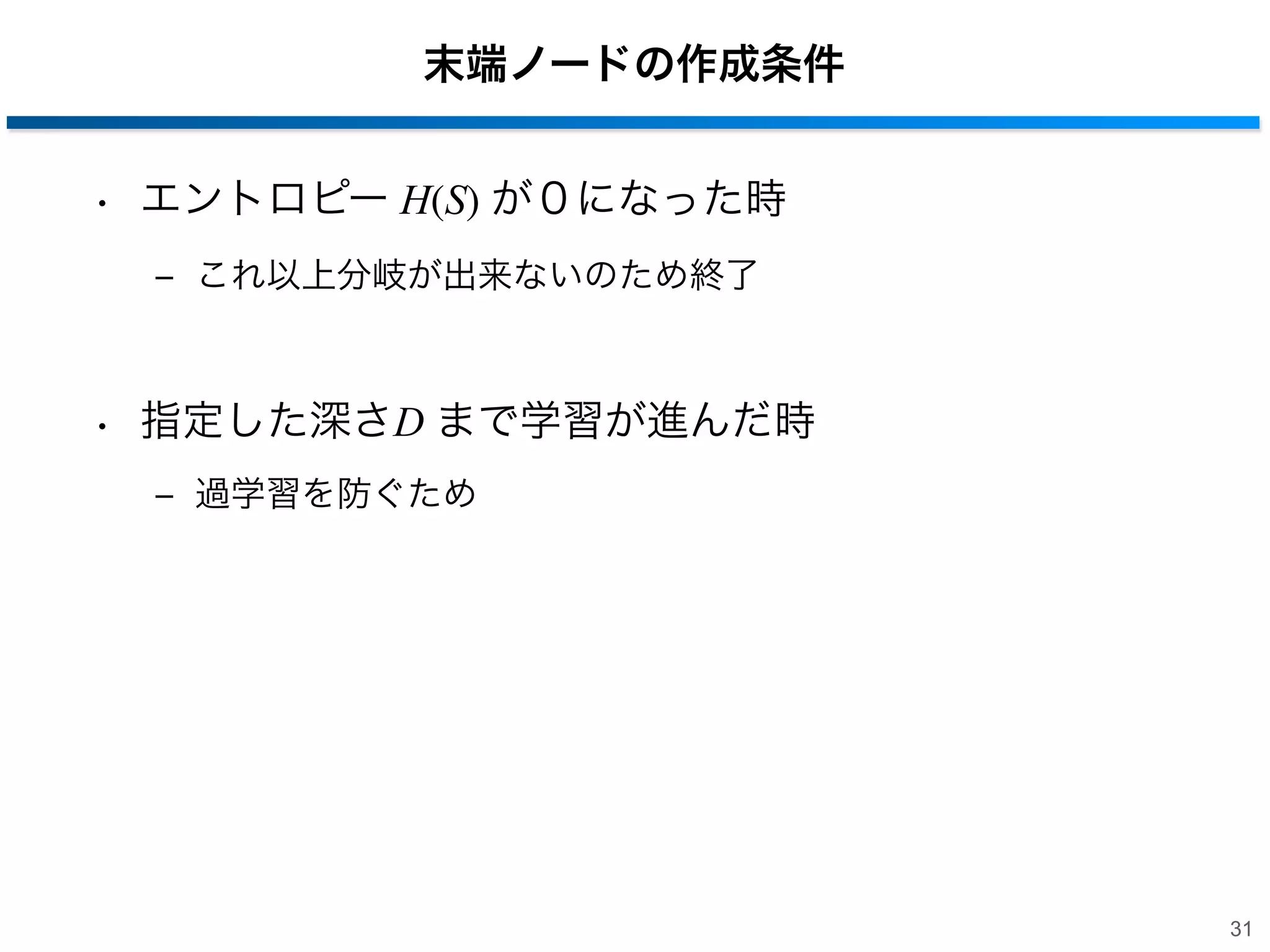

IF エントロピー H(S)=0 or 指定した深さDに達した

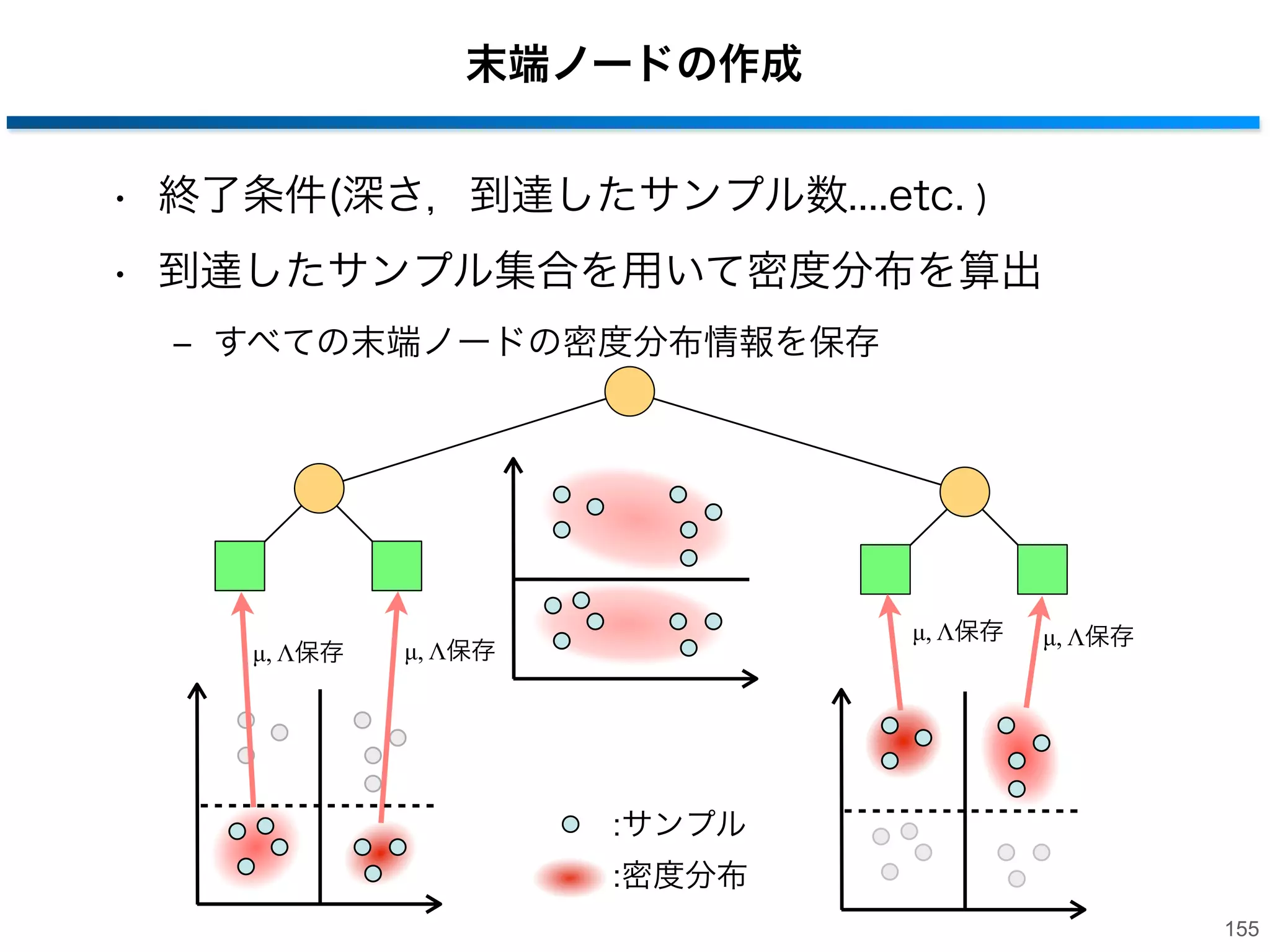

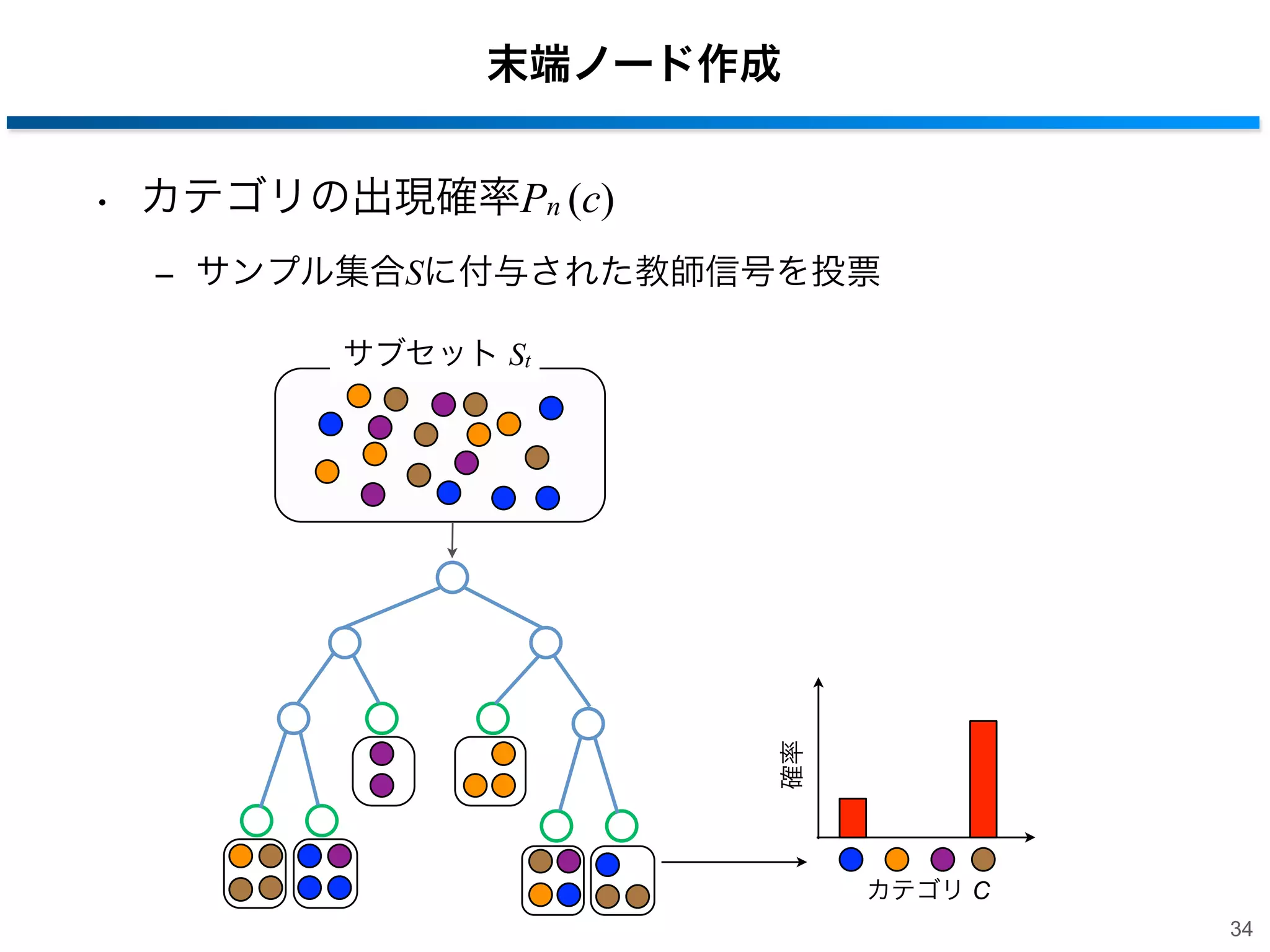

・末端ノード作成
ELSE

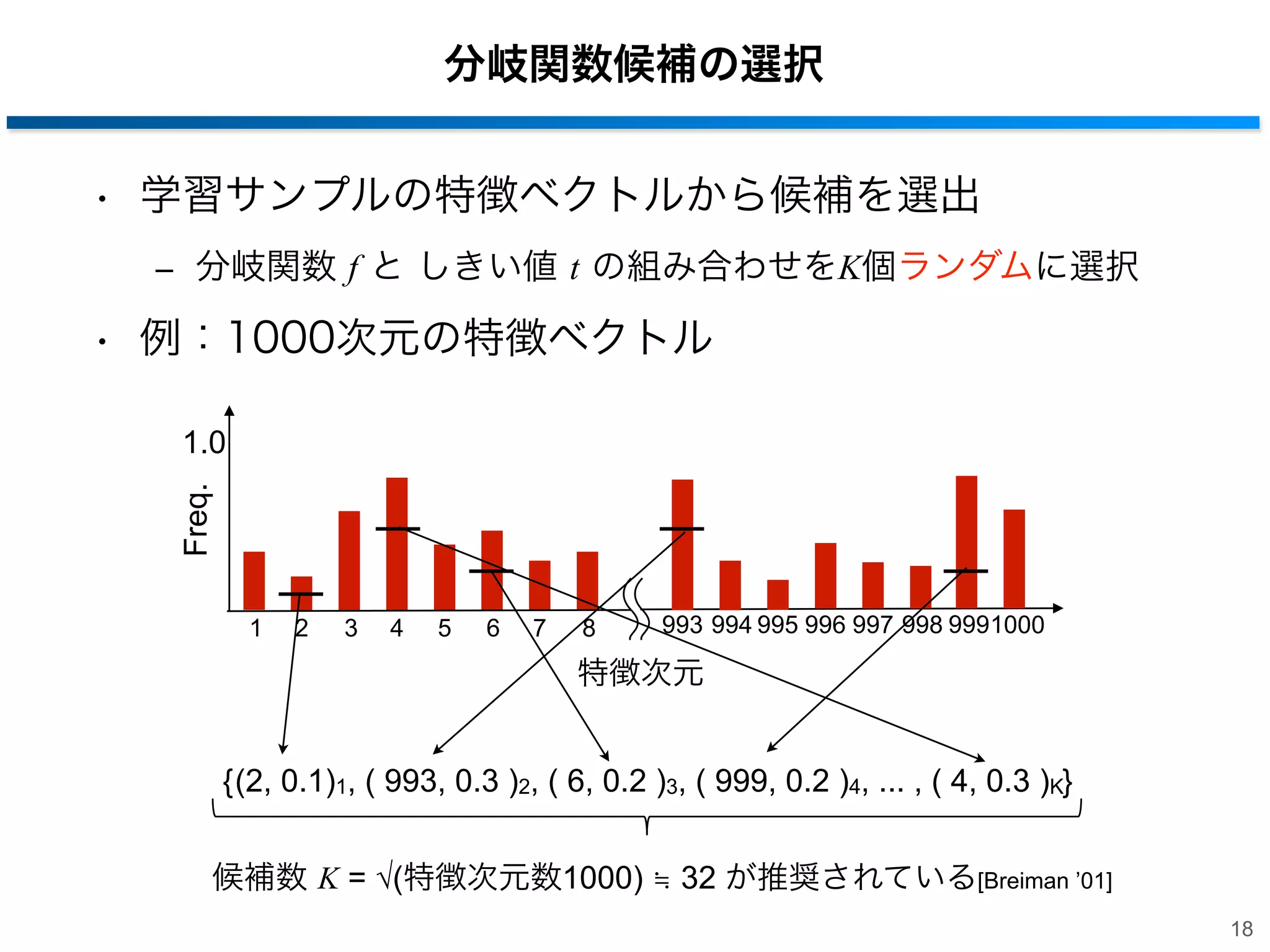

・分岐関数候補をランダムに K 個選択
・ For k = 1, 2, …, K
- 候補 k を用いてサンプルの分割
- 候補 k の情報利得算出
・最も情報利得Iが高い候補を選択
・単純ベイズ識別器作成
12

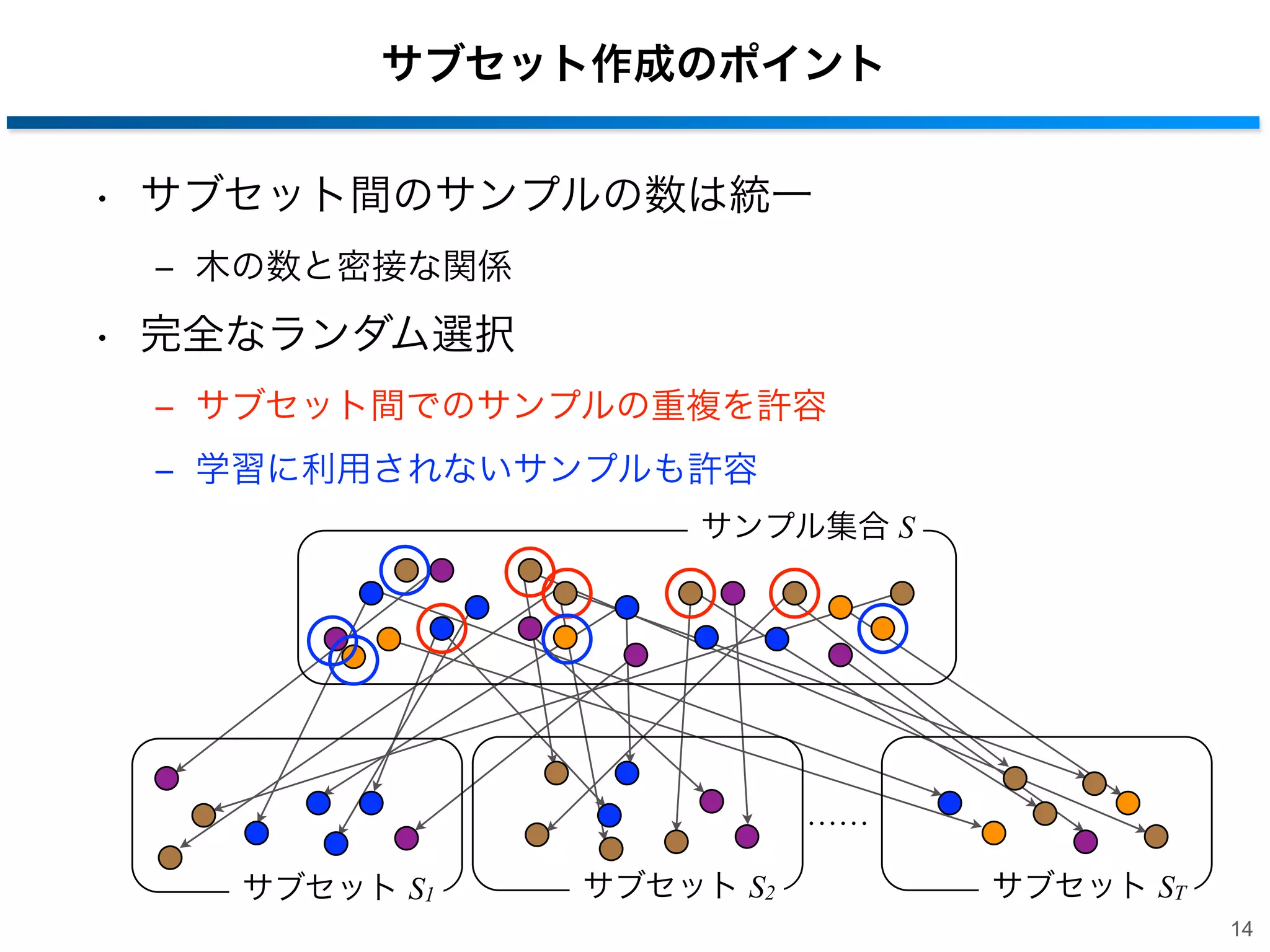

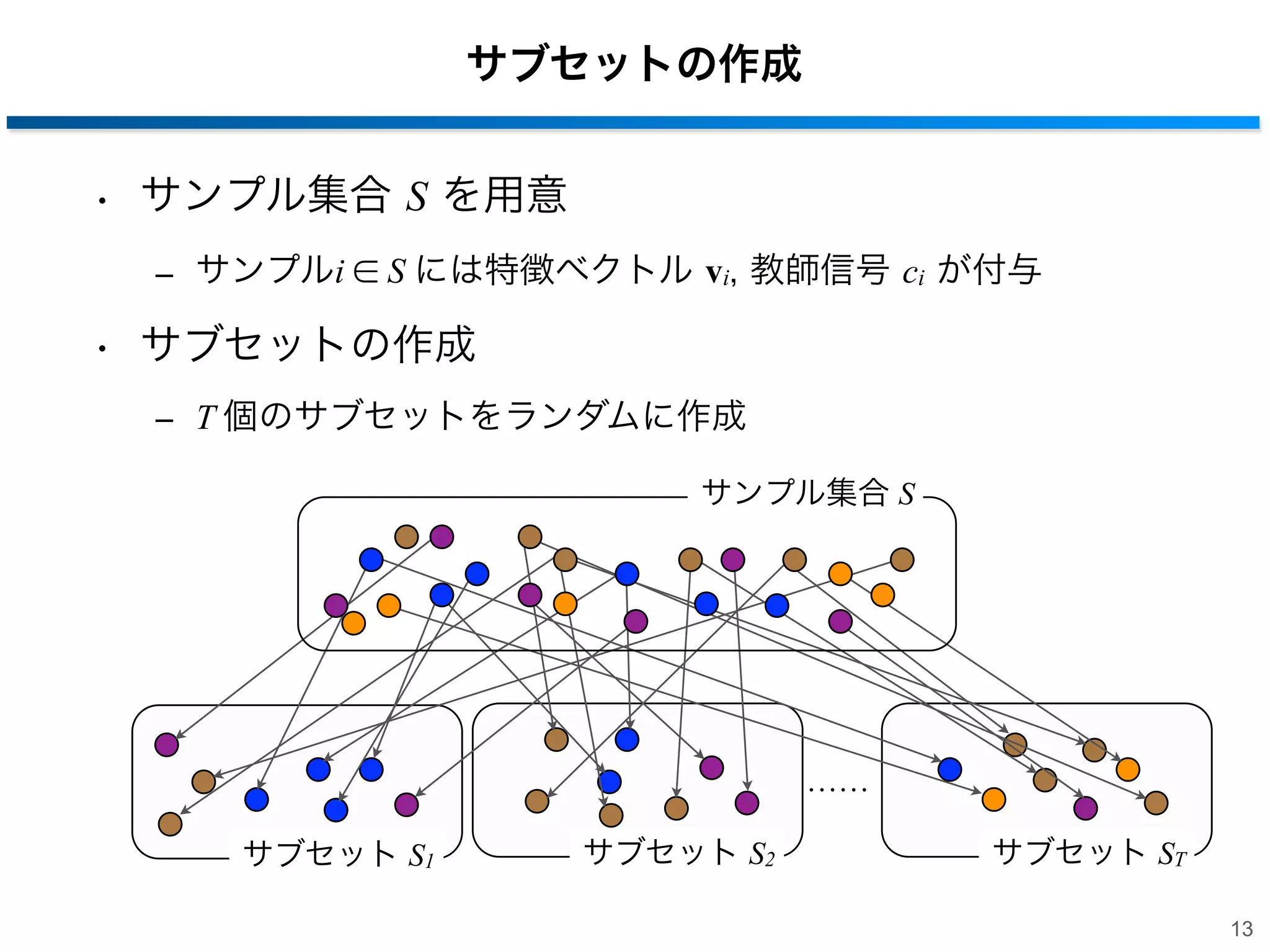

13. サブセットの作成
• サンプル集合 S を用意
‒ サンプルi ∈ S には特徴ベクトル vi, 教師信号 ci が付与
• サブセットの作成
‒ T 個のサブセットをランダムに作成
サンプル集合 S
サブセット S1
サブセット S2
サブセット ST
13

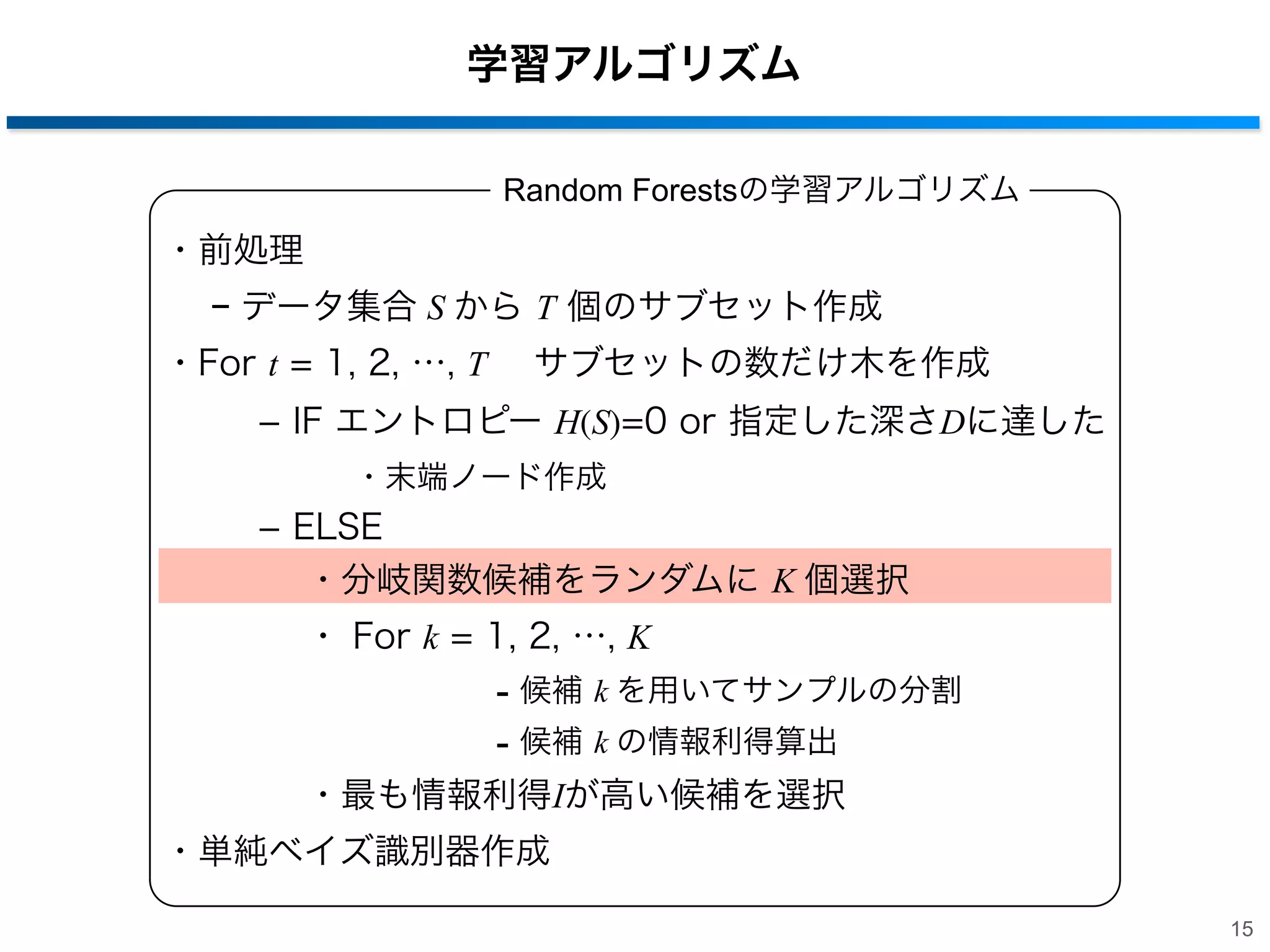

15. 学習アルゴリズム
Random Forestsの学習アルゴリズム
・前処理
− データ集合 S から T 個のサブセット作成
・For t = 1, 2, …, T サブセットの数だけ木を作成
IF エントロピー H(S)=0 or 指定した深さDに達した
・末端ノード作成
ELSE
・分岐関数候補をランダムに K 個選択
・ For k = 1, 2, …, K
- 候補 k を用いてサンプルの分割
- 候補 k の情報利得算出
・最も情報利得Iが高い候補を選択
・単純ベイズ識別器作成
15

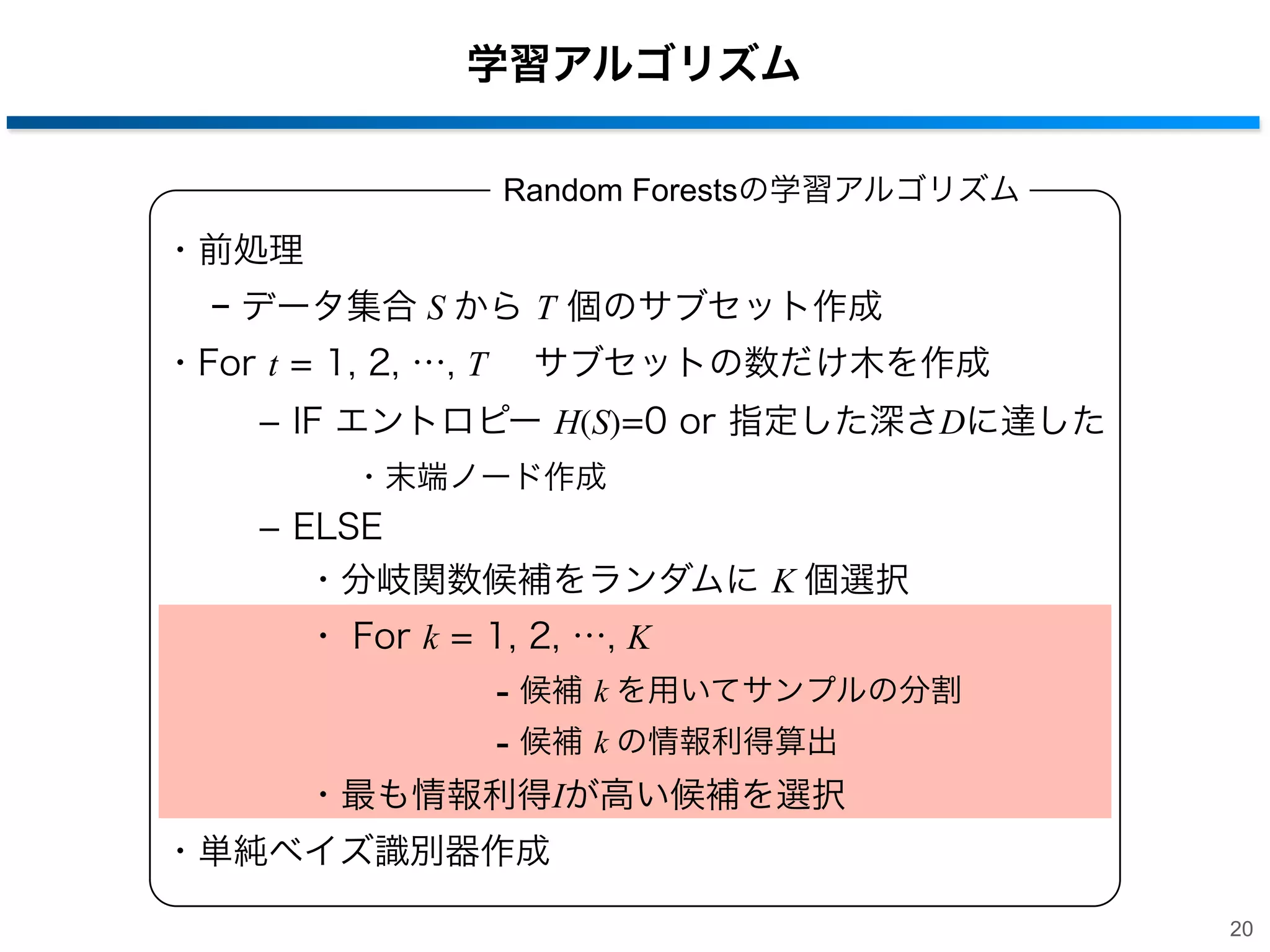

20. 学習アルゴリズム
Random Forestsの学習アルゴリズム
・前処理
− データ集合 S から T 個のサブセット作成
・For t = 1, 2, …, T サブセットの数だけ木を作成
IF エントロピー H(S)=0 or 指定した深さDに達した
・末端ノード作成
ELSE
・分岐関数候補をランダムに K 個選択
・ For k = 1, 2, …, K
- 候補 k を用いてサンプルの分割
- 候補 k の情報利得算出
・最も情報利得Iが高い候補を選択
・単純ベイズ識別器作成
20

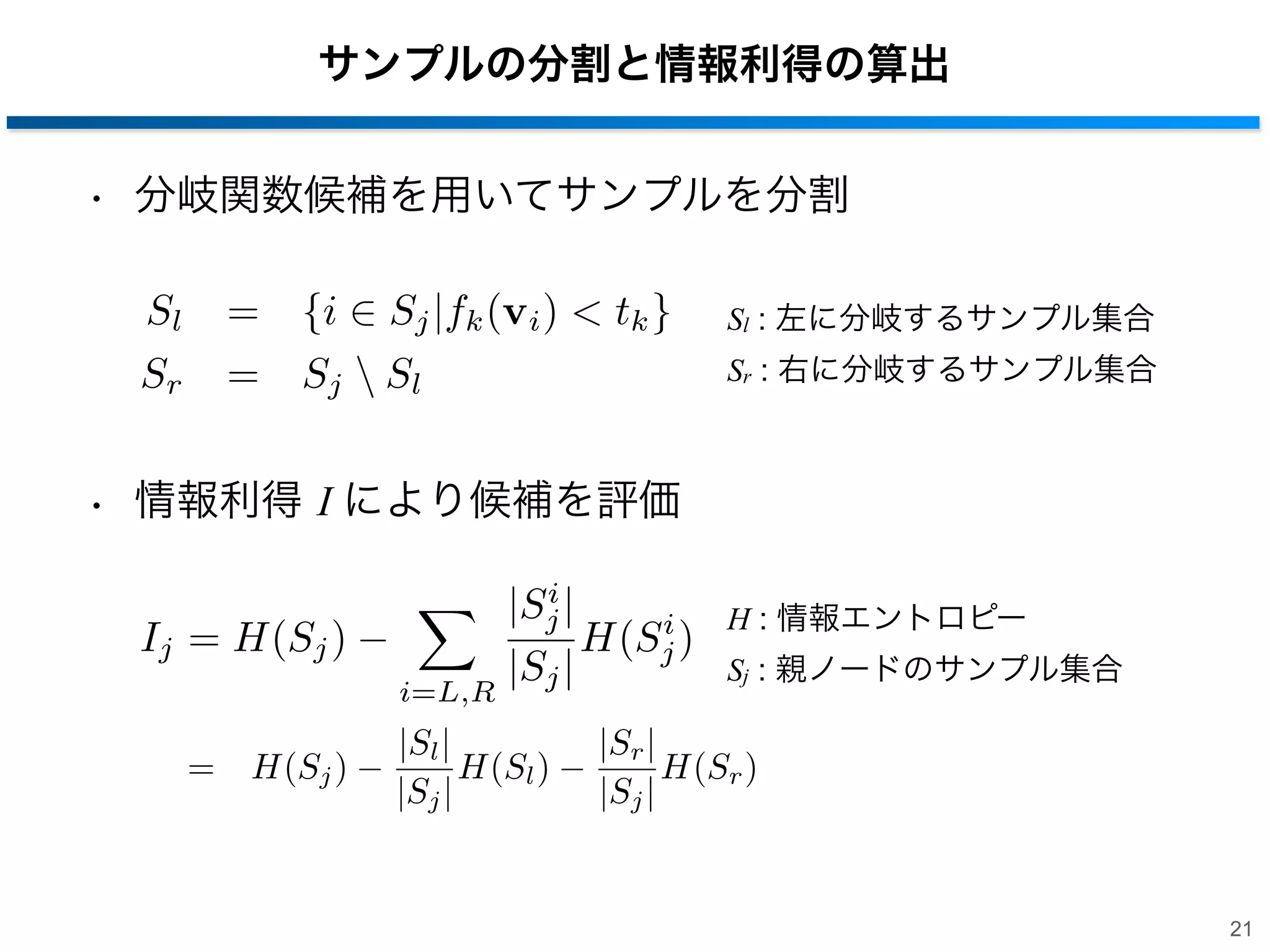

21. サンプルの分割と情報利得の算出
• 分岐関数候補を用いてサンプルを分割
Sl
Sr
= {i
Sj |fk (vi ) < tk }
= Sj Sl
Sl : 左に分岐するサンプル集合
Sr : 右に分岐するサンプル集合
• 情報利得 I により候補を評価
Ij = H(Sj )
i=L,R
= H(Sj )
i
|Sj |
i
H(Sj )
|Sj |
|Sl |
H(Sl )
|Sj |
H : 情報エントロピー
Sj : 親ノードのサンプル集合
|Sr |
H(Sr )
|Sj |
21

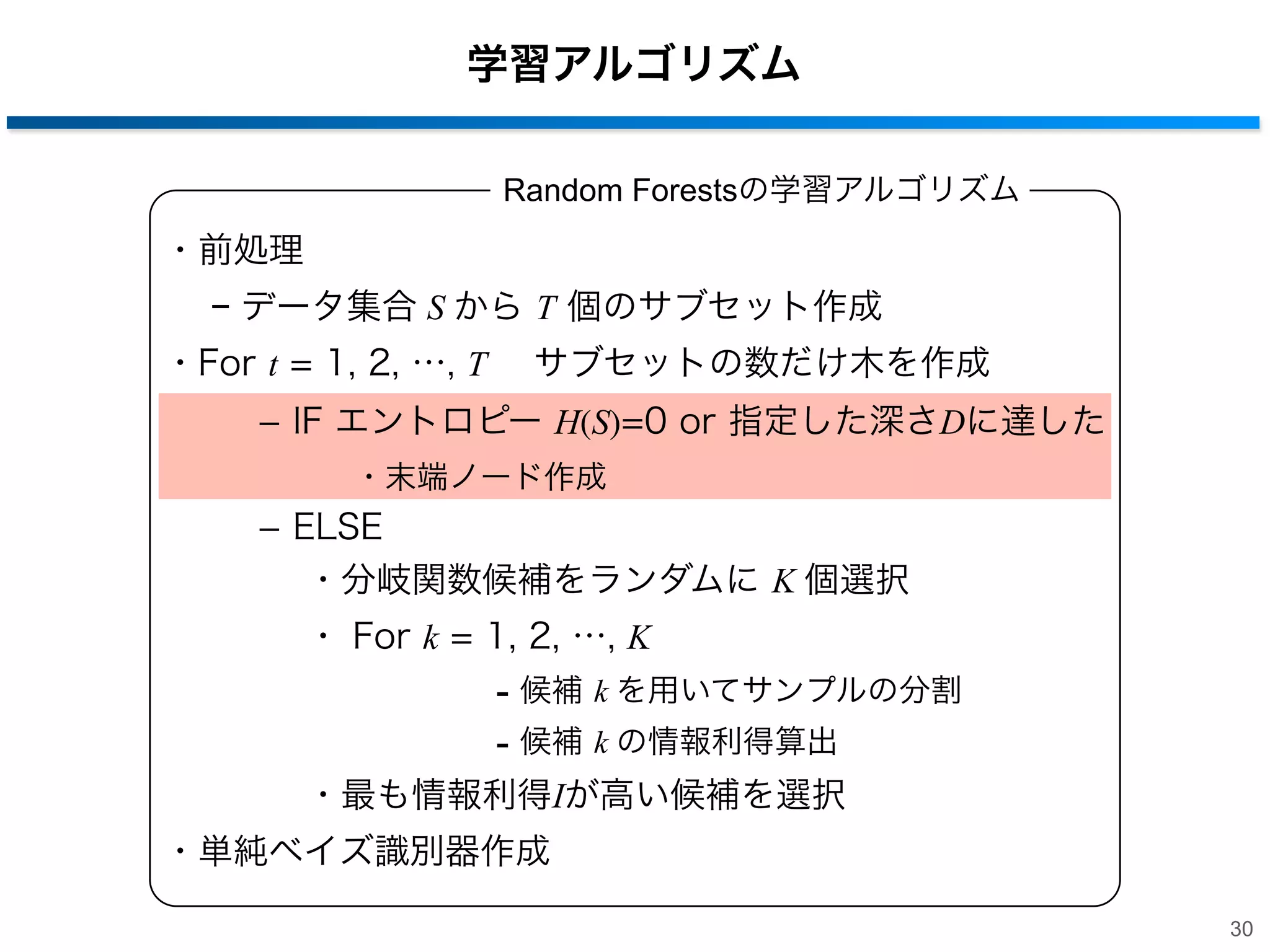

30. 学習アルゴリズム
Random Forestsの学習アルゴリズム
・前処理
− データ集合 S から T 個のサブセット作成
・For t = 1, 2, …, T サブセットの数だけ木を作成
IF エントロピー H(S)=0 or 指定した深さDに達した
・末端ノード作成
ELSE
・分岐関数候補をランダムに K 個選択
・ For k = 1, 2, …, K
- 候補 k を用いてサンプルの分割
- 候補 k の情報利得算出
・最も情報利得Iが高い候補を選択
・単純ベイズ識別器作成
30

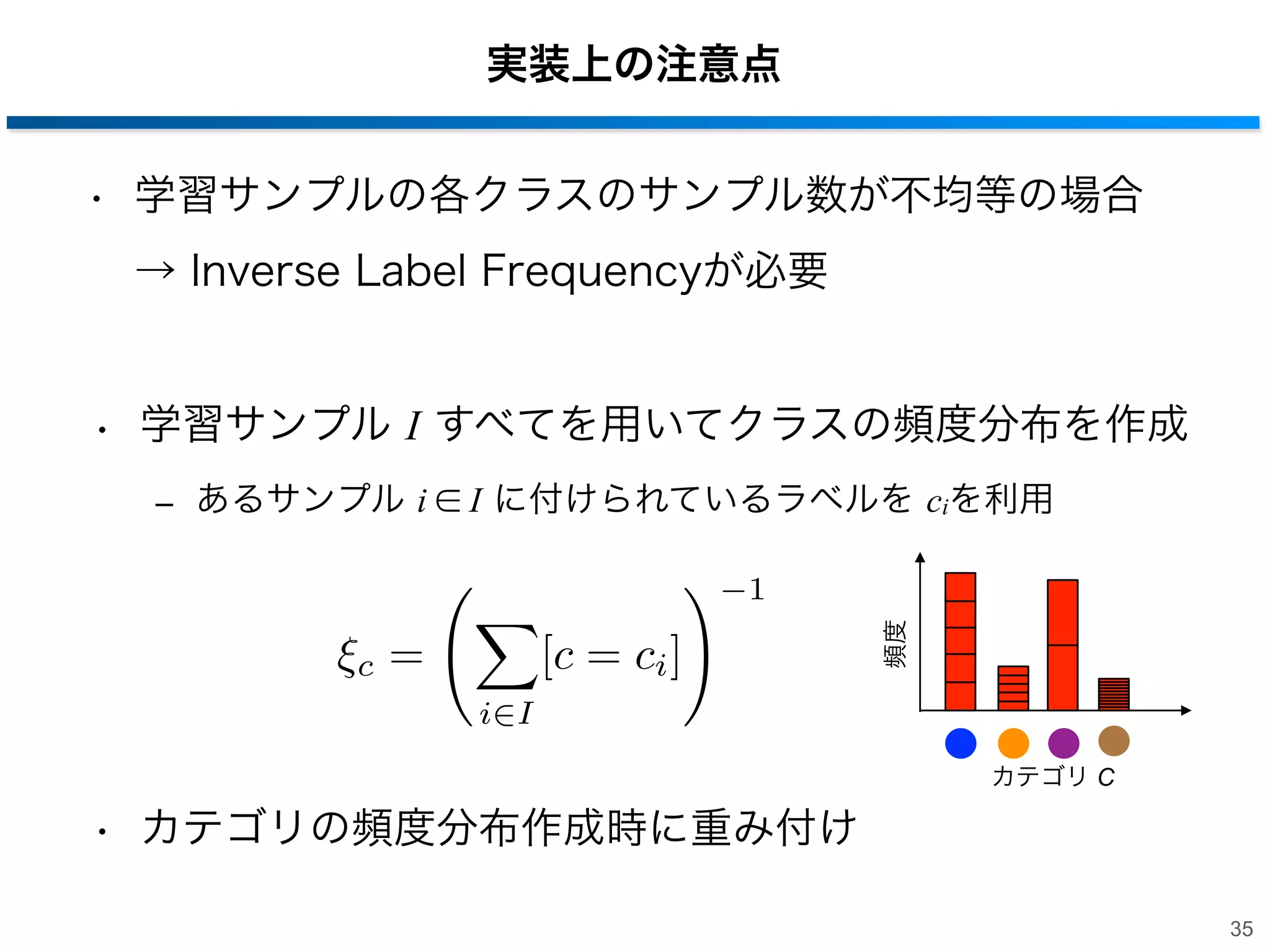

35. 実装上の注意点
• 学習サンプルの各クラスのサンプル数が不均等の場合
→ Inverse Label Frequencyが必要
• 学習サンプル I すべてを用いてクラスの頻度分布を作成
‒ あるサンプル i ∈ I に付けられているラベルを ciを利用
c
=
[c = ci ]
頻度
1
i I
カテゴリ C
• カテゴリの頻度分布作成時に重み付け
35

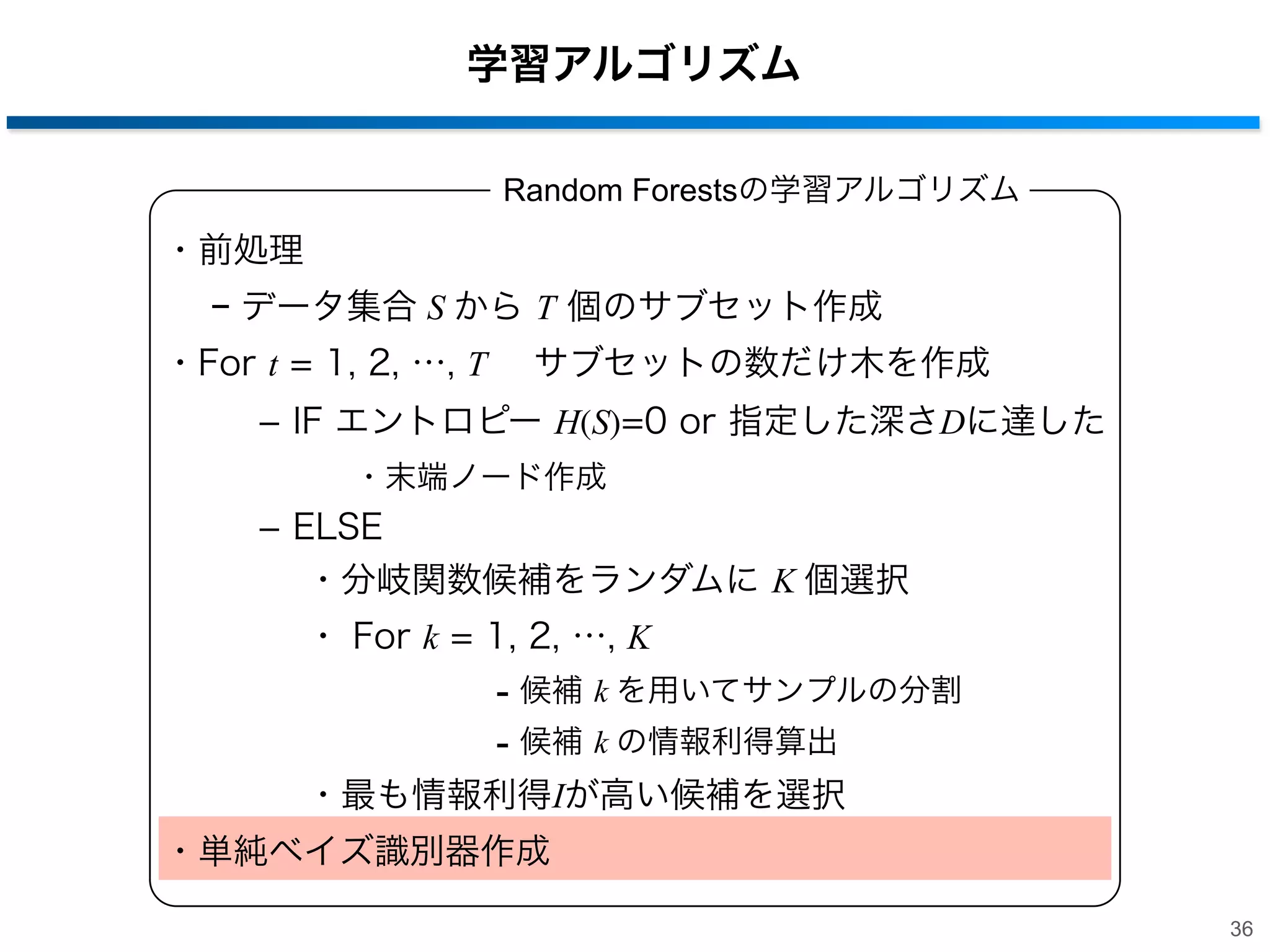

36. 学習アルゴリズム
Random Forestsの学習アルゴリズム
・前処理
− データ集合 S から T 個のサブセット作成
・For t = 1, 2, …, T サブセットの数だけ木を作成
IF エントロピー H(S)=0 or 指定した深さDに達した
・末端ノード作成
ELSE
・分岐関数候補をランダムに K 個選択
・ For k = 1, 2, …, K
- 候補 k を用いてサンプルの分割
- 候補 k の情報利得算出
・最も情報利得Iが高い候補を選択
・単純ベイズ識別器作成
36

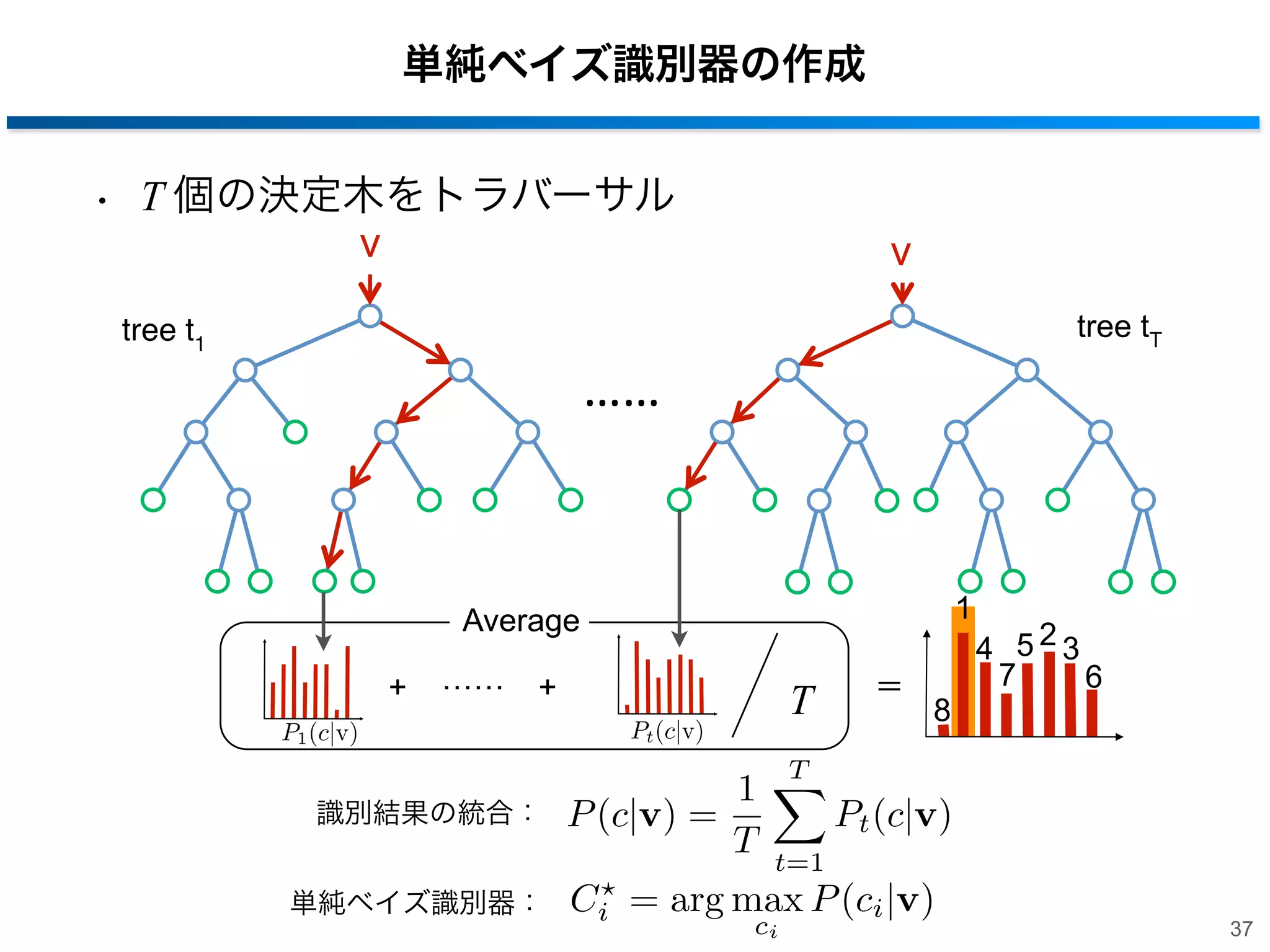

37. 単純ベイズ識別器の作成
• T 個の決定木をトラバーサル
v
v
tree tT
tree t1
……
1
Average
+
……
+
P1 (c|v)
識別結果の統合:
単純ベイズ識別器:
T
Pt (c|v)
1
P (c|v) =
T
=
8
4 523
7
6
T
Pt (c|v)
t=1
Ci = arg max P (ci |v)
ci
37
96. CL
V (x) =
d
t t=1
p(E(x)|I(y); {Tt }T )
t=1
(13)

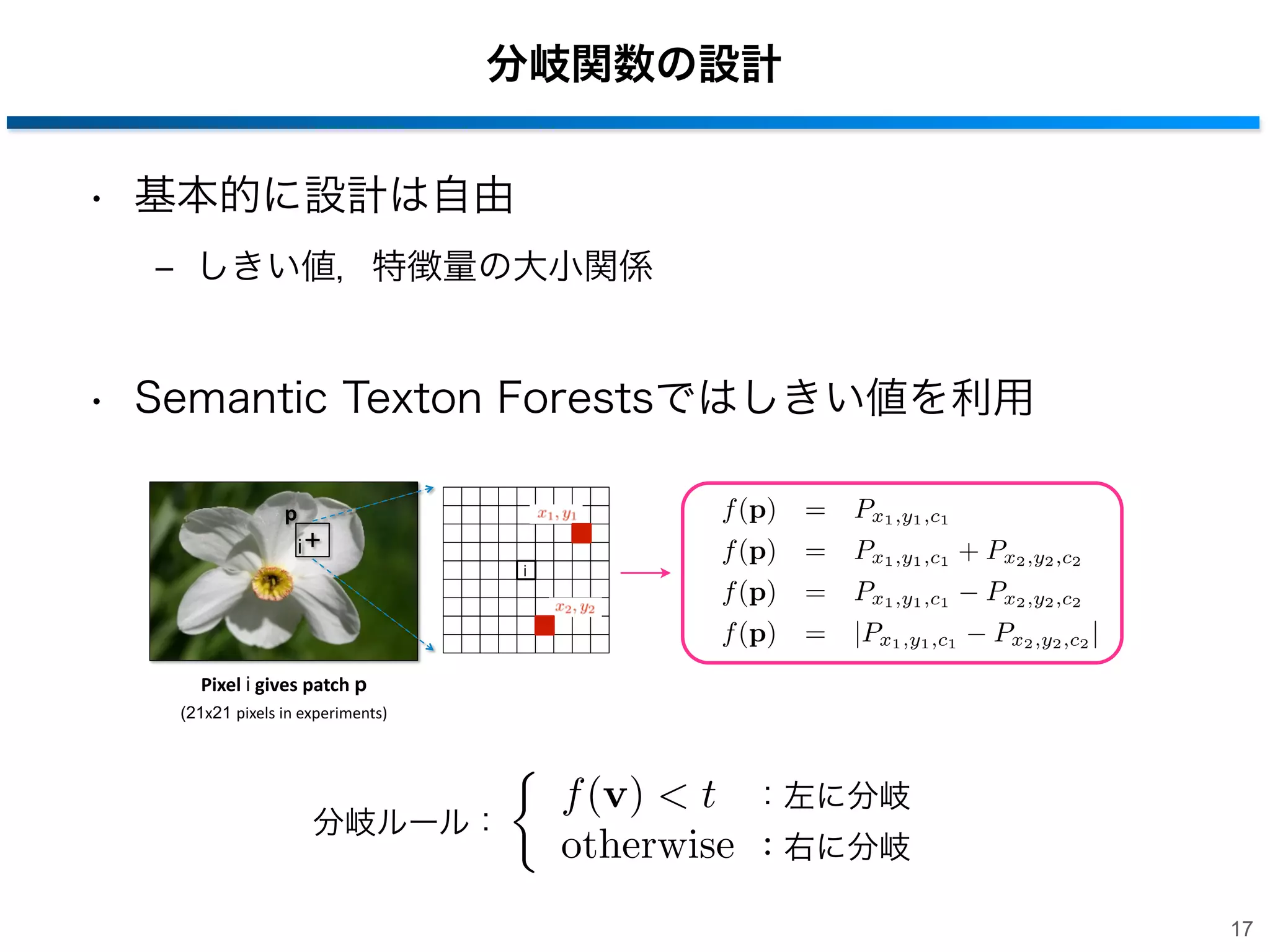

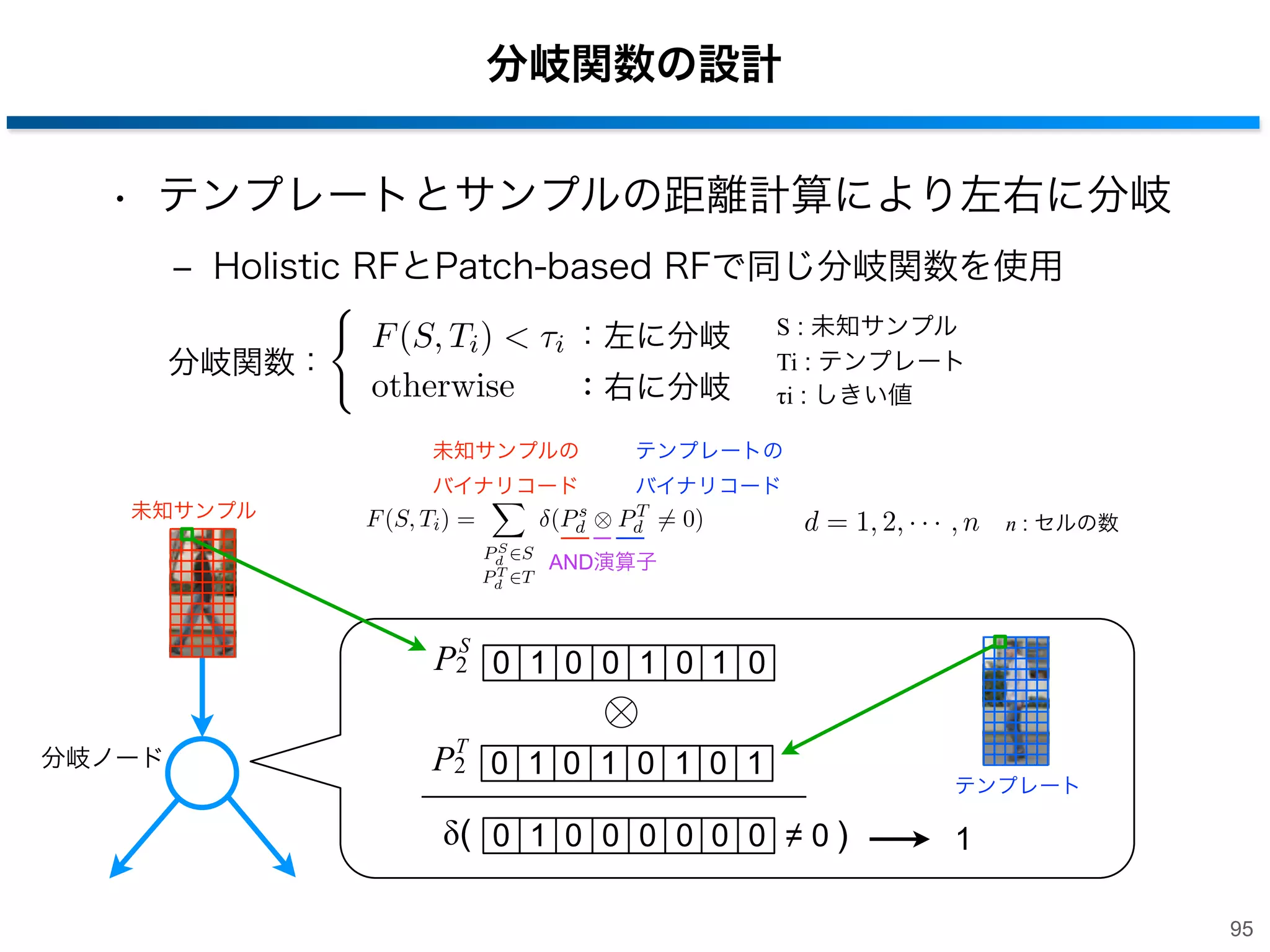

分岐関数の設計
F (S, Ti ) τi
F (S, Ti ) τi
otherwise
CL
otherwise
テンプレートとサンプルの距離計算により左右に分岐
F (S, T ) τ
•
i
i
(14)
(14)
otherwise
‒ Holistic RFとPatch-based RFで同じ分岐関数を使用
T
SN
t
T
F (S, Ti ) τi :左に分岐
otherwise
:右に分岐
SN
t
分岐関数:
SP P
t S
t
未知サンプルの
S : 未知サンプル
Ti : テンプレート
τi : しきい値
(14)
テンプレートの
バイナリコード
未知サンプル
バイナリコード
T
P T = = 0) 1, 2, · · , n
FF (S,T ))=
(S, Ti =
δ(P ⊗ dPd 0) d = d = ·1, 2, · · ·
S
Pd
S ∈S
Pd ∈S AND演算子
T ∈T
Pd
T
Pd ∈T
S
Pd
FP(S, T ) =
T
d
S
分岐ノード P1
T
P1
S
P2
T
P2
ss
δ(Pd d
⊗
,n
(15)
n : セルの数
S
P2 0 1 0 0 1 0 1 0
s
T
δ(Pd ⊗ Pd = 0) d = 1, 2, · · ·
T
P2 0 1 0 1 0 1 0 1
S
Pd ∈S
テンプレート
T
Pd ∈T 0 1 0 0 0 0 0 0 ≠ 0 )
δ(
1
(15)
,n
95

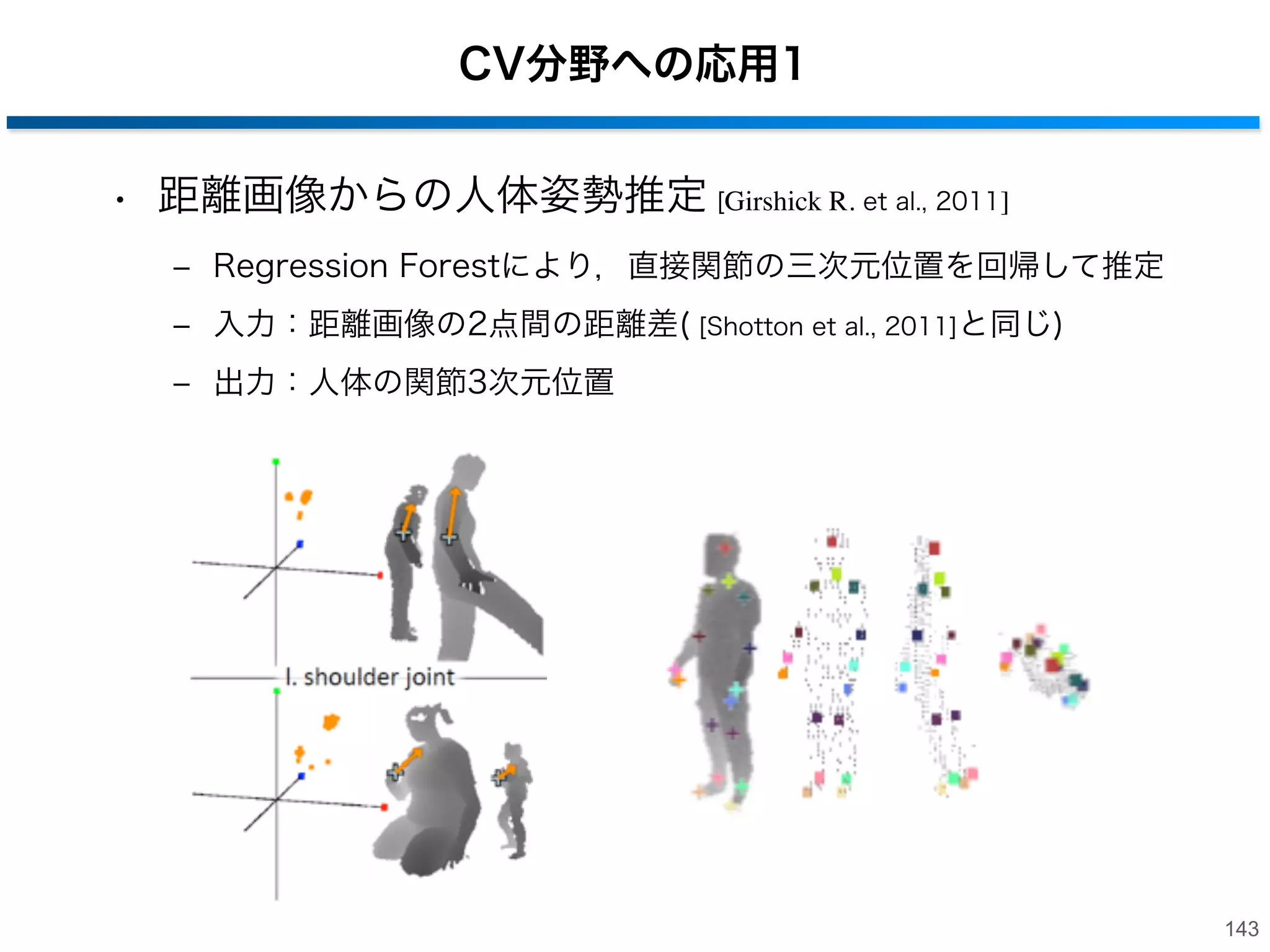

144. CV分野への応用1

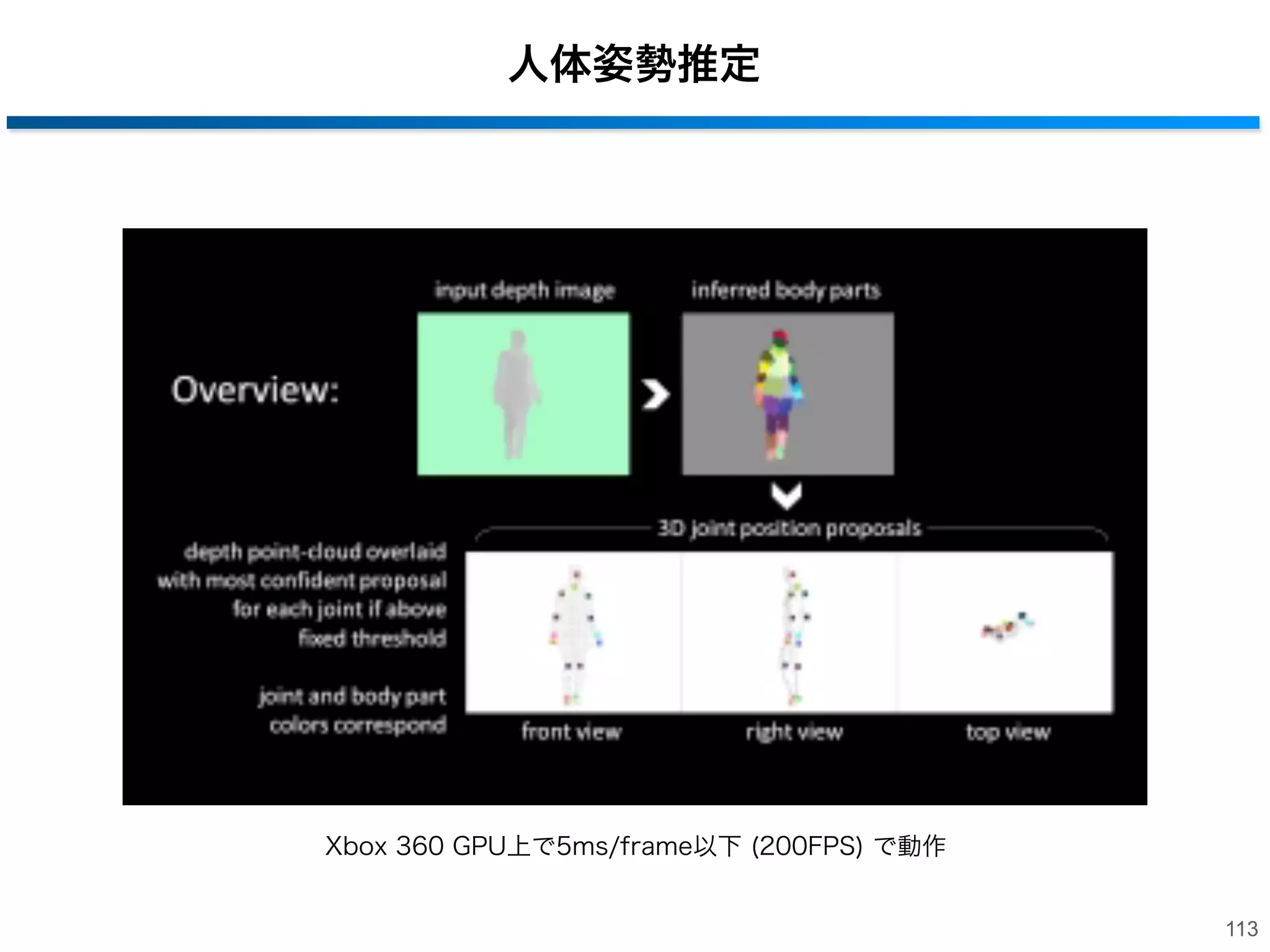

• 距離画像からの人体姿勢推定 [Girshick R. et al., 2011]
‒ Regression Forestにより,直接関節の三次元位置を回帰して推定
‒ 入力:距離画像の2点間の距離差( [Shotton et al., 2011]と同じ)
‒ 出力:人体の関節3次元位置
143

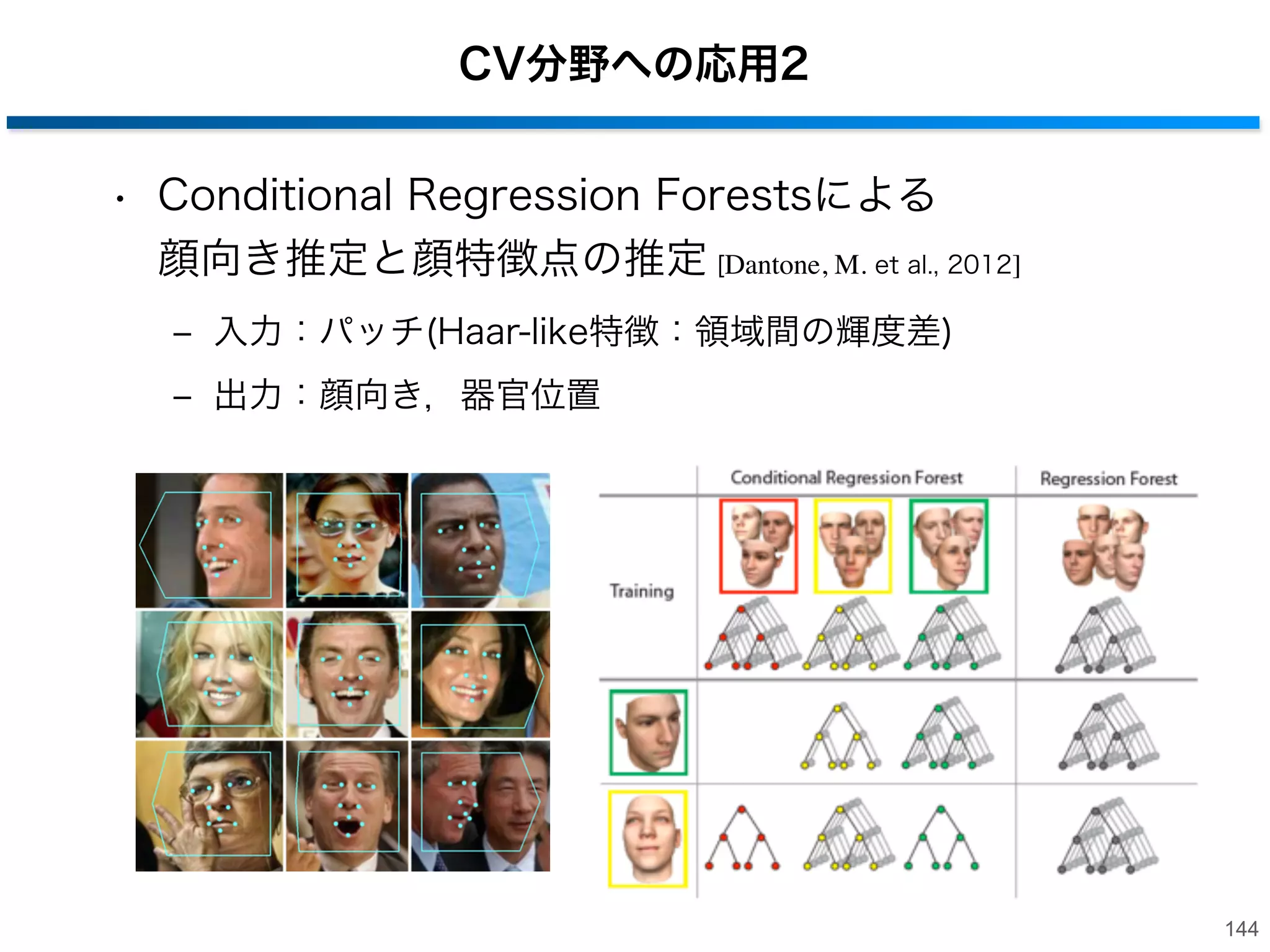

145. CV分野への応用2
• Conditional Regression Forestsによる
顔向き推定と顔特徴点の推定 [Dantone, M. et al., 2012]
etection using Conditional Regression Forests
‒ 入力:パッチ(Haar-like特徴:領域間の輝度差)
1,3
Gall1,2
Gabriele Fanelli1
for Intelligent Systems, Germany
ch
3
Luc Van Gool
KU Leuven, Belgium
‒ 出力:顔向き,器官位置
vangool@esat.kuleuven.be
jgall@tue.mpg.de
mages is a
ethods that
es. Here we
ask. While
acial image
m the entire
he relations
xperiments,
emonstrate
regression
aluated the
e Wild [20]
ieved while
like human
ature point
Figure 1. Our approach estimates facial feature points from 2D
images in real-time.
spatial relations between image patches and facial features
144

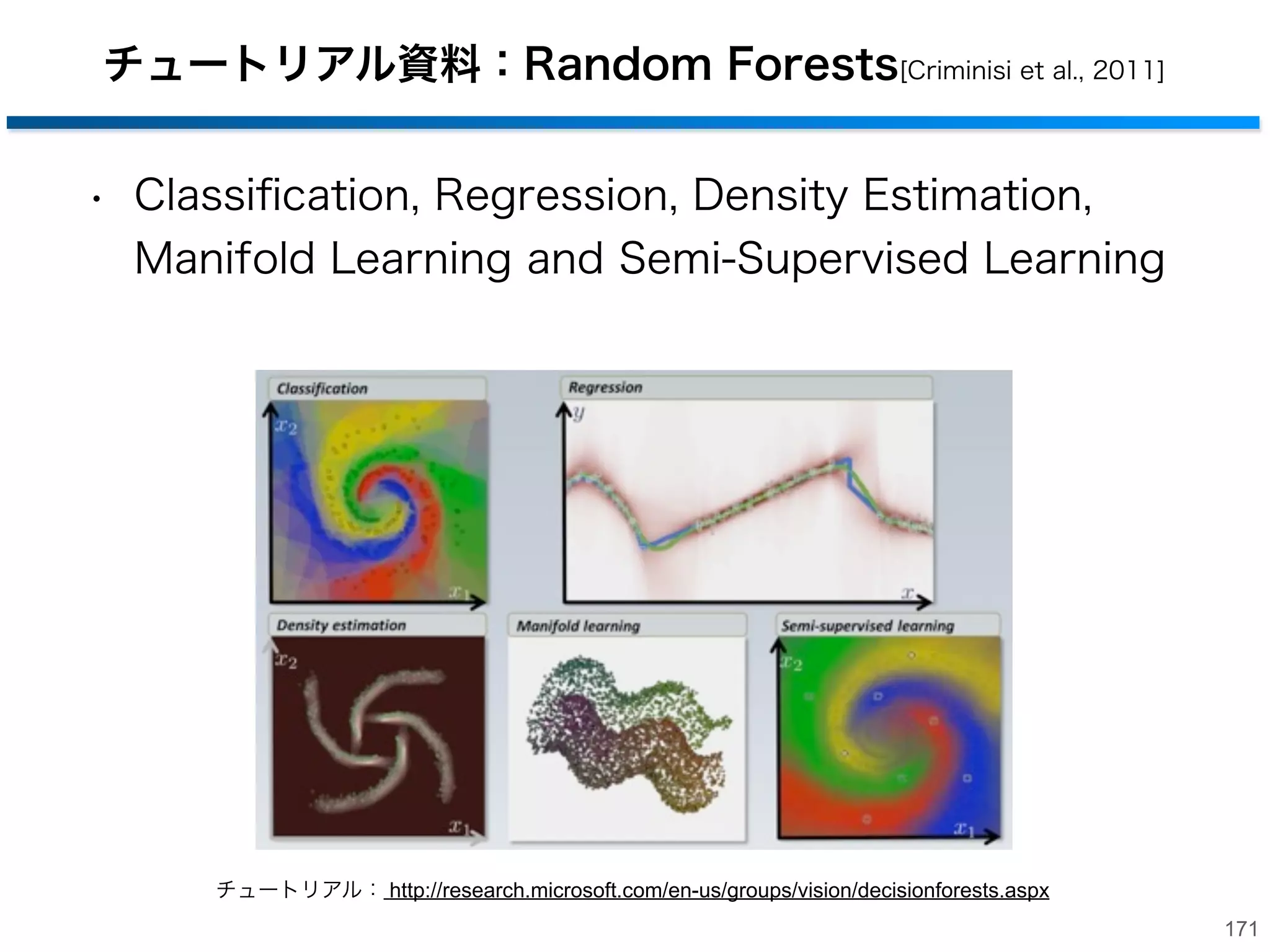

172. チュートリアル資料:Random Forests[Criminisi et al., 2011]
• Classification, Regression, Density Estimation,
Manifold Learning and Semi-Supervised Learning
チュートリアル: http://research.microsoft.com/en-us/groups/vision/decisionforests.aspx
171

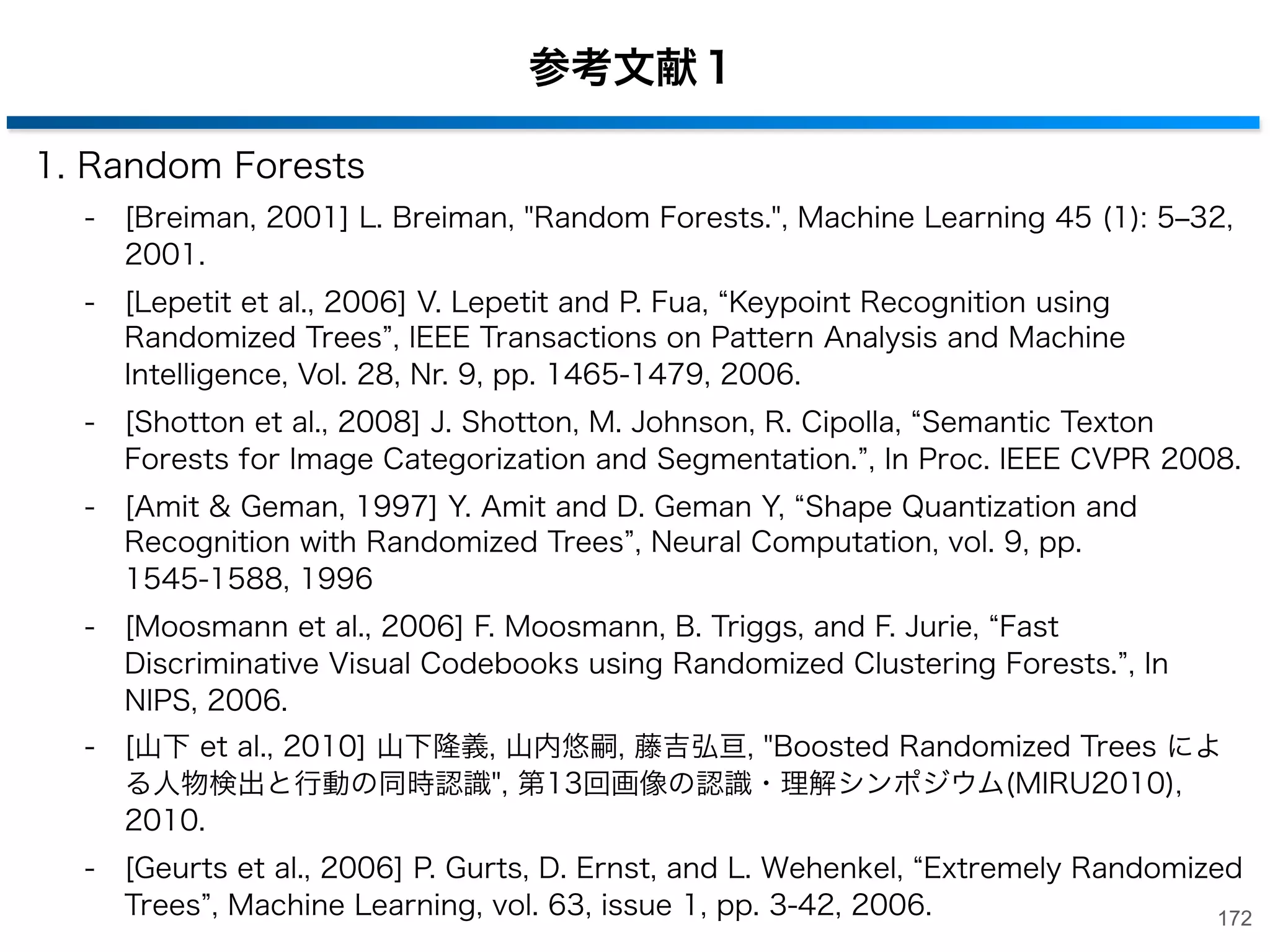

173. 参考文献1
1. Random Forests
-
[Breiman, 2001] L. Breiman, Random Forests., Machine Learning 45 (1): 5‒32,
2001.
-
[Lepetit et al., 2006] V. Lepetit and P. Fua, Keypoint Recognition using
Randomized Trees , IEEE Transactions on Pattern Analysis and Machine
Intelligence, Vol. 28, Nr. 9, pp. 1465-1479, 2006.
-
[Shotton et al., 2008] J. Shotton, M. Johnson, R. Cipolla, Semantic Texton
Forests for Image Categorization and Segmentation. , In Proc. IEEE CVPR 2008.
-
[Amit Geman, 1997] Y. Amit and D. Geman Y, Shape Quantization and
Recognition with Randomized Trees , Neural Computation, vol. 9, pp.
1545-1588, 1996
-
[Moosmann et al., 2006] F. Moosmann, B. Triggs, and F. Jurie, Fast
Discriminative Visual Codebooks using Randomized Clustering Forests. , In
NIPS, 2006.
-
[山下 et al., 2010] 山下隆義, 山内悠嗣, 藤吉弘亘, Boosted Randomized Trees によ
る人物検出と行動の同時認識, 第13回画像の認識・理解シンポジウム(MIRU2010),
2010.
-
[Geurts et al., 2006] P. Gurts, D. Ernst, and L. Wehenkel, Extremely Randomized
Trees , Machine Learning, vol. 63, issue 1, pp. 3-42, 2006.
172

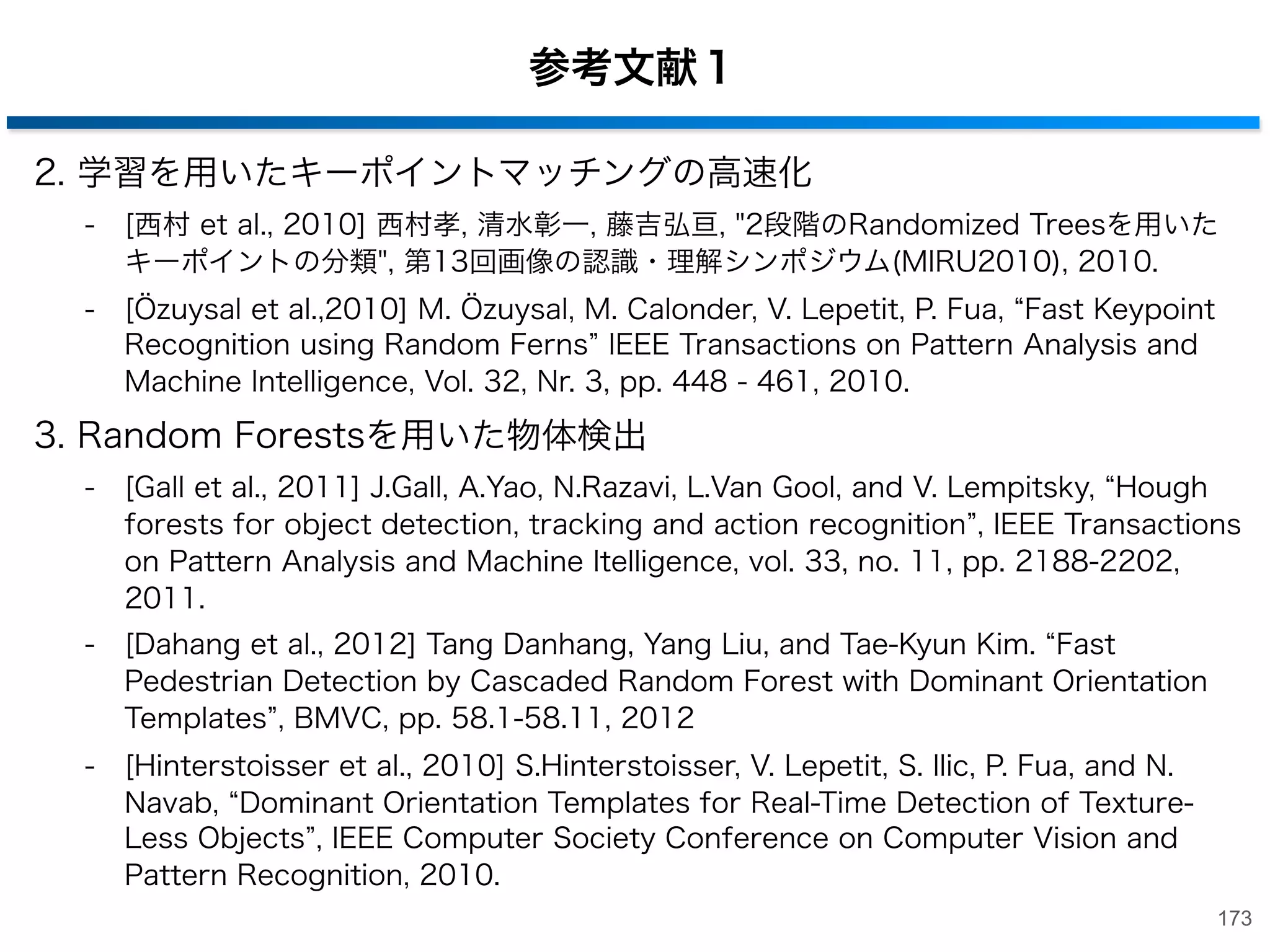

174. 参考文献1

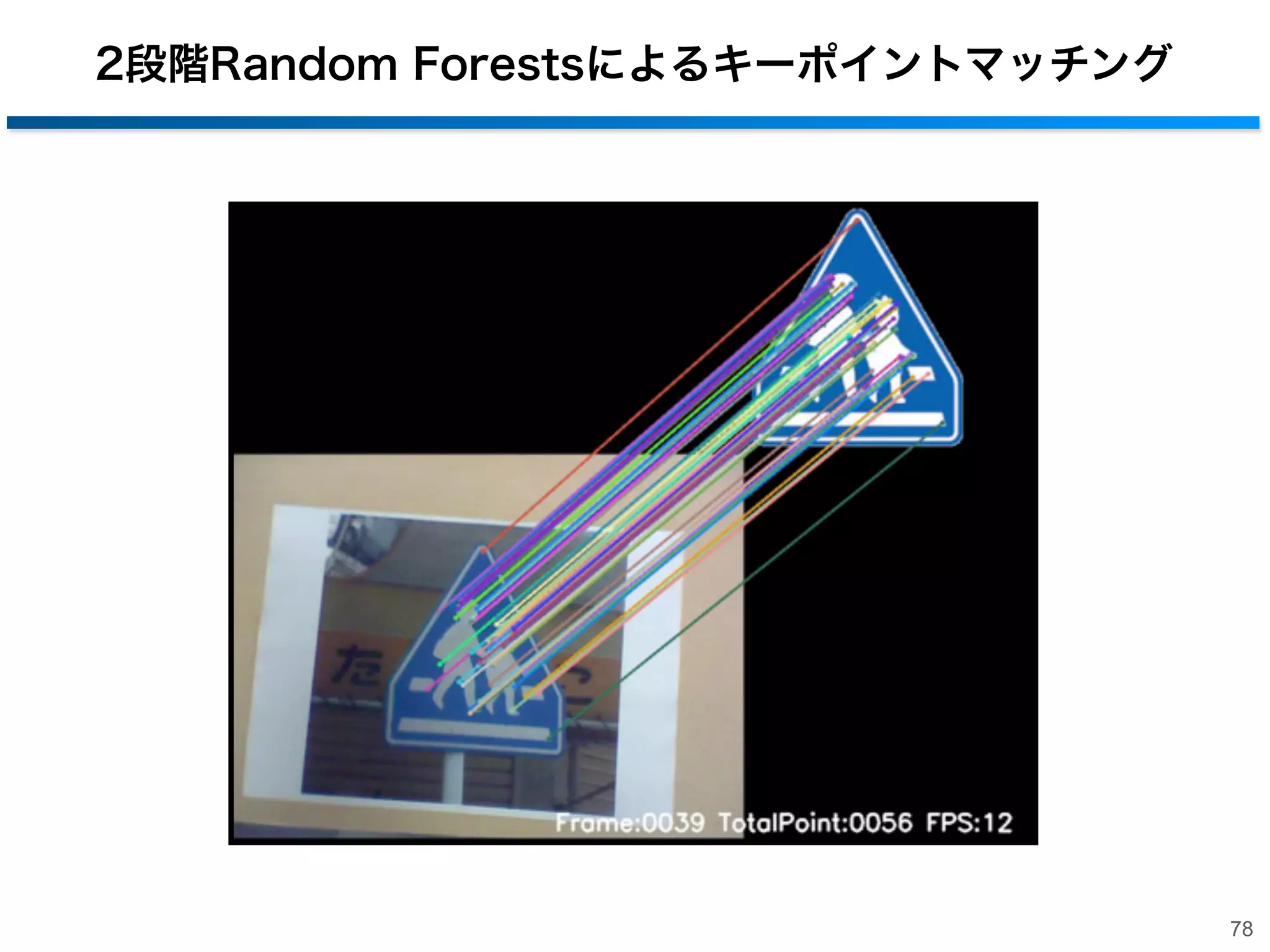

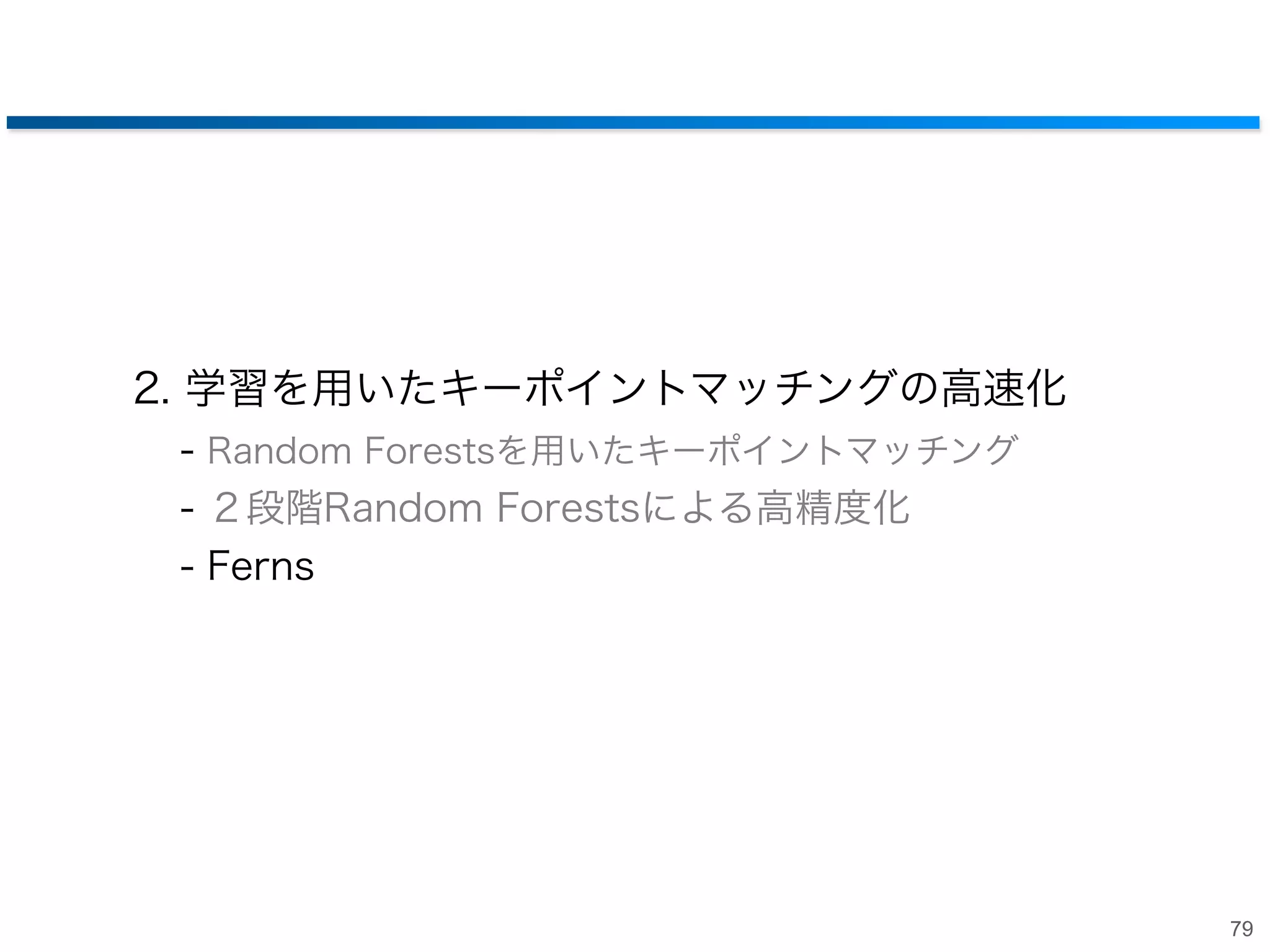

2. 学習を用いたキーポイントマッチングの高速化
-
[西村 et al., 2010] 西村孝, 清水彰一, 藤吉弘亘, 2段階のRandomized Treesを用いた
キーポイントの分類, 第13回画像の認識・理解シンポジウム(MIRU2010), 2010.
-

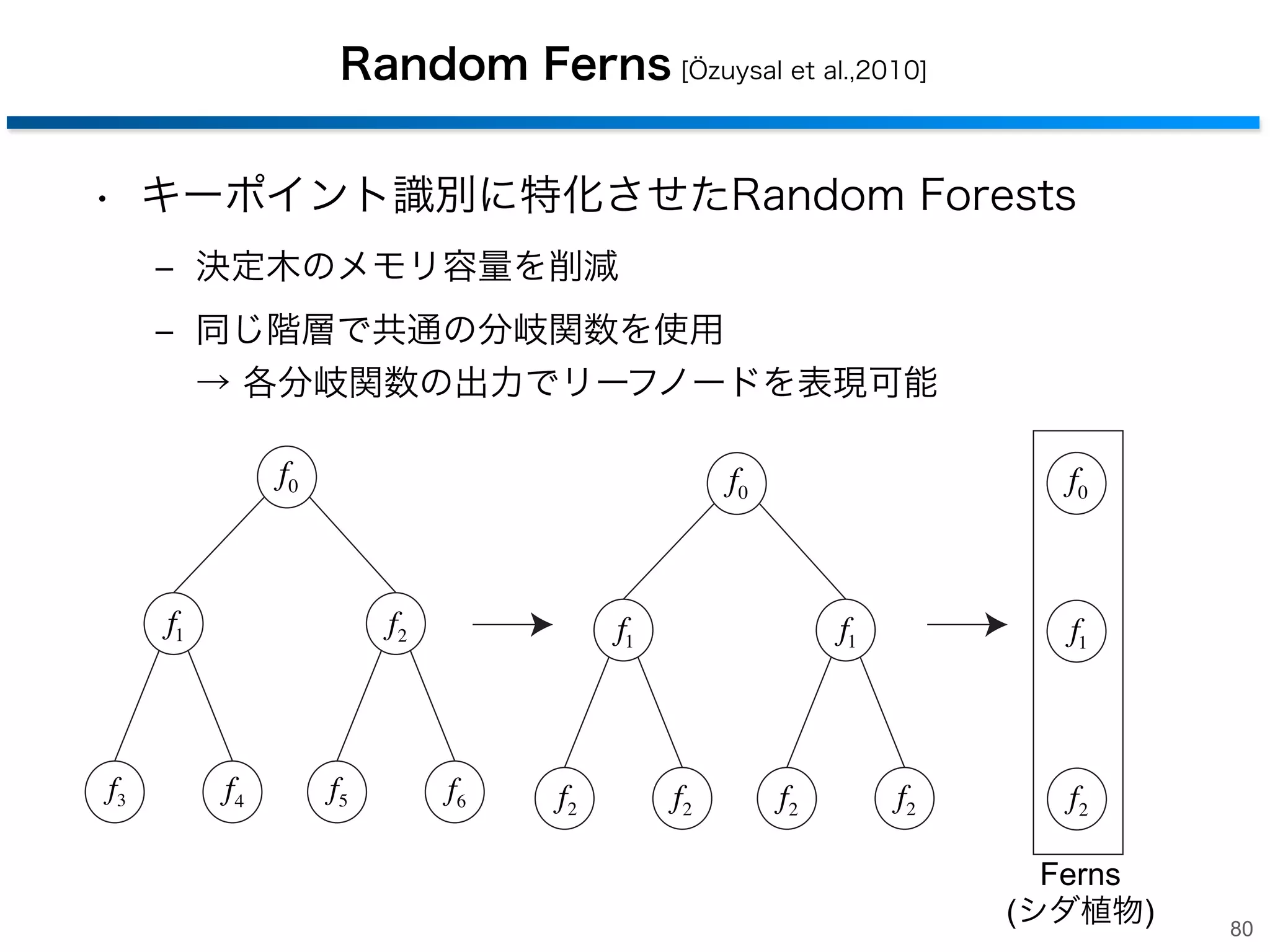

[Özuysal et al.,2010] M. Özuysal, M. Calonder, V. Lepetit, P. Fua, Fast Keypoint
Recognition using Random Ferns IEEE Transactions on Pattern Analysis and
Machine Intelligence, Vol. 32, Nr. 3, pp. 448 - 461, 2010.

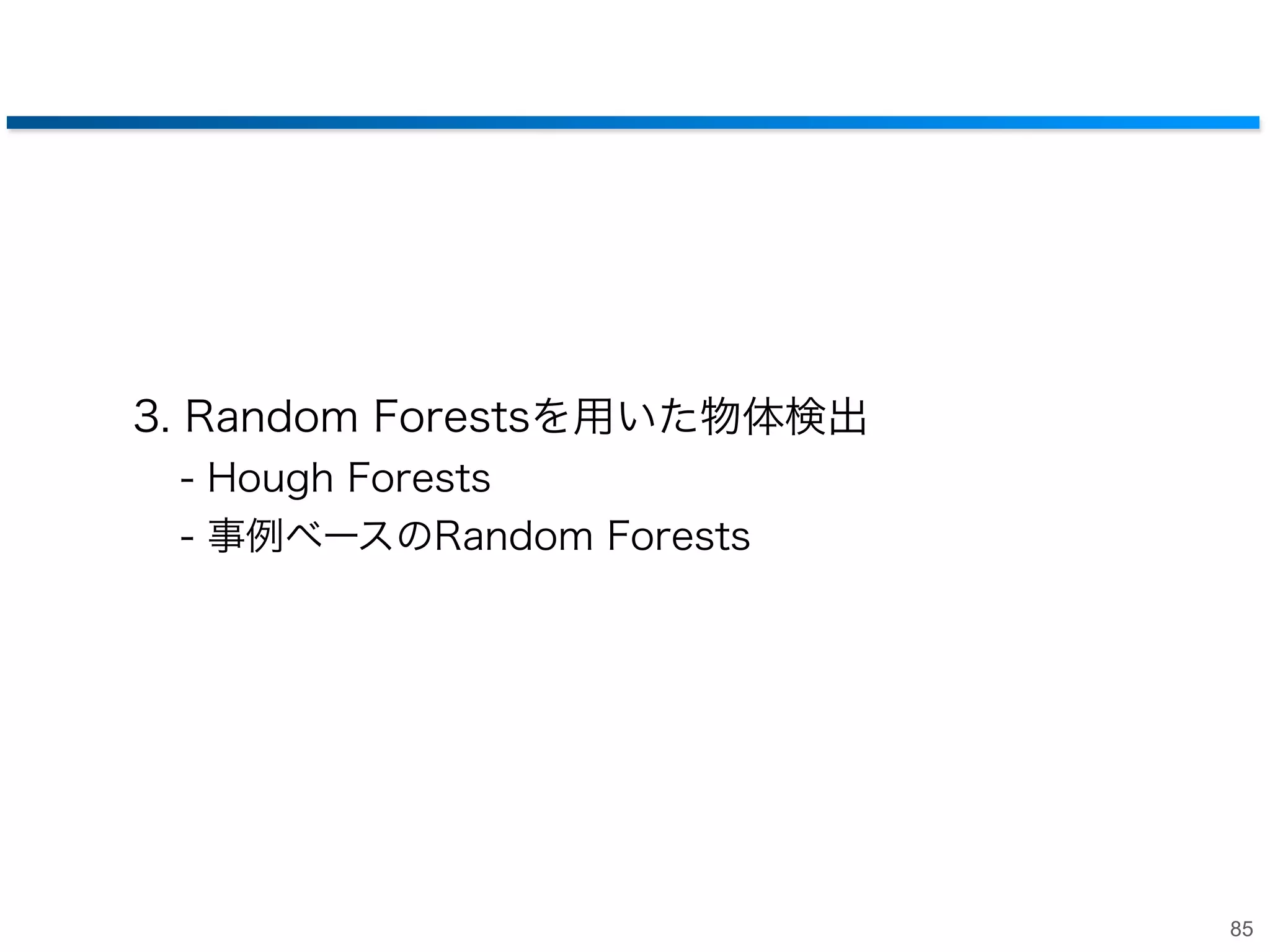

3. Random Forestsを用いた物体検出
-
[Gall et al., 2011] J.Gall, A.Yao, N.Razavi, L.Van Gool, and V. Lempitsky, Hough
forests for object detection, tracking and action recognition , IEEE Transactions
on Pattern Analysis and Machine Itelligence, vol. 33, no. 11, pp. 2188-2202,
2011.
-
[Dahang et al., 2012] Tang Danhang, Yang Liu, and Tae-Kyun Kim. Fast
Pedestrian Detection by Cascaded Random Forest with Dominant Orientation
Templates , BMVC, pp. 58.1-58.11, 2012
-
[Hinterstoisser et al., 2010] S.Hinterstoisser, V. Lepetit, S. llic, P. Fua, and N.
Navab, Dominant Orientation Templates for Real-Time Detection of TextureLess Objects , IEEE Computer Society Conference on Computer Vision and
Pattern Recognition, 2010.
173

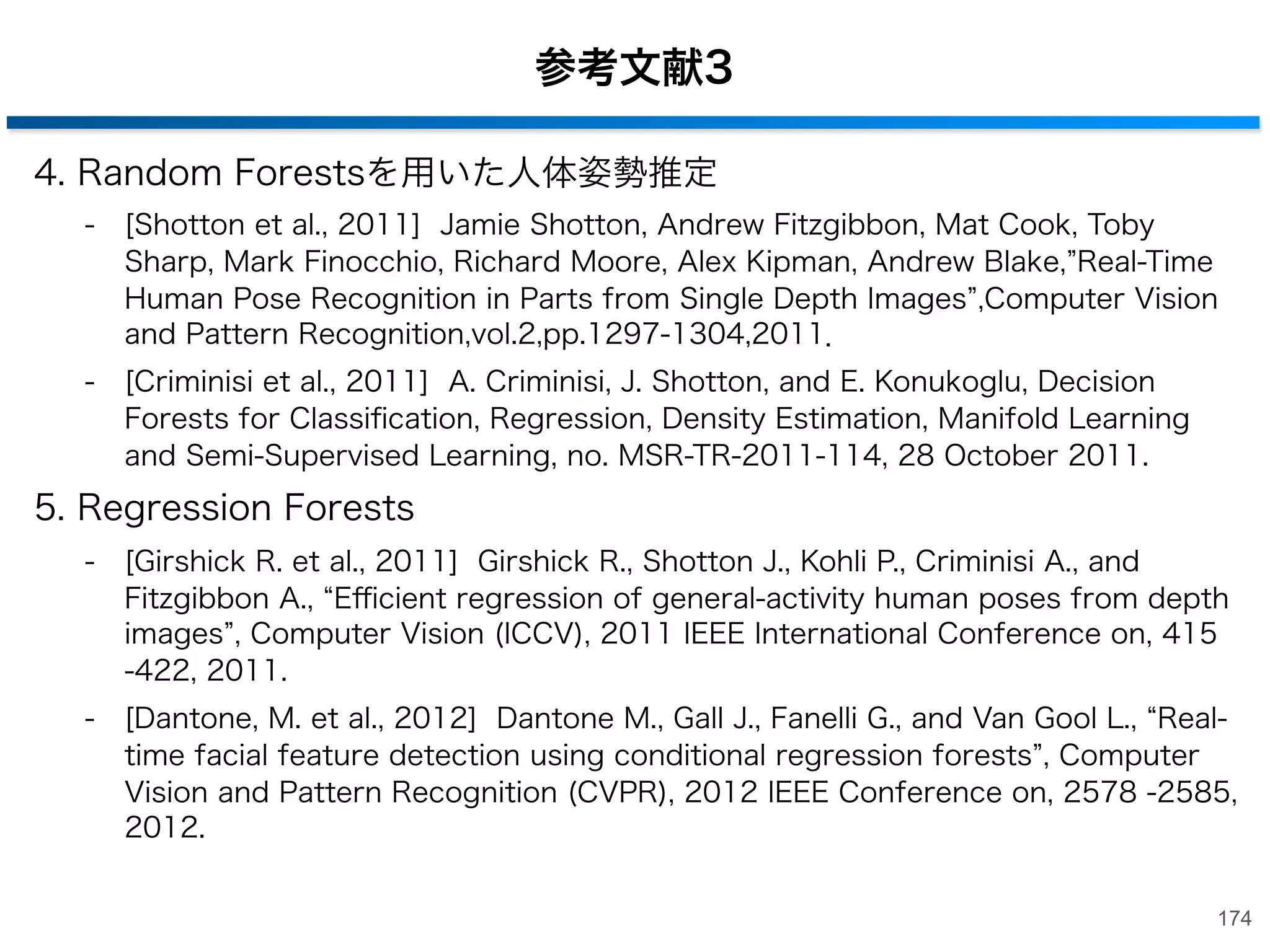

175. 参考文献3
4. Random Forestsを用いた人体姿勢推定
-
[Shotton et al., 2011] Jamie Shotton, Andrew Fitzgibbon, Mat Cook, Toby
Sharp, Mark Finocchio, Richard Moore, Alex Kipman, Andrew Blake, Real-Time
Human Pose Recognition in Parts from Single Depth Images ,Computer Vision
and Pattern Recognition,vol.2,pp.1297-1304,2011.
-
[Criminisi et al., 2011] A. Criminisi, J. Shotton, and E. Konukoglu, Decision
Forests for Classification, Regression, Density Estimation, Manifold Learning
and Semi-Supervised Learning, no. MSR-TR-2011-114, 28 October 2011.
5. Regression Forests
-
[Girshick R. et al., 2011] Girshick R., Shotton J., Kohli P., Criminisi A., and
Fitzgibbon A., Efficient regression of general-activity human poses from depth
images , Computer Vision (ICCV), 2011 IEEE International Conference on, 415
-422, 2011.
-
[Dantone, M. et al., 2012] Dantone M., Gall J., Fanelli G., and Van Gool L., Realtime facial feature detection using conditional regression forests , Computer
Vision and Pattern Recognition (CVPR), 2012 IEEE Conference on, 2578 -2585,
2012.
174
