Ceph has been in development for over a decade since its beginnings as a research project at UC Santa Cruz in the 2000s. It was incubated at DreamHost and later spun out to form Inktank to build Ceph into an enterprise-grade open source storage platform. Key developments included the RADOS distributed object store, librados client library, RBD block device, and S3-compatible radosgw object store. Ceph now has a large community and is used in many production deployments, with continued work to improve performance, add new features like erasure coding, and expand its capabilities for big data and the enterprise.

1. Ceph: a decade in the making and
still going strong
Sage Weil

2. Today the part of Sage Weil will be played by...

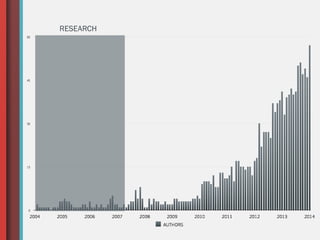

5. RESEARCH

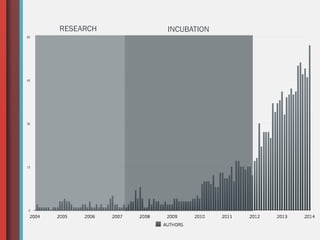

6. INCUBATIONRESEARCH

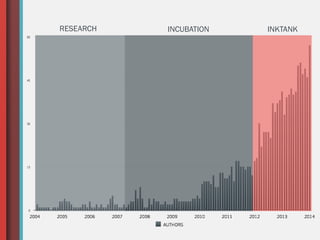

7. INKTANKINCUBATIONRESEARCH

8. Research beginnings
8

9. RESEARCH

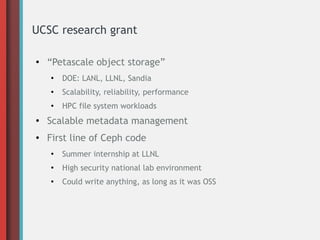

10. UCSC research grant
●
“Petascale object storage”
●
DOE: LANL, LLNL, Sandia
●
Scalability, reliability, performance
●
HPC file system workloads
●
Scalable metadata management
● First line of Ceph code
●
Summer internship at LLNL
●
High security national lab environment
●
Could write anything, as long as it was OSS

11. The rest of Ceph
●
RADOS – distributed object storage cluster (2005)
● EBOFS – local object storage (2004/2006)
●
CRUSH – hashing for the real world (2005)
● Paxos monitors – cluster consensus (2006)
→ emphasis on consistent, reliable storage
→ scale by pushing intelligence to the edges
→ a different but compelling architecture

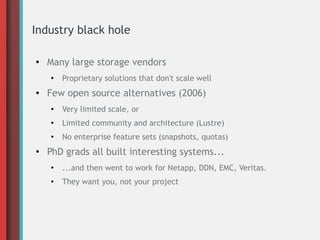

13. Industry black hole
●
Many large storage vendors
●
Proprietary solutions that don't scale well
● Few open source alternatives (2006)
●
Very limited scale, or
●
Limited community and architecture (Lustre)
●
No enterprise feature sets (snapshots, quotas)
●
PhD grads all built interesting systems...
●
...and then went to work for Netapp, DDN, EMC, Veritas.
●
They want you, not your project

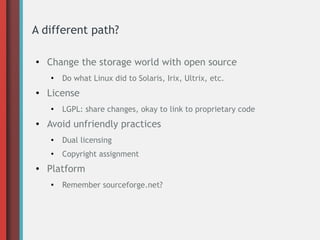

14. A different path?
●
Change the storage world with open source
●
Do what Linux did to Solaris, Irix, Ultrix, etc.
● License
●
LGPL: share changes, okay to link to proprietary code
● Avoid unfriendly practices
●
Dual licensing
●
Copyright assignment
● Platform
●
Remember sourceforge.net?

15. Incubation
15

16. INCUBATIONRESEARCH

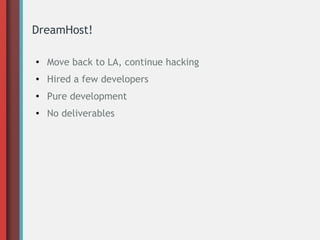

17. DreamHost!
●
Move back to LA, continue hacking
● Hired a few developers
●
Pure development
● No deliverables

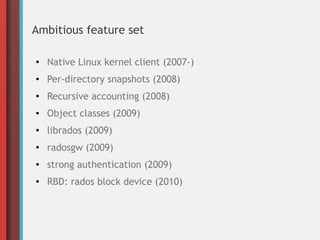

18. Ambitious feature set
●
Native Linux kernel client (2007-)
● Per-directory snapshots (2008)
●
Recursive accounting (2008)
● Object classes (2009)
● librados (2009)
●
radosgw (2009)
● strong authentication (2009)
● RBD: rados block device (2010)

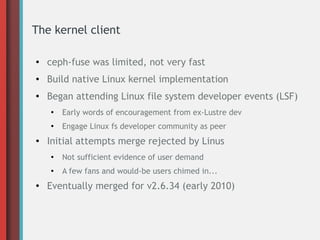

19. The kernel client
●
ceph-fuse was limited, not very fast
● Build native Linux kernel implementation
●
Began attending Linux file system developer events (LSF)
●
Early words of encouragement from ex-Lustre dev
●
Engage Linux fs developer community as peer
●
Initial attempts merge rejected by Linus
●
Not sufficient evidence of user demand
●
A few fans and would-be users chimed in...
●
Eventually merged for v2.6.34 (early 2010)

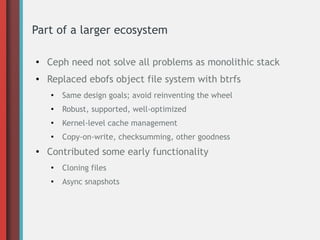

20. Part of a larger ecosystem
●
Ceph need not solve all problems as monolithic stack
● Replaced ebofs object file system with btrfs
●
Same design goals; avoid reinventing the wheel
●
Robust, supported, well-optimized
●
Kernel-level cache management
●
Copy-on-write, checksumming, other goodness
●
Contributed some early functionality
●
Cloning files
●
Async snapshots

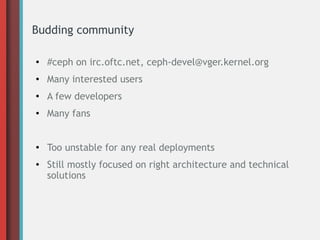

21. Budding community
●
#ceph on irc.oftc.net, ceph-devel@vger.kernel.org
● Many interested users
●
A few developers
● Many fans
●
Too unstable for any real deployments
● Still mostly focused on right architecture and technical
solutions

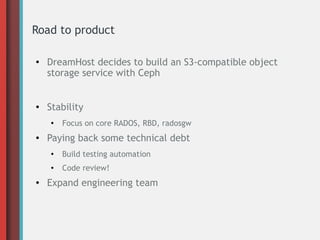

22. Road to product
●
DreamHost decides to build an S3-compatible object
storage service with Ceph
● Stability
●
Focus on core RADOS, RBD, radosgw
● Paying back some technical debt
●
Build testing automation
●
Code review!
● Expand engineering team

23. The reality
●
Growing incoming commercial interest
●
Early attempts from organizations large and small
●
Difficult to engage with a web hosting company
●
No means to support commercial deployments
● Project needed a company to back it
●
Fund the engineering effort
●
Build and test a product
●
Support users
● Orchestrated a spin out of DreamHost in 2012

24. Inktank
24

25. INKTANKINCUBATIONRESEARCH

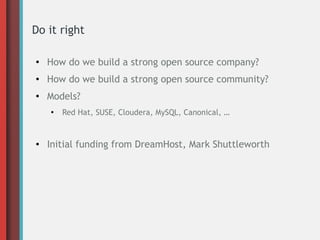

26. Do it right
●
How do we build a strong open source company?
● How do we build a strong open source community?
●
Models?
●
Red Hat, SUSE, Cloudera, MySQL, Canonical, …
● Initial funding from DreamHost, Mark Shuttleworth

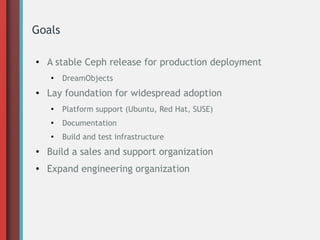

27. Goals
●
A stable Ceph release for production deployment
●
DreamObjects
● Lay foundation for widespread adoption
●
Platform support (Ubuntu, Red Hat, SUSE)
●
Documentation
●
Build and test infrastructure
●
Build a sales and support organization
● Expand engineering organization

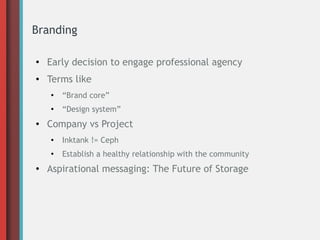

28. Branding
●
Early decision to engage professional agency
● Terms like
●
“Brand core”
●
“Design system”
● Company vs Project
●
Inktank != Ceph
●
Establish a healthy relationship with the community
● Aspirational messaging: The Future of Storage

29. Slick graphics
●
broken powerpoint template
29

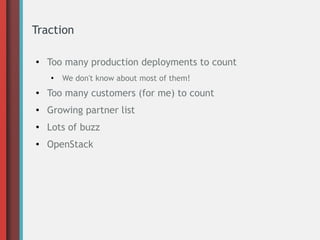

30. Traction
●
Too many production deployments to count
●
We don't know about most of them!
● Too many customers (for me) to count
● Growing partner list
●
Lots of buzz
● OpenStack

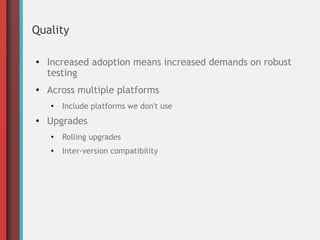

31. Quality
●
Increased adoption means increased demands on robust
testing
●
Across multiple platforms
●
Include platforms we don't use
● Upgrades
●
Rolling upgrades
●
Inter-version compatibility

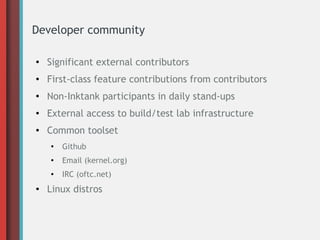

32. Developer community
●
Significant external contributors
● First-class feature contributions from contributors
●
Non-Inktank participants in daily stand-ups
● External access to build/test lab infrastructure
● Common toolset
●
Github
●
Email (kernel.org)
●
IRC (oftc.net)
● Linux distros

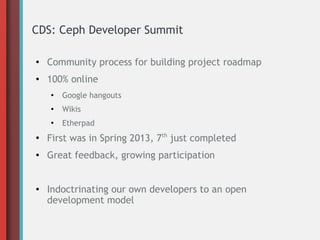

33. CDS: Ceph Developer Summit
●
Community process for building project roadmap
● 100% online
●
Google hangouts
●
Wikis
●
Etherpad
●
First was in Spring 2013, 7th
just completed
● Great feedback, growing participation
● Indoctrinating our own developers to an open
development model

34. And then...
s/Red Hat of Storage/Storage of Red Hat/

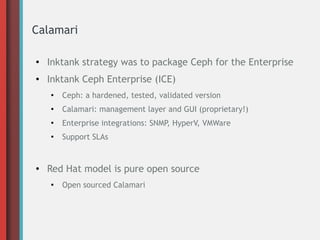

35. Calamari
●
Inktank strategy was to package Ceph for the Enterprise
● Inktank Ceph Enterprise (ICE)
●
Ceph: a hardened, tested, validated version
●
Calamari: management layer and GUI (proprietary!)
●
Enterprise integrations: SNMP, HyperV, VMWare
●
Support SLAs
● Red Hat model is pure open source
●
Open sourced Calamari

36. The Present
36

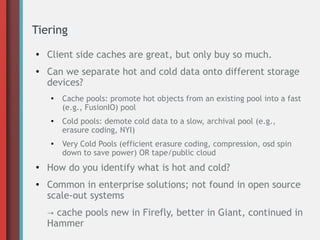

37. Tiering
●
Client side caches are great, but only buy so much.
● Can we separate hot and cold data onto different storage
devices?
●
Cache pools: promote hot objects from an existing pool into a fast
(e.g., FusionIO) pool
●
Cold pools: demote cold data to a slow, archival pool (e.g.,
erasure coding, NYI)
●
Very Cold Pools (efficient erasure coding, compression, osd spin
down to save power) OR tape/public cloud
●
How do you identify what is hot and cold?
● Common in enterprise solutions; not found in open source
scale-out systems
→ cache pools new in Firefly, better in Giant, continued in
Hammer

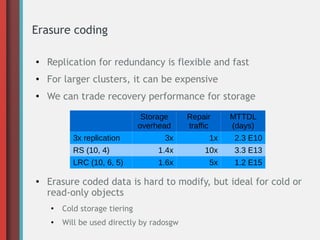

38. Erasure coding
●
Replication for redundancy is flexible and fast
● For larger clusters, it can be expensive
●
We can trade recovery performance for storage
● Erasure coded data is hard to modify, but ideal for cold or
read-only objects
●
Cold storage tiering
●
Will be used directly by radosgw
Storage
overhead
Repair
traffic
MTTDL
(days)
3x replication 3x 1x 2.3 E10
RS (10, 4) 1.4x 10x 3.3 E13
LRC (10, 6, 5) 1.6x 5x 1.2 E15

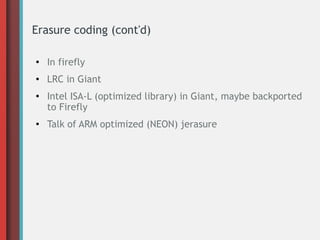

39. Erasure coding (cont'd)
●
In firefly
● LRC in Giant
●
Intel ISA-L (optimized library) in Giant, maybe backported
to Firefly
●
Talk of ARM optimized (NEON) jerasure

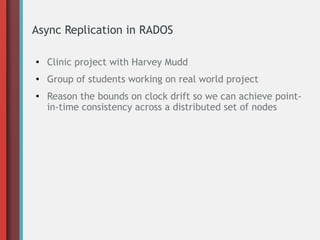

40. Async Replication in RADOS
●
Clinic project with Harvey Mudd
● Group of students working on real world project
●
Reason the bounds on clock drift so we can achieve point-
in-time consistency across a distributed set of nodes

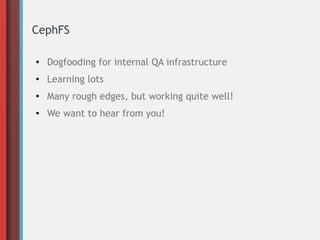

41. CephFS
●
Dogfooding for internal QA infrastructure
● Learning lots
●
Many rough edges, but working quite well!
● We want to hear from you!

43. The Future
43

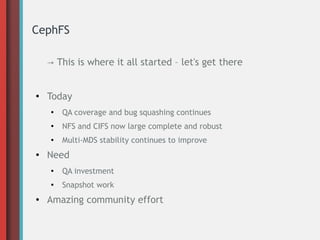

44. CephFS
→ This is where it all started – let's get there
●
Today
●
QA coverage and bug squashing continues
●
NFS and CIFS now large complete and robust
●
Multi-MDS stability continues to improve
● Need
●
QA investment
●
Snapshot work
● Amazing community effort

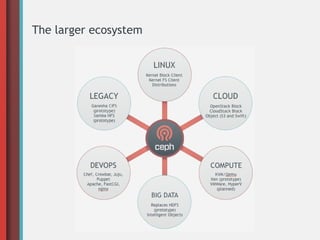

45. The larger ecosystem

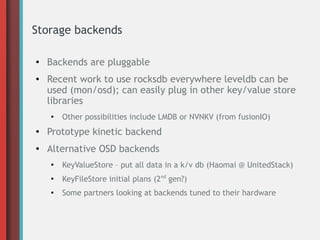

46. Storage backends
●
Backends are pluggable
● Recent work to use rocksdb everywhere leveldb can be
used (mon/osd); can easily plug in other key/value store
libraries
●
Other possibilities include LMDB or NVNKV (from fusionIO)
●
Prototype kinetic backend
● Alternative OSD backends
●
KeyValueStore – put all data in a k/v db (Haomai @ UnitedStack)
●
KeyFileStore initial plans (2nd
gen?)
●
Some partners looking at backends tuned to their hardware

47. Governance
How do we strengthen the project community?
●
Acknowledge Sage's role as maintainer / BDL
● Recognize project leads
●
RBD, RGW, RADOS, CephFS, Calamari, etc.
● Formalize processes around CDS, community roadmap
● Formal foundation?
●
Community build and test lab infrastructure (getting IPs this
week!)
●
Build and test for broad range of OSs, distros, hardware

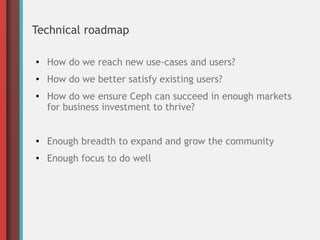

48. Technical roadmap
●
How do we reach new use-cases and users?
● How do we better satisfy existing users?
●
How do we ensure Ceph can succeed in enough markets
for business investment to thrive?
● Enough breadth to expand and grow the community
● Enough focus to do well

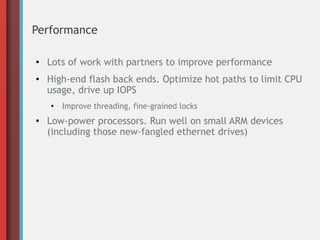

49. Performance
●
Lots of work with partners to improve performance
● High-end flash back ends. Optimize hot paths to limit CPU
usage, drive up IOPS
●
Improve threading, fine-grained locks
● Low-power processors. Run well on small ARM devices
(including those new-fangled ethernet drives)

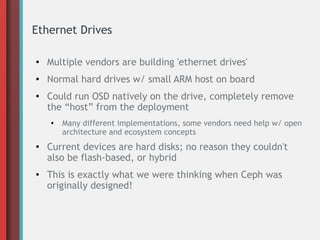

50. Ethernet Drives
●
Multiple vendors are building 'ethernet drives'
● Normal hard drives w/ small ARM host on board
●
Could run OSD natively on the drive, completely remove
the “host” from the deployment
●
Many different implementations, some vendors need help w/ open
architecture and ecosystem concepts
●
Current devices are hard disks; no reason they couldn't
also be flash-based, or hybrid
●
This is exactly what we were thinking when Ceph was
originally designed!

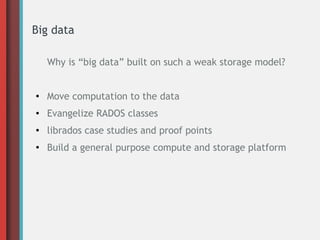

51. Big data
Why is “big data” built on such a weak storage model?
●
Move computation to the data
● Evangelize RADOS classes
● librados case studies and proof points
●
Build a general purpose compute and storage platform

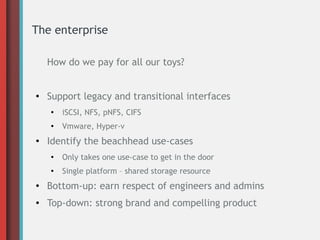

52. The enterprise
How do we pay for all our toys?
●
Support legacy and transitional interfaces
●
iSCSI, NFS, pNFS, CIFS
●
Vmware, Hyper-v
●
Identify the beachhead use-cases
●
Only takes one use-case to get in the door
●
Single platform – shared storage resource
●
Bottom-up: earn respect of engineers and admins
● Top-down: strong brand and compelling product

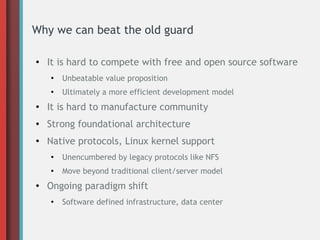

53. Why we can beat the old guard
●
It is hard to compete with free and open source software
●
Unbeatable value proposition
●
Ultimately a more efficient development model
●
It is hard to manufacture community
● Strong foundational architecture
●
Native protocols, Linux kernel support
●
Unencumbered by legacy protocols like NFS
●
Move beyond traditional client/server model
●
Ongoing paradigm shift
●
Software defined infrastructure, data center

54. Thanks!
