1. Manila An Update from Liberty
October 29, 2015
OpenStack Summit - Tokyo

2. Akshai Parthasarathy
Technical Marketing
Engineer, NetApp
@akshai
Sean Cohen
Principal Product Manager,
Red Hat
@SeanCohen_RH
Thomas Bechtold
OpenStack Cloud Engineer,
SUSE
Today's Presenters

3. Agenda
• What is Manila?
• Why use Manila?
• Use Cases
• Sahara
• Containers
• Liberty Updates
• Distributions Integration
• SUSE Demo
• RedHat Demo
• Upcoming in Mitaka
• Share Replication Demo
• Q+A

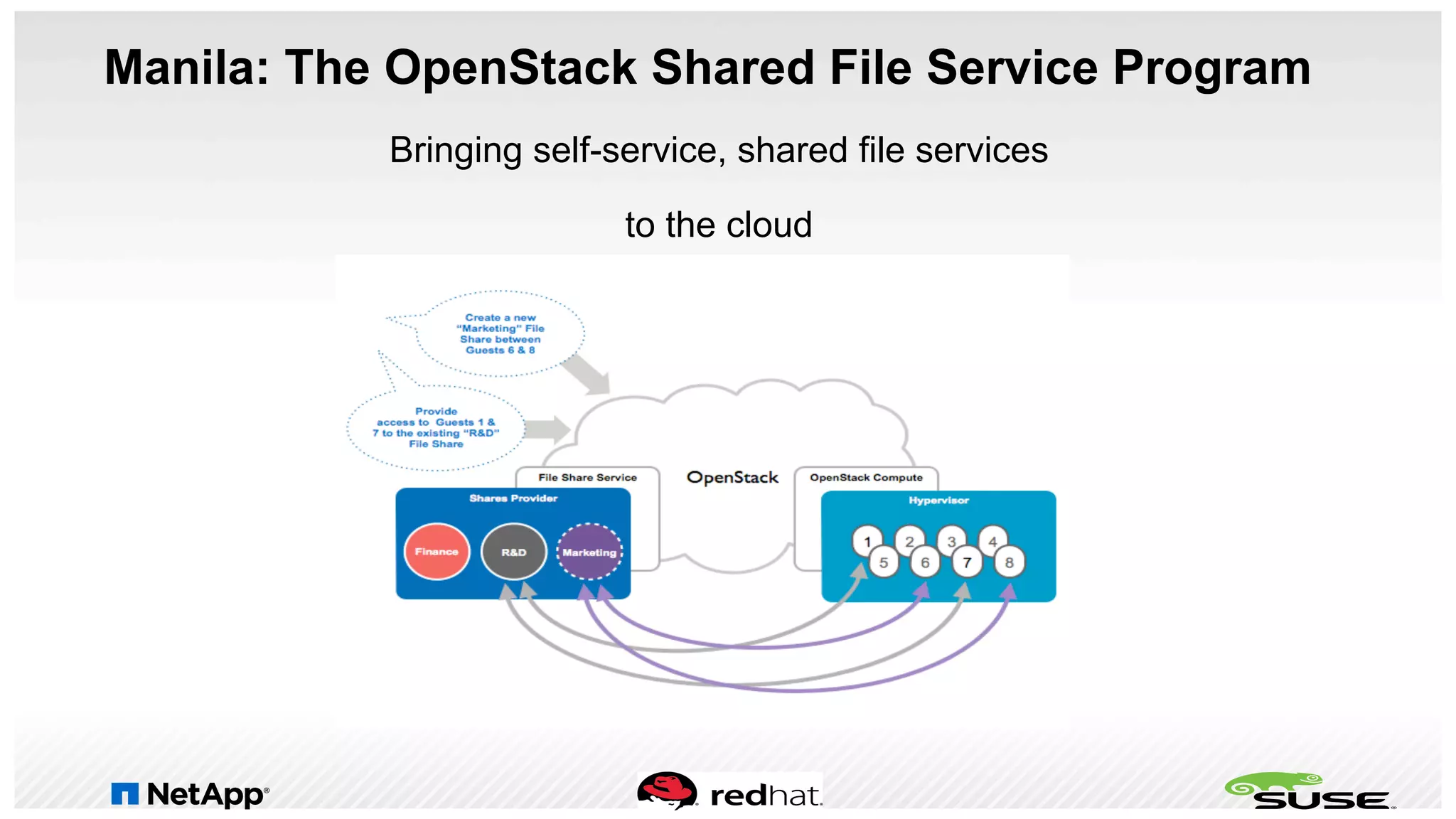

4. Manila: The OpenStack Shared File Service Program
Bringing self-service, shared file services
to the cloud

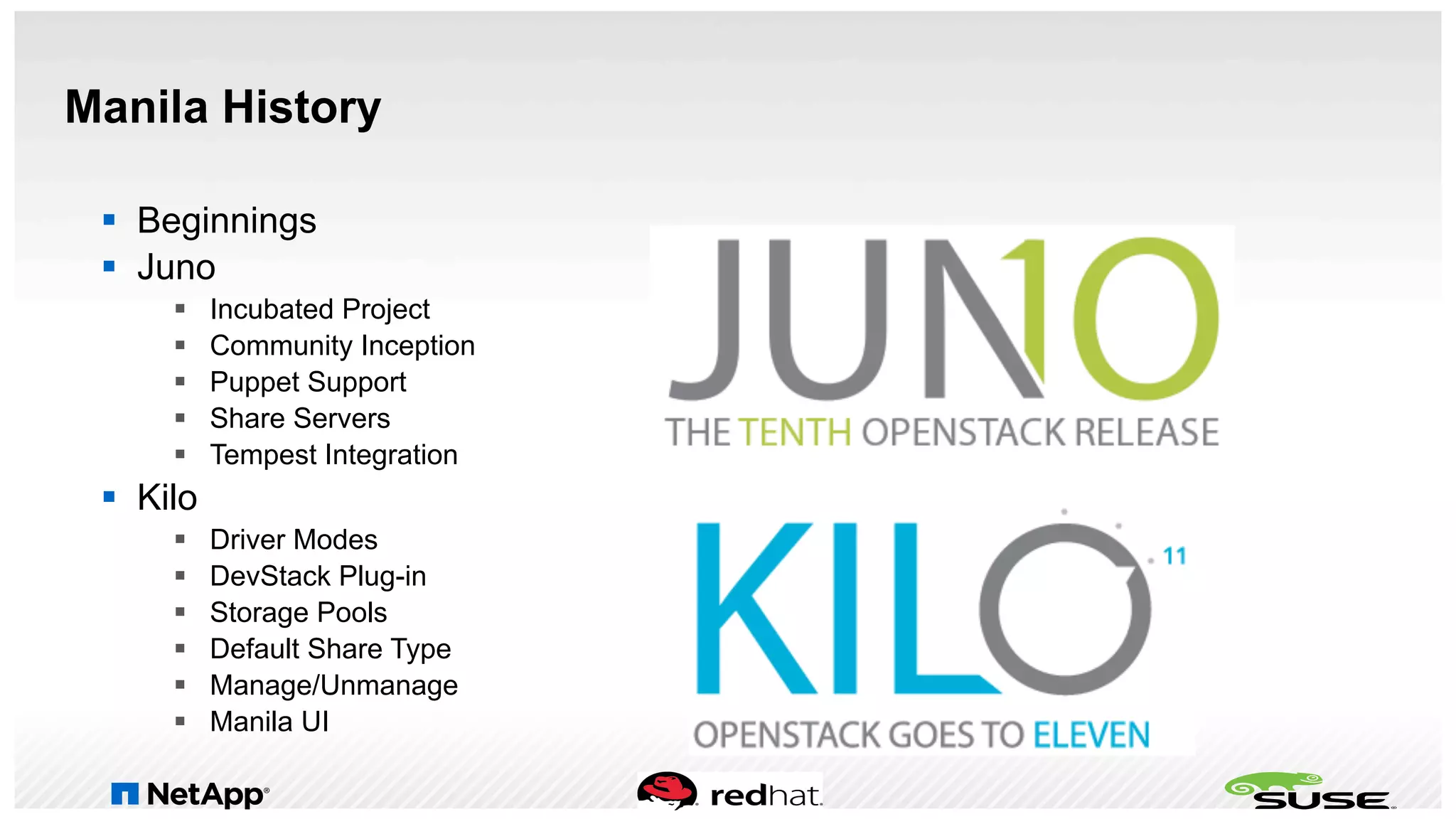

5. Manila History
§ Beginnings
§ Juno
§ Incubated Project
§ Community Inception
§ Puppet Support
§ Share Servers
§ Tempest Integration
§ Kilo
§ Driver Modes
§ DevStack Plug-in
§ Storage Pools
§ Default Share Type
§ Manage/Unmanage
§ Manila UI

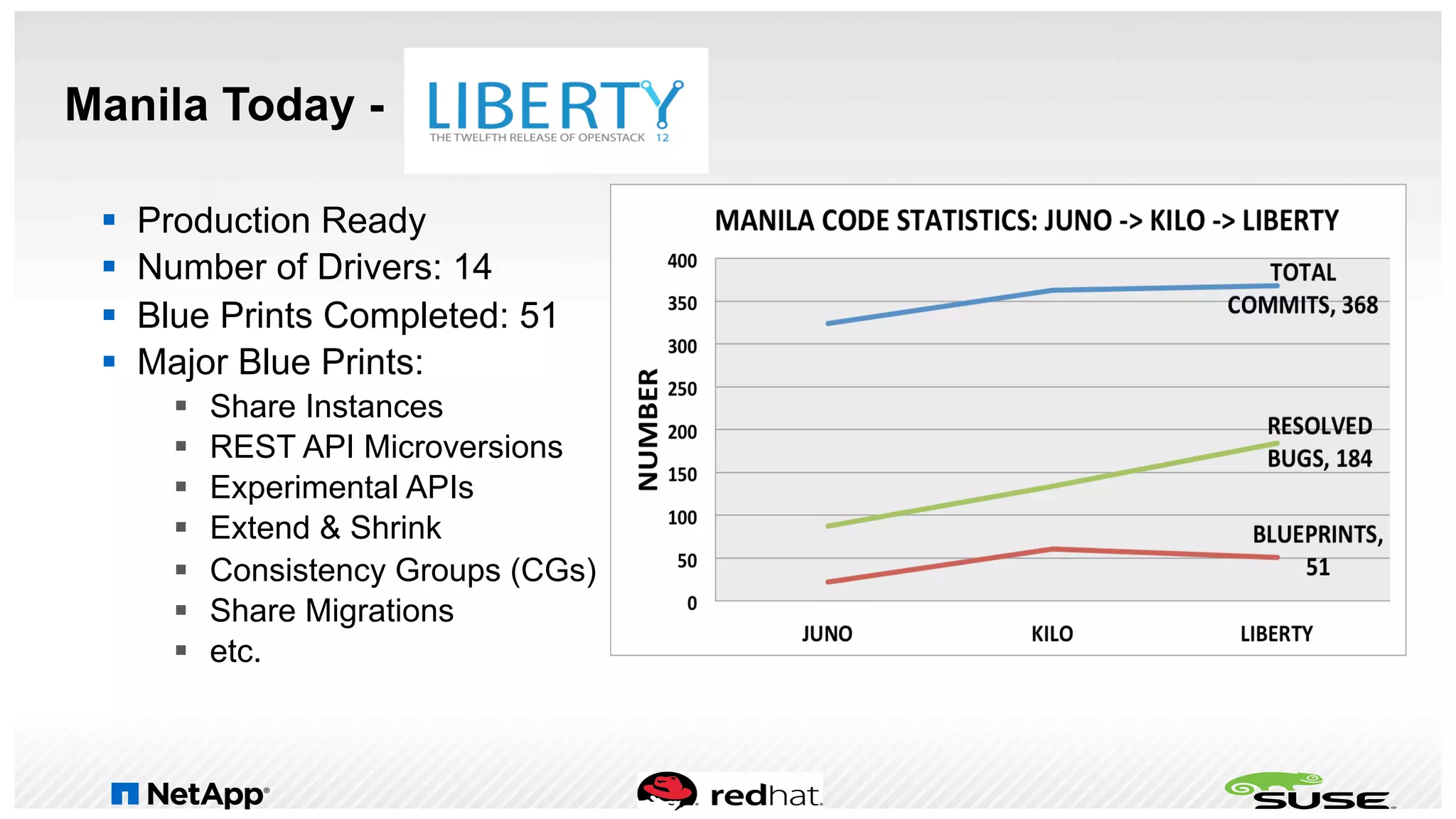

6. Manila Today -
§ Production Ready
§ Number of Drivers: 14
§ Blue Prints Completed: 51
§ Major Blue Prints:
§ Share Instances
§ REST API Microversions
§ Experimental APIs
§ Extend & Shrink
§ Consistency Groups (CGs)
§ Share Migrations
§ etc.

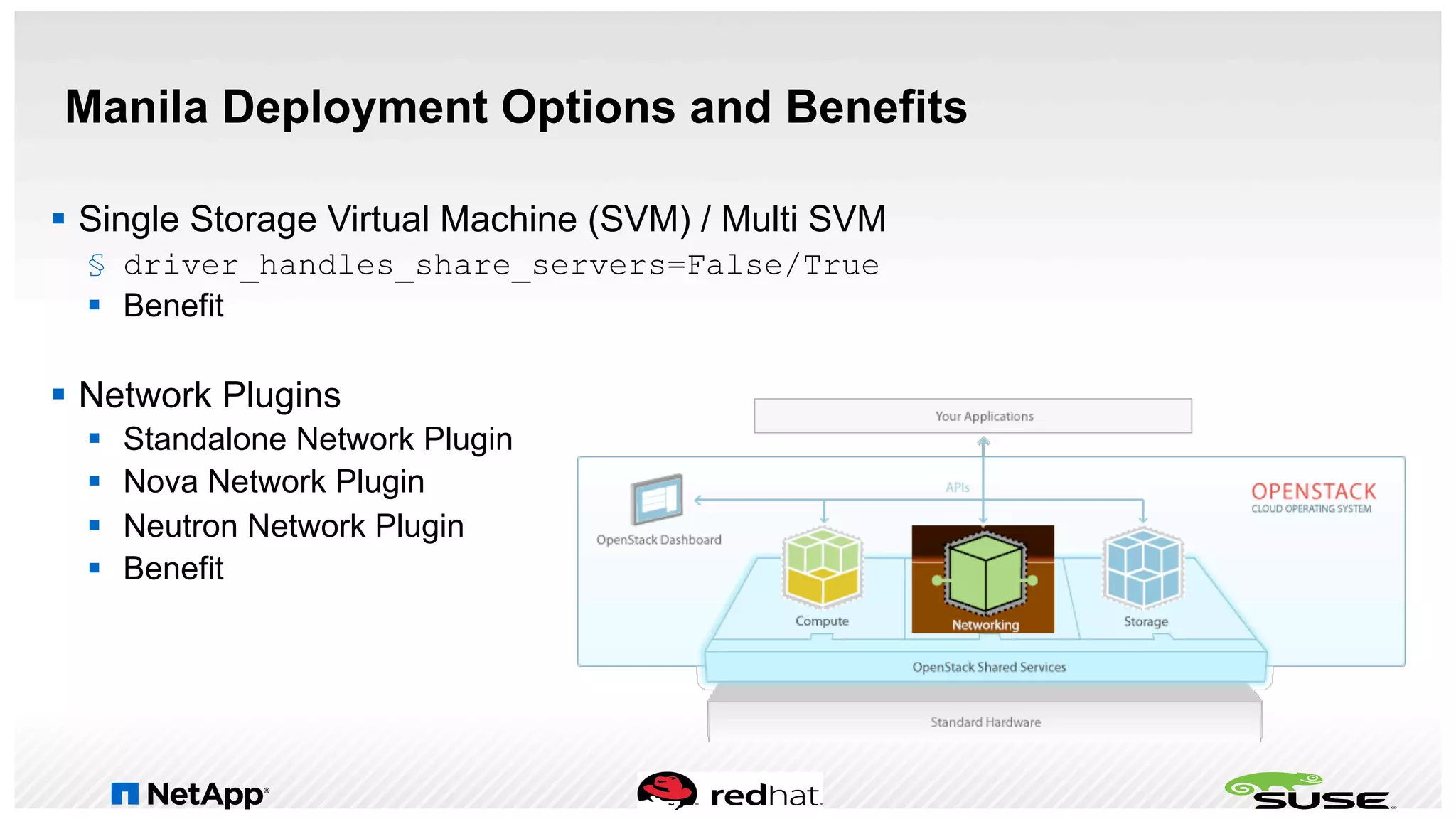

7. Manila Deployment Options and Benefits
§ Single Storage Virtual Machine (SVM) / Multi SVM
§ driver_handles_share_servers=False/True
§ Benefit
§ Network Plugins
§ Standalone Network Plugin
§ Nova Network Plugin
§ Neutron Network Plugin
§ Benefit

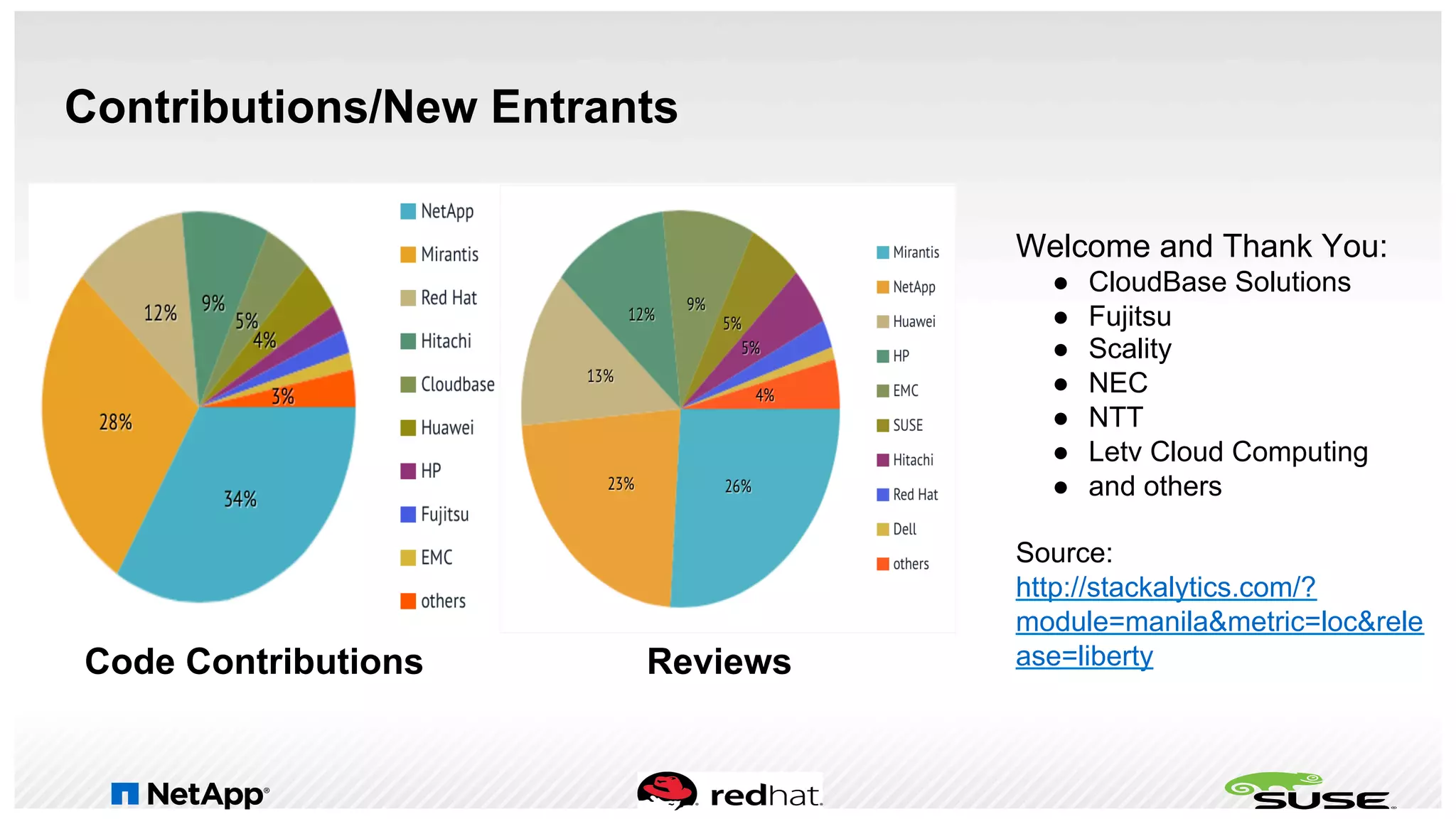

8. Contributions/New Entrants
Welcome and Thank You:
● CloudBase Solutions
● Fujitsu
● Scality
● NEC
● NTT
● Letv Cloud Computing
● and others
Source:
http://stackalytics.com/?
module=manila&metric=loc&rele
ase=libertyCode Contributions Reviews

9. Why Use Manila?
§ Shared File Services
§ Spending
§ Total Capacity
§ IDC: Age of Cloud File Services
§ Why not?

10. Use Cases

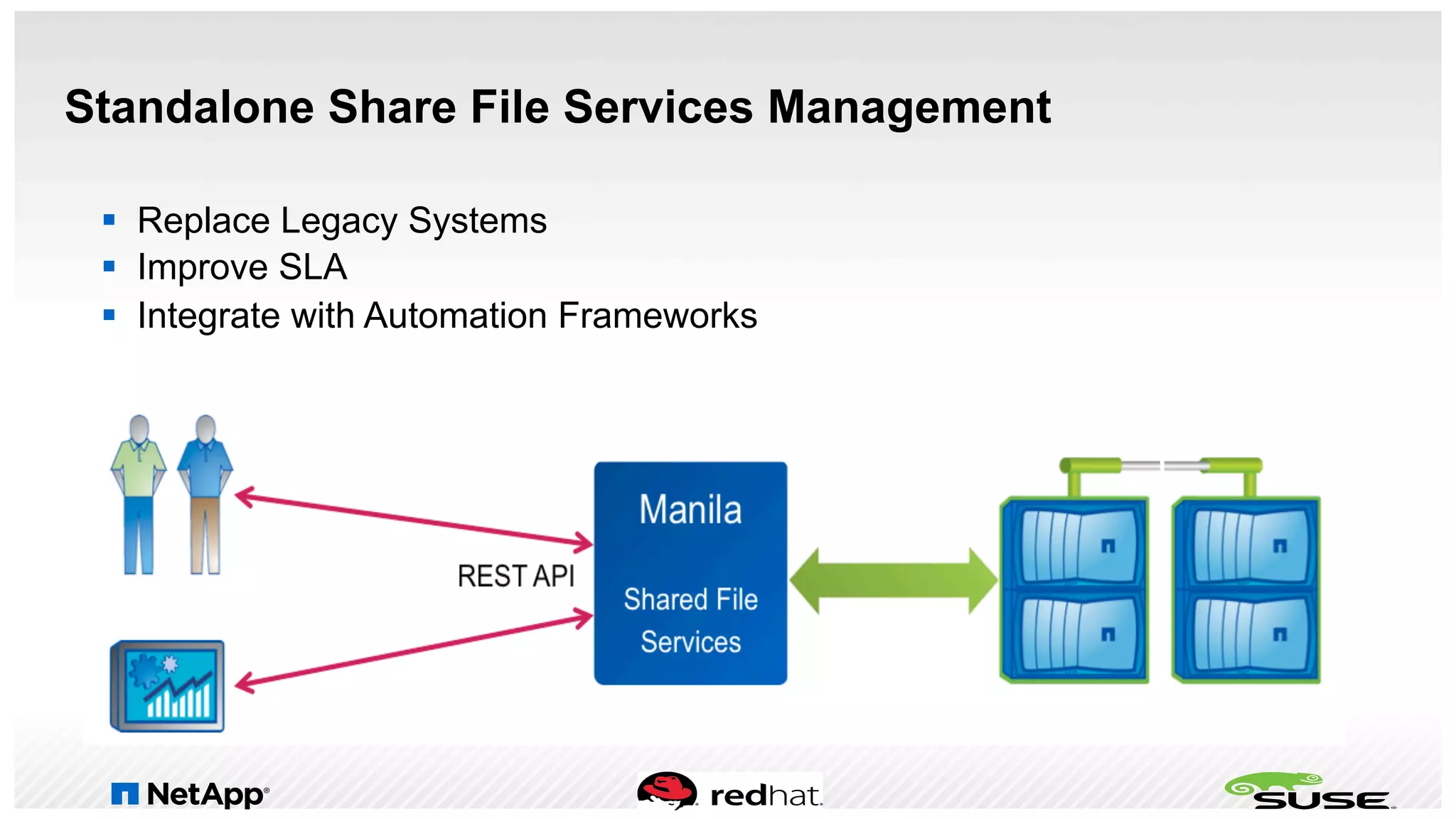

11. Standalone Share File Services Management
§ Replace Legacy Systems
§ Improve SLA
§ Integrate with Automation Frameworks

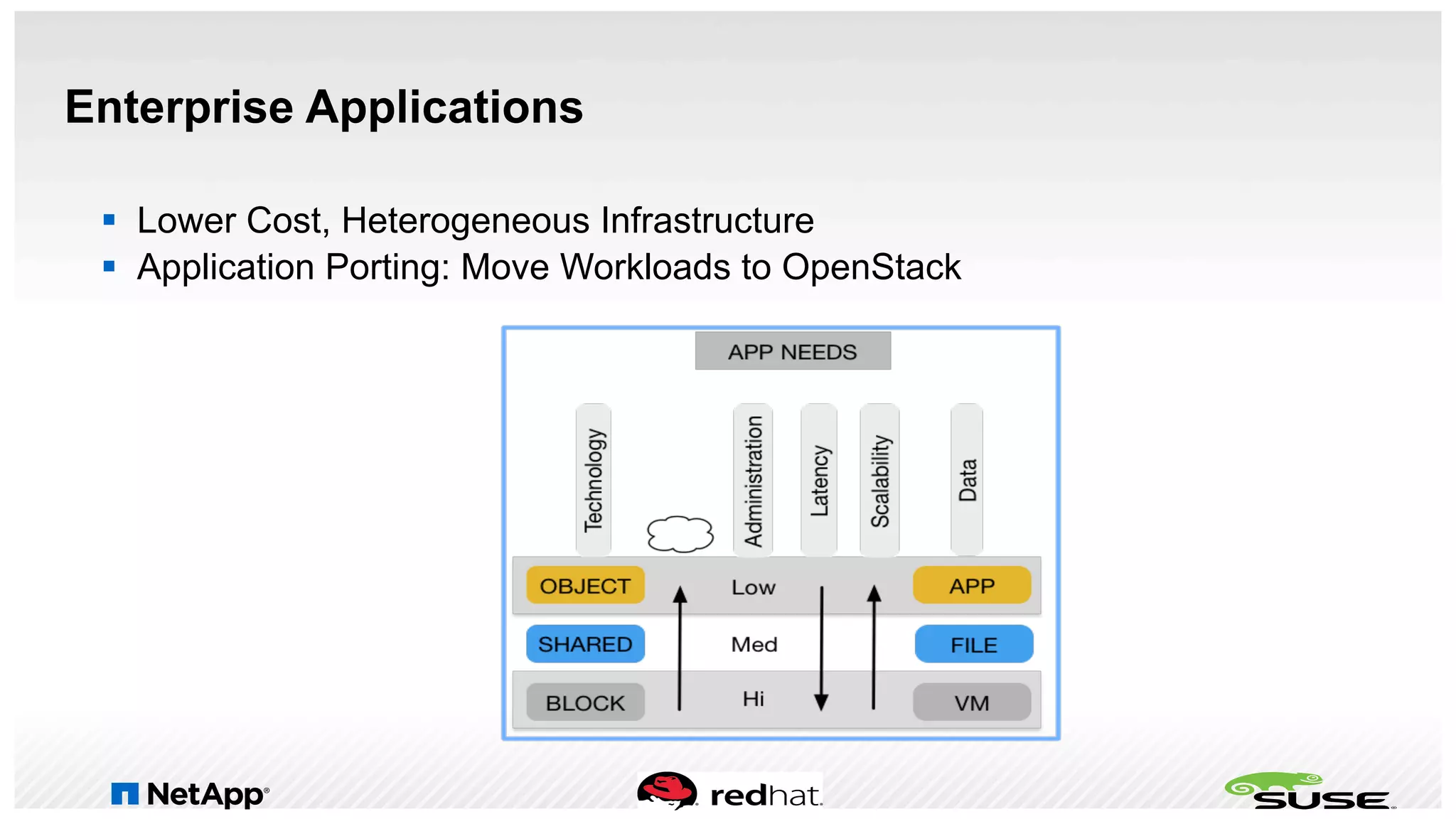

12. Enterprise Applications
§ Lower Cost, Heterogeneous Infrastructure
§ Application Porting: Move Workloads to OpenStack

13. DevOps/Continuous Integration
§ Pluggable Infrastructure
§ Storage Service Catalog
§ Analytics
§ Containers
§ Snapshots & Clones
§ Consistency Groups

14. New in Liberty

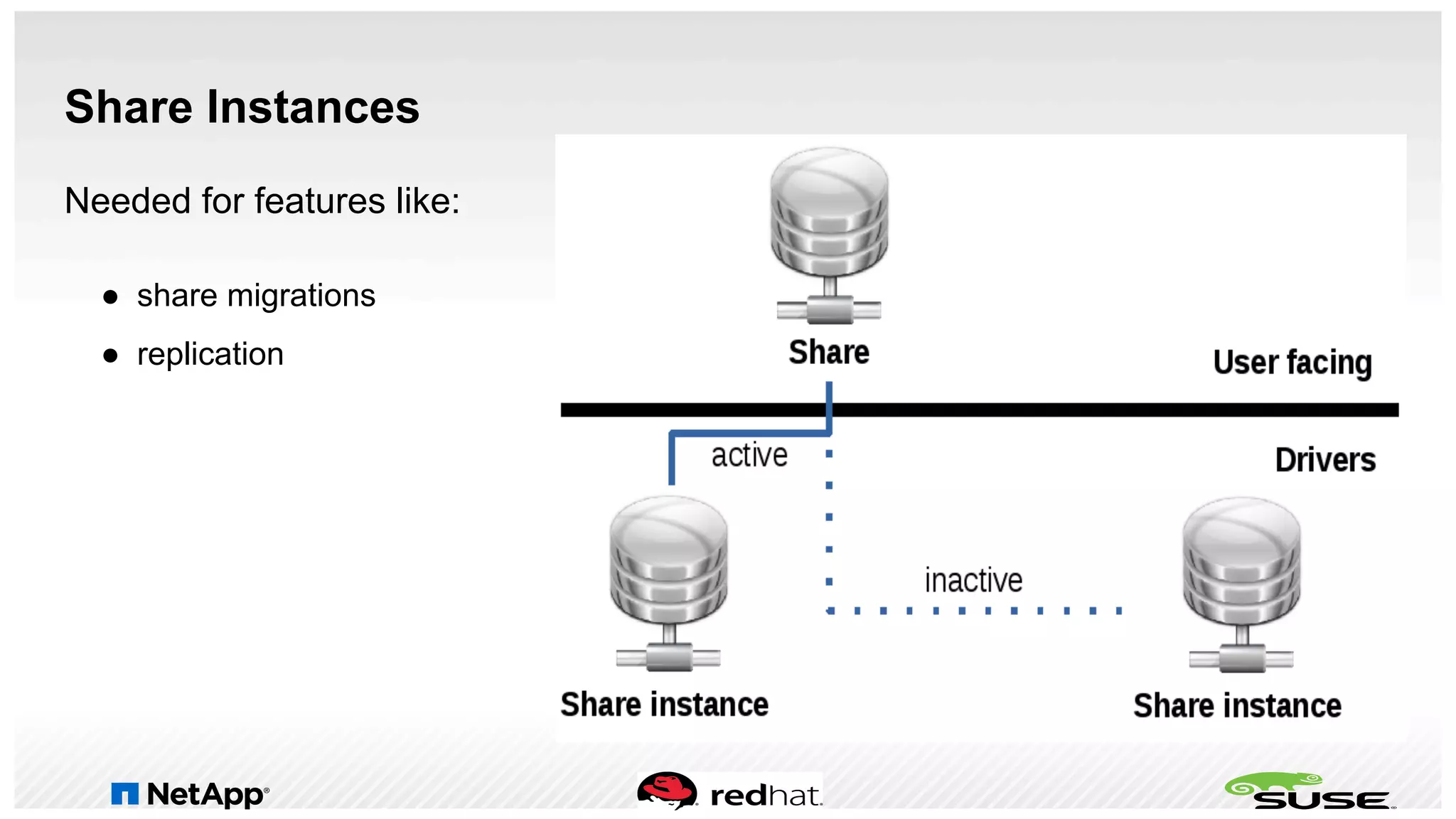

15. Share Instances
Needed for features like:
● share migrations
● replication

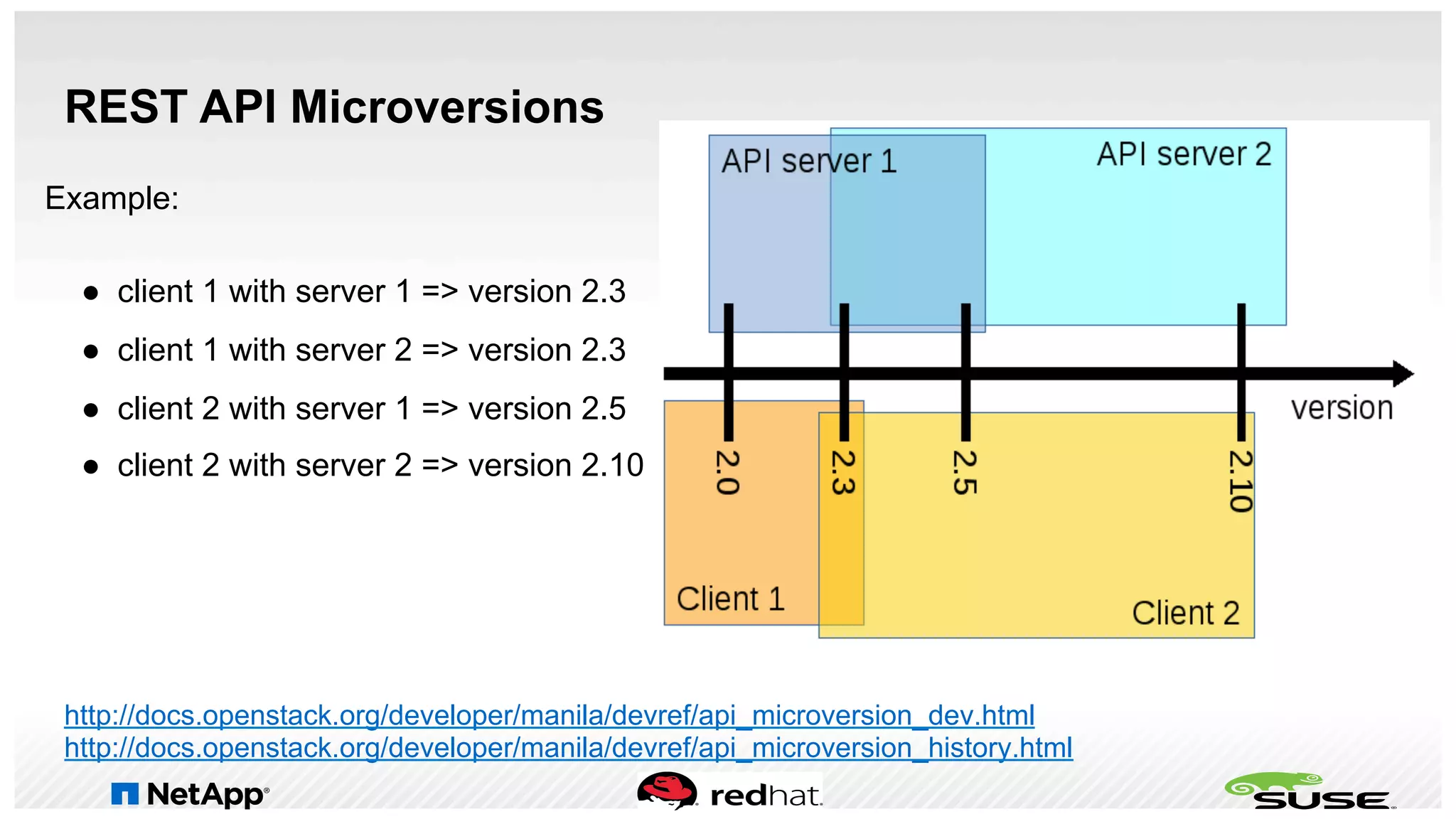

16. REST API Microversions
http://docs.openstack.org/developer/manila/devref/api_microversion_dev.html
http://docs.openstack.org/developer/manila/devref/api_microversion_history.html
Example:
● client 1 with server 1 => version 2.3
● client 1 with server 2 => version 2.3
● client 2 with server 1 => version 2.5
● client 2 with server 2 => version 2.10

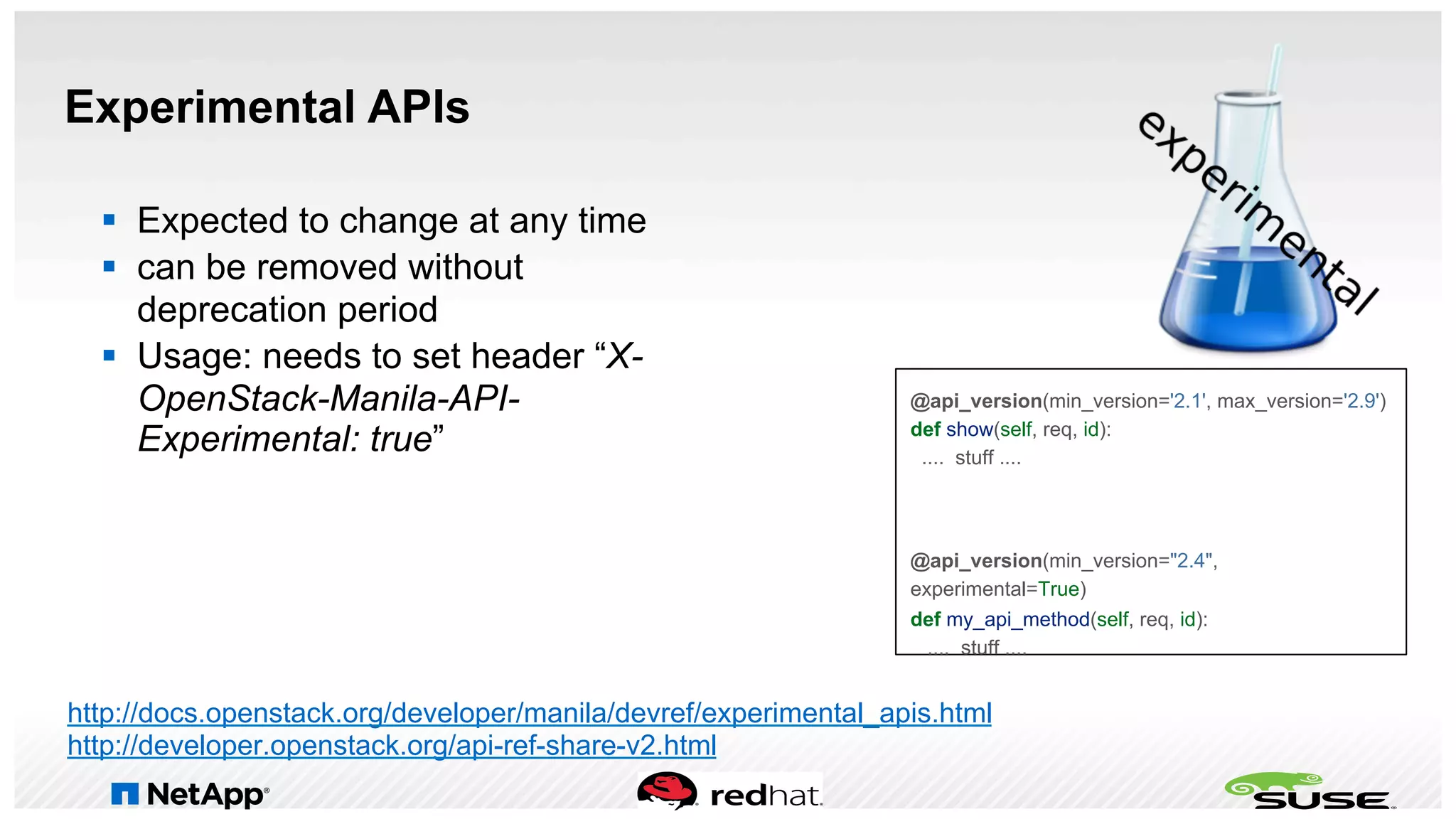

17. Experimental APIs
§ Expected to change at any time
§ can be removed without
deprecation period
§ Usage: needs to set header “X-
OpenStack-Manila-API-
Experimental: true”
http://docs.openstack.org/developer/manila/devref/experimental_apis.html
http://developer.openstack.org/api-ref-share-v2.html
@api_version(min_version='2.1', max_version='2.9')
def show(self, req, id):
.... stuff ....
@api_version(min_version="2.4",
experimental=True)
def my_api_method(self, req, id):
.... stuff ....

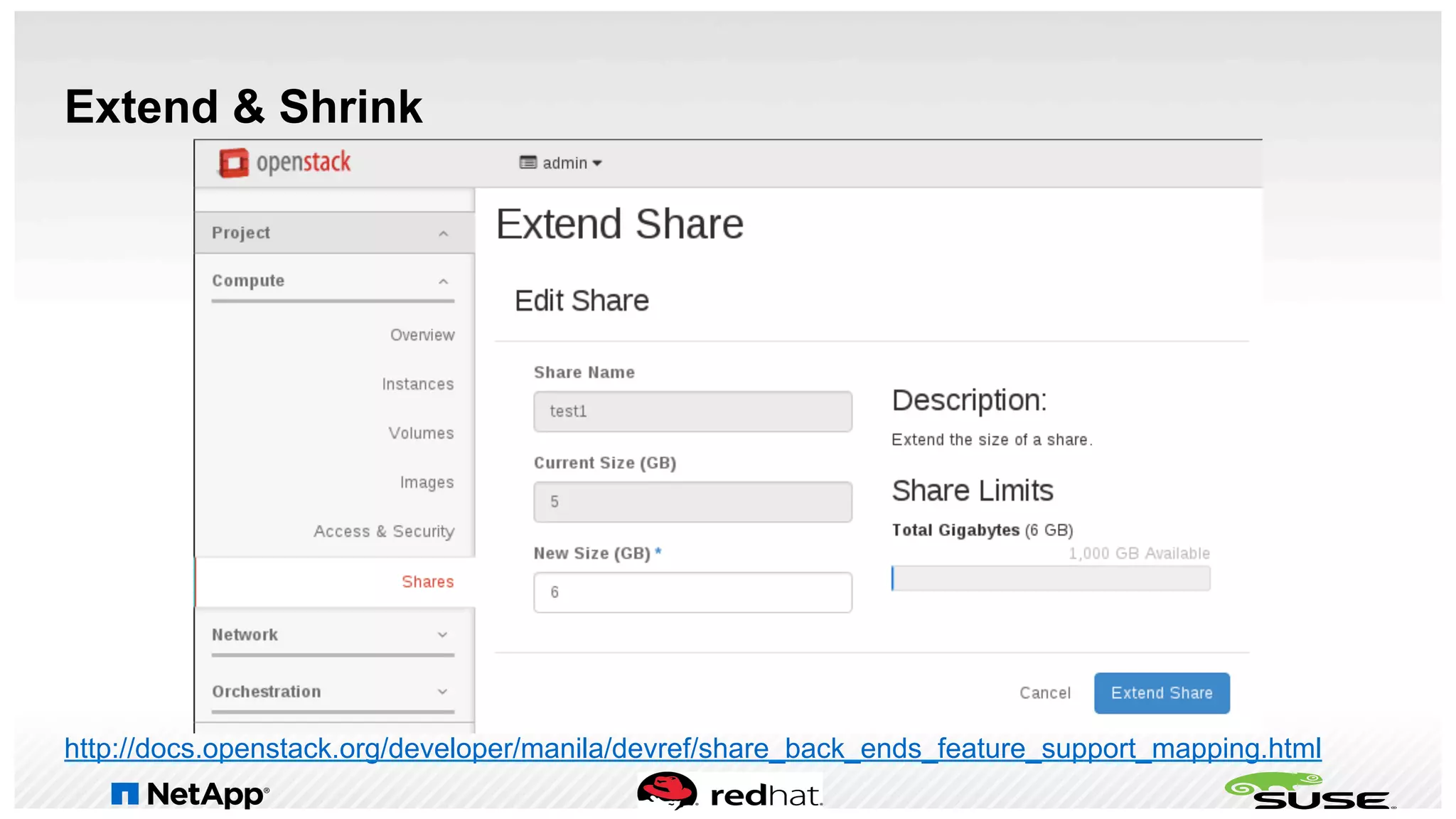

18. Extend & Shrink
http://docs.openstack.org/developer/manila/devref/share_back_ends_feature_support_mapping.html

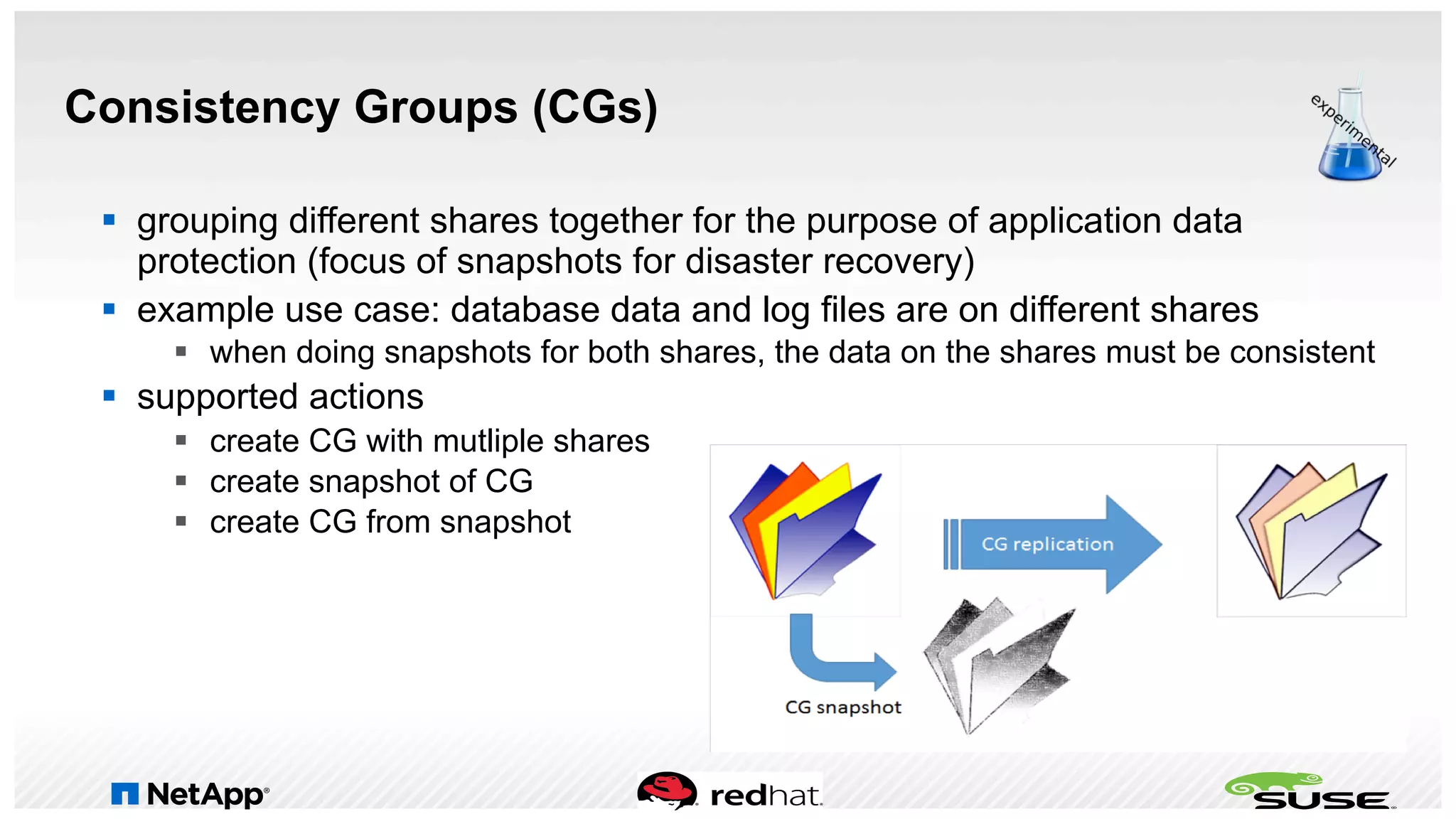

19. Consistency Groups (CGs)
§ grouping different shares together for the purpose of application data
protection (focus of snapshots for disaster recovery)
§ example use case: database data and log files are on different shares
§ when doing snapshots for both shares, the data on the shares must be consistent
§ supported actions
§ create CG with mutliple shares
§ create snapshot of CG
§ create CG from snapshot

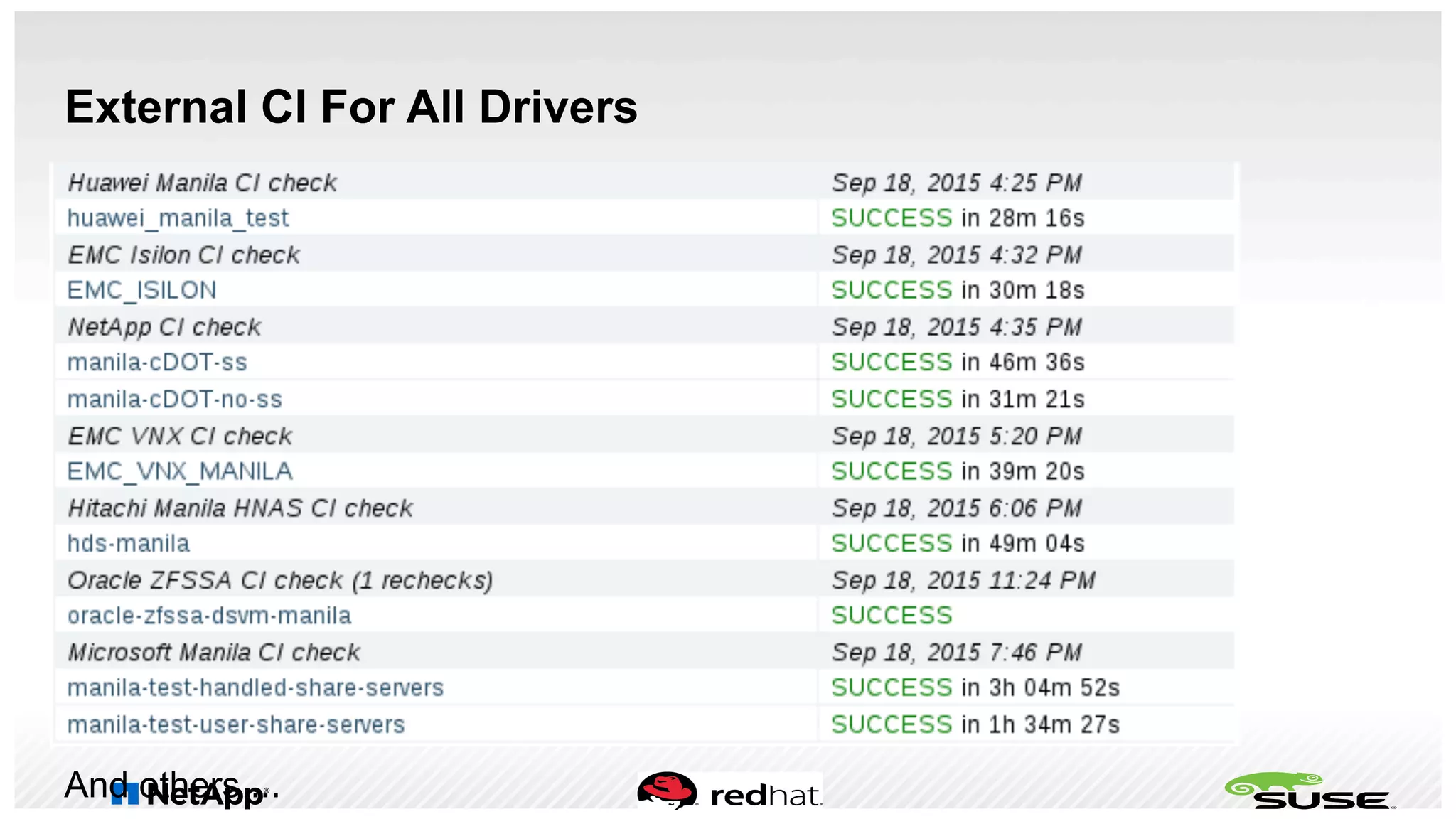

20. External CI For All Drivers
And others ...

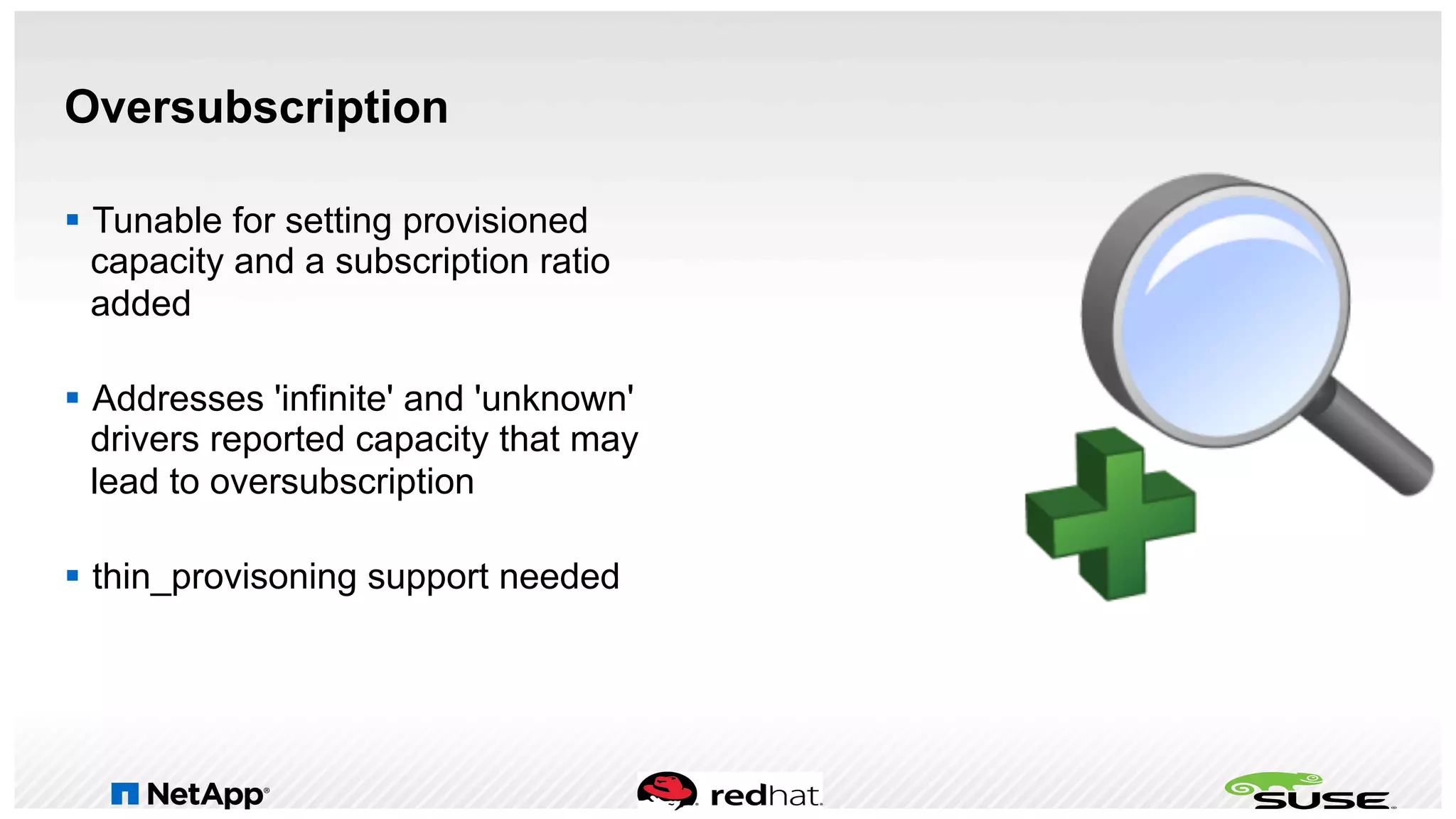

21. Oversubscription
§ Tunable for setting provisioned
capacity and a subscription ratio
added
§ Addresses 'infinite' and 'unknown'
drivers reported capacity that may
lead to oversubscription
§ thin_provisoning support needed

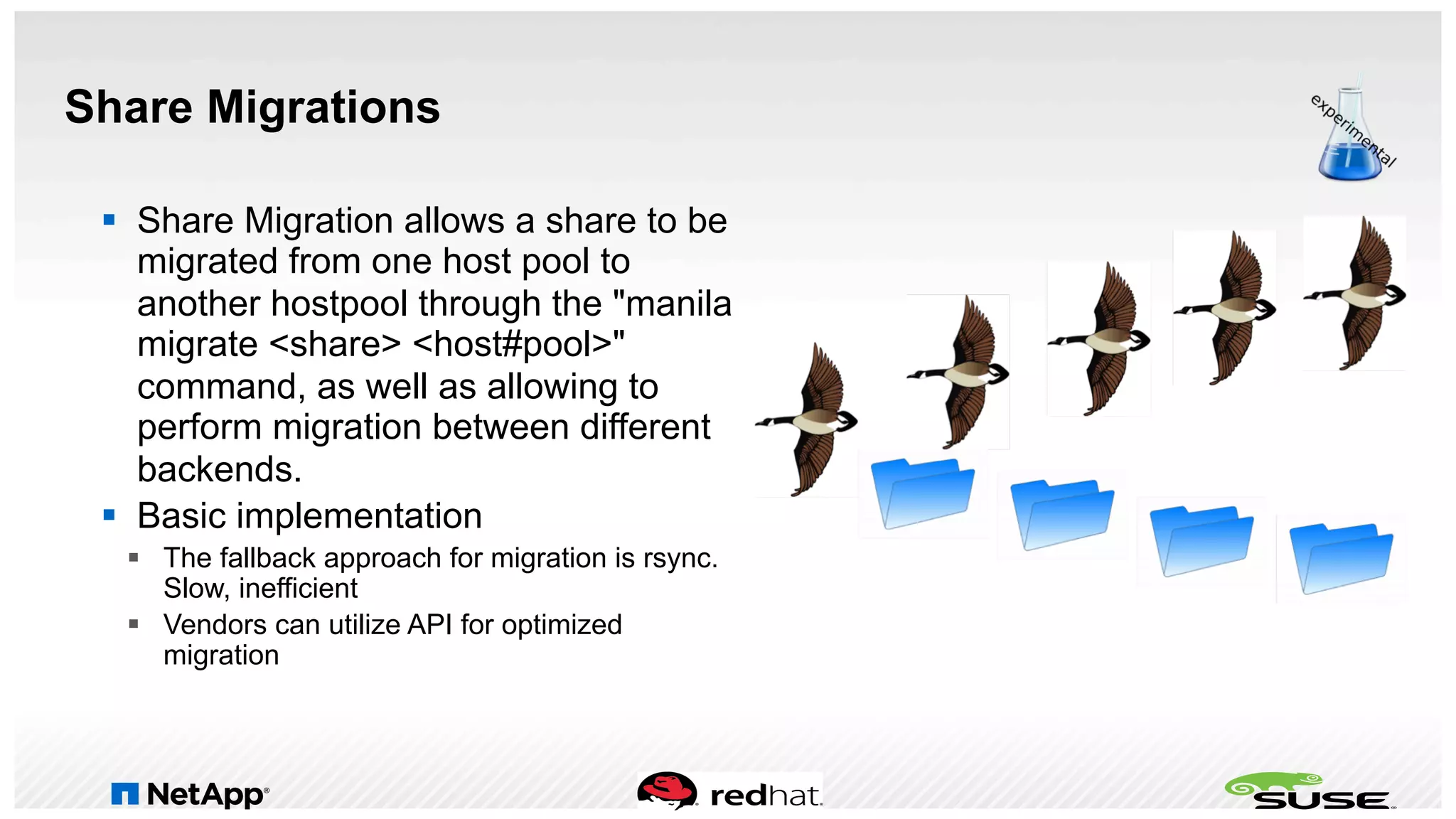

22. Share Migrations
§ Share Migration allows a share to be
migrated from one host pool to
another hostpool through the "manila
migrate <share> <host#pool>"
command, as well as allowing to
perform migration between different
backends.
§ Basic implementation
§ The fallback approach for migration is rsync.
Slow, inefficient
§ Vendors can utilize API for optimized
migration

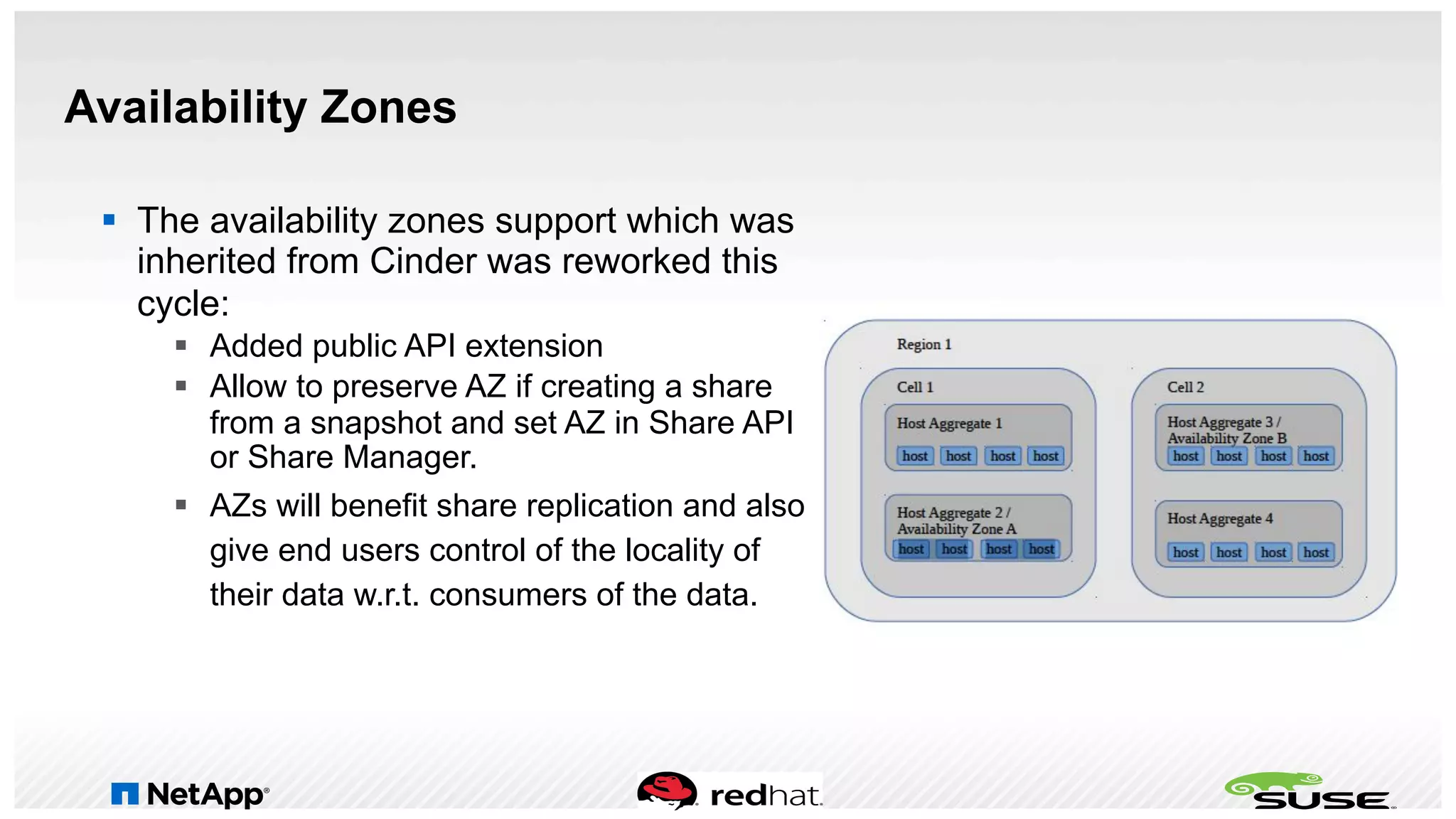

23. Availability Zones
§ The availability zones support which was
inherited from Cinder was reworked this
cycle:
§ Added public API extension
§ Allow to preserve AZ if creating a share
from a snapshot and set AZ in Share API
or Share Manager.
§ AZs will benefit share replication and also
give end users control of the locality of
their data w.r.t. consumers of the data.

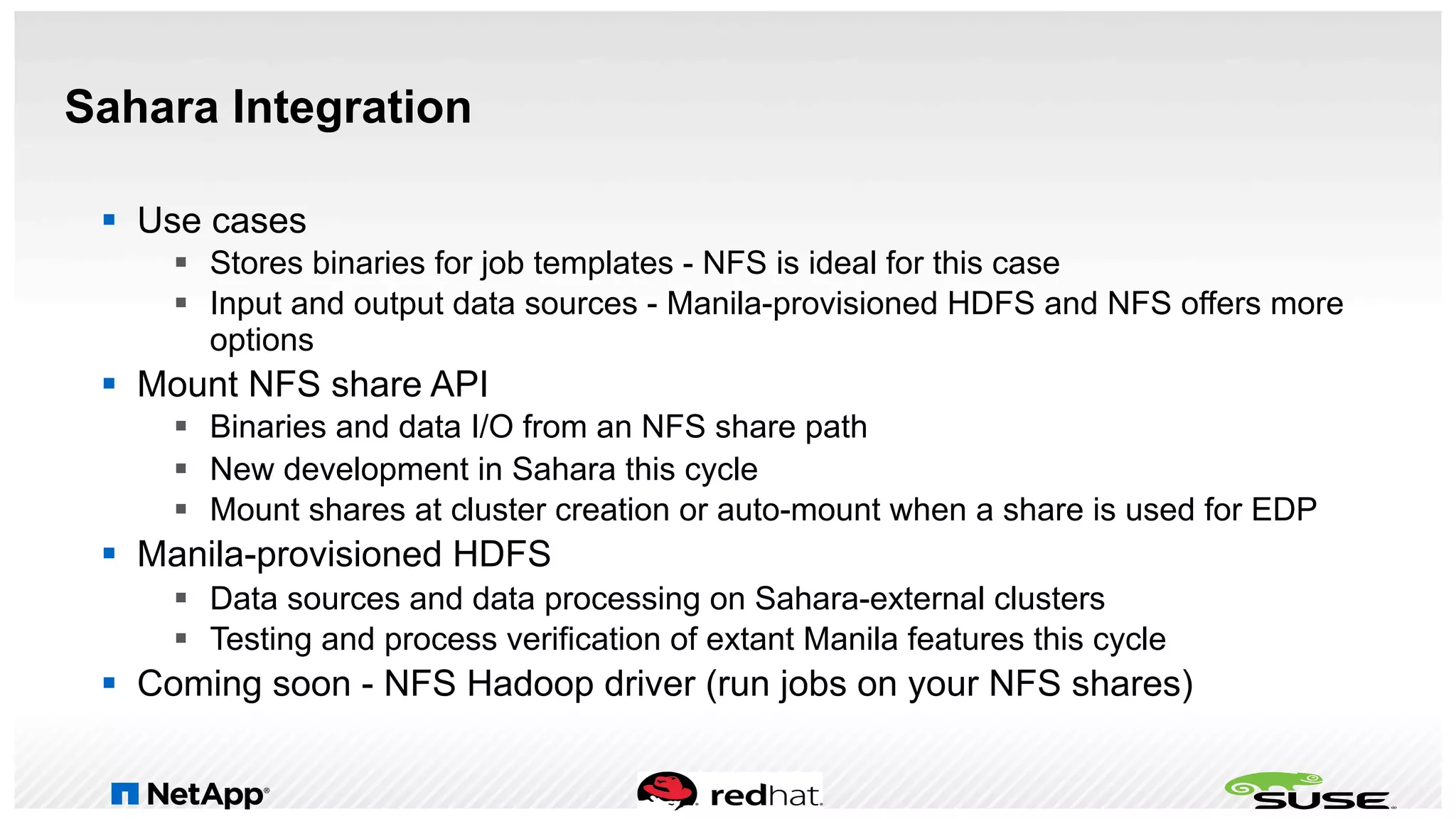

24. Sahara Integration
§ Use cases
§ Stores binaries for job templates - NFS is ideal for this case
§ Input and output data sources - Manila-provisioned HDFS and NFS offers more
options
§ Mount NFS share API
§ Binaries and data I/O from an NFS share path
§ New development in Sahara this cycle
§ Mount shares at cluster creation or auto-mount when a share is used for EDP
§ Manila-provisioned HDFS
§ Data sources and data processing on Sahara-external clusters
§ Testing and process verification of extant Manila features this cycle
§ Coming soon - NFS Hadoop driver (run jobs on your NFS shares)

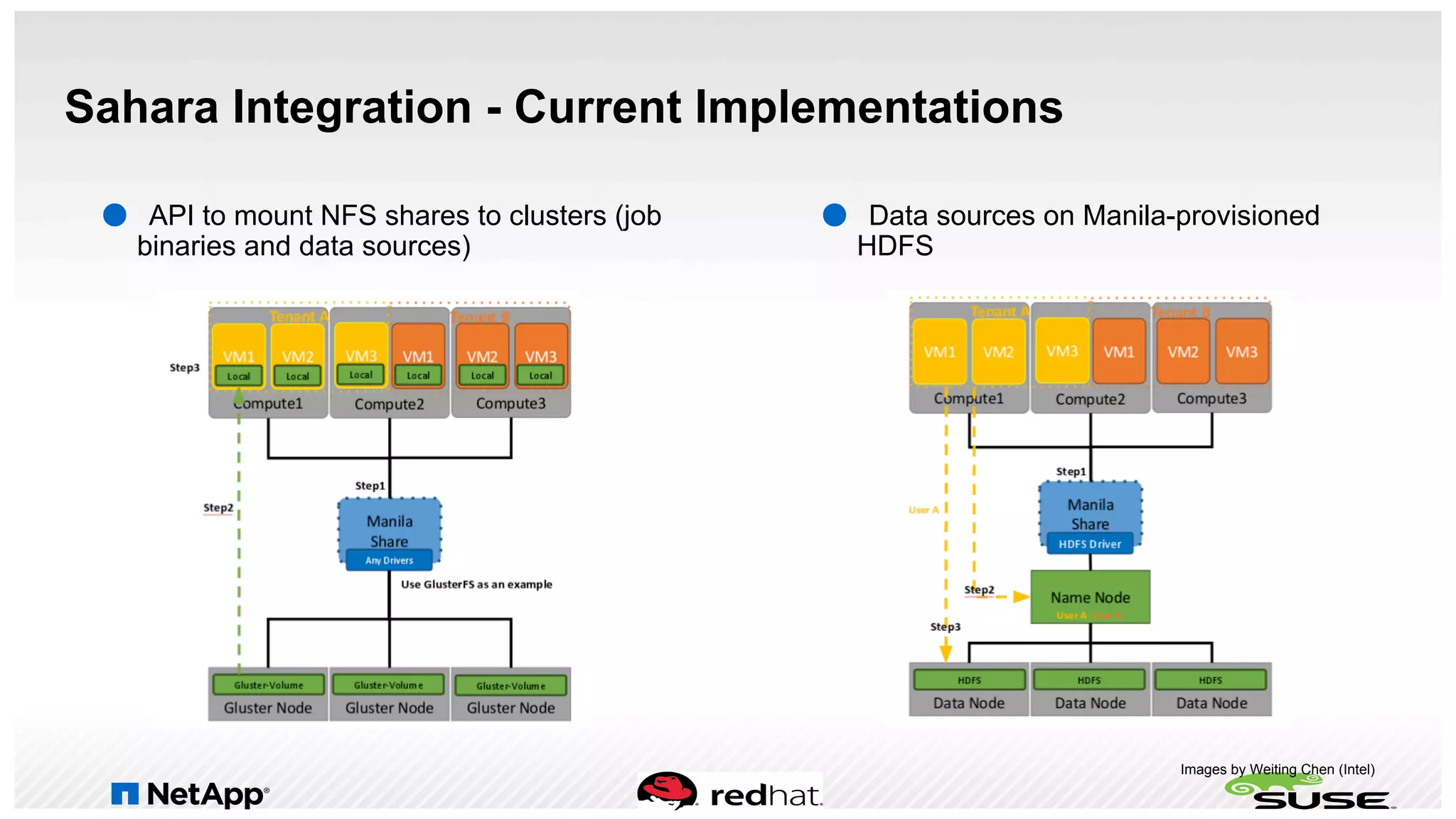

25. Sahara Integration - Current Implementations
● Data sources on Manila-provisioned
HDFS
● API to mount NFS shares to clusters (job
binaries and data sources)
Images by Weiting Chen (Intel)

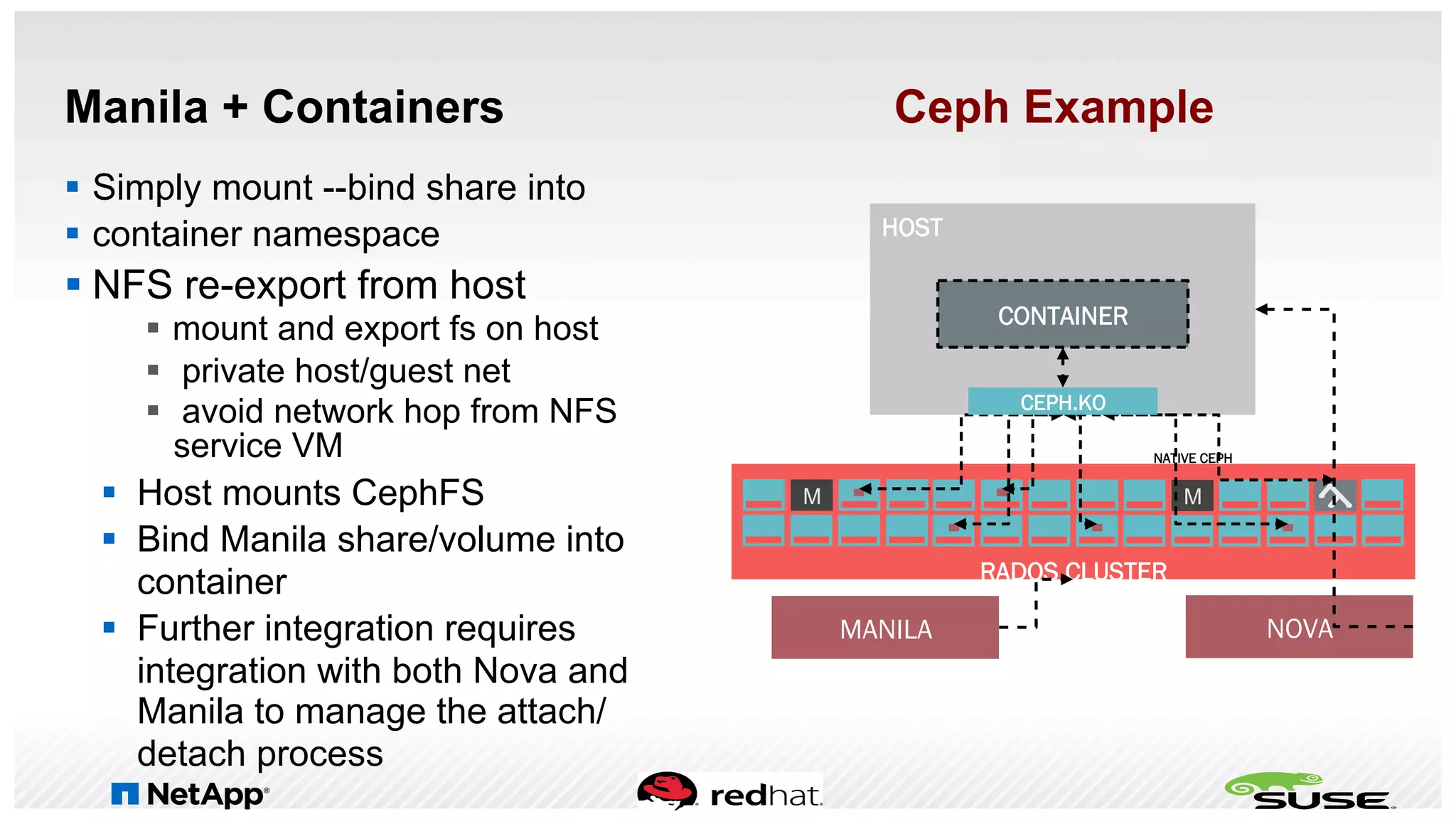

26. Manila + Containers Ceph Example
§ Simply mount --bind share into
§ container namespace
§ NFS re-export from host
§ mount and export fs on host
§ private host/guest net
§ avoid network hop from NFS
service VM
§ Host mounts CephFS
§ Bind Manila share/volume into
container
§ Further integration requires
integration with both Nova and
Manila to manage the attach/
detach process
HOST
M M
RADOS CLUSTER
CONTAINER
MANILA
NATIVE CEPH
CEPH.KO
NOVA

27. Distributions
Integration

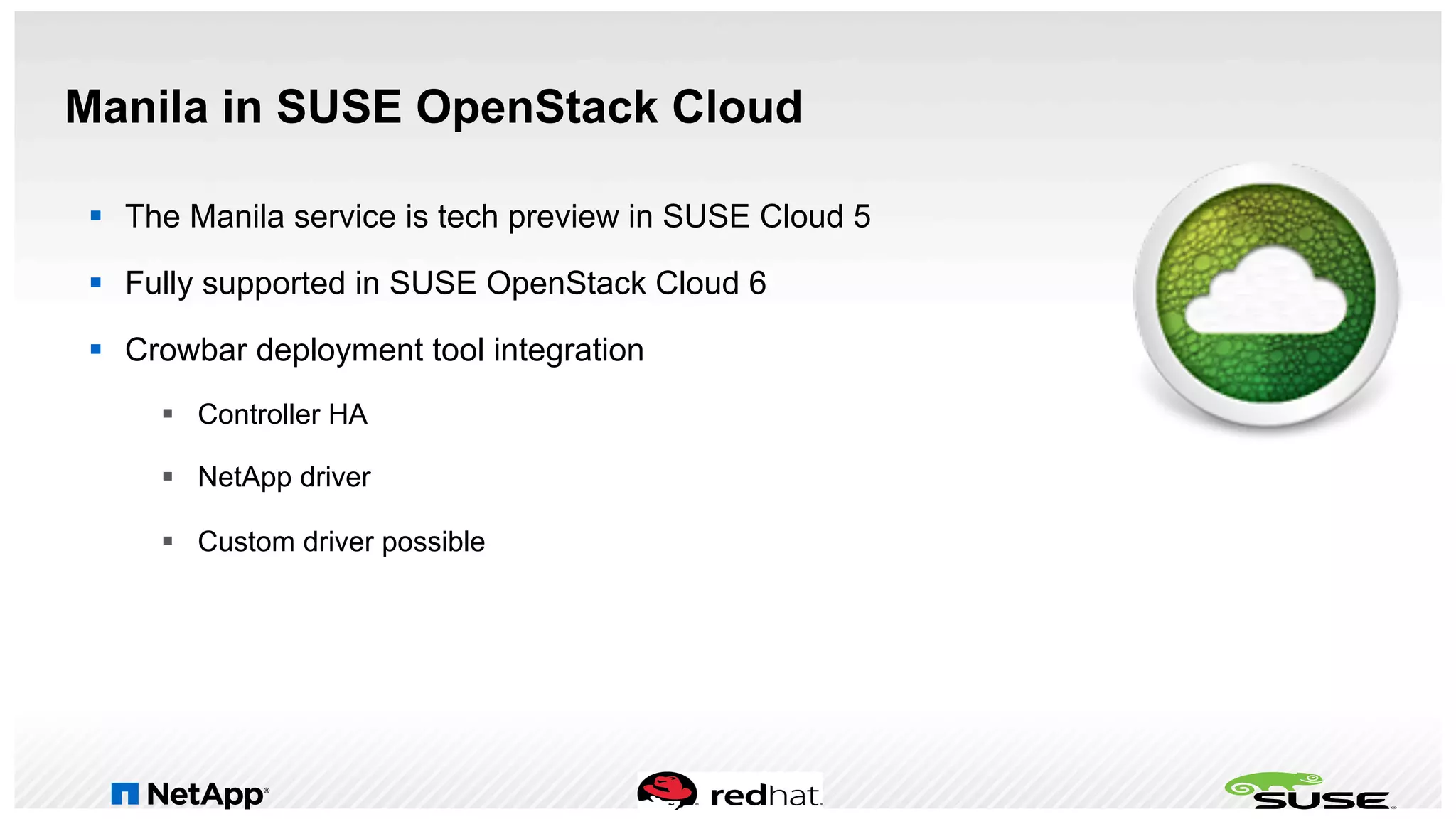

28. Manila in SUSE OpenStack Cloud
§ The Manila service is tech preview in SUSE Cloud 5
§ Fully supported in SUSE OpenStack Cloud 6
§ Crowbar deployment tool integration
§ Controller HA
§ NetApp driver
§ Custom driver possible

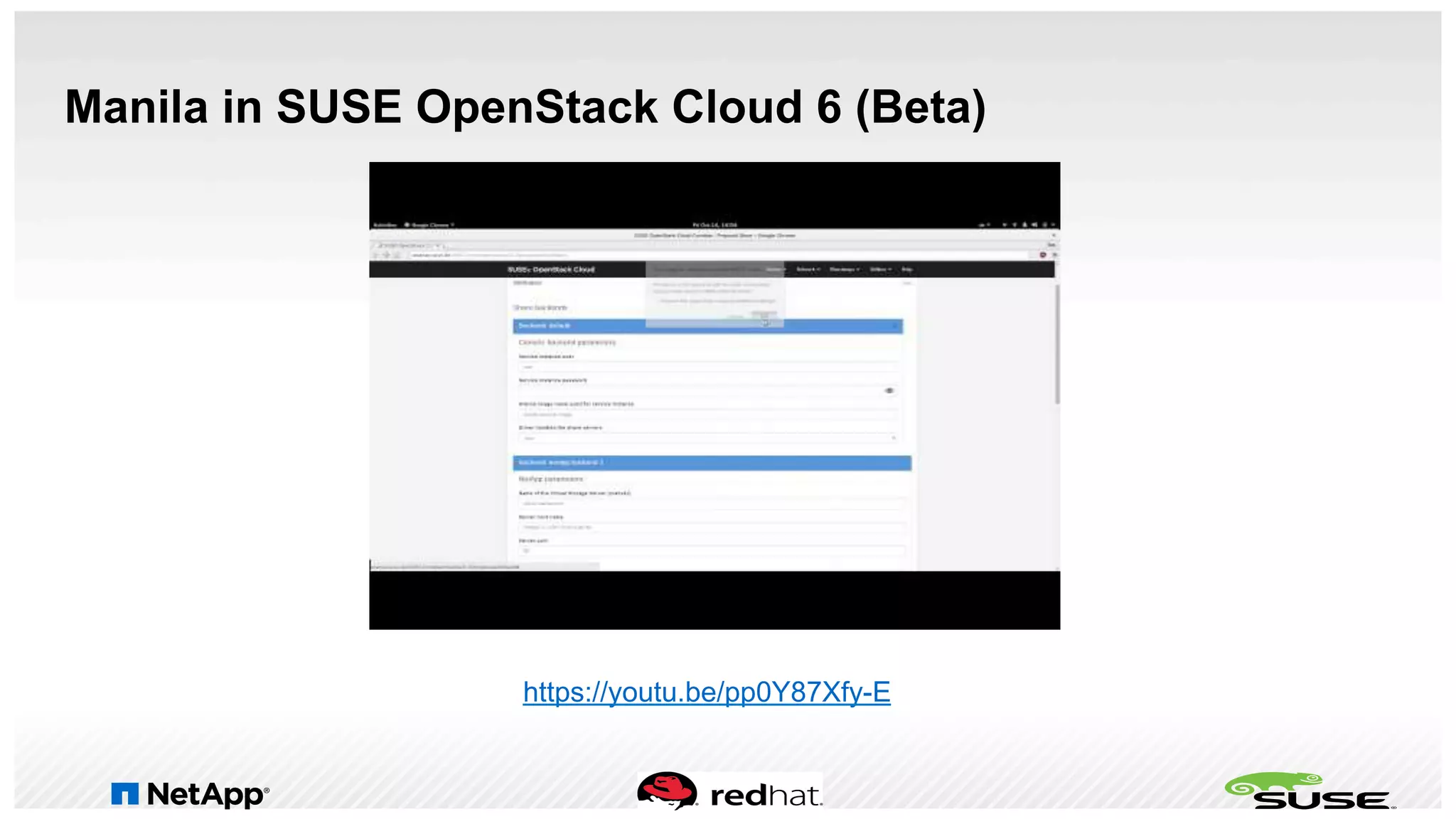

29. Manila in SUSE OpenStack Cloud 6 (Beta)
https://youtu.be/pp0Y87Xfy-E

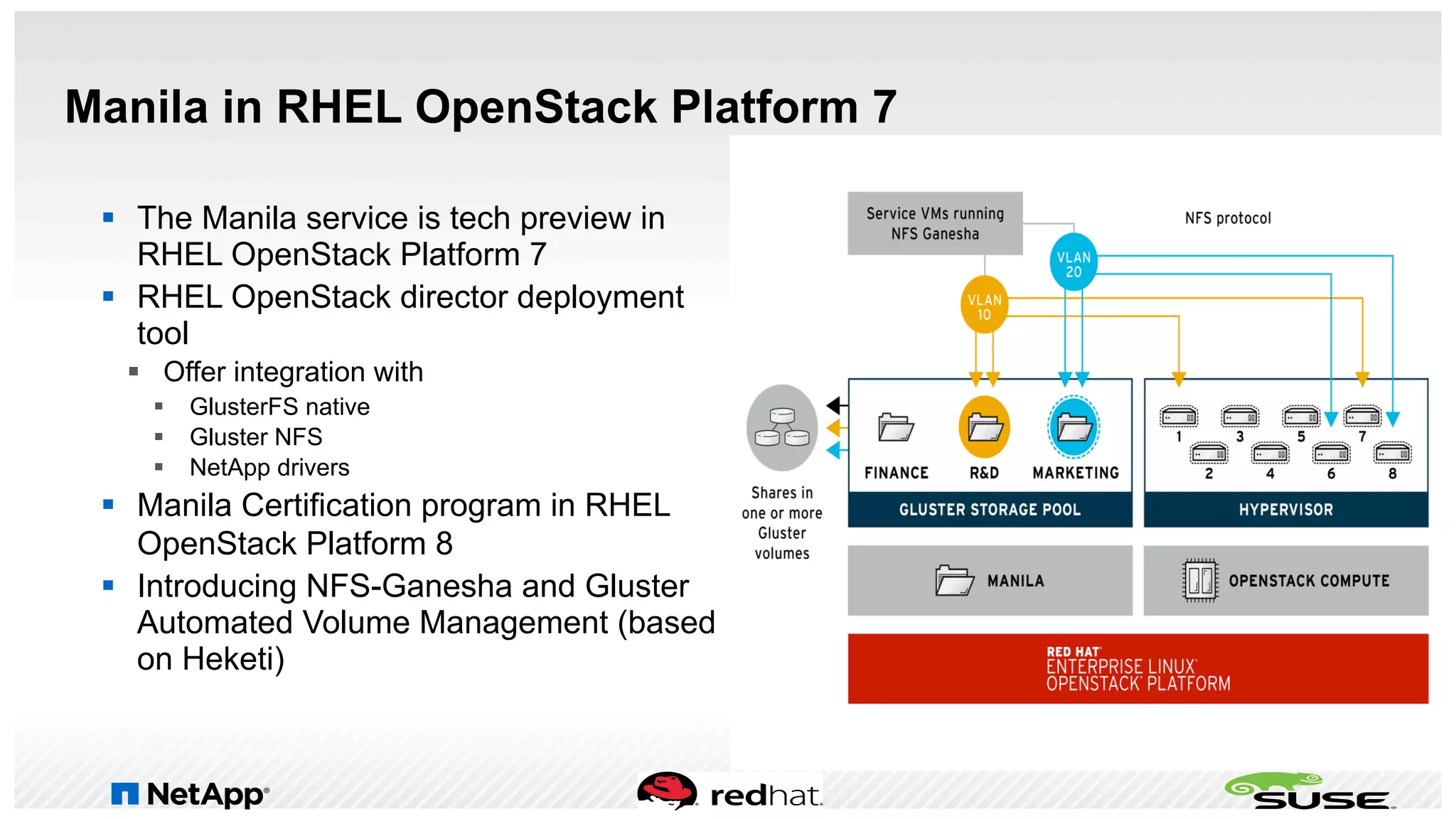

30. Manila in RHEL OpenStack Platform 7
§ The Manila service is tech preview in
RHEL OpenStack Platform 7
§ RHEL OpenStack director deployment
tool
§ Offer integration with
§ GlusterFS native
§ Gluster NFS
§ NetApp drivers
§ Manila Certification program in RHEL
OpenStack Platform 8
§ Introducing NFS-Ganesha and Gluster
Automated Volume Management (based
on Heketi)

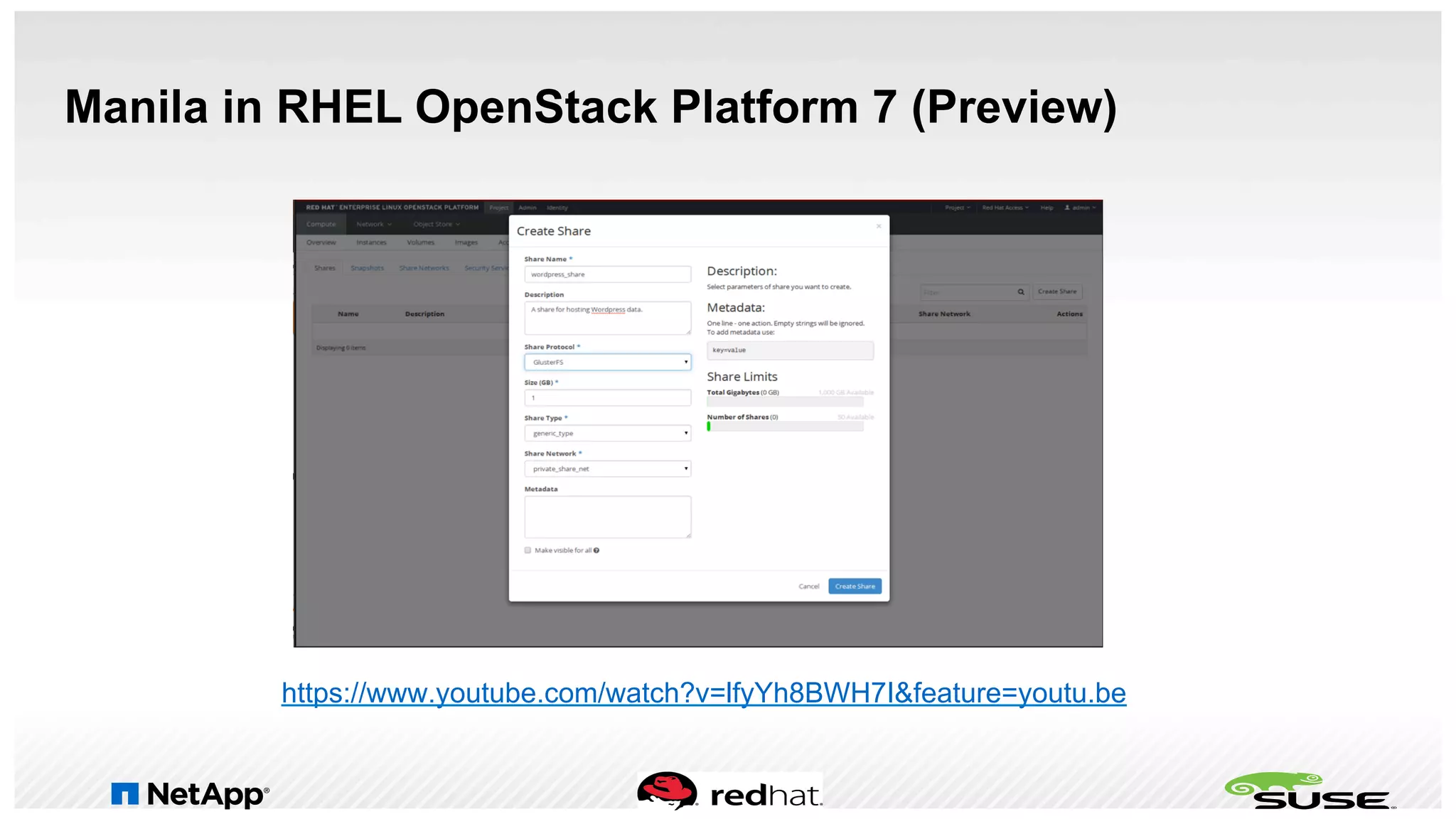

31. Manila in RHEL OpenStack Platform 7 (Preview)
https://www.youtube.com/watch?v=lfyYh8BWH7I&feature=youtu.be

32. Upcoming
in Mitaka

33. Upcoming in Mitaka
§ Mount Automation
§ Rolling Updates
§ Export Location Metadata
§ Manila QoS
§ Capability Lists
§ Interaction Between New Features
§ Share Migration Loose-ends
§ Remove All Extensions
§ Architectural Directions For New 1st-party Drivers
§ Share Replication

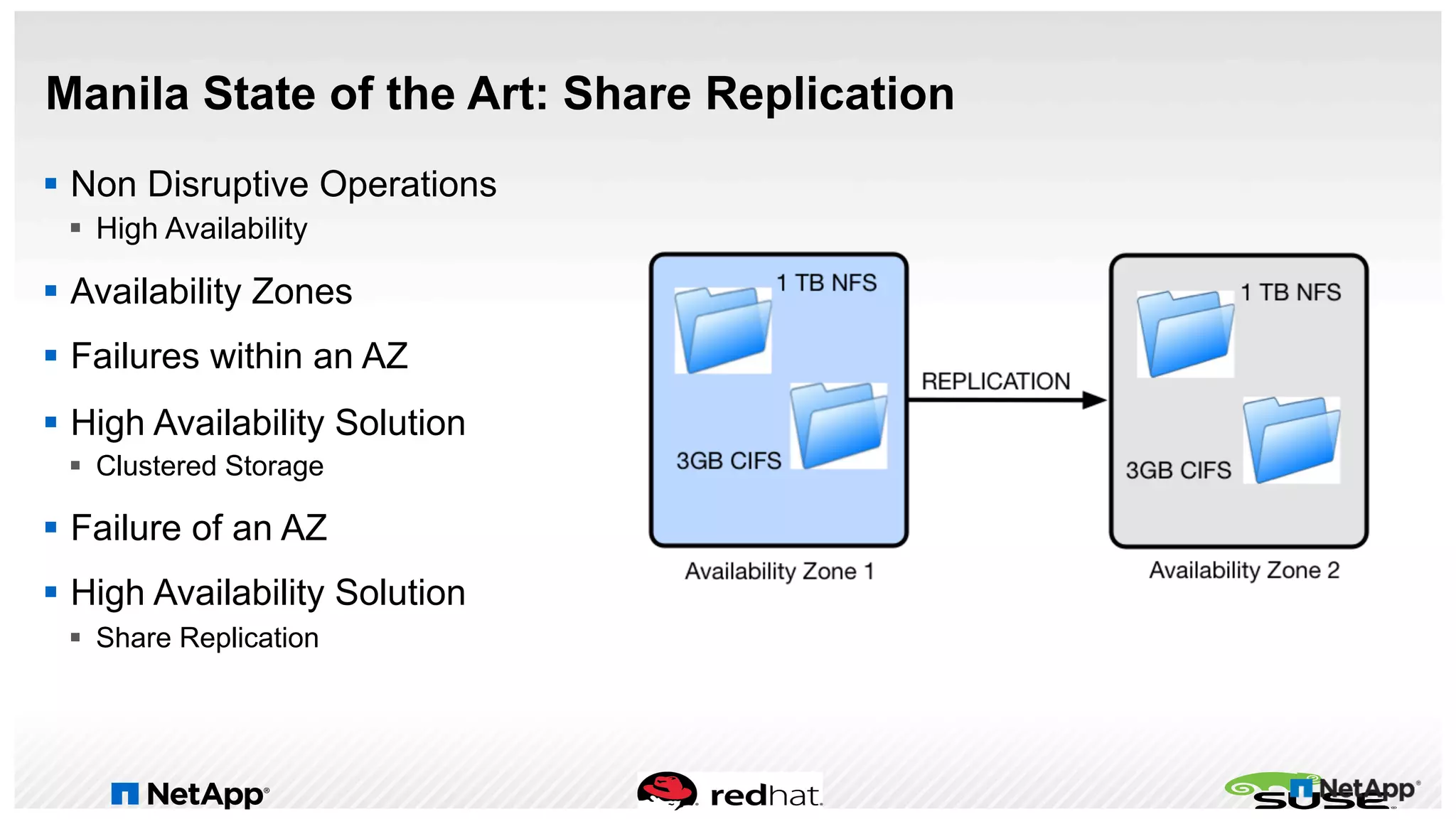

34. § Non Disruptive Operations
§ High Availability
§ Availability Zones
§ Failures within an AZ
§ High Availability Solution
§ Clustered Storage
§ Failure of an AZ
§ High Availability Solution
§ Share Replication
Manila State of the Art: Share Replication

35. Demo #3: Share Replication

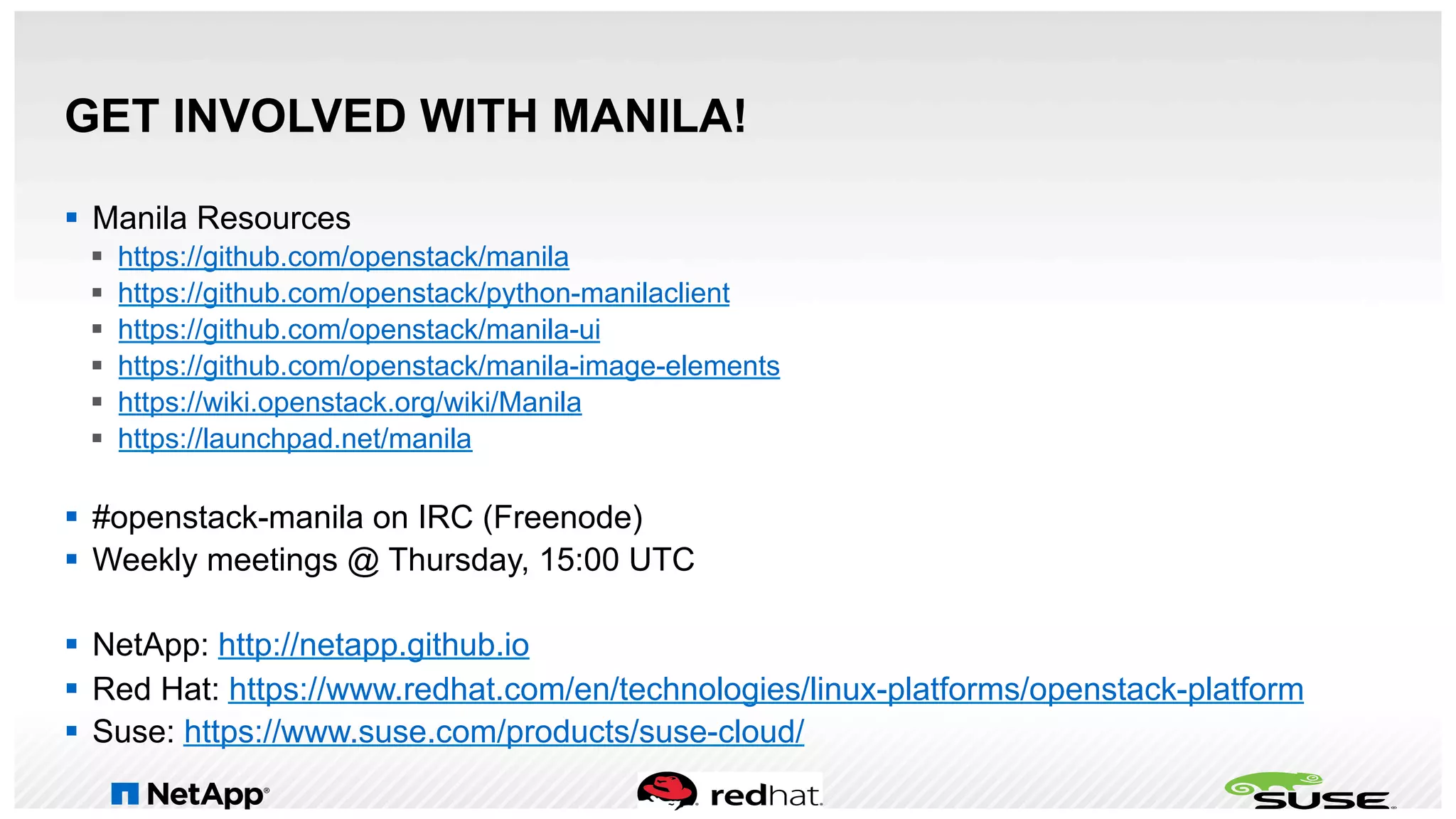

36. GET INVOLVED WITH MANILA!
§ Manila Resources
§ https://github.com/openstack/manila
§ https://github.com/openstack/python-manilaclient
§ https://github.com/openstack/manila-ui
§ https://github.com/openstack/manila-image-elements
§ https://wiki.openstack.org/wiki/Manila
§ https://launchpad.net/manila
§ #openstack-manila on IRC (Freenode)
§ Weekly meetings @ Thursday, 15:00 UTC
§ NetApp: http://netapp.github.io
§ Red Hat: https://www.redhat.com/en/technologies/linux-platforms/openstack-platform
§ Suse: https://www.suse.com/products/suse-cloud/

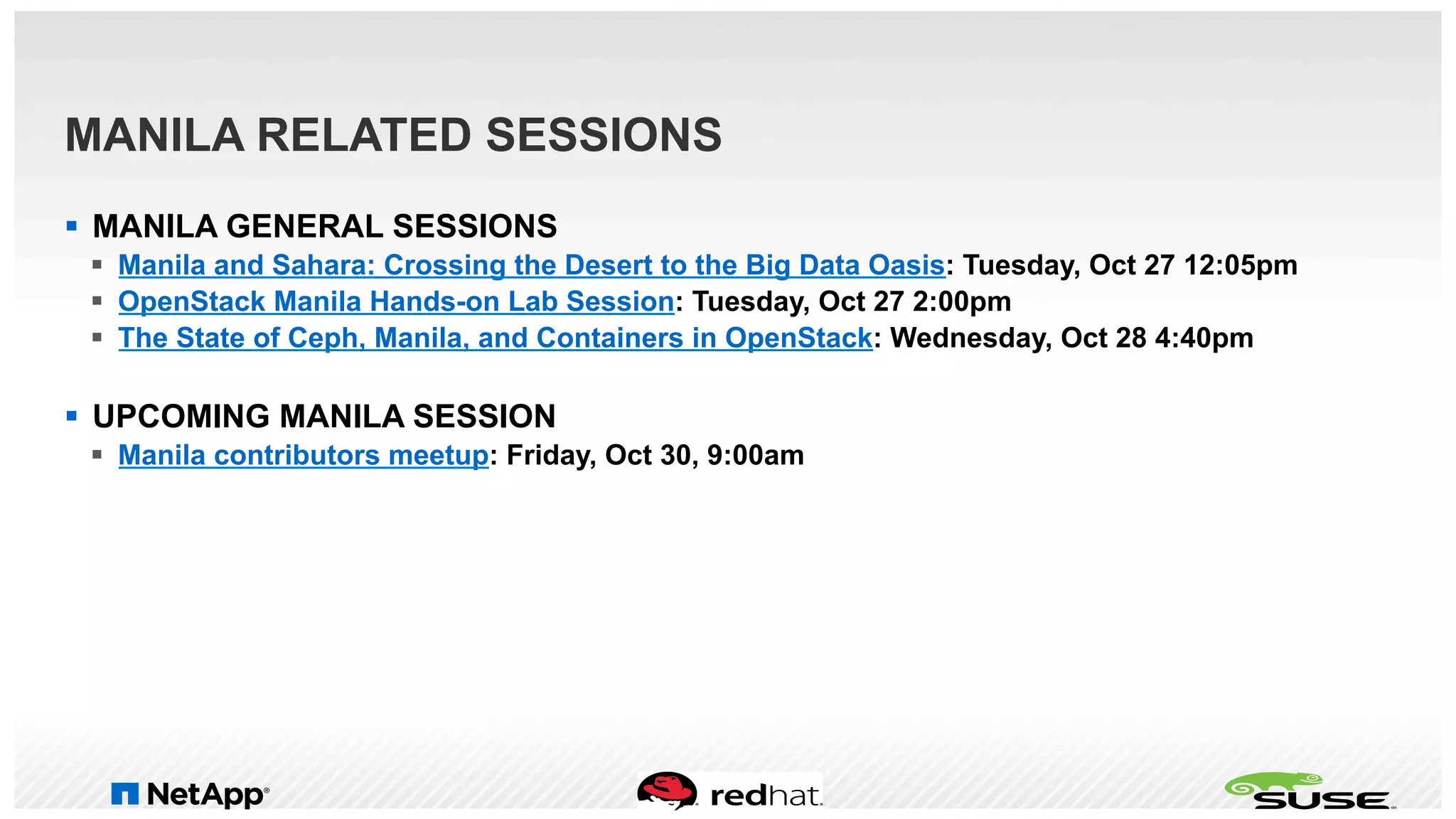

37. MANILA RELATED SESSIONS
§ MANILA GENERAL SESSIONS
§ Manila and Sahara: Crossing the Desert to the Big Data Oasis: Tuesday, Oct 27 12:05pm
§ OpenStack Manila Hands-on Lab Session: Tuesday, Oct 27 2:00pm
§ The State of Ceph, Manila, and Containers in OpenStack: Wednesday, Oct 28 4:40pm
§ UPCOMING MANILA SESSION
§ Manila contributors meetup: Friday, Oct 30, 9:00am

38. Q&A
October 29, 2015
OpenStack Summit -
Tokyo
