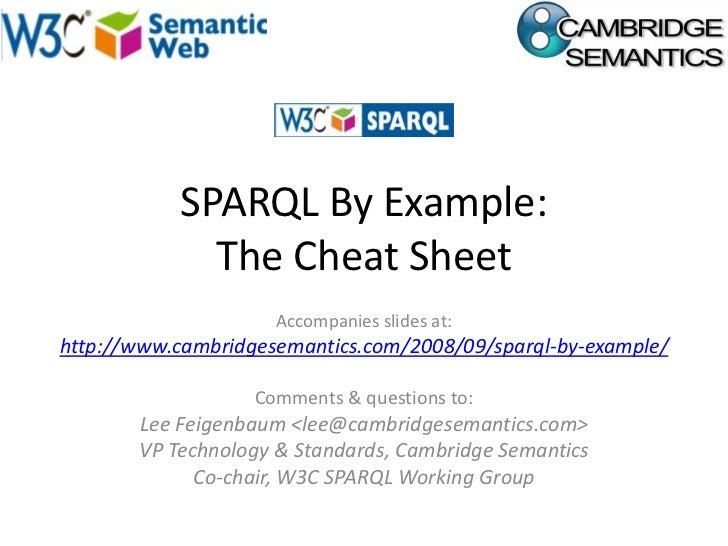

SPARQL By Example:
The Cheat Sheet
Accompanies slides at:
http://www.cambridgesemantics.com/semantic-university/sparql-by-example
Comments & questions to:
Lee Feigenbaum <lee@cambridgesemantics.com>
VP Marketing & Technology, Cambridge Semantics
Co-chair, W3C SPARQL Working Group
Conventions
Red text means:
“This is a core part of the SPARQL syntax or
language.”
Blue text means:
“This is an example of query-specific text or
values that might go into a SPARQL query.”
Nuts & Bolts
Write full URIs:
<http://this.is.a/full/URI/written#out>
Abbreviate URIs with prefixes:
PREFIX foo: <http://this.is.a/URI/prefix#>
… foo:bar …
 http://this.is.a/URI/prefix#bar
Shortcuts:
a  rdf:type
URIs
Plain literals:
“a plain literal”
Plain literal with language tag:
“bonjour”@fr
Typed literal:
“13”^^xsd:integer
Shortcuts:
true  “true”^^xsd:boolean
3  “3”^^xsd:integer
4.2  “4.2”^^xsd:decimal
Literals
Variables:
?var1, ?anotherVar, ?and_one_more
Variables
Comments:
# Comments start with a „#‟ and
# continue to the end of the line
Comments
Match an exact RDF triple:
ex:myWidget ex:partNumber “XY24Z1” .
Match one variable:
?person foaf:name “Lee Feigenbaum” .
Match multiple variables:
conf:SemTech2009 ?property ?value .
Triple Patterns
Common Prefixes
More common prefixes at http://prefix.cc
prefix... …stands for
rdf: http://xmlns.com/foaf/0.1/
rdfs: http://www.w3.org/2000/01/rdf-schema#
owl: http://www.w3.org/2002/07/owl#
xsd: http://www.w3.org/2001/XMLSchema#
dc: http://purl.org/dc/elements/1.1/
foaf: http://xmlns.com/foaf/0.1/
Anatomy of a Query
PREFIX foo: <…>
PREFIX bar: <…>
…
SELECT …
FROM <…>
FROM NAMED <…>
WHERE {
…
}
GROUP BY …
HAVING …
ORDER BY …
LIMIT …
OFFSET …
VALUES …
Declare prefix
shortcuts
(optional)
Query result
clause
Query pattern
Query modifiers
(optional)
Define the
dataset (optional)
4 Types of SPARQL Queries
Project out specific variables and expressions:
SELECT ?c ?cap (1000 * ?people AS ?pop)
Project out all variables:
SELECT *
Project out distinct combinations only:
SELECT DISTINCT ?country
Results in a table of values (in XML or JSON):
SELECT queries
?c ?cap ?pop
ex:France ex:Paris 63,500,000
ex:Canada ex:Ottawa 32,900,000
ex:Italy ex:Rome 58,900,000
Construct RDF triples/graphs:
CONSTRUCT {
?country a ex:HolidayDestination ;
ex:arrive_at ?capital ;
ex:population ?population .
}
Results in RDF triples (in any RDF serialization):
ex:France a ex:HolidayDestination ;
ex:arrive_at ex:Paris ;
ex:population 635000000 .
ex:Canada a ex:HolidayDestination ;
ex:arrive_at ex:Ottawa ;
ex:population 329000000 .
CONSTRUCT queries
Ask whether or not there are any matches:
ASK
Result is either “true” or “false” (in XML or JSON):
true, false
ASK queries
Describe the resources matched by the given variables:
DESCRIBE ?country
Result is RDF triples (in any RDF serialization) :
ex:France a geo:Country ;
ex:continent geo:Europe ;
ex:flag <http://…/flag-france.png> ;
…
DESCRIBE queries
Combining SPARQL Graph Patterns
Consider A and B as graph patterns.
A Basic Graph Pattern – one or more triple patterns
A . B
 Conjunction. Join together the results of solving A and B by matching the
values of any variables in common.
Optional Graph Patterns
A OPTIONAL { B }
 Left join. Join together the results of solving A and B by matching the
values of any variables in common, if possible. Keep all solutions from A whether or
not there’s a matching solution in B
Combining SPARQL Graph Patterns
Consider A and B as graph patterns.
Either-or Graph Patterns
{ A } UNION { B }
 Disjunction. Include both the results of solving A and the results of
solving B.
“Subtracted” Graph Patterns (SPARQL 1.1)
A MINUS { B }
 Negation. Solve A. Solve B. Include only those results from solving A that
are not compatible with any of the results from B.
SPARQL Subqueries (SPARQL 1.1)
Consider A and B as graph patterns.
A .
{
SELECT …
WHERE {
B
}
}
C .
 Join the results of the subquery with the results of solving A and C.
SPARQL Filters
• SPARQL FILTERs eliminate solutions that do not cause an
expression to evaluate to true.
• Place FILTERs in a query inline within a basic graph pattern
A . B . FILTER ( …expr… )
Category Functions / Operators Examples
Logical &
Comparisons
!, &&, ||, =, !=, <, <=, >,
>=, IN, NOT IN
?hasPermit || ?age < 25
Conditionals
(SPARQL 1.1)
EXISTS, NOT EXISTS, IF,
COALESCE
NOT EXISTS { ?p foaf:mbox ?email }
Math
+, -, *, /, abs, round,
ceil, floor, RAND
?decimal * 10 > ?minPercent
Strings
(SPARQL 1.1)
STRLEN, SUBSTR, UCASE,
LCASE, STRSTARTS, CONCAT,
STRENDS, CONTAINS,
STRBEFORE, STRAFTER
STRLEN(?description) < 255
Date/time
(SPARQL 1.1)
now, year, month, day,
hours, minutes, seconds,
timezone, tz
month(now()) < 4
SPARQL tests
isURI, isBlank,
isLiteral, isNumeric,
bound
isURI(?person) || !bound(?person)
Constructors
(SPARQL 1.1)
URI, BNODE, STRDT,
STRLANG, UUID, STRUUID
STRLANG(?text, “en”) = “hello”@en
Accessors str, lang, datatype lang(?title) = “en”
Hashing (1.1) MD5, SHA1, SHA256, SHA512 BIND(SHA256(?email) AS ?hash)
Miscellaneous
sameTerm, langMatches,
regex, REPLACE
regex(?ssn, “d{3}-d{2}-d{4}”)
Aggregates (SPARQL 1.1)
1. Partition results into
groups based on the
expression(s) in the
GROUP BY clause
2. Evaluate projections
and aggregate functions
in SELECT clause to get
one result per group
3. Filter aggregated
results via the HAVING
clause
?key ?val ?other1
1 4 …
1 4 …
2 5 …
2 4 …
2 10 …
2 2 …
2 1 …
3 3 …
?key ?sum_of_val
1 8
2 22
3 3
?key ?sum_of_val
1 8
3 3
SPARQL 1.1 includes: COUNT, SUM, AVG, MIN, MAX, SAMPLE, GROUP_CONCAT
Property Paths (SPARQL 1.1)
• Property paths allow triple patterns to match arbitrary-
length paths through a graph
• Predicates are combined with regular-expression-like
operators:
Construct Meaning
path1/path2 Forwards path (path1 followed by path2)
^path1 Backwards path (object to subject)
path1|path2 Either path1 or path2
path1* path1, repeated zero or more times
path1+ path1, repeated one or more times
path1? path1, optionally
!uri Any predicate except uri
!^uri Any backwards (object to subject) predicate except uri
RDF Datasets
A SPARQL queries a default graph (normally) and zero or
more named graphs (when inside a GRAPH clause).
ex:g1
ex:g2
ex:g3
Default graph
(the merge of zero or more graphs)
Named graphs
ex:g1
ex:g4
PREFIX ex: <…>
SELECT …
FROM ex:g1
FROM ex:g4
FROM NAMED ex:g1
FROM NAMED ex:g2
FROM NAMED ex:g3
WHERE {
… A …
GRAPH ex:g3 {
… B …
}
GRAPH ?graph {
… C …
}
}
OR
OR
SPARQL Over HTTP (the SPARQL Protocol)
http://host.domain.com/sparql/endpoint?<parameters>
where <parameters> can include:
query=<encoded query string>
e.g. SELECT+*%0DWHERE+{…
default-graph-uri=<encoded graph URI>
e.g. http%3A%2F%2Fexmaple.com%2Ffoo…
n.b. zero of more occurrences of default-graph-uri
named-graph-uri=<encoded graph URI>
e.g. http%3A%2F%2Fexmaple.com%2Fbar…
n.b. zero of more occurrences of named-graph-uri
HTTP GET or POST. Graphs given in the protocol override graphs given in the
query.
Federated Query (SPARQL 1.1)
PREFIX ex: <…>
SELECT …
FROM ex:g1
WHERE {
… A …
SERVICE ex:s1 {
… B …
}
SERVICE ex:s2 {
… C …
}
}
ex:g1
Web
SPARQL Endpoint
ex:s2
SPARQL Endpoint
ex:s1
Local Graph Store
SPARQL 1.1 Update
SPARQL Update Language Statements
INSERT DATA { triples }
DELETE DATA {triples}
[ DELETE { template } ] [ INSERT { template } ] WHERE { pattern }
LOAD <uri> [ INTO GRAPH <uri> ]
CLEAR GRAPH <uri>
CREATE GRAPH <uri>
DROP GRAPH <uri>
[ … ] denotes optional parts of SPARQL 1.1 Update syntax
Some Public SPARQL Endpoints
Name URL What’s there?
SPARQLer http://sparql.org/sparql.html
General-purpose query
endpoint for Web-accessible
data
DBPedia http://dbpedia.org/sparql
Extensive RDF data from
Wikipedia
DBLP http://www4.wiwiss.fu-berlin.de/dblp/snorql/
Bibliographic data from
computer science journals
and conferences
LinkedMDB http://data.linkedmdb.org/sparql
Films, actors, directors,
writers, producers, etc.
World
Factbook
http://www4.wiwiss.fu-
berlin.de/factbook/snorql/
Country statistics from the
CIA World Factbook
bio2rdf http://bio2rdf.org/sparql
Bioinformatics data from
around 40 public databases
SPARQL Resources
• SPARQL Specifications Overview
– http://www.w3.org/TR/sparql11-overview/
• SPARQL implementations
– http://esw.w3.org/topic/SparqlImplementations
• SPARQL endpoints
– http://esw.w3.org/topic/SparqlEndpoints
• SPARQL Frequently Asked Questions
– http://www.thefigtrees.net/lee/sw/sparql-faq
• Common SPARQL extensions
– http://esw.w3.org/topic/SPARQL/Extensions

More Related Content

What's hot

SPARQL-DL - Theory & Practice
SPARQL-DL - Theory & PracticeSPARQL-DL - Theory & Practice
SPARQL-DL - Theory & PracticeAdriel Café

Inference on the Semantic Web
Inference on the Semantic WebInference on the Semantic Web
Inference on the Semantic WebMyungjin Lee

LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODO
LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODOLinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODO
LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODOChris Mungall

Introduction To RDF and RDFS
Introduction To RDF and RDFSIntroduction To RDF and RDFS
Introduction To RDF and RDFSNilesh Wagmare

Introduction to RDF & SPARQL
Introduction to RDF & SPARQLIntroduction to RDF & SPARQL
Introduction to RDF & SPARQLOpen Data Support

RDF 개념 및 구문 소개
RDF 개념 및 구문 소개RDF 개념 및 구문 소개
RDF 개념 및 구문 소개Dongbum Kim

Triplestore and SPARQL
Triplestore and SPARQLTriplestore and SPARQL
Triplestore and SPARQLLino Valdivia

SPARQL 사용법
SPARQL 사용법SPARQL 사용법
SPARQL 사용법홍수 허

Getting Started with Knowledge Graphs
Getting Started with Knowledge GraphsGetting Started with Knowledge Graphs
Getting Started with Knowledge GraphsPeter Haase

Graph and RDF databases
Graph and RDF databasesGraph and RDF databases
Graph and RDF databasesNassim Bahri

Property graph vs. RDF Triplestore comparison in 2020
Property graph vs. RDF Triplestore comparison in 2020Property graph vs. RDF Triplestore comparison in 2020
Property graph vs. RDF Triplestore comparison in 2020Ontotext

Tutorial on SPARQL: SPARQL Protocol and RDF Query Language
Tutorial on SPARQL: SPARQL Protocol and RDF Query Language Tutorial on SPARQL: SPARQL Protocol and RDF Query Language
Tutorial on SPARQL: SPARQL Protocol and RDF Query Language Biswanath Dutta

SPARQL in a nutshell
SPARQL in a nutshellSPARQL in a nutshell
SPARQL in a nutshellFabien Gandon


What's hot (20)

RDF, linked data and semantic web
RDF, linked data and semantic webRDF, linked data and semantic web
RDF, linked data and semantic web

SHACL Overview
SHACL OverviewSHACL Overview
SHACL Overview

SPARQL-DL - Theory & Practice
SPARQL-DL - Theory & PracticeSPARQL-DL - Theory & Practice
SPARQL-DL - Theory & Practice

RDF data model
RDF data modelRDF data model
RDF data model

Inference on the Semantic Web
Inference on the Semantic WebInference on the Semantic Web
Inference on the Semantic Web

LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODO
LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODOLinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODO
LinkML Intro July 2022.pptx PLEASE VIEW THIS ON ZENODO

RDF validation tutorial
RDF validation tutorialRDF validation tutorial
RDF validation tutorial

Introduction To RDF and RDFS
Introduction To RDF and RDFSIntroduction To RDF and RDFS
Introduction To RDF and RDFS

RDF Data Model
RDF Data ModelRDF Data Model
RDF Data Model

Introduction to RDF & SPARQL
Introduction to RDF & SPARQLIntroduction to RDF & SPARQL
Introduction to RDF & SPARQL

RDF 개념 및 구문 소개
RDF 개념 및 구문 소개RDF 개념 및 구문 소개
RDF 개념 및 구문 소개

Graph databases
Graph databasesGraph databases
Graph databases

Triplestore and SPARQL
Triplestore and SPARQLTriplestore and SPARQL
Triplestore and SPARQL

PostgreSQL
PostgreSQLPostgreSQL
PostgreSQL

SPARQL 사용법
SPARQL 사용법SPARQL 사용법
SPARQL 사용법

Getting Started with Knowledge Graphs
Getting Started with Knowledge GraphsGetting Started with Knowledge Graphs
Getting Started with Knowledge Graphs

Graph and RDF databases
Graph and RDF databasesGraph and RDF databases
Graph and RDF databases

Property graph vs. RDF Triplestore comparison in 2020
Property graph vs. RDF Triplestore comparison in 2020Property graph vs. RDF Triplestore comparison in 2020
Property graph vs. RDF Triplestore comparison in 2020

Tutorial on SPARQL: SPARQL Protocol and RDF Query Language
Tutorial on SPARQL: SPARQL Protocol and RDF Query Language Tutorial on SPARQL: SPARQL Protocol and RDF Query Language
Tutorial on SPARQL: SPARQL Protocol and RDF Query Language

SPARQL in a nutshell
SPARQL in a nutshellSPARQL in a nutshell
SPARQL in a nutshell


Similar to SPARQL Cheat Sheet

Querying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQLQuerying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQLEmanuele Della Valle

Genomic Analysis in Scala
Genomic Analysis in ScalaGenomic Analysis in Scala
Genomic Analysis in ScalaRyan Williams

The Semantics of SPARQL
The Semantics of SPARQLThe Semantics of SPARQL
The Semantics of SPARQLOlaf Hartig

The Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQLThe Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQLMyungjin Lee

Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...Allison Jai O'Dell

SPARQL Query Forms
SPARQL Query FormsSPARQL Query Forms
SPARQL Query FormsLeigh Dodds

SWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQLSWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQLMariano Rodriguez-Muro

Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1net2-project

Transformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs PigTransformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs PigLester Martin

Towards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression DerivativesTowards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression DerivativesJose Emilio Labra Gayo

Rewriting Java In Scala
Rewriting Java In ScalaRewriting Java In Scala
Rewriting Java In ScalaSkills Matter

Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Martin Odersky

Apache spark - Architecture , Overview & libraries
Apache spark - Architecture , Overview & librariesApache spark - Architecture , Overview & libraries
Apache spark - Architecture , Overview & librariesWalaa Hamdy Assy

SPARQL and SQL: technical aspects and synergy
SPARQL and SQL: technical aspects and synergySPARQL and SQL: technical aspects and synergy
SPARQL and SQL: technical aspects and synergyYannis Kalfoglou


Similar to SPARQL Cheat Sheet (20)

Sparql
SparqlSparql
Sparql

Querying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQLQuerying the Semantic Web with SPARQL
Querying the Semantic Web with SPARQL

AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101AnzoGraph DB - SPARQL 101
AnzoGraph DB - SPARQL 101

Genomic Analysis in Scala
Genomic Analysis in ScalaGenomic Analysis in Scala
Genomic Analysis in Scala

The Semantics of SPARQL
The Semantics of SPARQLThe Semantics of SPARQL
The Semantics of SPARQL

The Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQLThe Semantic Web #10 - SPARQL
The Semantic Web #10 - SPARQL

Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...
Notes from the Library Juice Academy courses on “SPARQL Fundamentals”: Univer...

SWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQLSWT Lecture Session 3 - SPARQL
SWT Lecture Session 3 - SPARQL

SPARQL Query Forms
SPARQL Query FormsSPARQL Query Forms
SPARQL Query Forms

SWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQLSWT Lecture Session 4 - SW architectures and SPARQL
SWT Lecture Session 4 - SW architectures and SPARQL

Java 8
Java 8Java 8
Java 8

Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1Federation and Navigation in SPARQL 1.1
Federation and Navigation in SPARQL 1.1

Transformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs PigTransformation Processing Smackdown; Spark vs Hive vs Pig
Transformation Processing Smackdown; Spark vs Hive vs Pig

Towards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression DerivativesTowards an RDF Validation Language based on Regular Expression Derivatives
Towards an RDF Validation Language based on Regular Expression Derivatives

Introduction to SPARQL
Introduction to SPARQLIntroduction to SPARQL
Introduction to SPARQL

Rewriting Java In Scala
Rewriting Java In ScalaRewriting Java In Scala
Rewriting Java In Scala

4 sw architectures and sparql
4 sw architectures and sparql4 sw architectures and sparql
4 sw architectures and sparql

Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009

Apache spark - Architecture , Overview & libraries
Apache spark - Architecture , Overview & librariesApache spark - Architecture , Overview & libraries
Apache spark - Architecture , Overview & libraries

SPARQL and SQL: technical aspects and synergy
SPARQL and SQL: technical aspects and synergySPARQL and SQL: technical aspects and synergy
SPARQL and SQL: technical aspects and synergy


More from LeeFeigenbaum

Data Segmenting in Anzo
Data Segmenting in AnzoData Segmenting in Anzo
Data Segmenting in AnzoLeeFeigenbaum

Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011LeeFeigenbaum

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebLeeFeigenbaum

Taking the Tech out of SemTech
Taking the Tech out of SemTechTaking the Tech out of SemTech
Taking the Tech out of SemTechLeeFeigenbaum

CSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web TutorialCSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web TutorialLeeFeigenbaum

What;s Coming In SPARQL2?
What;s Coming In SPARQL2?What;s Coming In SPARQL2?
What;s Coming In SPARQL2?LeeFeigenbaum

Semantic Web Landscape 2009
Semantic Web Landscape 2009Semantic Web Landscape 2009
Semantic Web Landscape 2009LeeFeigenbaum


More from LeeFeigenbaum (8)

Data Segmenting in Anzo
Data Segmenting in AnzoData Segmenting in Anzo
Data Segmenting in Anzo

Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011Intro to the Semantic Web Landscape - 2011
Intro to the Semantic Web Landscape - 2011

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic Web

Taking the Tech out of SemTech
Taking the Tech out of SemTechTaking the Tech out of SemTech
Taking the Tech out of SemTech

CSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web TutorialCSHALS 2010 W3C Semanic Web Tutorial
CSHALS 2010 W3C Semanic Web Tutorial

What;s Coming In SPARQL2?
What;s Coming In SPARQL2?What;s Coming In SPARQL2?
What;s Coming In SPARQL2?

SPARQL 1.1 Status
SPARQL 1.1 StatusSPARQL 1.1 Status
SPARQL 1.1 Status

Semantic Web Landscape 2009
Semantic Web Landscape 2009Semantic Web Landscape 2009
Semantic Web Landscape 2009


Recently uploaded

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024Lonnie McRorey

WordPress Websites for Engineers: Elevate Your Brand
WordPress Websites for Engineers: Elevate Your BrandWordPress Websites for Engineers: Elevate Your Brand
WordPress Websites for Engineers: Elevate Your Brandgvaughan

How to write a Business Continuity Plan
How to write a Business Continuity PlanHow to write a Business Continuity Plan
How to write a Business Continuity PlanDatabarracks

"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii SoldatenkoFwdays

New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024BookNet Canada

Sample pptx for embedding into website for demo
Sample pptx for embedding into website for demoSample pptx for embedding into website for demo
Sample pptx for embedding into website for demoHarshalMandlekar2

Developer Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLDeveloper Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLScyllaDB

New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024BookNet Canada

Dev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebDev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebUiPathCommunity

Artificial intelligence in cctv survelliance.pptx
Artificial intelligence in cctv survelliance.pptxArtificial intelligence in cctv survelliance.pptx
Artificial intelligence in cctv survelliance.pptxhariprasad279825

SALESFORCE EDUCATION CLOUD | FEXLE SERVICES
SALESFORCE EDUCATION CLOUD | FEXLE SERVICESSALESFORCE EDUCATION CLOUD | FEXLE SERVICES
SALESFORCE EDUCATION CLOUD | FEXLE SERVICESmohitsingh558521

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionDilum Bandara

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxLoriGlavin3

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024Lorenzo Miniero

TrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc

Training state-of-the-art general text embedding
Training state-of-the-art general text embeddingTraining state-of-the-art general text embedding
Training state-of-the-art general text embeddingZilliz

Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024BookNet Canada

Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Manik S Magar

The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptx
The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptxThe Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptx
The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptxLoriGlavin3

Take control of your SAP testing with UiPath Test Suite
Take control of your SAP testing with UiPath Test SuiteTake control of your SAP testing with UiPath Test Suite
Take control of your SAP testing with UiPath Test SuiteDianaGray10


Recently uploaded (20)

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024

WordPress Websites for Engineers: Elevate Your Brand
WordPress Websites for Engineers: Elevate Your BrandWordPress Websites for Engineers: Elevate Your Brand
WordPress Websites for Engineers: Elevate Your Brand

How to write a Business Continuity Plan
How to write a Business Continuity PlanHow to write a Business Continuity Plan
How to write a Business Continuity Plan

"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko

New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024

Sample pptx for embedding into website for demo
Sample pptx for embedding into website for demoSample pptx for embedding into website for demo
Sample pptx for embedding into website for demo

Developer Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLDeveloper Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQL

New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024

Dev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebDev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio Web

Artificial intelligence in cctv survelliance.pptx
Artificial intelligence in cctv survelliance.pptxArtificial intelligence in cctv survelliance.pptx
Artificial intelligence in cctv survelliance.pptx

SALESFORCE EDUCATION CLOUD | FEXLE SERVICES
SALESFORCE EDUCATION CLOUD | FEXLE SERVICESSALESFORCE EDUCATION CLOUD | FEXLE SERVICES
SALESFORCE EDUCATION CLOUD | FEXLE SERVICES

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An Introduction

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024

TrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data Privacy

Training state-of-the-art general text embedding
Training state-of-the-art general text embeddingTraining state-of-the-art general text embedding
Training state-of-the-art general text embedding

Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
Transcript: New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024

Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!

The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptx
The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptxThe Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptx
The Role of FIDO in a Cyber Secure Netherlands: FIDO Paris Seminar.pptx

Take control of your SAP testing with UiPath Test Suite
Take control of your SAP testing with UiPath Test SuiteTake control of your SAP testing with UiPath Test Suite
Take control of your SAP testing with UiPath Test Suite


SPARQL Cheat Sheet

  • 1. SPARQL By Example: The Cheat Sheet Accompanies slides at: http://www.cambridgesemantics.com/semantic-university/sparql-by-example Comments & questions to: Lee Feigenbaum <lee@cambridgesemantics.com> VP Marketing & Technology, Cambridge Semantics Co-chair, W3C SPARQL Working Group
  • 2. Conventions Red text means: “This is a core part of the SPARQL syntax or language.” Blue text means: “This is an example of query-specific text or values that might go into a SPARQL query.”
  • 3. Nuts & Bolts Write full URIs: <http://this.is.a/full/URI/written#out> Abbreviate URIs with prefixes: PREFIX foo: <http://this.is.a/URI/prefix#> … foo:bar …  http://this.is.a/URI/prefix#bar Shortcuts: a  rdf:type URIs Plain literals: “a plain literal” Plain literal with language tag: “bonjour”@fr Typed literal: “13”^^xsd:integer Shortcuts: true  “true”^^xsd:boolean 3  “3”^^xsd:integer 4.2  “4.2”^^xsd:decimal Literals Variables: ?var1, ?anotherVar, ?and_one_more Variables Comments: # Comments start with a „#‟ and # continue to the end of the line Comments Match an exact RDF triple: ex:myWidget ex:partNumber “XY24Z1” . Match one variable: ?person foaf:name “Lee Feigenbaum” . Match multiple variables: conf:SemTech2009 ?property ?value . Triple Patterns
  • 4. Common Prefixes More common prefixes at http://prefix.cc prefix... …stands for rdf: http://xmlns.com/foaf/0.1/ rdfs: http://www.w3.org/2000/01/rdf-schema# owl: http://www.w3.org/2002/07/owl# xsd: http://www.w3.org/2001/XMLSchema# dc: http://purl.org/dc/elements/1.1/ foaf: http://xmlns.com/foaf/0.1/
  • 5. Anatomy of a Query PREFIX foo: <…> PREFIX bar: <…> … SELECT … FROM <…> FROM NAMED <…> WHERE { … } GROUP BY … HAVING … ORDER BY … LIMIT … OFFSET … VALUES … Declare prefix shortcuts (optional) Query result clause Query pattern Query modifiers (optional) Define the dataset (optional)
  • 6. 4 Types of SPARQL Queries Project out specific variables and expressions: SELECT ?c ?cap (1000 * ?people AS ?pop) Project out all variables: SELECT * Project out distinct combinations only: SELECT DISTINCT ?country Results in a table of values (in XML or JSON): SELECT queries ?c ?cap ?pop ex:France ex:Paris 63,500,000 ex:Canada ex:Ottawa 32,900,000 ex:Italy ex:Rome 58,900,000 Construct RDF triples/graphs: CONSTRUCT { ?country a ex:HolidayDestination ; ex:arrive_at ?capital ; ex:population ?population . } Results in RDF triples (in any RDF serialization): ex:France a ex:HolidayDestination ; ex:arrive_at ex:Paris ; ex:population 635000000 . ex:Canada a ex:HolidayDestination ; ex:arrive_at ex:Ottawa ; ex:population 329000000 . CONSTRUCT queries Ask whether or not there are any matches: ASK Result is either “true” or “false” (in XML or JSON): true, false ASK queries Describe the resources matched by the given variables: DESCRIBE ?country Result is RDF triples (in any RDF serialization) : ex:France a geo:Country ; ex:continent geo:Europe ; ex:flag <http://…/flag-france.png> ; … DESCRIBE queries
  • 7. Combining SPARQL Graph Patterns Consider A and B as graph patterns. A Basic Graph Pattern – one or more triple patterns A . B  Conjunction. Join together the results of solving A and B by matching the values of any variables in common. Optional Graph Patterns A OPTIONAL { B }  Left join. Join together the results of solving A and B by matching the values of any variables in common, if possible. Keep all solutions from A whether or not there’s a matching solution in B
  • 8. Combining SPARQL Graph Patterns Consider A and B as graph patterns. Either-or Graph Patterns { A } UNION { B }  Disjunction. Include both the results of solving A and the results of solving B. “Subtracted” Graph Patterns (SPARQL 1.1) A MINUS { B }  Negation. Solve A. Solve B. Include only those results from solving A that are not compatible with any of the results from B.
  • 9. SPARQL Subqueries (SPARQL 1.1) Consider A and B as graph patterns. A . { SELECT … WHERE { B } } C .  Join the results of the subquery with the results of solving A and C.
  • 10. SPARQL Filters • SPARQL FILTERs eliminate solutions that do not cause an expression to evaluate to true. • Place FILTERs in a query inline within a basic graph pattern A . B . FILTER ( …expr… )
  • 11. Category Functions / Operators Examples Logical & Comparisons !, &&, ||, =, !=, <, <=, >, >=, IN, NOT IN ?hasPermit || ?age < 25 Conditionals (SPARQL 1.1) EXISTS, NOT EXISTS, IF, COALESCE NOT EXISTS { ?p foaf:mbox ?email } Math +, -, *, /, abs, round, ceil, floor, RAND ?decimal * 10 > ?minPercent Strings (SPARQL 1.1) STRLEN, SUBSTR, UCASE, LCASE, STRSTARTS, CONCAT, STRENDS, CONTAINS, STRBEFORE, STRAFTER STRLEN(?description) < 255 Date/time (SPARQL 1.1) now, year, month, day, hours, minutes, seconds, timezone, tz month(now()) < 4 SPARQL tests isURI, isBlank, isLiteral, isNumeric, bound isURI(?person) || !bound(?person) Constructors (SPARQL 1.1) URI, BNODE, STRDT, STRLANG, UUID, STRUUID STRLANG(?text, “en”) = “hello”@en Accessors str, lang, datatype lang(?title) = “en” Hashing (1.1) MD5, SHA1, SHA256, SHA512 BIND(SHA256(?email) AS ?hash) Miscellaneous sameTerm, langMatches, regex, REPLACE regex(?ssn, “d{3}-d{2}-d{4}”)
  • 12. Aggregates (SPARQL 1.1) 1. Partition results into groups based on the expression(s) in the GROUP BY clause 2. Evaluate projections and aggregate functions in SELECT clause to get one result per group 3. Filter aggregated results via the HAVING clause ?key ?val ?other1 1 4 … 1 4 … 2 5 … 2 4 … 2 10 … 2 2 … 2 1 … 3 3 … ?key ?sum_of_val 1 8 2 22 3 3 ?key ?sum_of_val 1 8 3 3 SPARQL 1.1 includes: COUNT, SUM, AVG, MIN, MAX, SAMPLE, GROUP_CONCAT
  • 13. Property Paths (SPARQL 1.1) • Property paths allow triple patterns to match arbitrary- length paths through a graph • Predicates are combined with regular-expression-like operators: Construct Meaning path1/path2 Forwards path (path1 followed by path2) ^path1 Backwards path (object to subject) path1|path2 Either path1 or path2 path1* path1, repeated zero or more times path1+ path1, repeated one or more times path1? path1, optionally !uri Any predicate except uri !^uri Any backwards (object to subject) predicate except uri
  • 14. RDF Datasets A SPARQL queries a default graph (normally) and zero or more named graphs (when inside a GRAPH clause). ex:g1 ex:g2 ex:g3 Default graph (the merge of zero or more graphs) Named graphs ex:g1 ex:g4 PREFIX ex: <…> SELECT … FROM ex:g1 FROM ex:g4 FROM NAMED ex:g1 FROM NAMED ex:g2 FROM NAMED ex:g3 WHERE { … A … GRAPH ex:g3 { … B … } GRAPH ?graph { … C … } } OR OR
  • 15. SPARQL Over HTTP (the SPARQL Protocol) http://host.domain.com/sparql/endpoint?<parameters> where <parameters> can include: query=<encoded query string> e.g. SELECT+*%0DWHERE+{… default-graph-uri=<encoded graph URI> e.g. http%3A%2F%2Fexmaple.com%2Ffoo… n.b. zero of more occurrences of default-graph-uri named-graph-uri=<encoded graph URI> e.g. http%3A%2F%2Fexmaple.com%2Fbar… n.b. zero of more occurrences of named-graph-uri HTTP GET or POST. Graphs given in the protocol override graphs given in the query.
  • 16. Federated Query (SPARQL 1.1) PREFIX ex: <…> SELECT … FROM ex:g1 WHERE { … A … SERVICE ex:s1 { … B … } SERVICE ex:s2 { … C … } } ex:g1 Web SPARQL Endpoint ex:s2 SPARQL Endpoint ex:s1 Local Graph Store
  • 17. SPARQL 1.1 Update SPARQL Update Language Statements INSERT DATA { triples } DELETE DATA {triples} [ DELETE { template } ] [ INSERT { template } ] WHERE { pattern } LOAD <uri> [ INTO GRAPH <uri> ] CLEAR GRAPH <uri> CREATE GRAPH <uri> DROP GRAPH <uri> [ … ] denotes optional parts of SPARQL 1.1 Update syntax
  • 18. Some Public SPARQL Endpoints Name URL What’s there? SPARQLer http://sparql.org/sparql.html General-purpose query endpoint for Web-accessible data DBPedia http://dbpedia.org/sparql Extensive RDF data from Wikipedia DBLP http://www4.wiwiss.fu-berlin.de/dblp/snorql/ Bibliographic data from computer science journals and conferences LinkedMDB http://data.linkedmdb.org/sparql Films, actors, directors, writers, producers, etc. World Factbook http://www4.wiwiss.fu- berlin.de/factbook/snorql/ Country statistics from the CIA World Factbook bio2rdf http://bio2rdf.org/sparql Bioinformatics data from around 40 public databases
  • 19. SPARQL Resources • SPARQL Specifications Overview – http://www.w3.org/TR/sparql11-overview/ • SPARQL implementations – http://esw.w3.org/topic/SparqlImplementations • SPARQL endpoints – http://esw.w3.org/topic/SparqlEndpoints • SPARQL Frequently Asked Questions – http://www.thefigtrees.net/lee/sw/sparql-faq • Common SPARQL extensions – http://esw.w3.org/topic/SPARQL/Extensions
