- 1. © 2019 Tigera,Inc. | Proprietary and Confidential KUBERNETES SERVICES ARE SO LAST HOUR... > 6 MARCH 2019
- 2. © 2019 Tigera,Inc. | Proprietary and Confidential 2 CHRISTOPHER LILJENSTOLPE CTO, Solutions @ Tigera @liljenstolpe @liljenstolpe cdl@tigera.io https://slack.projectcalico.org
- 3. © 2019 Tigera,Inc. | Proprietary and Confidential 3 SO WHAT ARE WE TALKING ABOUT TONIGHT > Kubernetes is great - my pods are deploying, my deployments are life-cycling, and everything is scaling just as I… whoa, wait a minute… ok, all better now! > Now how do I find them and consume them in the cluster? ○ Ok - got that…. > Now how about from outside, no cluster is an island, afterall….

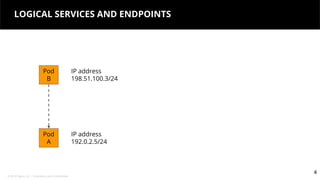

- 4. © 2018 Tigera,Inc. | Proprietary and Confidential 4 LOGICAL SERVICES AND ENDPOINTS 4 Pod A IP address 192.0.2.5/24 Pod B IP address 198.51.100.3/24

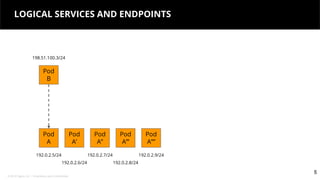

- 5. © 2018 Tigera,Inc. | Proprietary and Confidential 5 LOGICAL SERVICES AND ENDPOINTS 5 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24
- 6. © 2018 Tigera,Inc. | Proprietary and Confidential 6 LOGICAL SERVICES AND ENDPOINTS 6 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A

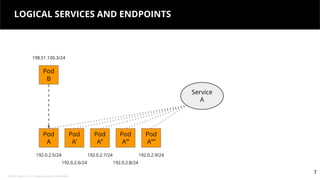

- 7. © 2018 Tigera,Inc. | Proprietary and Confidential 7 LOGICAL SERVICES AND ENDPOINTS 7 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A

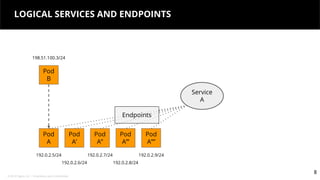

- 8. © 2018 Tigera,Inc. | Proprietary and Confidential 8 LOGICAL SERVICES AND ENDPOINTS 8 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A Endpoints

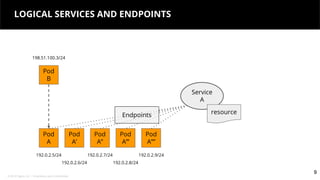

- 9. © 2018 Tigera,Inc. | Proprietary and Confidential 9 LOGICAL SERVICES AND ENDPOINTS 9 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A Endpoints resource

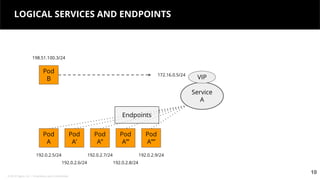

- 10. © 2018 Tigera,Inc. | Proprietary and Confidential 10 LOGICAL SERVICES AND ENDPOINTS 10 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A Endpoints 172.16.0.5/24 VIP
- 11. © 2018 Tigera,Inc. | Proprietary and Confidential 11 LOGICAL SERVICES AND ENDPOINTS 11 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A Endpoints 172.16.0.5/24 VIP Load Balancer resource

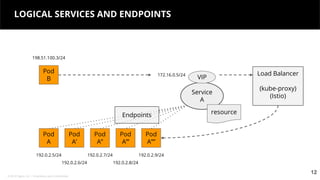

- 12. © 2018 Tigera,Inc. | Proprietary and Confidential 12 LOGICAL SERVICES AND ENDPOINTS 12 Pod A Pod B 198.51.100.3/24 192.0.2.5/24 Pod A’ Pod A’’ Pod A’’’ Pod A’’’’ 192.0.2.6/24 192.0.2.7/24 192.0.2.8/24 192.0.2.9/24 Service A Endpoints 172.16.0.5/24 VIP Load Balancer (kube-proxy) (Istio) resource

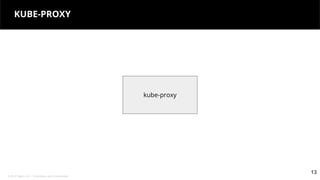

- 13. © 2018 Tigera,Inc. | Proprietary and Confidential 13 KUBE-PROXY 13 kube-proxy

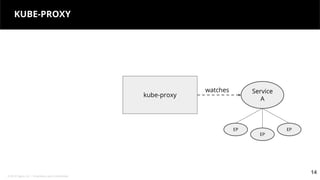

- 14. © 2018 Tigera,Inc. | Proprietary and Confidential 14 KUBE-PROXY 14 kube-proxy Service A EP EP EP watches

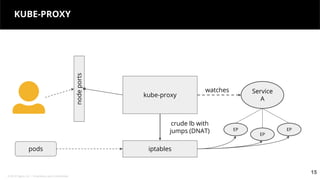

- 15. © 2018 Tigera,Inc. | Proprietary and Confidential 15 KUBE-PROXY 15 kube-proxy Service A EP EP EP watches iptables crude lb with jumps (DNAT) nodeports pods

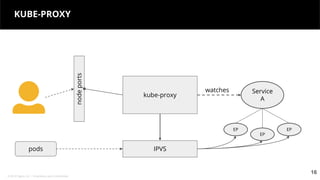

- 16. © 2018 Tigera,Inc. | Proprietary and Confidential 16 KUBE-PROXY 16 kube-proxy Service A EP EP EP watches IPVS nodeports pods
- 17. © 2018 Tigera,Inc. | Proprietary and Confidential KUBERNETES SERVICES > Provides logical “service” abstraction for a set of “endpoints” (pods) > Implemented via kube-proxy ○ Historically: userspace proxy ○ Now: iptables rules ○ Future: IPVS > Calico functions seamlessly with standard kube-proxy > Different types - for now, we will look at Cluster VIP 17
- 18. Kubernetes Services Worker Y IPb3IPb2IPb1 WorkerX IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet IPw kubectl expose --namespace=ProjectPink deployment nginx --port=80 User/Developer creates service through yaml or ‘kubectl expose’
- 19. Kubernetes Services Worker Y IPb3IPb2IPb1 WorkerX IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N kubectl expose --namespace=ProjectPink deployment nginx --port=80 Kube-proxy creates corresponding NAT rules in host

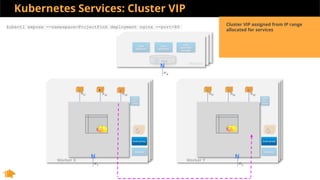

- 20. Kubernetes Services: ClusterVIP Worker Y IPb3IPb2IPb1 Worker X IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N kubectl expose --namespace=ProjectPink deployment nginx --port=80 Cluster VIP assigned from IP range allocated for services
- 21. © 2018 Tigera,Inc. | Proprietary and Confidential SERVICE DISCOVERY - KUBERNETES DNS 21 In Kubernetes, DNS is used for service discovery > KubeDNS service (future possibly CoreDNS) Kubernetes creates a DNS record for: > every Service (including the DNS server itself) ○ my-svc.my-namespace.svc.cluster.local > Pods (where configured) ○ pod-ip-address.my-namespace.pod.cluster.local

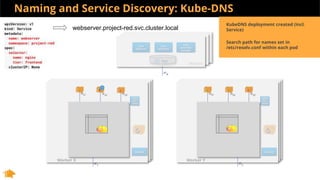

- 22. Naming and ServiceDiscovery: Kube-DNS Worker Y IPb3IPb2IPb1 Worker X IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet IPw webserver.project-red.svc.cluster.local KubeDNS deployment created (incl. Service) Search path for names set in /etc/resolv.conf within each pod

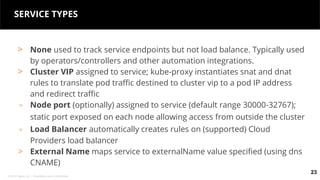

- 23. © 2018 Tigera,Inc. | Proprietary and Confidential SERVICE TYPES > None used to track service endpoints but not load balance. Typically used by operators/controllers and other automation integrations. > Cluster VIP assigned to service; kube-proxy instantiates snat and dnat rules to translate pod traffic destined to cluster vip to a pod IP address and redirect traffic > Node port (optionally) assigned to service (default range 30000-32767); static port exposed on each node allowing access from outside the cluster > Load Balancer automatically creates rules on (supported) Cloud Providers load balancer > External Name maps service to externalName value specified (using dns CNAME) 23

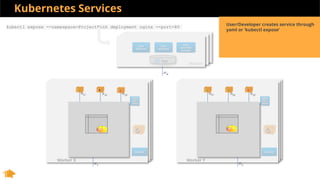

- 24. Kubernetes Services Worker Y IPb3IPb2IPb1 WorkerX IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet IPw kubectl expose --namespace=ProjectPink deployment nginx --port=80 User/Developer creates service through yaml or ‘kubectl expose’

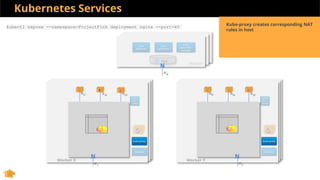

- 25. Kubernetes Services Worker Y IPb3IPb2IPb1 WorkerX IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N kubectl expose --namespace=ProjectPink deployment nginx --port=80 Kube-proxy creates corresponding NAT rules in host
- 26. Kubernetes Services: ClusterVIP Worker Y IPb3IPb2IPb1 Worker X IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N kubectl expose --namespace=ProjectPink deployment nginx --port=80 Cluster VIP assigned from IP range allocated for services

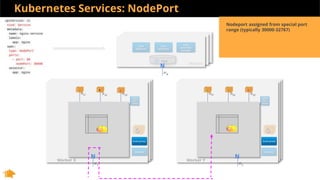

- 27. Kubernetes Services: NodePort WorkerY IPb3IPb2IPb1 Worker X IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N Nodeport assigned from special port range (typically 30000-32767)
- 28. Kubernetes Services: LoadBalancer WorkerY IPb3IPb2IPb1 Worker X IPx IPa3IPa2IPa1 Master kube apiserver kube scheduler kube controller manager Etcd Calico CNI + IPAM IPy Calico CNI + IPAM kubelet kubelet kube-proxy kube-proxy N N IPw N Rules created on supported external load balancers

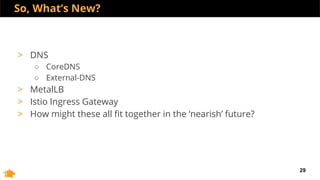

- 29. > DNS ○ CoreDNS ○External-DNS > MetalLB > Istio Ingress Gateway > How might these all fit together in the ‘nearish’ future? 29 So, What’s New?

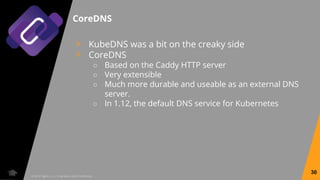

- 30. © 2018 Tigera,Inc. | Proprietary and Confidential 30 CoreDNS > KubeDNS was a bit on the creaky side > CoreDNS ○ Based on the Caddy HTTP server ○ Very extensible ○ Much more durable and useable as an external DNS server. ○ In 1.12, the default DNS service for Kubernetes

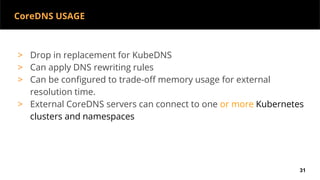

- 31. CoreDNS USAGE > Dropin replacement for KubeDNS > Can apply DNS rewriting rules > Can be configured to trade-off memory usage for external resolution time. > External CoreDNS servers can connect to one or more Kubernetes clusters and namespaces 31
- 32.

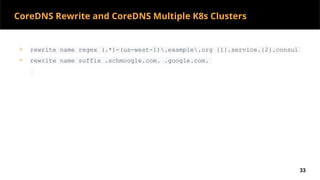

- 33. > rewrite nameregex (.*)-(us-west-1).example.org {1}.service.{2}.consul > rewrite name suffix .schmoogle.com. .google.com. 33 CoreDNS Rewrite and CoreDNS Multiple K8s Clusters
- 34. > Incubator Project ○I.e. don’t expect the API to be static at this point > Allows a service, deployment, pod, etc. to be annotated with an external DNS name ○ $ kubectl annotate service nginx "external-dns.alpha.kubernetes.io/hostname=nginx.example.org." ○ Can also handle TTL ○ Can be authoritative for a zone, or just already existing entries > Supports a number of backends EXTERNAL DNS 34

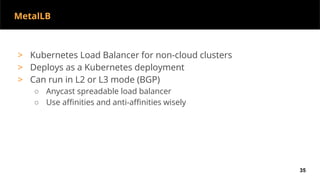

- 35. > Kubernetes LoadBalancer for non-cloud clusters > Deploys as a Kubernetes deployment > Can run in L2 or L3 mode (BGP) ○ Anycast spreadable load balancer ○ Use affinities and anti-affinities wisely 35 MetalLB

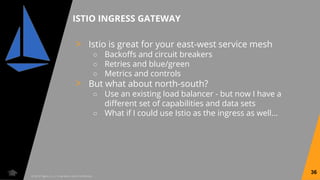

- 36. © 2018 Tigera,Inc. | Proprietary and Confidential > Istio is great for your east-west service mesh ○ Backoffs and circuit breakers ○ Retries and blue/green ○ Metrics and controls > But what about north-south? ○ Use an existing load balancer - but now I have a different set of capabilities and data sets ○ What if I could use Istio as the ingress as well... ISTIO INGRESS GATEWAY 36

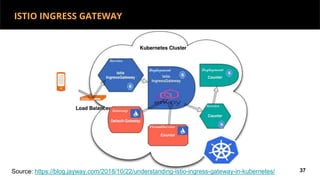

- 37. ISTIO INGRESS GATEWAY 37Source:https://blog.jayway.com/2018/10/22/understanding-istio-ingress-gateway-in-kubernetes/
- 38. > Istio GatewayService ○ Comprised of one or more Istio Gateway Pods > Defined by a two objects ○ Istio Gateway Object and one or more ● Defines what ports and hosts we are listening for ○ Virtual Service Object(s) ● Defines the routing rules and points to the underlying service 38 ISTIO GATEWAY COMPONENTS

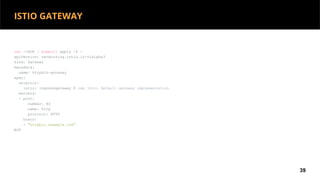

- 39. cat <<EOF |kubectl apply -f - apiVersion: networking.istio.io/v1alpha3 kind: Gateway metadata: name: httpbin-gateway spec: selector: istio: ingressgateway # use Istio default gateway implementation servers: - port: number: 80 name: http protocol: HTTP hosts: - "httpbin.example.com" EOF 39 ISTIO GATEWAY

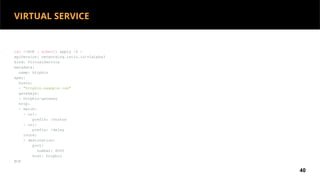

- 40. cat <<EOF |kubectl apply -f - apiVersion: networking.istio.io/v1alpha3 kind: VirtualService metadata: name: httpbin spec: hosts: - "httpbin.example.com" gateways: - httpbin-gateway http: - match: - uri: prefix: /status - uri: prefix: /delay route: - destination: port: number: 8000 host: httpbin EOF 40 VIRTUAL SERVICE

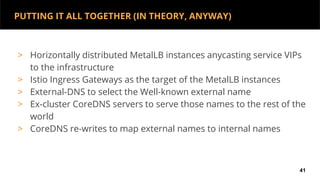

- 41. > Horizontally distributedMetalLB instances anycasting service VIPs to the infrastructure > Istio Ingress Gateways as the target of the MetalLB instances > External-DNS to select the Well-known external name > Ex-cluster CoreDNS servers to serve those names to the rest of the world > CoreDNS re-writes to map external names to internal names 41 PUTTING IT ALL TOGETHER (IN THEORY, ANYWAY)
Editor's Notes
- #28 Netstat?
