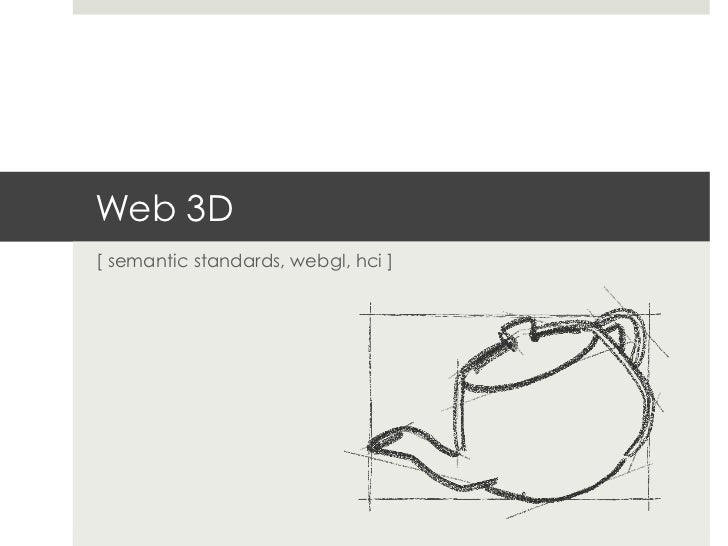

Web 3D[ semantic standards, webgl, hci ]
@victorporof	                                           GSoC	  student	  at	  Mozilla	                  graphics          ...
Web 3D
Web 3.0D
Web 3.0?“computer is generating new information,        rather than humans”                              Conrad Wolfram
Web 3.0?Definitions vary greatly¤ Sematic web  ¤  “web of data” that enables machines to understand the      semantics, ...
Web 3.0?     “first generation Metaverse”                                    John Smart
Metaverse¤  web development layer¤  extension of Web 2.0s technologies (and social networks)¤  open video¤  3D simulat...
3.0D?        © pl4n3
3.0D?                     The wrong way¤  X3D/ VRML (slow, XML)¤  Java 3D (slower)¤  QuickTime VR (fake panoramas)¤  3...
3.0D?¤  software library¤  extends the capability of JavaScript¤  generate interactive 3D graphics¤  any compatible we...
3.0D?¤  software library¤  extends the capability of JavaScript¤  generate interactive 3D graphics¤  any compatible we...
3.0D?¤  software library¤  extends the capability of JavaScript¤  generate interactive 3D graphics¤  any compatible we...
WebGL   3D computer graphics API        without the use of plug-ins
WebGL   3D computer graphics API        without the use of plug-ins
WebGL   3D computer graphics API        without the use of plug-ins
WebGL   3D computer graphics API        without the use of plug-ins
Big players     The WebGL working group includes Apple, Google, Mozilla, and Opera
Big players     The WebGL working group includes Apple, Google, Mozilla, and Opera                              J        ...
When?¤  Canvas 3D experiments started by Vladimir Vukićević  ¤  at Mozilla¤  prototype in 2006¤  end of 2007: both Moz...
Libraries¤  GLGE¤  C3DL¤  Copperlicht¤  SpiderGL¤  SceneJS¤  Processing.js¤  Three.js
Libraries¤  GLGE¤  C3DL¤  Copperlicht¤  SpiderGL¤  SceneJS¤  Processing.js¤  Three.js
Libraries¤  GLGE¤  C3DL¤  Copperlicht¤  SpiderGL¤  SceneJS¤  Processing.js¤  Three.js
We’ll see some three.js demos
Hot on the internet a while ago…http://www.chromeexperiments.com/webgl
Yup, it’s made using WebGLhttp://chrome.angrybirds.com/
Hot on the internet right now…http://www.pixelnerve.com/webgl/sss/sss_singlelight.html
How does it work?
How does it work?
The three laws of a GPU:    1.  It’s not a CPU    2.  loves geometry &        pixel algebra    3.  thinks like a SIMD*
The three laws of a GPU:                                                                              1.  It’s not a CPU  ...
Programs¤  Vertex shader¤  Fragment shader¤  Geometry shader  ¤  Hot out of the oven  ¤  Not very used  ¤  Not quite...
GLSL¤  GLslang J¤  high level shading language¤  based on the C programming language  ¤  (yes, it’s high level!)¤  l...
Horror DEFINE LUMINANCE = {0.299, 0.587, 0.114, 0.0}; TEX H0, f[TEX0], TEX4, 2D; TEX H1, f[TEX2], TEX5, CUBE; DP3X H1.xyz,...
Better #version 140 uniform Transformation {    mat4 projection;    mat4 modelview; }; in vec3 vertex; void main() {   gl_...
Best Make the triangle pretty Color it red Kthxbye
Best Make the triangle pretty Color it red Kthxbye
Shader toy
Interaction¤  Display/ computer screen is 2D¤  Most input devices are 2D  ¤  Mouse, trackpad etc.¤  3D environments ar...
Interaction¤  Display/ computer screen is 2D¤  Most input devices are 2D  ¤  Mouse, trackpad etc.¤  3D environments ar...
Interaction¤  Display/ computer screen is 2D¤  Most input devices are 2D  ¤  Mouse, trackpad etc.¤  3D environments ar...
3D interaction¤  a form of human-computer interaction¤  users are should be able to move and perform    interaction in 3...
3D interaction¤  1962 – Sensorama simulator (Morton Heilig)  ¤  3D video feedback  ¤  motion  ¤  audio  ¤  haptic (ta...
3D interaction¤  1962 – Sensorama simulator (Morton Heilig)  ¤  3D video feedback  ¤  motion  ¤  audio  ¤  haptic (ta...
3D interaction¤  should be intuitive   ¤  after all, humans interact in three dimensions in the real world¤  interactio...
3D interaction¤  should be intuitive   ¤  after all, humans interact in three dimensions in the real world¤  interactio...
3D interaction - Output  “Currently, users still have difficulty in   interpreting 3D space visuals and understanding how ...
3D interaction - Output¤  visual displays   ¤  Head-mounted displays and CAVEs       Cave Automatic Virtual Environment ...
3D interaction - Output¤  natural way for humans to move around in a three-    dimensional world¤  many sensory cues pre...
3D interaction - Input“Using 3D representations is not enough to          create 3D interaction.The users must have a way ...
3D interaction - Input¤  special/ modified input devices   ¤  ex: 3D mouse¤  trackers   ¤  detect or monitor head, han...
3D interaction input techniques¤  selection and manipulation  ¤  selecting, rotating and moving an object  ¤  direct-ha...
Edusim¤  free and open source¤  3D virtual worlds on an interactive whiteboard¤  direct manipulation  ¤  3D virtual le...
Open Cobalt Project¤  free and open source software platform (Smalltalk)¤  constructing, accessing, and sharing virtual ...
Mozilla - Tilt Project¤  3D visualization of a webpage  ¤  WebGL  ¤  visualization tool  ¤  a developer-friendly envir...
Mozilla – Tilt Project¤  https://github.com/victorporof/Tilt¤  http://blog.mozilla.com/Tilt¤  Shedule: April 25th – Aug...
Questions?   O_o                   © pl4n3
