1. I.E.S. VILLAJUNCO
Departamento de tecnología.

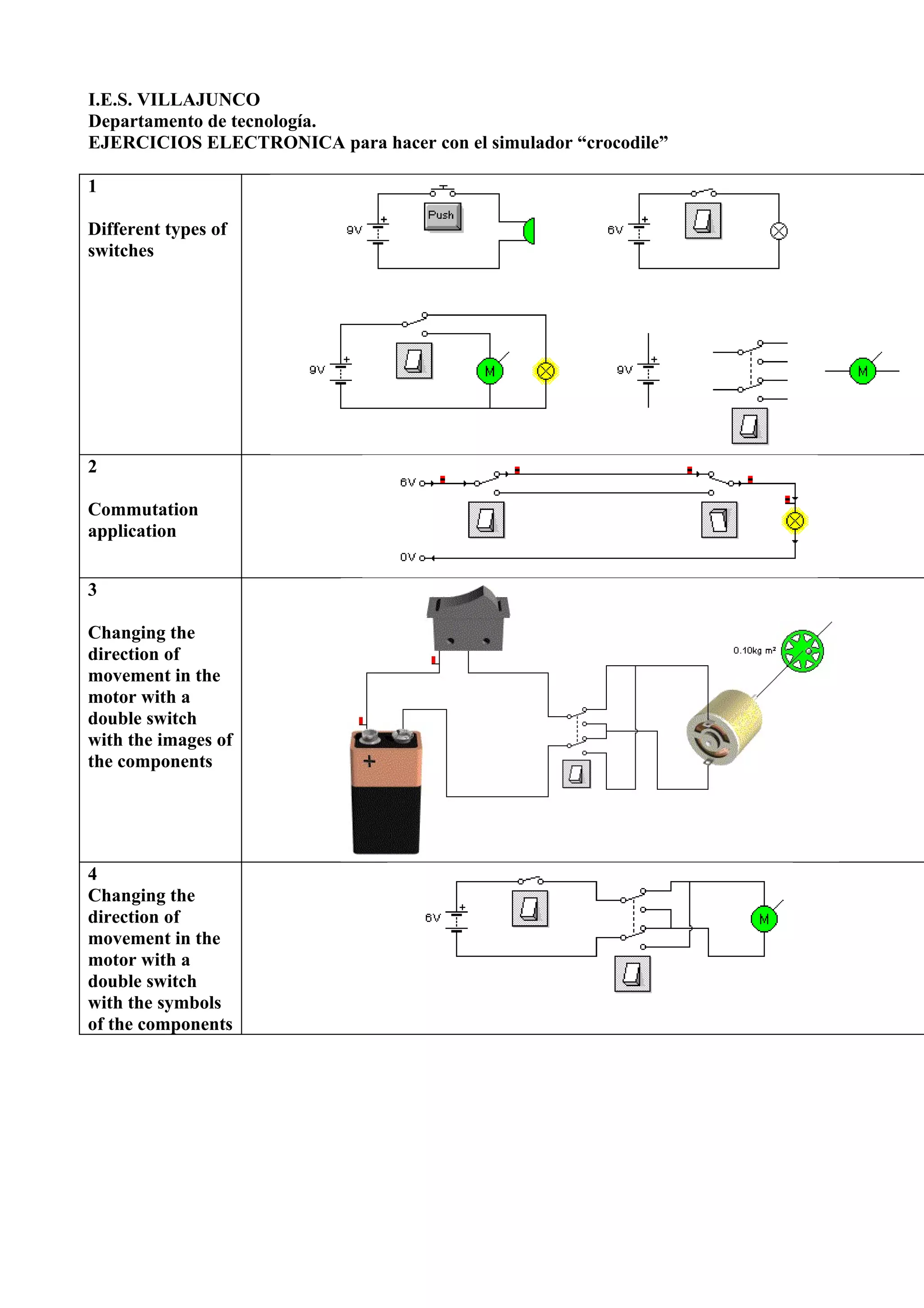

EJERCICIOS ELECTRONICA para hacer con el simulador “crocodile”
1
Different types of
switches
2
Commutation
application
3
Changing the
direction of
movement in the
motor with a
double switch
with the images of
the components
4
Changing the
direction of
movement in the
motor with a
double switch
with the symbols
of the components

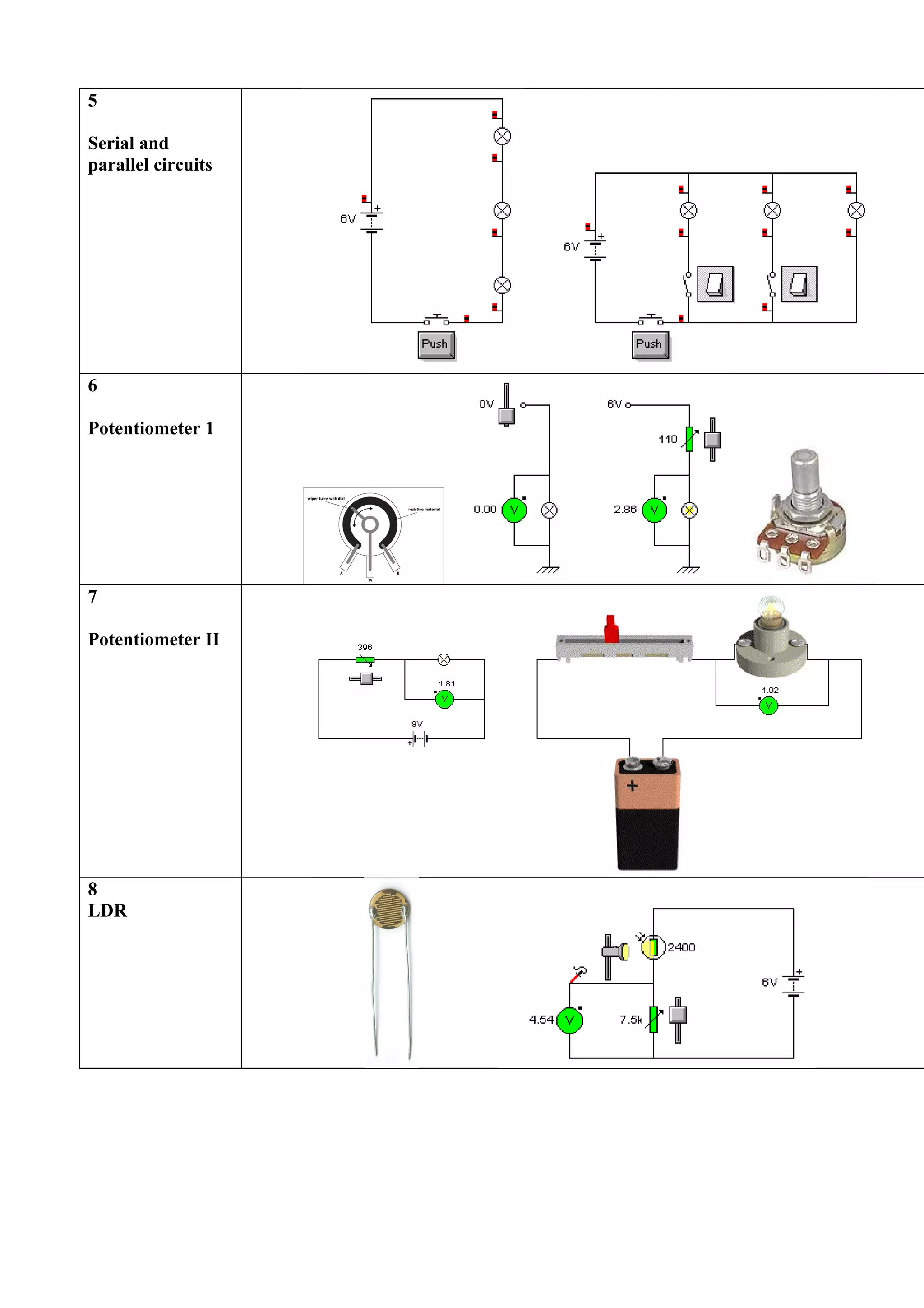

2. 5
Serial and
parallel circuits
6
Potentiometer 1
7
Potentiometer II
8
LDR

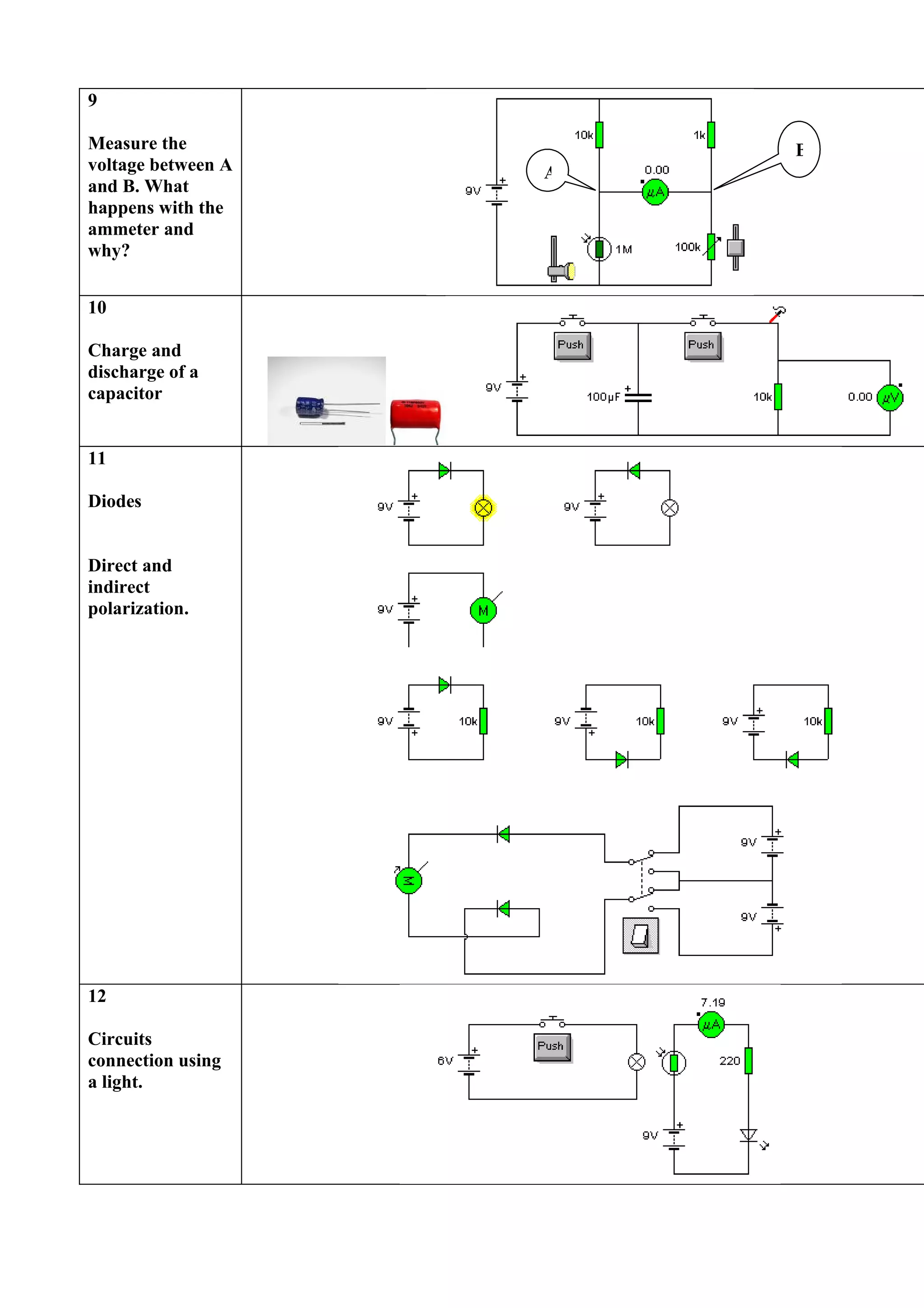

3. 9
Measure the B
voltage between A A
and B. What
happens with the
ammeter and
why?
10
Charge and
discharge of a
capacitor
11
Diodes
Direct and
indirect
polarization.
12
Circuits
connection using
a light.

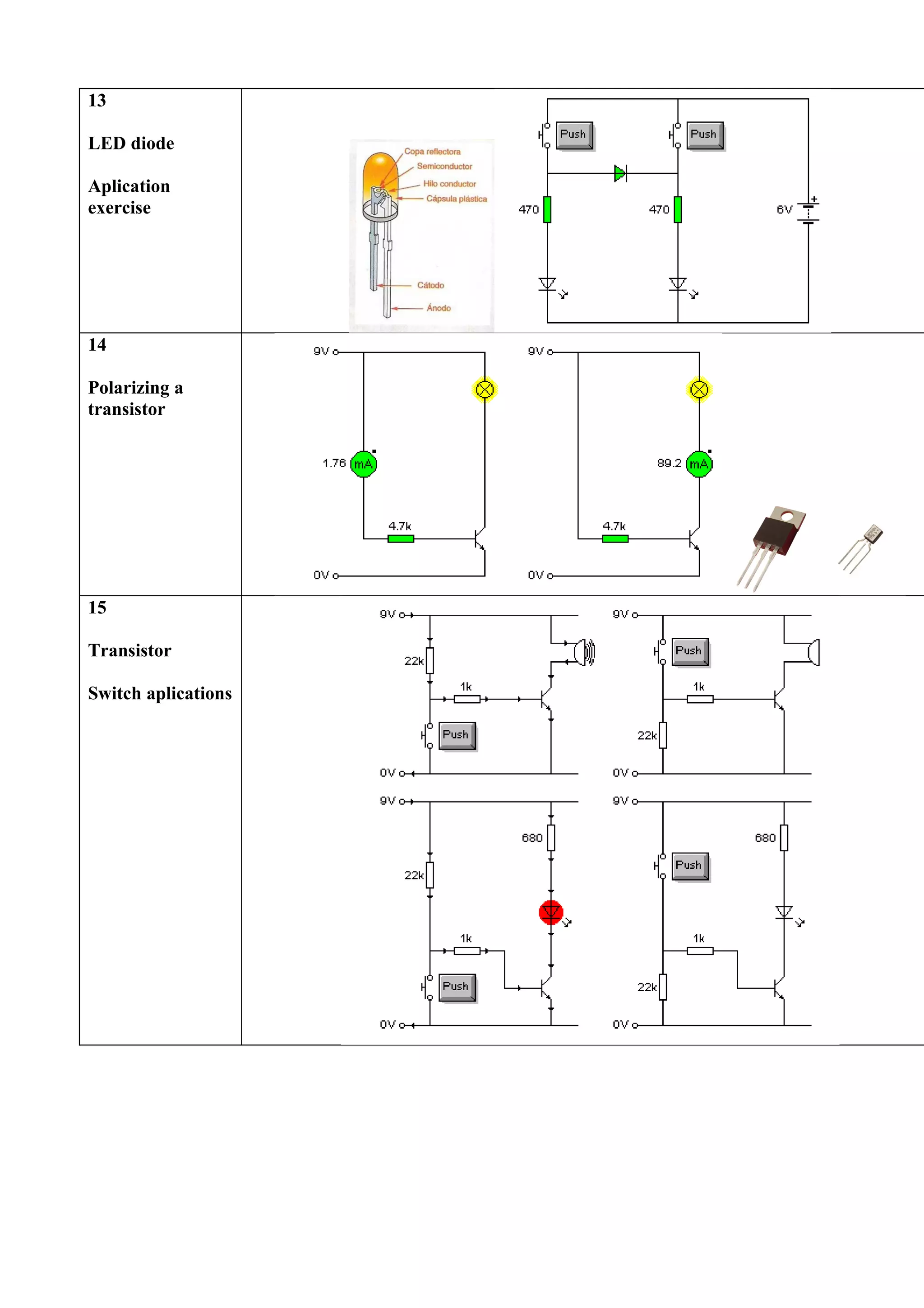

4. 13
LED diode
Aplication
exercise
14
Polarizing a
transistor
15
Transistor
Switch aplications

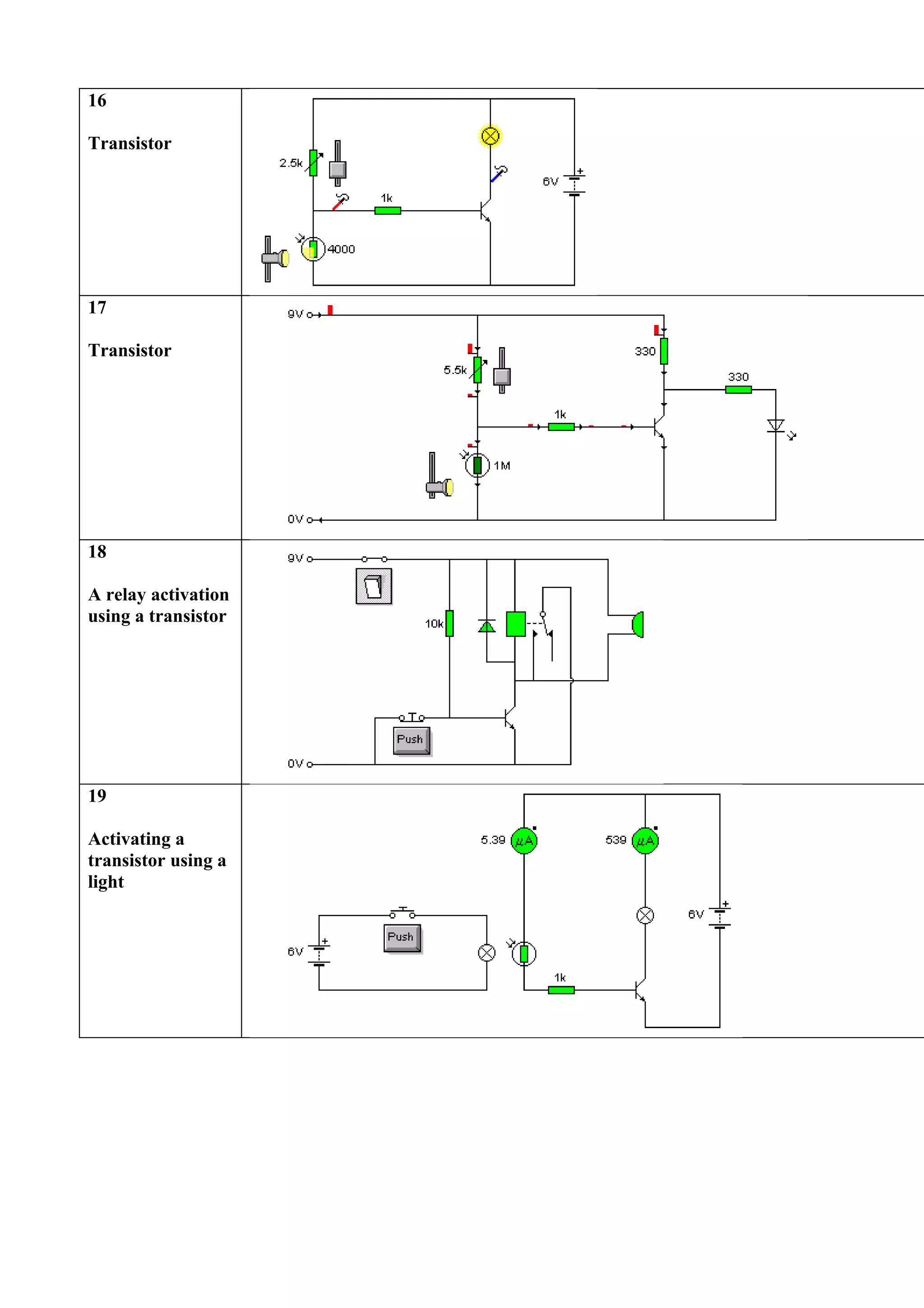

5. 16
Transistor
17
Transistor
18
A relay activation
using a transistor
19
Activating a
transistor using a
light
