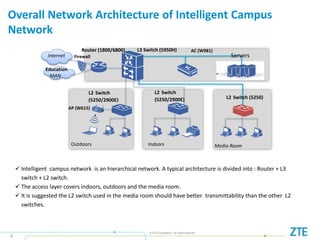

Overall Network Architecture of Intelligent Campus
Network
 Intelligent campus network is an hierarchical network. A typical architecture is divided into : Router + L3
switch + L2 switch.
 The access layer covers indoors, outdoors and the media room.
 It is suggested the L2 switch used in the media room should have better transmittability than the other L2
switches.
Indoors Media Room
Internet
Education
MAN
Servers
L2 Switch
(5250/2900E) L2 Switch (5250)
L3 Switch (5950H)Router (1800/6800)
AP (W615)
Outdoors
AC (W981)
L2 Switch
(5250/2900E)
Firewall

3. © ZTE Corporation. All rights reserved
3

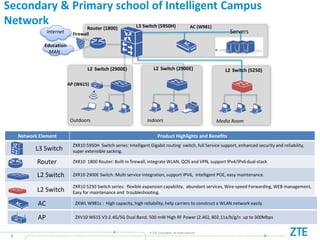

Secondary & Primary school of Intelligent Campus
Network
Network Element Product Highlights and Benefits
L3 Switch
ZXR10 5950H Switch series: Intelligent Gigabit routing switch, full Service support, enhanced security and reliability,
super extensible sacking.
Router ZXR10 1800 Router: Built-in firewall, integrate WLAN, QOS and VPN, support IPv4/IPv6dual-stack
L2 Switch ZXR10 2900E Switch :Multi service integration, support IPV6, intelligent POE, easy maintenance.
L2 Switch
ZXR10 5250 Switch series: flexible expansion capability, abundant services, Wire-speed Forwarding, WEB management,
Easy for maintenance and troubleshooting.
AC ZXWL W981s : High capacity, high reliability, help carriers to construct a WLAN network easily.
AP ZXV10 W615 V3:2.4G/5G Dual Band, 500 mW High RF Power (2.4G), 802.11a/b/g/n up to 300Mbps
Media RoomIndoors
Internet
Education
MAN
Servers
L2 Switch (2900E) L2 Switch (5250)
L3 Switch (5950H)Router (1800)
AP (W615)
Outdoors
AC (W981)
L2 Switch (2900E)
Media Room
Firewall

4. © ZTE Corporation. All rights reserved
4

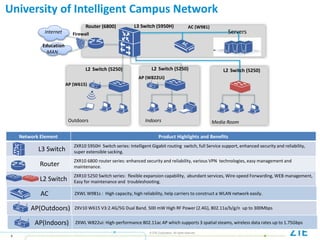

University of Intelligent Campus Network
Network Element Product Highlights and Benefits
L3 Switch
ZXR10 5950H Switch series: Intelligent Gigabit routing switch, full Service support, enhanced security and reliability,
super extensible sacking.
Router
ZXR10 6800 router series: enhanced security and reliability, various VPN technologies, easy management and
maintenance.
L2 Switch
ZXR10 5250 Switch series: flexible expansion capability, abundant services, Wire-speed Forwarding, WEB management,
Easy for maintenance and troubleshooting.
AC ZXWL W981s : High capacity, high reliability, help carriers to construct a WLAN network easily.
AP(Outdoors) ZXV10 W615 V3:2.4G/5G Dual Band, 500 mW High RF Power (2.4G), 802.11a/b/g/n up to 300Mbps
Indoors Media Room
Internet
Education
MAN
Servers
L2 Switch (5250) L2 Switch (5250)
L3 Switch (5950H)Router (6800)
AP (W615)
Outdoors
AC (W981)
L2 Switch (5250)
AP (W822Ui)
Firewall
AP(Indoors) ZXWL W822ui: High-performance 802.11ac AP which supports 3 spatial steams, wireless data rates up to 1.75Gbps

5. © ZTE Corporation. All rights reserved
5

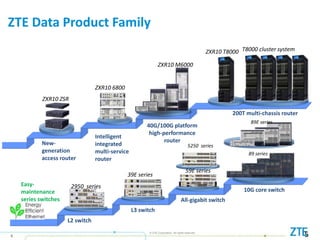

ZTE Data Product Family
5
ZXR10 6800
ZXR10 M6000
ZXR10 T8000 T8000 cluster system
39E series
ZXR10 ZSR
Easy-
maintenance
series switches
New-
generation
access router
40G/100G platform
high-performance
router
200T multi-chassis router
10G core switch
All-gigabit switch
L3 switch
L2 switch
Intelligent
integrated
multi-service
router
2950 series
5250 series
59E series
89E series
89 series

6. © ZTE Corporation. All rights reserved.

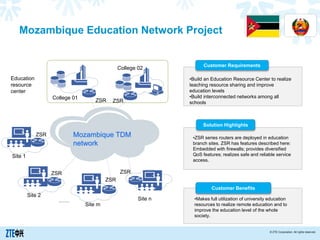

Mozambique Education Network Project
Customer Requirements
•Build an Education Resource Center to realize
teaching resource sharing and improve
education levels
•Build interconnected networks among all
schools
Solution Highlights
•ZSR series routers are deployed in education
branch sites. ZSR has features described here:
Embedded with firewalls; provides diversified
QoS features; realizes safe and reliable service
access.
Customer Benefits
•Makes full utilization of university education
resources to realize remote education and to
improve the education level of the whole
society.
Education
resource
center
Mozambique TDM
network
College 01
College 02
ZSR ZSR
ZSR
ZSR
ZSR
ZSR
Site 1
Site 2
Site m
Site n……
Flag

7. © ZTE Corporation. All rights reserved.

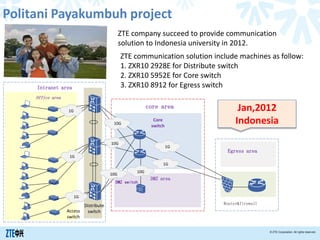

Politani Payakumbuh project
Distribute
switch
core area
DMZ area
Egress area
DMZ switch
Intranet area
Office area
Access
switch
1G
1G
10G
10G
10G
1G
1G
1G
10G
Router&firewall
Core
switch
Jan,2012
Indonesia
ZTE company succeed to provide communication
solution to Indonesia university in 2012.
ZTE communication solution include machines as follow:
1. ZXR10 2928E for Distribute switch
2. ZXR10 5952E for Core switch
3. ZXR10 8912 for Egress switch

8. 8
Wifi Coverage
for University Yarsi
Deployed in Sept,2013
