1. CASCADEMIC Solutions Pvt. Ltd.
An IoT Solutions Company

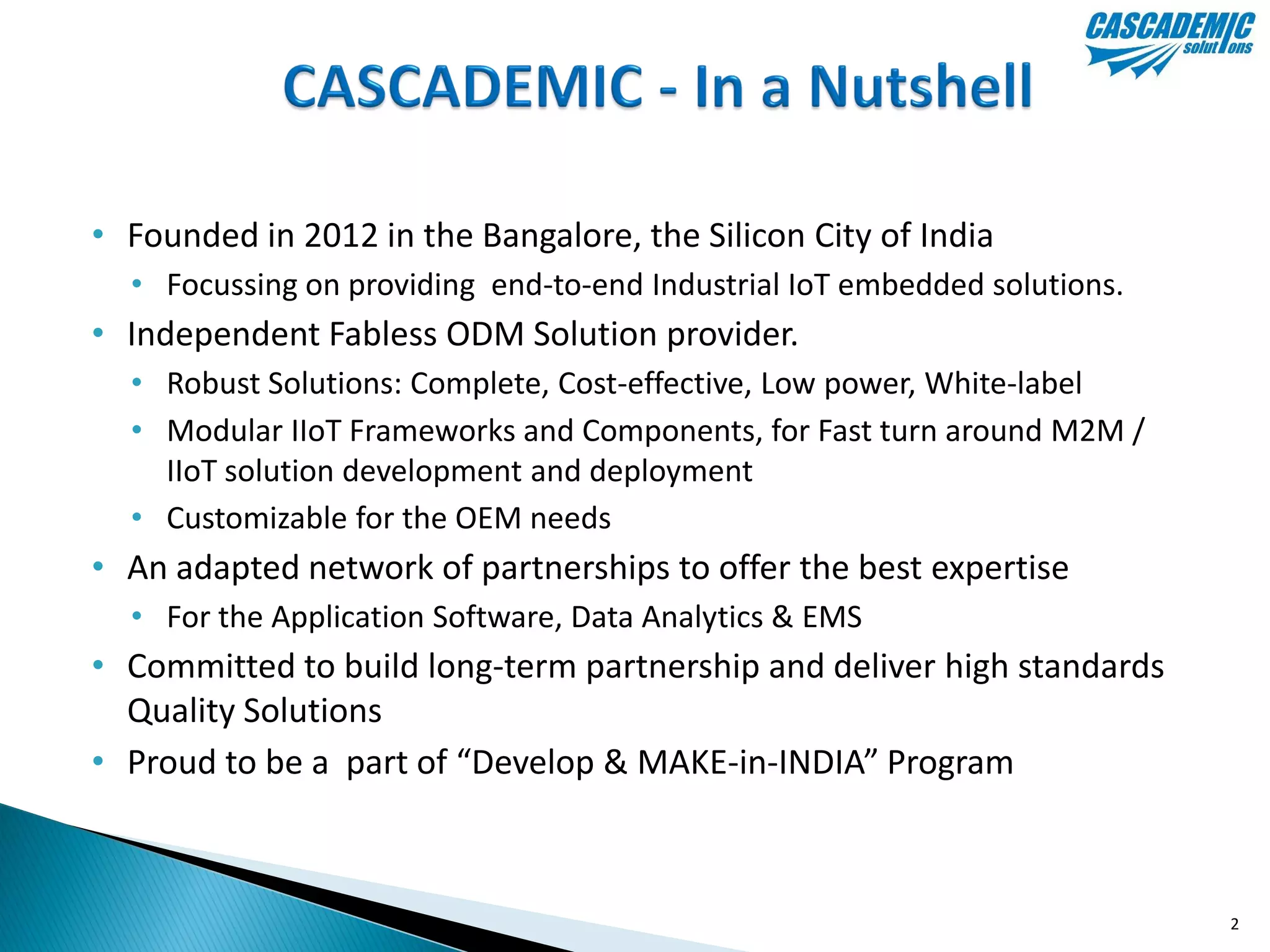

2. • Founded in 2012 in the Bangalore, the Silicon City of India
• Focussing on providing end-to-end Industrial IoT embedded solutions.
• Independent Fabless ODM Solution provider.
• Robust Solutions: Complete, Cost-effective, Low power, White-label
• Modular IIoT Frameworks and Components, for Fast turn around M2M /
IIoT solution development and deployment
• Customizable for the OEM needs
• An adapted network of partnerships to offer the best expertise
• For the Application Software, Data Analytics & EMS
• Committed to build long-term partnership and deliver high standards
Quality Solutions
• Proud to be a part of “Develop & MAKE-in-INDIA” Program
2

3. • Metering
• Metering Adaptors – for Water / Gas / Energy – Wireless & Wired
• IIoT Gateway with Cloud Connectivity Solution
• DAQ / Data logger
• Monitoring
• Energy Management / Battery Monitoring
• Telecom Tower
• RFID Access
• Control
• Printer Controller – 2 in./3in./4in., Serial/USB/WiFi/BLE
• BLDC & Stepper Motor Control – Up-to 410 V DC
• Machine Vision
• Rugged Modules
• 6LoWPAN, BT/BLE, WiFi, GPS, LoRa, GPRS/3G/LTE, RFID
• Analog IN, Digital IN, Sensor, Modbus, LoRaWAN
3

4.  Nowadays most of the metering devices like water meter, energy meter,
gas meter, solar inverters and other sensors comes with digital or serial
output.
 Wired to wireless converters converts the output from these devices to
various wireless forms like GPRS (2G/3G)/ Wi-Fi/ LoRa.
 This wireless adapter is broadly classified into two types
◦ Pulse adapter
◦ MODBUS adapter
 Pulse adapter :
◦ These adapters take the digital pulse as input and converts it to the wireless form.
◦ E.g. Water meter and gas meter which has digital pulse as output.
 MODBUS adapter :
◦ These adapter take RS485 or RS232 as input and converts it to wireless form
◦ E.g. Energy meter and solar inverters.

7.  Features
◦ Communication to the server / cloud
 Through multiple wireless technologies
 GPRS (2G/3G) / WiFi / Ethernet / LoRa
◦ Embedded SIM / SIM on Chip option
◦ On-board battery backup option
 When there is network failure, the data packet will be stored in on-board flash memory.
◦ Easily customizable for the OEM needs and custom specific requirements
◦ Industrial temperature grade operation
◦ Ultra low power consumption, using the latest ARM
 Applications
◦ Smart remote metering
◦ Irrigation and agriculture industry
◦ Wireless sensor network
◦ Smart city
◦ Solar power monitoring

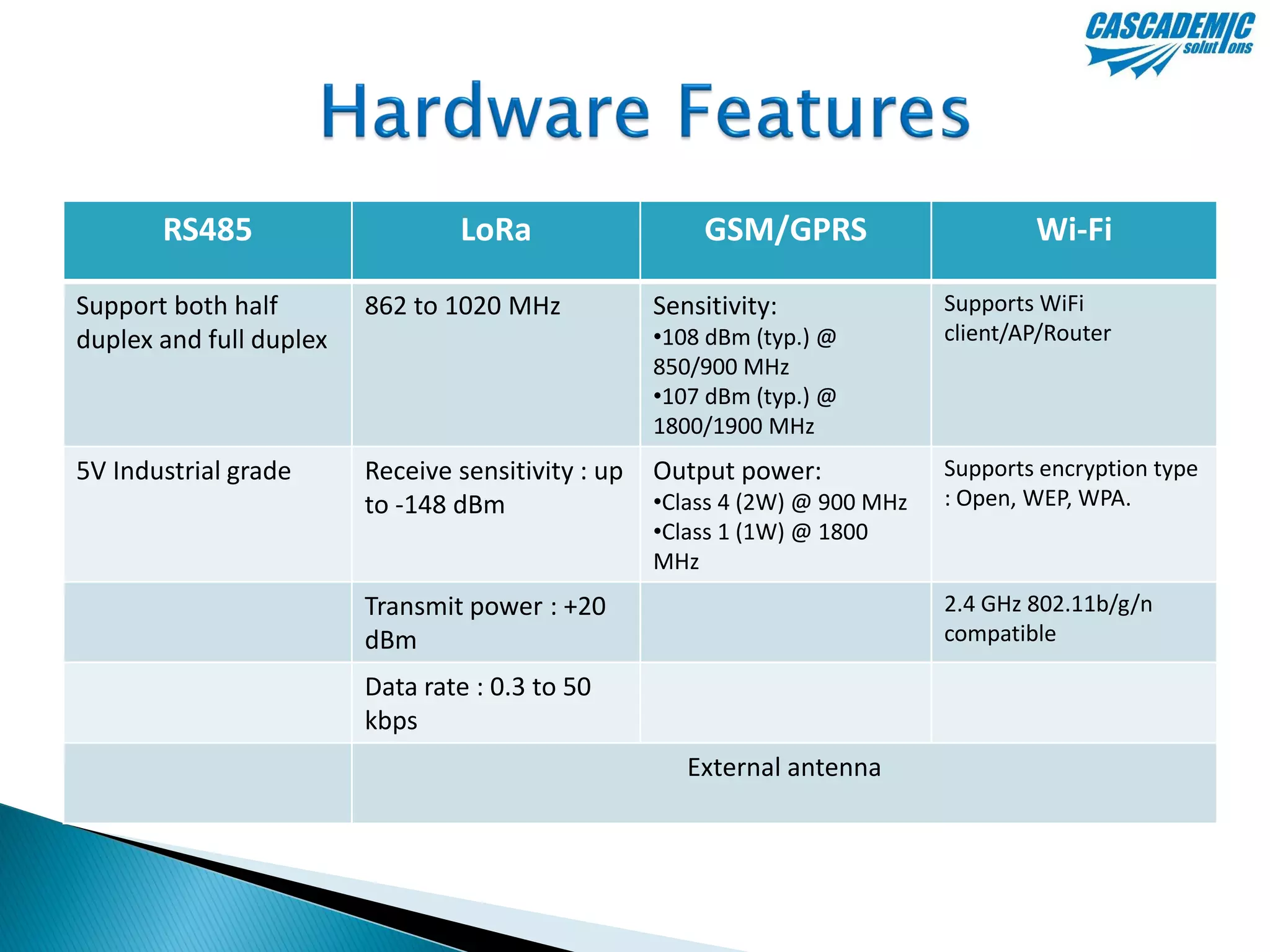

8. RS485 LoRa GSM/GPRS Wi-Fi
Support both half
duplex and full duplex
862 to 1020 MHz Sensitivity:
•108 dBm (typ.) @
850/900 MHz
•107 dBm (typ.) @
1800/1900 MHz
Supports WiFi
client/AP/Router
5V Industrial grade Receive sensitivity : up
to -148 dBm
Output power:
•Class 4 (2W) @ 900 MHz
•Class 1 (1W) @ 1800
MHz
Supports encryption type
: Open, WEP, WPA.
Transmit power : +20
dBm
2.4 GHz 802.11b/g/n
compatible
Data rate : 0.3 to 50
kbps
External antenna

9. RS485 LoRa GSM/GPRS Wi-Fi
MODBUS RTU
protocol
LoRaWAN1.0
compliant
Supports HTTP, FTP,
TCP,IP
Data transmission
through TCP
Up to 31 slaves Supports class A and C Communicates
through standard AT
commands
Range : 50 to 60
meters
Support European and
Indian frequency
Both SMS and GPRS
128 bit AES encryption
Range : 1.2 km line of
sight.

10.  Cloud solution for the multi-site monitoring
 All the parameters are transferred to Cloud & the consolidated report will
be visible to the user. It can be accessed in Mobile application
 HTTP / MQTT protocol support, with Security, along with our
◦ IIoT Industrial Gateway Platforms
◦ Data Logger
◦ Control capability, back to the users
◦ Battery Monitoring
◦ Energy monitoring solution
 Alarms reporting
 We provide basic platform for cloud application & using the platform the
OEM can develop their own application.

11. • Company Address:
CASCADEMIC Solutions Pvt. Ltd.
1525/58, 2nd Floor, 28th Main, South End ‘B’ Cross,
9th Block, Jayanagar, Bangalore - 560069, India
• Contact Details:
Phone: +91 80 2658 3333
Email ID: info@cascademic.com
• Driving Directions:
http://www.cascademic.com/index.php/map
11

12. Assuring you the Best of
IoT / M2M ODM Solutions
12
