This document describes an IIoT platform that connects assets to the cloud using plug and play hardware and software. The platform's agile hardware collects data from assets via cellular or WiFi and sends it to backend services for storage and analysis. Users can access data and control assets through a web application. The solution reduces development costs by allowing custom applications to easily build on top of provided products and services. The document promotes the platform's free hardware options, cloud features, and ease of getting assets connected in three steps.

1. From Idea
to
Compete IIoT Platform
INDUSTRIAL APPLICATION
TECHNOLOGY

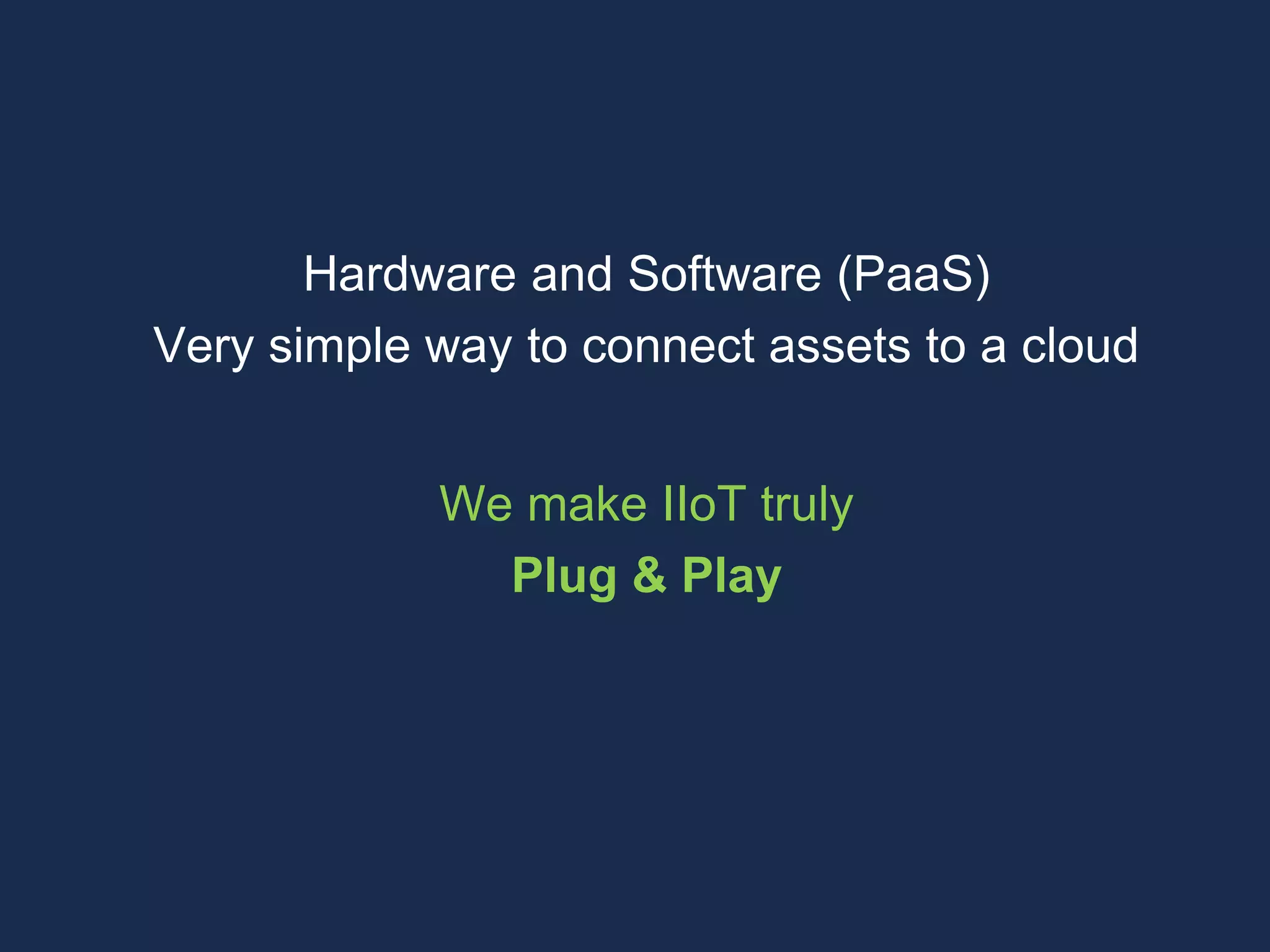

2. Hardware and Software (PaaS)
Very simple way to connect assets to a cloud
We make IIoT truly
Plug & Play

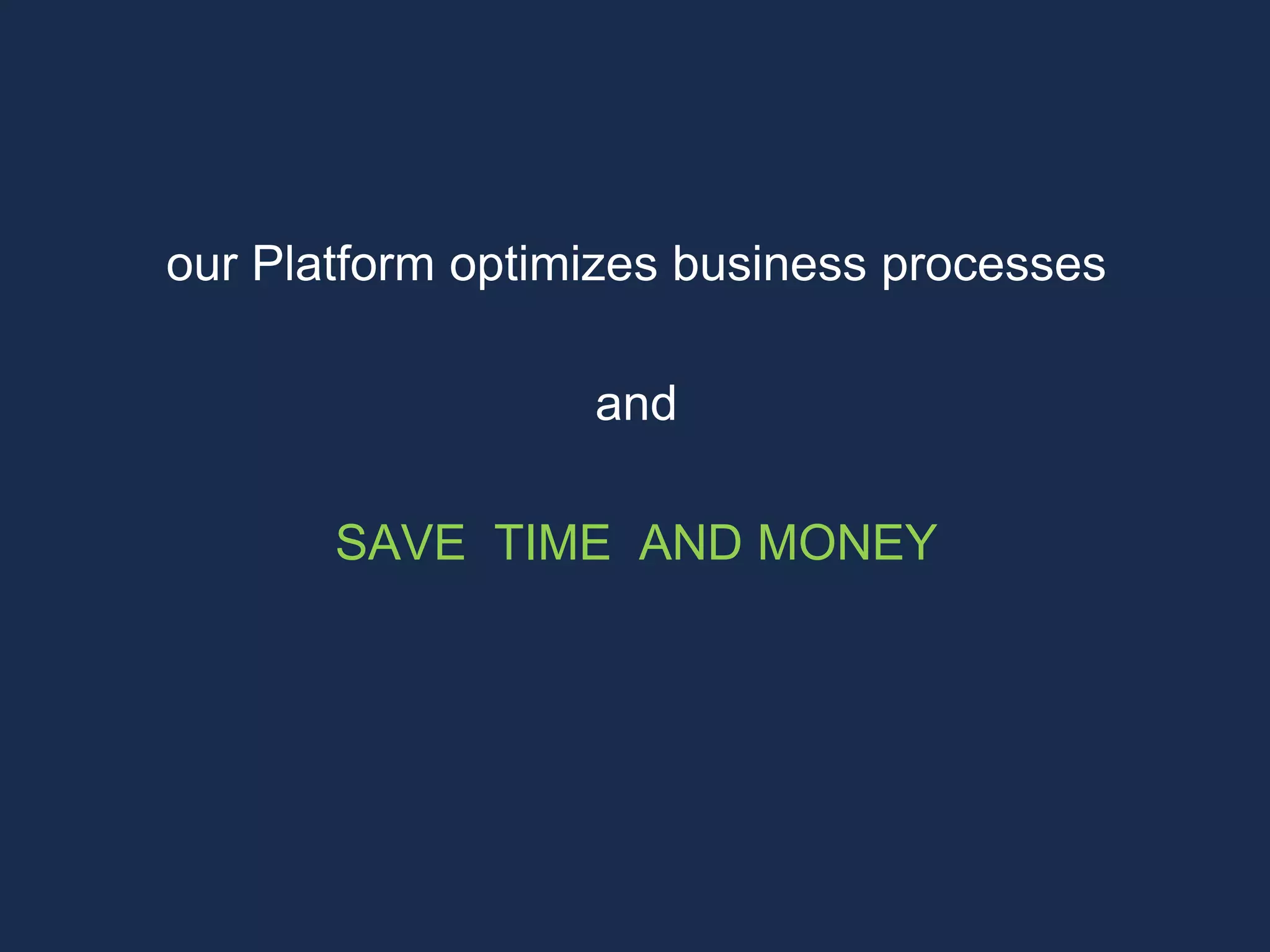

3. our Platform optimizes business processes
and
SAVE TIME AND MONEY

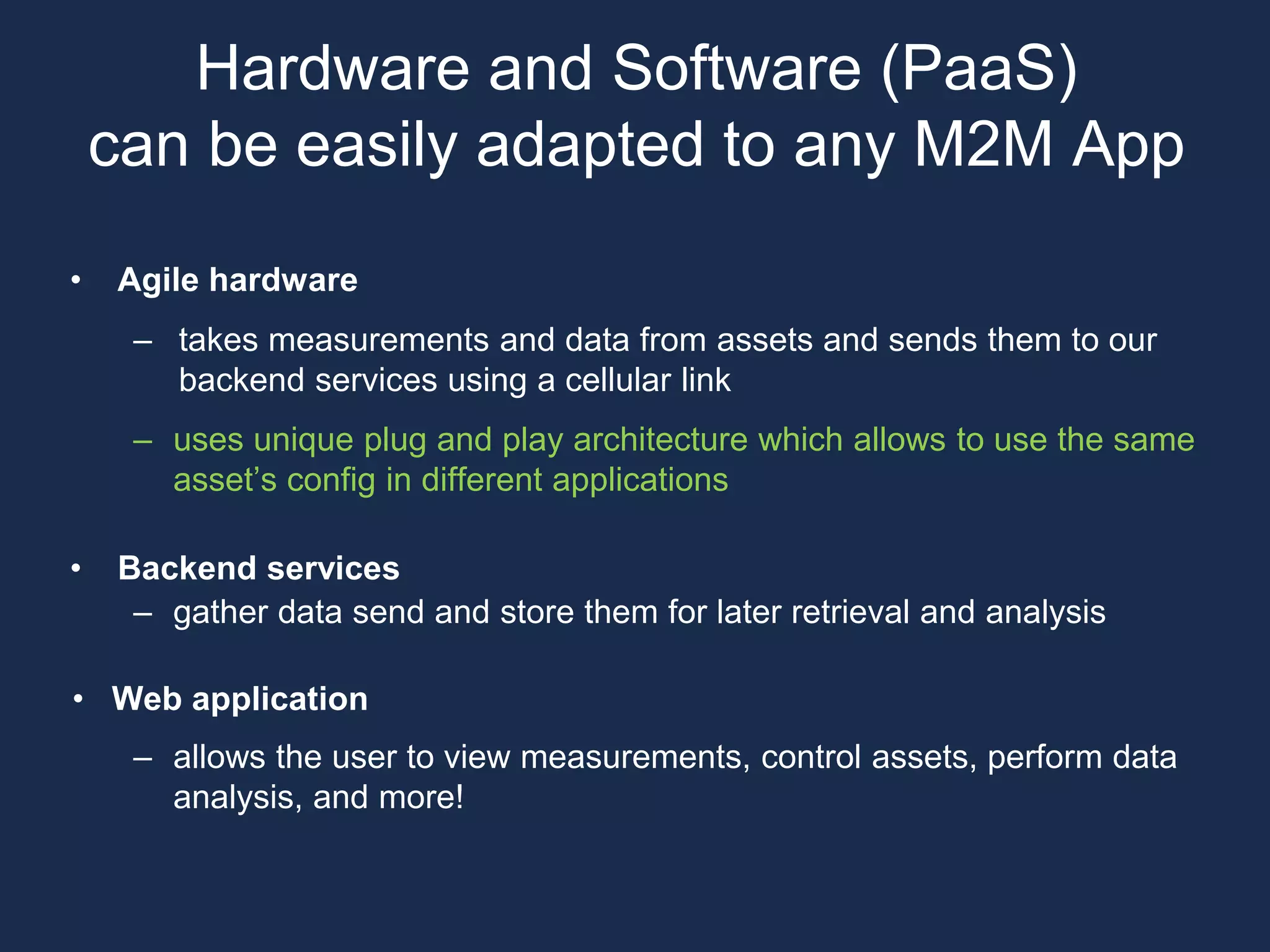

4. • Agile hardware
– takes measurements and data from assets and sends them to our
backend services using a cellular link
– uses unique plug and play architecture which allows to use the same
asset’s config in different applications
• Backend services
– gather data send and store them for later retrieval and analysis
• Web application
– allows the user to view measurements, control assets, perform data
analysis, and more!
Hardware and Software (PaaS)
can be easily adapted to any M2M App

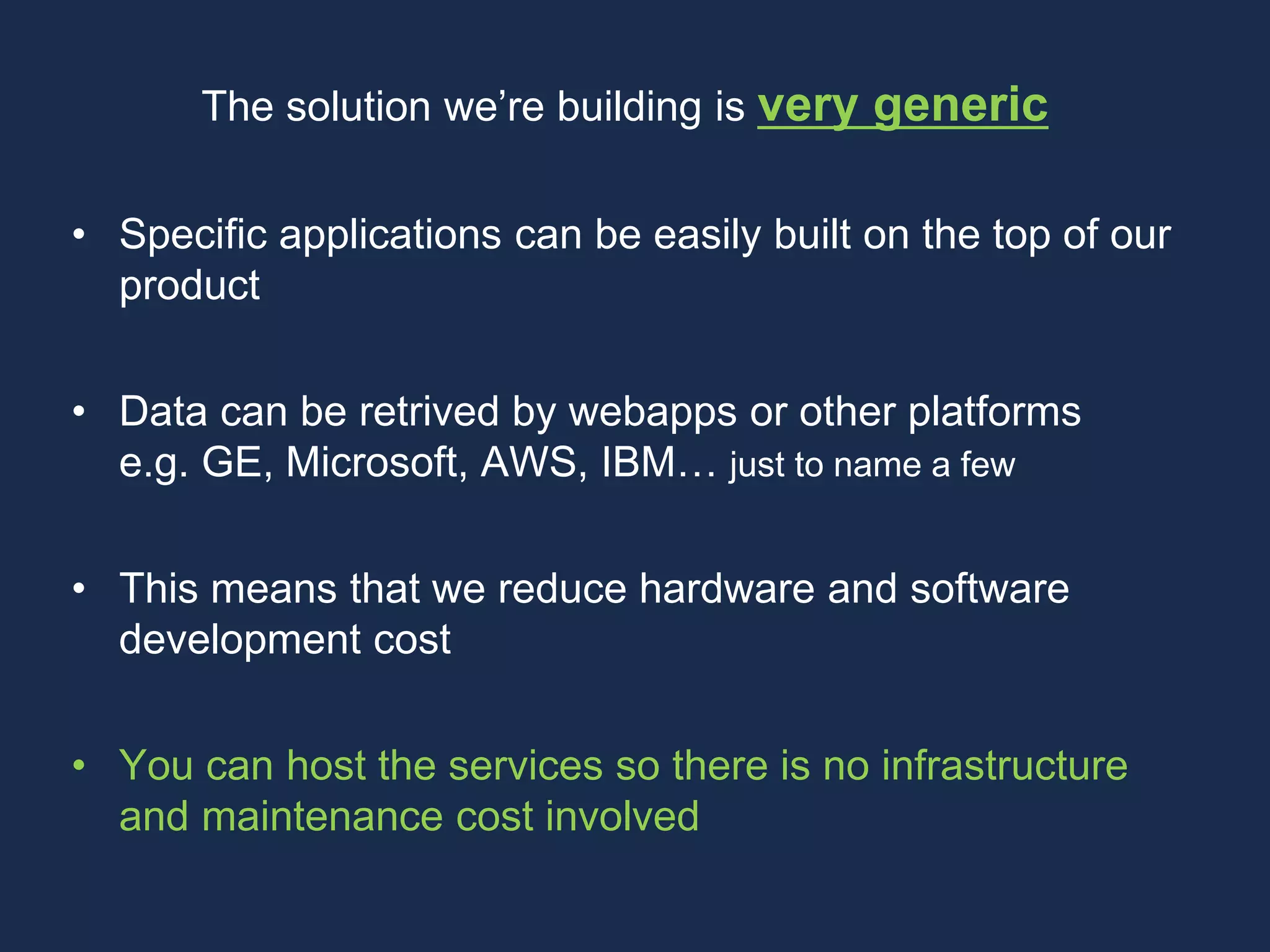

5. The solution we’re building is very generic
• Specific applications can be easily built on the top of our
product
• Data can be retrived by webapps or other platforms
e.g. GE, Microsoft, AWS, IBM… just to name a few
• This means that we reduce hardware and software
development cost
• You can host the services so there is no infrastructure
and maintenance cost involved

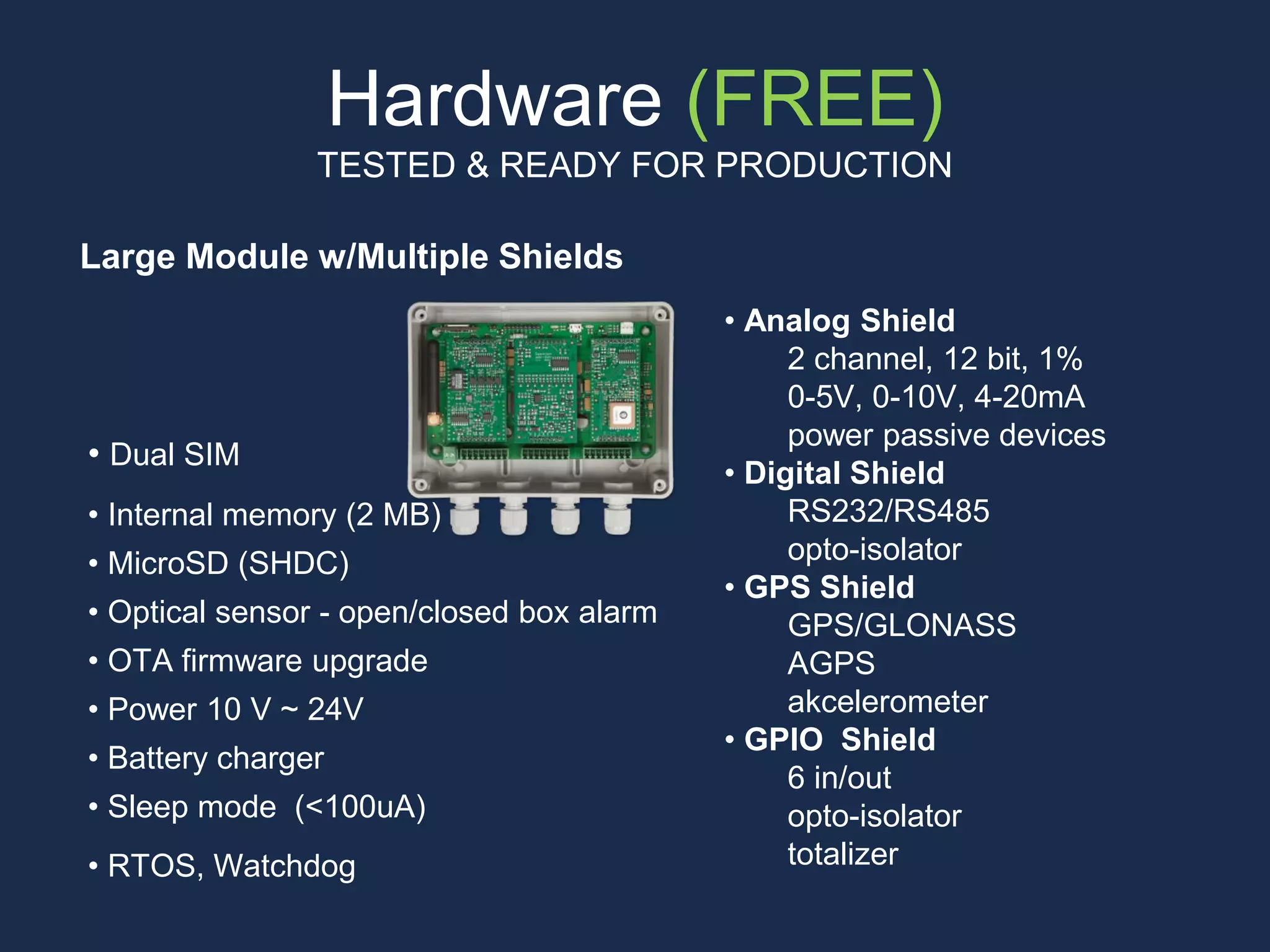

6. Hardware (FREE)
TESTED & READY FOR PRODUCTION
Large Module w/Multiple Shields
• Analog Shield
2 channel, 12 bit, 1%
0-5V, 0-10V, 4-20mA
power passive devices
• Digital Shield
RS232/RS485
opto-isolator
• GPS Shield
GPS/GLONASS
AGPS
akcelerometer
• GPIO Shield
6 in/out
opto-isolator
totalizer
• Dual SIM
• Internal memory (2 MB)
• MicroSD (SHDC)
• Optical sensor - open/closed box alarm
• OTA firmware upgrade
• Power 10 V ~ 24V
• Battery charger
• Sleep mode (<100uA)
• RTOS, Watchdog

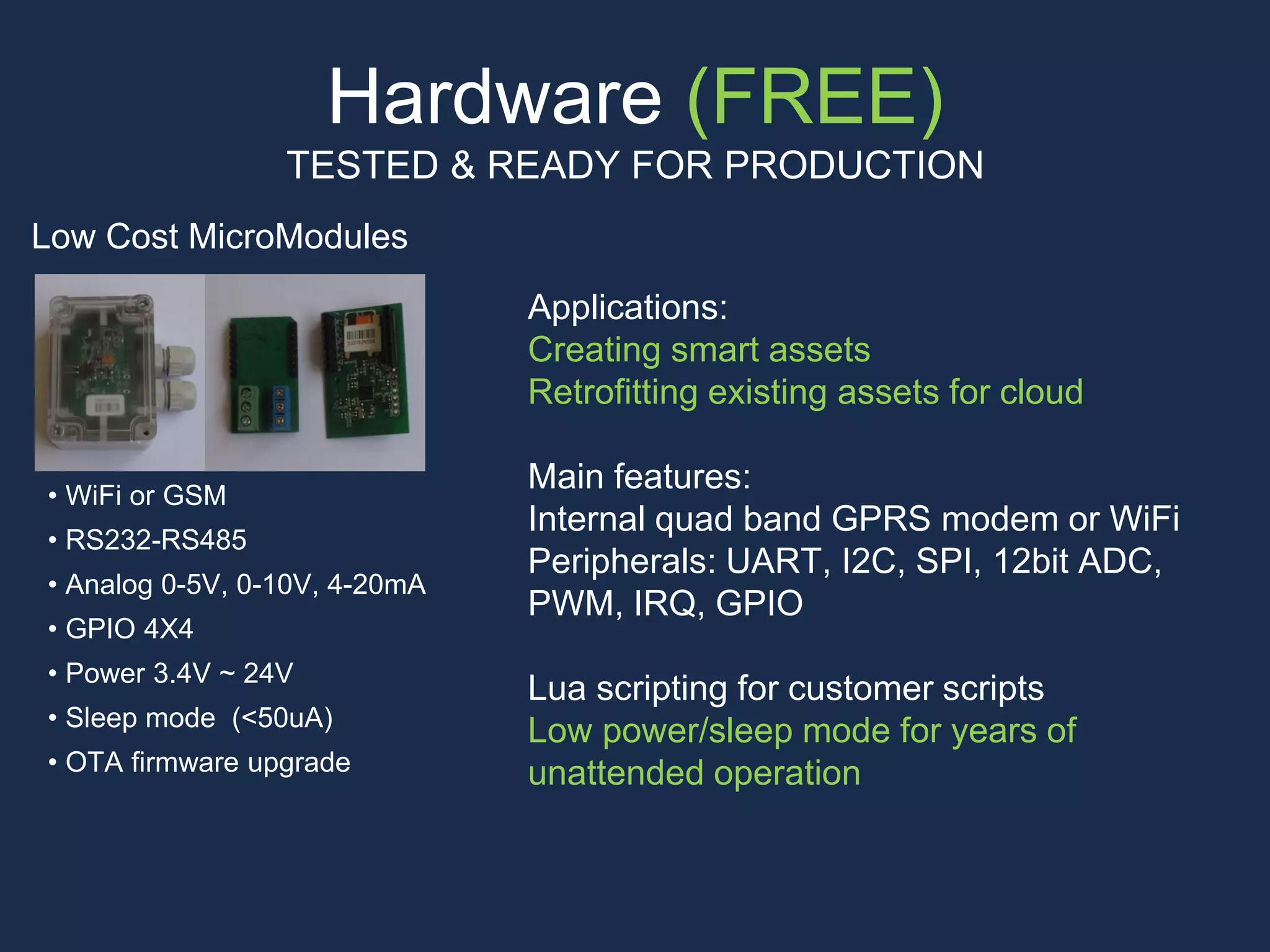

7. Hardware (FREE)
TESTED & READY FOR PRODUCTION
Low Cost MicroModules
Applications:
Creating smart assets
Retrofitting existing assets for cloud
Main features:
Internal quad band GPRS modem or WiFi
Peripherals: UART, I2C, SPI, 12bit ADC,
PWM, IRQ, GPIO
Lua scripting for customer scripts
Low power/sleep mode for years of
unattended operation
• WiFi or GSM
• RS232-RS485
• Analog 0-5V, 0-10V, 4-20mA
• GPIO 4X4
• Power 3.4V ~ 24V
• Sleep mode (<50uA)
• OTA firmware upgrade

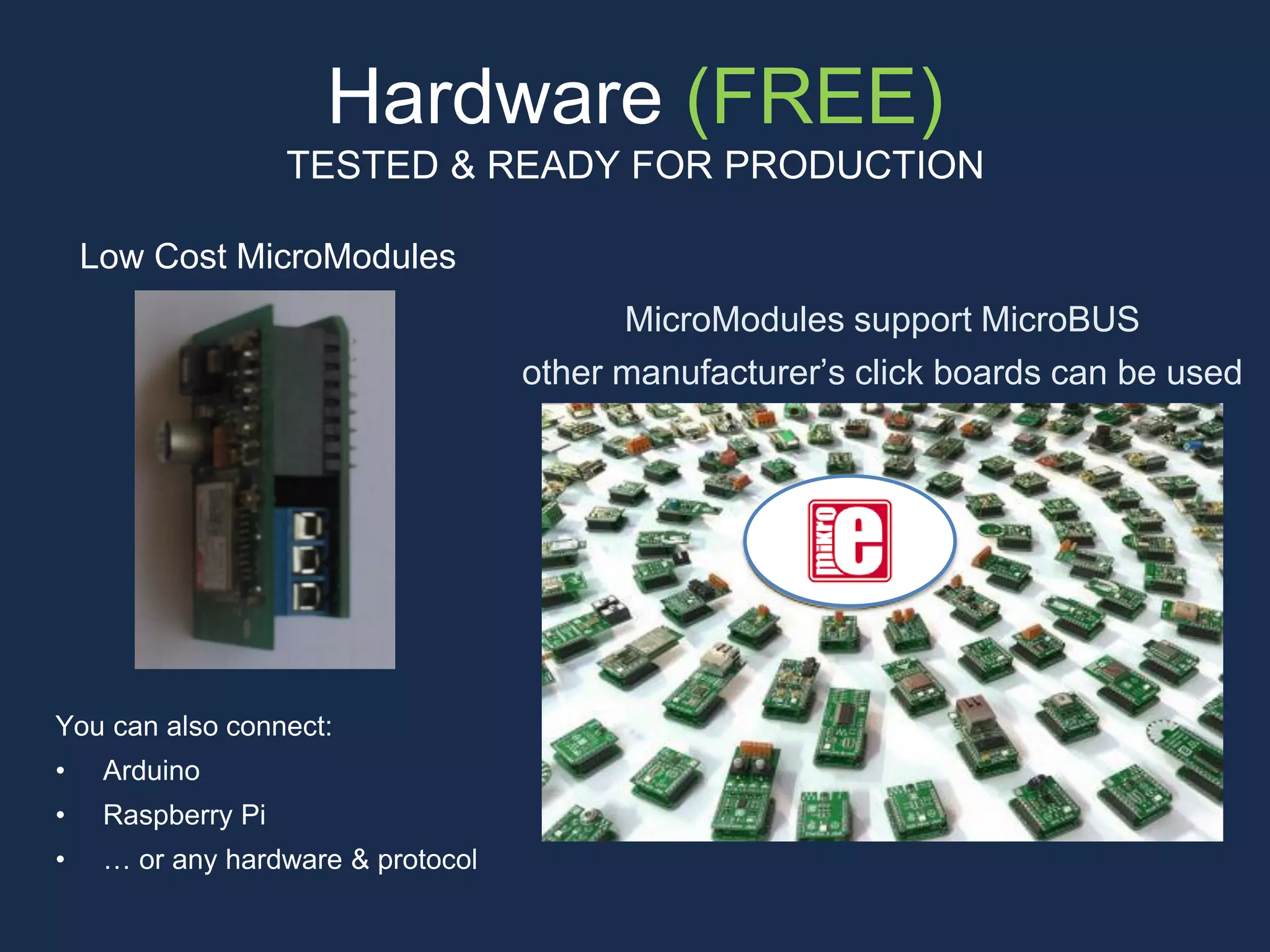

8. Hardware (FREE)
TESTED & READY FOR PRODUCTION
Low Cost MicroModules
MicroModules support MicroBUS
other manufacturer’s click boards can be used
You can also connect:
• Arduino
• Raspberry Pi
• … or any hardware & protocol

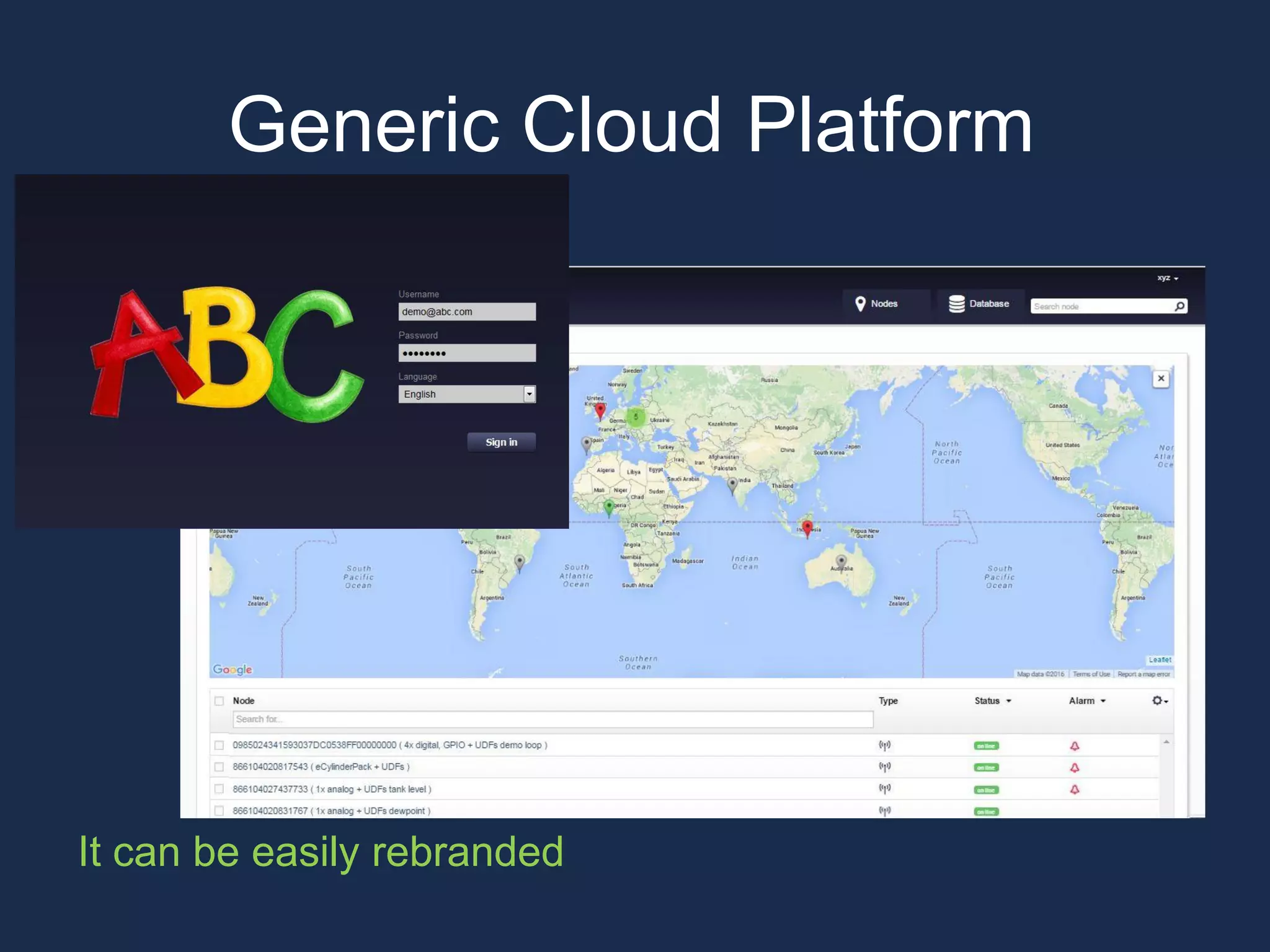

9. Generic Cloud Platform
It can be easily rebranded

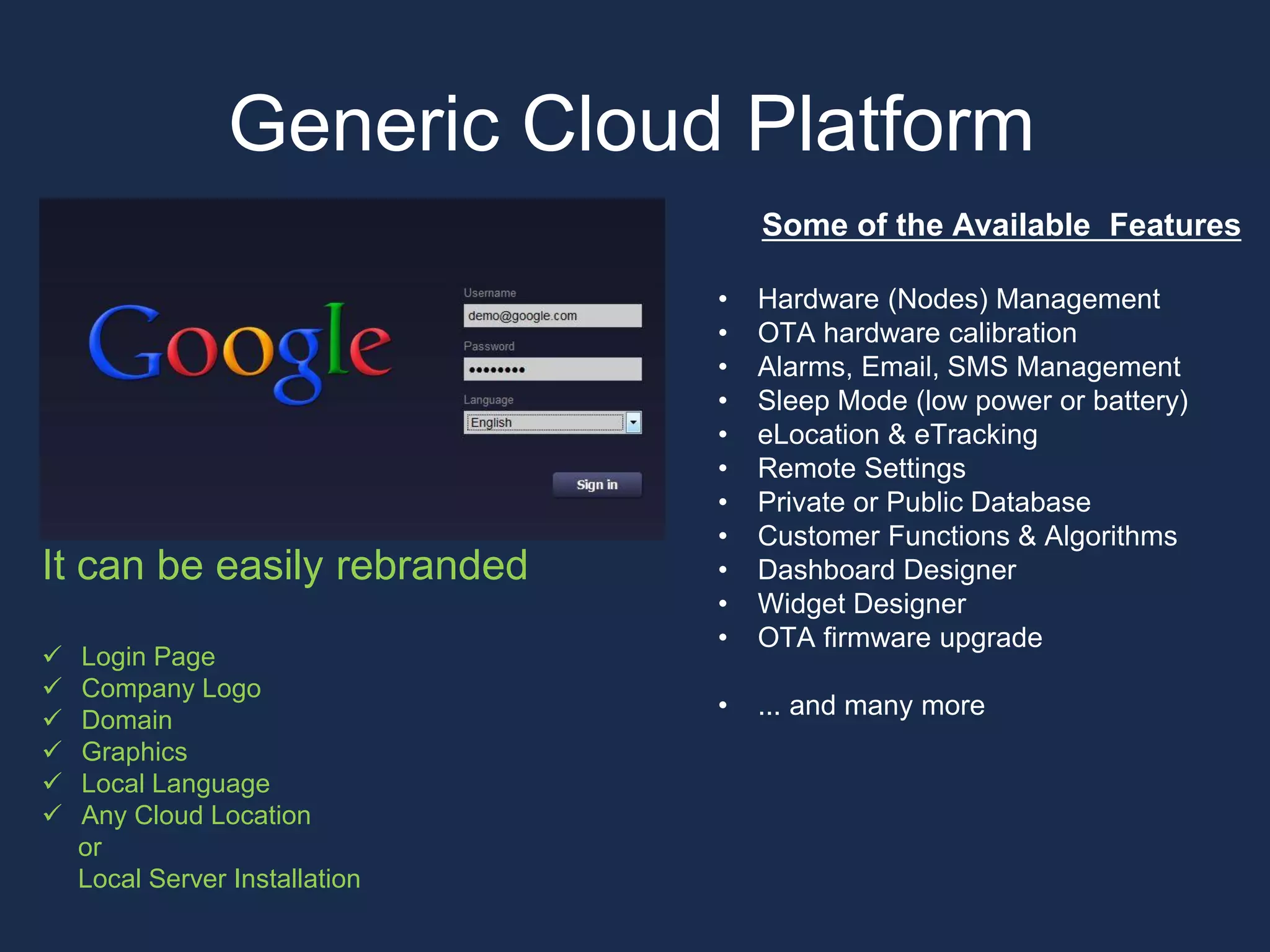

10. Some of the Available Features
• Hardware (Nodes) Management
• OTA hardware calibration
• Alarms, Email, SMS Management
• Sleep Mode (low power or battery)
• eLocation & eTracking
• Remote Settings
• Private or Public Database
• Customer Functions & Algorithms
• Dashboard Designer
• Widget Designer
• OTA firmware upgrade
• ... and many more
Generic Cloud Platform
It can be easily rebranded
 Login Page
 Company Logo
 Domain
 Graphics
 Local Language
 Any Cloud Location
or
Local Server Installation

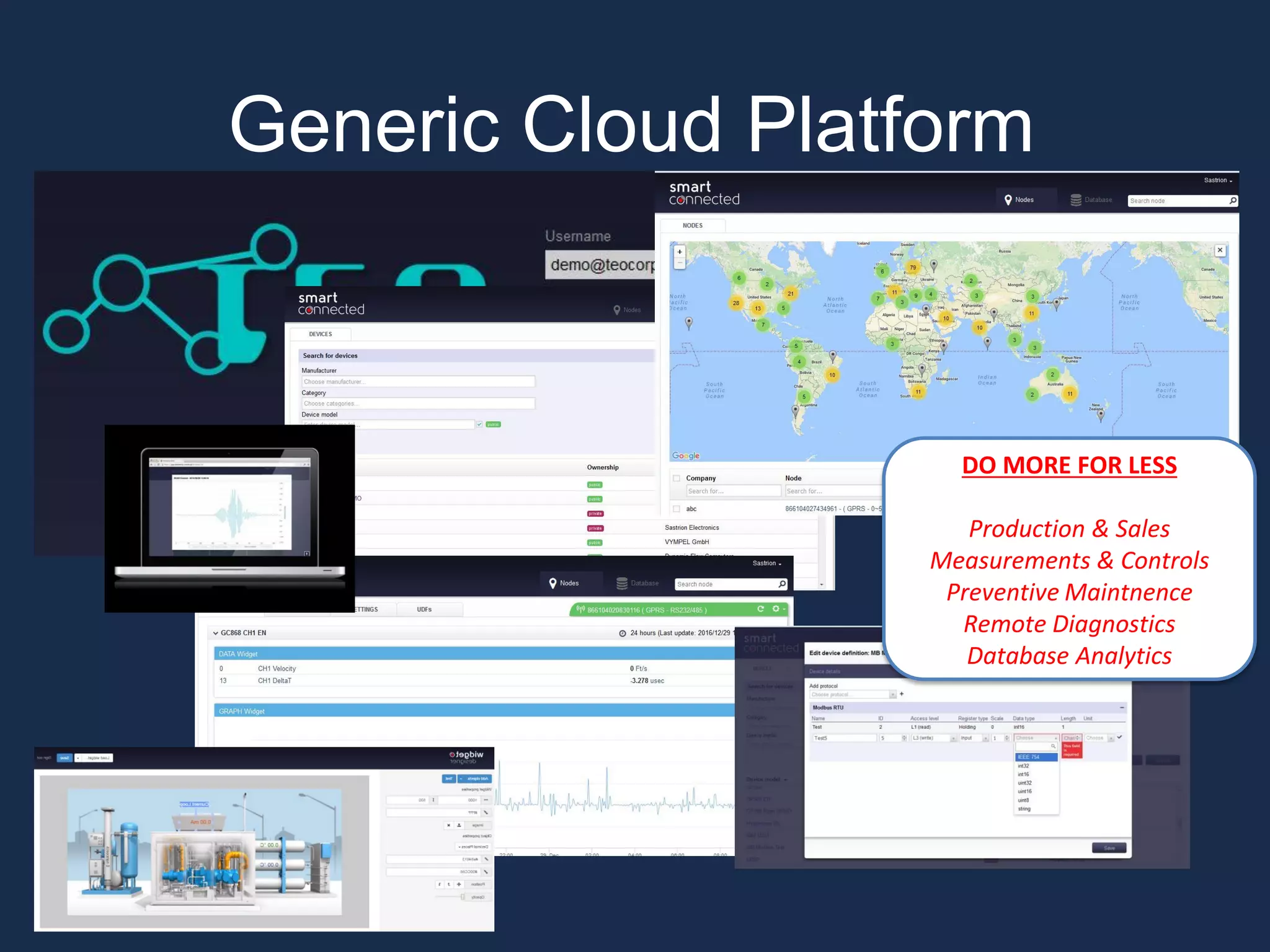

11. Generic Cloud Platform
DO MORE FOR LESS
Production & Sales
Measurements & Controls
Preventive Maintnence
Remote Diagnostics
Database Analytics

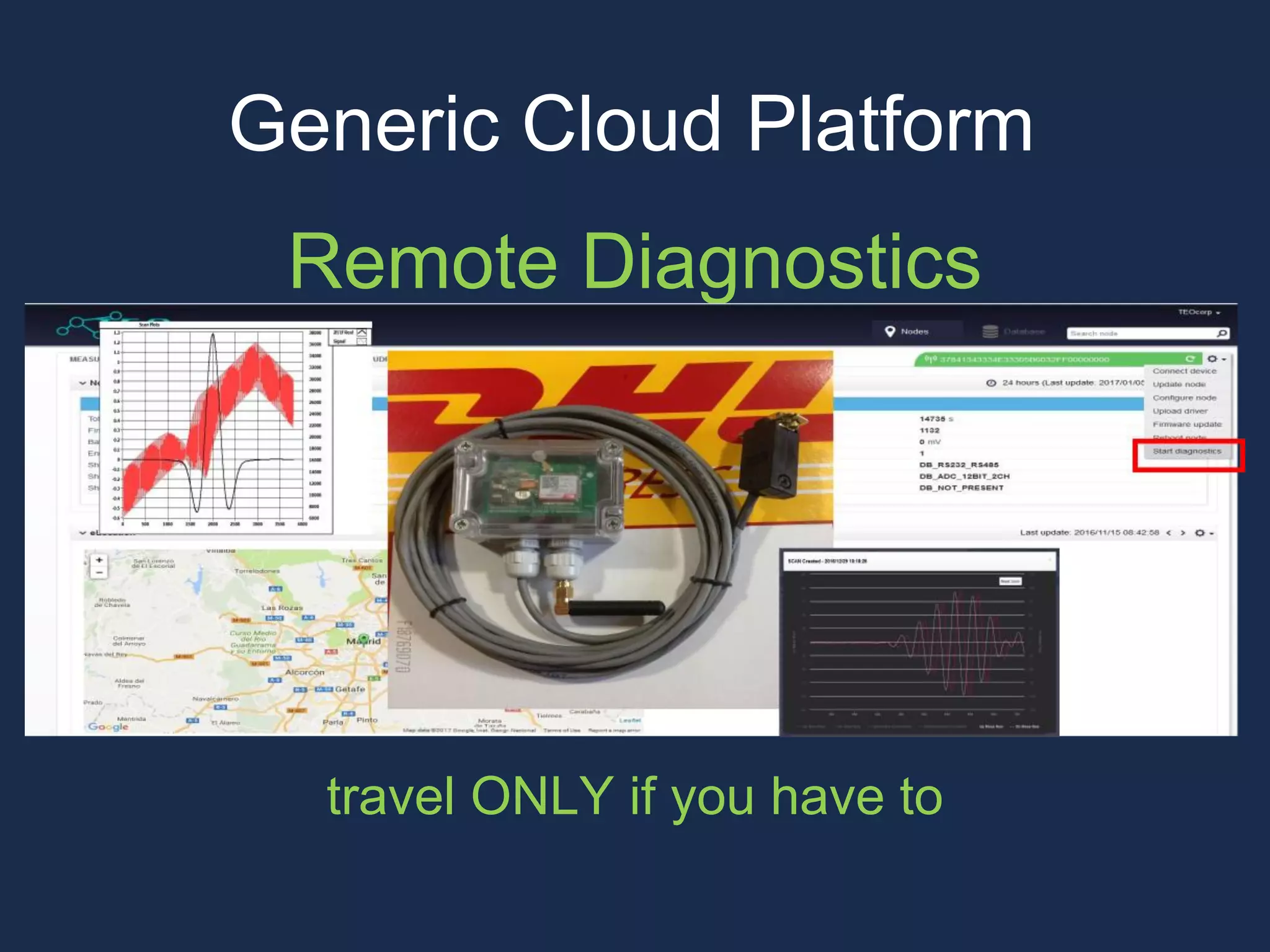

12. Remote Diagnostics
travel ONLY if you have to
Generic Cloud Platform

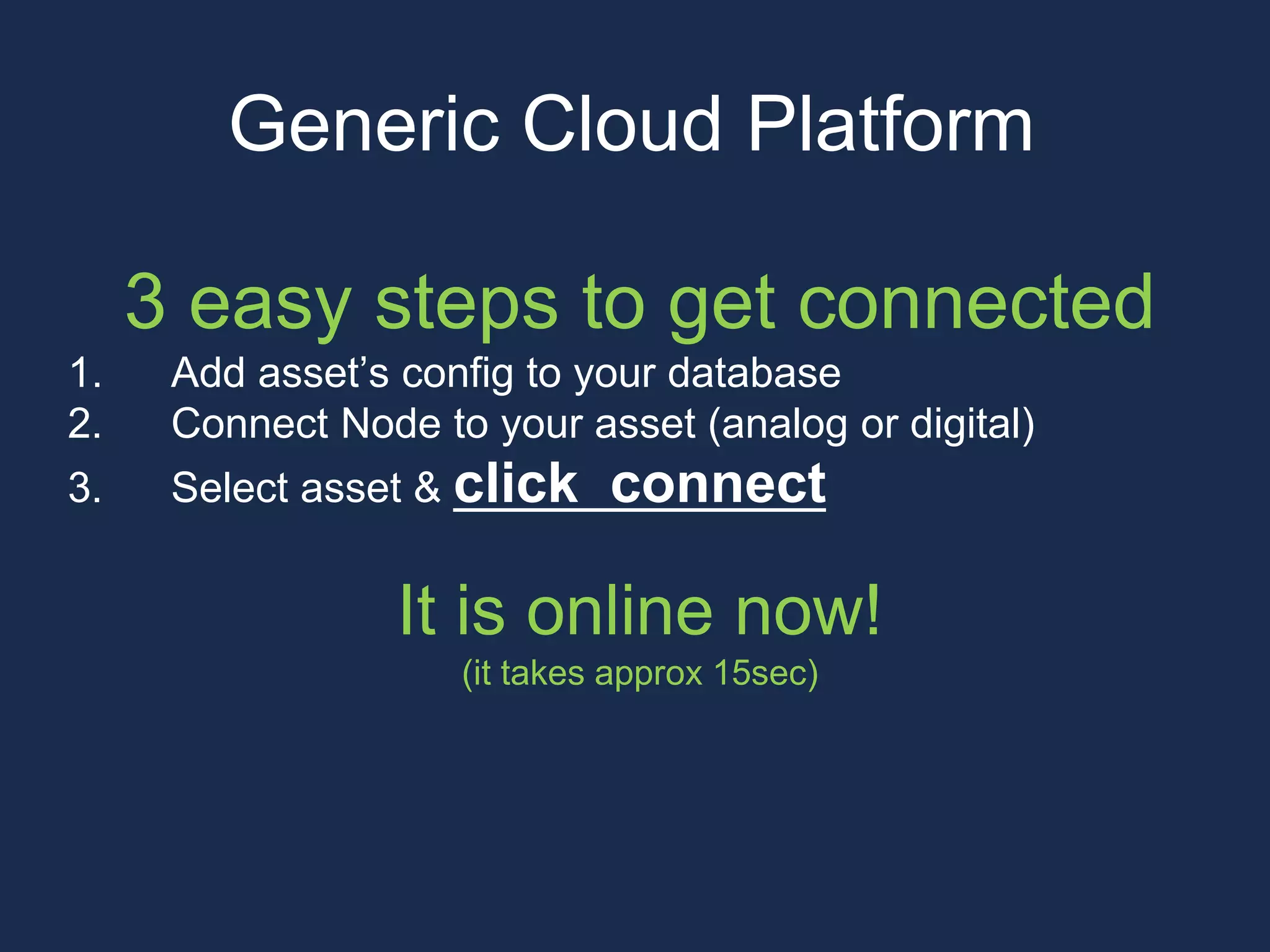

13. 3 easy steps to get connected
1. Add asset’s config to your database
2. Connect Node to your asset (analog or digital)
3. Select asset & click connect
It is online now!
(it takes approx 15sec)
Generic Cloud Platform

14. Please email me:
alex.lavell@gmail.com
Questions or Live Demo?
