1. ZENER DIODE
Mrs.M.GEETHA

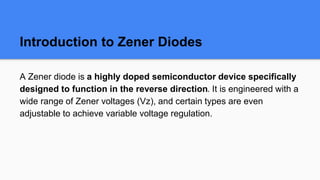

2. Introduction to Zener Diodes
A Zener diode is a highly doped semiconductor device specifically
designed to function in the reverse direction. It is engineered with a
wide range of Zener voltages (Vz), and certain types are even
adjustable to achieve variable voltage regulation.

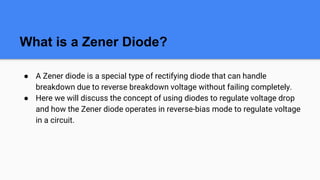

3. What is a Zener Diode?
● A Zener diode is a special type of rectifying diode that can handle
breakdown due to reverse breakdown voltage without failing completely.
● Here we will discuss the concept of using diodes to regulate voltage drop
and how the Zener diode operates in reverse-bias mode to regulate voltage
in a circuit.

4. Zener Diode Symbol
The circuit diagram symbol used to represent a Zener diode is drawn
with an arrow, representing forward bias current

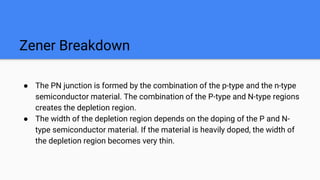

5. Zener Breakdown
● The PN junction is formed by the combination of the p-type and the n-type
semiconductor material. The combination of the P-type and N-type regions
creates the depletion region.
● The width of the depletion region depends on the doping of the P and N-
type semiconductor material. If the material is heavily doped, the width of
the depletion region becomes very thin.

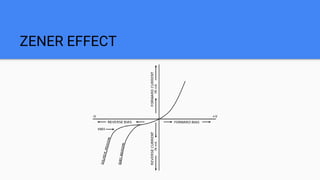

6. ZENER EFFECT

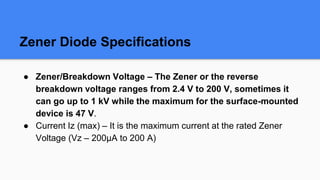

7. Zener Diode Specifications
● Zener/Breakdown Voltage – The Zener or the reverse
breakdown voltage ranges from 2.4 V to 200 V, sometimes it
can go up to 1 kV while the maximum for the surface-mounted
device is 47 V.
● Current Iz (max) – It is the maximum current at the rated Zener
Voltage (Vz – 200μA to 200 A)

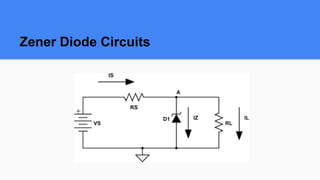

8. Zener Diode Circuits

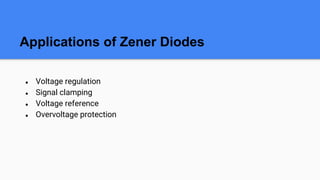

9. Applications of Zener Diodes
● Voltage regulation
● Signal clamping
● Voltage reference
● Overvoltage protection

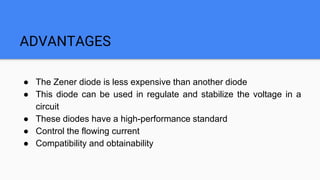

10. ADVANTAGES
● The Zener diode is less expensive than another diode
● This diode can be used in regulate and stabilize the voltage in a
circuit
● These diodes have a high-performance standard
● Control the flowing current
● Compatibility and obtainability

11. DISADVANTAGES
● Zener diode cancels out voltage by applying an even larger voltage in the
reverse direction wasting electricity in the process.
● A Zener diode has a relatively poor regulation ratio and is generally not as
good as the transistor.
