- 1. Uncertainty in ForestCarbon and Nutrient Budgets Ruth D. Yanai State University of New York College of Environmental Science and Forestry Syracuse NY 13210, USA

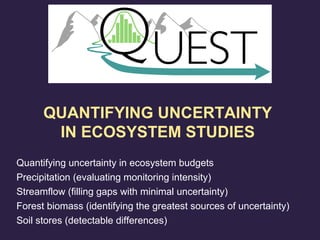

- 2. Quantifying uncertainty inecosystem budgets Precipitation (evaluating monitoring intensity) Streamflow (filling gaps with minimal uncertainty) Forest biomass (identifying the greatest sources of uncertainty) Soil stores (detectable differences) QUANTIFYING UNCERTAINTY IN ECOSYSTEM STUDIES
- 3. UNCERTAINTY Natural Variability Spatial Variability TemporalVariability Knowledge Uncertainty Measurement Error Model Error Types of uncertainty commonly encountered in ecosystem studies Adapted from Harmon et al. (2007)
- 4. Bormann et al.(1977) Science How can we assign confidence in ecosystem nutrient fluxes?

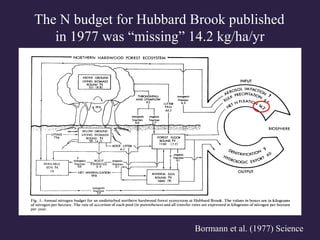

- 5. Bormann et al.(1977) Science The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr
- 6. Net N gasexchange = sinks – sources = - precipitation N input + hydrologic export + N accretion in living biomass + N accretion in the forest floor ± gain or loss in soil N stores - weathering N input The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr

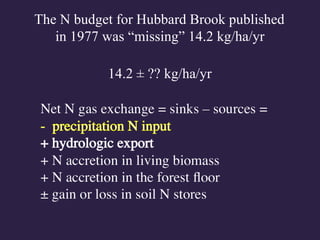

- 7. The N budgetfor Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr

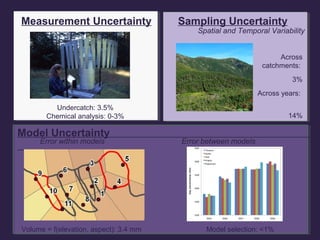

- 8. Measurement Uncertainty SamplingUncertainty Spatial and Temporal Variability Model Uncertainty Error within models Error between models Volume = f(elevation, aspect): 3.4 mm Undercatch: 3.5% Chemical analysis: 0-3% Model selection: <1% Across catchments: 3% Across years: 14%

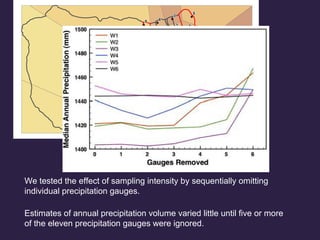

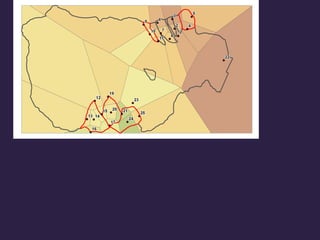

- 10. We tested theeffect of sampling intensity by sequentially omitting individual precipitation gauges. Estimates of annual precipitation volume varied little until five or more of the eleven precipitation gauges were ignored.

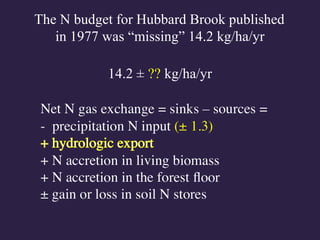

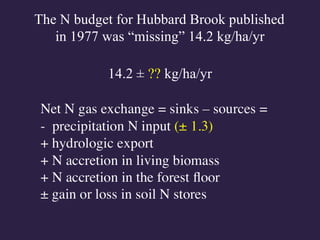

- 11. The N budgetfor Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 12. The N budgetfor Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr

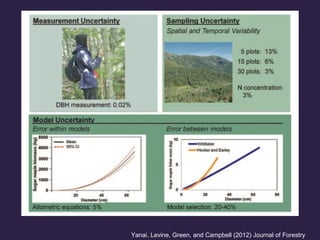

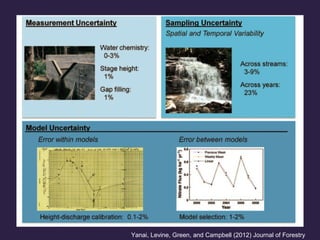

- 13. Yanai, Levine, Green,and Campbell (2012) Journal of Forestry
- 14.

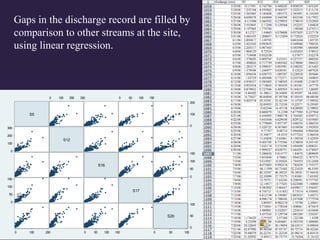

- 15. Gaps in thedischarge record are filled by comparison to other streams at the site, using linear regression. S5 S12 S16 S17 S20 0 100 200 0 100 200 0 100 200 300 0 100 200 300 0 50 100 150 0 50 100 150 0 50 100 150 0 50 100 150 0 50 100 0 50 100

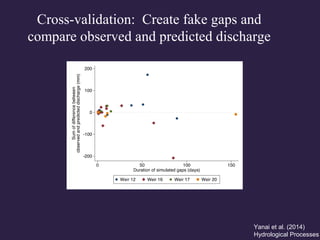

- 16. Cross-validation: Create fakegaps and compare observed and predicted discharge Yanai et al. (2014) Hydrological Processes

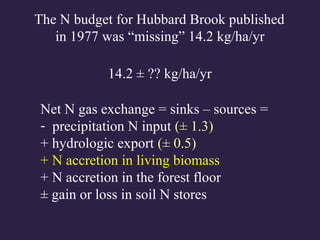

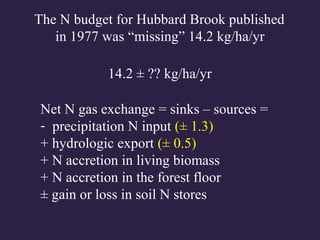

- 17. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass + N accretion in the forest floor ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 18. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass + N accretion in the forest floor ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr

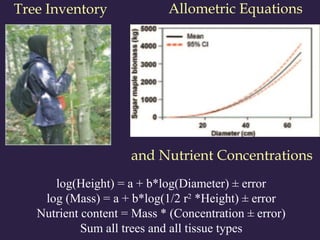

- 19. Tree Inventory log(Height) =a + b*log(Diameter) ± error log (Mass) = a + b*log(1/2 r2 *Height) ± error Nutrient content = Mass * (Concentration ± error) Sum all trees and all tissue types Allometric Equations and Nutrient Concentrations

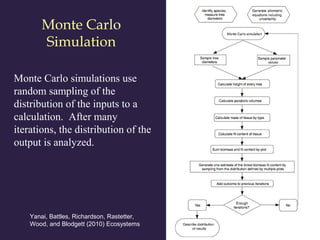

- 20. Monte Carlo Simulation Yanai, Battles,Richardson, Rastetter, Wood, and Blodgett (2010) Ecosystems Monte Carlo simulations use random sampling of the distribution of the inputs to a calculation. After many iterations, the distribution of the output is analyzed.

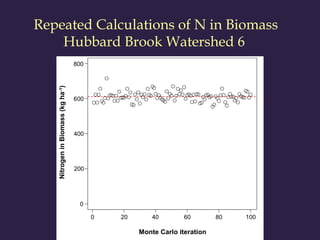

- 21. Repeated Calculations ofN in Biomass Hubbard Brook Watershed 6

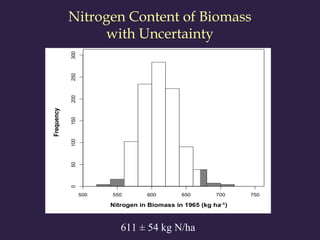

- 22. 611 ± 54kg N/ha Nitrogen Content of Biomass with Uncertainty
- 23. ***IMPORTANT*** Random selection ofparameter values applies across all the trees and all the time periods in each iteration. The uncertainty between two measurements can be less than in a single measurement!

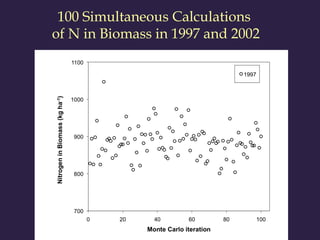

- 24. 100 Simultaneous Calculations ofN in Biomass in 1997 and 2002

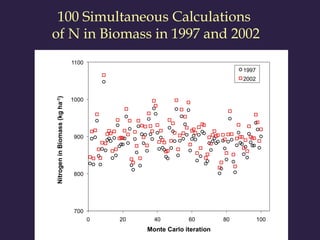

- 25. 100 Simultaneous Calculations ofN in Biomass in 1997 and 2002

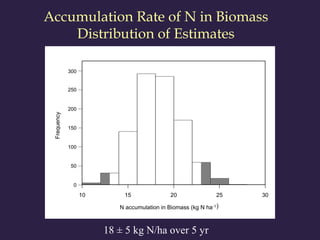

- 26. Accumulation Rate ofN in Biomass Distribution of Estimates 18 ± 5 kg N/ha over 5 yr

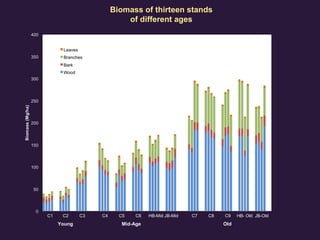

- 27. C1 C2 C3C4 C5 C6 HB-Mid JB-Mid C7 C8 C9 HB- Old JB-Old Young Mid-Age Old Biomass of thirteen stands of different ages
- 28. C1 C2 C3C4 C5 C6 HB-Mid JB-Mid C7 C8 C9 HB- Old JB-Old 3% 7% 3% 4% 4% 3% 3% 3% 3% 2% 4% 4% 5% Coefficient of variation (standard deviation / mean) of error in allometric equations Young Mid-Age Old

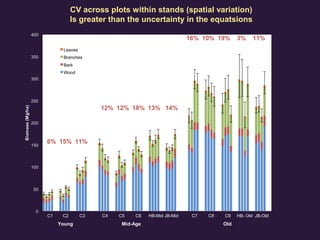

- 29. C1 C2 C3C4 C5 C6 HB-Mid JB-Mid C7 C8 C9 HB- Old JB-Old Young Mid-Age Old 3% 7% 3% 4% 4% 3% 3% 3% 3% 2% 4% 4% 5% CV across plots within stands (spatial variation) Is greater than the uncertainty in the equatsions 6% 15% 11% 12% 12% 18% 13% 14% 16% 10% 19% 3% 11%
- 30. Yanai, Levine, Green,and Campbell (2012) Journal of Forestry
- 31. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr

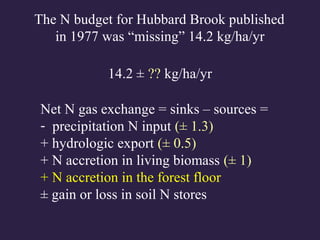

- 32. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 33.

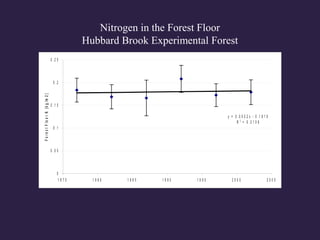

- 34. Nitrogen in theForest Floor Hubbard Brook Experimental Forest y = 0 .0 0 0 2 x - 0 . 1 6 1 9 R 2 = 0 . 0 1 0 9 0 0 . 0 5 0 .1 0 . 1 5 0 .2 0 . 2 5 1 9 7 5 1 9 8 0 1 9 8 5 1 9 9 0 1 9 9 5 2 0 0 0 2 0 0 5 ForestFloorN(kg/m2)

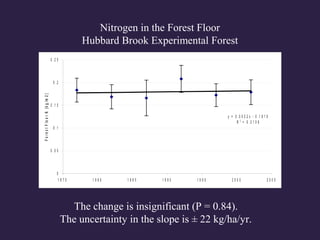

- 35. Nitrogen in theForest Floor Hubbard Brook Experimental Forest y = 0 .0 0 0 2 x - 0 . 1 6 1 9 R 2 = 0 . 0 1 0 9 0 0 . 0 5 0 .1 0 . 1 5 0 .2 0 . 2 5 1 9 7 5 1 9 8 0 1 9 8 5 1 9 9 0 1 9 9 5 2 0 0 0 2 0 0 5 ForestFloorN(kg/m2) The change is insignificant (P = 0.84). The uncertainty in the slope is ± 22 kg/ha/yr.

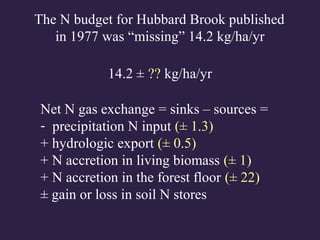

- 36. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor (± 22) ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 37. Studies of soilchange over time often fail to detect a difference. We should always report how large a difference is detectable. Yanai et al. (2003) SSSAJ

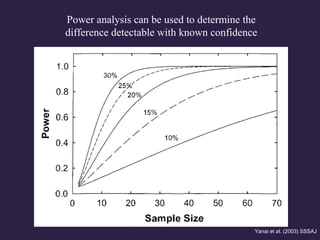

- 38. Power analysis canbe used to determine the difference detectable with known confidence Yanai et al. (2003) SSSAJ

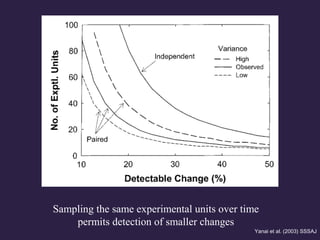

- 39. Sampling the sameexperimental units over time permits detection of smaller changes Yanai et al. (2003) SSSAJ

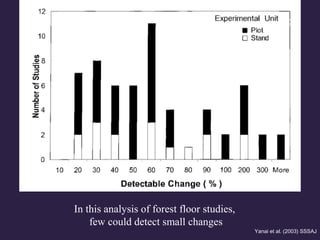

- 40. In this analysisof forest floor studies, few could detect small changes Yanai et al. (2003) SSSAJ

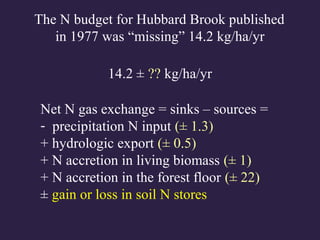

- 41. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor (± 22) ± gain or loss in soil N stores The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 42. Nitrogen Pools (kg/ha) HubbardBrook Experimental Forest 1796 29 10 1260 750 3080 Forest Floor Live Vegetation Coarse Woody Debris Mineral Soil 10 cm-C Dead Vegetation Mineral Soil 0-10 cm Yanai et al. (2013) ES&T

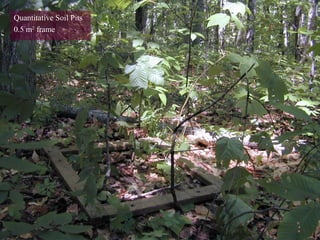

- 43. Quantitative Soil Pits 0.5m2 frame

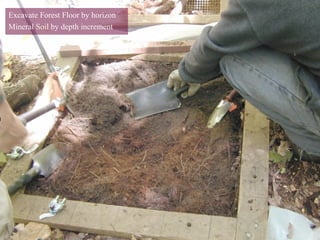

- 44. Excavate Forest Floorby horizon Mineral Soil by depth increment

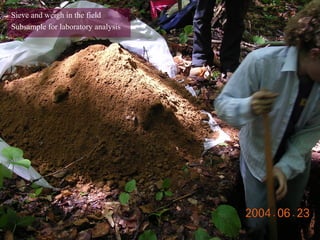

- 45. Sieve and weighin the field Subsample for laboratory analysis

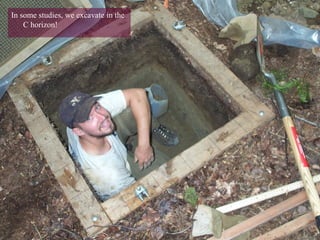

- 46. In some studies,we excavate in the C horizon!

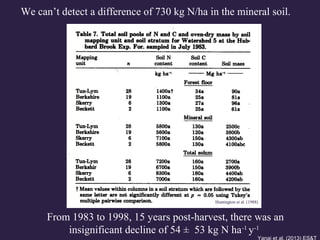

- 47. We can’t detecta difference of 730 kg N/ha in the mineral soil. From 1983 to 1998, 15 years post-harvest, there was an insignificant decline of 54 ± 53 kg N ha-1 y-1 Huntington et al. (1988) Yanai et al. (2013) ES&T

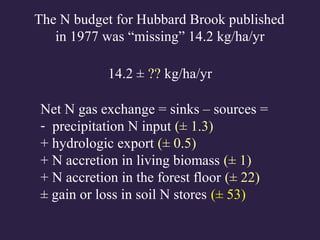

- 48. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor (± 22) ± gain or loss in soil N stores (± 53) The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± ?? kg/ha/yr
- 49. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) + N accretion in the forest floor (± 22) ± gain or loss in soil N stores (± 53) The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± 57 kg/ha/yr

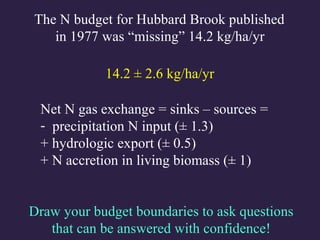

- 50. Net N gasexchange = sinks – sources = - precipitation N input (± 1.3) + hydrologic export (± 0.5) + N accretion in living biomass (± 1) The N budget for Hubbard Brook published in 1977 was “missing” 14.2 kg/ha/yr 14.2 ± 2.6 kg/ha/yr Draw your budget boundaries to ask questions that can be answered with confidence!

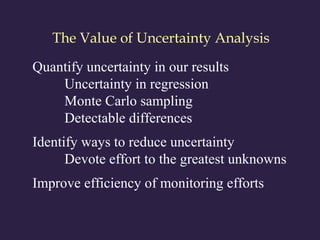

- 51. The Value ofUncertainty Analysis Quantify uncertainty in our results Uncertainty in regression Monte Carlo sampling Detectable differences Identify ways to reduce uncertainty Devote effort to the greatest unknowns Improve efficiency of monitoring efforts
- 52. Be a partof QUEST! • Find more information at: www.quantifyinguncertainty.org • Read papers, share sample code, stay updated with QUEST News • Email us at quantifyinguncertainty@gmail.com • Follow us on LinkedIn and Twitter: @QUEST_RCN QUANTIFYING UNCERTAINTY IN ECOSYSTEM STUDIES

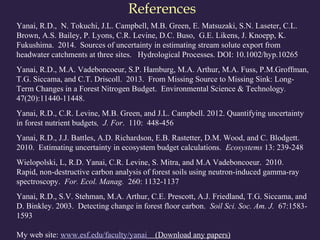

- 53. References Yanai, R.D., N.Tokuchi, J.L. Campbell, M.B. Green, E. Matsuzaki, S.N. Laseter, C.L. Brown, A.S. Bailey, P. Lyons, C.R. Levine, D.C. Buso, G.E. Likens, J. Knoepp, K. Fukushima. 2014. Sources of uncertainty in estimating stream solute export from headwater catchments at three sites. Hydrological Processes. DOI: 10.1002/hyp.10265 Yanai, R.D., M.A. Vadeboncoeur, S.P. Hamburg, M.A. Arthur, M.A. Fuss, P.M.Groffman, T.G. Siccama, and C.T. Driscoll. 2013. From Missing Source to Missing Sink: Long- Term Changes in a Forest Nitrogen Budget. Environmental Science & Technology. 47(20):11440-11448. Yanai, R.D., C.R. Levine, M.B. Green, and J.L. Campbell. 2012. Quantifying uncertainty in forest nutrient budgets, J. For. 110: 448-456 Yanai, R.D., J.J. Battles, A.D. Richardson, E.B. Rastetter, D.M. Wood, and C. Blodgett. 2010. Estimating uncertainty in ecosystem budget calculations. Ecosystems 13: 239-248 Wielopolski, L, R.D. Yanai, C.R. Levine, S. Mitra, and M.A Vadeboncoeur. 2010. Rapid, non-destructive carbon analysis of forest soils using neutron-induced gamma-ray spectroscopy. For. Ecol. Manag. 260: 1132-1137 Yanai, R.D., S.V. Stehman, M.A. Arthur, C.E. Prescott, A.J. Friedland, T.G. Siccama, and D. Binkley. 2003. Detecting change in forest floor carbon. Soil Sci. Soc. Am. J. 67:1583- 1593 My web site: www.esf.edu/faculty/yanai (Download any papers)

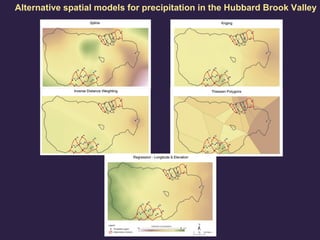

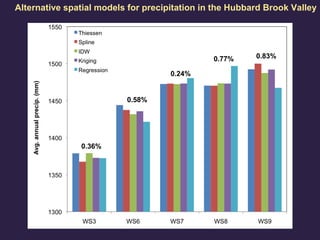

- 54. Alternative spatial modelsfor precipitation in the Hubbard Brook Valley
- 55. Alternative spatial modelsfor precipitation in the Hubbard Brook Valley 0.36% 0.58% 0.24% 0.77% 0.83%
Editor's Notes
- #3 QUEST, NSF RCN. Outline of the talk: Parts of the ecosystem budget, each illustrating an application of uncertainty analysis. These applications are relevant to all of us involved in forest measurements and management, even if you’re not interested in nutrient budgets per se.
- #5 The same principles apply to C budgets This was the first N budget for HB, published in 1977. Say that it’s an impressive achievement. Quantifying all the pools, and all the sources and sinks. They didn’t add up, there was an imbalance between the sources and sinks…
- #6 There was 14.2 kg/ha/yr missing. 14 point two? Plus or minus what? I started my dissertation at Hubbard Brook in 1983, working on the P budget, and for 25 years it troubled me that we couldn’t assign uncertainty in forest ecosystem budgets.
- #7 Put back the animated version
- #9 For each of these sources or sinks, I have a diagram illustrating the sources of uncertainty. (Make sure this connects to the estimate in the budget mass balance.)
- #14 Figure 7. Sources of uncertainty in stream export of nutrients, illustrated with values for streams at the Hubbard Brook Experimental Forest, except for uncertainty due to gaps of 1-2 weeks in stream discharge at Wakayama, Japan (Tokuchi, Fukushima, and Matsuzaki, personal communication). Uncertainty in stage height is the effect on annual flux of the uncertainty in weekly readings. Sampling uncertainty describes the range in runoff variability for 2000-2009. The height-discharge relationship is calibrated only at low flow; uncertainty at high flows may be very large. Model selection error is for the long-term average export of calcium and nitrate.

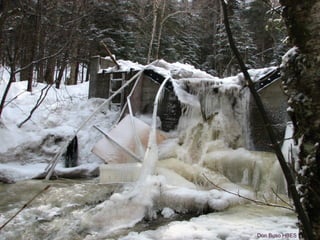

- #15 The weir cover that protects the basin heater was demolished by an ice-flow that bulldozed virtually the entire stream channel above the gauging station basin on 6 March 2011. The ice flow was produced by a rain-on-snow event and the presence of a thick ice layer on the stream, which allowed the frozen slurry to run down the hillslope un-checked, scouring the channel on the way to the weir. There is a boulder the size of table in the basin. The weir data were missing for about 3 weeks, until the ice could be removed from the V-notch and the floats re-calibrated to the notch height. During that period data from nearby W8 and W7 were used to model the flows in W9. The regression model is based on 15 years of continuous, parallel discharge measurements. Severe incidents of this sort are rare: this is the second time I have seen this in 37 years.
- #16 Replace this with gaps at Hubbard Brook
- #17 At Wakayama, Japan, gaps of Gaps of 1-3 days resulted in less than 0.5% error in the annual estimate of flow (Figure 6). Gaps of 1-2 weeks gave an average error of 1% of annual flow. Longer gaps still resulted in &lt;2% error, except for two long gaps of 2 or 3 months that gave errors of 7-8% (Figure 6).
- #18 I put in 0.5, based on the current low values of N export (0.8 kg/ha/yr) and the variation across replicate streams. This is not a very certain number, stay tuned
- #19 I put in 0.5, based on the current low values of N export (0.8 kg/ha/yr) and the variation across replicate streams. This is not a very certain number, stay tuned
- #20 The biomass calculation is really complicated. We have a complete inventory of every tree on the watershed (actually, this simplifies things; we have no sampling error). We have allometric equations relating tree height to tree diameter, by species and biomass of tissues (bark, branches, leaves, wood, roots) to the parabolic volume of the tree, which we get from the height and diameter. Then we have tissue concentrations for each species and tissue type. So we propagate the uncertainty in measurement error, regression, and concentration using a Monte Carlo approach.
- #21 Rather than do anything analytical (like a Gaussian approach)
- #22 Here are 100 values, you can see the variation
- #23 Graph the variation. But this is not what we want, we want change over time.
- #26 Uncertainty at one point in time was 54. Paired, 5
- #27 Uncertainty at one point in time was 54
- #31 At Hubbard Brook, Whittaker’s equations have very small errors. Will Oswaldo talk about equations in Mexico? Emphasize model selection error
- #32 Divide by 5 years, we get plus or minus 1. This value I’m very confident of. It ranges from .5 to .9, depending on the period
- #33 Divide by 5 years, we get plus or minus 1. This value I’m very confident of. It ranges from .5 to .9, depending on the period
- #37 Divide by 5 years, we get plus or minus 1. This value I’m very confident of. It ranges from .5 to .9, depending on the period
- #39 Power to detect different magnitudes of change in forest floor organic mass for various sample sizes, using the variance of paired differences measured in a regional study of 30 stands (Friedland et al., 1992)
- #40 The sample size required to detect a given % change with power = 0.75. The three curves represent different levels of variability derived from Friendland et al. (1992), w upper and lower bounds of the 95% CI for the SD of the differences.
- #41 Frequency distribution of detectable change in 21 studies (some are represented more than once, paired an independent or plots vs. stands)
- #42 Divide by 5 years, we get plus or minus 1. This value I’m very confident of. It ranges from .5 to .9, depending on the period
- #45 The summary; The depth distribution of fine root biomass depends on root diameter and forest type as a Ca gradient. The finer roots are more concentrated at the shallow depth in the high Ca availability. Roots larger than 0.5 mm in hardwoods don’t depend on soil depth and Ca availability, but those of softwoods decrease as soil depth and Ca availability. Dead roots are more in softwoods than hardwoods, especially the most at low Ca available site. There are no difference in live and dead root biomass among sites in hardwoods, but highest in Cone Pone in softwoods.
- #49 Divide by 5 years, we get plus or minus 1. This value I’m very confident of. It ranges from .5 to .9, depending on the period
- #50 Don’t despair. Without the soil, the uncertainty is 2.6. We can say with great confidence that there was a missing source in the N budget (now, instead, we have a missing sink). Add a conclusion slide: draw your budget boundaries carefully to ask questions that can be answered with confidence.
- #51 Don’t despair. Without the soil, the uncertainty is 2.6. We can say with great confidence that there was a missing source in the N budget (now, instead, we have a missing sink). Add a conclusion slide: draw your budget boundaries carefully to ask questions that can be answered with confidence.
- #53 Put in a plug for our as-yet unfunded RCN. We already have a web site, mailing list of 177. Statistical Advice Bureau of 12 experts willing to collaborate with us.
- #55 These are 5 models of precipitation in the HB valley, using built-in models in ARC GIS. We can see that each is interpolating between the rain gauges differently.
- #56 When we compare the estimates of the different models for the whole valley, we see that there is low variation between the models. Next, we will be working on how to estimate the uncertainty not just between the models, but also within each model.
