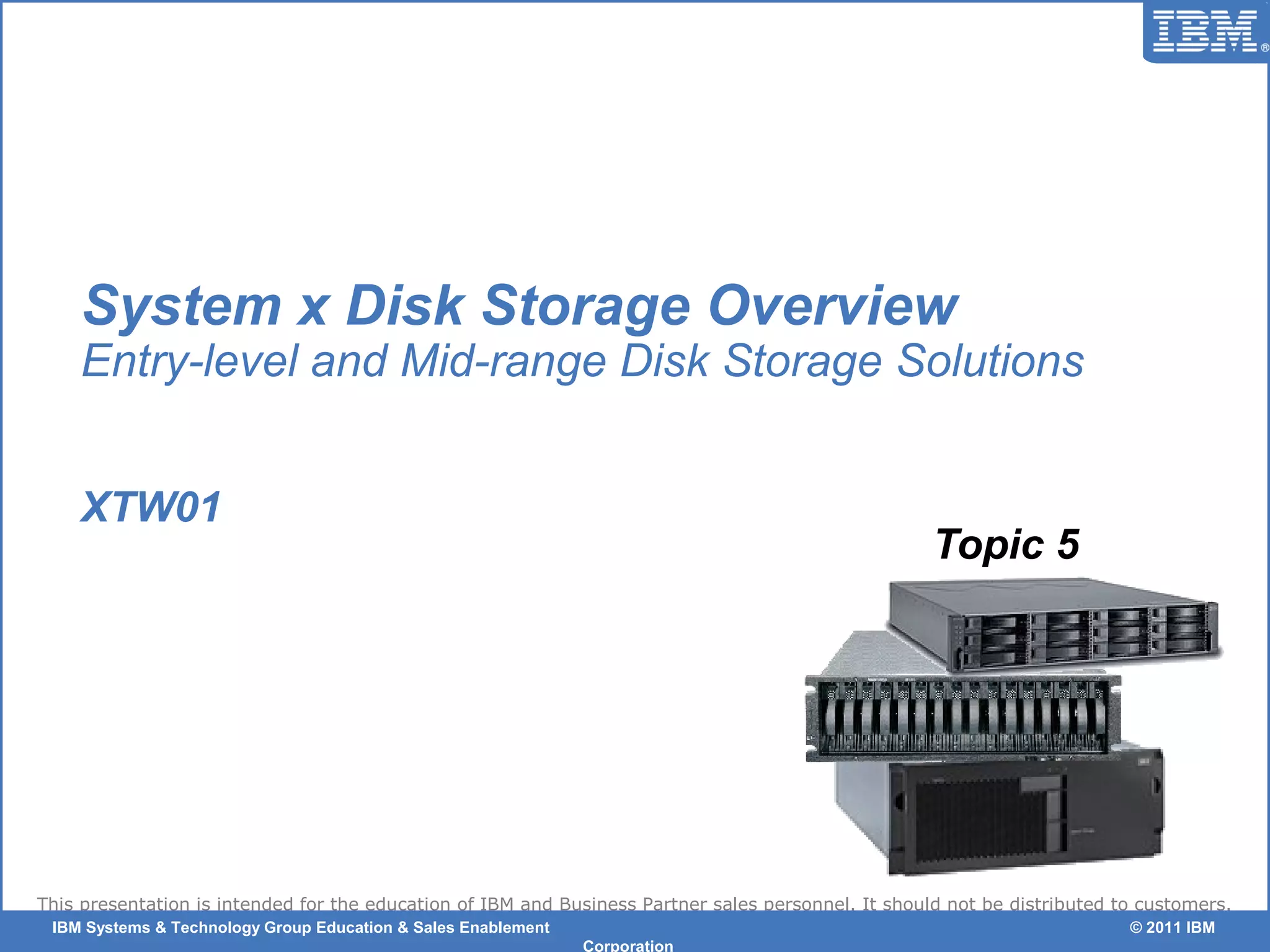

System x Disk Storage Overview
Entry-level and Mid-range Disk Storage Solutions
XTW01
Topic 5

Corporation
2

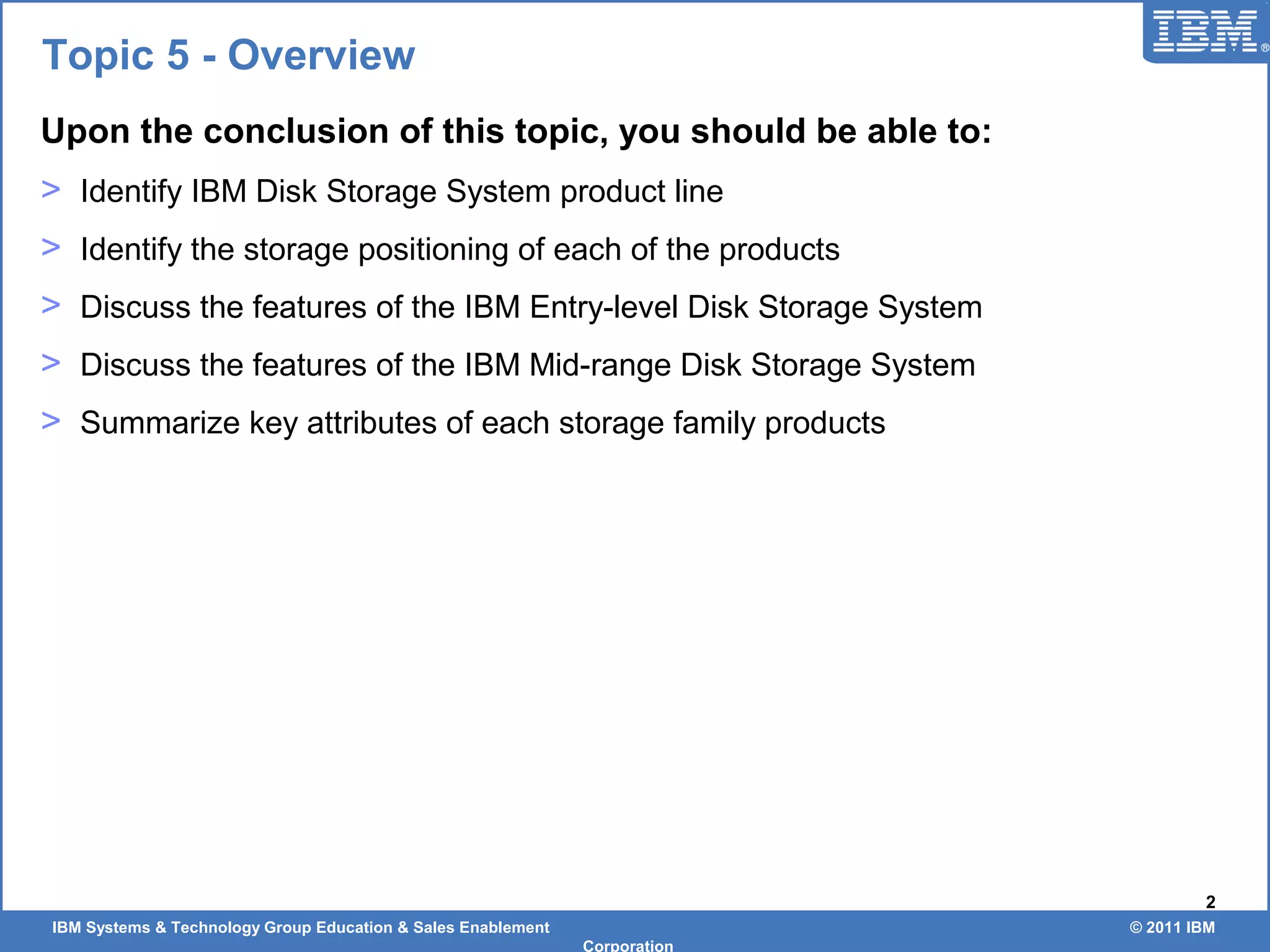

Topic 5 - Overview

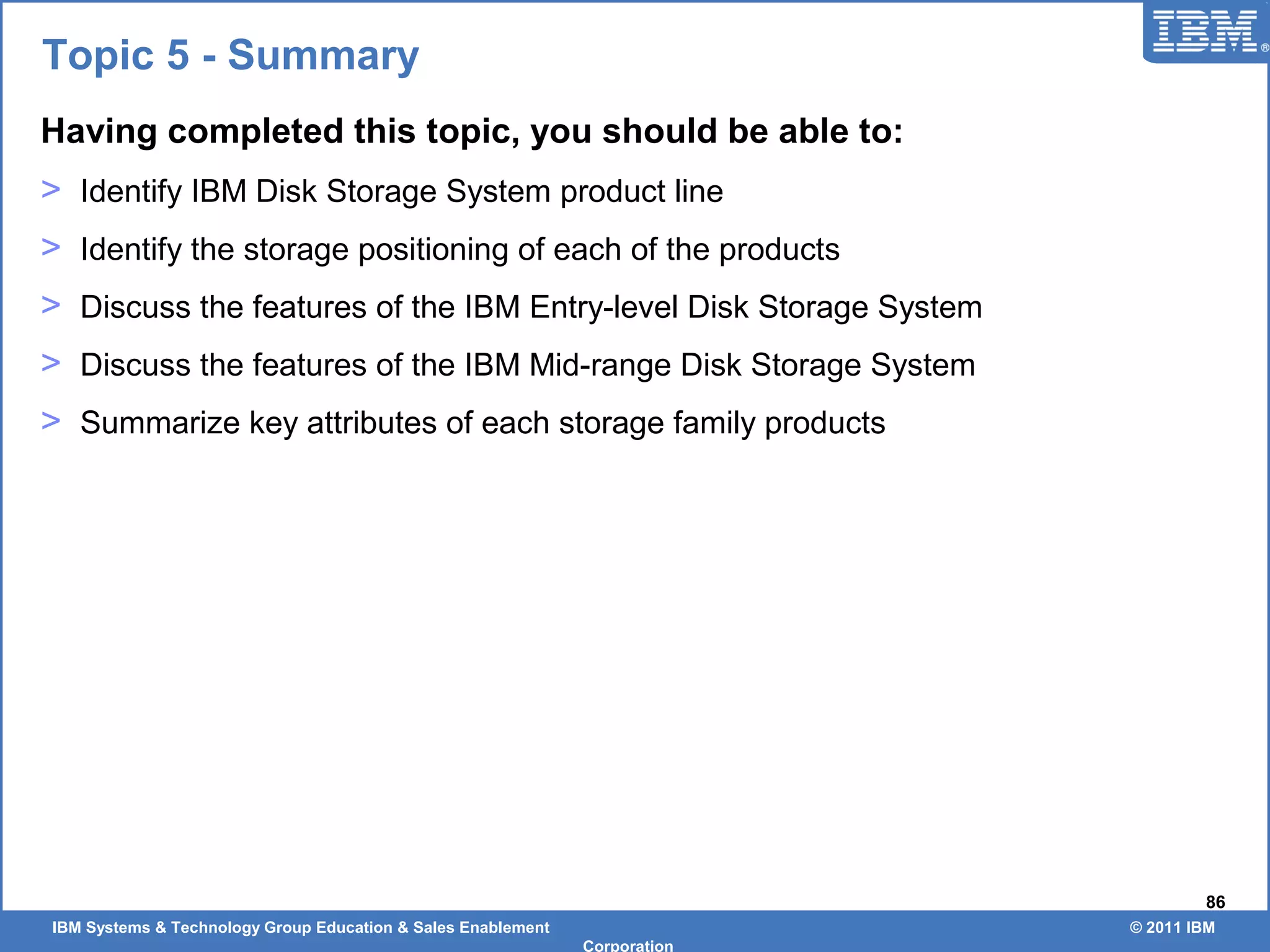

Upon the conclusion of this topic, you should be able to:
> Identify IBM Disk Storage System product line
> Identify the storage positioning of each of the products
> Discuss the features of the IBM Entry-level Disk Storage System
> Discuss the features of the IBM Mid-range Disk Storage System
> Summarize key attributes of each storage family products

Corporation
3
> * IBM System Storage Portfolio *
> IBM System Storage Disk Systems
 Entry-Level Disk Storage Systems Introduction
− DS3000 Interface Options
− EXP3000 Expansion Enclosure
− DS3500 Interface Options (DS3512 and DS3524)
− Tiered Storage Support / Drive Intermix (within family)
 Mid-range Disk Storage Systems Introduction
− EXP5000 Expansion Enclosure (DS5100 and DS5300)
− DS5020 and DS3950 Interface Options
> IBM System Storage Management Software
 IBM DS3000 Storage Manager (DS3200, DS3200, DS3400)
 IBM DS Storage Manager (DS3500, DS3950, DS5020, DS5100, & DS5300)
> Resources
Topic 5 - Course Agenda

Corporation
4
An Information Infrastructure Addresses…
Information Security
•Protect “data in motion”
•Control access
•Encrypt “data at rest”
Information Compliance
•Discover and classify data
•Implement classes of service
•Support data governance policy
Information Retention
•Establish tiered storage
•Policy-based archival
•Indexing and long term retention
Information Availability
•Support recovery scenarios
•Virtualize for high availability
•Simplify Management

Corporation
5

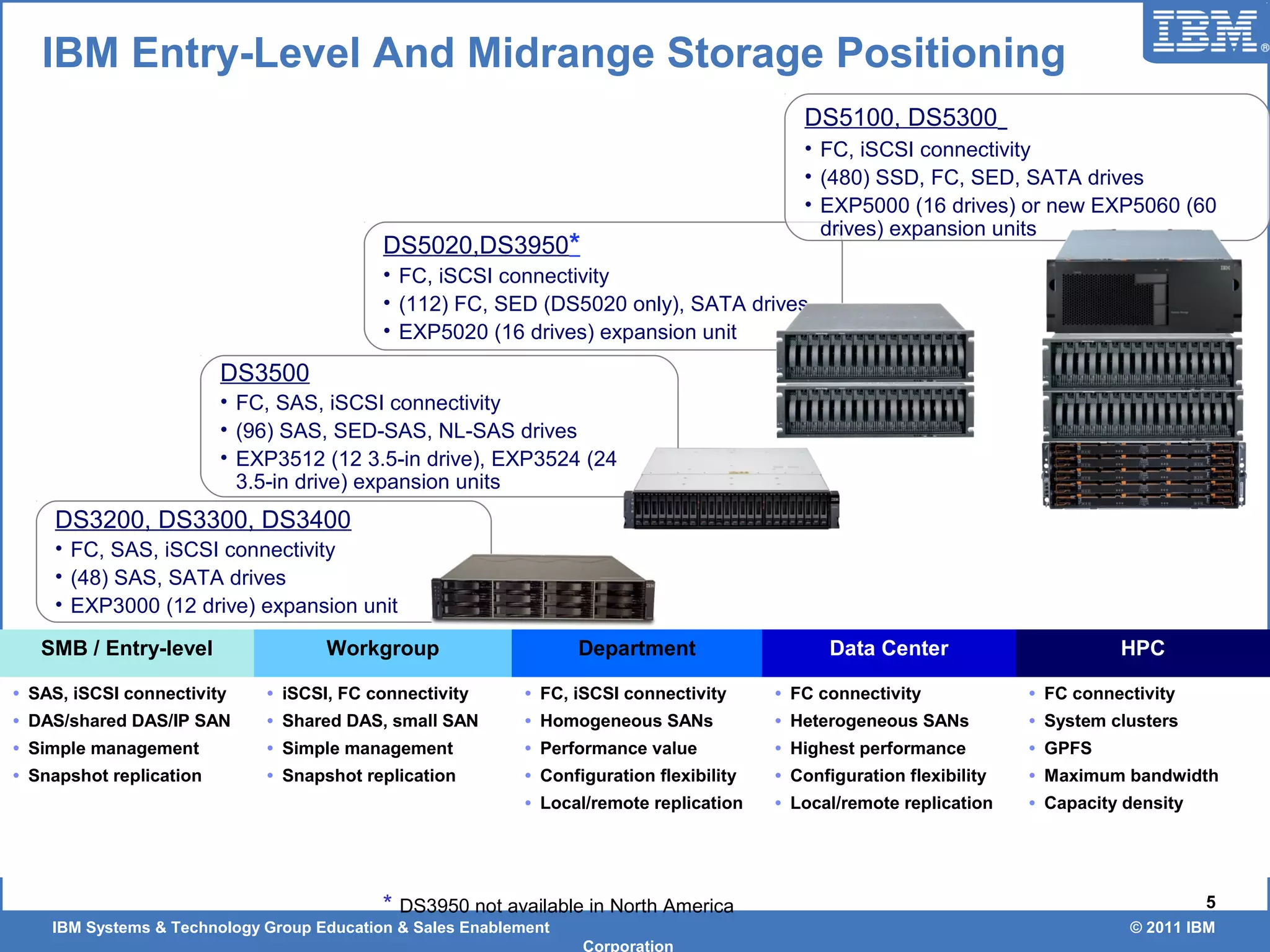

IBM Entry-Level And Midrange Storage Positioning
SMB / Entry-level Workgroup Department Data Center HPC
• SAS, iSCSI connectivity
• DAS/shared DAS/IP SAN
• Simple management
• Snapshot replication
• iSCSI, FC connectivity
• Shared DAS, small SAN
• Simple management
• Snapshot replication
• FC, iSCSI connectivity
• Homogeneous SANs
• Performance value
• Configuration flexibility
• Local/remote replication
• FC connectivity
• Heterogeneous SANs
• Highest performance
• Configuration flexibility
• Local/remote replication
• FC connectivity
• System clusters
• GPFS
• Maximum bandwidth
• Capacity density
* DS3950 not available in North America
DS3200, DS3300, DS3400
• FC, SAS, iSCSI connectivity
• (48) SAS, SATA drives
• EXP3000 (12 drive) expansion unit
DS5020,DS3950*
• (112) FC, SED (DS5020 only), SATA drives
• EXP5020 (16 drives) expansion unit
DS3500
• FC, SAS, iSCSI connectivity
• (96) SAS, SED-SAS, NL-SAS drives
• EXP3512 (12 3.5-in drive), EXP3524 (24
3.5-in drive) expansion units
DS5100, DS5300
• (480) SSD, FC, SED, SATA drives
• EXP5000 (16 drives) or new EXP5060 (60
drives) expansion units

Corporation
6
> IBM System Storage Portfolio
 * Entry-Level Disk Storage Systems Introduction *
 IBM DS Storage Manager (DS3500, DS5020, DS5100, & DS5300)
> Resources

Corporation
7

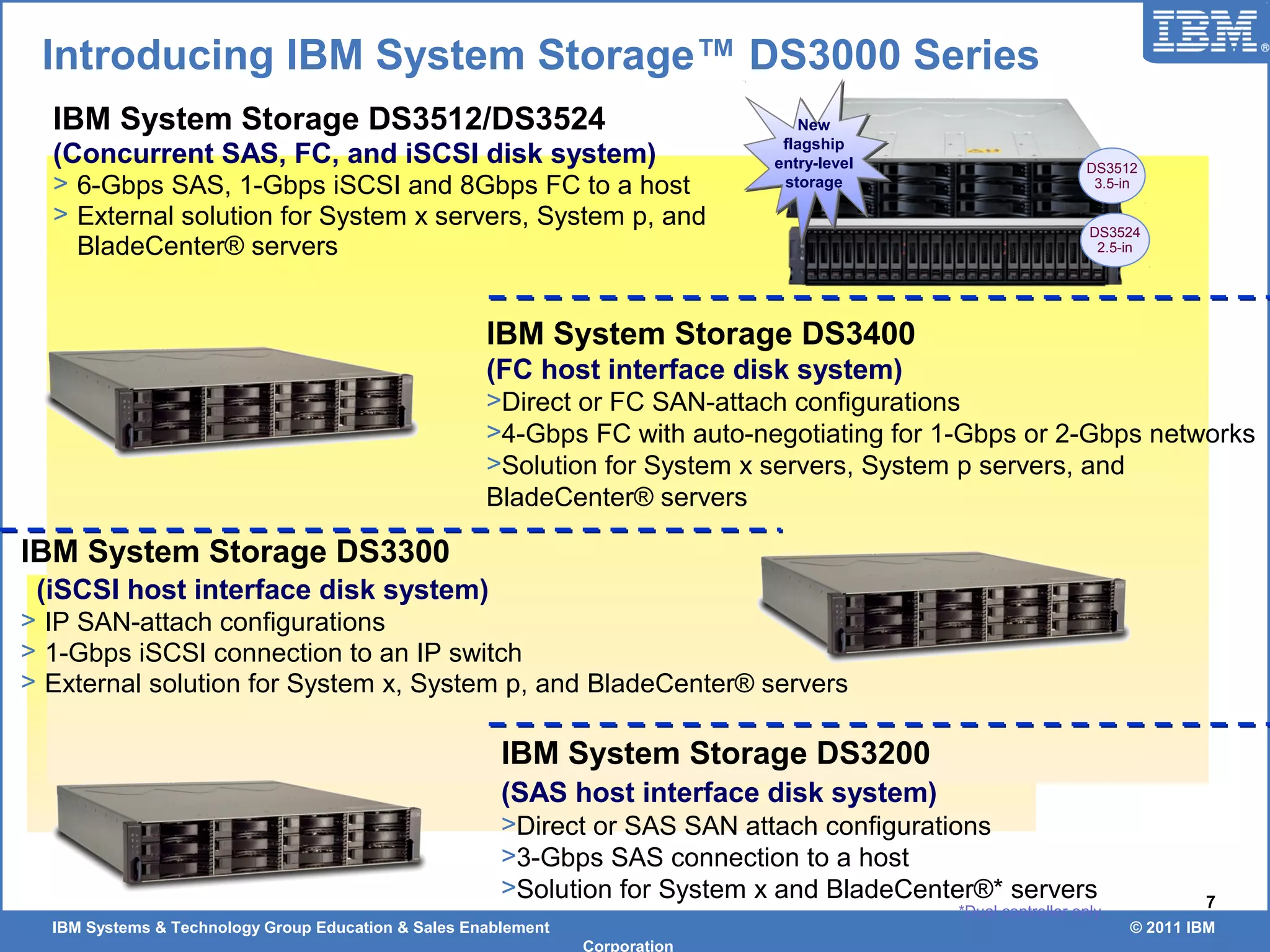

Introducing IBM System Storage™ DS3000 Series
IBM System Storage DS3300
(iSCSI host interface disk system)
> IP SAN-attach configurations
> 1-Gbps iSCSI connection to an IP switch
> External solution for System x, System p, and BladeCenter® servers
*Dual controller only.
IBM System Storage DS3512/DS3524
(Concurrent SAS, FC, and iSCSI disk system)
> 6-Gbps SAS, 1-Gbps iSCSI and 8Gbps FC to a host
> External solution for System x servers, System p, and
BladeCenter® servers
(SAS host interface disk system)
>Direct or SAS SAN attach configurations
>3-Gbps SAS connection to a host
>Solution for System x and BladeCenter®* servers
(FC host interface disk system)
>Direct or FC SAN-attach configurations
>4-Gbps FC with auto-negotiating for 1-Gbps or 2-Gbps networks
>Solution for System x servers, System p servers, and
BladeCenter® servers
DS3524
2.5-in
DS3512
3.5-in
New
flagship
entry-level
storage

Corporation
8
LEDs
Panel

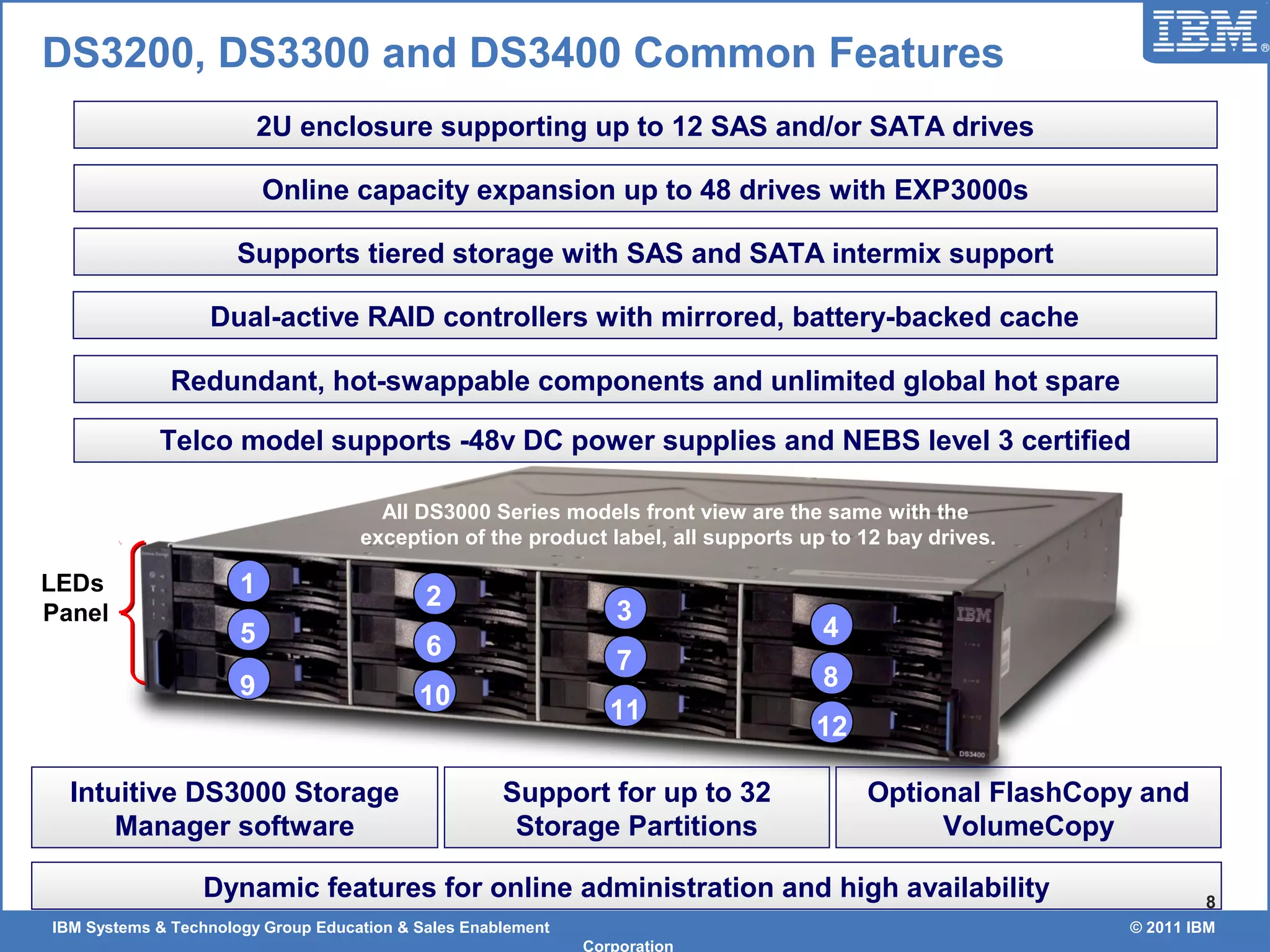

All DS3000 Series models front view are the same with the
exception of the product label, all supports up to 12 bay drives.
1
5
9
2
6
10
4
8
12
3
7
11
Redundant, hot-swappable components and unlimited global hot spare
Intuitive DS3000 Storage
Manager software
Support for up to 32
Storage Partitions
Online capacity expansion up to 48 drives with EXP3000s
2U enclosure supporting up to 12 SAS and/or SATA drives
Optional FlashCopy and
VolumeCopy
Dual-active RAID controllers with mirrored, battery-backed cache
DS3200, DS3300 and DS3400 Common Features
Supports tiered storage with SAS and SATA intermix support
Telco model supports -48v DC power supplies and NEBS level 3 certified
Dynamic features for online administration and high availability

Corporation
9
One 6-Gbps SAS host port
(standard on DS3200 models only)
3-GbpsSAS port
drive expansion connectivity
Location for the optional
host interface
One 1-Gb RJ-45 Ethernet
mgmt port

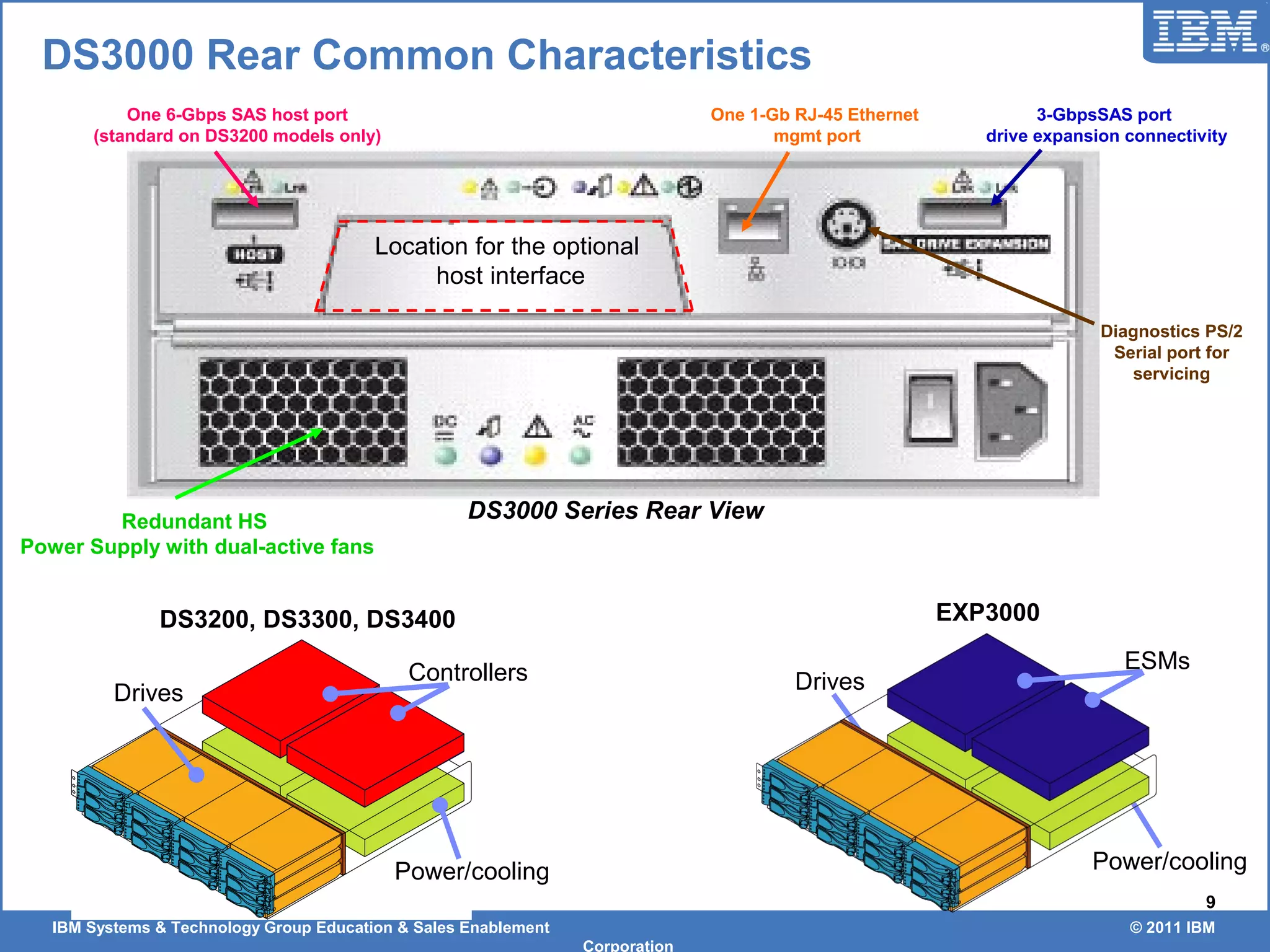

DS3000 Series Rear View
Diagnostics PS/2
Serial port for
servicing
Redundant HS
Power Supply with dual-active fans
Drives
Power/cooling
ESMs
DS3200, DS3300, DS3400 EXP3000
Drives
Power/cooling
Controllers
DS3000 Rear Common Characteristics

Corporation
10
2U
Front View
LEDs
Panel

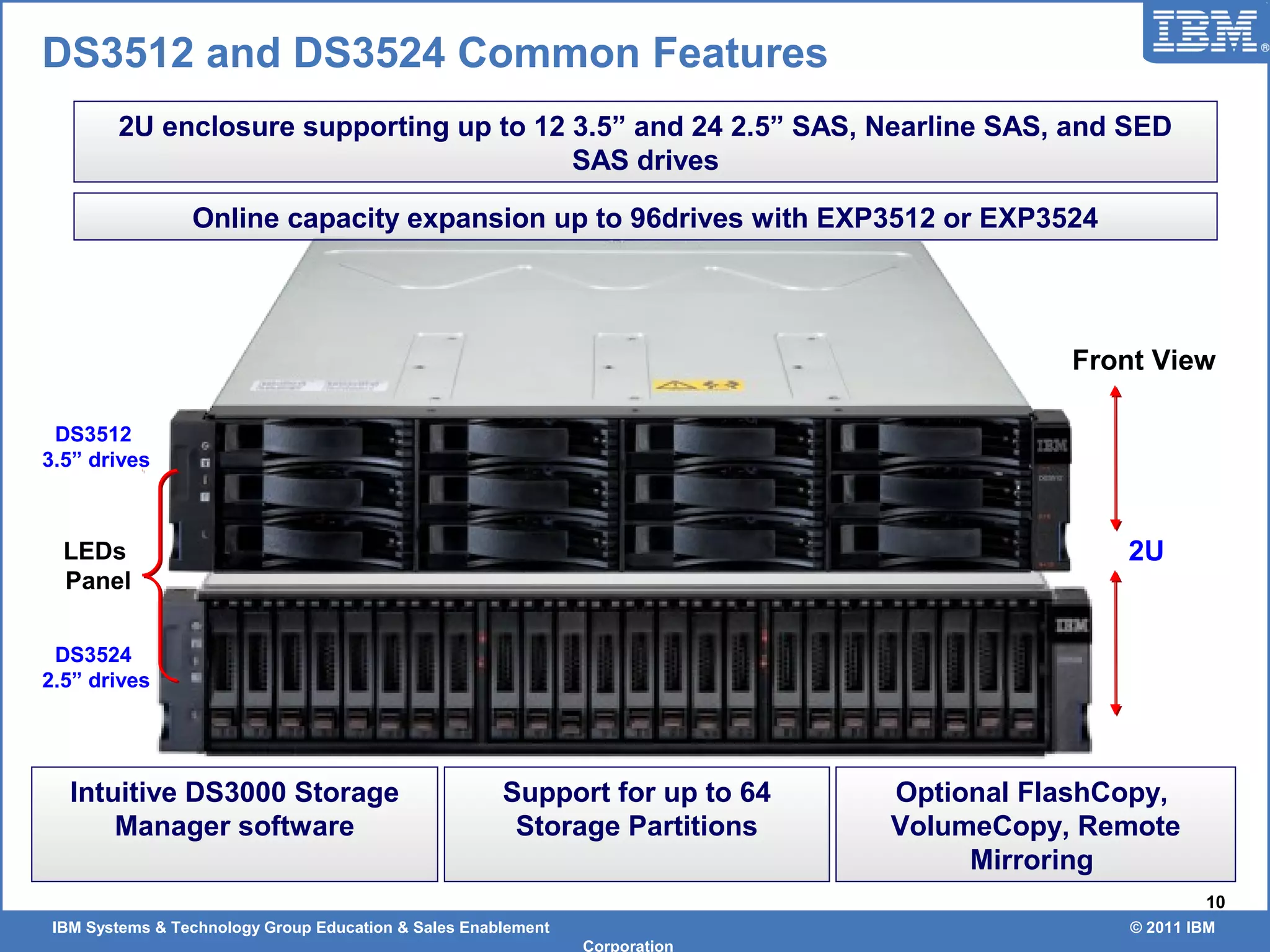

DS3512
3.5” drives
DS3524
2.5” drives
Intuitive DS3000 Storage
Manager software
Support for up to 64
Storage Partitions
Online capacity expansion up to 96drives with EXP3512 or EXP3524

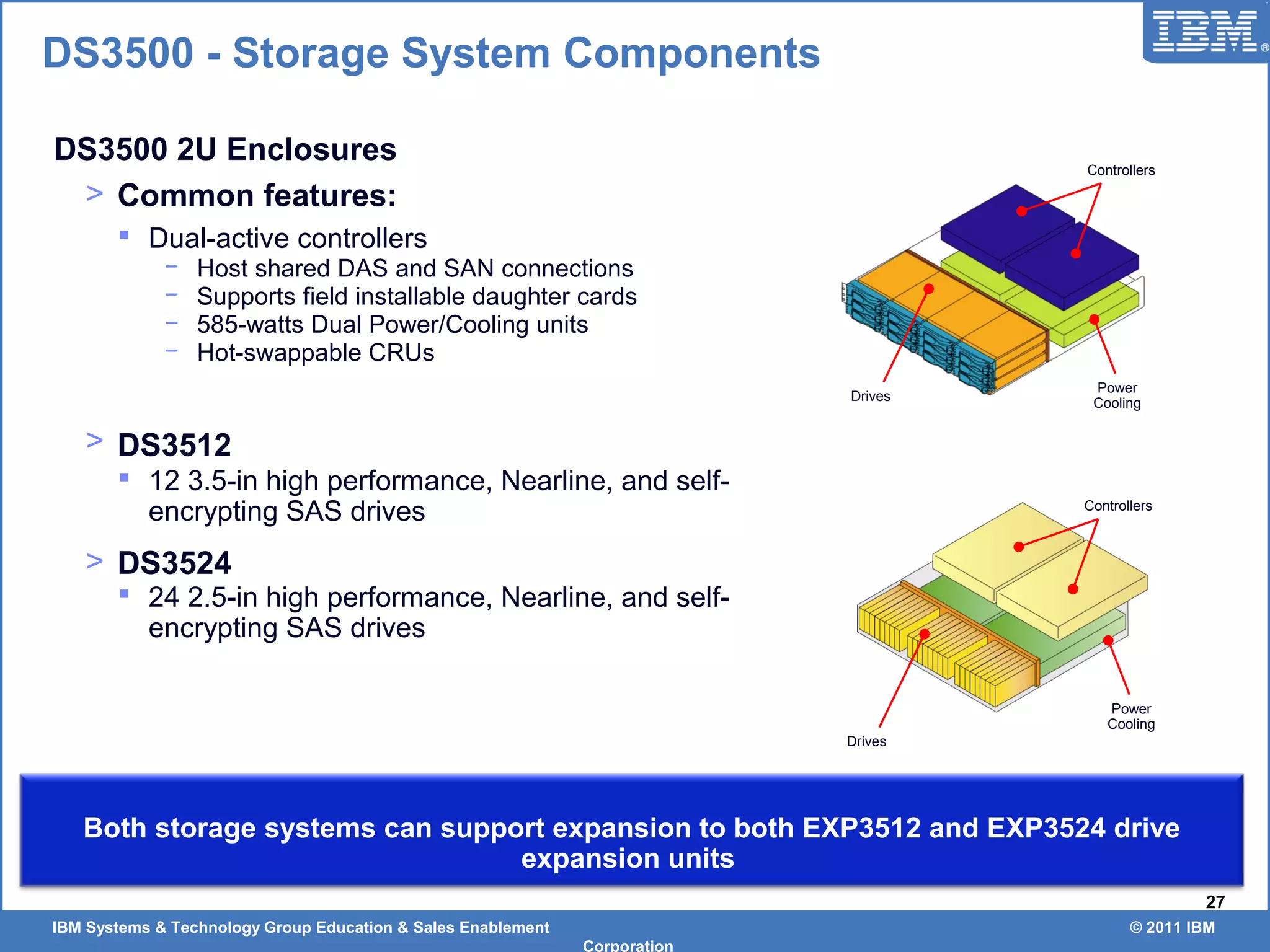

2U enclosure supporting up to 12 3.5” and 24 2.5” SAS, Nearline SAS, and SED
SAS drives
Optional FlashCopy,
VolumeCopy, Remote
Mirroring
DS3512 and DS3524 Common Features

Corporation
11
Two 1-Gb RJ-45 Ethernet
mgmt port
Diagnostics PS/2 Serial
port for servicing
Two 6-Gbps SAS ports
for host connectivity
One 6-Gbps SAS ports
for drive expansion connectivity
Location for the optional
host interface

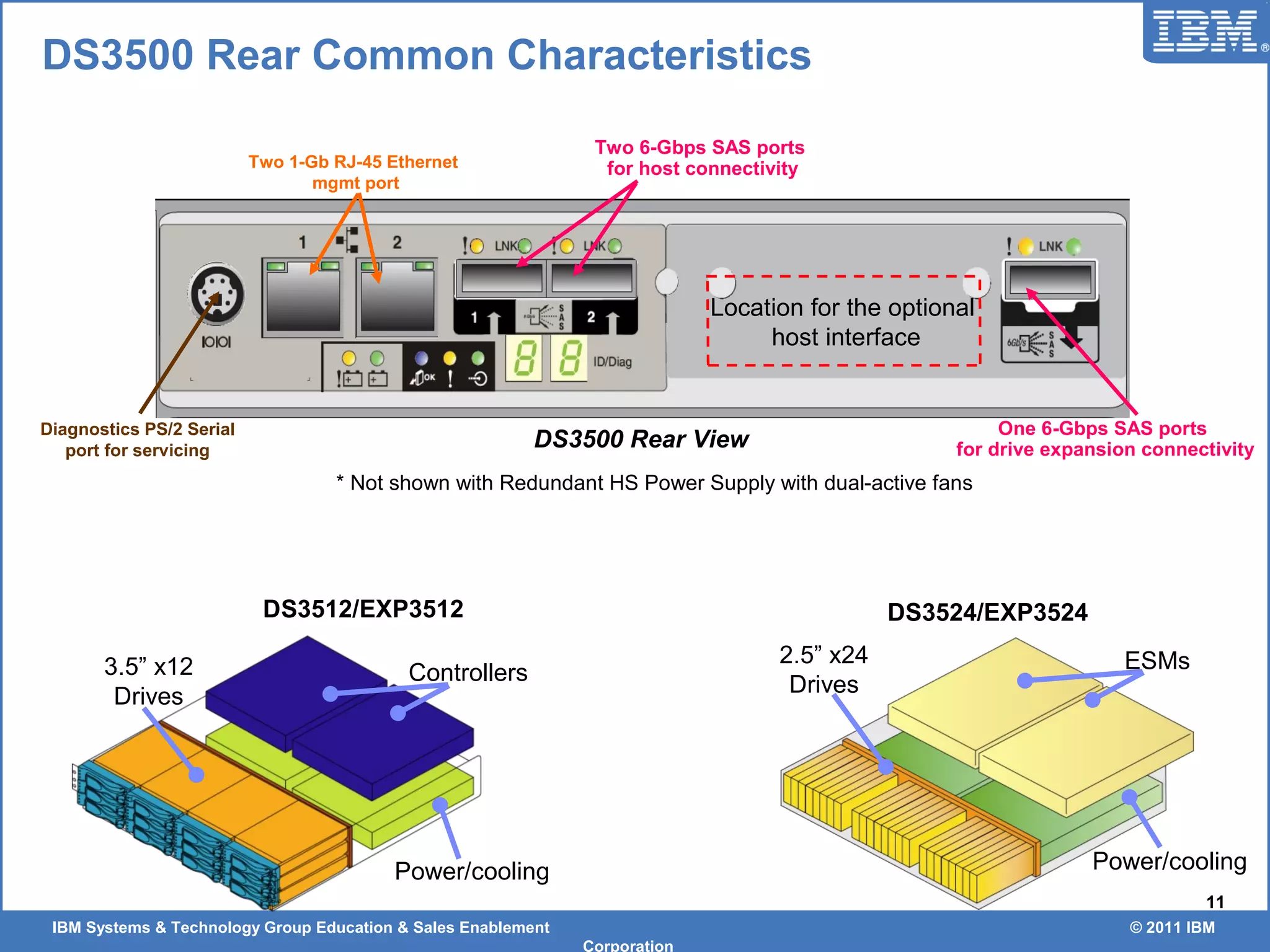

DS3500 Rear View
* Not shown with Redundant HS Power Supply with dual-active fans
Power/cooling
ESMs
Power/cooling
DS3512/EXP3512 DS3524/EXP3524
Controllers3.5” x12
Drives
2.5” x24
Drives
DS3500 Rear Common Characteristics

Corporation
12
Models
> 1726-21X – single controller, 1726-22X – dual controller
> 1726-22T – dual controller, Telco DC Power Model
Host interface
> One 3-Gbps SAS port per controller for flexible direct or SAS SAN-attach configurations
 Optional – up to two SAS ports per controller (x3 per controller)
 Dual controller supports up to 6 SAS ports and up to 3 servers in a redundant, highly available
configuration
Twelve drive bays with internal SAS connectors
> Maximum of 48 SAS or SATA drives (using three EXP3000 expansion units)
Drive interface
> One Serial Attached SCSI (SAS) drive interface per controller
Drive Intermix
> SAS / SATA intermix supported in DS3200 controller and EXP3000)
> No drives shipped standard
RAID controller
> Dual active
> Cache per controller (512 MB battery-backed cache w/ 1 GB upgrade option
RAID levels
> 0, 1, 3, 5, 6, 10
Storage partitions
> 4 (standard), 8, 16, 32 (upgrade features)

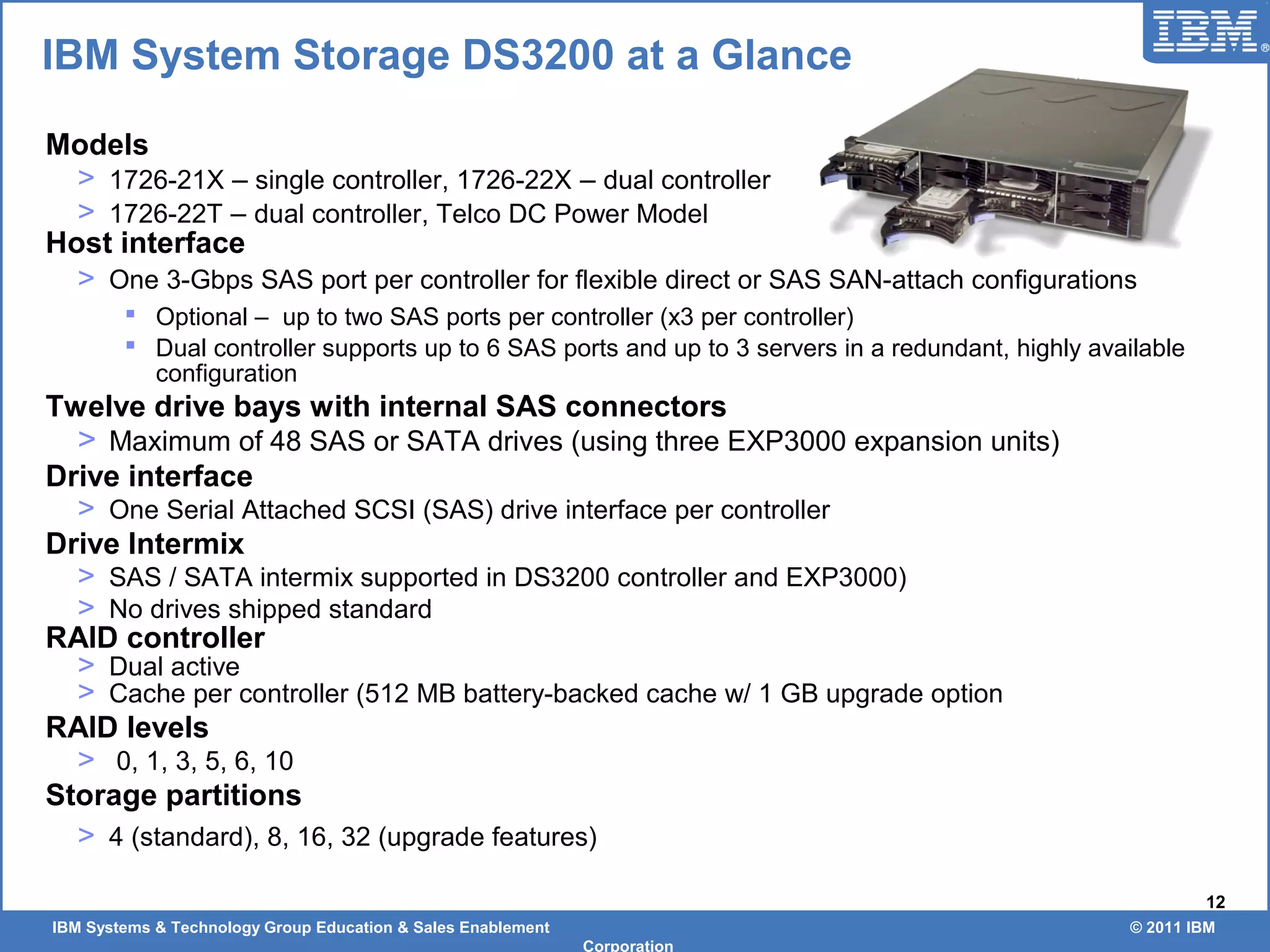

IBM System Storage DS3200 at a Glance

Corporation
13

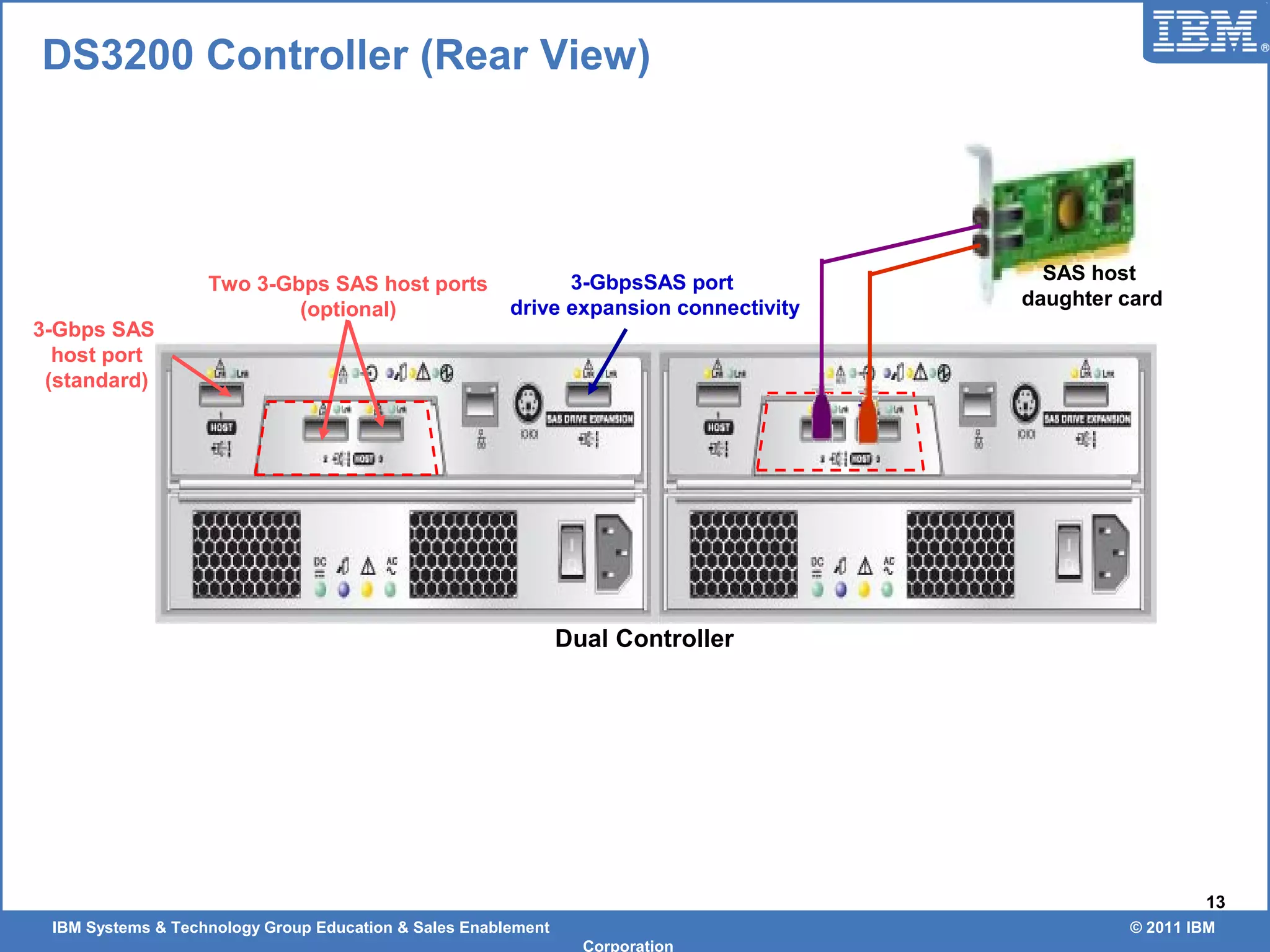

DS3200 Controller (Rear View)
3-Gbps SAS
host port
(standard)
Dual Controller
Two 3-Gbps SAS host ports
(optional)
3-GbpsSAS port
drive expansion connectivity
SAS host
daughter card

Corporation
14
Single host port
model would not
include 2 SAS ports
One 3-Gbps
SAS drive
port for
expansion
Three 3 Gbps SAS host ports per
controller moduleEthernet port
for remote
mgmt
I/O system core with
integrated XOR engine

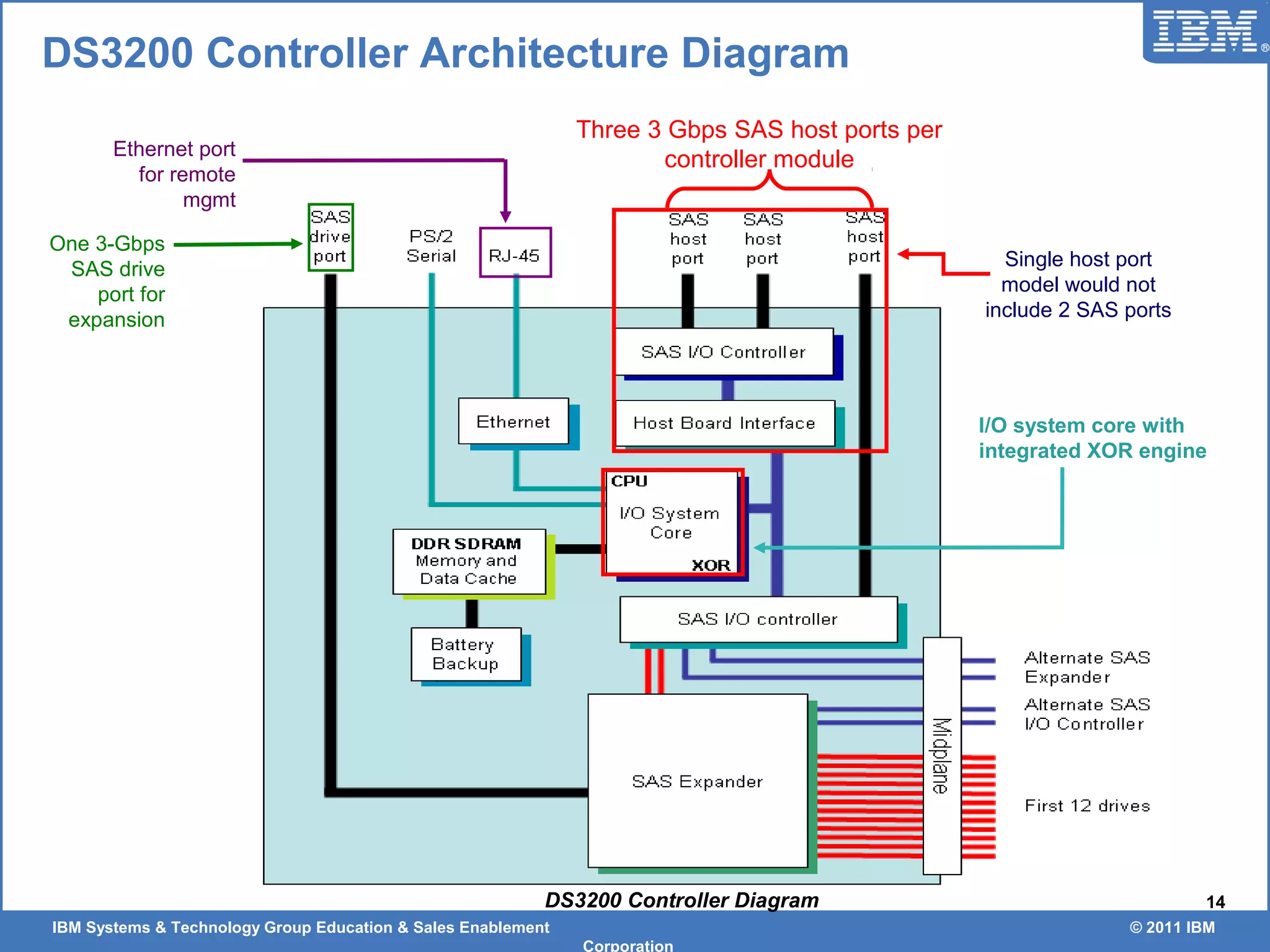

DS3200 Controller Architecture Diagram
DS3200 Controller Diagram

Corporation
15
Models
> 1726-32T – dual controller Telco DC Power Model
Host interface
> Two port per controller, 1-Gbps iSCSI
Drive interface
Drive Intermix
> SAS / SATA intermix supported in DS3300 controller and EXP3000
RAID controller
> Dual active
> Cache per controller (512 MB battery-backed cache w/ 1 GB upgrade option)
RAID levels
> 0, 1, 3, 5, 6, 10
Storage partitions

Corporation
16
iSCSI
host ports
Disabled
SAS port
iSCSI host
daughter card
Dual Controller
3-GbpsSAS port
drive expansion
connectivity

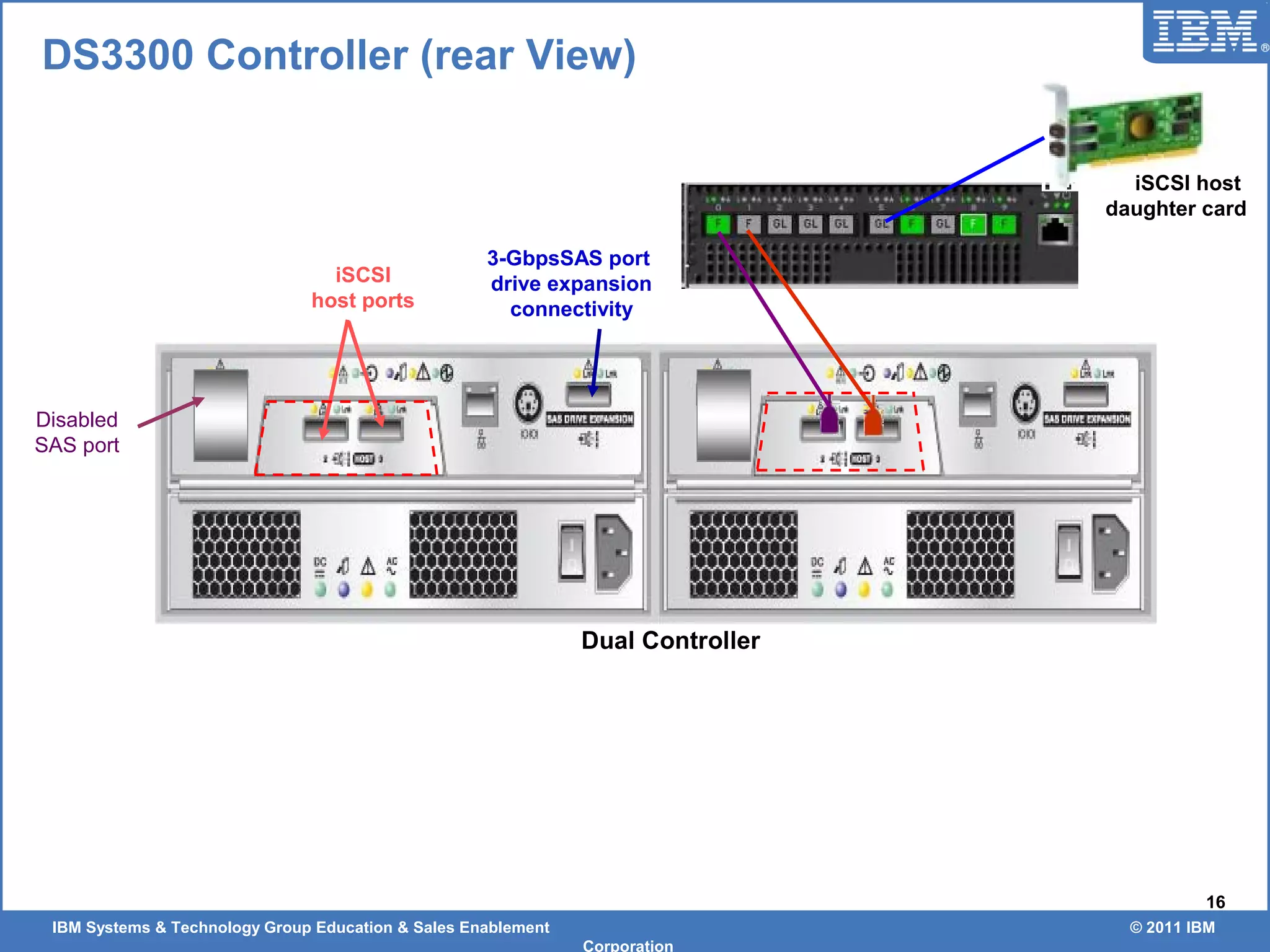

DS3300 Controller (rear View)

Corporation
17

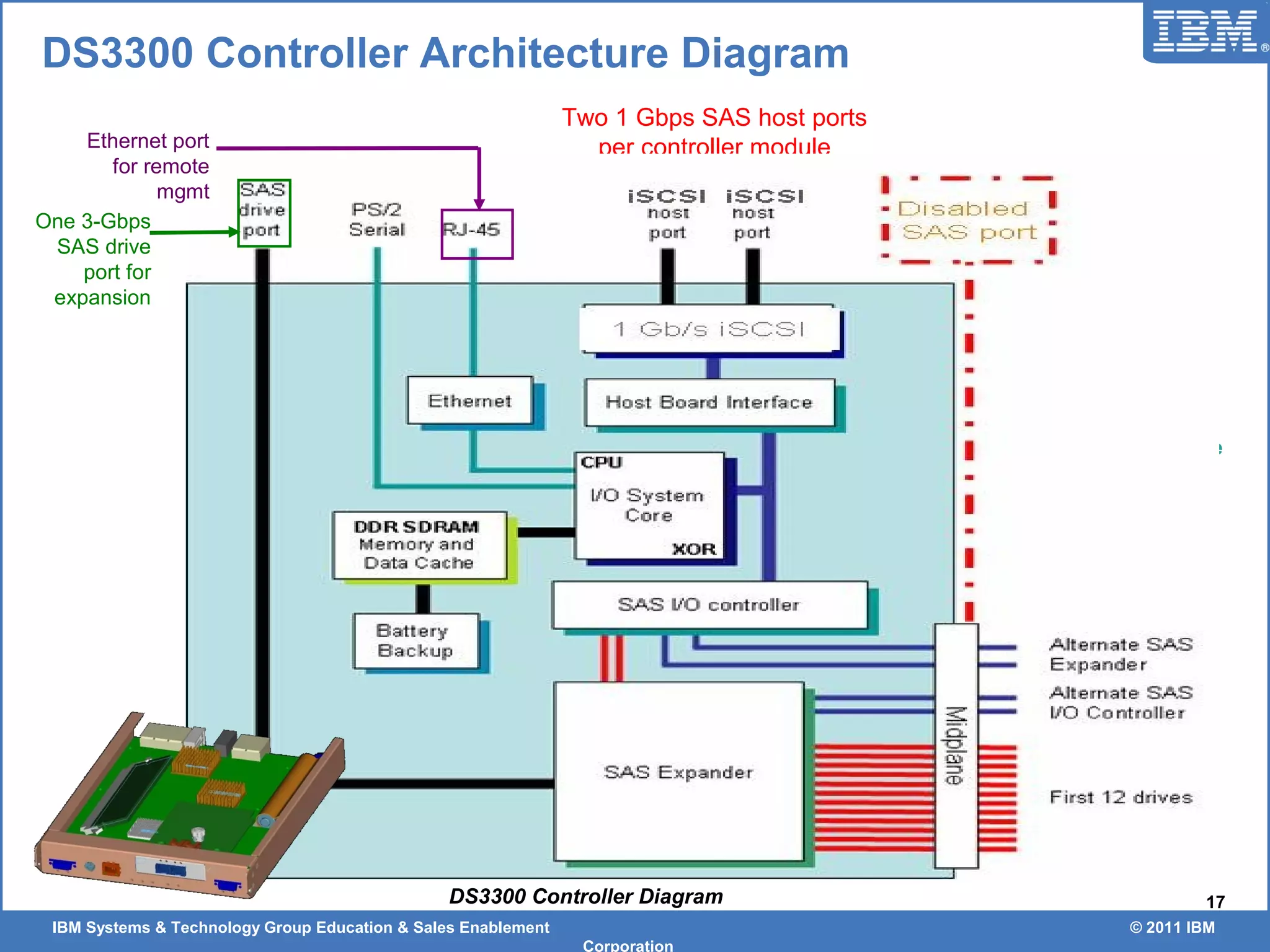

I/O system core with
integrated XOR engine
Two 1 Gbps SAS host ports
per controller module
One 3-Gbps
SAS drive
port for
expansion
Ethernet port
for remote
mgmt

Corporation
18

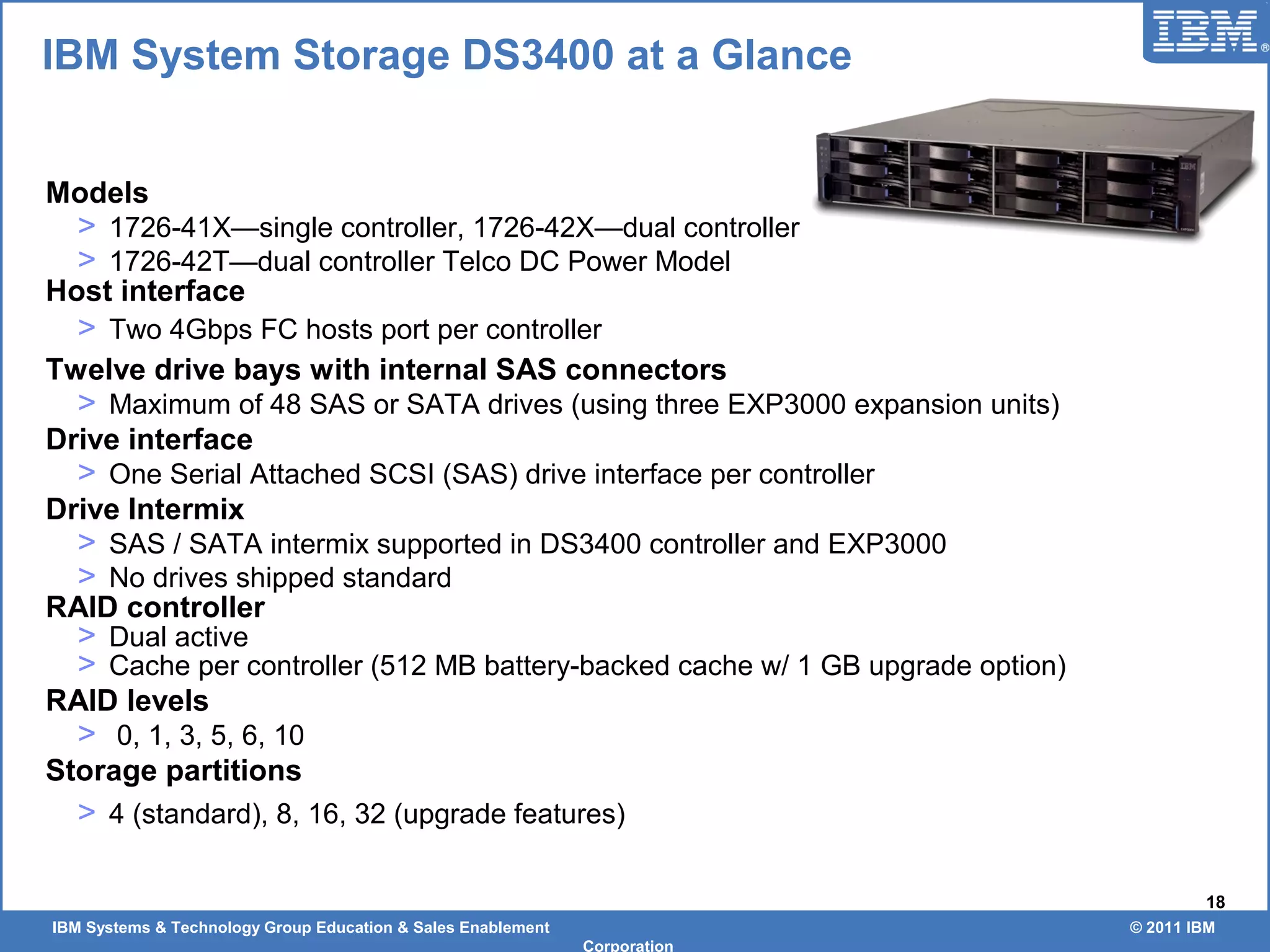

Models
> 1726-41X—single controller, 1726-42X—dual controller
> 1726-42T—dual controller Telco DC Power Model
Host interface
> Two 4Gbps FC hosts port per controller
Drive interface
Drive Intermix
> SAS / SATA intermix supported in DS3400 controller and EXP3000
RAID controller
> Dual active
> Cache per controller (512 MB battery-backed cache w/ 1 GB upgrade option)
RAID levels
> 0, 1, 3, 5, 6, 10
Storage partitions

Corporation
19
Disabled
SAS port
FC host
daughter card
Dual Controller
3-GbpsSAS port
drive expansion
connectivity
FC host
ports
DS3400 Controller (Rear View)

Corporation
20

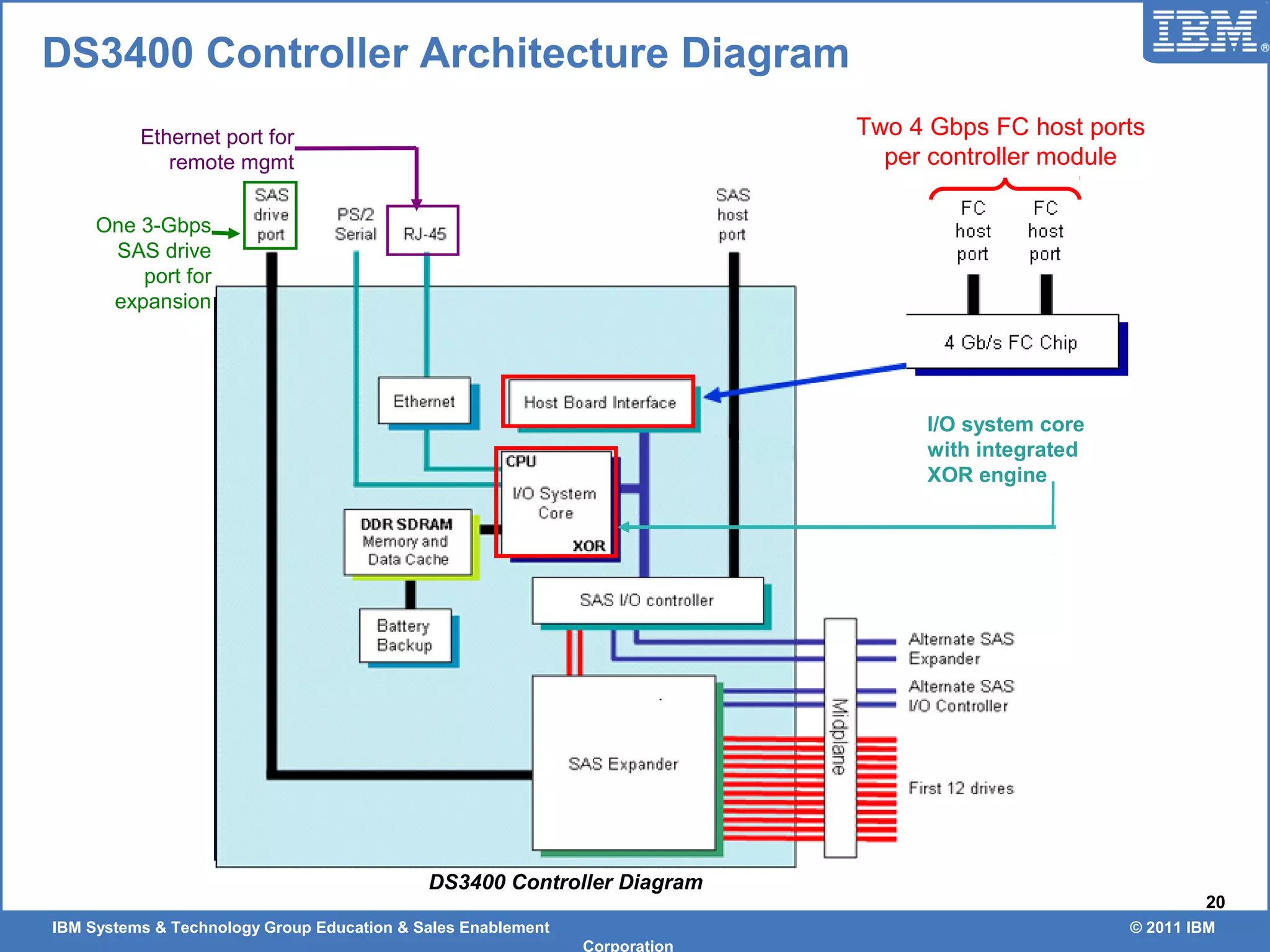

I/O system core
with integrated
XOR engine
Two 4 Gbps FC host ports
per controller module
One 3-Gbps
SAS drive
port for
expansion
Ethernet port for
remote mgmt

Corporation
21

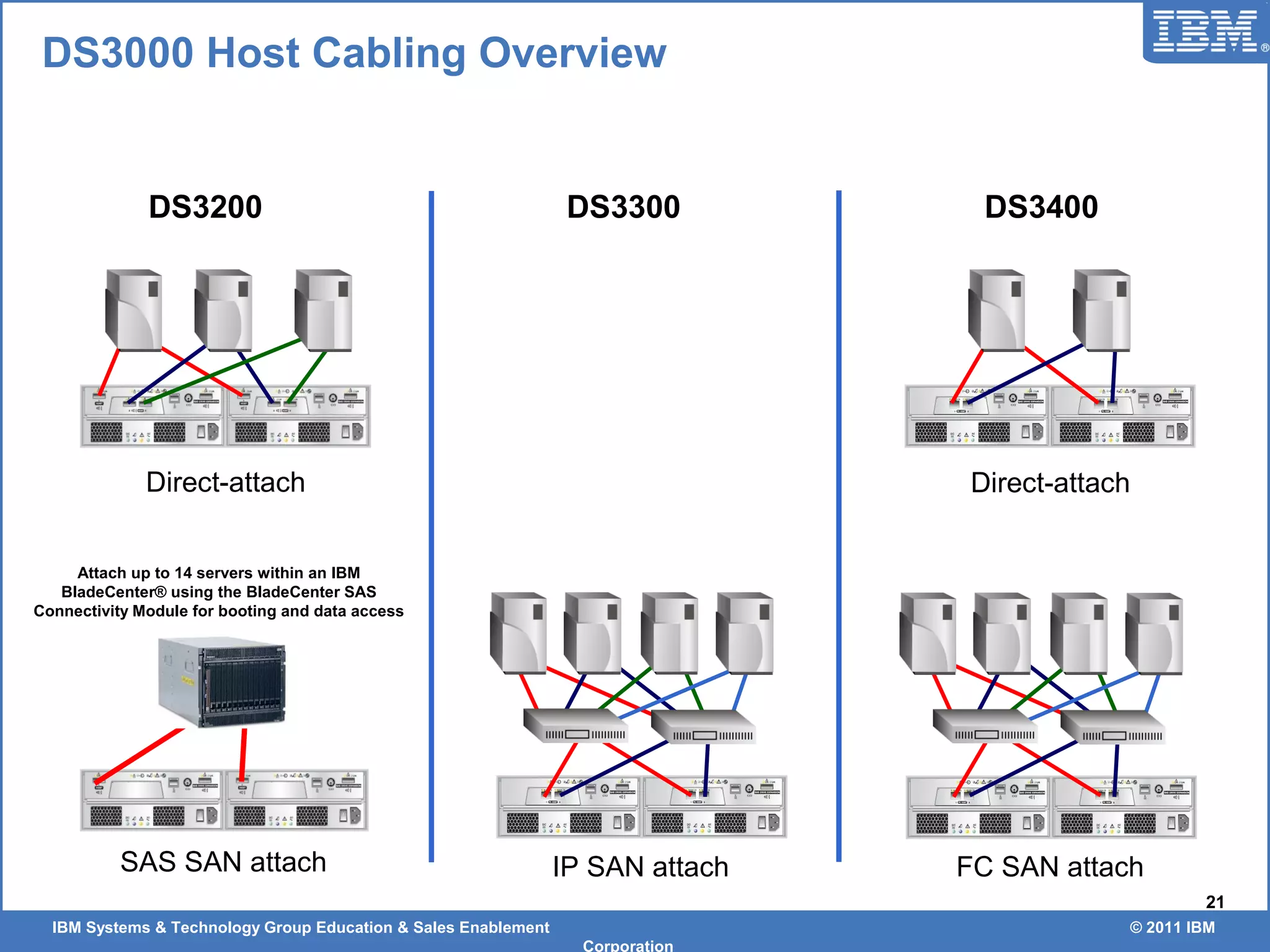

DS3000 Host Cabling Overview
DS3400
IP SAN attach
DS3300
FC SAN attach
Direct-attach
DS3200
Direct-attach
Attach up to 14 servers within an IBM
BladeCenter® using the BladeCenter SAS
Connectivity Module for booting and data access
SAS SAN attach

Corporation
22

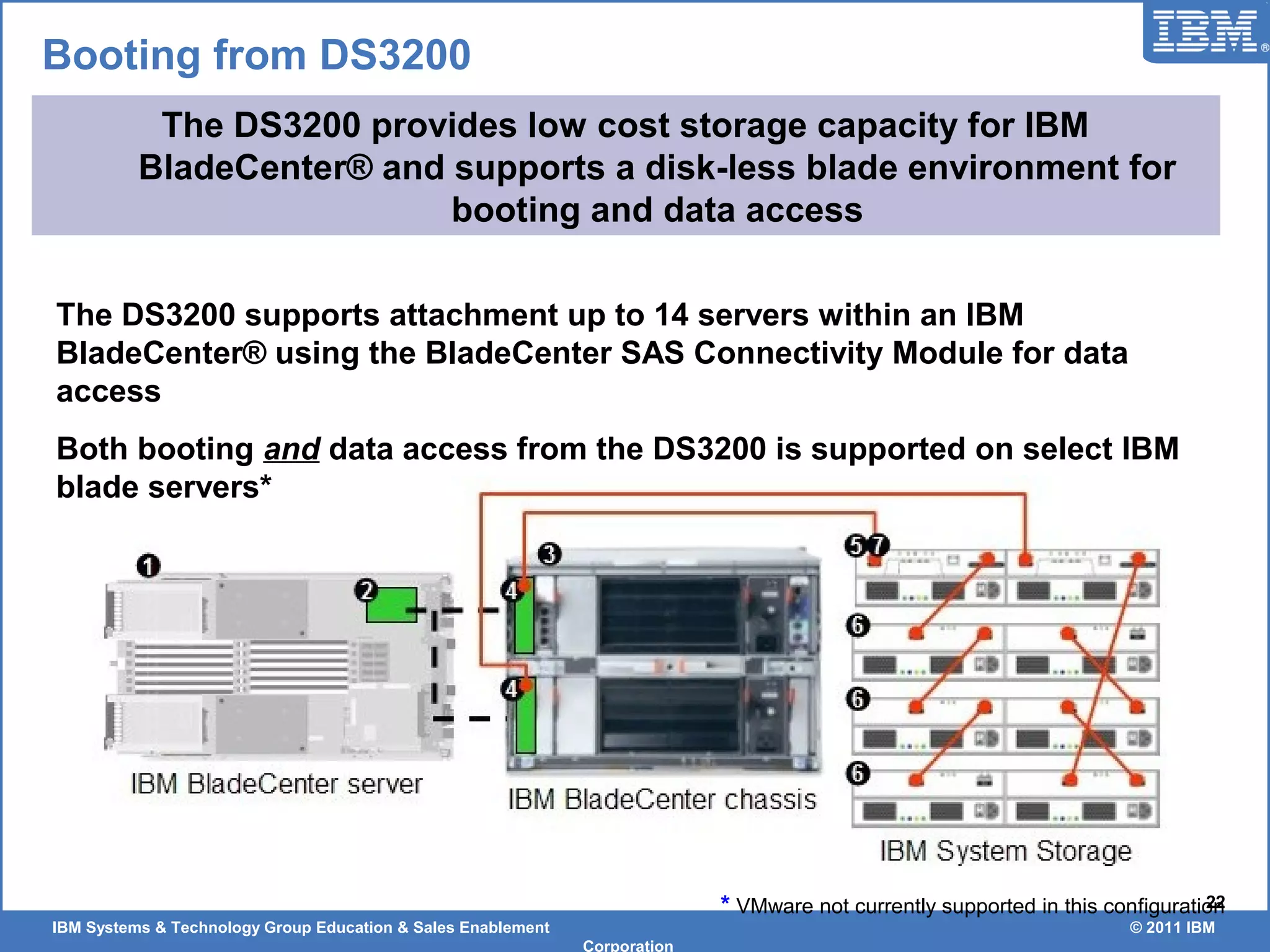

Booting from DS3200
The DS3200 provides low cost storage capacity for IBM
BladeCenter® and supports a disk-less blade environment for
booting and data access
The DS3200 supports attachment up to 14 servers within an IBM
BladeCenter® using the BladeCenter SAS Connectivity Module for data
access
Both booting and data access from the DS3200 is supported on select IBM
blade servers*
* VMware not currently supported in this configuration

Corporation
23

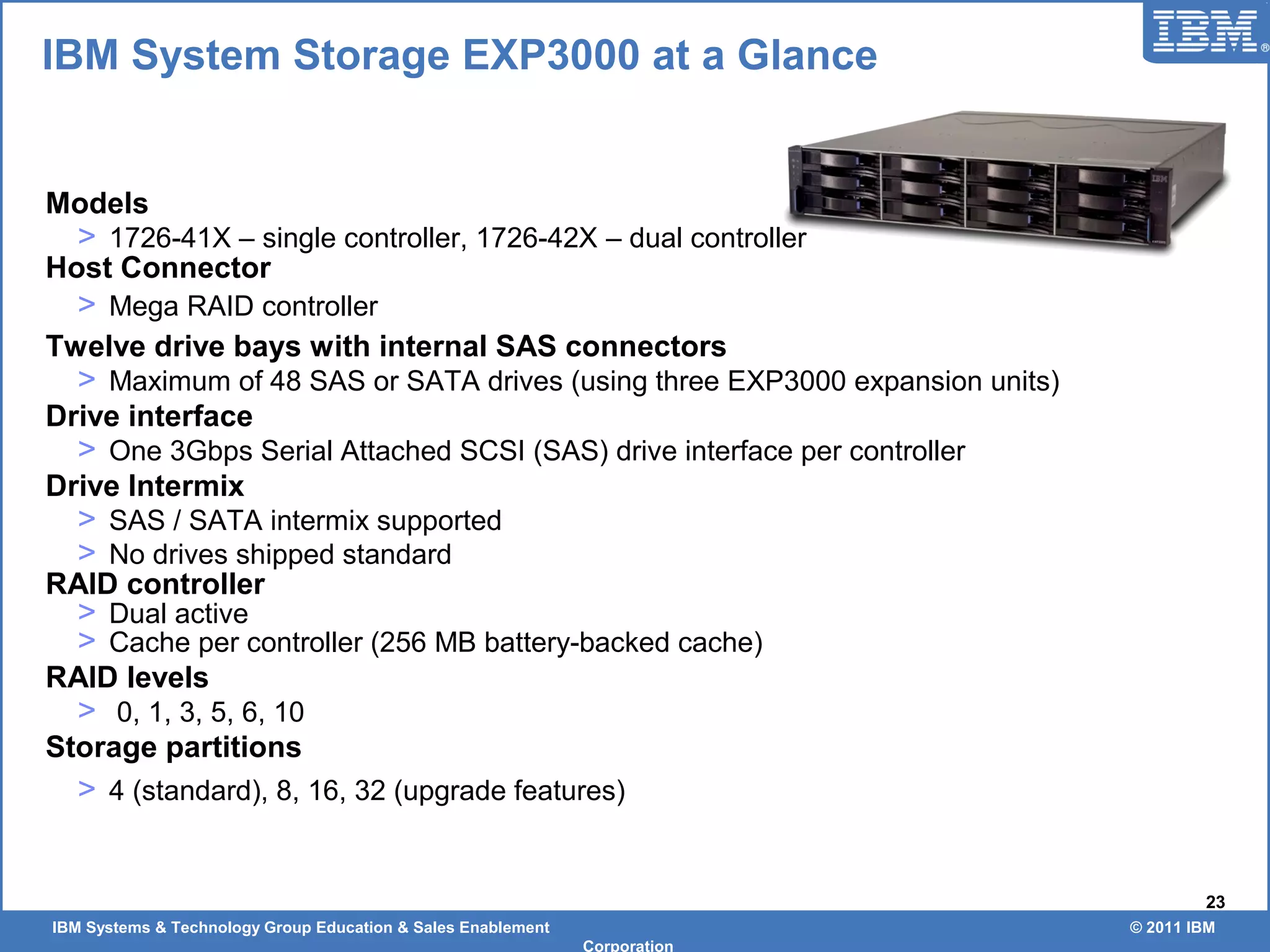

Models
Host Connector
> Mega RAID controller
Drive interface
> One 3Gbps Serial Attached SCSI (SAS) drive interface per controller
Drive Intermix
> SAS / SATA intermix supported
RAID controller
> Dual active
> Cache per controller (256 MB battery-backed cache)
RAID levels
> 0, 1, 3, 5, 6, 10
Storage partitions
IBM System Storage EXP3000 at a Glance

Corporation
24

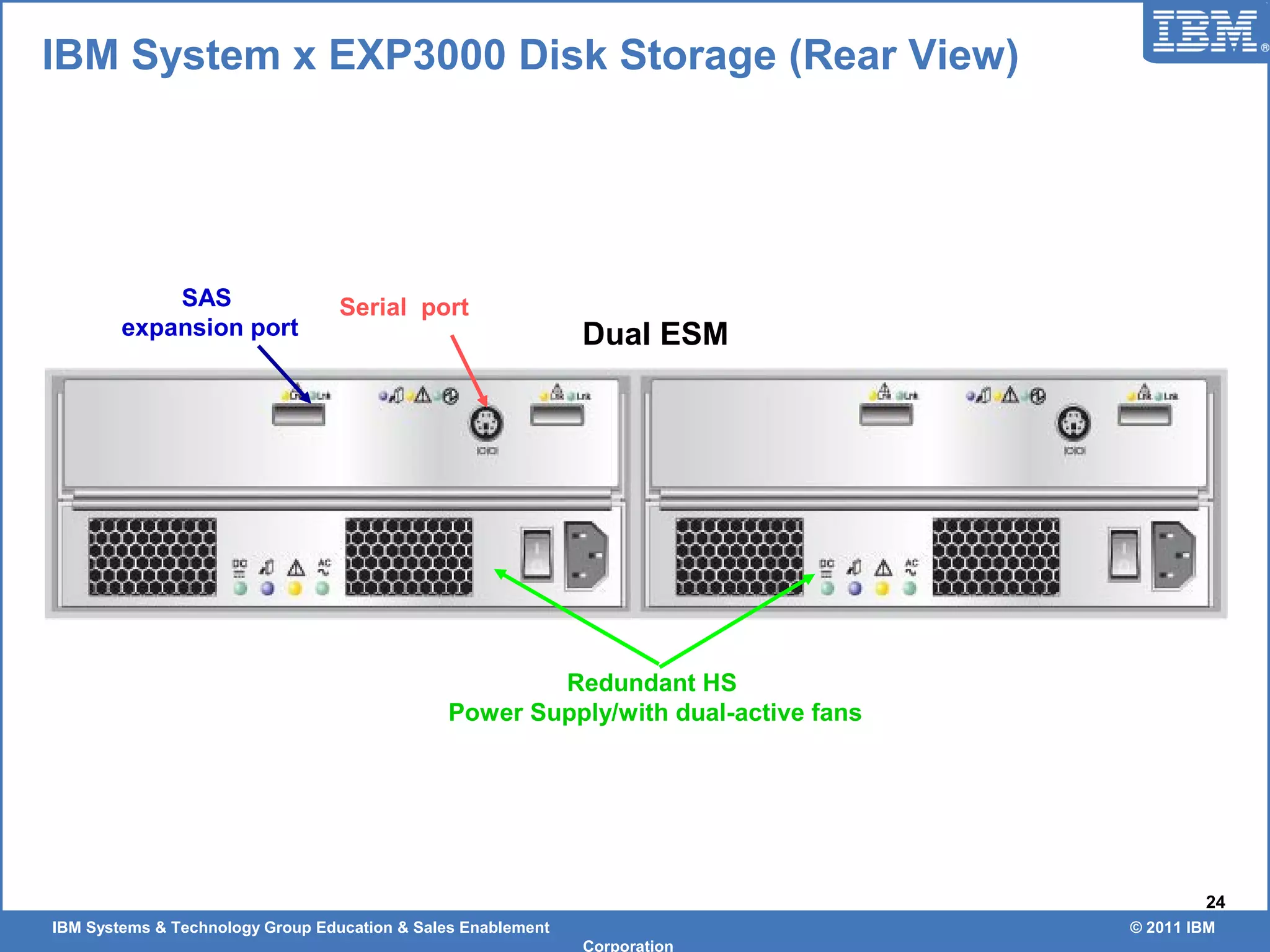

IBM System x EXP3000 Disk Storage (Rear View)
Redundant HS
Power Supply/with dual-active fans
SAS
expansion port
Serial port
Dual ESM

Corporation
25

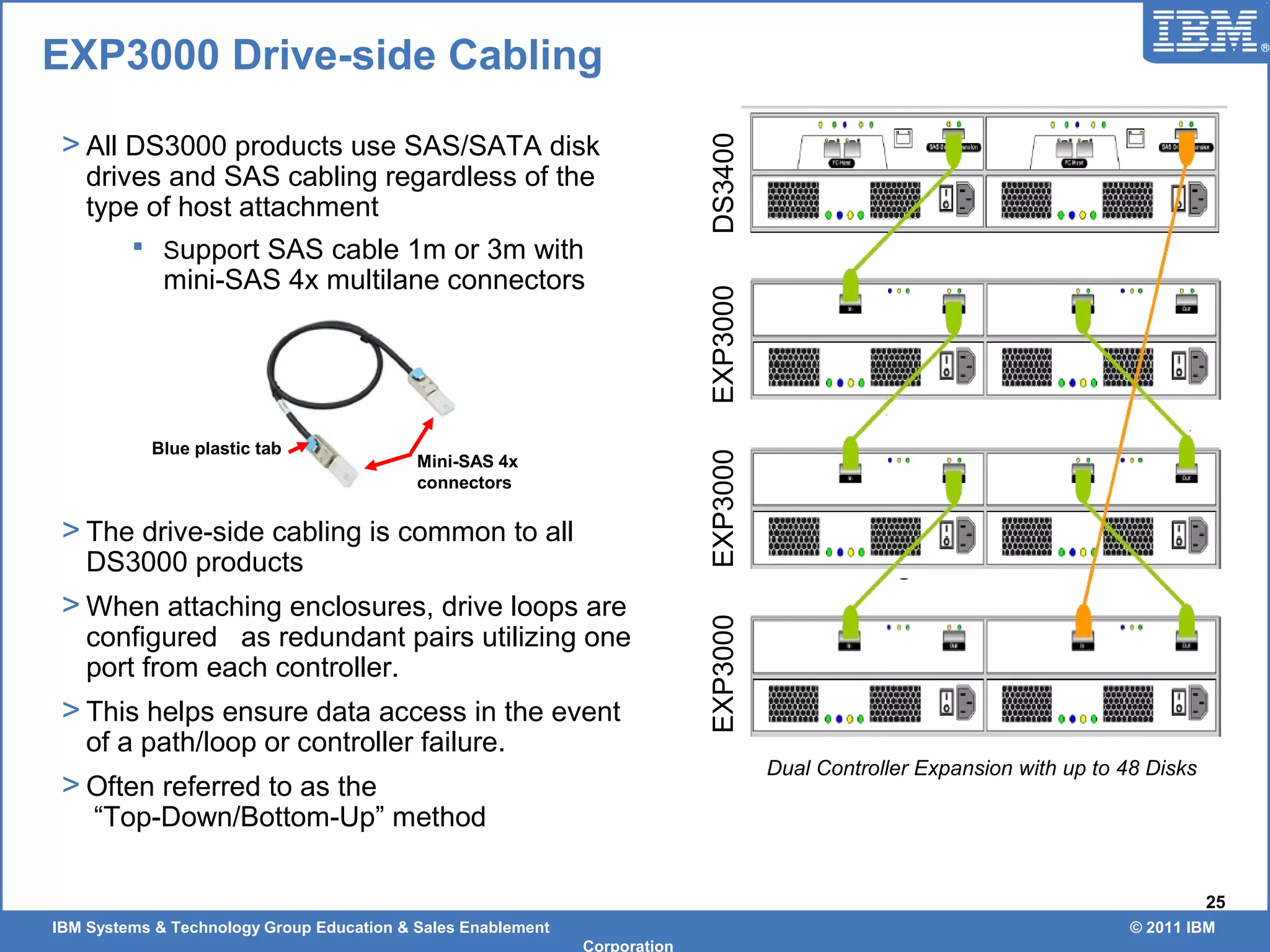

EXP3000 Drive-side Cabling
> All DS3000 products use SAS/SATA disk
drives and SAS cabling regardless of the
type of host attachment
 Support SAS cable 1m or 3m with
mini-SAS 4x multilane connectors
> The drive-side cabling is common to all
DS3000 products
> When attaching enclosures, drive loops are
configured as redundant pairs utilizing one
port from each controller.
> This helps ensure data access in the event
of a path/loop or controller failure.
> Often referred to as the
“Top-Down/Bottom-Up” method
Blue plastic tab
Mini-SAS 4x
connectors
EXP3000EXP3000EXP3000DS3400
Dual Controller Expansion with up to 48 Disks

Corporation
26
6 Gbps SAS controllers (simplex and dual controllers)
> 1746-C2A – simplex controller
> 1746-C4A – dual controller
Three Interface Options– SAS, FC/SAS, iSCSI/SAS
> Four or eight 6 Gbps SAS host ports
> Eight 8 Gbps FC ports and four 6 Gbps SAS host ports
> Eight 1 Gbps iSCSI ports and four 6 Gbps SAS host ports
Drive bay options with internal SAS connectors
> DS3512 (3.5” 12 drive bays) or DS3524 (2.5” 24 drive bays)
Drive interface
> Two 6Gbps Serial Attached SCSI (SAS) drive interface per controller
Up to 96 SAS drives using expansion units
> Drive Intermix High performance SAS, Nearline SAS, and SED SAS
> EXP3512 (2U 12 3.5-in drives) and EXP3524 (2U 24 2.5-in drive)
Optional turbo performance feature
RAID controller (Dual active)
> 1GB cache per controller with 2 GB upgrade (battery-backed)
RAID levels
> 0, 1, 3, 5, 6, 10
Premium features supported:
> Full disk encryption
> Partitioning – 4 (standard), 8, 16, 32, 64
> FlashCopy – 2 (standard) 4, 8 per storage system
> Volume Copy
> Remote Mirroring across FC host ports – 8 per storage system
DS3524
2.5-in
DS3512
3.5-in

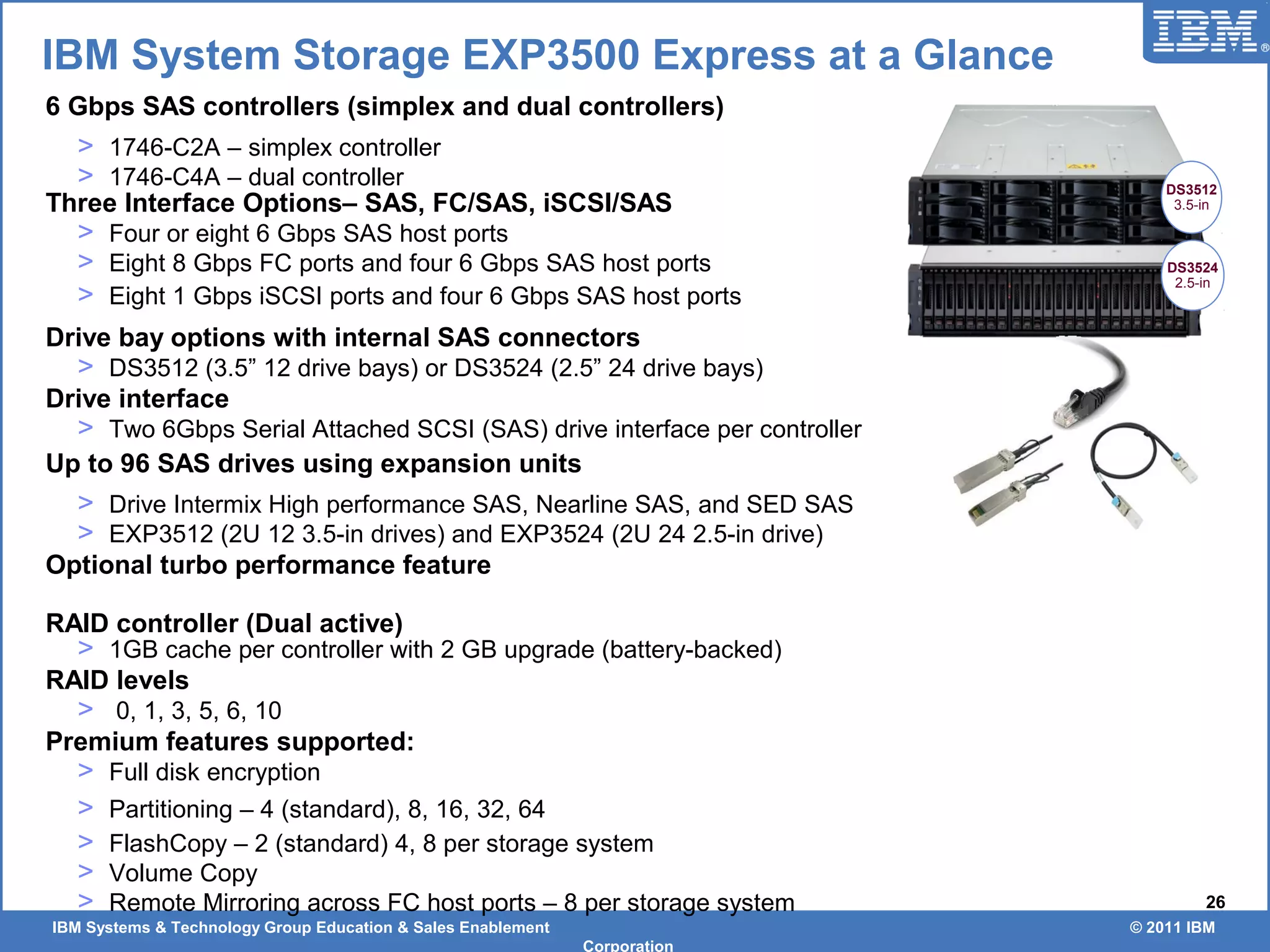

IBM System Storage EXP3500 Express at a Glance

Corporation
27
Both storage systems can support expansion to both EXP3512 and EXP3524 drive
expansion units
DS3500 2U Enclosures
> Common features:
 Dual-active controllers
− Host shared DAS and SAN connections
− Supports field installable daughter cards
− 585-watts Dual Power/Cooling units
− Hot-swappable CRUs
> DS3512
 12 3.5-in high performance, Nearline, and self-
encrypting SAS drives
> DS3524
 24 2.5-in high performance, Nearline, and self-
DS3500 - Storage System Components
Drives
Power
Cooling
Controllers
Drives
Power
Cooling
Controllers

Corporation
28

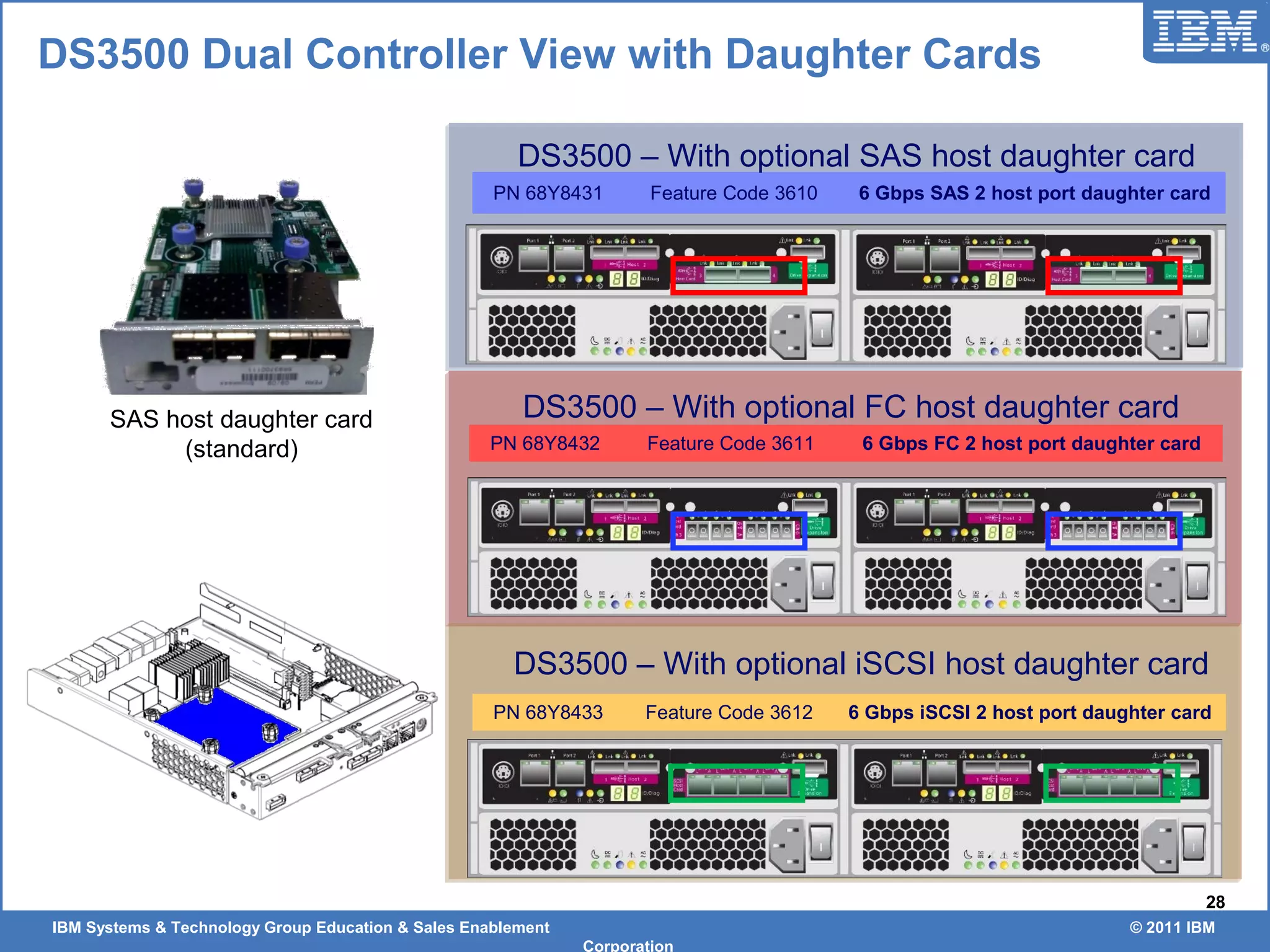

DS3500 Dual Controller View with Daughter Cards
PN 68Y8431 Feature Code 3610 6 Gbps SAS 2 host port daughter card
DS3500 – With optional SAS host daughter card
DS3500 – With optional FC host daughter card
PN 68Y8432 Feature Code 3611 6 Gbps FC 2 host port daughter card
PN 68Y8433 Feature Code 3612 6 Gbps iSCSI 2 host port daughter card
DS3500 – With optional iSCSI host daughter card
SAS host daughter card
(standard)

Corporation
29

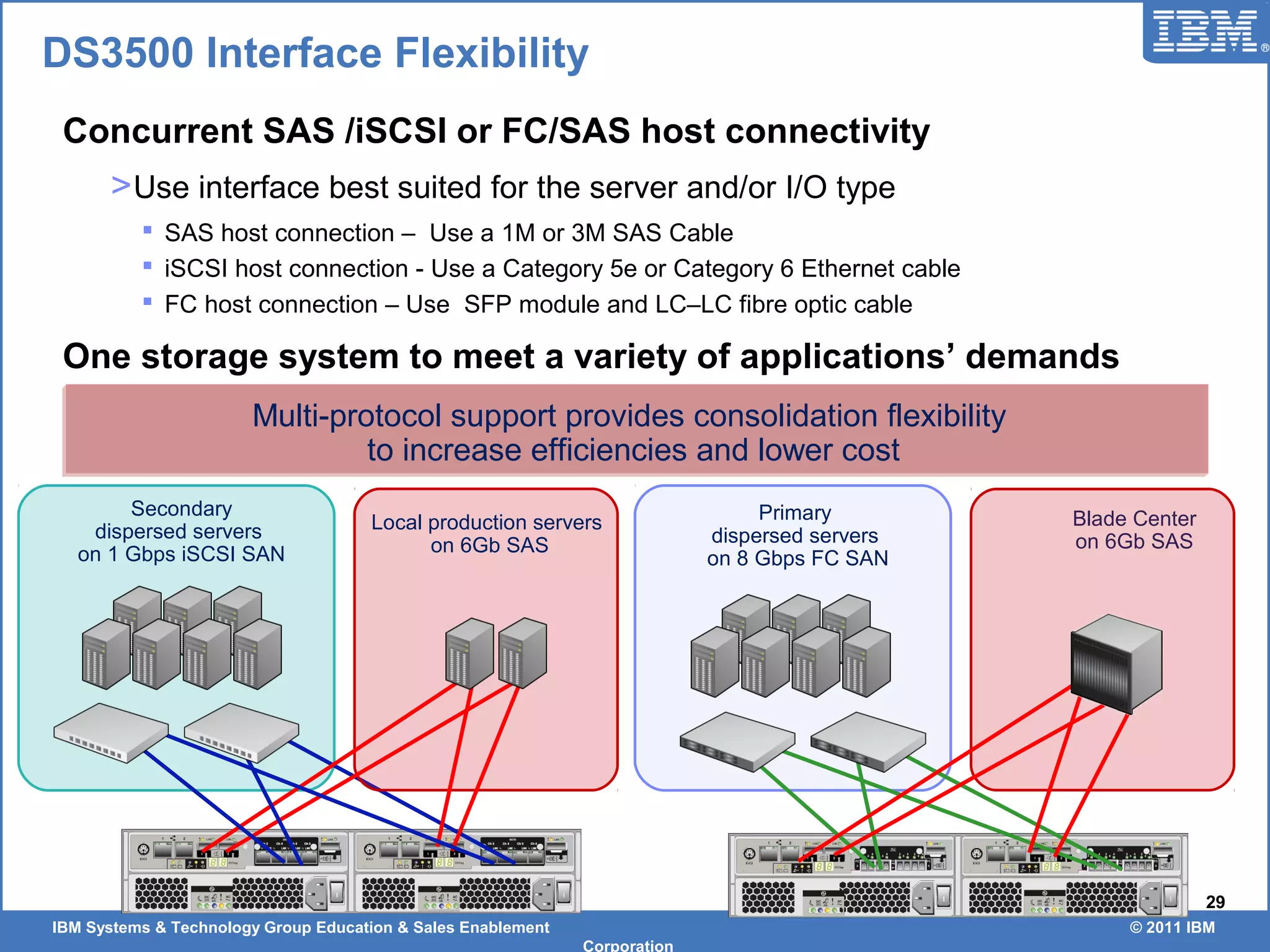

Concurrent SAS /iSCSI or FC/SAS host connectivity
>Use interface best suited for the server and/or I/O type
 SAS host connection – Use a 1M or 3M SAS Cable
 iSCSI host connection - Use a Category 5e or Category 6 Ethernet cable
 FC host connection – Use SFP module and LC–LC fibre optic cable
One storage system to meet a variety of applications’ demands
Multi-protocol support provides consolidation flexibility
to increase efficiencies and lower cost
Blade Center
on 6Gb SAS
Local production servers
on 6Gb SAS
Secondary
dispersed servers
on 1 Gbps iSCSI SAN
DS3500 Interface Flexibility
Primary
dispersed servers
on 8 Gbps FC SAN

Corporation
30

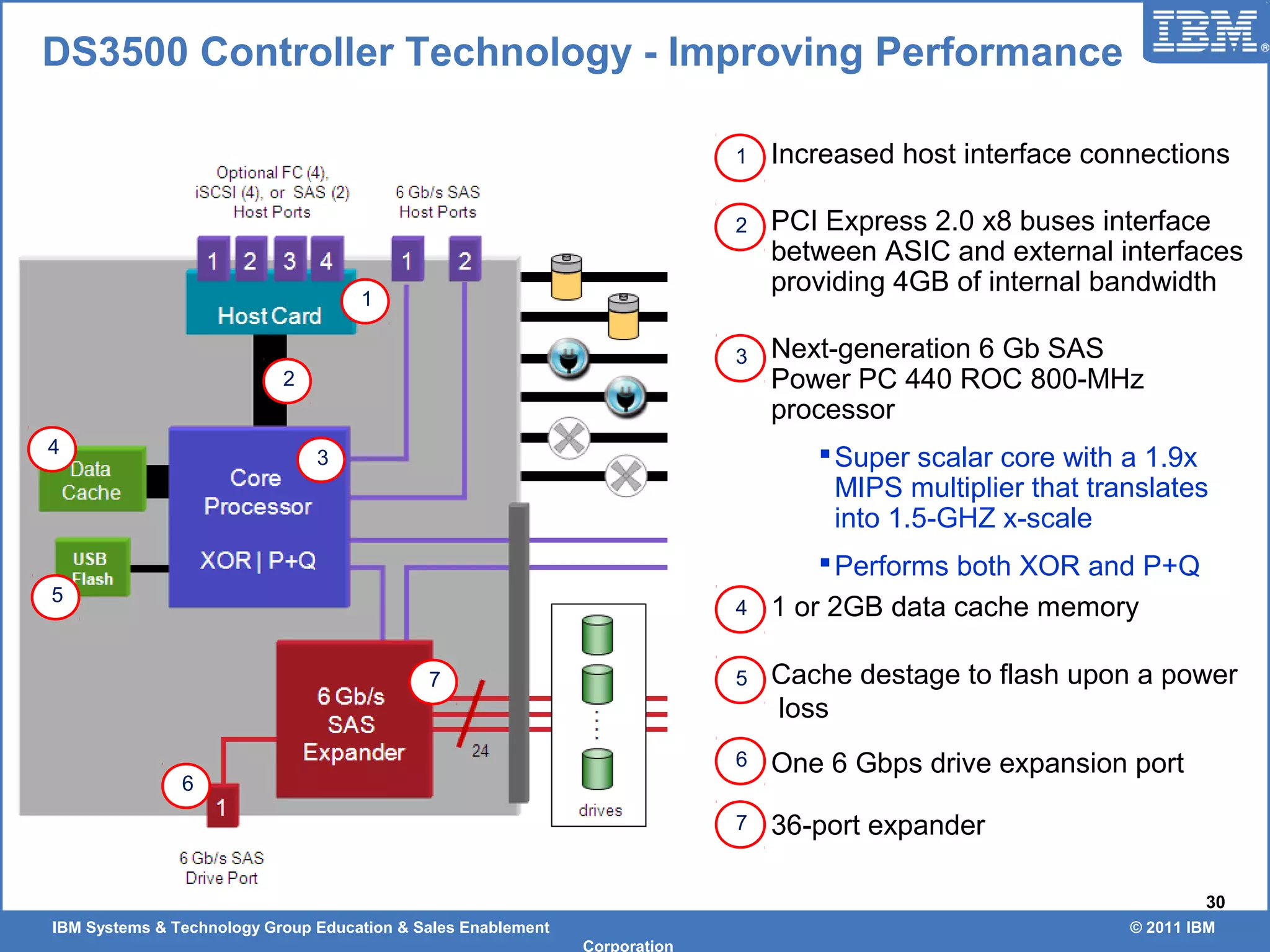

DS3500 Controller Technology - Improving Performance
1
2
3
7
6
4
5
Increased host interface connections
PCI Express 2.0 x8 buses interface
between ASIC and external interfaces
providing 4GB of internal bandwidth
Next-generation 6 Gb SAS
Power PC 440 ROC 800-MHz
processor
Super scalar core with a 1.9x
MIPS multiplier that translates
into 1.5-GHZ x-scale
Performs both XOR and P+Q
1 or 2GB data cache memory
Cache destage to flash upon a power
loss
One 6 Gbps drive expansion port
36-port expander
1
2
3
4
5
6
7

Corporation
31

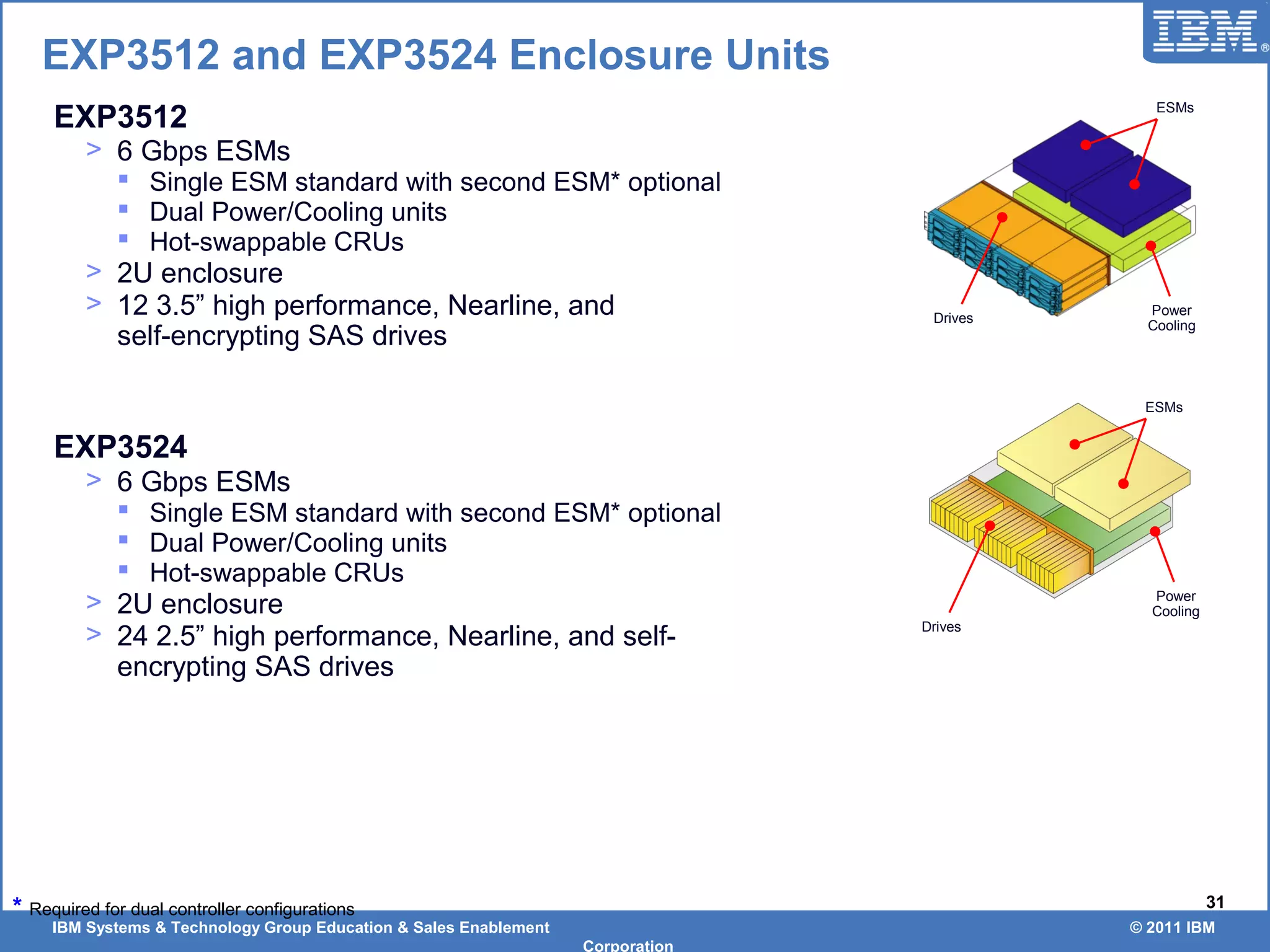

EXP3512
> 6 Gbps ESMs
 Single ESM standard with second ESM* optional
 Dual Power/Cooling units
 Hot-swappable CRUs
> 2U enclosure
> 12 3.5” high performance, Nearline, and
self-encrypting SAS drives
EXP3524
> 6 Gbps ESMs
 Single ESM standard with second ESM* optional
 Dual Power/Cooling units
 Hot-swappable CRUs
> 2U enclosure
> 24 2.5” high performance, Nearline, and self-
* Required for dual controller configurations
Drives
Power
Cooling
ESMs
Drives
Power
Cooling
ESMs
EXP3512 and EXP3524 Enclosure Units

Corporation
32

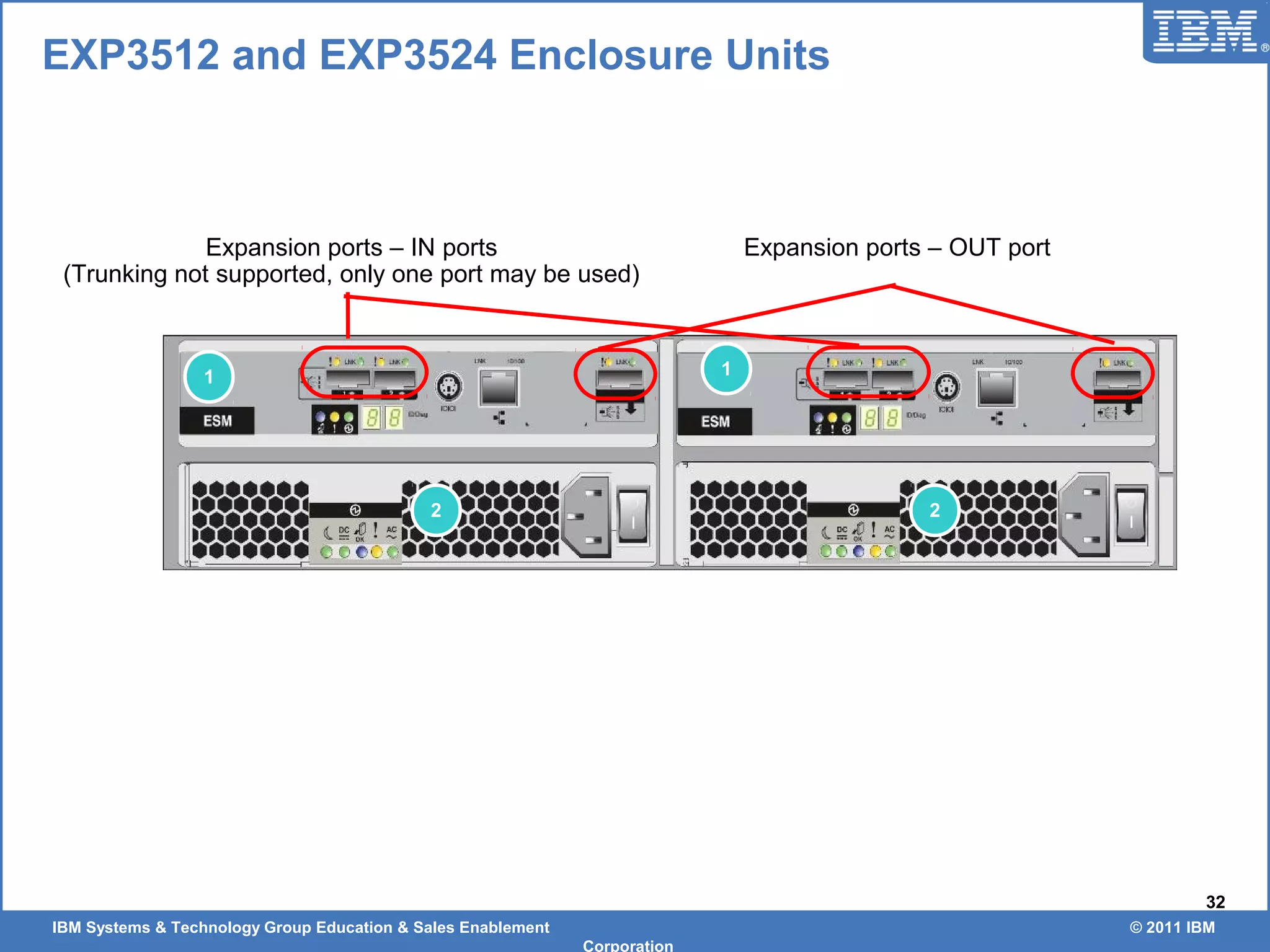

Expansion ports – IN ports
(Trunking not supported, only one port may be used)
Expansion ports – OUT port
1
2
1
2
EXP3512 and EXP3524 Enclosure Units

Corporation
33
EXP3512/EXP3524 Drive Side Cabling
> Uses SFF-8088 4-port wide miniSAS connectors, for
host and cascaded ESM connections
> 36 port expander
> SBB 2.0 compliant
> Enclosures are cabled for enclosure loss protection
> To ensure a multi-path highly available storage
configuration. This “top-down/bottom-up” cabling
scheme ensures accessibility to all the drives in the
instance that an ESM, controller or path is taken
offline
> Short, quick drive loops reduce latency and create
more responsive applications Top down, bottom up
> EXP3512 and EXP3524 expansion enclosures can
be intermixed behind an DS3500

Corporation
34

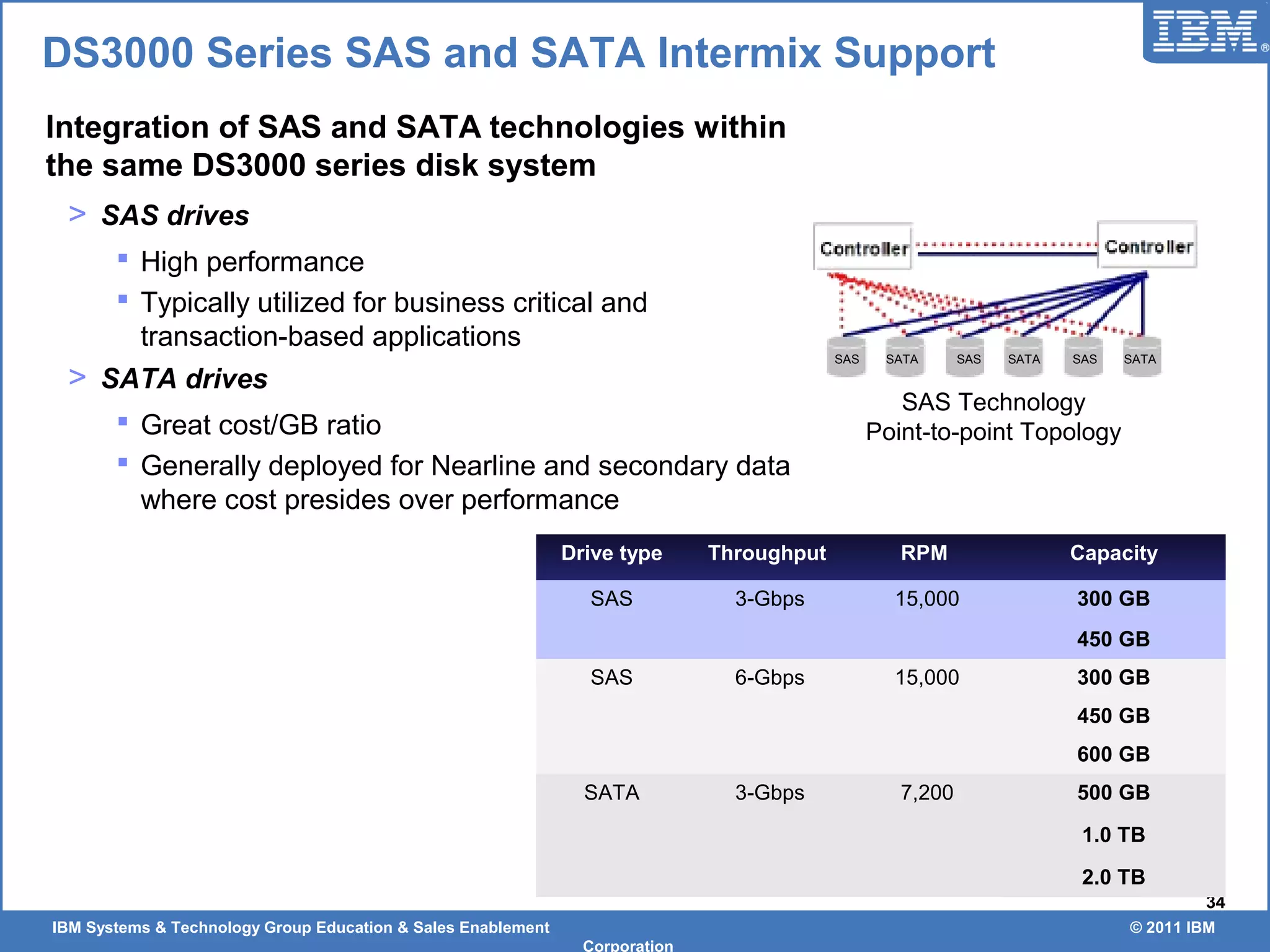

DS3000 Series SAS and SATA Intermix Support
Integration of SAS and SATA technologies within
the same DS3000 series disk system
> SAS drives
 High performance
 Typically utilized for business critical and
transaction-based applications
> SATA drives
 Great cost/GB ratio
 Generally deployed for Nearline and secondary data
where cost presides over performance
Drive type Throughput RPM Capacity
SAS 3-Gbps 15,000 300 GB
450 GB
SAS 6-Gbps 15,000 300 GB
450 GB
600 GB
SATA 3-Gbps 7,200 500 GB
1.0 TB
2.0 TB
SAS Technology
Point-to-point Topology
SAS SATA SAS SATA SAS SATA

Corporation
35
Support for
> High performance SAS
> Nearline SAS
 New replacement for SATA
> SED SAS
 Data is secure at the most basic level – the hard drive
> All available in 3.5-in and 2.5-in drive form factors
> Enclosure intermix supported behind a single DS3500

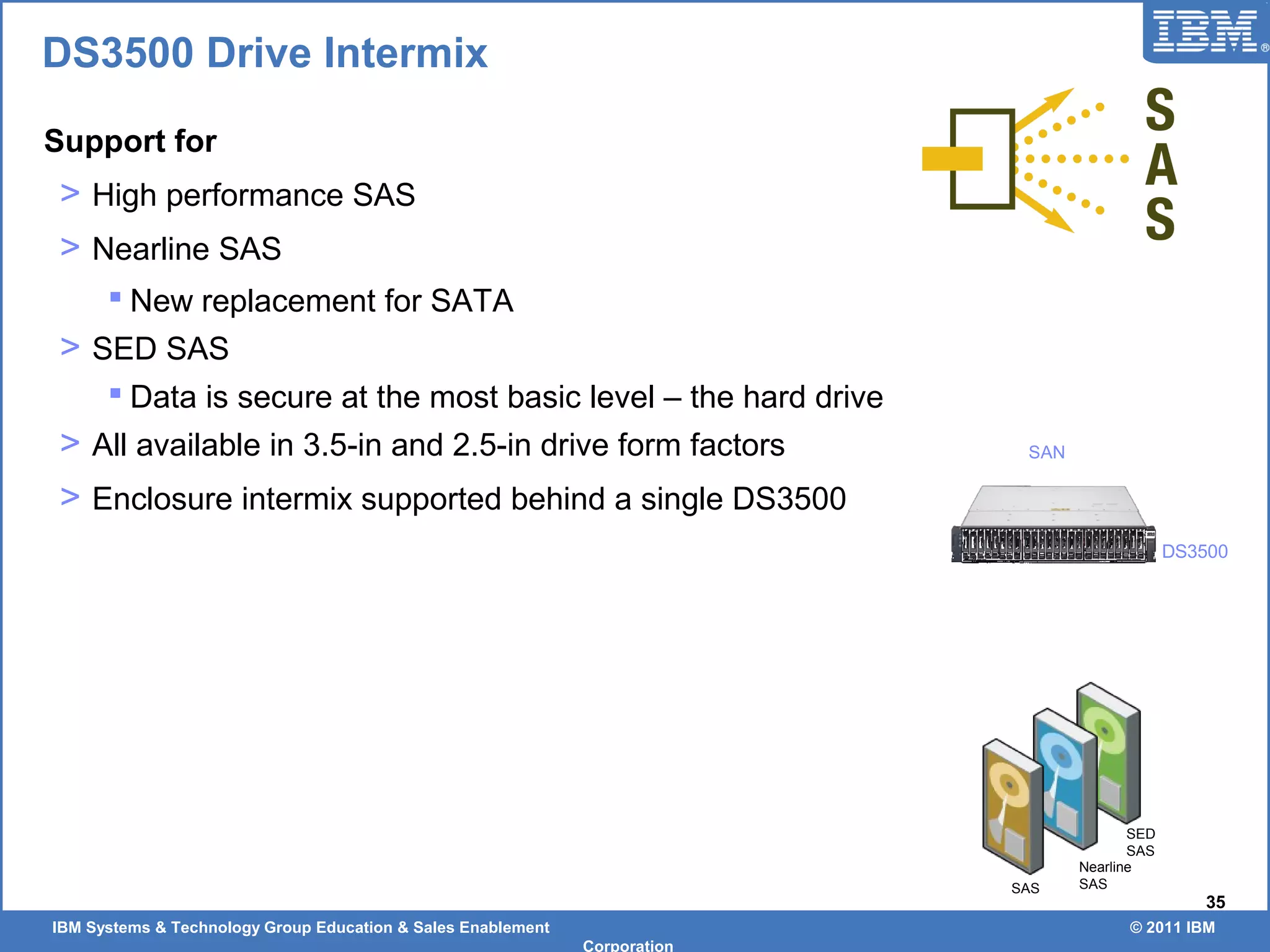

DS3500 Drive Intermix
SAN
DS3500
SAS
Nearline
SAS
SED
SAS

Corporation
36
 Mid-range Disk Storage Systems Introduction *
> Resources

Corporation
37

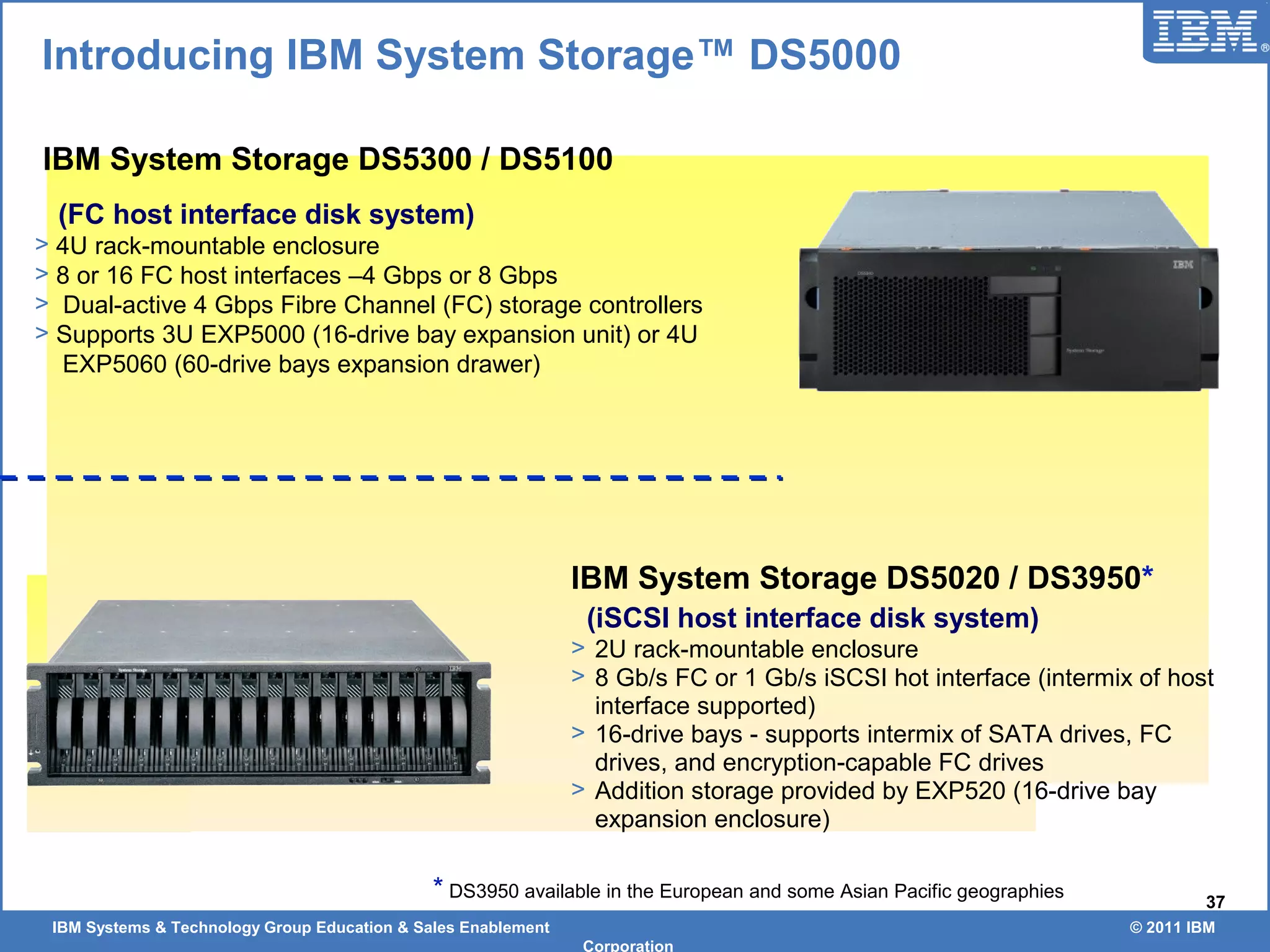

IBM System Storage DS5020 / DS3950*
(iSCSI host interface disk system)
> 2U rack-mountable enclosure
> 8 Gb/s FC or 1 Gb/s iSCSI hot interface (intermix of host
interface supported)
> 16-drive bays - supports intermix of SATA drives, FC
drives, and encryption-capable FC drives
> Addition storage provided by EXP520 (16-drive bay
expansion enclosure)
IBM System Storage DS5300 / DS5100
(FC host interface disk system)
> 4U rack-mountable enclosure
> 8 or 16 FC host interfaces –4 Gbps or 8 Gbps
> Dual-active 4 Gbps Fibre Channel (FC) storage controllers
> Supports 3U EXP5000 (16-drive bay expansion unit) or 4U
EXP5060 (60-drive bays expansion drawer)
Introducing IBM System Storage™ DS5000
* DS3950 available in the European and some Asian Pacific geographies

Corporation
38

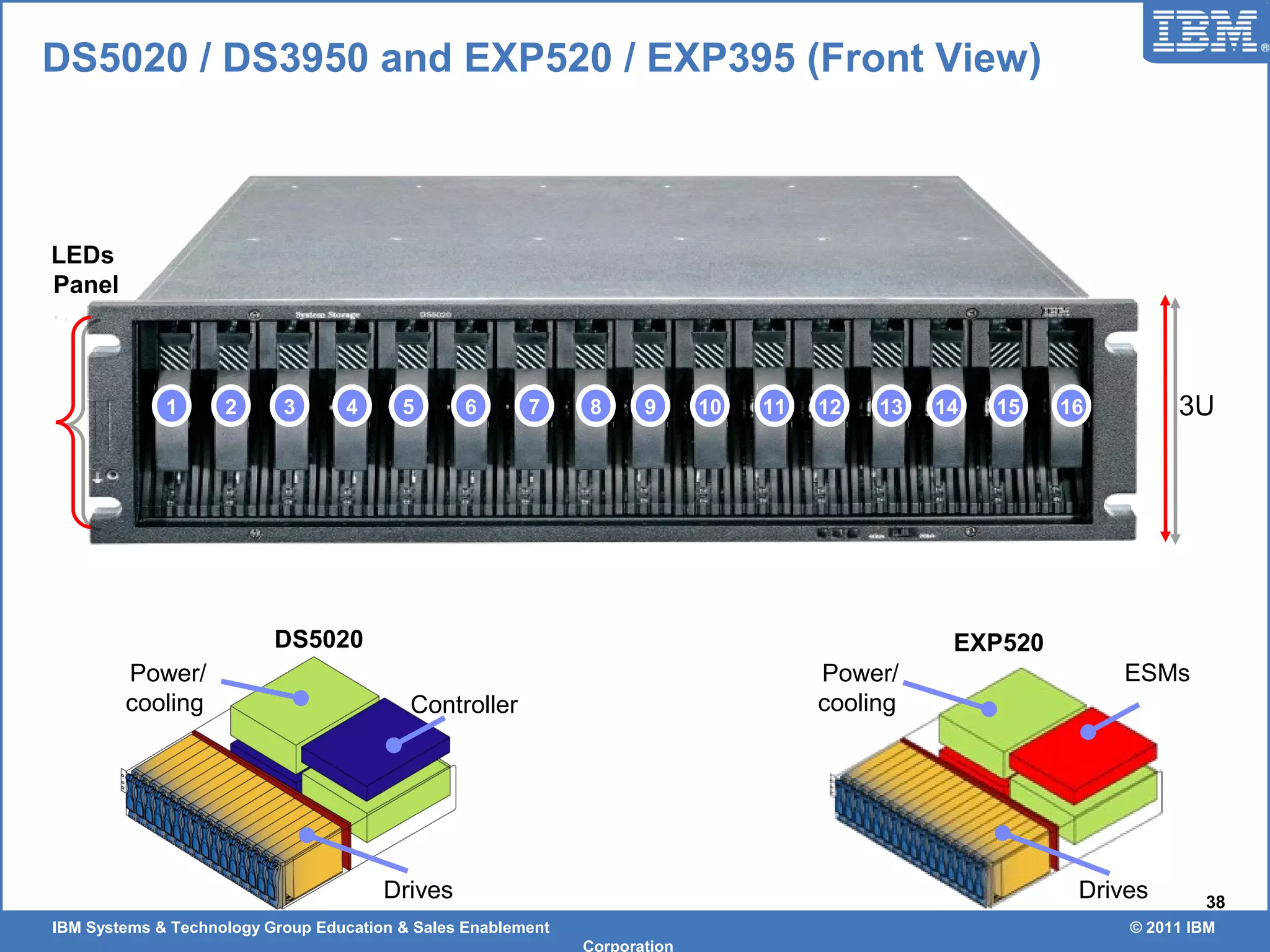

DS5020 / DS3950 and EXP520 / EXP395 (Front View)
3U1 2 3 4 5 6 7 14 15 169 108 11 12 13
LEDs
Panel
Drives
ESMs
DS5020
Controller
Drives
Power/
cooling
EXP520
Power/
cooling

Corporation
39

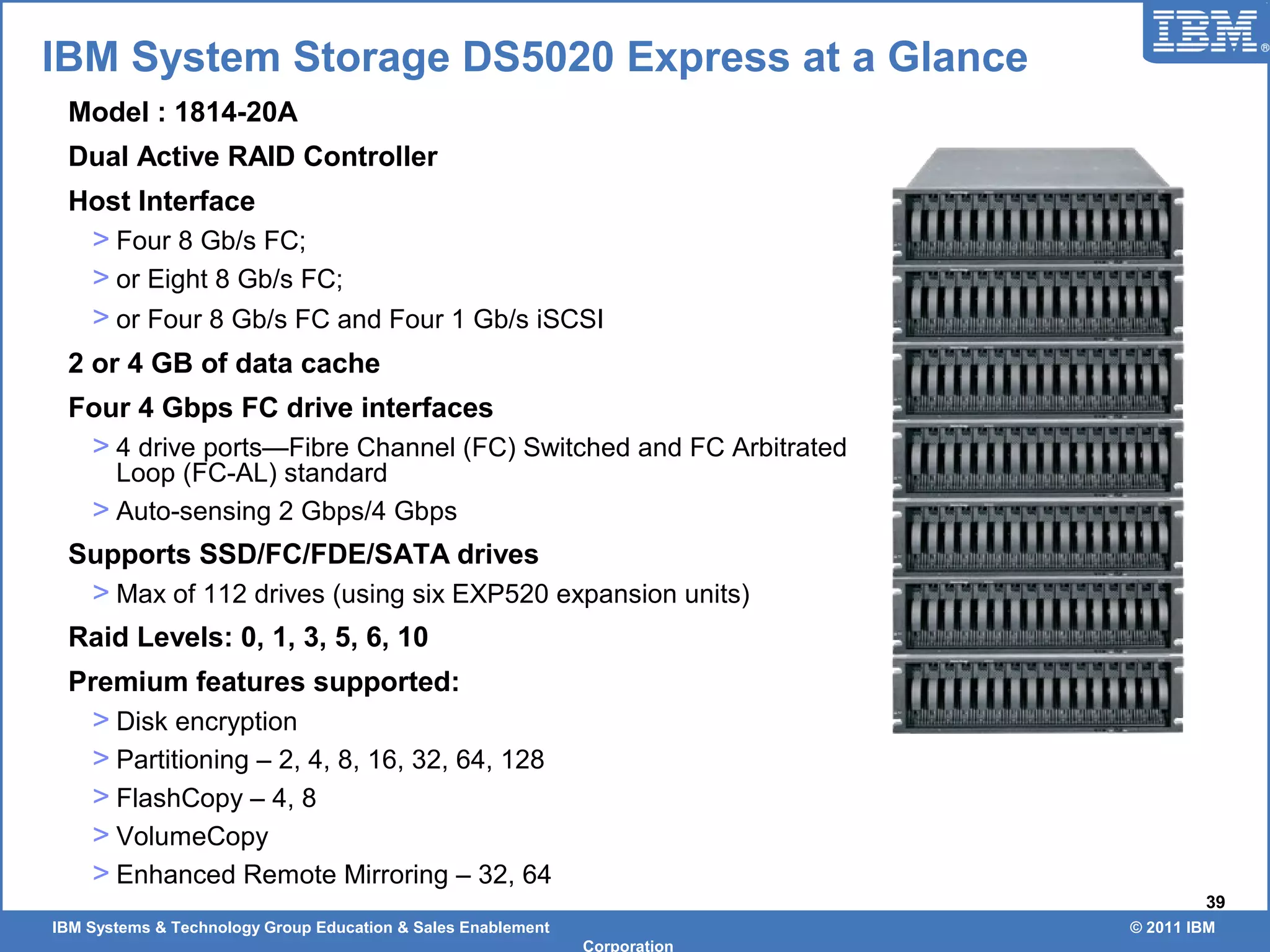

IBM System Storage DS5020 Express at a Glance
Model : 1814-20A
Dual Active RAID Controller
Host Interface
> Four 8 Gb/s FC;
> or Eight 8 Gb/s FC;
> or Four 8 Gb/s FC and Four 1 Gb/s iSCSI
2 or 4 GB of data cache
Four 4 Gbps FC drive interfaces
> 4 drive ports—Fibre Channel (FC) Switched and FC Arbitrated
Loop (FC-AL) standard
> Auto-sensing 2 Gbps/4 Gbps
Supports SSD/FC/FDE/SATA drives
> Max of 112 drives (using six EXP520 expansion units)
Raid Levels: 0, 1, 3, 5, 6, 10
> Disk encryption
> Partitioning – 2, 4, 8, 16, 32, 64, 128
> FlashCopy – 4, 8
> VolumeCopy
> Enhanced Remote Mirroring – 32, 64

Corporation
40

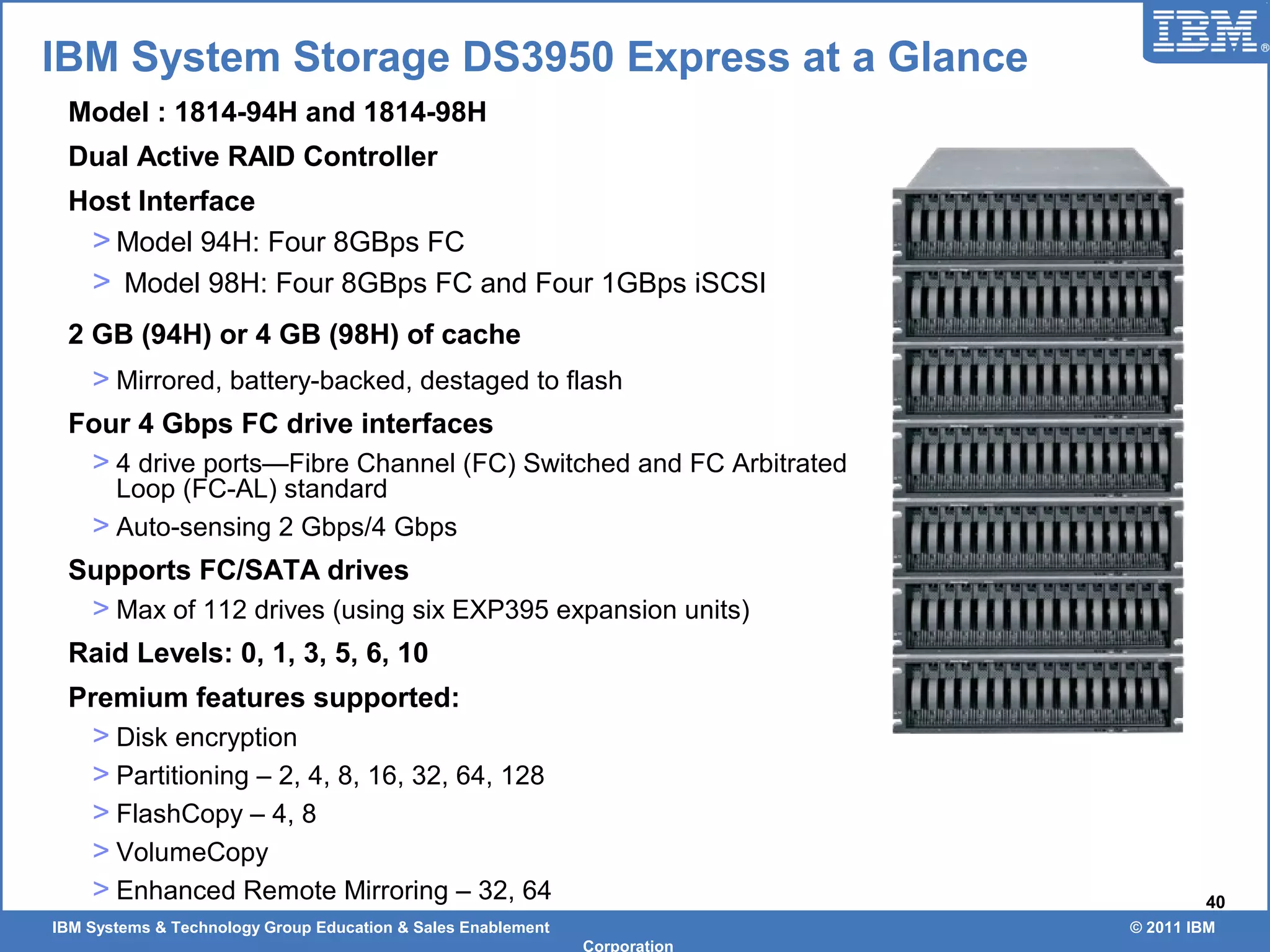

IBM System Storage DS3950 Express at a Glance
Model : 1814-94H and 1814-98H
Dual Active RAID Controller
Host Interface
> Model 94H: Four 8GBps FC
> Model 98H: Four 8GBps FC and Four 1GBps iSCSI
2 GB (94H) or 4 GB (98H) of cache
> Mirrored, battery-backed, destaged to flash
Four 4 Gbps FC drive interfaces
> 4 drive ports—Fibre Channel (FC) Switched and FC Arbitrated
Loop (FC-AL) standard
> Auto-sensing 2 Gbps/4 Gbps
Supports FC/SATA drives
> Max of 112 drives (using six EXP395 expansion units)
Raid Levels: 0, 1, 3, 5, 6, 10
> Disk encryption
> Partitioning – 2, 4, 8, 16, 32, 64, 128
> FlashCopy – 4, 8
> VolumeCopy
> Enhanced Remote Mirroring – 32, 64

Corporation
41

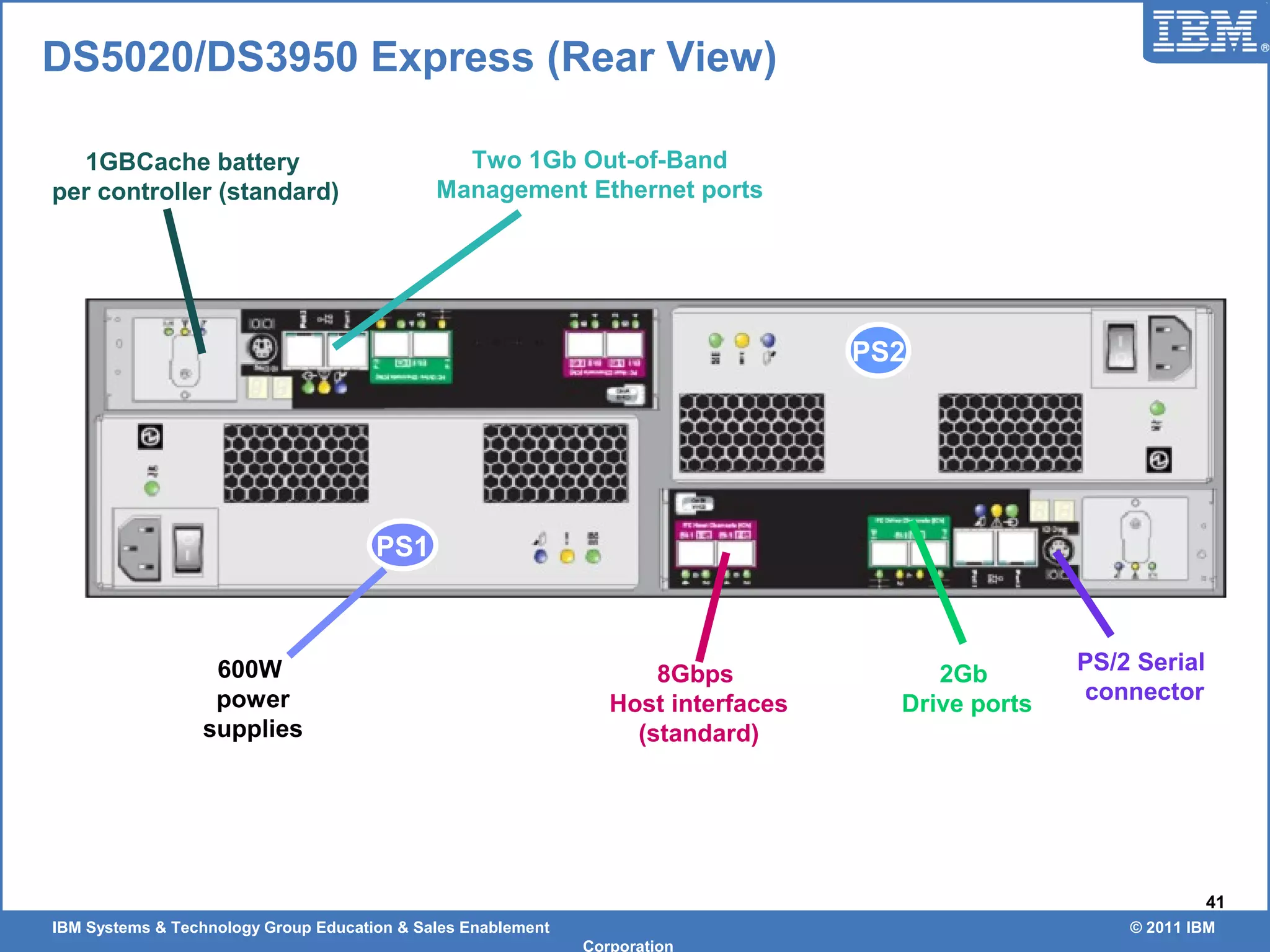

DS5020/DS3950 Express (Rear View)
8Gbps
Host interfaces
(standard)
2Gb
Drive ports
Two 1Gb Out-of-Band
Management Ethernet ports
1GBCache battery
per controller (standard)
PS/2 Serial
connector
PS1
PS2
600W
power
supplies

Corporation
42

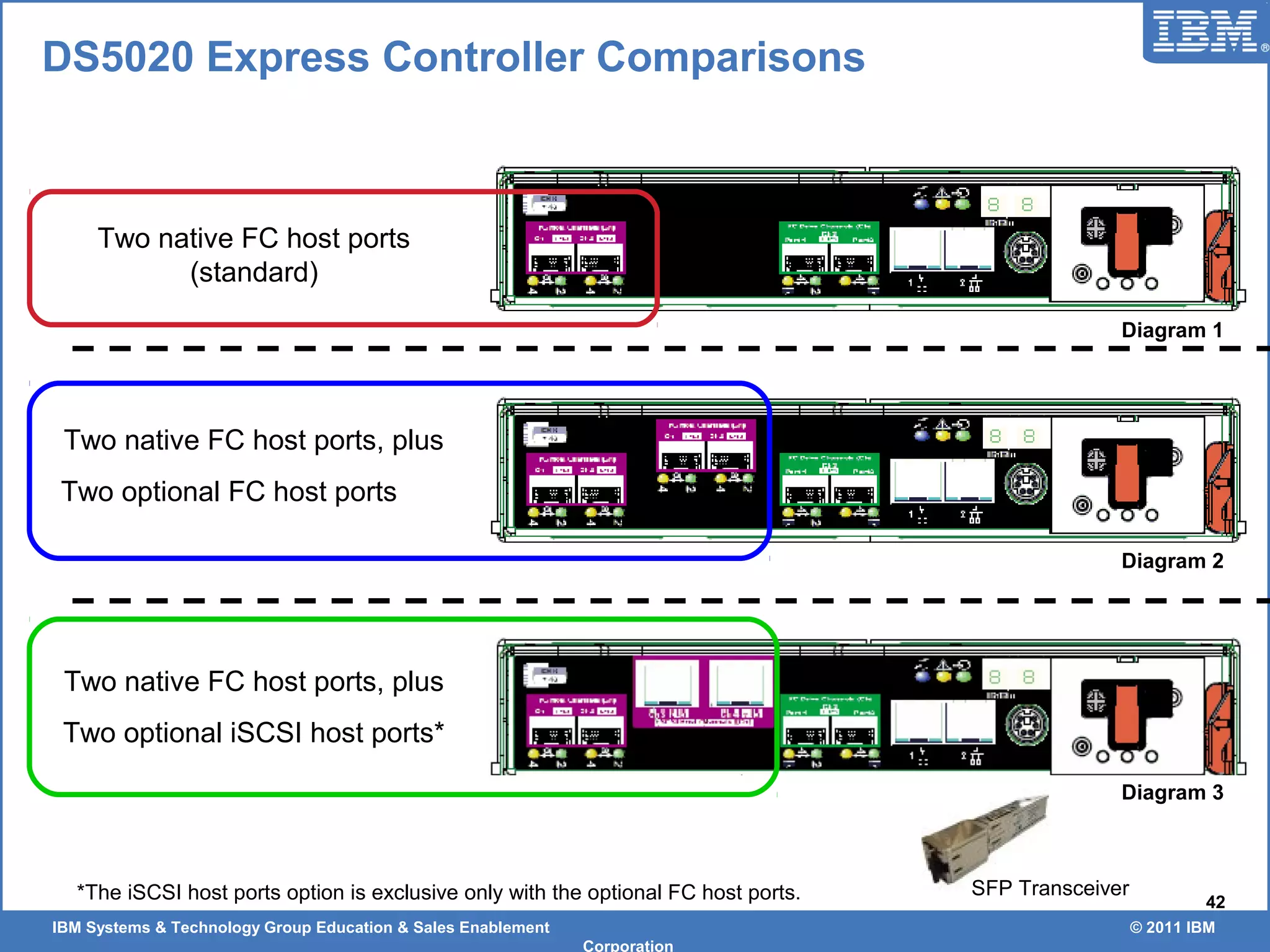

DS5020 Express Controller Comparisons
Two native FC host ports
(standard)
Two native FC host ports, plus
Two optional FC host ports
Two native FC host ports, plus
Two optional iSCSI host ports*
*The iSCSI host ports option is exclusive only with the optional FC host ports.
Diagram 1
Diagram 2
Diagram 3
SFP Transceiver

Corporation
43

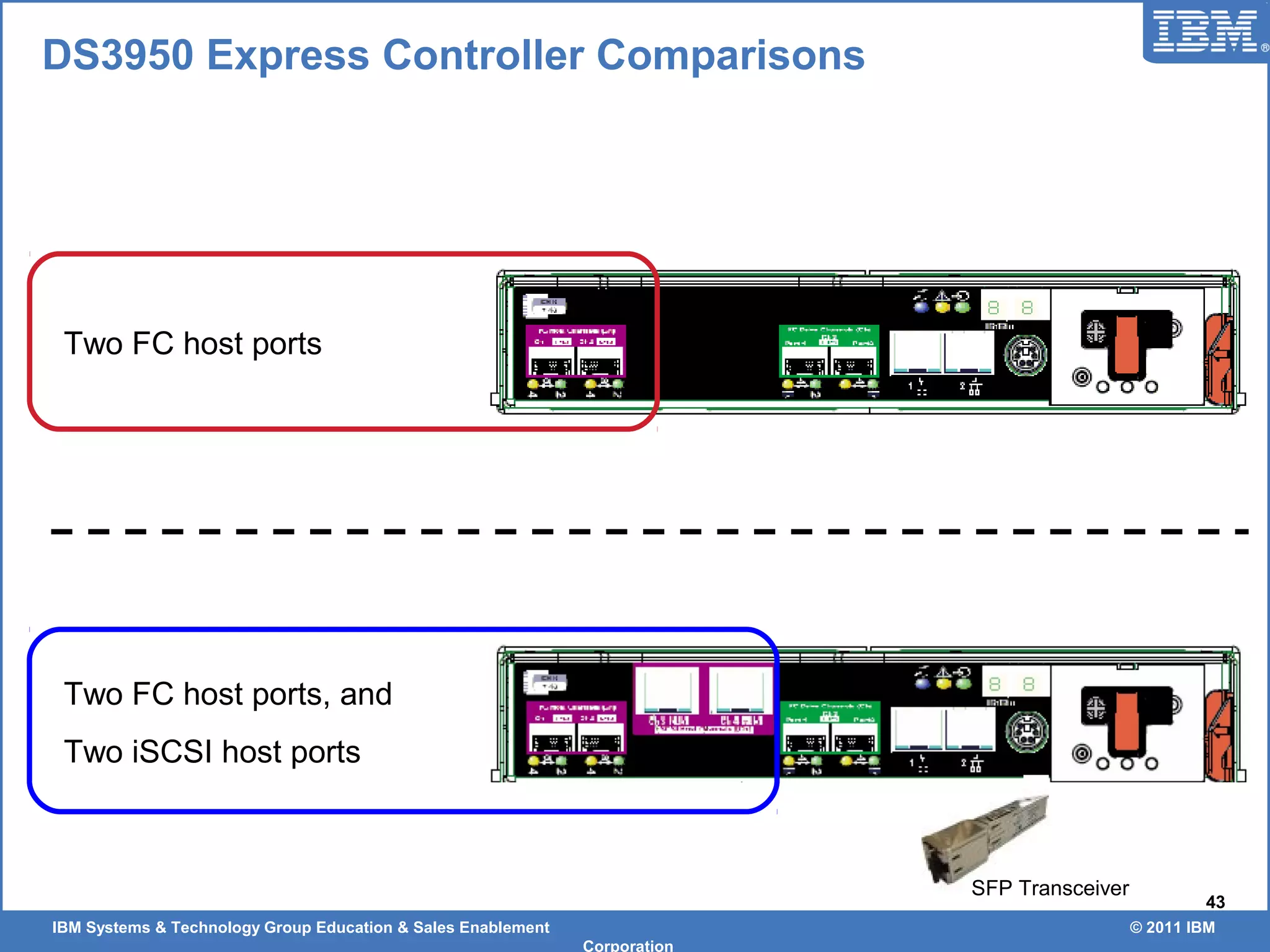

DS3950 Express Controller Comparisons
Two FC host ports
Two FC host ports, and
Two iSCSI host ports
SFP Transceiver

Corporation
44

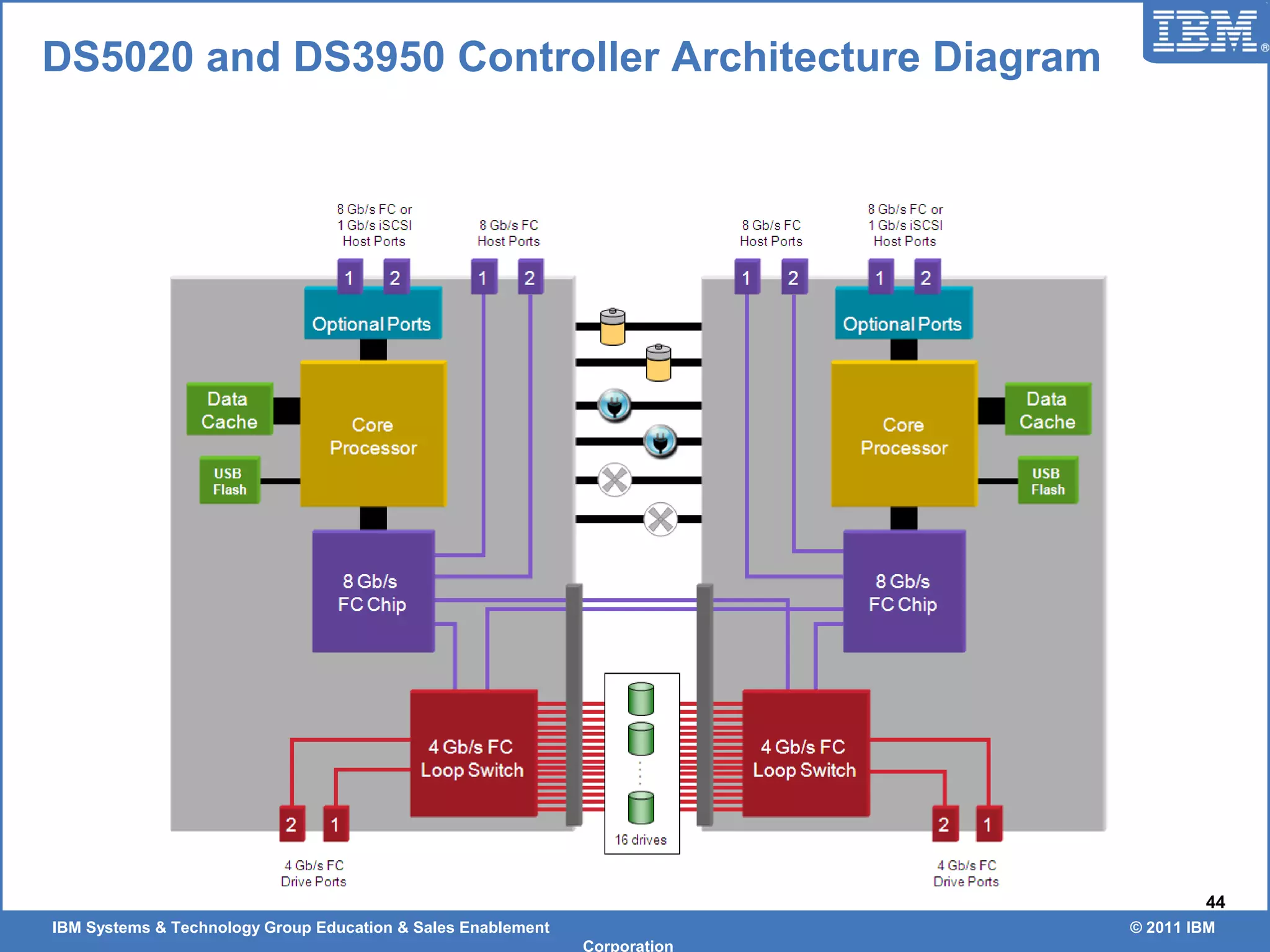

DS5020 and DS3950 Controller Architecture Diagram

Corporation
45

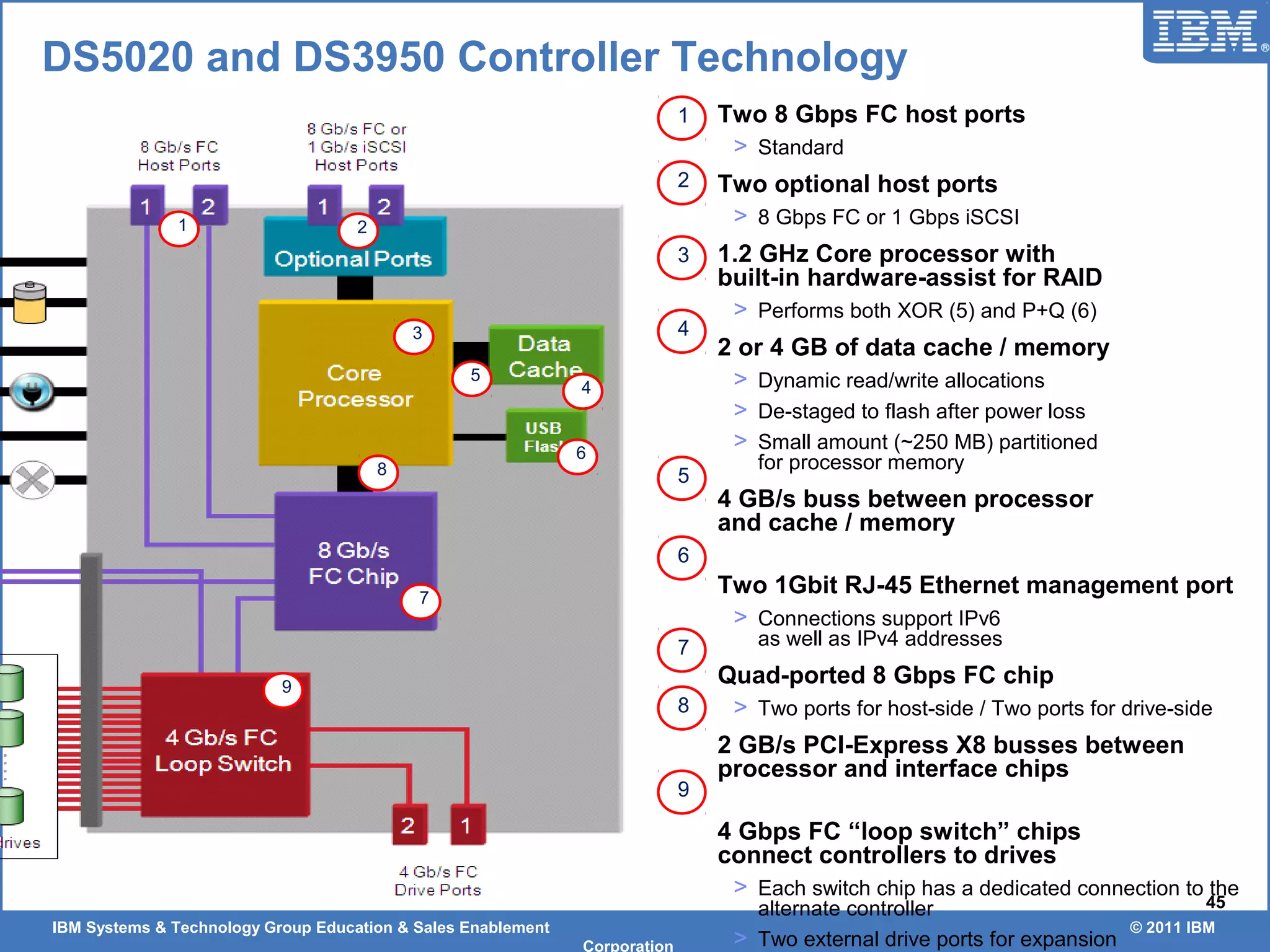

Two 8 Gbps FC host ports
> Standard
Two optional host ports
> 8 Gbps FC or 1 Gbps iSCSI
1.2 GHz Core processor with
built-in hardware-assist for RAID
> Performs both XOR (5) and P+Q (6)
2 or 4 GB of data cache / memory
> Dynamic read/write allocations
> De-staged to flash after power loss
> Small amount (~250 MB) partitioned
for processor memory
4 GB/s buss between processor
and cache / memory
Two 1Gbit RJ-45 Ethernet management port
> Connections support IPv6
as well as IPv4 addresses
Quad-ported 8 Gbps FC chip
> Two ports for host-side / Two ports for drive-side
2 GB/s PCI-Express X8 busses between
processor and interface chips
4 Gbps FC “loop switch” chips
connect controllers to drives
> Each switch chip has a dedicated connection to the
alternate controller
> Two external drive ports for expansion
DS5020 and DS3950 Controller Technology
3
4
5
1 2
6
7
8
9
1
3
2
4
5
6
7
8
9

Corporation
46

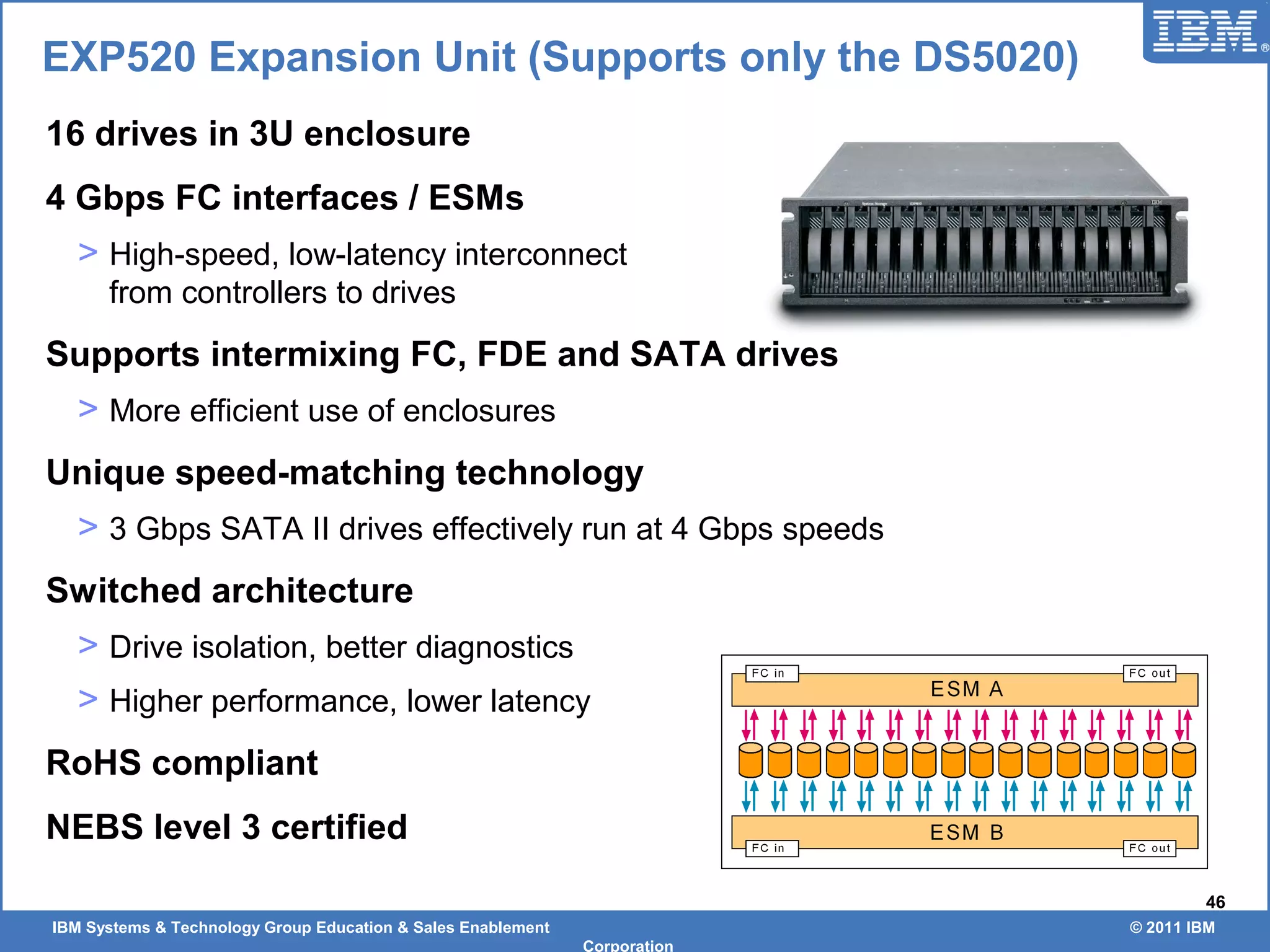

EXP520 Expansion Unit (Supports only the DS5020)
16 drives in 3U enclosure
4 Gbps FC interfaces / ESMs
> High-speed, low-latency interconnect
from controllers to drives
Supports intermixing FC, FDE and SATA drives
> More efficient use of enclosures
Unique speed-matching technology
> 3 Gbps SATA II drives effectively run at 4 Gbps speeds
Switched architecture
> Drive isolation, better diagnostics
> Higher performance, lower latency
RoHS compliant
NEBS level 3 certified

Corporation
47

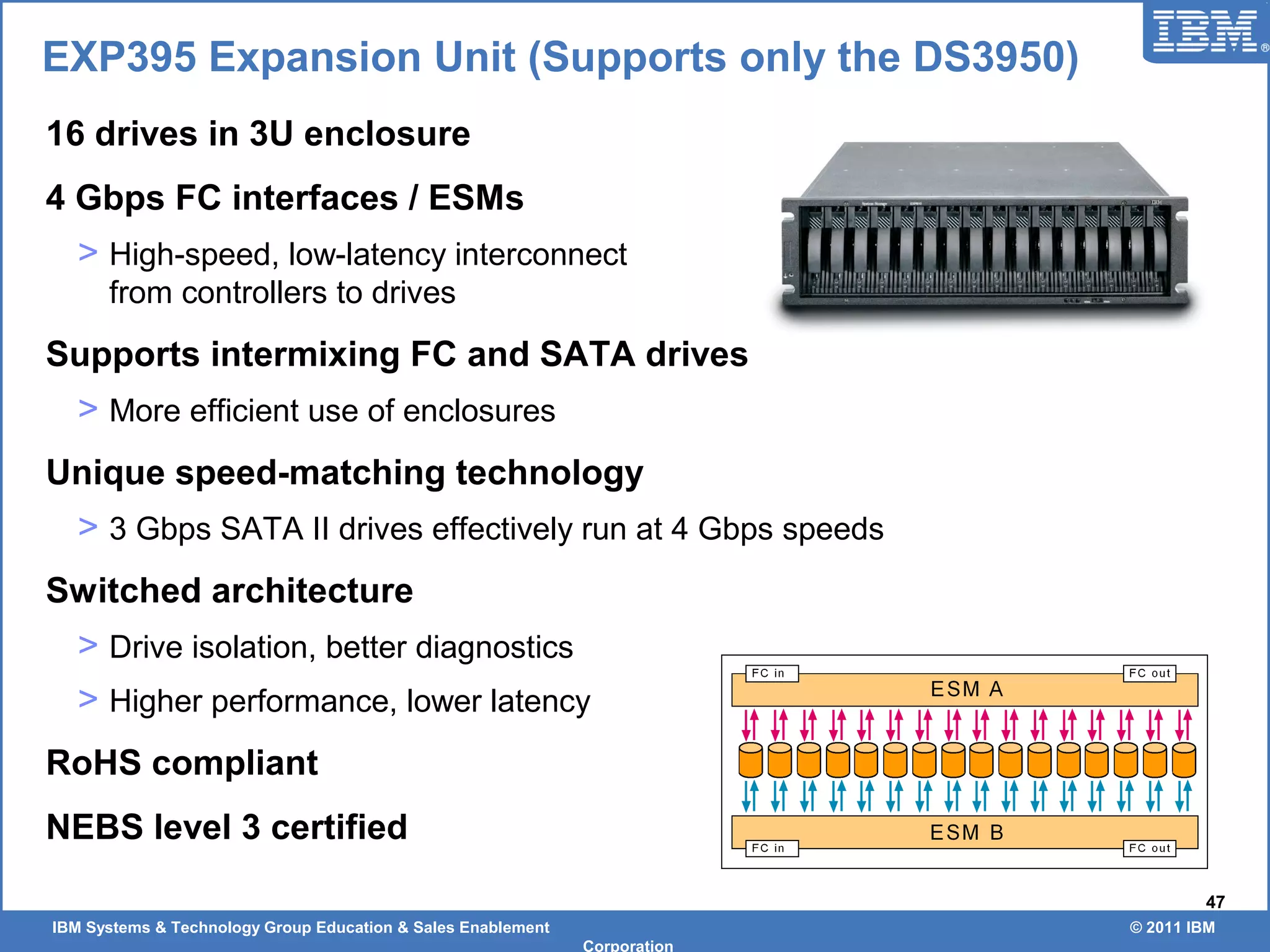

EXP395 Expansion Unit (Supports only the DS3950)
Supports intermixing FC and SATA drives
> 3 Gbps SATA II drives effectively run at 4 Gbps speeds
RoHS compliant

Corporation
48

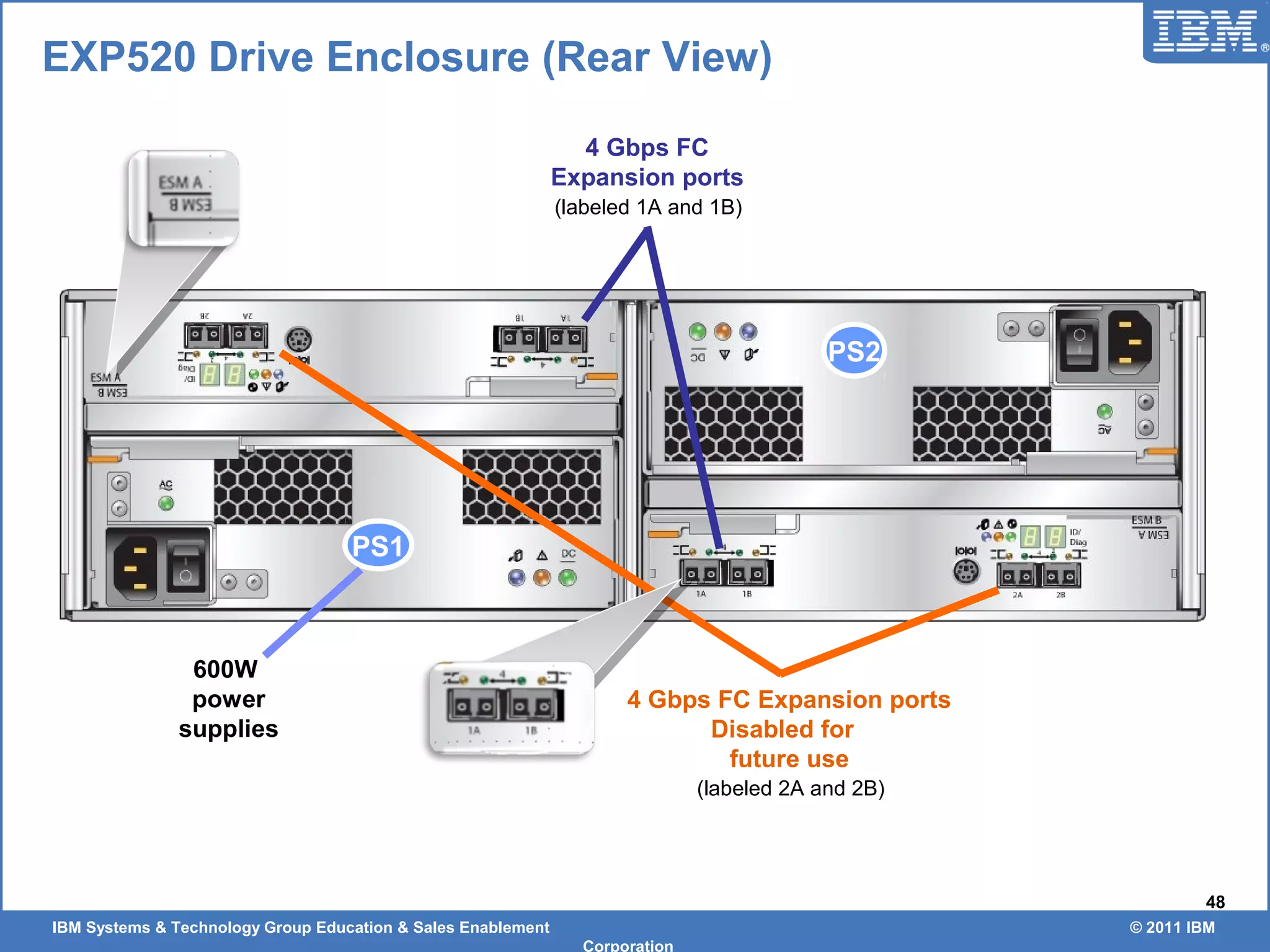

EXP520 Drive Enclosure (Rear View)
4 Gbps FC
Expansion ports
4 Gbps FC Expansion ports
Disabled for
future use
PS1
PS2
(labeled 1A and 1B)
(labeled 2A and 2B)
600W
power
supplies

Corporation
49

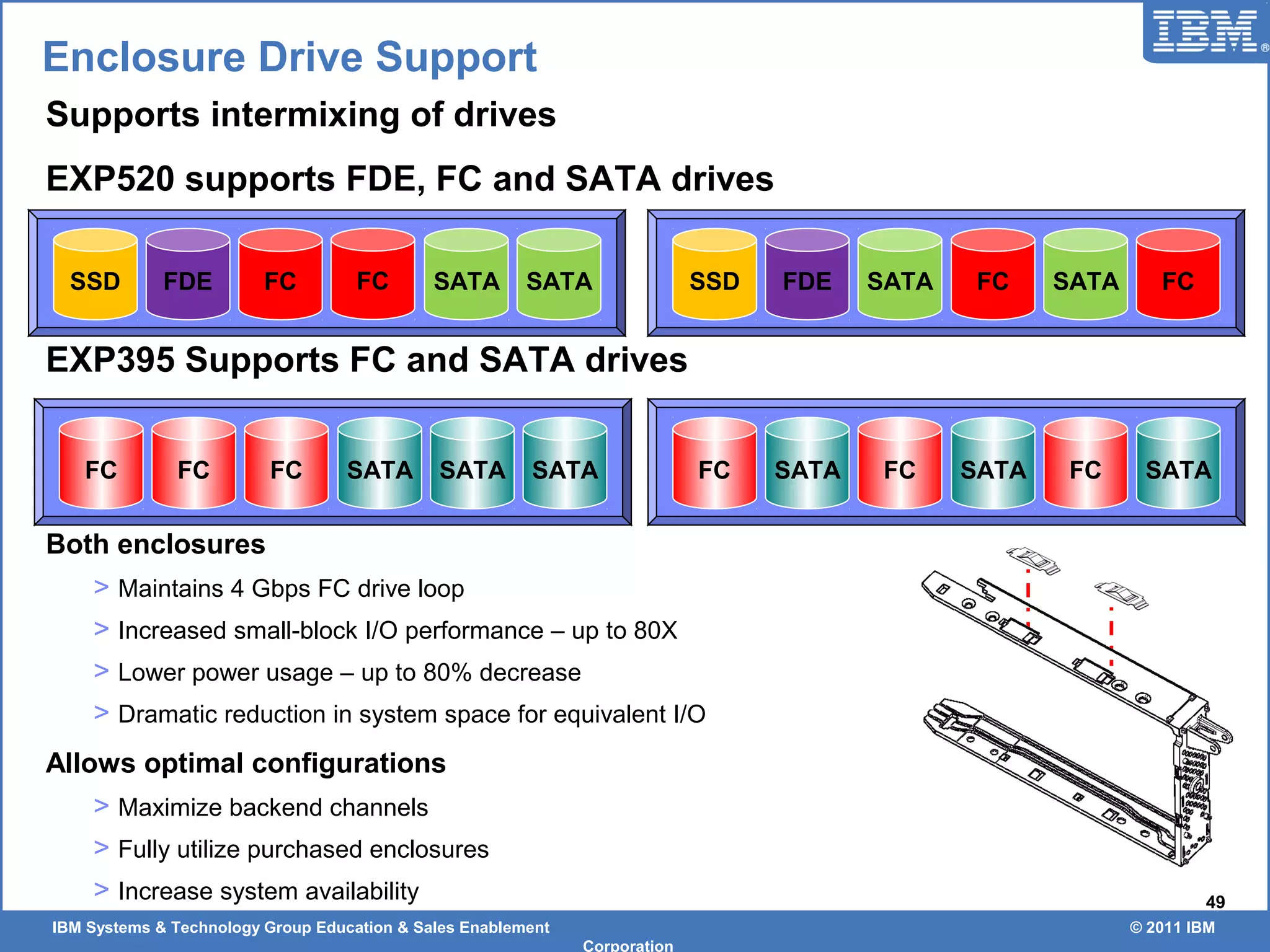

Enclosure Drive Support
Supports intermixing of drives
EXP520 supports FDE, FC and SATA drives
EXP395 Supports FC and SATA drives
Both enclosures
> Maintains 4 Gbps FC drive loop
> Increased small-block I/O performance – up to 80X
> Lower power usage – up to 80% decrease
> Dramatic reduction in system space for equivalent I/O
Allows optimal configurations
> Maximize backend channels
> Fully utilize purchased enclosures
> Increase system availability
SATAFC SATAFC SATAFC SATAFC SATASATA FCFC
SSD SATAFDE SATAFC FCSSD FCFDE SATASATAFC

Corporation
50

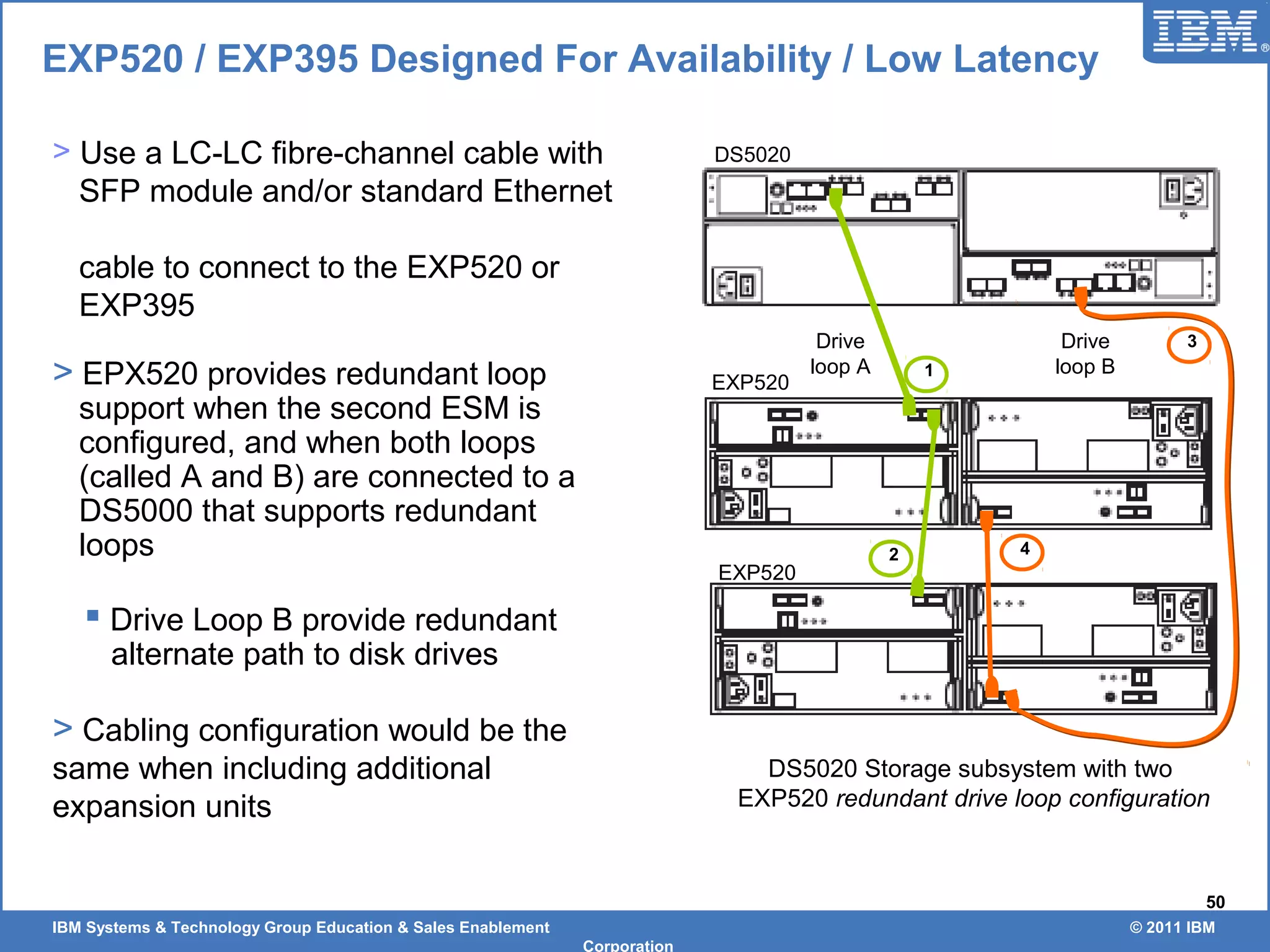

EXP520 / EXP395 Designed For Availability / Low Latency
DS5020 Storage subsystem with two
EXP520 redundant drive loop configuration
Drive
loop A
Drive
loop B
EXP520
EXP520
DS5020
1
2
3
4
> Use a LC-LC fibre-channel cable with
SFP module and/or standard Ethernet
cable to connect to the EXP520 or
EXP395
> EPX520 provides redundant loop
support when the second ESM is
configured, and when both loops
(called A and B) are connected to a
DS5000 that supports redundant
loops
 Drive Loop B provide redundant
alternate path to disk drives
> Cabling configuration would be the
same when including additional
expansion units

Corporation
51

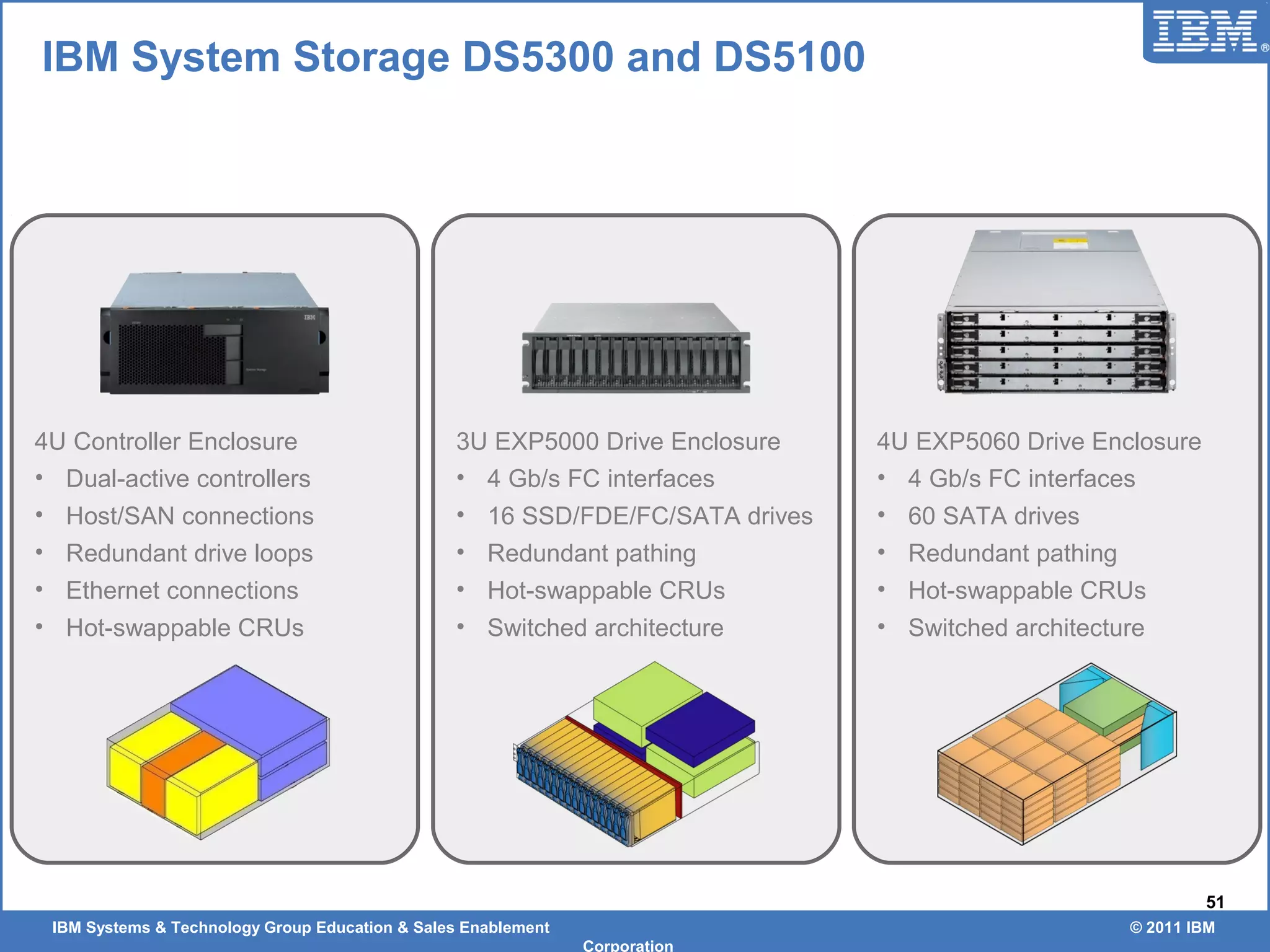

3U EXP5000 Drive Enclosure
• 4 Gb/s FC interfaces
• 16 SSD/FDE/FC/SATA drives
• Redundant pathing
• Hot-swappable CRUs
• Switched architecture
4U EXP5060 Drive Enclosure
• 4 Gb/s FC interfaces
• 60 SATA drives
• Redundant pathing
• Switched architecture
4U Controller Enclosure
• Dual-active controllers
• Host/SAN connections
• Redundant drive loops
• Ethernet connections
IBM System Storage DS5300 and DS5100

Corporation
52
> 256 drives (448 optional with Feature Key)
> Dual-redundant controllers
> 8 or 16 FC host interfaces –4 Gbps or 8 Gbps
> 8 GB or 16 GB Remove of data cache, upgrade to 16, 32 or 64 GB possible
> Sixteen 4 Gbps FC drive interfaces
> SSD/FC/FDE/SATA drives in EXP5000 expansion units
 SSD: 74GB, 300GB–FC: 300 GB, 450 GB, 600GB (15K)
 FDE FC: 300 GB, 450 GB, 600GB (15K)
 SATA: 2000GB, 1000 GB (7.2K)
> Partitions: 8, 16, 32, 64, 128, 256 or 512
> FlashCopy (up to 16 per base), VolumeCopy, ERM (up to 128)

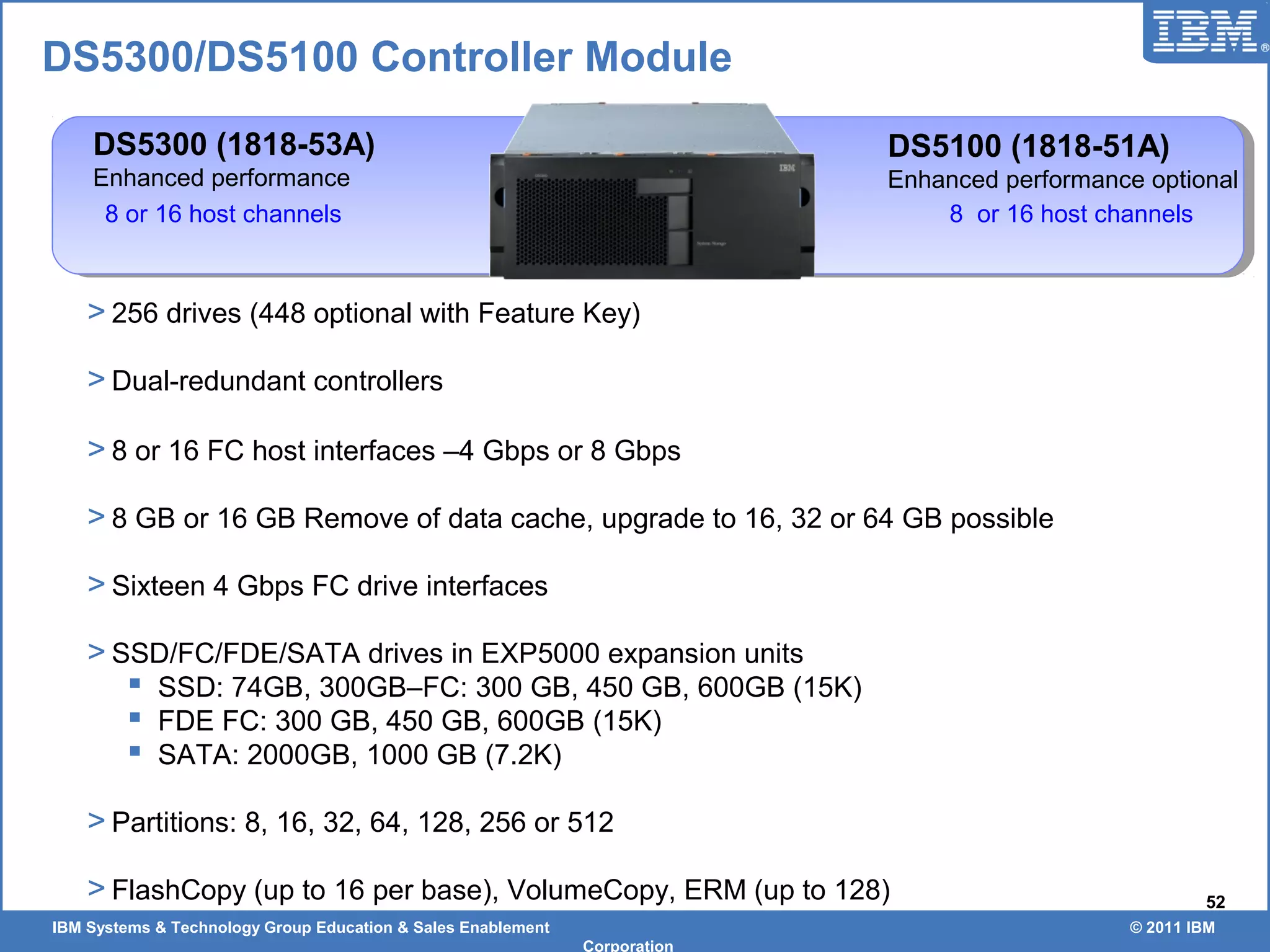

DS5300/DS5100 Controller Module
DS5300 (1818-53A)
Enhanced performance
DS5100 (1818-51A)
Enhanced performance optional
8 or 16 host channels8 or 16 host channels

Corporation
53

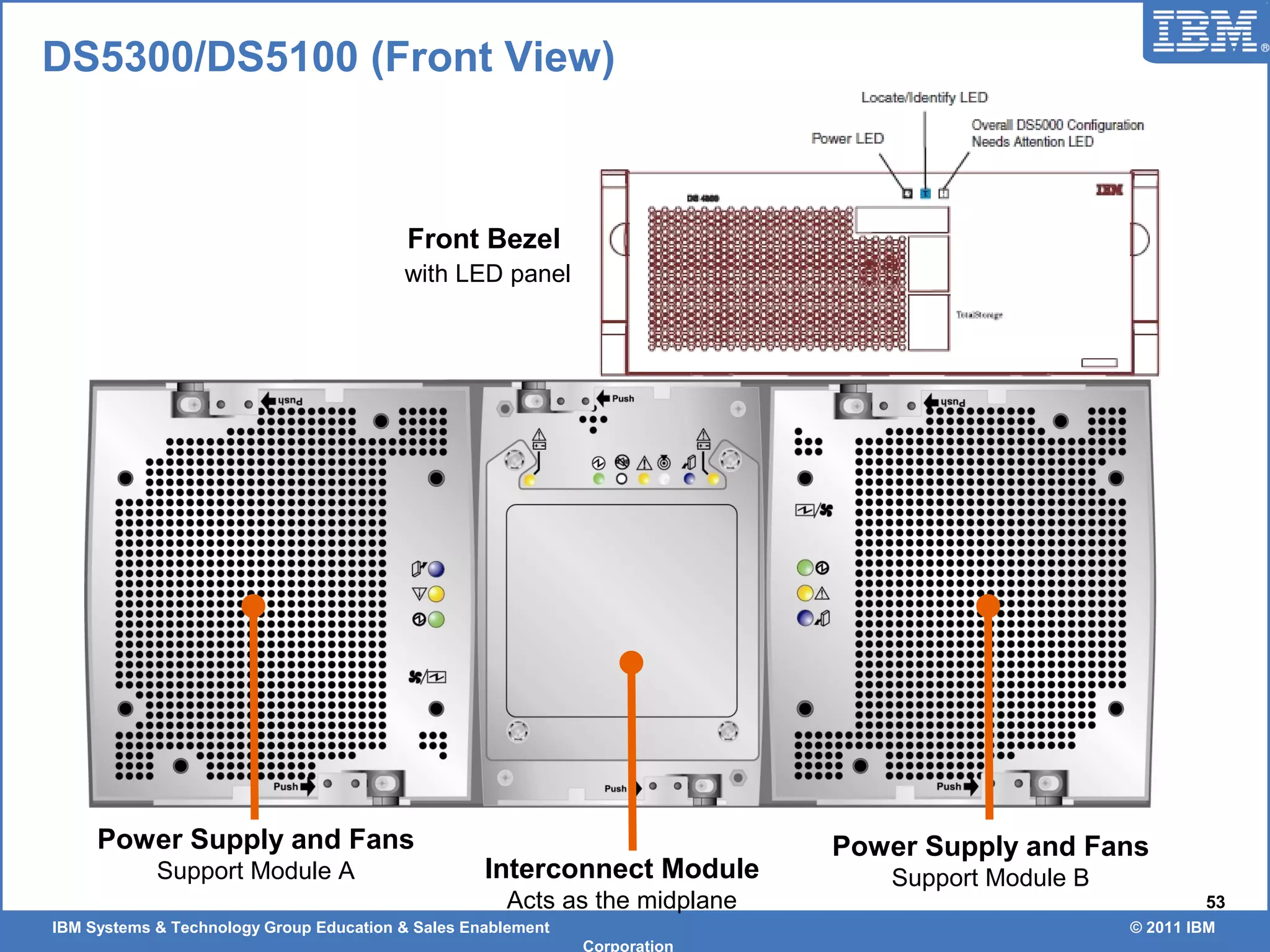

DS5300/DS5100 (Front View)
Power Supply and Fans
Support Module A Interconnect Module
Acts as the midplane
Power Supply and Fans
Support Module B
Front Bezel
with LED panel

Corporation
54

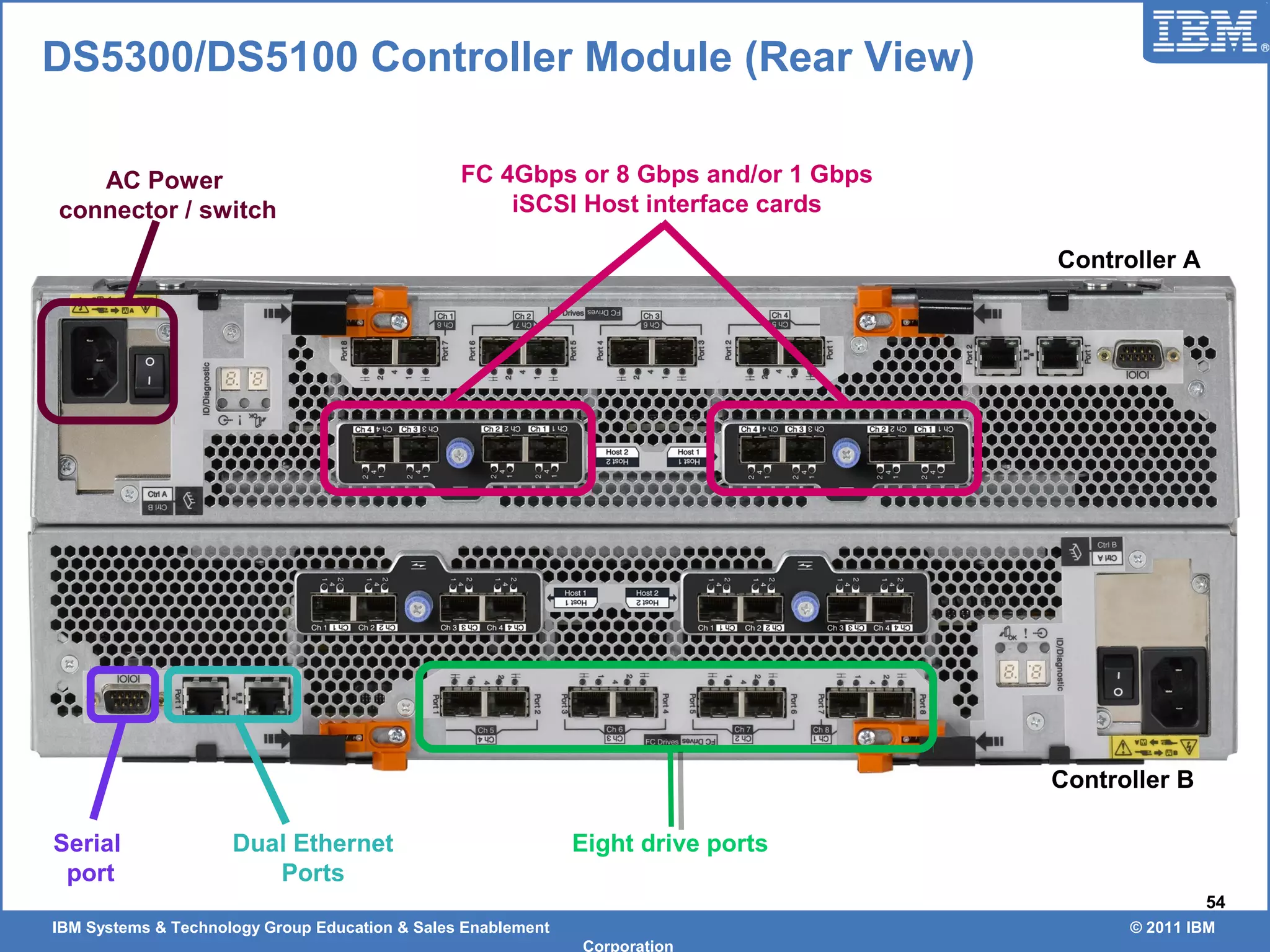

DS5300/DS5100 Controller Module (Rear View)
FC 4Gbps or 8 Gbps and/or 1 Gbps
iSCSI Host interface cards
Eight drive ports
AC Power
connector / switch
Serial
port
Dual Ethernet
Ports
Controller A
Controller B

Corporation
55
DS5300/DS5100 - Drive-Side Connectivity
Sixteen 4 Gbps drive loops support up to 448 drives (DS5300)
> Each drive port is capable of delivering up to 400 MB/s
> Both ports on the channel (loop switch) run at same speed
Channels 5, 6, 7, 8
Ports 1, 2, 3, 4, 5, 6, 7, 8
Controller A
Controller B
Channels 1, 2, 3, 4
Ports 8, 7, 6, 5, 4, 3, 2, 1

Corporation
56

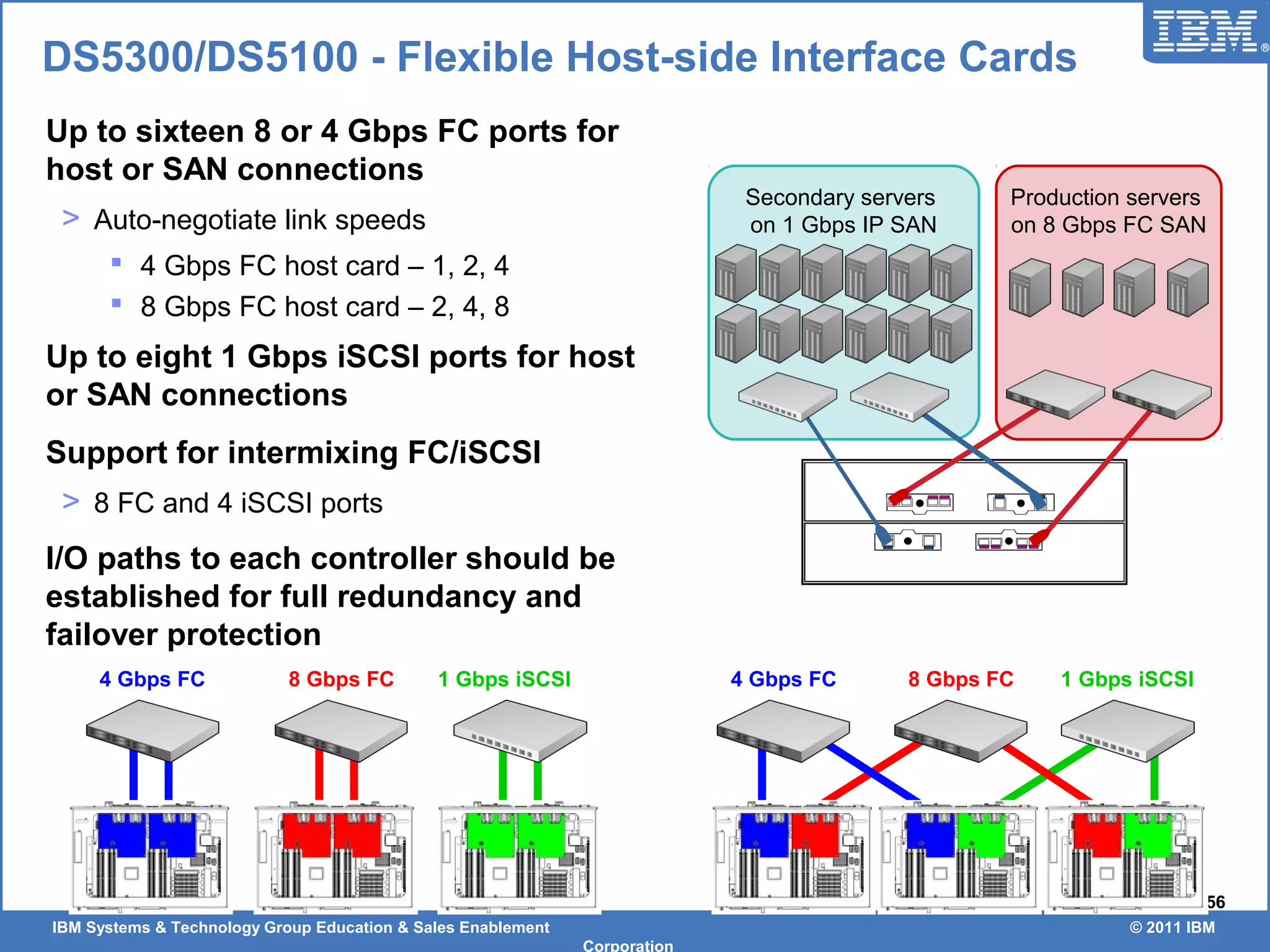

DS5300/DS5100 - Flexible Host-side Interface Cards
Up to sixteen 8 or 4 Gbps FC ports for
host or SAN connections
> Auto-negotiate link speeds
 4 Gbps FC host card – 1, 2, 4
 8 Gbps FC host card – 2, 4, 8
Up to eight 1 Gbps iSCSI ports for host
or SAN connections
Support for intermixing FC/iSCSI
> 8 FC and 4 iSCSI ports
I/O paths to each controller should be
established for full redundancy and
failover protection
Production servers
on 8 Gbps FC SAN
Secondary servers
on 1 Gbps IP SAN
4 Gbps FC 4 Gbps FC 1 Gbps iSCSI8 Gbps FC1 Gbps iSCSI8 Gbps FC

Corporation
57

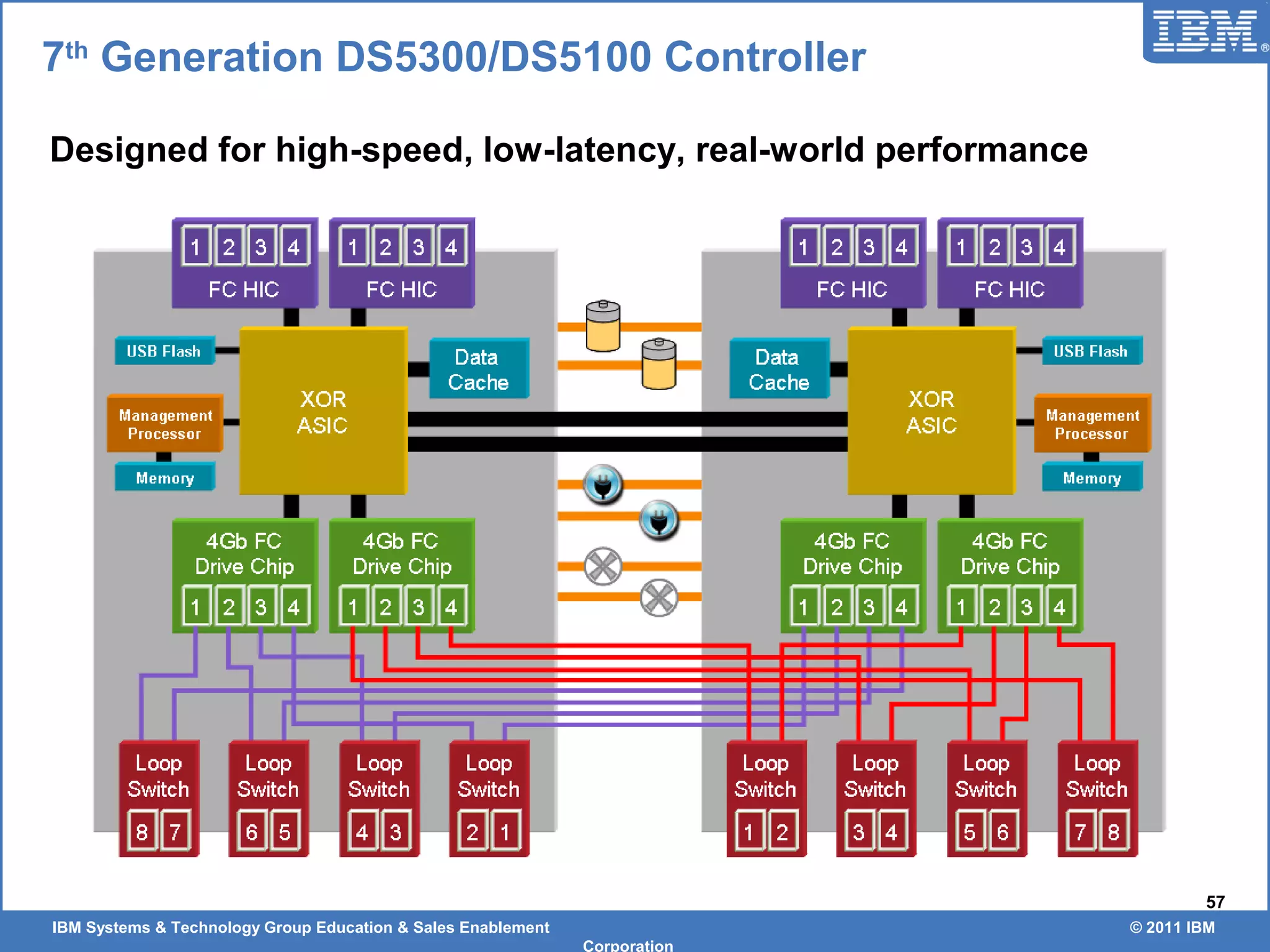

7th
Generation DS5300/DS5100 Controller
Designed for high-speed, low-latency, real-world performance

Corporation
58

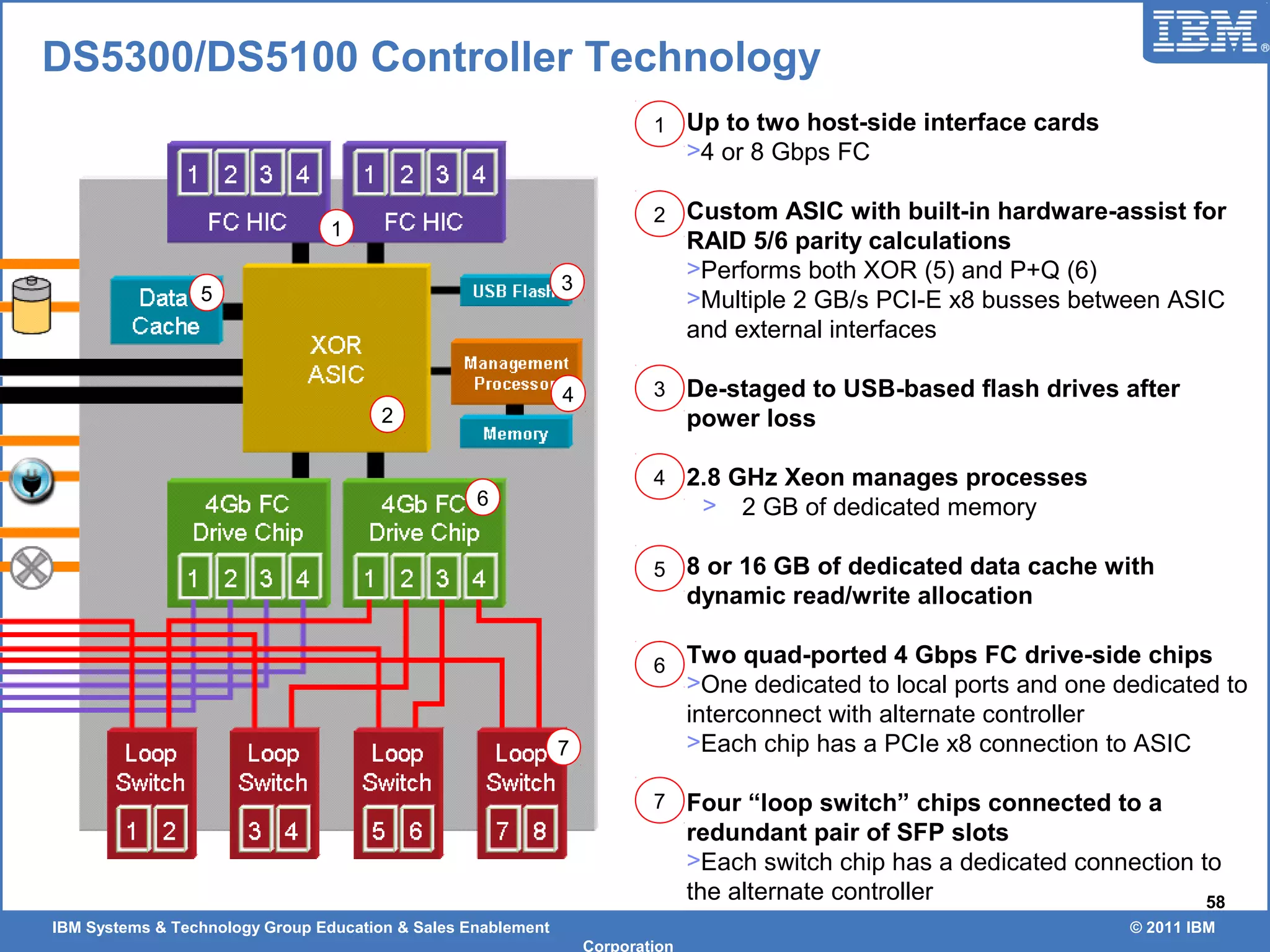

DS5300/DS5100 Controller Technology
1
2
5
4
6
7
3
1
2
3
4
5
7
6
Up to two host-side interface cards
>4 or 8 Gbps FC
Custom ASIC with built-in hardware-assist for
RAID 5/6 parity calculations
>Performs both XOR (5) and P+Q (6)
>Multiple 2 GB/s PCI-E x8 busses between ASIC
and external interfaces
De-staged to USB-based flash drives after
power loss
2.8 GHz Xeon manages processes
> 2 GB of dedicated memory
8 or 16 GB of dedicated data cache with
dynamic read/write allocation
Two quad-ported 4 Gbps FC drive-side chips
>One dedicated to local ports and one dedicated to
interconnect with alternate controller
>Each chip has a PCIe x8 connection to ASIC
Four “loop switch” chips connected to a
redundant pair of SFP slots
>Each switch chip has a dedicated connection to
the alternate controller

Corporation
59

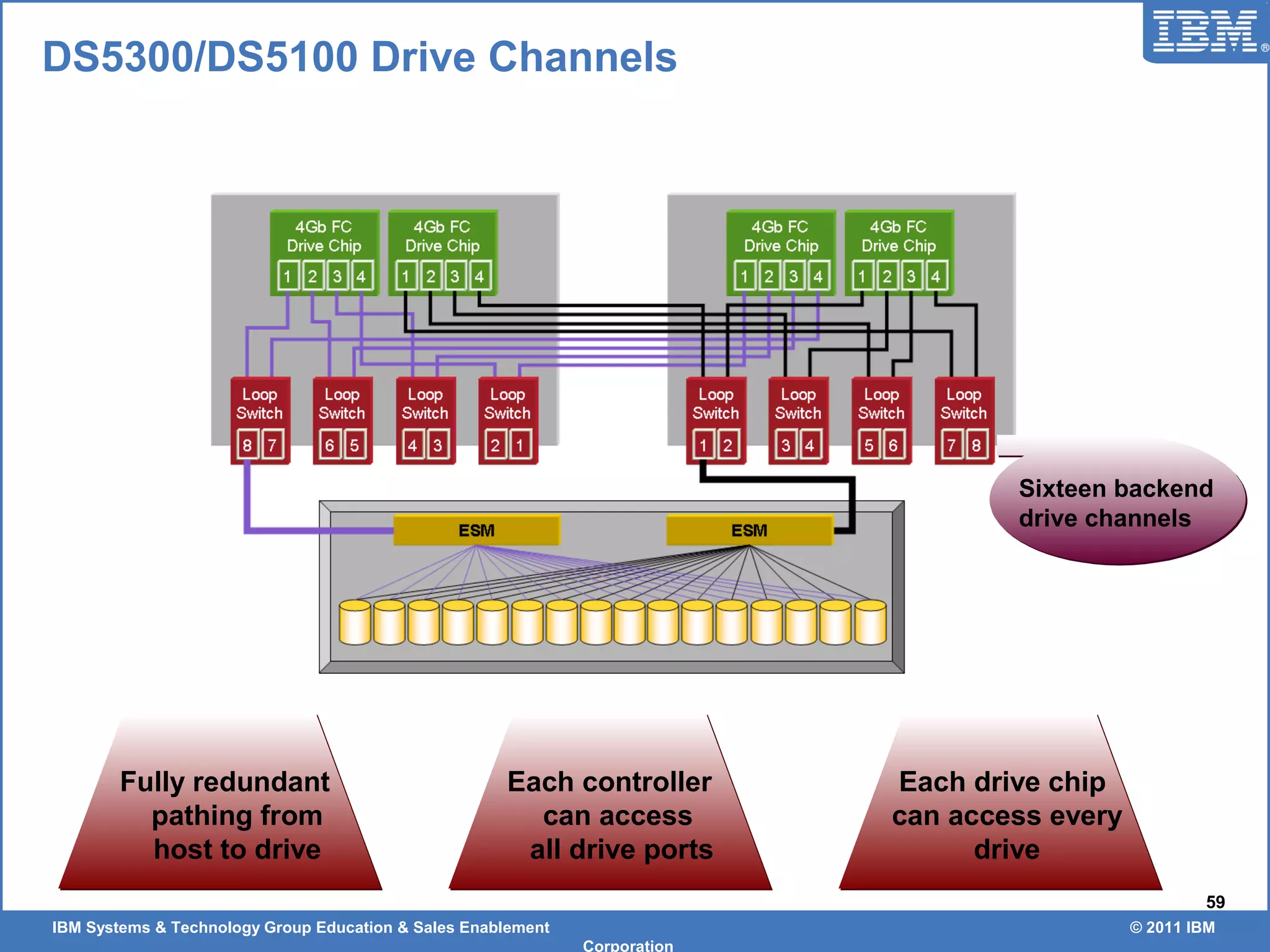

DS5300/DS5100 Drive Channels
Fully redundant
pathing from
host to drive
Each controller
can access
all drive ports
Each drive chip
can access every
drive
Sixteen backend
drive channels

Corporation
60
Supports intermixing SSD, FC, FDE and
SATA drives
> 3 Gbps SATA II drives effectively run at
4 Gbps speeds
RoHS compliant

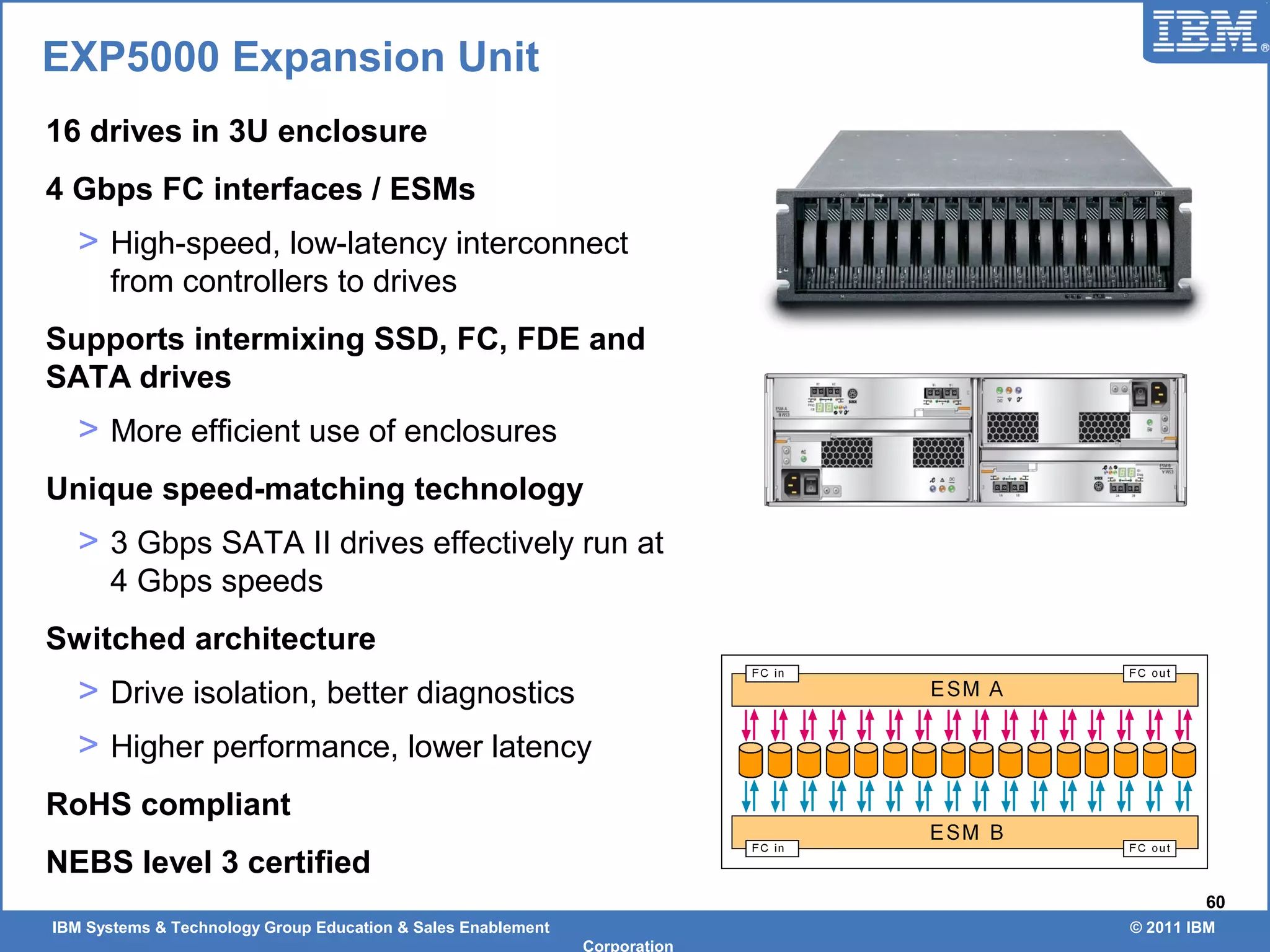

EXP5000 Expansion Unit

Corporation
61

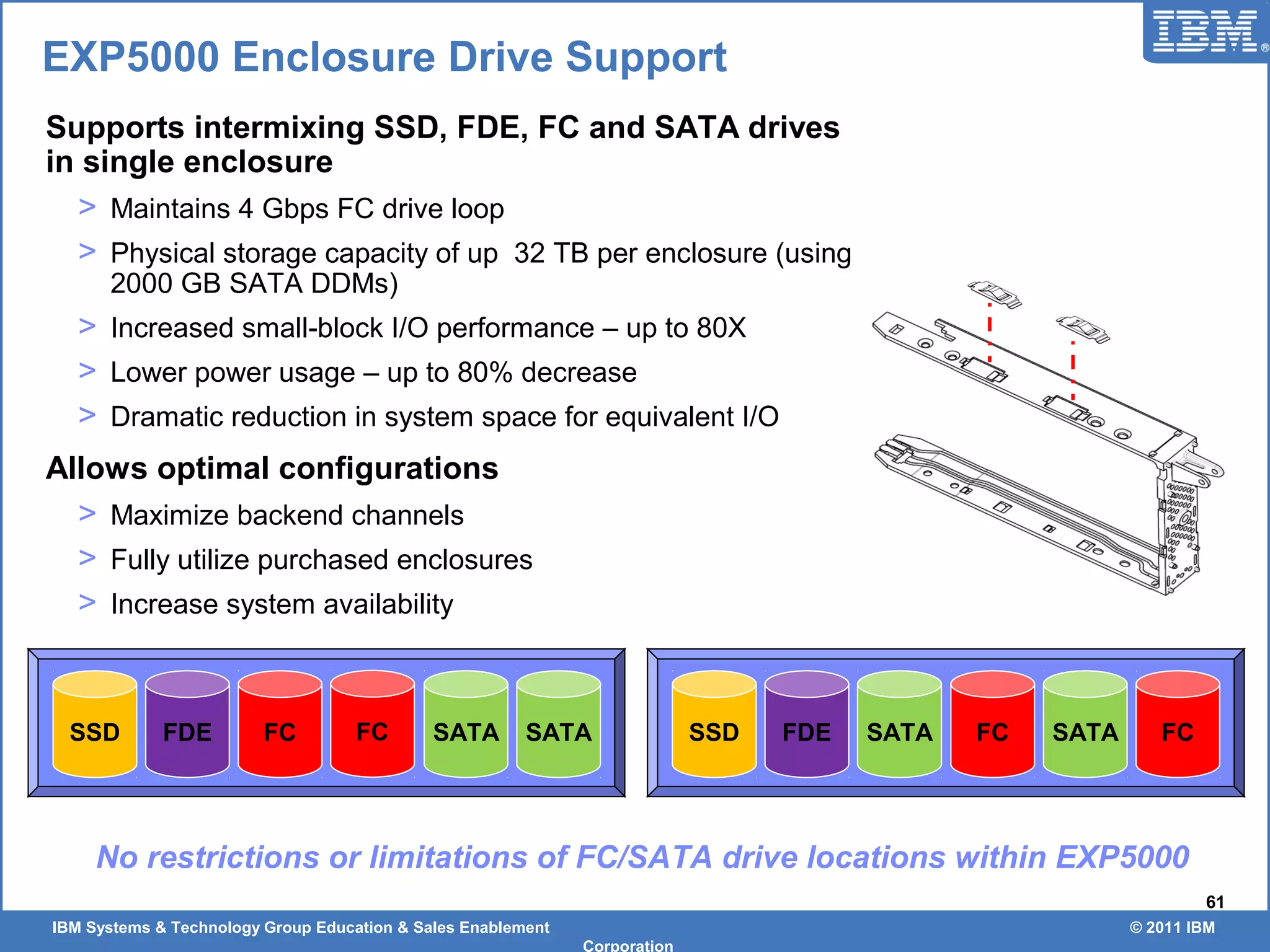

EXP5000 Enclosure Drive Support
Supports intermixing SSD, FDE, FC and SATA drives
in single enclosure
> Maintains 4 Gbps FC drive loop
> Physical storage capacity of up 32 TB per enclosure (using
2000 GB SATA DDMs)
> Increased small-block I/O performance – up to 80X
> Lower power usage – up to 80% decrease
> Dramatic reduction in system space for equivalent I/O
Allows optimal configurations
> Maximize backend channels
> Fully utilize purchased enclosures
> Increase system availability
No restrictions or limitations of FC/SATA drive locations within EXP5000
SSD SATAFDE SATAFC FCSSD FCFDE SATASATAFC

Corporation
62
Drive loops reduce latency and
create more responsive applications
> 128-drive configuration
has only 16 drives
per dual-loop
has only 32 drives
per dual-loop
has a max of 64 drives
per dual-loop

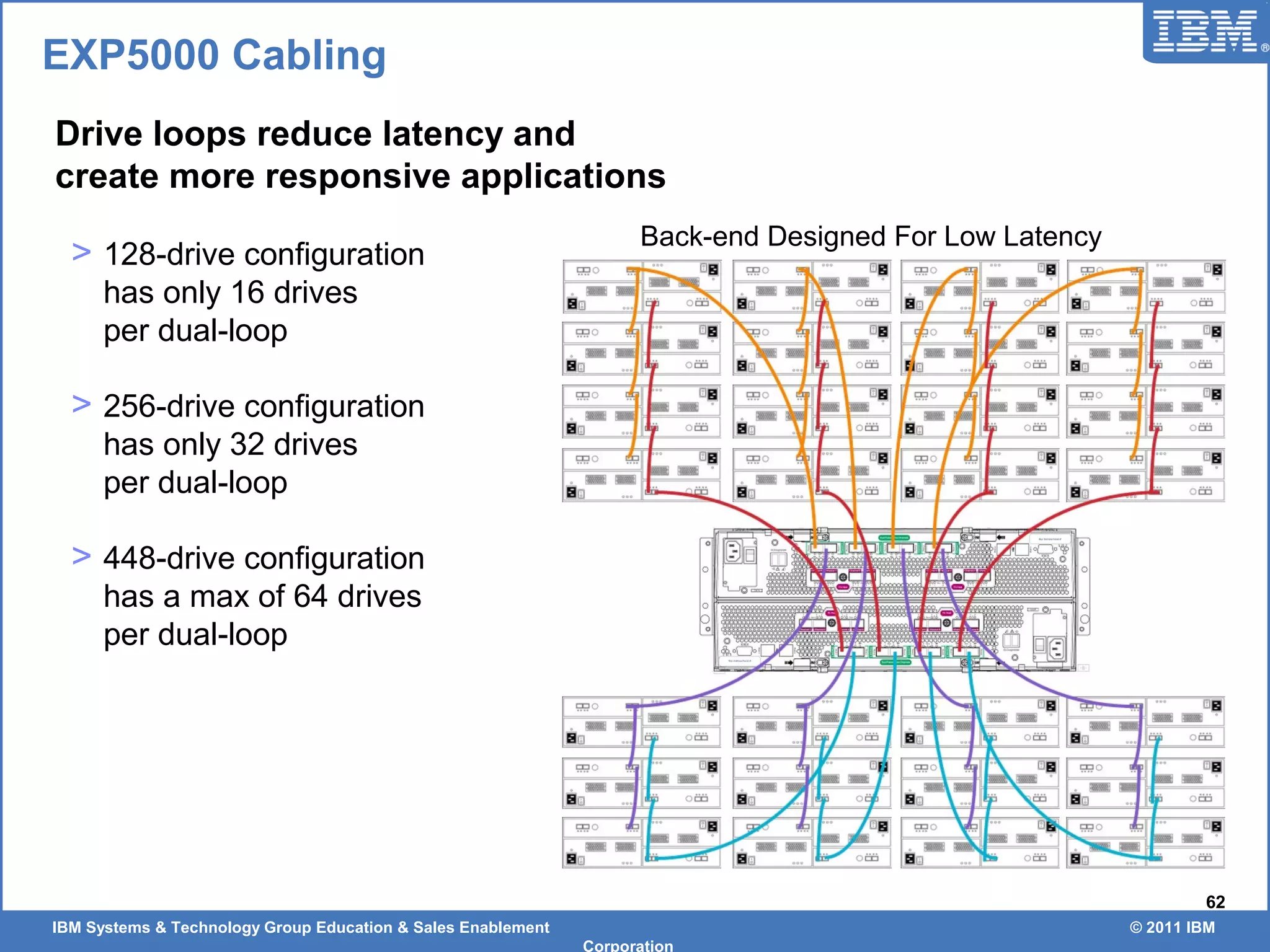

EXP5000 Cabling
Back-end Designed For Low Latency

Corporation
63

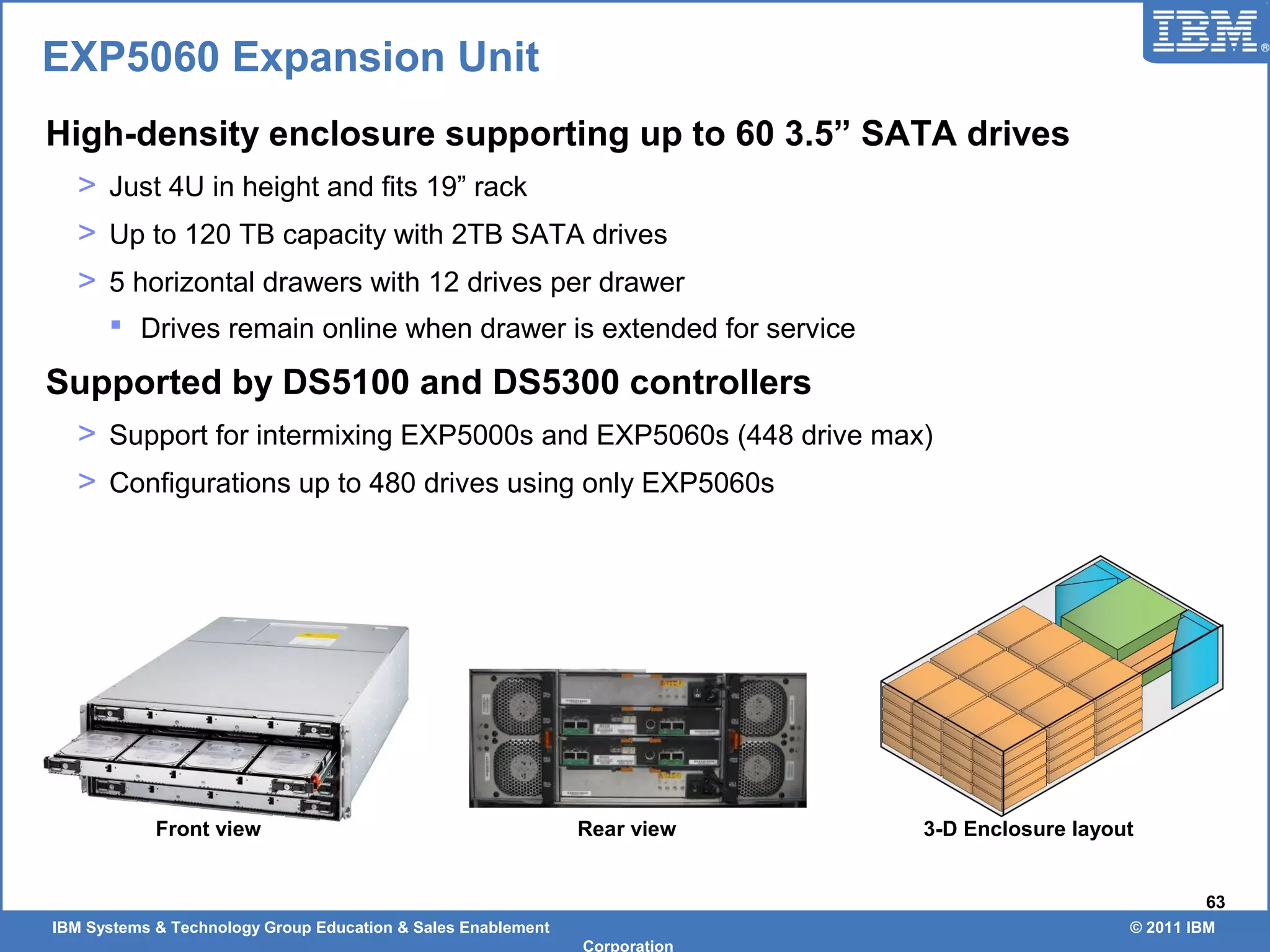

EXP5060 Expansion Unit
High-density enclosure supporting up to 60 3.5” SATA drives
> Just 4U in height and fits 19” rack
> Up to 120 TB capacity with 2TB SATA drives
> 5 horizontal drawers with 12 drives per drawer
 Drives remain online when drawer is extended for service
Supported by DS5100 and DS5300 controllers
> Support for intermixing EXP5000s and EXP5060s (448 drive max)
> Configurations up to 480 drives using only EXP5060s
Rear viewFront view 3-D Enclosure layout

Corporation
64

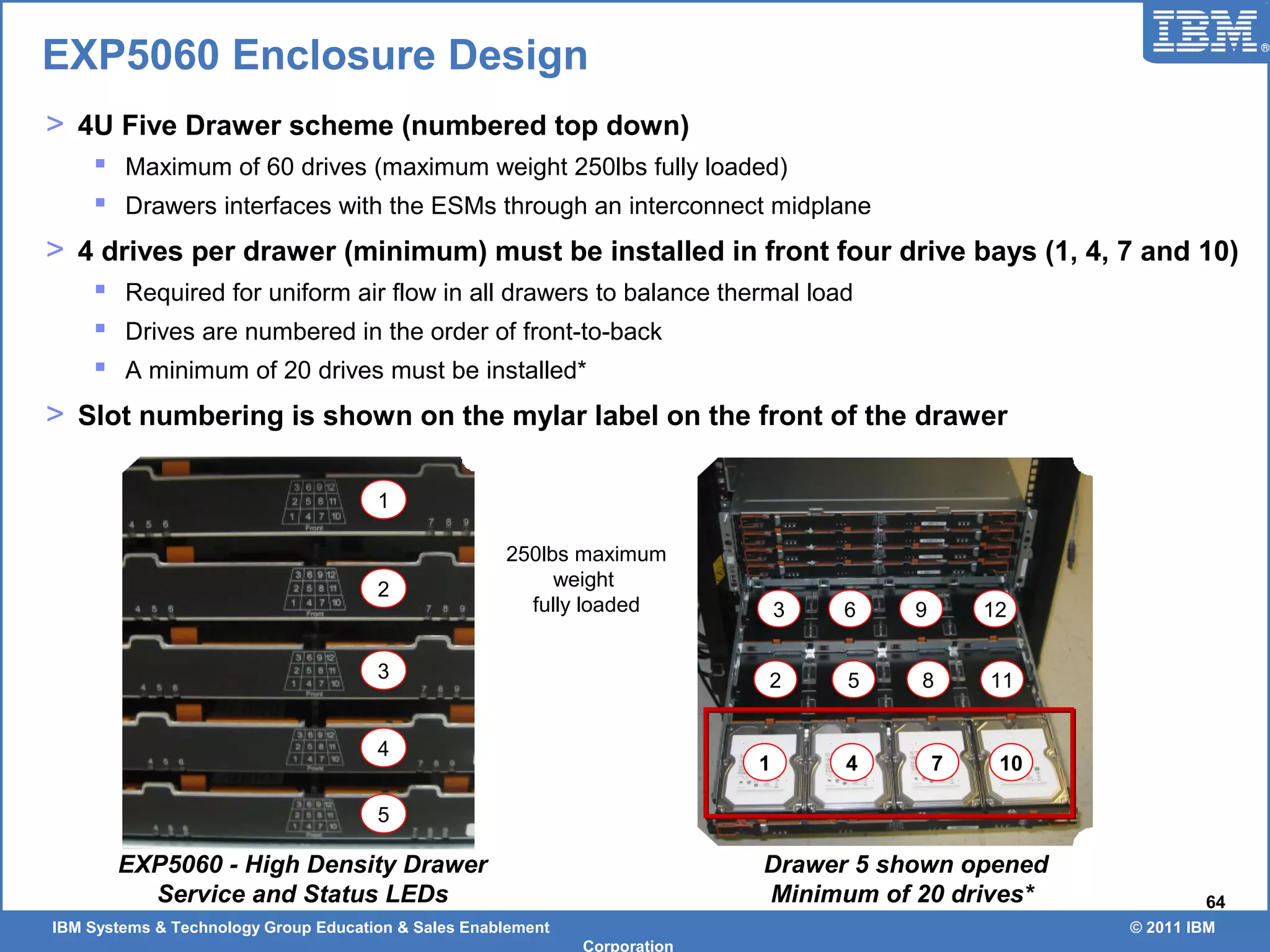

EXP5060 Enclosure Design
> 4U Five Drawer scheme (numbered top down)
 Maximum of 60 drives (maximum weight 250lbs fully loaded)
 Drawers interfaces with the ESMs through an interconnect midplane
> 4 drives per drawer (minimum) must be installed in front four drive bays (1, 4, 7 and 10)
 Required for uniform air flow in all drawers to balance thermal load
 Drives are numbered in the order of front-to-back
 A minimum of 20 drives must be installed*
> Slot numbering is shown on the mylar label on the front of the drawer
1
2
3
4
5
EXP5060 - High Density Drawer
Service and Status LEDs
Drawer 5 shown opened
Minimum of 20 drives*
1
2
3
4
5
6 9
8
7
12
11
10
250lbs maximum
weight
fully loaded

Corporation
65

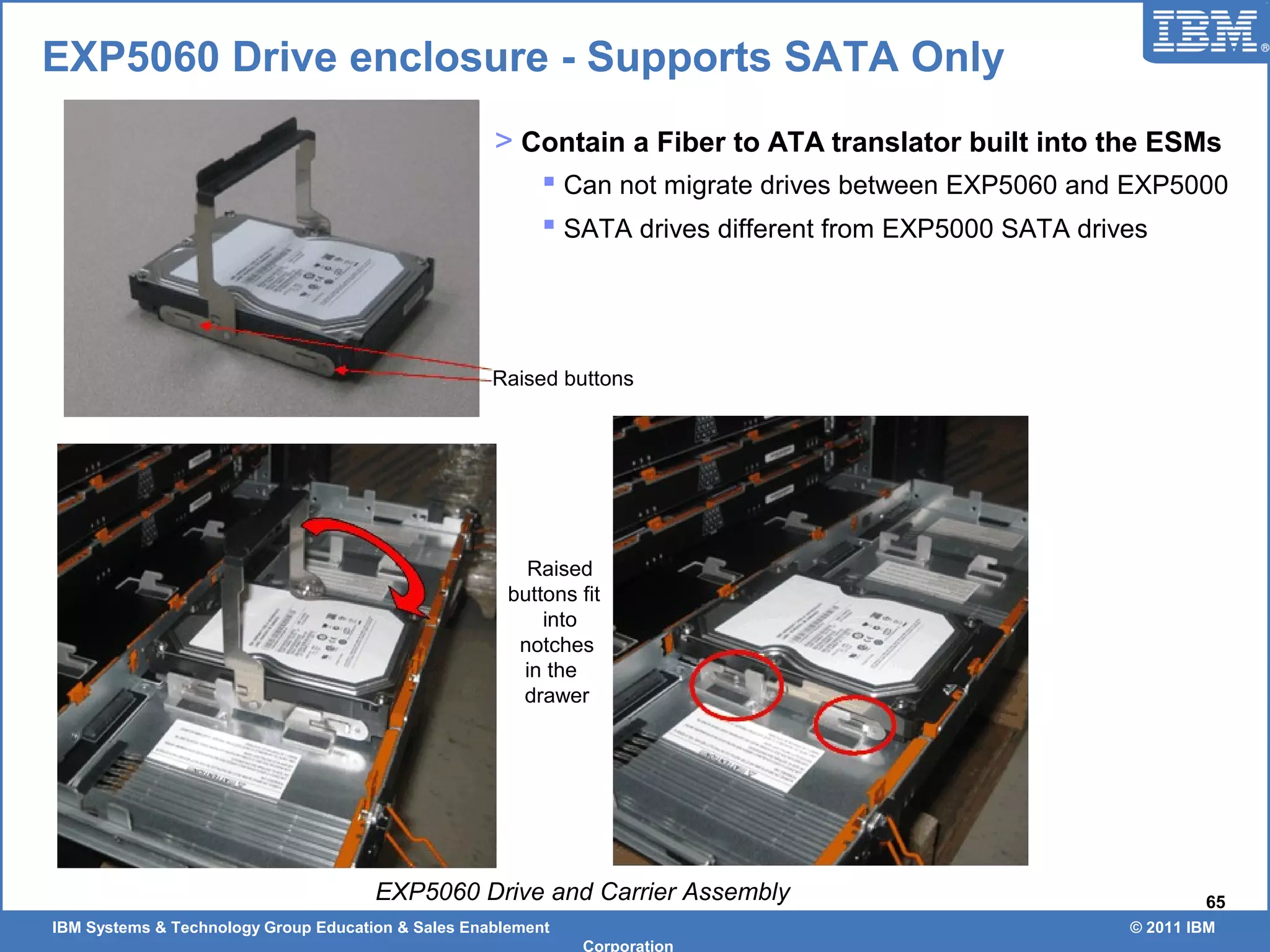

EXP5060 Drive enclosure - Supports SATA Only
> Contain a Fiber to ATA translator built into the ESMs
 Can not migrate drives between EXP5060 and EXP5000
 SATA drives different from EXP5000 SATA drives
Raised buttons
EXP5060 Drive and Carrier Assembly
Raised
buttons fit
into
notches
in the
drawer

Corporation
66

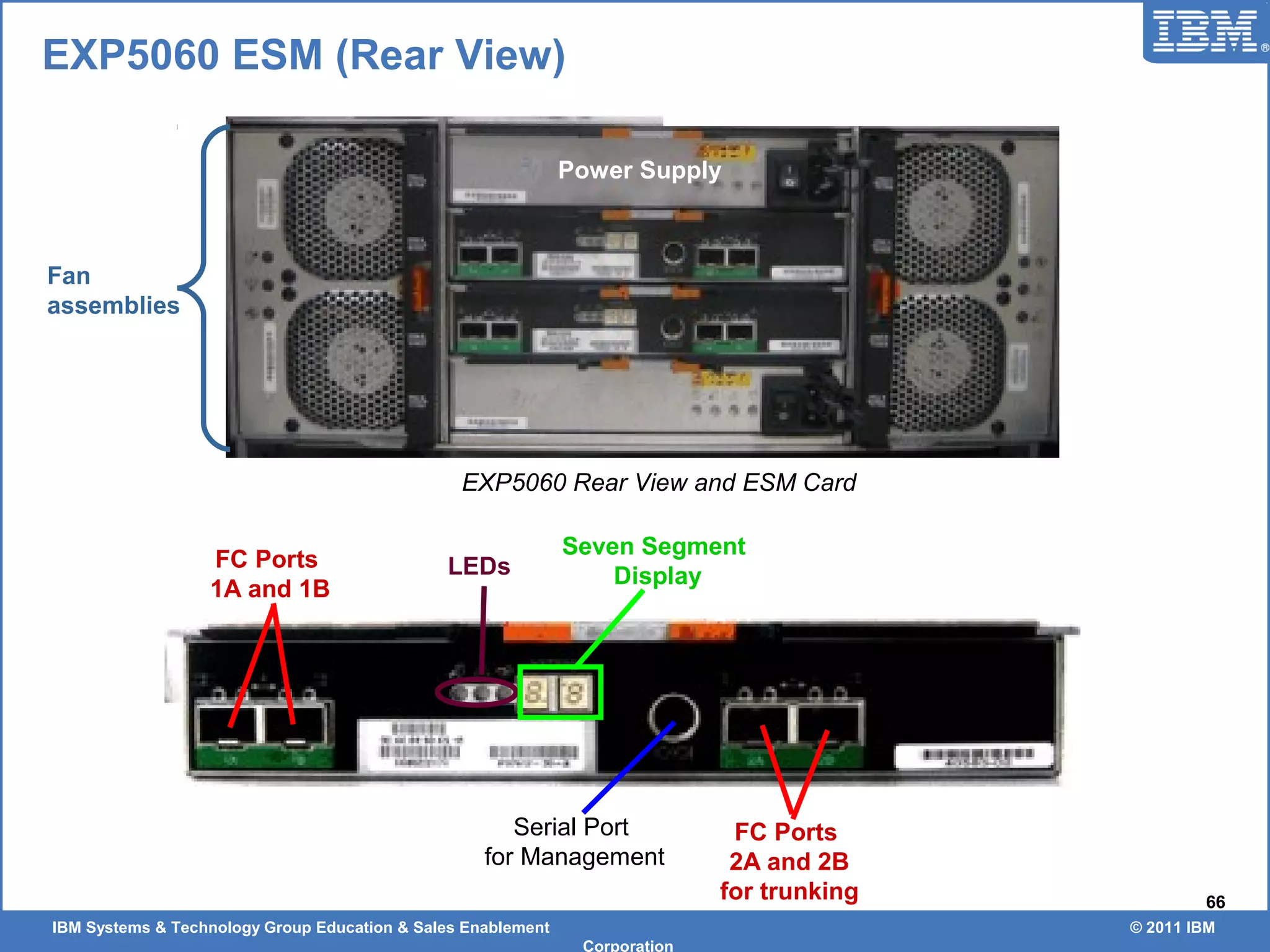

EXP5060 ESM (Rear View)
FC Ports
2A and 2B
for trunking
FC Ports
1A and 1B
Serial Port
for Management
Seven Segment
DisplayLEDs
EXP5060 Rear View and ESM Card
Fan
assemblies
Power Supply

Corporation
67

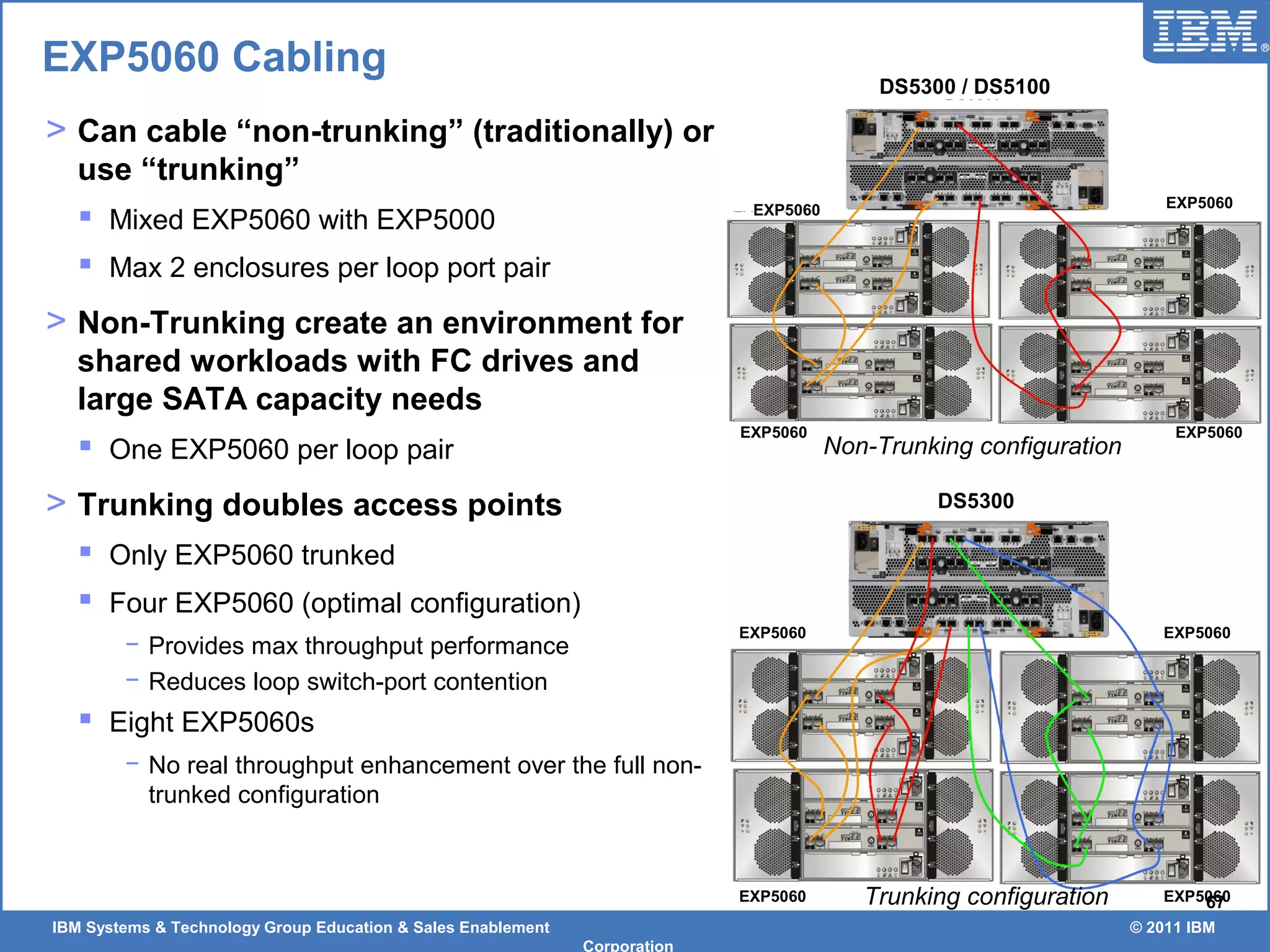

EXP5060 Cabling
> Can cable “non-trunking” (traditionally) or
use “trunking”
 Mixed EXP5060 with EXP5000
 Max 2 enclosures per loop port pair
> Non-Trunking create an environment for
shared workloads with FC drives and
large SATA capacity needs
 One EXP5060 per loop pair
> Trunking doubles access points
 Only EXP5060 trunked
 Four EXP5060 (optimal configuration)
− Provides max throughput performance
− Reduces loop switch-port contention
 Eight EXP5060s
− No real throughput enhancement over the full non-
trunked configuration
Trunking configuration
EXP5060
EXP5060
EXP5060
EXP5060
DS5300
EXP5060
Non-Trunking configuration
DS5300 / DS5100
EXP5060
EXP5060
EXP5060

Corporation
68
EXP5060 Non-Trunk Cabling - 8 Enclosures
Stack 1 Stack 3 Stack 5 Stack 7
Stack 2 Stack 4 Stack 6 Stack 8

Corporation
69
EXP5060 Trunk Cabling - 4 Enclosures

Corporation
70
> * IBM System Storage Management Software *
> Resources

Corporation
71

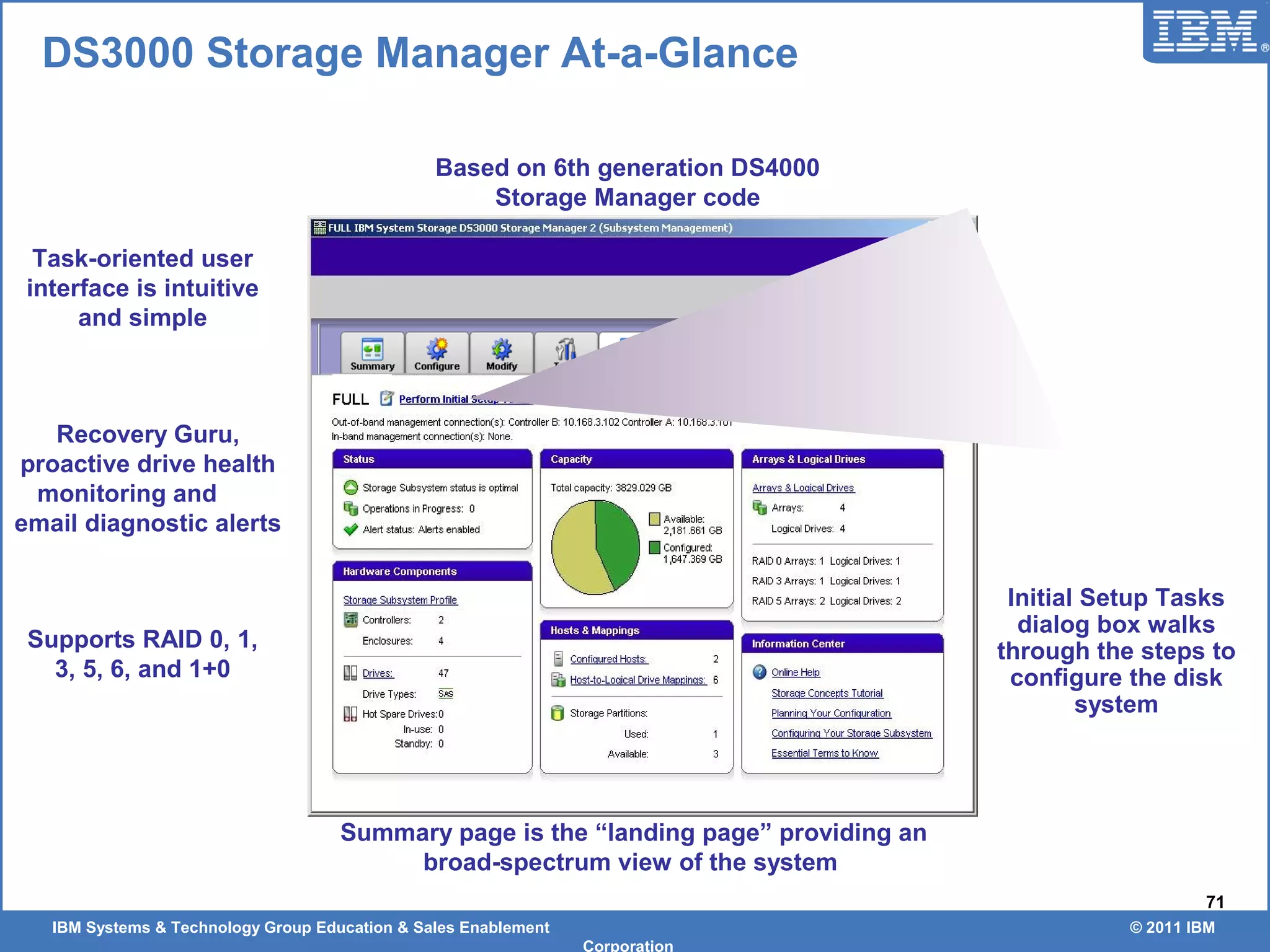

DS3000 Storage Manager At-a-Glance
Based on 6th generation DS4000
Storage Manager code
Task-oriented user
interface is intuitive
and simple
Summary page is the “landing page” providing an
broad-spectrum view of the system
Recovery Guru,
proactive drive health
monitoring and
email diagnostic alerts
Initial Setup Tasks
dialog box walks
through the steps to
configure the disk
system
Supports RAID 0, 1,
3, 5, 6, and 1+0

Corporation
72

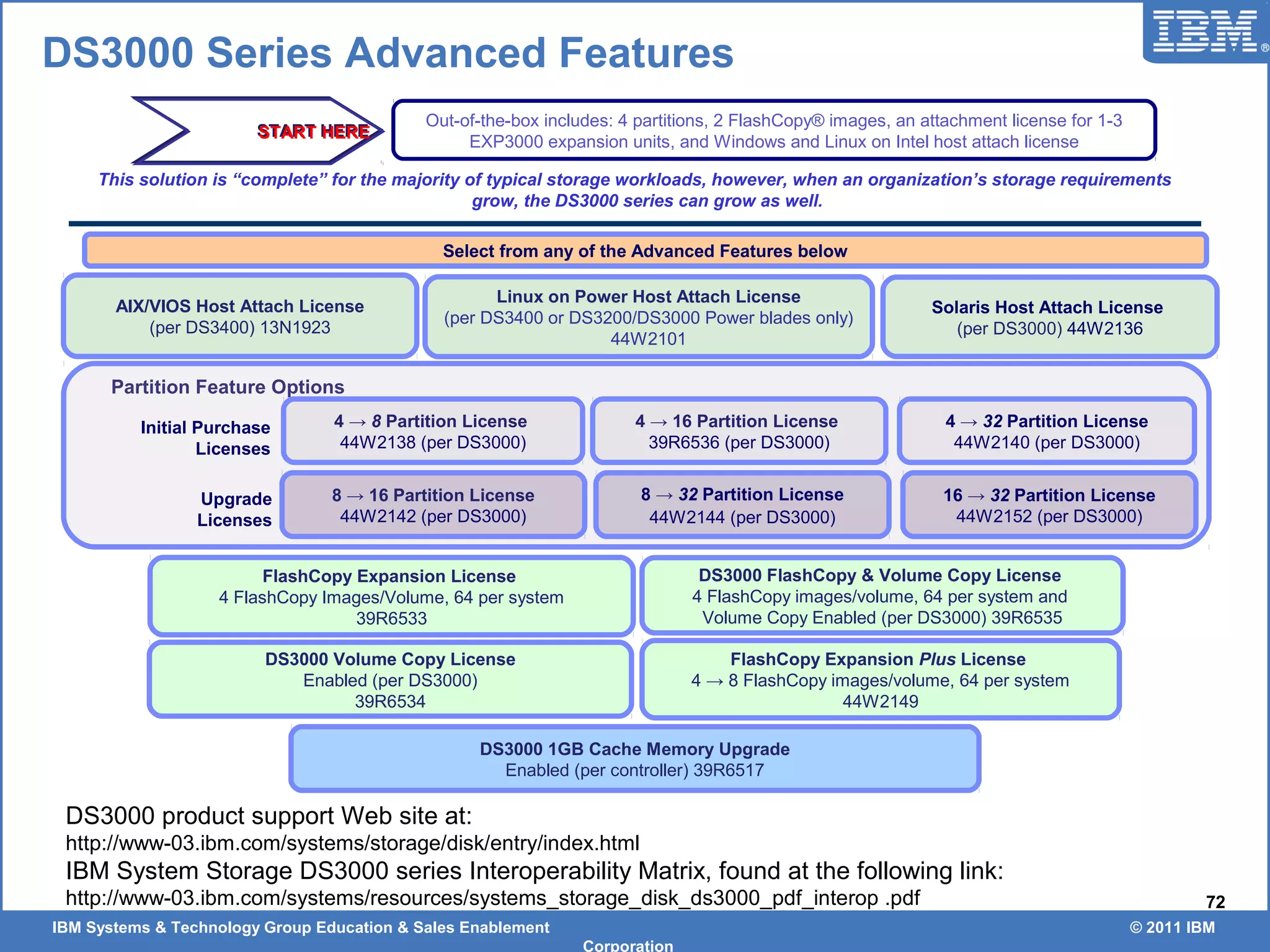

DS3000 Series Advanced Features
Partition Feature Options
DS3000 1GB Cache Memory Upgrade
Enabled (per controller) 39R6517
DS3000 FlashCopy & Volume Copy License
4 FlashCopy images/volume, 64 per system and
Volume Copy Enabled (per DS3000) 39R6535
DS3000 Volume Copy License
Enabled (per DS3000)
39R6534
FlashCopy Expansion Plus License
4 → 8 FlashCopy images/volume, 64 per system
44W2149
4 → 8 Partition License
44W2138 (per DS3000)
Out-of-the-box includes: 4 partitions, 2 FlashCopy® images, an attachment license for 1-3
EXP3000 expansion units, and Windows and Linux on Intel host attach license
This solution is “complete” for the majority of typical storage workloads, however, when an organization’s storage requirements
grow, the DS3000 series can grow as well.
Select from any of the Advanced Features below
AIX/VIOS Host Attach License
(per DS3400) 13N1923
Linux on Power Host Attach License
(per DS3400 or DS3200/DS3000 Power blades only)
44W2101
Solaris Host Attach License
(per DS3000) 44W2136
44W2140 (per DS3000)
44W2142 (per DS3000)
44W2152 (per DS3000)
FlashCopy Expansion License
4 FlashCopy Images/Volume, 64 per system
39R6533
39R6536 (per DS3000)
START HERESTART HERE
Initial Purchase
Licenses
Upgrade
Licenses
44W2144 (per DS3000)
DS3000 product support Web site at:
http://www-03.ibm.com/systems/storage/disk/entry/index.html
IBM System Storage DS3000 series Interoperability Matrix, found at the following link:
http://www-03.ibm.com/systems/resources/systems_storage_disk_ds3000_pdf_interop .pdf

Corporation
73

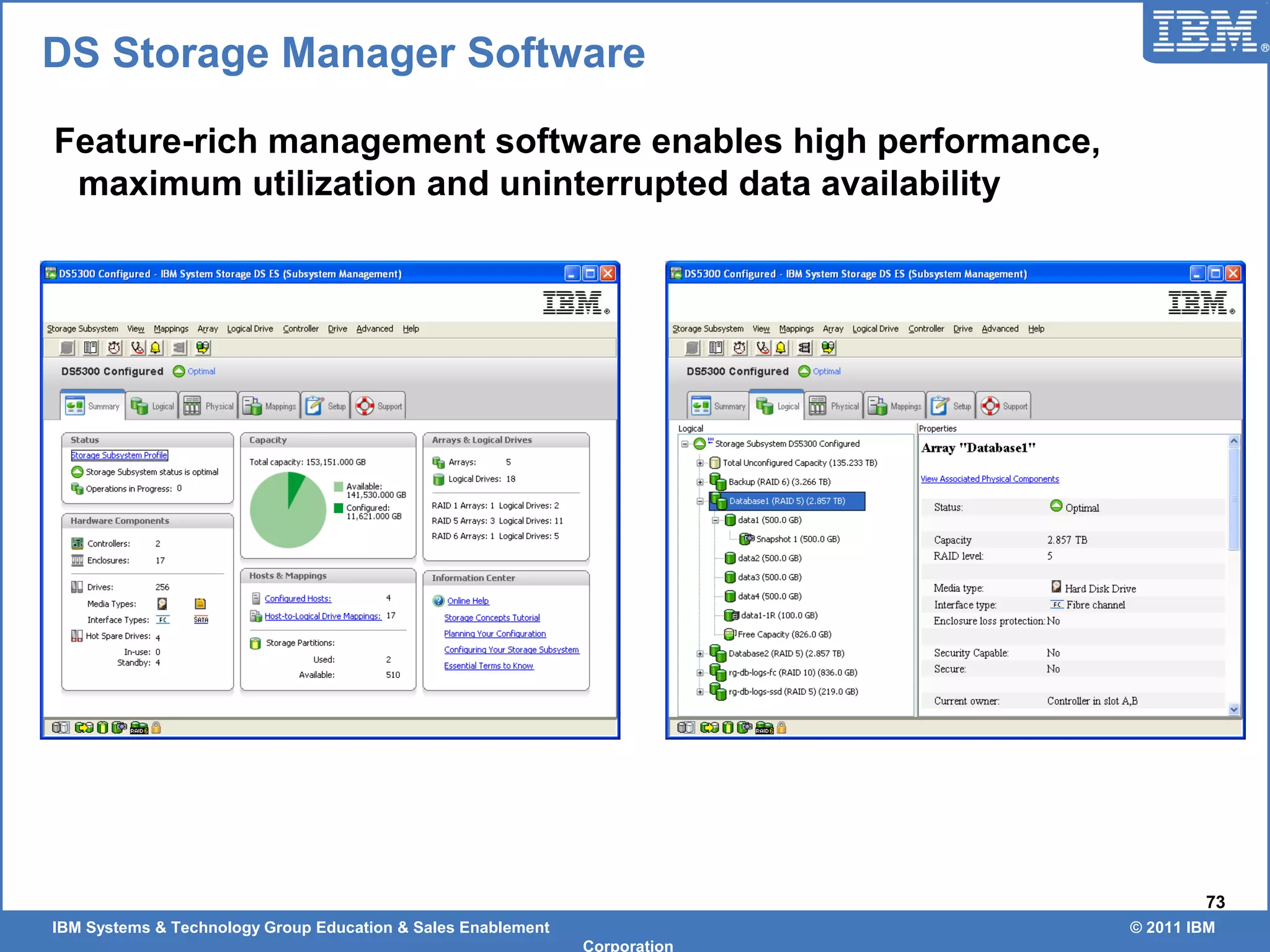

DS Storage Manager Software
Feature-rich management software enables high performance,
maximum utilization and uninterrupted data availability

Corporation
74

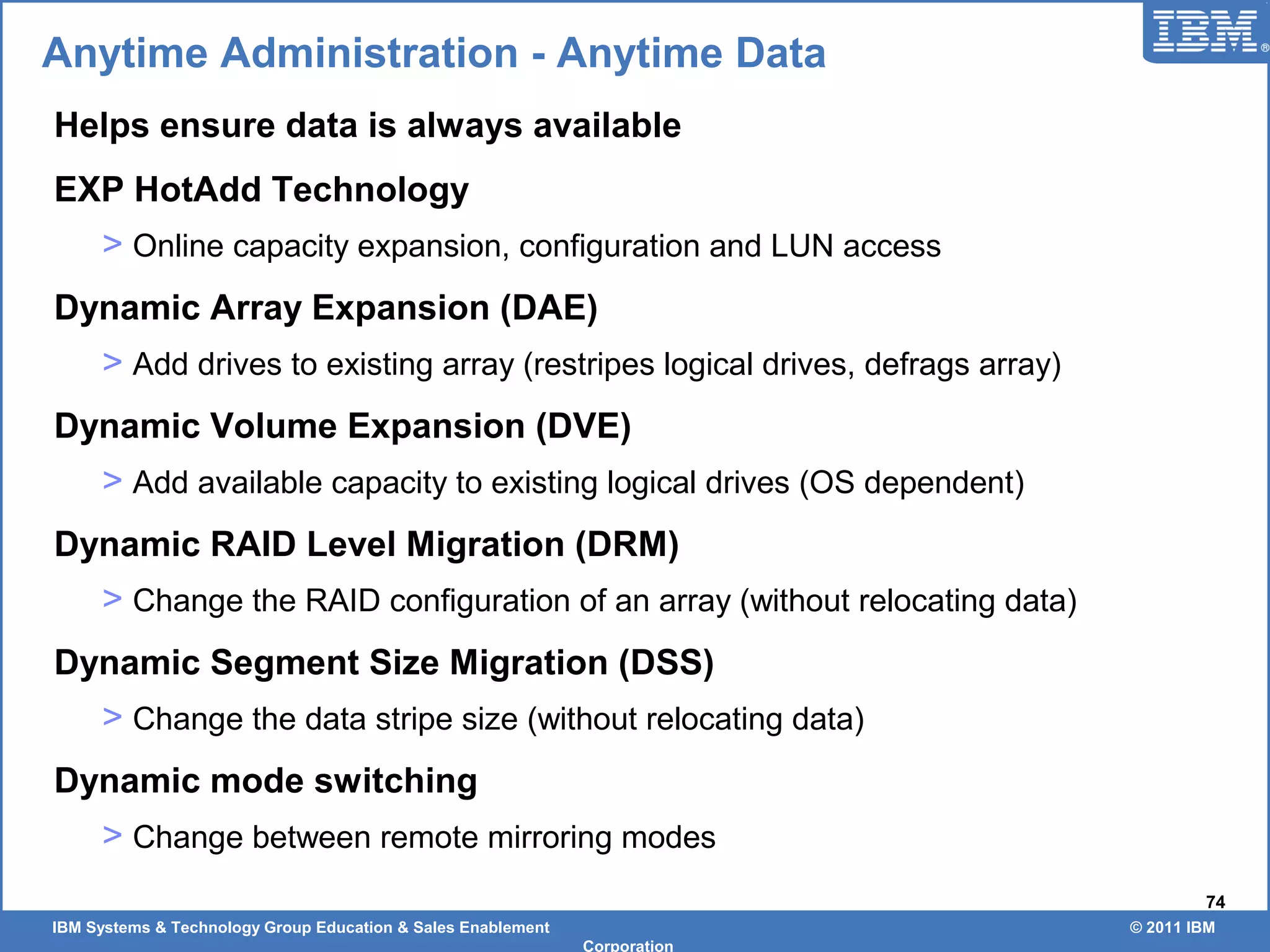

Anytime Administration - Anytime Data
Helps ensure data is always available
EXP HotAdd Technology
> Online capacity expansion, configuration and LUN access
Dynamic Array Expansion (DAE)
> Add drives to existing array (restripes logical drives, defrags array)
Dynamic Volume Expansion (DVE)
> Add available capacity to existing logical drives (OS dependent)
Dynamic RAID Level Migration (DRM)
> Change the RAID configuration of an array (without relocating data)
Dynamic Segment Size Migration (DSS)
> Change the data stripe size (without relocating data)
Dynamic mode switching
> Change between remote mirroring modes

Corporation
75

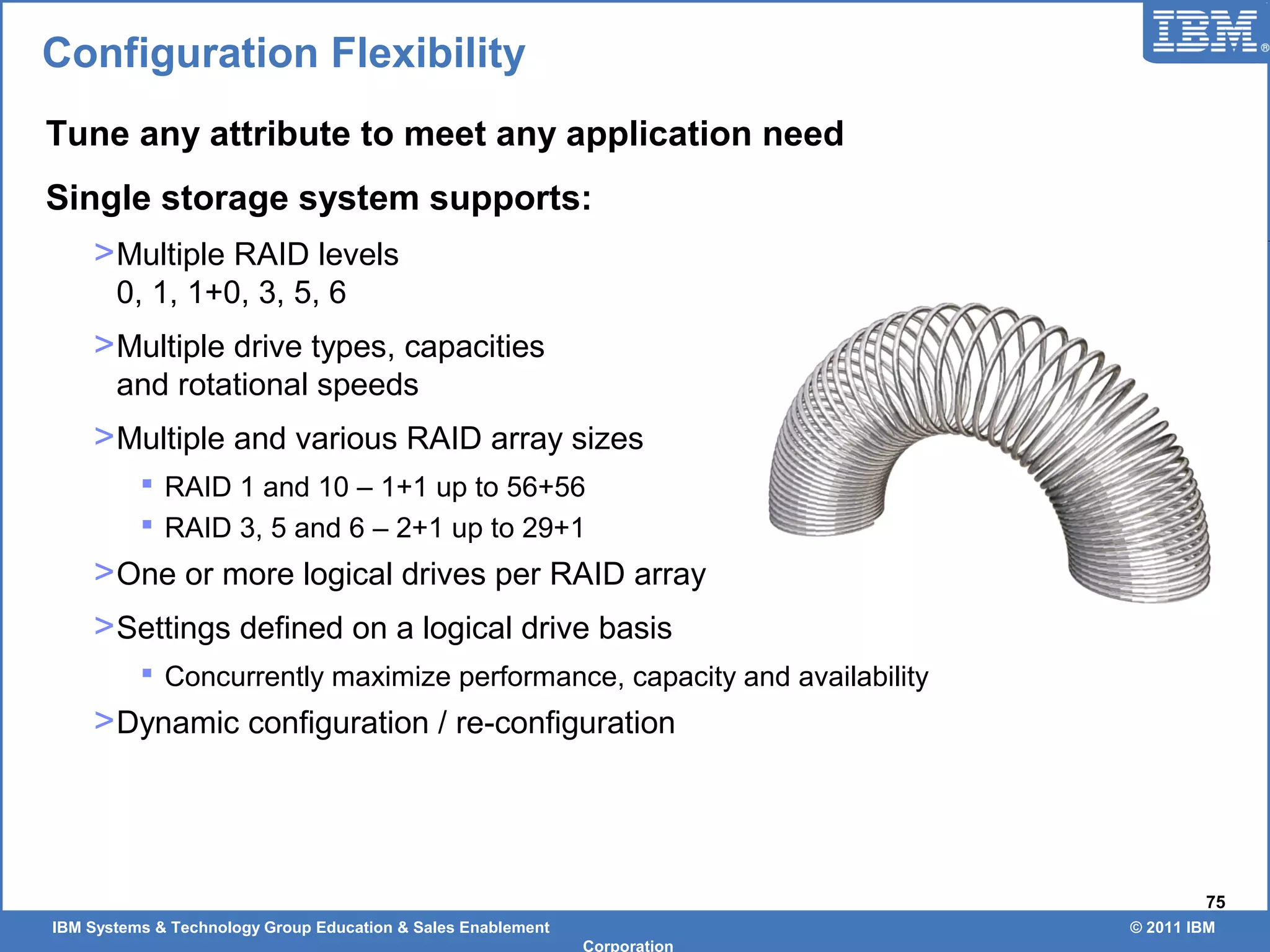

Configuration Flexibility
Tune any attribute to meet any application need
Single storage system supports:
>Multiple RAID levels
0, 1, 1+0, 3, 5, 6
>Multiple drive types, capacities
and rotational speeds
>Multiple and various RAID array sizes
 RAID 1 and 10 – 1+1 up to 56+56
 RAID 3, 5 and 6 – 2+1 up to 29+1
>One or more logical drives per RAID array
>Settings defined on a logical drive basis
 Concurrently maximize performance, capacity and availability
>Dynamic configuration / re-configuration

Corporation
76

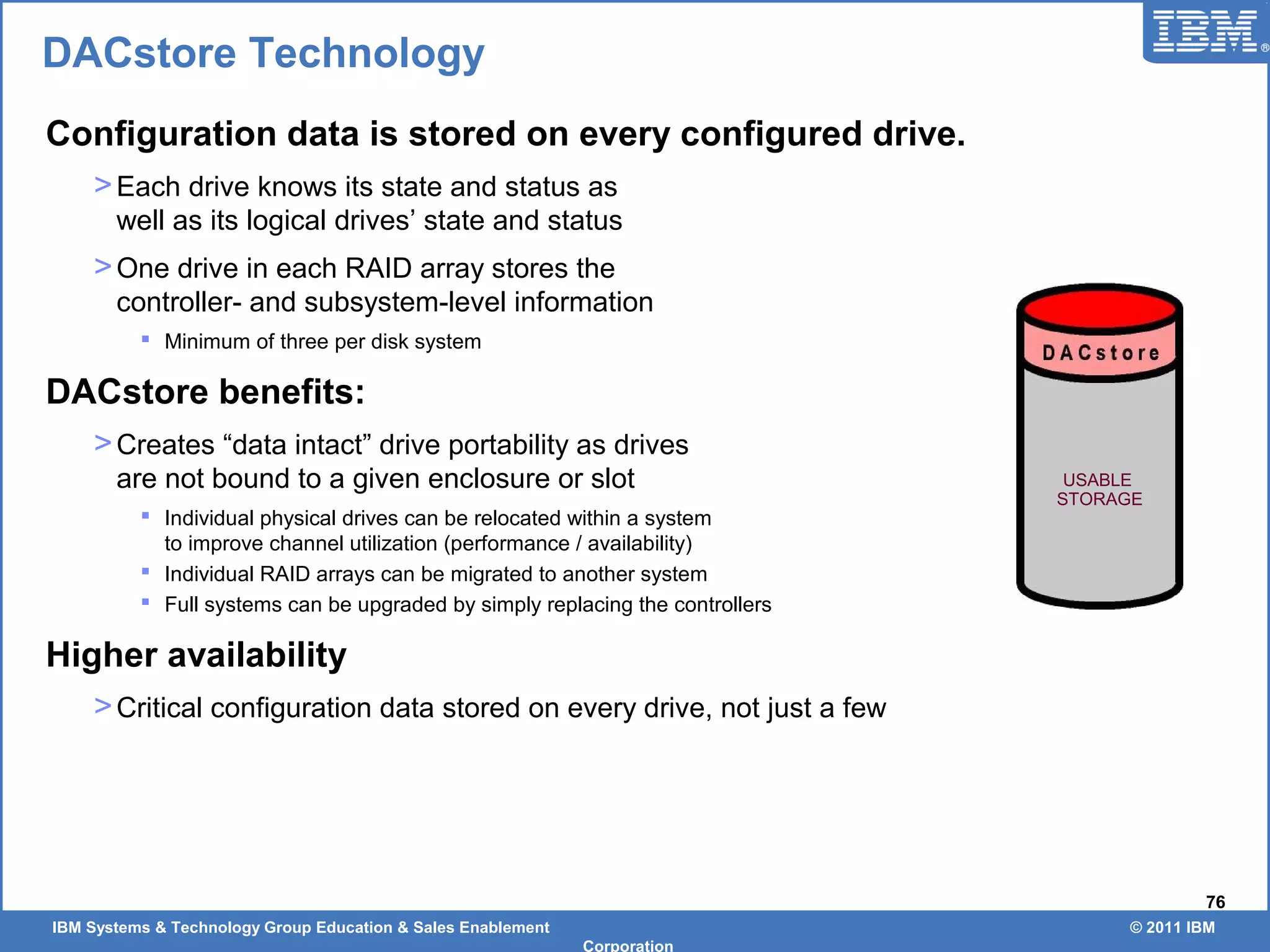

DACstore Technology
Configuration data is stored on every configured drive.
>Each drive knows its state and status as
well as its logical drives’ state and status
>One drive in each RAID array stores the
controller- and subsystem-level information
 Minimum of three per disk system
DACstore benefits:
>Creates “data intact” drive portability as drives
are not bound to a given enclosure or slot
 Individual physical drives can be relocated within a system
to improve channel utilization (performance / availability)
 Individual RAID arrays can be migrated to another system
 Full systems can be upgraded by simply replacing the controllers
Higher availability
>Critical configuration data stored on every drive, not just a few
USABLE
STORAGE

Corporation
77
> Creates multiple virtual systems from a single
disk system
> Logical partitioning provides flexibility
> Volume-to-LUN mapping defines what host or
host group will have access to the volume
> Four partitions offered standard with 8, 16, 32
or 64 (DS3500 only) partitions premium feature
partition licenses
 Accommodates growth and supports a
greater number of hosts sharing a single
system
> Partition access is maintained
at the controller level
> Heterogeneous host support enables
consolidation in multi-platform environments
(DS3500 only)
> Storage-based implementation ensures data
integrity

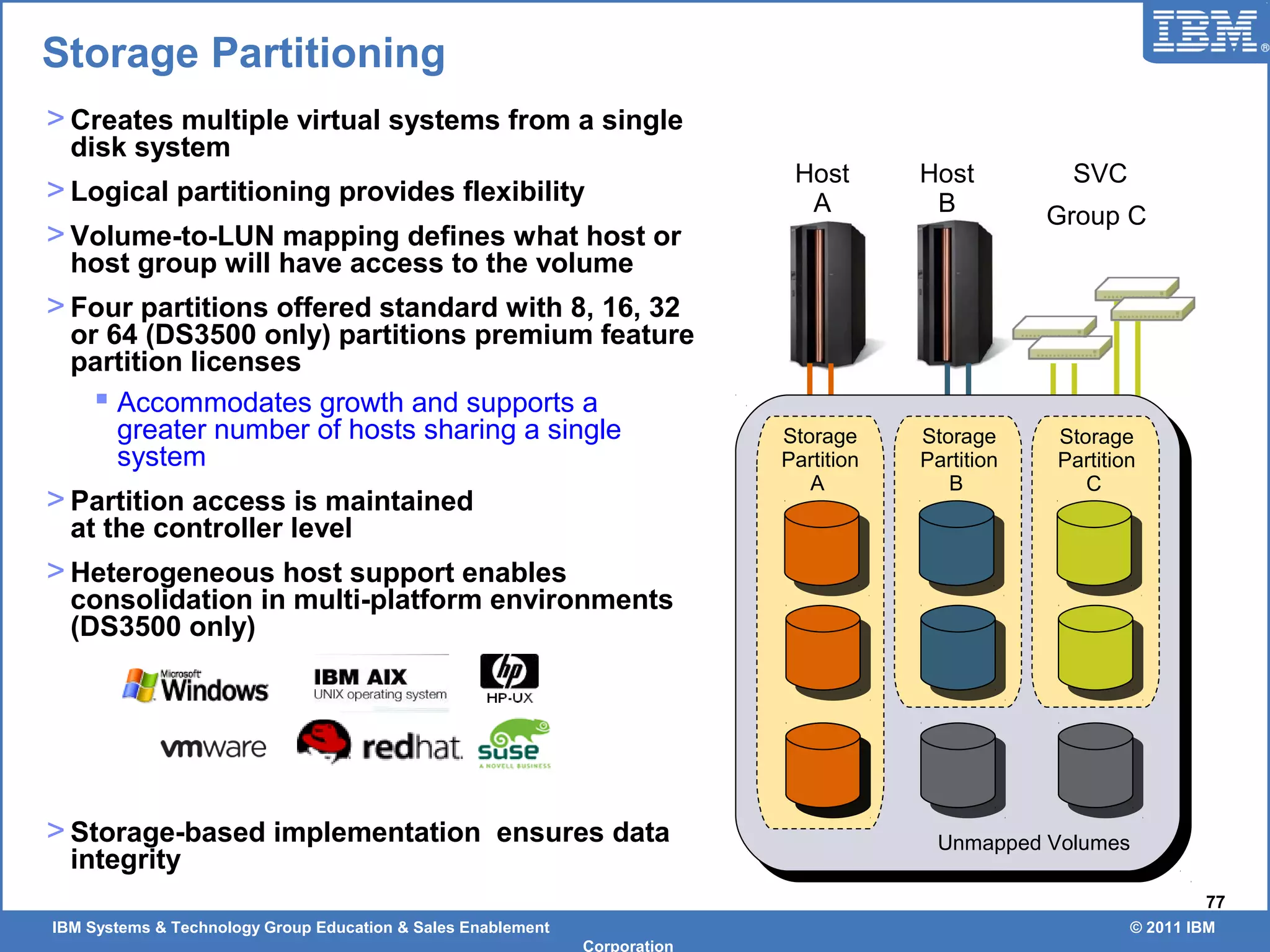

Storage Partitioning
Host
A
Host
B
SVC
Group C
LD
2
LD
2
Storage
Partition
A
Storage
Partition
B
Storage
Partition
C
Unmapped Volumes

Corporation
78

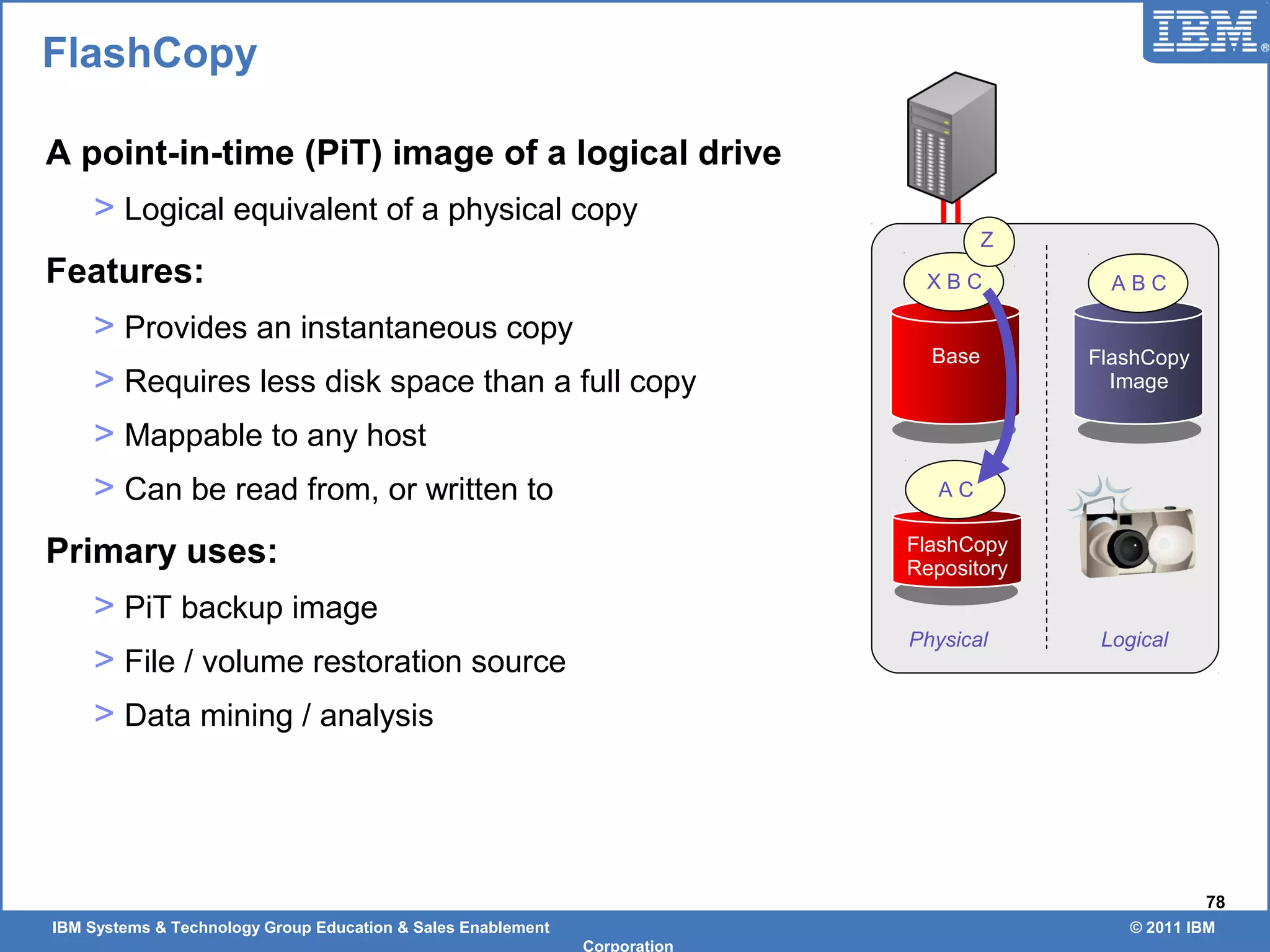

A point-in-time (PiT) image of a logical drive
> Logical equivalent of a physical copy
Features:
> Provides an instantaneous copy
> Requires less disk space than a full copy
> Mappable to any host
> Can be read from, or written to
Primary uses:
> PiT backup image
> File / volume restoration source
> Data mining / analysis
FlashCopy
Base
FlashCopy
Repository
FlashCopy
X B C A B C
Z
A C
Physical Logical

Corporation
79

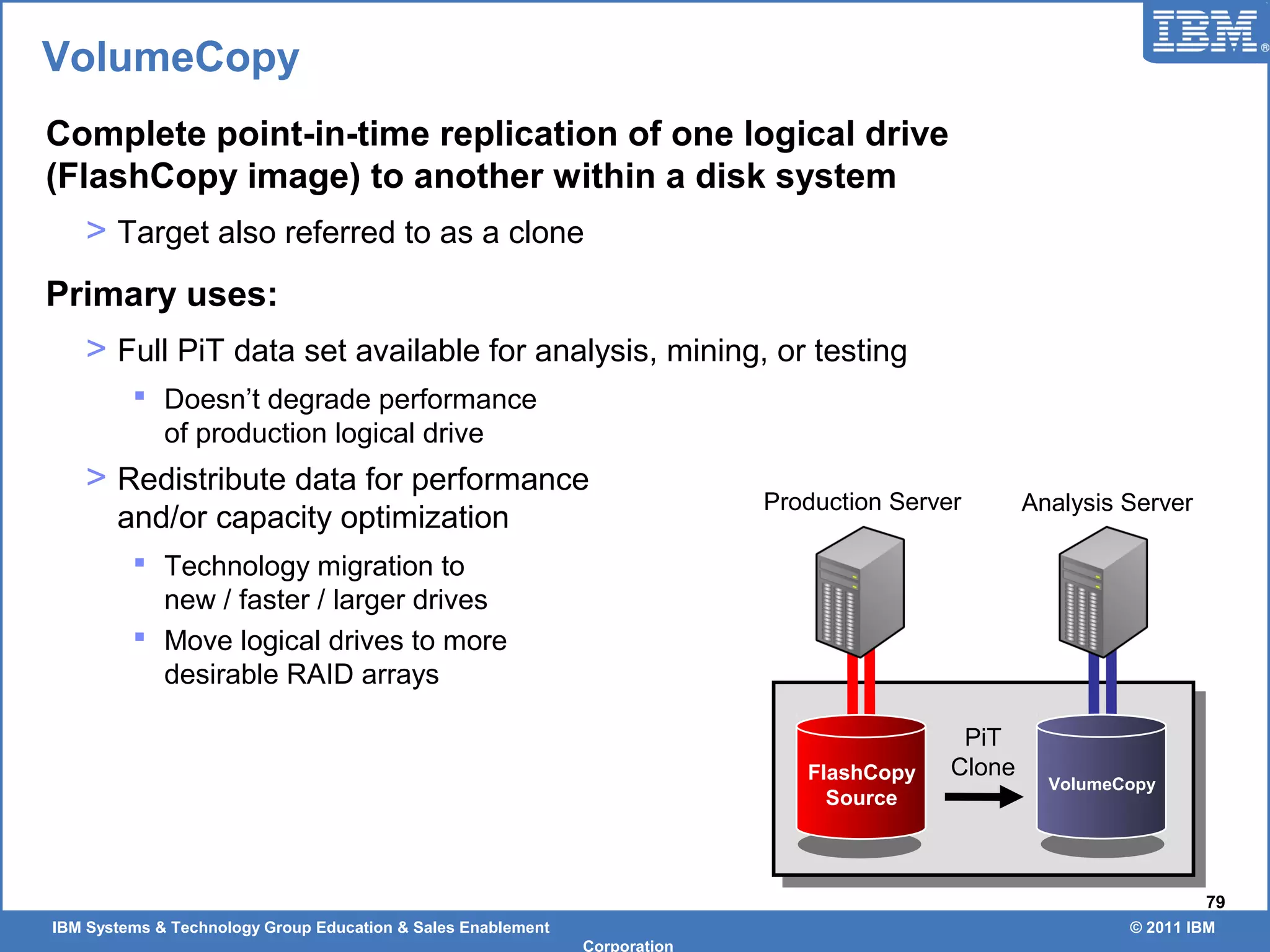

VolumeCopy
Complete point-in-time replication of one logical drive
(FlashCopy image) to another within a disk system
> Target also referred to as a clone
Primary uses:
> Full PiT data set available for analysis, mining, or testing
 Doesn’t degrade performance
of production logical drive
> Redistribute data for performance
and/or capacity optimization
 Technology migration to
new / faster / larger drives
 Move logical drives to more
desirable RAID arrays
Production Server Analysis Server
PiT
CloneFlashCopy
Source
VolumeCopy

Corporation
80
Storage-based data replication
> Designed to provide ongoing, real-time replication of a logical drive from one
storage subsystem to another
Three mirroring modes
> Metro Mirror
> Global Copy
> Global Mirror
Primary uses:
> Disaster recovery
> Centralize backup data
> Centralize data mining / analysis

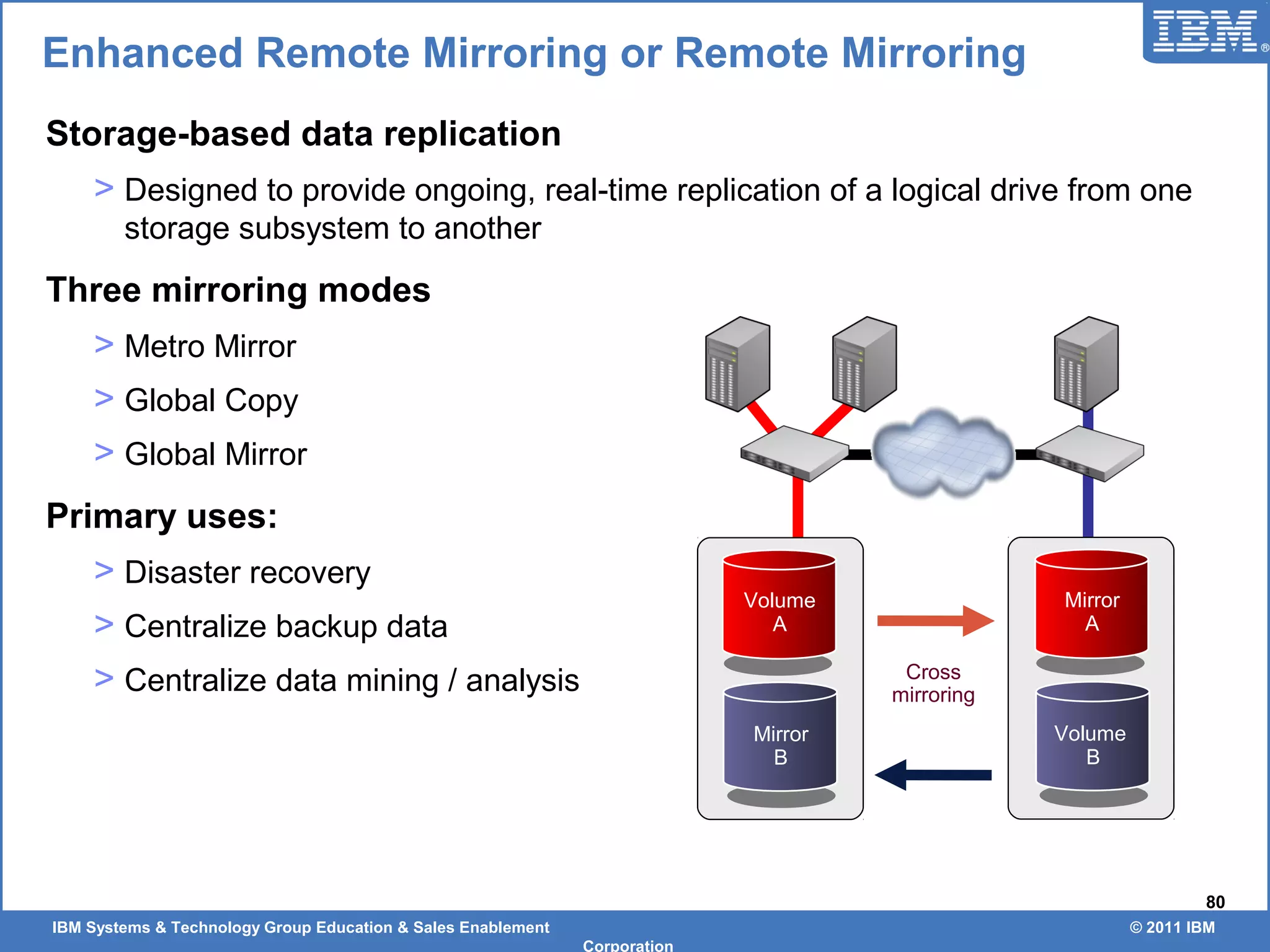

Enhanced Remote Mirroring or Remote Mirroring
Cross
mirroring
Volume
A
Mirror
B
Mirror
A
Volume
B

Corporation
81

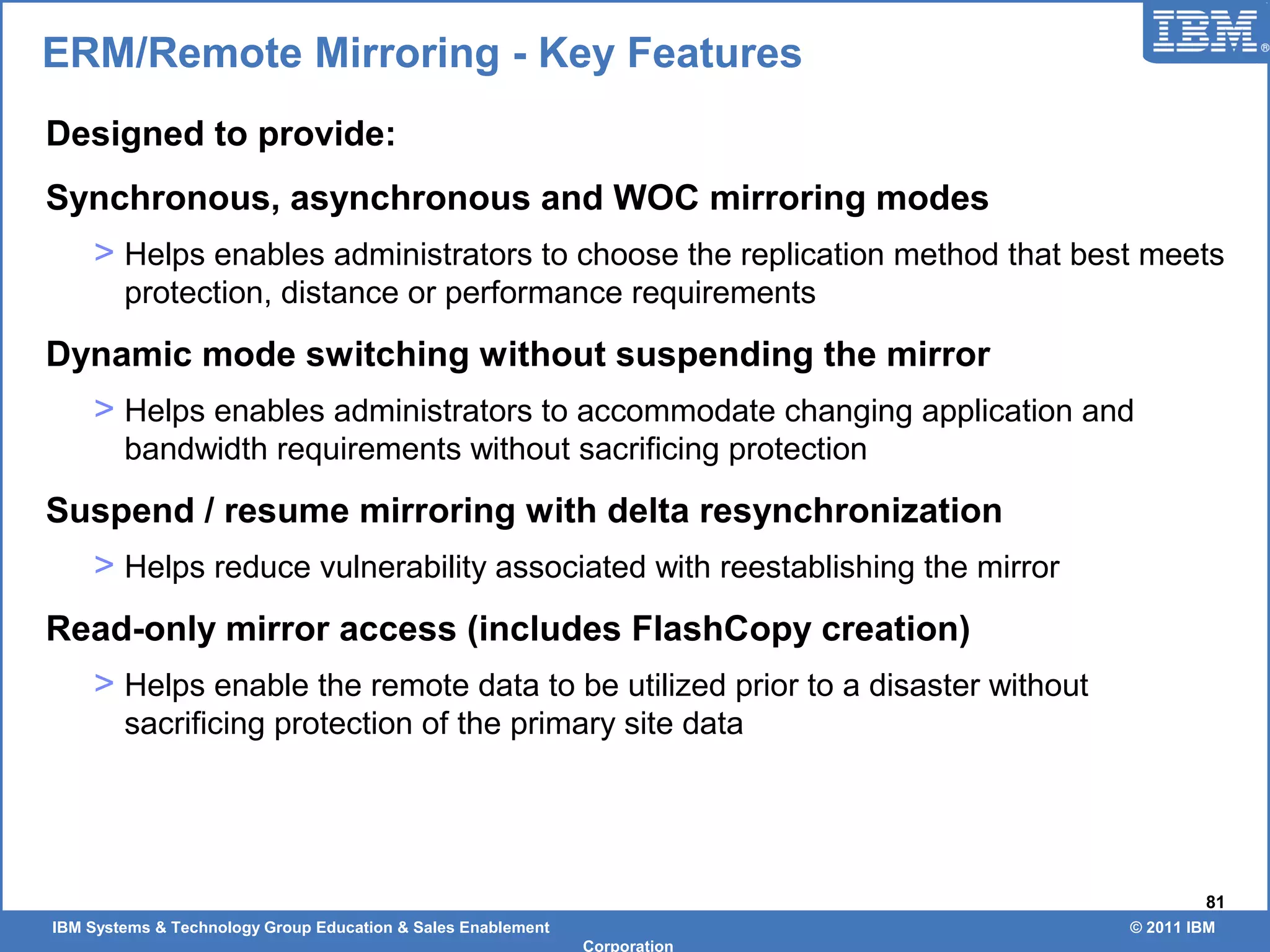

ERM/Remote Mirroring - Key Features
Designed to provide:
Synchronous, asynchronous and WOC mirroring modes
> Helps enables administrators to choose the replication method that best meets
protection, distance or performance requirements
Dynamic mode switching without suspending the mirror
> Helps enables administrators to accommodate changing application and
bandwidth requirements without sacrificing protection
Suspend / resume mirroring with delta resynchronization
> Helps reduce vulnerability associated with reestablishing the mirror
Read-only mirror access (includes FlashCopy creation)
> Helps enable the remote data to be utilized prior to a disaster without
sacrificing protection of the primary site data

Corporation
82
 DS3000 Entry-Level Disk Storage Systems Introduction
− Tiered Storage Support / Drive Intermix
 DS5000 Series Mid-range Disk Storage Systems Introduction
− EXP520 Expansion Enclosures
− Tiered Storage Support / Drive Intermix
> IBM DS3000 Storage Manager
> IBM DS Storage Manager
> * Resources*

Corporation
83
Your one stop shop for all DS3000 and DS5000 collaterals!
www.ibmdsseries.com
> Products
> Solutions
> Competitive
> Selling
> Services
> Tools
> Training
DS Series Portal
Just register one time and you will have access to all IBM DS5000 and DS3500 presentations, sales tools and DS Storage
Manager simulators at the tip of your fingertips!

Corporation
84

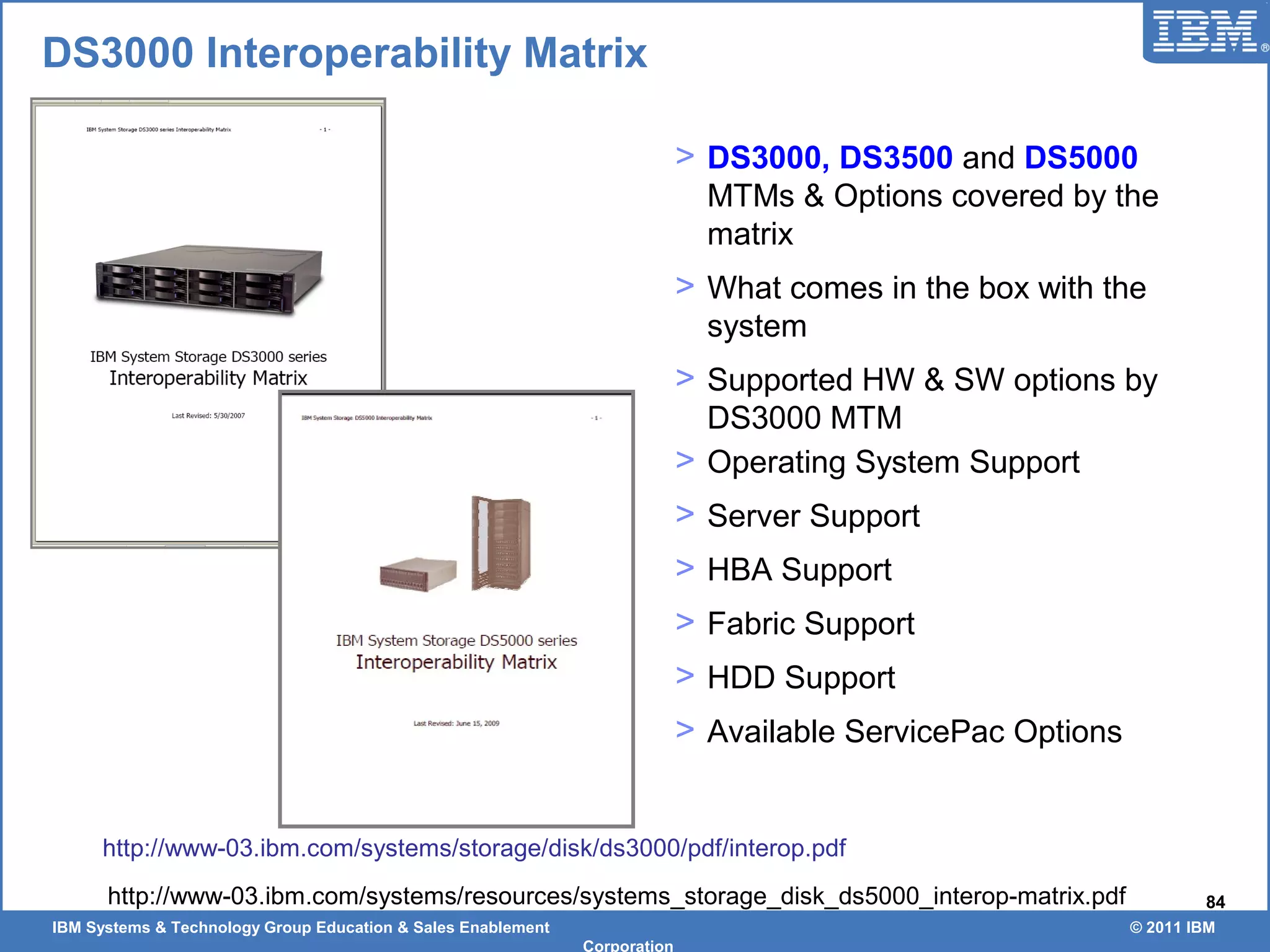

DS3000 Interoperability Matrix
> DS3000, DS3500 and DS5000
MTMs & Options covered by the
matrix
> What comes in the box with the
system
> Supported HW & SW options by
DS3000 MTM
> Operating System Support
> Server Support
> HBA Support
> Fabric Support
> HDD Support
> Available ServicePac Options
http://www-03.ibm.com/systems/storage/disk/ds3000/pdf/interop.pdf
http://www-03.ibm.com/systems/resources/systems_storage_disk_ds5000_interop-matrix.pdf

Corporation
85

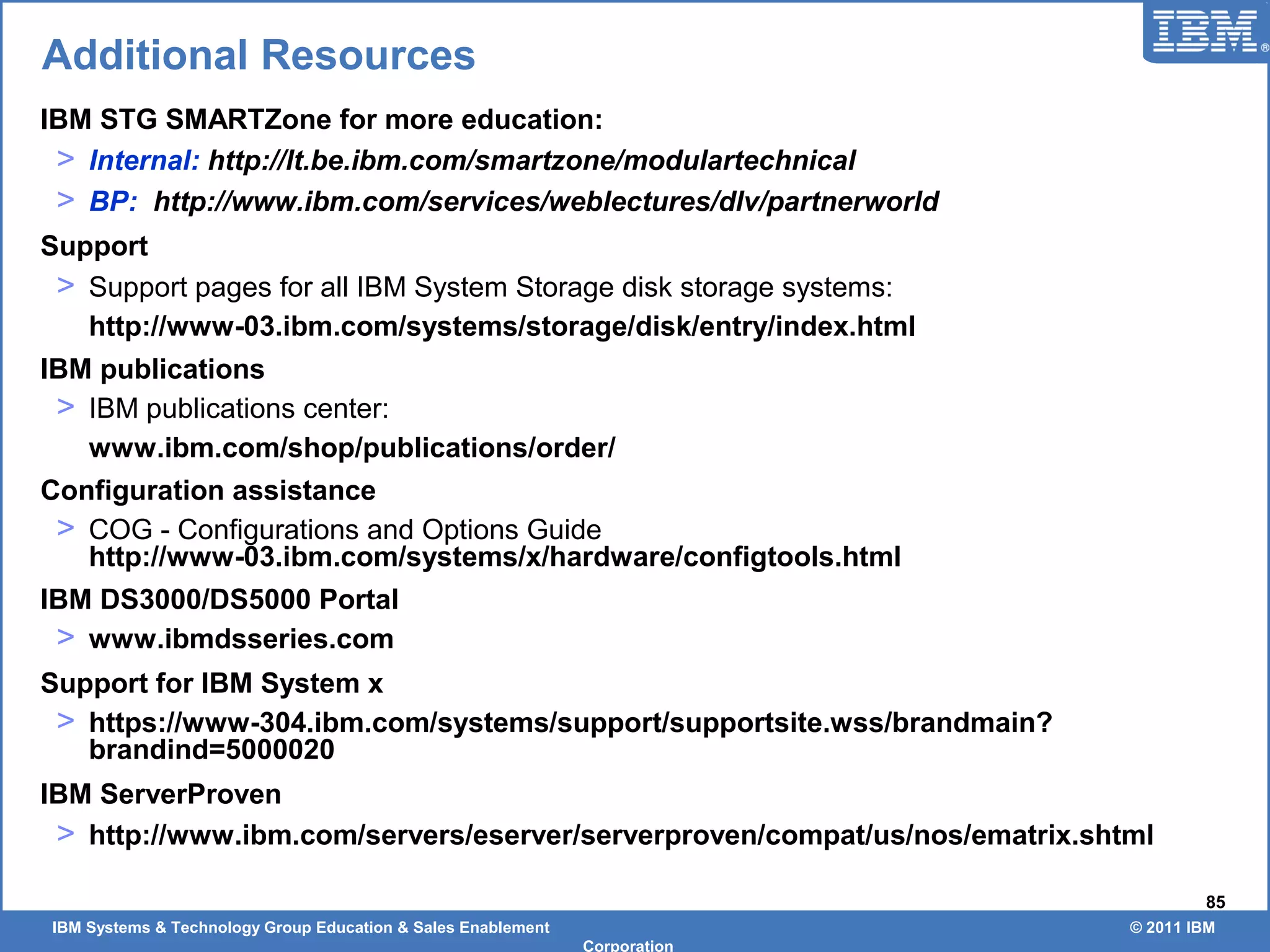

Additional Resources
IBM STG SMARTZone for more education:
> Internal: http://lt.be.ibm.com/smartzone/modulartechnical
> BP: http://www.ibm.com/services/weblectures/dlv/partnerworld
Support
> Support pages for all IBM System Storage disk storage systems:
http://www-03.ibm.com/systems/storage/disk/entry/index.html
IBM publications
> IBM publications center:
www.ibm.com/shop/publications/order/
Configuration assistance
> COG - Configurations and Options Guide
http://www-03.ibm.com/systems/x/hardware/configtools.html
IBM DS3000/DS5000 Portal
> www.ibmdsseries.com
Support for IBM System x
> https://www-304.ibm.com/systems/support/supportsite.wss/brandmain?
brandind=5000020
IBM ServerProven
> http://www.ibm.com/servers/eserver/serverproven/compat/us/nos/ematrix.shtml

Corporation
86
Topic 5 - Summary
Having completed this topic, you should be able to:
> Identify IBM Disk Storage System product line
> Identify the storage positioning of each of the products
> Discuss the features of the IBM Entry-level Disk Storage System
> Discuss the features of the IBM Mid-range Disk Storage System
> Summarize key attributes of each storage family products

Corporation
87

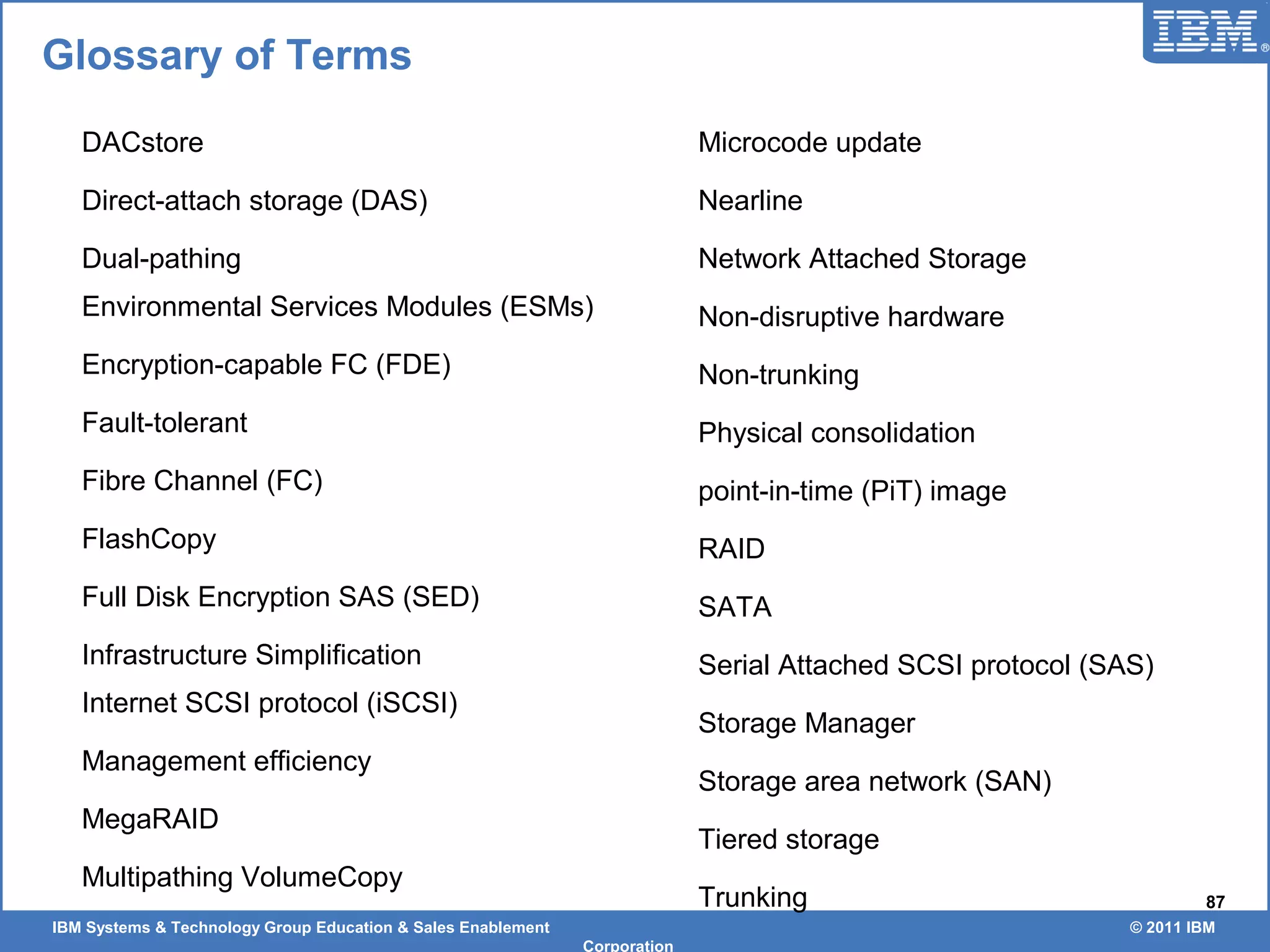

Glossary of Terms
DACstore
Direct-attach storage (DAS)
Dual-pathing
Environmental Services Modules (ESMs)
Encryption-capable FC (FDE)
Fault-tolerant
Fibre Channel (FC)
FlashCopy
Full Disk Encryption SAS (SED)
Infrastructure Simplification
Internet SCSI protocol (iSCSI)
Management efficiency
MegaRAID
Multipathing VolumeCopy
Microcode update
Nearline
Network Attached Storage
Non-disruptive hardware
Non-trunking
Physical consolidation
point-in-time (PiT) image
RAID
SATA
Serial Attached SCSI protocol (SAS)
Storage Manager
Storage area network (SAN)
Tiered storage
Trunking

Corporation
88
IBM, the IBM logo, the e-business logo, Active Memory, Predictive Failure Analysis, ServeRAID, System i, System Storage, System x, Xcelerated Memory Technology, and
XArchitecture
are trademarks of IBM Corporation in the United States and/or other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this
information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was published. Such
trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at http://ibm.com/legal/copytrade.shtml.
Intel, the Intel Logo, Itanium, ServerWorks, and Xeon are registered trademarks of Intel Corporation in the United States, other countries, or both.
Dell is a trademark of Dell, Inc. in the United States, other countries, or both.
HP is a trademark of Hewlett-Packard Development Company, L.P. in the United States, other countries, or both.
Linux is a registered trademark of Linux Torvalds in the United States, other countries, or both.
Microsoft, Hyper-V, SQL Server, and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States, other countries, or both.
Oracle is a registered trademark of Oracle Corporation and/or its affiliates.
Red Hat is a trademark of Red Hat, Inc.
SAP and all SAP logos are trademarks or registered trademarks of SAP AG in Germany and in several other countries.
TPC, TPC-C, tpmC, TPC-E and tpsE are trademarks of the Transaction Processing Performance Council.
UNIX is a registered trademark of The Open Group in the United States, other countries, or both.
VMware, VMworld, VMmark, and ESX are registered trademark of VMware, Inc. in the United States and/or other jurisdictions.
All other company/product names and service marks may be trademarks or registered trademarks of their respective companies.
IBM reserves the right to change specifications or other product information without notice. References in this publication to IBM products or services do not imply that IBM intends to
make them available in all countries in which IBM operates. IBM PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or
implied warranties in certain transactions; therefore, this statement may not apply to you.
This publication may contain links to third party sites that are not under the control of or maintained by IBM. Access to any such third party site is at the user's own risk and IBM is not
responsible for the accuracy or reliability of any information, data, opinions, advice or statements made on these sites. IBM provides these links merely as a convenience and the
inclusion of such links does not imply an endorsement.
Information in this presentation concerning non-IBM products was obtained from the suppliers of these products, published announcement material or other publicly available sources.
IBM has not tested these products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of
non-IBM products should be addressed to the suppliers of those products.
Trademarks

Corporation
89
End of Presentation

Xtw01t5v011311 disk storage

More Related Content

What's hot

Viewers also liked

Similar to Xtw01t5v011311 disk storage

More from pgnguyen44

Recently uploaded

Xtw01t5v011311 disk storage

Editor's Notes
