1. C4090-959:
Enterprise
Storage Sales V3
Jason Wong
Global Knowledge

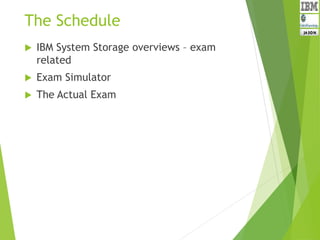

2. The Schedule
 IBM System Storage overviews – exam
related
 Exam Simulator
 The Actual Exam

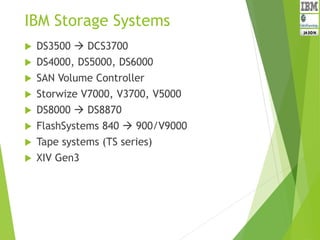

3. IBM Storage Systems
 DS3500  DCS3700
 DS4000, DS5000, DS6000
 SAN Volume Controller
 Storwize V7000, V3700, V5000
 DS8000  DS8870
 FlashSystems 840  900/V9000
 Tape systems (TS series)
 XIV Gen3

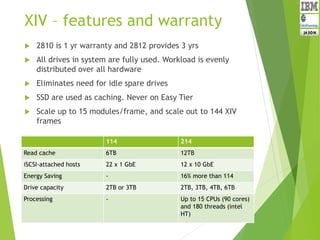

4. XIV – features and warranty
 2810 is 1 yr warranty and 2812 provides 3 yrs
 All drives in system are fully used. Workload is evenly
distributed over all hardware
 Eliminates need for idle spare drives
 SSD are used as caching. Never on Easy Tier
 Scale up to 15 modules/frame, and scale out to 144 XIV
frames
114 214
Read cache 6TB 12TB
iSCSI-attached hosts 22 x 1 GbE 12 x 10 GbE
Energy Saving - 16% more than 114
Drive capacity 2TB or 3TB 2TB, 3TB, 4TB, 6TB
Processing - Up to 15 CPUs (90 cores)
and 180 threads (intel
HT)

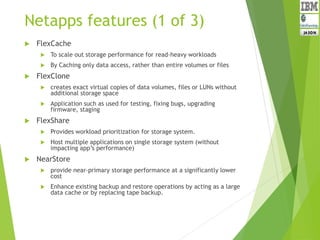

5. Netapps features (1 of 3)
 FlexCache
 To scale out storage performance for read-heavy workloads
 By Caching only data access, rather than entire volumes or files
 FlexClone
 creates exact virtual copies of data volumes, files or LUNs without
additional storage space
 Application such as used for testing, fixing bugs, upgrading
firmware, staging
 FlexShare
 Provides workload prioritization for storage system.
 Host multiple applications on single storage system (without
impacting app’s performance)
 NearStore
 provide near-primary storage performance at a significantly lower
cost
 Enhance existing backup and restore operations by acting as a large
data cache or by replacing tape backup.

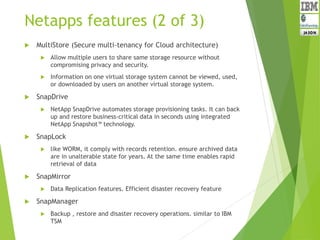

6. Netapps features (2 of 3)
 MultiStore (Secure multi-tenancy for Cloud architecture)
 Allow multiple users to share same storage resource without
compromising privacy and security.
 Information on one virtual storage system cannot be viewed, used,
or downloaded by users on another virtual storage system.
 SnapDrive
 NetApp SnapDrive automates storage provisioning tasks. It can back
up and restore business-critical data in seconds using integrated
NetApp Snapshot™ technology.
 SnapLock
 like WORM, it comply with records retention. ensure archived data
are in unalterable state for years. At the same time enables rapid
retrieval of data
 SnapMirror
 Data Replication features. Efficient disaster recovery feature
 SnapManager
 Backup , restore and disaster recovery operations. similar to IBM
TSM

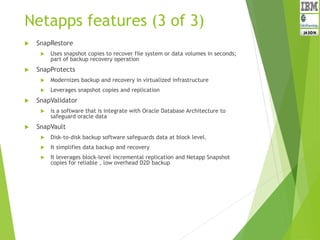

7. Netapps features (3 of 3)
 SnapRestore
 Uses snapshot copies to recover file system or data volumes in seconds;
part of backup recovery operation
 SnapProtects
 Modernizes backup and recovery in virtualized infrastructure
 Leverages snapshot copies and replication
 SnapValidator
 is a software that is integrate with Oracle Database Architecture to
safeguard oracle data
 SnapVault
 Disk-to-disk backup software safeguards data at block level.
 It simplifies data backup and recovery
 It leverages block-level incremental replication and Netapp Snapshot
copies for reliable , low overhead D2D backup

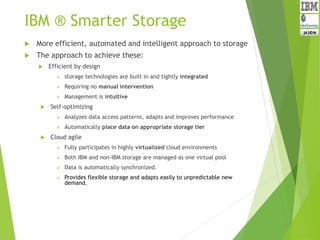

8. IBM ® Smarter Storage
 More efficient, automated and intelligent approach to storage
 The approach to achieve these:
 Efficient by design
 storage technologies are built in and tightly integrated
 Requiring no manual intervention
 Management is intuitive
 Self-optimizing
 Analyzes data access patterns, adapts and improves performance
 Automatically place data on appropriate storage tier
 Cloud agile
 Fully participates in highly virtualized cloud environments
 Both IBM and non-IBM storage are managed as one virtual pool
 Data is automatically synchronized.
 Provides flexible storage and adapts easily to unpredictable new
demand.

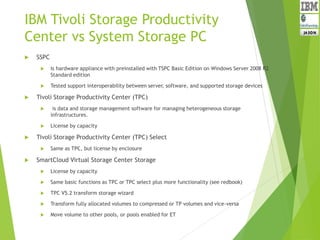

9. IBM Tivoli Storage Productivity
Center vs System Storage PC
 SSPC
 Is hardware appliance with preinstalled with TSPC Basic Edition on Windows Server 2008 R2
Standard edition
 Tested support interoperability between server, software, and supported storage devices
 Tivoli Storage Productivity Center (TPC)
 is data and storage management software for managing heterogeneous storage
infrastructures.
 License by capacity
 Tivoli Storage Productivity Center (TPC) Select
 Same as TPC, but license by enclosure
 SmartCloud Virtual Storage Center Storage
 License by capacity
 Same basic functions as TPC or TPC select plus more functionality (see redbook)
 TPC V5.2 transform storage wizard
 Transform fully allocated volumes to compressed or TP volumes and vice-versa
 Move volume to other pools, or pools enabled for ET

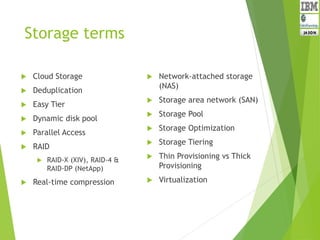

10. Storage terms
 Cloud Storage
 Deduplication
 Easy Tier
 Dynamic disk pool
 Parallel Access
 RAID
 RAID-X (XIV), RAID-4 &
RAID-DP (NetApp)
 Real-time compression
 Network-attached storage
(NAS)
 Storage area network (SAN)
 Storage Pool
 Storage Optimization
 Storage Tiering
 Thin Provisioning vs Thick
Provisioning
 Virtualization

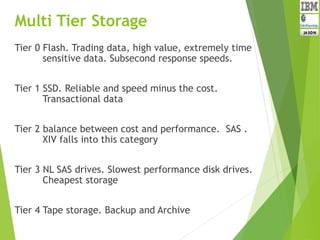

11. Multi Tier Storage
Tier 0 Flash. Trading data, high value, extremely time
sensitive data. Subsecond response speeds.
Tier 1 SSD. Reliable and speed minus the cost.
Transactional data
Tier 2 balance between cost and performance. SAS .
XIV falls into this category
Tier 3 NL SAS drives. Slowest performance disk drives.
Cheapest storage
Tier 4 Tape storage. Backup and Archive

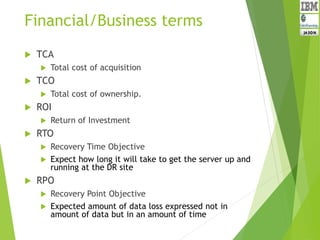

12. Financial/Business terms
 TCA
 Total cost of acquisition
 TCO
 Total cost of ownership.
 ROI
 Return of Investment
 RTO
 Recovery Time Objective
 Expect how long it will take to get the server up and
running at the DR site
 RPO
 Recovery Point Objective
 Expected amount of data loss expressed not in
amount of data but in an amount of time

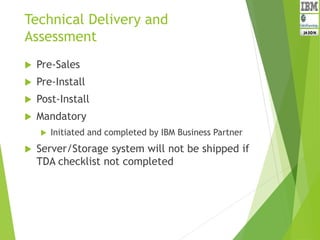

13. Technical Delivery and
Assessment
 Pre-Sales
 Pre-Install
 Post-Install
 Mandatory
 Initiated and completed by IBM Business Partner
 Server/Storage system will not be shipped if
TDA checklist not completed

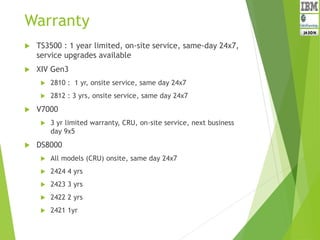

14. Warranty
 TS3500 : 1 year limited, on-site service, same-day 24x7,
service upgrades available
 XIV Gen3
 2810 : 1 yr, onsite service, same day 24x7
 2812 : 3 yrs, onsite service, same day 24x7
 V7000
 3 yr limited warranty, CRU, on-site service, next business
day 9x5
 DS8000
 All models (CRU) onsite, same day 24x7
 2424 4 yrs
 2423 3 yrs
 2422 2 yrs
 2421 1yr

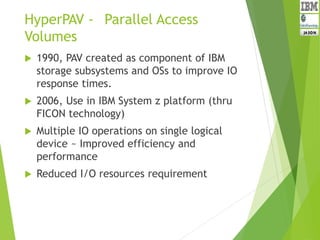

15. HyperPAV - Parallel Access
Volumes
 1990, PAV created as component of IBM
storage subsystems and OSs to improve IO
response times.
 2006, Use in IBM System z platform (thru
FICON technology)
 Multiple IO operations on single logical
device ~ Improved efficiency and
performance
 Reduced I/O resources requirement

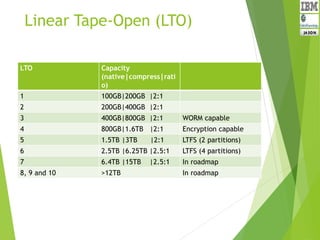

16. Linear Tape-Open (LTO)
LTO Capacity
(native|compress|rati
o)
1 100GB|200GB |2:1
2 200GB|400GB |2:1
3 400GB|800GB |2:1 WORM capable
4 800GB|1.6TB |2:1 Encryption capable
5 1.5TB |3TB |2:1 LTFS (2 partitions)
6 2.5TB |6.25TB |2.5:1 LTFS (4 partitions)
7 6.4TB |15TB |2.5:1 In roadmap
8, 9 and 10 >12TB In roadmap

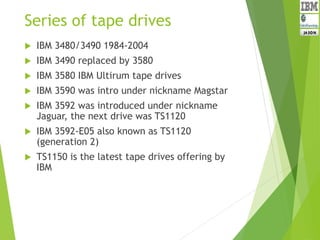

17. Series of tape drives
 IBM 3480/3490 1984-2004
 IBM 3490 replaced by 3580
 IBM 3580 IBM Ultirum tape drives
 IBM 3590 was intro under nickname Magstar
 IBM 3592 was introduced under nickname
Jaguar, the next drive was TS1120
 IBM 3592-E05 also known as TS1120
(generation 2)
 TS1150 is the latest tape drives offering by
IBM

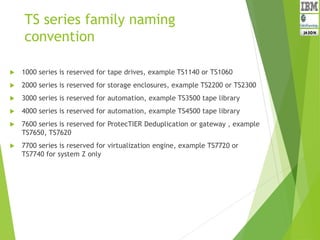

18. TS series family naming
convention
 1000 series is reserved for tape drives, example TS1140 or TS1060
 2000 series is reserved for storage enclosures, example TS2200 or TS2300
 3000 series is reserved for automation, example TS3500 tape library
 4000 series is reserved for automation, example TS4500 tape library
 7600 series is reserved for ProtecTIER Deduplication or gateway , example
TS7650, TS7620
 7700 series is reserved for virtualization engine, example TS7720 or
TS7740 for system Z only

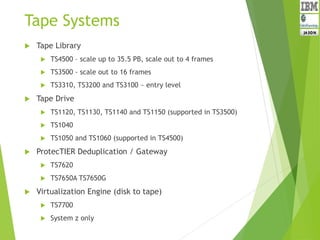

19. Tape Systems
 Tape Library
 TS4500 – scale up to 35.5 PB, scale out to 4 frames
 TS3500 - scale out to 16 frames
 TS3310, TS3200 and TS3100 ~ entry level
 Tape Drive
 TS1120, TS1130, TS1140 and TS1150 (supported in TS3500)
 TS1040
 TS1050 and TS1060 (supported in TS4500)
 ProtecTIER Deduplication / Gateway
 TS7620
 TS7650A TS7650G
 Virtualization Engine (disk to tape)
 TS7700
 System z only

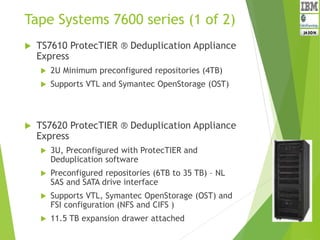

20. Tape Systems 7600 series (1 of 2)
 TS7610 ProtecTIER ® Deduplication Appliance
Express
 2U Minimum preconfigured repositories (4TB)
 Supports VTL and Symantec OpenStorage (OST)
 TS7620 ProtecTIER ® Deduplication Appliance
Express
 3U, Preconfigured with ProtecTIER and
Deduplication software
 Preconfigured repositories (6TB to 35 TB) – NL
SAS and SATA drive interface
 Supports VTL, Symantec OpenStorage (OST) and
FSI configuration (NFS and CIFS )
 11.5 TB expansion drawer attached

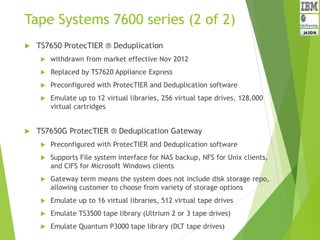

21. Tape Systems 7600 series (2 of 2)
 TS7650 ProtecTIER ® Deduplication
 withdrawn from market effective Nov 2012
 Replaced by TS7620 Appliance Express
 Preconfigured with ProtecTIER and Deduplication software
 Emulate up to 12 virtual libraries, 256 virtual tape drives, 128,000
virtual cartridges
 TS7650G ProtecTIER ® Deduplication Gateway
 Preconfigured with ProtecTIER and Deduplication software
 Supports File system interface for NAS backup, NFS for Unix clients,
and CIFS for Microsoft Windows clients
 Gateway term means the system does not include disk storage repo,
allowing customer to choose from variety of storage options
 Emulate up to 16 virtual libraries, 512 virtual tape drives
 Emulate TS3500 tape library (Ultrium 2 or 3 tape drives)
 Emulate Quantum P3000 tape library (DLT tape drives)

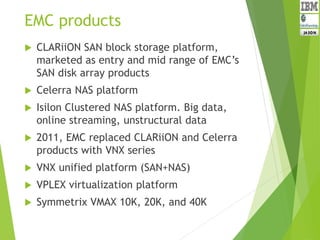

22. EMC products
 CLARiiON SAN block storage platform,
marketed as entry and mid range of EMC’s
SAN disk array products
 Celerra NAS platform
 Isilon Clustered NAS platform. Big data,
online streaming, unstructural data
 2011, EMC replaced CLARiiON and Celerra
products with VNX series
 VNX unified platform (SAN+NAS)
 VPLEX virtualization platform
 Symmetrix VMAX 10K, 20K, and 40K
