This document provides an overview of updates and new features in version 2011.2 of the XperiDesk software. Key additions include an improved Excel and file loading client that can fill all fields of entities, a new SQL database importer client, enhanced relationship management capabilities, the ability to export data to JMP from all tables, linking documents, and customizing entity views. A beta release is scheduled for late September with an official release in late October.

1. Updates in
Version 2011.2
Dortmund, 08.09.2011

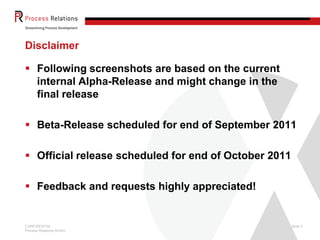

2. Disclaimer
 Following screenshots are based on the current
internal Alpha-Release and might change in the
final release
 Beta-Release scheduled for end of September 2011
 Official release scheduled for end of October 2011
 Feedback and requests highly appreciated!
CONFIDENTIAL Slide 2
Process Relations GmbH

3. Reminder: New capabilities of XperiDesk 2011.1
 New virtual manufacturing interfaces, e.g. to Semulator3D
 New Graphical DoE definition and tracking
 New file loading client to fill / update XperiLink
 Improved, more versatile and flexible Excel importer
 Improved, more versatile searching capabilities
 Reporting functions with Parameter export from search; improved Excel
interface
 Customizable GUI (Switch Tabs on and off as needed)
 Smaller improvements:
 Virtual directories in XperiLink
 delete functionality in XperiLink

CONFIDENTIALRights propagation through hierarchies Slide 3
Process Relations GmbH

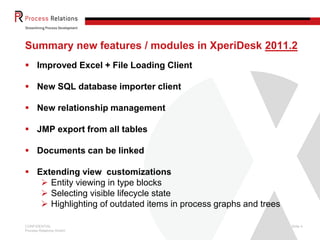

4. Summary new features / modules in XperiDesk 2011.2
 Improved Excel + File Loading Client
 New SQL database importer client
 New relationship management
 JMP export from all tables
 Documents can be linked
 Extending view customizations
 Entity viewing in type blocks
 Selecting visible lifecycle state
 Highlighting of outdated items in process graphs and trees
CONFIDENTIAL Slide 4
Process Relations GmbH

5. Improved Excel + File Loading
Clients
Dortmund, 08.09.2011

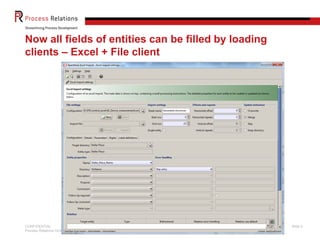

6. Now all fields of entities can be filled by loading
clients – Excel + File client
CONFIDENTIAL Slide 6
Process Relations GmbH

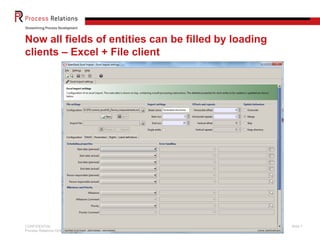

7. Now all fields of entities can be filled by loading
clients – Excel + File client
CONFIDENTIAL Slide 7
Process Relations GmbH

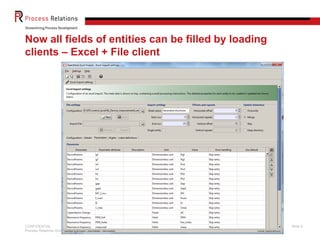

8. Now all fields of entities can be filled by loading
clients – Excel + File client
CONFIDENTIAL Slide 8
Process Relations GmbH

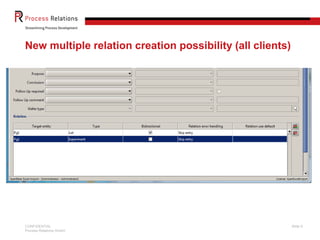

9. New multiple relation creation possibility (all clients)
CONFIDENTIAL Slide 9
Process Relations GmbH

10. New SQL database import
Clients
Dortmund, 08.09.2011

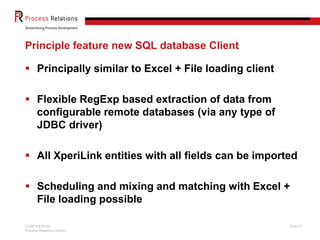

11. Principle feature new SQL database Client
 Principally similar to Excel + File loading client
 Flexible RegExp based extraction of data from
configurable remote databases (via any type of
JDBC driver)
 All XperiLink entities with all fields can be imported
 Scheduling and mixing and matching with Excel +
File loading possible
CONFIDENTIAL Slide 11
Process Relations GmbH

12. Flexibly accessing remote SQL databases for import
CONFIDENTIAL Slide 12
Process Relations GmbH

13. New relationship management
Dortmund, 08.09.2011

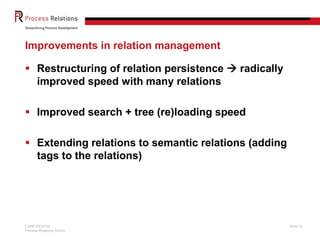

14. Improvements in relation management
 Restructuring of relation persistence  radically
improved speed with many relations
 Improved search + tree (re)loading speed
 Extending relations to semantic relations (adding
tags to the relations)
CONFIDENTIAL Slide 14
Process Relations GmbH

15. Relations can receive an arbitrary amount of tags
CONFIDENTIAL Slide 15
Process Relations GmbH

16. JMP export from all tables
Dortmund, 08.09.2011

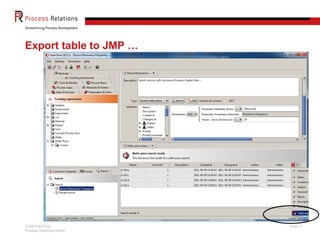

17. Export table to JMP …
CONFIDENTIAL Slide 17
Process Relations GmbH

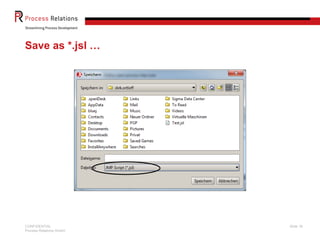

18. Save as *.jsl …
CONFIDENTIAL Slide 18
Process Relations GmbH

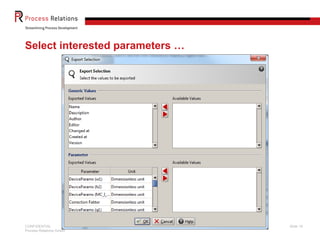

19. Select interested parameters …
CONFIDENTIAL Slide 19
Process Relations GmbH

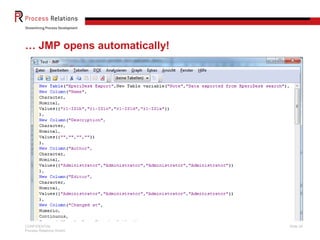

20. … JMP opens automatically!
CONFIDENTIAL Slide 20
Process Relations GmbH

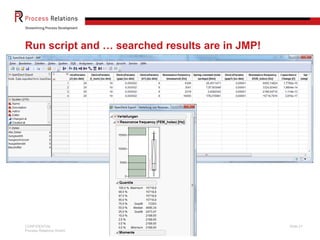

21. Run script and … searched results are in JMP!
CONFIDENTIAL Slide 21
Process Relations GmbH

22. Documents can be linked
Dortmund, 08.09.2011

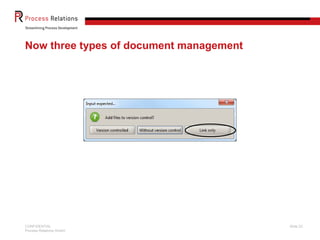

23. Now three types of document management
CONFIDENTIAL Slide 23
Process Relations GmbH

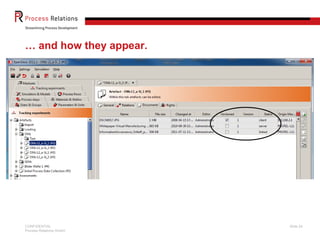

24. … and how they appear.
CONFIDENTIAL Slide 24
Process Relations GmbH

25. Entity viewing in type blocks
Dortmund, 08.09.2011

26. Selecting the block settings
CONFIDENTIAL Slide 26
Process Relations GmbH

27. Viewing entities with type blocks
CONFIDENTIAL Slide 27
Process Relations GmbH

28. Selecting visible lifecycle state
Dortmund, 08.09.2011

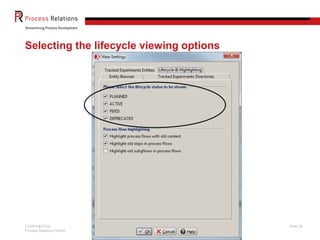

29. Selecting the lifecycle viewing options
CONFIDENTIAL Slide 29
Process Relations GmbH

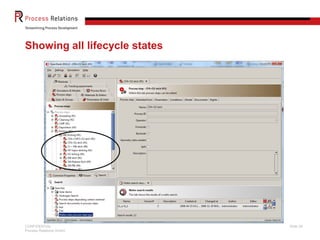

30. Showing all lifecycle states
CONFIDENTIAL Slide 30
Process Relations GmbH

31. Selecting the lifecycle viewing options
CONFIDENTIAL Slide 31
Process Relations GmbH

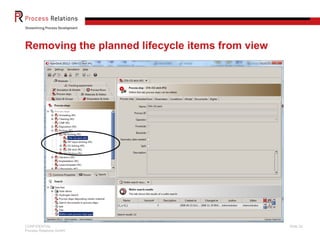

32. Removing the planned lifecycle items from view
CONFIDENTIAL Slide 32
Process Relations GmbH

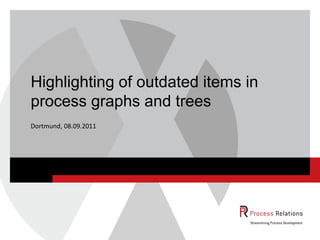

33. Highlighting of outdated items in
process graphs and trees
Dortmund, 08.09.2011

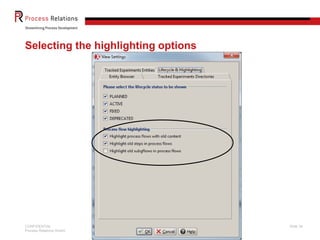

34. Selecting the highlighting options
CONFIDENTIAL Slide 34
Process Relations GmbH

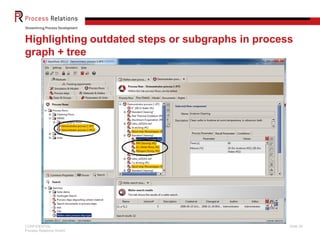

35. Highlighting outdated steps or subgraphs in process
graph + tree
CONFIDENTIAL Slide 35
Process Relations GmbH
