The webinar on May 7, 2013, introduced the new capabilities of Xperidesk 2013.1, highlighting features such as an extended parameter search component, improved reporting capabilities, and enhanced exporting of results. The presentation emphasized the software's comprehensive data management that ensures compliance and accessibility of information. Process Relations GmbH aims to expedite R&D with flexible software solutions and consulting services.

1. Dortmund, 7th of May 2013
Webinar:
Introduction to the new XperiDesk 2013.1
release

2. CONFIDENTIAL
Process Relations GmbH
Slide 2

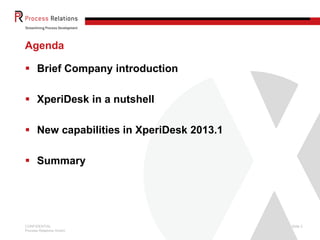

Agenda
 Brief Company introduction
 XperiDesk in a nutshell
 New capabilities in XperiDesk 2013.1
 Summary

3. Dortmund, 7th of May 2013
About Process Relations GmbH

4. CONFIDENTIAL
Process Relations GmbH
Slide 4

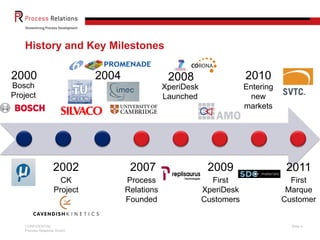

History and Key Milestones
2000
2002
2004
2007
2008
2009
Bosch
Project
CK
Project
XperiDesk
Launched
Process
Relations
Founded
First
XperiDesk
Customers
2010
Entering
new
markets
First
Marque
Customer
2011

5. CONFIDENTIAL
Process Relations GmbH
Slide 5
Process Relations’ Mission
…is to enable you to…
Expedite your R&D with flexible Software solutions
 Next generation recipe and DoE management
 Virtual manufacturing data management
 Automated data collection from various sources
 Experimental data management, analysis and extraction
We deliver the easy to use, unique, world class Process
Development Execution System (PDES)
and consulting services.

6. CONFIDENTIAL
Process Relations GmbH
Slide 6

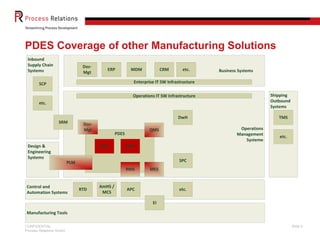

PDES Coverage of other Manufacturing Solutions
Business SystemsERP
Enterprise IT SW Infrastructure
CRMMDM
Inbound
Supply Chain
Systems
SCP
etc.
etc.
Operations
Management
Systeme
PDES
MES
EMS LIMS
Operations IT SW Infrastructure
Design &
Engineering
Systems
Control and
Automation Systems
RTD
AmHS /
MCS
SPC
APC
Manufacturing Tools
EI
RMS
QMS
Shipping
Outbound
Systems
TMS
etc.
SRM
Doc-
Mgt
PLM
DwH
etc.
Doc-
Mgt

7. Dortmund, 7th of May 2013
XperiDesk in a nutshell

8. CONFIDENTIAL
Process Relations GmbH
Slide 8

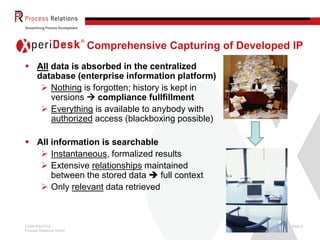

Comprehensive Capturing of Developed IP
 All data is absorbed in the centralized
database (enterprise information platform)
 Nothing is forgotten; history is kept in
versions  compliance fullfillment
 Everything is available to anybody with
authorized access (blackboxing possible)
 All information is searchable
 Instantaneous, formalized results
 Extensive relationships maintained
between the stored data  full context
 Only relevant data retrieved

9. Dortmund, 7th of May 2013
New capabilities in XperiDesk
2013.1

10. CONFIDENTIAL
Process Relations GmbH
Slide 10

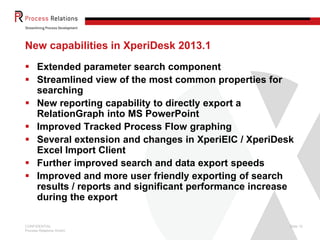

New capabilities in XperiDesk 2013.1
 Extended parameter search component
 Streamlined view of the most common properties for
searching
 New reporting capability to directly export a
RelationGraph into MS PowerPoint
 Improved Tracked Process Flow graphing
 Several extension and changes in XperiEIC / XperiDesk
Excel Import Client
 Further improved search and data export speeds
 Improved and more user friendly exporting of search
results / reports and significant performance increase
during the export

11. CONFIDENTIAL
Process Relations GmbH
Slide 11

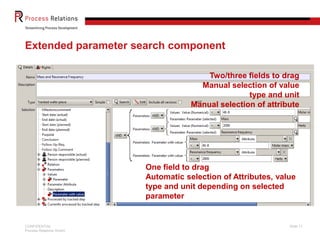

Extended parameter search component
Two/three fields to drag
Manual selection of value
type and unit
Manual selection of attribute
One field to drag
Automatic selection of Attributes, value
type and unit depending on selected
parameter

12. CONFIDENTIAL
Process Relations GmbH
Slide 12

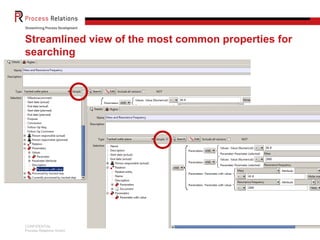

Streamlined view of the most common properties for
searching

13. CONFIDENTIAL
Process Relations GmbH
Slide 13
New reporting capability to directly export a
RelationGraph into MS PowerPoint
 Export
experiment
data from
graphic
view into
PKTKs*
* PKTK – Process Knowledge Transfer Kit

14. CONFIDENTIAL
Process Relations GmbH
Slide 14

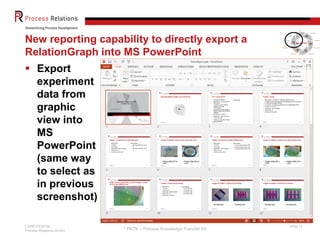

New reporting capability to directly export a
RelationGraph into MS PowerPoint
 Export
experiment
data from
graphic
view into
MS
PowerPoint
(same way
to select as
in previous
screenshot)
* PKTK – Process Knowledge Transfer Kit

15. CONFIDENTIAL
Process Relations GmbH
Slide 15
Improved Tracked Process Flow graphing – before

16. CONFIDENTIAL
Process Relations GmbH
Slide 16
Improved Tracked Process Flow graphing – after

17. CONFIDENTIAL
Process Relations GmbH
Slide 17

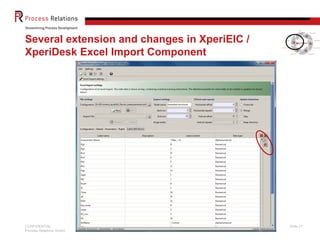

Several extension and changes in XperiEIC /
XperiDesk Excel Import Component

18. CONFIDENTIAL
Process Relations GmbH
Slide 18

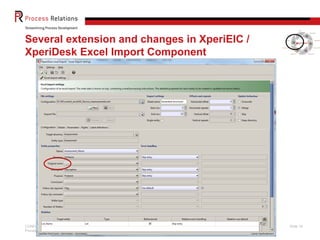

Several extension and changes in XperiEIC /
XperiDesk Excel Import Component

19. CONFIDENTIAL
Process Relations GmbH
Slide 19

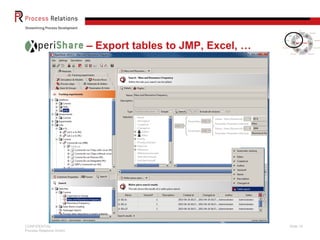

– Export tables to JMP, Excel, …

20. CONFIDENTIAL
Process Relations GmbH
Slide 20

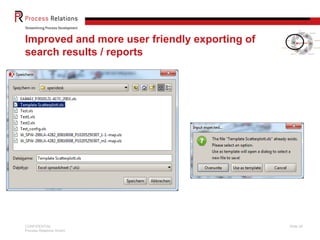

Improved and more user friendly exporting of
search results / reports

21. CONFIDENTIAL
Process Relations GmbH
Slide 21

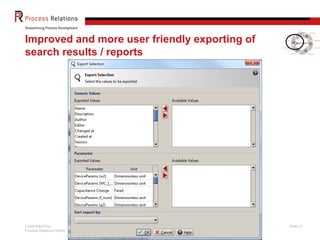

Improved and more user friendly exporting of
search results / reports

22. Dortmund, 7th of May 2013
Summary

23. CONFIDENTIAL
Process Relations GmbH
Slide 23

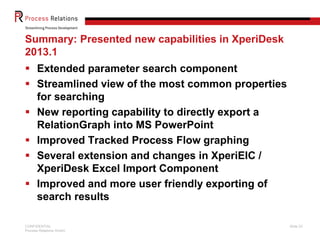

Summary: Presented new capabilities in XperiDesk
2013.1
 Extended parameter search component
 Streamlined view of the most common properties
for searching
 New reporting capability to directly export a
RelationGraph into MS PowerPoint
 Improved Tracked Process Flow graphing
 Several extension and changes in XperiEIC /
XperiDesk Excel Import Component
 Improved and more user friendly exporting of
search results

24. Process Relations GmbH
Emil-Figge-Straße 76-80
44227 Dortmund, Germany
T: +49 231-9742-5970
F: +49 231-9742-5972
info@process-relations.com
www.process-relations.com
Information Governance principles
applied to
Process Development
