1. X-box 360 System
S.C HETTIARACHCHI

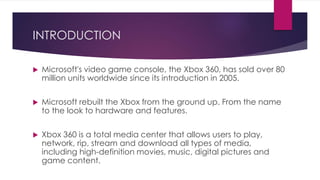

2. INTRODUCTION
 Microsoft's video game console, the Xbox 360, has sold over 80
million units worldwide since its introduction in 2005.
 Microsoft rebuilt the Xbox from the ground up. From the name
to the look to hardware and features.
 Xbox 360 is a total media center that allows users to play,
network, rip, stream and download all types of media,
including high-definition movies, music, digital pictures and
game content.

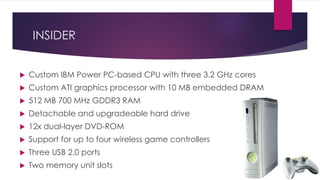

3. INSIDER
 Custom IBM Power PC-based CPU with three 3.2 GHz cores
 Custom ATI graphics processor with 10 MB embedded DRAM
 512 MB 700 MHz GDDR3 RAM
 Detachable and upgradeable hard drive
 12x dual-layer DVD-ROM
 Support for up to four wireless game controllers
 Three USB 2.0 ports
 Two memory unit slots

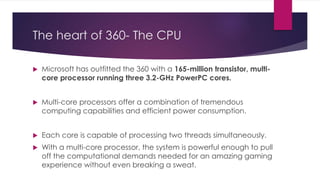

4. The heart of 360- The CPU
 Microsoft has outfitted the 360 with a 165-million transistor, multi-
core processor running three 3.2-GHz PowerPC cores.
 Multi-core processors offer a combination of tremendous
computing capabilities and efficient power consumption.
 Each core is capable of processing two threads simultaneously.
 With a multi-core processor, the system is powerful enough to pull
off the computational demands needed for an amazing gaming
experience without even breaking a sweat.

5. GPU: Graphics Processor Unit
 Custom-built 500-MHz ATI Graphics Processor card with 10 MB of
embedded DRAM.
 It is built on unified shader architecture.
 Shaders are computer programs that determine the final look of what
you see on the screen when you're looking at computer animation.
 Pixel Shaders
 Vertex Shaders
 Both shader types share the same pipelines.
 48 billion shader operations per second.

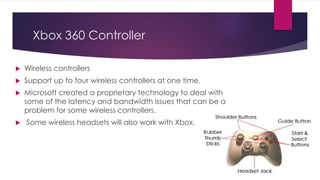

6. Xbox 360 Controller
 Wireless controllers
 Support up to four wireless controllers at one time.
 Microsoft created a proprietary technology to deal with
some of the latency and bandwidth issues that can be a
problem for some wireless controllers.
 Some wireless headsets will also work with Xbox.

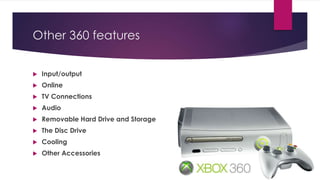

7. Other 360 features
 Input/output
 Online
 TV Connections
 Audio
 Removable Hard Drive and Storage
 The Disc Drive
 Cooling
 Other Accessories

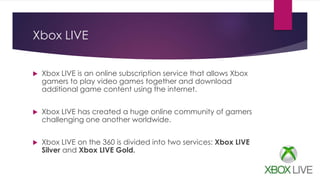

8. Xbox LIVE
 Xbox LIVE is an online subscription service that allows Xbox
gamers to play video games together and download
additional game content using the internet.
 Xbox LIVE has created a huge online community of gamers
challenging one another worldwide.
 Xbox LIVE on the 360 is divided into two services: Xbox LIVE
Silver and Xbox LIVE Gold.

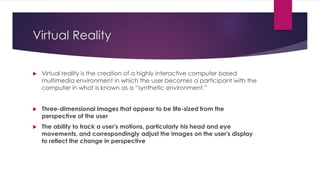

9. Virtual Reality
 Virtual reality is the creation of a highly interactive computer based
multimedia environment in which the user becomes a participant with the
computer in what is known as a “synthetic environment.”
 Three-dimensional images that appear to be life-sized from the
perspective of the user
 The ability to track a user's motions, particularly his head and eye
movements, and correspondingly adjust the images on the user's display
to reflect the change in perspective

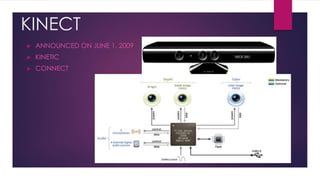

10. ► ANNOUNCED ON JUNE 1, 2009
► KINETIC
► CONNECT
KINECT

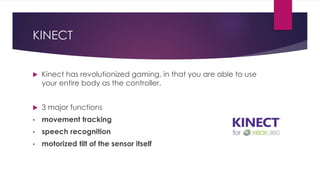

11. KINECT
 Kinect has revolutionized gaming, in that you are able to use
your entire body as the controller.
 3 major functions
• movement tracking
• speech recognition
• motorized tilt of the sensor itself

12. KINECT: 3D Sensing technology
 A company based In Israel known as PrimeSense developed
the 3D sensing technology.
 3 main parts that make it work
• Infrared laser projector
• Infrared camera
• RGB colored camera

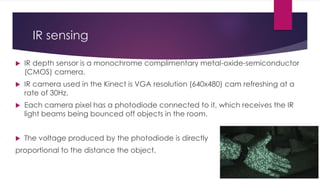

13. IR sensing
 IR depth sensor is a monochrome complimentary metal-oxide-semiconductor
(CMOS) camera.
 IR camera used in the Kinect is VGA resolution (640x480) cam refreshing at a
rate of 30Hz.
 Each camera pixel has a photodiode connected to it, which receives the IR
light beams being bounced off objects in the room.
 The voltage produced by the photodiode is directly
proportional to the distance the object.

14. Role of software
 Using statistics, probability, and hours of testing different
natural human movements the programmers
developed software to track the movements of 20
main joints on a human body.
 This is how Kinect can differentiate a player.
 Kinect has the capabilities of tracking up to six
different players at a time.

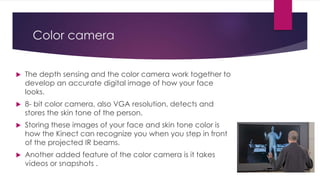

15. Color camera
 The depth sensing and the color camera work together to
develop an accurate digital image of how your face
looks.
 8- bit color camera, also VGA resolution, detects and
stores the skin tone of the person.
 Storing these images of your face and skin tone color is
how the Kinect can recognize you when you step in front
of the projected IR beams.
 Another added feature of the color camera is it takes
videos or snapshots .

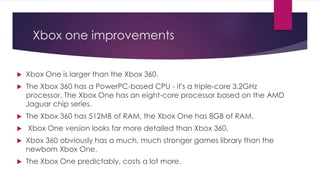

16. Xbox one improvements
 Xbox One is larger than the Xbox 360.
 The Xbox 360 has a PowerPC-based CPU - it's a triple-core 3.2GHz
processor. The Xbox One has an eight-core processor based on the AMD
Jaguar chip series.
 The Xbox 360 has 512MB of RAM, the Xbox One has 8GB of RAM.
 Xbox One version looks far more detailed than Xbox 360.
 Xbox 360 obviously has a much, much stronger games library than the
newborn Xbox One.
 The Xbox One predictably, costs a lot more.

17. Xbox 360
THANK YOU….....
