A Semantic Web of Things (SWoT) brings together the Semantic Web and the Web of Things (WoT), associating semantically annotated information to web-enabled physical de- vices, services and their data, towards seamless data integration and better understanding of real-world information. A missing element in order to realize SWoT is a standardized, scalable and flexible way to globally discover in (near) real time web-connected embedded devices, as well as their semantic data. To address this gap, we propose WOT Semantic Search Engine (WOTS2E), which is a search engine for the SWoT, based on web crawling, being able to discover Linked Data endpoints and, through them, WoT-enabled devices and their services. In this presentation, we describe the design, development and implementation of WOTS2E, as well as an evaluation procedure showing its operation and performance across the web.

1. WOTS2E: A Search Engine for a
Semantic Web of Things
Unit for Reasoning, Querying and Stream Processing
Insight Centre for Data Analytics,
National University of Ireland, Galway
Andreas Kamilaris, Semih Yumusak, Ali Intizar
World Forum – IoT 2016
Reston, VA, USA- December 12-14, 2016

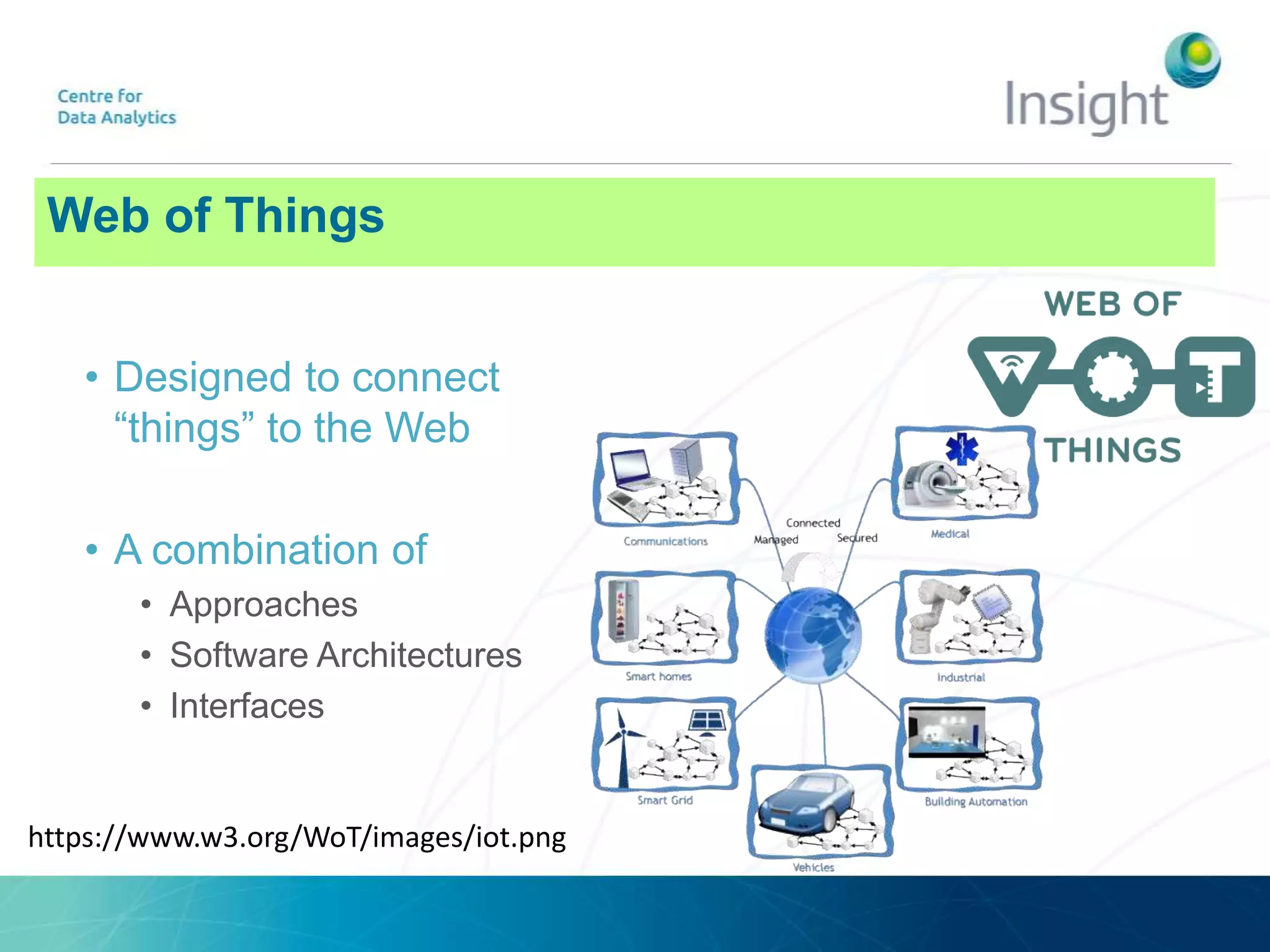

2. https://www.w3.org/WoT/images/iot.png
Web of Things
• Designed to connect
“things” to the Web
• A combination of
• Approaches
• Software Architectures
• Interfaces

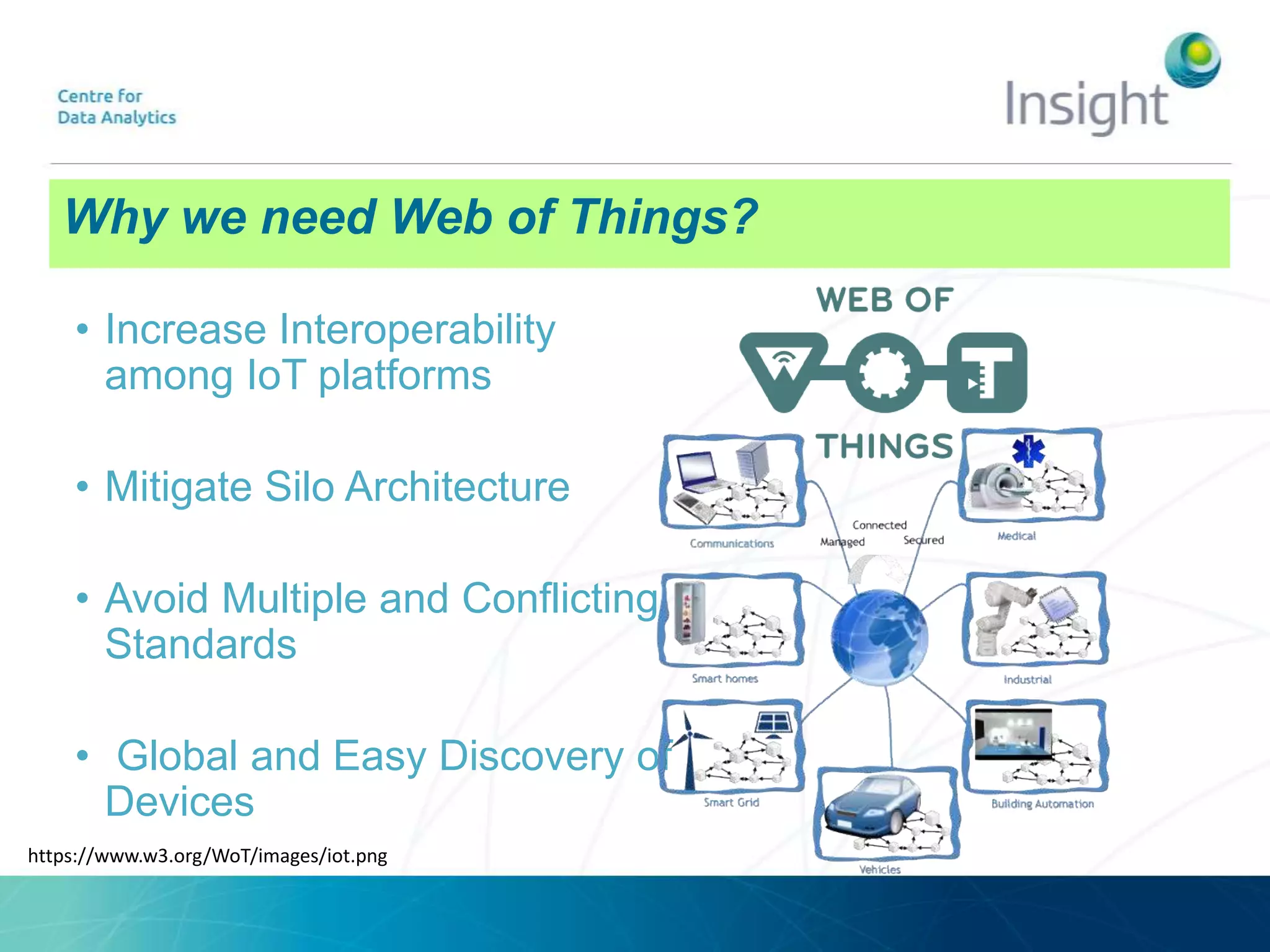

3. https://www.w3.org/WoT/images/iot.png
• Increase Interoperability
among IoT platforms
• Mitigate Silo Architecture
• Avoid Multiple and Conflicting
Standards
• Global and Easy Discovery of
Devices
Why we need Web of Things?

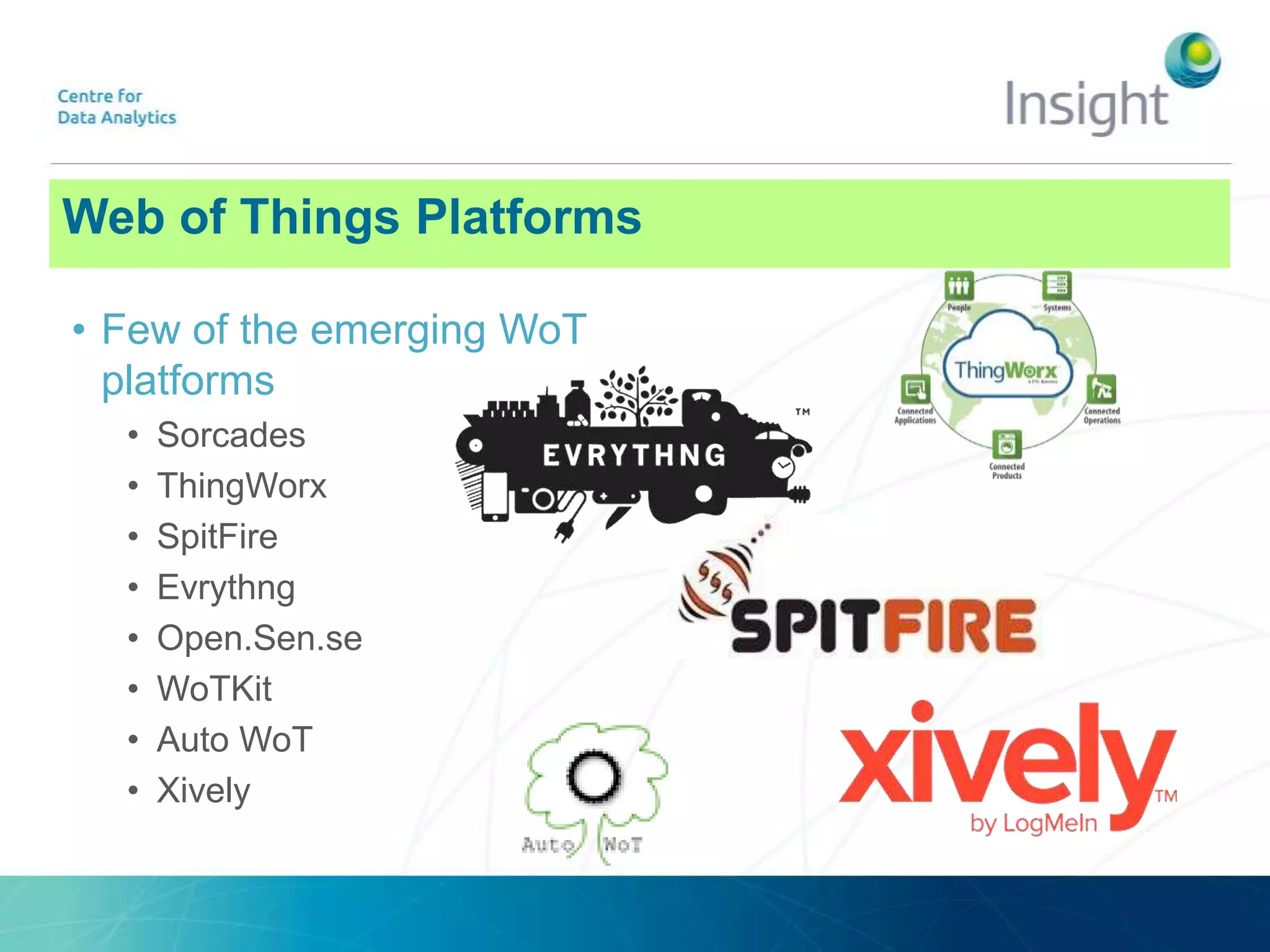

4. • Few of the emerging WoT
platforms
• Sorcades
• ThingWorx
• SpitFire
• Evrythng
• Open.Sen.se
• WoTKit
• Auto WoT
• Xively
Web of Things Platforms

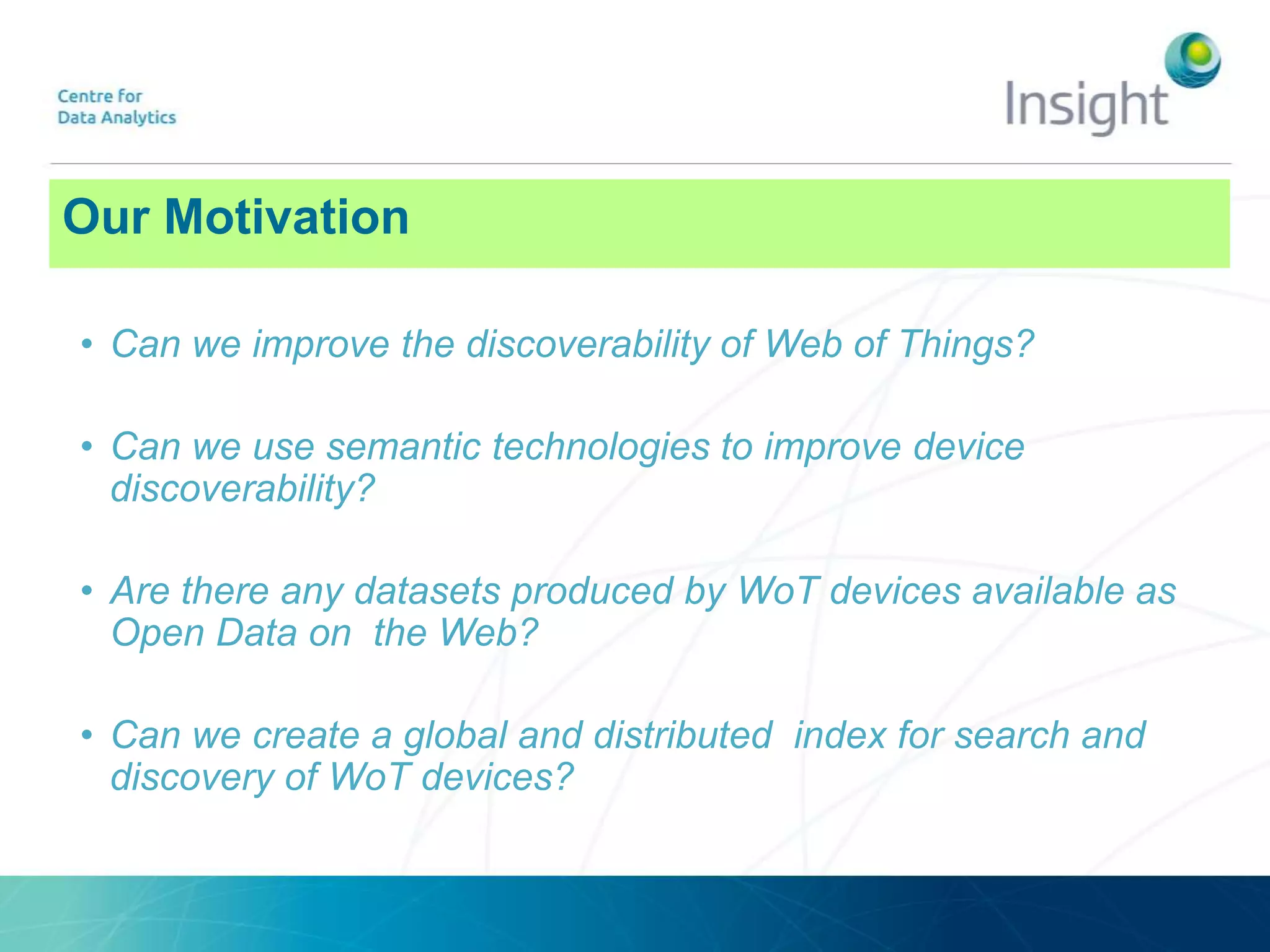

5. • Can we improve the discoverability of Web of Things?
• Can we use semantic technologies to improve device
discoverability?
• Are there any datasets produced by WoT devices available as
Open Data on the Web?
• Can we create a global and distributed index for search and
discovery of WoT devices?
Our Motivation

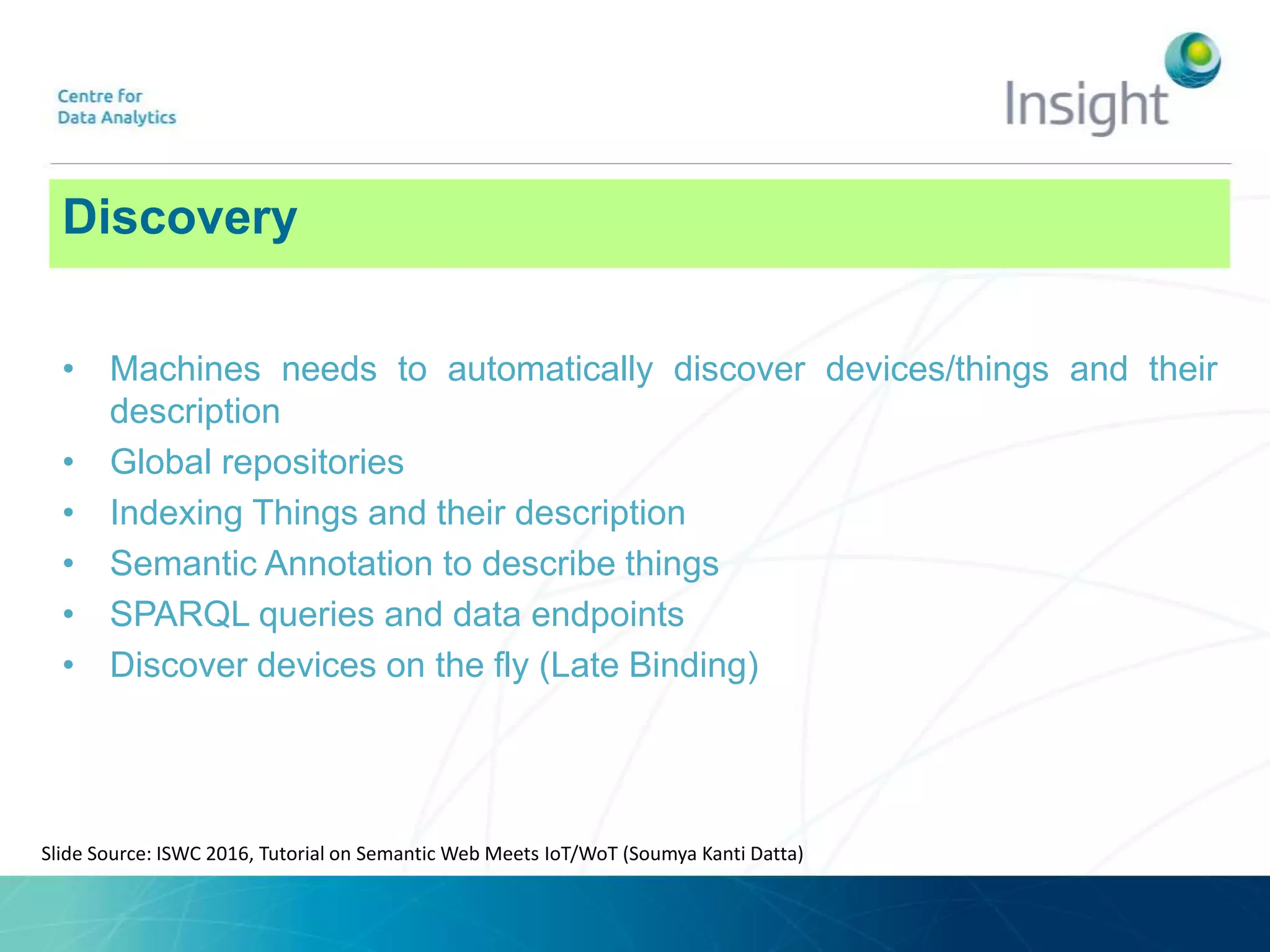

6. Discovery
• Machines needs to automatically discover devices/things and their
description
• Global repositories
• Indexing Things and their description
• Semantic Annotation to describe things
• SPARQL queries and data endpoints
• Discover devices on the fly (Late Binding)
Slide Source: ISWC 2016, Tutorial on Semantic Web Meets IoT/WoT (Soumya Kanti Datta)

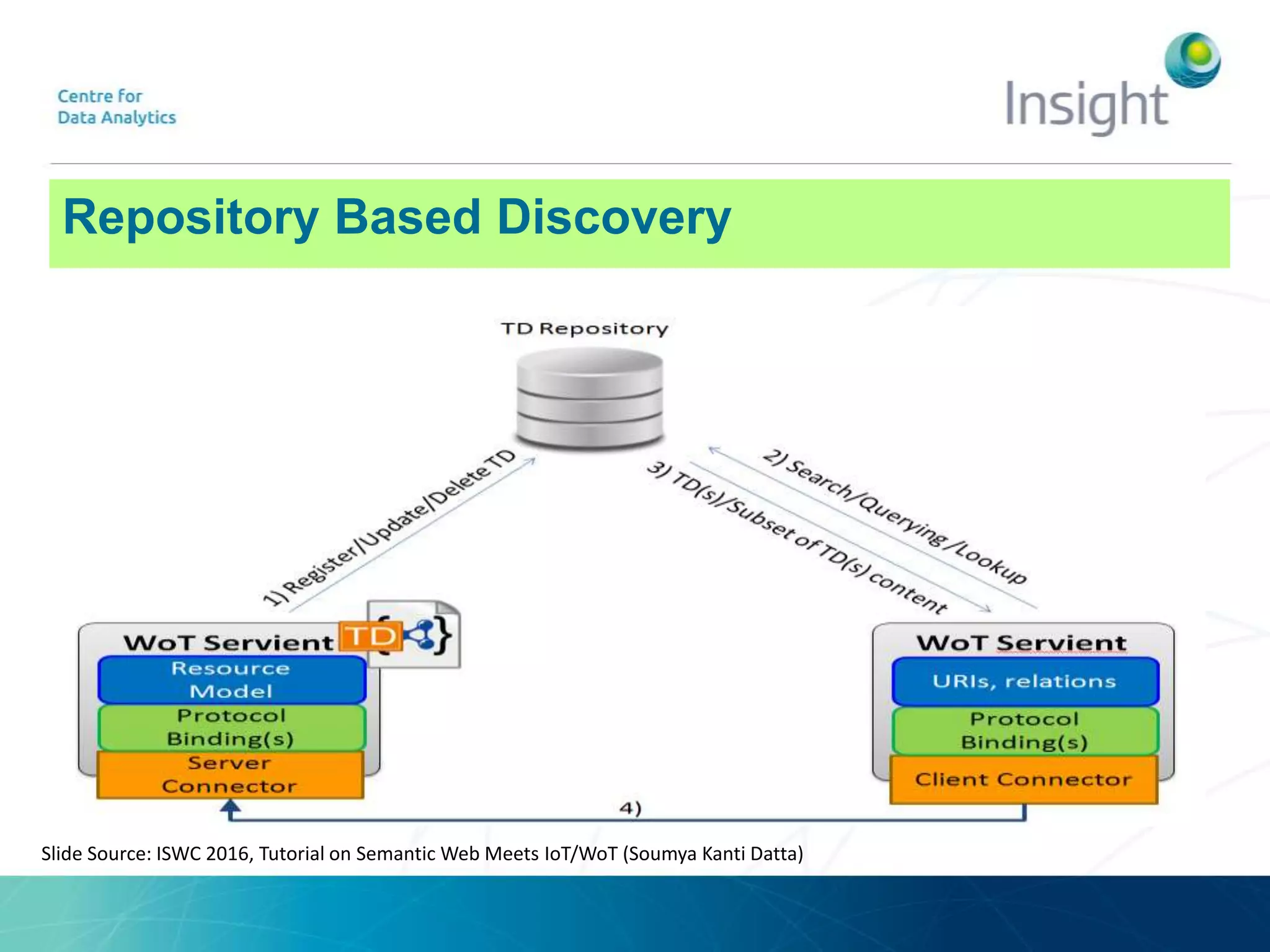

7. Repository Based Discovery
Slide Source: ISWC 2016, Tutorial on Semantic Web Meets IoT/WoT (Soumya Kanti Datta)

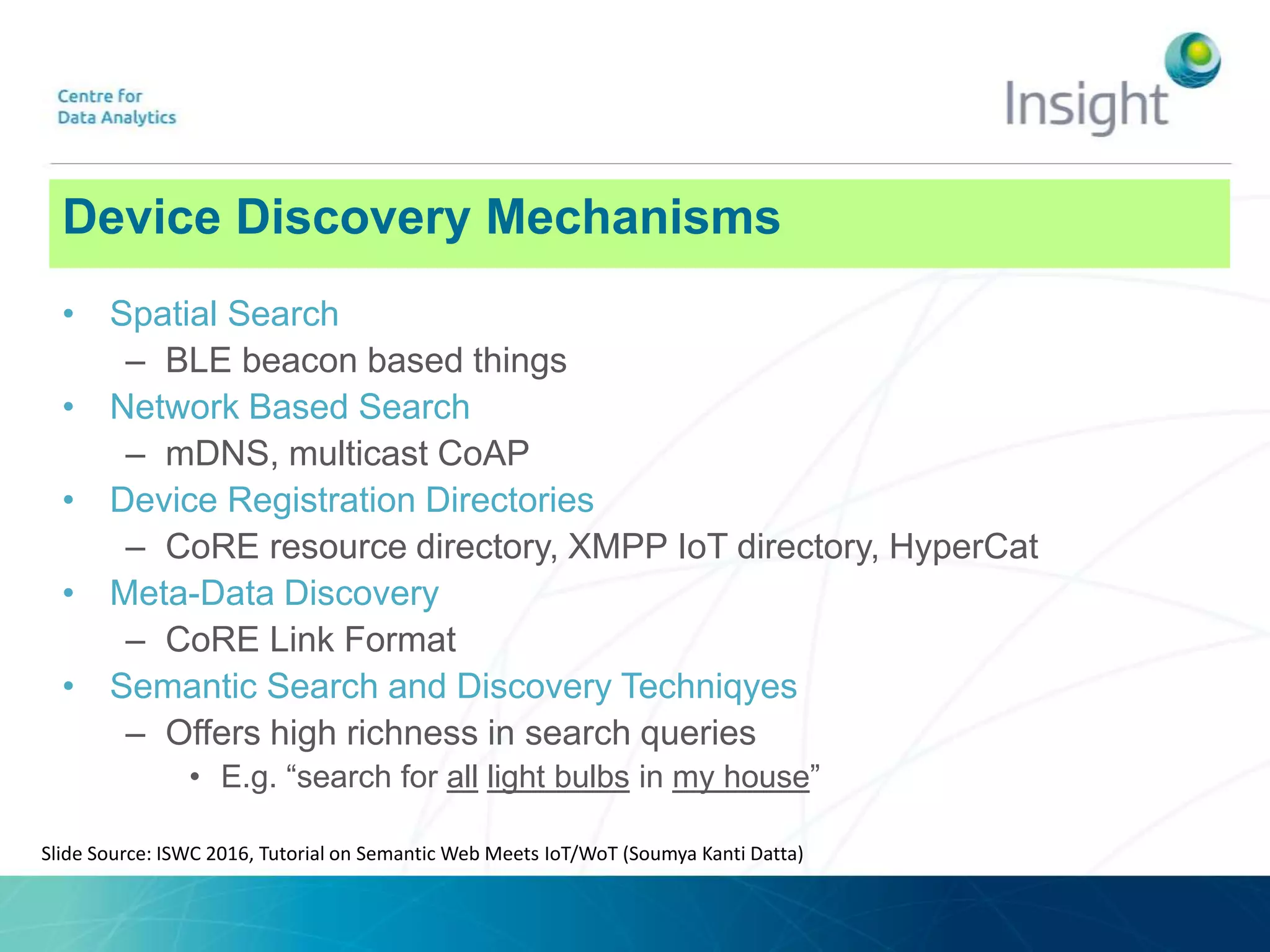

8. Device Discovery Mechanisms
• Spatial Search
– BLE beacon based things
• Network Based Search
– mDNS, multicast CoAP
• Device Registration Directories
– CoRE resource directory, XMPP IoT directory, HyperCat
• Meta-Data Discovery
– CoRE Link Format
• Semantic Search and Discovery Techniqyes
– Offers high richness in search queries
• E.g. “search for all light bulbs in my house”
Slide Source: ISWC 2016, Tutorial on Semantic Web Meets IoT/WoT (Soumya Kanti Datta)

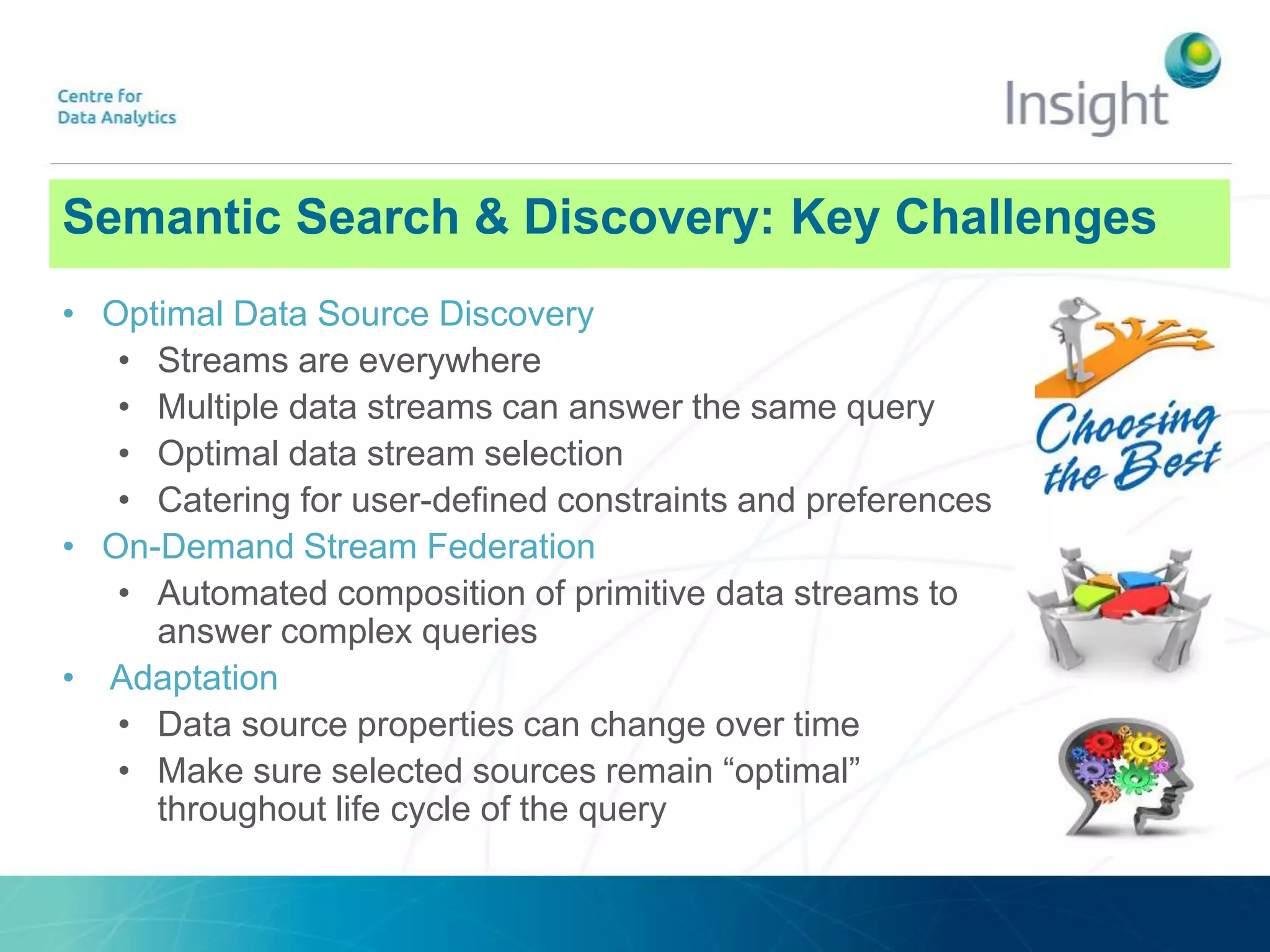

9. Semantic Search & Discovery: Key Challenges
• Optimal Data Source Discovery
• Streams are everywhere
• Multiple data streams can answer the same query
• Optimal data stream selection
• Catering for user-defined constraints and preferences
• On-Demand Stream Federation
• Automated composition of primitive data streams to
answer complex queries
• Adaptation
• Data source properties can change over time
• Make sure selected sources remain “optimal”
throughout life cycle of the query

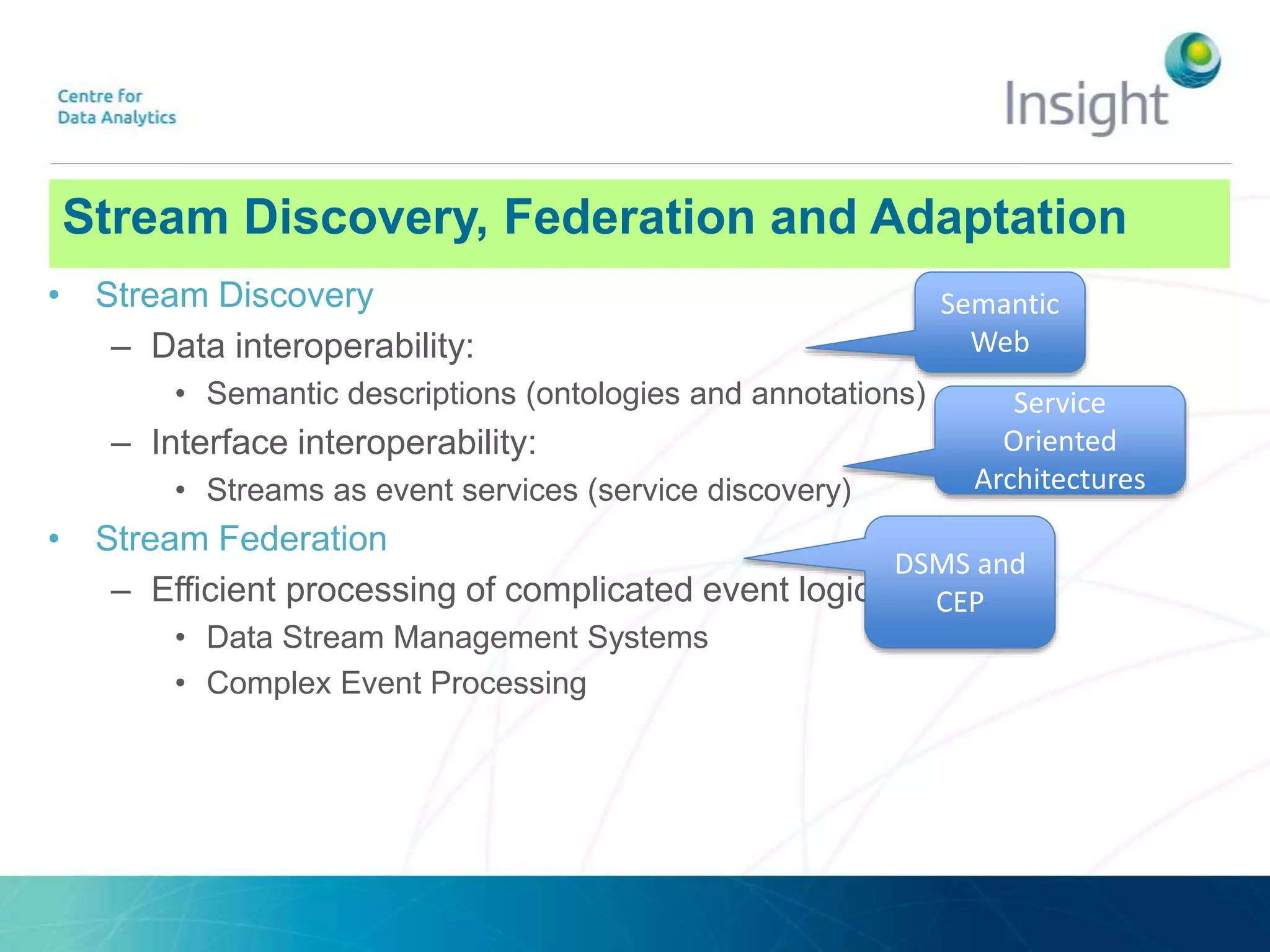

10. Stream Discovery, Federation and Adaptation
• Stream Discovery
– Data interoperability:
• Semantic descriptions (ontologies and annotations)
– Interface interoperability:
• Streams as event services (service discovery)
• Stream Federation
– Efficient processing of complicated event logics
• Data Stream Management Systems
• Complex Event Processing
Semantic
Web
Service
Oriented
Architectures
DSMS and
CEP

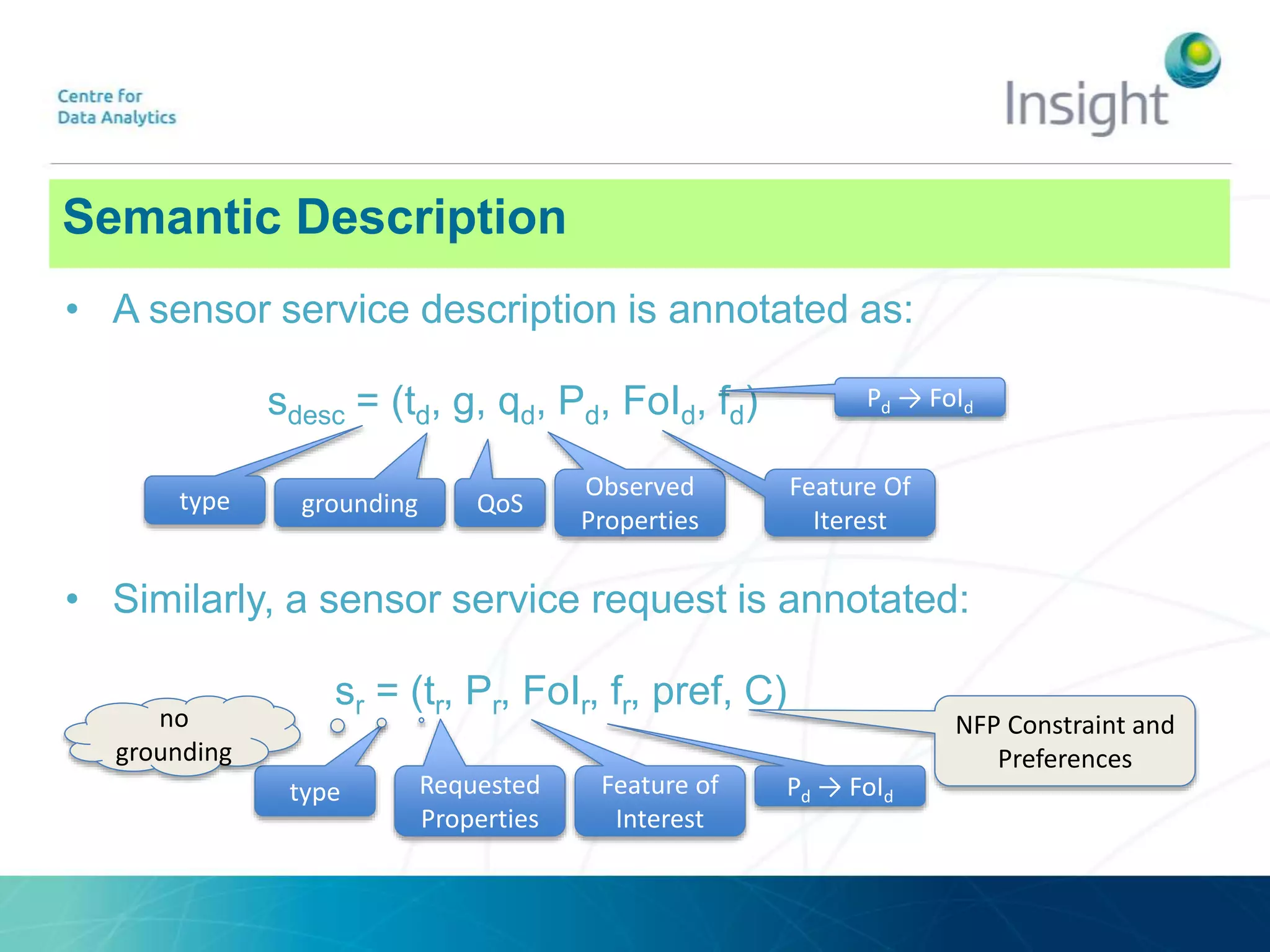

11. Semantic Description
• A sensor service description is annotated as:
sdesc = (td, g, qd, Pd, FoId, fd)
type grounding QoS
Observed
Properties
Feature Of
Iterest
Pd → FoId
• Similarly, a sensor service request is annotated:
sr = (tr, Pr, FoIr, fr, pref, C)
type Requested
Properties
Feature of
Interest
Pd → FoId
no
grounding
NFP Constraint and
Preferences

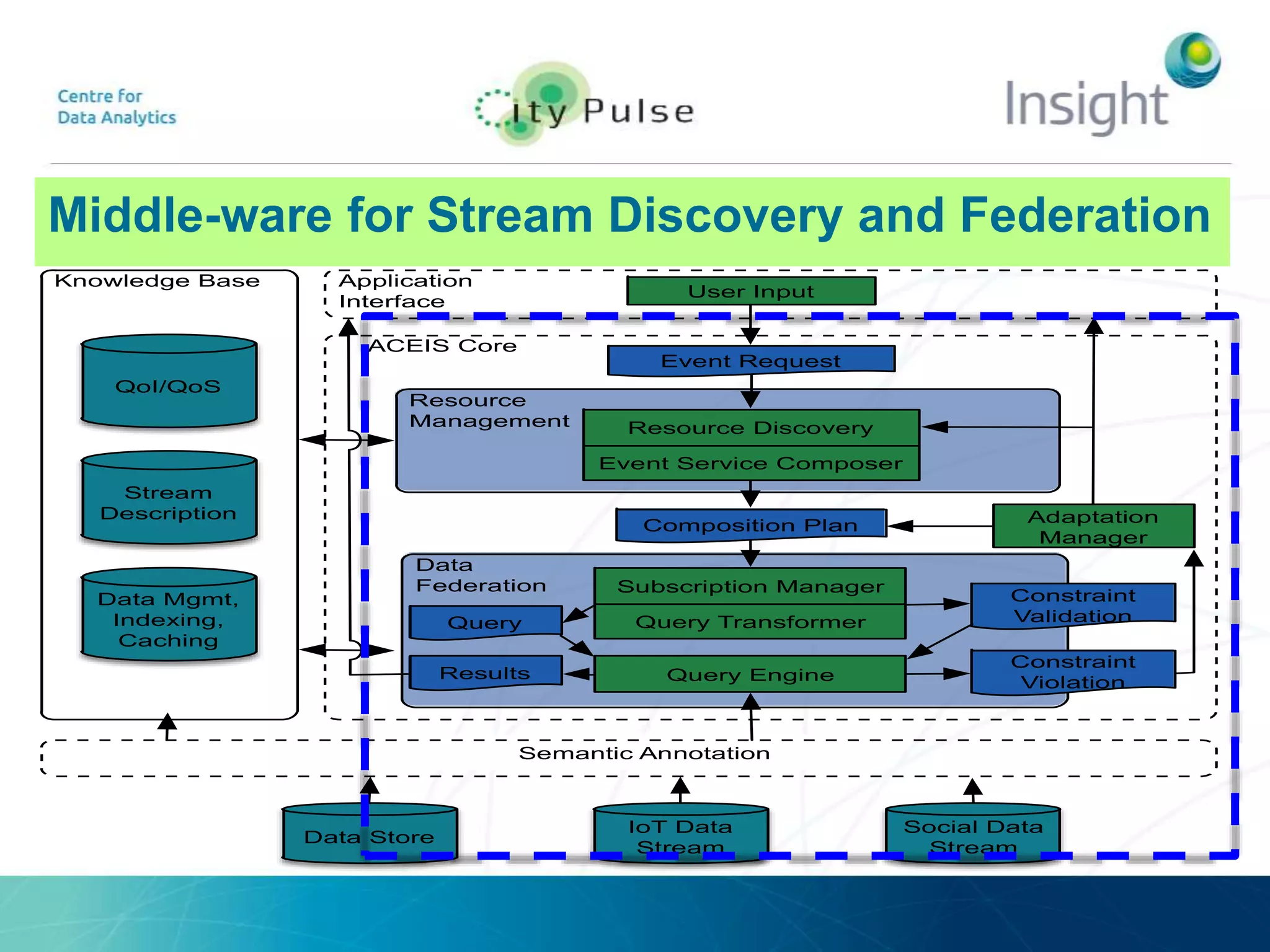

12. Middle-ware for Stream Discovery and Federation
Semantic Annotation
ACEIS Core
Resource
Management
Application
Interface
Knowledge Base
QoI/QoS
Stream
Description
Data Mgmt,
Indexing,
Caching
User Input
Event Request
Data
Federation
Resource Discovery
Event Service Composer
Composition Plan
Subscription Manager
Query Transformer
Query Engine
Query
Results
Constraint
Validation
Constraint
Violation
Adaptation
Manager
Data Store
IoT Data
Stream
Social Data
Stream

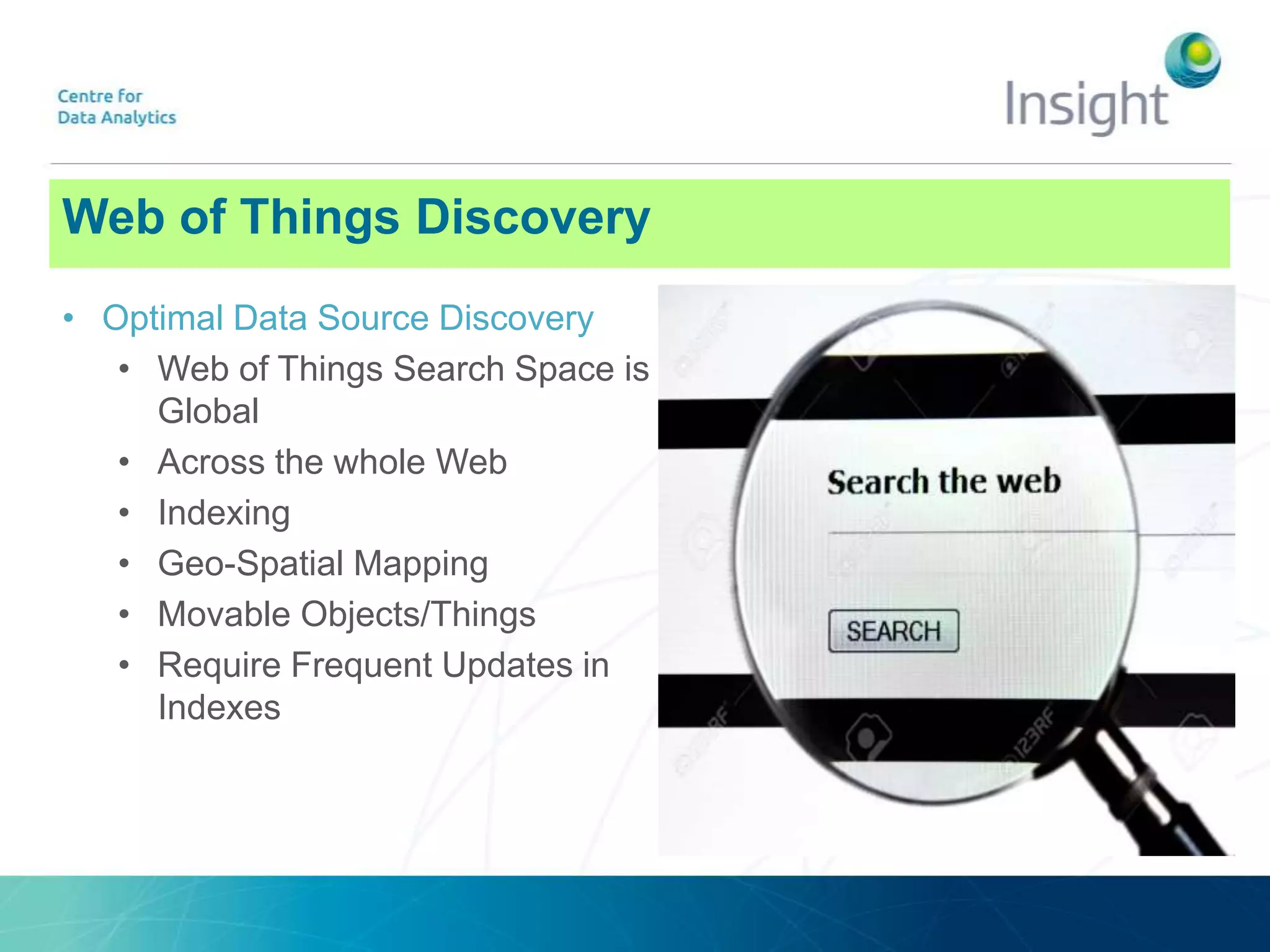

13. Web of Things Discovery
• Optimal Data Source Discovery
• Web of Things Search Space is
Global
• Across the whole Web
• Indexing
• Geo-Spatial Mapping
• Movable Objects/Things
• Require Frequent Updates in
Indexes

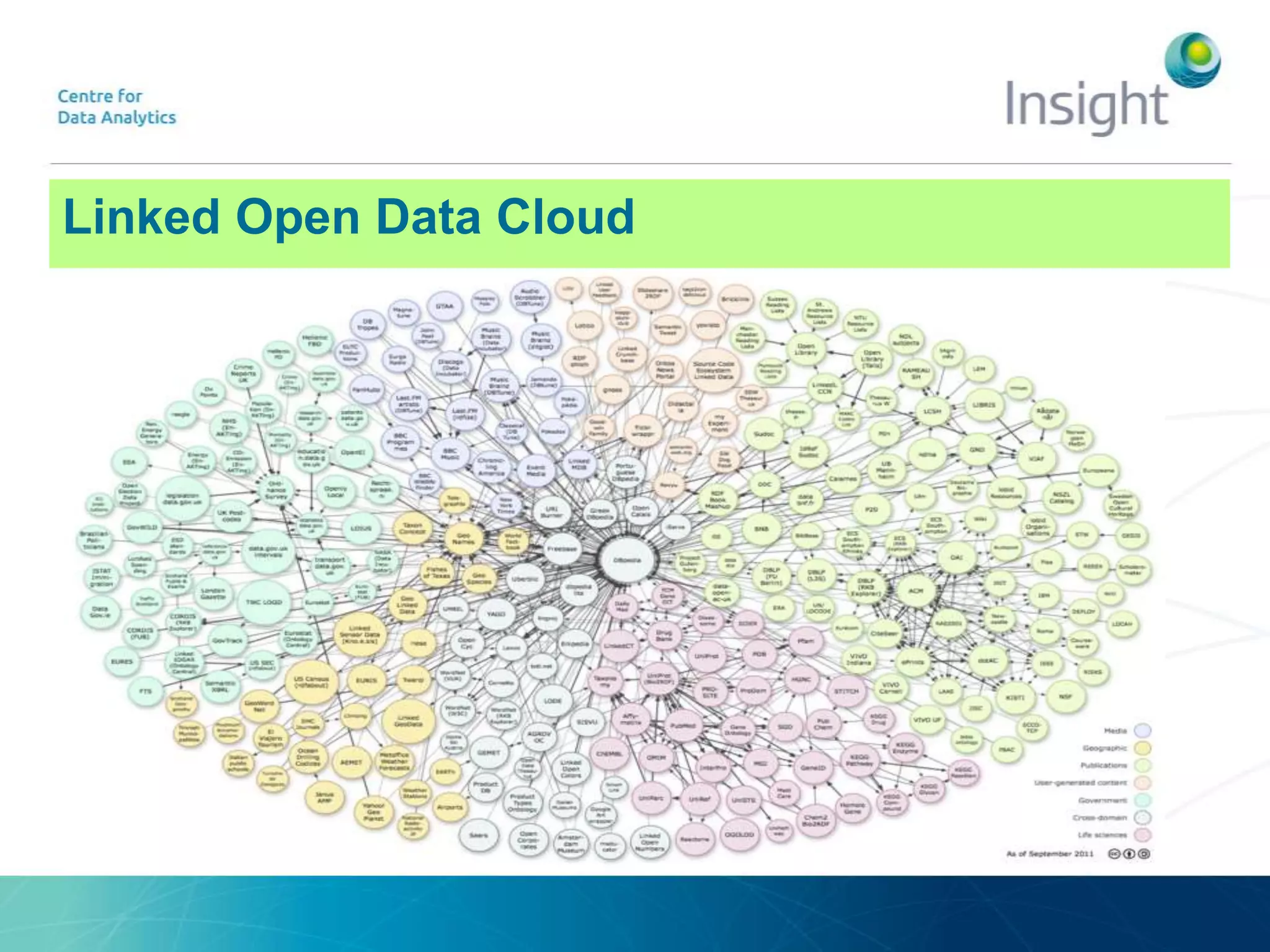

14. Problem StatementLinked Open Data Cloud

15. WOTS2E: ArchitectureWOTS2E: Overview
• A Search engine to
discover semantic meta-
description of things
• Crawls the Web to
discover Linked Data
Sources
• Analyzes Linked Data
sources to identify
relevant WoT devices

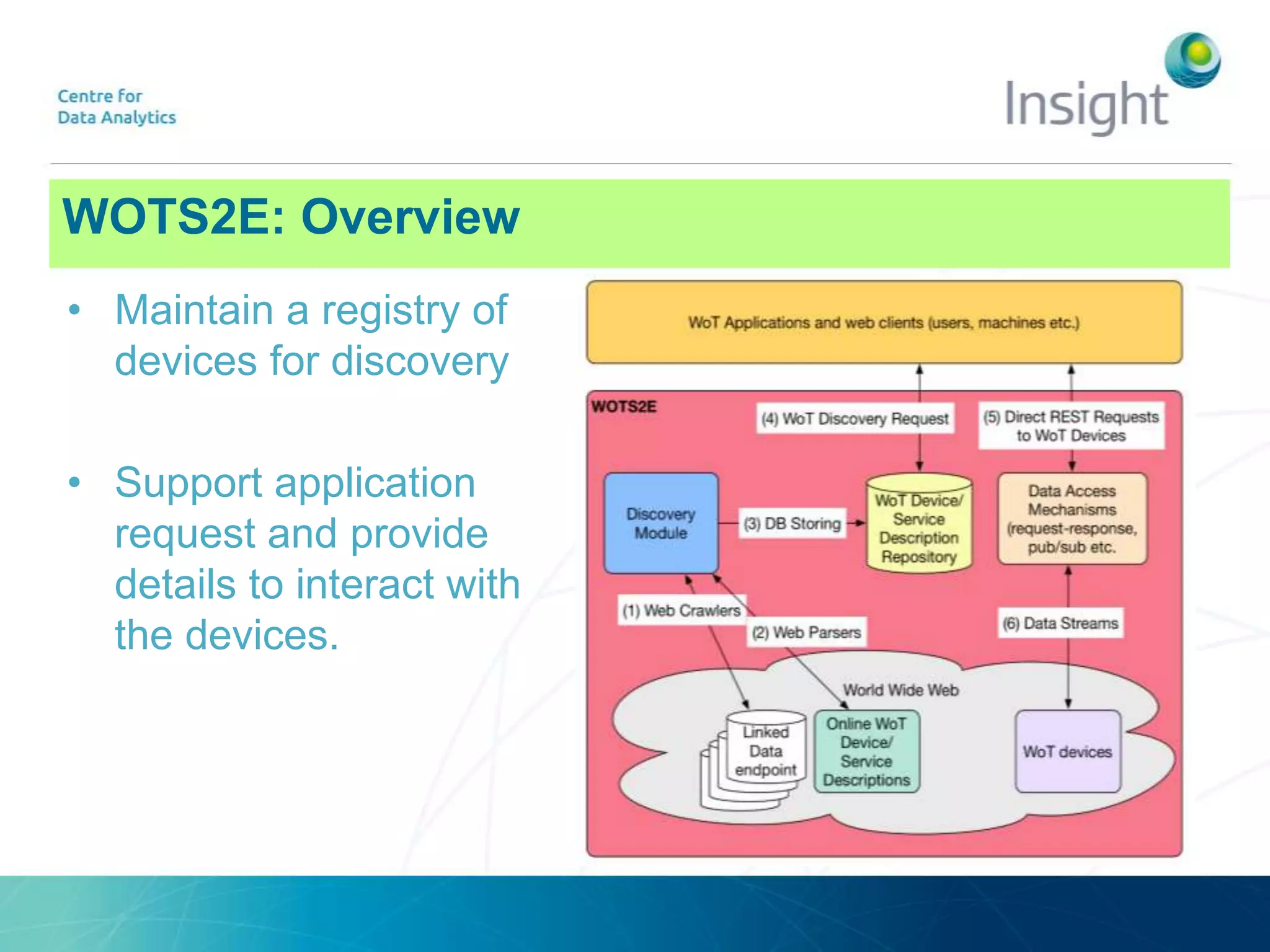

16. WOTS2E: ArchitectureWOTS2E: Overview
• Maintain a registry of
devices for discovery
• Support application
request and provide
details to interact with
the devices.

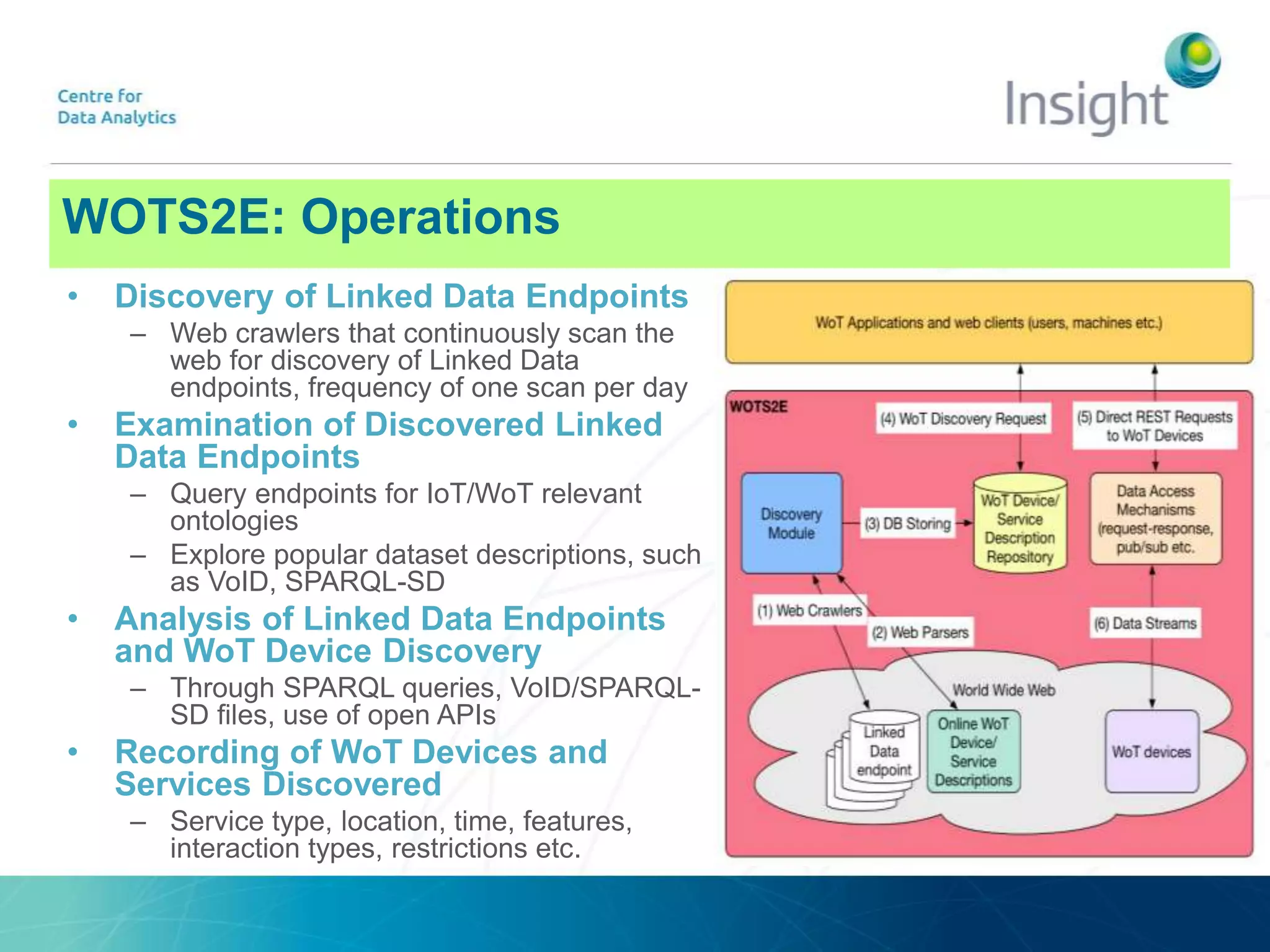

17. WOTS2E: ArchitectureWOTS2E: Operations
• Discovery of Linked Data Endpoints
– Web crawlers that continuously scan the
web for discovery of Linked Data
endpoints, frequency of one scan per day
• Examination of Discovered Linked
Data Endpoints
– Query endpoints for IoT/WoT relevant
ontologies
– Explore popular dataset descriptions, such
as VoID, SPARQL-SD
• Analysis of Linked Data Endpoints
and WoT Device Discovery
– Through SPARQL queries, VoID/SPARQL-
SD files, use of open APIs
• Recording of WoT Devices and
Services Discovered
– Service type, location, time, features,
interaction types, restrictions etc.

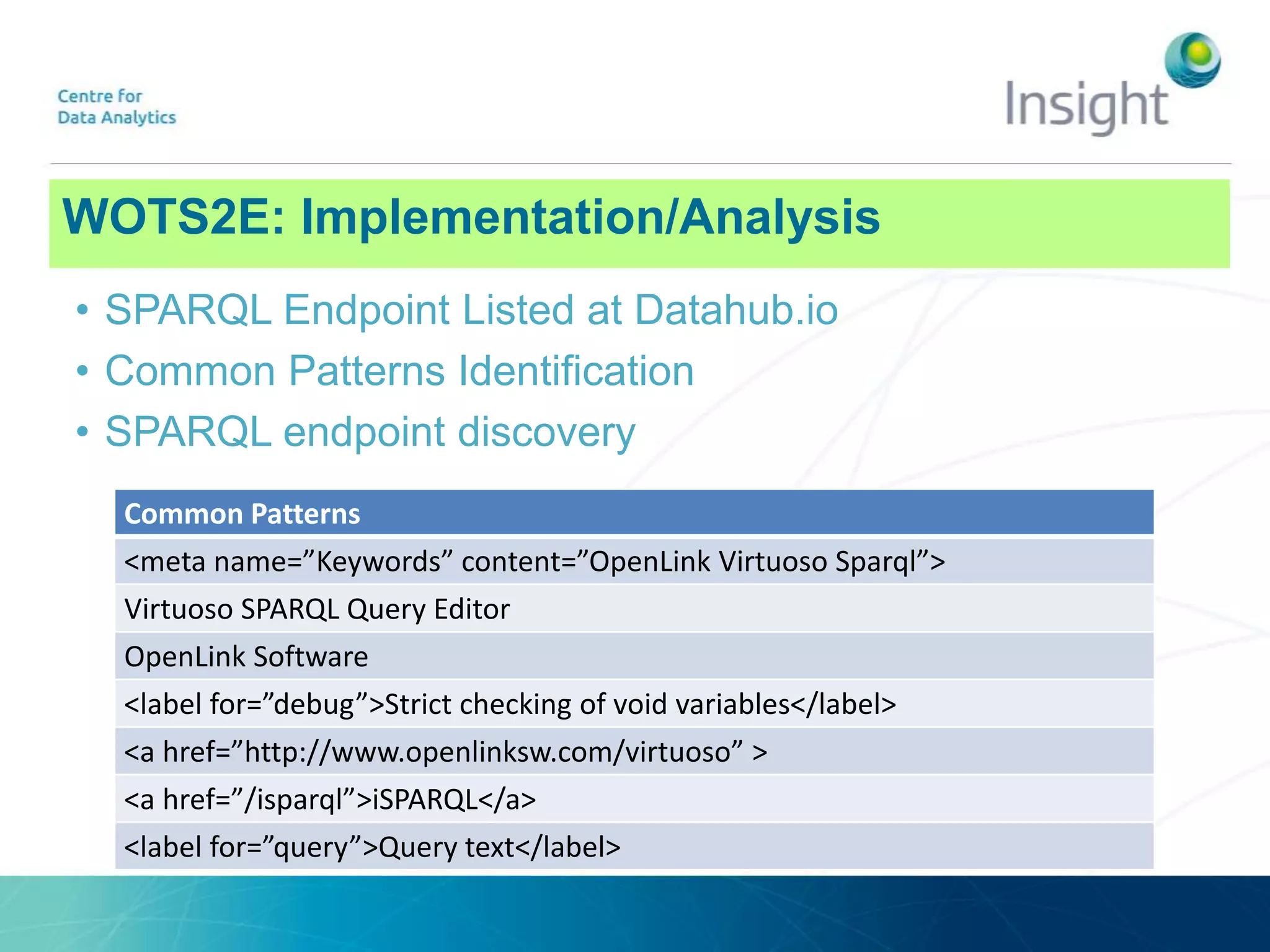

18. WOTS2E: ArchitectureWOTS2E: Implementation/Analysis
Common Patterns
<meta name=”Keywords” content=”OpenLink Virtuoso Sparql”>
Virtuoso SPARQL Query Editor
OpenLink Software
<label for=”debug”>Strict checking of void variables</label>
<a href=”http://www.openlinksw.com/virtuoso” >
<a href=”/isparql”>iSPARQL</a>
<label for=”query”>Query text</label>
• SPARQL Endpoint Listed at Datahub.io
• Common Patterns Identification
• SPARQL endpoint discovery

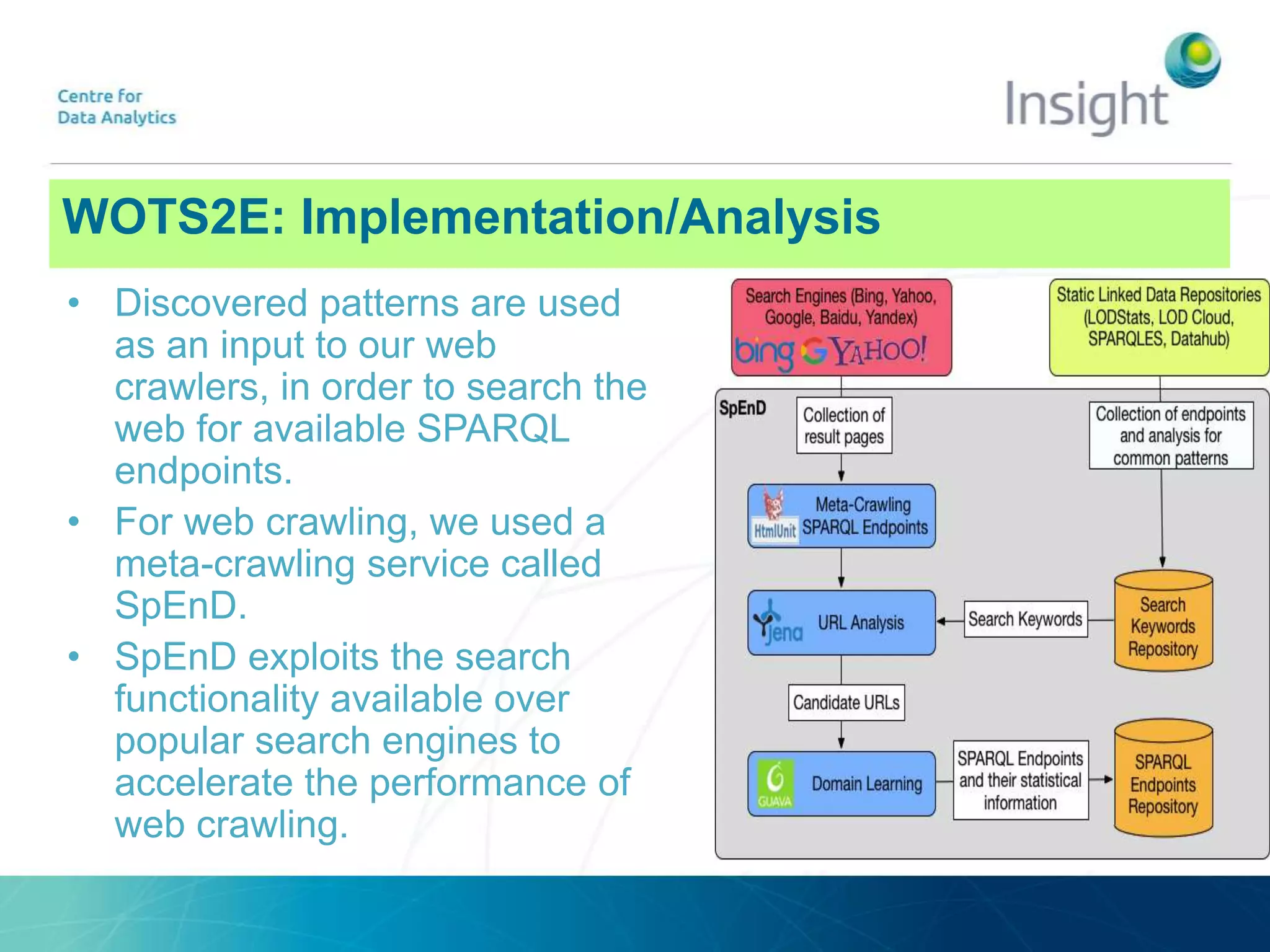

19. WOTS2E: ArchitectureWOTS2E: Implementation/Analysis
• Discovered patterns are used
as an input to our web
crawlers, in order to search the
web for available SPARQL
endpoints.
• For web crawling, we used a
meta-crawling service called
SpEnD.
• SpEnD exploits the search
functionality available over
popular search engines to
accelerate the performance of
web crawling.

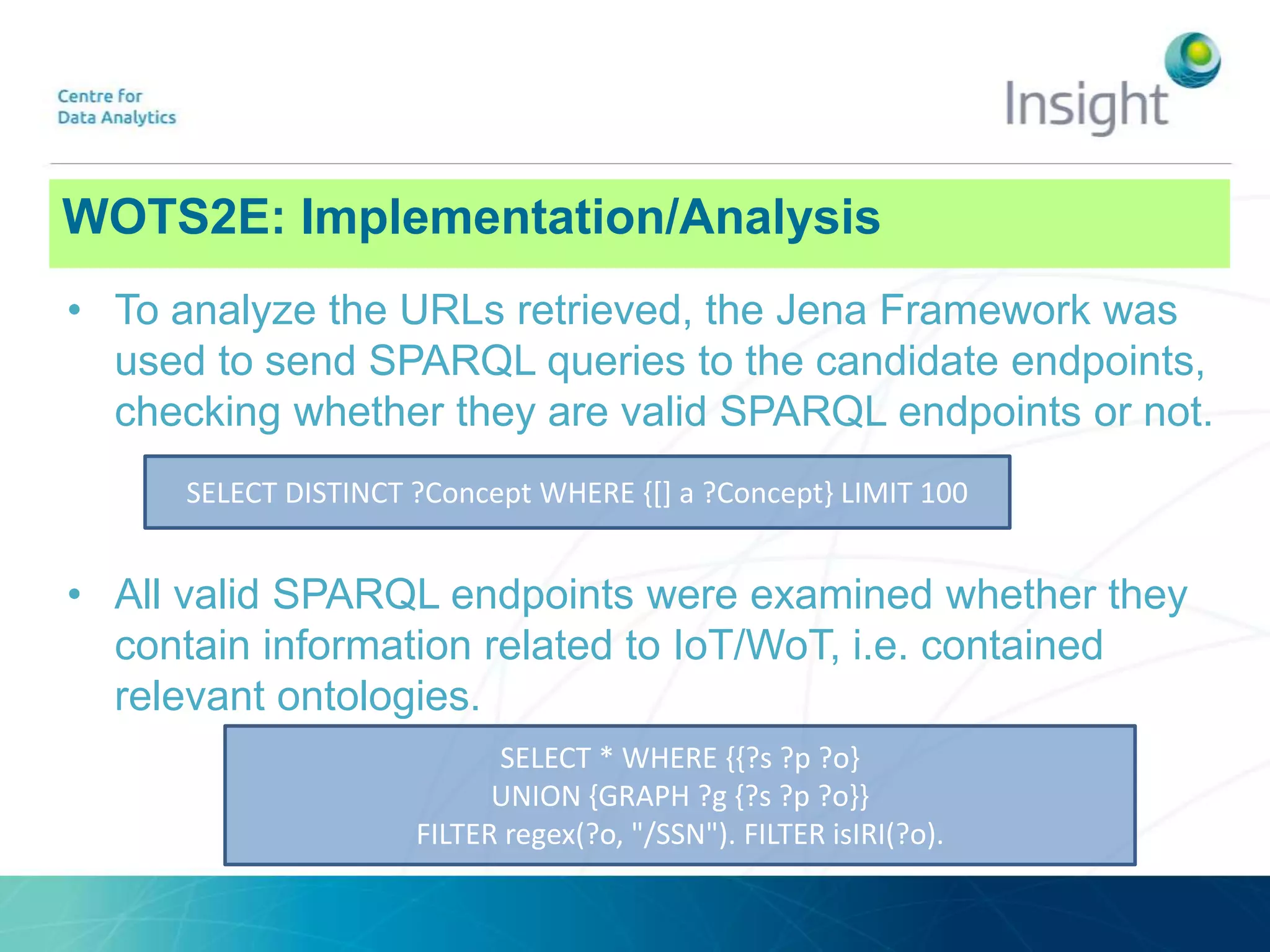

20. WOTS2E: ArchitectureWOTS2E: Implementation/Analysis
• To analyze the URLs retrieved, the Jena Framework was
used to send SPARQL queries to the candidate endpoints,
checking whether they are valid SPARQL endpoints or not.
• All valid SPARQL endpoints were examined whether they
contain information related to IoT/WoT, i.e. contained
relevant ontologies.
SELECT DISTINCT ?Concept WHERE {[] a ?Concept} LIMIT 100
SELECT * WHERE {{?s ?p ?o}
UNION {GRAPH ?g {?s ?p ?o}}
FILTER regex(?o, "/SSN"). FILTER isIRI(?o).

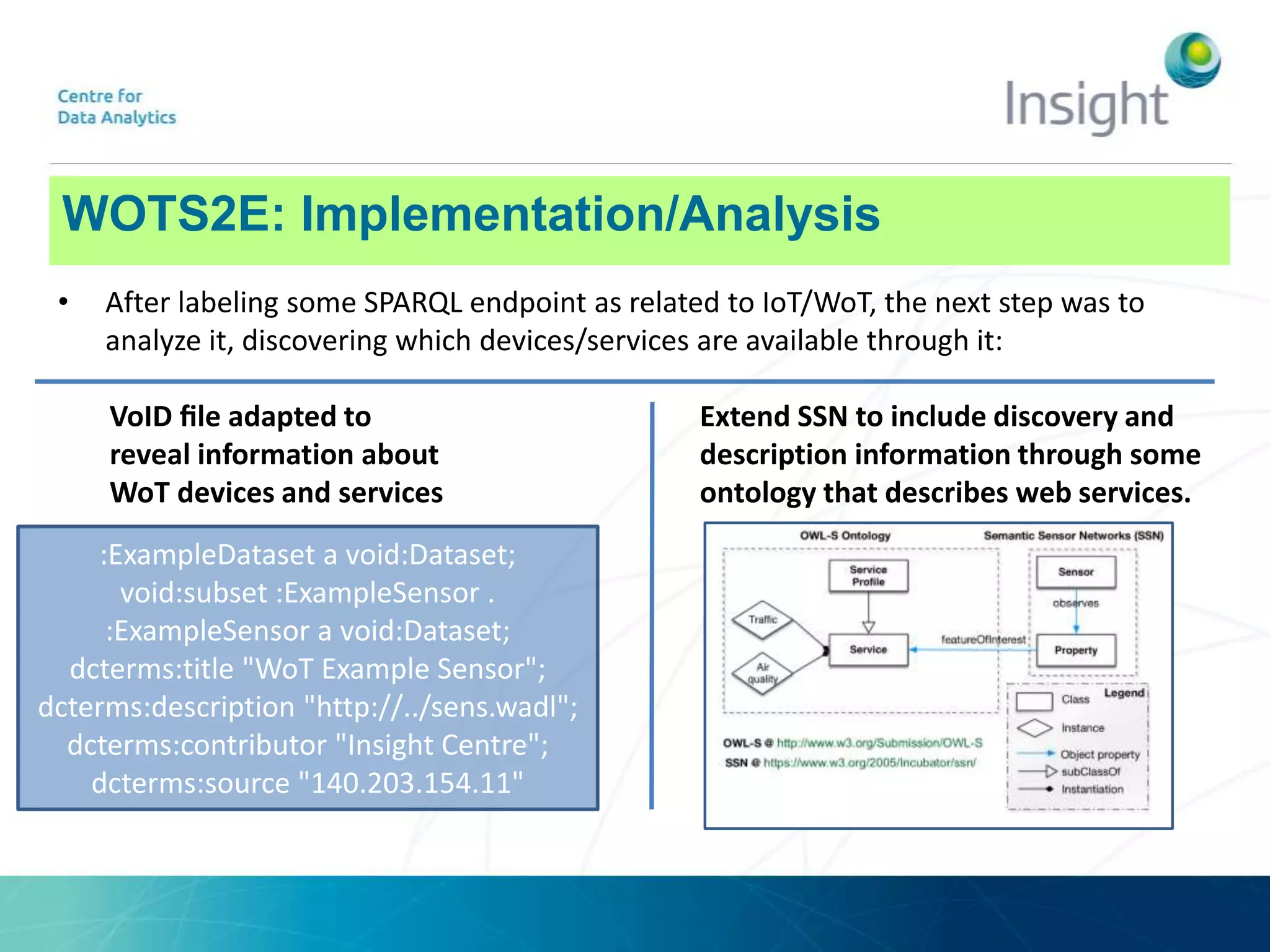

21. • After labeling some SPARQL endpoint as related to IoT/WoT, the next step was to
analyze it, discovering which devices/services are available through it:
VoID file adapted to
reveal information about
WoT devices and services
Extend SSN to include discovery and
description information through some
ontology that describes web services.
:ExampleDataset a void:Dataset;
void:subset :ExampleSensor .
:ExampleSensor a void:Dataset;
dcterms:title "WoT Example Sensor";
dcterms:description "http://../sens.wadl";
dcterms:contributor "Insight Centre";
dcterms:source "140.203.154.11"
WOTS2E: Implementation/Analysis

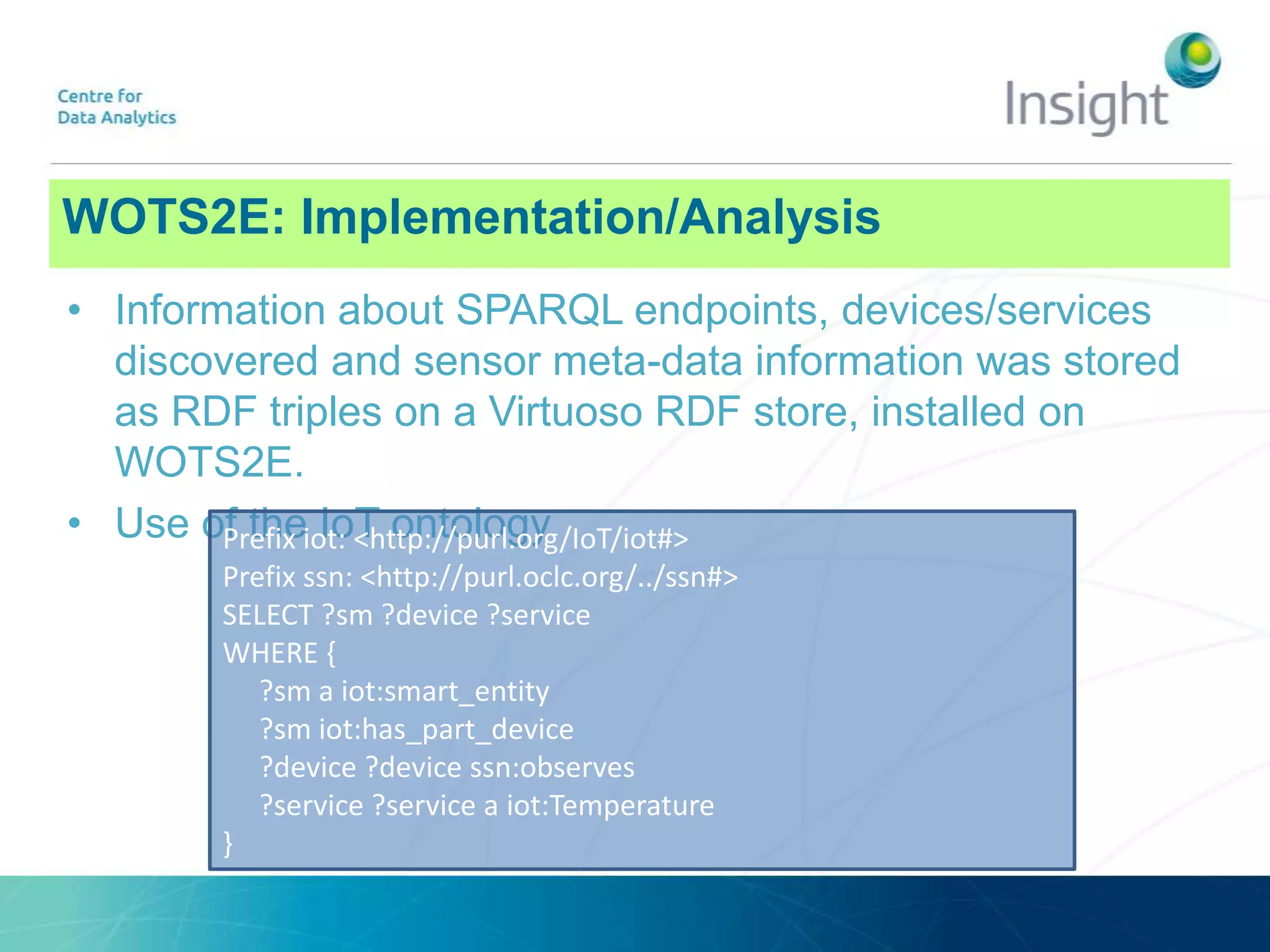

22. WOTS2E: ArchitectureWOTS2E: Implementation/Analysis
• Information about SPARQL endpoints, devices/services
discovered and sensor meta-data information was stored
as RDF triples on a Virtuoso RDF store, installed on
WOTS2E.
• Use of the IoT ontologyPrefix iot: <http://purl.org/IoT/iot#>
Prefix ssn: <http://purl.oclc.org/../ssn#>
SELECT ?sm ?device ?service
WHERE {
?sm a iot:smart_entity
?sm iot:has_part_device
?device ?device ssn:observes
?service ?service a iot:Temperature
}

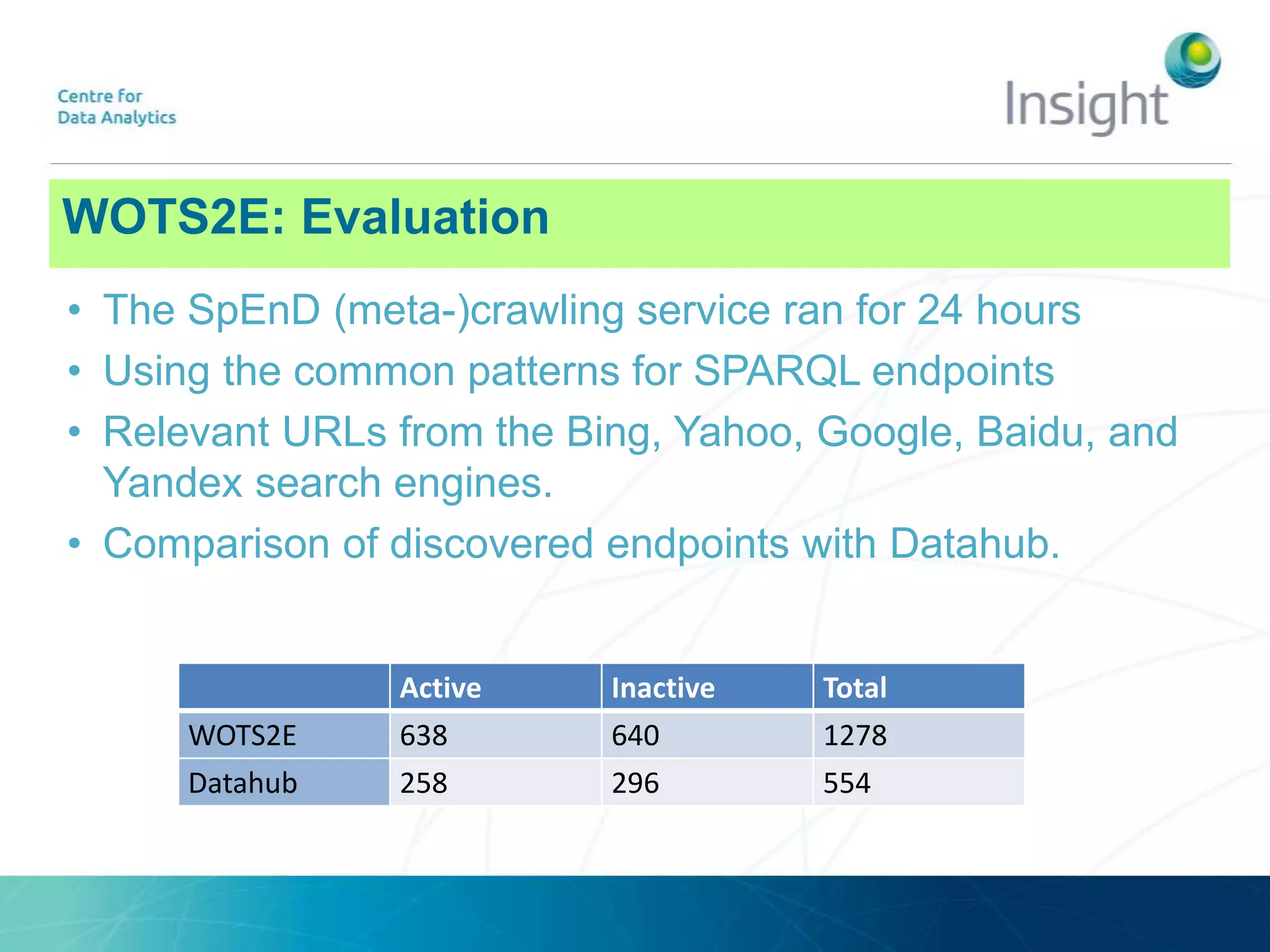

23. WOTS2E: ArchitectureWOTS2E: Evaluation
• The SpEnD (meta-)crawling service ran for 24 hours
• Using the common patterns for SPARQL endpoints
• Relevant URLs from the Bing, Yahoo, Google, Baidu, and
Yandex search engines.
• Comparison of discovered endpoints with Datahub.
Active Inactive Total
WOTS2E 638 640 1278
Datahub 258 296 554

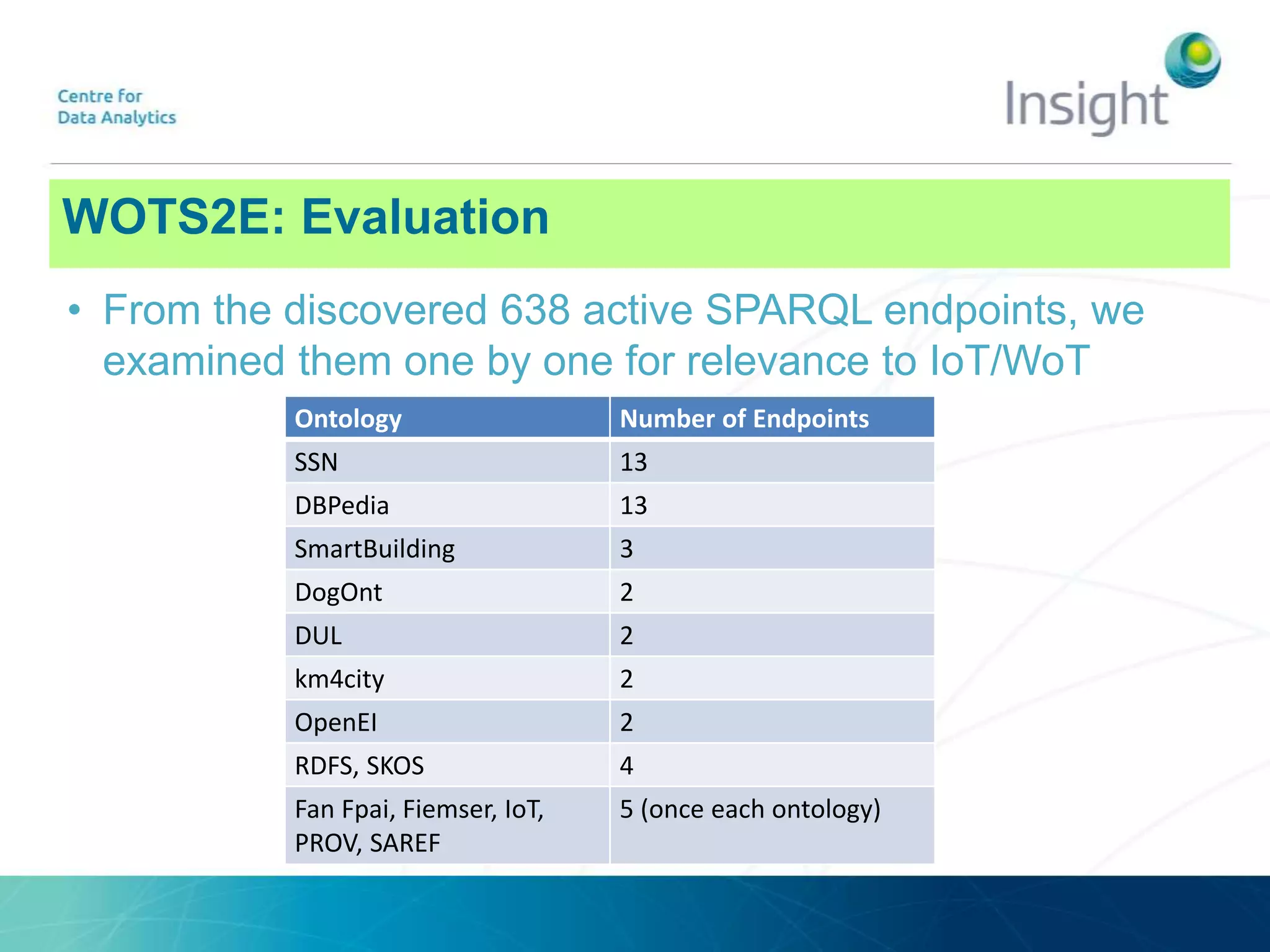

24. WOTS2E: ArchitectureWOTS2E: Evaluation
• From the discovered 638 active SPARQL endpoints, we
examined them one by one for relevance to IoT/WoT
Ontology Number of Endpoints
SSN 13
DBPedia 13
SmartBuilding 3
DogOnt 2
DUL 2
km4city 2
OpenEI 2
RDFS, SKOS 4
Fan Fpai, Fiemser, IoT,
PROV, SAREF
5 (once each ontology)

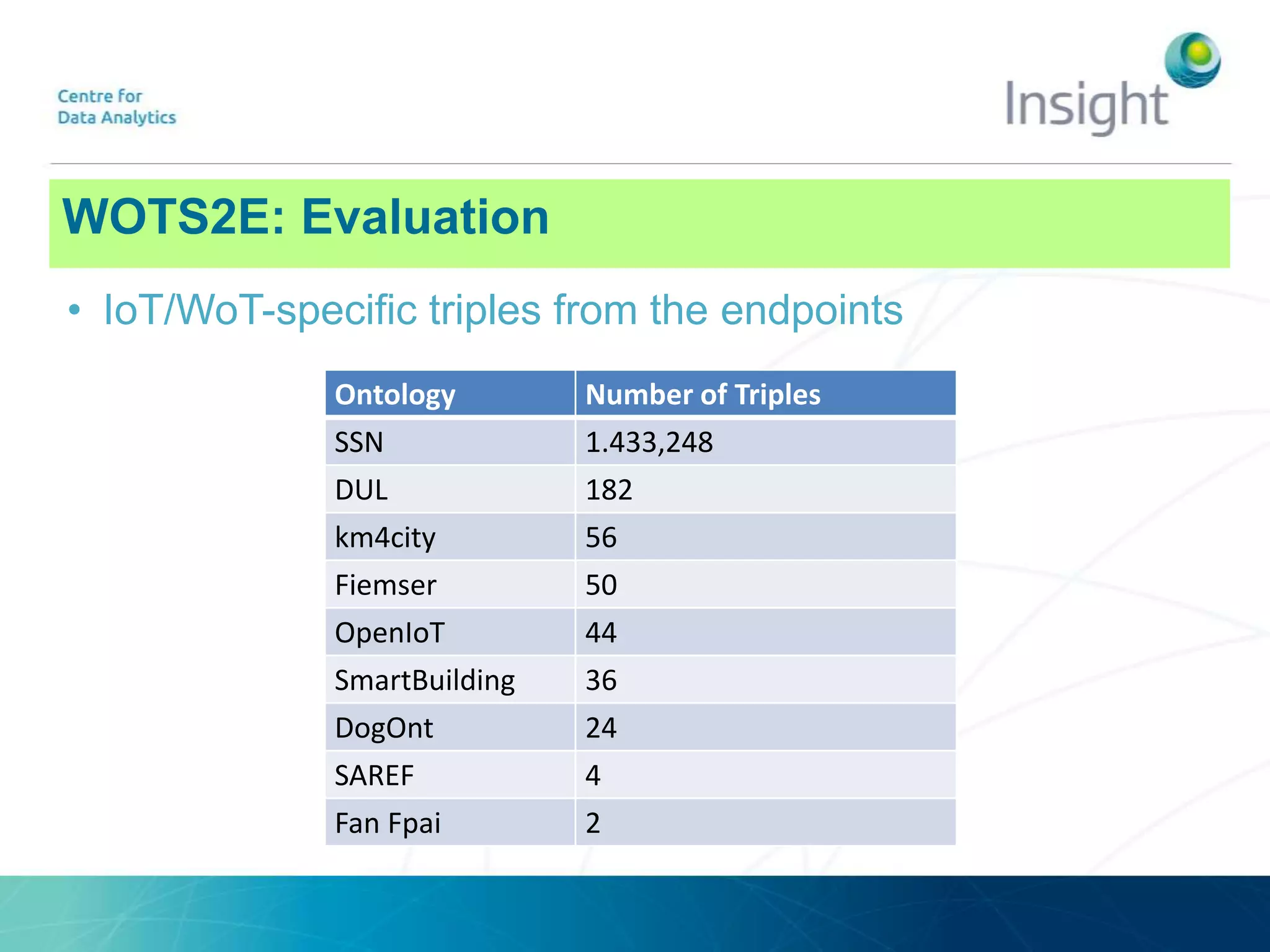

25. WOTS2E: ArchitectureWOTS2E: Evaluation
• IoT/WoT-specific triples from the endpoints
Ontology Number of Triples
SSN 1.433,248
DUL 182
km4city 56
Fiemser 50
OpenIoT 44
SmartBuilding 36
DogOnt 24
SAREF 4
Fan Fpai 2

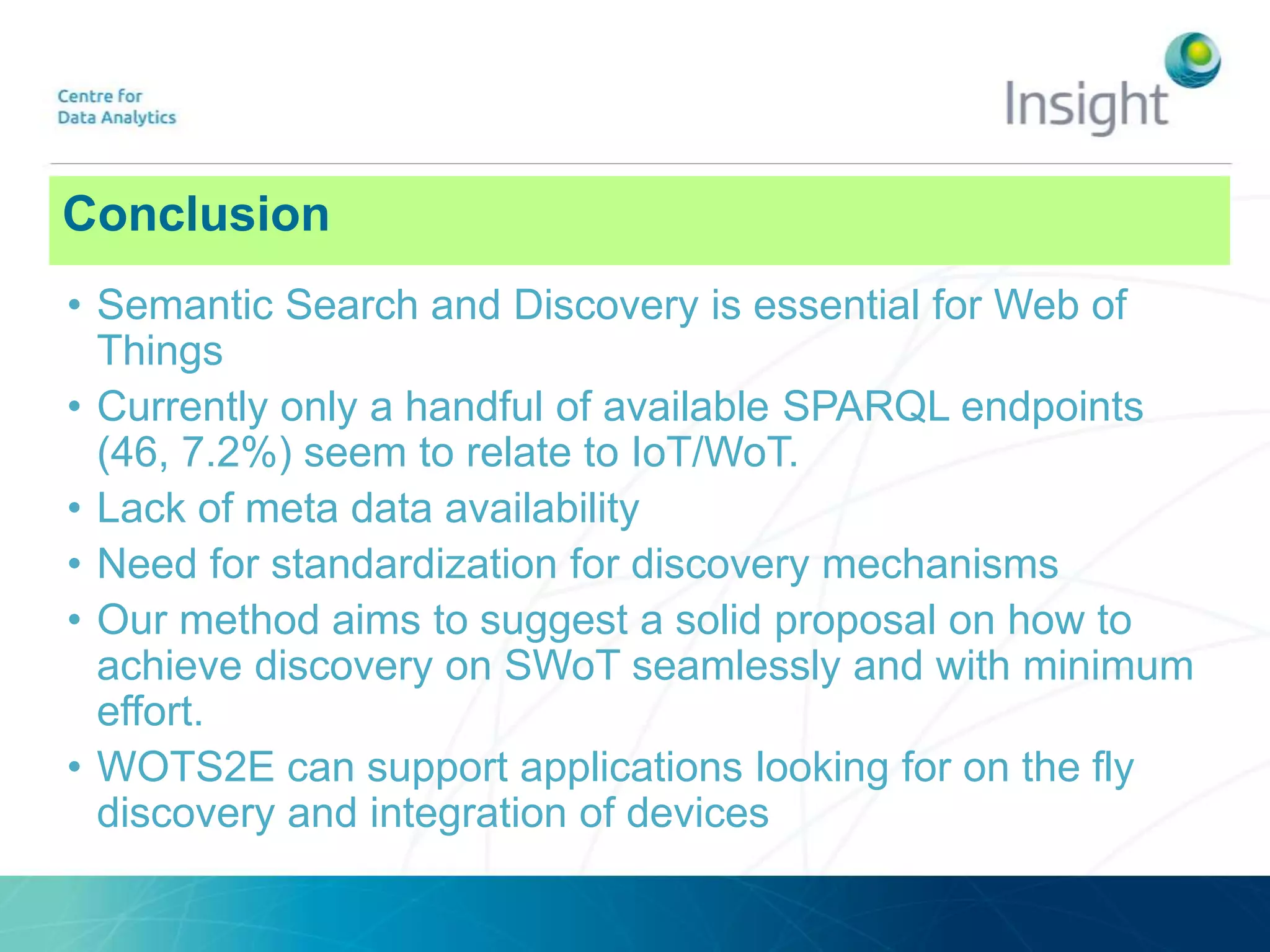

26. Conclusion
• Semantic Search and Discovery is essential for Web of
Things
• Currently only a handful of available SPARQL endpoints
(46, 7.2%) seem to relate to IoT/WoT.
• Lack of meta data availability
• Need for standardization for discovery mechanisms
• Our method aims to suggest a solid proposal on how to
achieve discovery on SWoT seamlessly and with minimum
effort.
• WOTS2E can support applications looking for on the fly
discovery and integration of devices

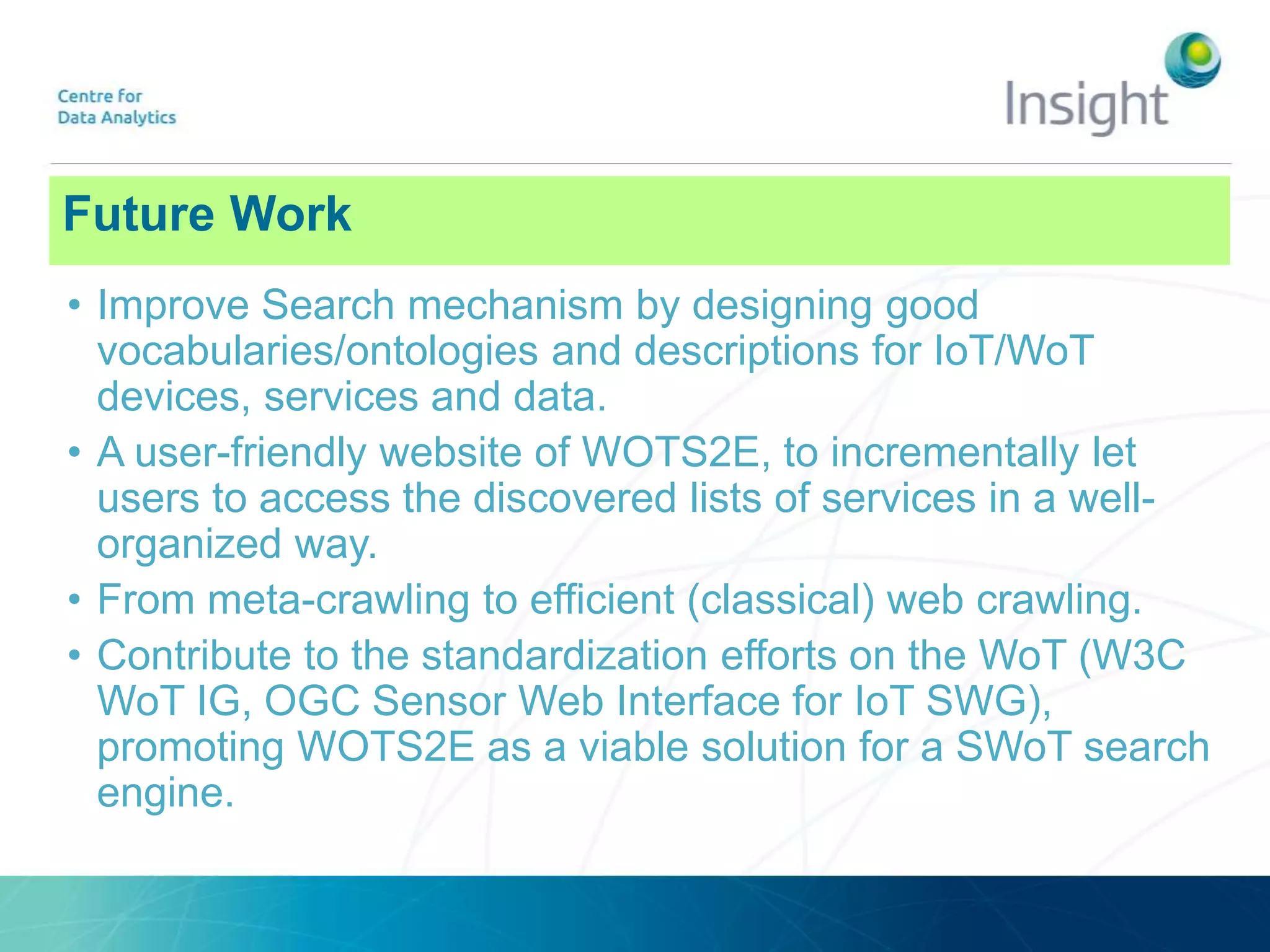

27. Future Work
• Improve Search mechanism by designing good
vocabularies/ontologies and descriptions for IoT/WoT
devices, services and data.
• A user-friendly website of WOTS2E, to incrementally let
users to access the discovered lists of services in a well-
organized way.
• From meta-crawling to efficient (classical) web crawling.
• Contribute to the standardization efforts on the WoT (W3C
WoT IG, OGC Sensor Web Interface for IoT SWG),
promoting WOTS2E as a viable solution for a SWoT search
engine.
