1. JATIYA KABI KAZI NAZRUL ISLAM UNIVERSITY
Presentation On
Submitted to
Mr. Tushar Kanti Saha
Lecturer Deprt of CSE,
JKKNIU
Submitted By
Rasel khan
Roll: 11102027
Session: 2010-2011
Dept Of CSE

2. ASP.NET OVERVIEW
 Introduction & History
 Why use ASP.NET, Some characteristics & with Component
 Steps for developing a web based application and how to work
request with response.
 Working with ASP.NET MVC Framework.
 How to work HTTP Fundamentals.
 ASP.NET web application Routing.
 ASP.NET IIS & how to create virtual directory.

3. ASP.NET mean is Active Server Pages . It is a server-side Web
application framework designed for Web development to produce
dynamic Web pages .It was developed by Microsoft to allow
programmers to build ,
• Dynamic web sites,
• Web applications
• Web services

4. • The latest version of ASP is known as ASP.NET
• Visual Studio .NET is a developer application used to
create ASP.NET Web applications
• There are two main types of Web resources created
with ASP.NET applications
– Web Forms are ASP.NET pages within an ASP.NET
application
– Web Services are ASP.NET Web pages that contain
publicly exposed code so that other applications can
interact with them
– Web Services are identified with the file extension .asmx

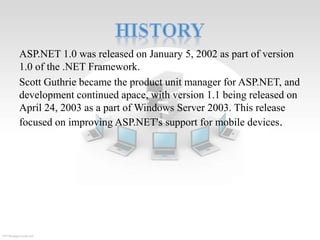

5. ASP.NET 1.0 was released on January 5, 2002 as part of version
1.0 of the .NET Framework.
Scott Guthrie became the product unit manager for ASP.NET, and
development continued apace, with version 1.1 being released on
April 24, 2003 as a part of Windows Server 2003. This release
focused on improving ASP.NET's support for mobile devices.

6. 
Improved Performance and Scalability.

Compiled Execution, Rich Output Caching, Web Farm Session State.

Enhanced Reliability.

Memory Leak, Dead Lock, and Crash Protection

Easy Deployment.

No Touch" Application Deployment, Dynamic Update of Running Application,
Easy Migration Path

New Application Models.

XML Web Services

Developer Productivity.

Easy Programming Model, Flexible Language Options, Rich Class Framework.

7.  Code-behind model

It is recommended by Microsoft for dealing with dynamic program code to use the
code-behind model, which places this code in a separate file or in a specially designated
script tag
 User

controls
ASP.NET supports creating reusable components through the creation of User Controls
 Rendering technique

ASP.NET uses a visited composites rendering technique. During compilation, the
template (.aspx) file is compiled into initialization code which builds a control tree (the
composite) representing the original template

8. • Compiled code
 Code written in ASP.NET is compile and not interpreted.
• Enriched tool support
 ASP.NET applications using visual studio
• Power and flexibility
 ASP.NET applications are based on the CLR
• Simplicity
 ASP.NET enables you to build user interfaces that separate application logic from
presentation content
• Manageability
 ASP.NET provides a number of options in providing the above facilities

9.  Server control
Respond to users events by running event procedures on
the server.
 HTML control
Represent the standard visual elements provided in
HTML
 Data control
Provide a way to connect to perform commands on and
retrieve data from SQL , OL ,databases and XML data
files
 System components
Provide access to various system level events that occur
on the server

10. Step 1
–
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
–
–
–
–
–
–
Create Local Folders for Your Web
Project
Create a Blank Solution
Add a Web Site to Your Solution
Add a Class Library (Optional)
Check Your Solution Structure
Check Your Local Folder Structure
Add Your Solution to Source Control

11. Web Server
Web Browser
Get default.aspx
1. Client Initiates
2. Communications
With page request
Display page
Server response with
pages
1. Process request
2. Execute server slide
code
3. Store session data
4. Send result response

14. ASP.NET MVC
Model View Controller (MVC) applications by using the ASP.NET framework

15. WHAT IS ASP.NET MVC?
Saying simply, ASP.NET MVC is a new framework from Microsoft that sits over
standard ASP.NET engine.
ASP.NET MVC
ASP.NET

16. ASP.NET MVC Features
1. Clear separation of logic: Model, View, Controller
2. Test-Driven Development (TDD)
3. Full control over HTML and JavaScript
4. Friendly URLs

17. MODEL + VIEW + CONTROLLER = MVC
ASP.NET MVC provides an alternative to the ASP.NET “Web Forms” pattern for creating
MVC-based Web applications.
Views display the application's
user interface (UI). Typically,
this UI is created from the
model data.
Model objects implement the logic
for the application's data domain.
Often, model objects retrieve and
store the app state in a database.
Model
View
Controller
Controllers handle user
interaction, work with the
model, and select a view to
render that displays UI

18. Test-Driven Development (TDD)
Since the UI is completely separated from
the business logic, it’s now easy to write Unit
Tests for the ASP.NET MVC application.
Unit Tests that cover
User Actions and Data Model
User Interface
Controller
Data Objects

19. Full control over HTML & JS
In ASP.NET MVC, designed HTML & JS pages are not more messed up with
“postbacks” and “ViewStates”, which is specific for “Web-forms” pattern.
<input type="hidden" name="__VIEWSTATE" id="__VIEWSTATE"
value="/wEPaA8FDzhjYjBhZjA0ODYyMTM2NBgGBR5fX0NvbnRyb2xzUmVxdWlyZVBvc3RCYWNr
S2V5X18WAQUhY3RsMDAkaGVhZGVyJHVjTWFpbk1lbnUkc2VhcmNoQnRuBTdjdGwwMCRNYWl
uQ29udGVudCRycHRWaWRlbyRjdGwwMyRwcmVzZW50YXRpb25DYXJkJG11bHRp" />
<script type="text/javascript">
//<![CDATA[
var theForm = document.forms['aspnetForm'];
function __doPostBack(eventTarget, eventArgument) {
if (!theForm.onsubmit || (theForm.onsubmit() != false)) {
theForm.__EVENTTARGET.value = eventTarget;
theForm.__EVENTARGUMENT.value = eventArgument;
theForm.submit();
}
}
//]]>
</script>

20. Friendly URLs
MVC binds web paths to the logical URLs rather
than to the physical files.
Physical location:
C:InetpubwwwrootWebSiteProducts.aspx
ASP.NET style:
http://www.website.com/Products.aspx?name=Me
at
MVC style:
http://www.website.com/Products/Meat

21. HOW DOES ASP.NET MVC LOOKS LIKE?
ASP.NET MVC installs a new type of web project into VS2008.

22. A newly created project has an ASP.NET MVC
specific directory structure.
App_Data folder is the physical store for data.
Content folder keeps files such as scripts, CSS, images, and so on.
Controllers folder is the location for controllers. The MVC framework
requires the names of all controllers to end with "Controller"—for
example, HomeController, LoginController, or ProductController.
Models stores classes that handle application business logic.
Scripts folder is for script files that support the application. By default,
this folder contains AJAX script files and the JQuery library.
Views is the recommended location for views. Views use .aspx, .ascx,
and .master files, in addition to any other files that are related to
rendering views.

23. ASP.NET MVC supports pure MVC pattern, the same
development pattern Rails are based on. The advantages
of ASP.NET MVC applications:
1. It makes it easier to manage complexity by dividing an application into
the model, the view, and the controller.
2. It does not use view state or server-based forms.
3. It uses a Front Controller pattern that processes Web application
requests through a single controller. This enables you to design an
application that supports a rich routing infrastructure with friendly
URLs.
4. It provides better support for test-driven development (TDD).
5. It works well for Web applications that are supported by large teams
of developers and Web designers who need a high degree of control
over the application behavior.

24.  http://www.asp.net/mvc - official site
 http://weblogs.asp.net/scottgu/archive/2007/11/13/asp-net-mvcframework-part-1.aspx - development basics on ASP.NET MVC
 http://weblogs.asp.net/scottgu/archive/2007/12/03/asp-net-mvcframework-part-2-url-routing.aspx - URL routing used in ASP.NET MVC
 http://weblogs.asp.net/scottgu/archive/2007/12/06/asp-net-mvcframework-part-3-passing-viewdata-from-controllers-to-views.aspx interaction between Controllers and Views
 http://weblogs.asp.net/scottgu/archive/2007/12/09/asp-net-mvcframework-part-4-handling-form-edit-and-post-scenarios.aspx - managing
form input data

25. ASP.NET Web API
and HTTP Fundamentals

26. CRAMMING YOUR BRAINS WITH
HTTP & ASP.NET WEB API
•
HTTP Fundamentals via Web API
•
Dependency Resolver
•
HTTP Messages
•
URIs
•
HTTP.SYS
•
Routing
•
IIS 101
•
Verbs
•
HTTP compression
•
Controllers and Actions
•
Persisted Connections
•
Status Codes
•
Web API Self Hosting
•
HttpRequestMessage
HttpResponseMessage
•
Error Handling
•
Content Negotiation
•
Media Type Formatters
•
OData
•
Validations
•
•
Hosting
More HTTP and Web API
•
Caching
•
Concurrency
•
Security
•
Streaming
•
WebSockets & SignalR
26

27. WHY IS HTTP IMPORTANT?
 HTTP is a first class application layer protocol
 Unlike other protocols it was created to support a single information
system
 That system happened to be the largest and main information
system of the human race:
27

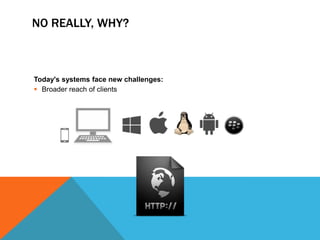

28. NO REALLY, WHY?
Today's systems face new challenges:
 Broader reach of clients

29. What About ASP.NET Web API?
• The .NET platform never had a first
class framework for HTTP-based
services
• WCF was created as a SOAP-based
framework and never really
matured to support HTTP
29

30. THE HISTORY OF ASP.NET WEB API
6 Preview Versions
WCF Web API
on CodePlex
WCF WebHttp
Binding (.NET 4)
ASP.NET Web API 4
Release
ASP.NET is
Open Source
ASP.NET Web API 2
Release Candidate
ASP.NET Web API
(Beta)
30

31. HTTP Messages 101
 HTTP is a first class application protocol:
 Widely supported across platforms and devices
 Scalable
 Simple
 Uses the request-response messaging
pattern
 Define resource-based semantics and not
RPC (Remote Procedure Call) or methods
31

32. HTTP REQUEST MESSAGES
GET http://localhost:2300/api/agents/Bond HTTP/1.1
Accept: text/html, application/xhtml+xml, */*
Accept-Language: en-US,en;q=0.7,he;q=0.3
User-Agent: Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.2; WOW64; Trident/6.0)
Accept-Encoding: gzip, deflate
Host: localhost:2300
DNT: 1
Connection: Keep-Alive
32

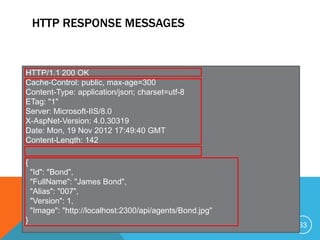

33. HTTP RESPONSE MESSAGES
HTTP/1.1 200 OK
Cache-Control: public, max-age=300
Content-Type: application/json; charset=utf-8
ETag: "1"
Server: Microsoft-IIS/8.0
X-AspNet-Version: 4.0.30319
Date: Mon, 19 Nov 2012 17:49:40 GMT
Content-Length: 142
{
"Id": "Bond",
"FullName": "James Bond",
"Alias": "007",
"Version": 1,
"Image": "http://localhost:2300/api/agents/Bond.jpg"
}
33

34. URIS
•
HTTP is not an RPC protocol
•
HTTP uses URIs to identify resources over the network
•
An HTTP URI has the following basic structure:
http://theagency.com:8080/agents?id=1
Schema
Host
Port
Absolute
Path
Query
34

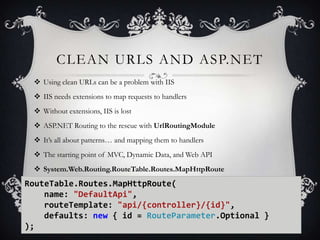

35. CLEAN URLS AND ASP.NET
 Using clean URLs can be a problem with IIS
 IIS needs extensions to map requests to handlers
 Without extensions, IIS is lost
 ASP.NET Routing to the rescue with UrlRoutingModule
 It’s all about patterns… and mapping them to handlers
 The starting point of MVC, Dynamic Data, and Web API
 System.Web.Routing.RouteTable.Routes.MapHttpRoute
RouteTable.Routes.MapHttpRoute(
name: "DefaultApi",
routeTemplate: "api/{controller}/{id}",
defaults: new { id = RouteParameter.Optional }
);
35

36. ASP.NET WEB API - ROUTING
36

37. Routing with attributes

Why attributes over convention?
 Child (sub) resources
 Multiple type of parameters or return
values
 Versioning of actions and controllers

Start by enabling attribute routing
 config.MapHttpAttributeRoutes();
[RoutePrefix("api/agents/{agentId}")]
public class ObservationsController : ApiController
{
// GET api/agents/bond/observations
[HttpGet("observations/{date}")]
public Observation Get(string agentId, DateTime date) { ... }
}

38. Verbs
• HTTP defines a set of Methods or Verbs
that add an action-like semantics to
requests
• Verbs are defined as the first segment of
• the request-line:
GET http://localhost:4392/travelers/1 HTTP/1.1
• There are eight verbs defined in HTTP
1.1:
GET
POST
PUT
DELETE
HEAD
OPTIONS
TRACE
CONNECT
38

39. 3, 2, 1, Actions!
• Actions are matched by HTTP verb names and
the existence of parameters
public class ProductsController : ApiController
{
public IEnumerable<Product> GetProducts() {...}
public Product GetProductById(int id) {...}
public HttpResponseMessage PostProduct(Product product) {...}
}
GET api/products
GET api/products/42
POST api/products
DELETE api/products/42

40. Status Codes
 Status codes describe the result of the server’s effort
to satisfy the request
 Passed in the response's status-line as three digit
alongside a textual description called reason phrase
 HTTP has five different categories of status-codes:





1xx – Informational
2xx – Success
3xx – Redirection
4xx – Client Error
5xx – Server Error
(100 / 101)
(200 – 206)
(300 – 307)
(400 – 417)
(500 – 505)

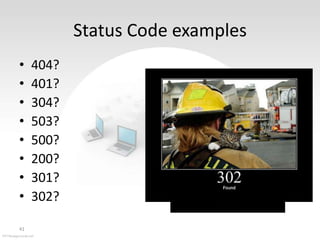

41. Status Code examples
•
•
•
•
•
•
•
•
41
404?
401?
304?
503?
500?
200?
301?
302?

42. 
Returning an HttpResponseMessage
allows more control over the response,
including:



Status code
HTTP headers
Entity body
public HttpResponseMessage CreateAgent(Agent agent)
{
agent = _repository.Add(agent);
var response =
Request.CreateResponse<Agent>(HttpStatusCode.Created, agent);
response.Headers.Location = GetAgentLocation(agent.Id);
return response;
}
42

43. Error Handling
• In HTTP services errors are handled by
▫ Returning an appropriate status code
▫ Returning an entity body explaining the error
(when applicable)
• Web API allows you to handle exceptions by
▫ Return an HttpResponseMessage with
appropriate status code (404, 500 …)
▫ Throw an HttpResponseException
▫ Create a general exception handler by using Filters
43

44. HTTP defines a process to best match the
server’s response to the client’s expectation
 Negotiation can be done using:

 Headers:
Accept, Accept- Language, Accept- Charset,
Accept-Encoding
 URI:
File extensions (.jpeg, .html), host-name: (com,
org), path and query
44

45. ASP.NET, IIS & how to create virtual
directory

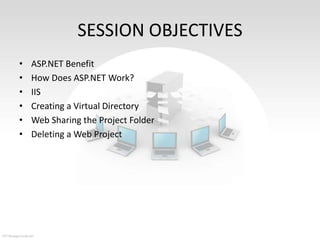

46. SESSION OBJECTIVES
•
•
•
•
•
•
ASP.NET Benefit
How Does ASP.NET Work?
IIS
Creating a Virtual Directory
Web Sharing the Project Folder
Deleting a Web Project

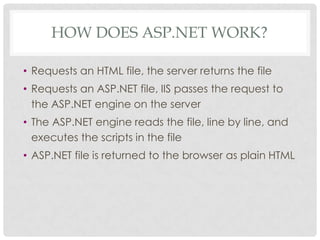

47. HOW DOES ASP.NET WORK?
• Requests an HTML file, the server returns the file
• Requests an ASP.NET file, IIS passes the request to
the ASP.NET engine on the server
• The ASP.NET engine reads the file, line by line, and
executes the scripts in the file
• ASP.NET file is returned to the browser as plain HTML

48. 
Separation of Code from HTML

Graphical Development Environment

Update files while the server is running!

Support for compiled languages

State management

49. IIS – Internet Information Services
• Internet Information Service
• IIS (Internet Information Services) is Microsoft's
Internet server
• IIS comes as a free component with Windows
servers
• IIS is also a part of Windows 2000 and XP
Professional

50. 



Start, Settings, Control Panel, Administrative
Tools, Internet Services Manager
Expand node for computer and default Web
site
Right-click Default Web site icon, select New,
Virtual Directory
In Virtual Directory Creation Wizard enter
your project folder name as the alias and enter
the folder and path

51. Web Sharing the Project Folder
 Select the Project folder in My Computer
 Right-click, select Properties, Web Sharing, activate
Share This Folder
 In Edit Alias dialog click OK

52. Deleting a Web Project

Project in IIS Virtual Directory
 Delete the directory

Project in Web Shared Folder
 “Unshare” it from Properties dialog
 Either Reboot Computer or Stop and Restart IIS
 Delete Folder

53. Thank You All
